MSC ANGELA
9351593 | 3ESB8 | MSC by ************************** Last update: Thu Jun 15 2023

General Info

Ship Name:MSC ANGELA
IMO Code:9351593
Call Sign:3ESB8
Line Operator:MSC
Class Name for Sister Ships:ANG
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,234

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

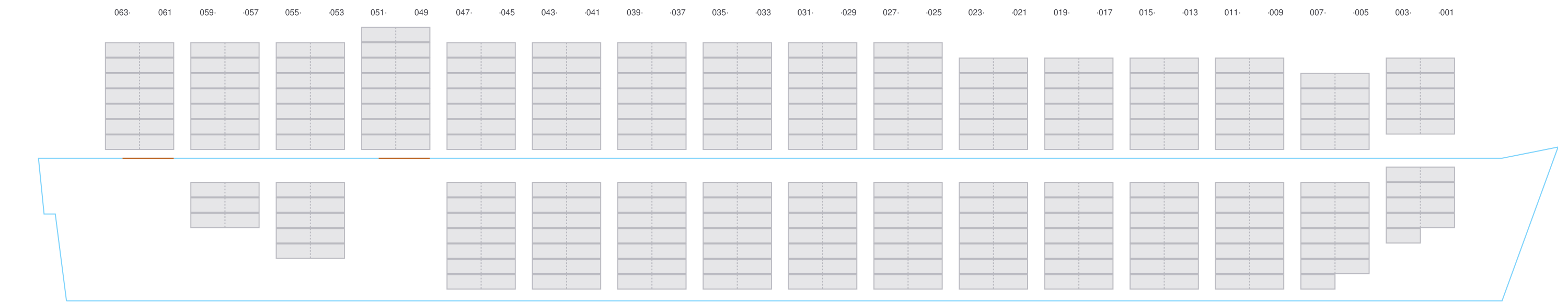

Side view of MSC ANGELA

Hatch-Covers View

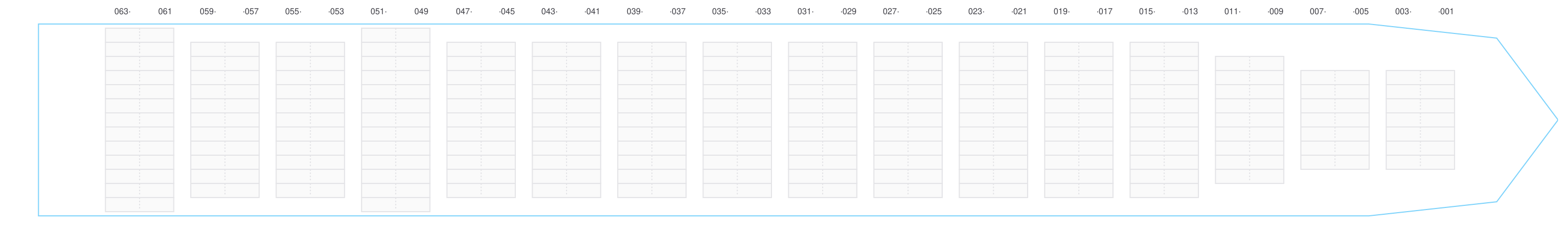

Deck view of MSC ANGELA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

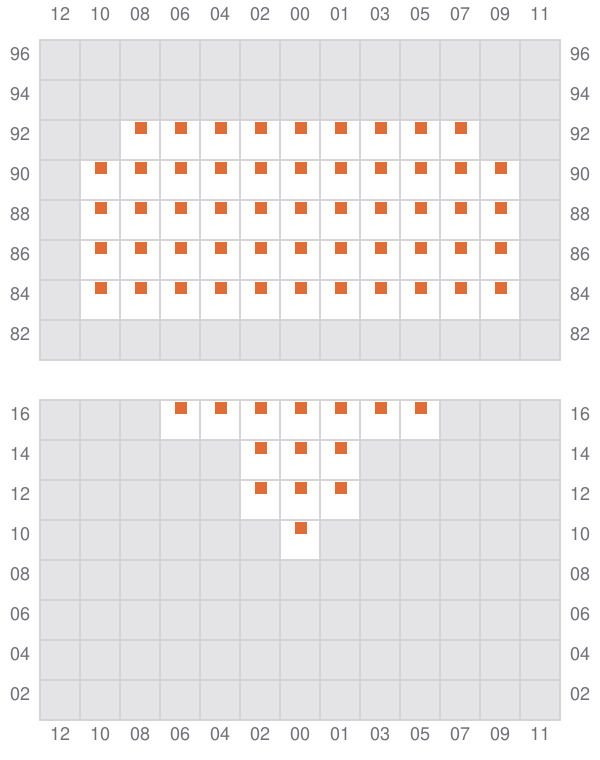

Bay 001 view and slots of MSC ANGELA

003 (002)

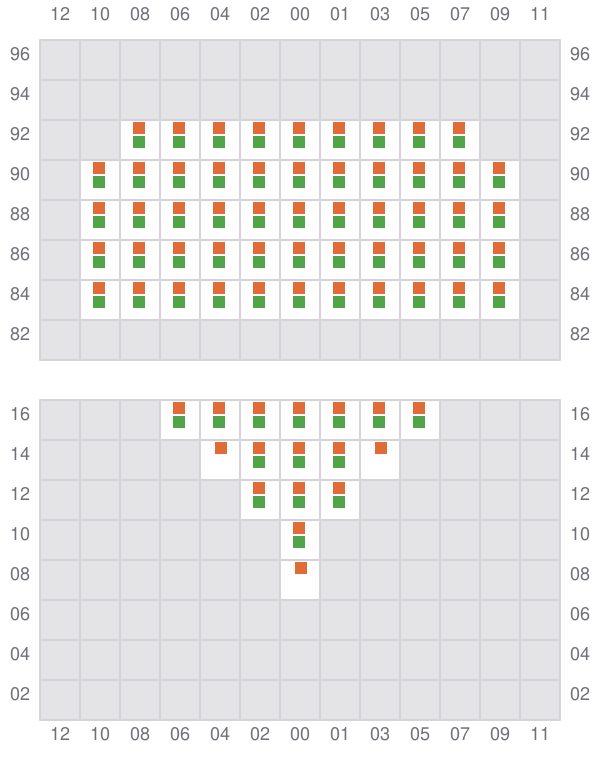

Bay 003 view and slots of MSC ANGELA

005

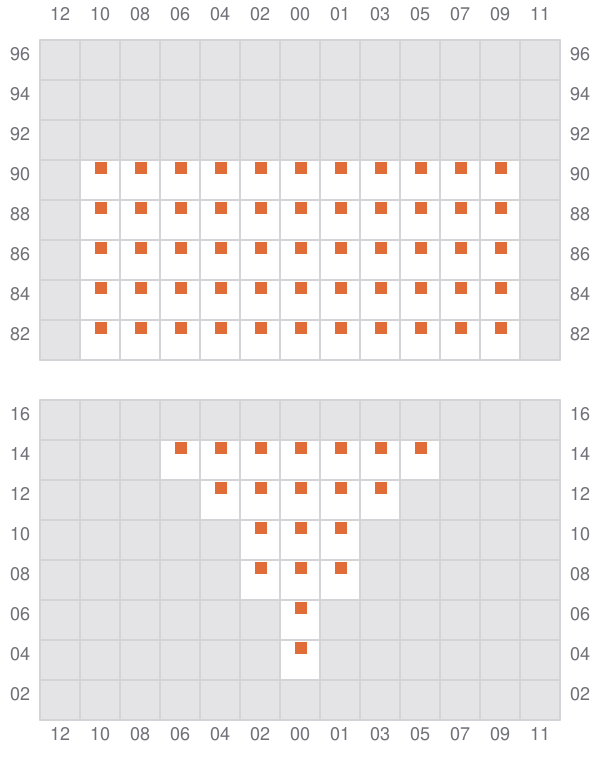

Bay 005 view and slots of MSC ANGELA

007 (006)

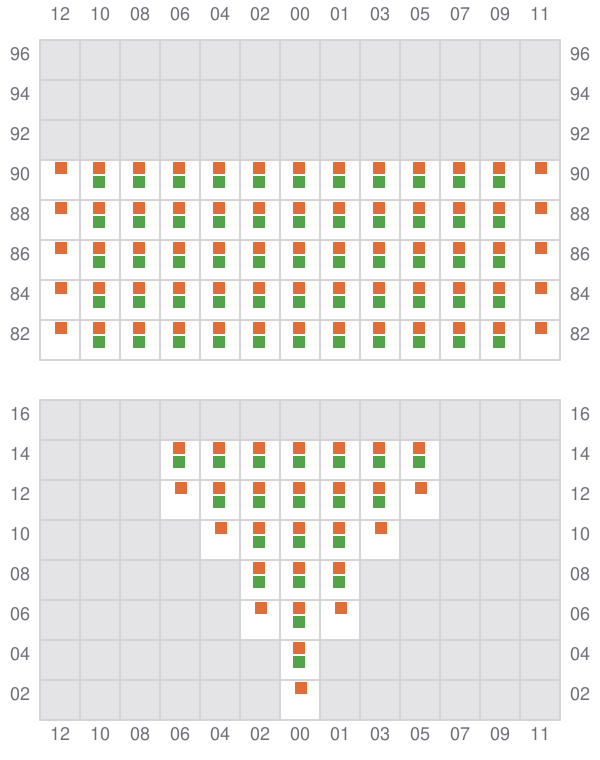

Bay 007 view and slots of MSC ANGELA

009

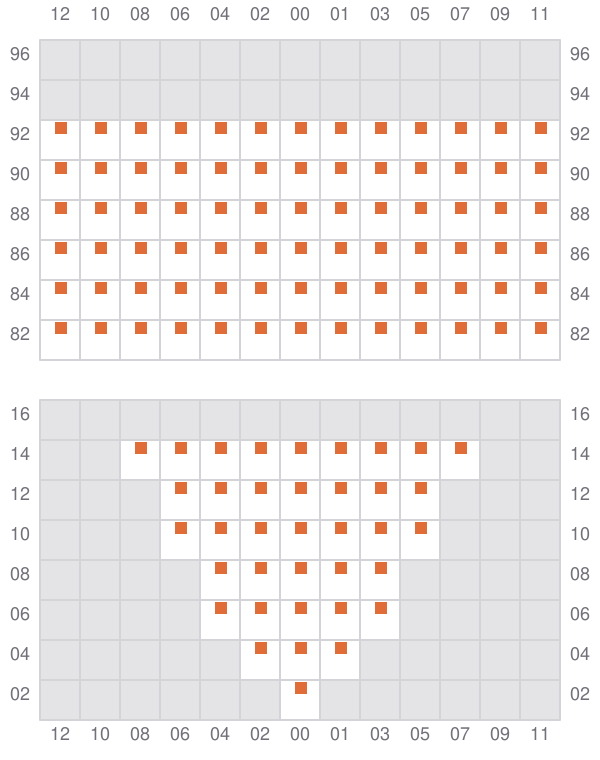

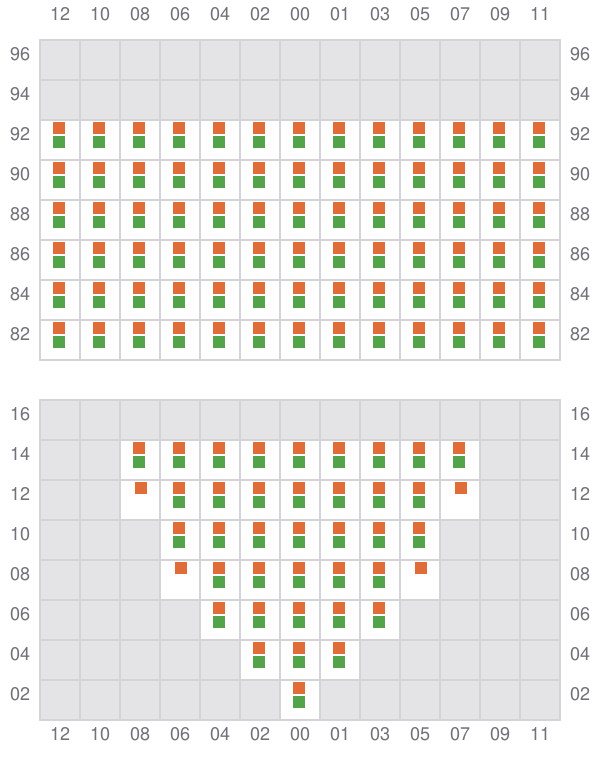

Bay 009 view and slots of MSC ANGELA

011 (010)

Bay 011 view and slots of MSC ANGELA

013

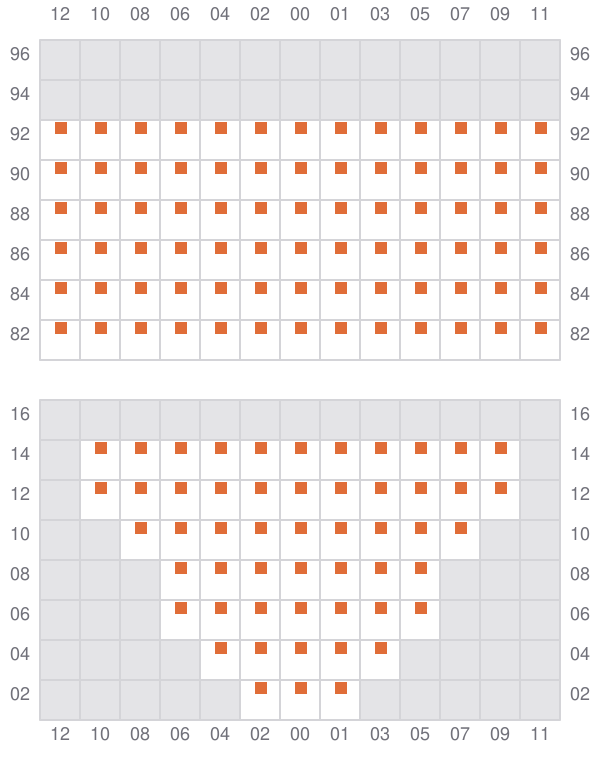

Bay 013 view and slots of MSC ANGELA

015 (014)

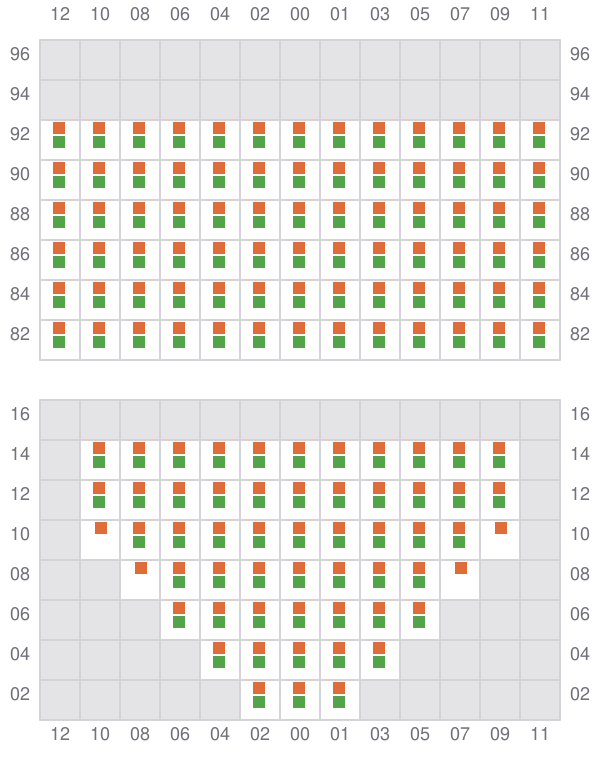

Bay 015 view and slots of MSC ANGELA

017

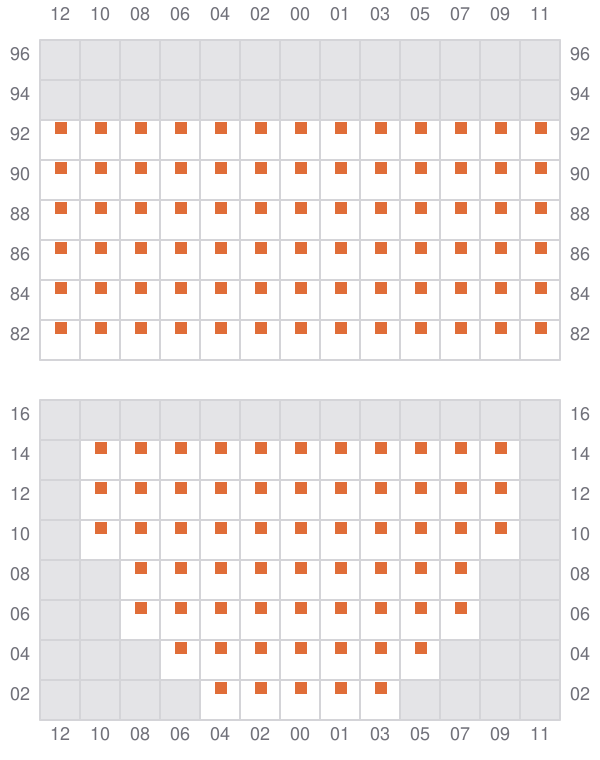

Bay 017 view and slots of MSC ANGELA

019 (018)

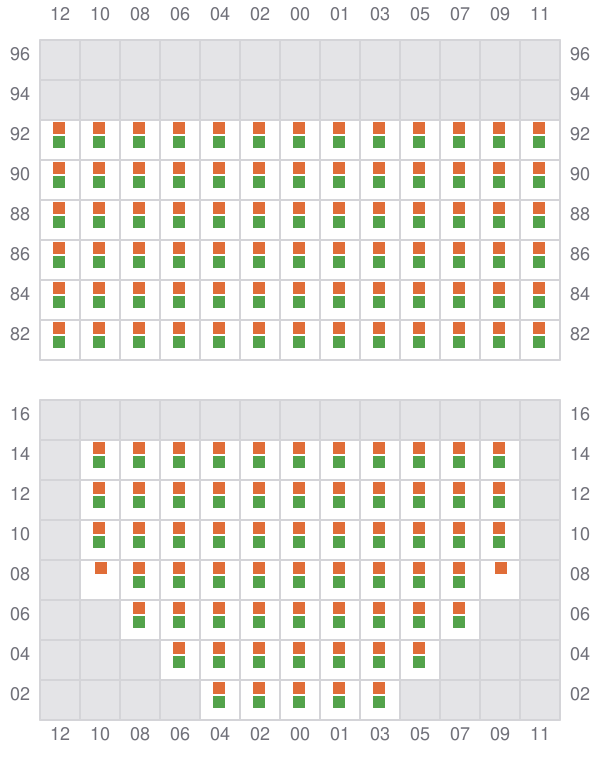

Bay 019 view and slots of MSC ANGELA

021

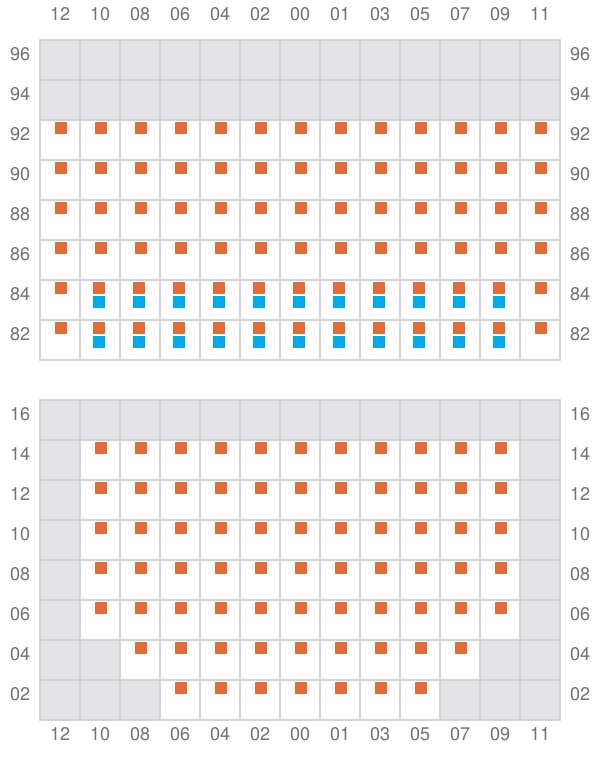

Bay 021 view and slots of MSC ANGELA

023 (022)

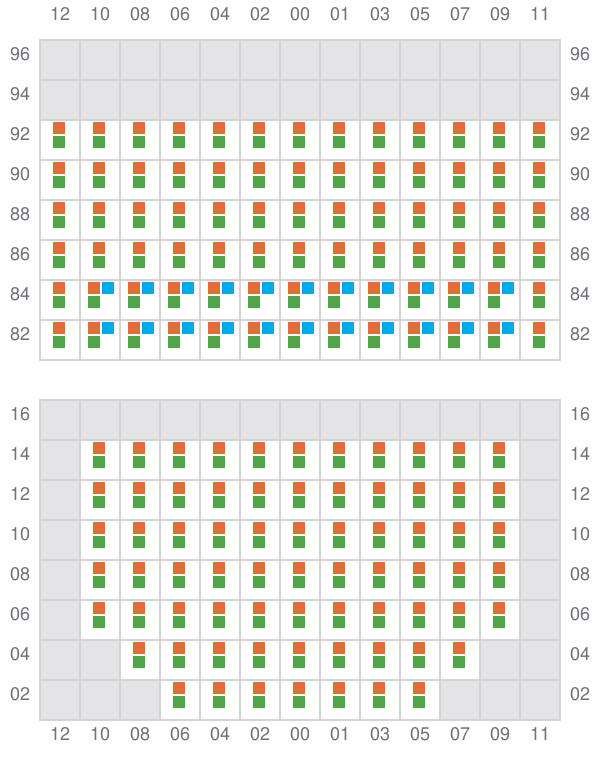

Bay 023 view and slots of MSC ANGELA

025

Bay 025 view and slots of MSC ANGELA

027 (026)

Bay 027 view and slots of MSC ANGELA

029

Bay 029 view and slots of MSC ANGELA

031 (030)

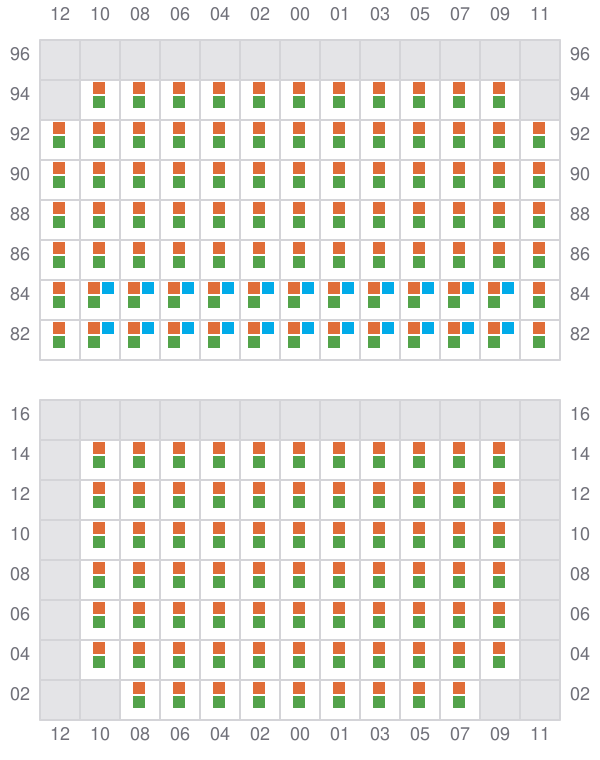

Bay 031 view and slots of MSC ANGELA

033

Bay 033 view and slots of MSC ANGELA

035 (034)

Bay 035 view and slots of MSC ANGELA

037

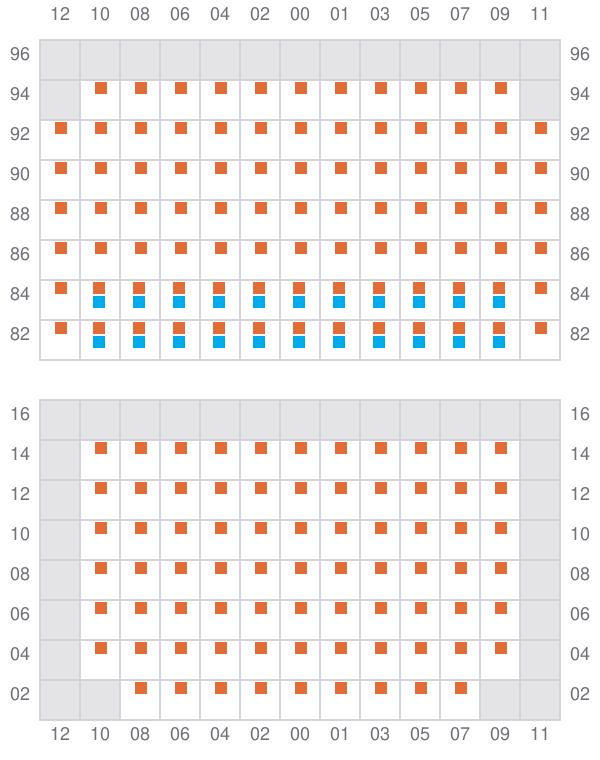

Bay 037 view and slots of MSC ANGELA

039 (038)

Bay 039 view and slots of MSC ANGELA

041

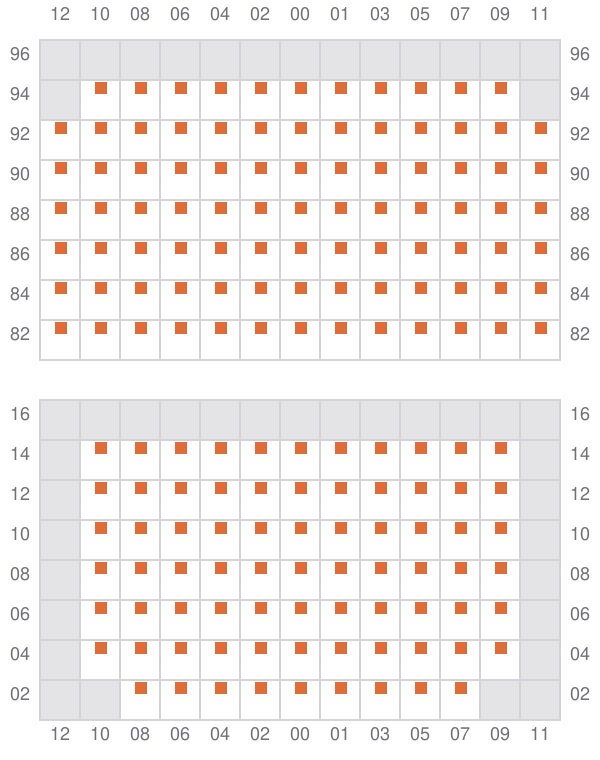

Bay 041 view and slots of MSC ANGELA

043 (042)

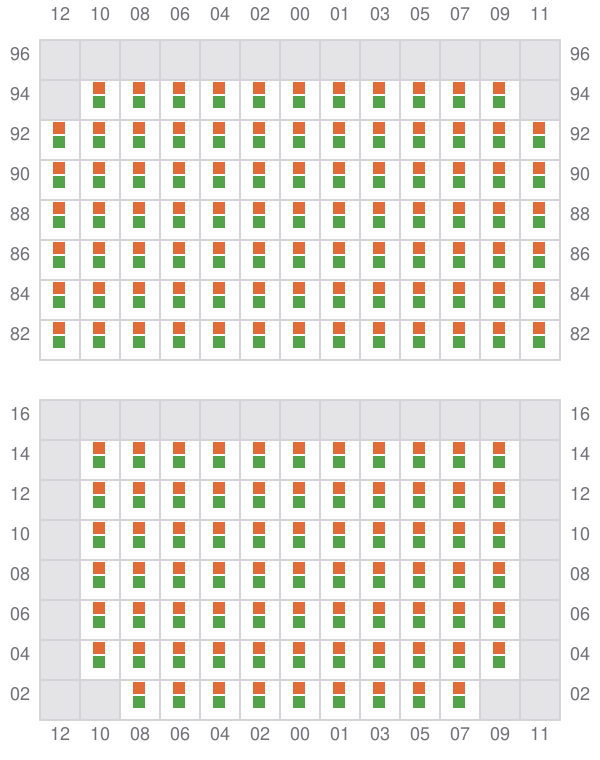

Bay 043 view and slots of MSC ANGELA

045

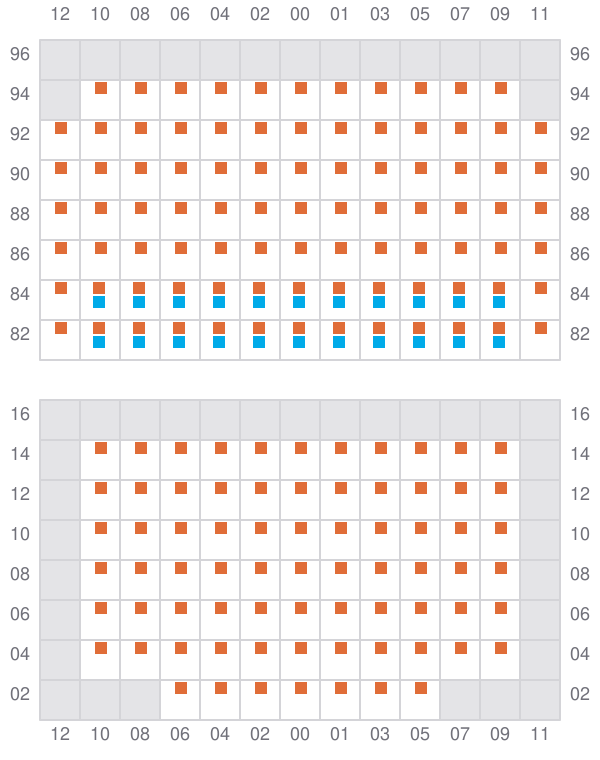

Bay 045 view and slots of MSC ANGELA

047 (046)

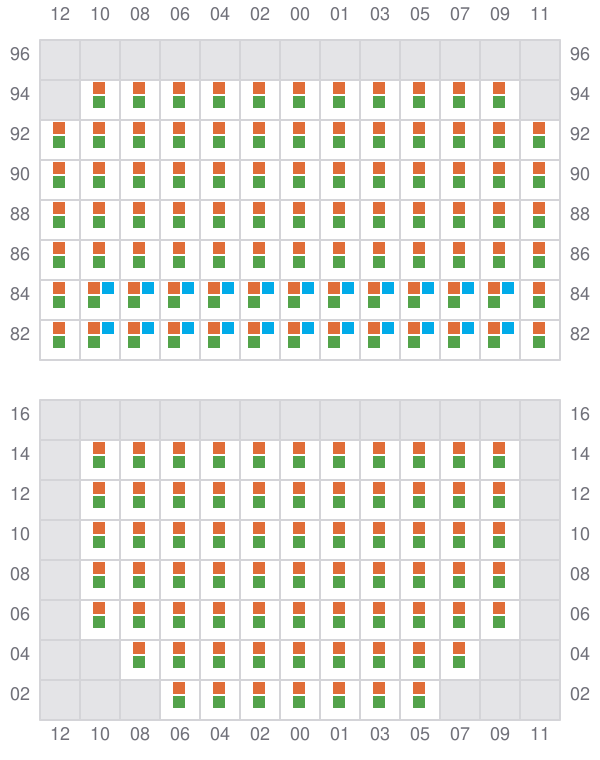

Bay 047 view and slots of MSC ANGELA

049

Bay 049 view and slots of MSC ANGELA

051 (050)

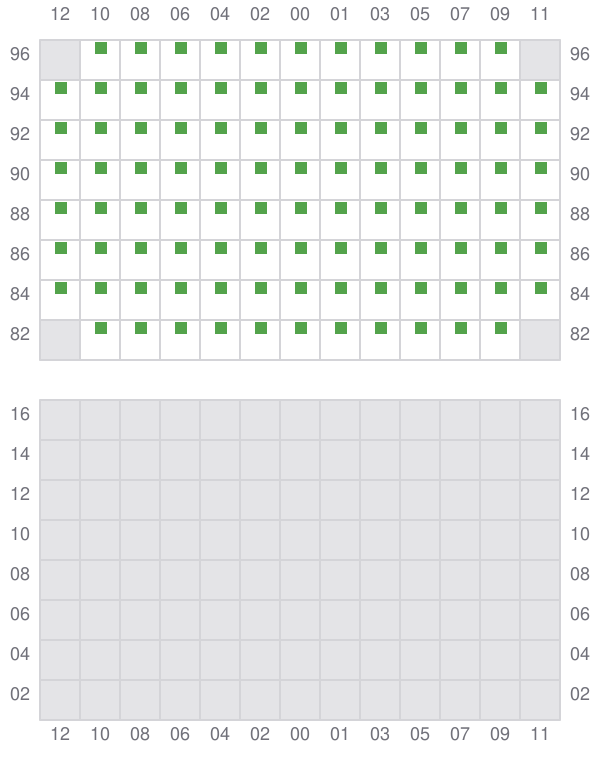

Bay 051 view and slots of MSC ANGELA

053

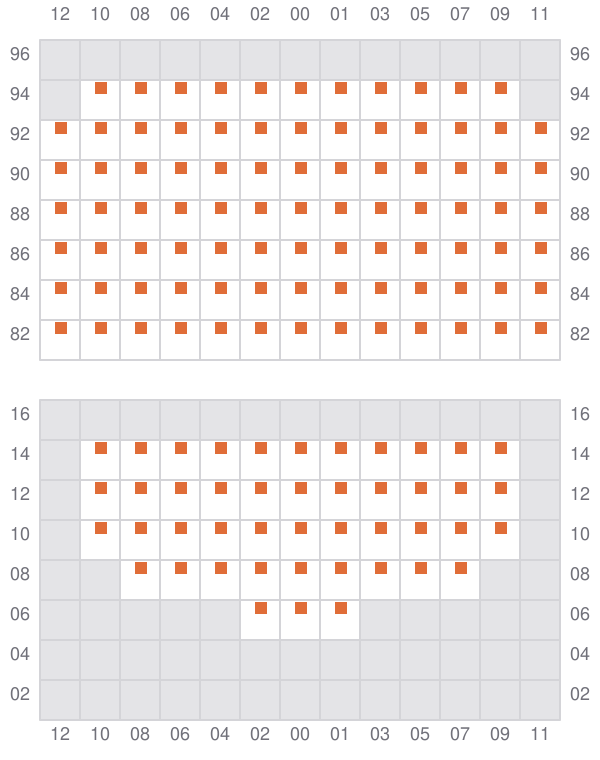

Bay 053 view and slots of MSC ANGELA

055 (054)

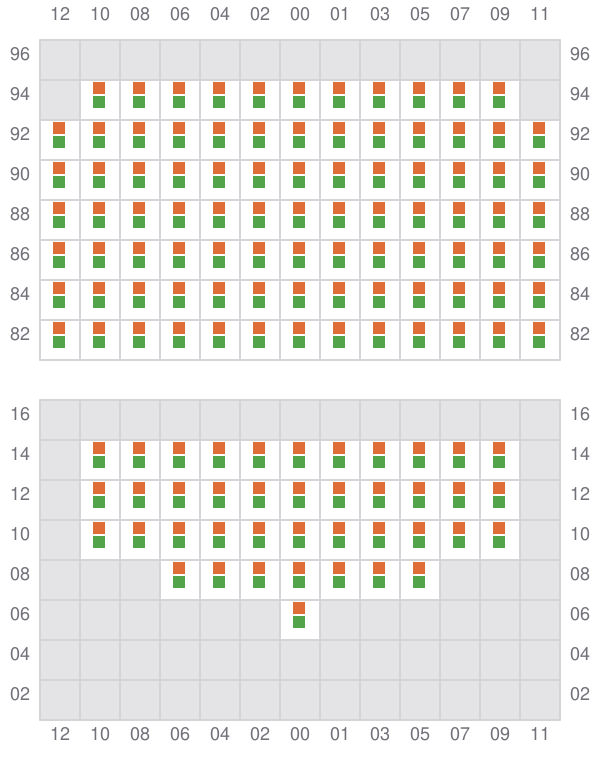

Bay 055 view and slots of MSC ANGELA

057

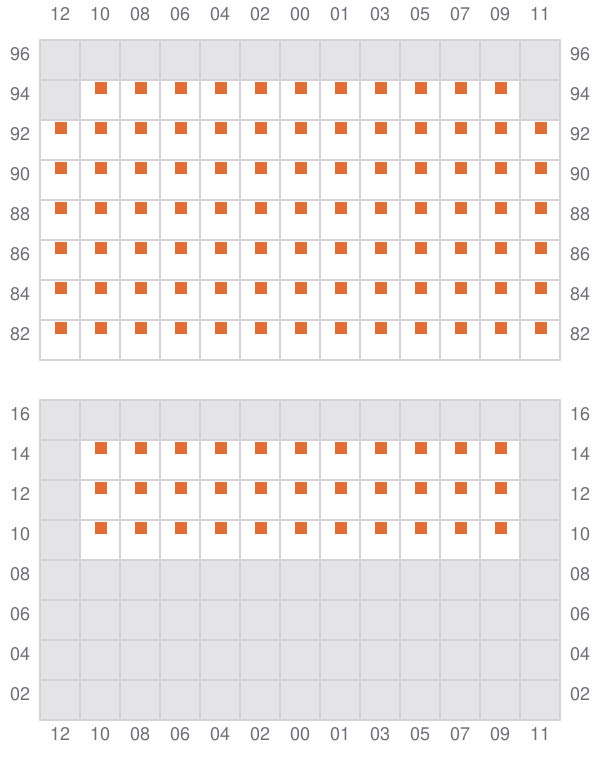

Bay 057 view and slots of MSC ANGELA

059 (058)

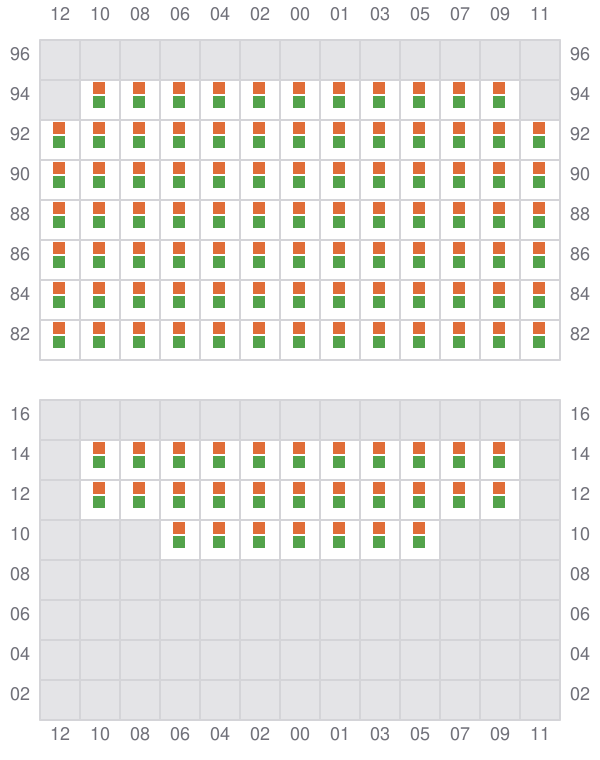

Bay 059 view and slots of MSC ANGELA

061

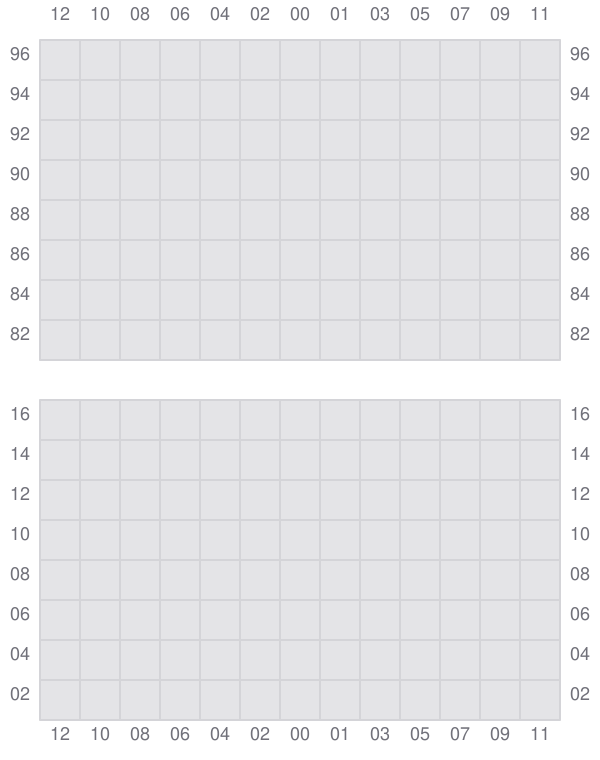

Bay 061 view and slots of MSC ANGELA

063 (062)

Bay 063 view and slots of MSC ANGELA
