MSC ANGOLA
9978729 | 5LUT5 | MSC by ********************************* Last update: Thu Oct 09 2025
General Info
Ship Name:MSC ANGOLA
IMO Code:9978729
Call Sign:5LUT5
Line Operator:MSC
Class Name for Sister Ships:GOLA
Year Built:2025
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):323.00
LOA (Length Overall):335.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:079
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:68
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,894
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%
Side View

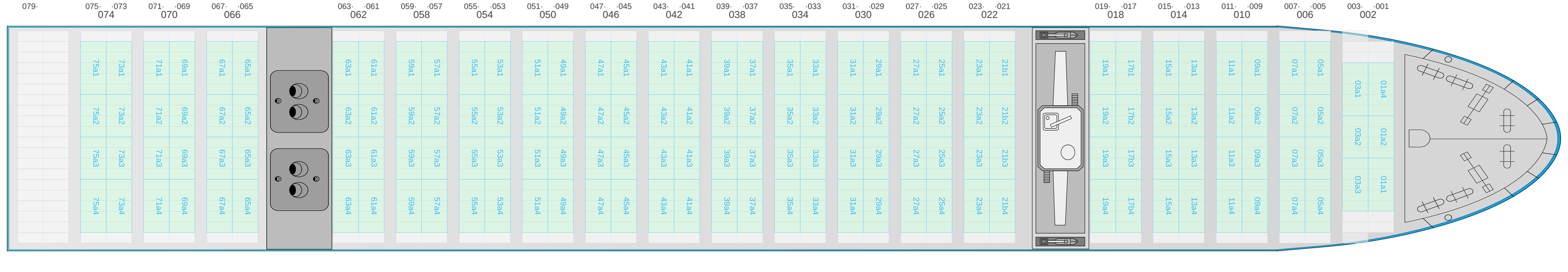

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

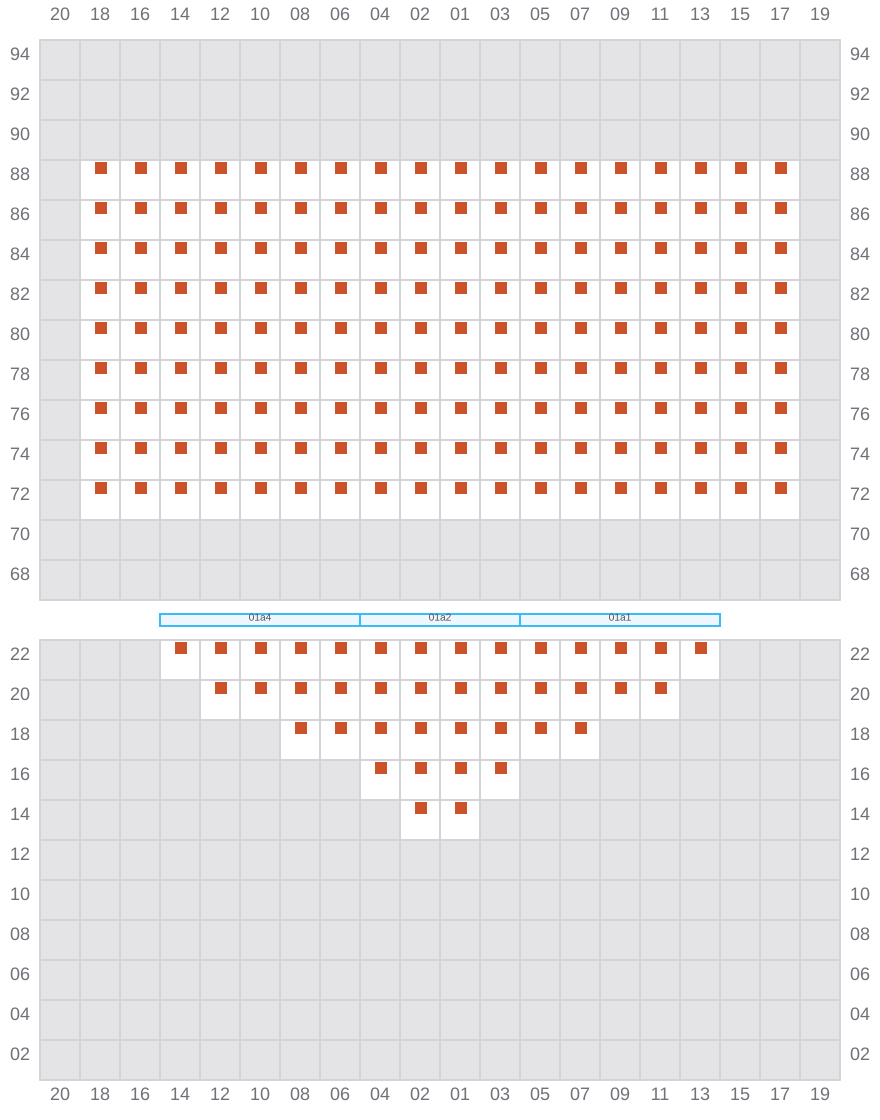

001
- →

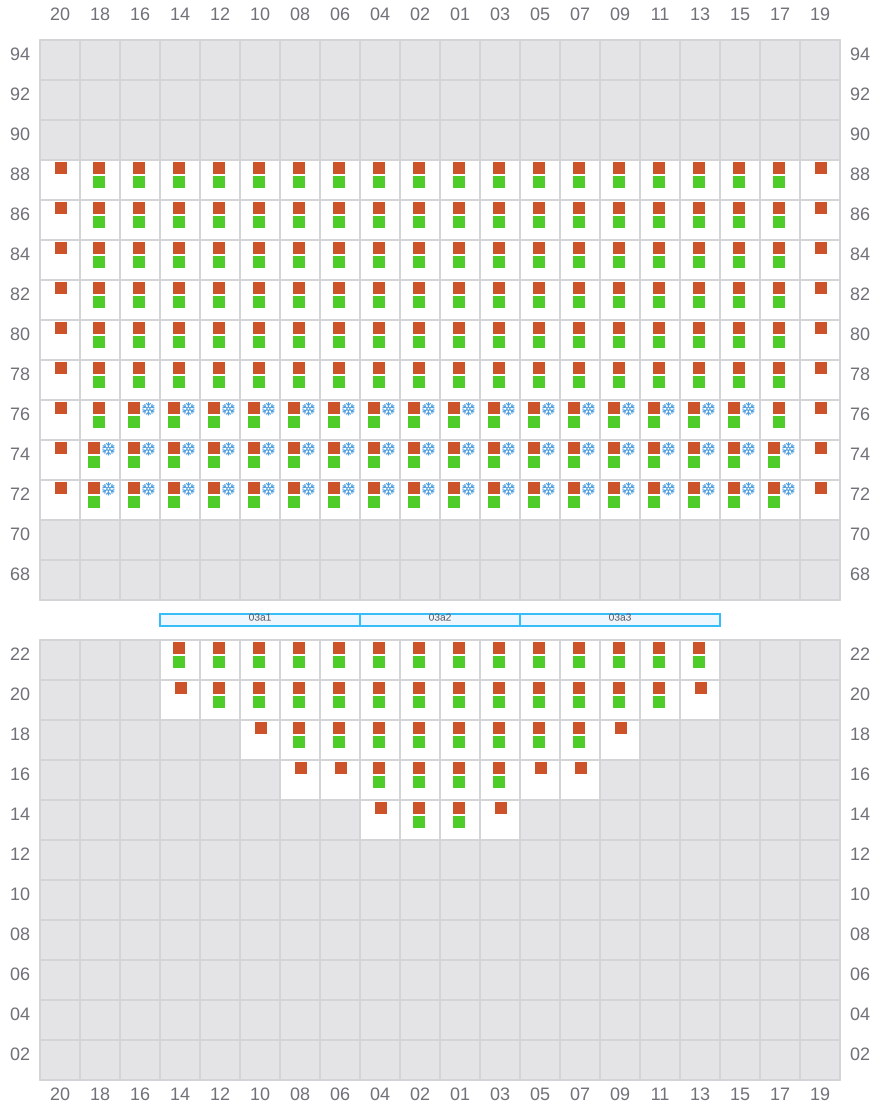

003 (002)
- ←

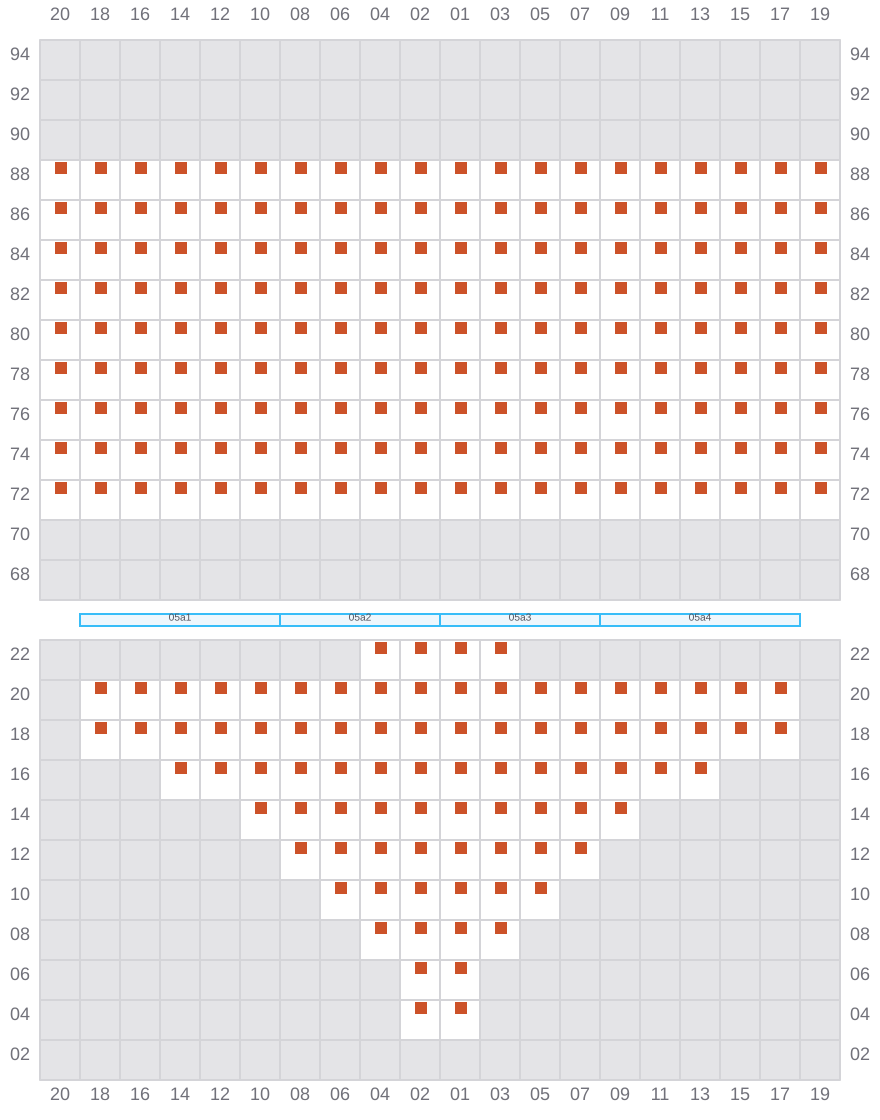

005
- →

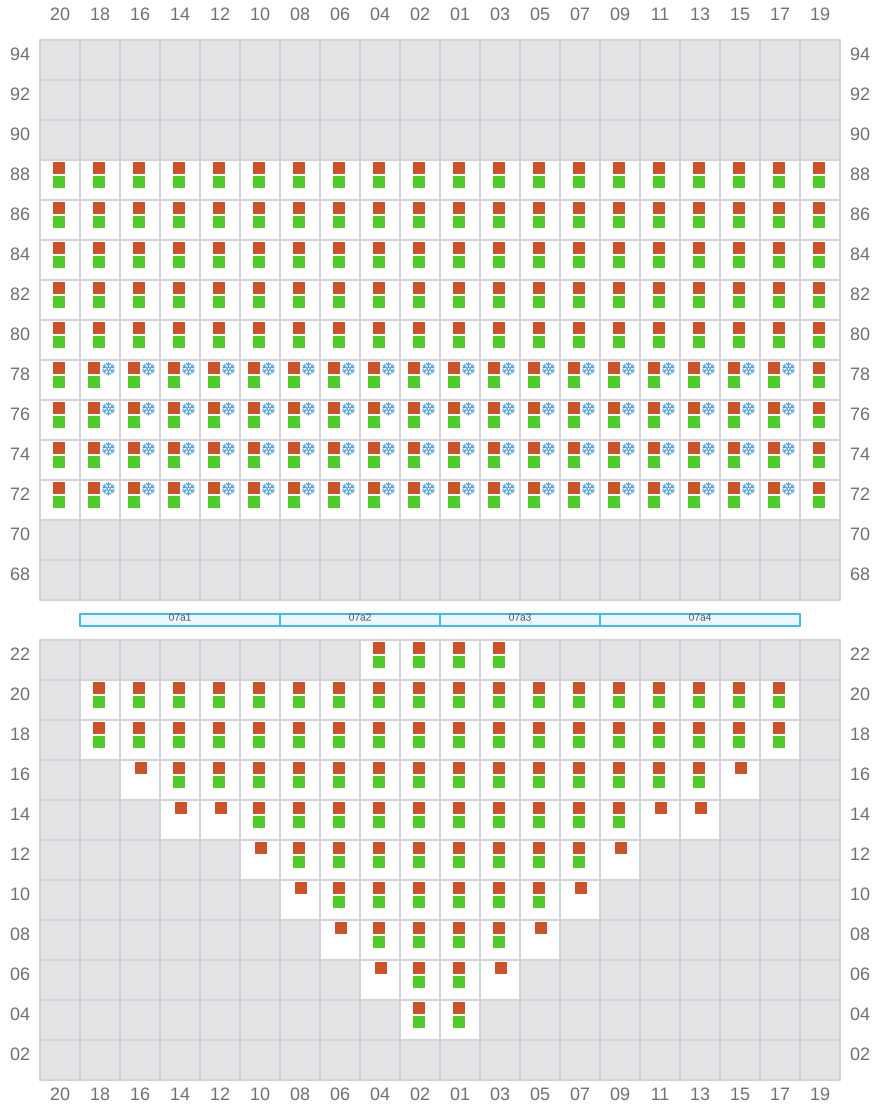

007 (006)
- ←

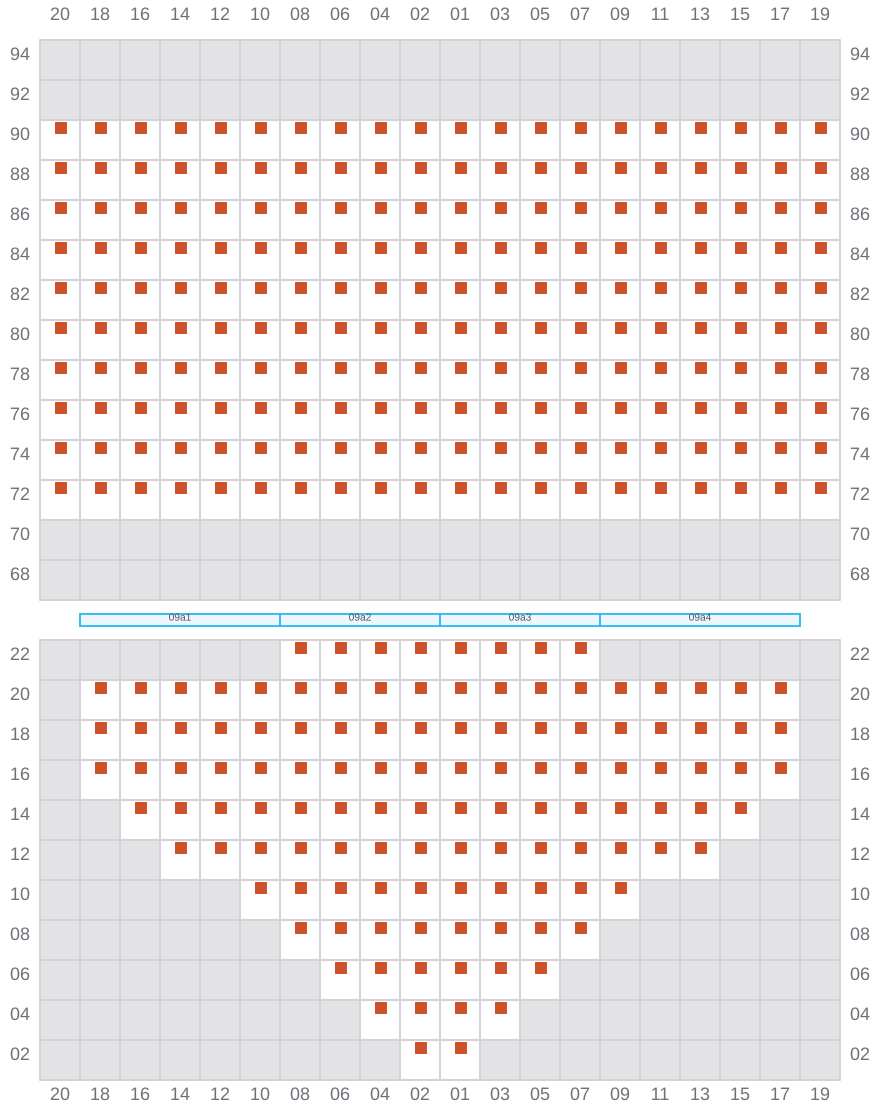

009
- →

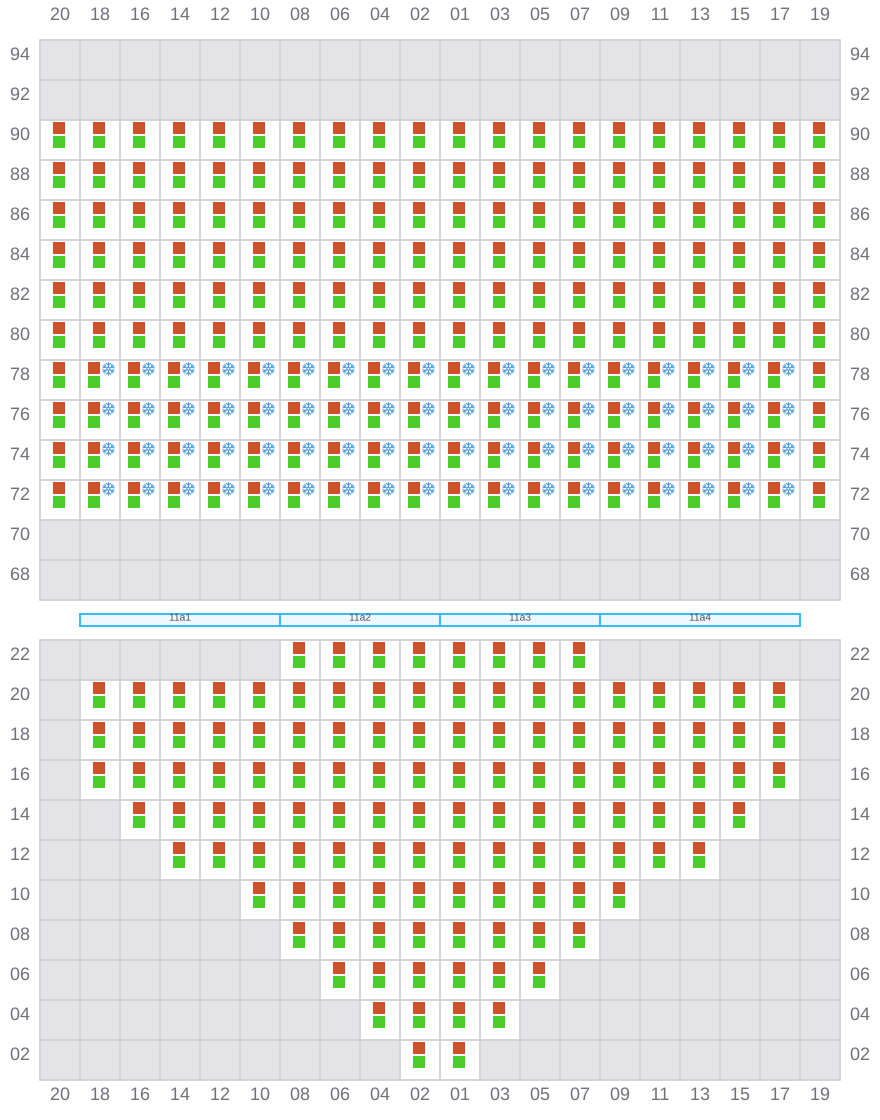

011 (010)
- ←

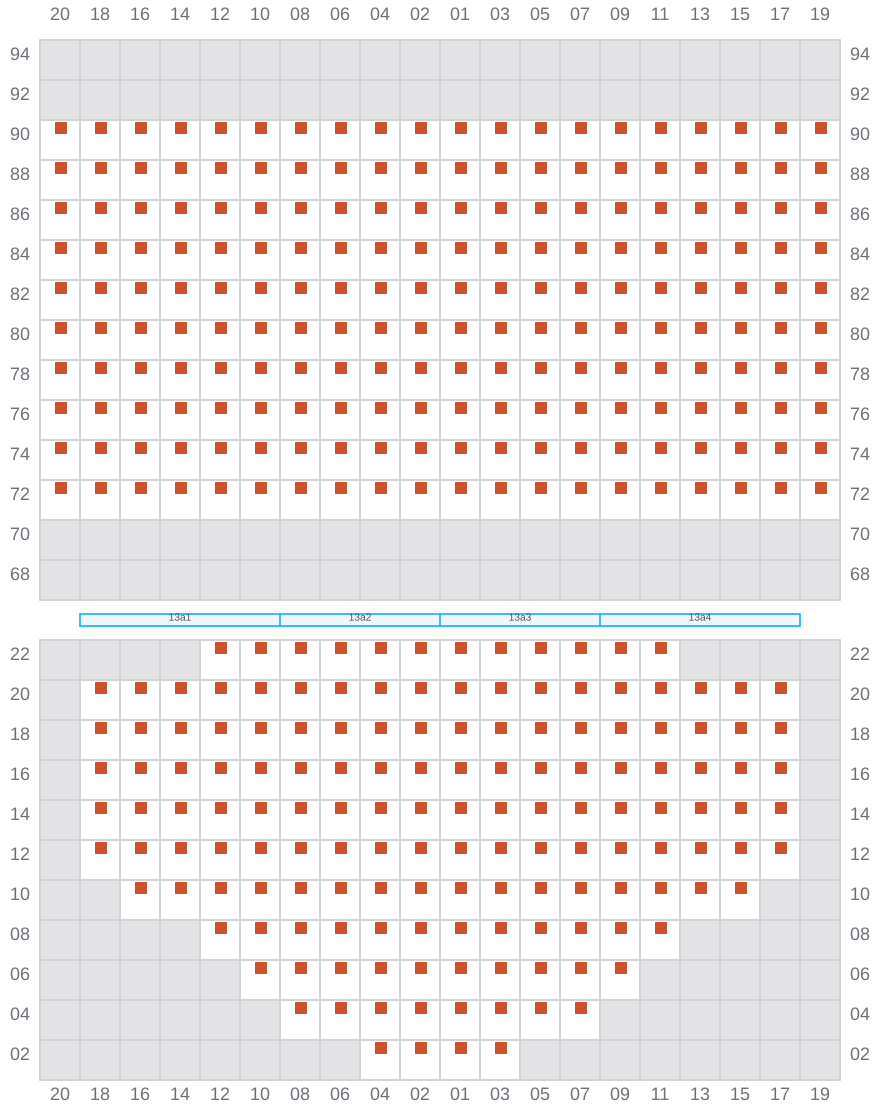

013
- →

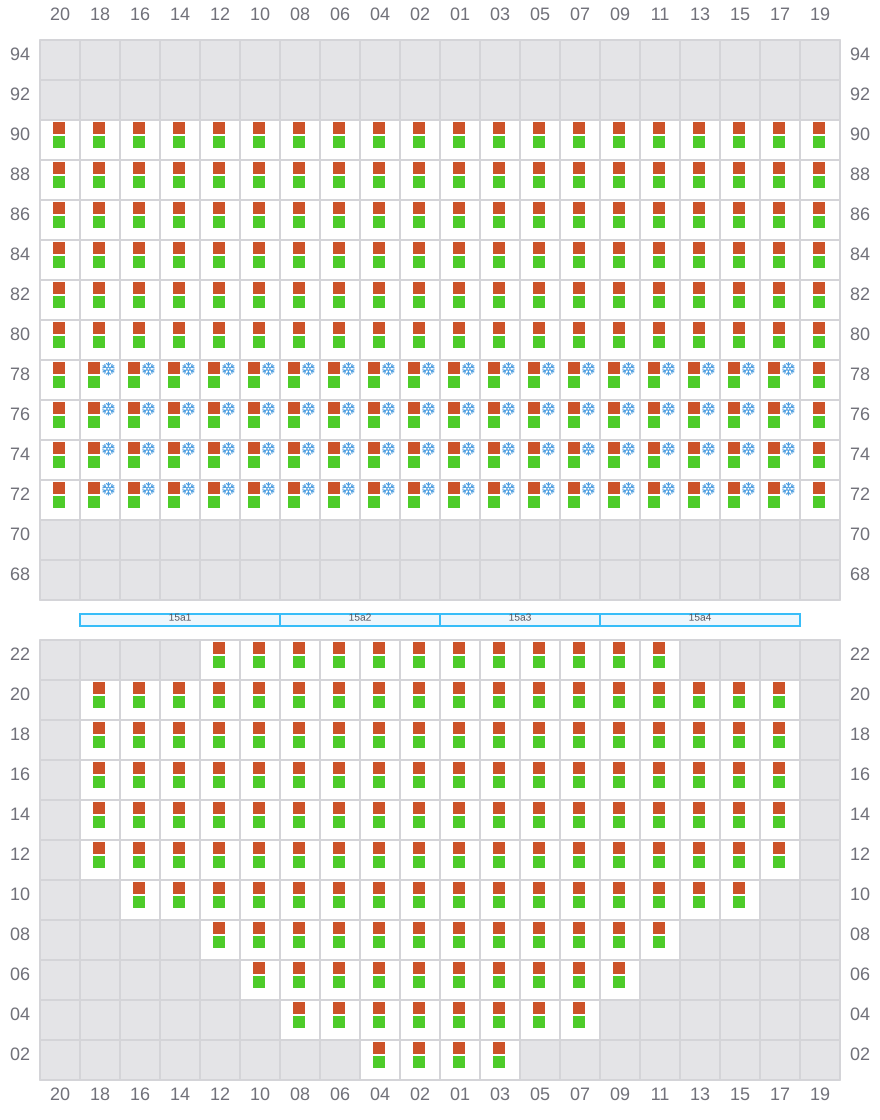

015 (014)
- ←
017
- →

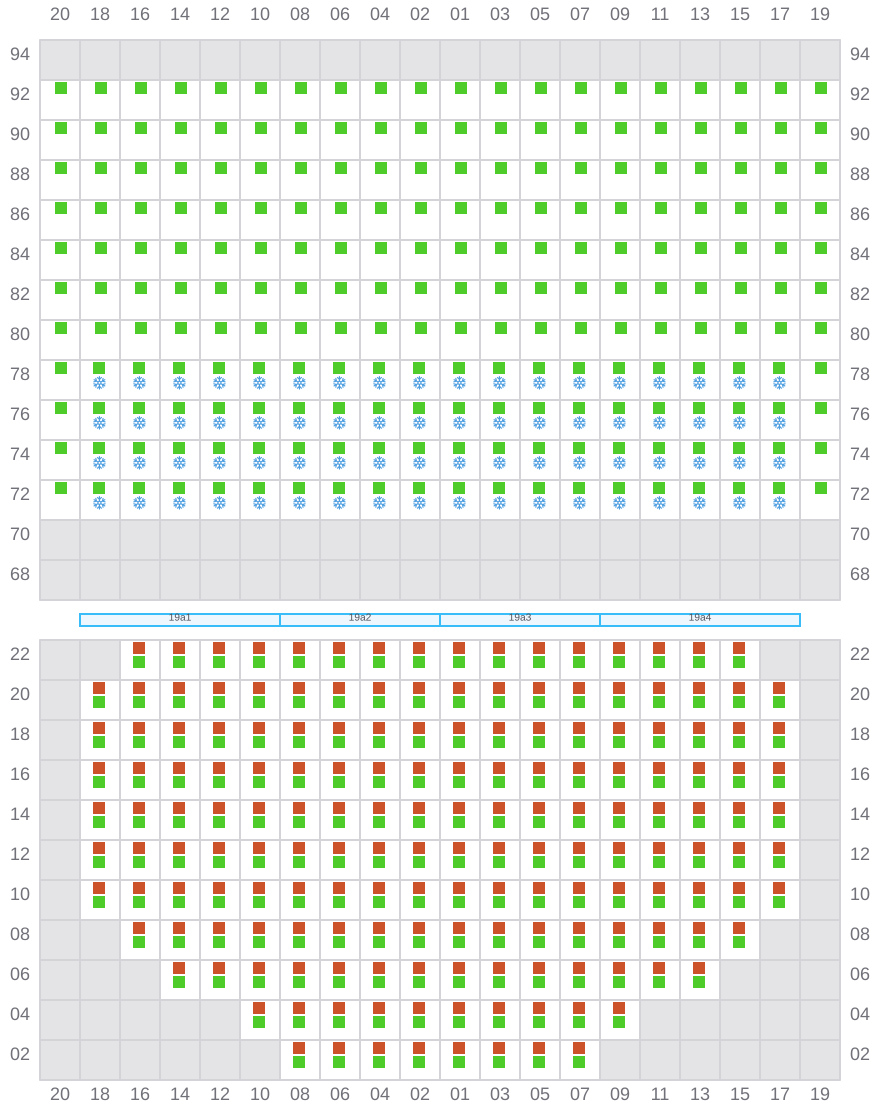

019 (018)
- ←

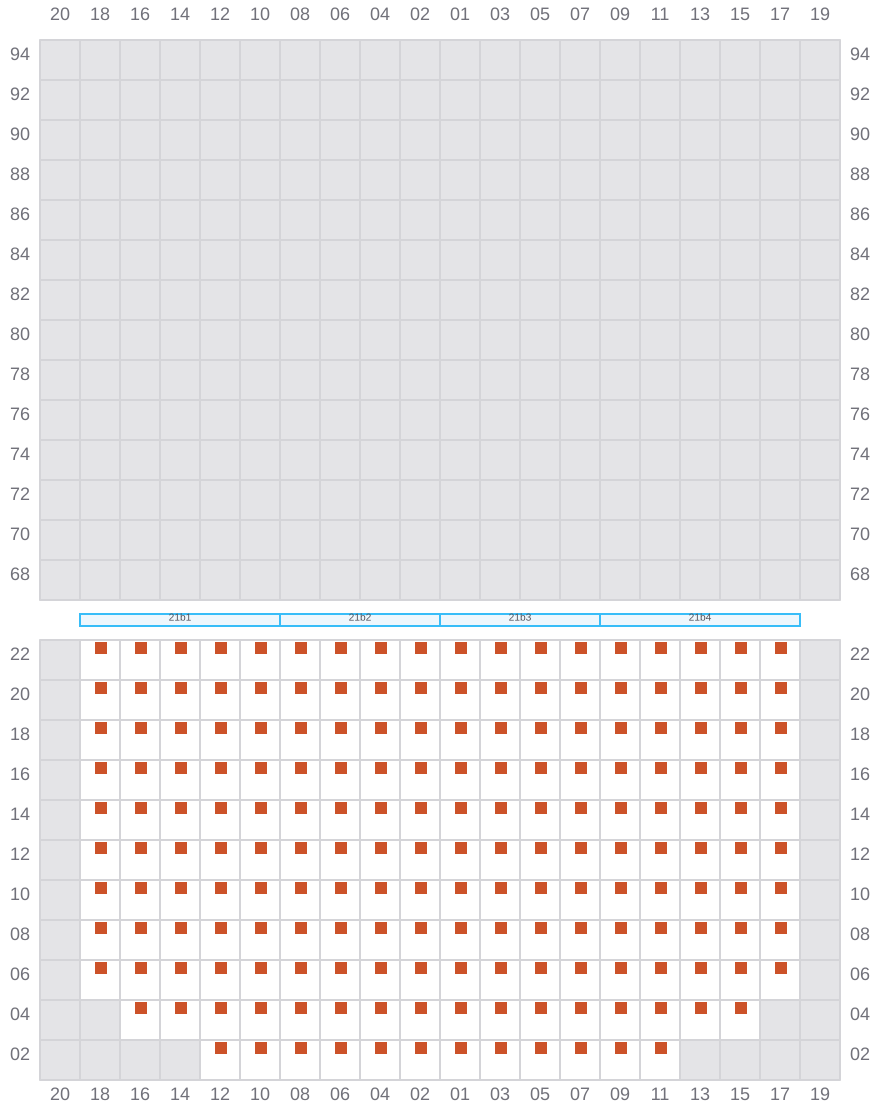

021
- →

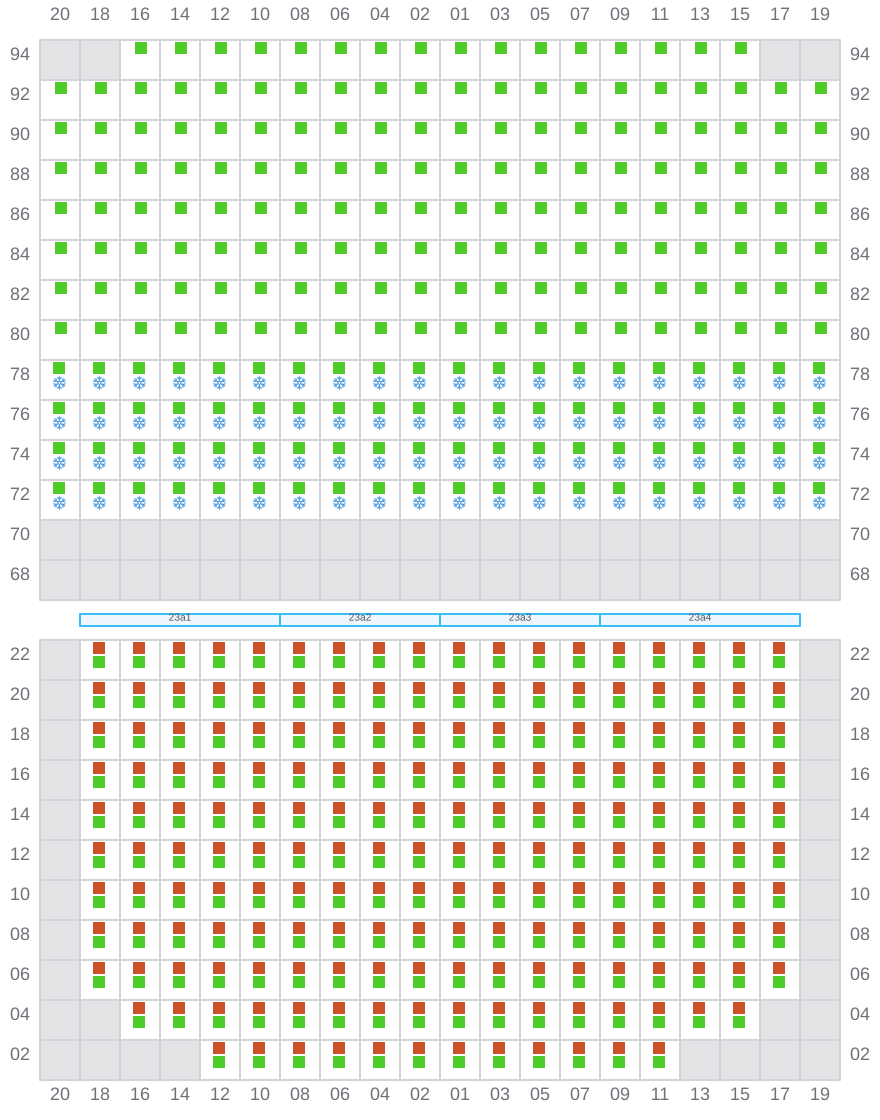

023 (022)
- ←
025
- →

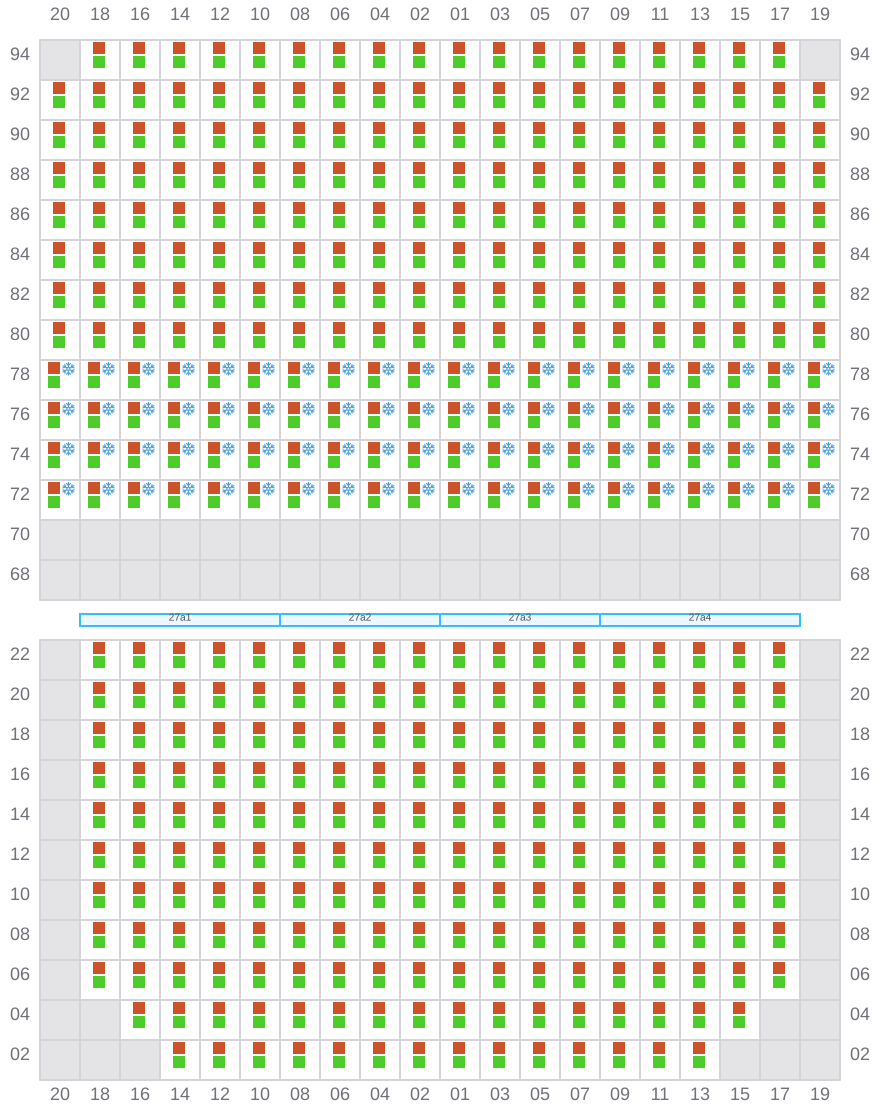

027 (026)
- ←
029
- →

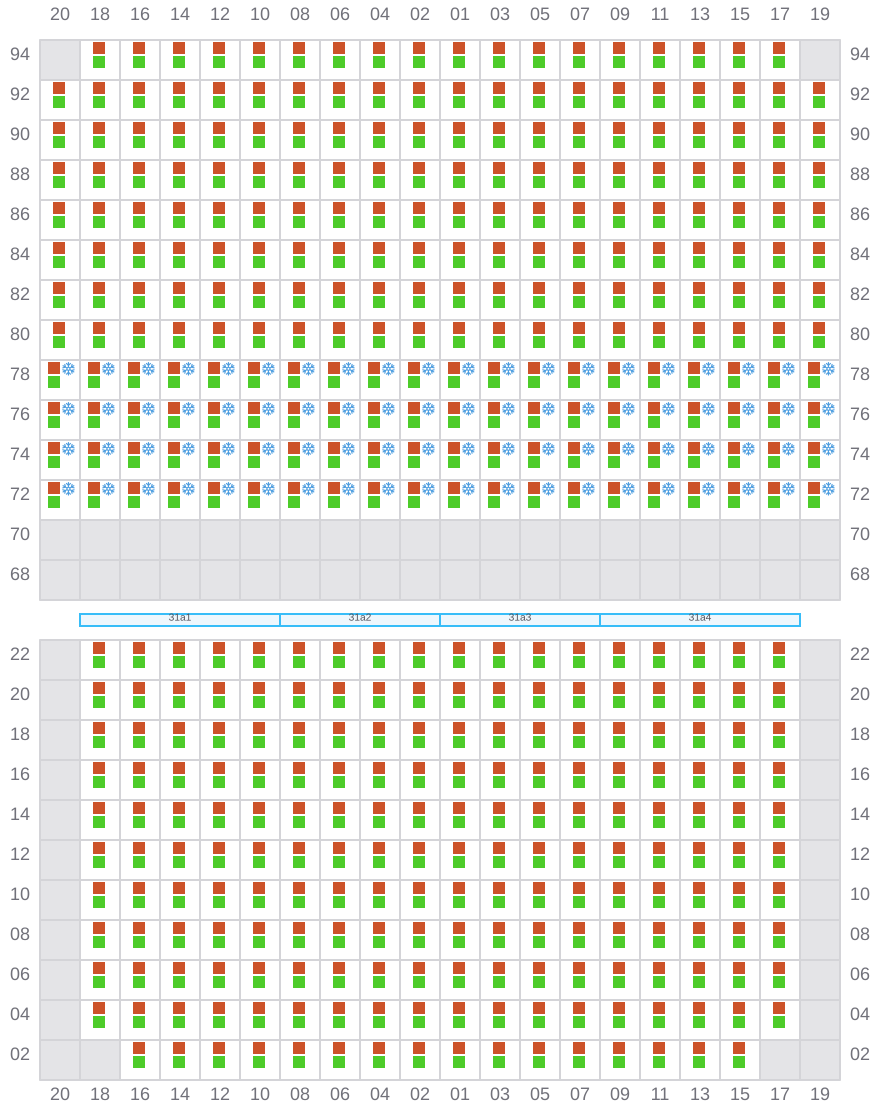

031 (030)
- ←
033
- →
035 (034)
- ←

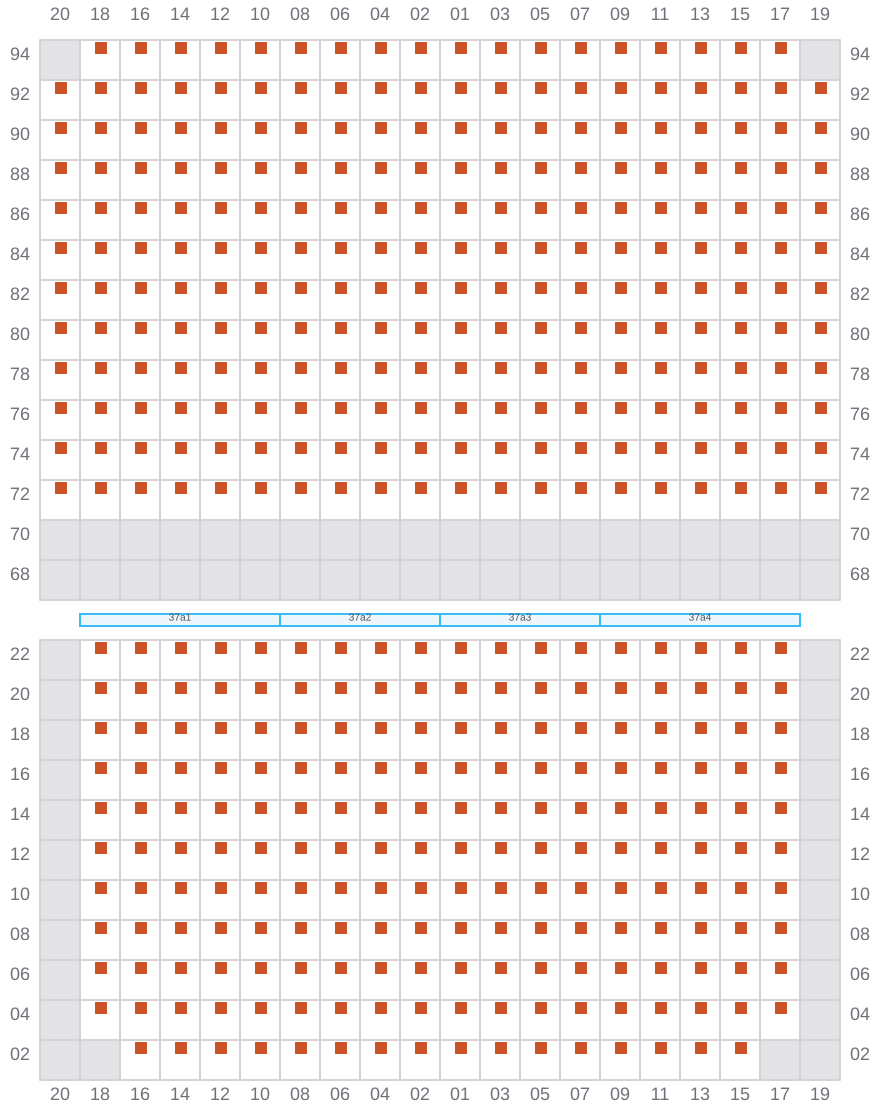

037
- →
039 (038)
- ←

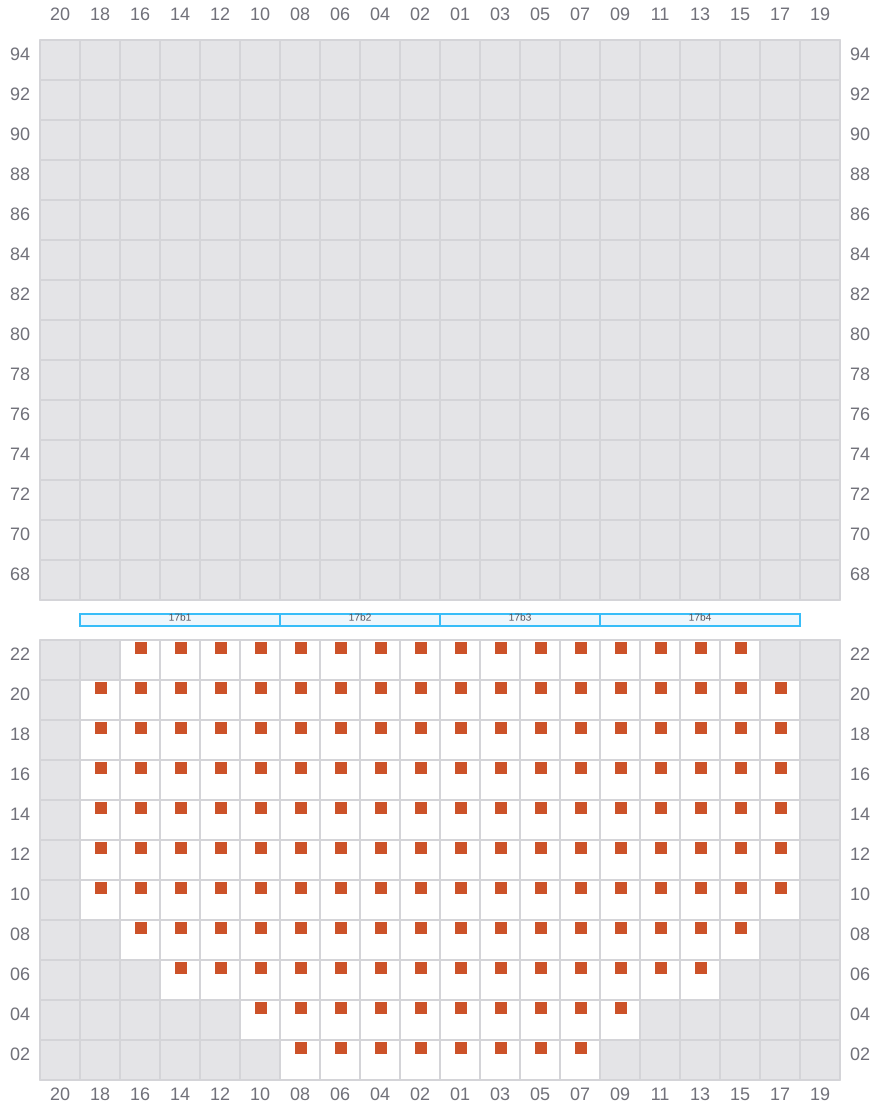

041
- →
043 (042)
- ←

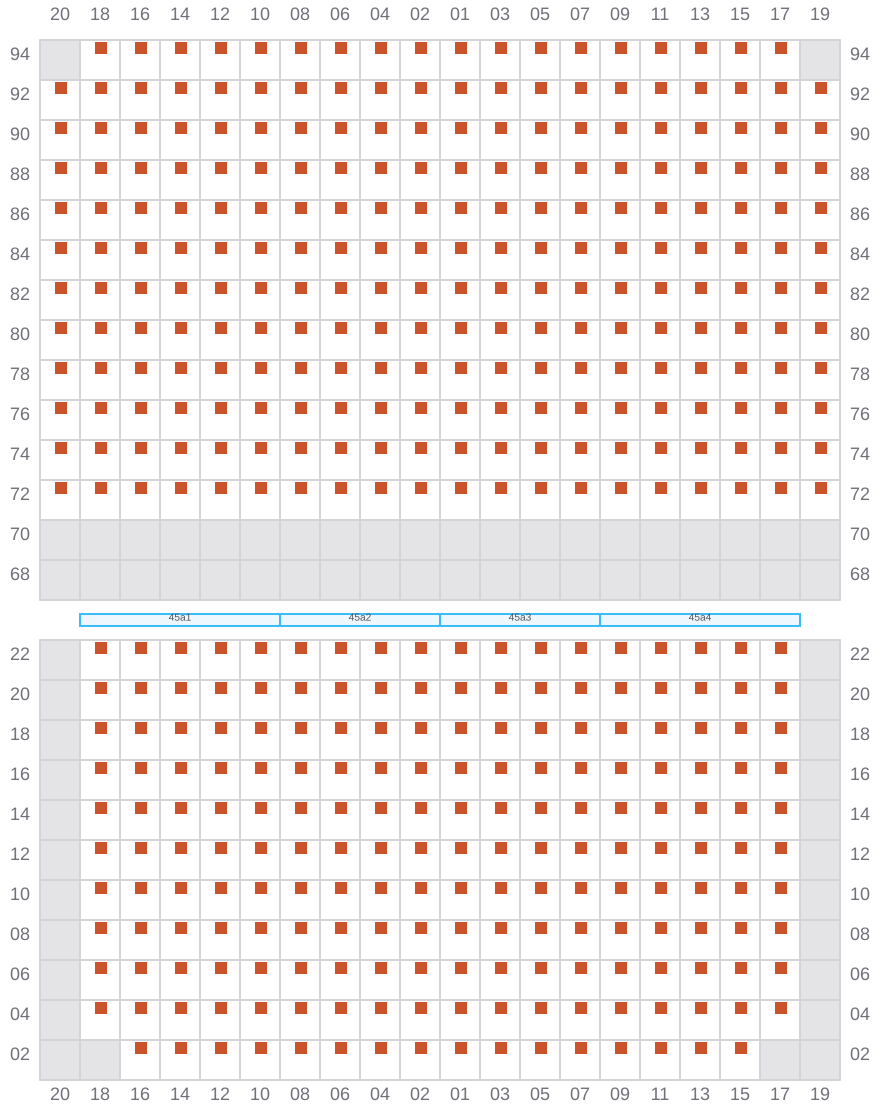

045
- →

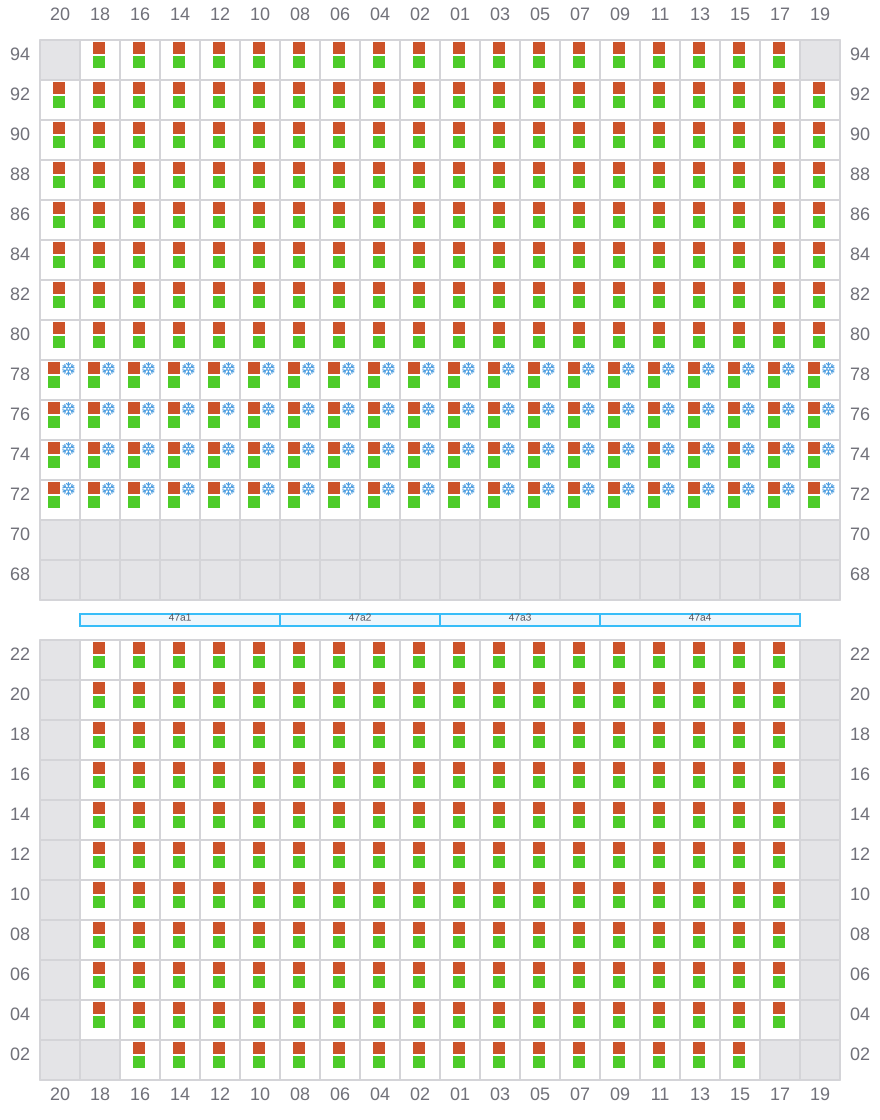

047 (046)
- ←

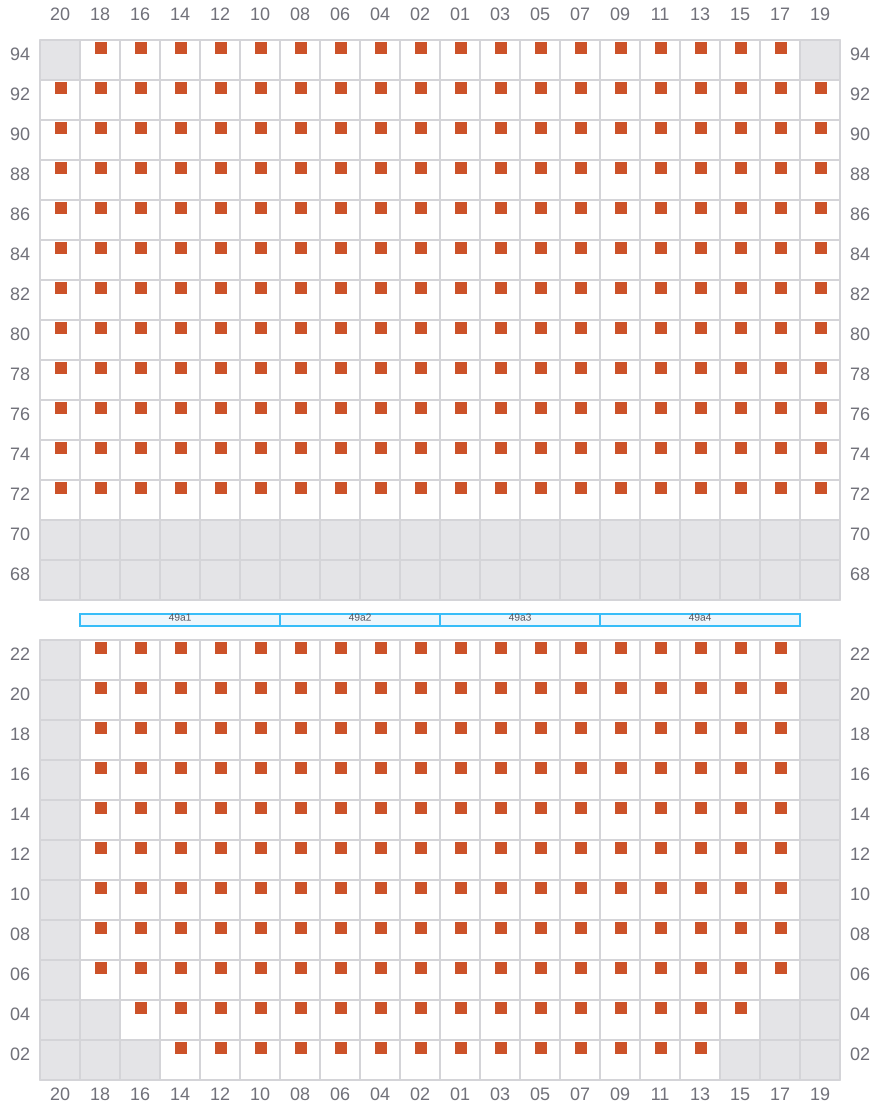

049
- →
051 (050)
- ←
053
- →

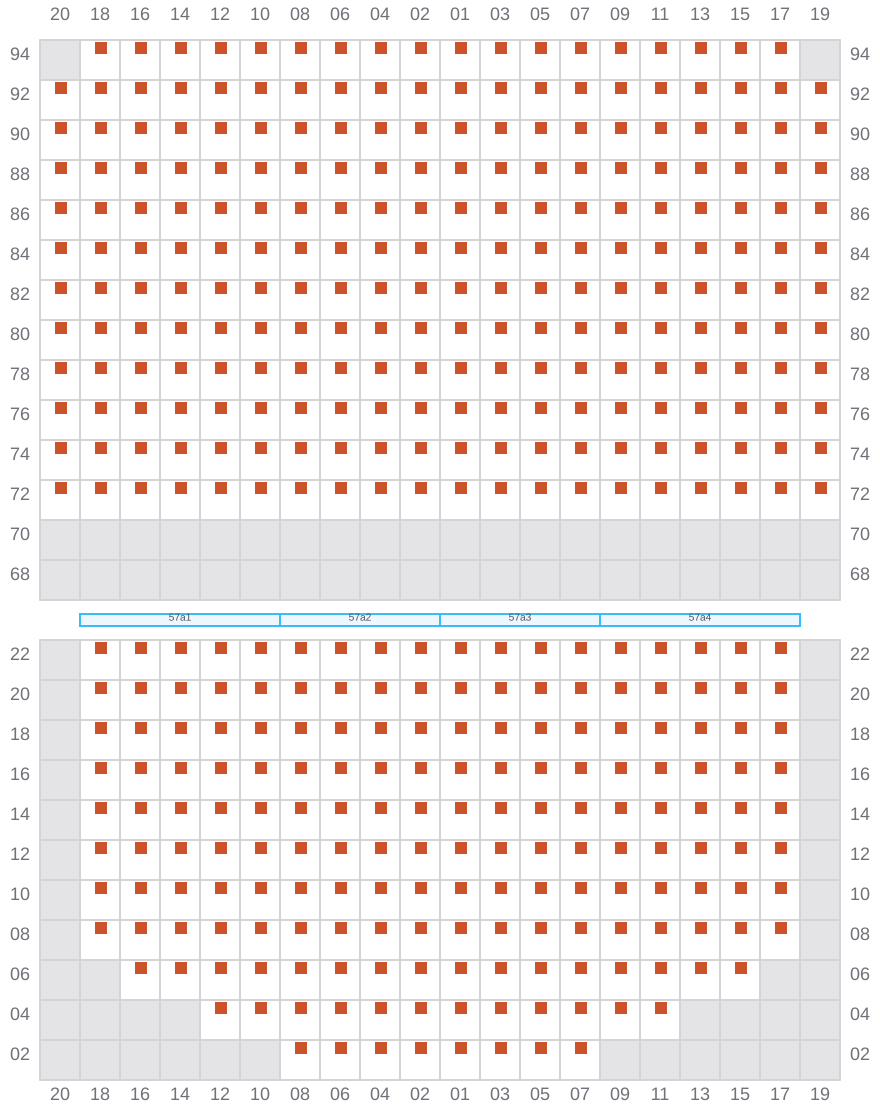

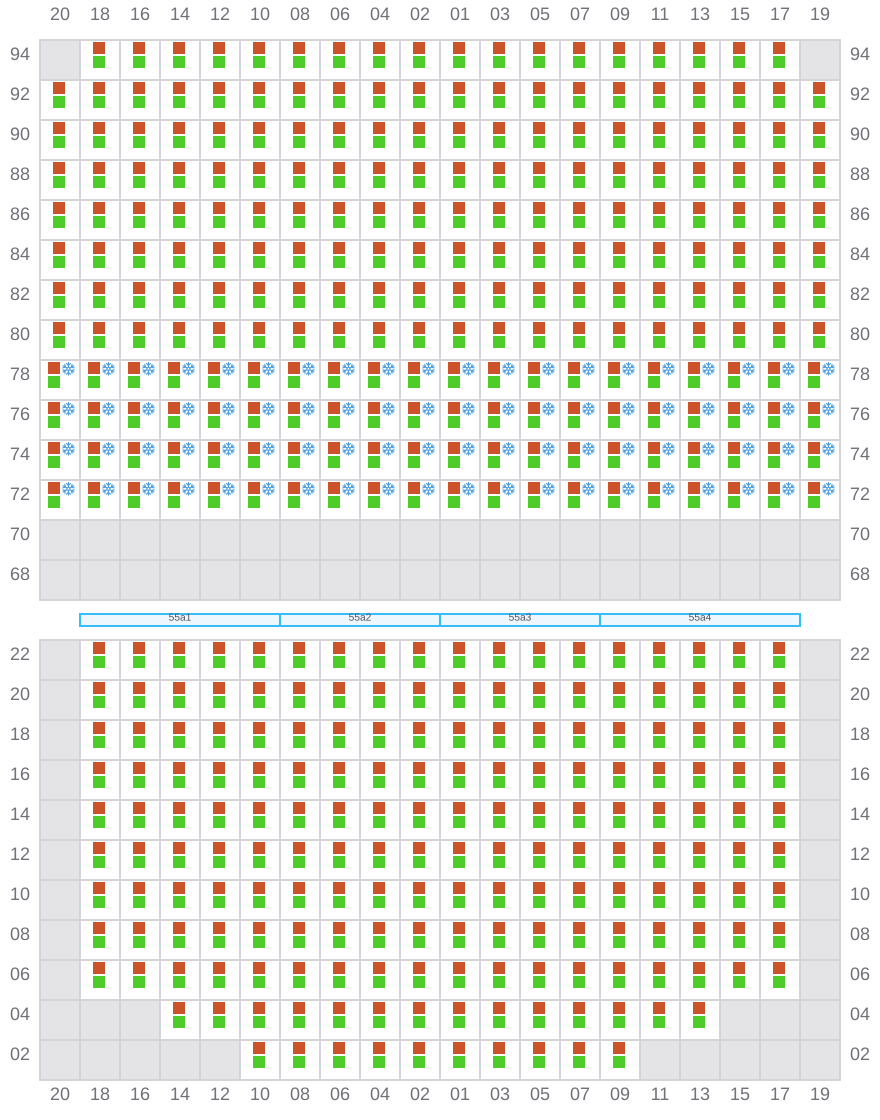

055 (054)
- ←
057
- →

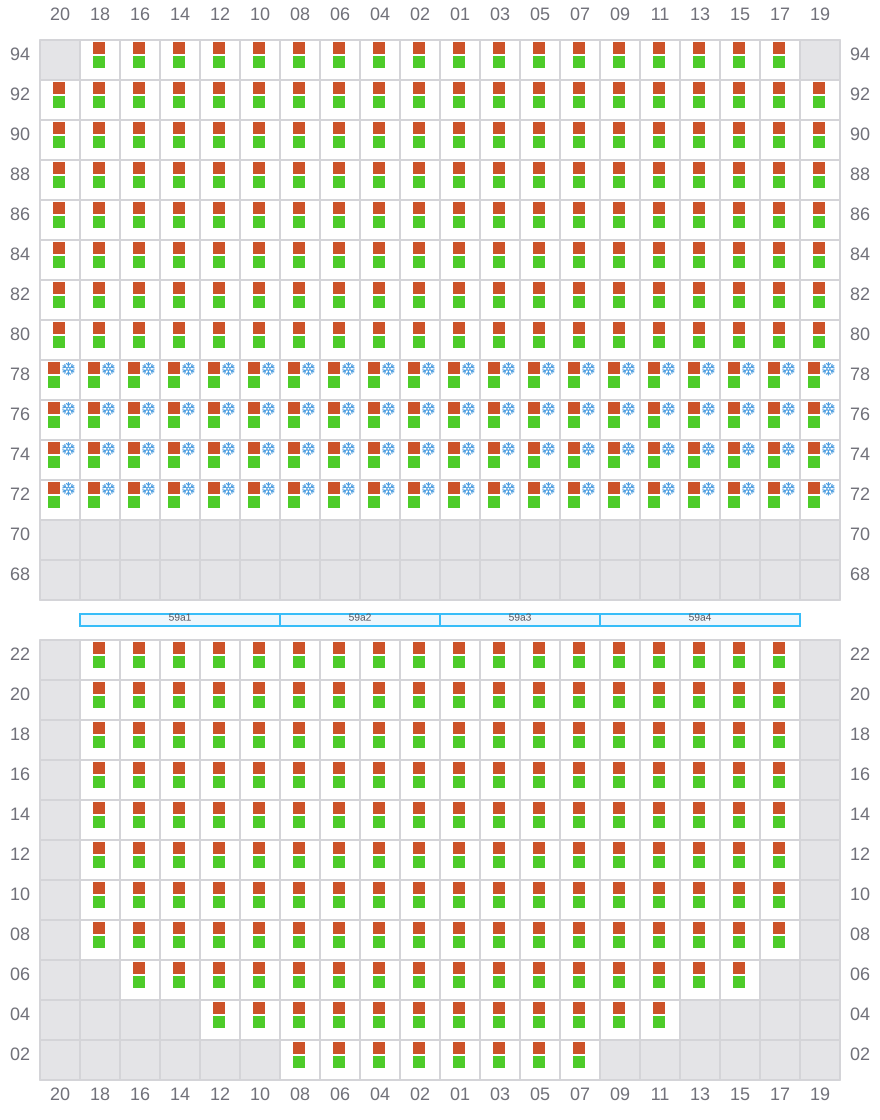

059 (058)
- ←

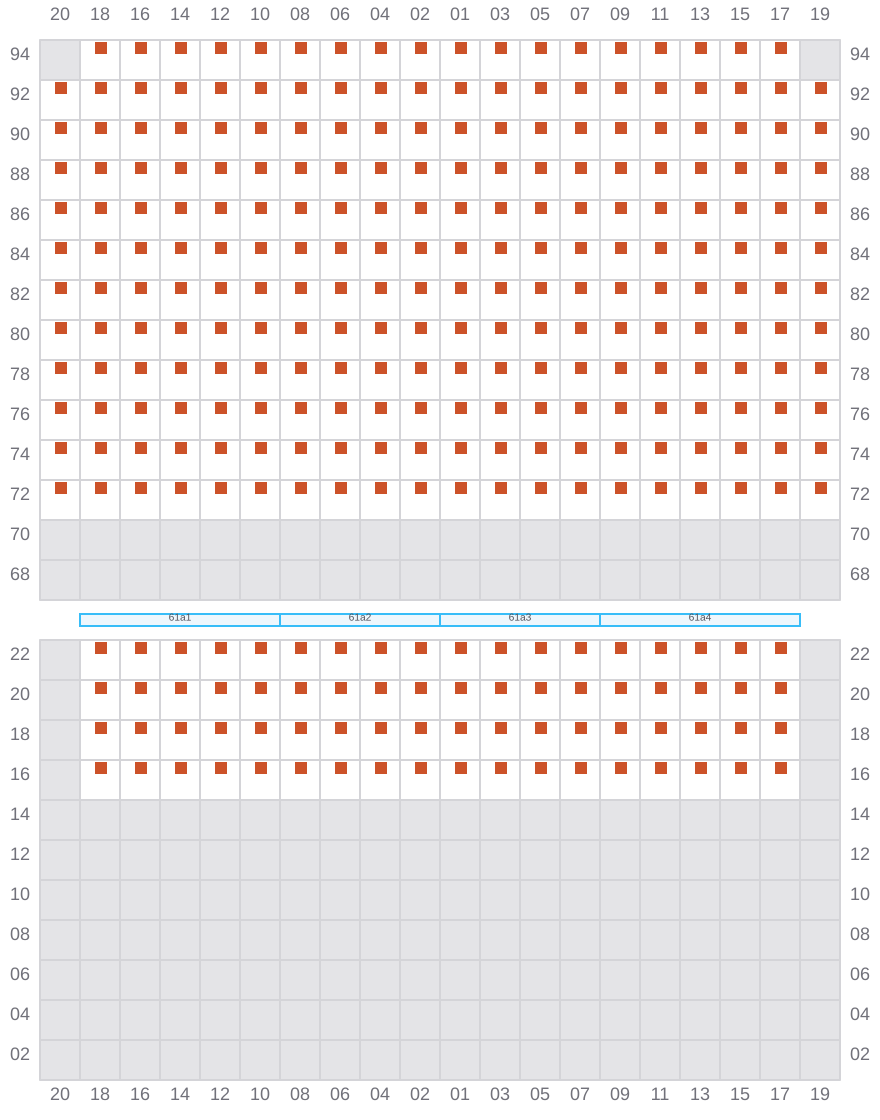

061
- →
063 (062)
- ←

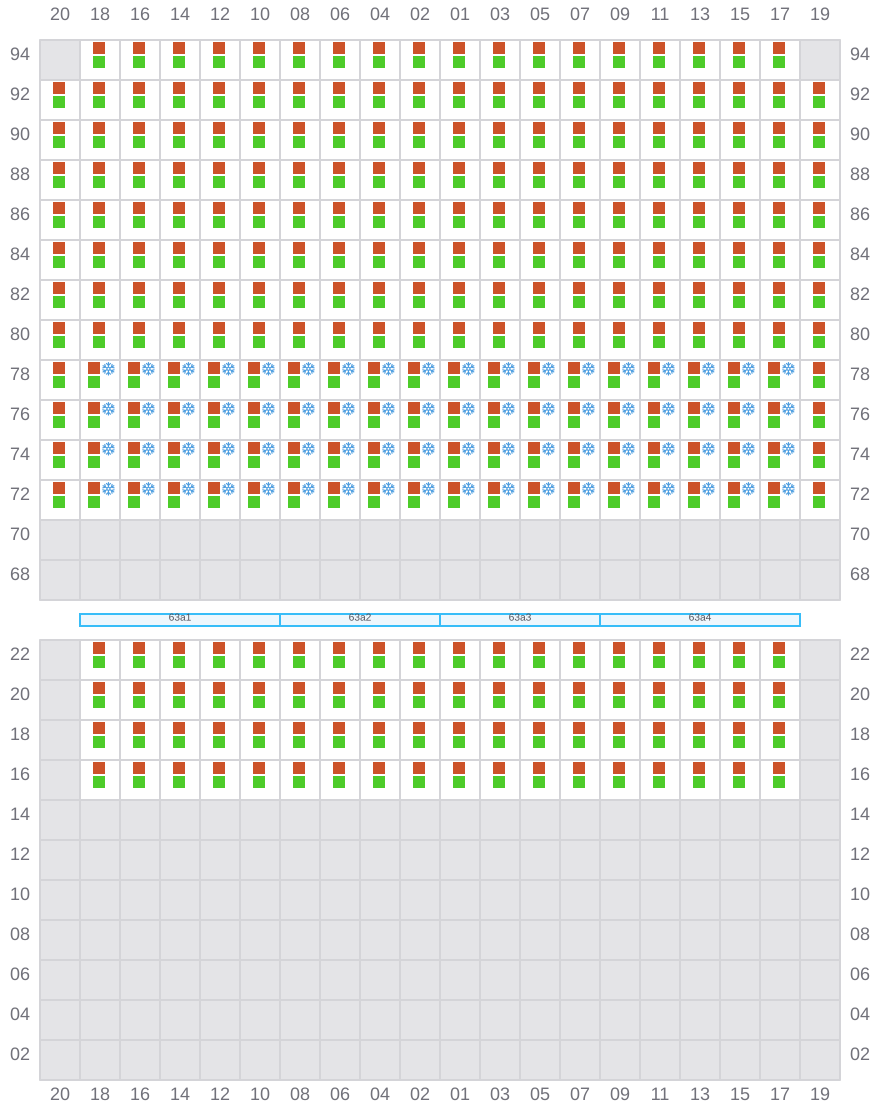

065
- →

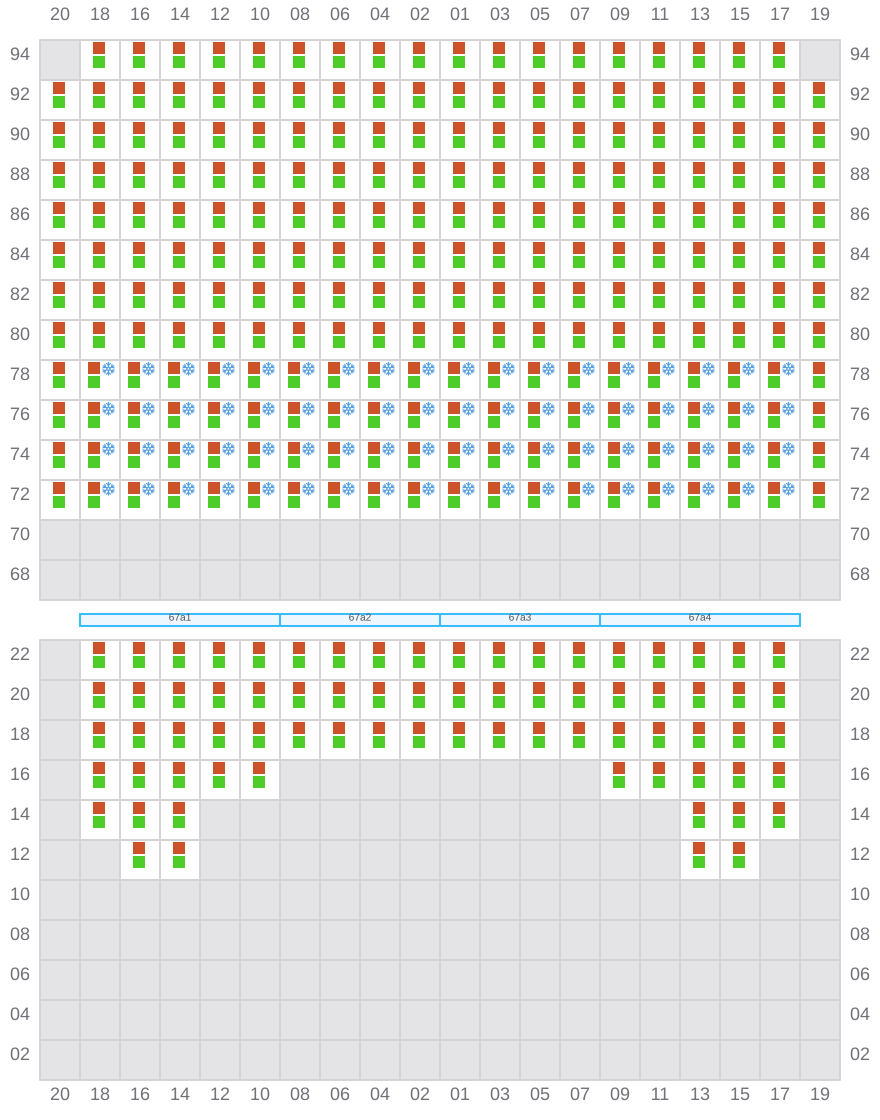

067 (066)
- ←

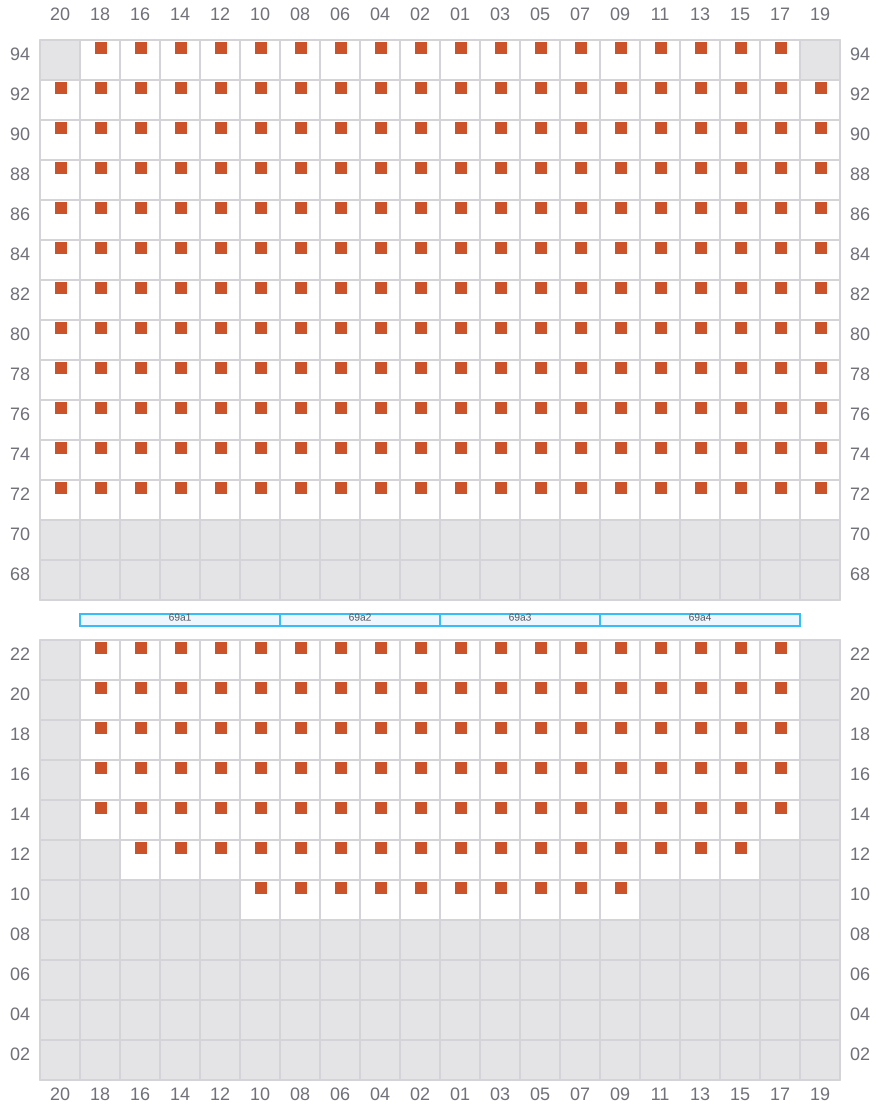

069
- →

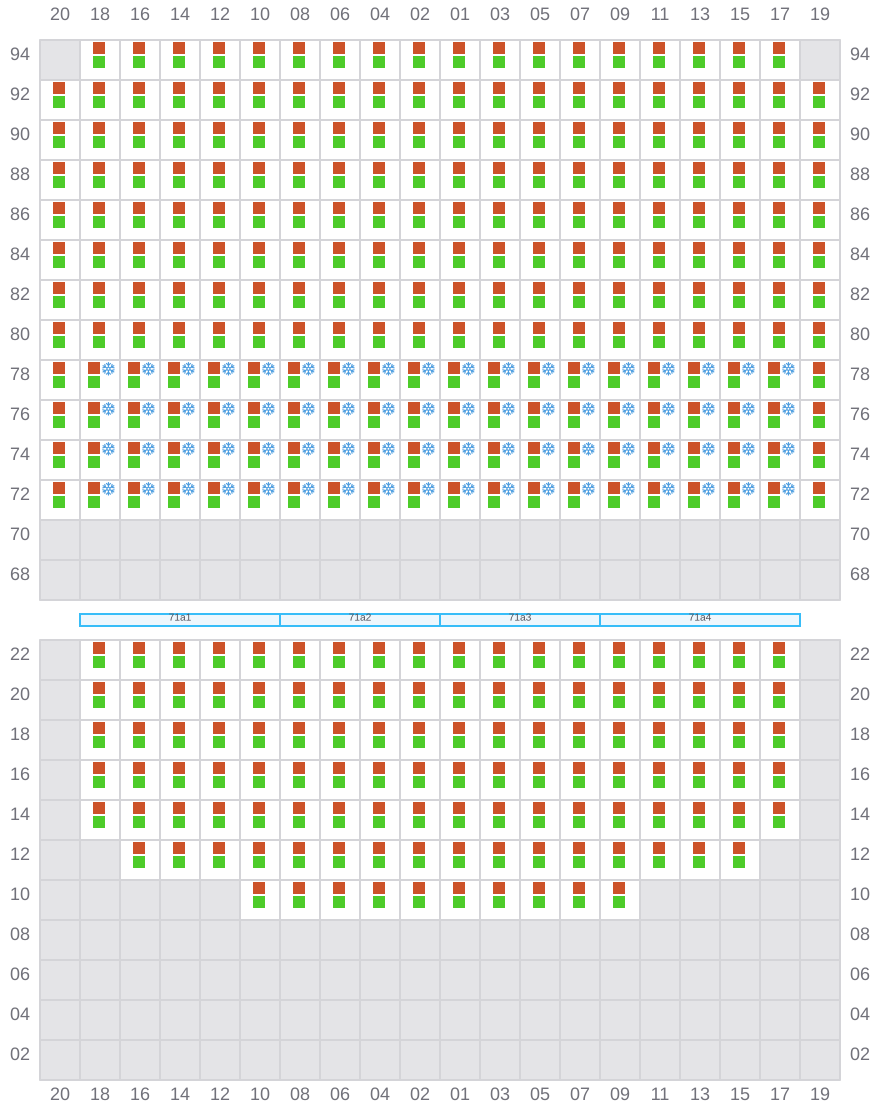

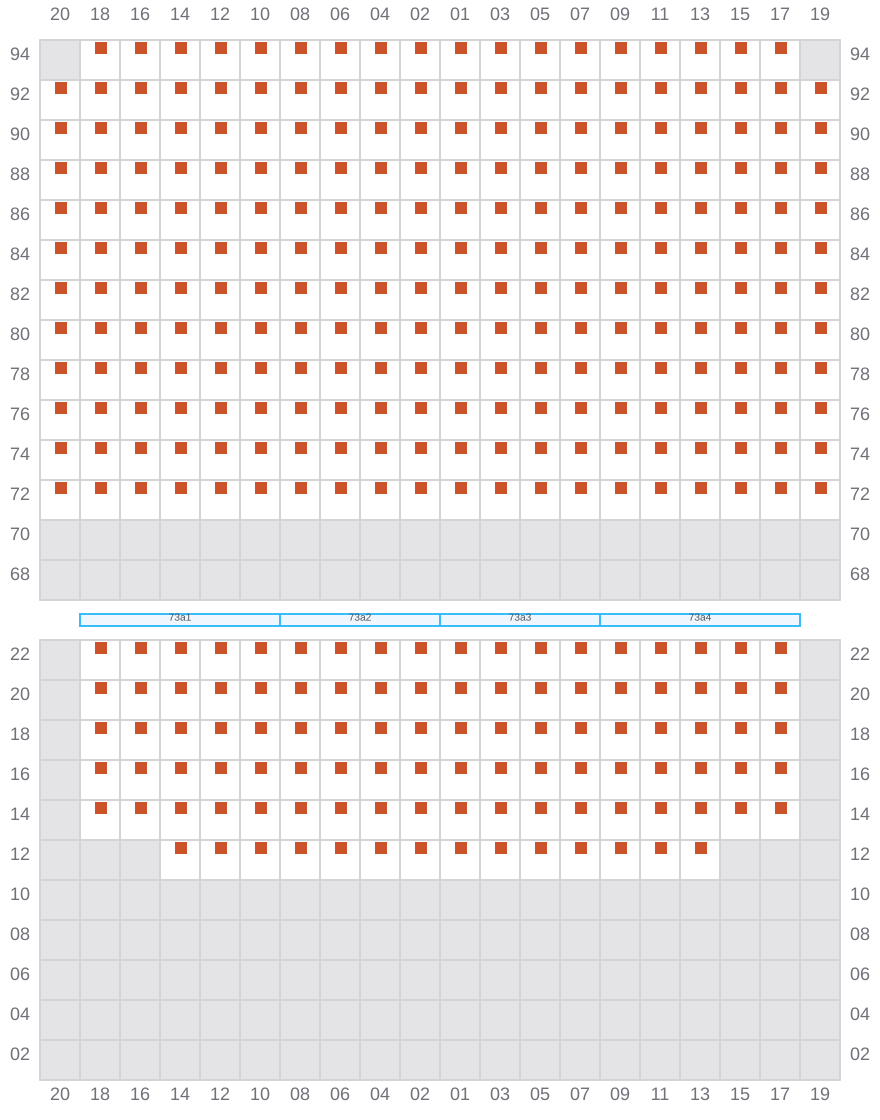

071 (070)
- ←

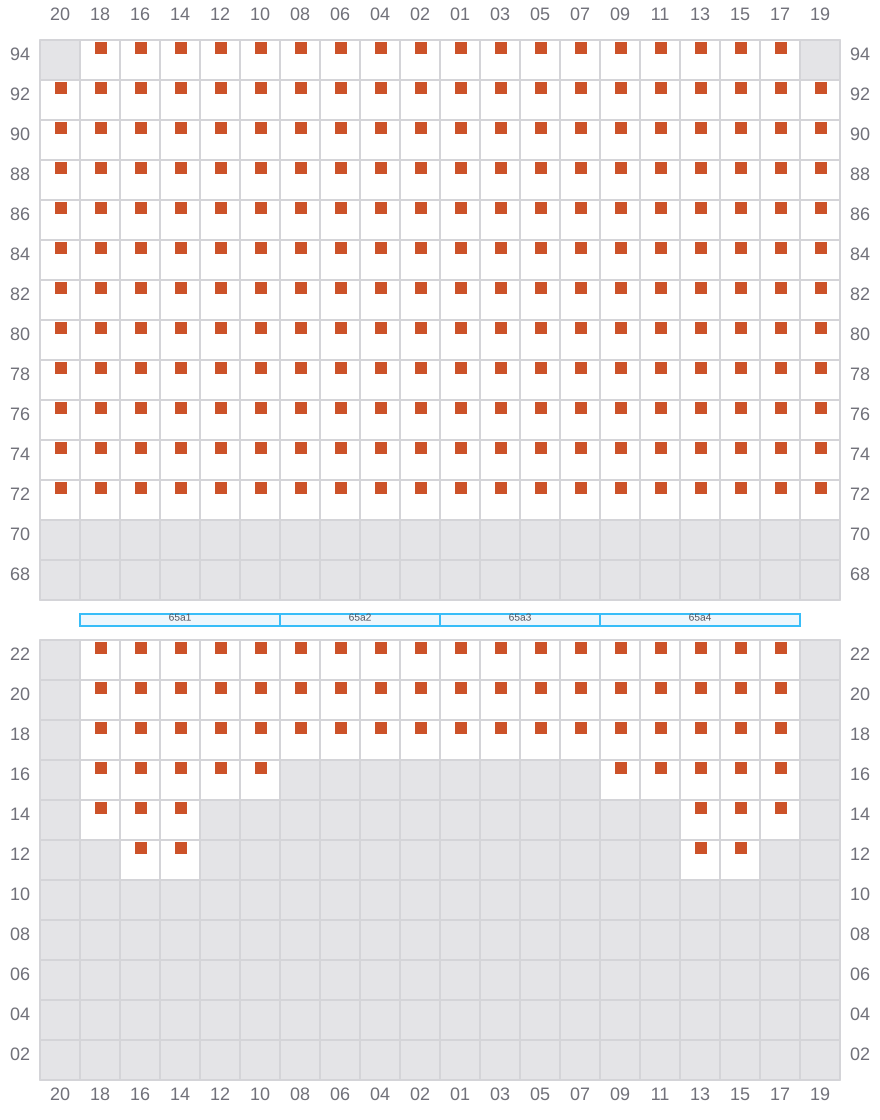

073
- →

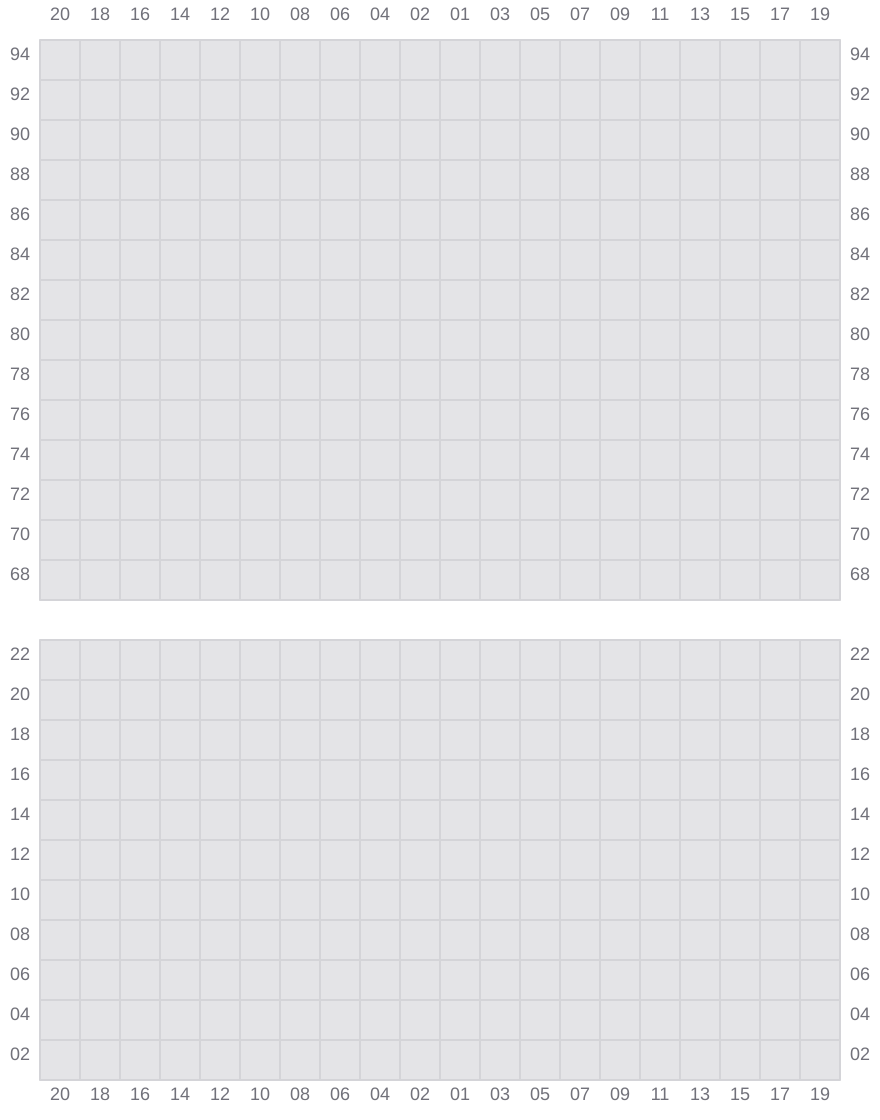

075 (074)
- ←
077
- →
- → / ?

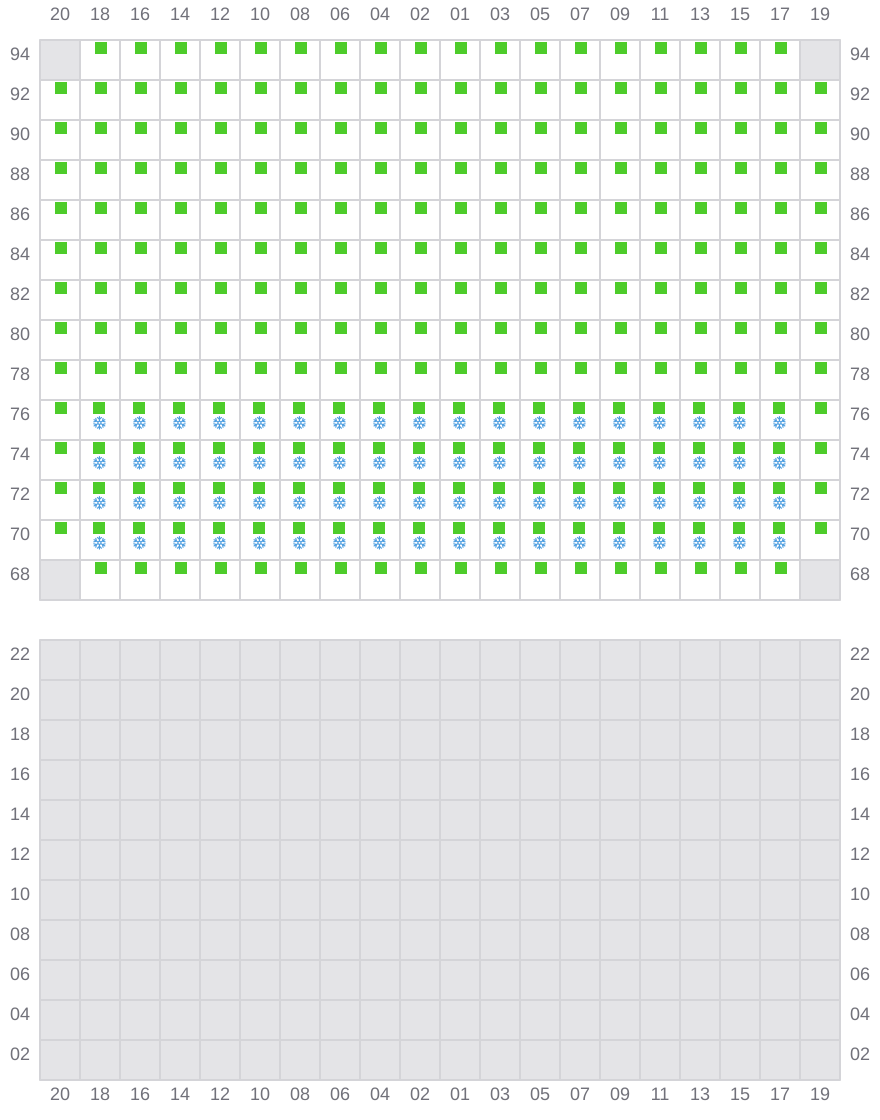

079 (078)
- ←
