MSC ANNICK
9169122 | D5LQ6 | 9169122 by ********* Last update: Sat Mar 09 2024
General Info
Ship Name:MSC ANNICK
IMO Code:9169122
Call Sign:D5LQ6
Line Operator:9169122
Class Name for Sister Ships:89D
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.05
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,013
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

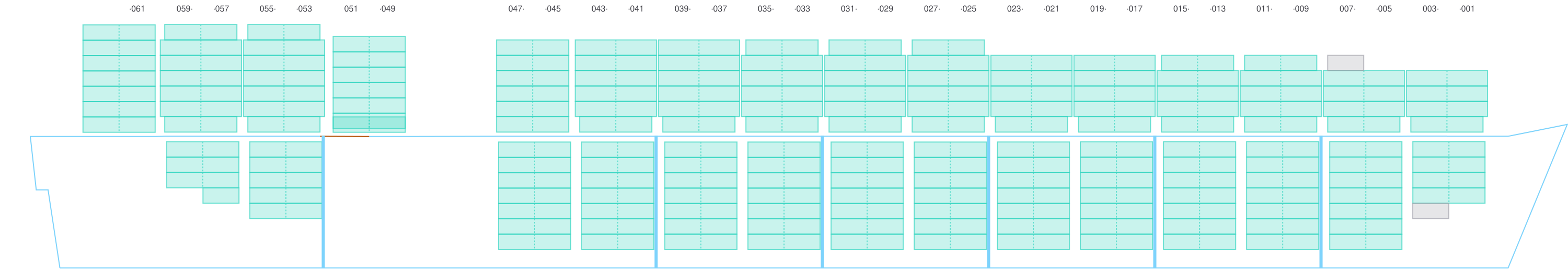

Side View

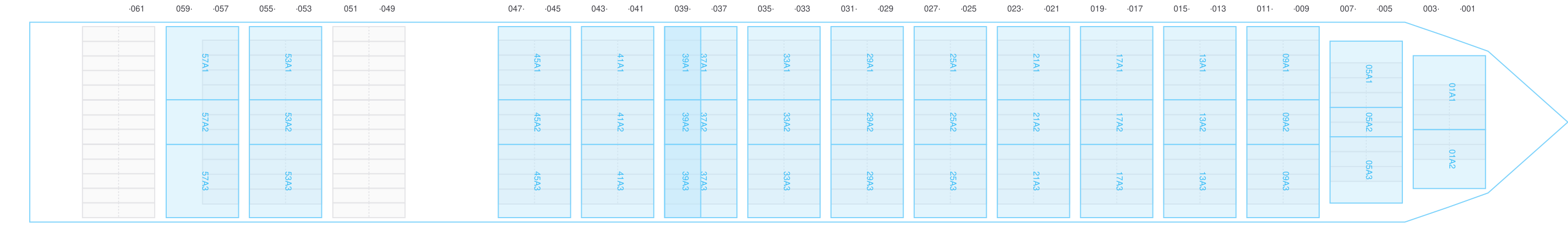

Hatch-Covers View

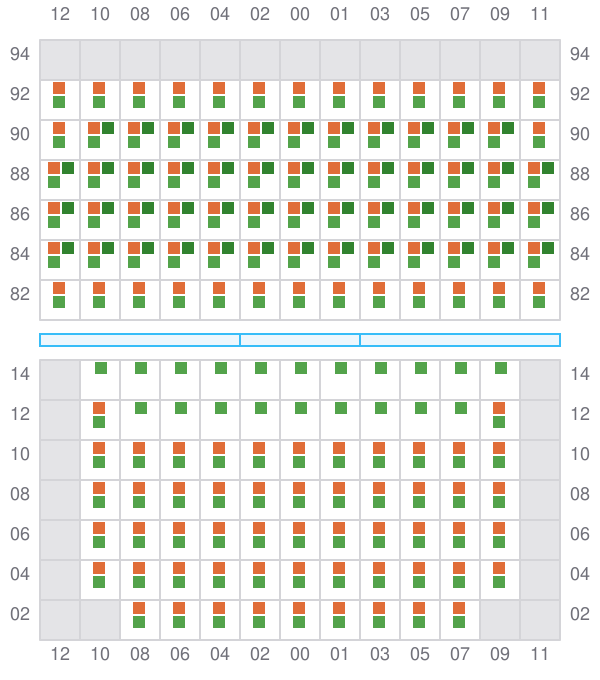

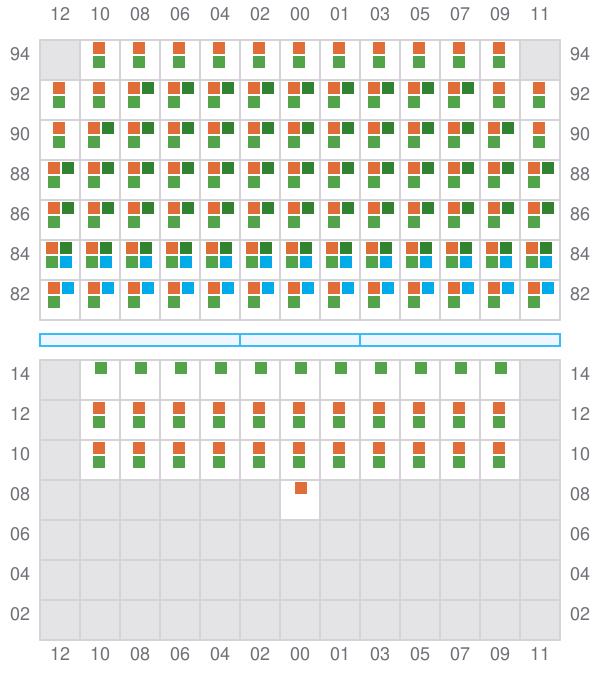

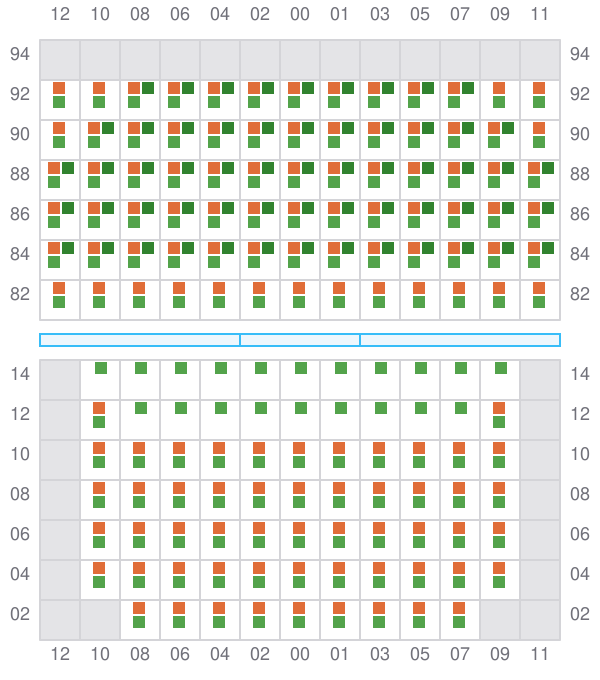

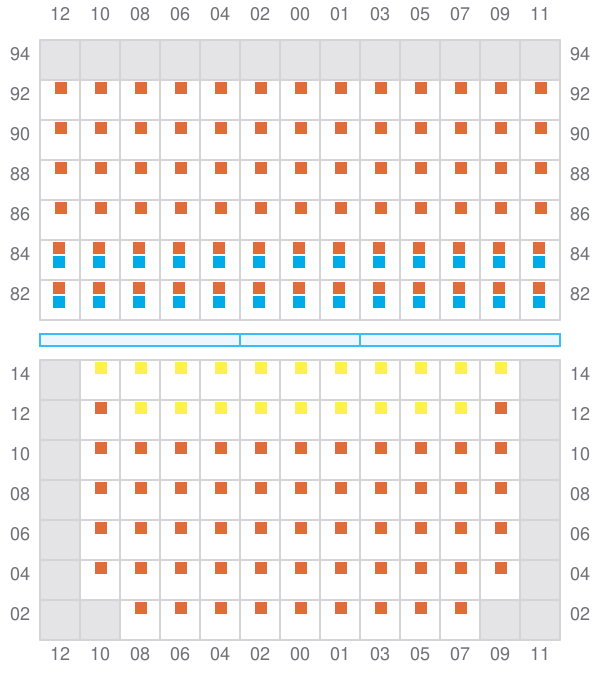

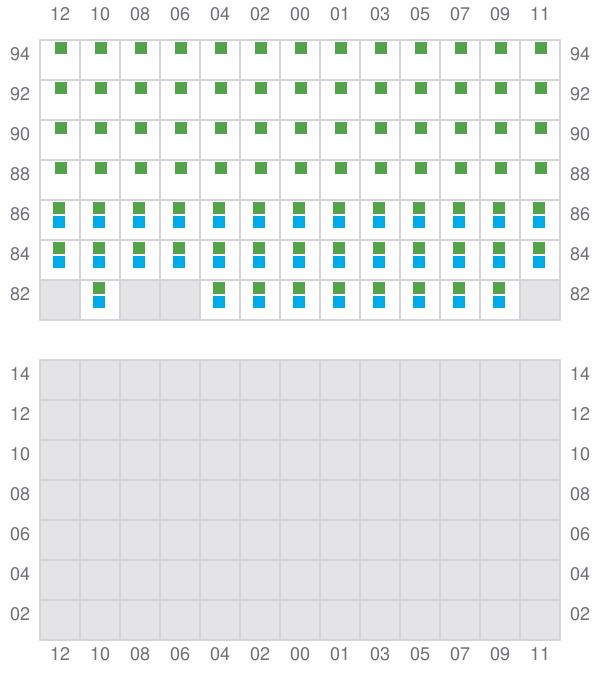

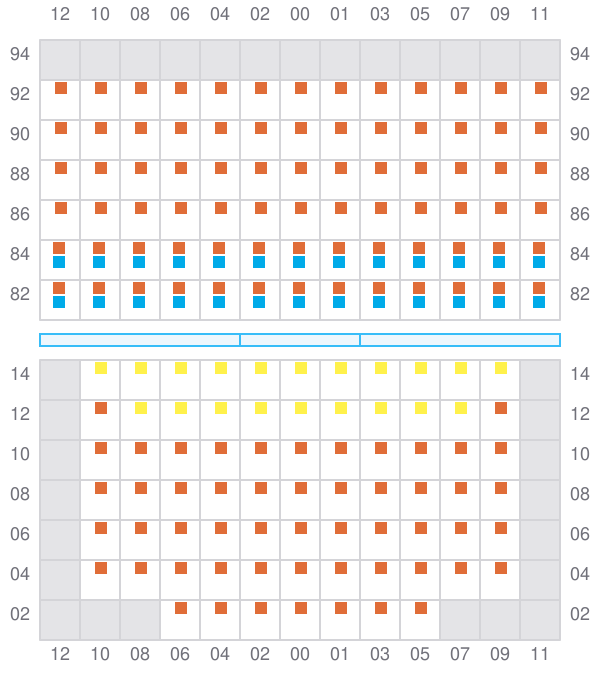

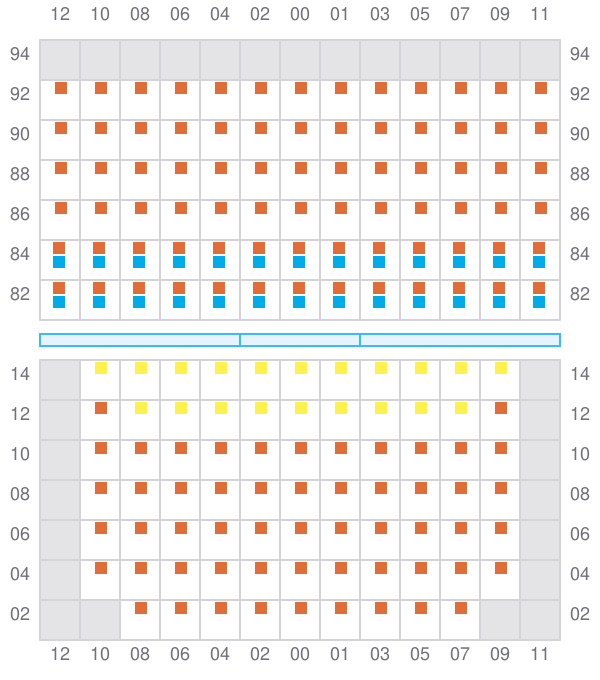

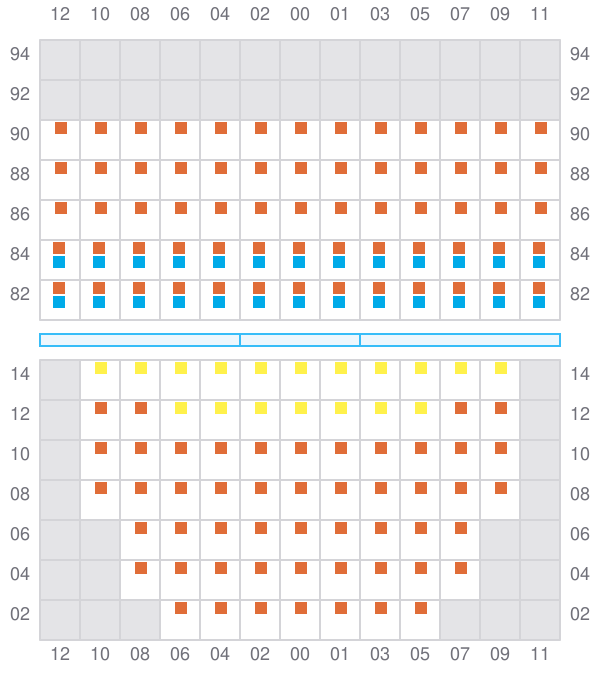

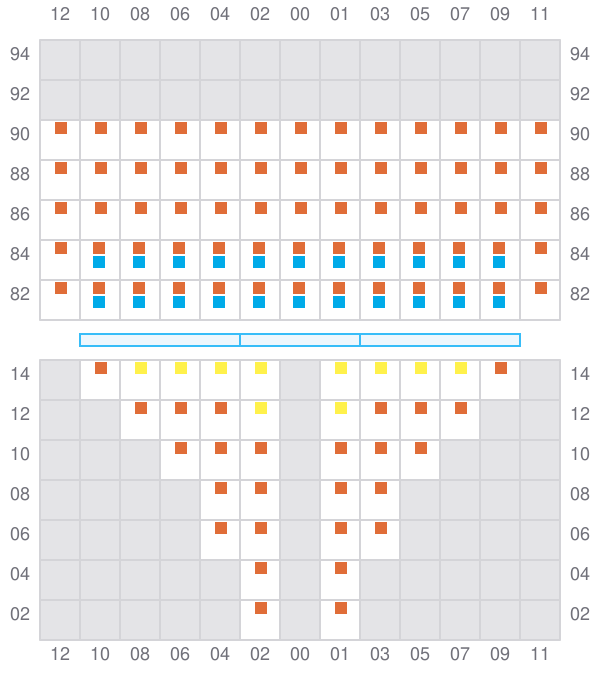

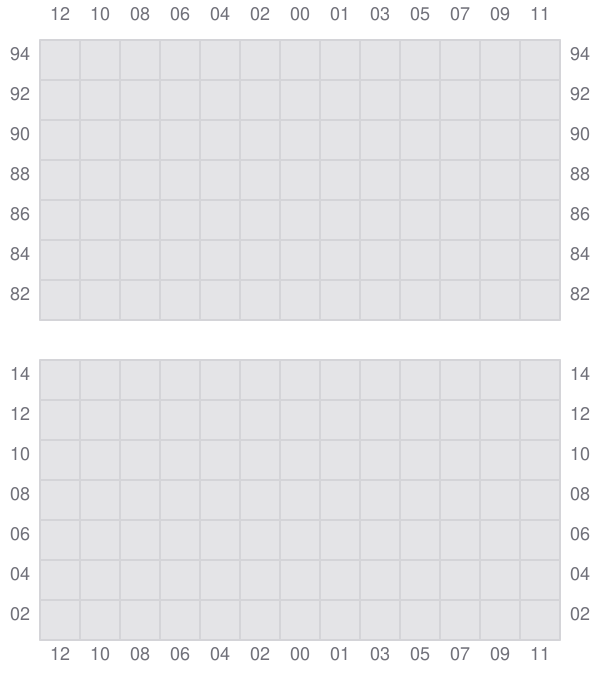

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

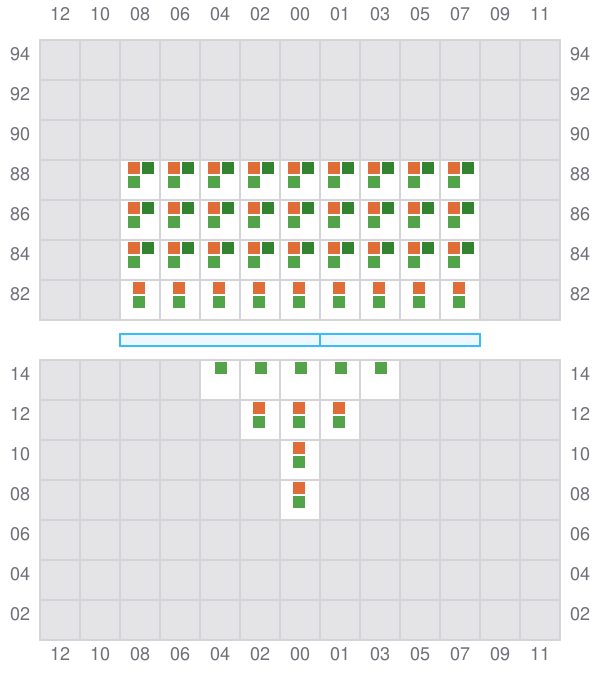

001 (002)
- →

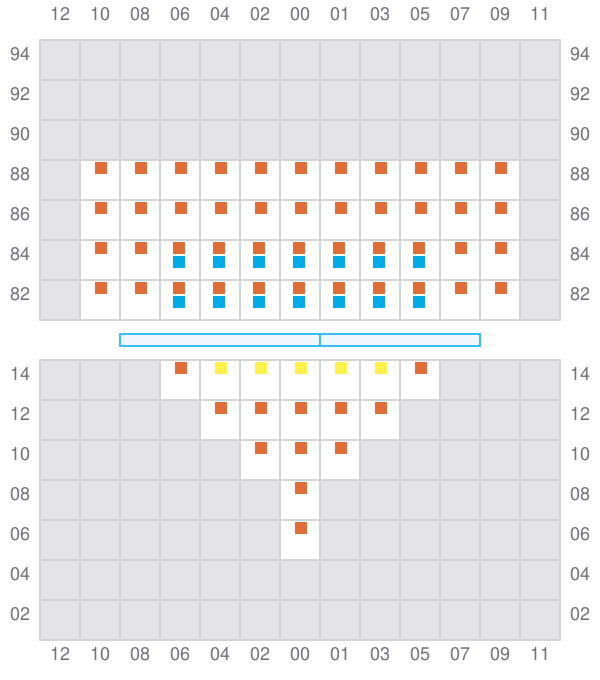

003
- ←

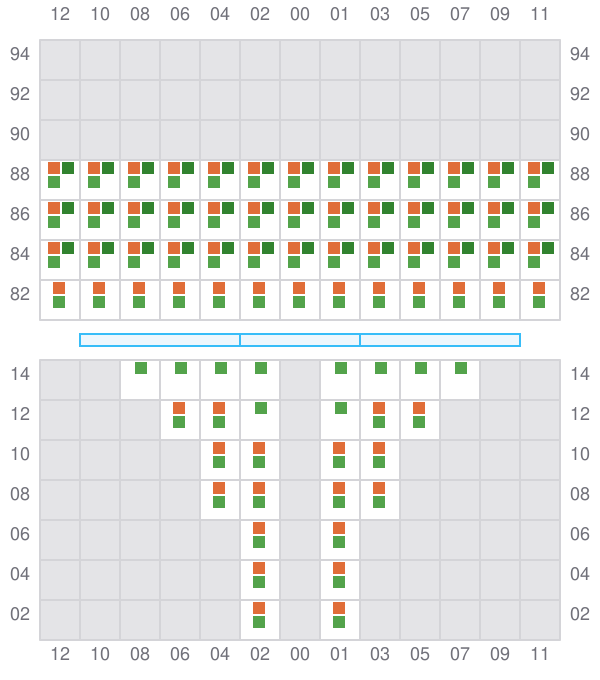

005 (006)
- →
007
- ←

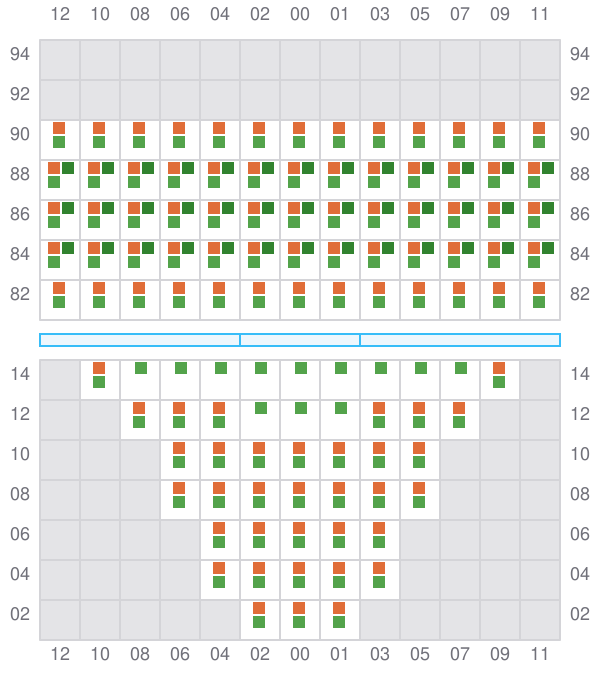

009 (010)
- →

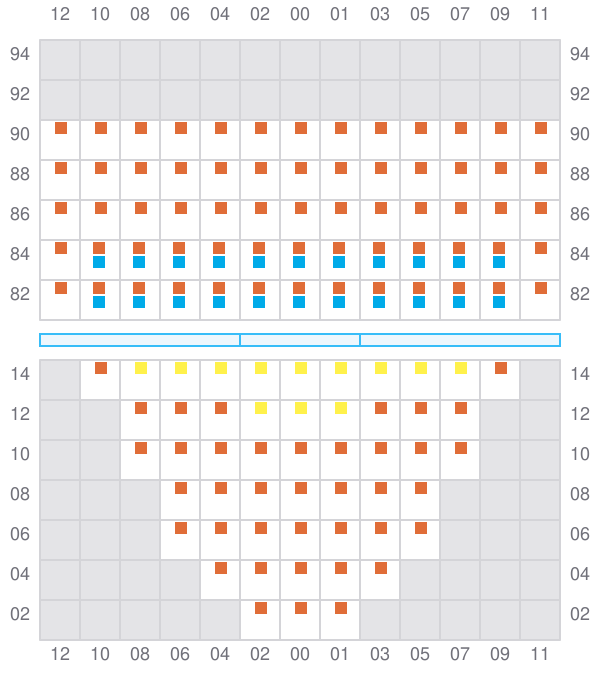

011
- ←

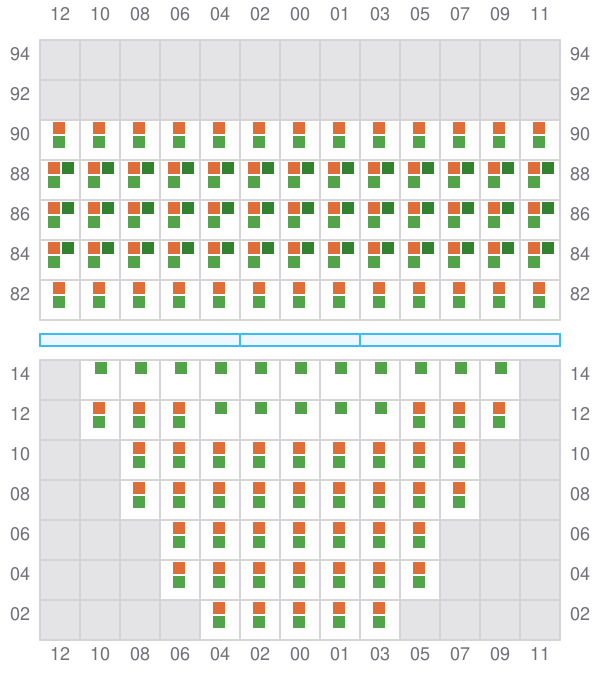

013 (014)
- →

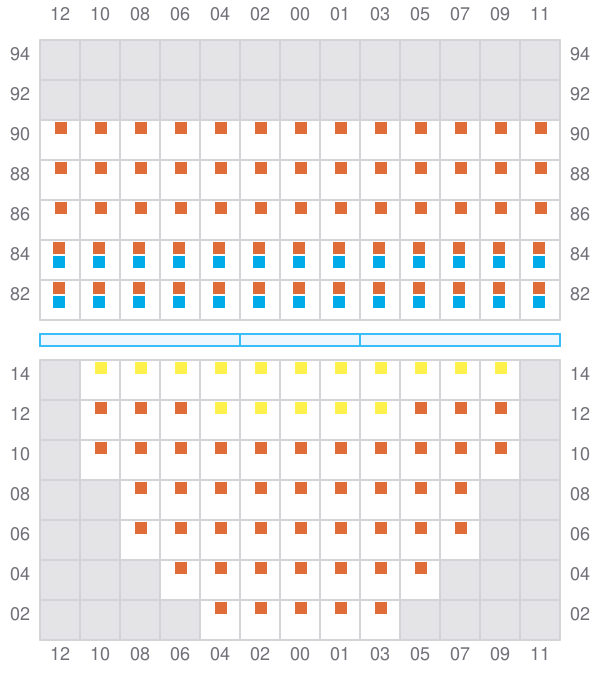

015
- ←

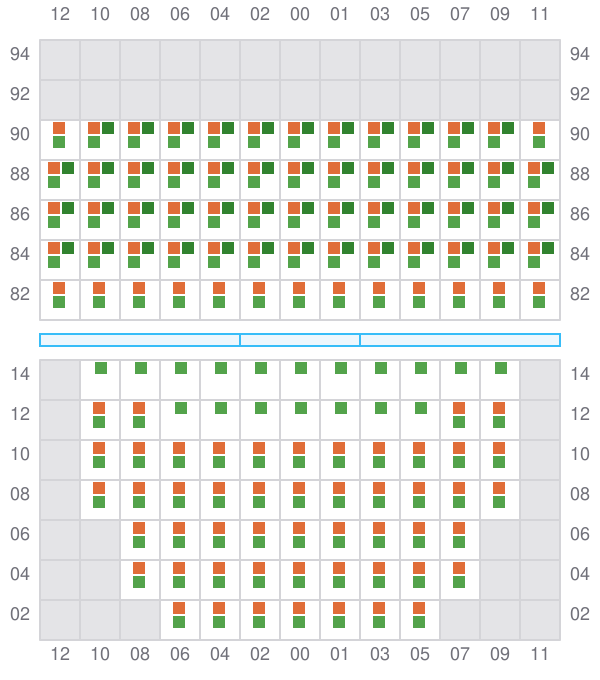

017 (018)
- →
019
- ←

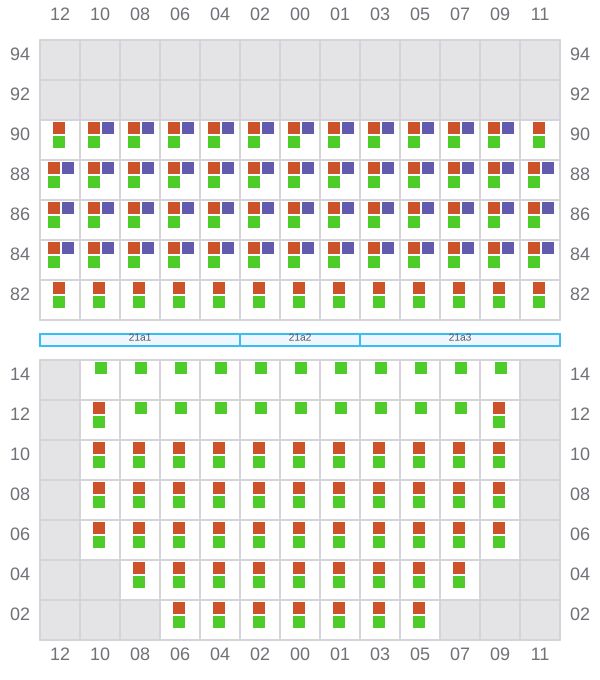

021 (022)
- →

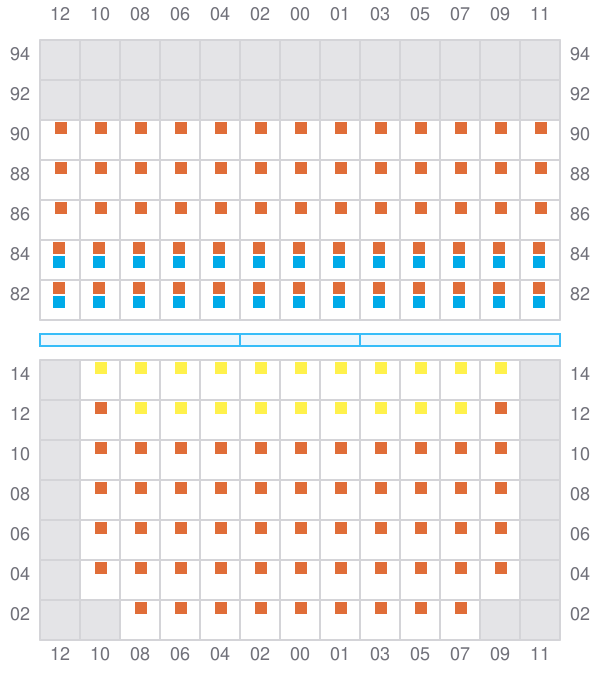

023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←

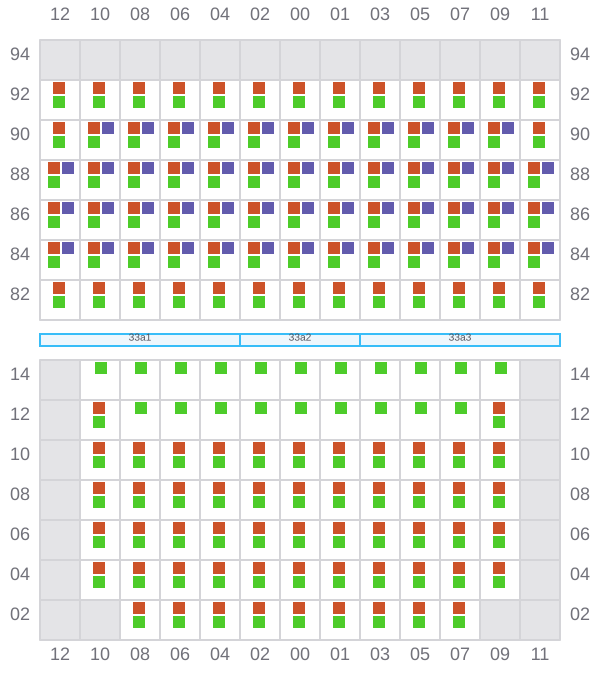

033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →
043
- ←

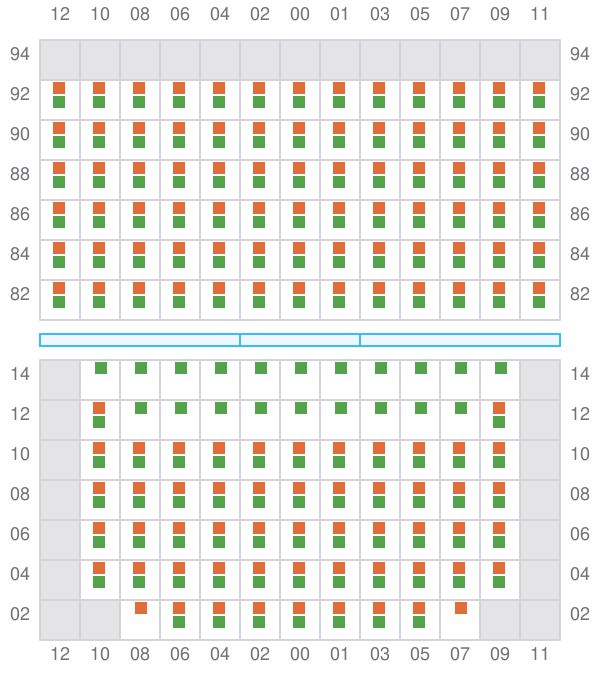

045 (046)
- →
047
- ←
049 (050)
- → / ?
051

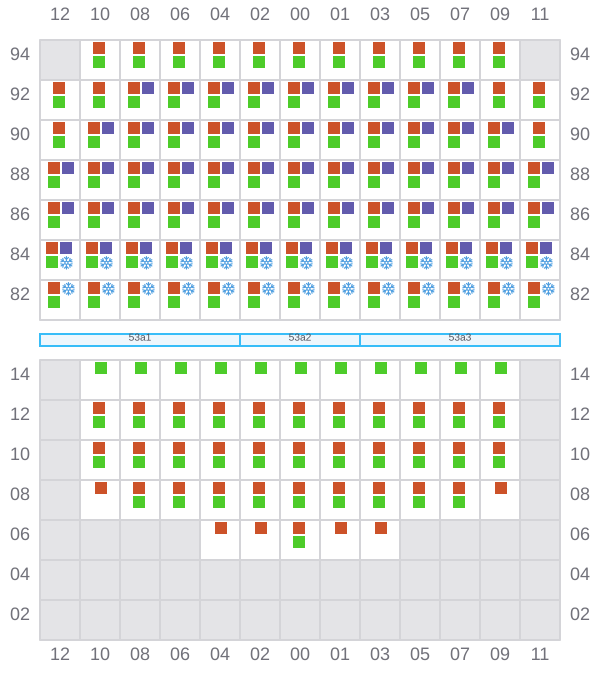

053 (054)
- →
055
- ←
057 (058)
- →

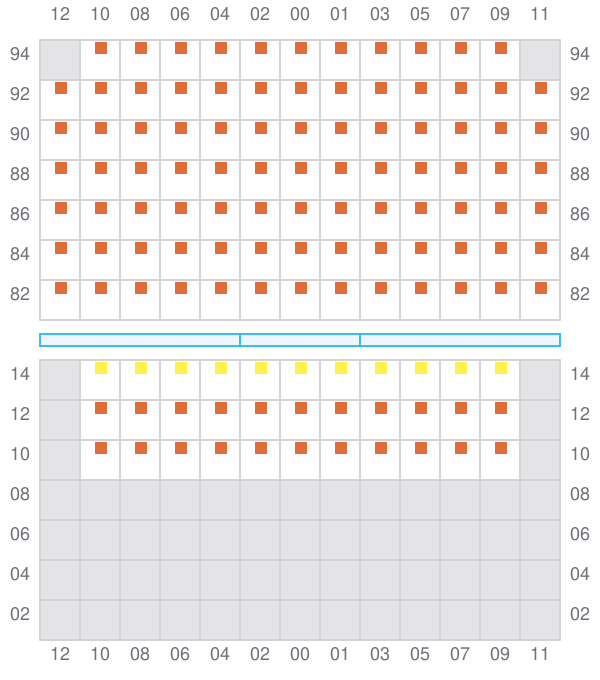

059
- ←

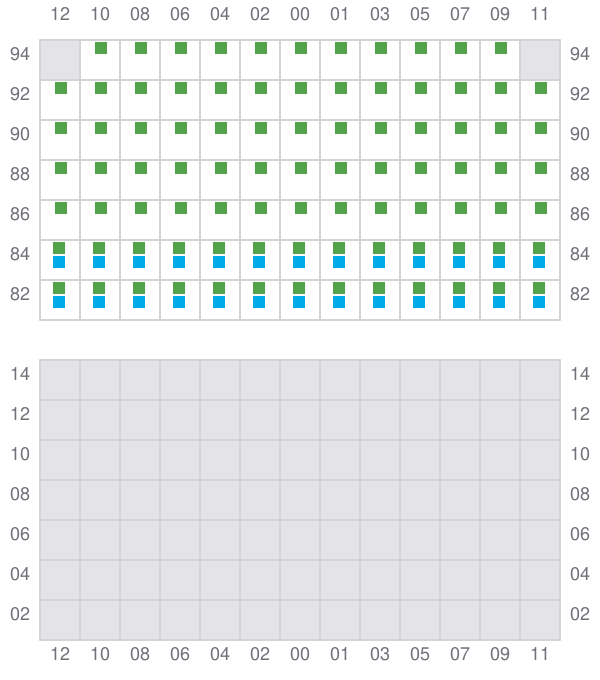

061 (062)
- → / ?
