MSC ANTONELLA
9702273 | CQZF | MSC by ************************** Last update: Thu Jun 15 2023

General Info

Ship Name:MSC ANTONELLA
IMO Code:9702273
Call Sign:CQZF
Line Operator:MSC
Class Name for Sister Ships:ATN
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,913

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

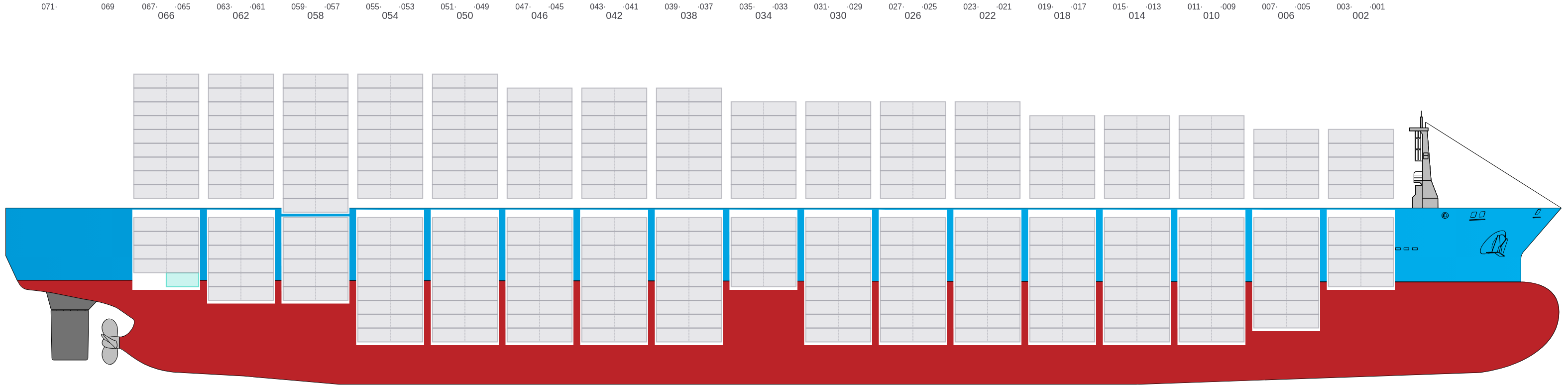

Side View

Side view of MSC ANTONELLA

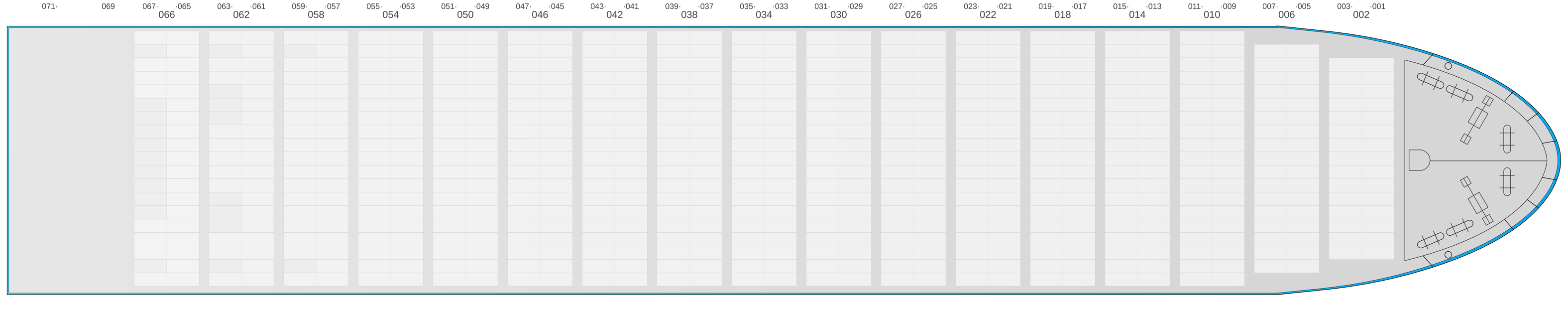

Hatch-Covers View

Deck view of MSC ANTONELLA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

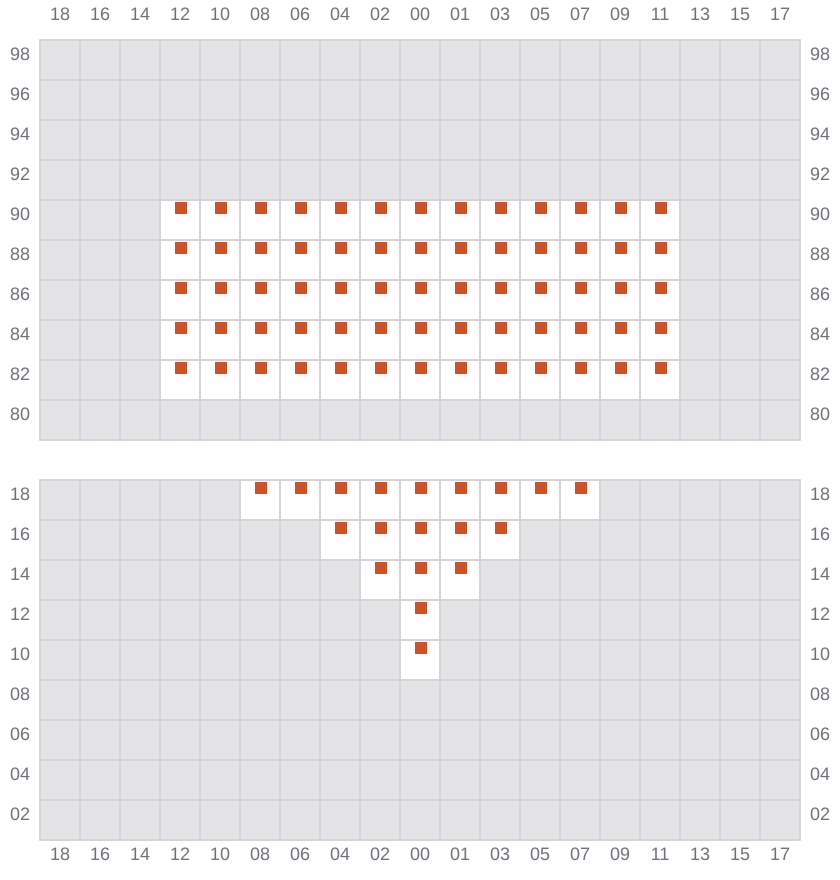

001

Bay 001 view and slots of MSC ANTONELLA

003 (002)

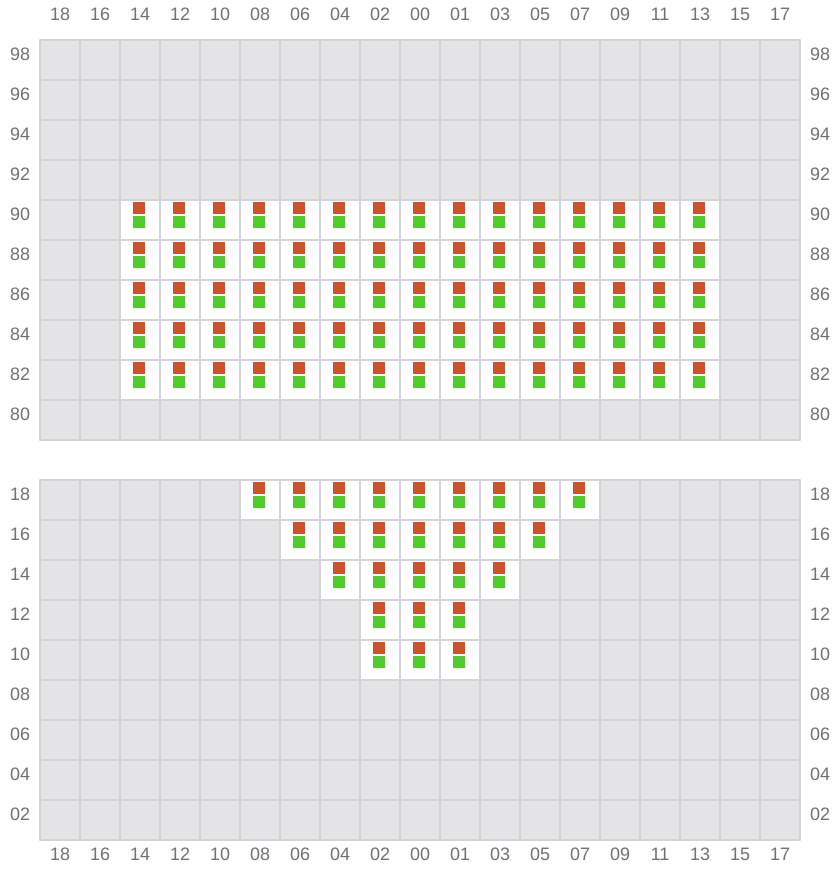

Bay 003 view and slots of MSC ANTONELLA

005

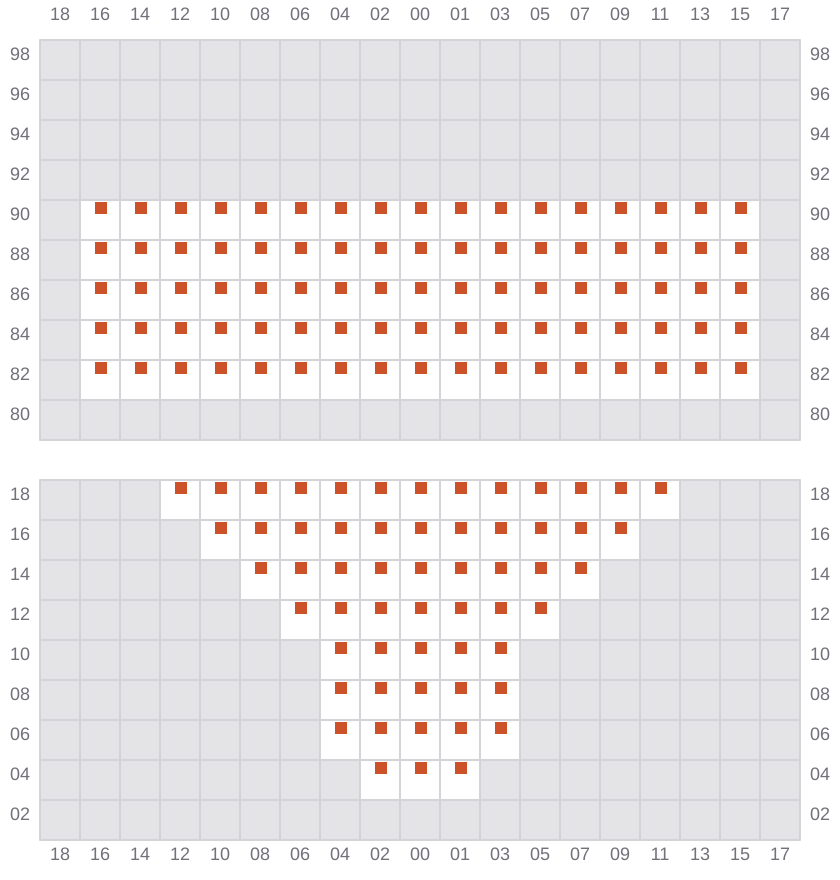

Bay 005 view and slots of MSC ANTONELLA

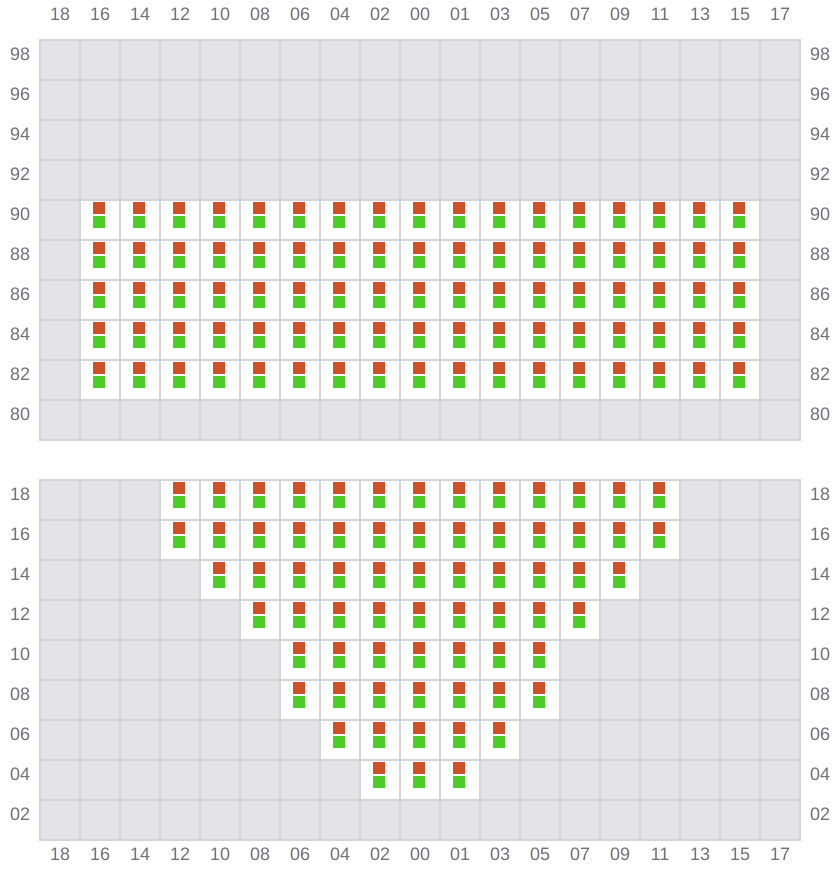

007 (006)

Bay 007 view and slots of MSC ANTONELLA

009

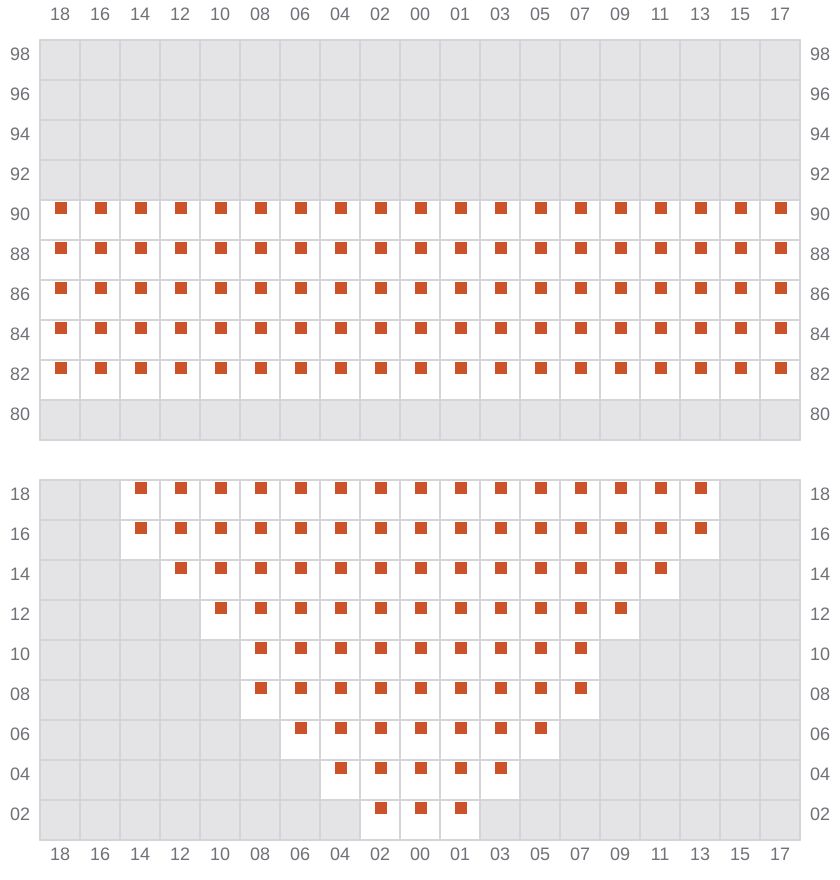

Bay 009 view and slots of MSC ANTONELLA

011 (010)

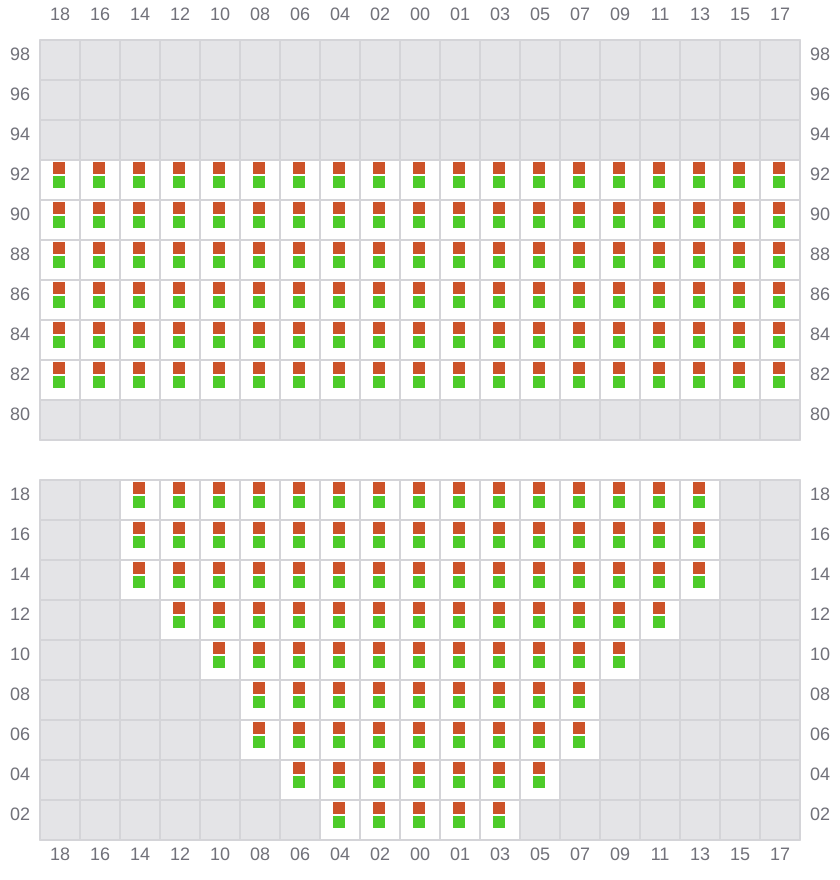

Bay 011 view and slots of MSC ANTONELLA

013

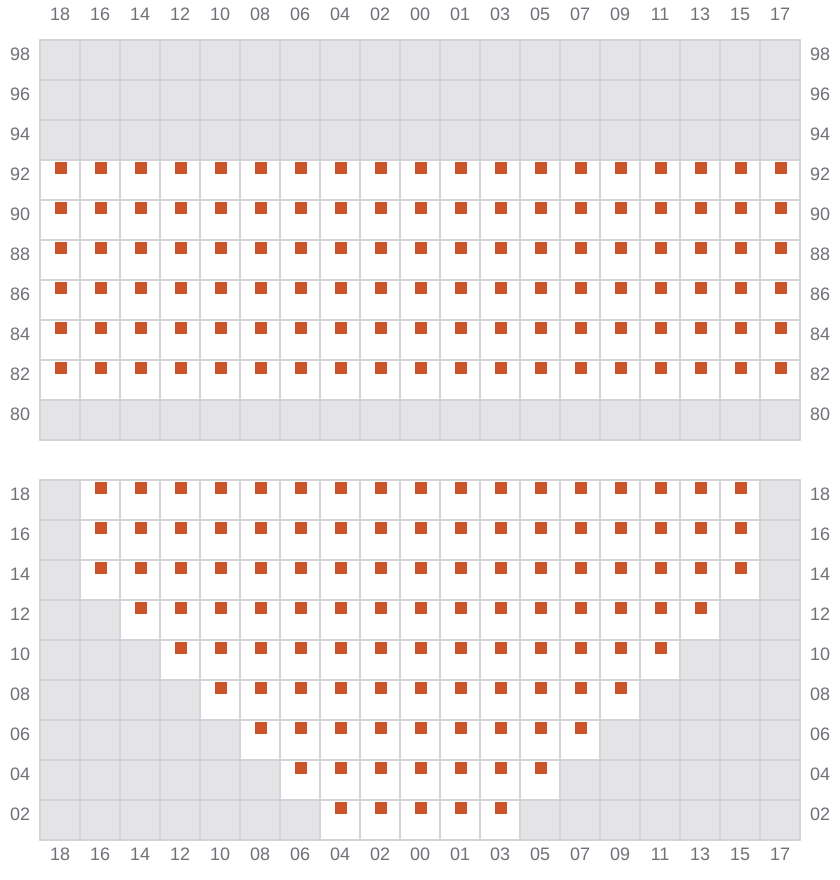

Bay 013 view and slots of MSC ANTONELLA

015 (014)

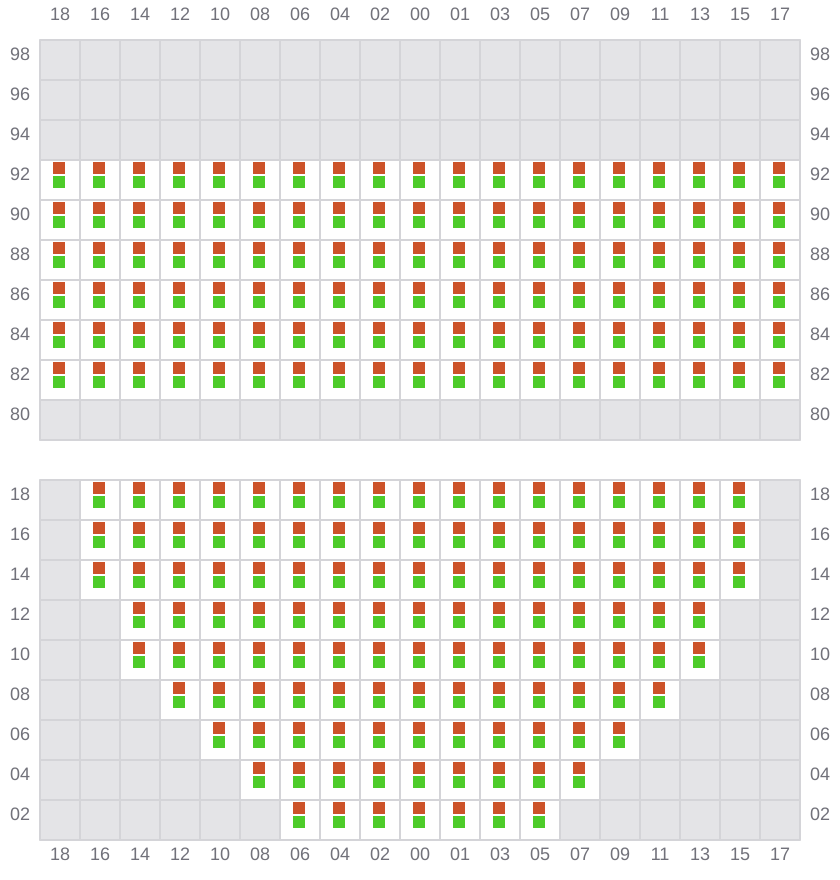

Bay 015 view and slots of MSC ANTONELLA

017

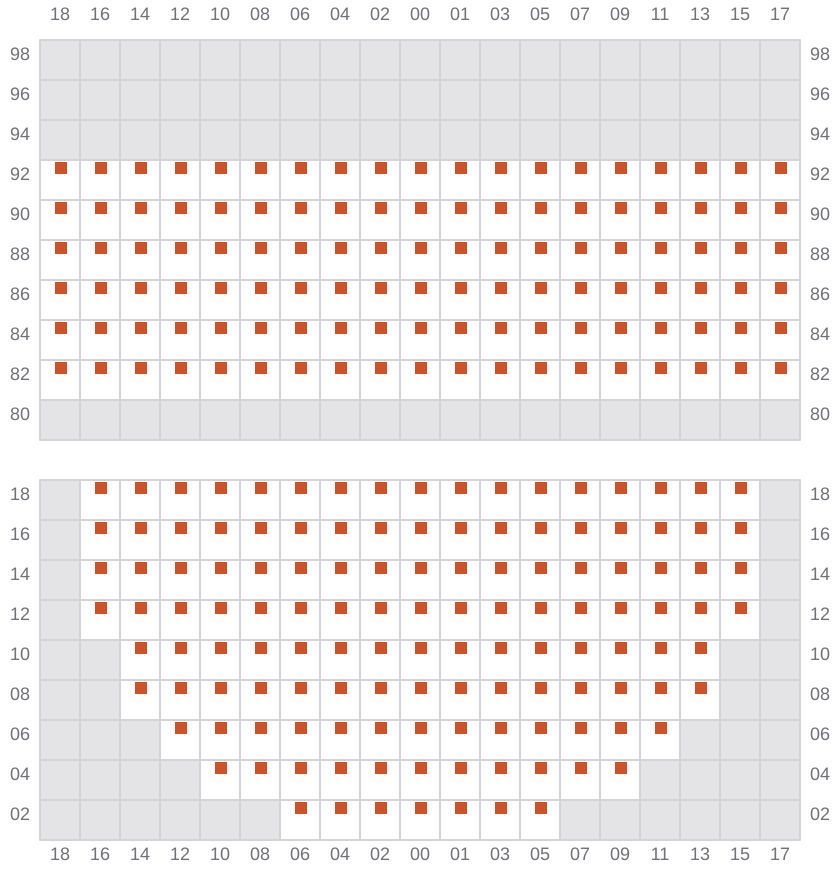

Bay 017 view and slots of MSC ANTONELLA

019 (018)

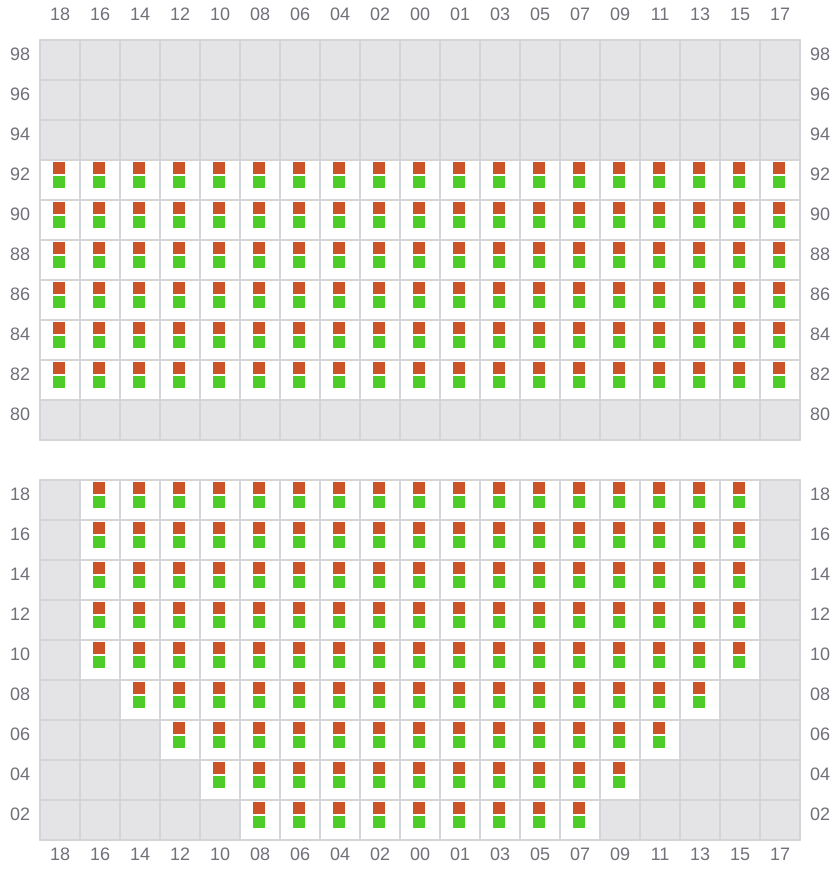

Bay 019 view and slots of MSC ANTONELLA

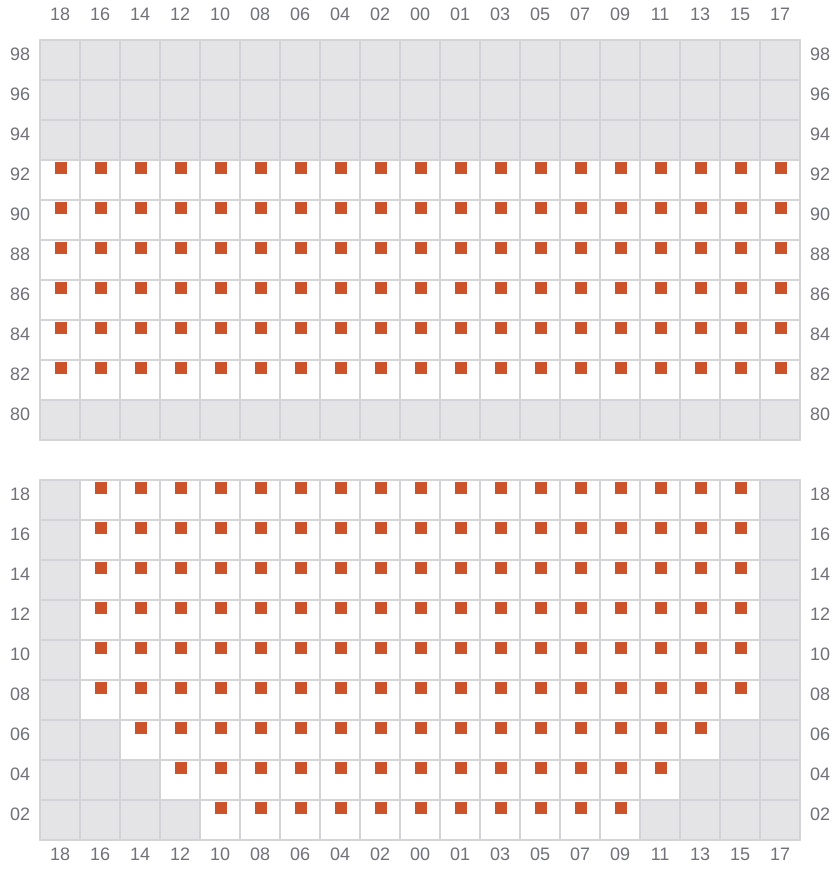

021

Bay 021 view and slots of MSC ANTONELLA

023 (022)

Bay 023 view and slots of MSC ANTONELLA

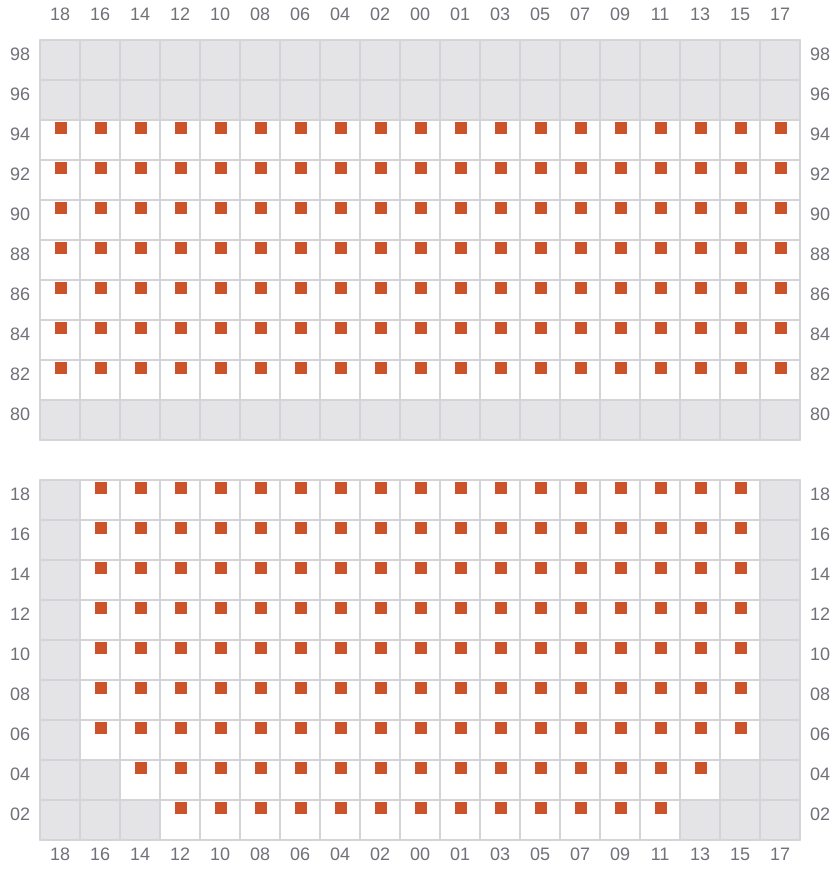

025

Bay 025 view and slots of MSC ANTONELLA

027 (026)

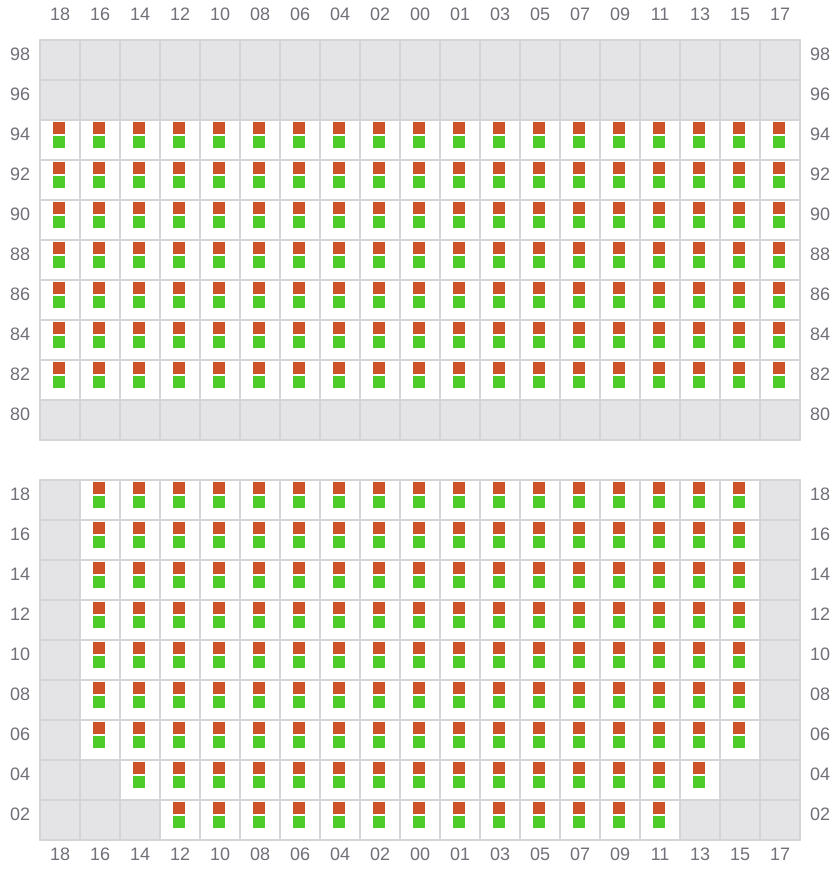

Bay 027 view and slots of MSC ANTONELLA

029

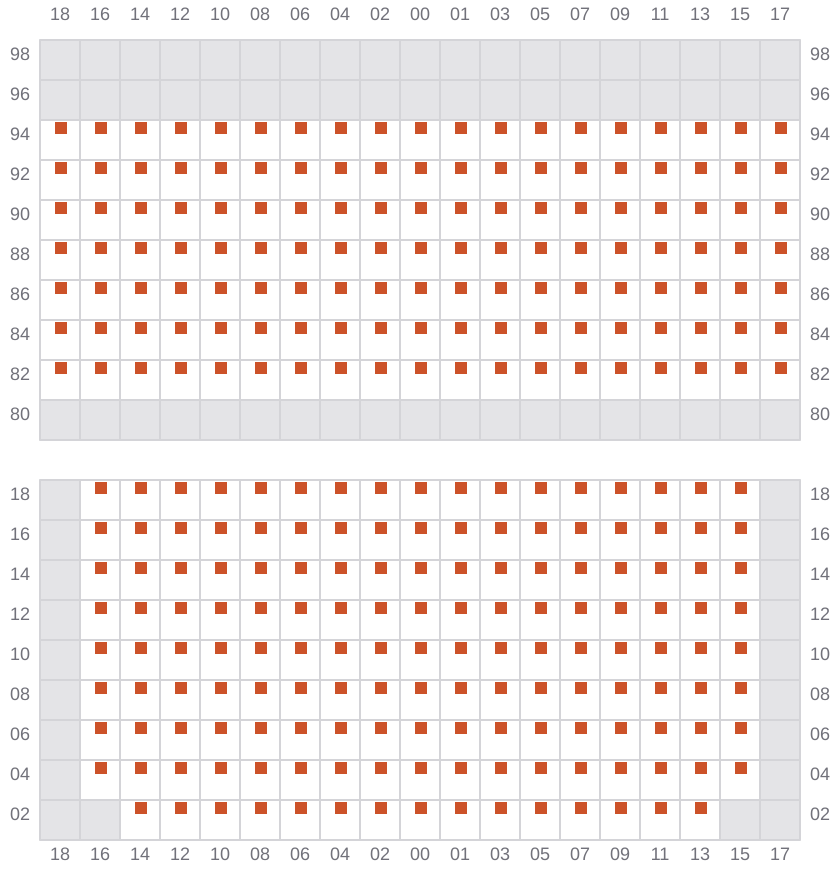

Bay 029 view and slots of MSC ANTONELLA

031 (030)

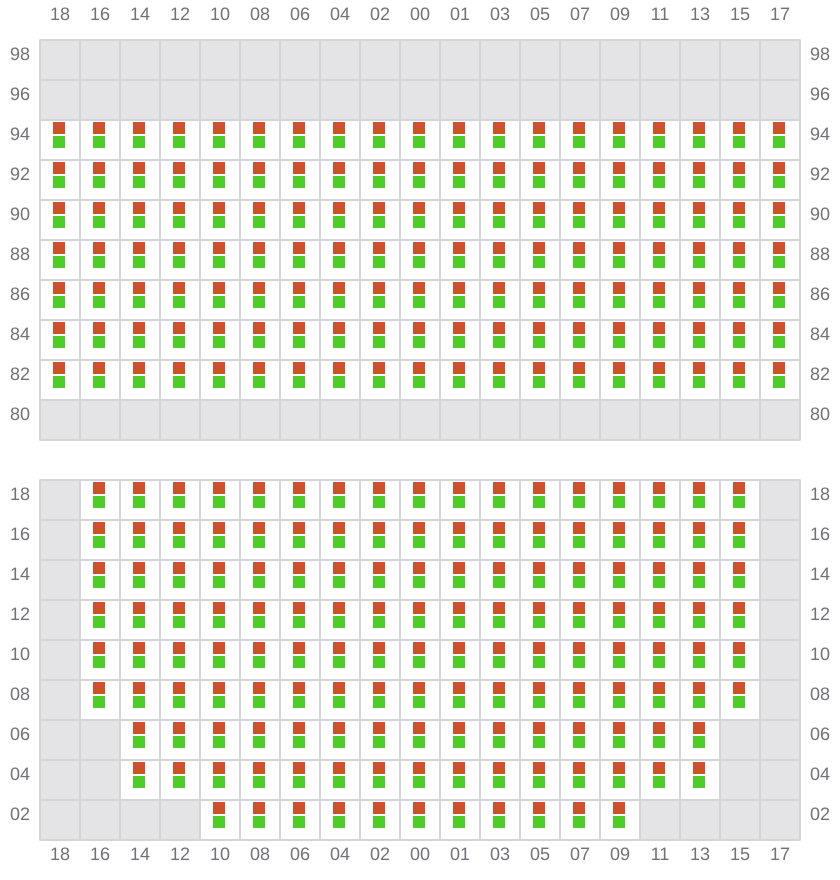

Bay 031 view and slots of MSC ANTONELLA

033

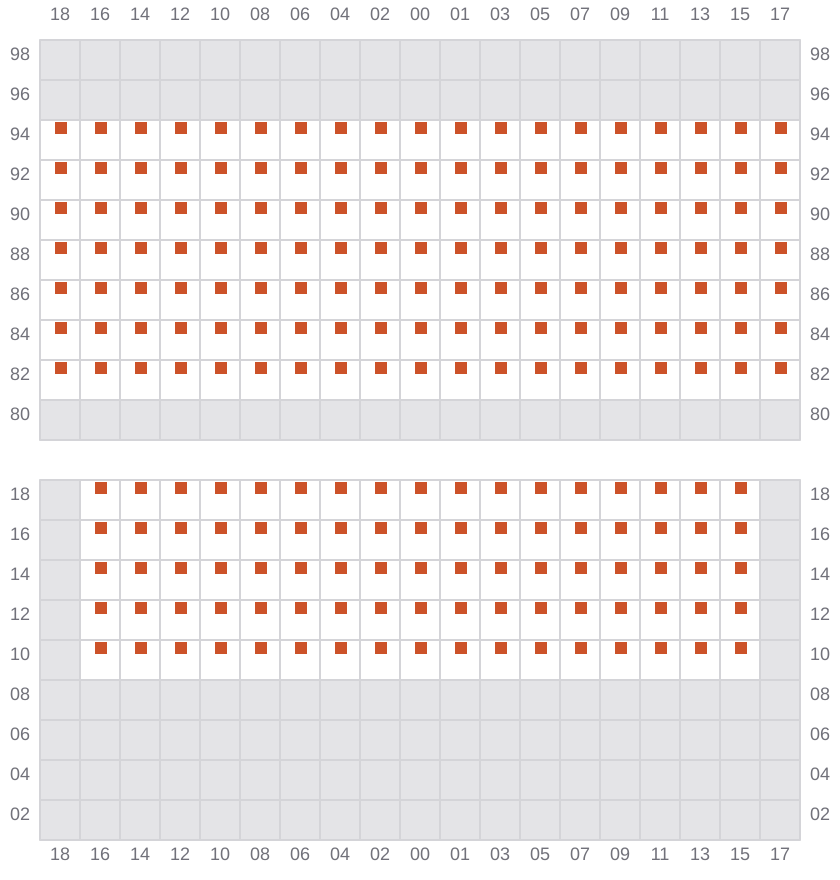

Bay 033 view and slots of MSC ANTONELLA

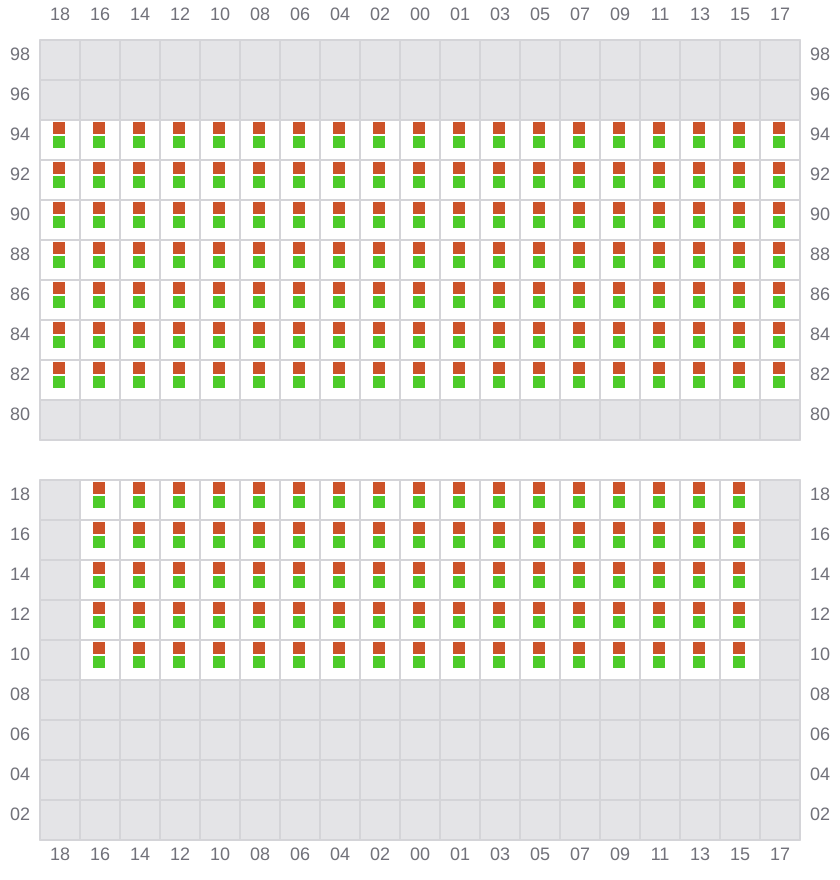

035 (034)

Bay 035 view and slots of MSC ANTONELLA

037

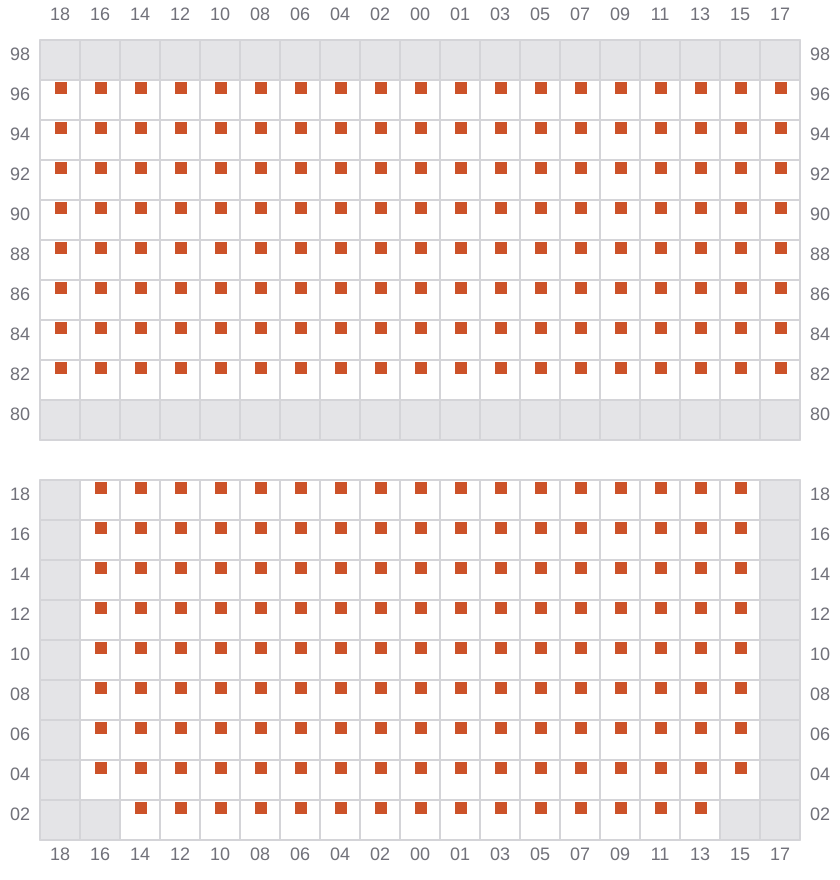

Bay 037 view and slots of MSC ANTONELLA

039 (038)

Bay 039 view and slots of MSC ANTONELLA

041

Bay 041 view and slots of MSC ANTONELLA

043 (042)

Bay 043 view and slots of MSC ANTONELLA

045

Bay 045 view and slots of MSC ANTONELLA

047 (046)

Bay 047 view and slots of MSC ANTONELLA

049

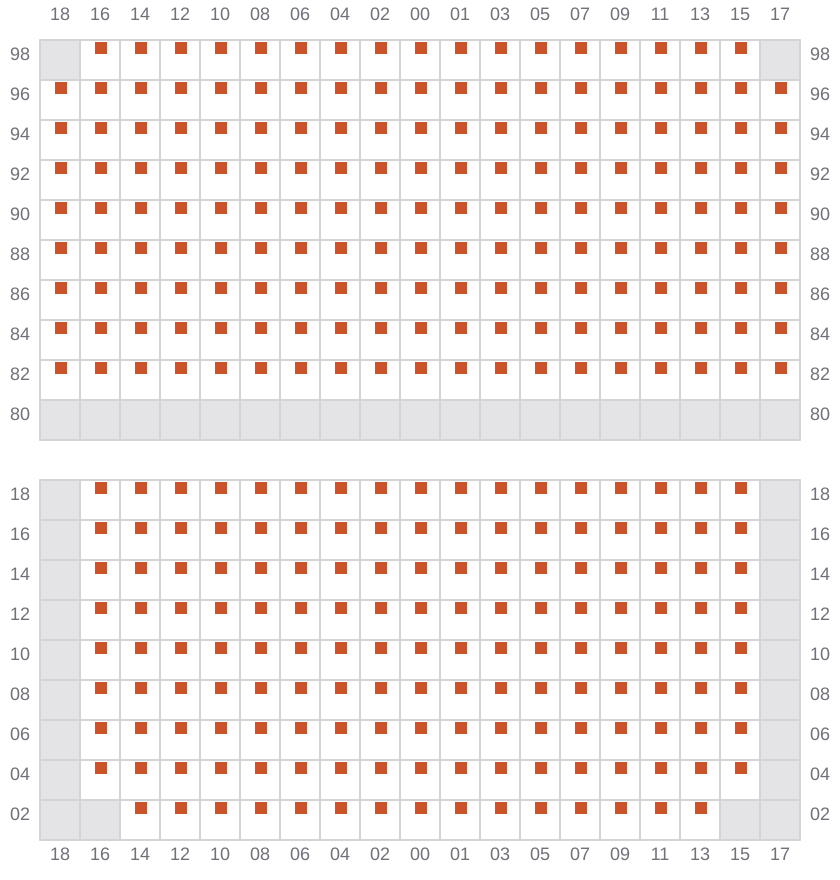

Bay 049 view and slots of MSC ANTONELLA

051 (050)

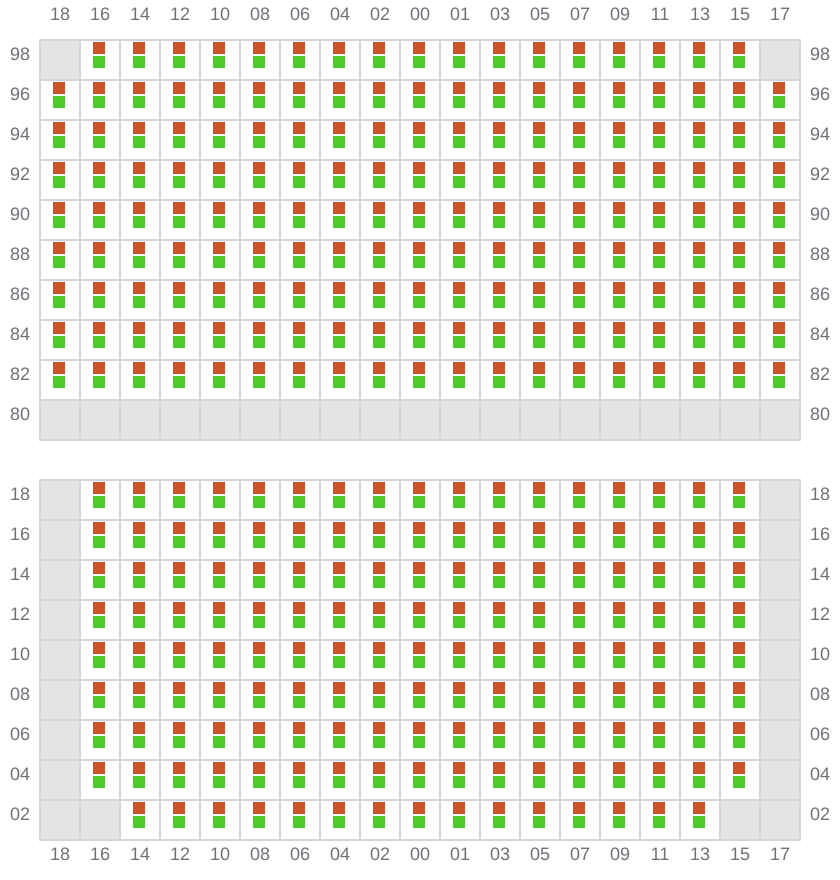

Bay 051 view and slots of MSC ANTONELLA

053

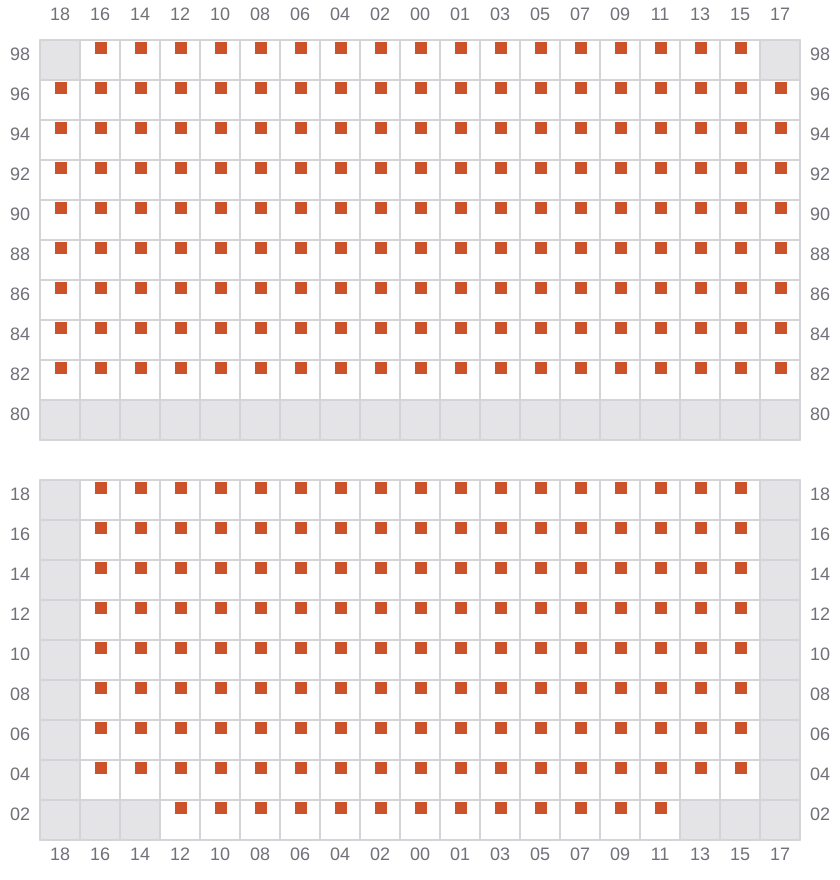

Bay 053 view and slots of MSC ANTONELLA

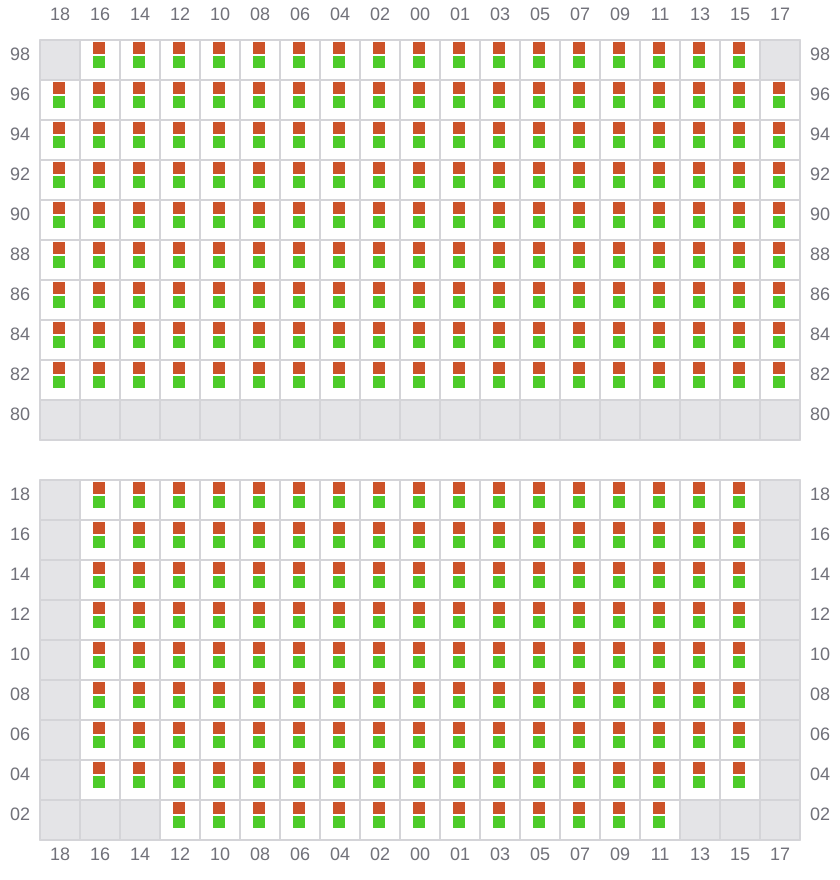

055 (054)

Bay 055 view and slots of MSC ANTONELLA

057

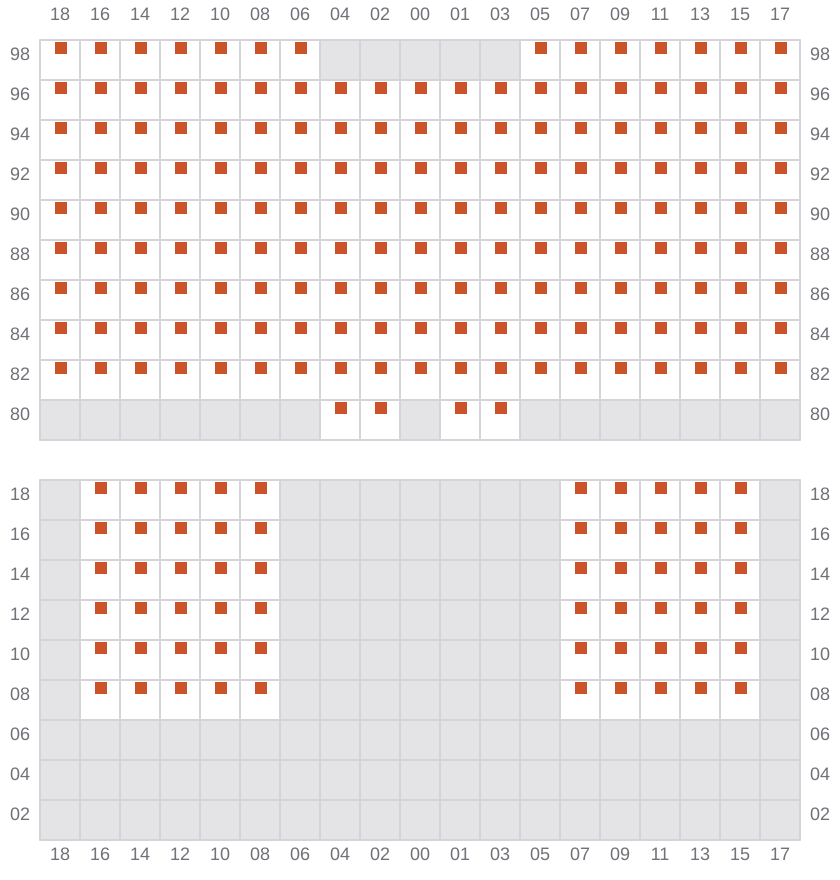

Bay 057 view and slots of MSC ANTONELLA

059 (058)

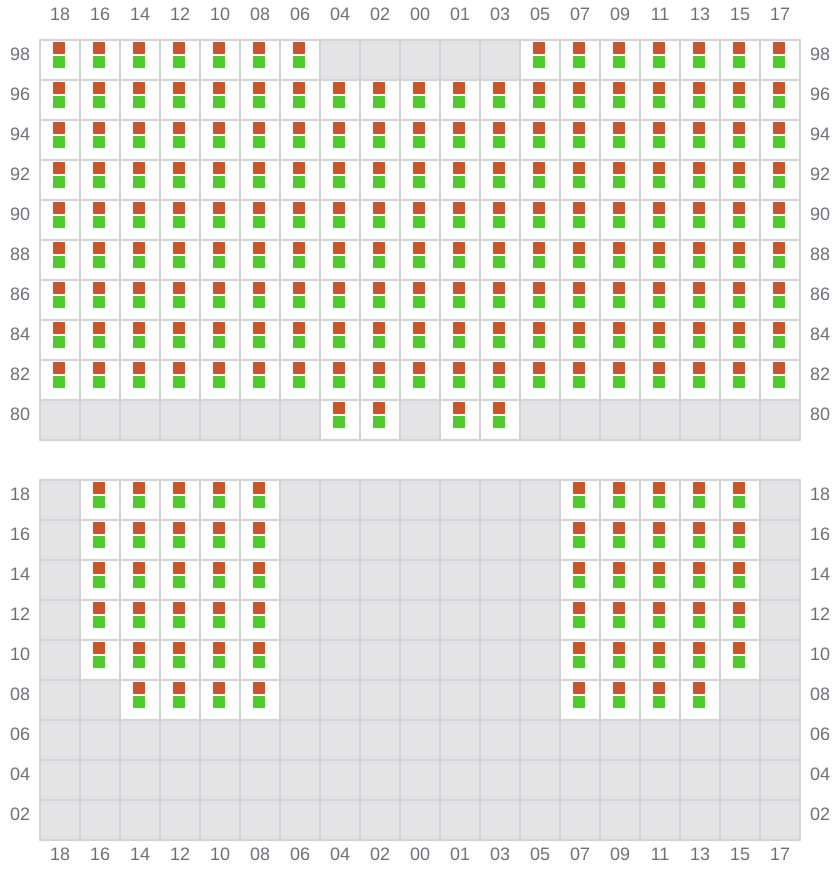

Bay 059 view and slots of MSC ANTONELLA

061

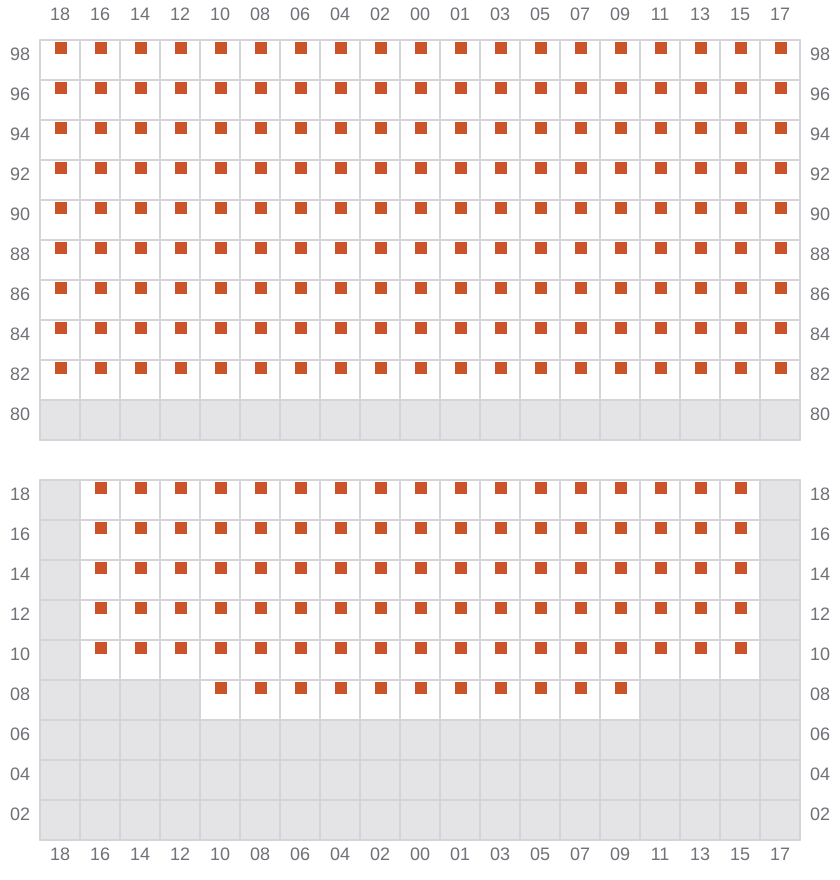

Bay 061 view and slots of MSC ANTONELLA

063 (062)

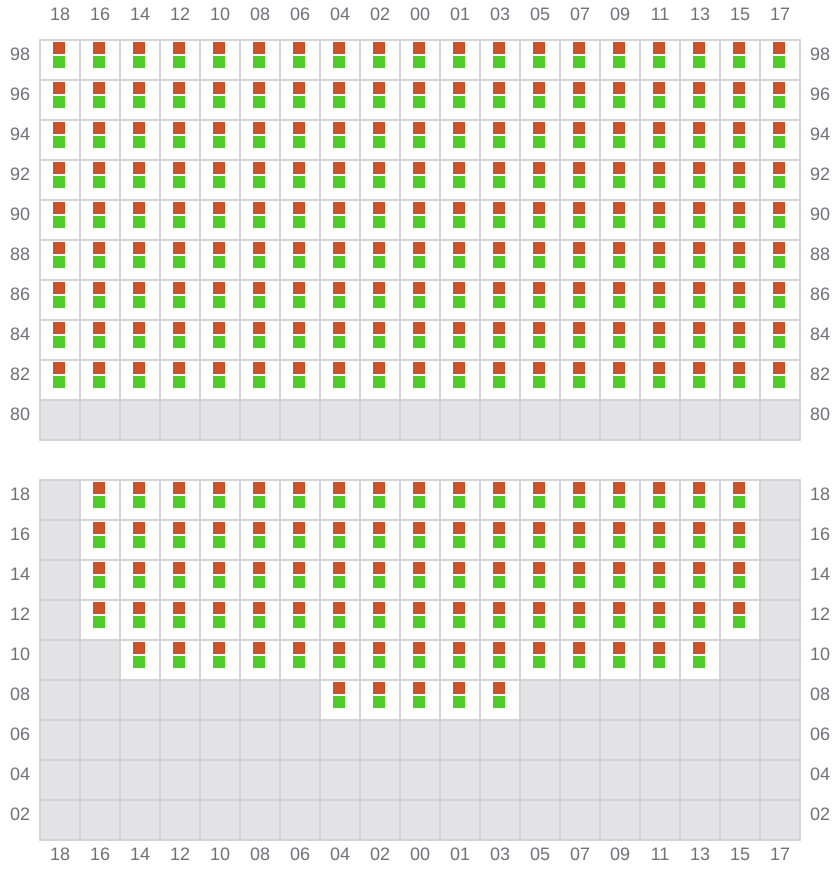

Bay 063 view and slots of MSC ANTONELLA

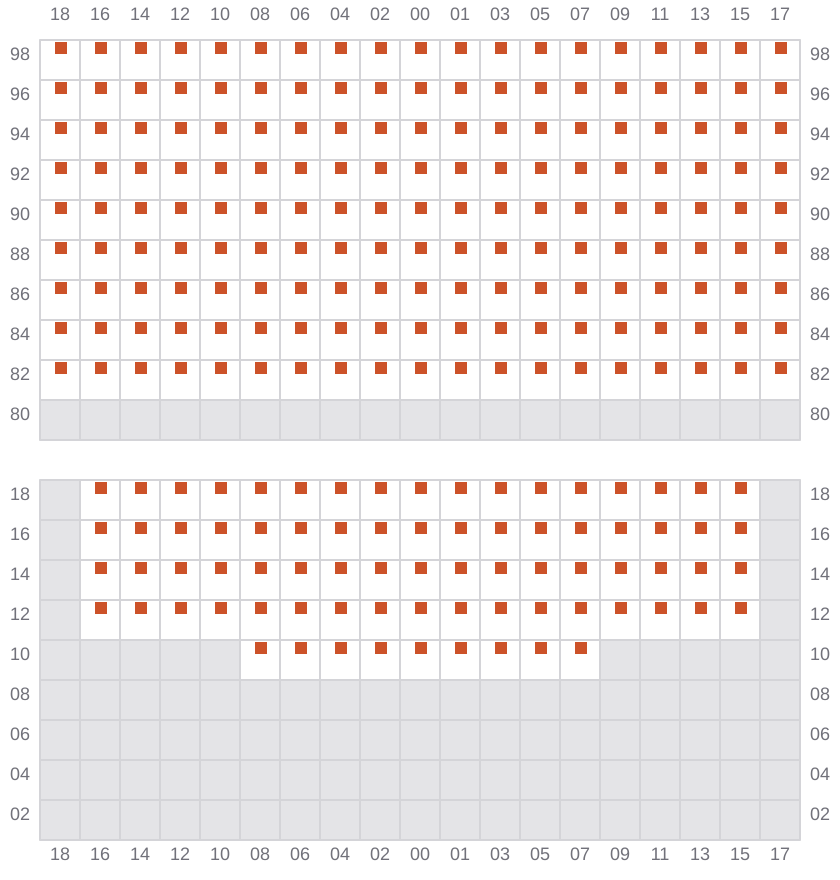

065

Bay 065 view and slots of MSC ANTONELLA

067 (066)

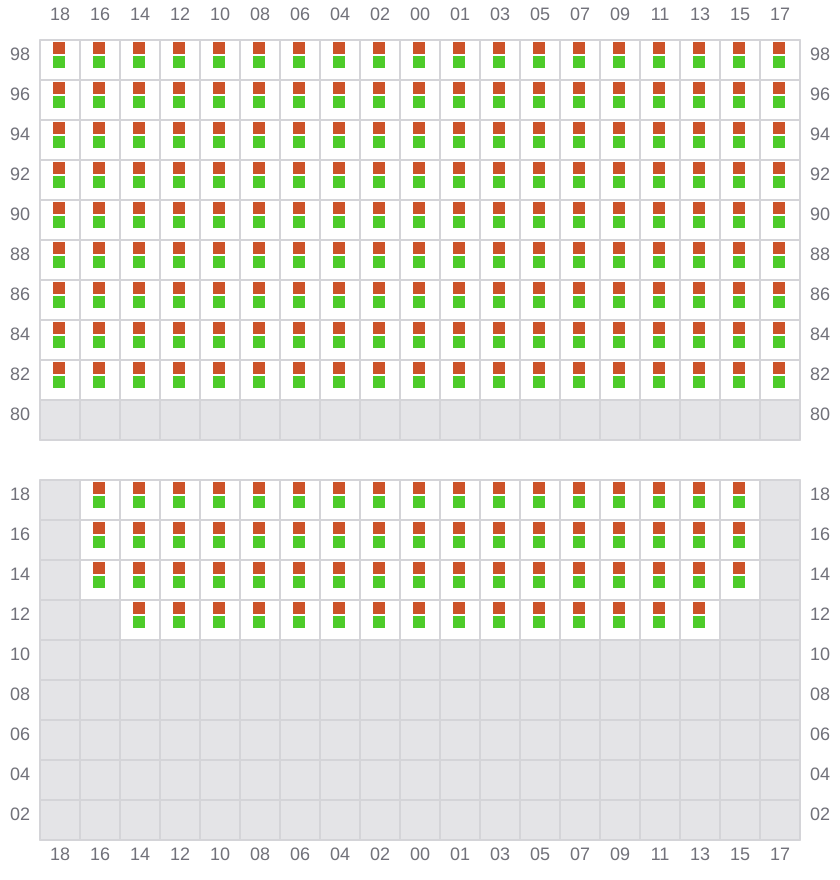

Bay 067 view and slots of MSC ANTONELLA

069

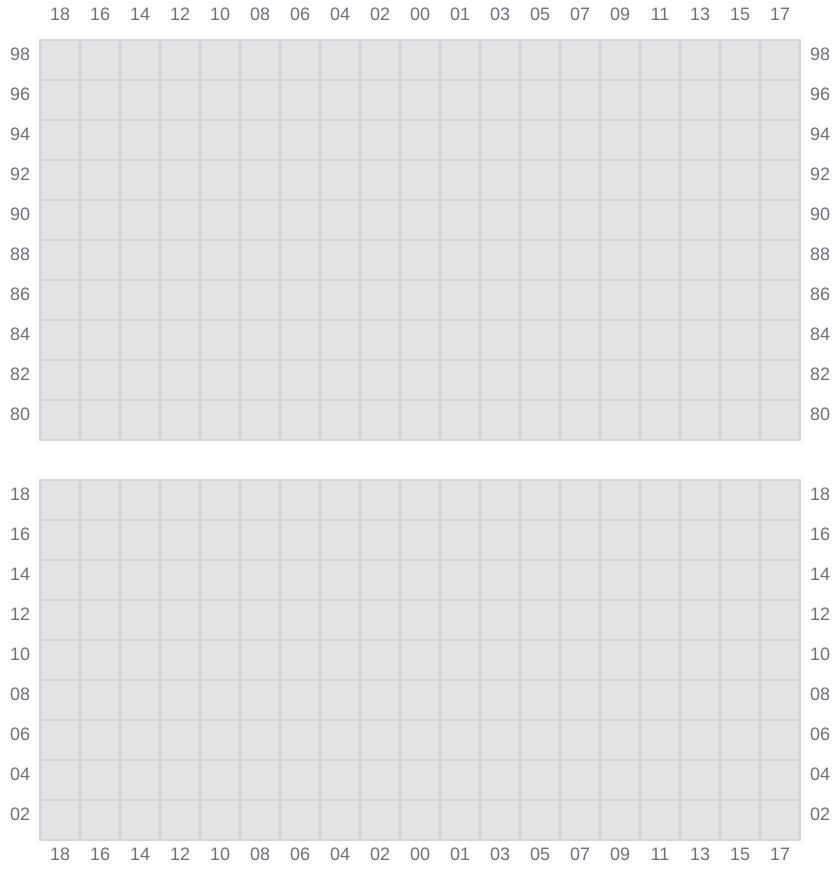

Bay 069 view and slots of MSC ANTONELLA

071 (070)

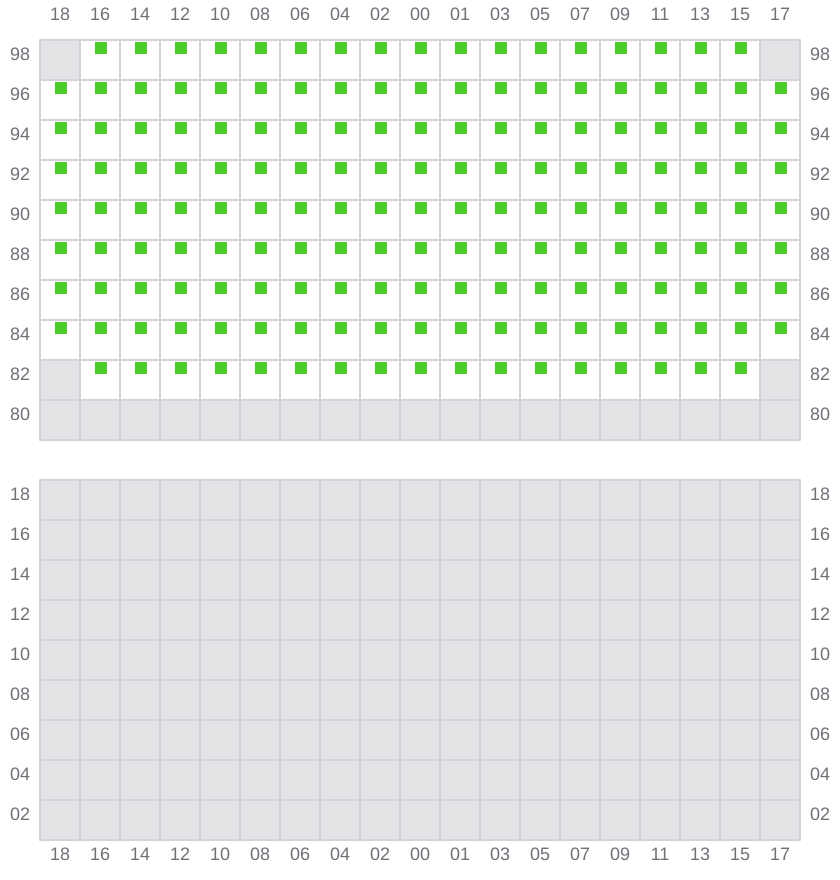

Bay 071 view and slots of MSC ANTONELLA
