MSC ANUSHA III
9323041 | CQEQ8 | 9323041 by ********* Last update: Fri Jul 12 2024

General Info

Ship Name:MSC ANUSHA III
IMO Code:9323041
Call Sign:CQEQ8
Line Operator:9323041
Class Name for Sister Ships:CSV
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):232.29
LOA (Length Overall):246.87
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:057
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,586

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

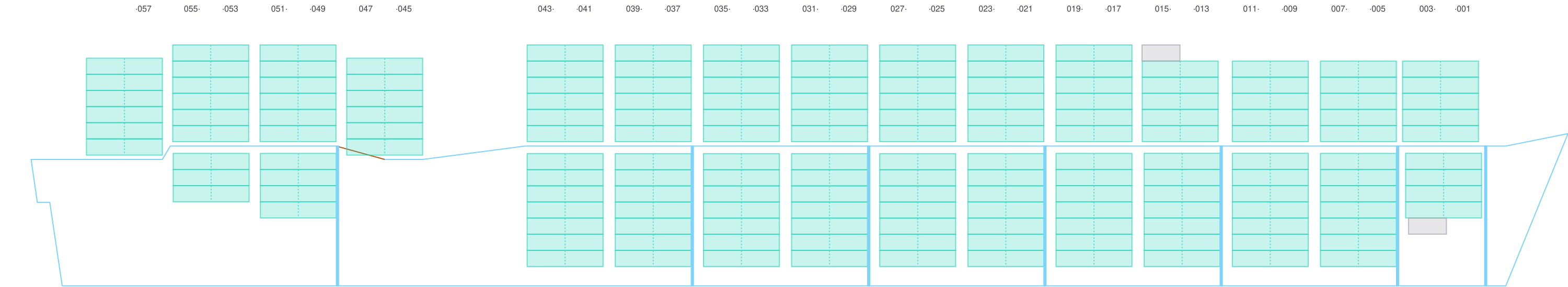

Side View

Side view of MSC ANUSHA III

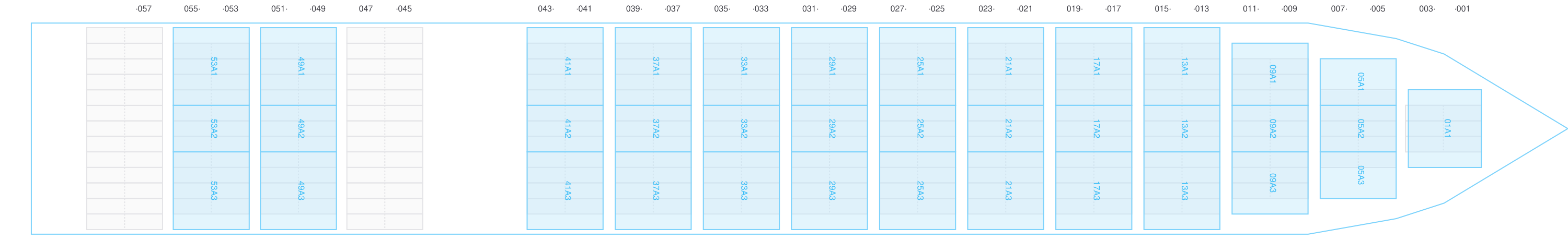

Hatch-Covers View

Deck view of MSC ANUSHA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

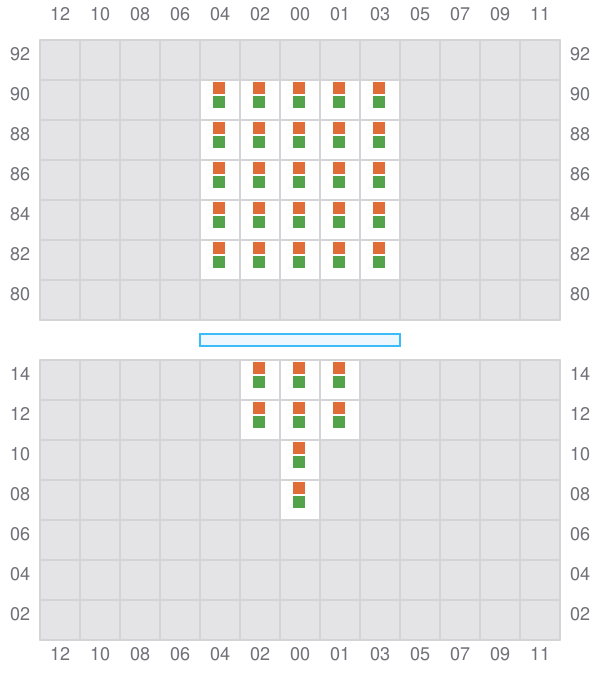

Bay 001 view and slots of MSC ANUSHA III

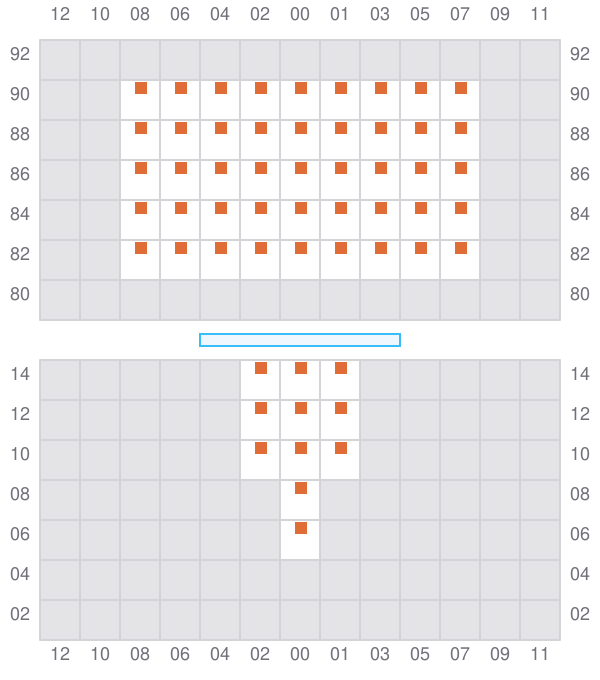

003

Bay 003 view and slots of MSC ANUSHA III

005 (006)

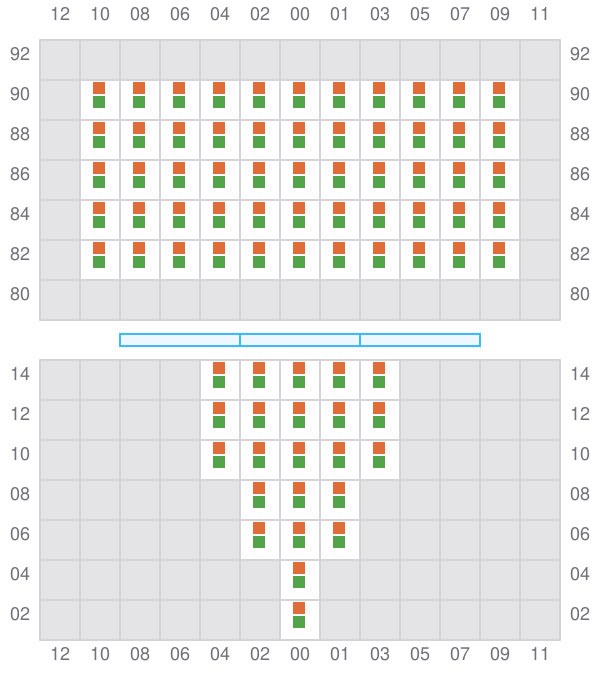

Bay 005 view and slots of MSC ANUSHA III

007

Bay 007 view and slots of MSC ANUSHA III

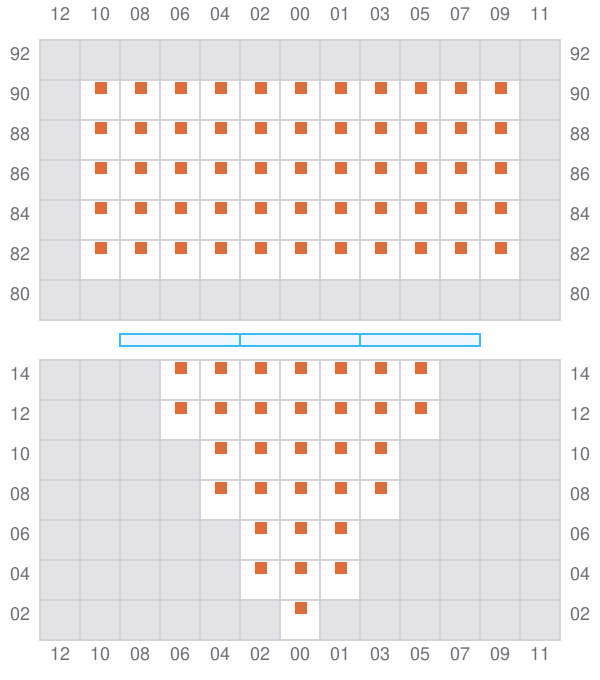

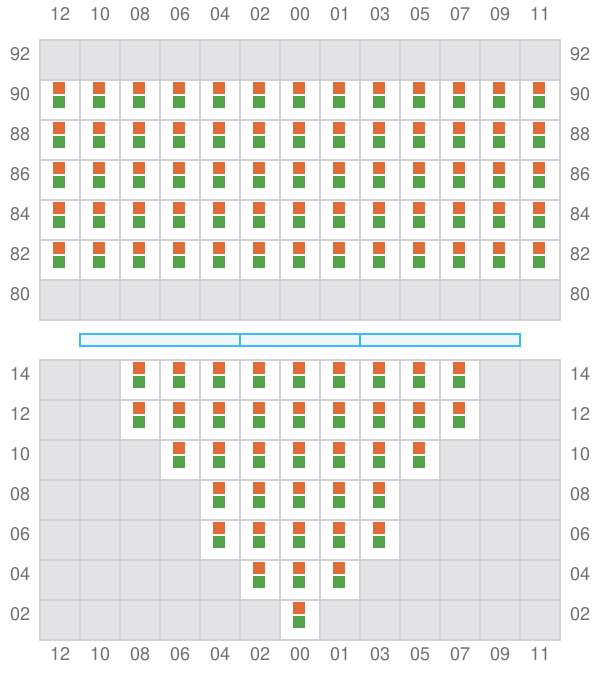

009 (010)

Bay 009 view and slots of MSC ANUSHA III

011

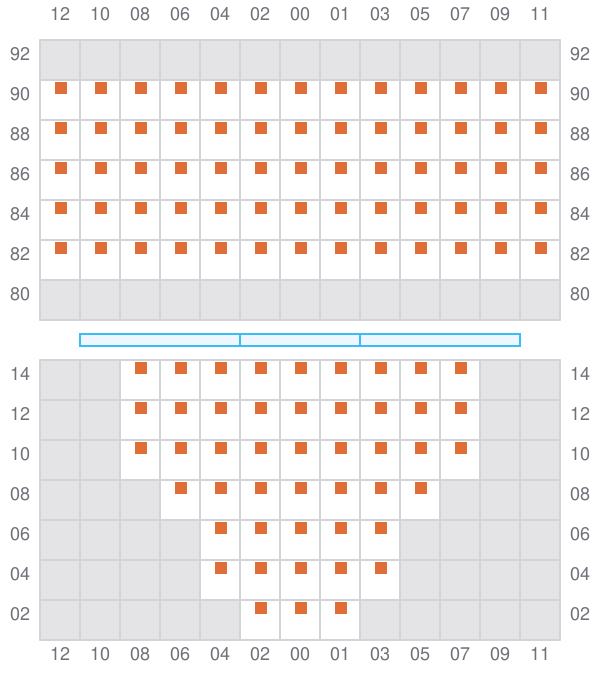

Bay 011 view and slots of MSC ANUSHA III

013 (014)

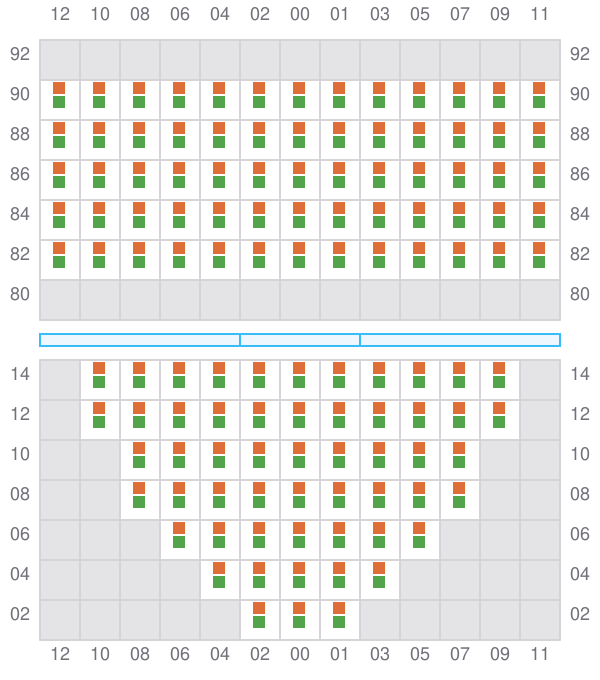

Bay 013 view and slots of MSC ANUSHA III

015

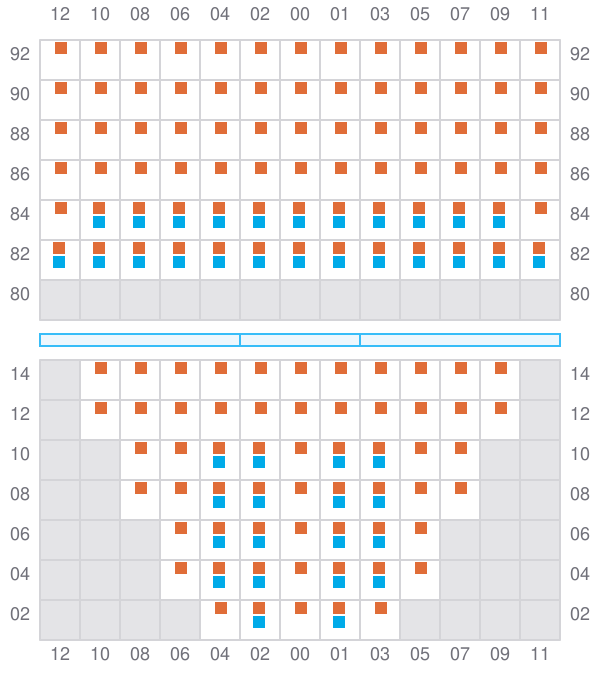

Bay 015 view and slots of MSC ANUSHA III

017 (018)

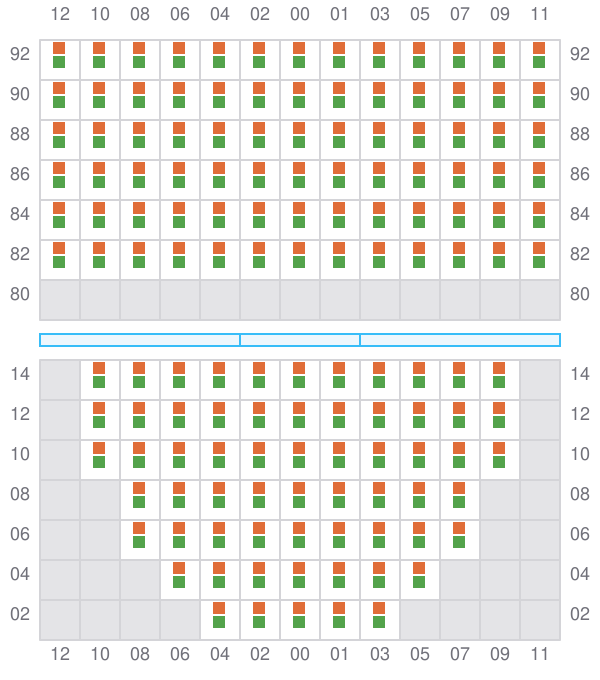

Bay 017 view and slots of MSC ANUSHA III

019

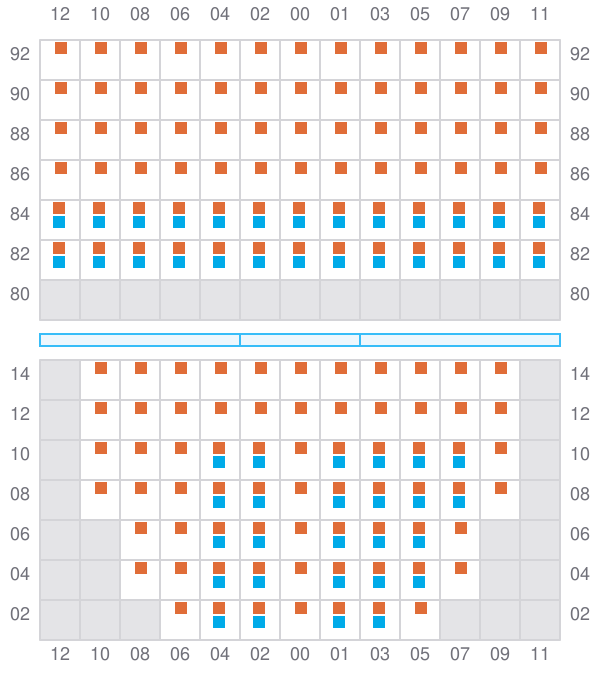

Bay 019 view and slots of MSC ANUSHA III

021 (022)

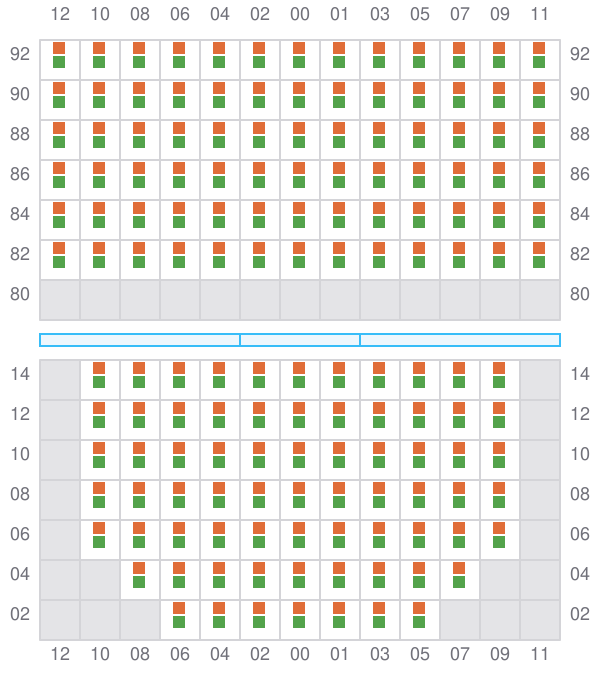

Bay 021 view and slots of MSC ANUSHA III

023

Bay 023 view and slots of MSC ANUSHA III

025 (026)

Bay 025 view and slots of MSC ANUSHA III

027

Bay 027 view and slots of MSC ANUSHA III

029 (030)

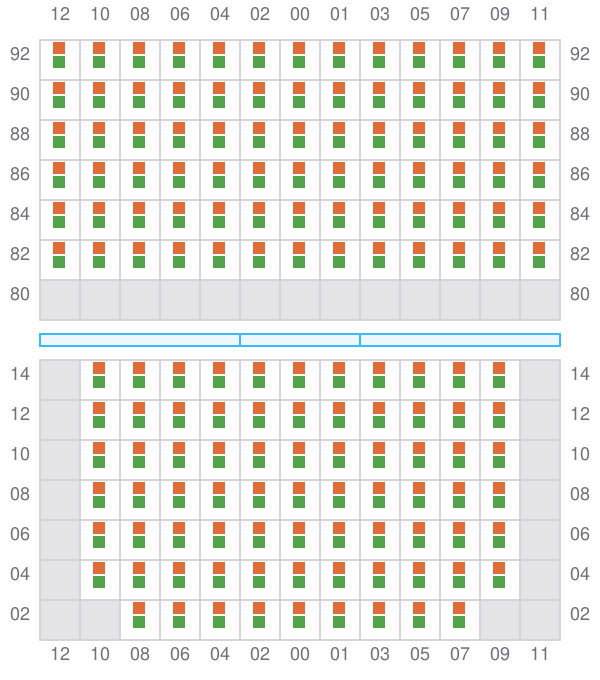

Bay 029 view and slots of MSC ANUSHA III

031

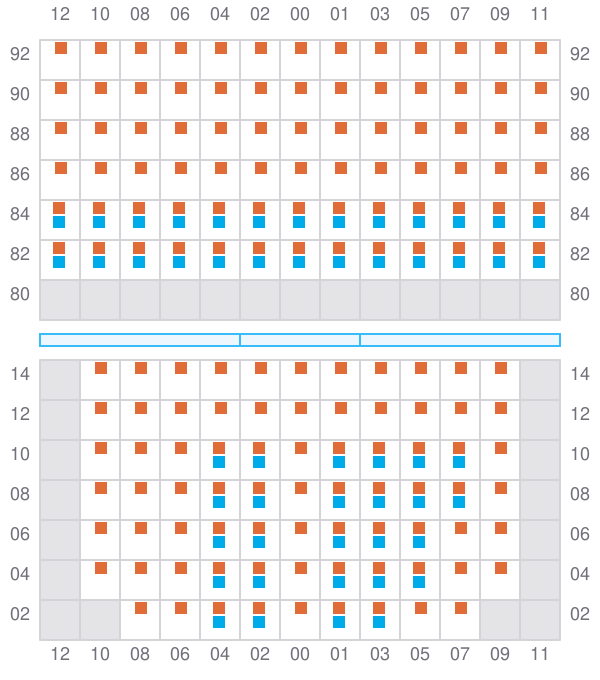

Bay 031 view and slots of MSC ANUSHA III

033 (034)

Bay 033 view and slots of MSC ANUSHA III

035

Bay 035 view and slots of MSC ANUSHA III

037 (038)

Bay 037 view and slots of MSC ANUSHA III

039

Bay 039 view and slots of MSC ANUSHA III

041 (042)

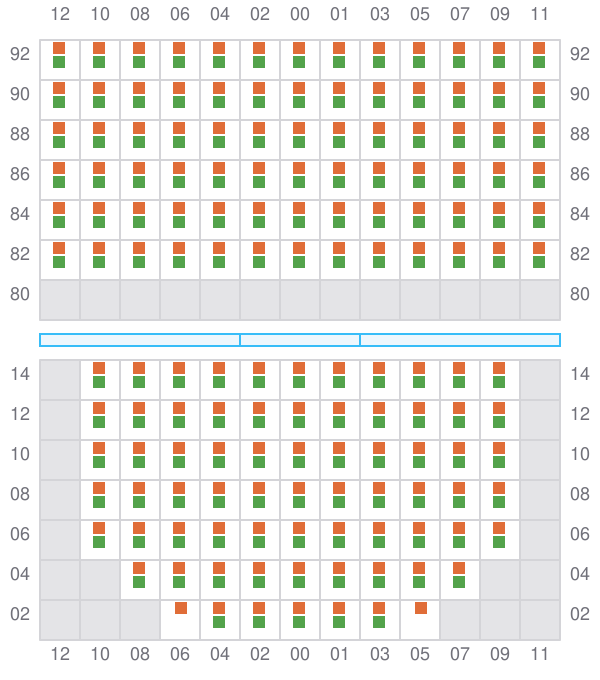

Bay 041 view and slots of MSC ANUSHA III

043

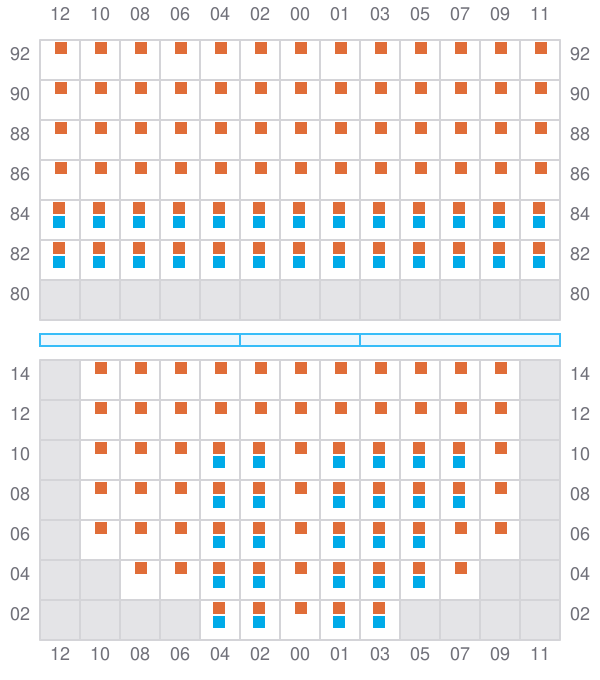

Bay 043 view and slots of MSC ANUSHA III

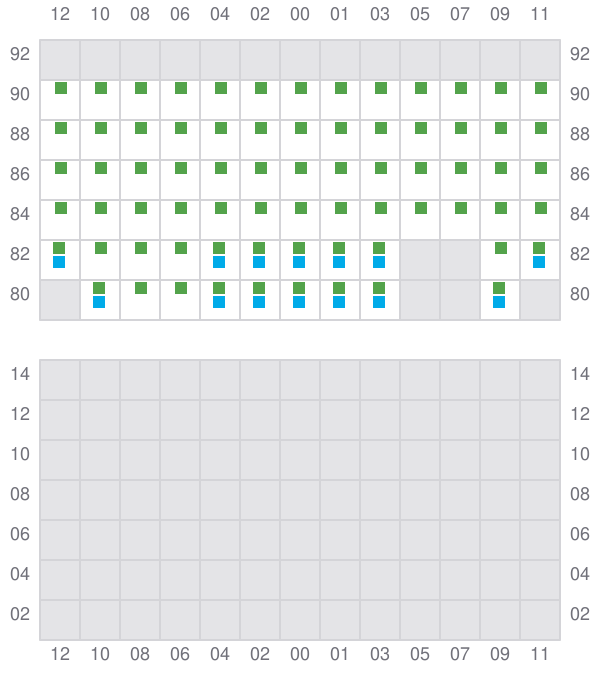

045 (046)

  • / ?
Bay 045 view and slots of MSC ANUSHA III

047

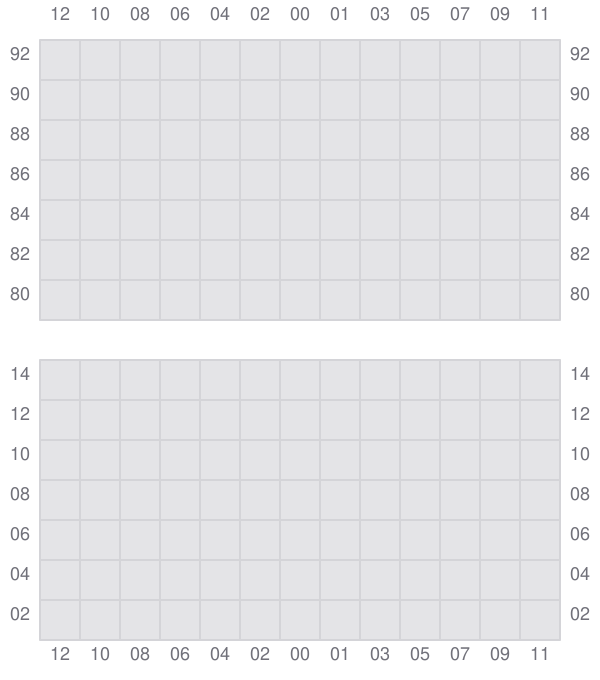

Bay 047 view and slots of MSC ANUSHA III

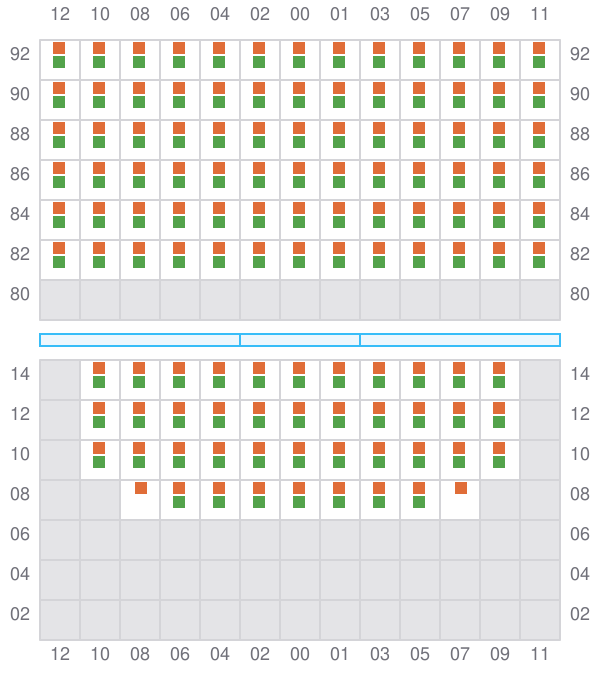

049 (050)

Bay 049 view and slots of MSC ANUSHA III

051

  • / ?

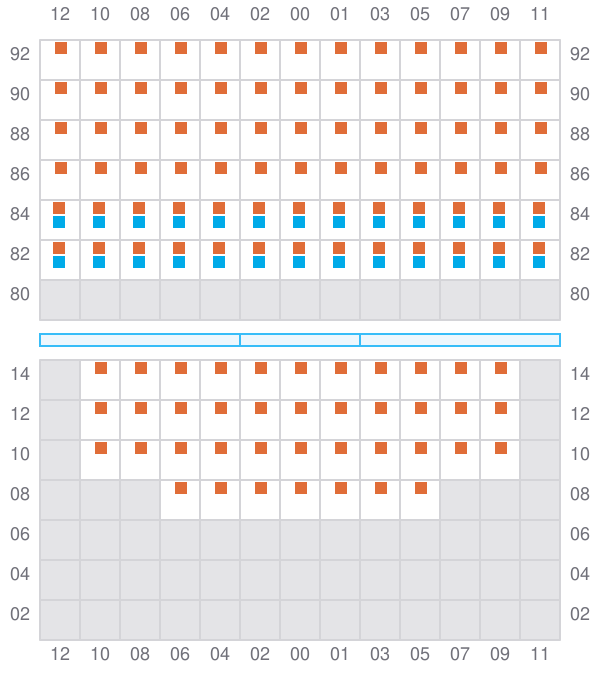

Bay 051 view and slots of MSC ANUSHA III

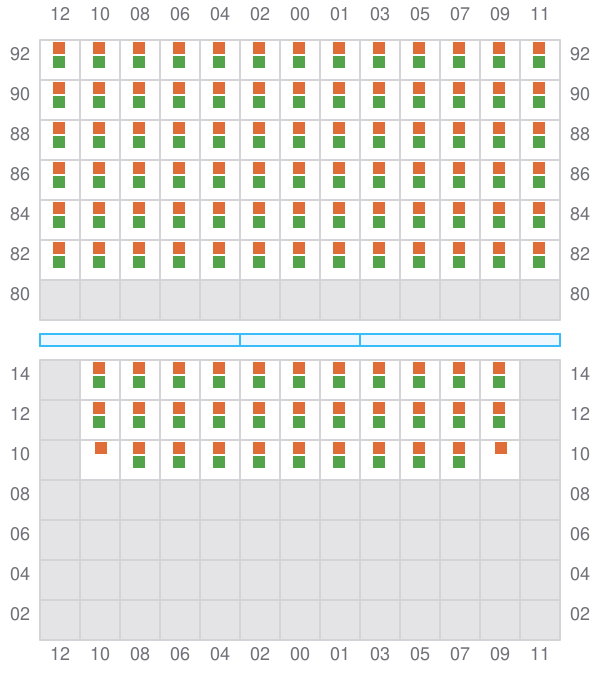

053 (054)

Bay 053 view and slots of MSC ANUSHA III

055

  • / ?

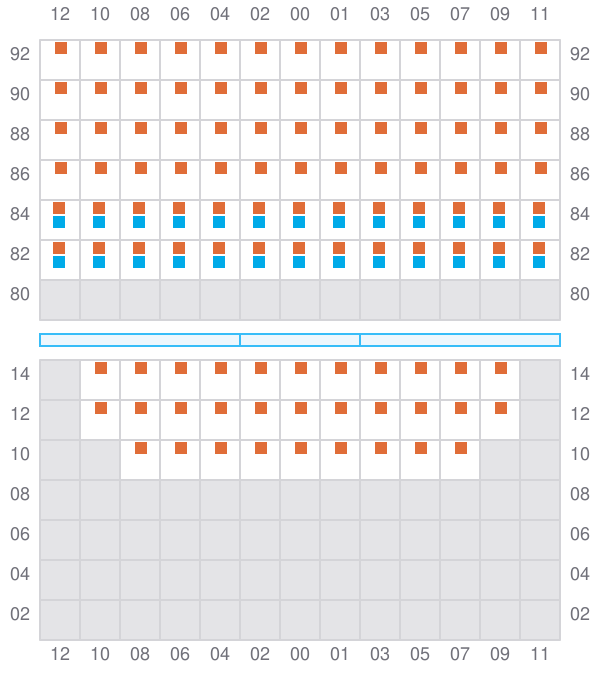

Bay 055 view and slots of MSC ANUSHA III

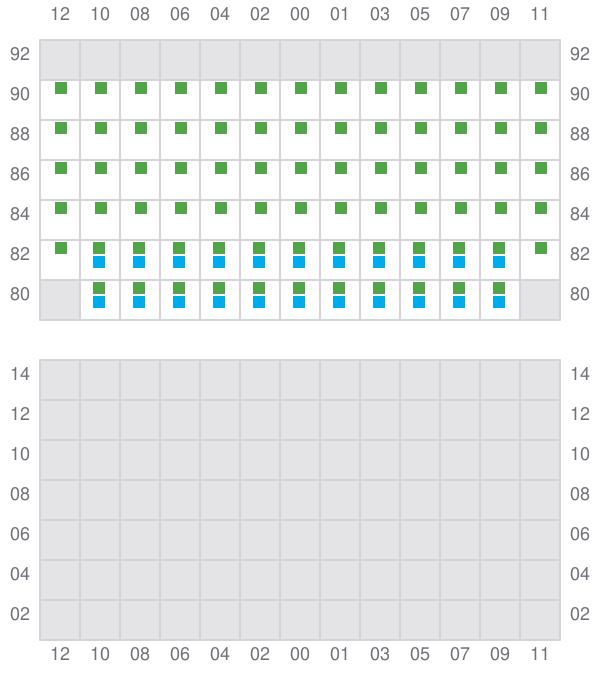

057 (058)

  • / ?
Bay 057 view and slots of MSC ANUSHA III
