MSC ANYA
9297864 | D5GD2 | 9297864 by ********* Last update: Wed Apr 24 2024
General Info
Ship Name:MSC ANYA
IMO Code:9297864
Call Sign:D5GD2
Line Operator:9297864
Class Name for Sister Ships:SANTA PELAGIA
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,017
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

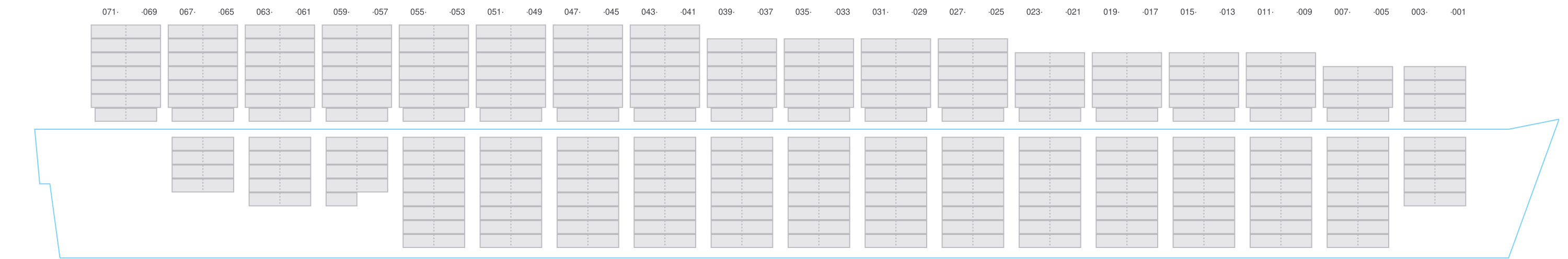

Side View

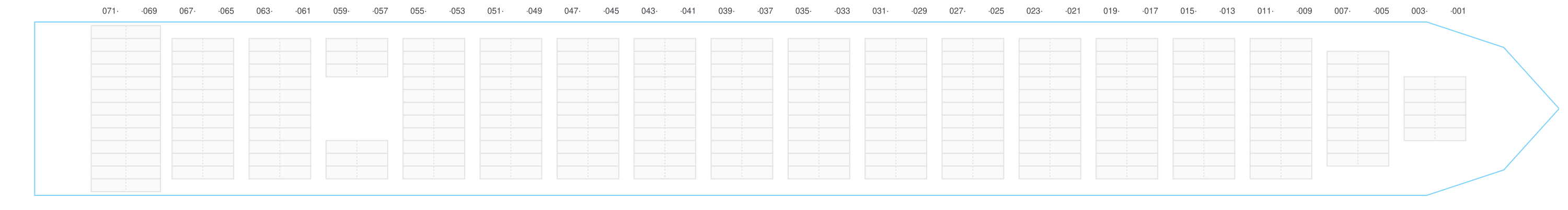

Hatch-Covers View

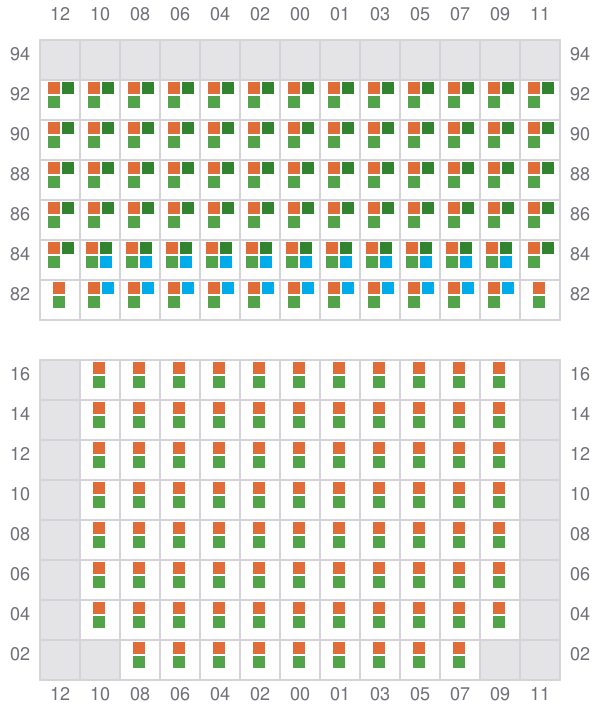

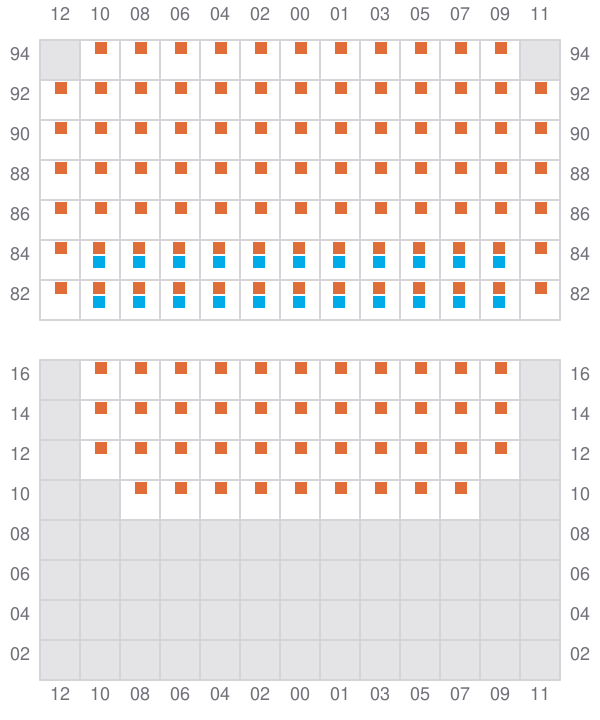

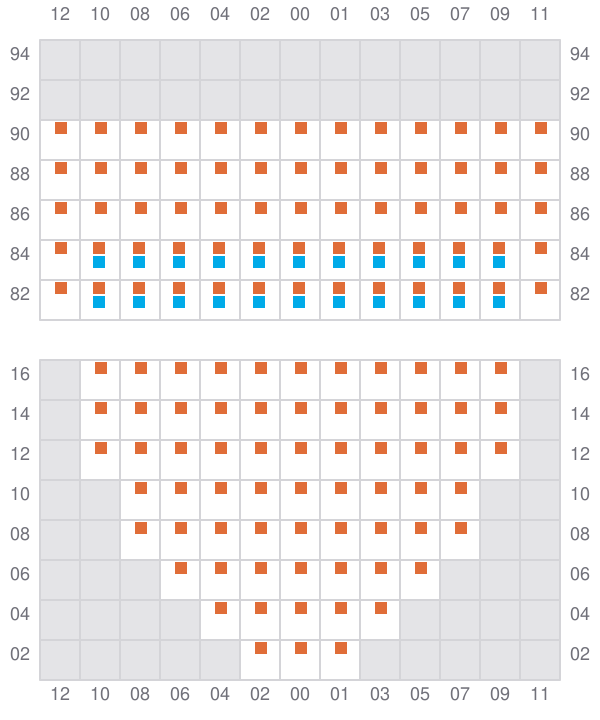

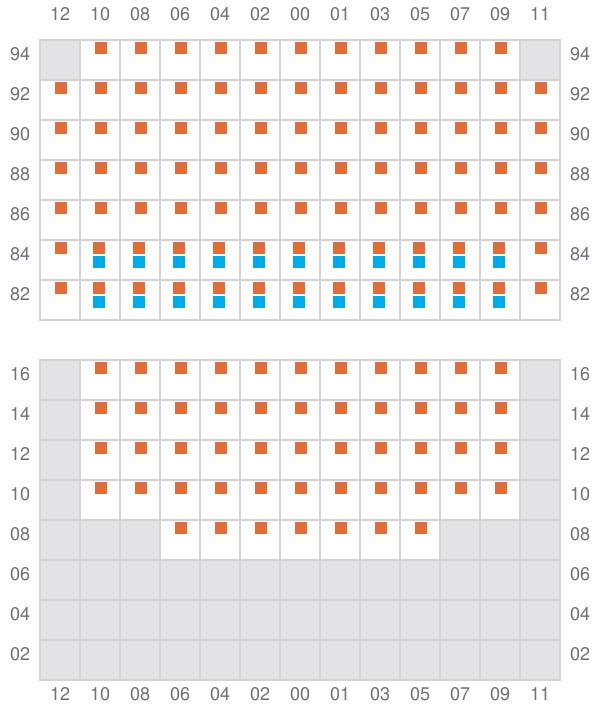

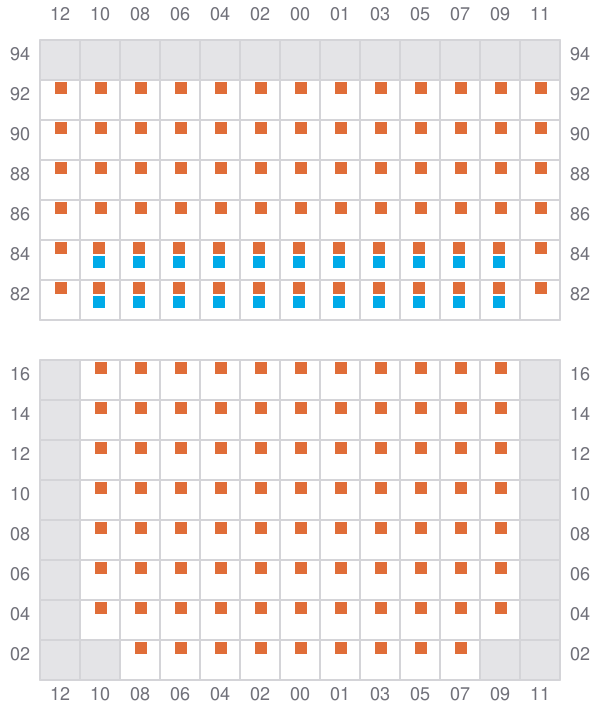

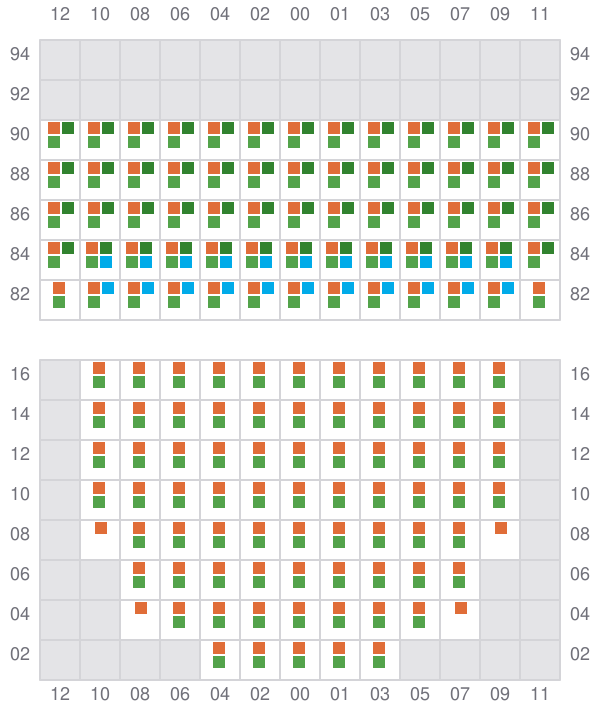

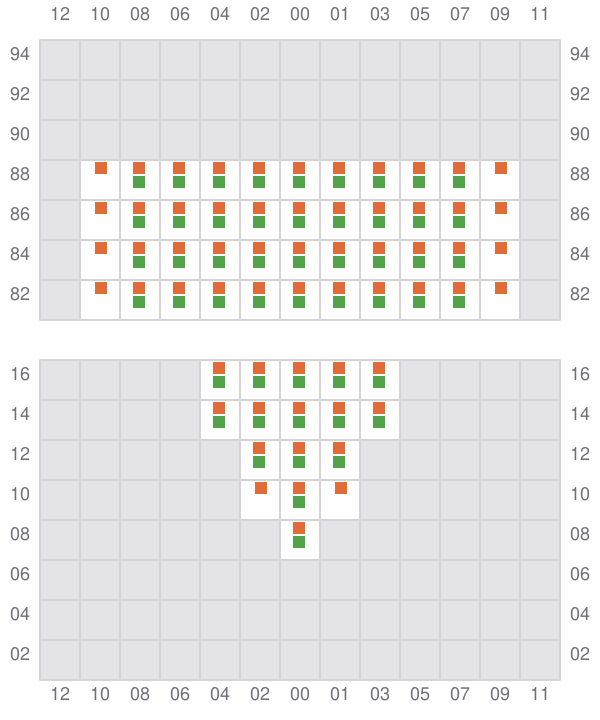

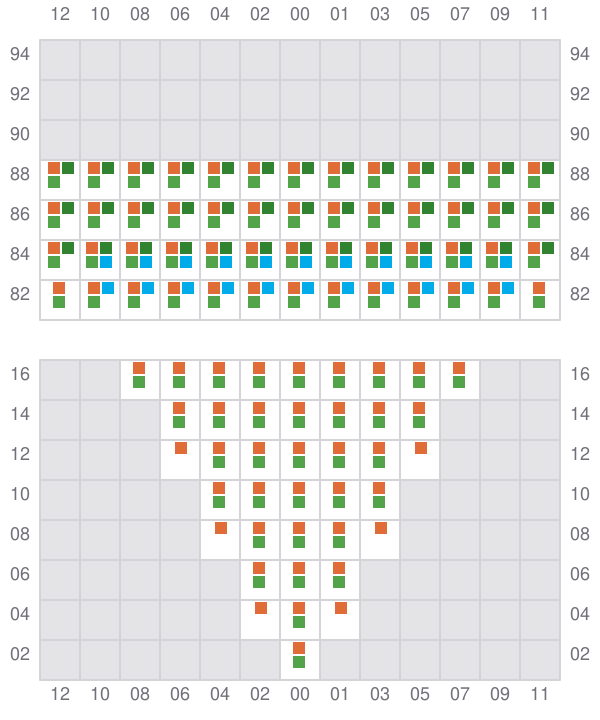

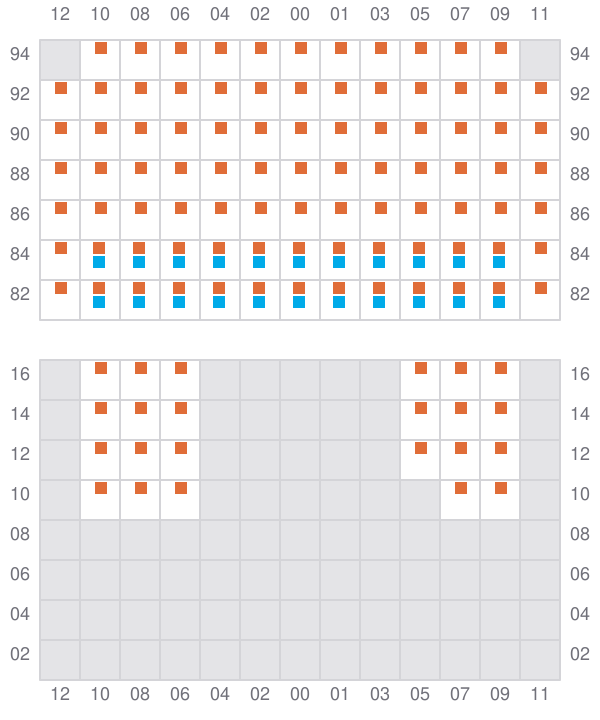

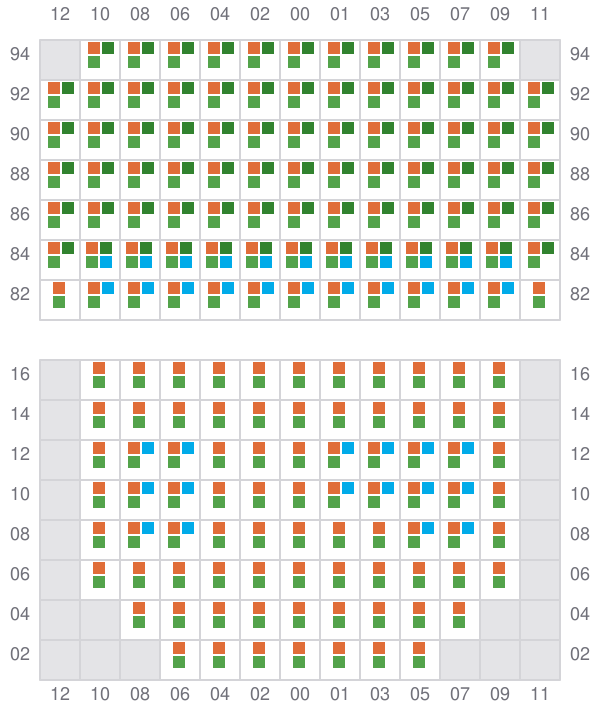

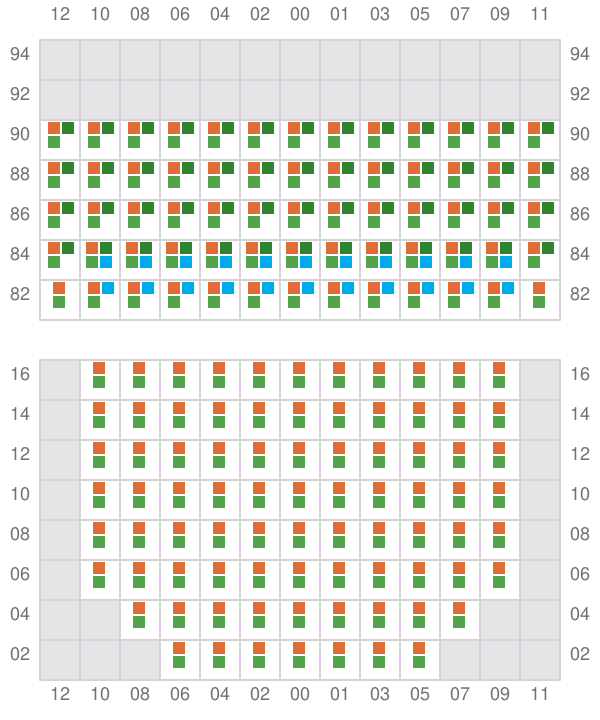

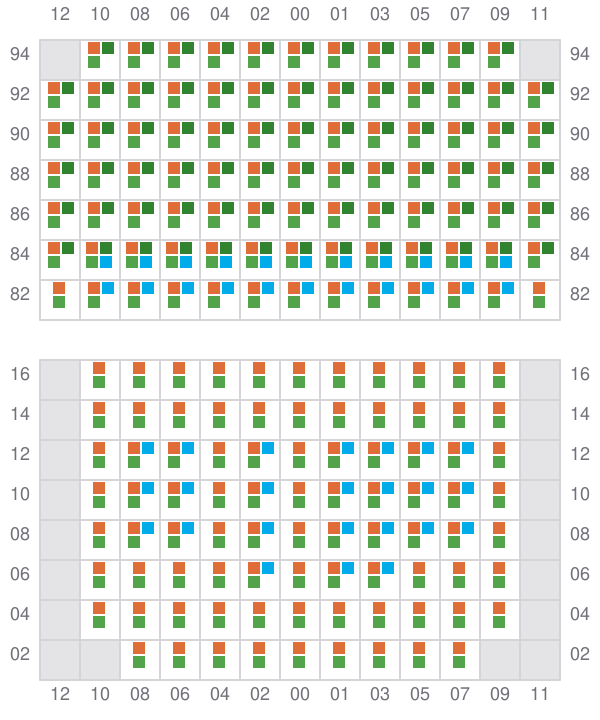

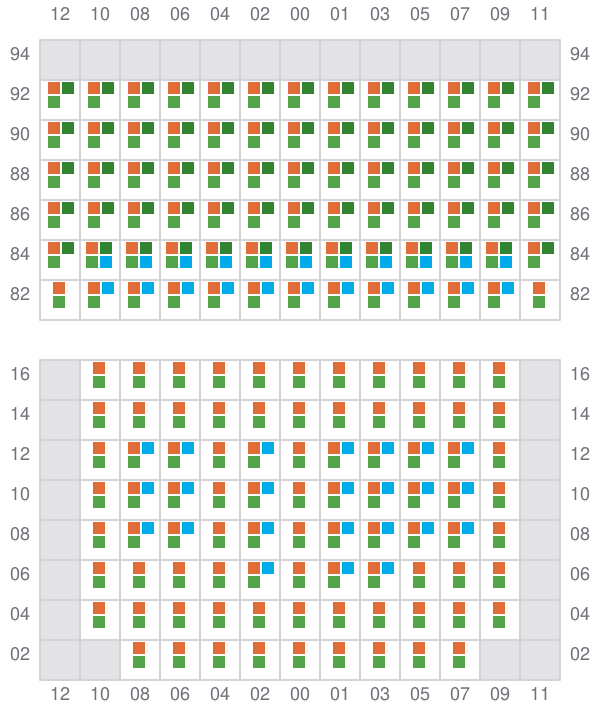

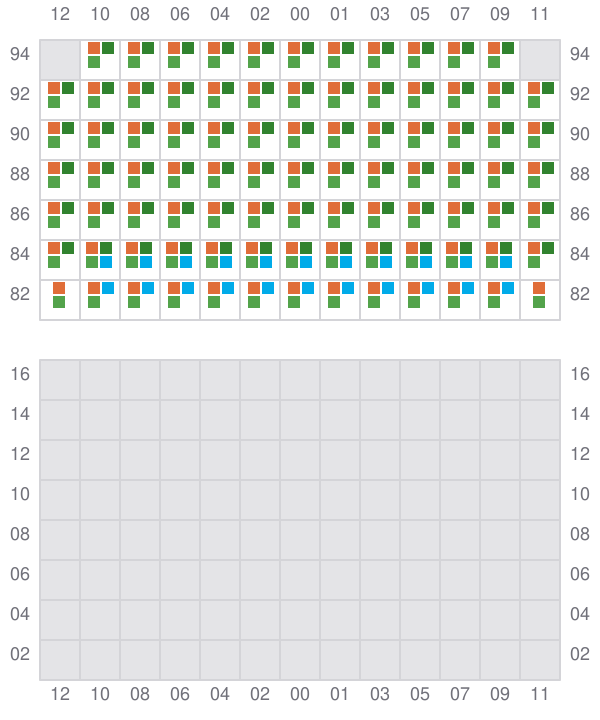

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

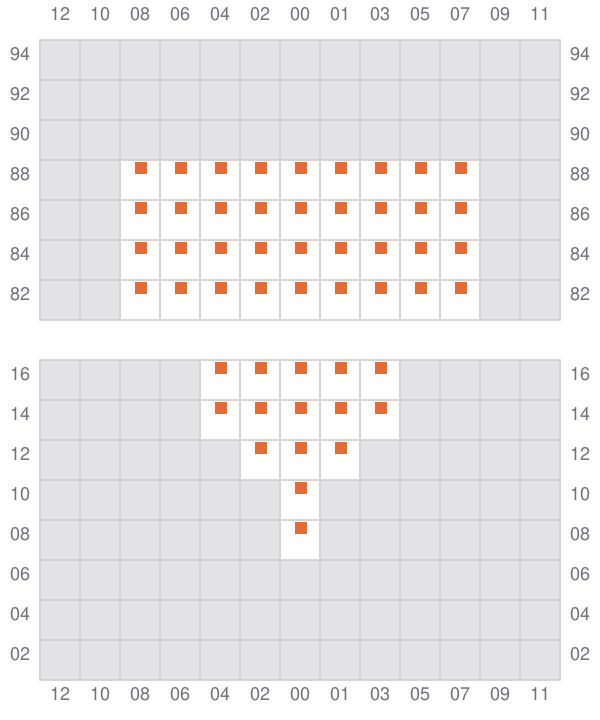

001
- →
003 (002)
- ←

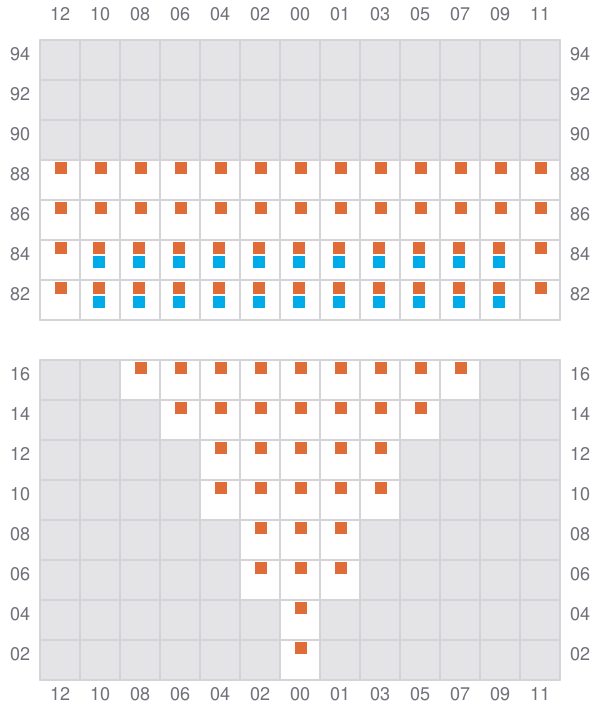

005
- →

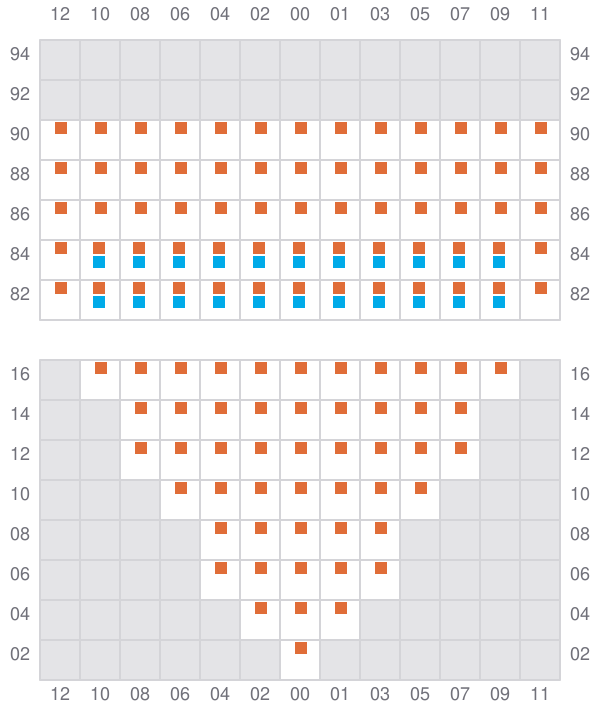

007 (006)
- ←
009
- →

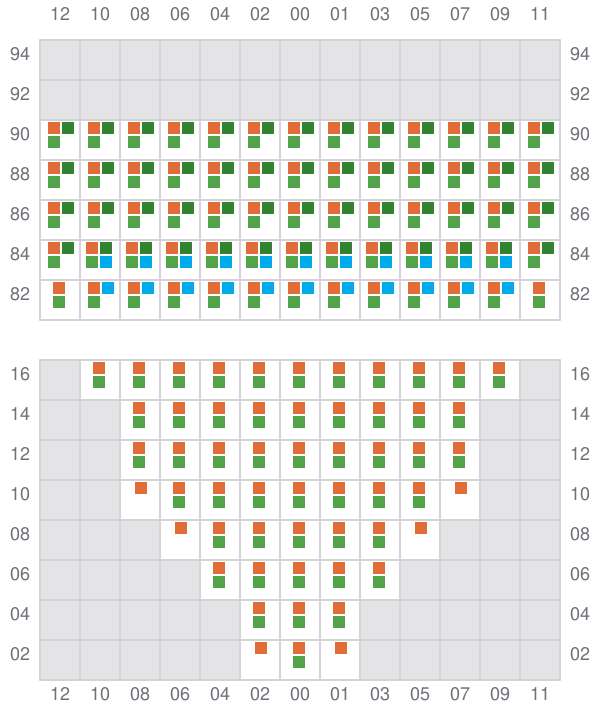

011 (010)
- ←
013
- →
015 (014)
- ←

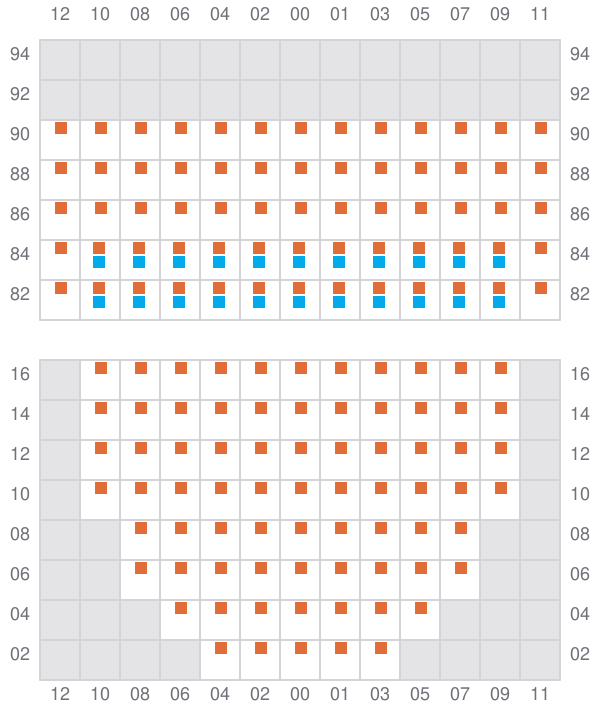

017
- →
019 (018)
- ←

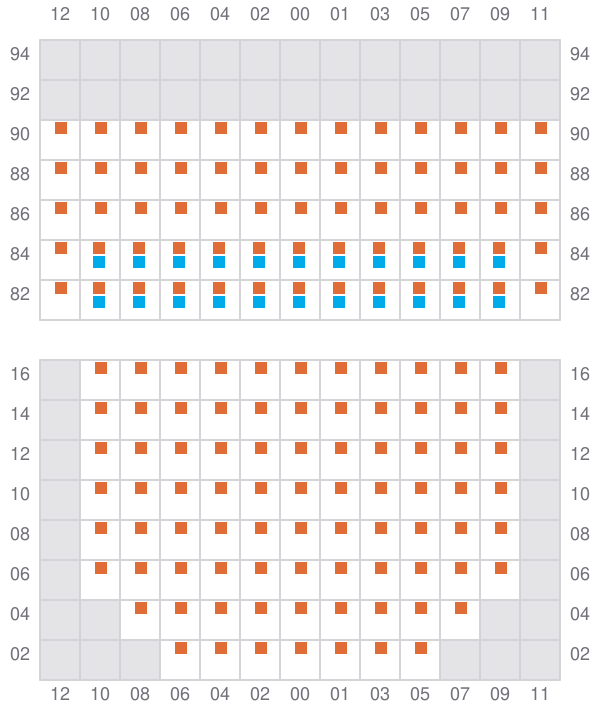

021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →

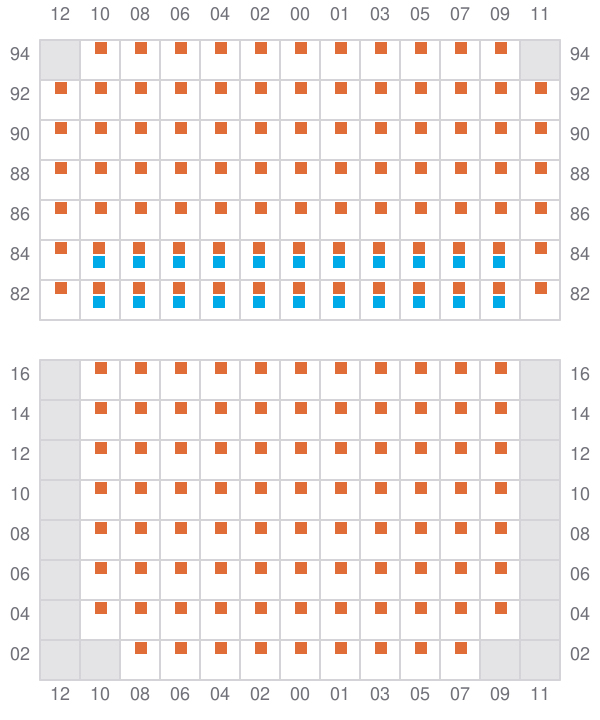

039 (038)
- ←

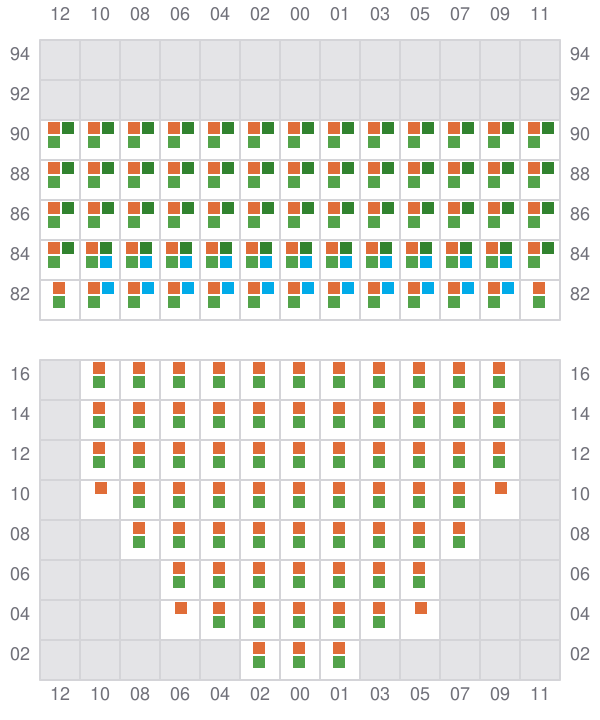

041
- →
043 (042)
- ←
045
- →

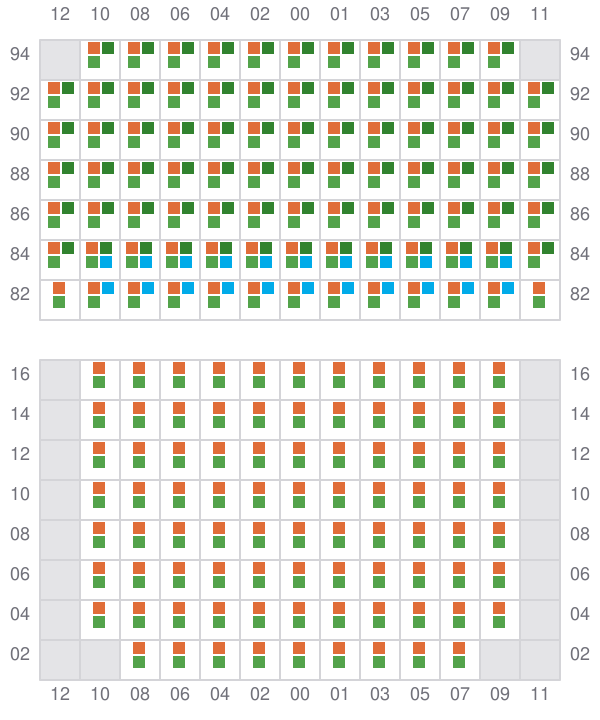

047 (046)
- ←
049
- →
051 (050)
- ←

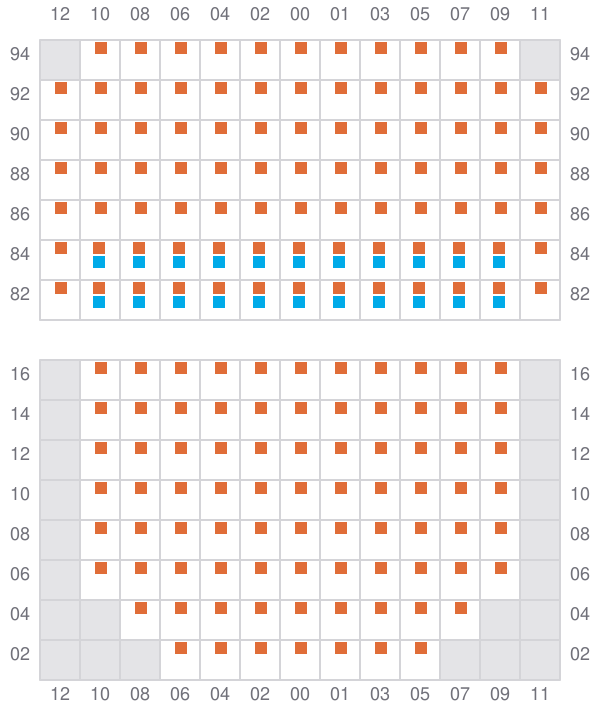

053
- →
055 (054)
- ←
057
- →

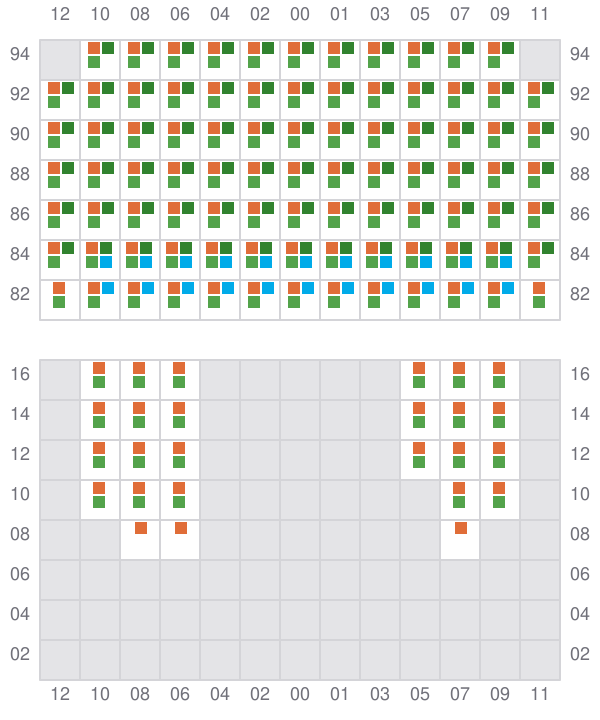

059 (058)
- ←
061
- →

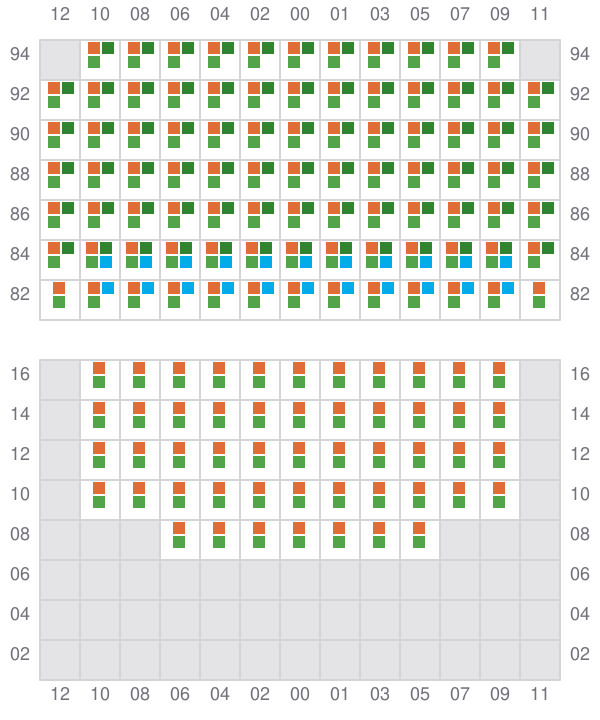

063 (062)
- ←
065
- →

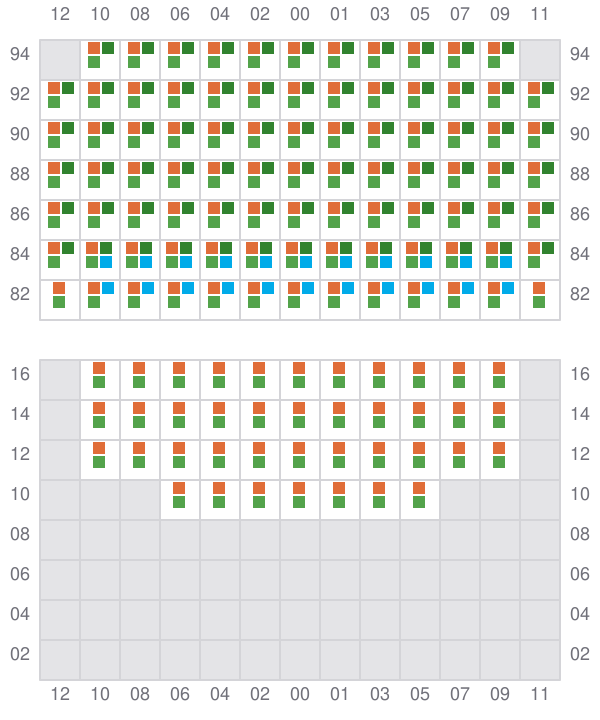

067 (066)
- ←

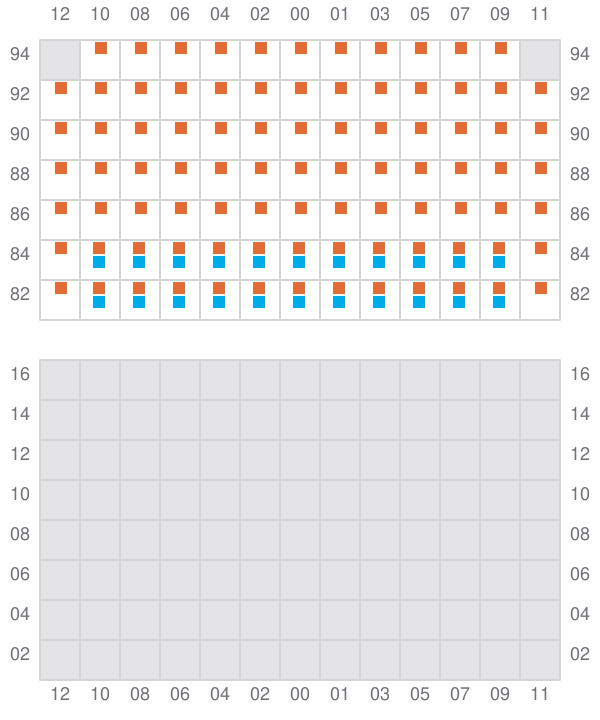

069
- → / ?
071 (070)
- ← / ?
