MSC ANYA
9297864 | D5GD2 | EIS by ************************** Last update: Fri Jun 09 2023
General Info
Ship Name:MSC ANYA
IMO Code:9297864
Call Sign:D5GD2
Line Operator:EIS
Class Name for Sister Ships:PEL
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,018
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

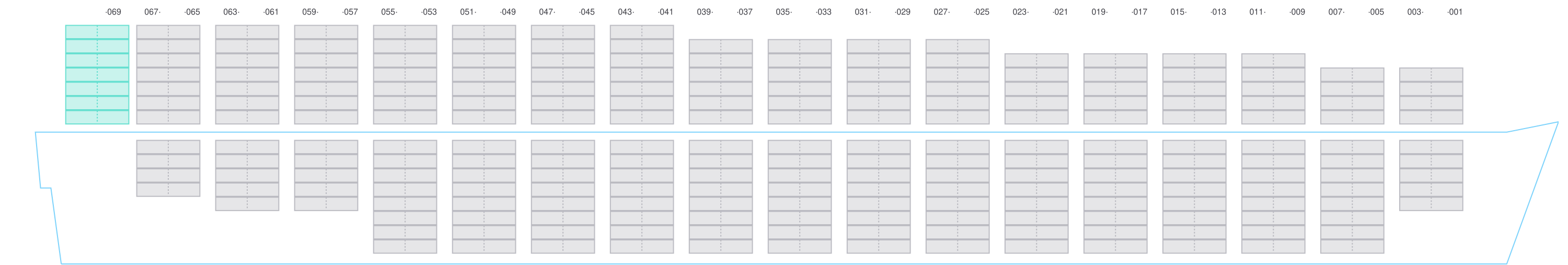

Side View

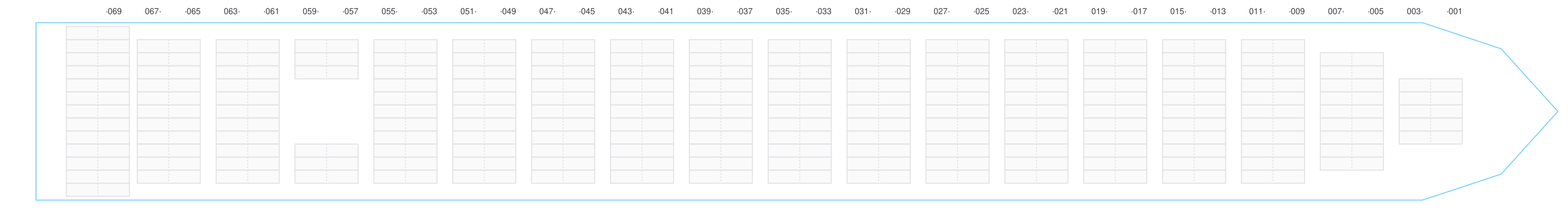

Hatch-Covers View

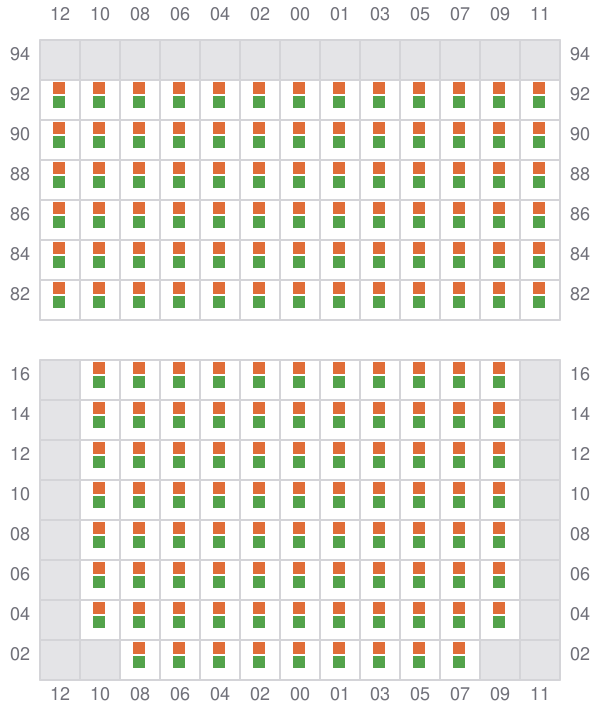

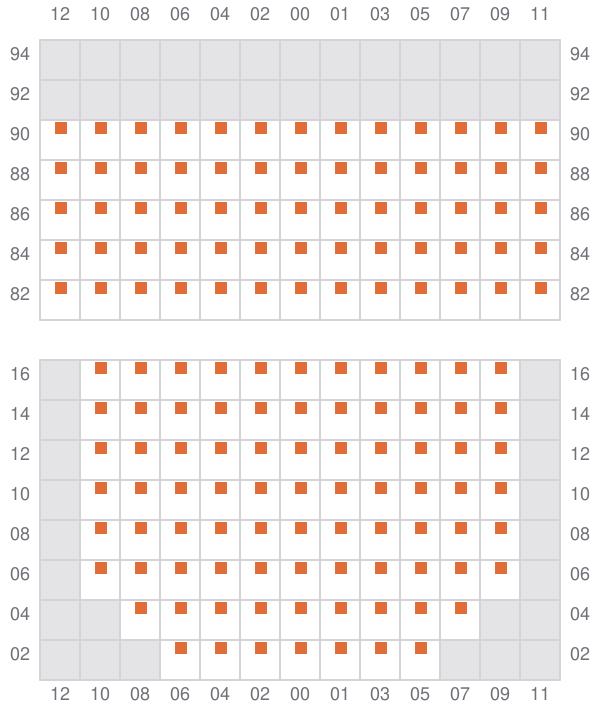

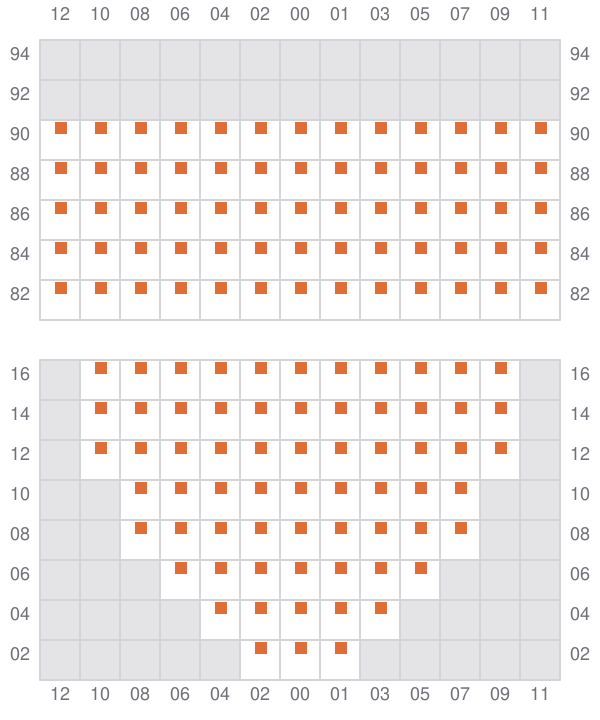

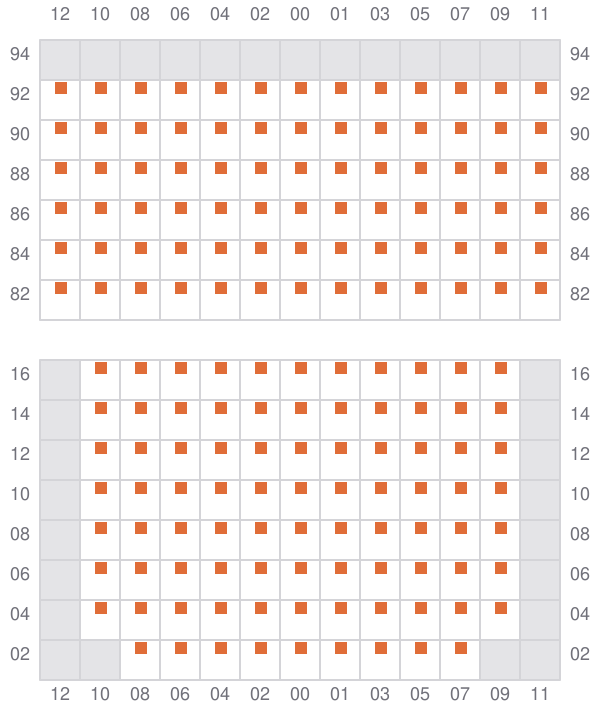

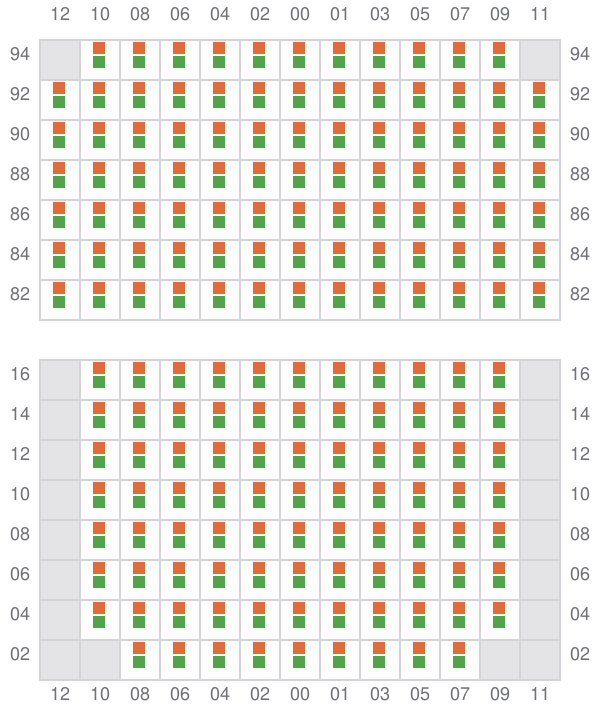

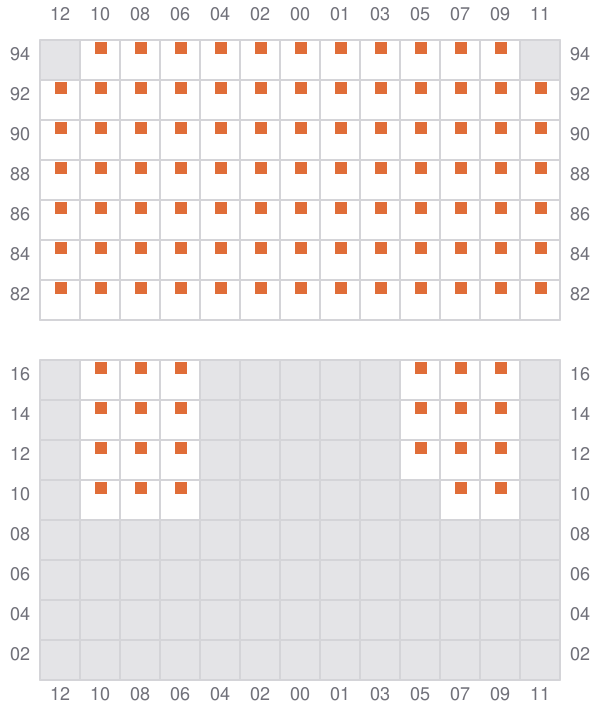

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

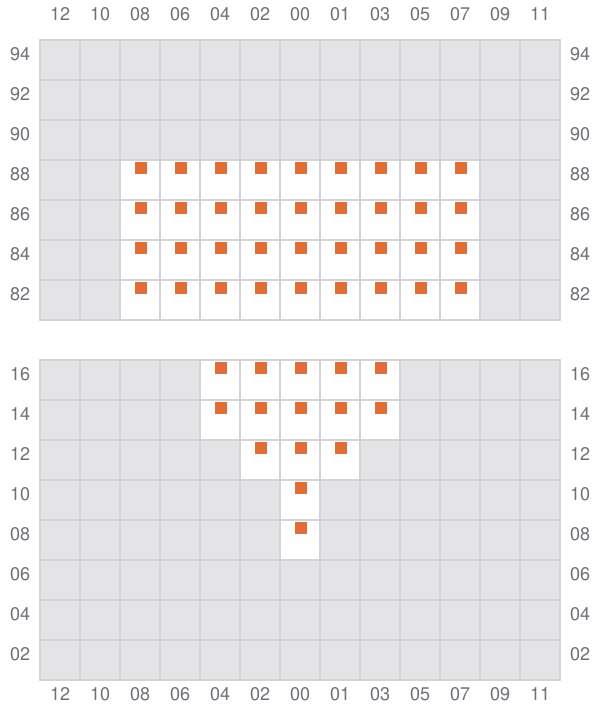

001
- →

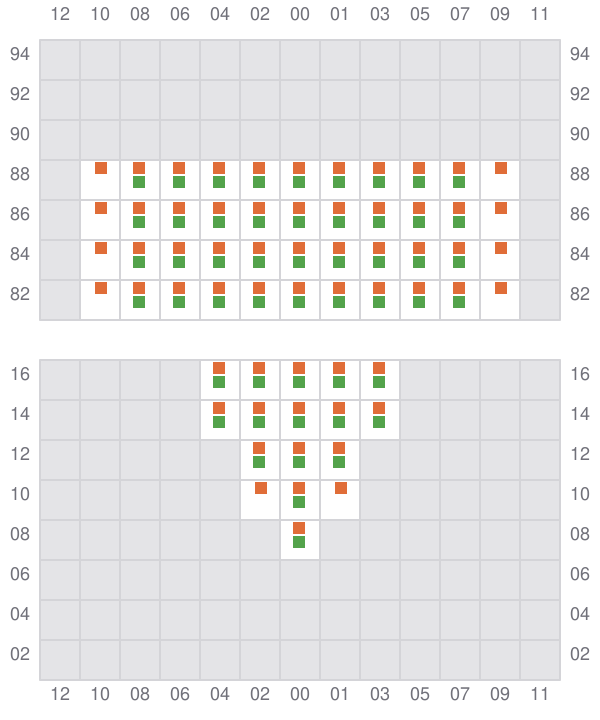

003 (002)
- ←

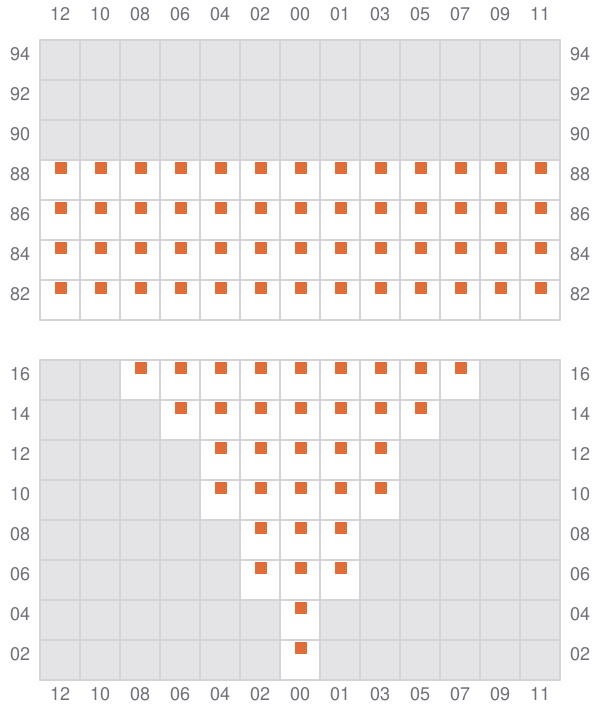

005
- →

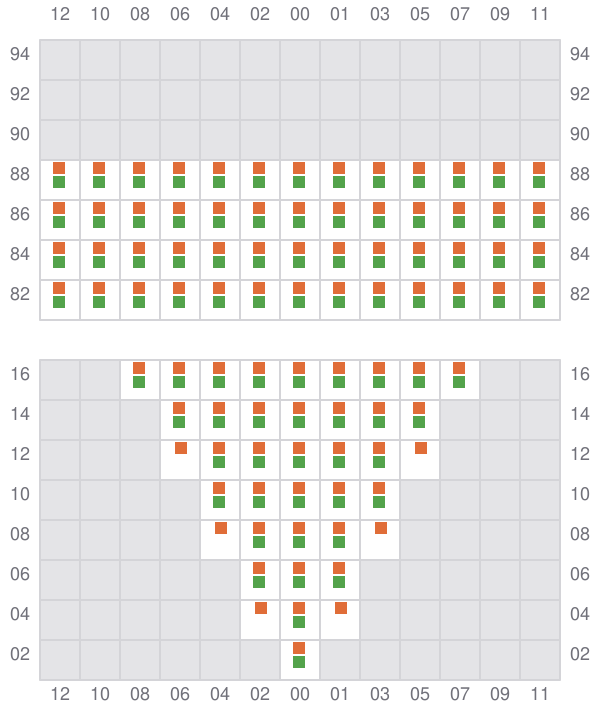

007 (006)
- ←

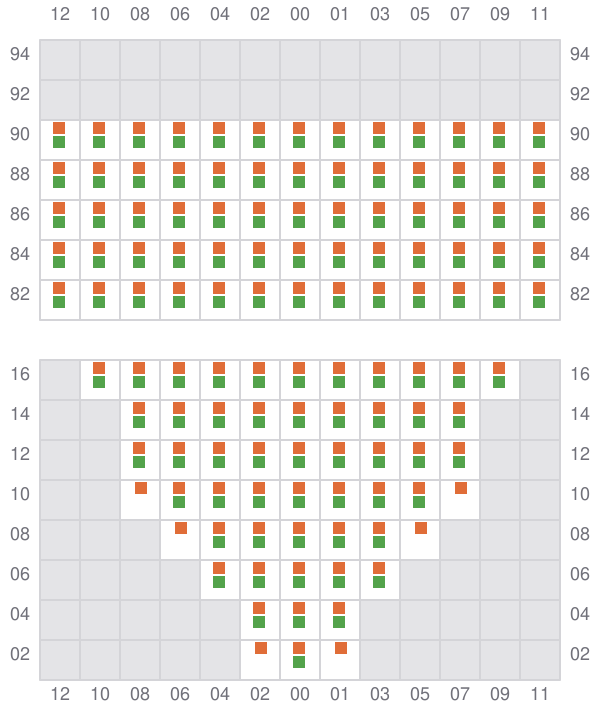

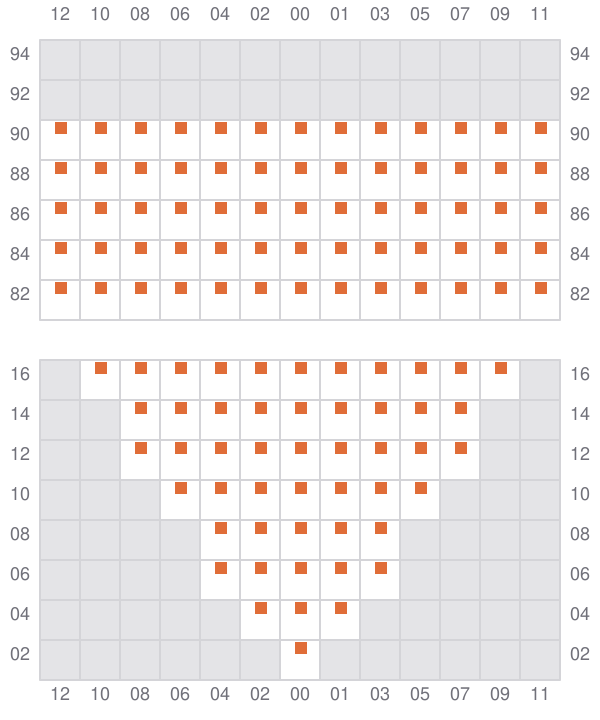

009
- →
011 (010)
- ←
013
- →

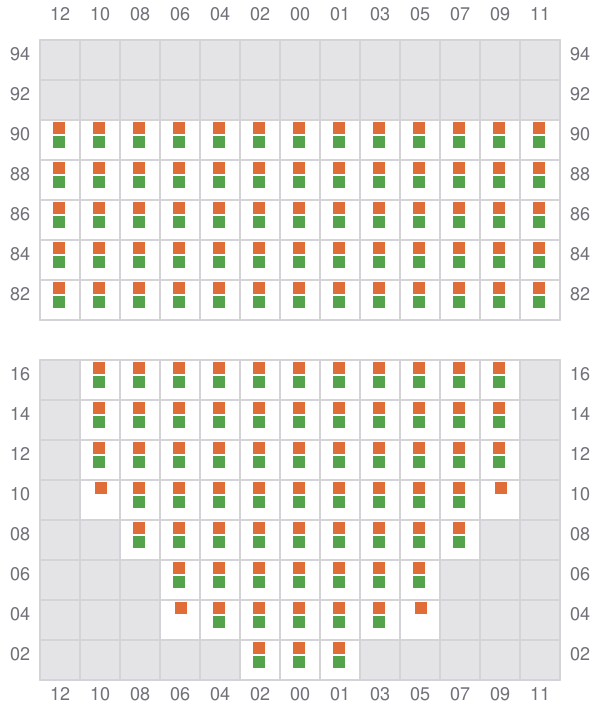

015 (014)
- ←

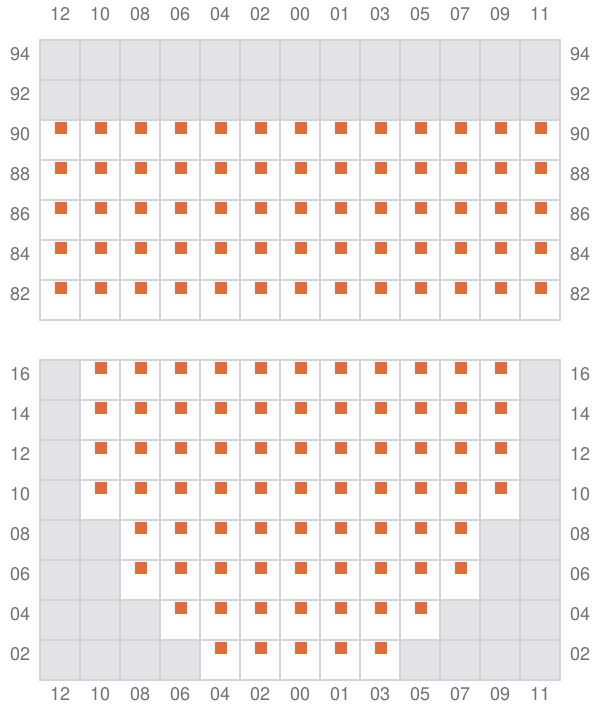

017
- →

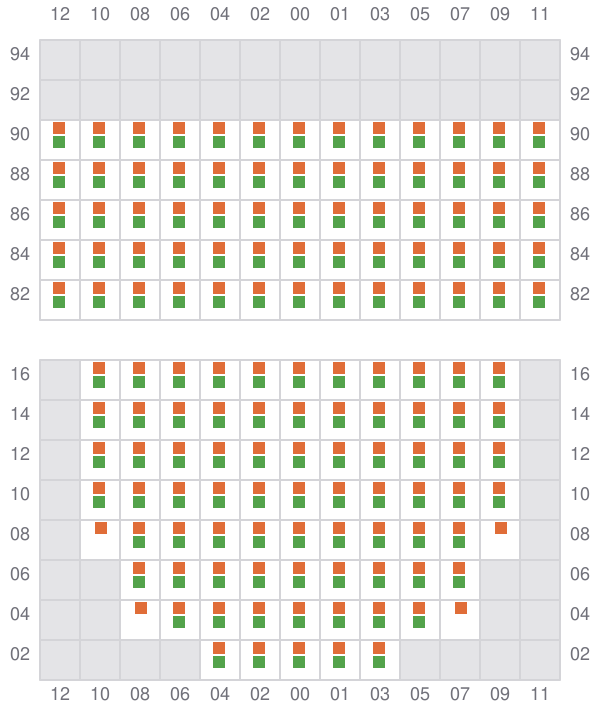

019 (018)
- ←
021
- →

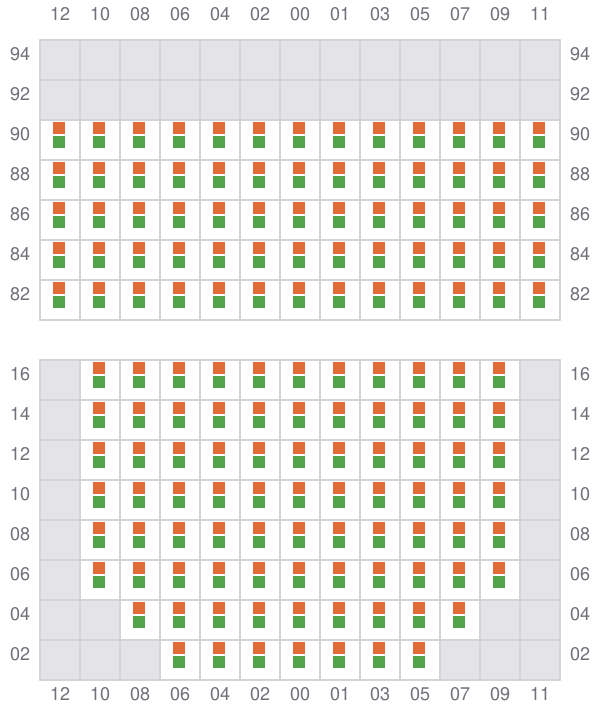

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←

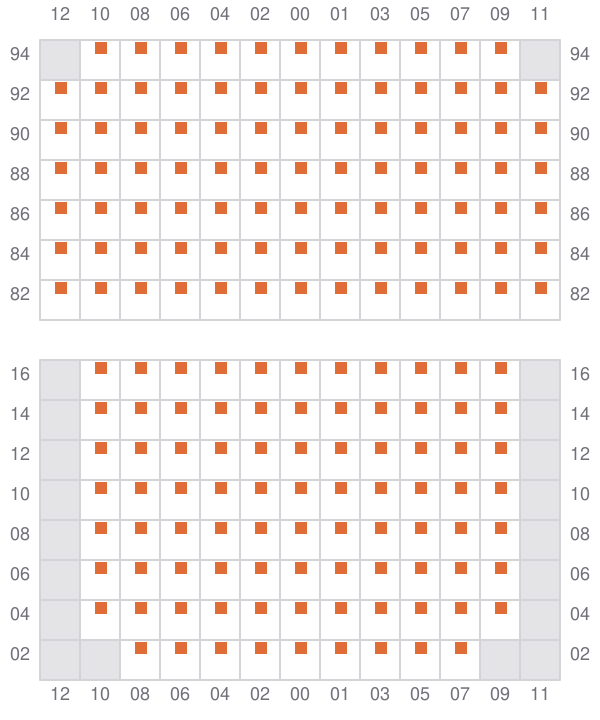

045
- →
047 (046)
- ←
049
- →
051 (050)
- ←

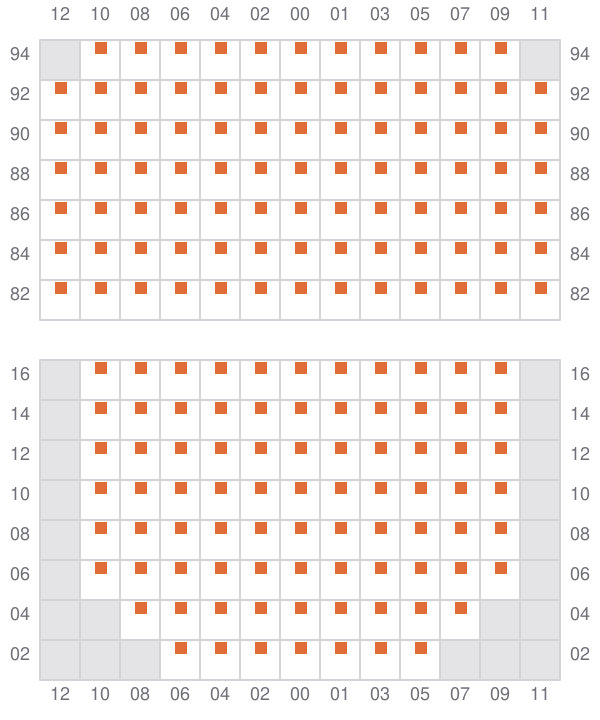

053
- →

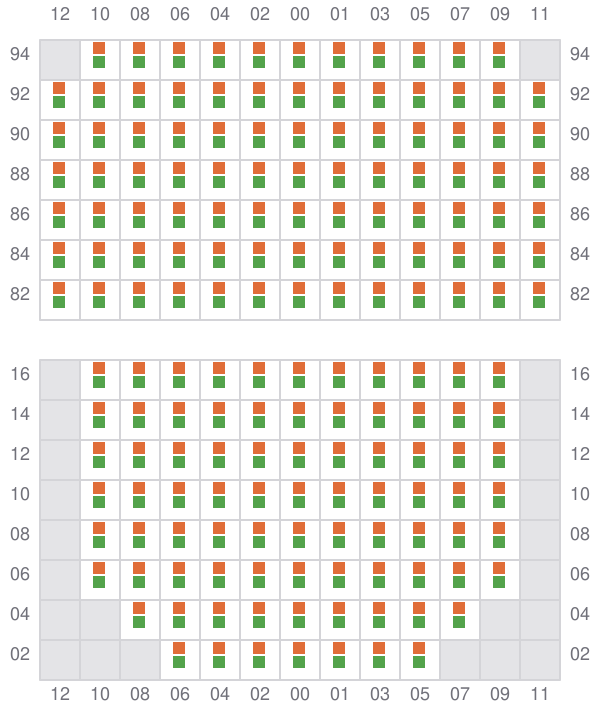

055 (054)
- ←
057
- →
059 (058)
- ←

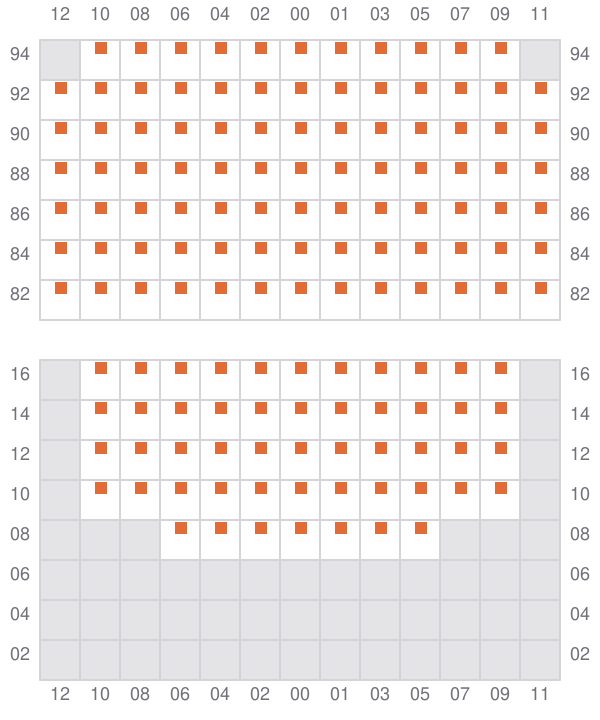

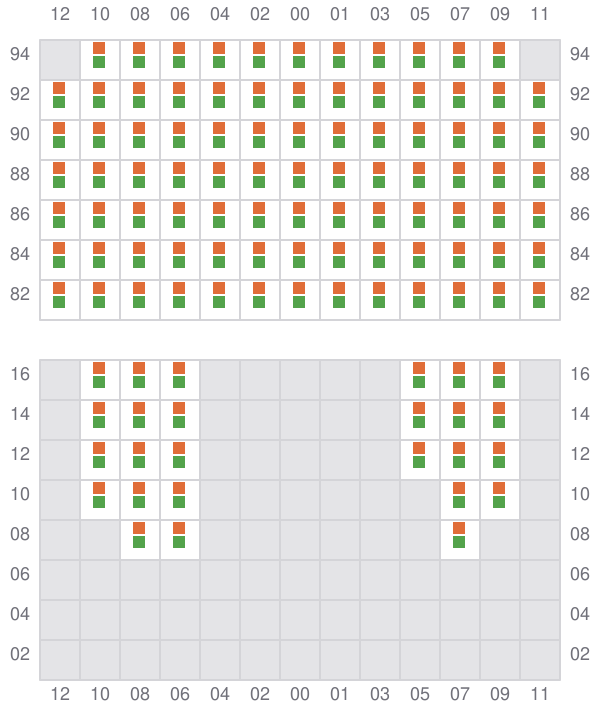

061
- →

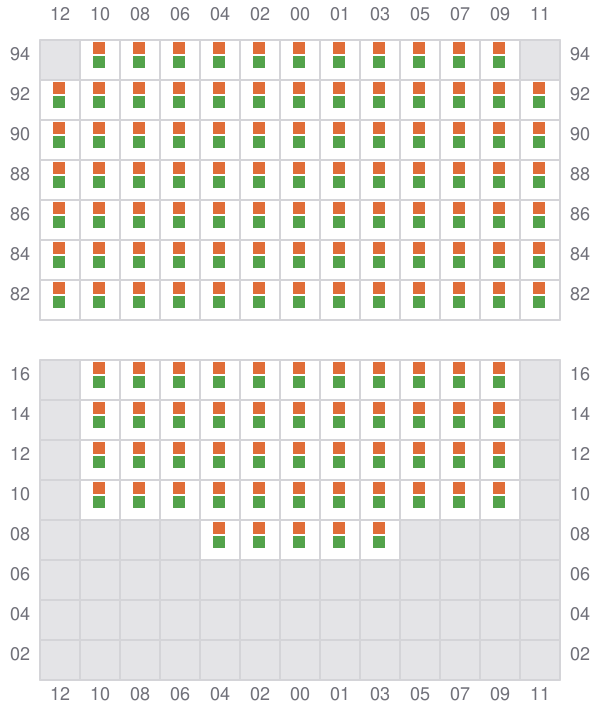

063 (062)
- ←
065
- →

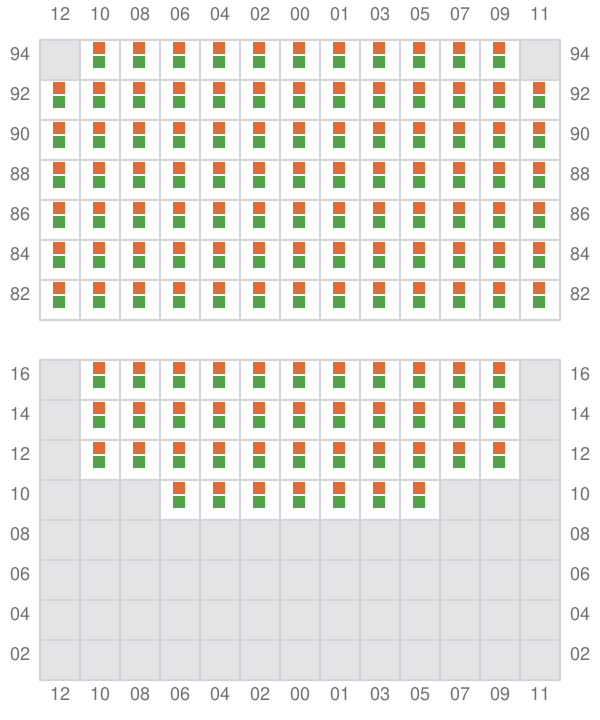

067 (066)
- ←

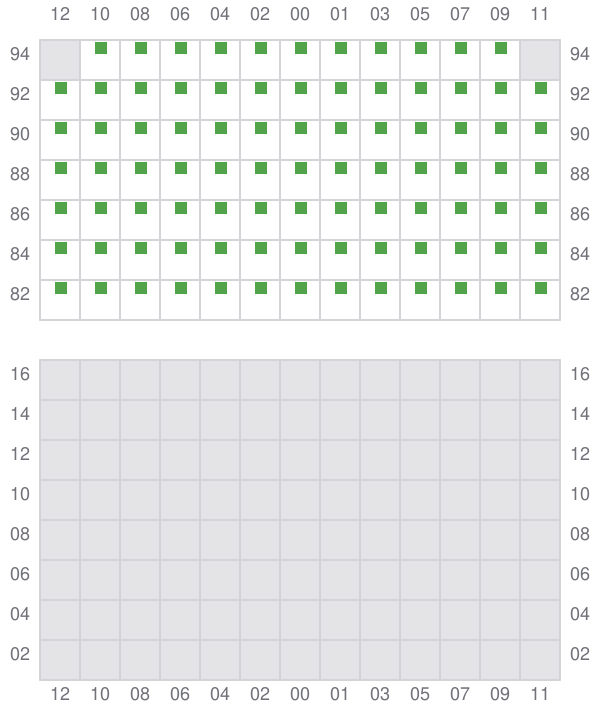

069 (070)
- → / ?
