MSC APOLLO
9247730 | 5BFA5 | MSC by ************************** Last update: Wed Jun 21 2023
General Info
Ship Name:MSC APOLLO
IMO Code:9247730
Call Sign:5BFA5
Line Operator:MSC
Class Name for Sister Ships:APO
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.80
LOA (Length Overall):299.90
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,492
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

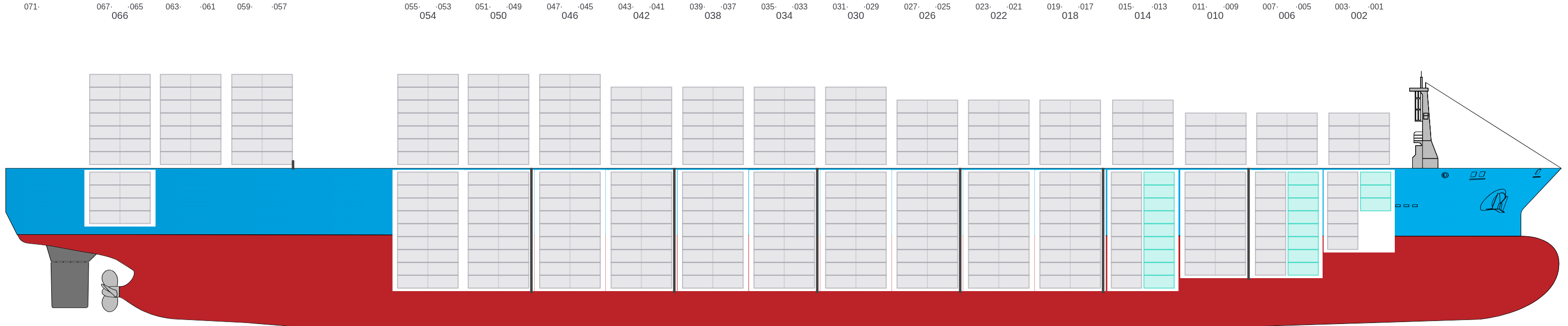

Side View
![Side view of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-sideView.png?v=1687373428015)
Hatch-Covers View
![Deck view of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-deckView.png?v=1687373428015)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

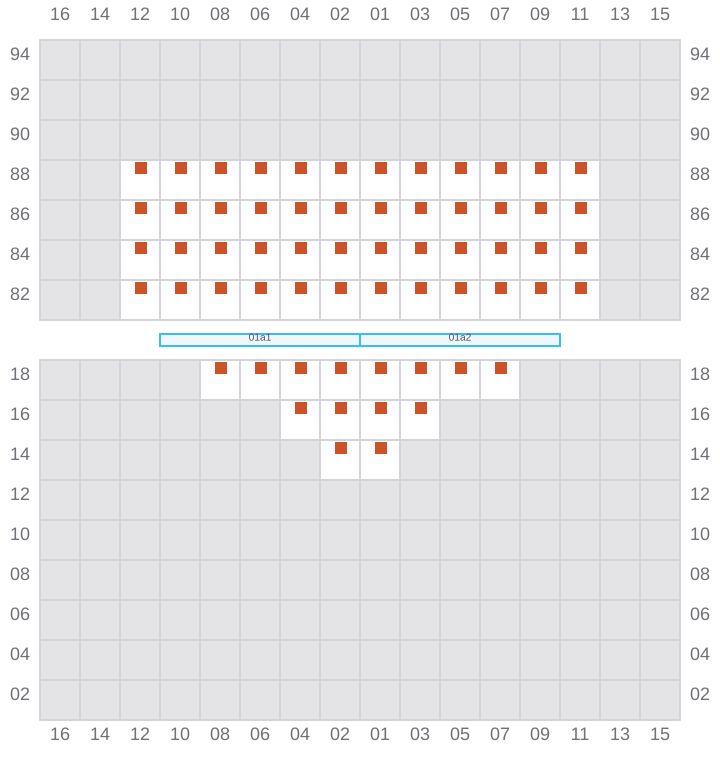

001
- →
![Bay 001 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b001.png?v=1687373428015)

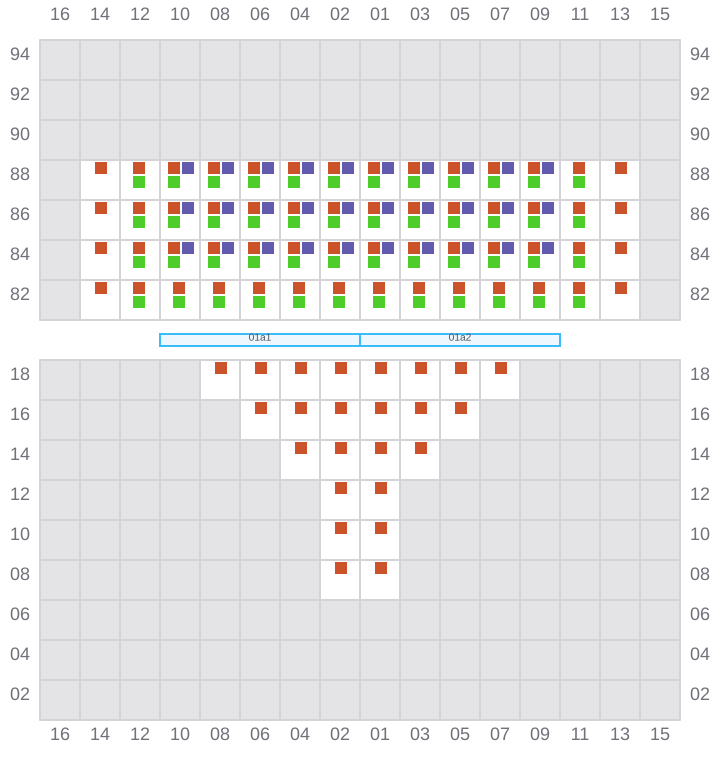

003 (002)
- ←
![Bay 003 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b003.png?v=1687373428015)

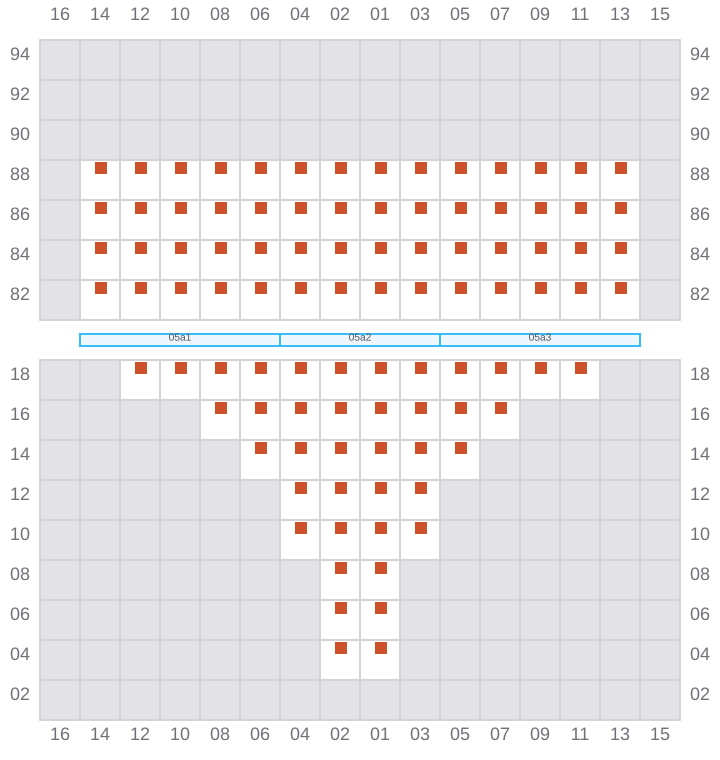

005
- →
![Bay 005 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b005.png?v=1687373428015)
007 (006)
- ←
![Bay 007 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b007.png?v=1687373428015)

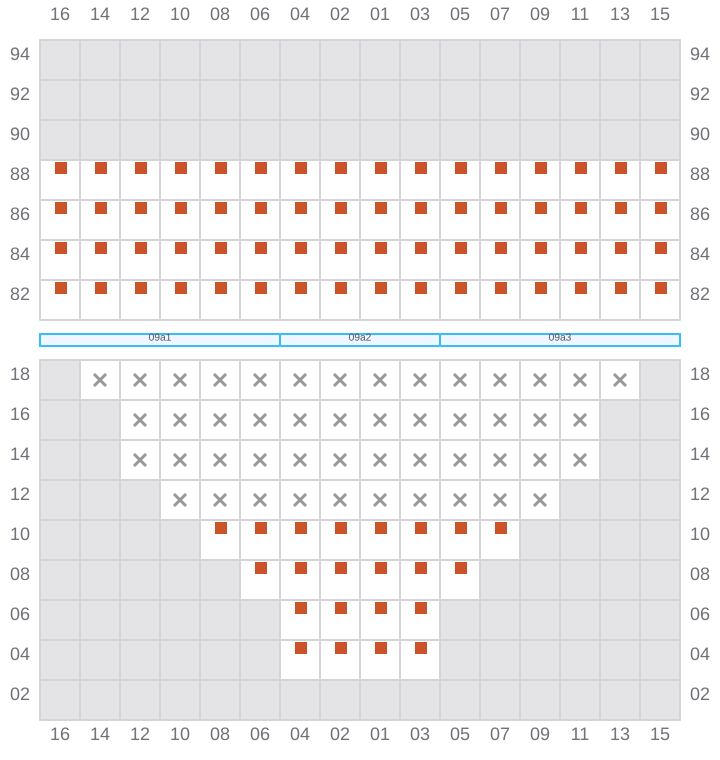

009
- →
![Bay 009 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b009.png?v=1687373428015)

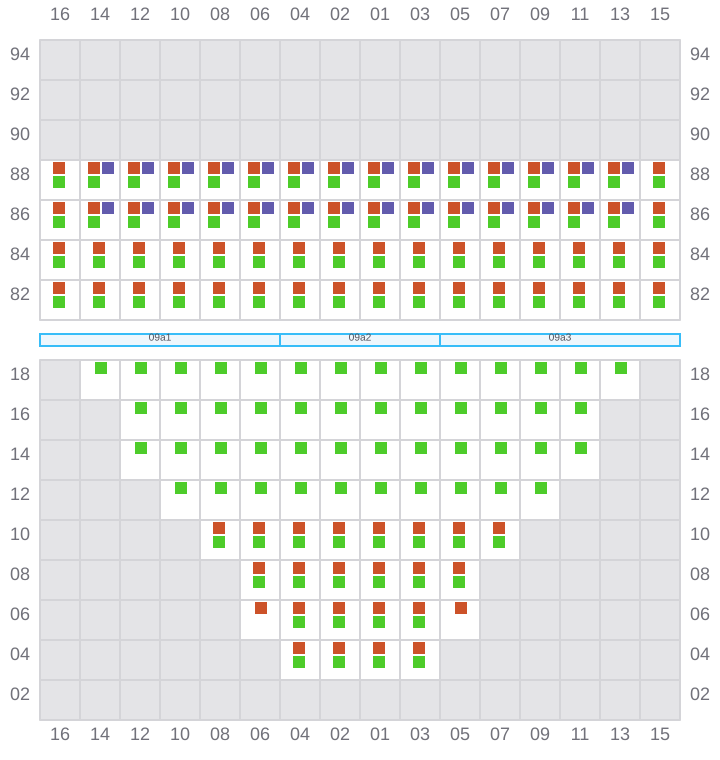

011 (010)
- ←
![Bay 011 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b011.png?v=1687373428015)

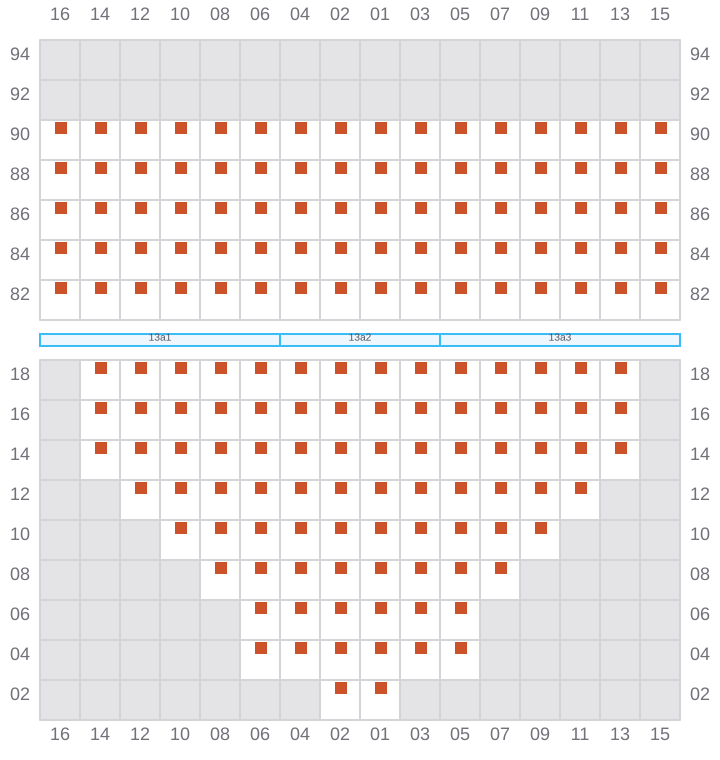

013
- →
![Bay 013 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b013.png?v=1687373428015)

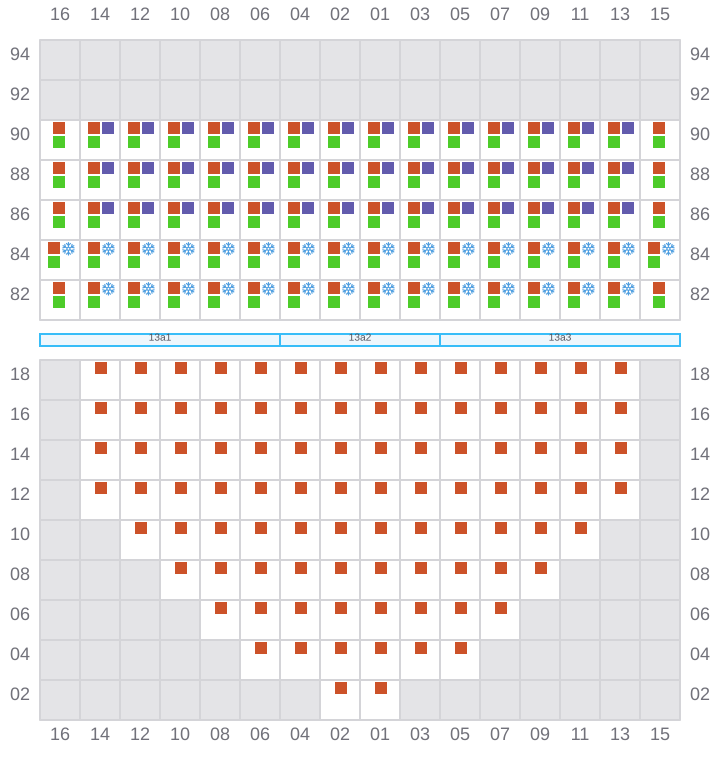

015 (014)
- ←
- → / ?
![Bay 015 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b015.png?v=1687373428015)

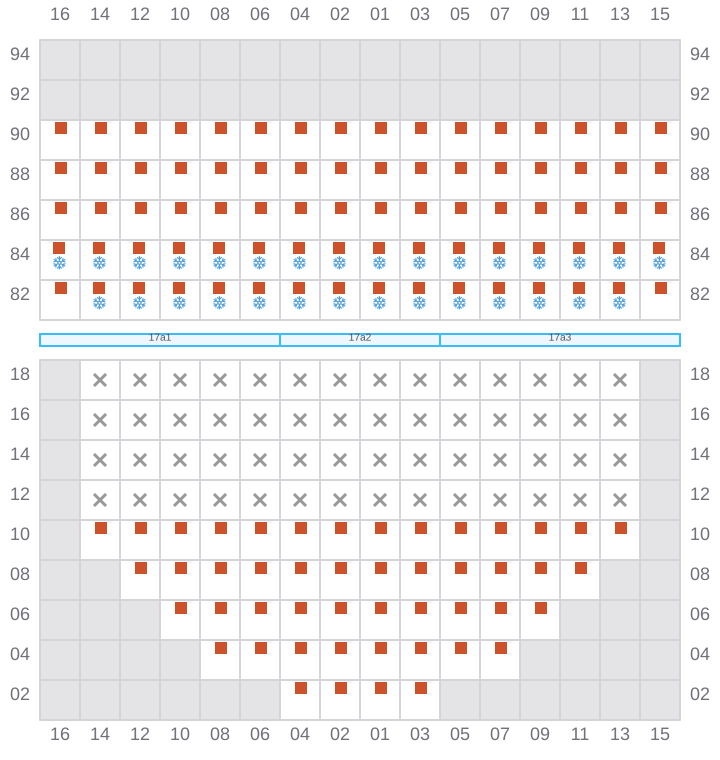

017
- →
- ← / ?
![Bay 017 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b017.png?v=1687373428015)

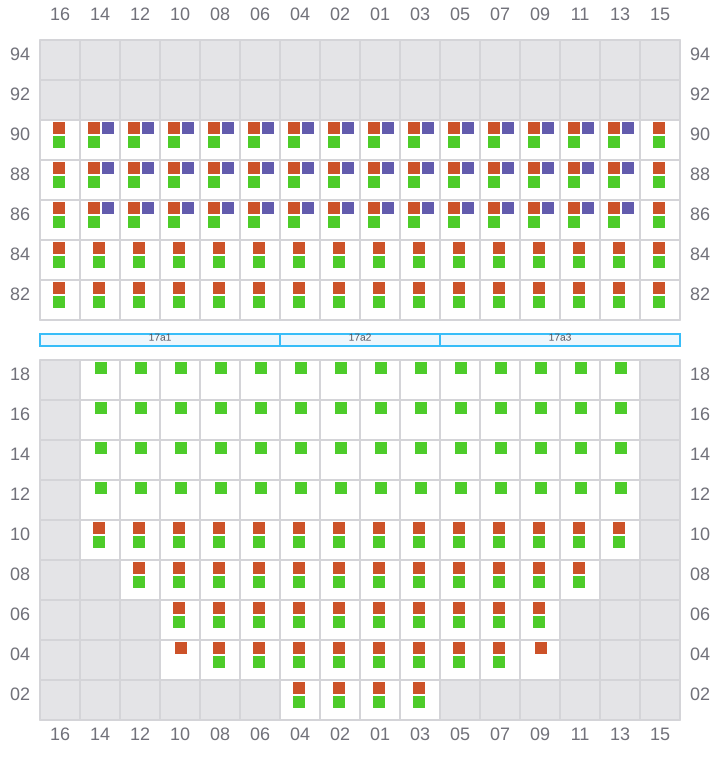

019 (018)
- ←
![Bay 019 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b019.png?v=1687373428015)

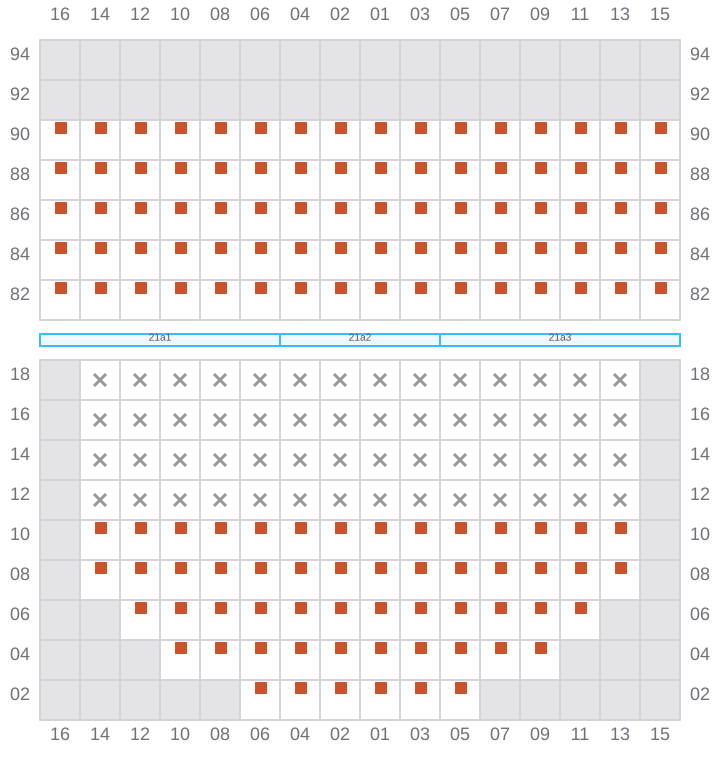

021
- →
![Bay 021 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b021.png?v=1687373428015)

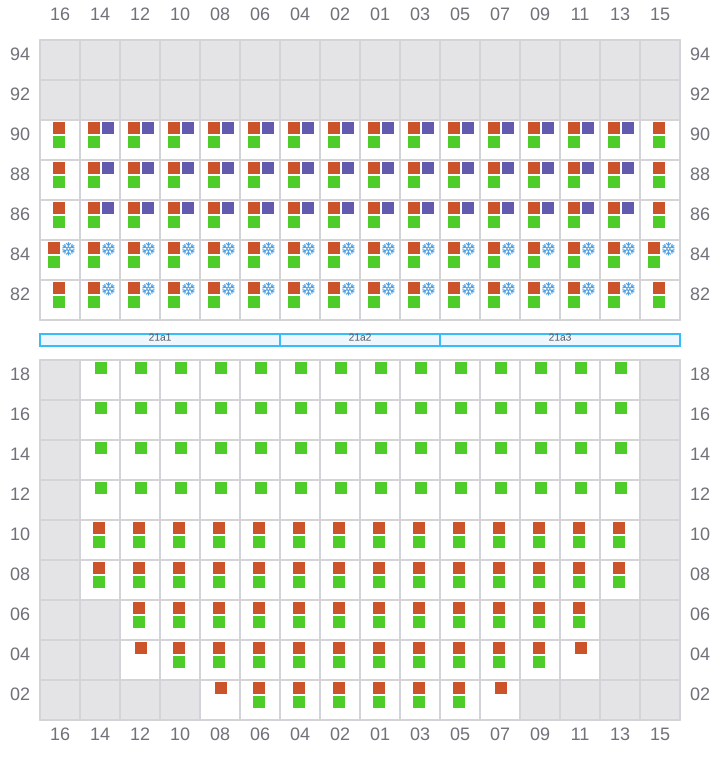

023 (022)
- ←
- → / ?
![Bay 023 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b023.png?v=1687373428015)

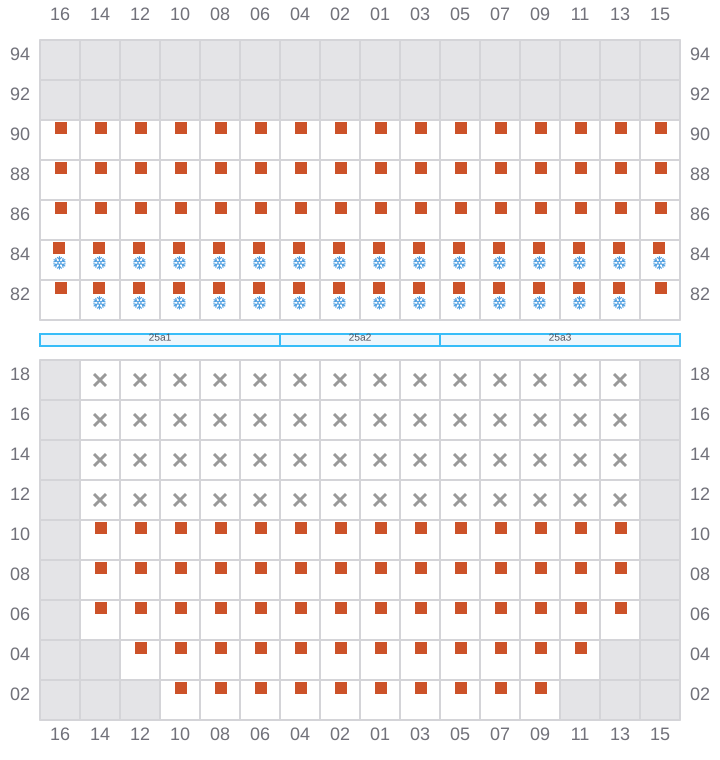

025
- →
- ← / ?
![Bay 025 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b025.png?v=1687373428015)

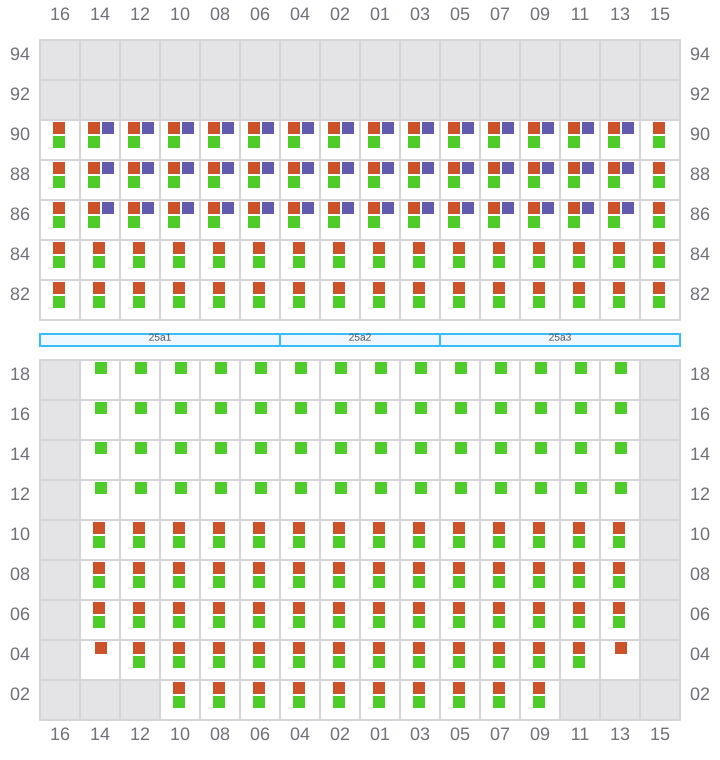

027 (026)
- ←
![Bay 027 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b027.png?v=1687373428015)
029
- →
![Bay 029 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b029.png?v=1687373428015)

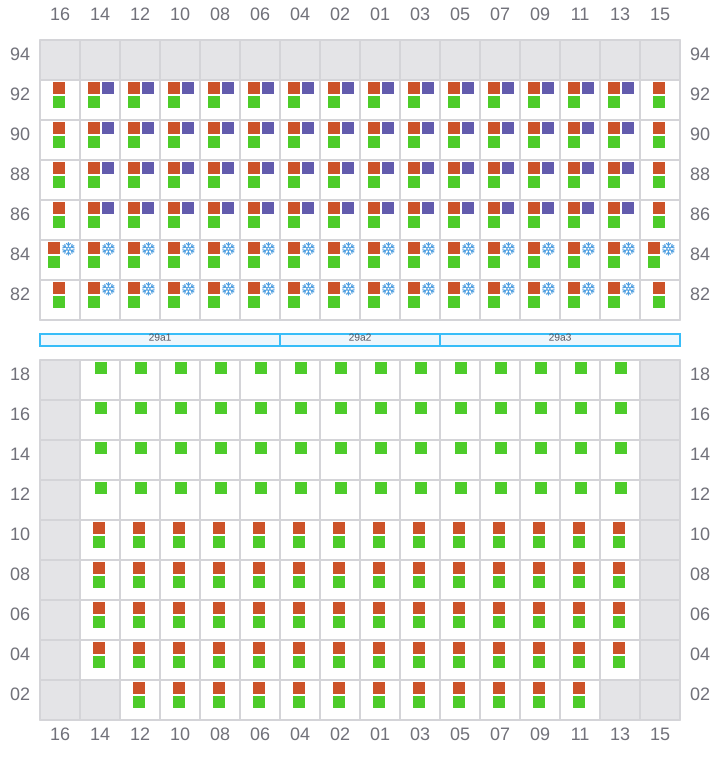

031 (030)
- ←
- → / ?
![Bay 031 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b031.png?v=1687373428015)
033
- →
- ← / ?
![Bay 033 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b033.png?v=1687373428015)
035 (034)
- ←
![Bay 035 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b035.png?v=1687373428015)
037
- →
![Bay 037 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b037.png?v=1687373428015)

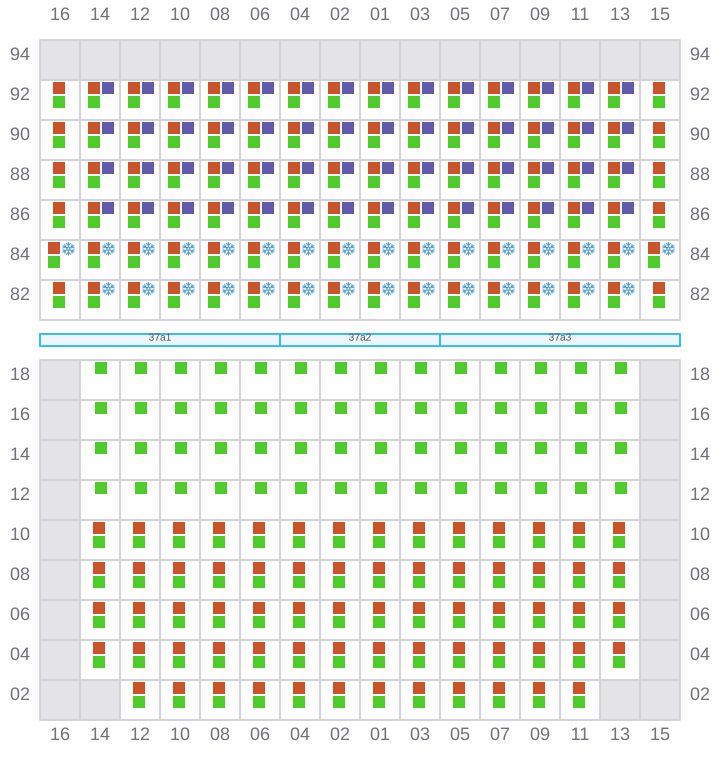

039 (038)
- ←
- → / ?
![Bay 039 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b039.png?v=1687373428015)

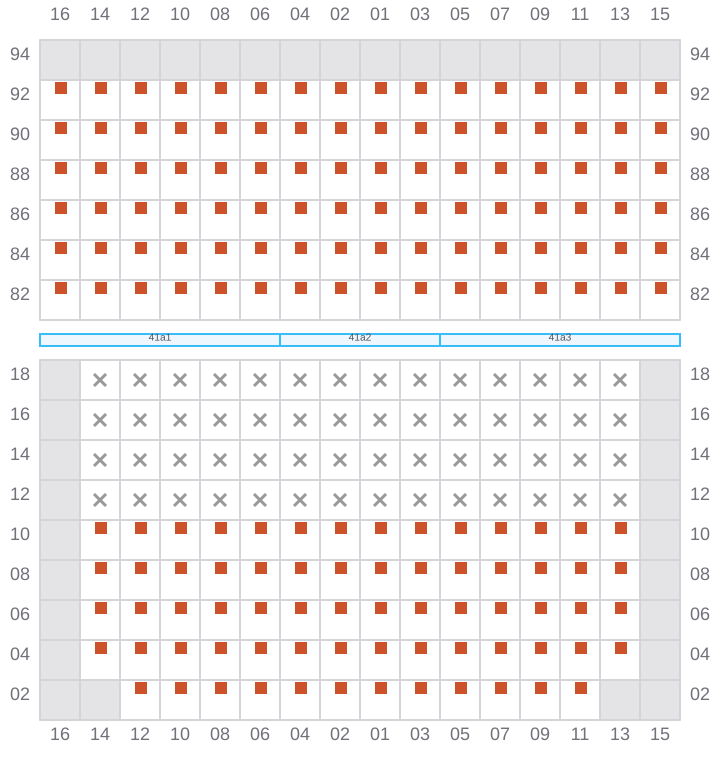

041
- →
![Bay 041 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b041.png?v=1687373428015)
043 (042)
- ←
- → / ?
![Bay 043 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b043.png?v=1687373428015)

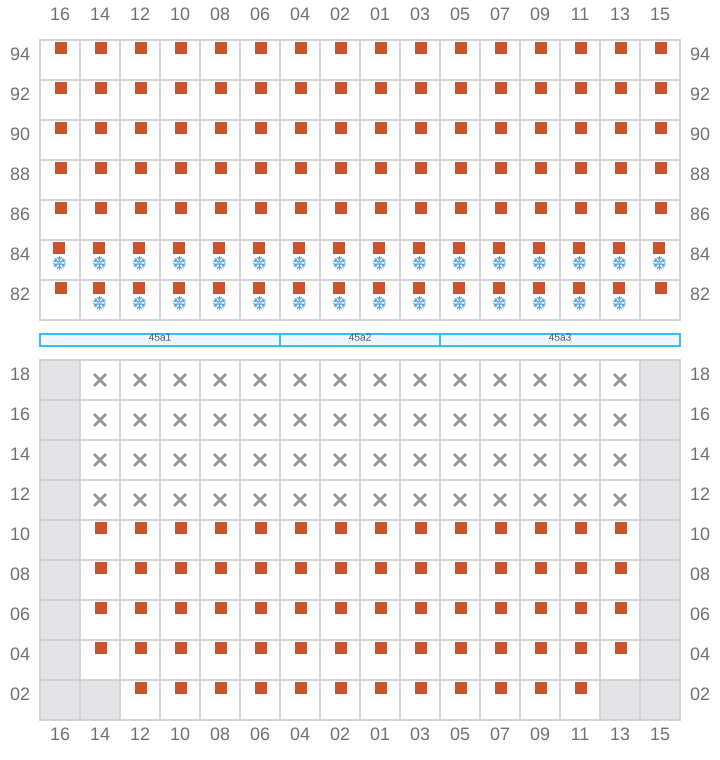

045
- →
- ← / ?
![Bay 045 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b045.png?v=1687373428015)

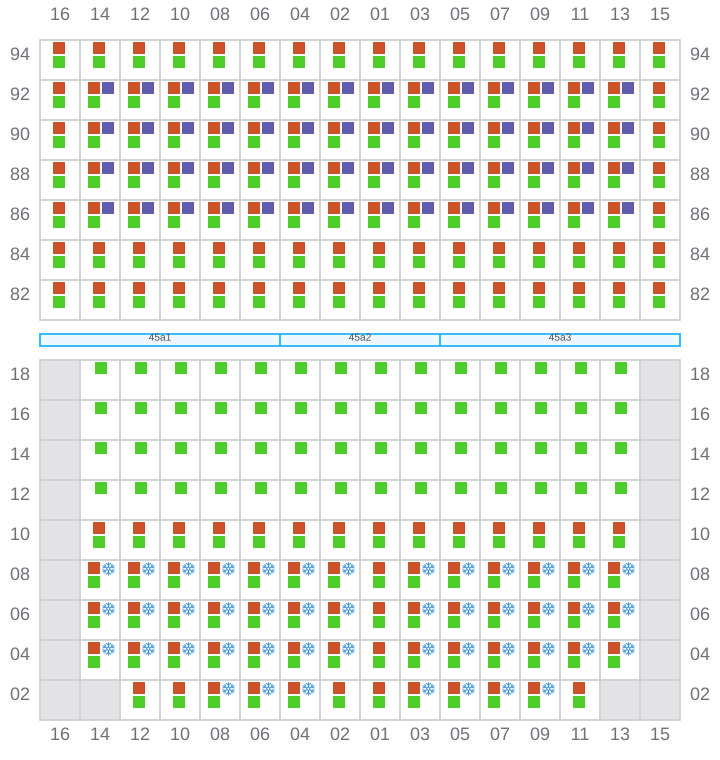

047 (046)
- ←
![Bay 047 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b047.png?v=1687373428015)

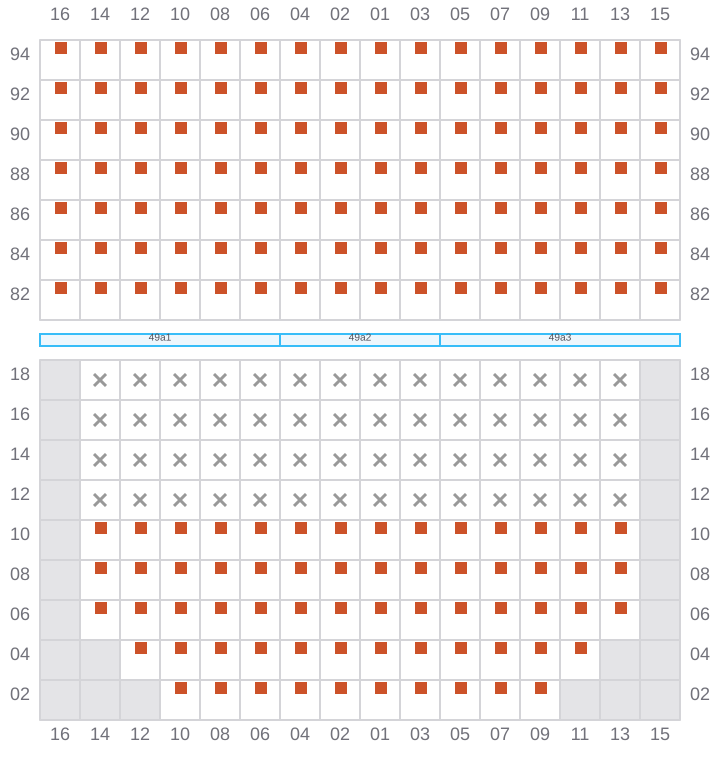

049
- →
![Bay 049 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b049.png?v=1687373428015)

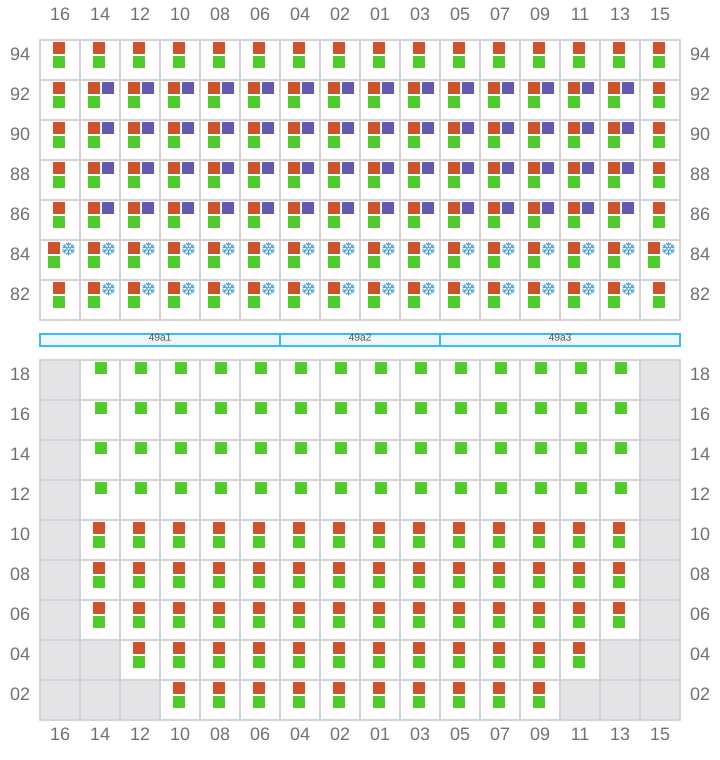

051 (050)
- ←
- → / ?
![Bay 051 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b051.png?v=1687373428015)

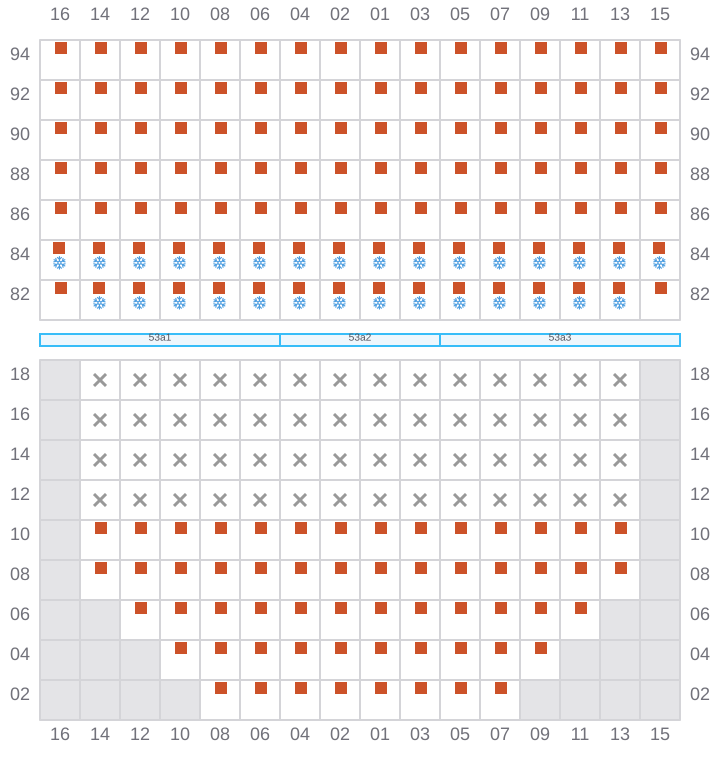

053
- →
- ← / ?
![Bay 053 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b053.png?v=1687373428015)

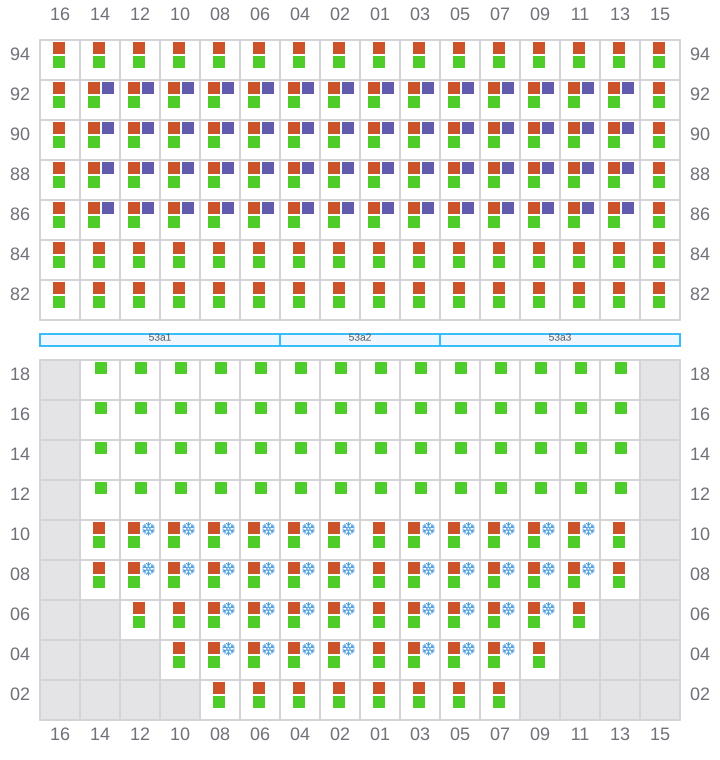

055 (054)
- ←
- ? / →
![Bay 055 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b055.png?v=1687373428015)
057
- → / ?
![Bay 057 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b057.png?v=1687373428015)

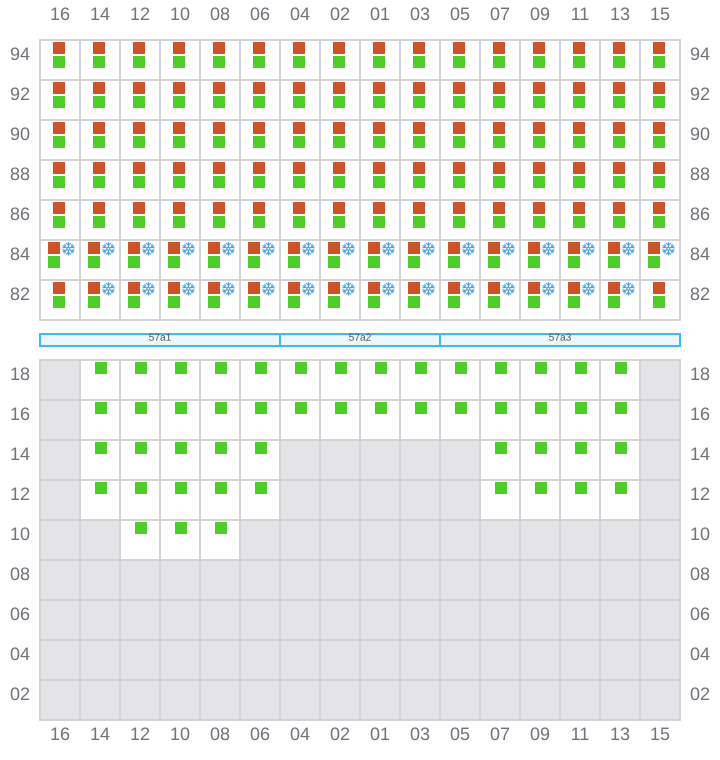

059 (058)
- ←
- → / ?
![Bay 059 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b059.png?v=1687373428015)

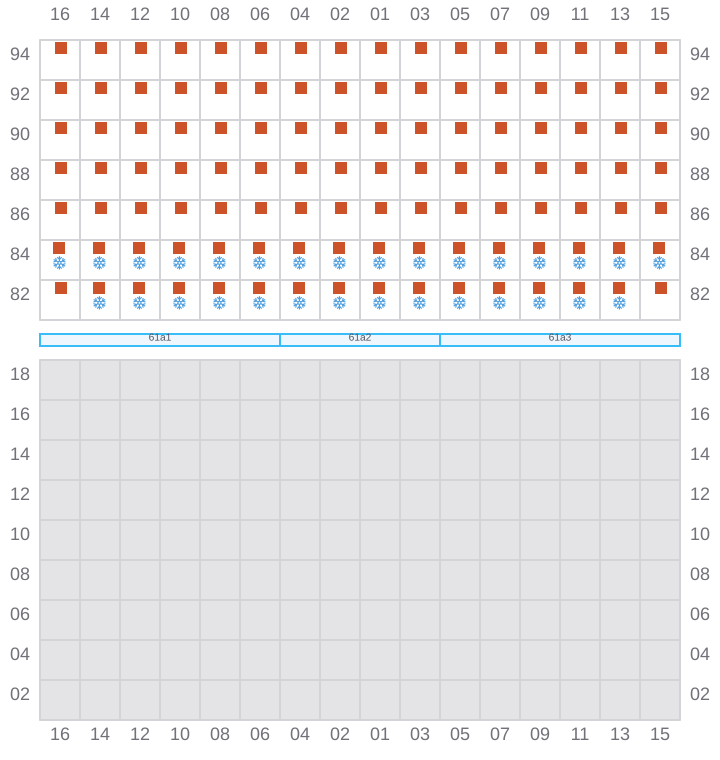

061
- → / ?
- ← / ?
![Bay 061 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b061.png?v=1687373428015)

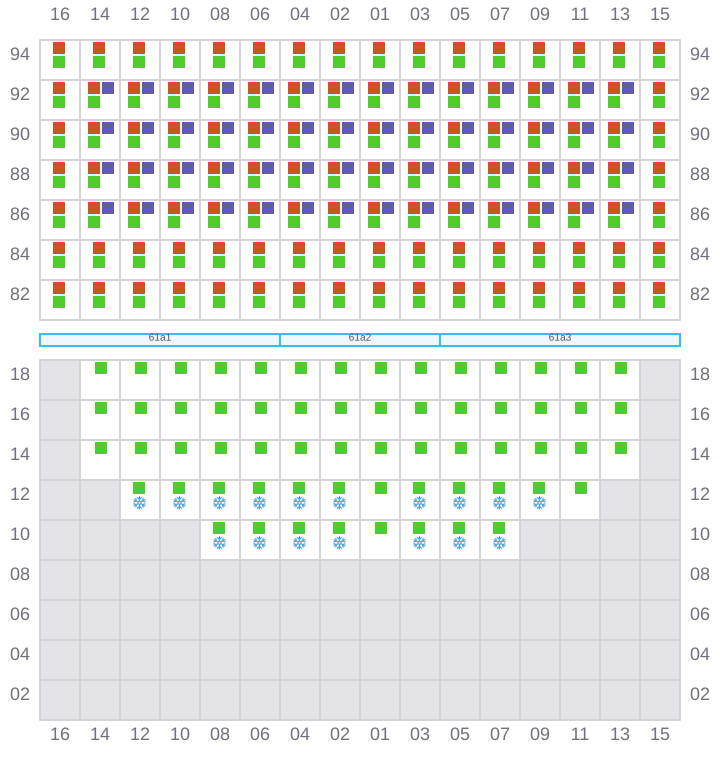

063 (062)
- ←
- ? / →
![Bay 063 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b063.png?v=1687373428015)

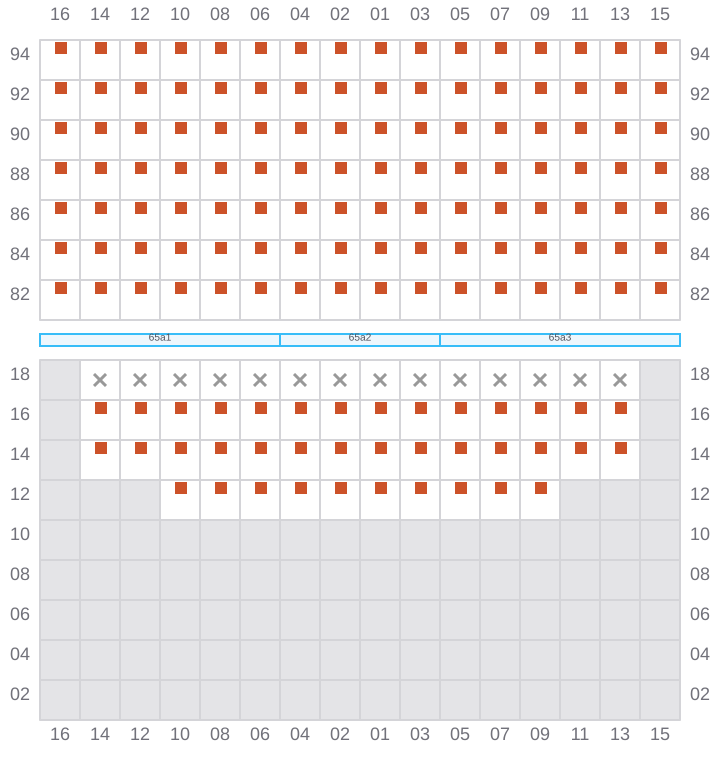

065
- →
![Bay 065 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b065.png?v=1687373428015)

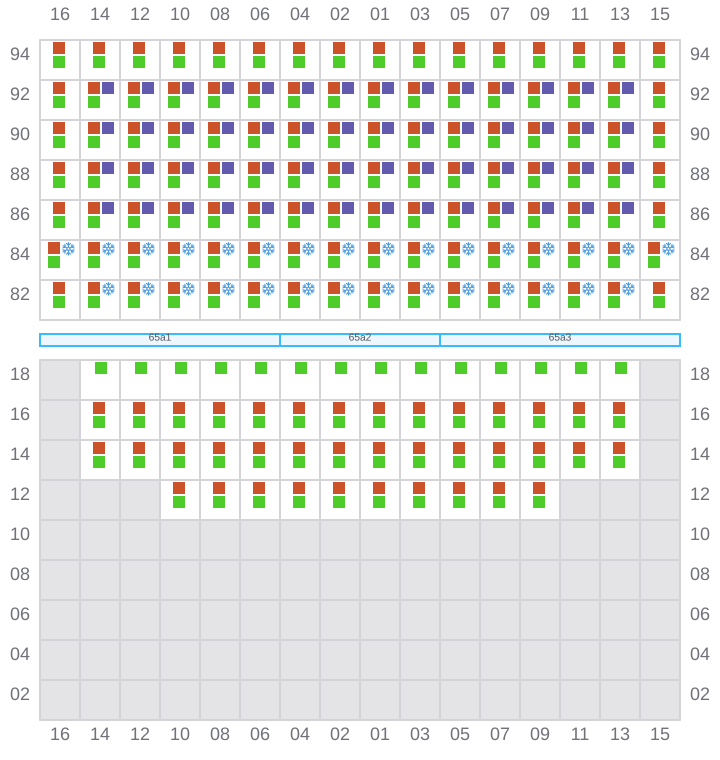

067 (066)
- ←
- → / ?
![Bay 067 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b067.png?v=1687373428015)

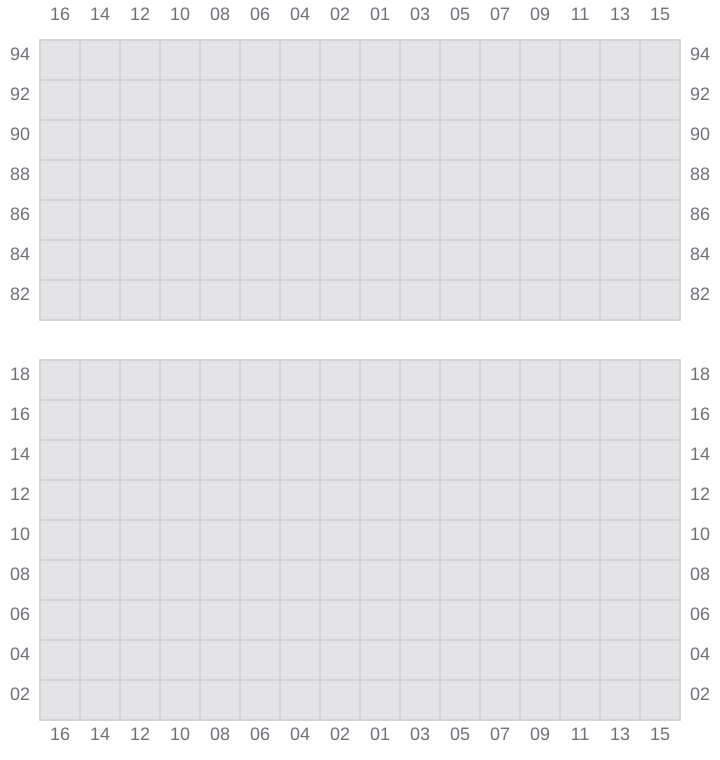

069
![Bay 069 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b069.png?v=1687373428015)

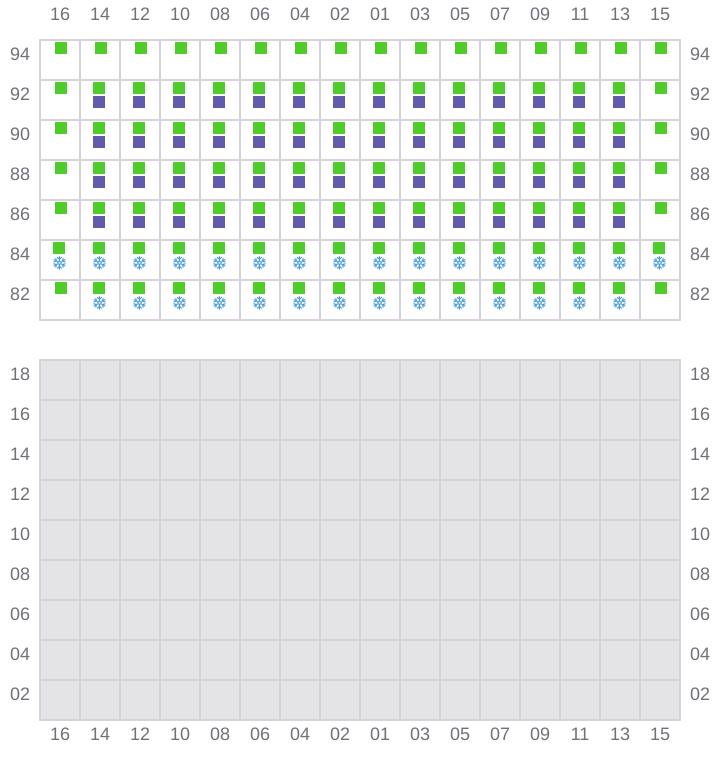

071 (070)
- ← / ?
- ← / ?
![Bay 071 view and slots of MSC APOLLO](/vessel-images/bd0b67b7-6b17-4e9c-9140-912affc1949d-b071.png?v=1687373428015)
