MSC ARIA III
9374595 | A8PI5 | CHI by ************************** Last update: Fri Jun 30 2023
General Info
Ship Name:MSC ARIA III
IMO Code:9374595
Call Sign:A8PI5
Line Operator:CHI
Class Name for Sister Ships:CST
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,692
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

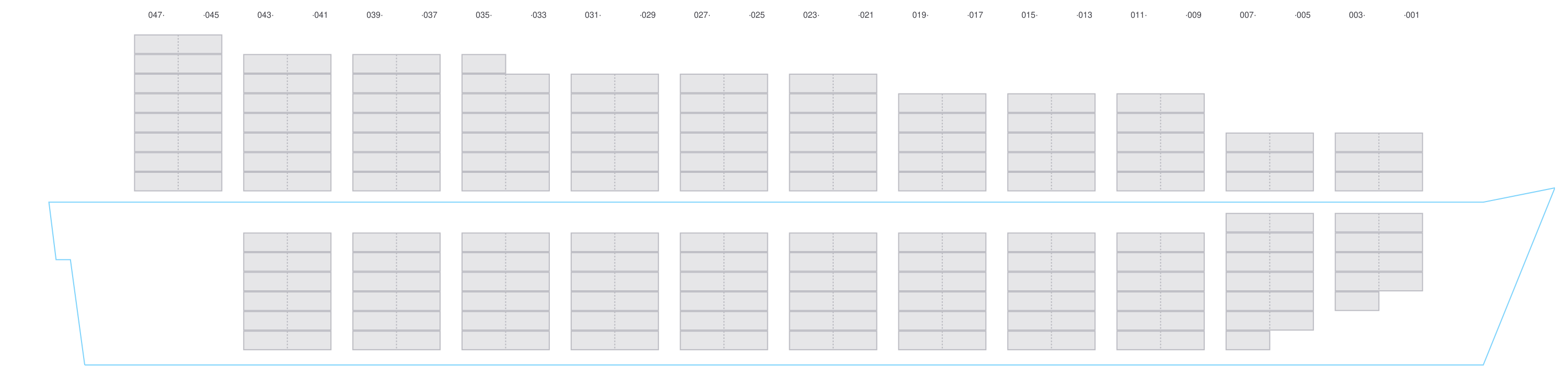

Side View

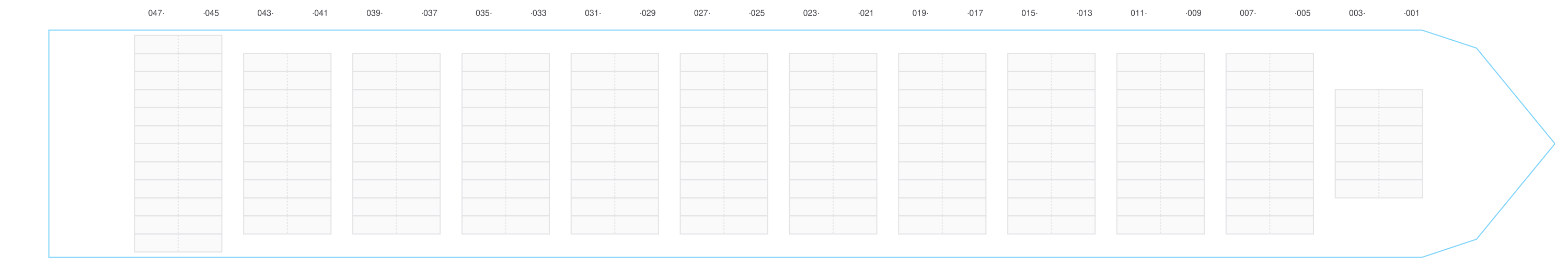

Hatch-Covers View

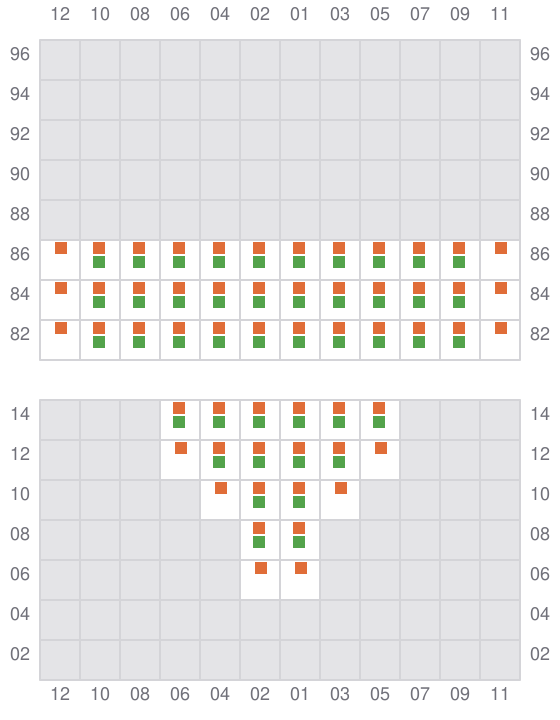

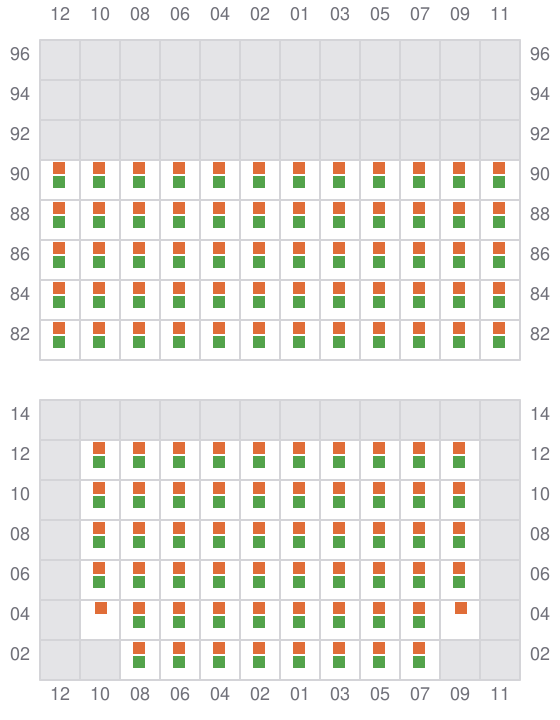

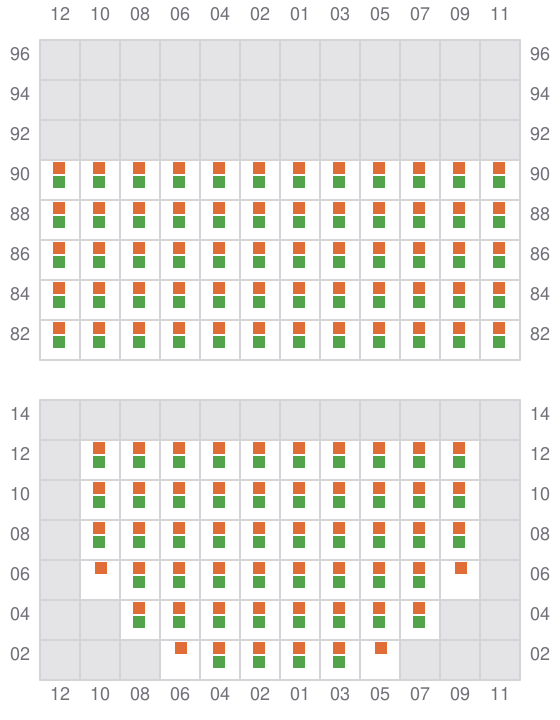

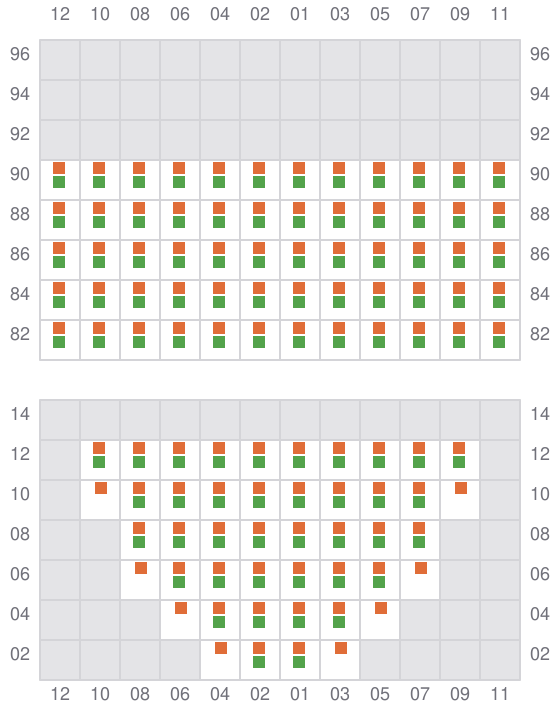

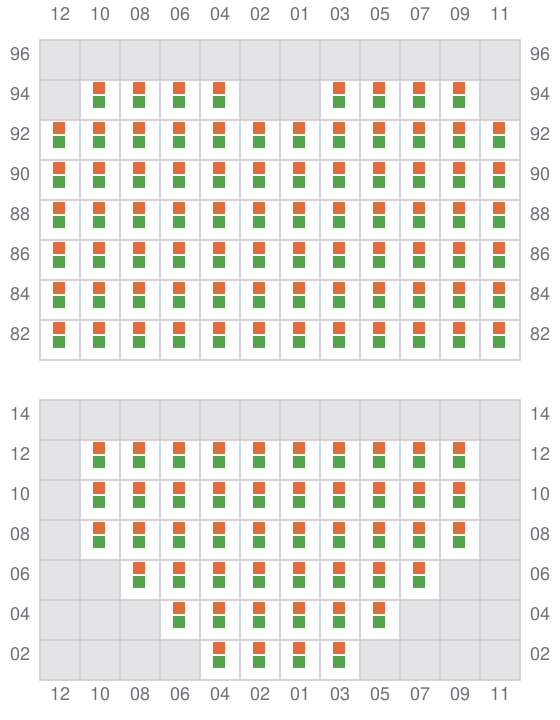

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

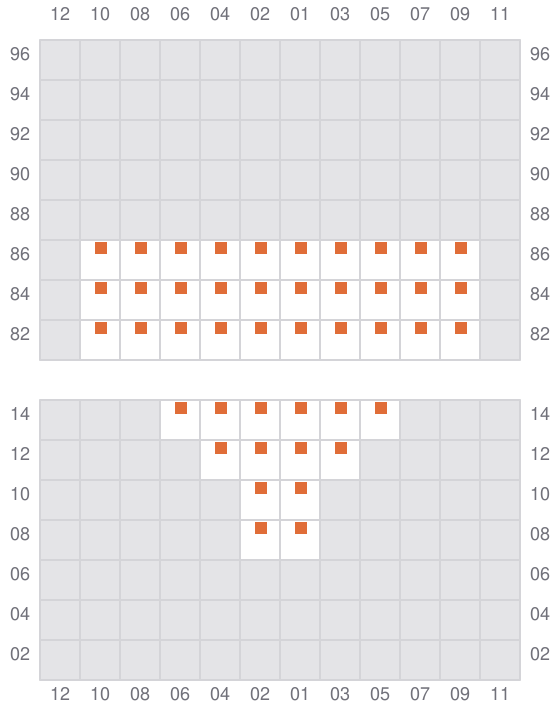

001
- →
003 (002)
- ←

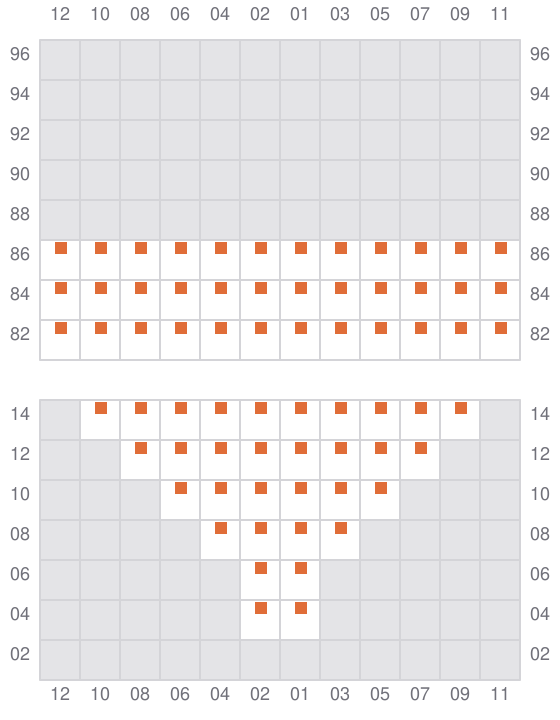

005
- →

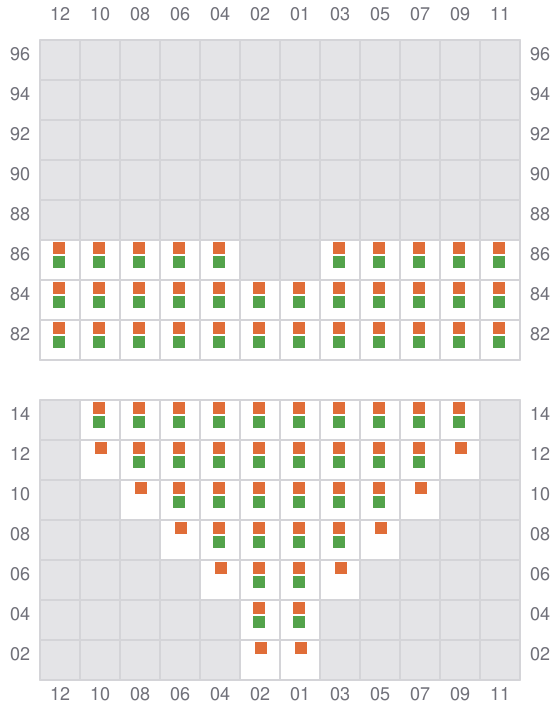

007 (006)
- ←

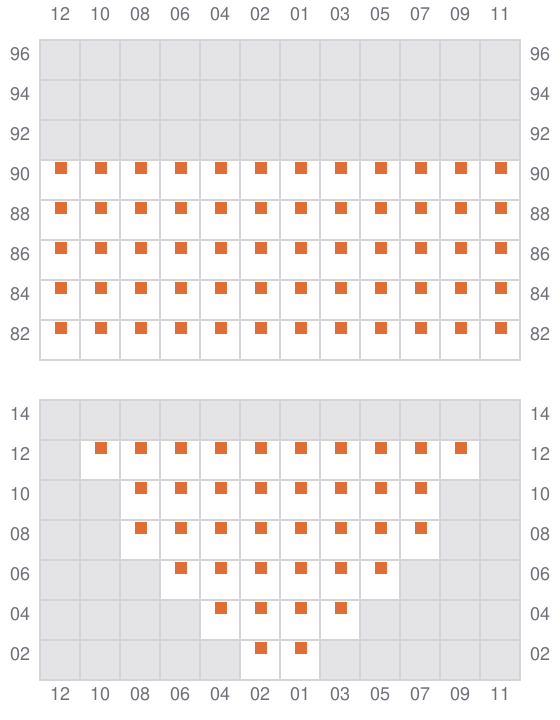

009
- →
011 (010)
- ←

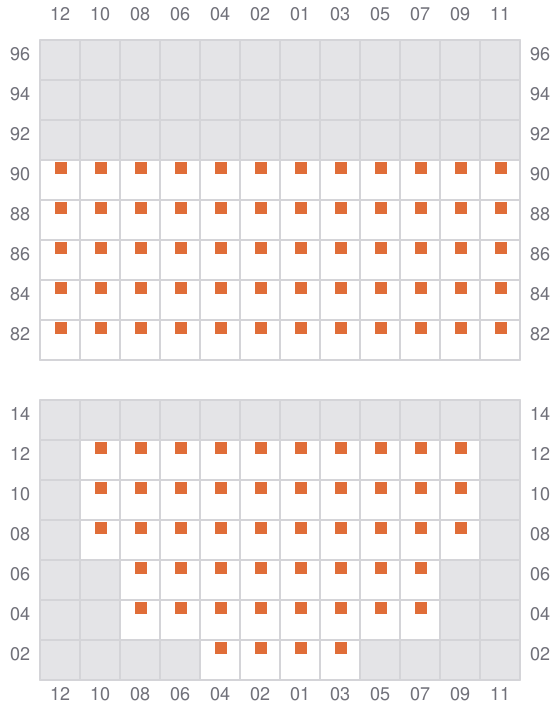

013
- →
015 (014)
- ←

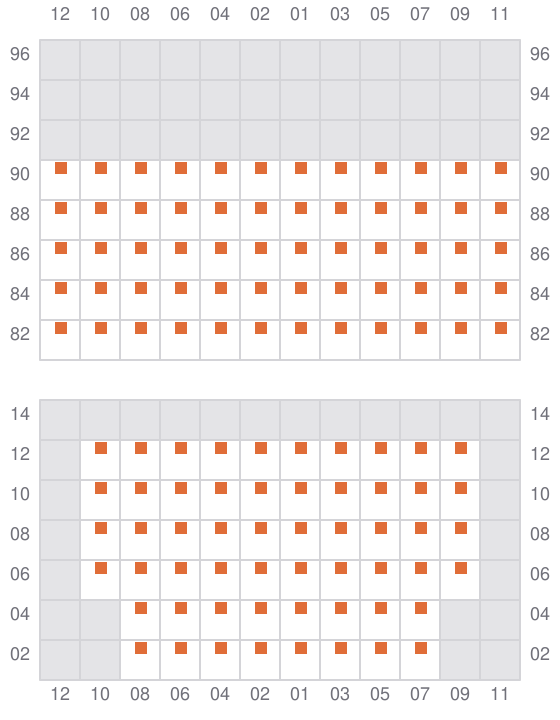

017
- →
019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←

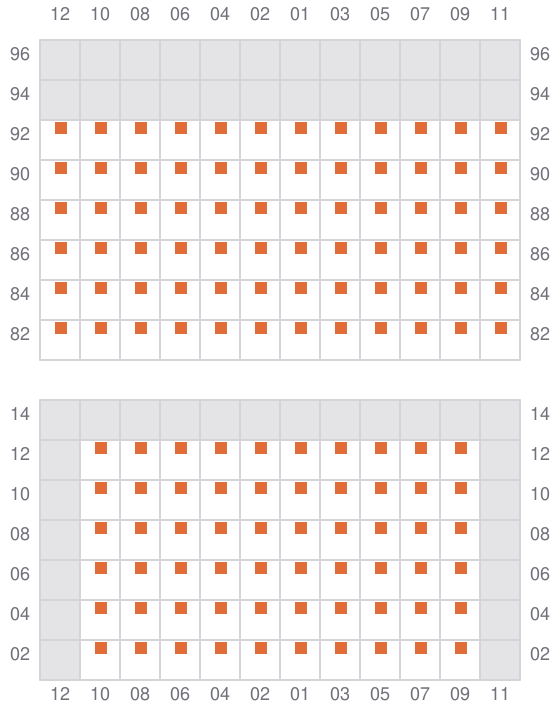

029
- →

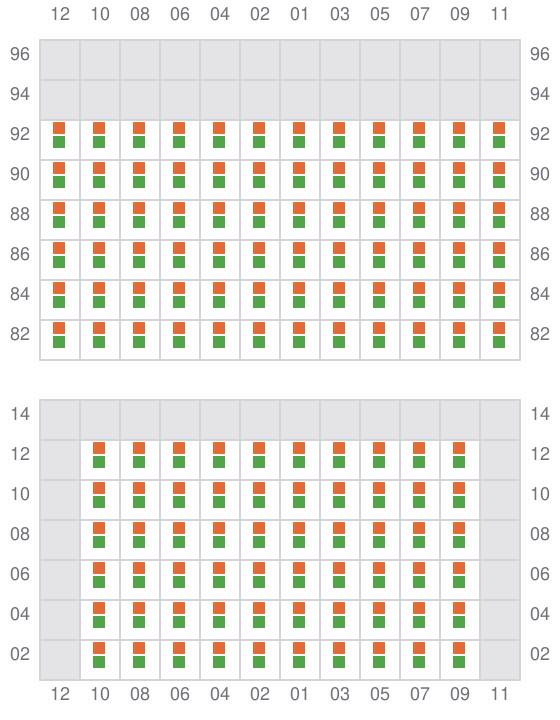

031 (030)
- ←
033
- →

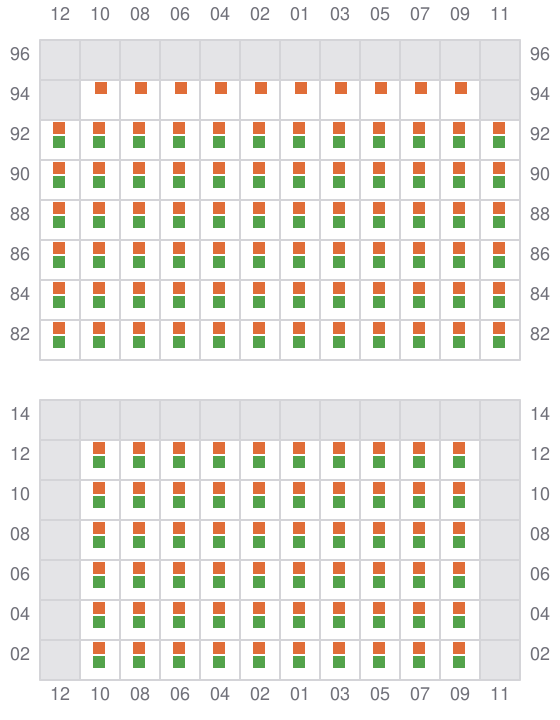

035 (034)
- ←

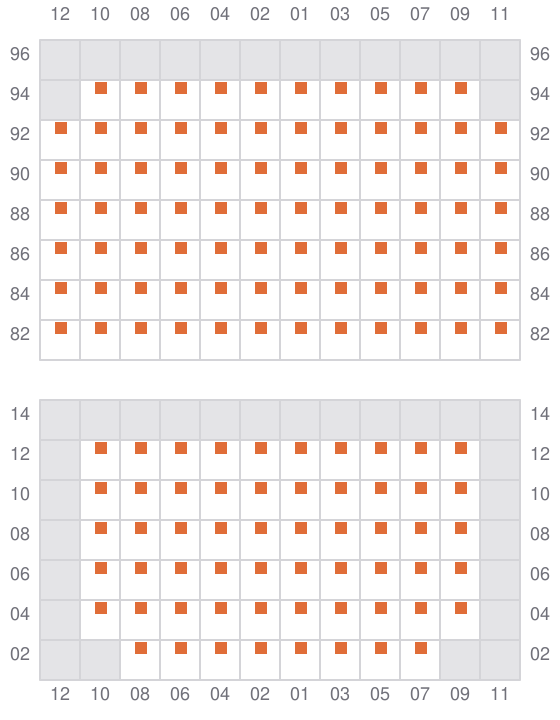

037
- →

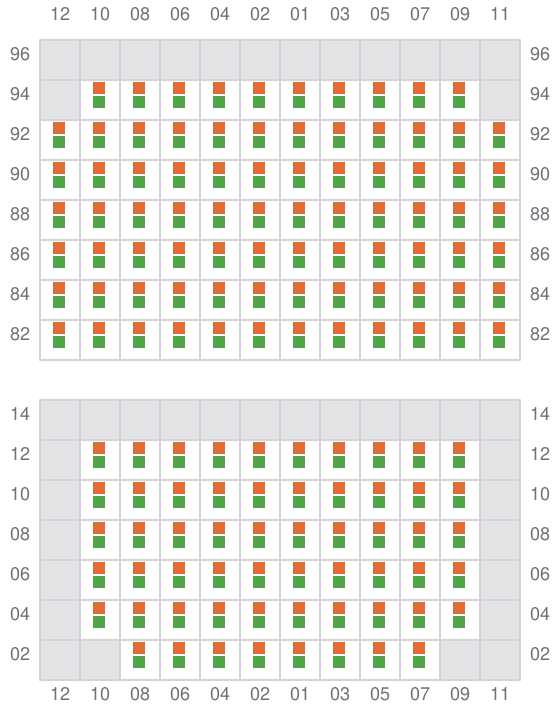

039 (038)
- ←

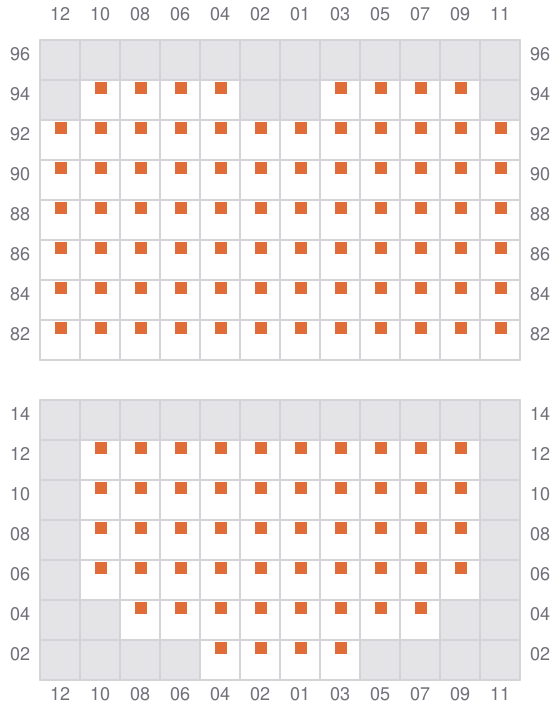

041
- →
043 (042)
- ←

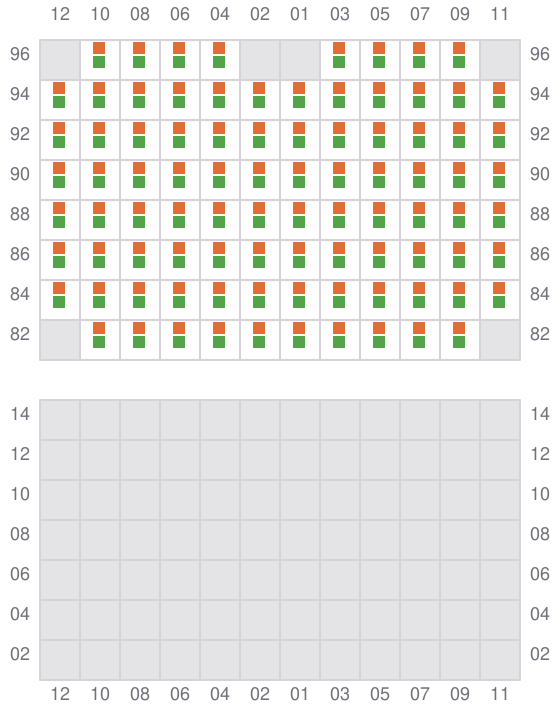

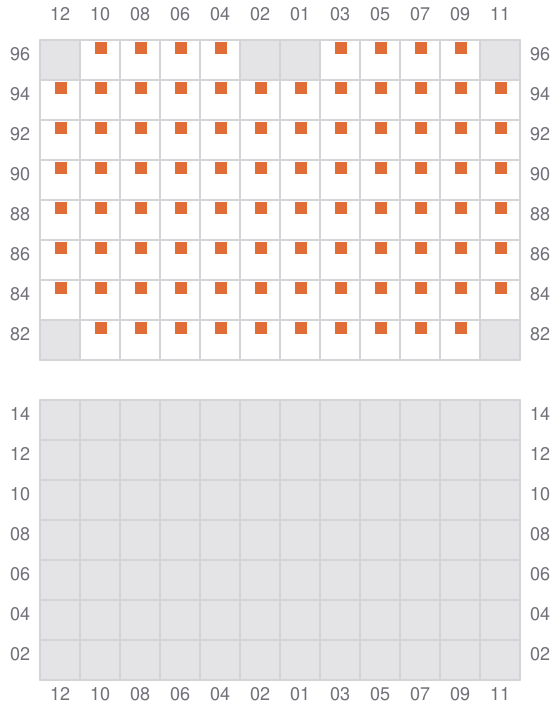

045
- → / ?
047 (046)
- ← / ?
