MSC ARICA
9619452 | D5VE2 | MSC by ************************** Last update: Thu Jun 22 2023

General Info

Ship Name:MSC ARICA
IMO Code:9619452
Call Sign:D5VE2
Line Operator:MSC
Class Name for Sister Ships:ZZV
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:100
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,958

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

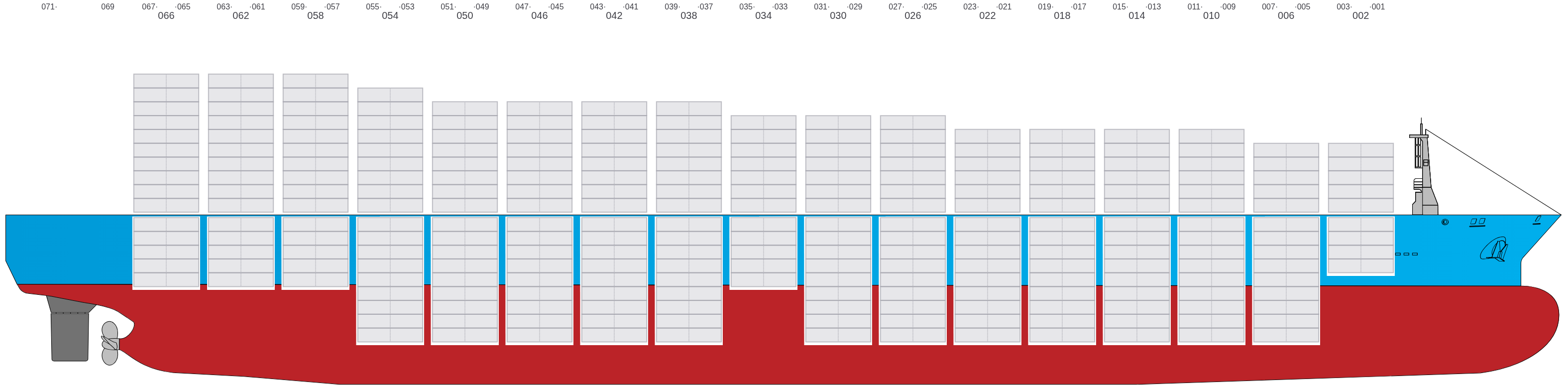

Side view of MSC ARICA

Hatch-Covers View

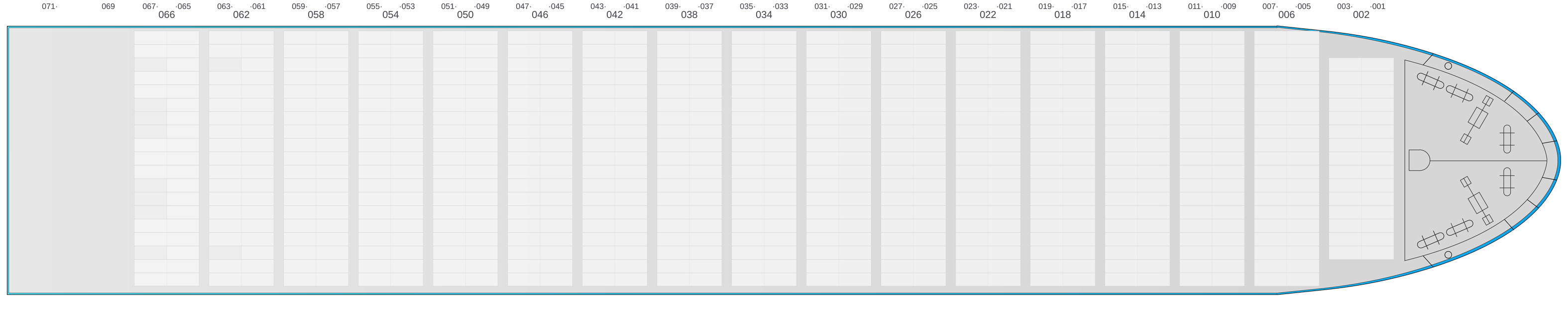

Deck view of MSC ARICA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

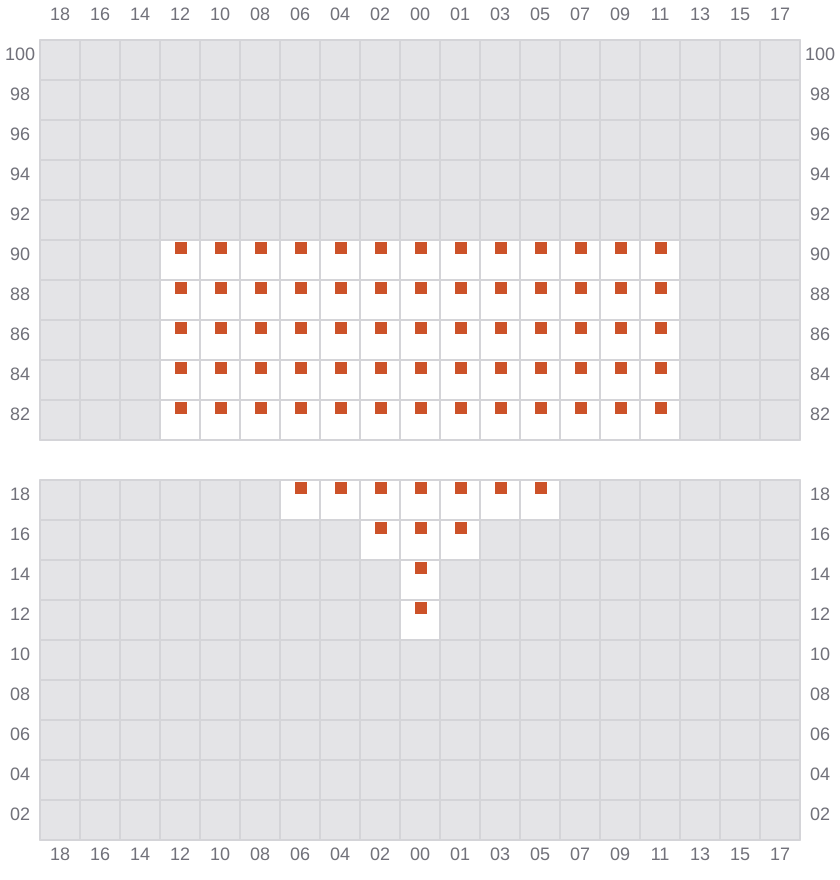

Bay 001 view and slots of MSC ARICA

003 (002)

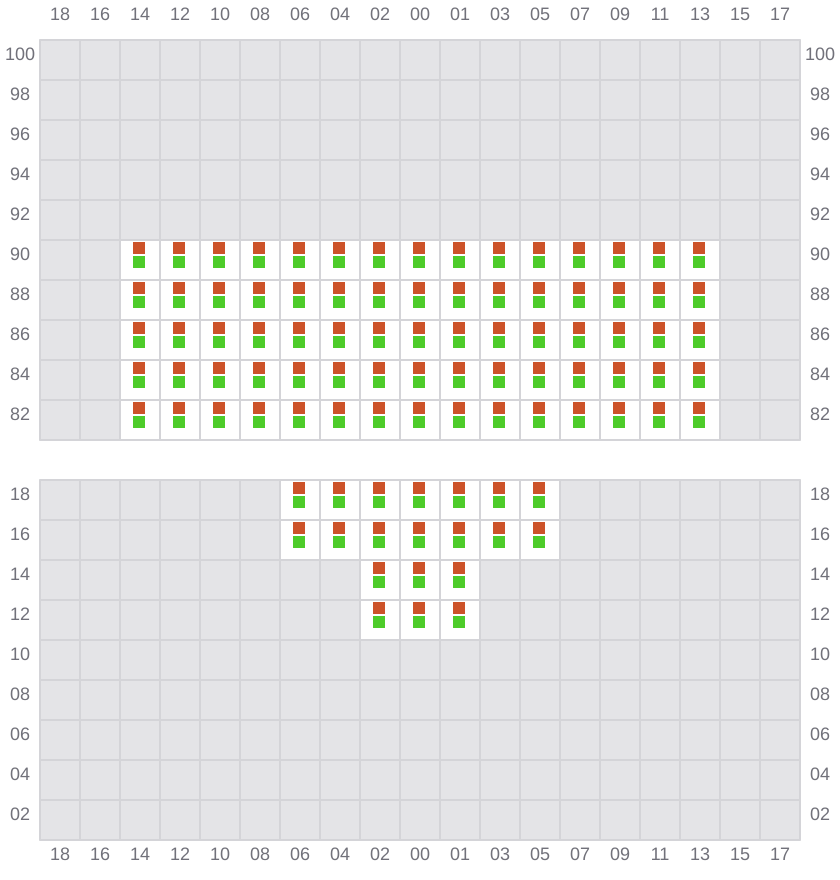

Bay 003 view and slots of MSC ARICA

005

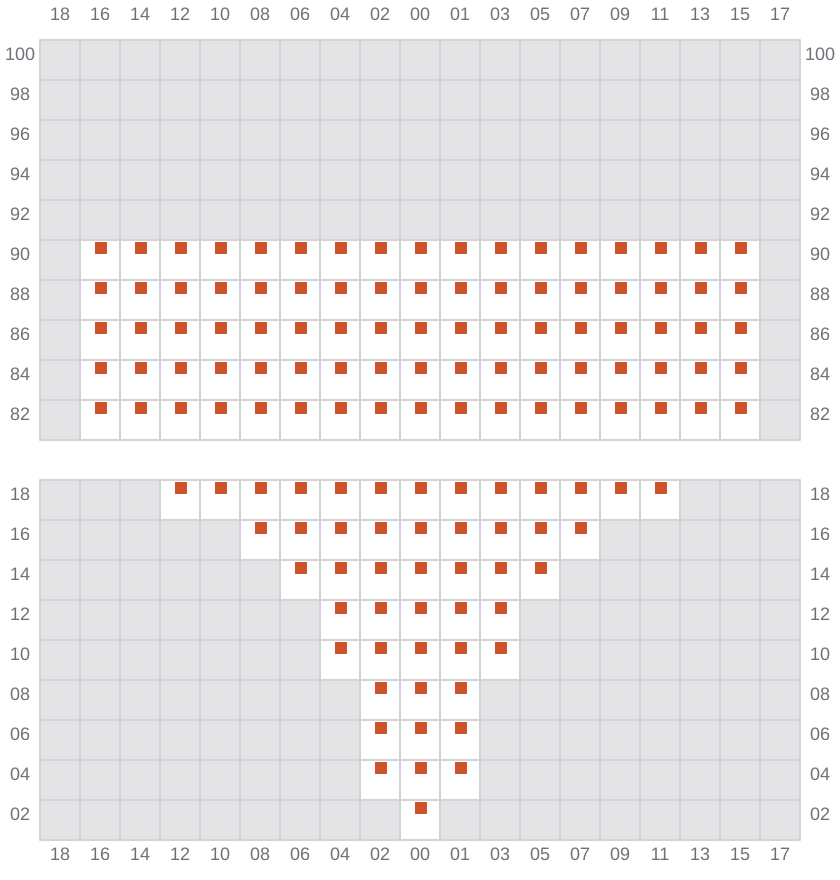

Bay 005 view and slots of MSC ARICA

007 (006)

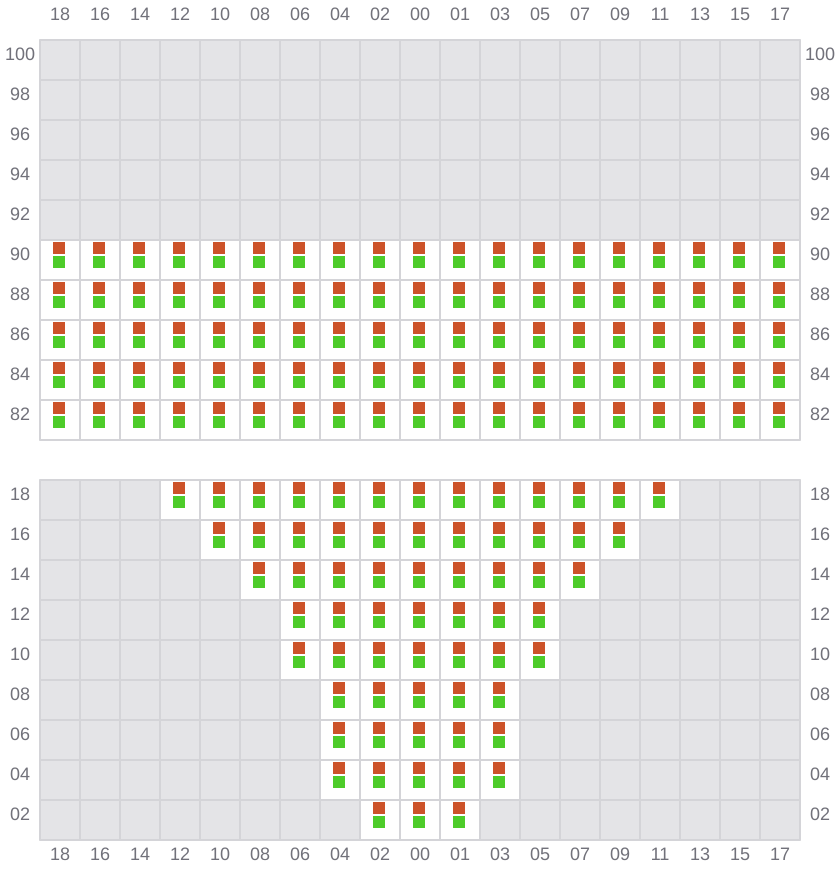

Bay 007 view and slots of MSC ARICA

009

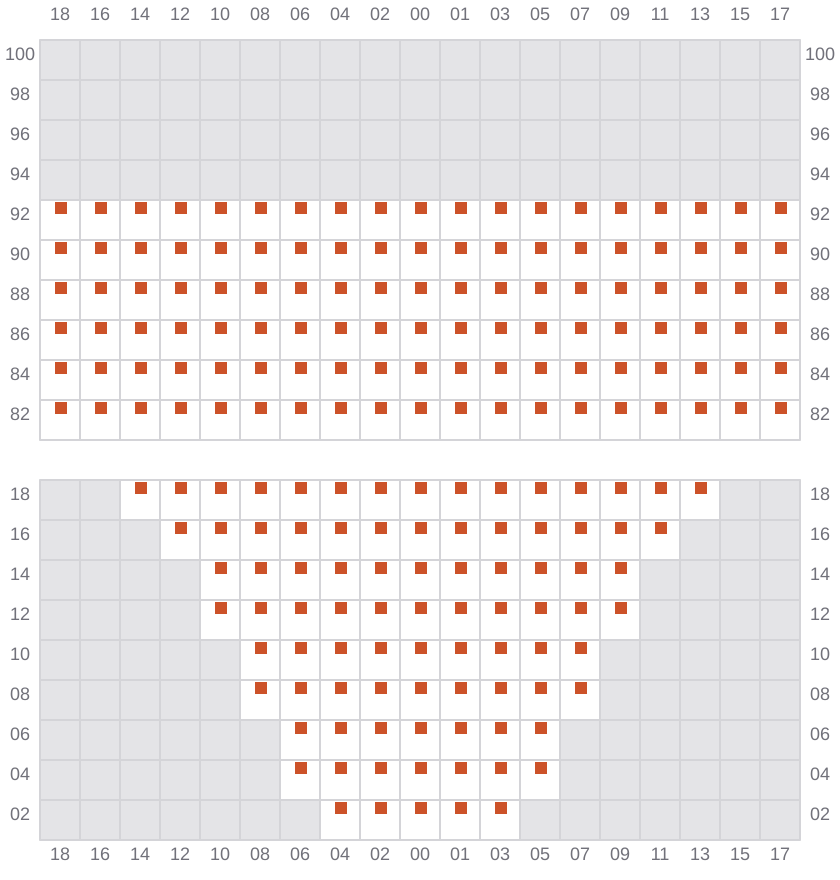

Bay 009 view and slots of MSC ARICA

011 (010)

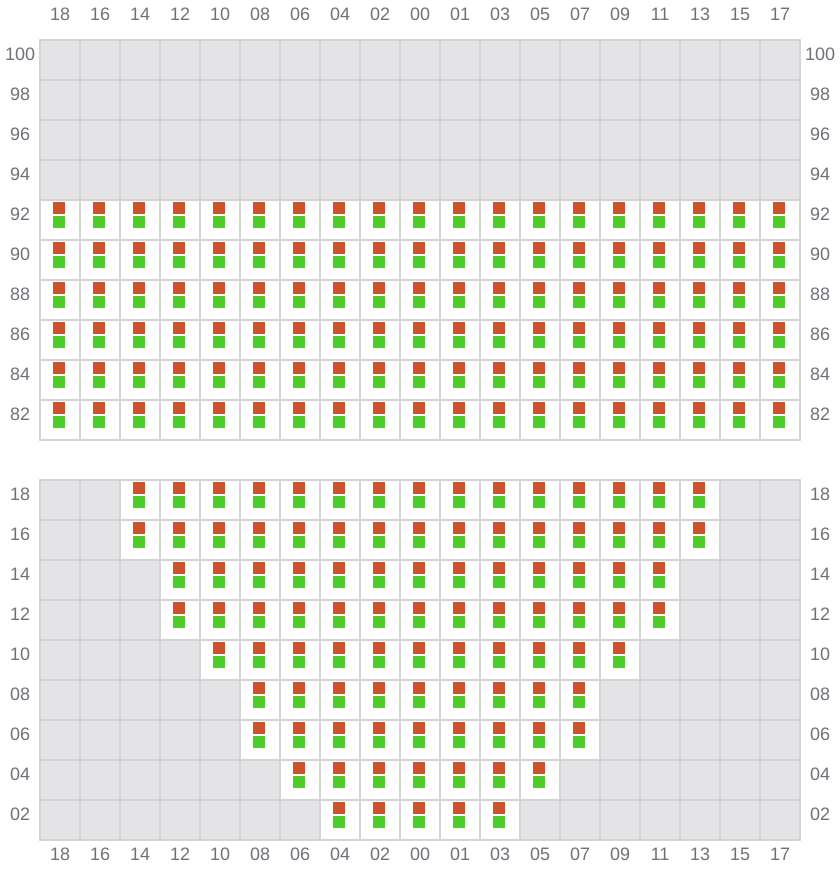

Bay 011 view and slots of MSC ARICA

013

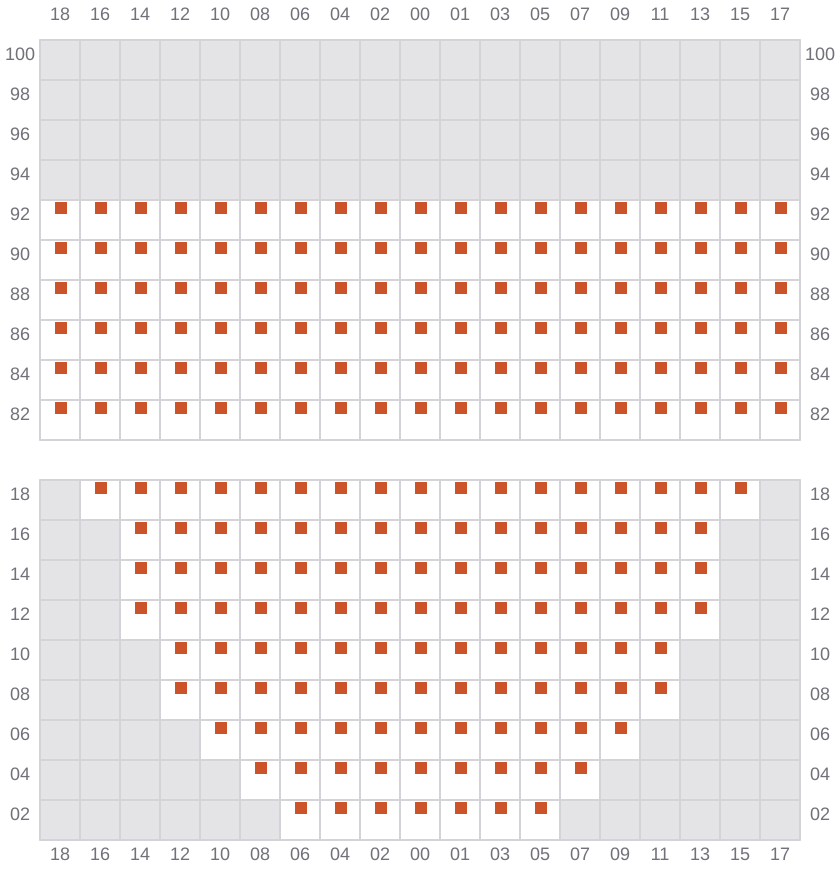

Bay 013 view and slots of MSC ARICA

015 (014)

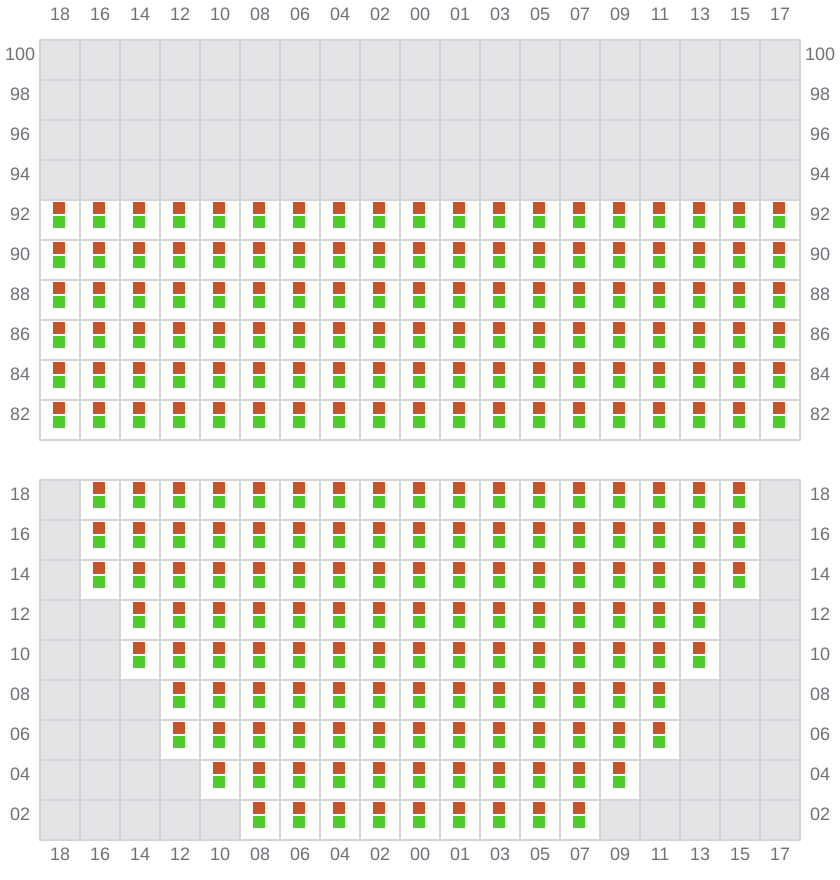

Bay 015 view and slots of MSC ARICA

017

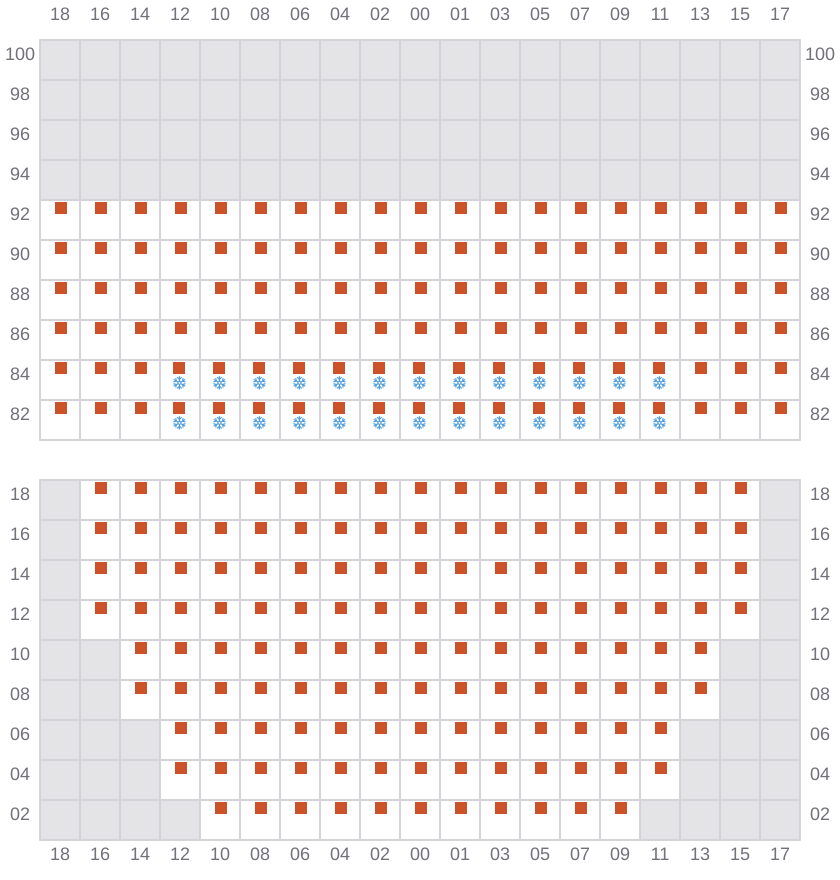

Bay 017 view and slots of MSC ARICA

019 (018)

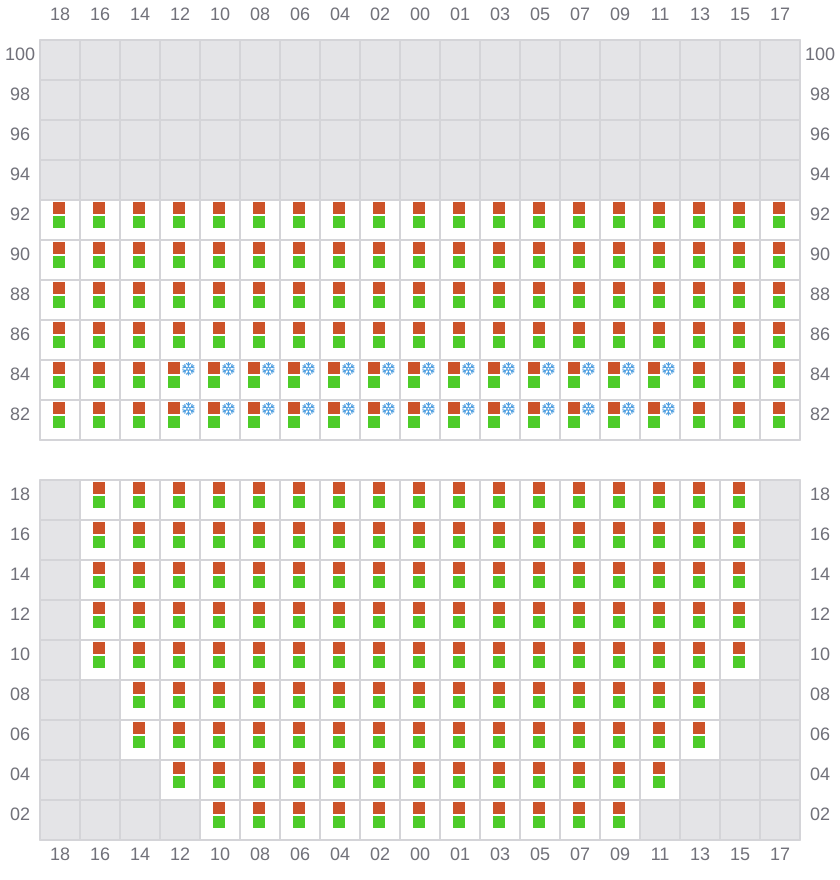

Bay 019 view and slots of MSC ARICA

021

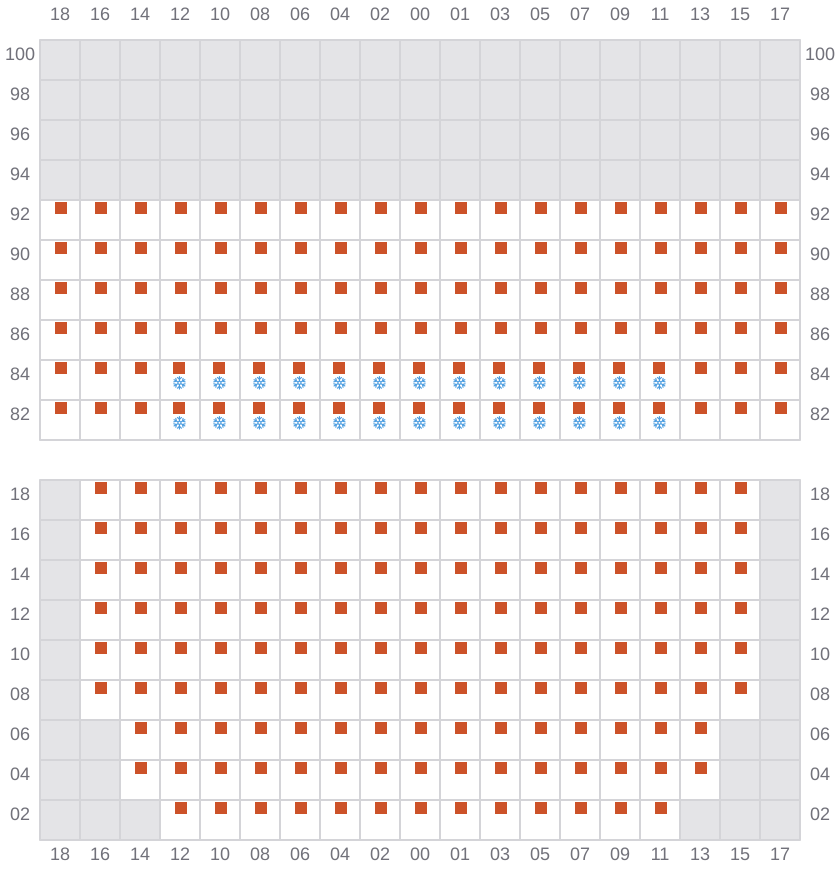

Bay 021 view and slots of MSC ARICA

023 (022)

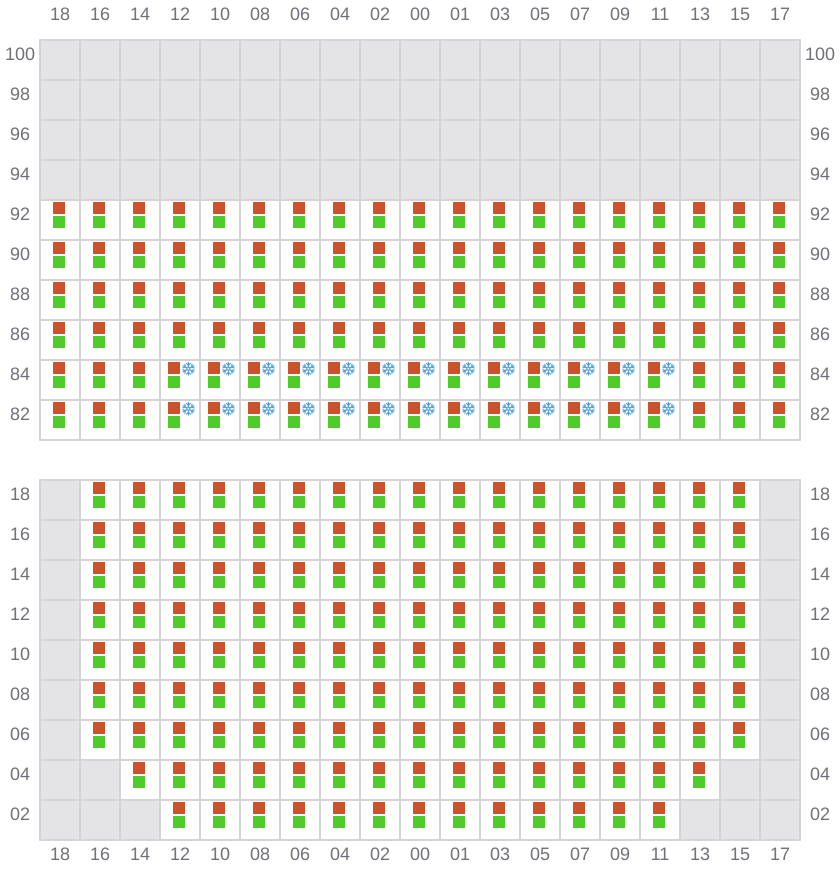

Bay 023 view and slots of MSC ARICA

025

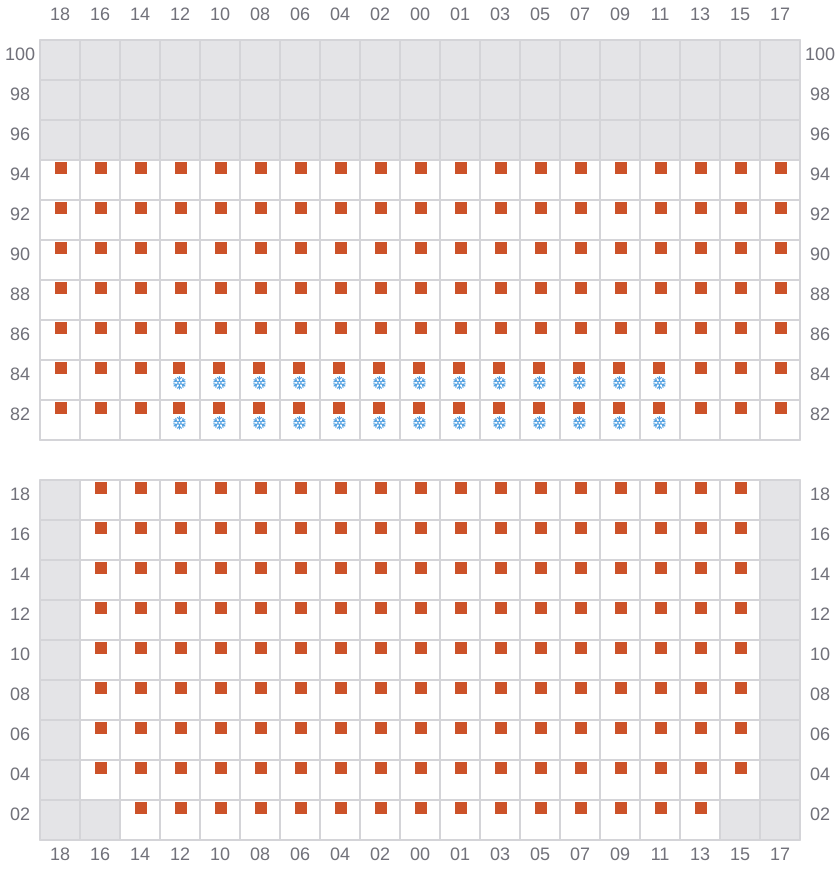

Bay 025 view and slots of MSC ARICA

027 (026)

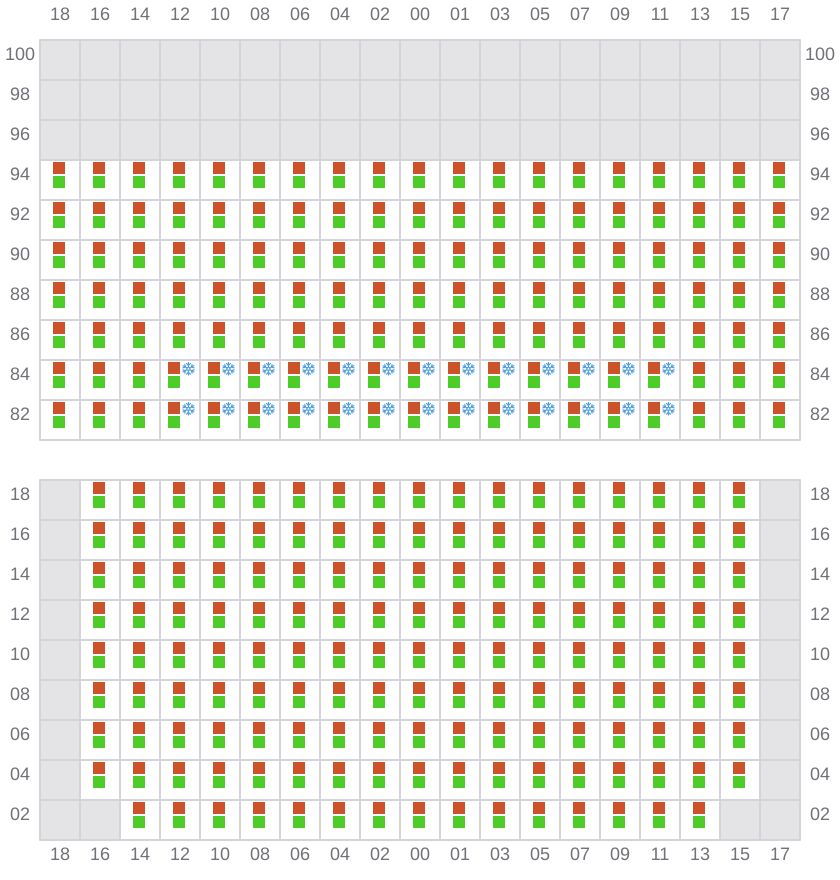

Bay 027 view and slots of MSC ARICA

029

Bay 029 view and slots of MSC ARICA

031 (030)

Bay 031 view and slots of MSC ARICA

033

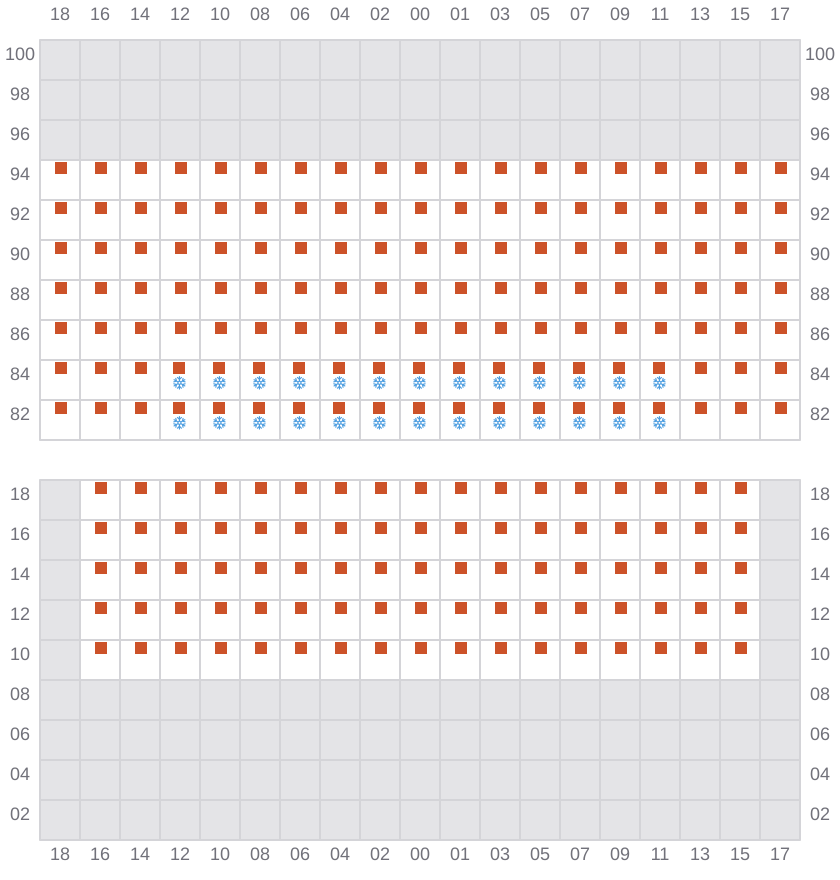

Bay 033 view and slots of MSC ARICA

035 (034)

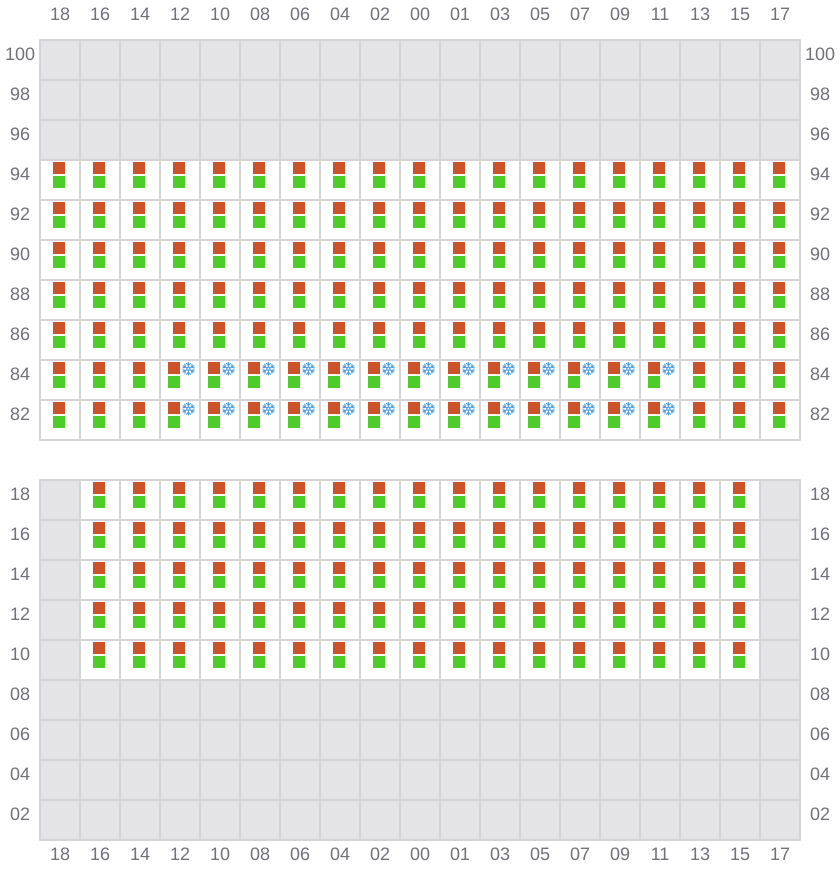

Bay 035 view and slots of MSC ARICA

037

Bay 037 view and slots of MSC ARICA

039 (038)

Bay 039 view and slots of MSC ARICA

041

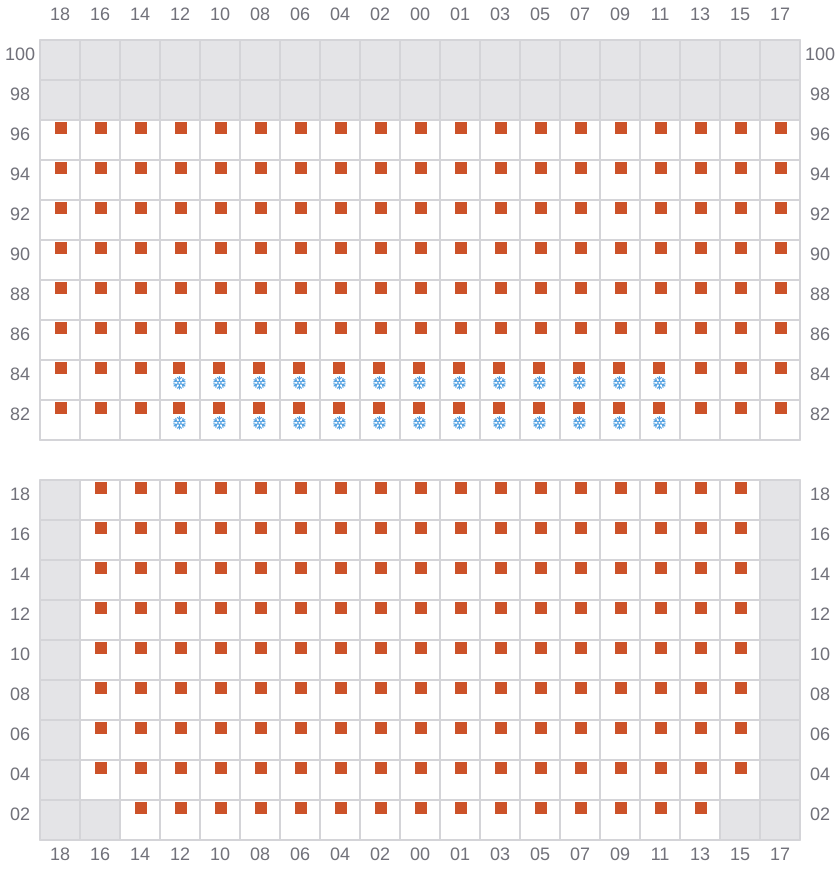

Bay 041 view and slots of MSC ARICA

043 (042)

Bay 043 view and slots of MSC ARICA

045

Bay 045 view and slots of MSC ARICA

047 (046)

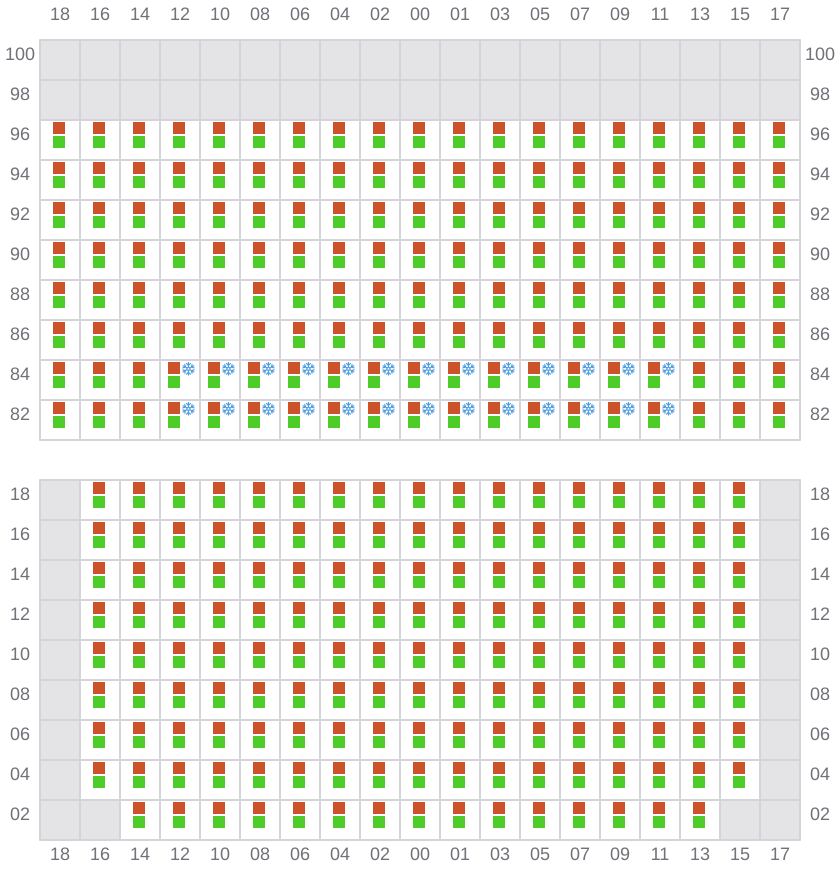

Bay 047 view and slots of MSC ARICA

049

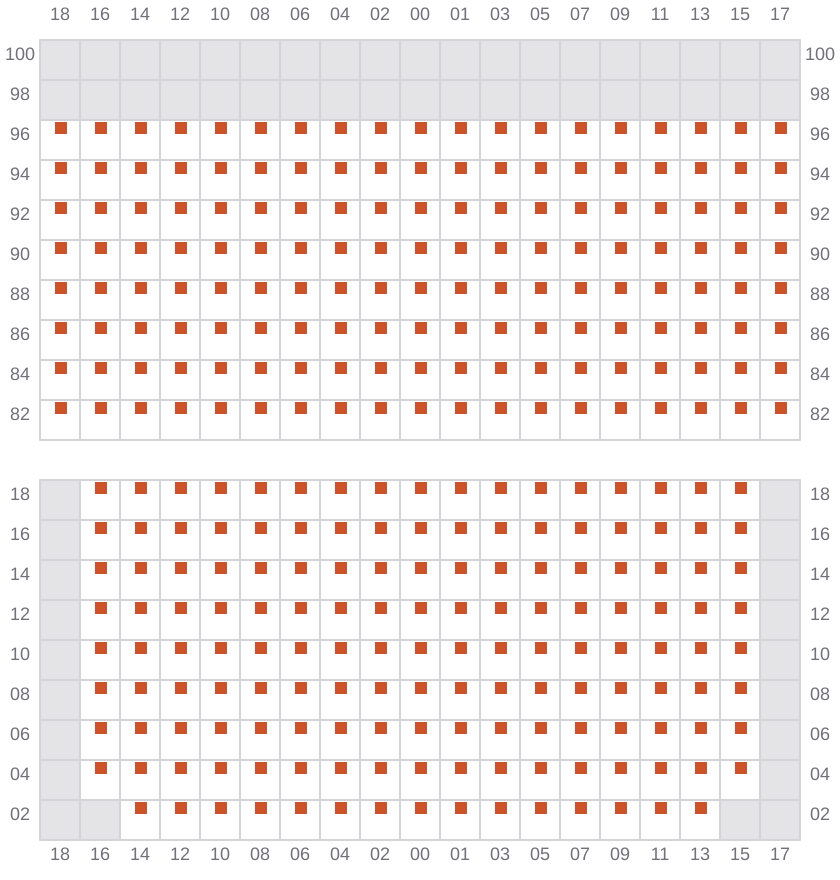

Bay 049 view and slots of MSC ARICA

051 (050)

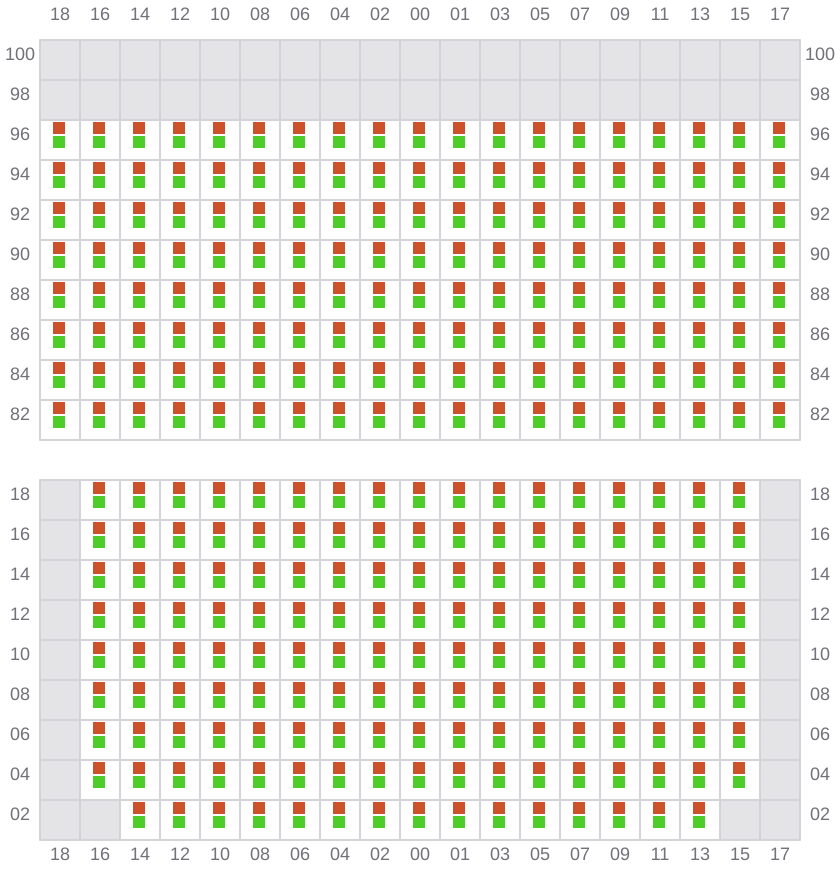

Bay 051 view and slots of MSC ARICA

053

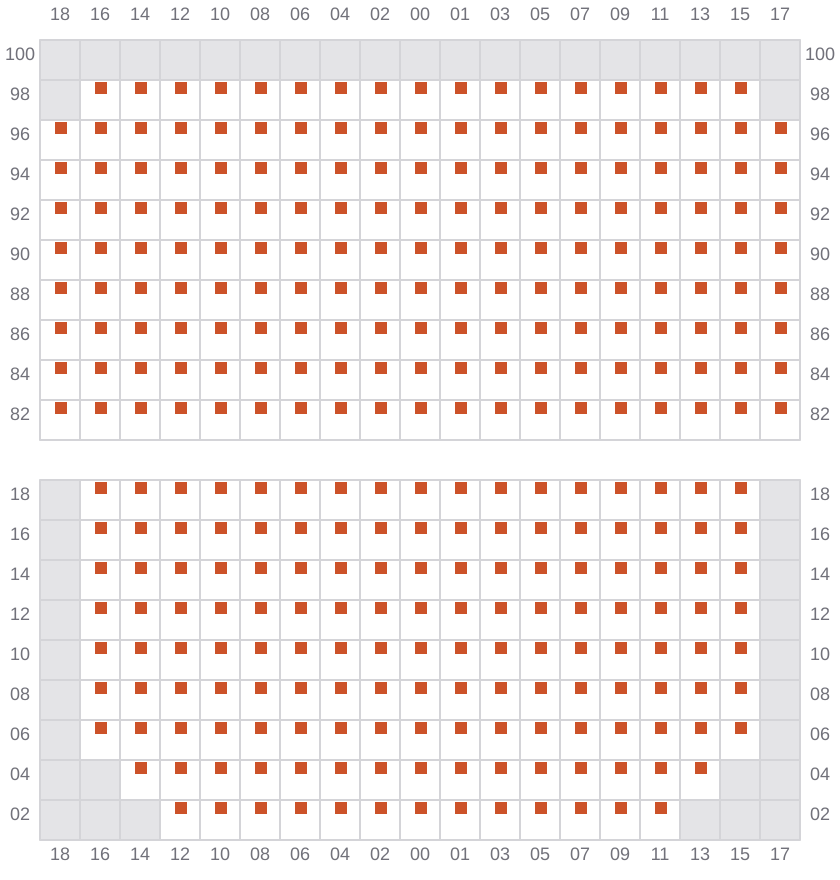

Bay 053 view and slots of MSC ARICA

055 (054)

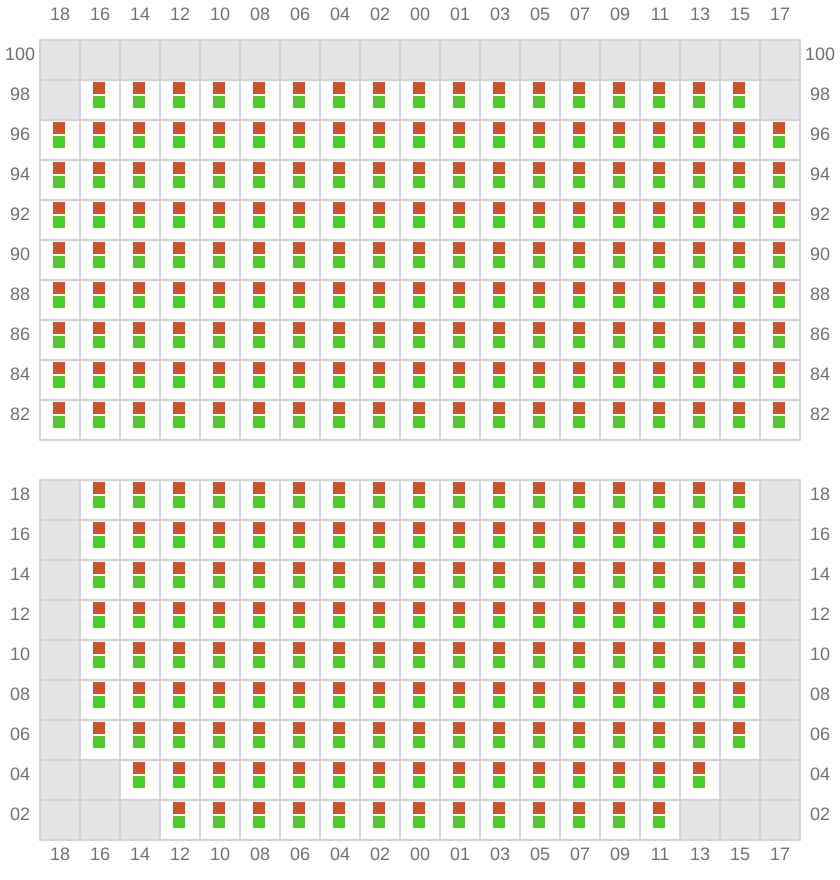

Bay 055 view and slots of MSC ARICA

057

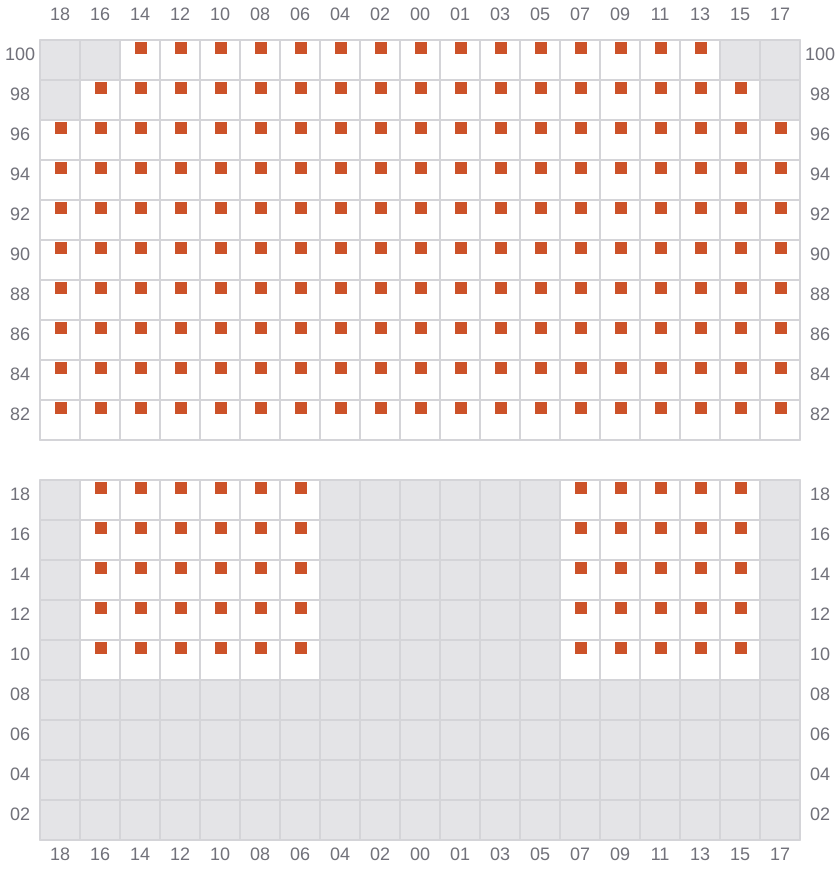

Bay 057 view and slots of MSC ARICA

059 (058)

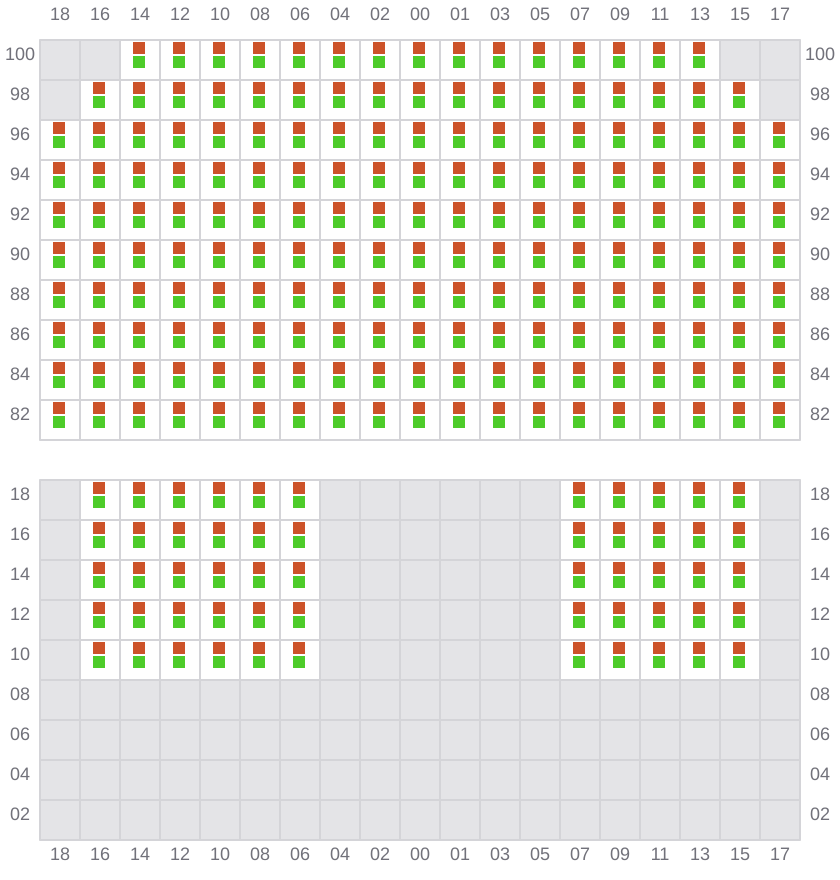

Bay 059 view and slots of MSC ARICA

061

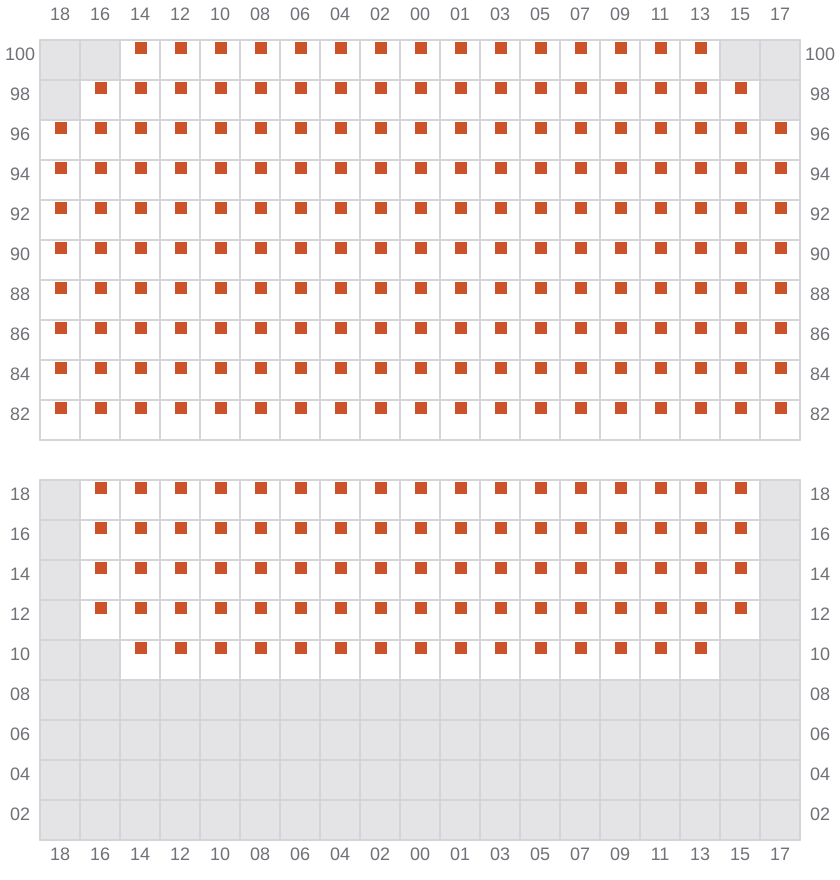

Bay 061 view and slots of MSC ARICA

063 (062)

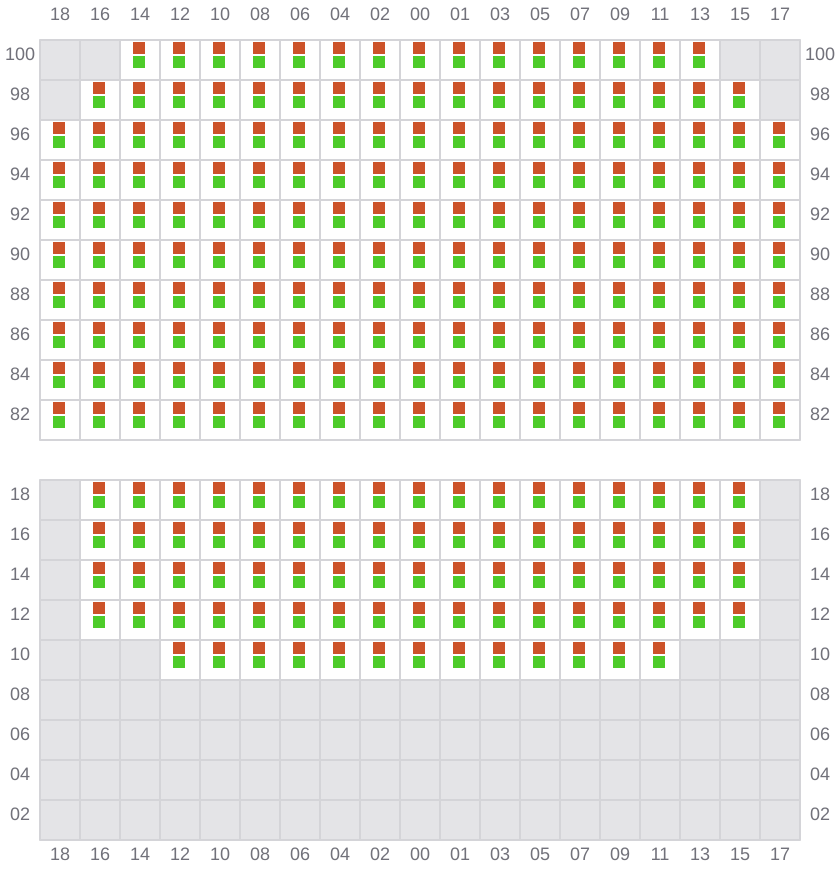

Bay 063 view and slots of MSC ARICA

065

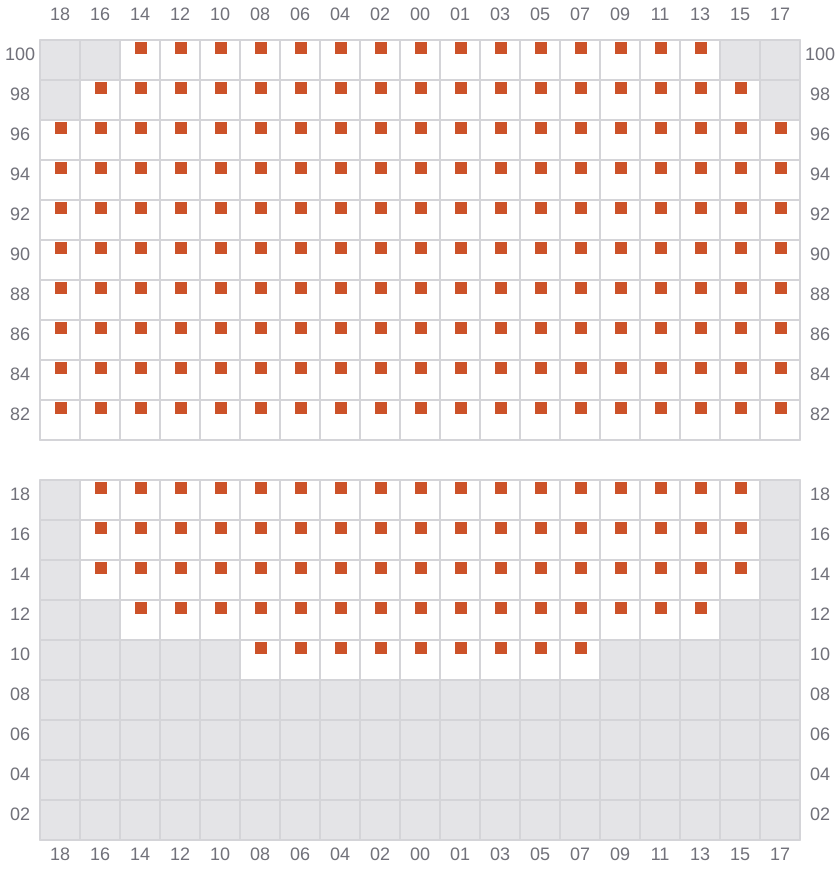

Bay 065 view and slots of MSC ARICA

067 (066)

Bay 067 view and slots of MSC ARICA

069

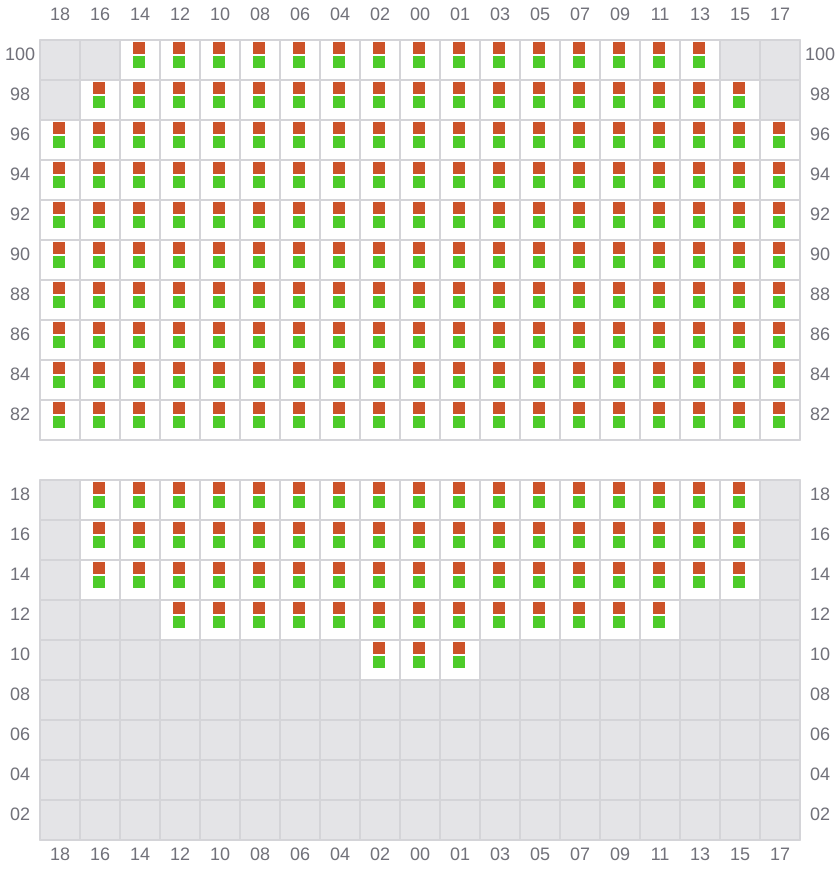

Bay 069 view and slots of MSC ARICA

071 (070)

  • / ?

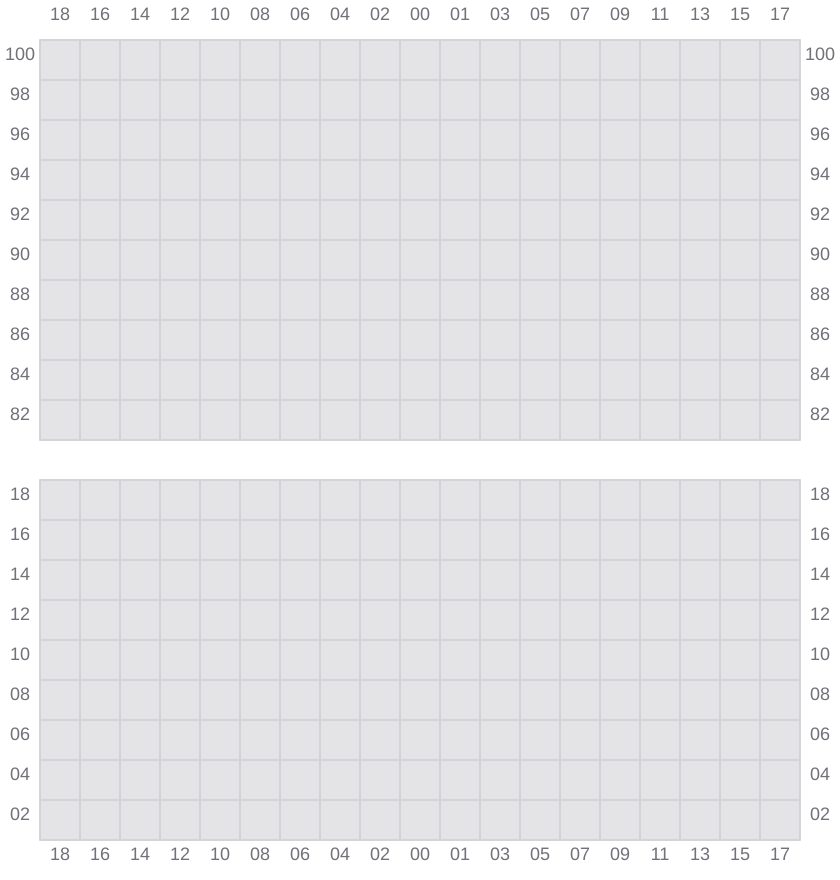

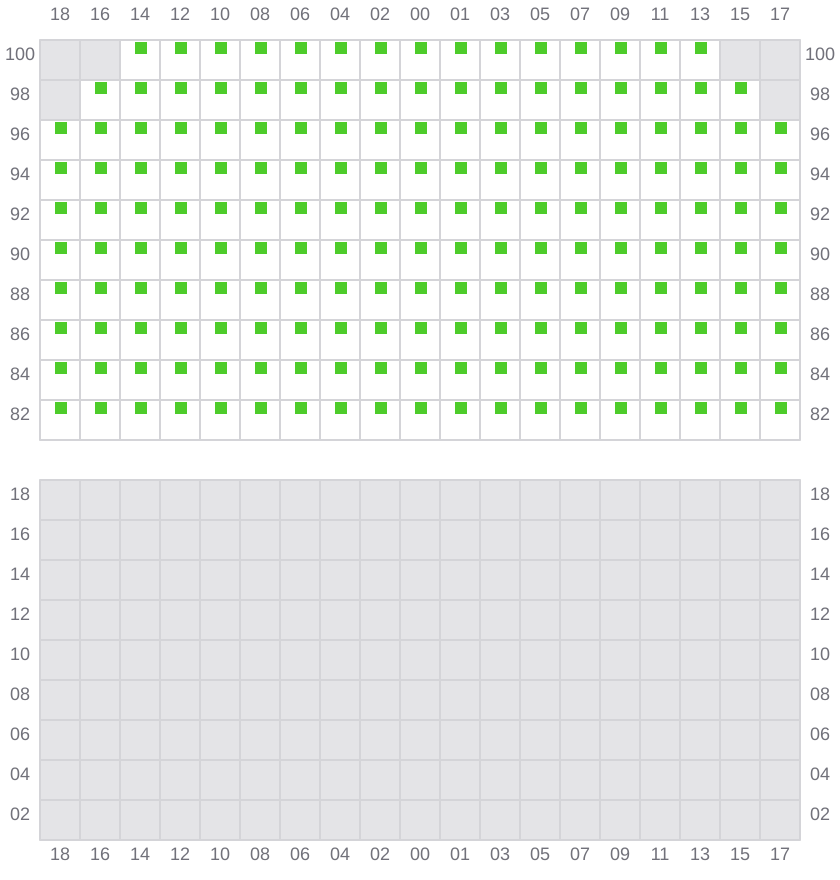

Bay 071 view and slots of MSC ARICA
