MSC ARUSHI R.
9244881 | A8RL3 | MSC by ************************** Last update: Thu Jun 15 2023

General Info

Ship Name:MSC ARUSHI R.
IMO Code:9244881
Call Sign:A8RL3
Line Operator:MSC
Class Name for Sister Ships:ARU
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:065
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,143

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

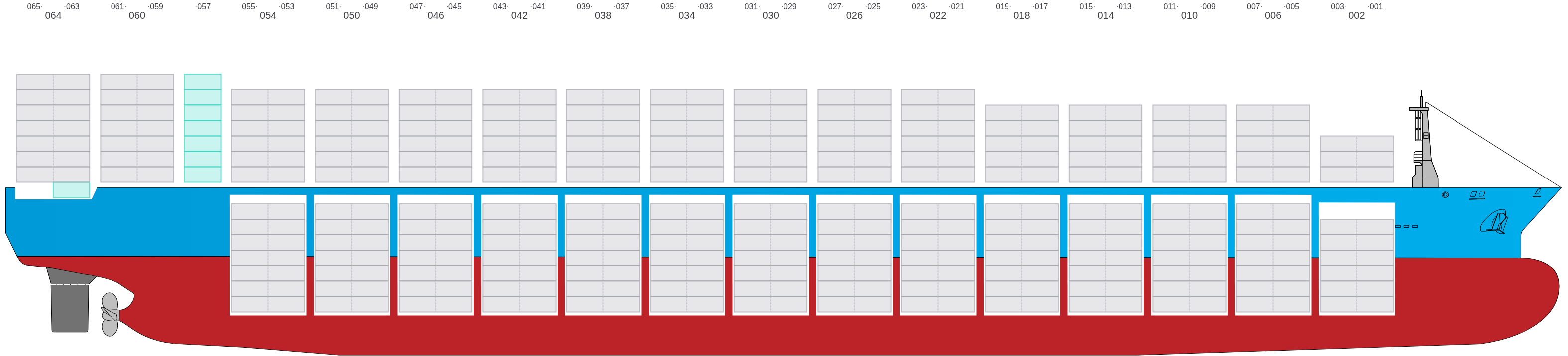

Side view of MSC ARUSHI R.

Hatch-Covers View

Deck view of MSC ARUSHI R.

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →

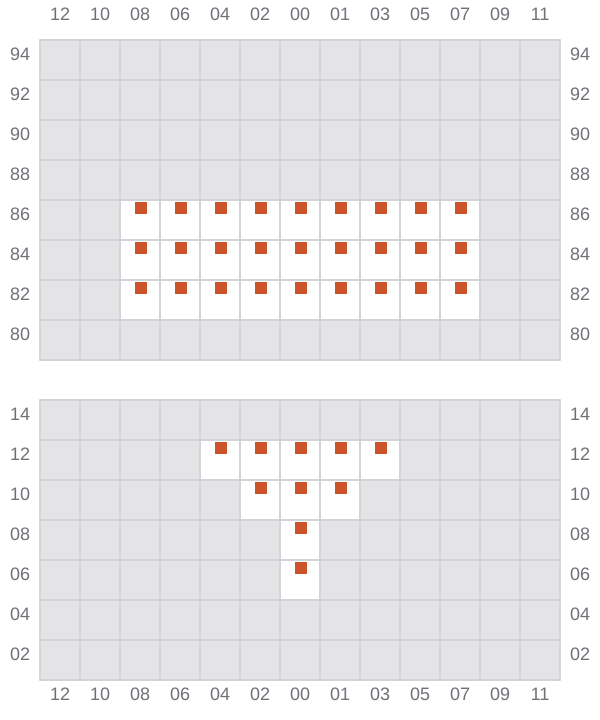

Bay 001 view and slots of MSC ARUSHI R.

003 (002)

  • ←

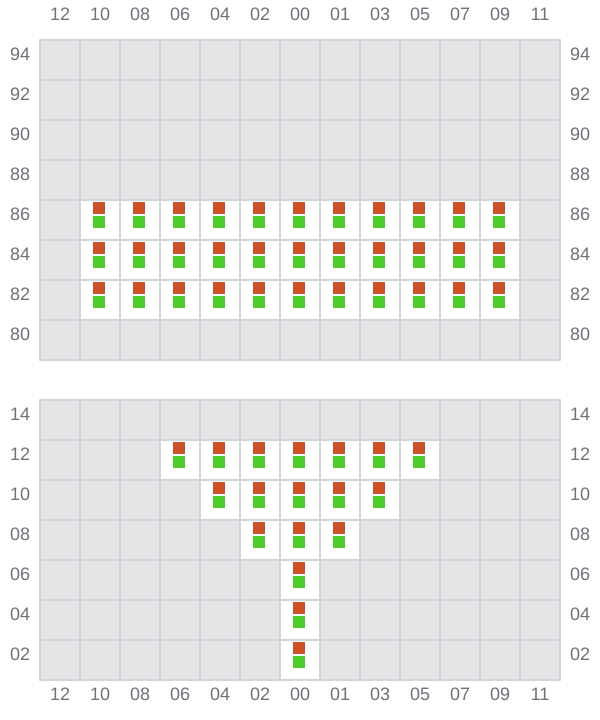

Bay 003 view and slots of MSC ARUSHI R.

005

  • →

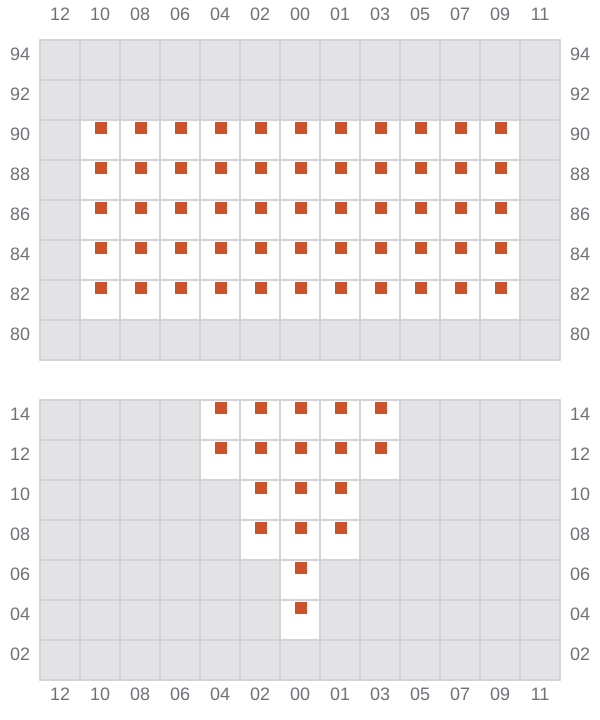

Bay 005 view and slots of MSC ARUSHI R.

007 (006)

  • ←

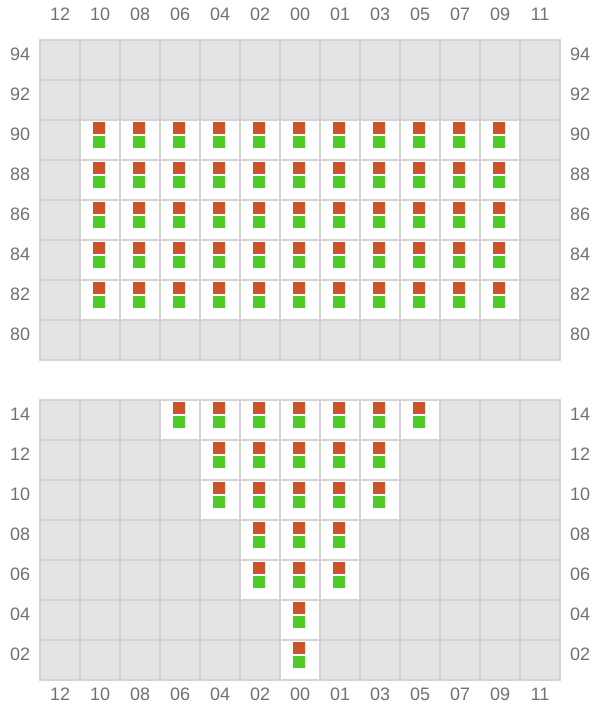

Bay 007 view and slots of MSC ARUSHI R.

009

  • →

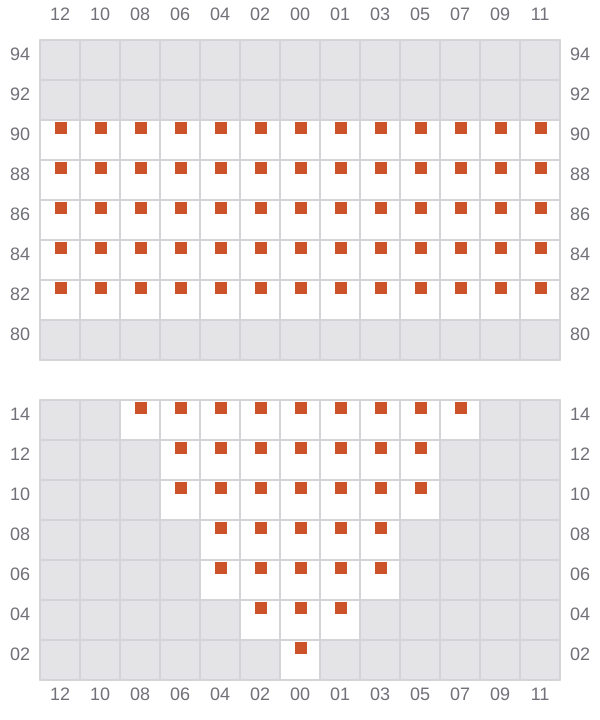

Bay 009 view and slots of MSC ARUSHI R.

011 (010)

  • ←

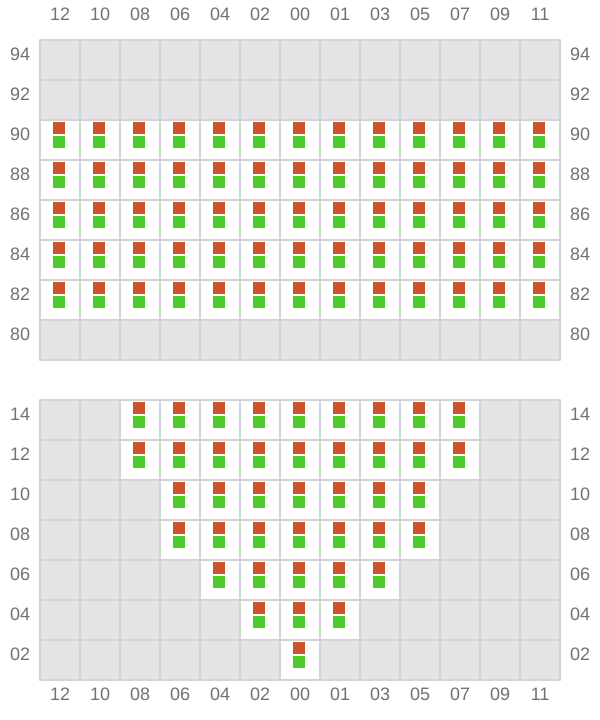

Bay 011 view and slots of MSC ARUSHI R.

013

  • →

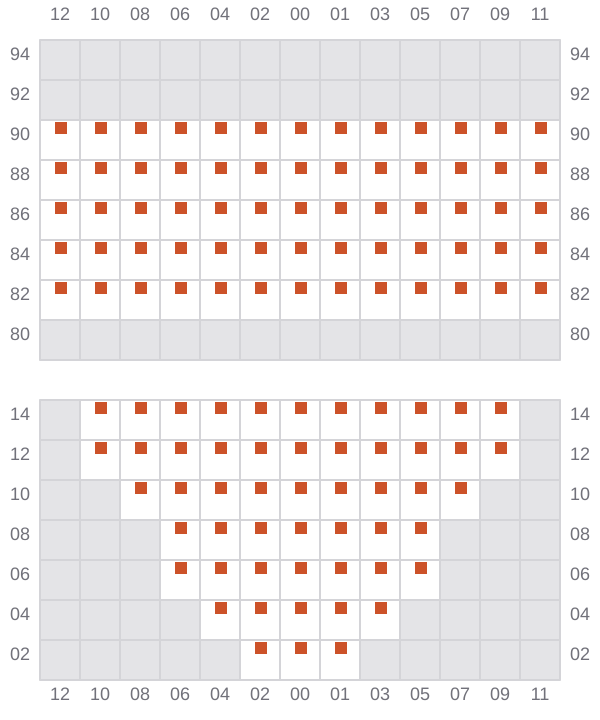

Bay 013 view and slots of MSC ARUSHI R.

015 (014)

  • ←

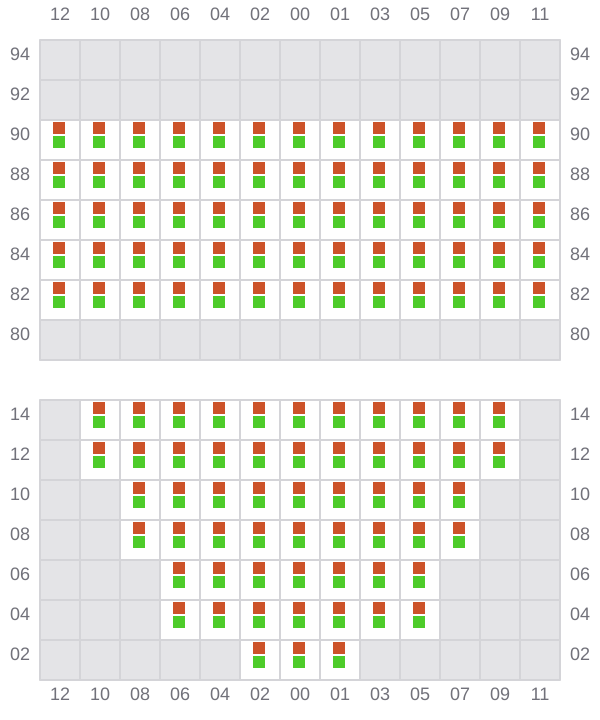

Bay 015 view and slots of MSC ARUSHI R.

017

  • →

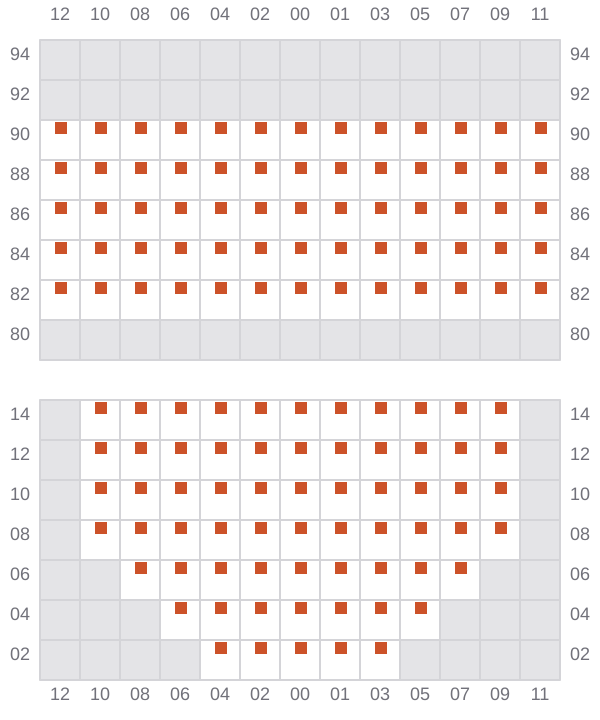

Bay 017 view and slots of MSC ARUSHI R.

019 (018)

  • ←

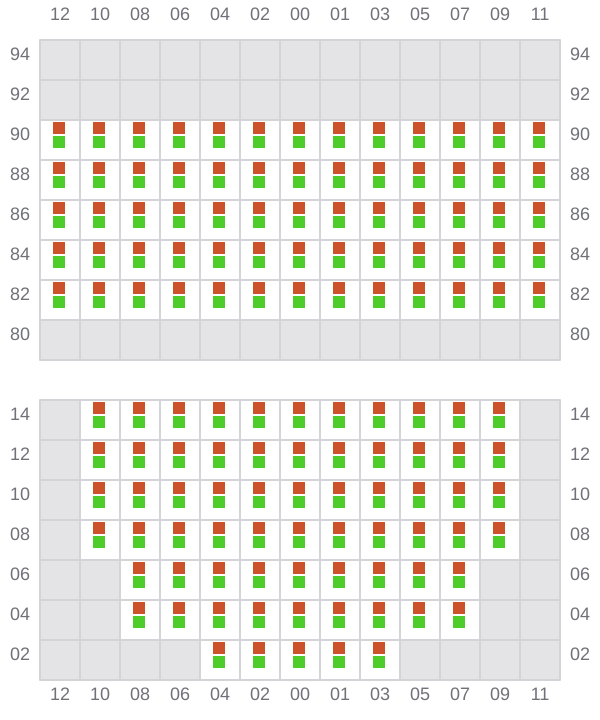

Bay 019 view and slots of MSC ARUSHI R.

021

  • →

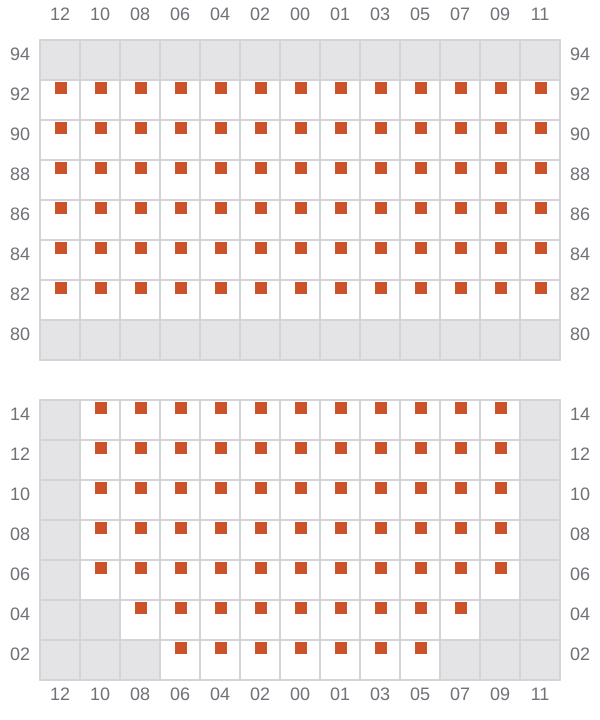

Bay 021 view and slots of MSC ARUSHI R.

023 (022)

  • ←
Bay 023 view and slots of MSC ARUSHI R.

025

  • →
Bay 025 view and slots of MSC ARUSHI R.

027 (026)

  • ←
Bay 027 view and slots of MSC ARUSHI R.

029

  • →
Bay 029 view and slots of MSC ARUSHI R.

031 (030)

  • ←
Bay 031 view and slots of MSC ARUSHI R.

033

  • →

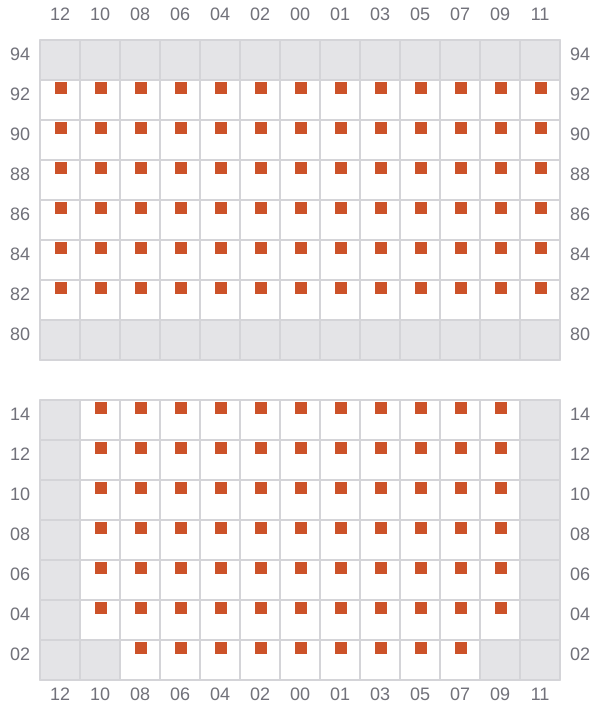

Bay 033 view and slots of MSC ARUSHI R.

035 (034)

  • ←

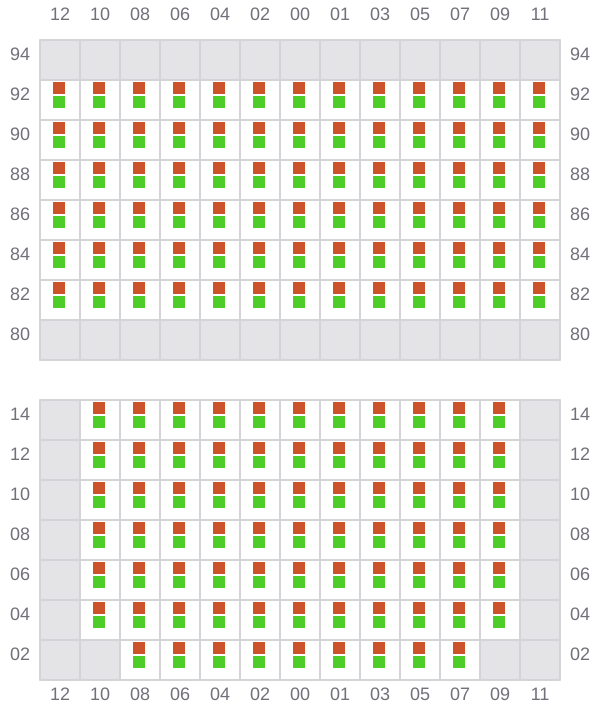

Bay 035 view and slots of MSC ARUSHI R.

037

  • →
Bay 037 view and slots of MSC ARUSHI R.

039 (038)

  • ←
Bay 039 view and slots of MSC ARUSHI R.

041

  • →
Bay 041 view and slots of MSC ARUSHI R.

043 (042)

  • ←
Bay 043 view and slots of MSC ARUSHI R.

045

  • →
Bay 045 view and slots of MSC ARUSHI R.

047 (046)

  • ←

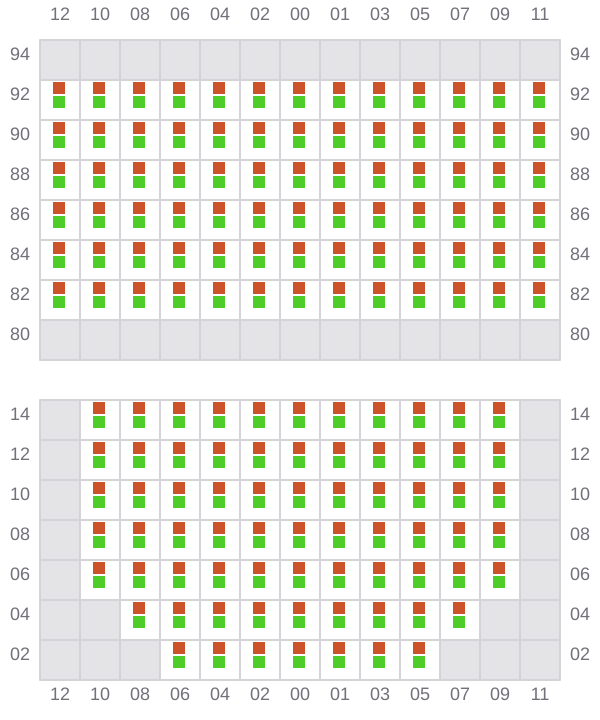

Bay 047 view and slots of MSC ARUSHI R.

049

  • →
Bay 049 view and slots of MSC ARUSHI R.

051 (050)

  • ←

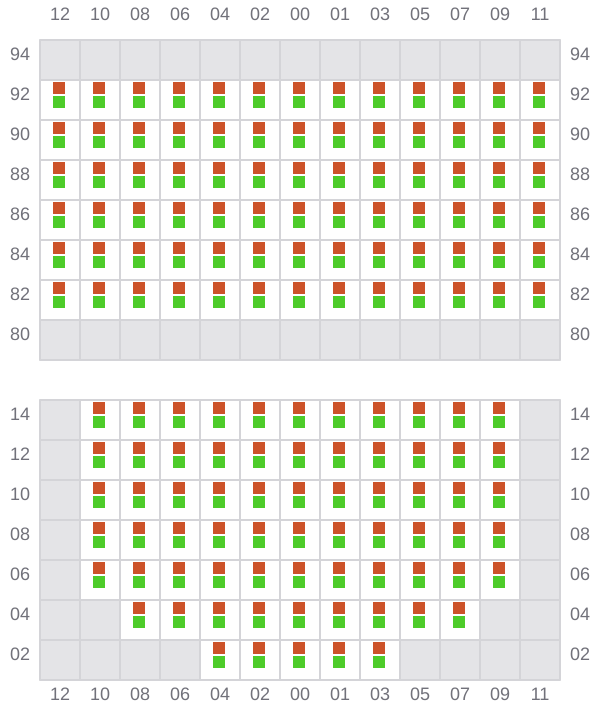

Bay 051 view and slots of MSC ARUSHI R.

053

  • →

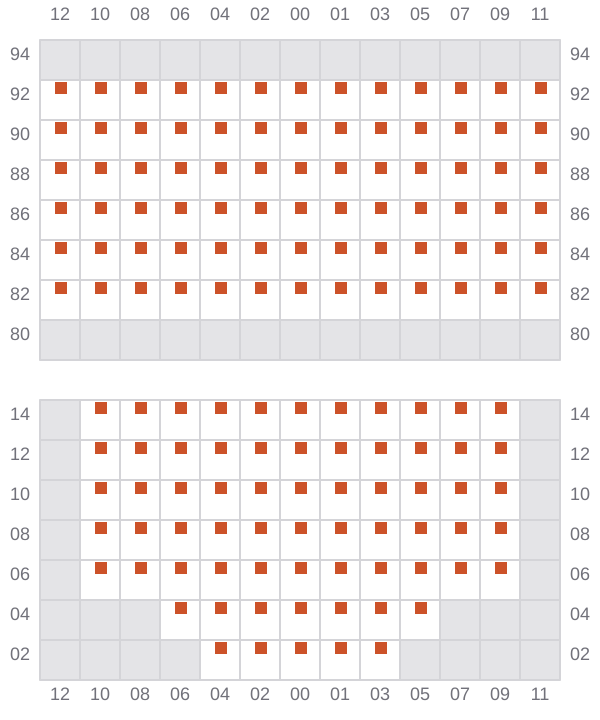

Bay 053 view and slots of MSC ARUSHI R.

055 (054)

  • ←

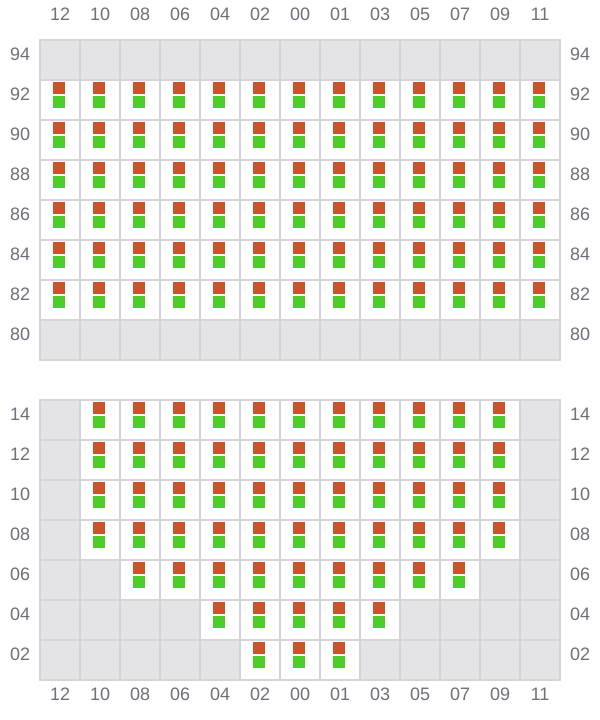

Bay 055 view and slots of MSC ARUSHI R.

057

  • → / ?
Bay 057 view and slots of MSC ARUSHI R.

059

  • → / ?
Bay 059 view and slots of MSC ARUSHI R.

061 (060)

  • ← / ?
Bay 061 view and slots of MSC ARUSHI R.

063

  • → / ?

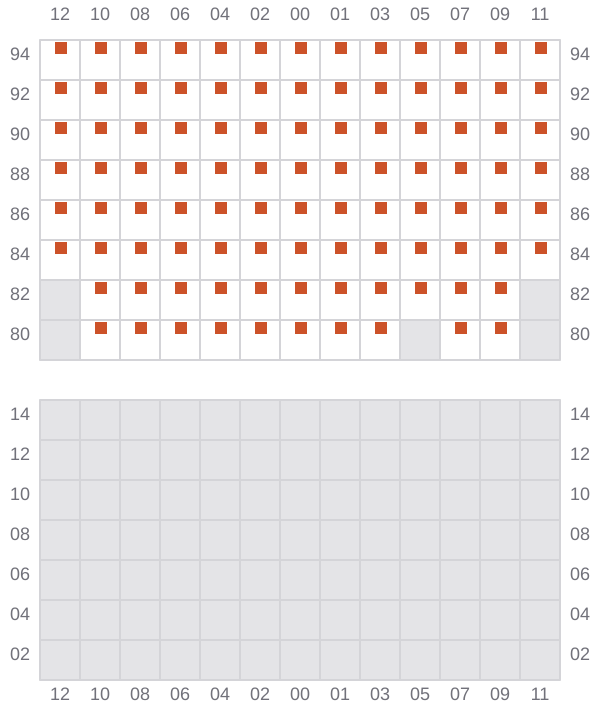

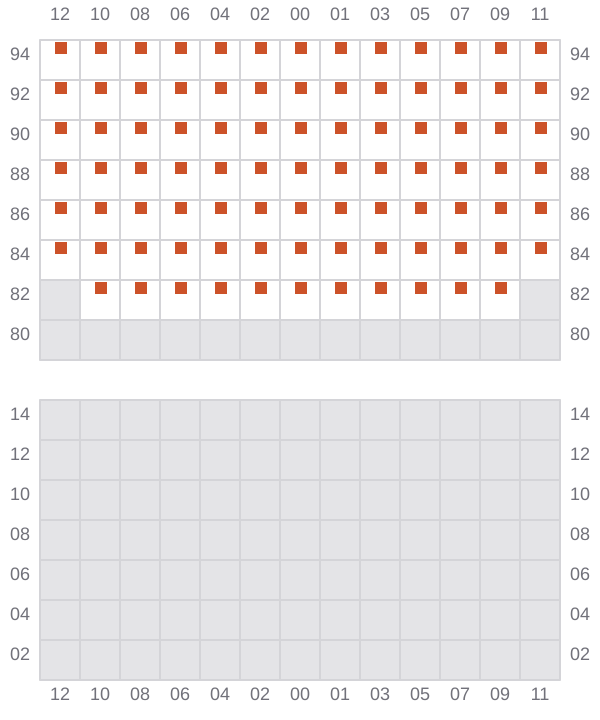

Bay 063 view and slots of MSC ARUSHI R.

065 (064)

  • ← / ?

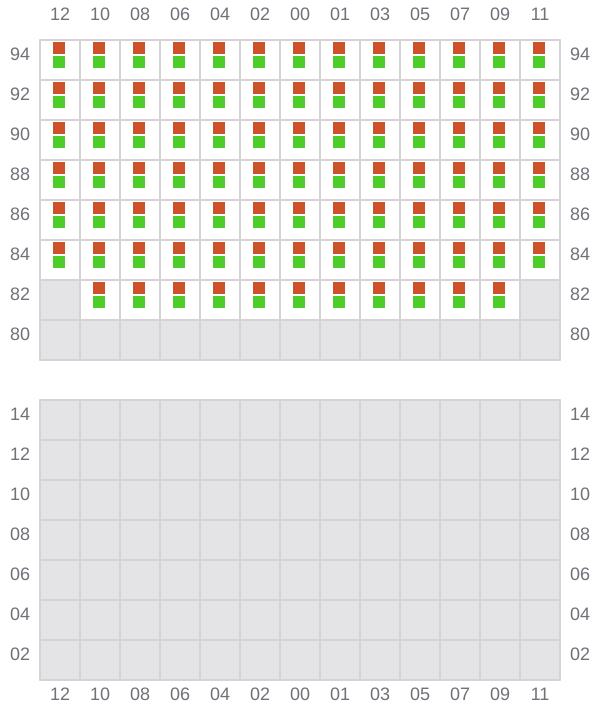

Bay 065 view and slots of MSC ARUSHI R.
