MSC ARUSHI R.
9244881 | A8RL3 | 9244881 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:MSC ARUSHI R.
IMO Code:9244881
Call Sign:A8RL3
Line Operator:9244881
Class Name for Sister Ships:95D
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:065
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,112

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

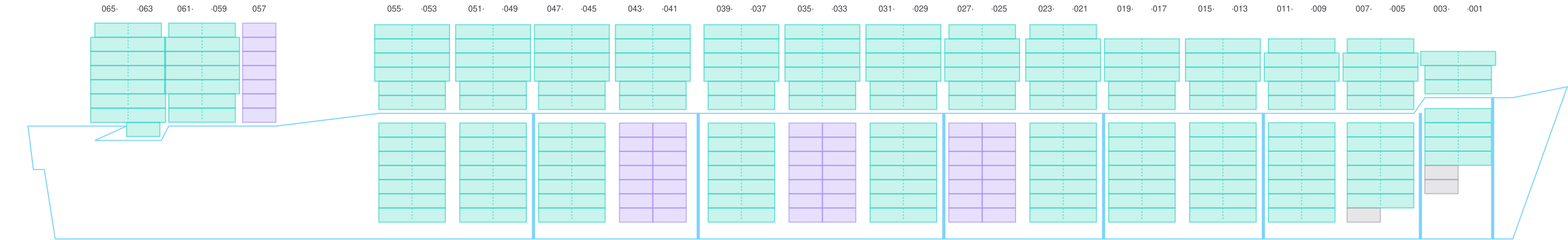

Side View

Side view of MSC ARUSHI R.

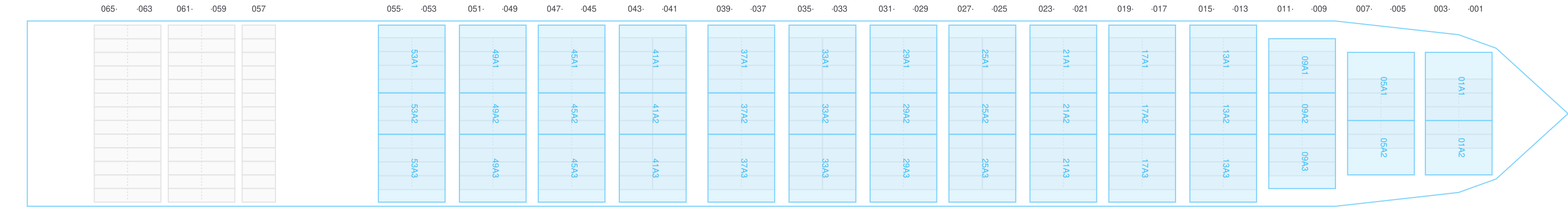

Hatch-Covers View

Deck view of MSC ARUSHI R.

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • → / ?

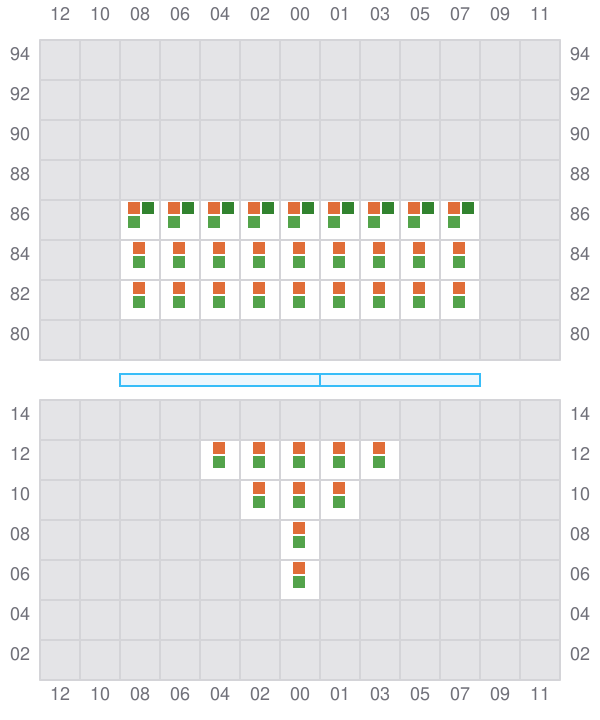

Bay 001 view and slots of MSC ARUSHI R.

003

  • ←
  • → / ?

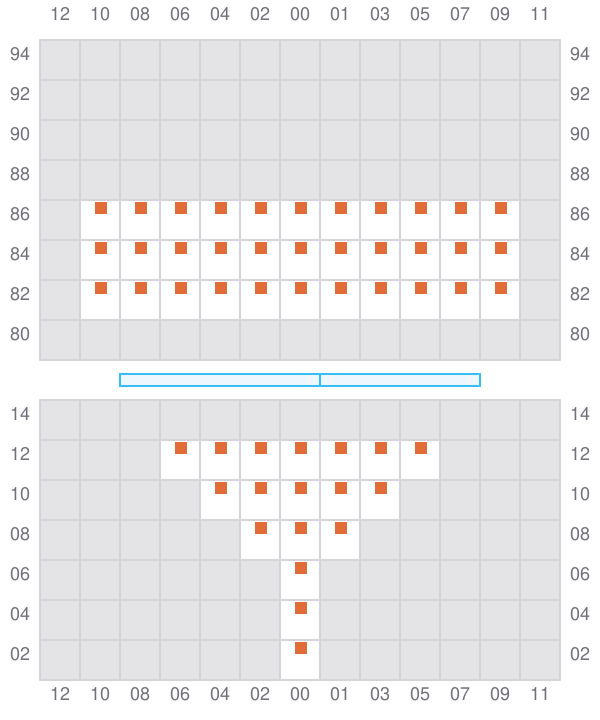

Bay 003 view and slots of MSC ARUSHI R.

005 (006)

  • →
  • ← / ?
  • → / ←

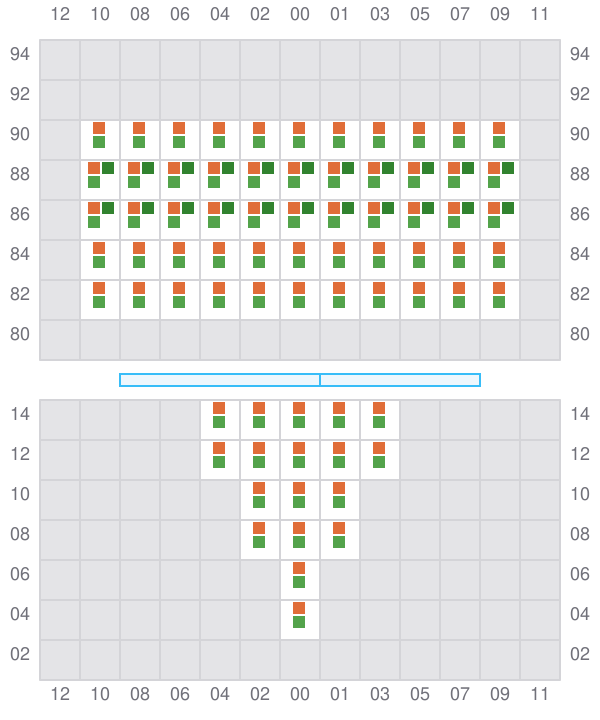

Bay 005 view and slots of MSC ARUSHI R.

007

  • ←
  • →
  • ←

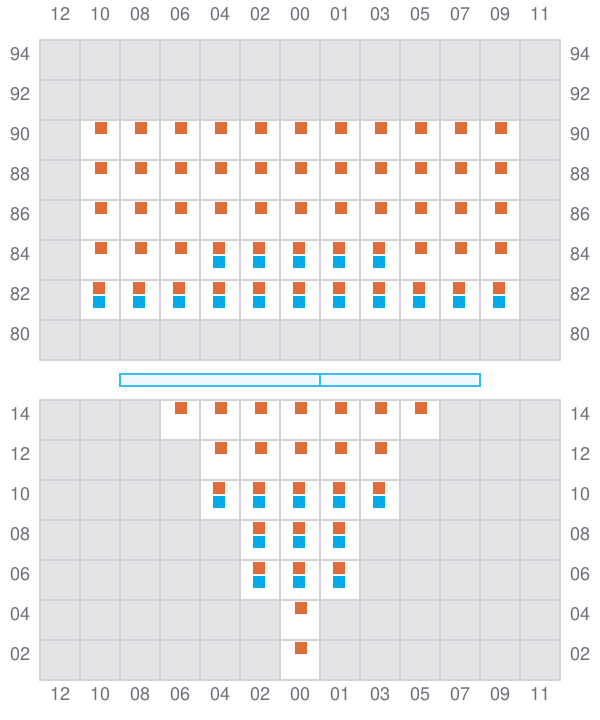

Bay 007 view and slots of MSC ARUSHI R.

009 (010)

  • →
  • ←
  • →

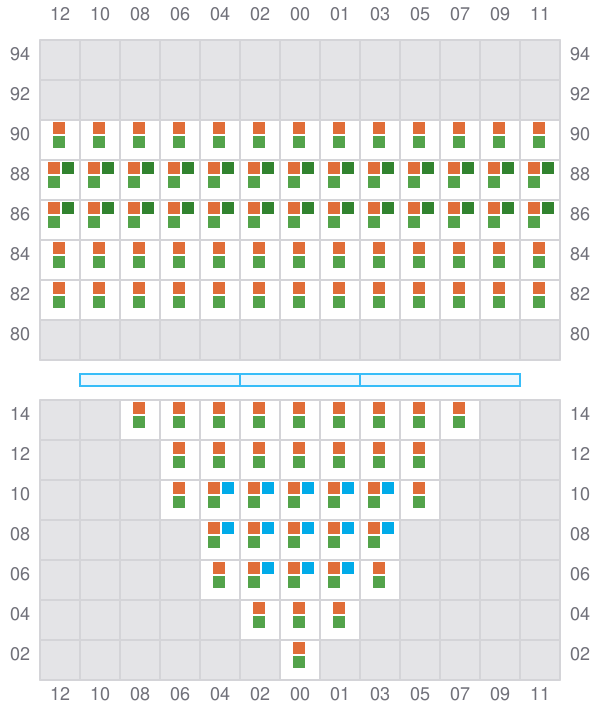

Bay 009 view and slots of MSC ARUSHI R.

011

  • ←
  • →
  • ←

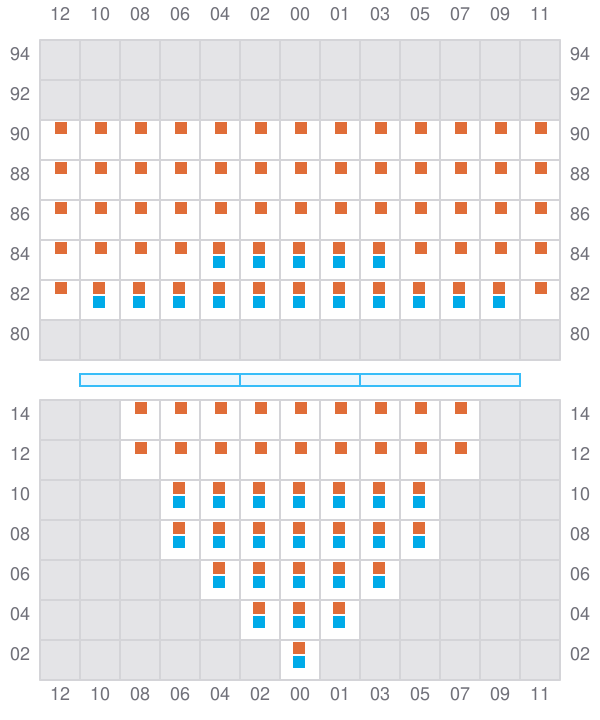

Bay 011 view and slots of MSC ARUSHI R.

013 (014)

  • →
  • ← / ?
  • → / ←

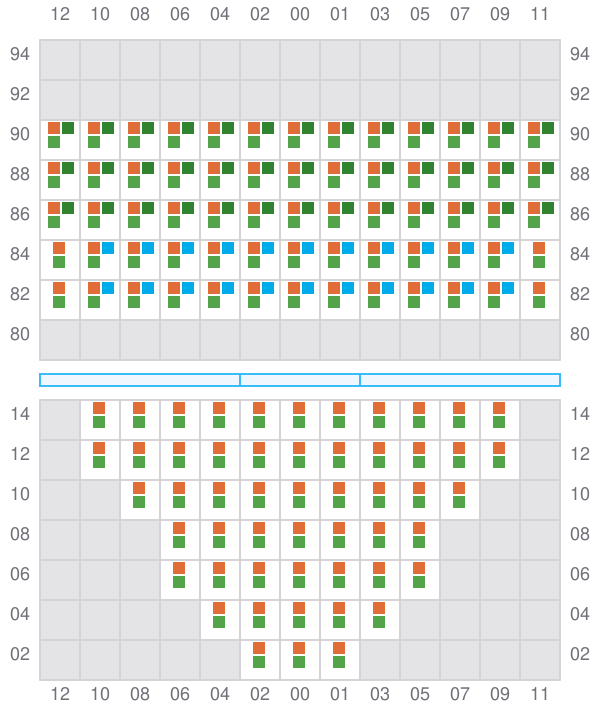

Bay 013 view and slots of MSC ARUSHI R.

015

  • ←
  • →
  • ←

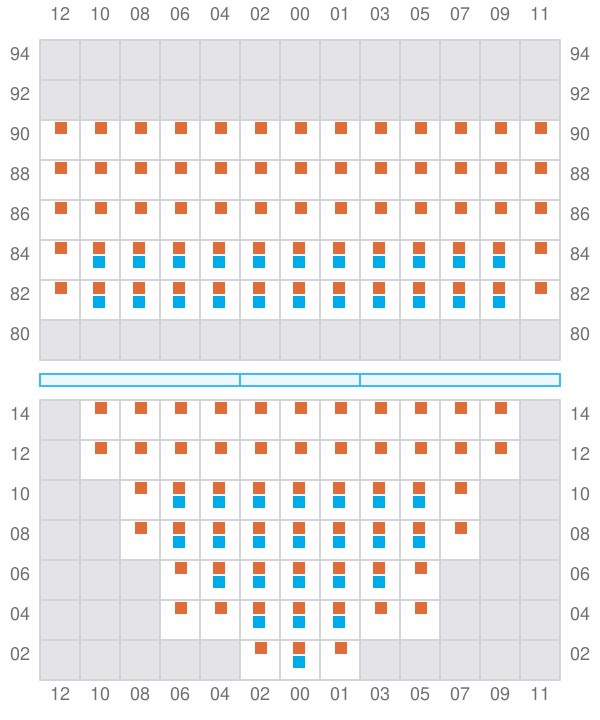

Bay 015 view and slots of MSC ARUSHI R.

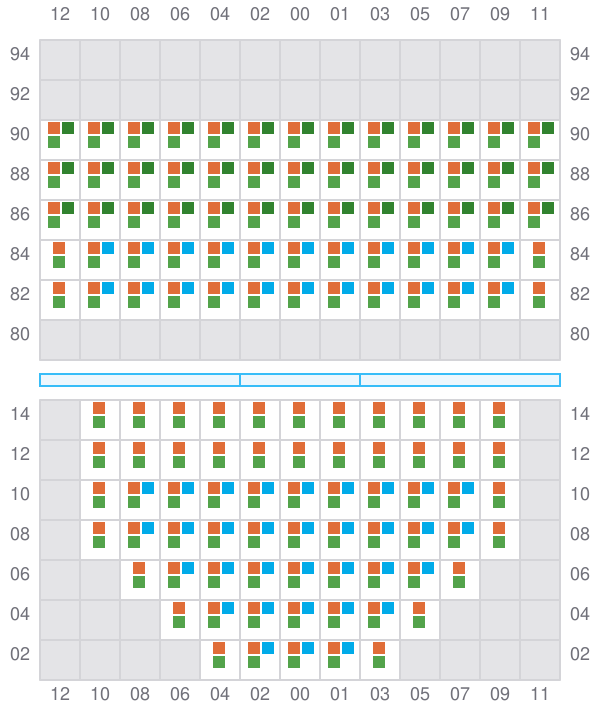

017 (018)

  • →
  • ←
  • →
Bay 017 view and slots of MSC ARUSHI R.

019

  • ←
  • →
  • ←

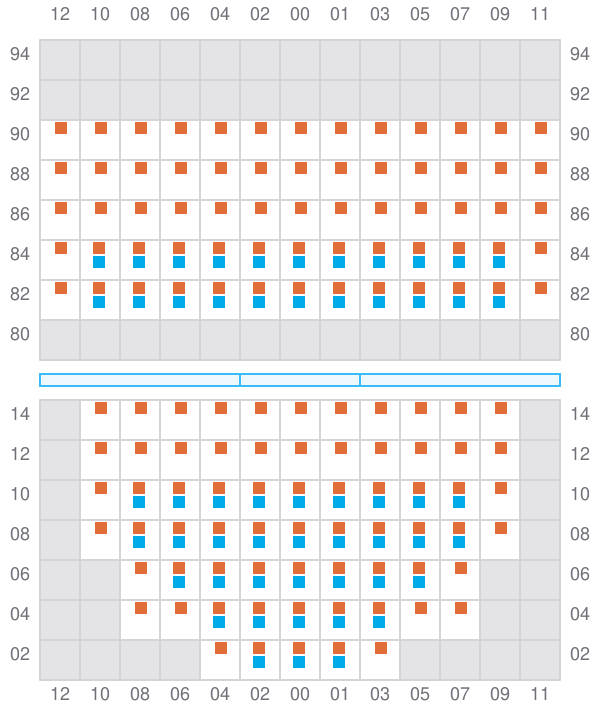

Bay 019 view and slots of MSC ARUSHI R.

021 (022)

  • →
  • ← / ?
  • → / ←
Bay 021 view and slots of MSC ARUSHI R.

023

  • ←
  • →
  • ←

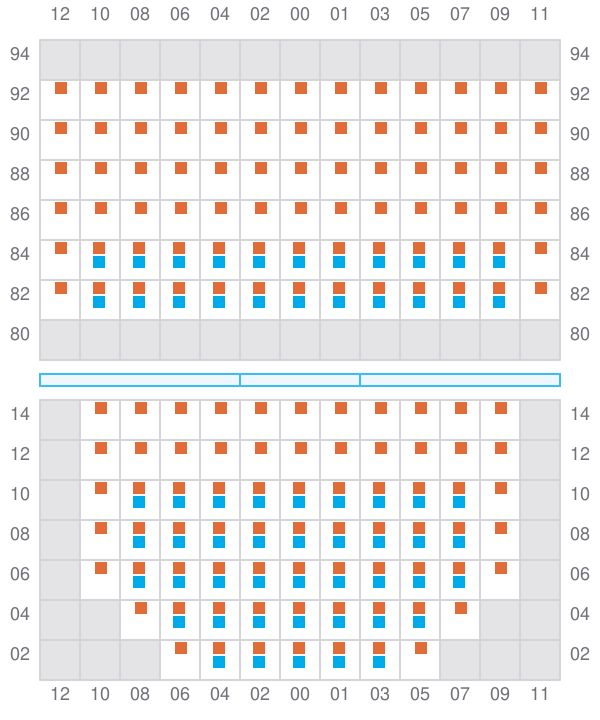

Bay 023 view and slots of MSC ARUSHI R.

025 (026)

  • → / ?
  • ←
  • →
Bay 025 view and slots of MSC ARUSHI R.

027

  • ← / ?
  • →
  • ←
Bay 027 view and slots of MSC ARUSHI R.

029 (030)

  • →
  • ←
  • →

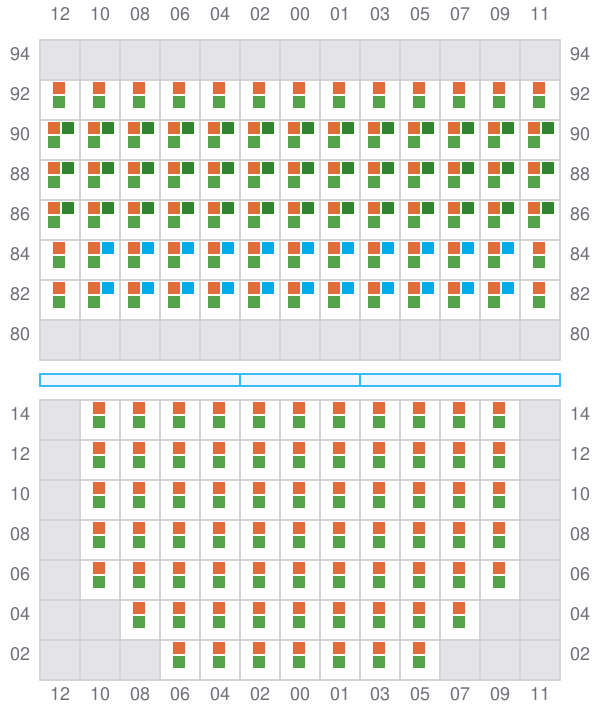

Bay 029 view and slots of MSC ARUSHI R.

031

  • ←
  • →
  • ←
Bay 031 view and slots of MSC ARUSHI R.

033 (034)

  • → / ?
  • ←
  • →

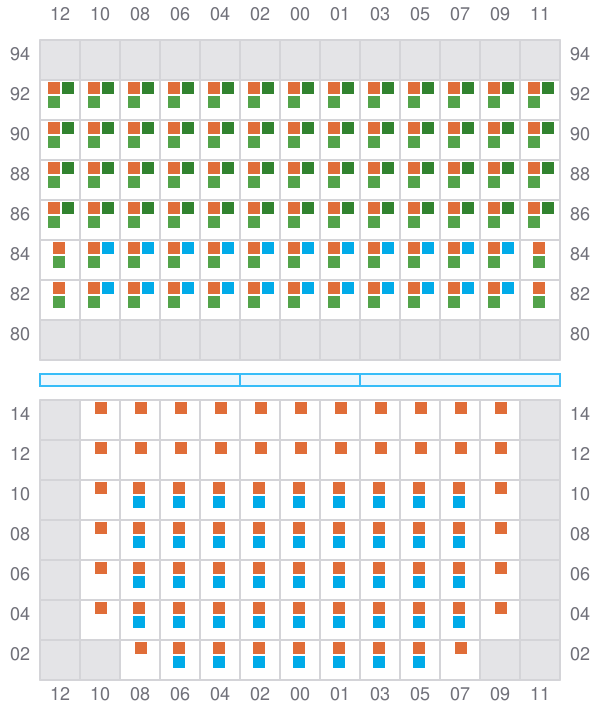

Bay 033 view and slots of MSC ARUSHI R.

035

  • ← / ?
  • →
  • ←
Bay 035 view and slots of MSC ARUSHI R.

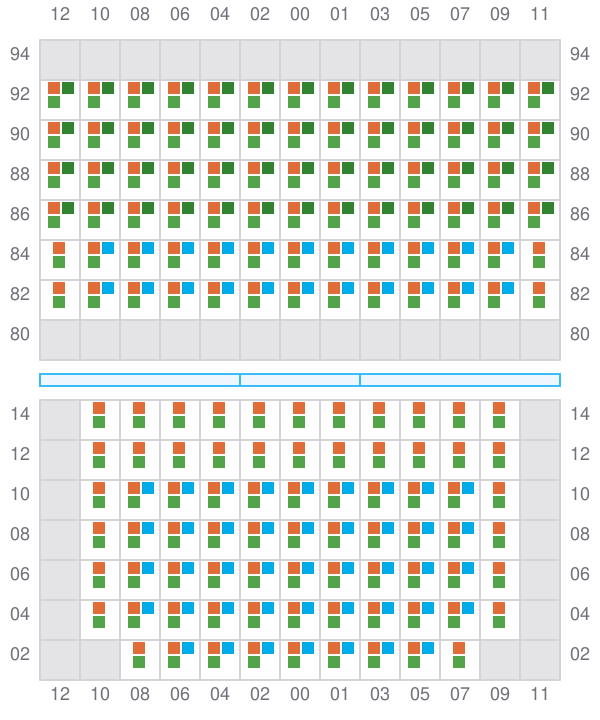

037 (038)

  • →
  • ←
  • →
Bay 037 view and slots of MSC ARUSHI R.

039

  • ←
  • →
  • ←
Bay 039 view and slots of MSC ARUSHI R.

041 (042)

  • → / ?
  • ←
  • →

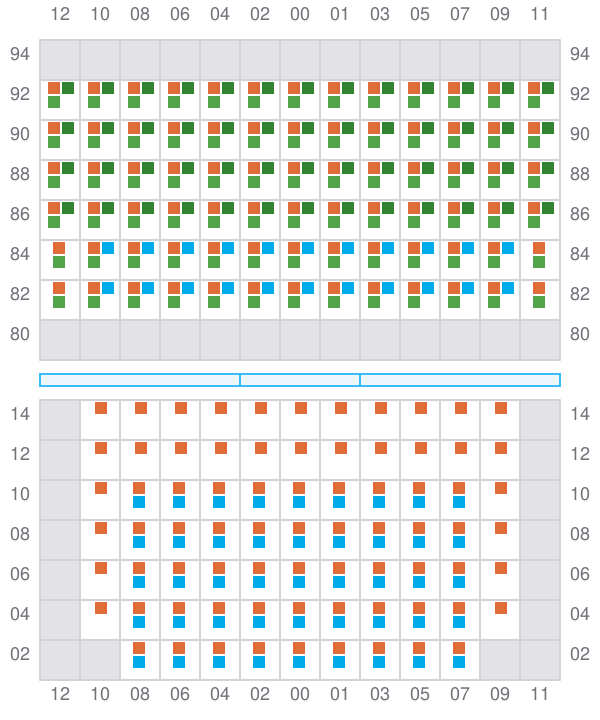

Bay 041 view and slots of MSC ARUSHI R.

043

  • ← / ?
  • →
  • ←

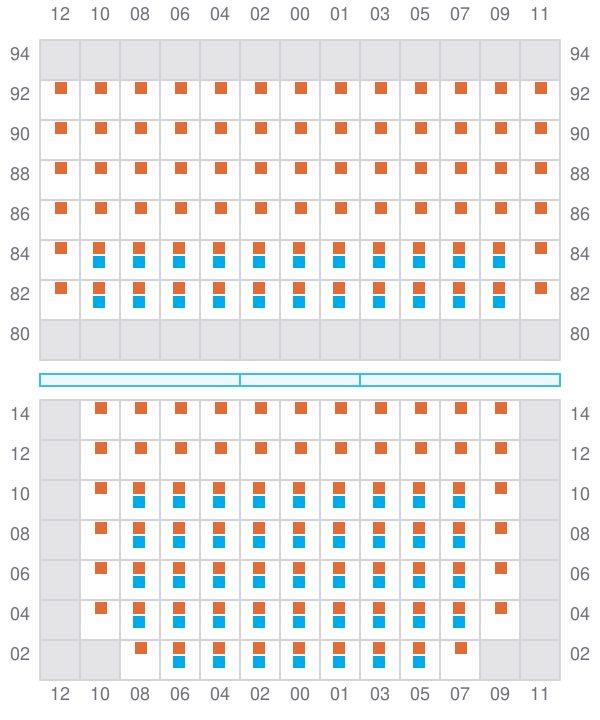

Bay 043 view and slots of MSC ARUSHI R.

045 (046)

  • →
  • ←
  • →

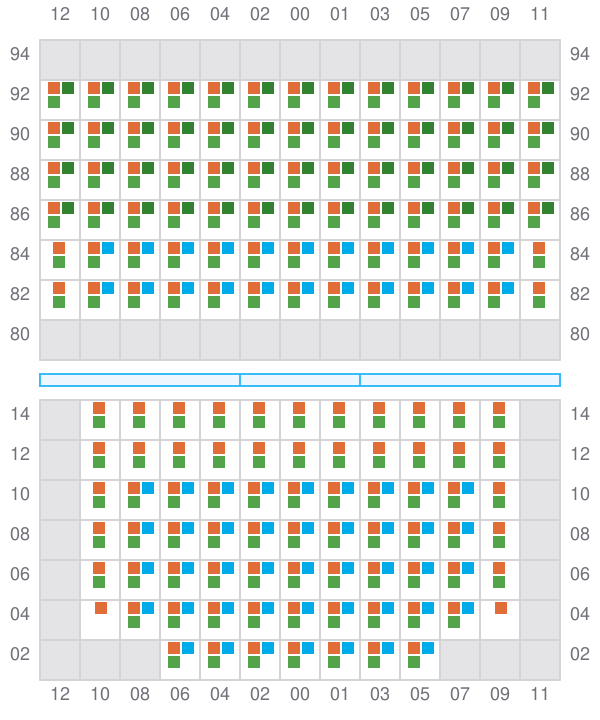

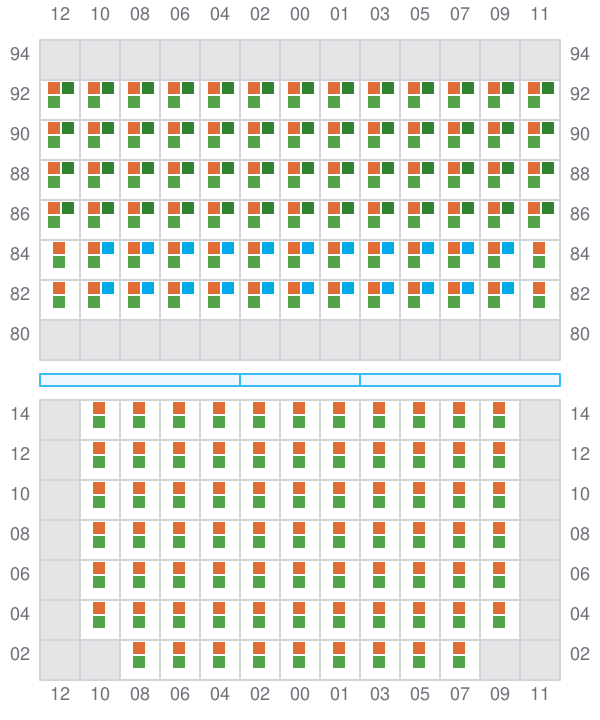

Bay 045 view and slots of MSC ARUSHI R.

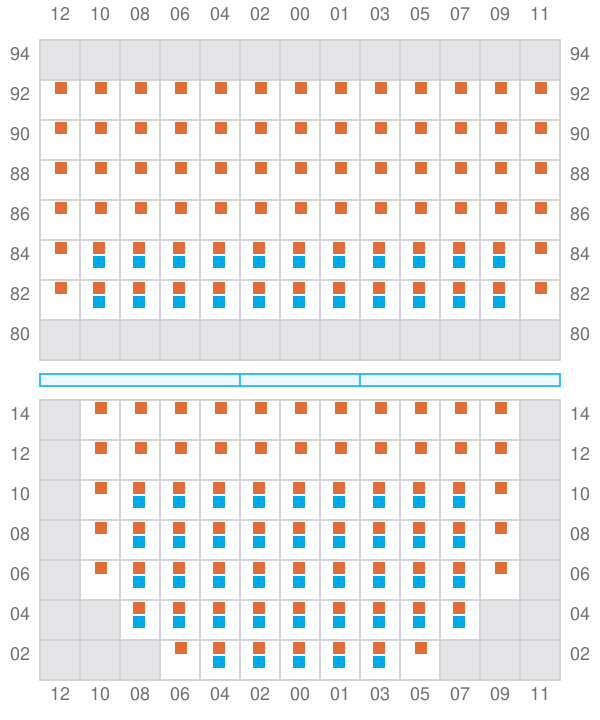

047

  • ←
  • →
  • ←
Bay 047 view and slots of MSC ARUSHI R.

049 (050)

  • →
  • ← / ?
  • → / ←

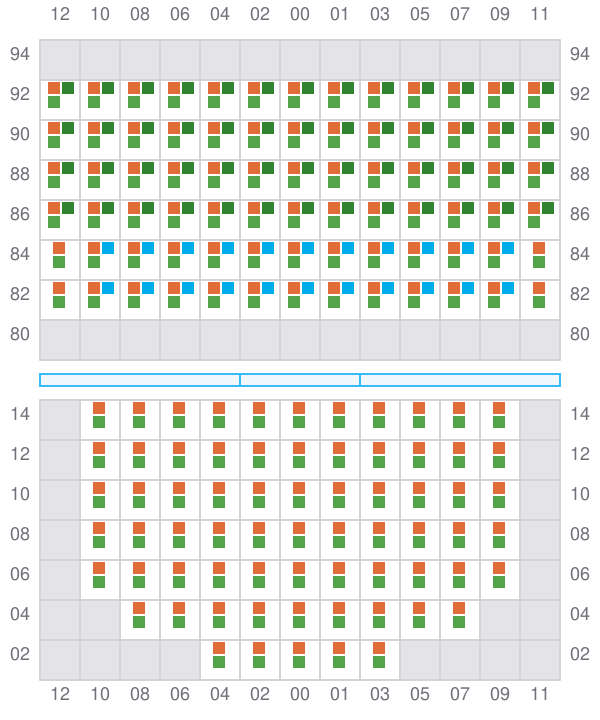

Bay 049 view and slots of MSC ARUSHI R.

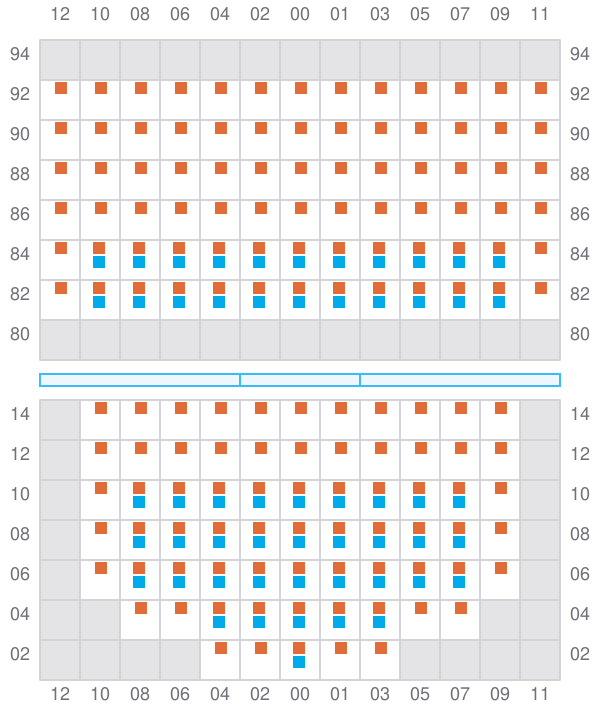

051

  • ←
  • →
  • ←
Bay 051 view and slots of MSC ARUSHI R.

053 (054)

  • →
  • ←
  • →

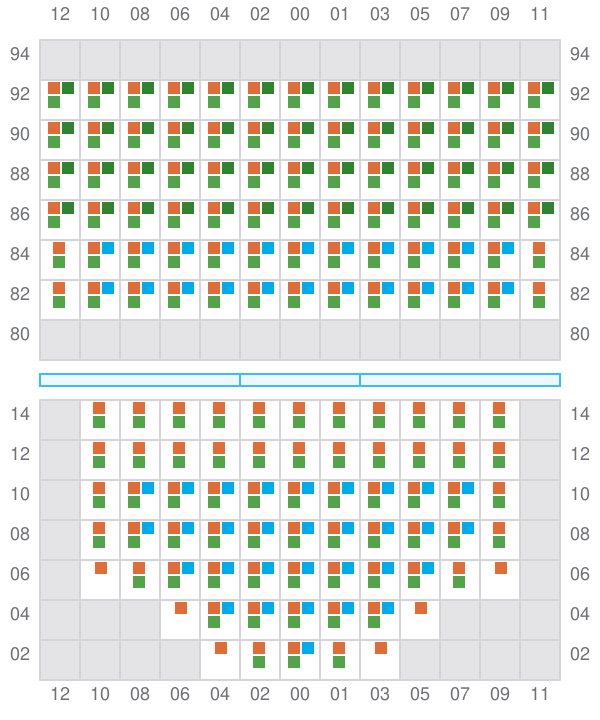

Bay 053 view and slots of MSC ARUSHI R.

055

  • ←
  • →
  • ←

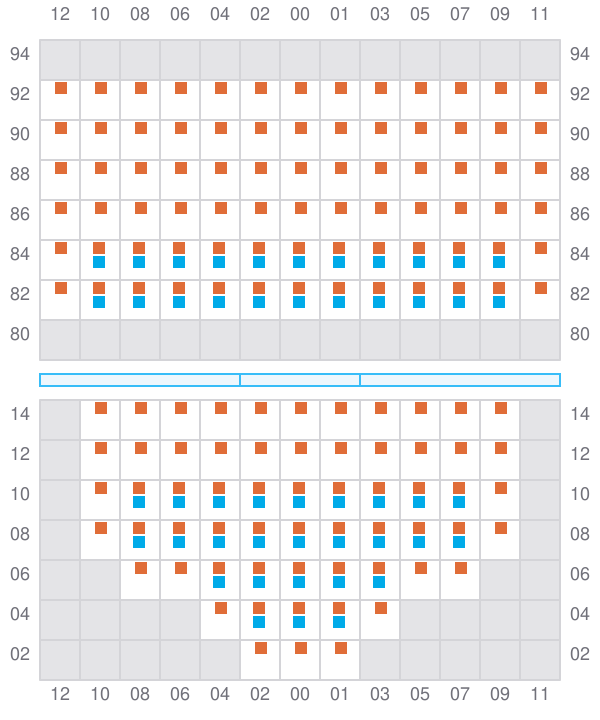

Bay 055 view and slots of MSC ARUSHI R.

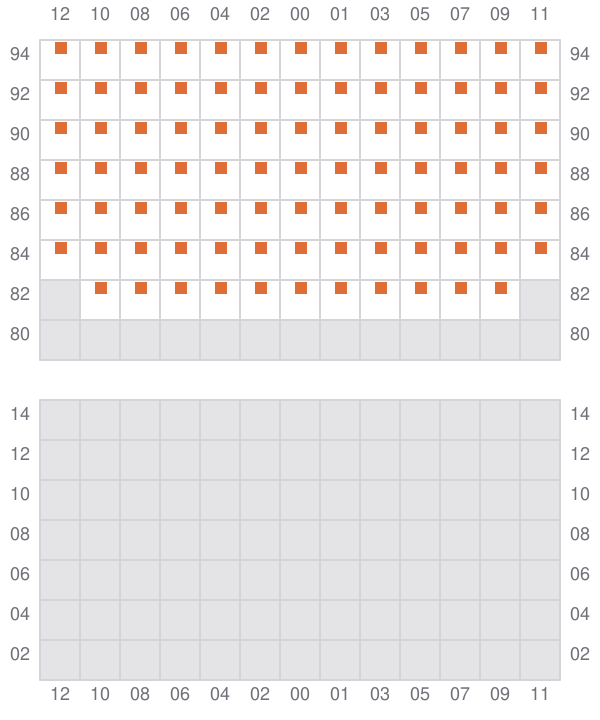

057

  • → / ?
  • ← / ?
Bay 057 view and slots of MSC ARUSHI R.

059 (060)

  • → / ?
  • ← / ?
  • → / ?

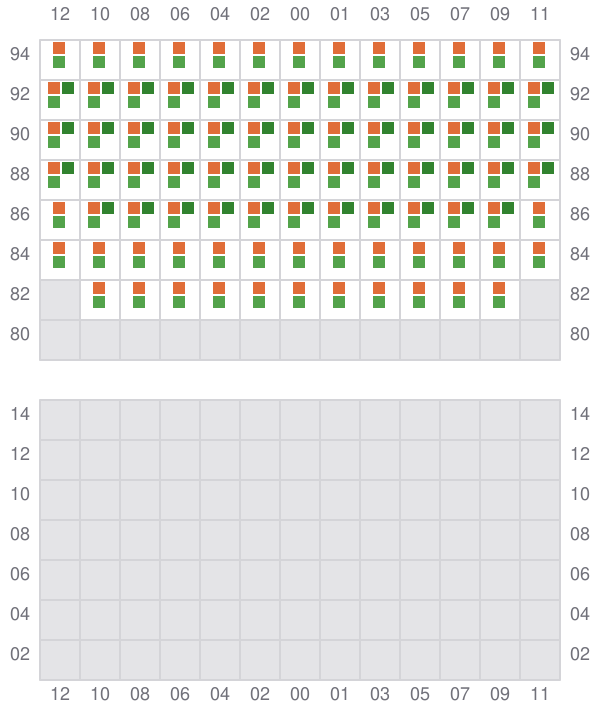

Bay 059 view and slots of MSC ARUSHI R.

061

  • ← / ?
  • → / ?
  • ← / ?

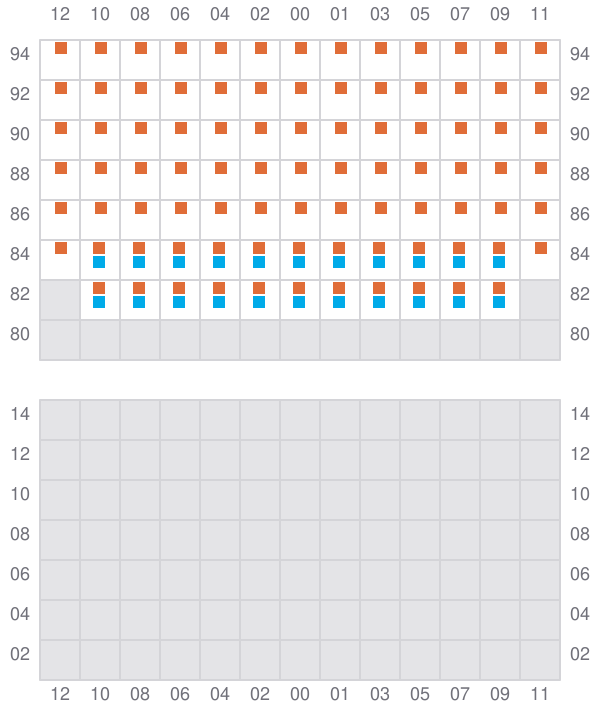

Bay 061 view and slots of MSC ARUSHI R.

063 (064)

  • → / ?
  • ← / ?
  • → / ?

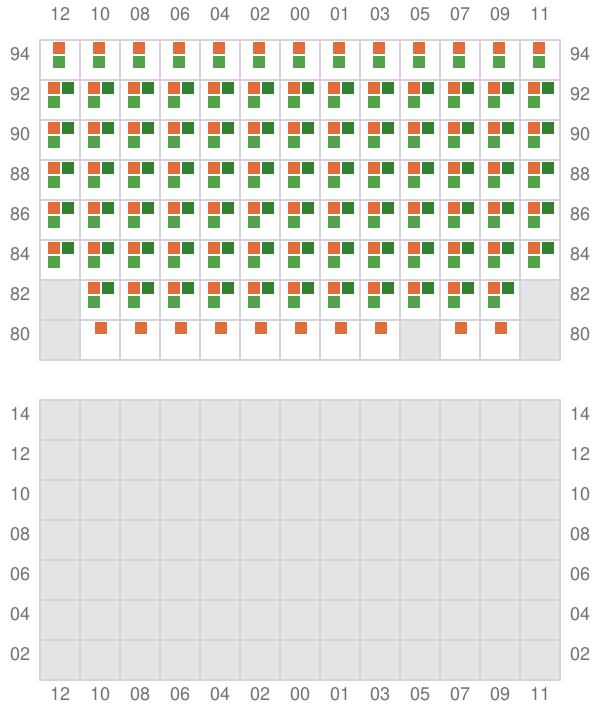

Bay 063 view and slots of MSC ARUSHI R.

065

  • ← / ?
  • ← / ?
  • → / ?
Bay 065 view and slots of MSC ARUSHI R.
