MSC ASLI
9162631 | D5PF2 | 9162631 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:MSC ASLI
IMO Code:9162631
Call Sign:D5PF2
Line Operator:9162631
Class Name for Sister Ships:70W
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:86
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:2,546
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

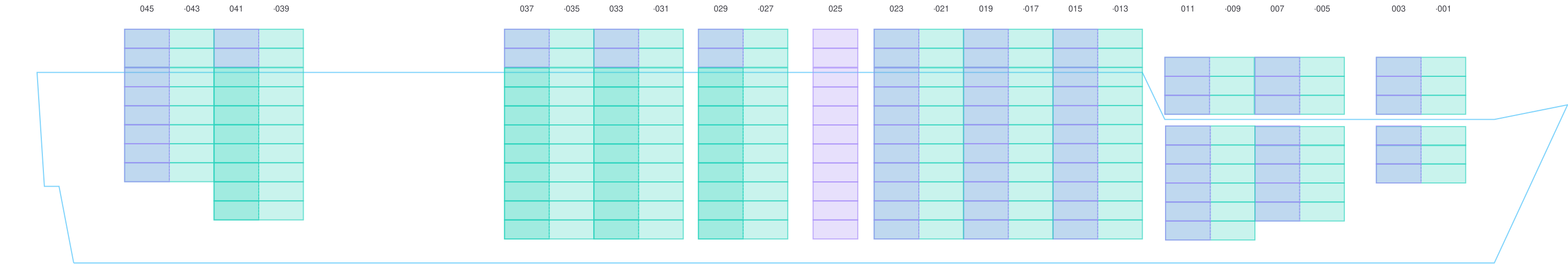

Side View

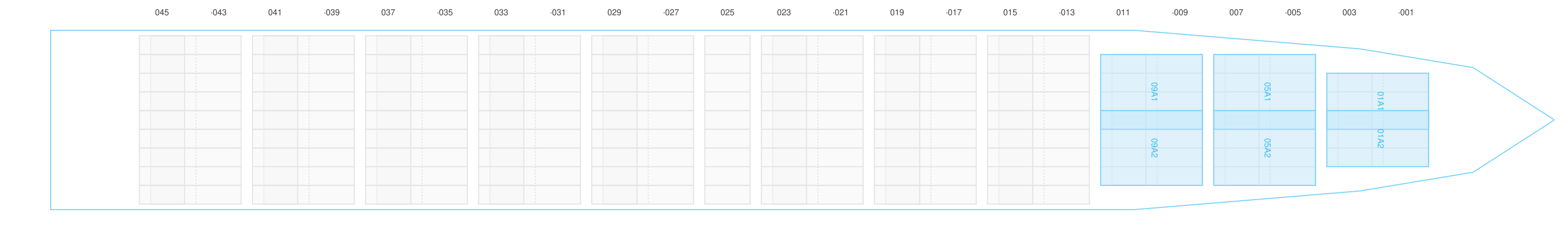

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

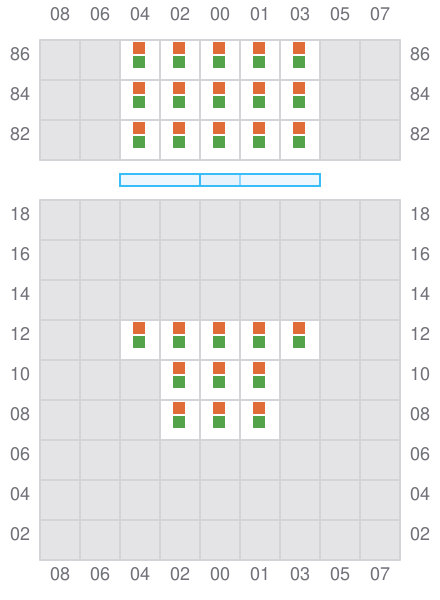

001 (002)
- →
- → / ?
003

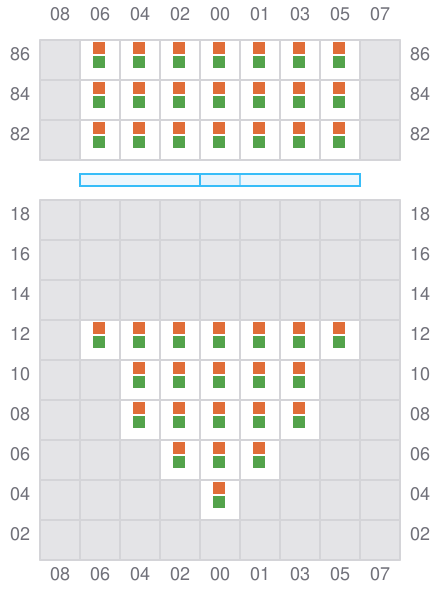

005 (006)
- →
- → / ?
007
009 (010)
- →
- → / ?
011

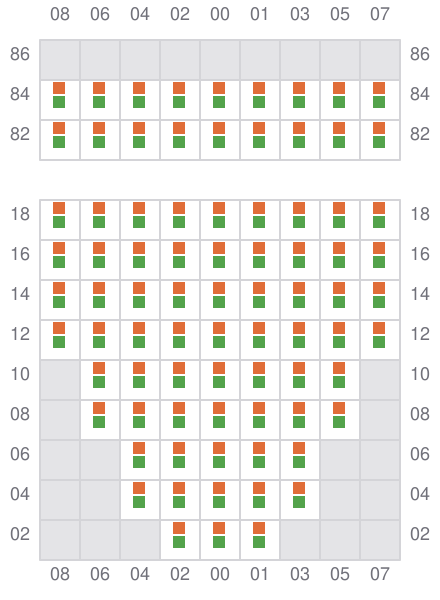

013 (014)
- →
- ? / →
015
017 (018)
- →
- ? / →

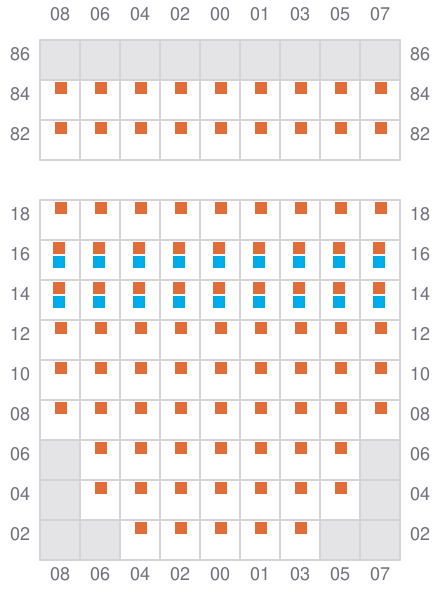

019
021 (022)
- →
- ? / →

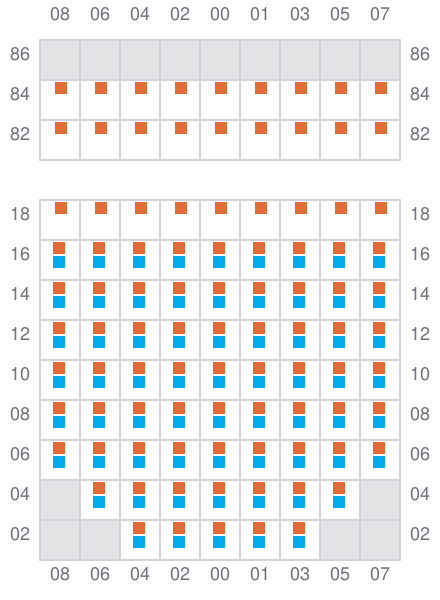

023
025
027 (028)
- →
- ? / →
029
- ? / →
- ? / →
031 (032)
- →
- ? / →
033
- ? / →
- ? / →
035 (036)
- →
- ? / →
037
- ? / →
- ? / →
039 (040)
- →
- ? / →
041
- ? / →
- ? / →
043 (044)
- →
- ? / →
045
