MSC ATHENS
9618305 | 5LKV5 | MSC by ************************** Last update: Wed Jun 14 2023
General Info
Ship Name:MSC ATHENS
IMO Code:9618305
Call Sign:5LKV5
Line Operator:MSC
Class Name for Sister Ships:ATH
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:13,031
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

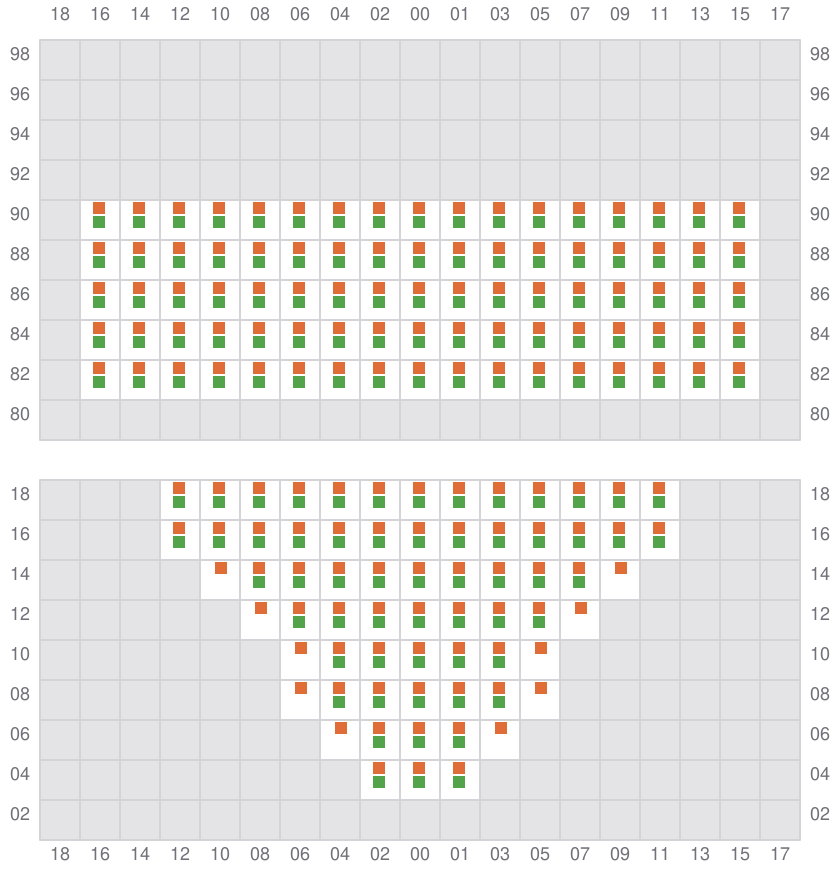

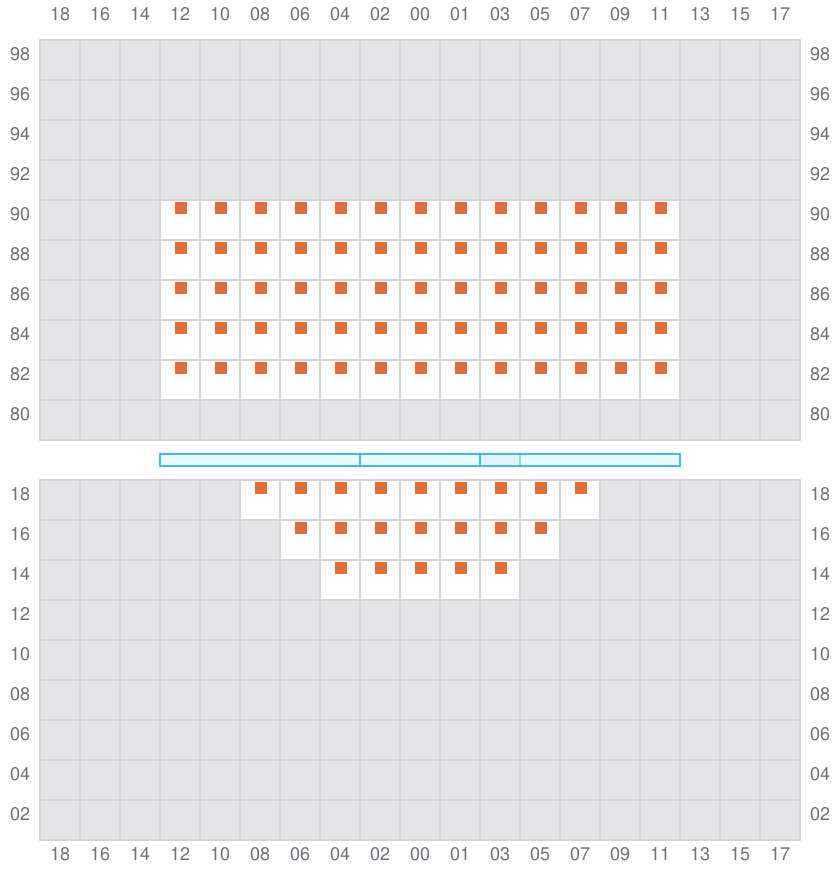

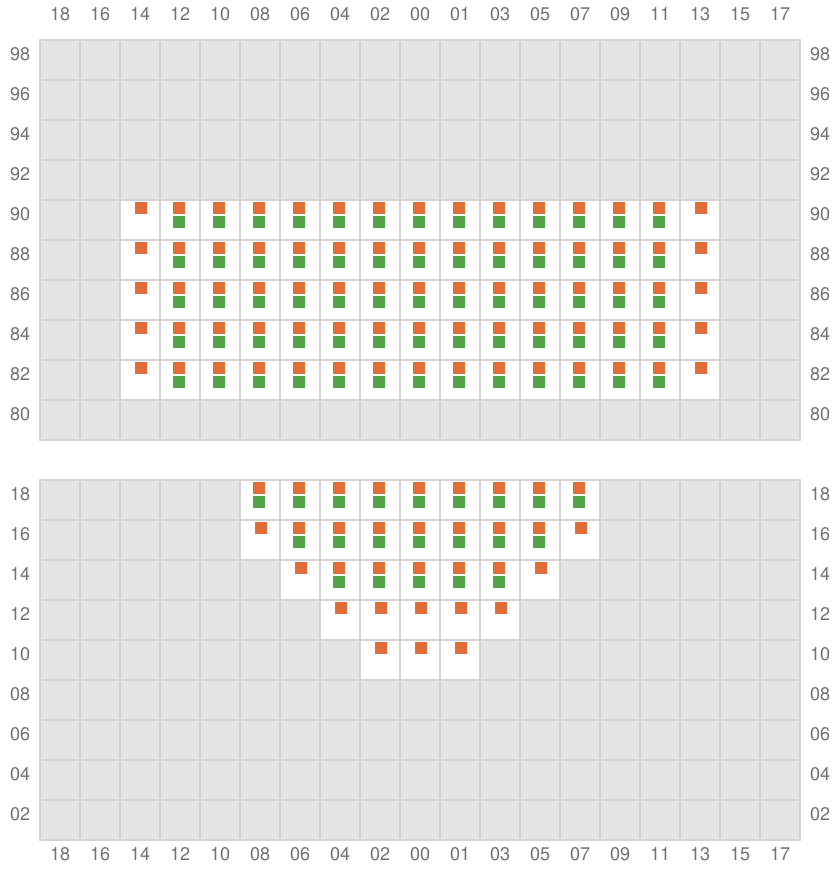

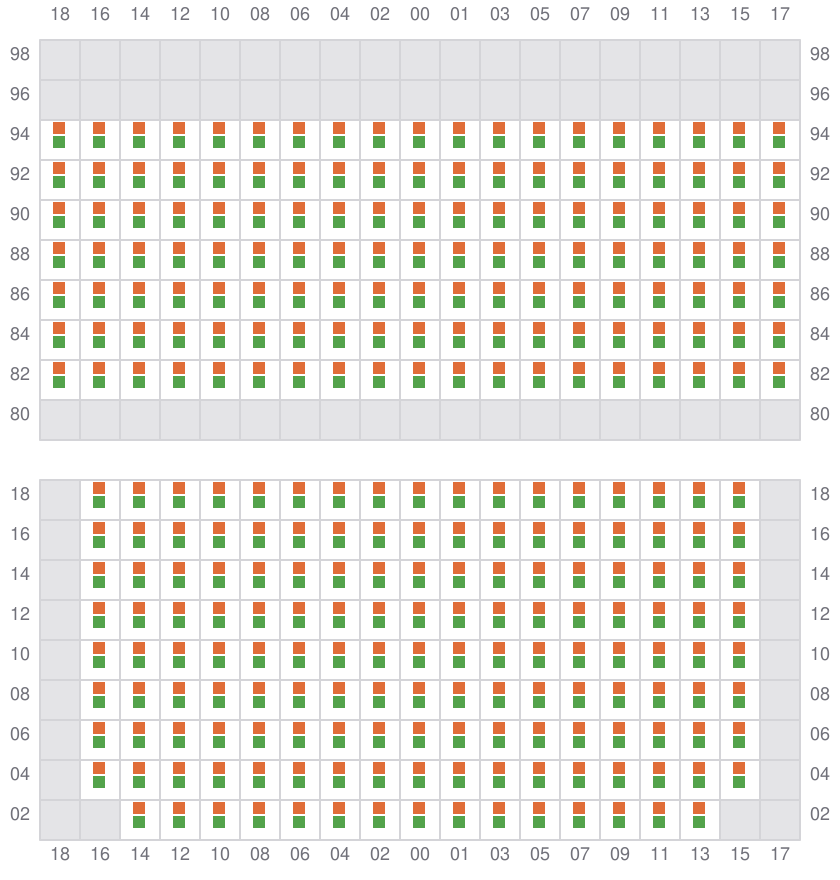

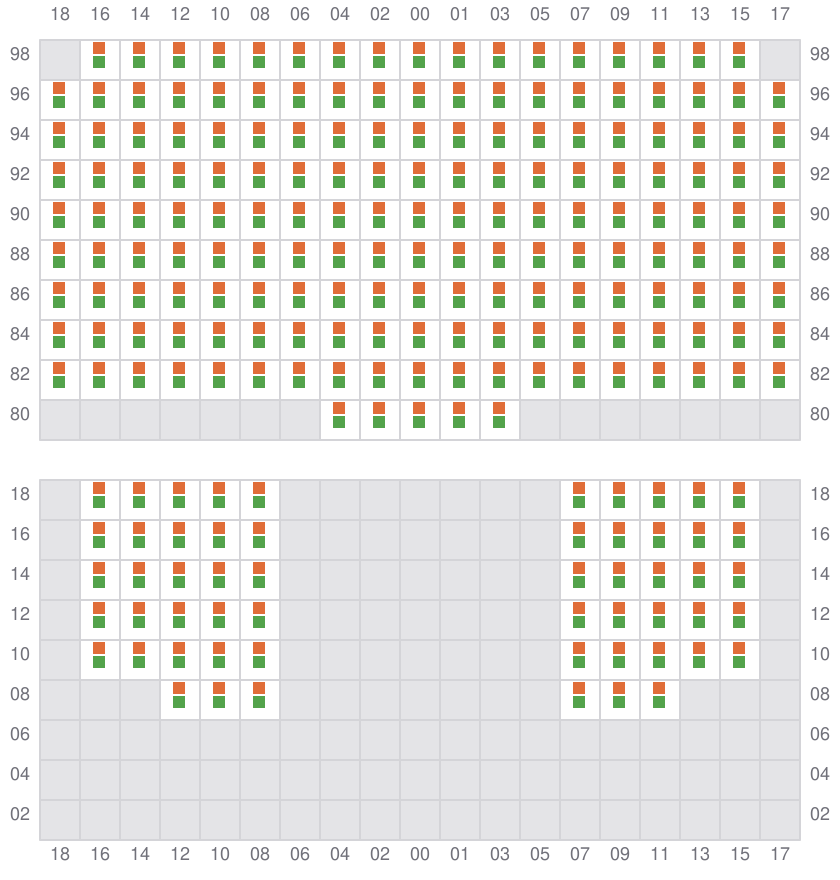

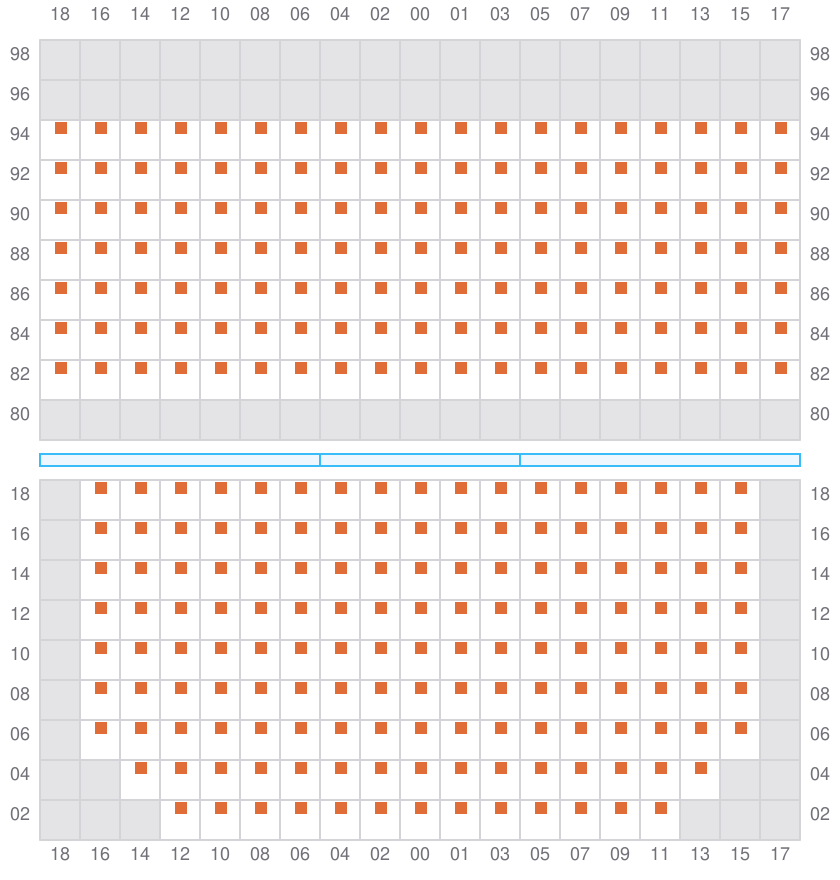

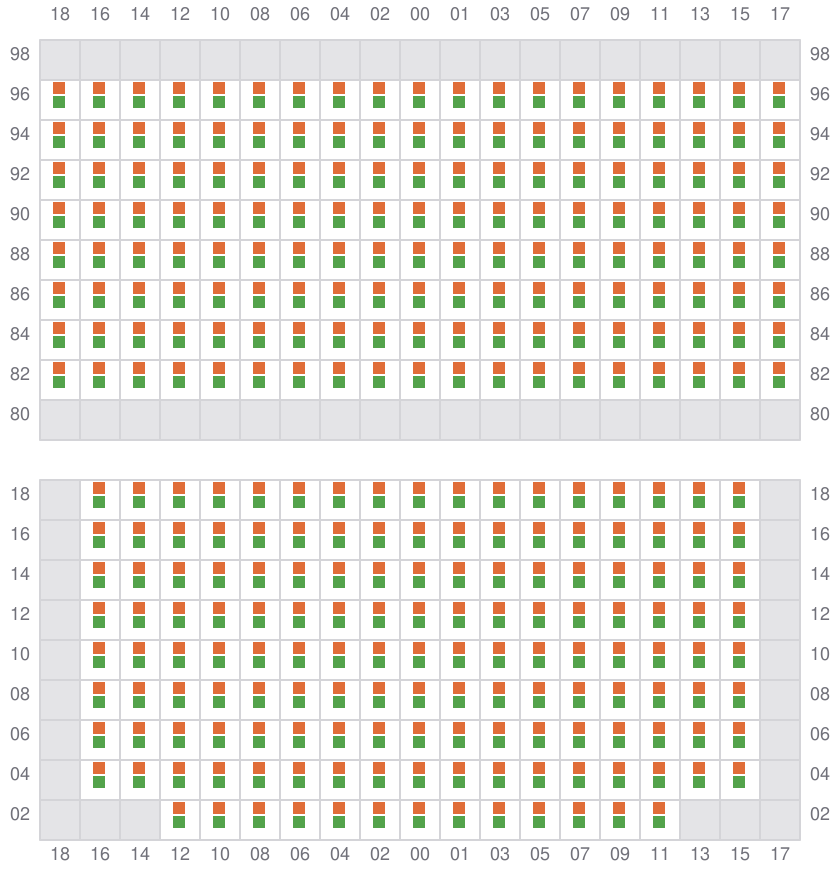

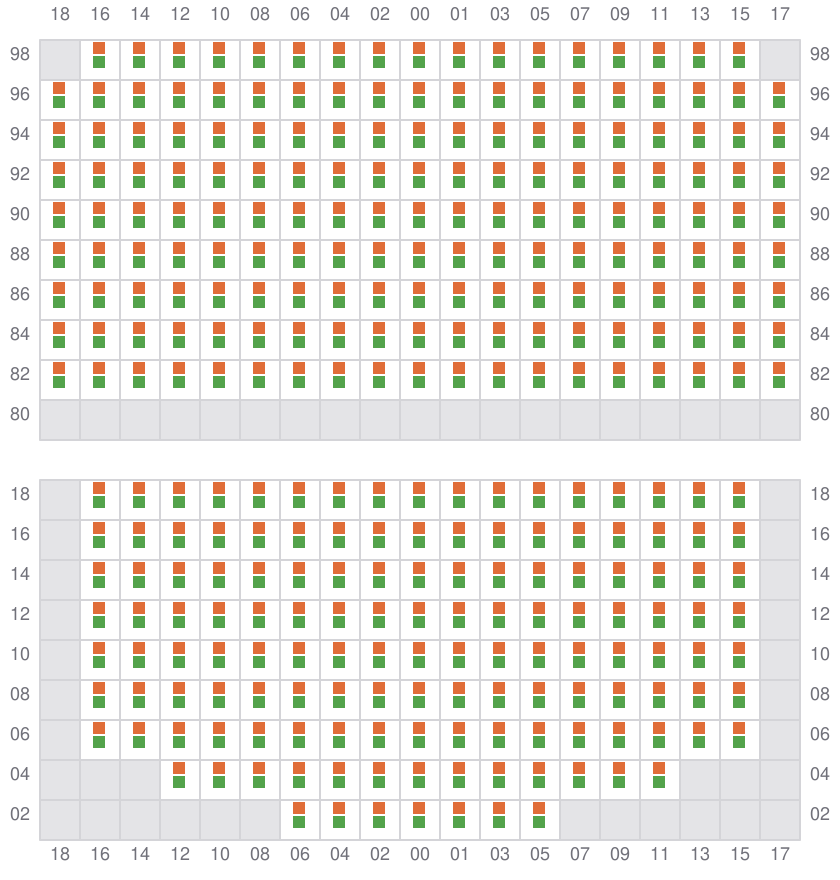

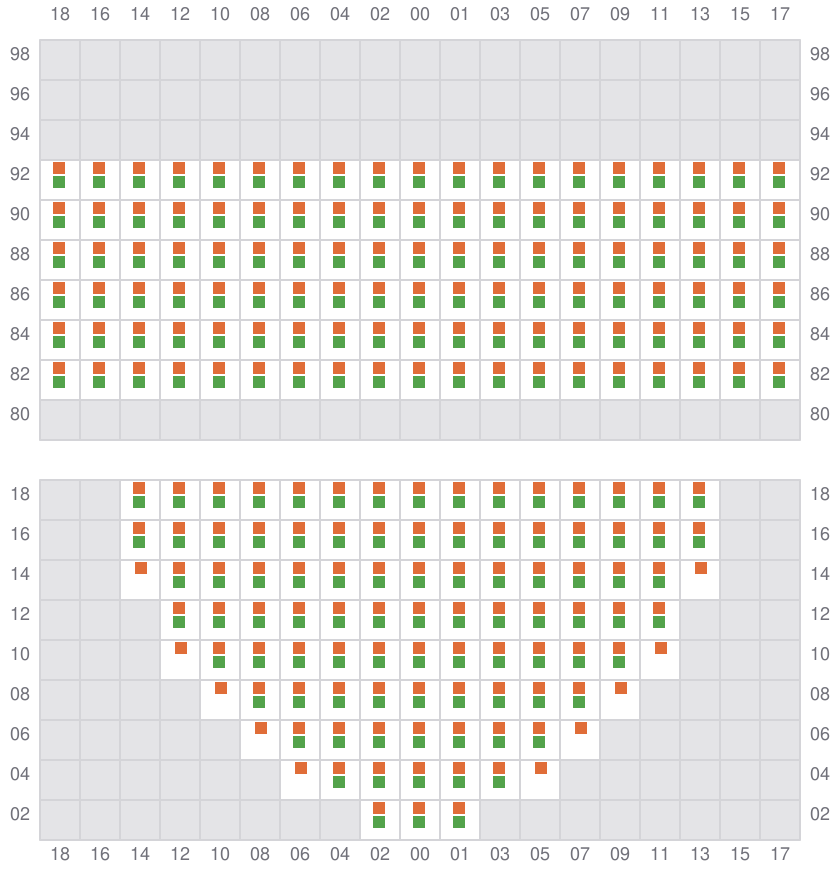

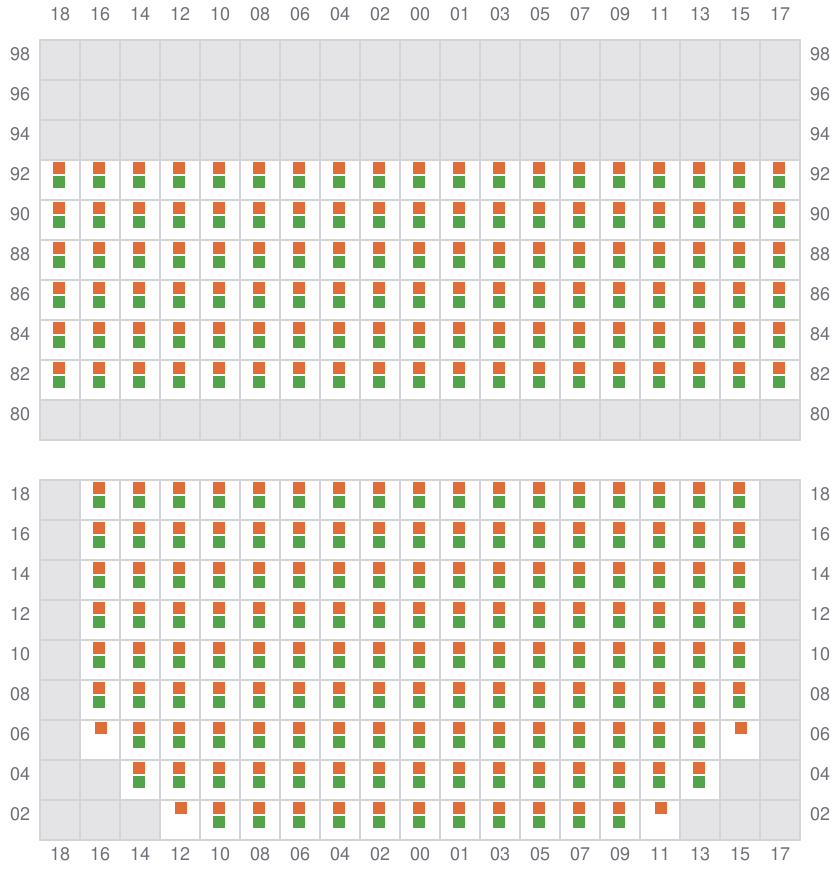

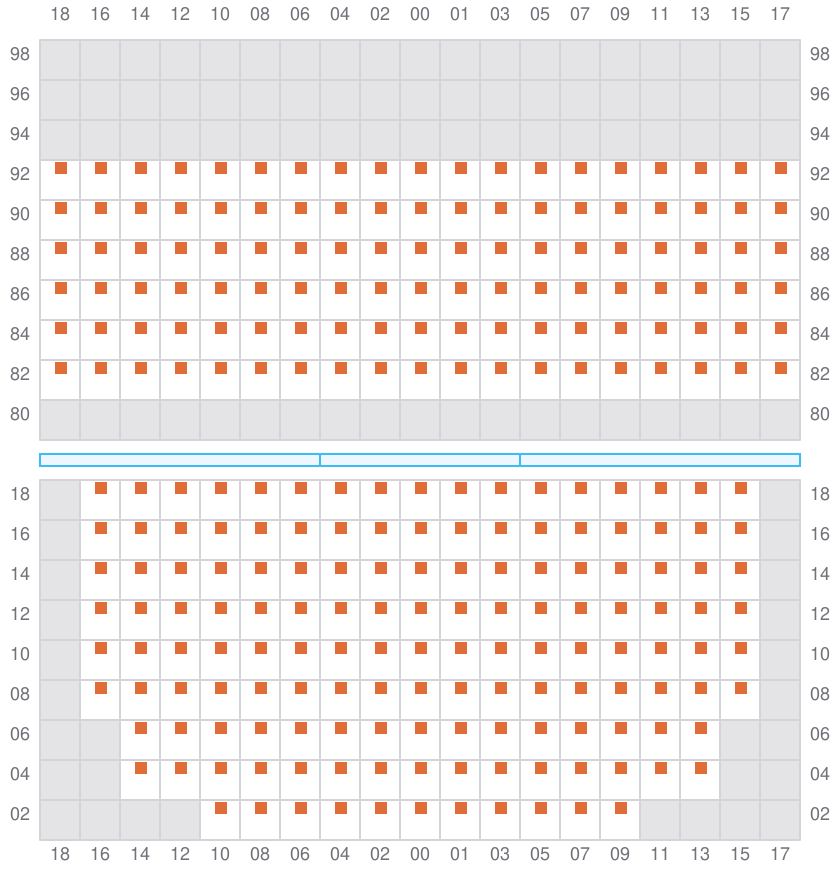

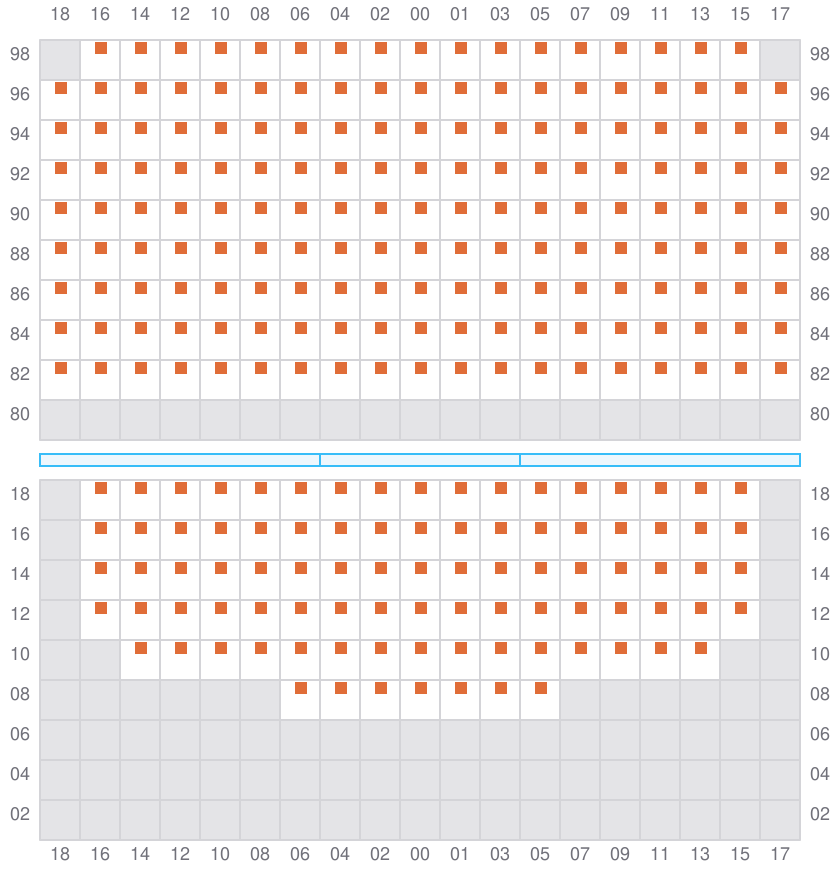

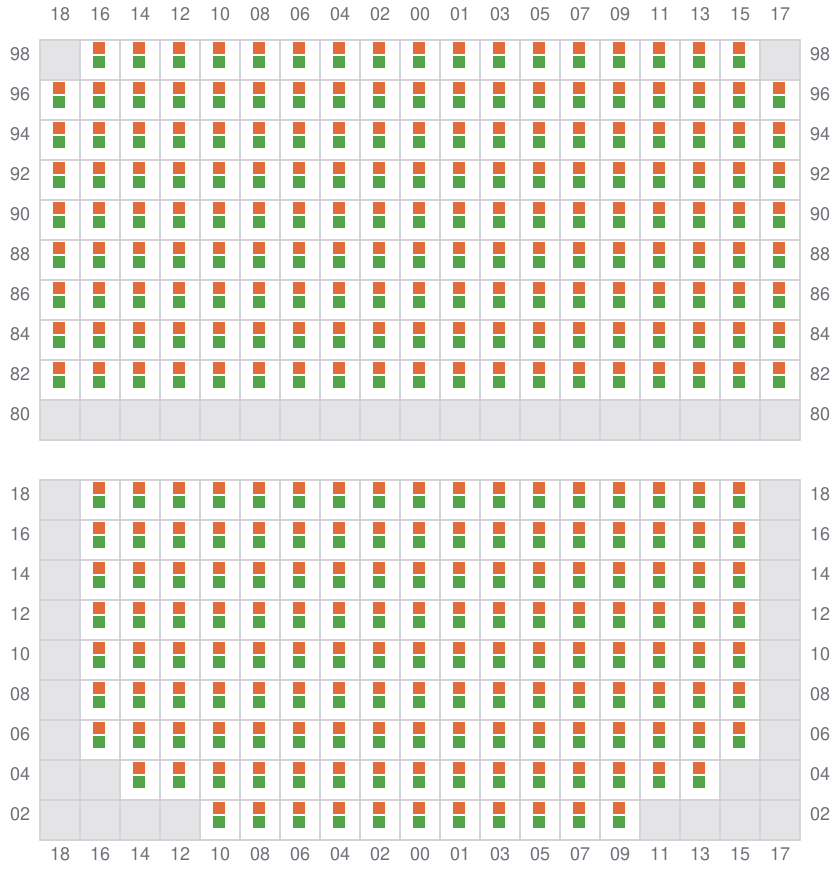

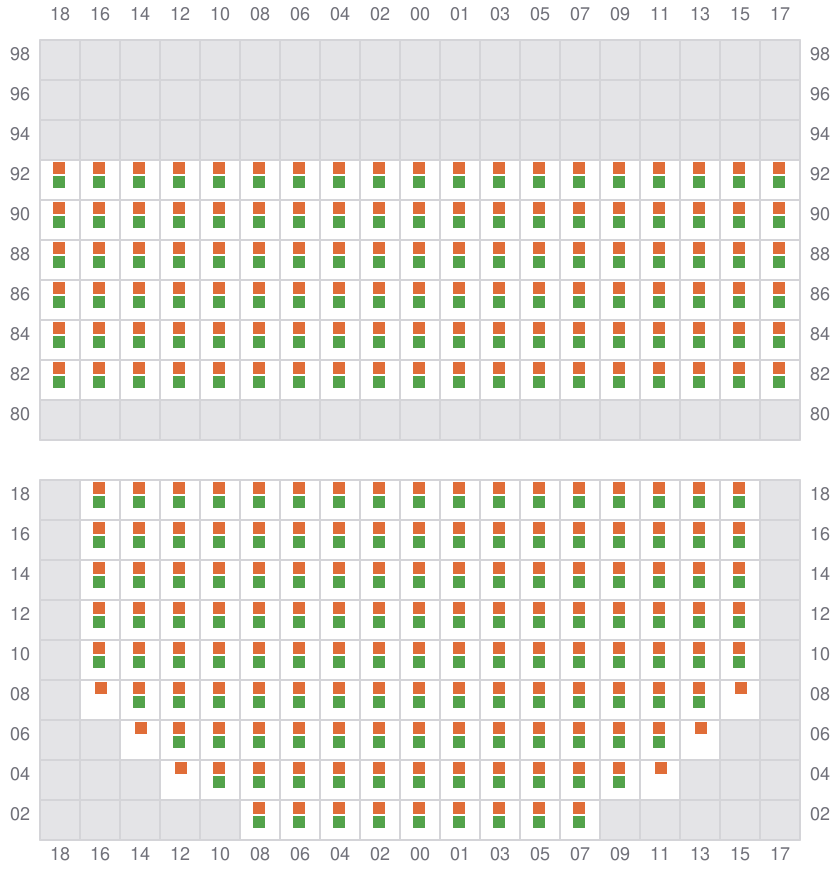

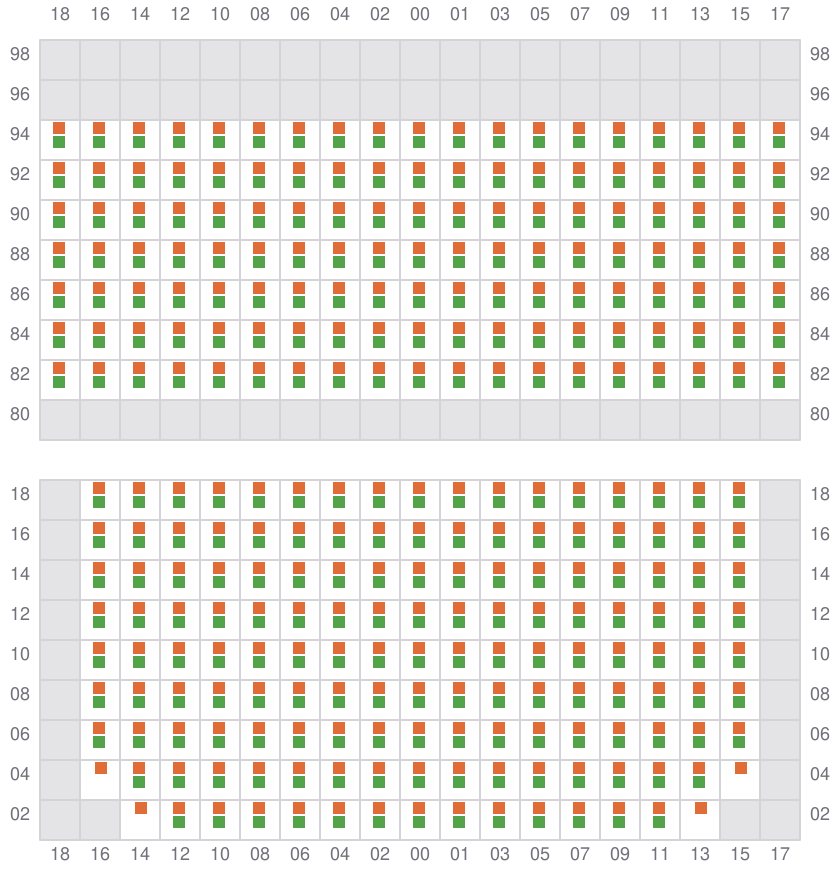

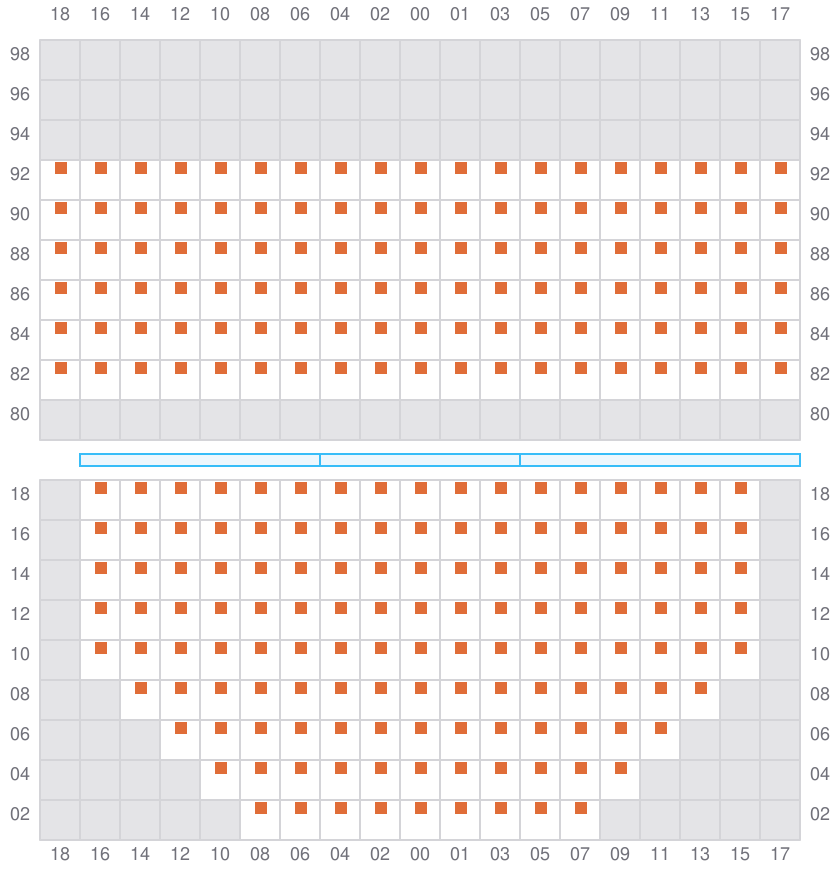

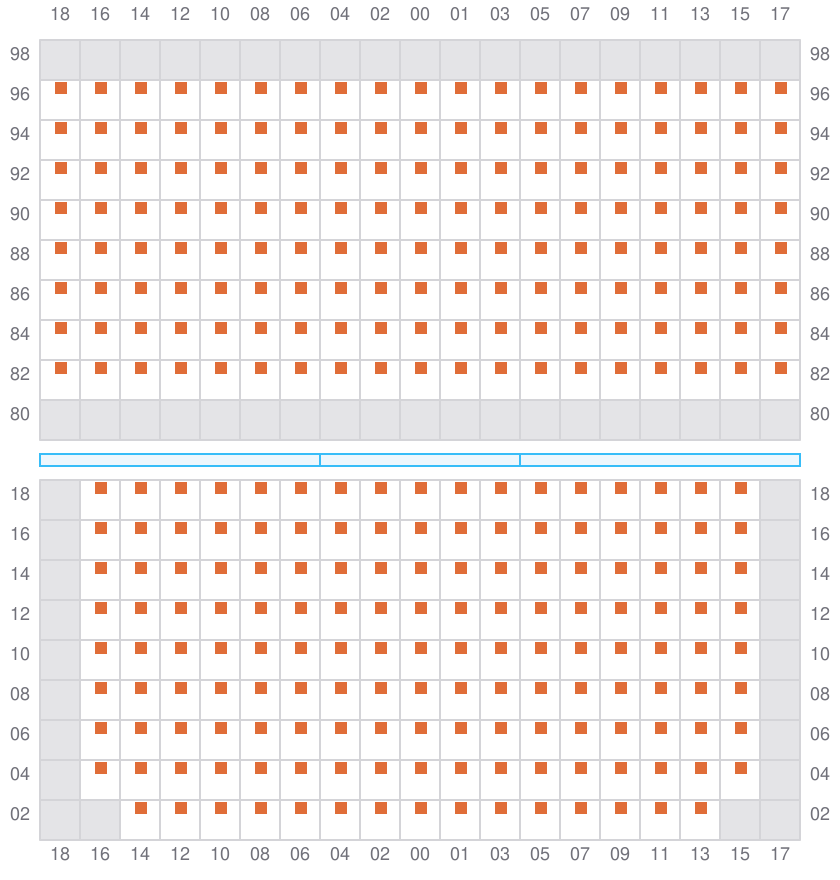

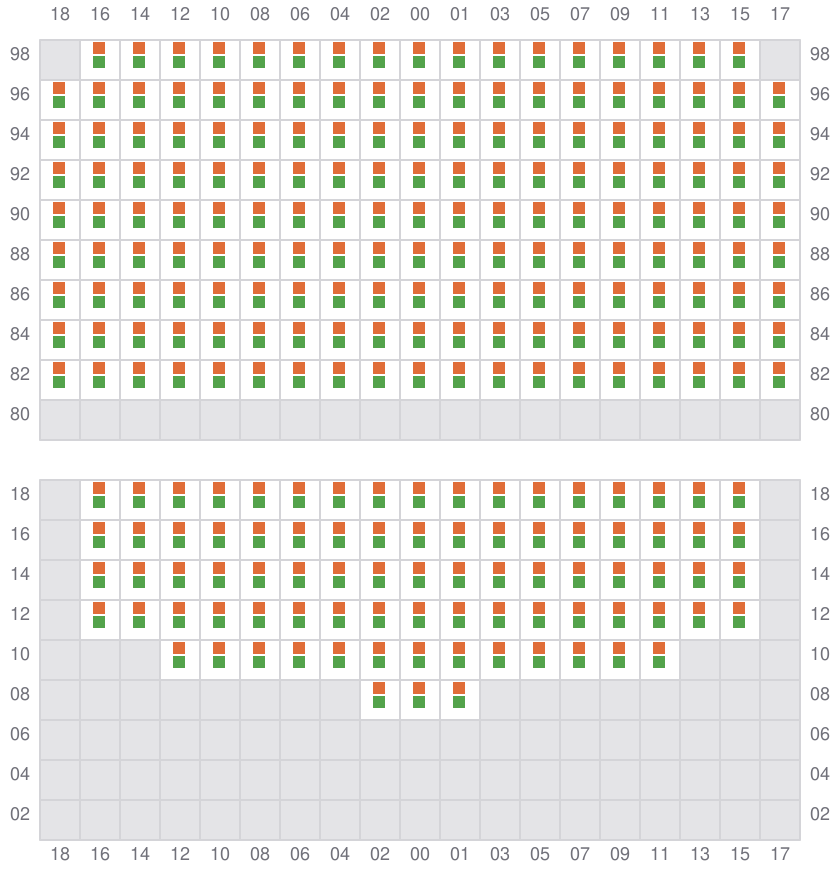

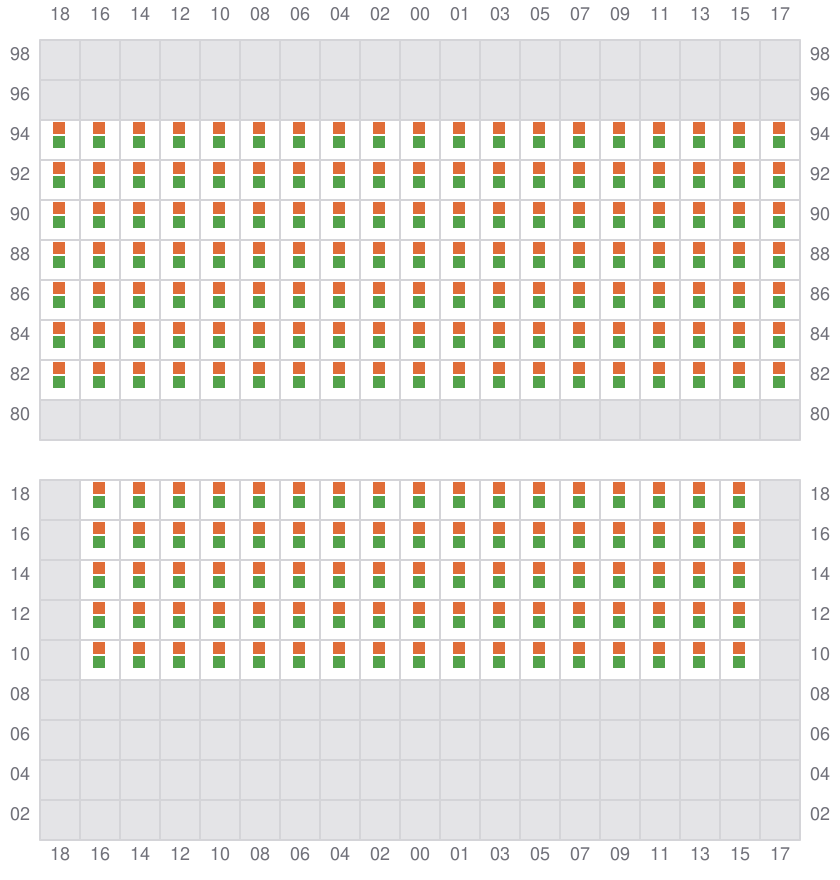

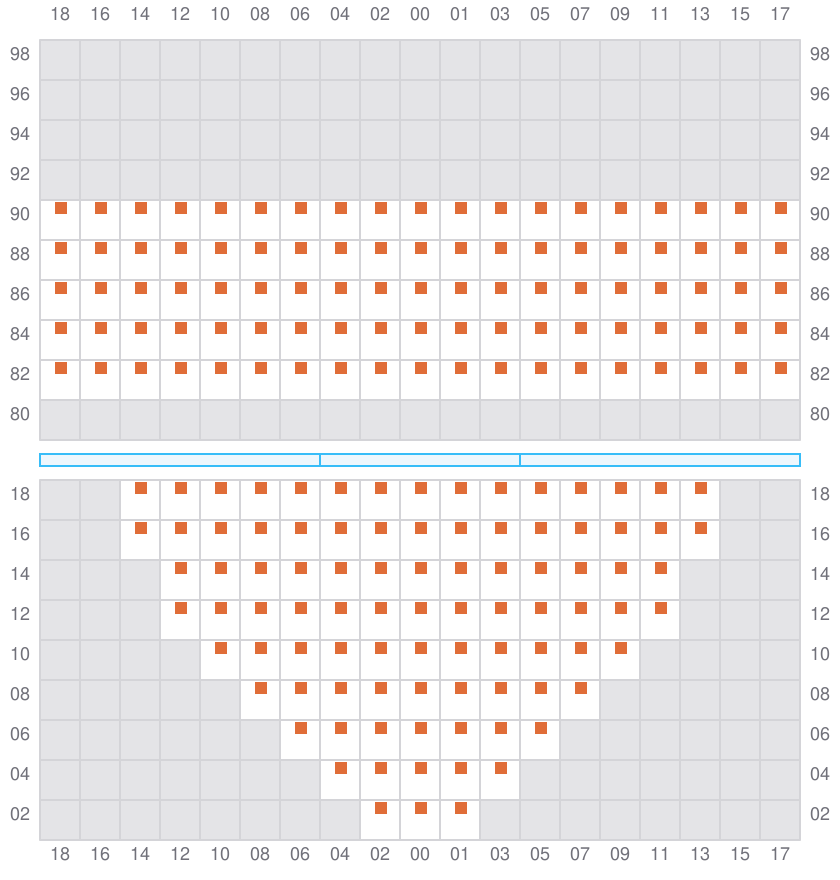

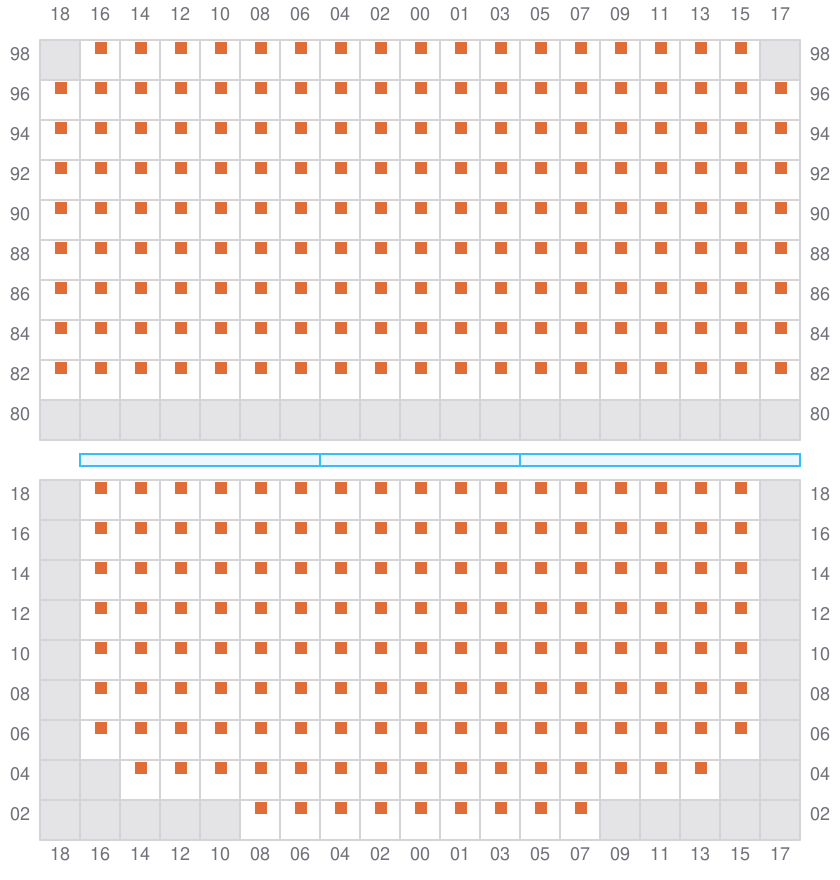

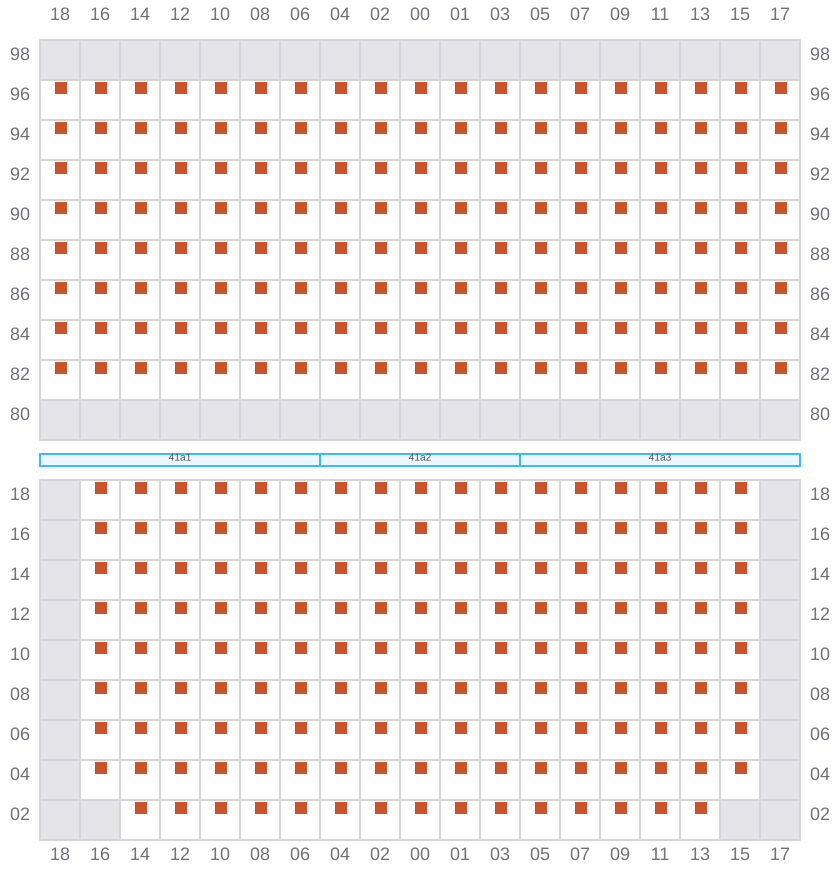

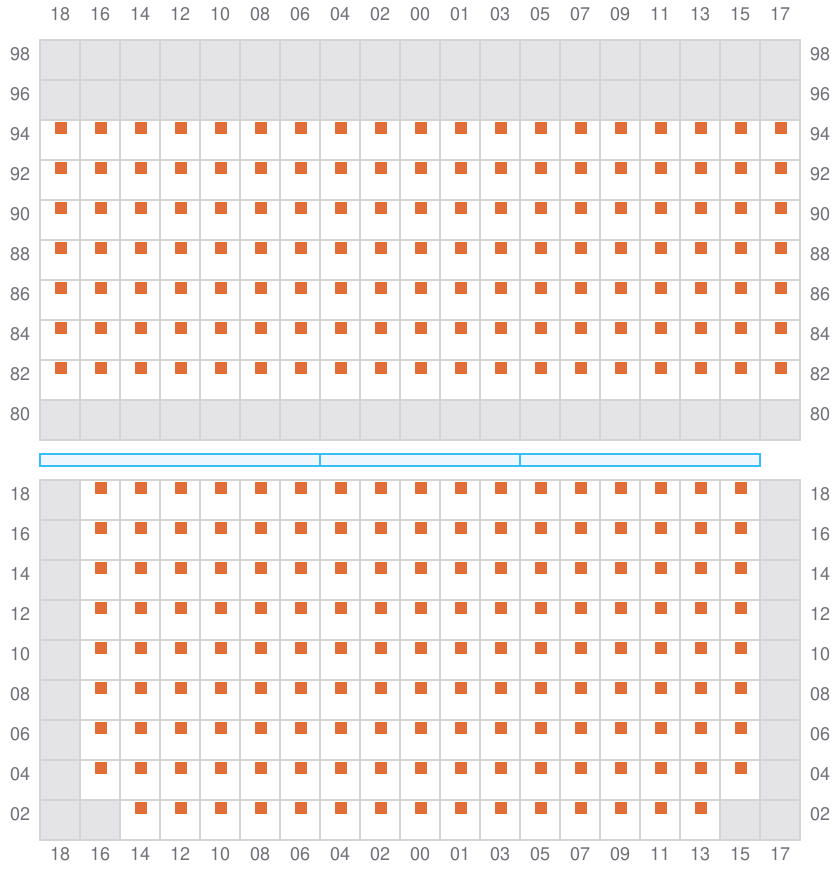

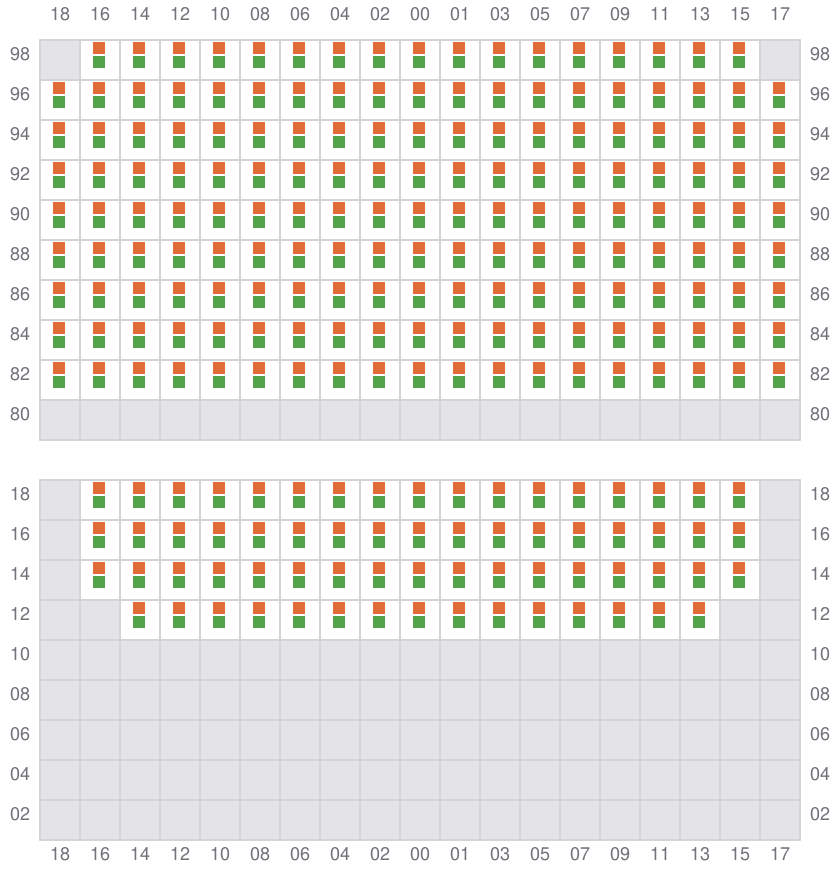

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- ←
003 (002)
- ←
005
- ←
007 (006)
- ←
009
- ←
011 (010)
- ←
013
- ←
015 (014)
- ←
017
- ←
019 (018)
- ←
021
- ←
023 (022)
- ←
025
- ←
027 (026)
- ←
029
- ←
031 (030)
- ←
033
- ←
035 (034)
- ←
037
- ←
039 (038)
- ←
041
- ←
043 (042)
- ←
045
- ←
047 (046)
- ←
049
- ←
051 (050)
- ←
053
- ←
055 (054)
- ←
057
- ←
059 (058)
- ←
061
- ←
063 (062)
- ←
065
- ←
067 (066)
- ←
069 (070)
- → / ?
