MSC ATHOS
9618317 | 5LKV7 | 9618317 by ********* Last update: Wed Jun 26 2024
General Info
Ship Name:MSC ATHOS
IMO Code:9618317
Call Sign:5LKV7
Line Operator:9618317
Class Name for Sister Ships:MSC
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):288.46
LOA (Length Overall):299.95
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,757
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

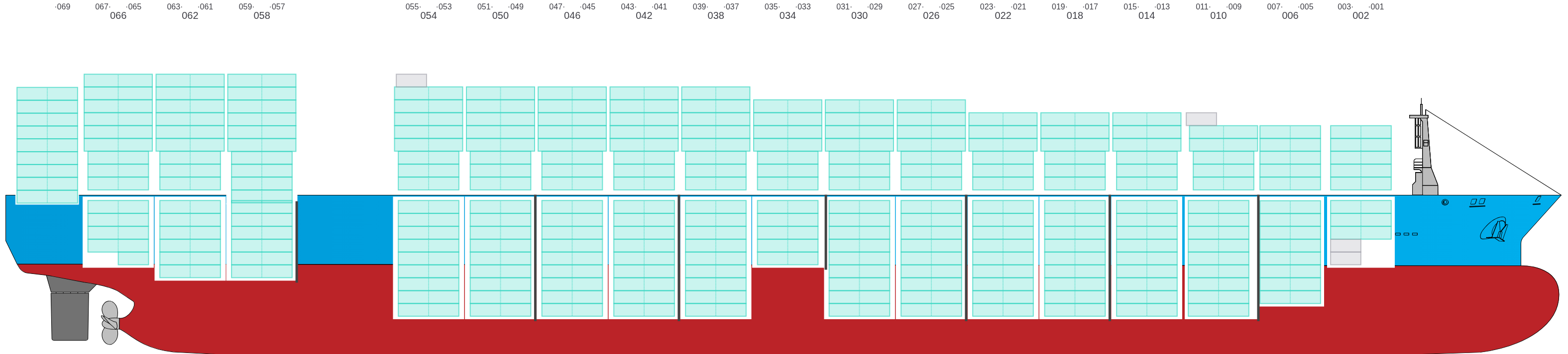

Side View
![Side view of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-sideView.png?v=1719430955761)
Hatch-Covers View
![Deck view of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-deckView.png?v=1719430955761)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

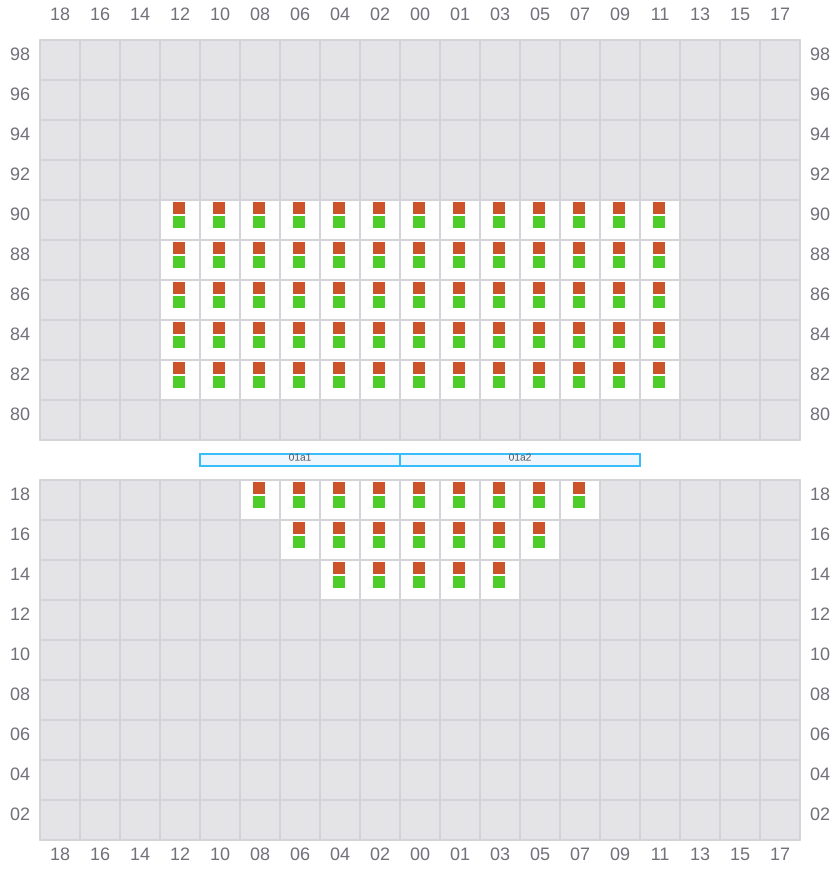

001 (002)
- →
![Bay 001 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b001.png?v=1719430955761)

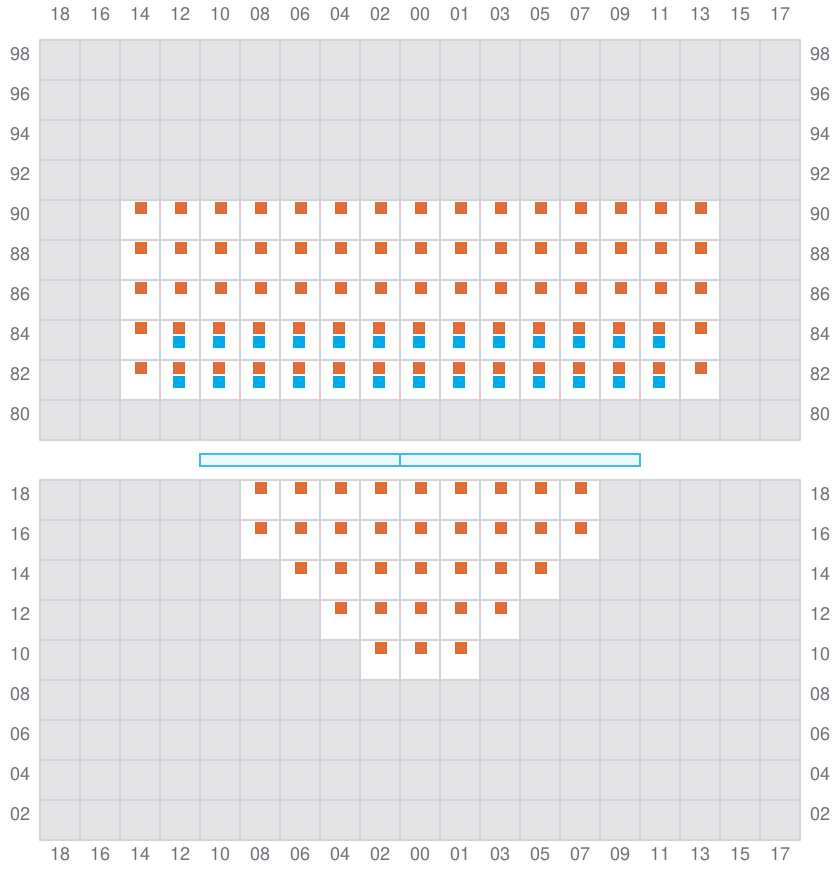

003
- ←
- → / ?
![Bay 003 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b003.png?v=1719430955761)

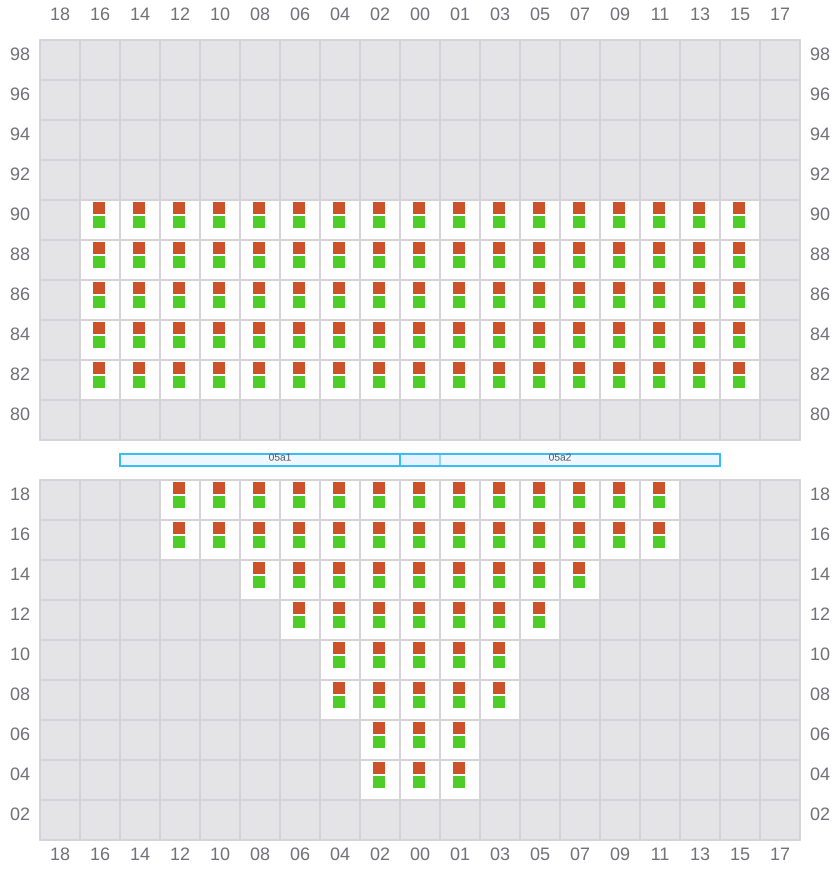

005 (006)
- →
![Bay 005 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b005.png?v=1719430955761)

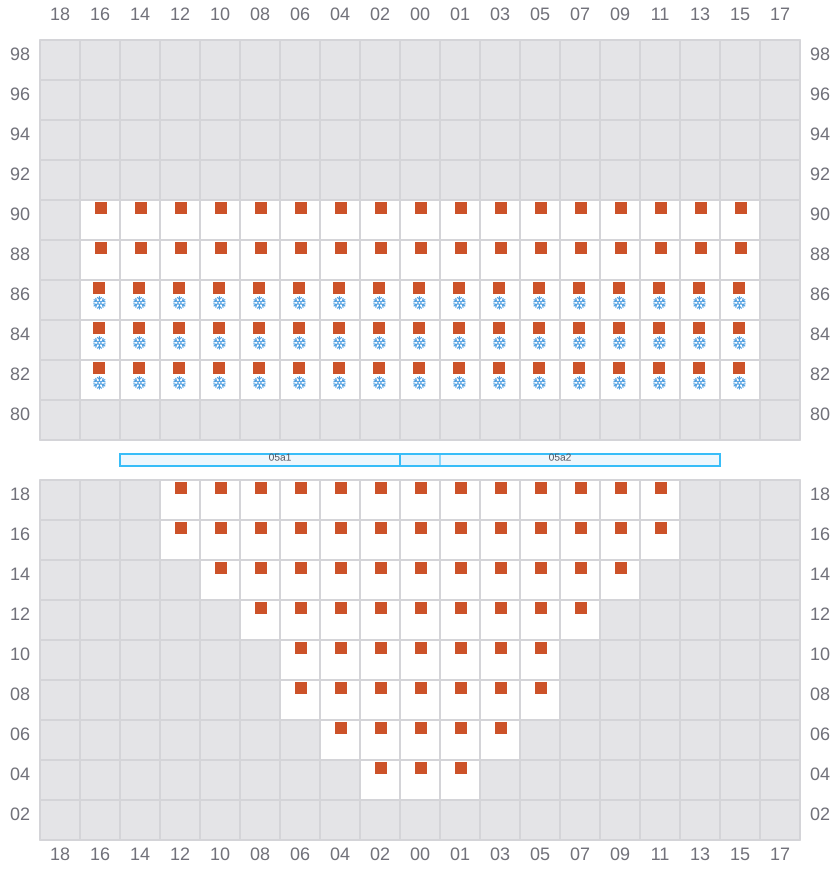

007
- ←
- → / ?
![Bay 007 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b007.png?v=1719430955761)

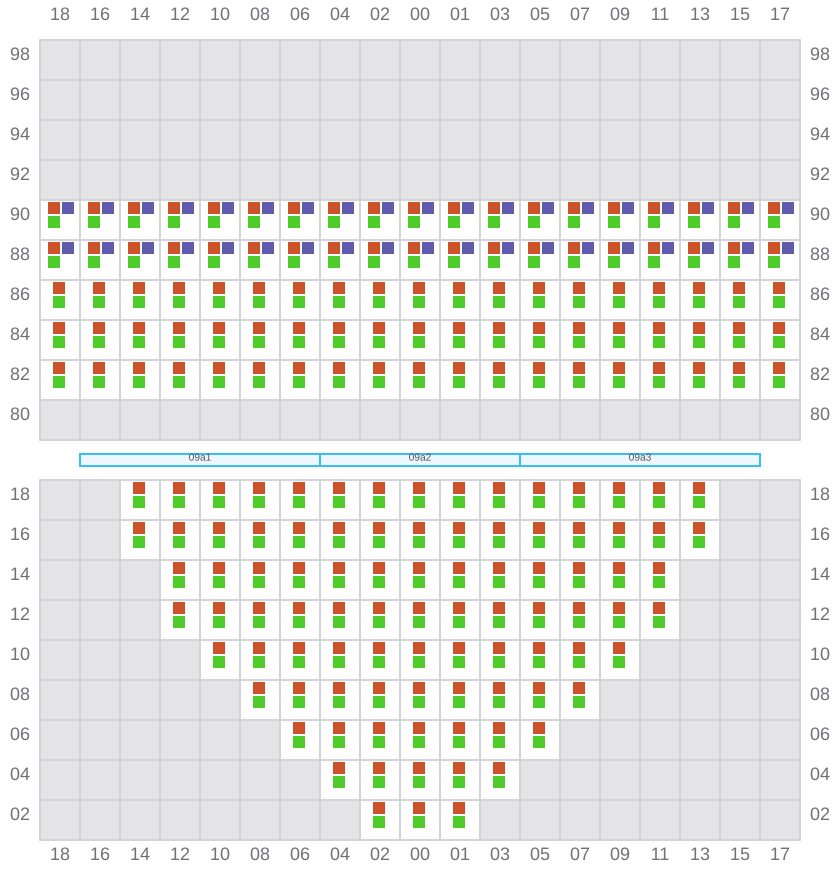

009 (010)
- →
![Bay 009 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b009.png?v=1719430955761)

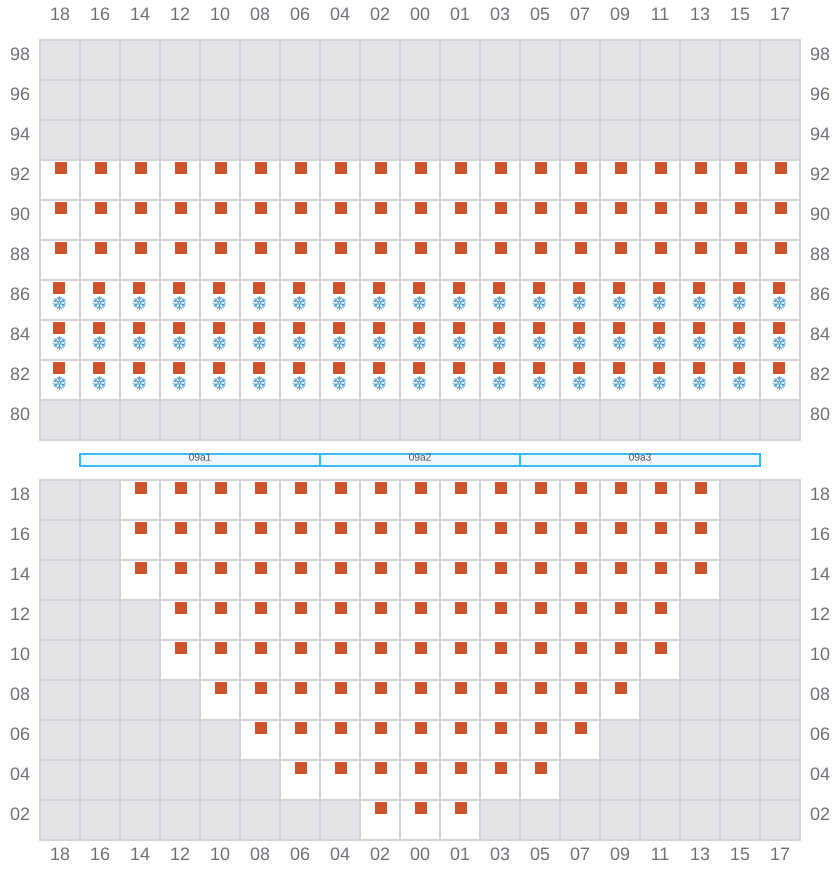

011
- ←
- → / ?
![Bay 011 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b011.png?v=1719430955761)

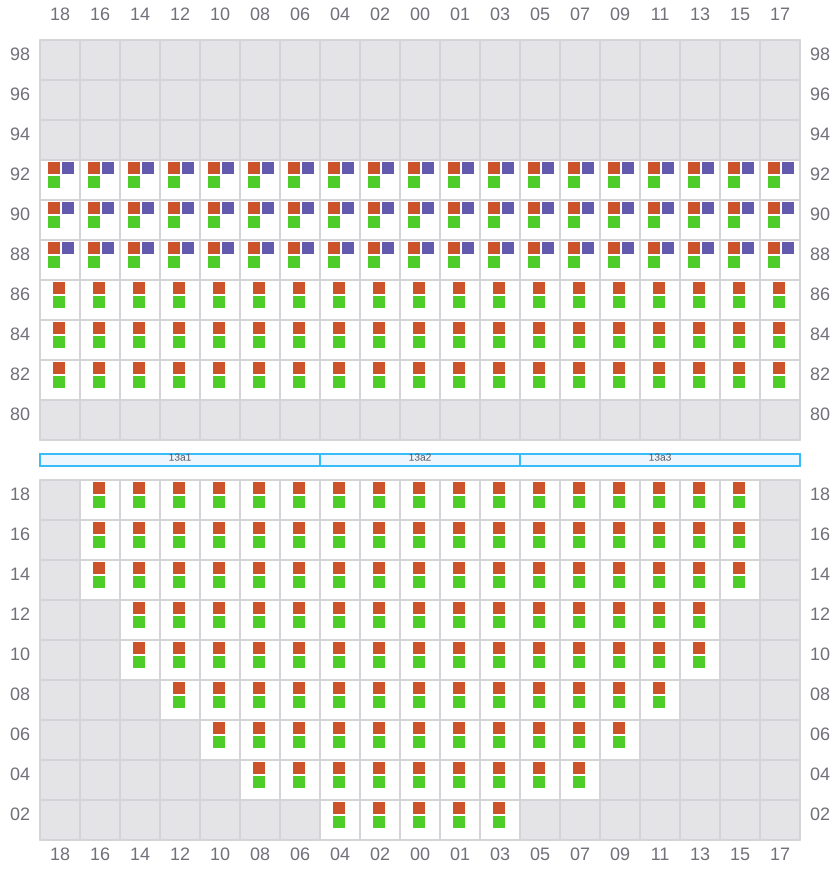

013 (014)
- →
![Bay 013 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b013.png?v=1719430955761)

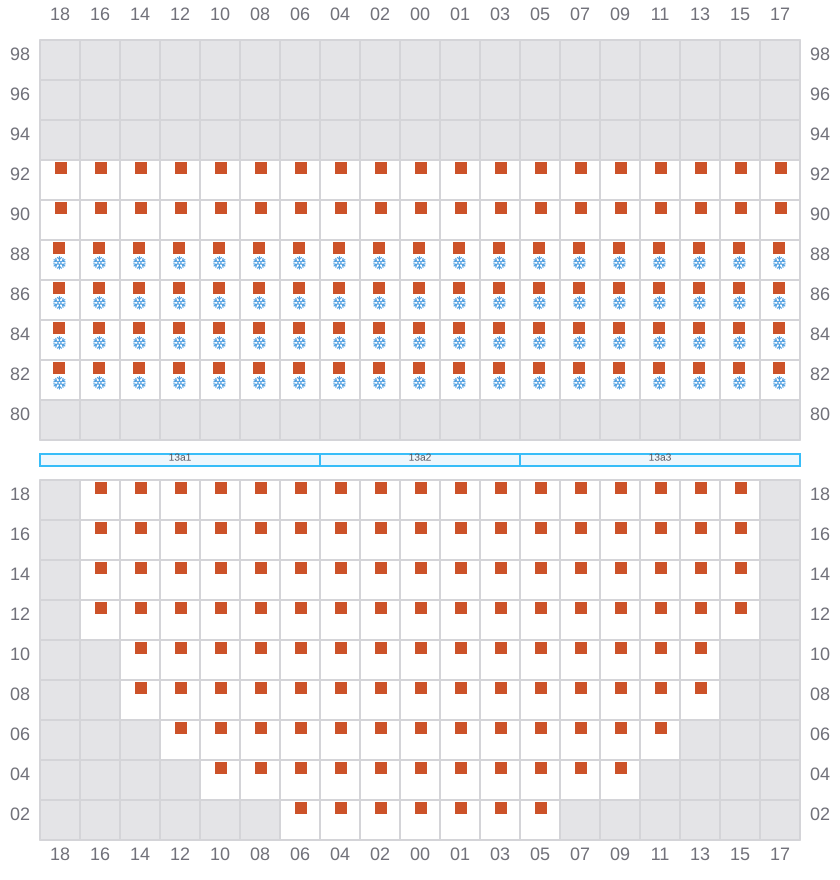

015
- ←
- → / ?
![Bay 015 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b015.png?v=1719430955761)

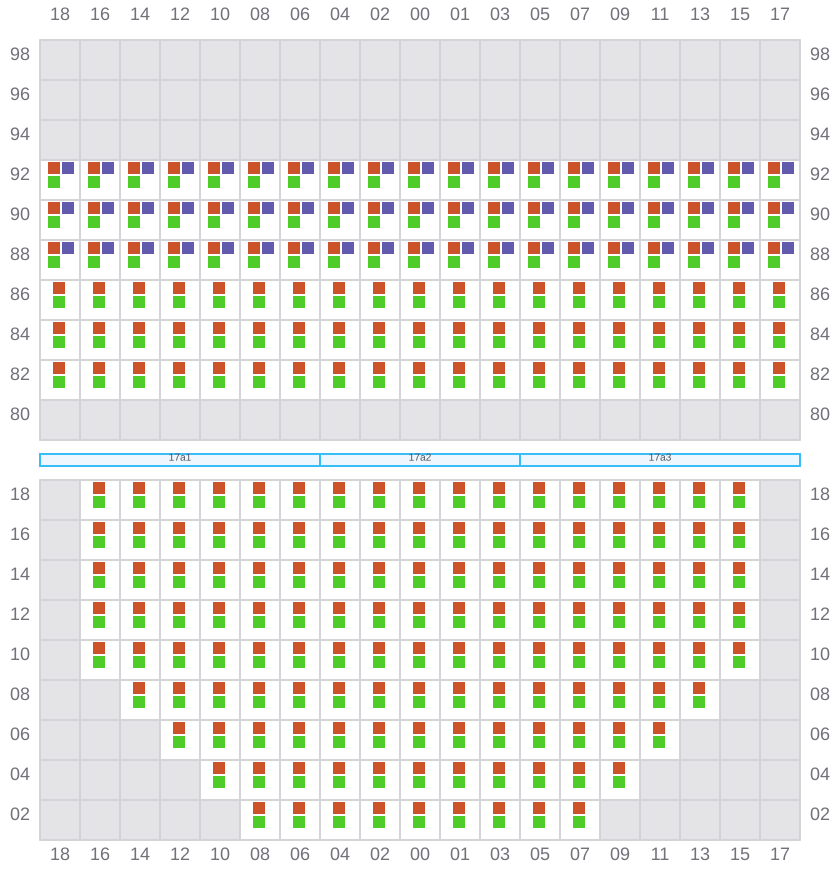

017 (018)
- →
![Bay 017 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b017.png?v=1719430955761)

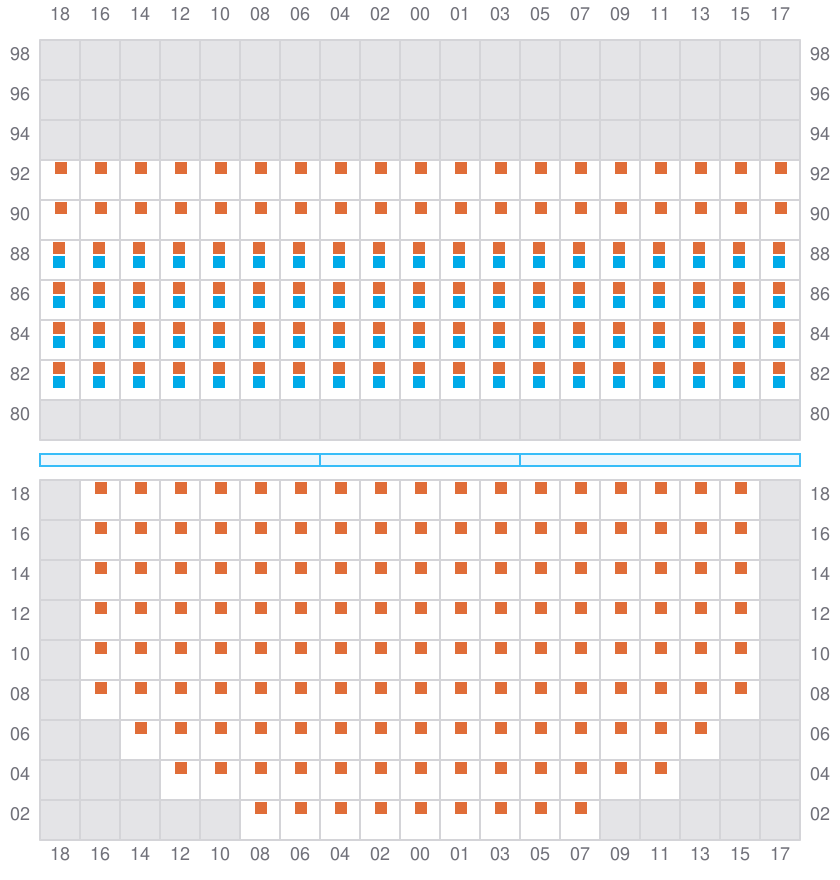

019
- ←
- → / ?
![Bay 019 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b019.png?v=1719430955761)

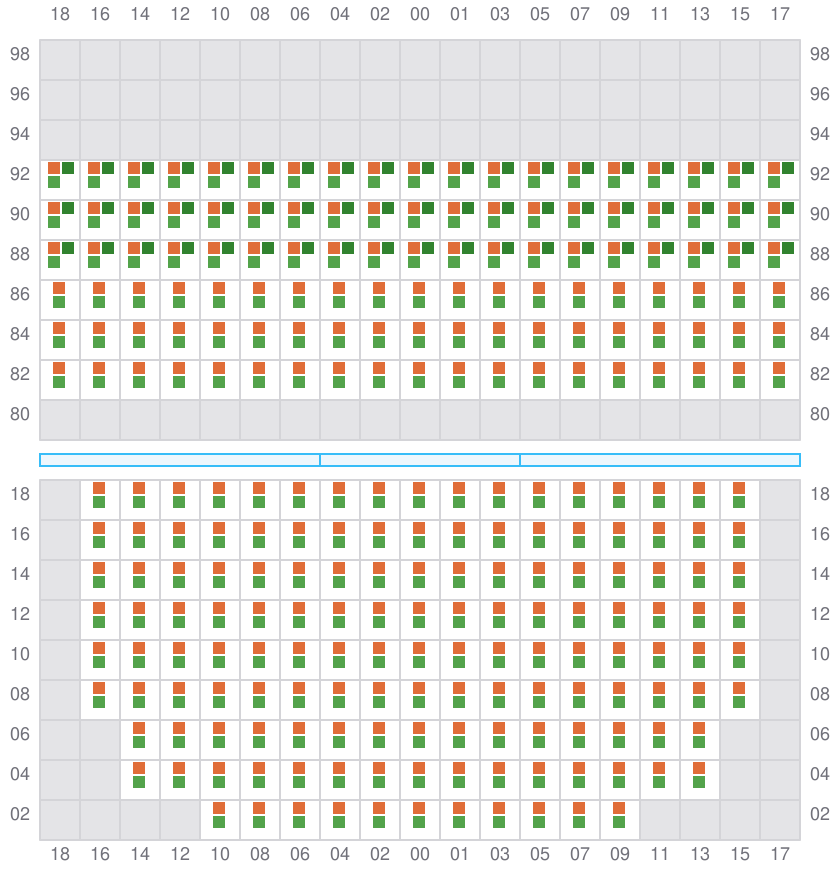

021 (022)
- →
![Bay 021 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b021.png?v=1719430955761)

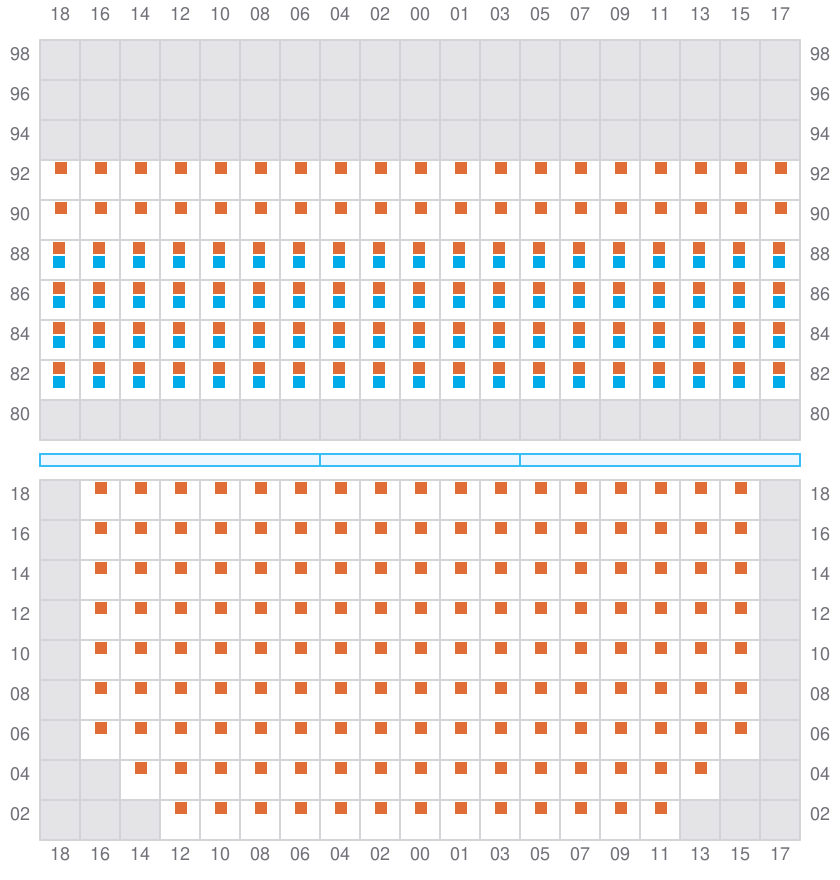

023
- ←
- → / ?
![Bay 023 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b023.png?v=1719430955761)

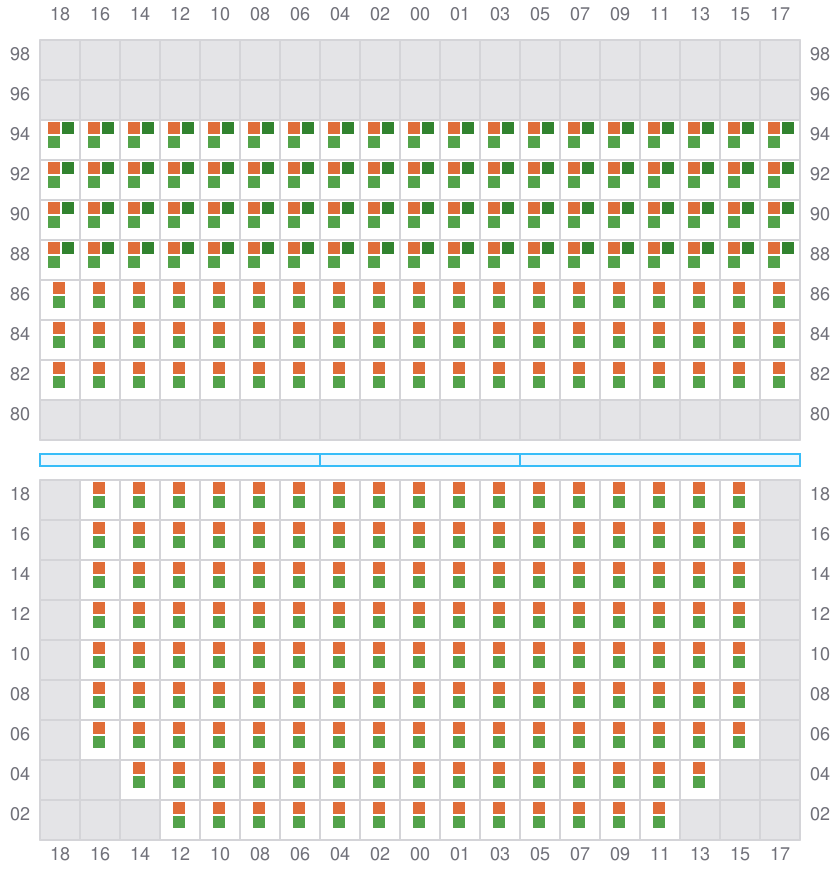

025 (026)
- →
![Bay 025 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b025.png?v=1719430955761)
027
- ←
- → / ?
![Bay 027 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b027.png?v=1719430955761)

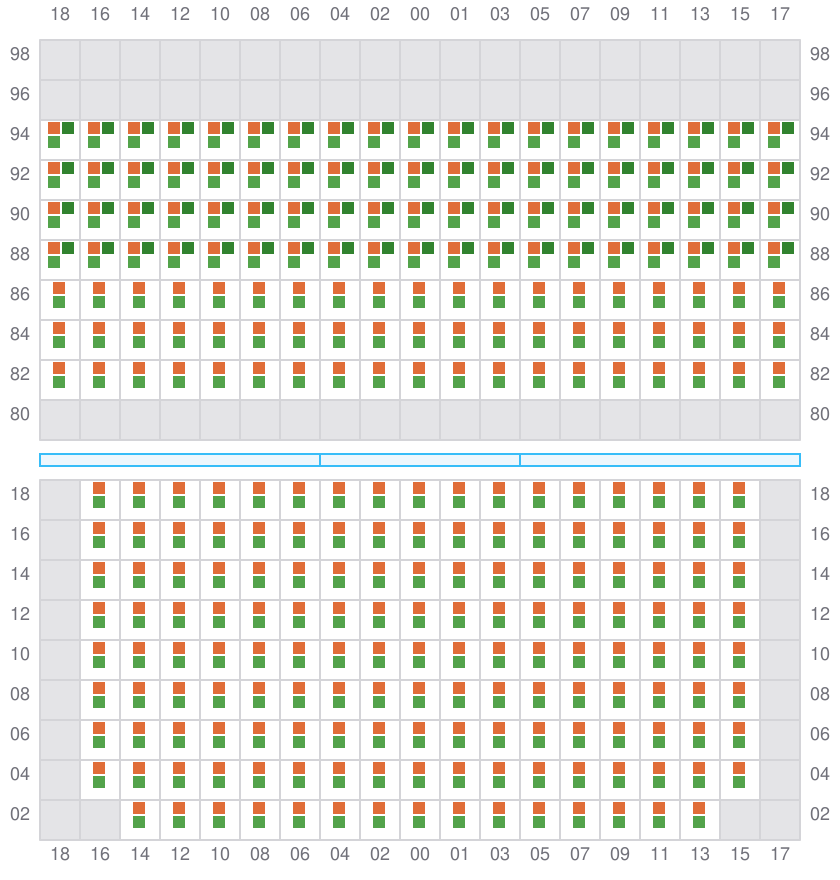

029 (030)
- →
![Bay 029 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b029.png?v=1719430955761)

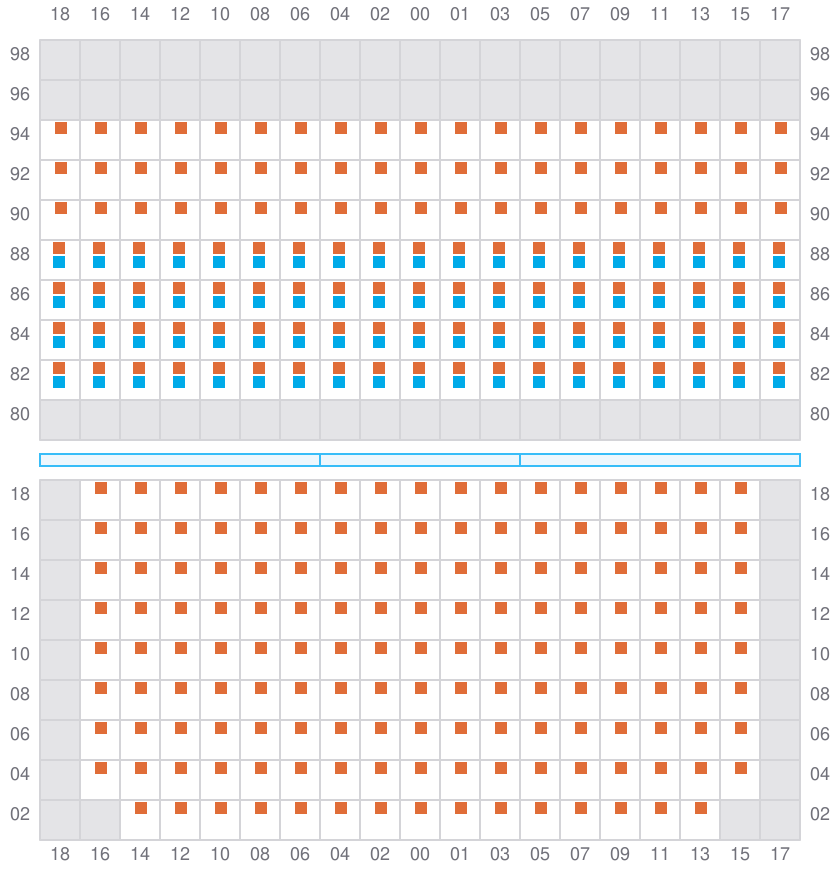

031
- ←
- → / ?
![Bay 031 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b031.png?v=1719430955761)

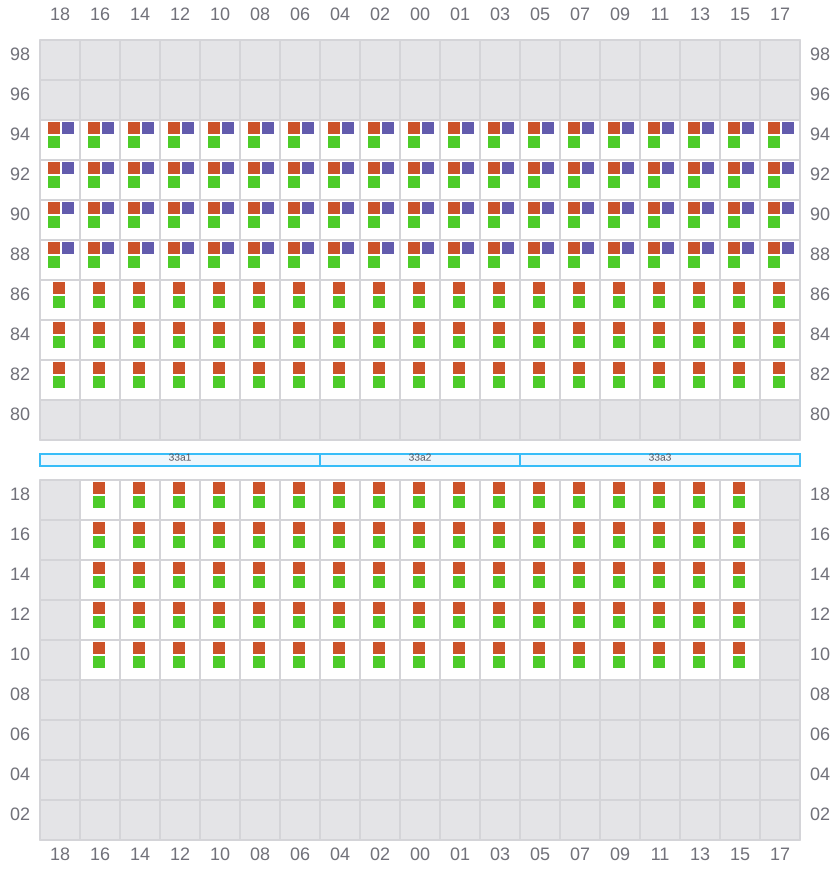

033 (034)
- →
![Bay 033 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b033.png?v=1719430955761)

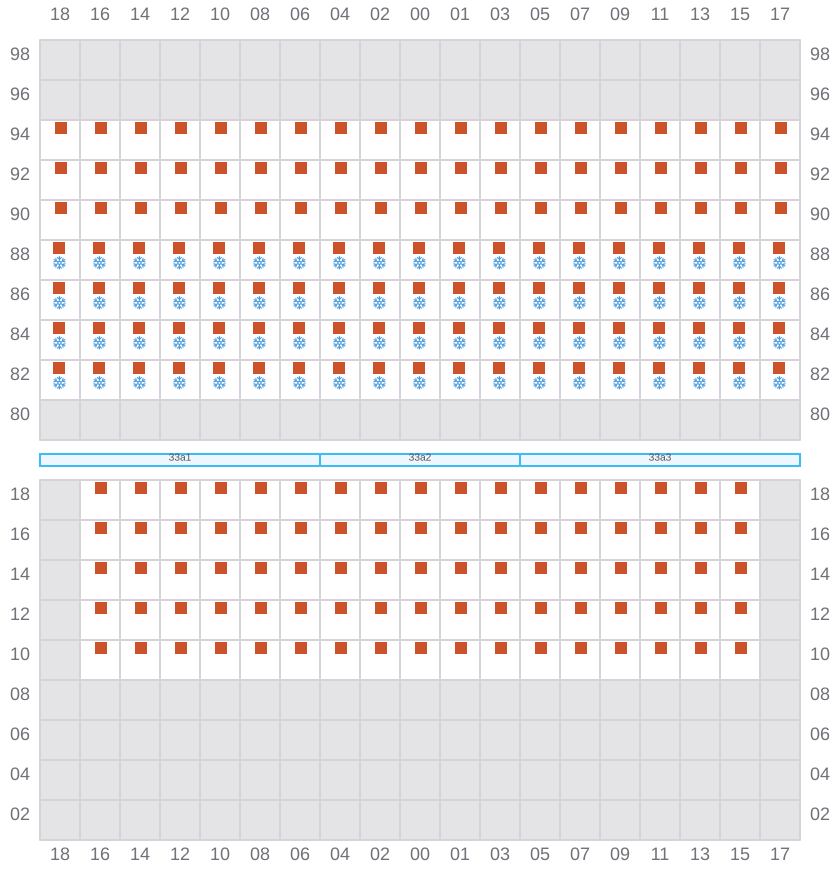

035
- ←
- → / ?
![Bay 035 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b035.png?v=1719430955761)
037 (038)
- →
![Bay 037 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b037.png?v=1719430955761)

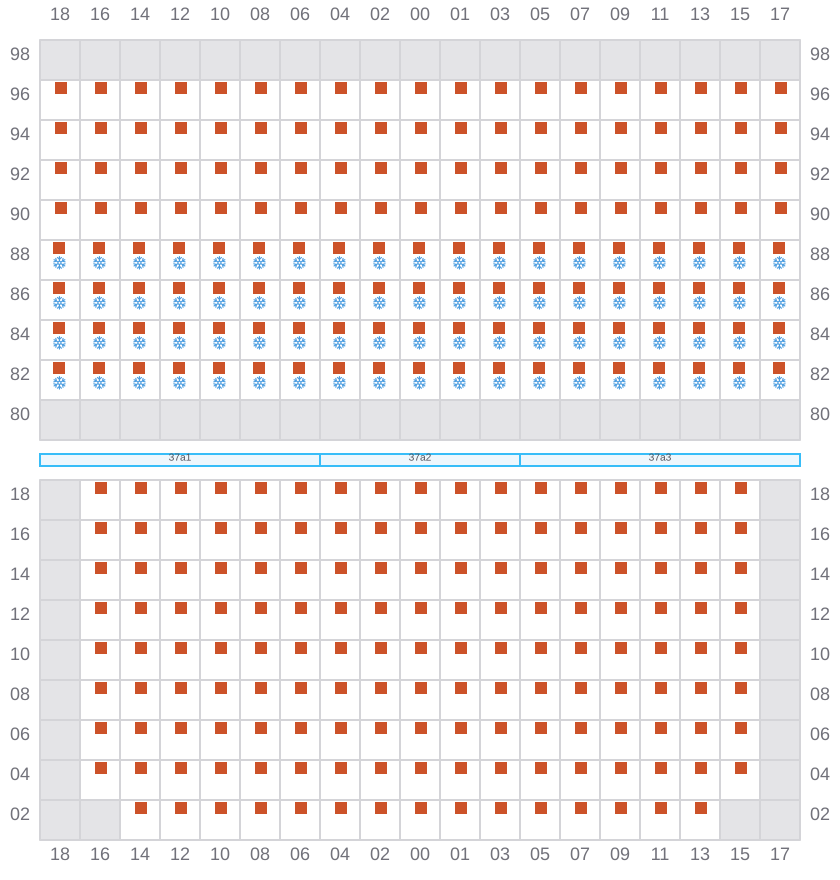

039
- ←
- → / ?
![Bay 039 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b039.png?v=1719430955761)

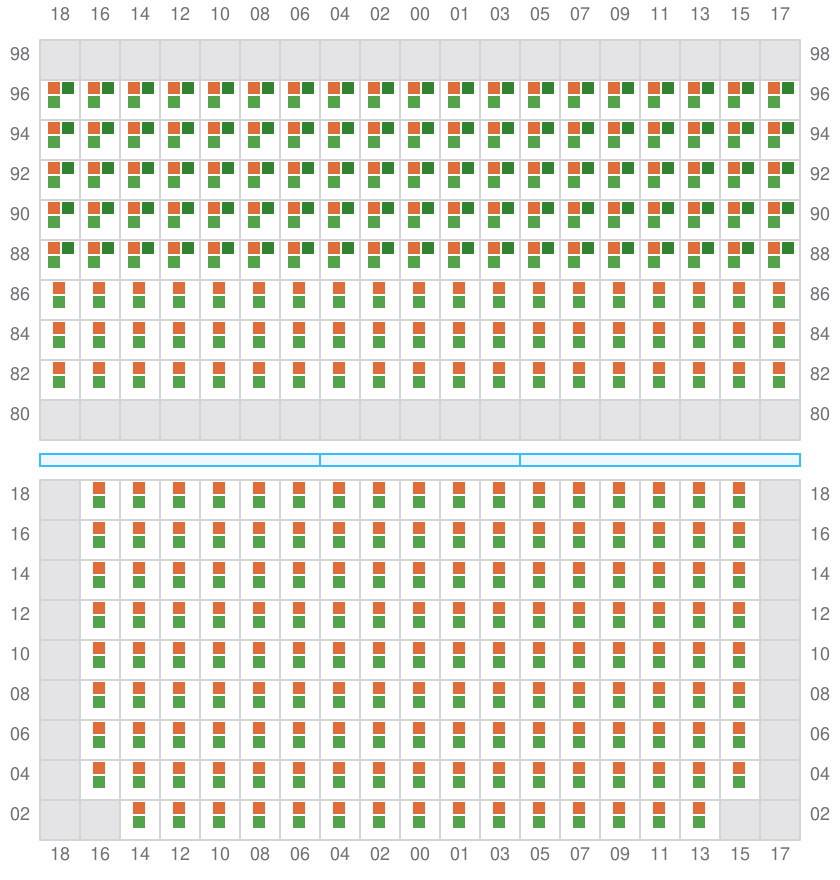

041 (042)
- →
![Bay 041 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b041.png?v=1719430955761)

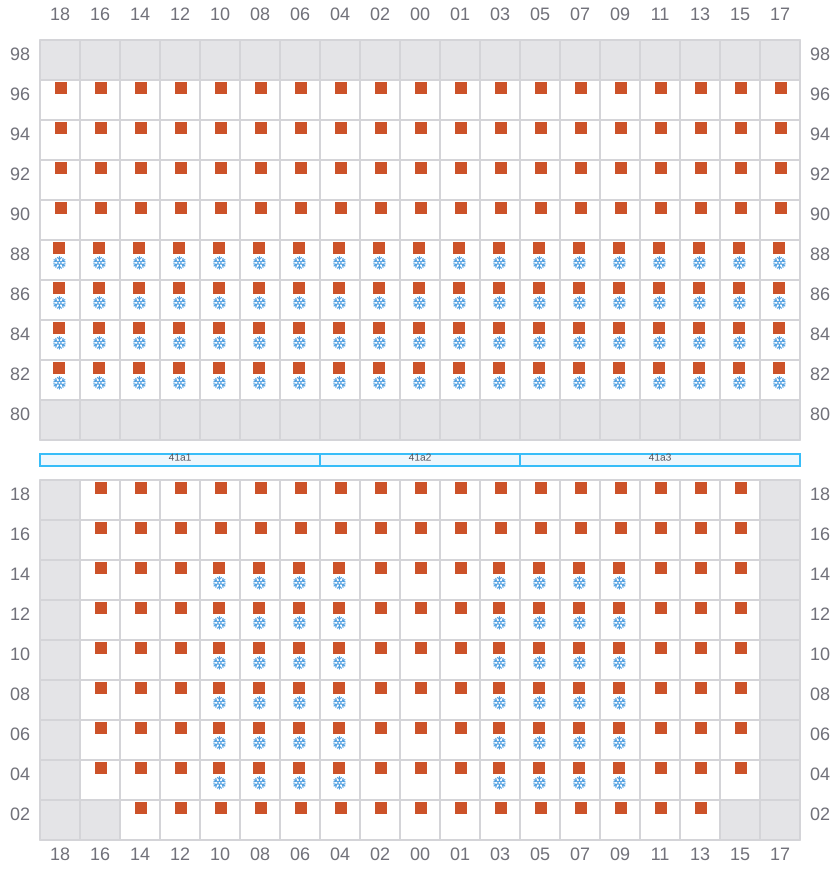

043
- ←
- →
![Bay 043 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b043.png?v=1719430955761)

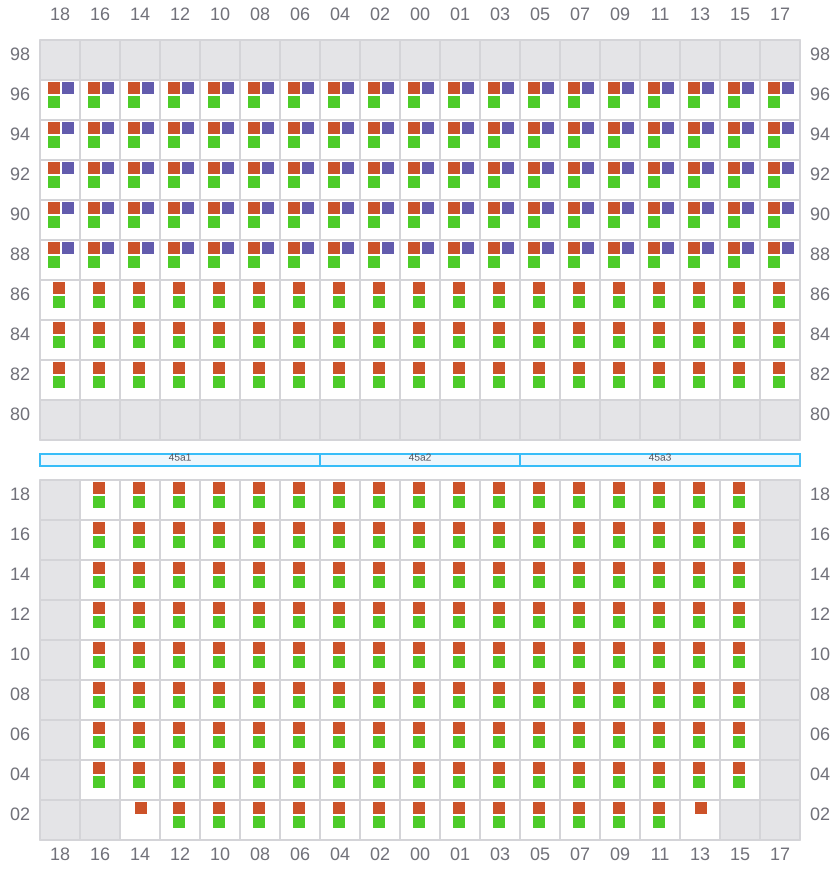

045 (046)
- →
![Bay 045 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b045.png?v=1719430955761)

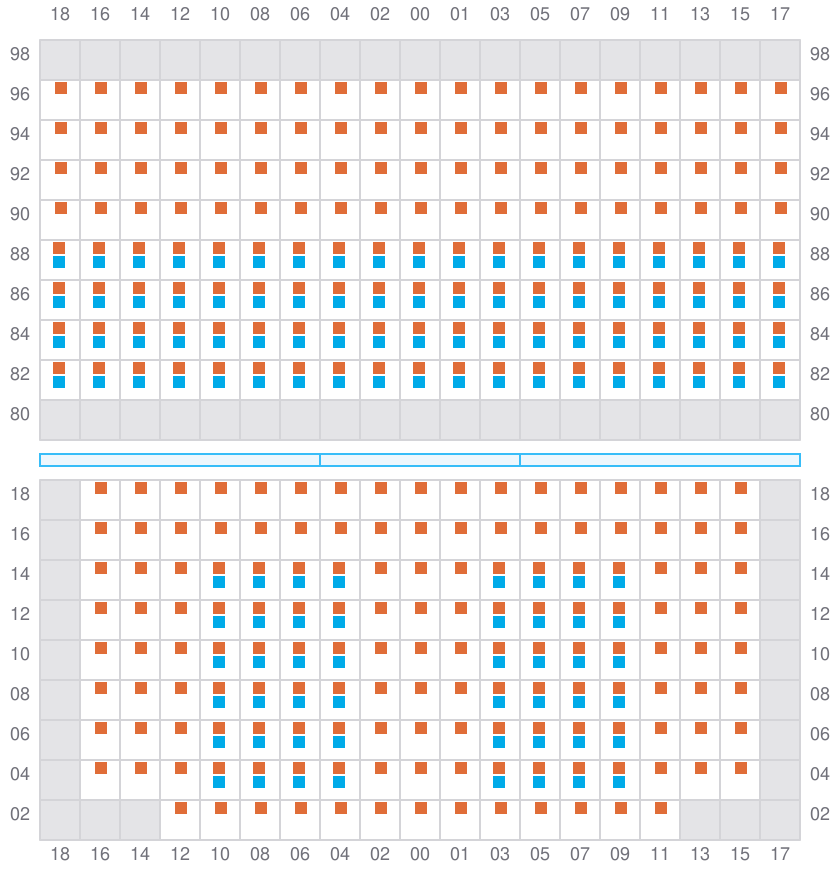

047
- ←
- →
![Bay 047 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b047.png?v=1719430955761)

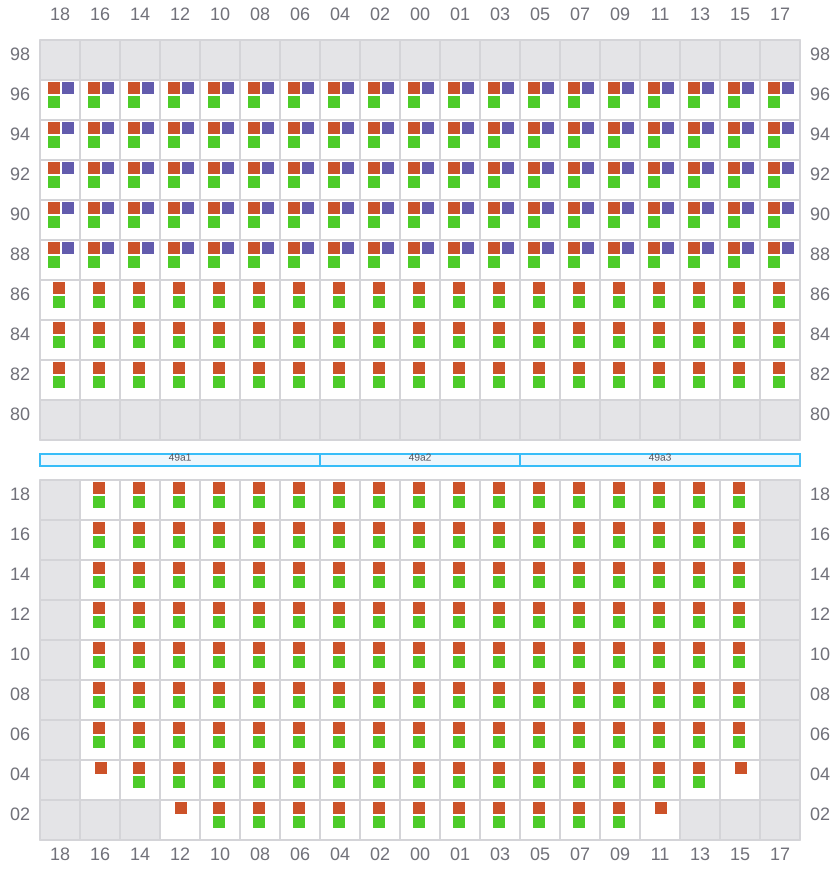

049 (050)
- →
![Bay 049 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b049.png?v=1719430955761)

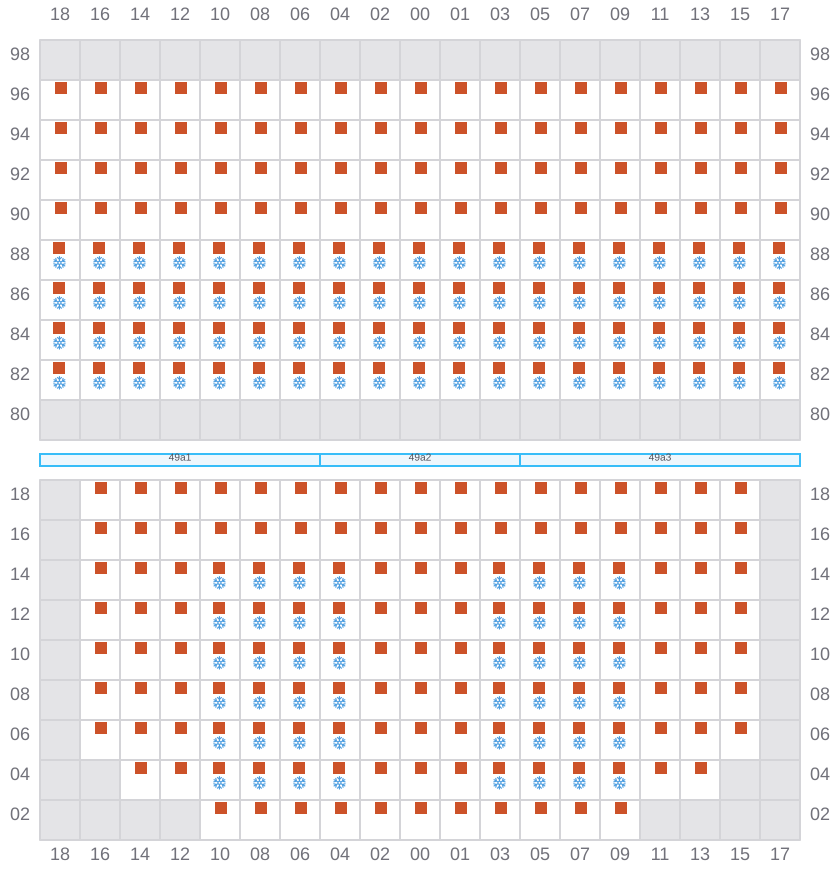

051
- ←
- →
![Bay 051 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b051.png?v=1719430955761)

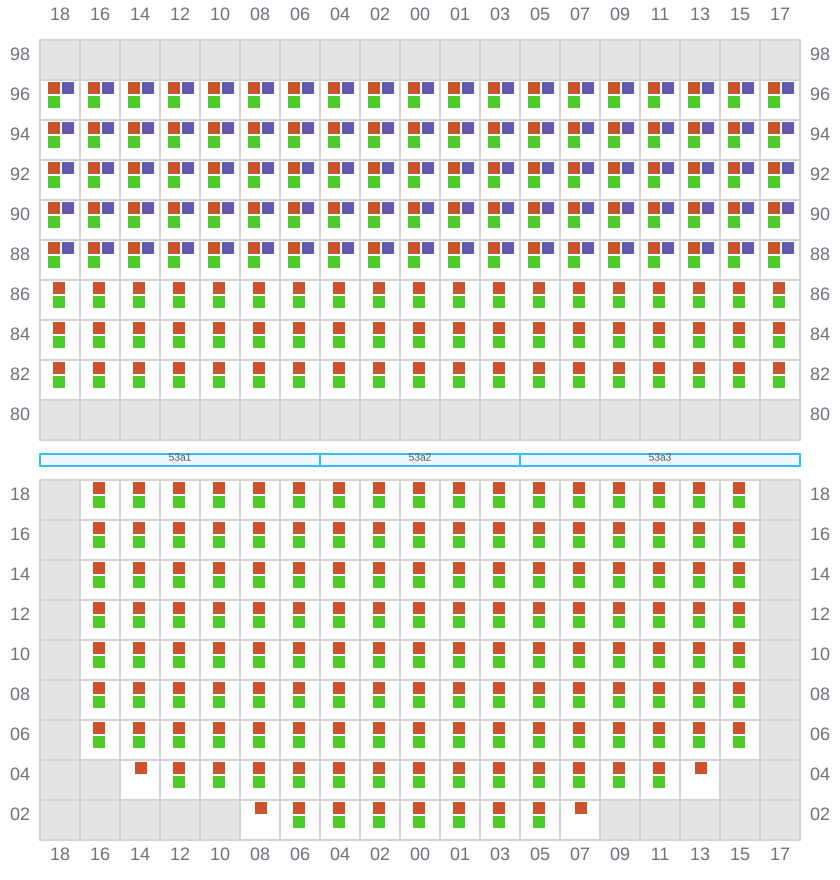

053 (054)
- →
![Bay 053 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b053.png?v=1719430955761)

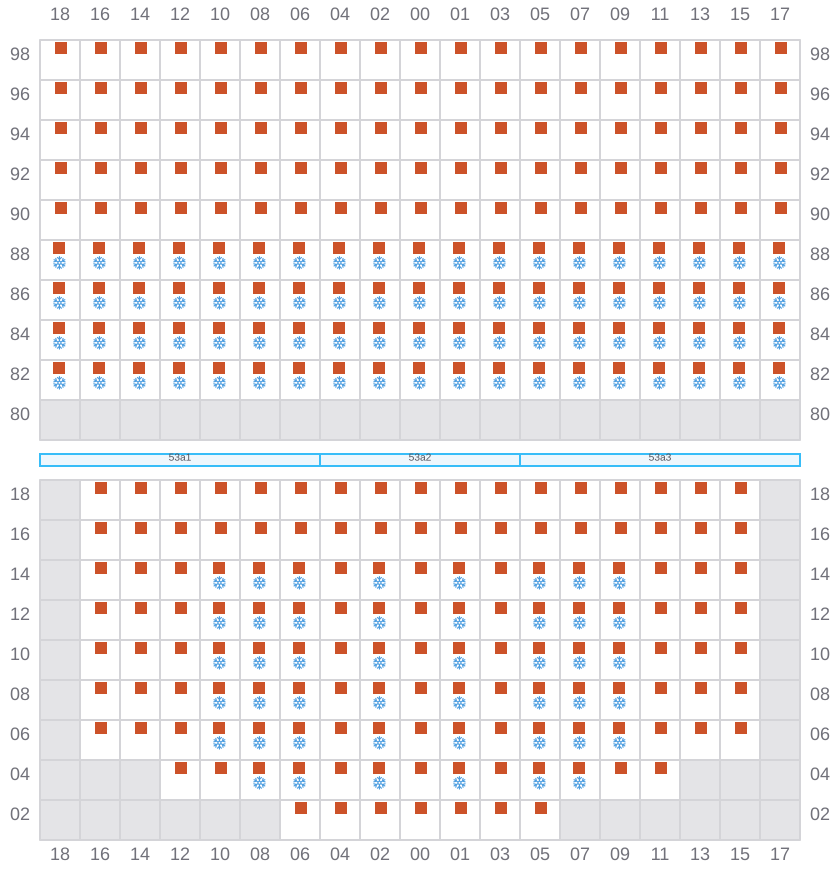

055
- ←
- →
![Bay 055 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b055.png?v=1719430955761)

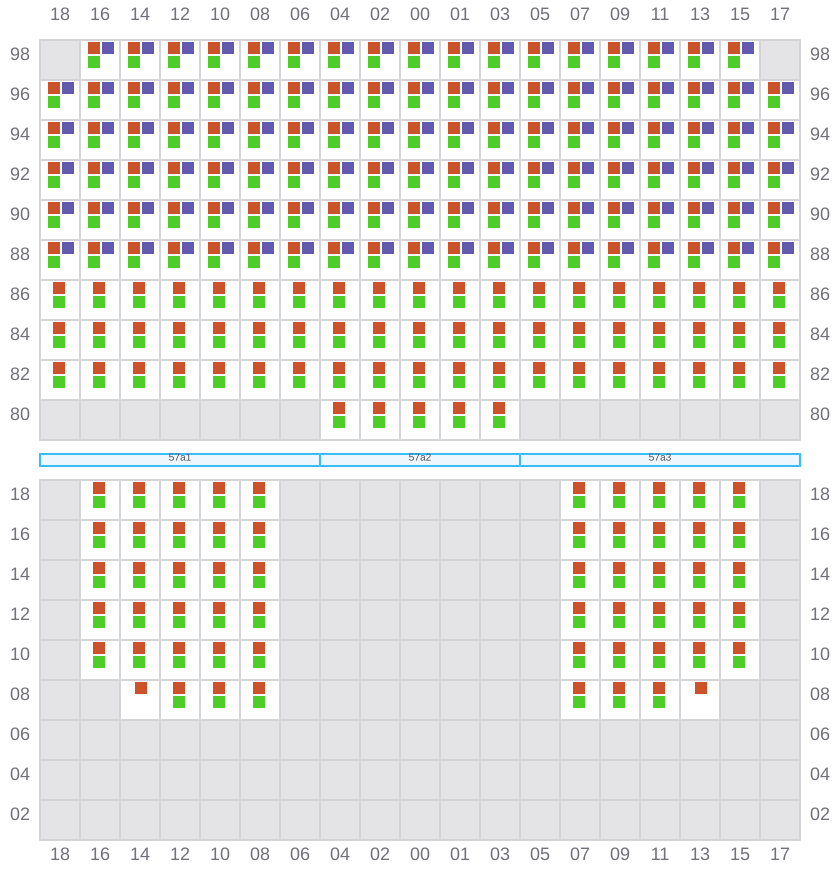

057 (058)
- →
![Bay 057 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b057.png?v=1719430955761)

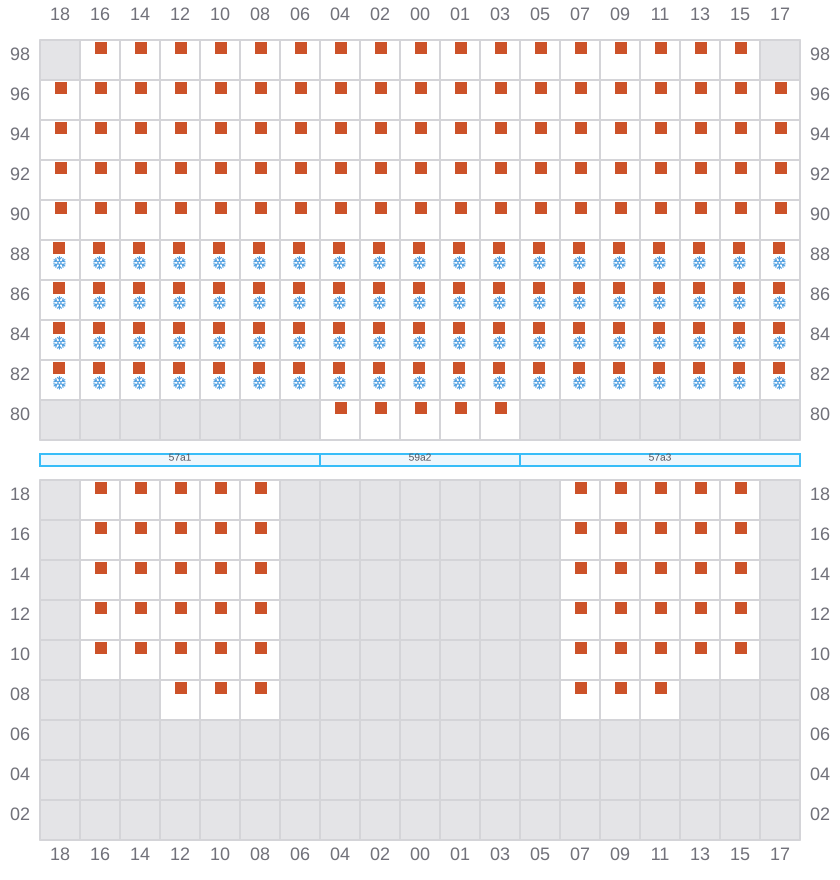

059
- ←
- → / ?
![Bay 059 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b059.png?v=1719430955761)

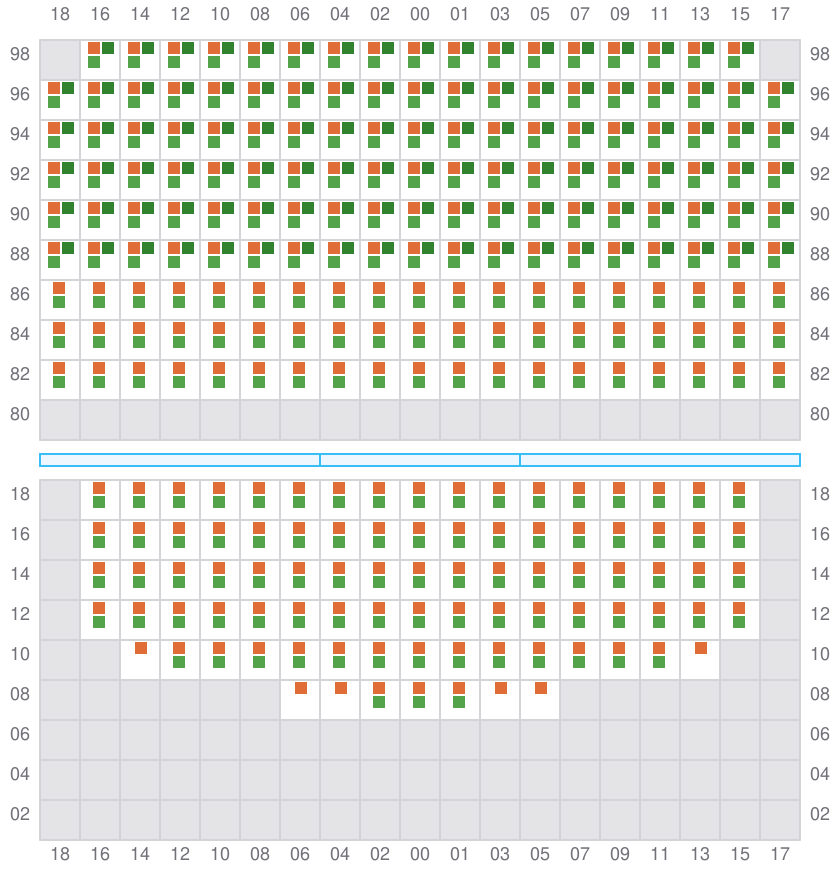

061 (062)
- →
![Bay 061 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b061.png?v=1719430955761)

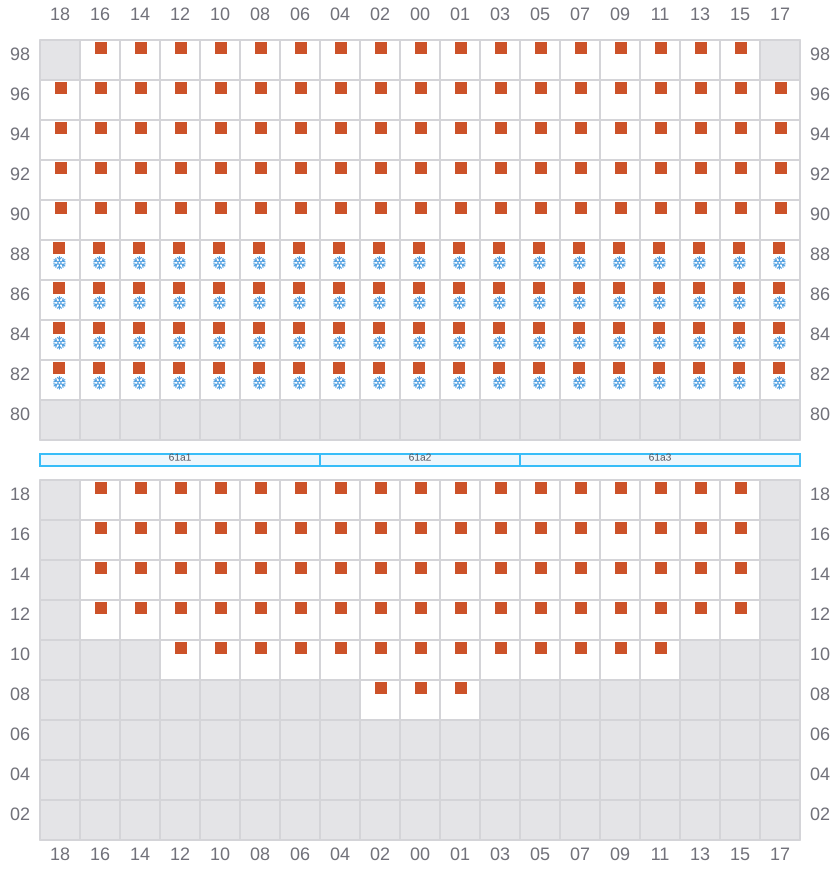

063
- ←
- → / ?
![Bay 063 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b063.png?v=1719430955761)

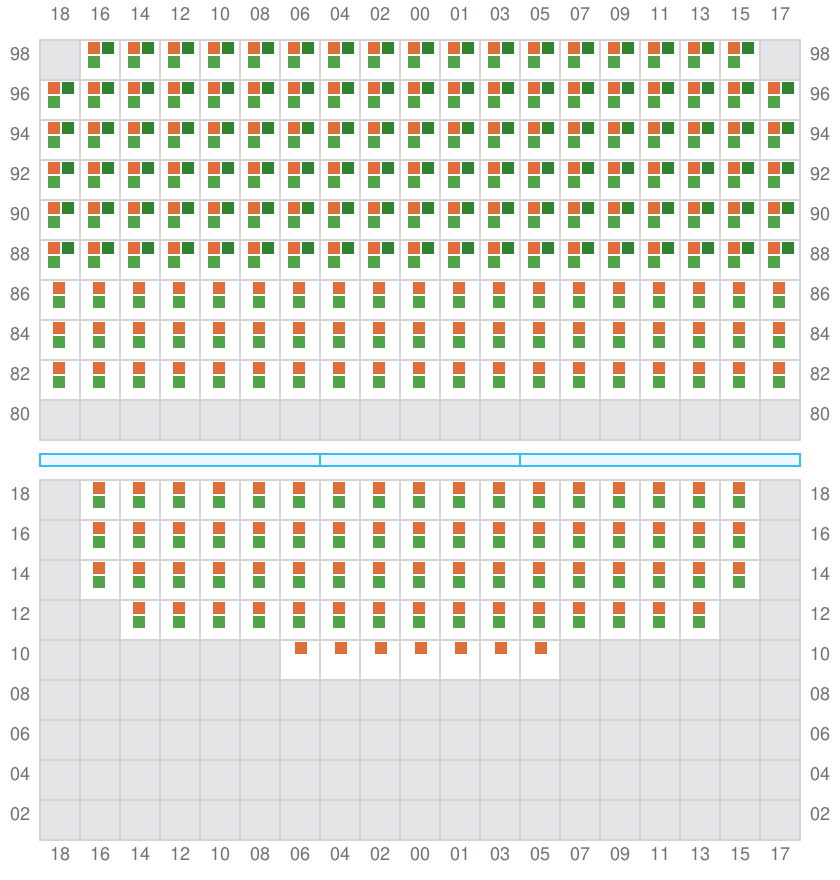

065 (066)
- →
![Bay 065 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b065.png?v=1719430955761)

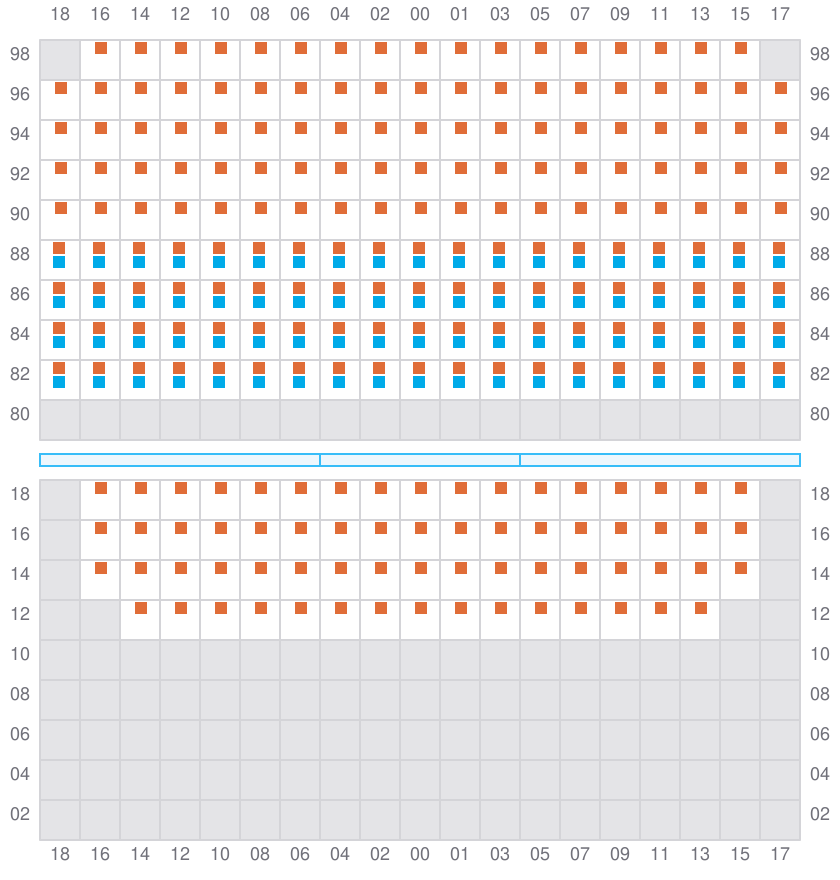

067
- ←
- → / ?
![Bay 067 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b067.png?v=1719430955761)

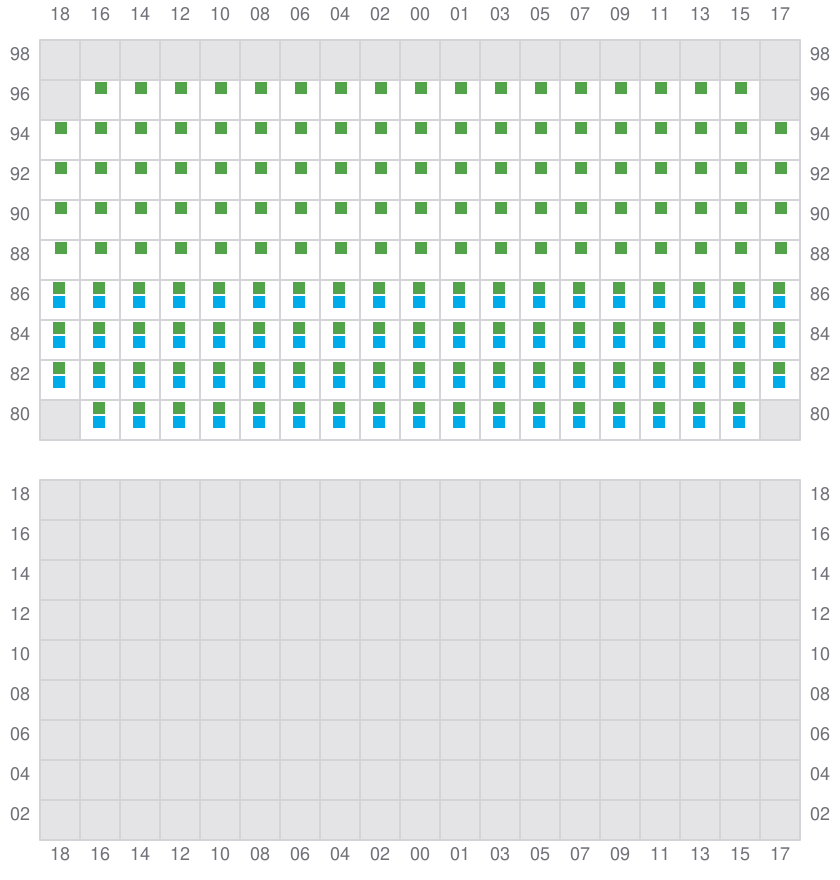

069 (070)
- → / ?
- ← / ?
![Bay 069 view and slots of MSC ATHOS](/vessel-images/b510148a-b34b-43a5-b63b-a6eec1d27d48-b069.png?v=1719430955761)
