MSC ATLANTIC III
8913447 | HPMQ | MSC by ************************** Last update: Sun Jun 18 2023

General Info

Ship Name:MSC ATLANTIC III
IMO Code:8913447
Call Sign:HPMQ
Line Operator:MSC
Class Name for Sister Ships:MAT
Year Built:1991
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,017

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

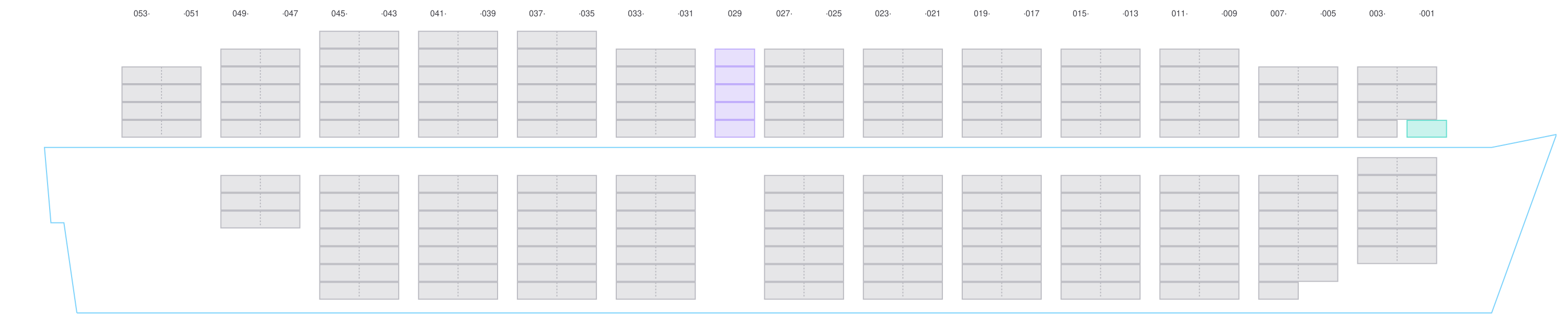

Side View

Side view of MSC ATLANTIC III

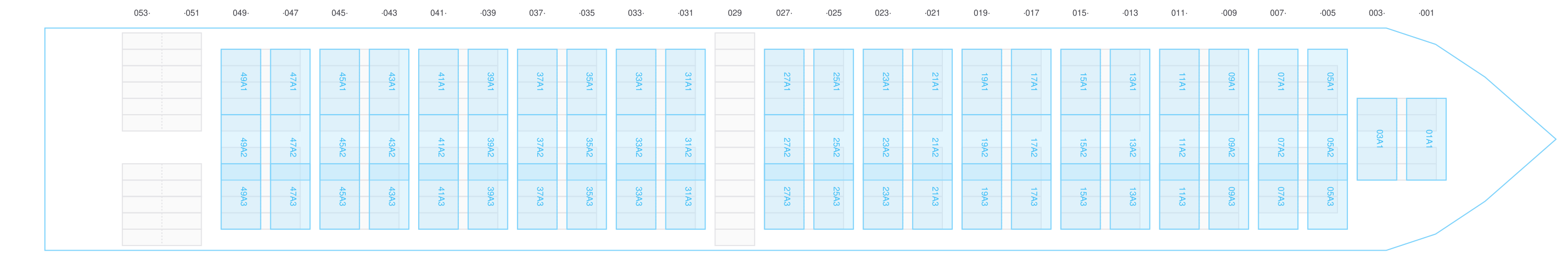

Hatch-Covers View

Deck view of MSC ATLANTIC III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

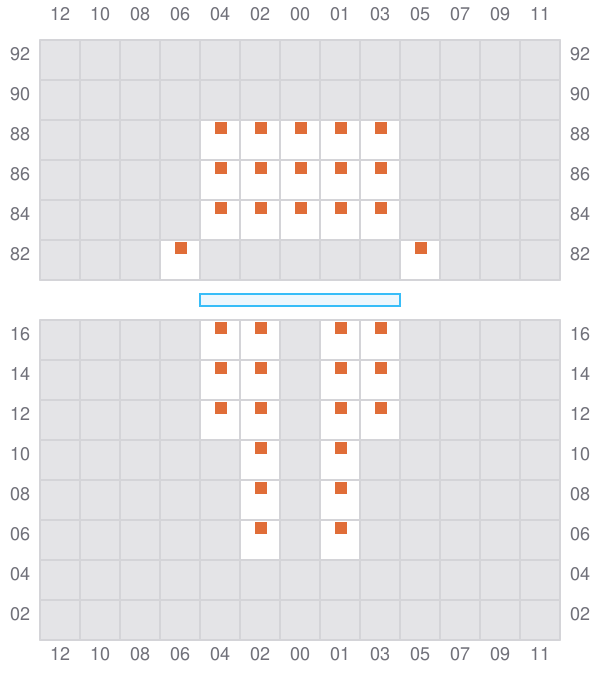

Bay 001 view and slots of MSC ATLANTIC III

003 (002)

  • ←

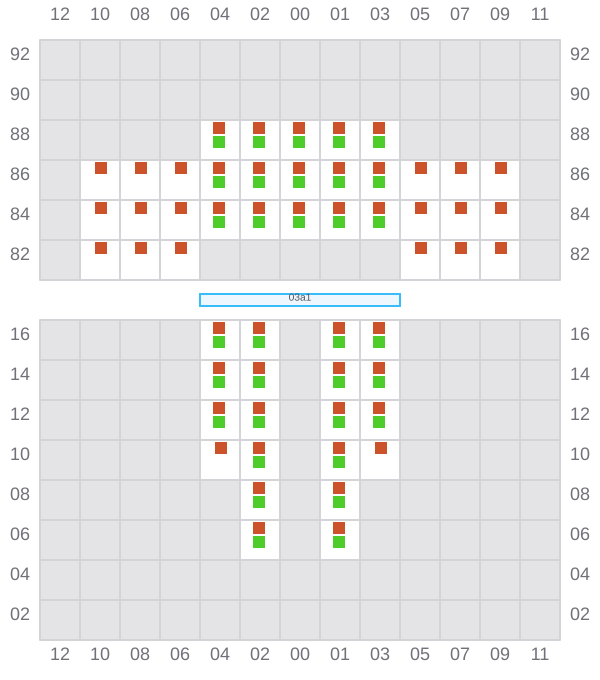

Bay 003 view and slots of MSC ATLANTIC III

005

  • →

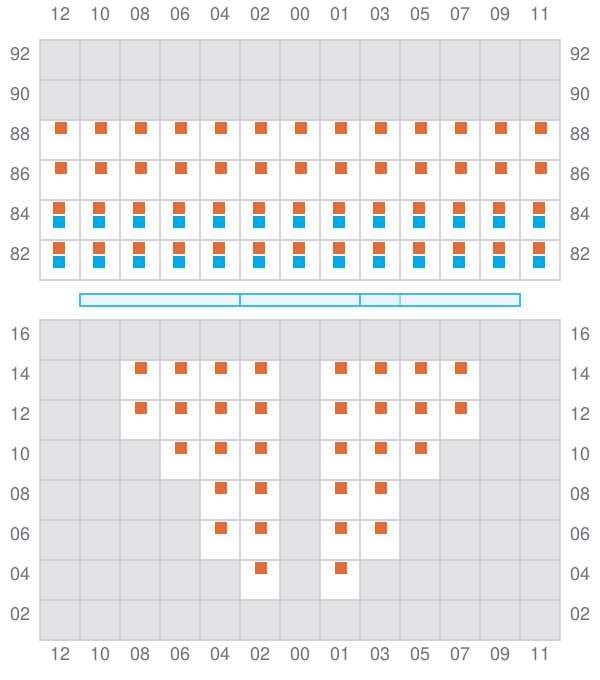

Bay 005 view and slots of MSC ATLANTIC III

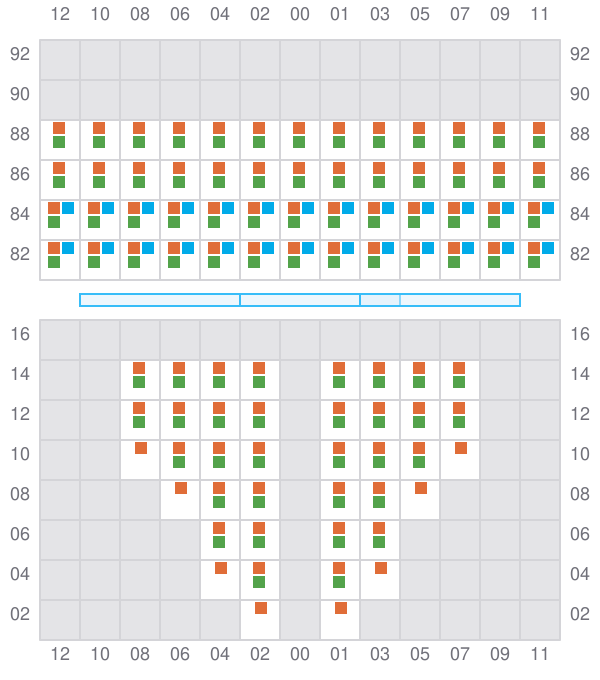

007 (006)

  • ←
Bay 007 view and slots of MSC ATLANTIC III

009

  • →
Bay 009 view and slots of MSC ATLANTIC III

011 (010)

  • ←

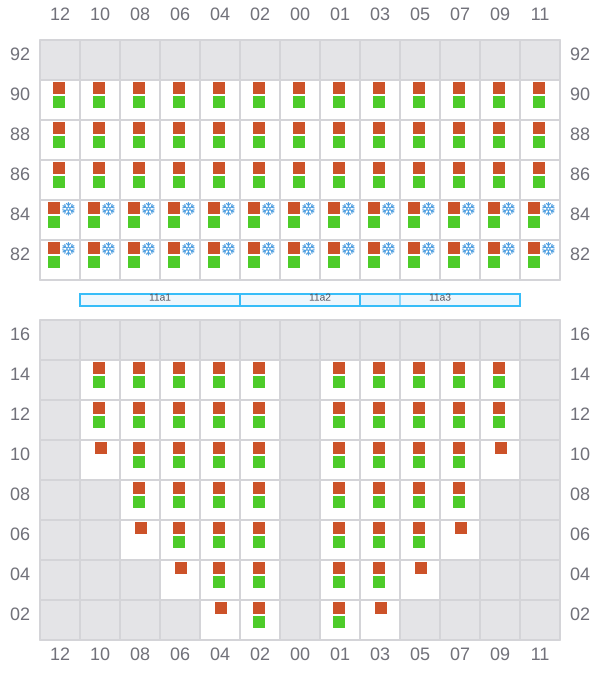

Bay 011 view and slots of MSC ATLANTIC III

013

  • →
Bay 013 view and slots of MSC ATLANTIC III

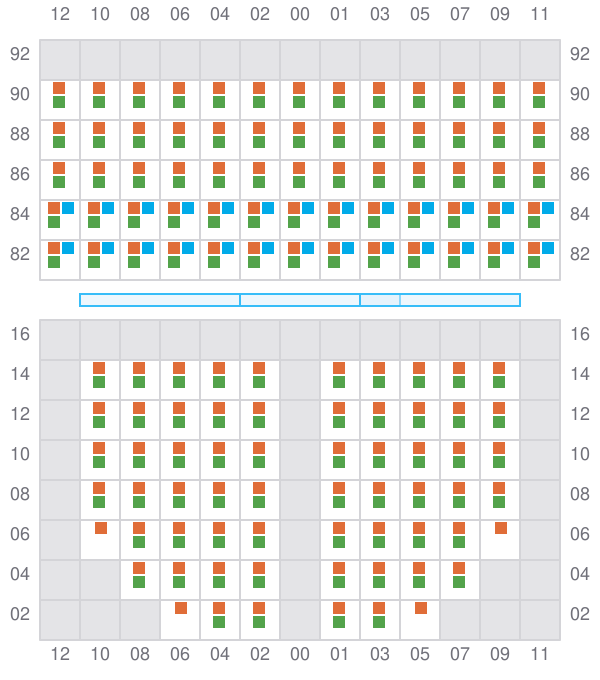

015 (014)

  • ←
Bay 015 view and slots of MSC ATLANTIC III

017

  • →

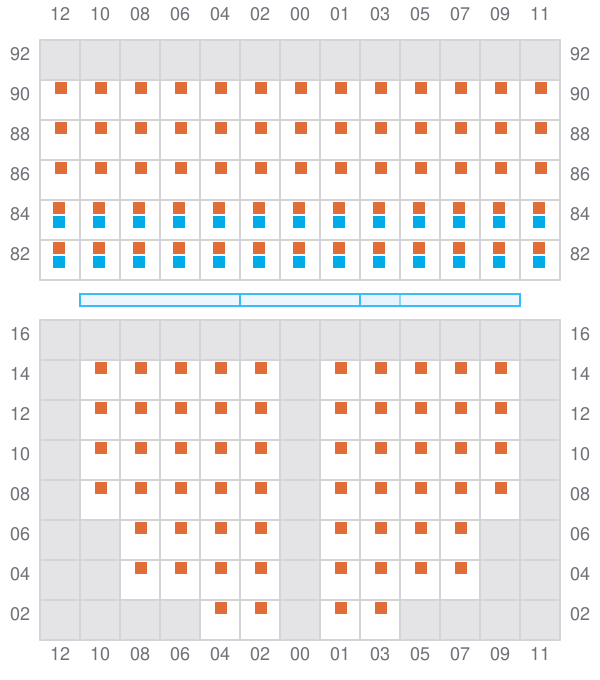

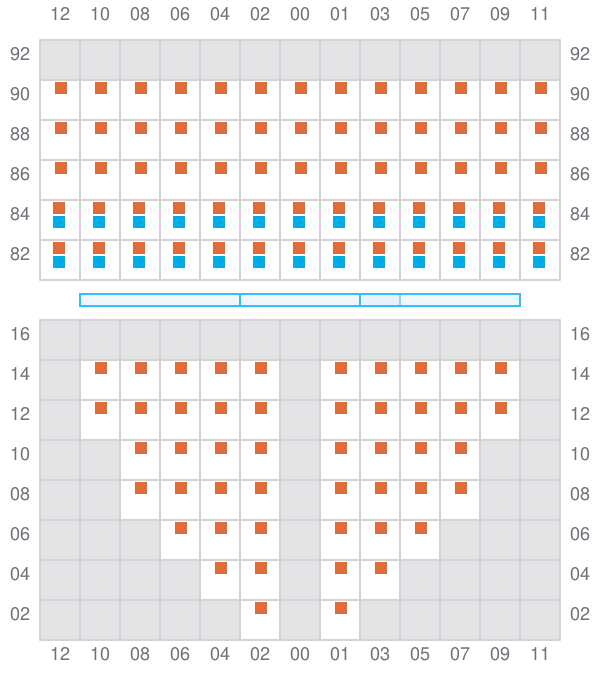

Bay 017 view and slots of MSC ATLANTIC III

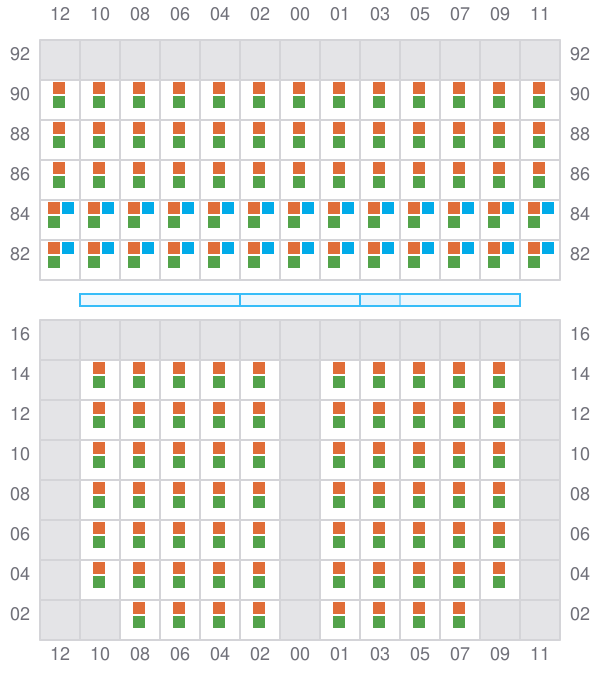

019 (018)

  • ←
Bay 019 view and slots of MSC ATLANTIC III

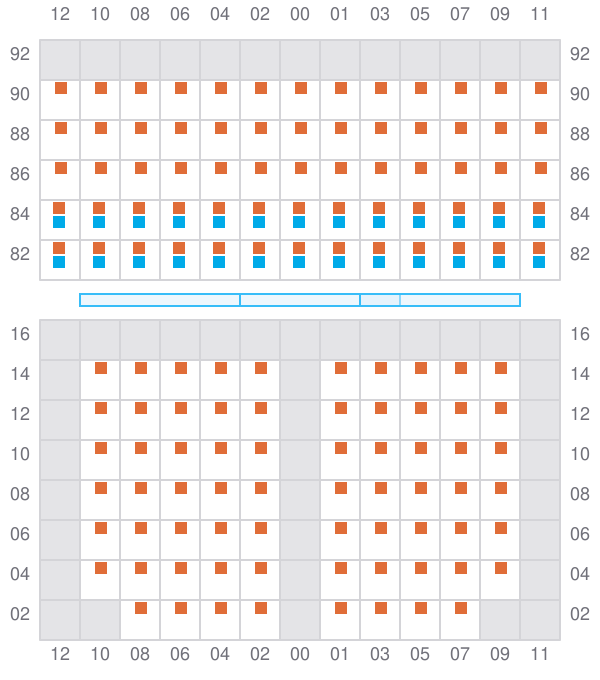

021

  • →
Bay 021 view and slots of MSC ATLANTIC III

023 (022)

  • ←

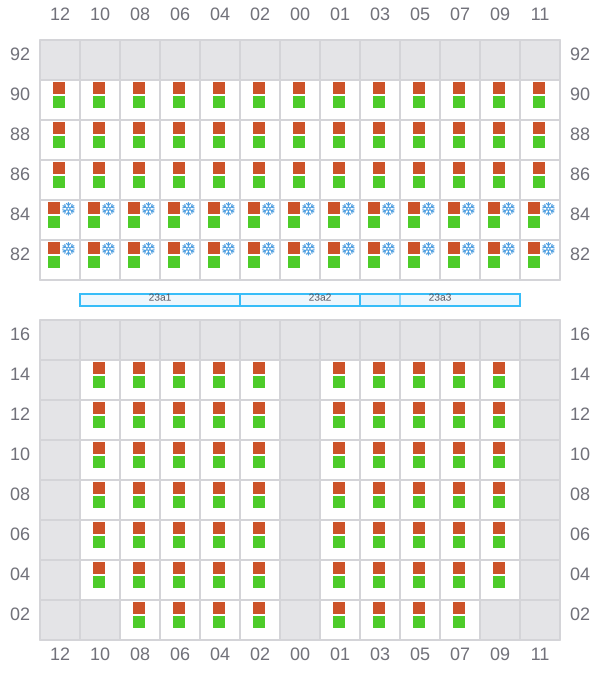

Bay 023 view and slots of MSC ATLANTIC III

025

  • →
Bay 025 view and slots of MSC ATLANTIC III

027 (026)

  • ←
Bay 027 view and slots of MSC ATLANTIC III

029

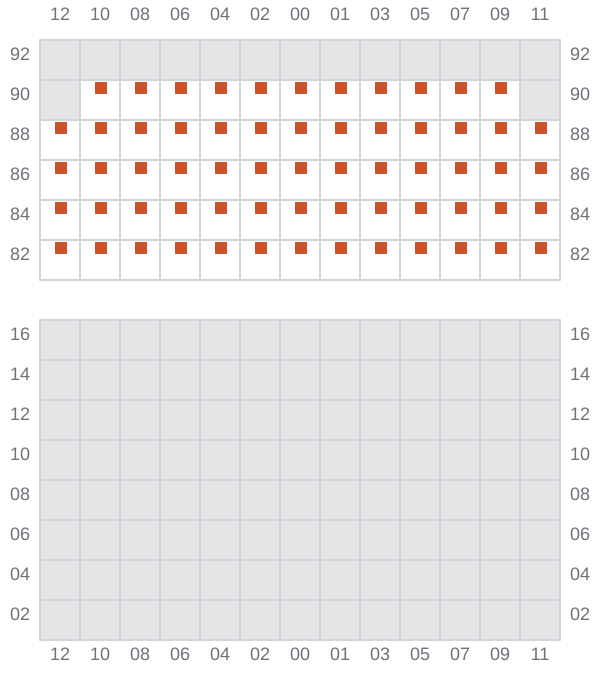

Bay 029 view and slots of MSC ATLANTIC III

031

  • →
Bay 031 view and slots of MSC ATLANTIC III

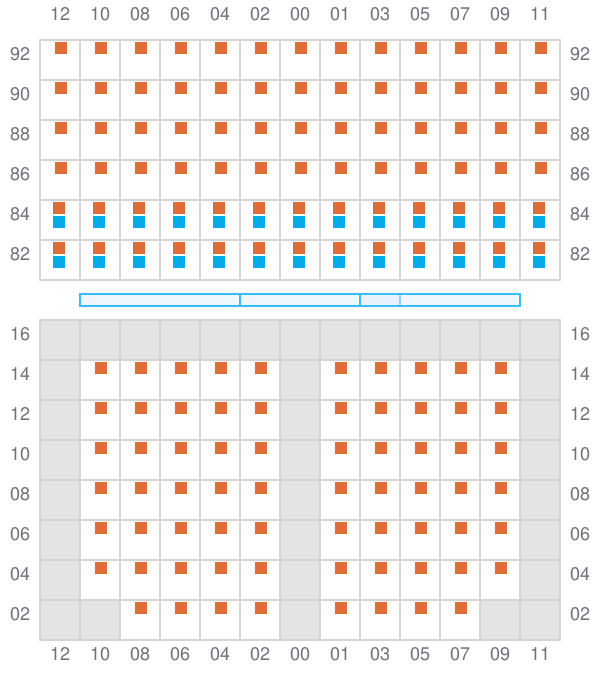

033 (032)

  • ←
Bay 033 view and slots of MSC ATLANTIC III

035

  • →
Bay 035 view and slots of MSC ATLANTIC III

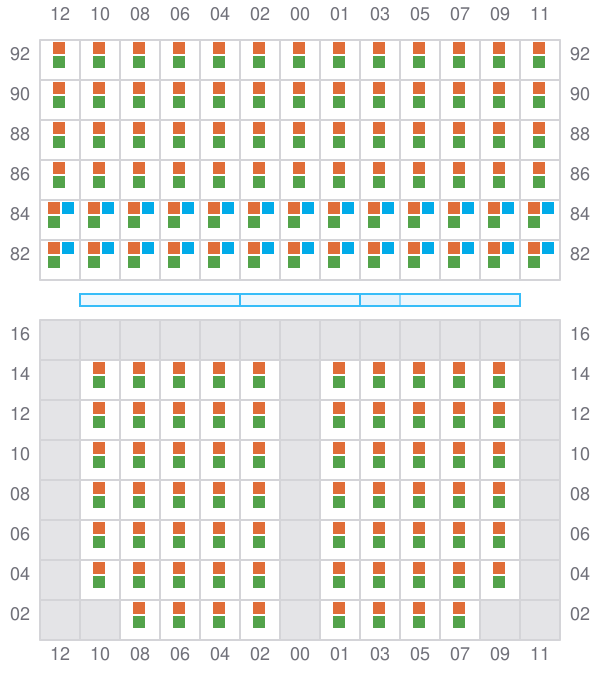

037 (036)

  • ←
Bay 037 view and slots of MSC ATLANTIC III

039

  • →
Bay 039 view and slots of MSC ATLANTIC III

041 (040)

  • ←
Bay 041 view and slots of MSC ATLANTIC III

043

  • →

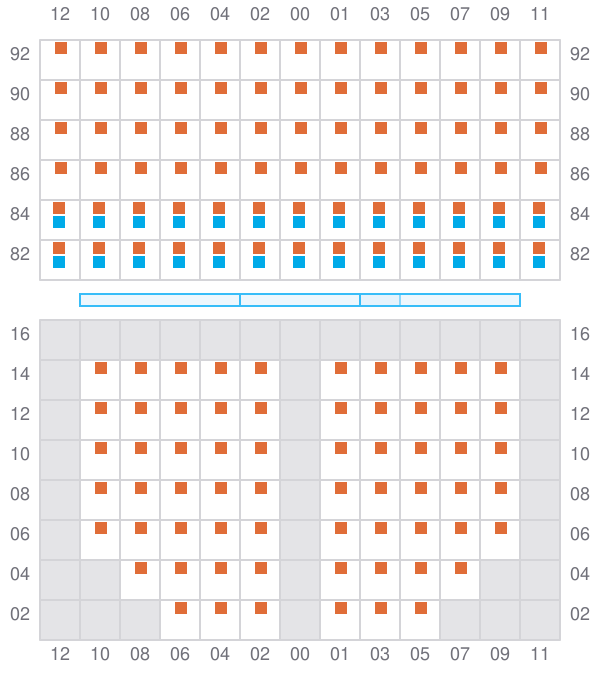

Bay 043 view and slots of MSC ATLANTIC III

045 (044)

  • ←

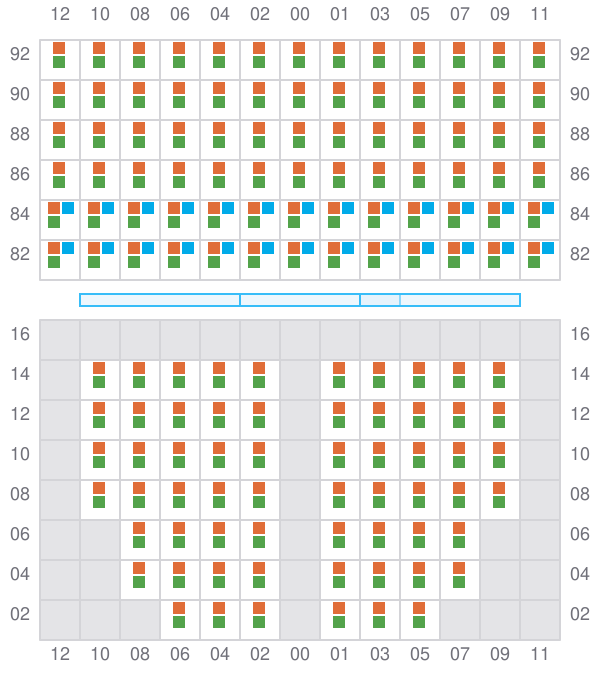

Bay 045 view and slots of MSC ATLANTIC III

047

  • →

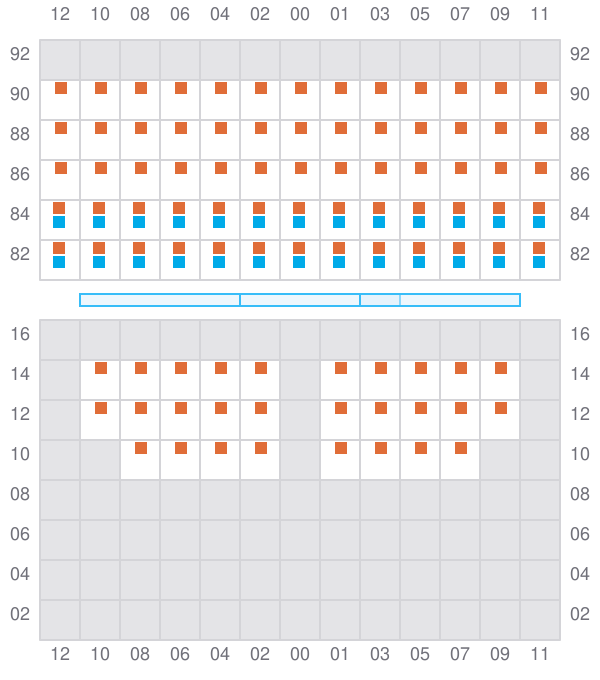

Bay 047 view and slots of MSC ATLANTIC III

049 (048)

  • ←

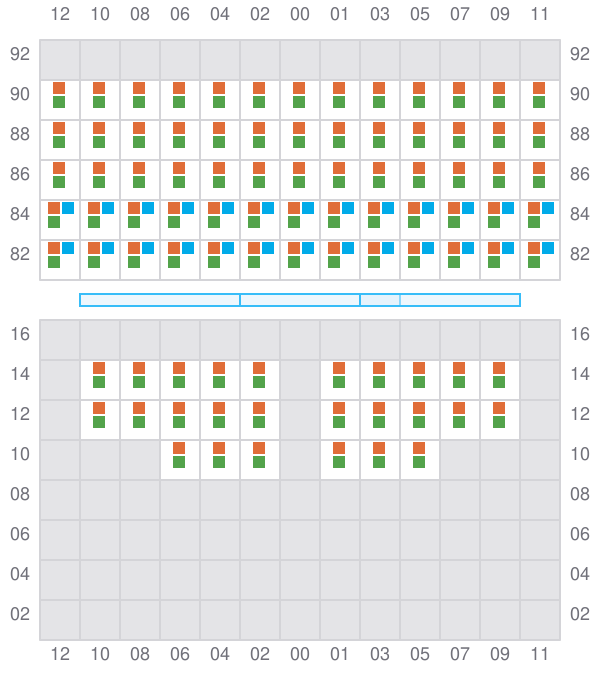

Bay 049 view and slots of MSC ATLANTIC III

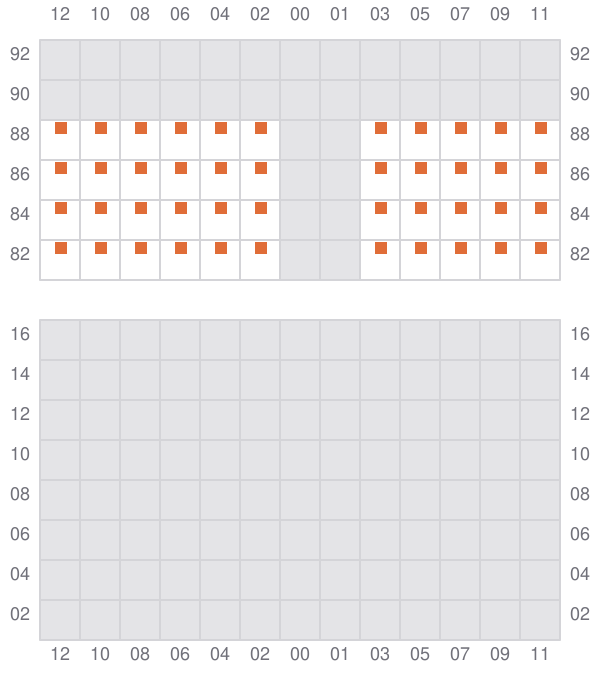

051

  • → / ?
Bay 051 view and slots of MSC ATLANTIC III

053 (052)

  • ← / ?

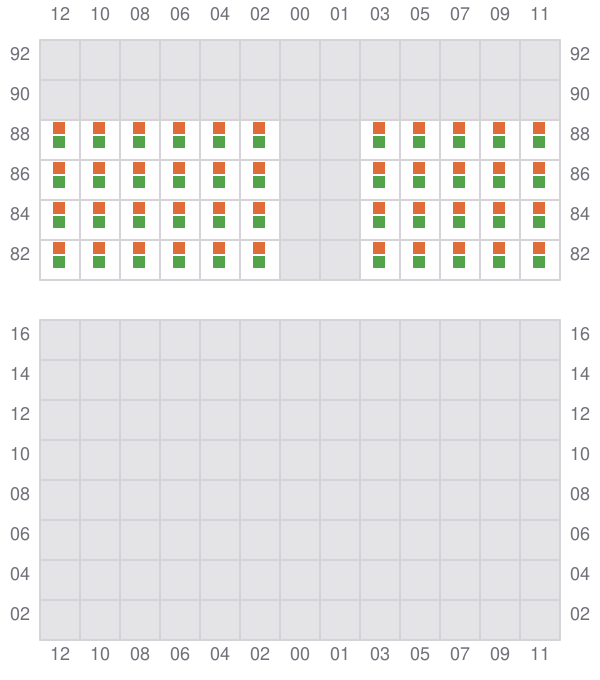

Bay 053 view and slots of MSC ATLANTIC III
