MSC BANU III
9263332 | 3ELK7 | MSC by ************************** Last update: Mon Jun 19 2023
General Info
Ship Name:MSC BANU III
IMO Code:9263332
Call Sign:3ELK7
Line Operator:MSC
Class Name for Sister Ships:QUE
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:055
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,540
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

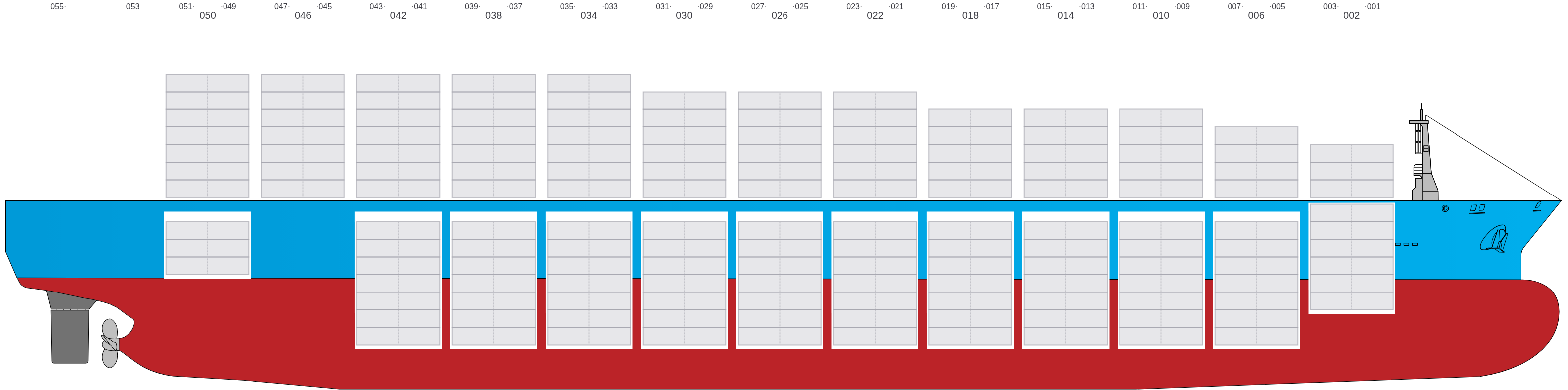

Side View
![Side view of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-sideView.png?v=1687195763100)
Hatch-Covers View
![Deck view of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-deckView.png?v=1687195763100)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

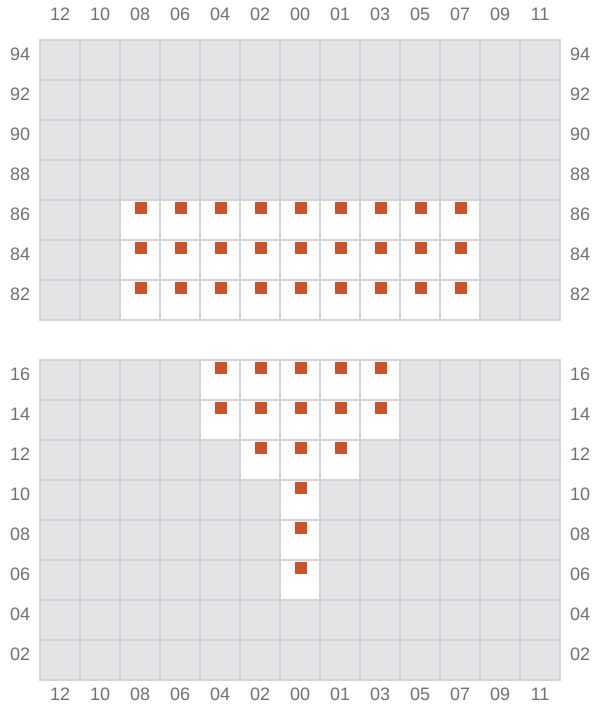

001
- →
![Bay 001 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b001.png?v=1687195763100)

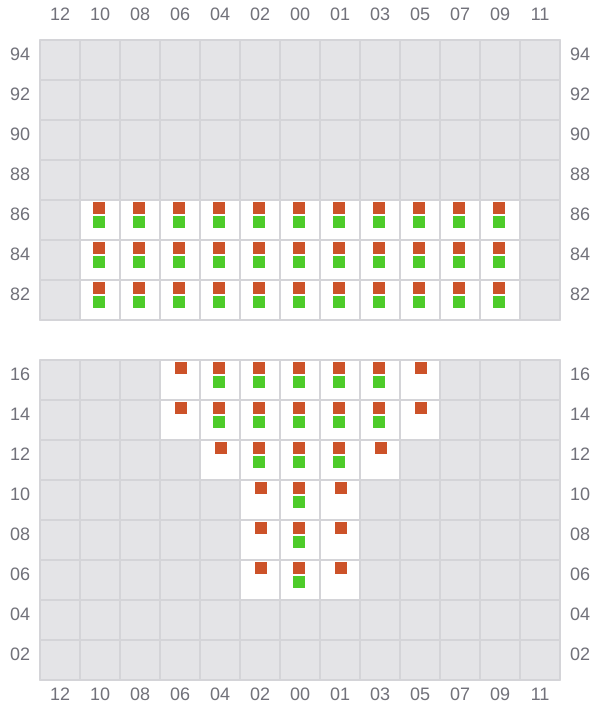

003 (002)
- ←
- → / ?
![Bay 003 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b003.png?v=1687195763100)

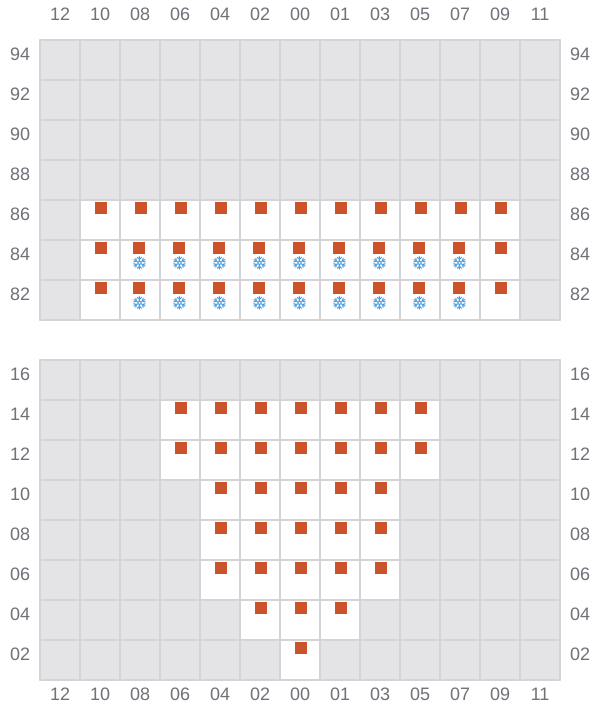

005
- →
- → / ?
- ← / ?
![Bay 005 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b005.png?v=1687195763100)

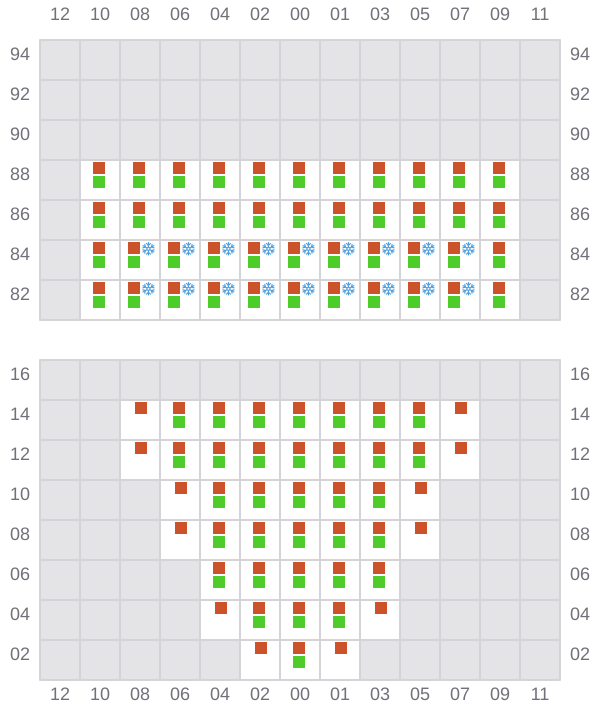

007 (006)
- ←
- → / ?
- → / ?
![Bay 007 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b007.png?v=1687195763100)

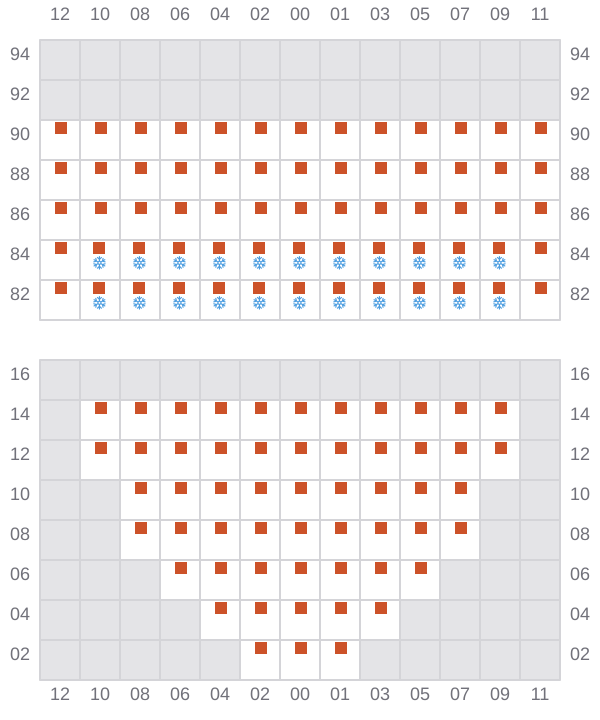

009
- →
![Bay 009 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b009.png?v=1687195763100)

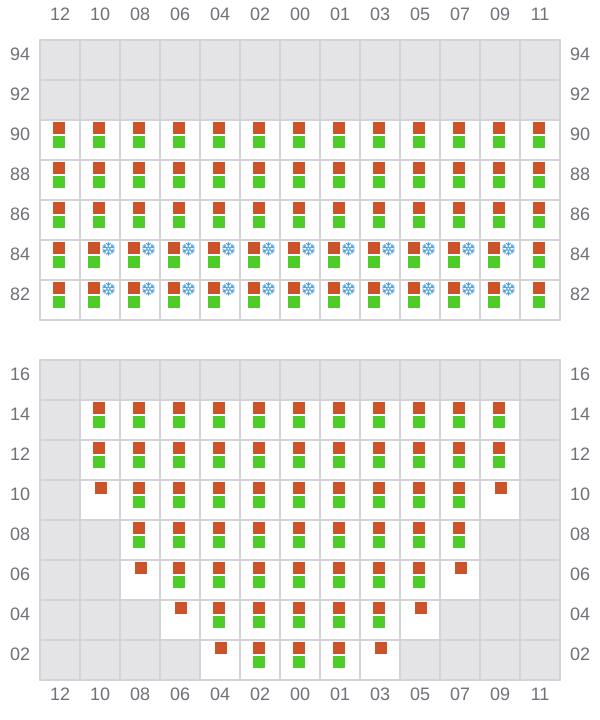

011 (010)
- ←
- → / ?
- → / ?
![Bay 011 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b011.png?v=1687195763100)

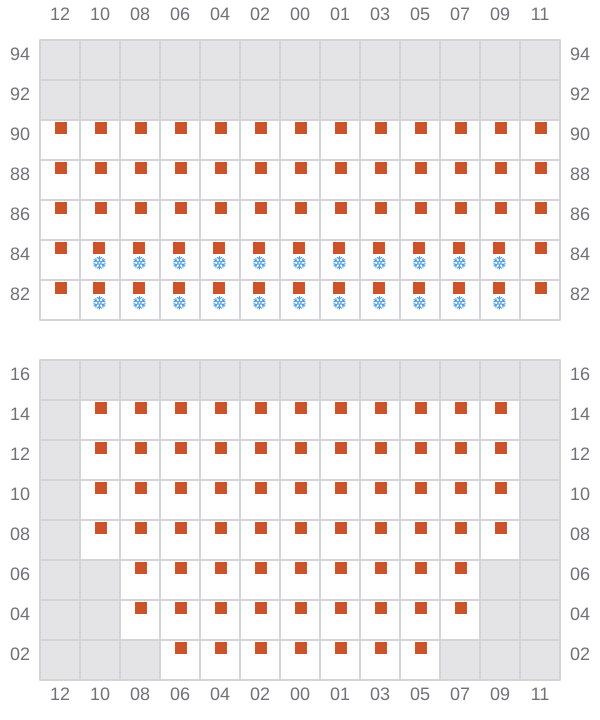

013
- →
![Bay 013 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b013.png?v=1687195763100)

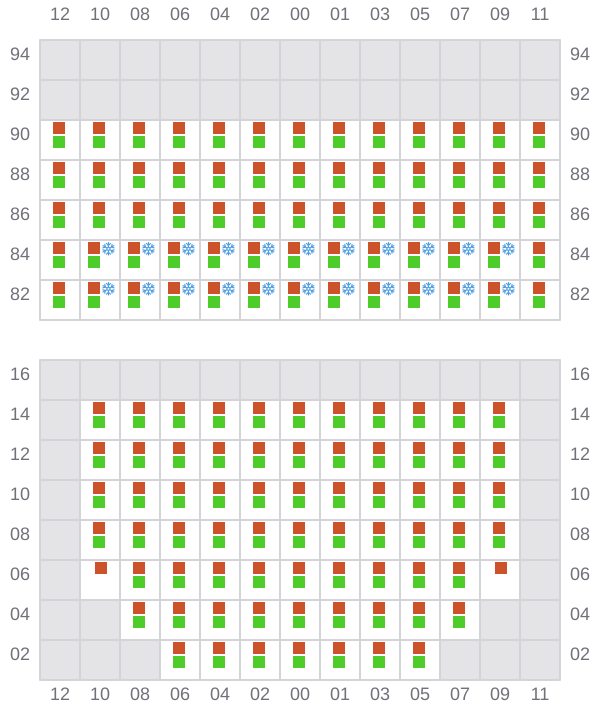

015 (014)
- ←
- → / ?
- → / ?
![Bay 015 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b015.png?v=1687195763100)

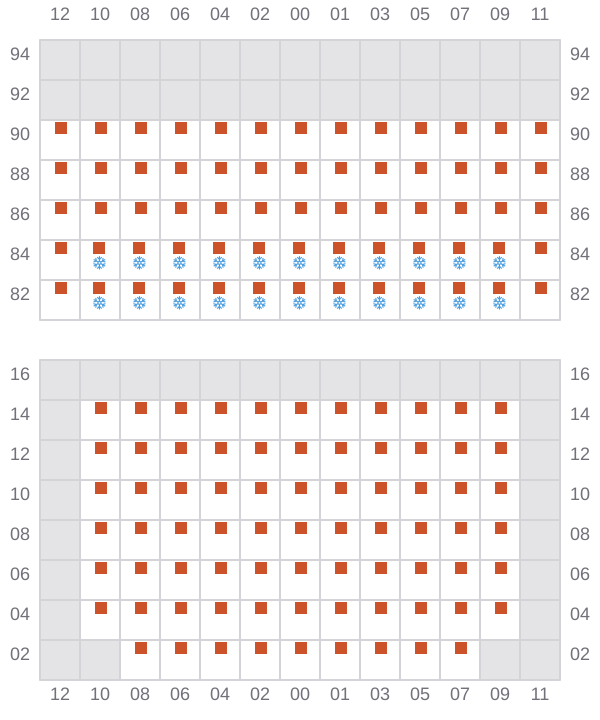

017
- →
![Bay 017 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b017.png?v=1687195763100)

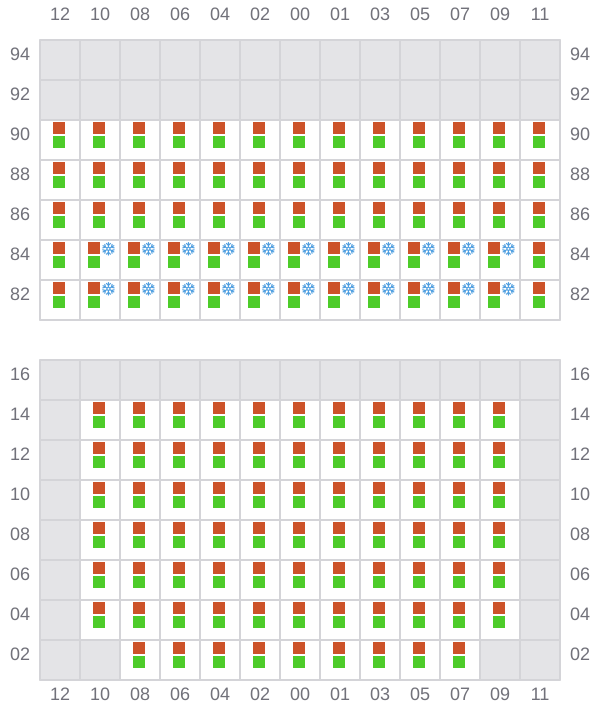

019 (018)
- ←
- → / ?
- → / ?
![Bay 019 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b019.png?v=1687195763100)
021
- →
![Bay 021 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b021.png?v=1687195763100)

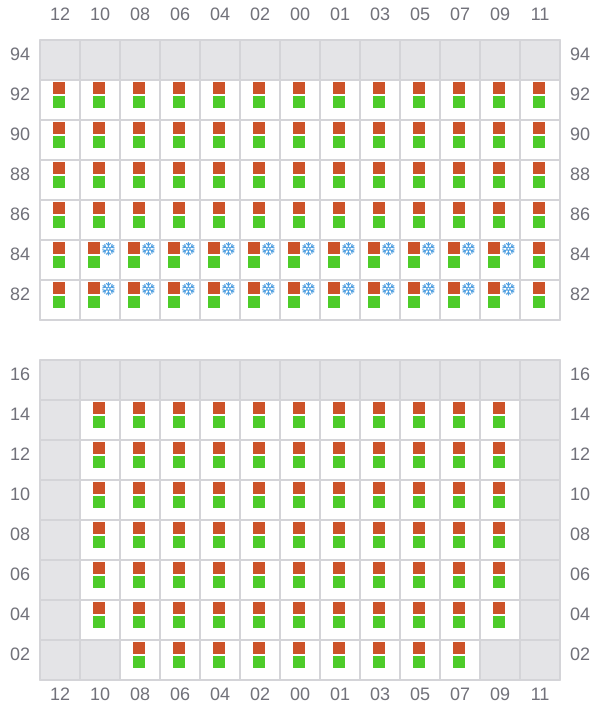

023 (022)
- ←
- → / ?
- → / ?
![Bay 023 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b023.png?v=1687195763100)

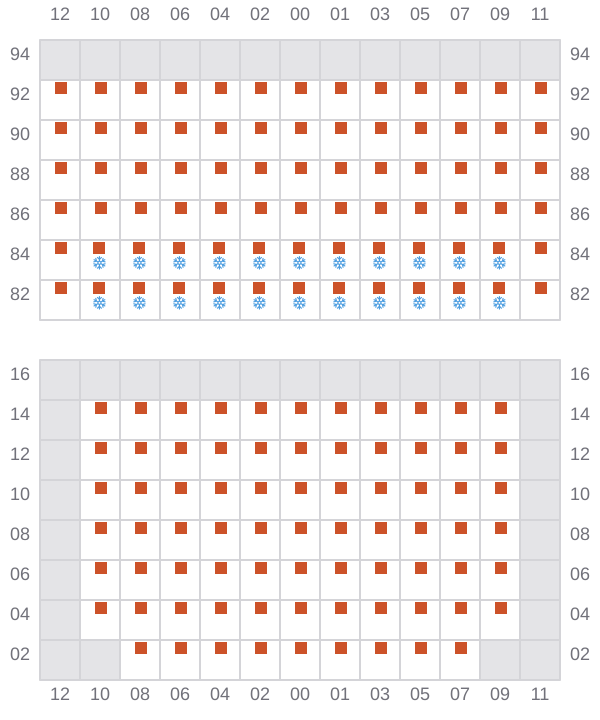

025
- →
![Bay 025 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b025.png?v=1687195763100)
027 (026)
- ←
- → / ?
- → / ?
![Bay 027 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b027.png?v=1687195763100)
029
- →
![Bay 029 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b029.png?v=1687195763100)
031 (030)
- ←
- → / ?
- → / ?
![Bay 031 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b031.png?v=1687195763100)

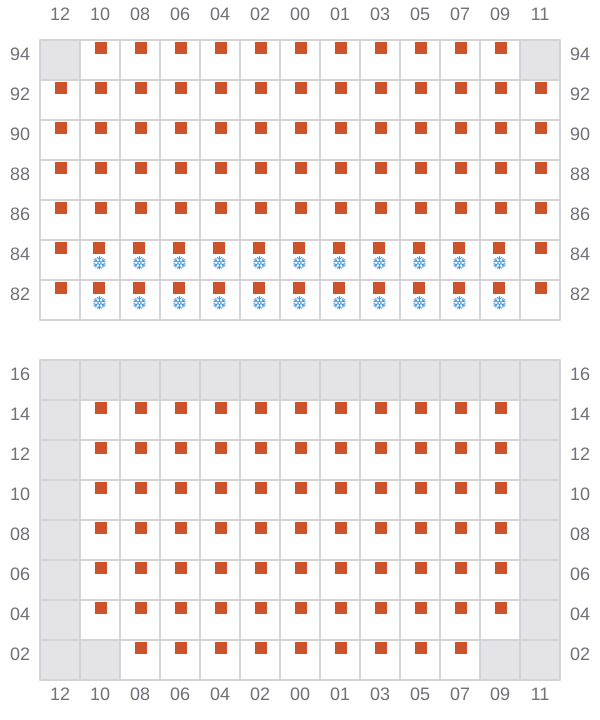

033
- →
![Bay 033 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b033.png?v=1687195763100)

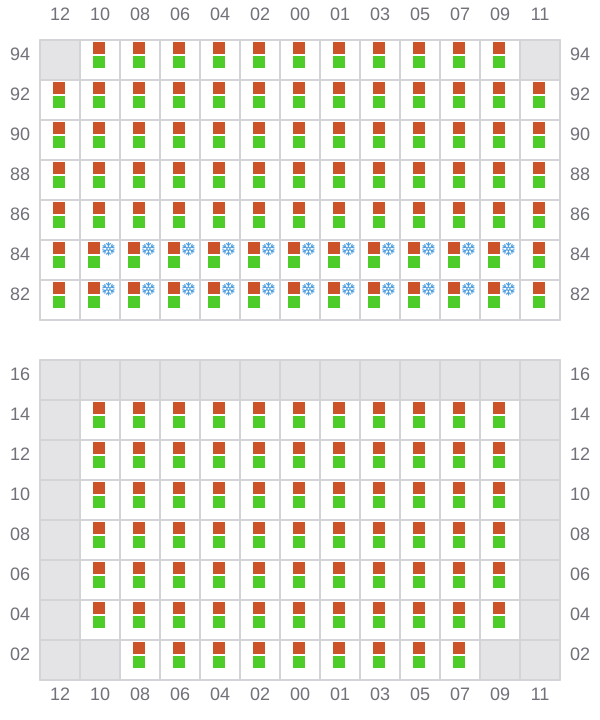

035 (034)
- ←
- → / ?
- → / ?
![Bay 035 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b035.png?v=1687195763100)

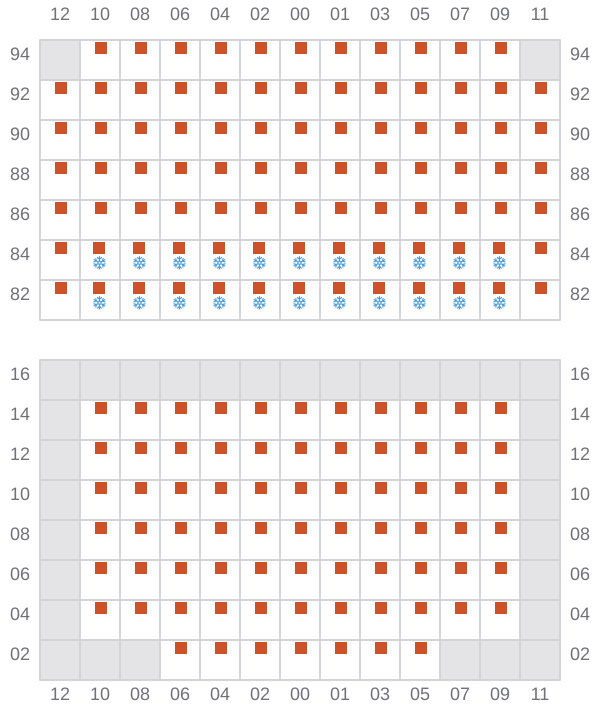

037
- →
![Bay 037 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b037.png?v=1687195763100)

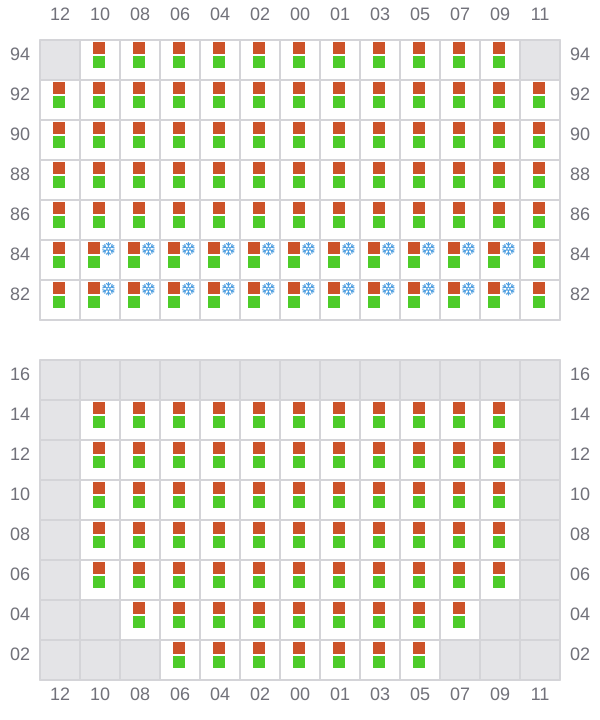

039 (038)
- ←
- → / ?
- → / ?
![Bay 039 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b039.png?v=1687195763100)
041
- →
![Bay 041 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b041.png?v=1687195763100)
043 (042)
- ←
- → / ?
- → / ?
![Bay 043 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b043.png?v=1687195763100)

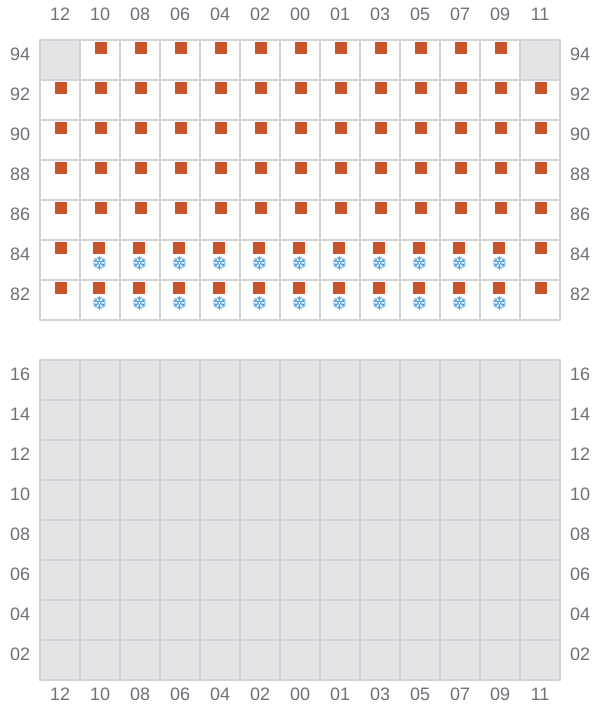

045
- → / ?
![Bay 045 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b045.png?v=1687195763100)

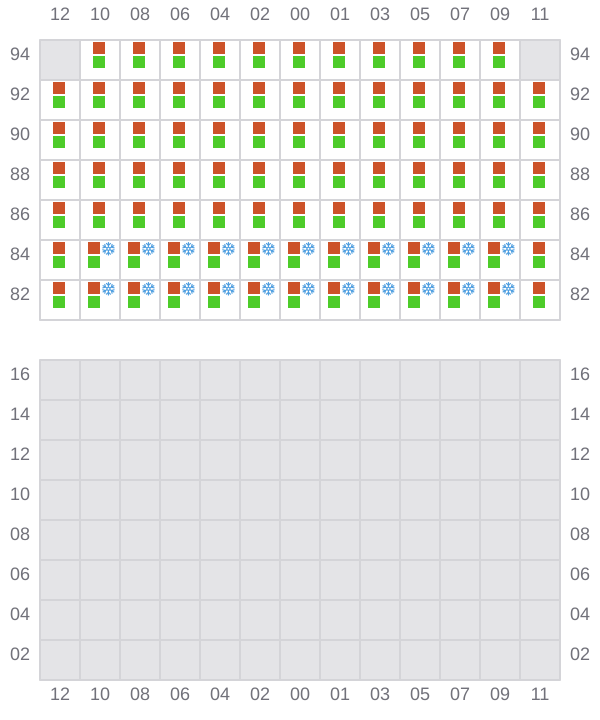

047 (046)
- ← / ?
- → / ?
- → / ?
![Bay 047 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b047.png?v=1687195763100)

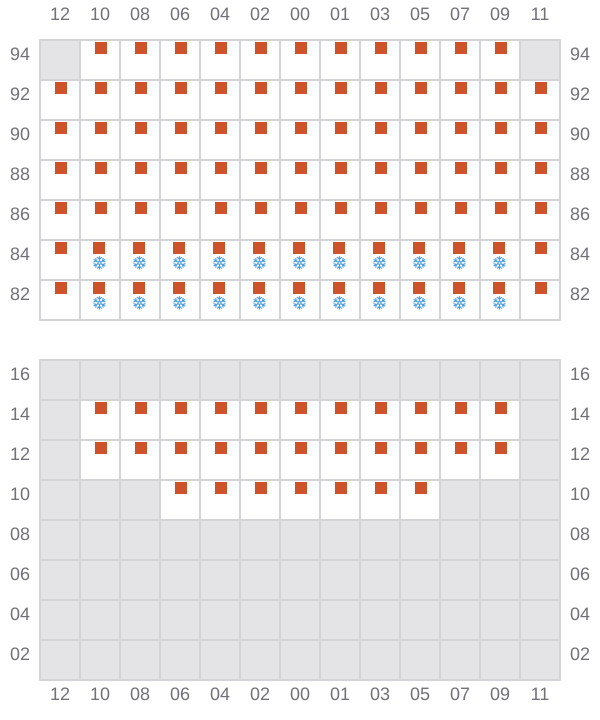

049
- →
![Bay 049 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b049.png?v=1687195763100)
051 (050)
- ←
- → / ?
- → / ?
![Bay 051 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b051.png?v=1687195763100)

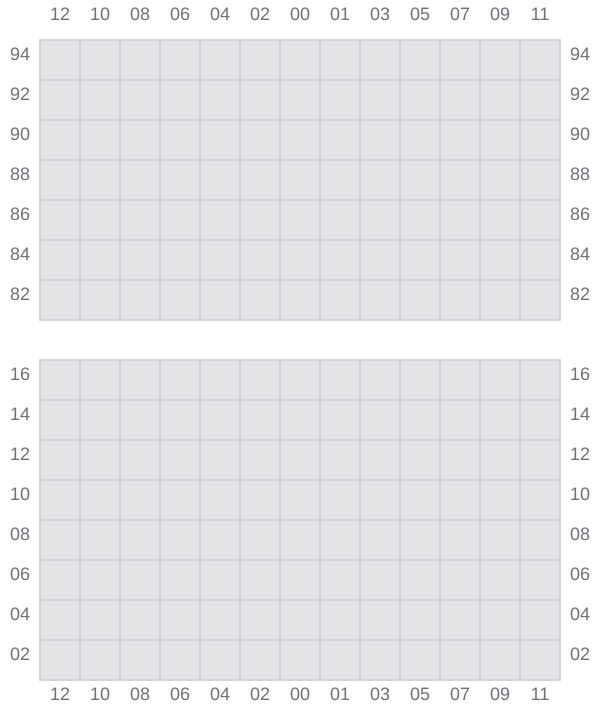

053
![Bay 053 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b053.png?v=1687195763100)

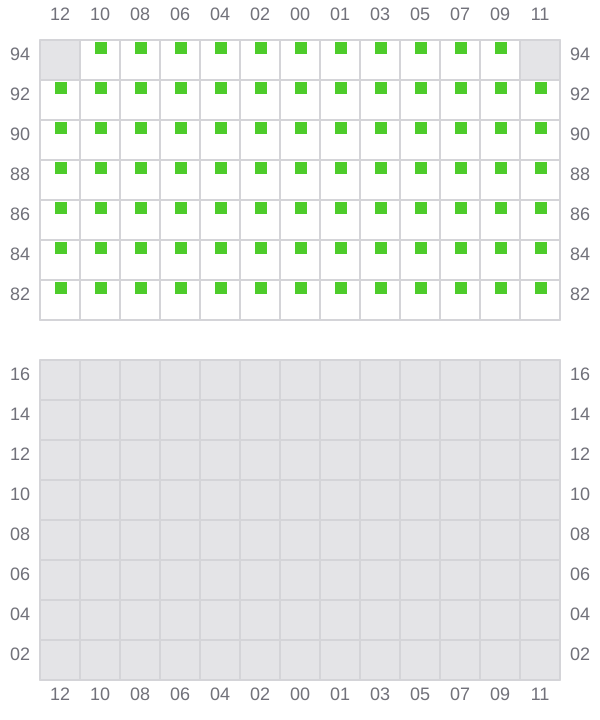

055 (054)
- ← / ?
- → / ?
![Bay 055 view and slots of MSC BANU III](/vessel-images/eb1d8f8a-5433-44cd-b184-af420c95f63a-b055.png?v=1687195763100)
