MSC BARBADOS
9289544 | 3E2125 | MSC by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MSC BARBADOS

IMO Code:9289544

Call Sign:3E2125

Line Operator:MSC

Class Name for Sister Ships:MSB

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):283.20

LOA (Length Overall):294.10

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:069

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:5,075

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

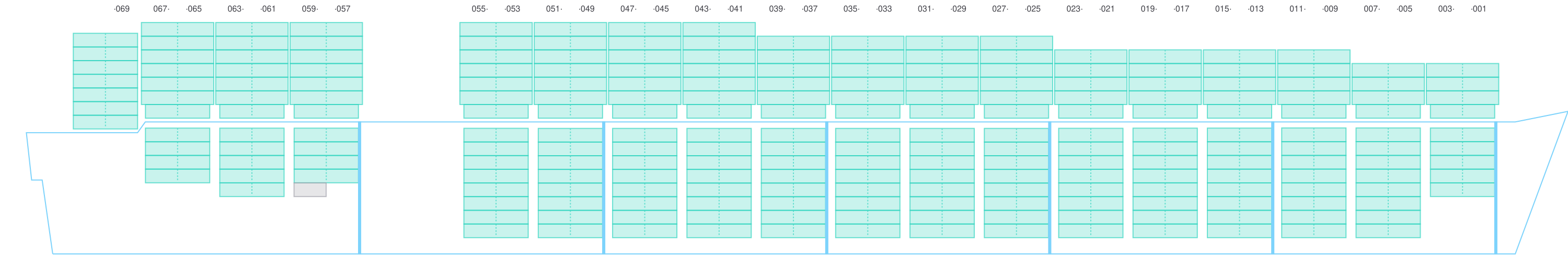

Side View

Side view of MSC BARBADOS

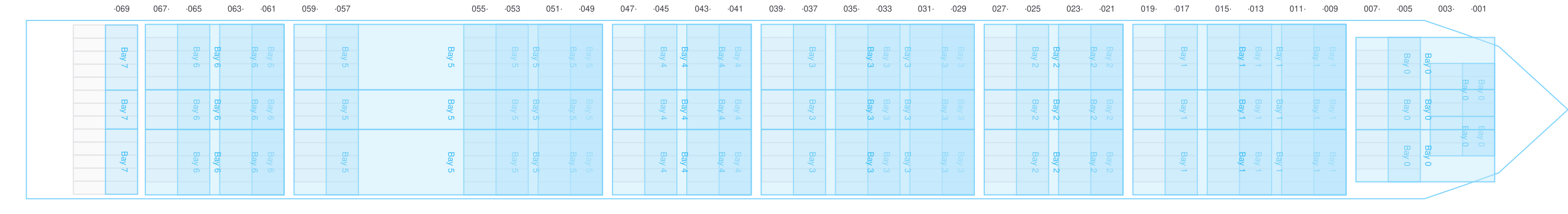

Hatch-Covers View

Deck view of MSC BARBADOS

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

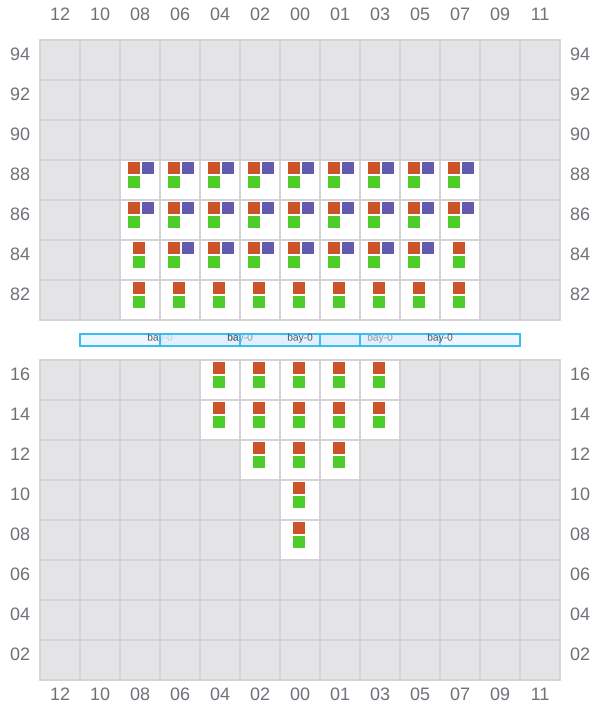

Bay 001 view and slots of MSC BARBADOS

003

←

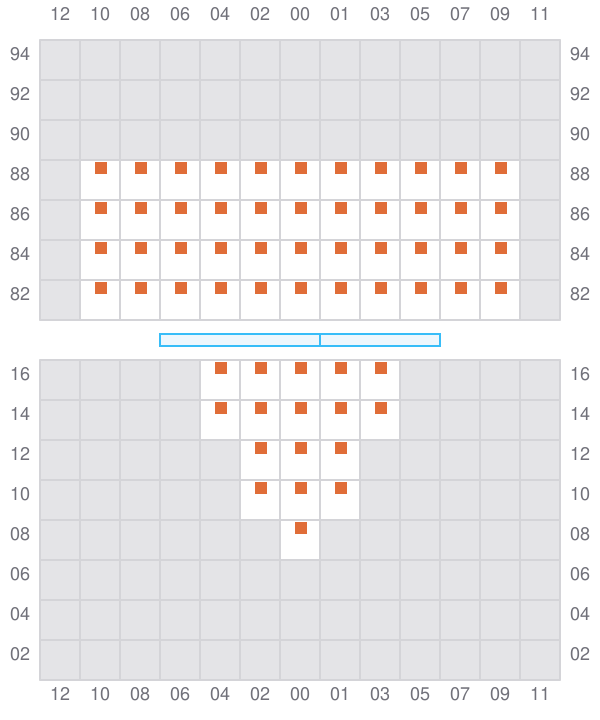

Bay 003 view and slots of MSC BARBADOS

005 (006)

→

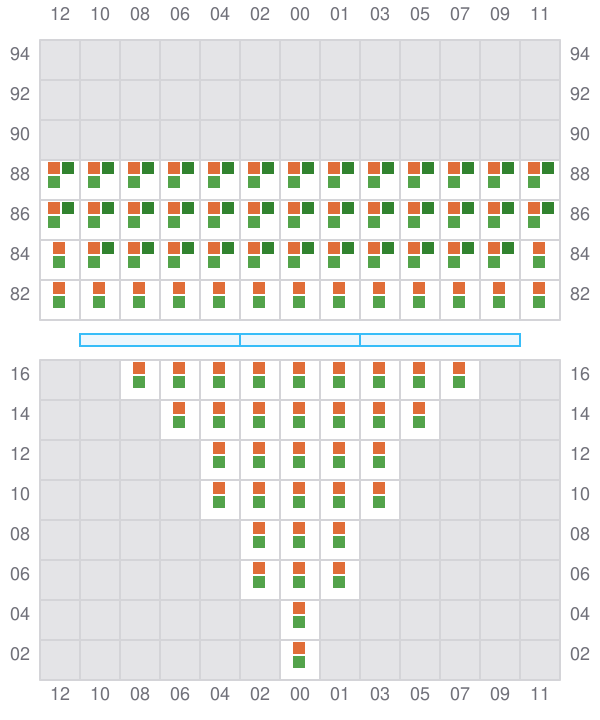

Bay 005 view and slots of MSC BARBADOS

007

←

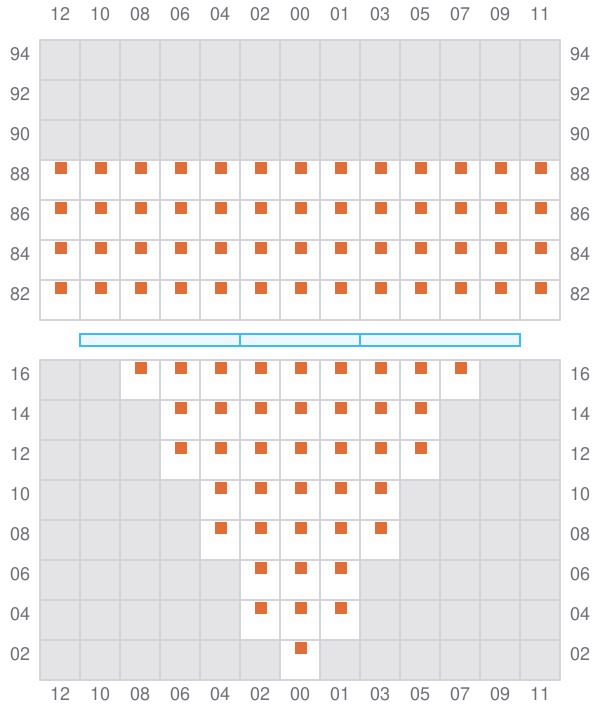

Bay 007 view and slots of MSC BARBADOS

009 (010)

→

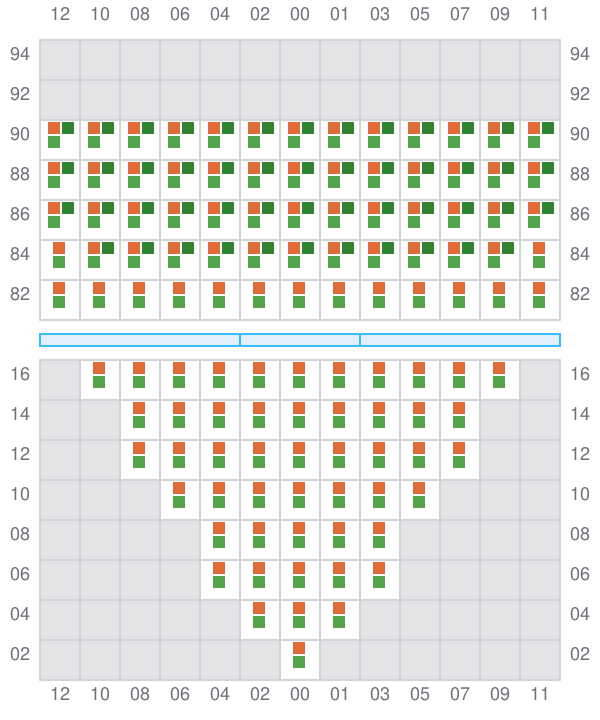

Bay 009 view and slots of MSC BARBADOS

011

←
^→ / _?

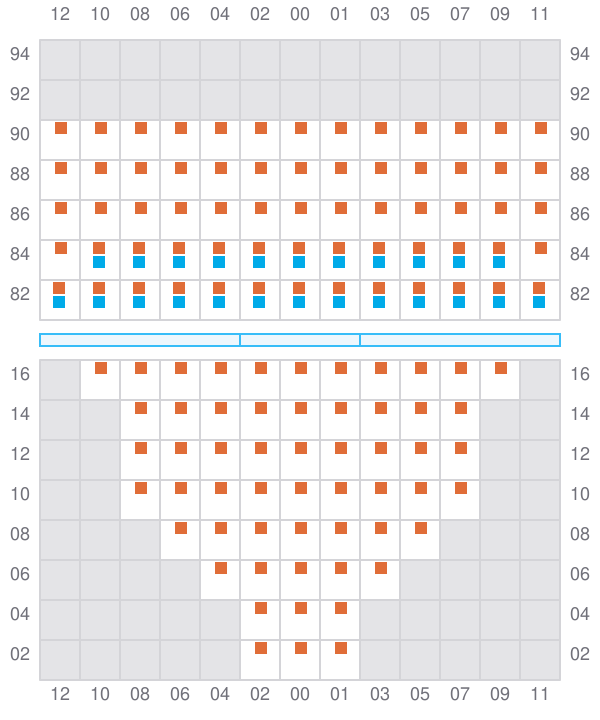

Bay 011 view and slots of MSC BARBADOS

013 (014)

→

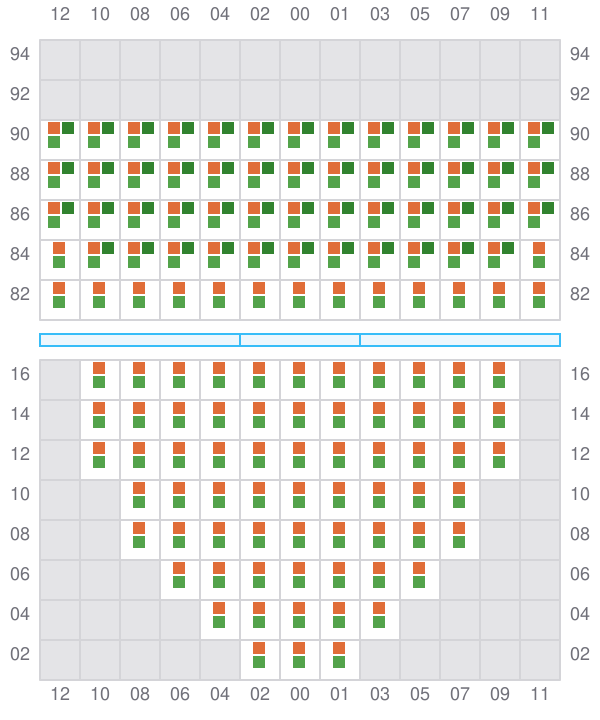

Bay 013 view and slots of MSC BARBADOS

015

←
^→ / _?

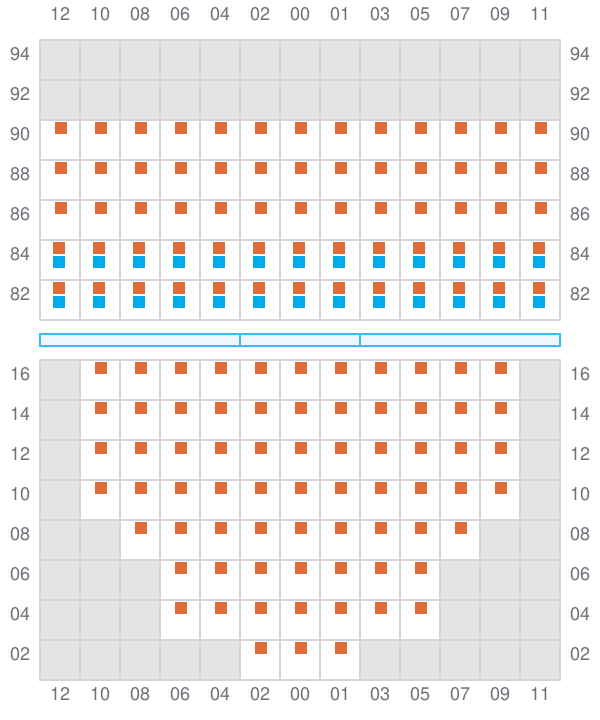

Bay 015 view and slots of MSC BARBADOS

017 (018)

→

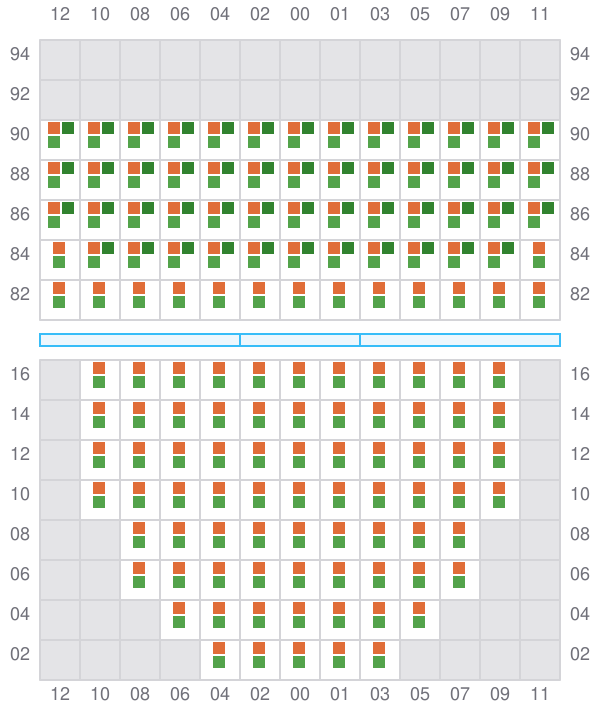

Bay 017 view and slots of MSC BARBADOS

019

←
^→ / _?

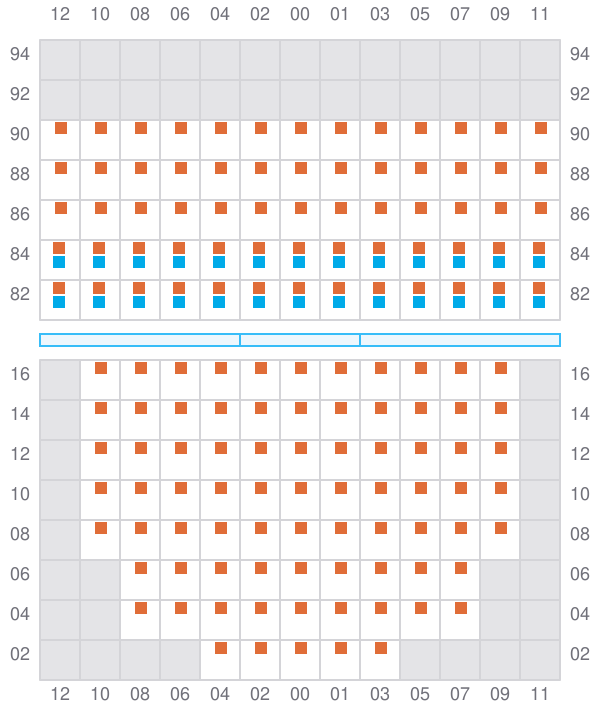

Bay 019 view and slots of MSC BARBADOS

021 (022)

→

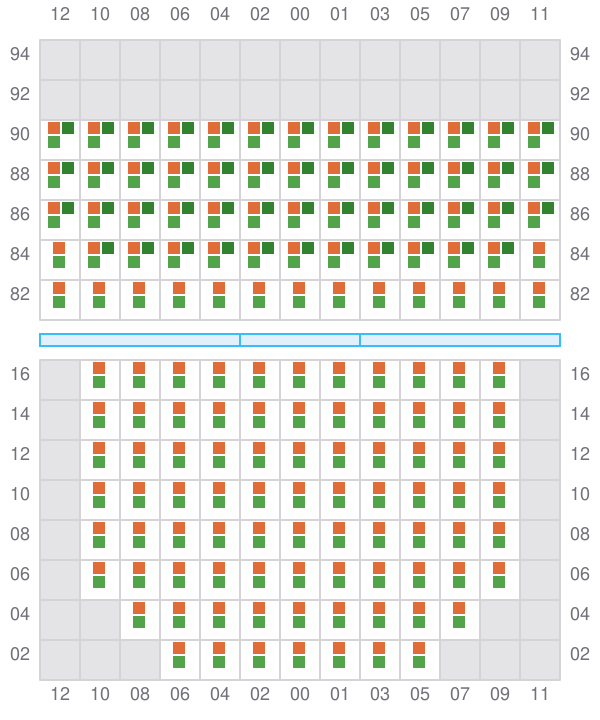

Bay 021 view and slots of MSC BARBADOS

023

←
^→ / _?

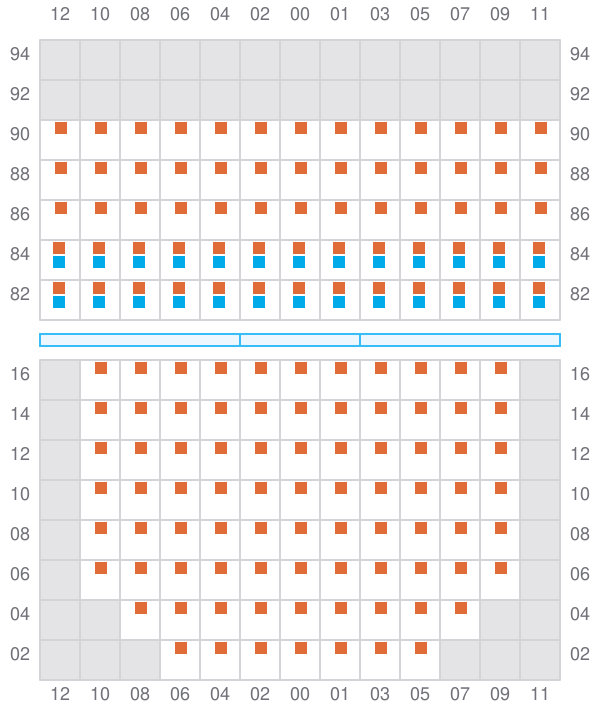

Bay 023 view and slots of MSC BARBADOS

025 (026)

→

Bay 025 view and slots of MSC BARBADOS

027

←
^→ / _?

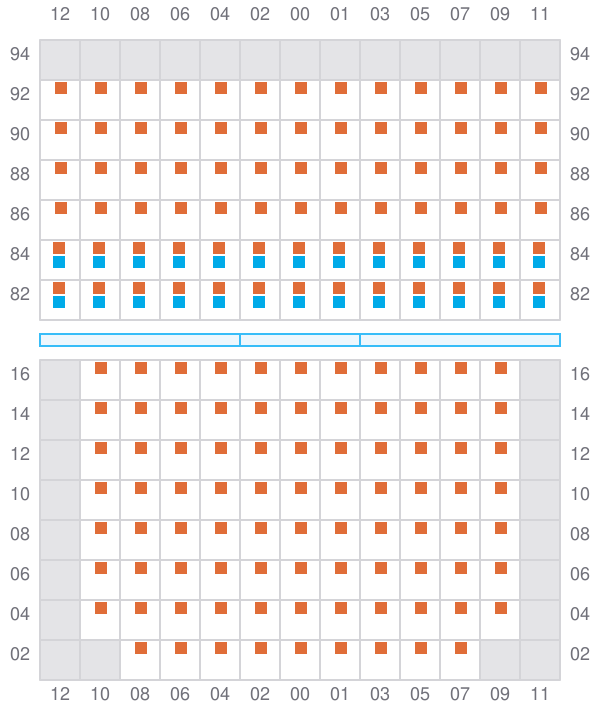

Bay 027 view and slots of MSC BARBADOS

029 (030)

→

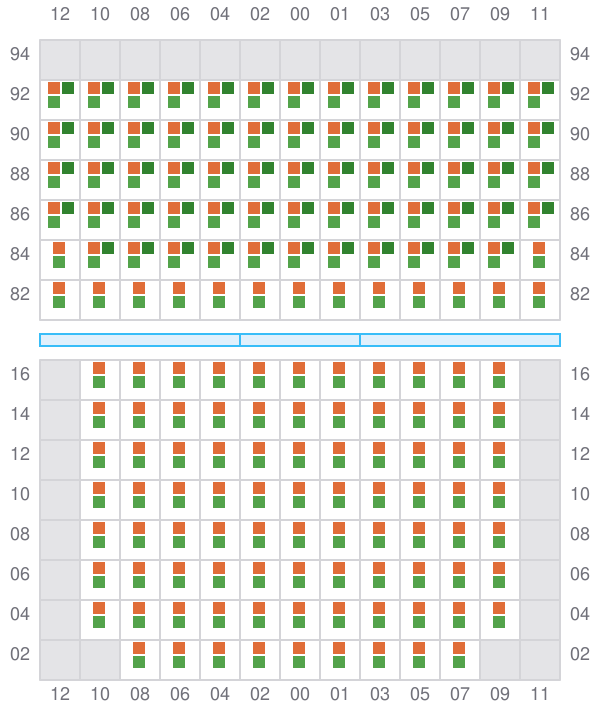

Bay 029 view and slots of MSC BARBADOS

031

←
^→ / _?

Bay 031 view and slots of MSC BARBADOS

033 (034)

→

Bay 033 view and slots of MSC BARBADOS

035

←
^→ / _?

Bay 035 view and slots of MSC BARBADOS

037 (038)

→

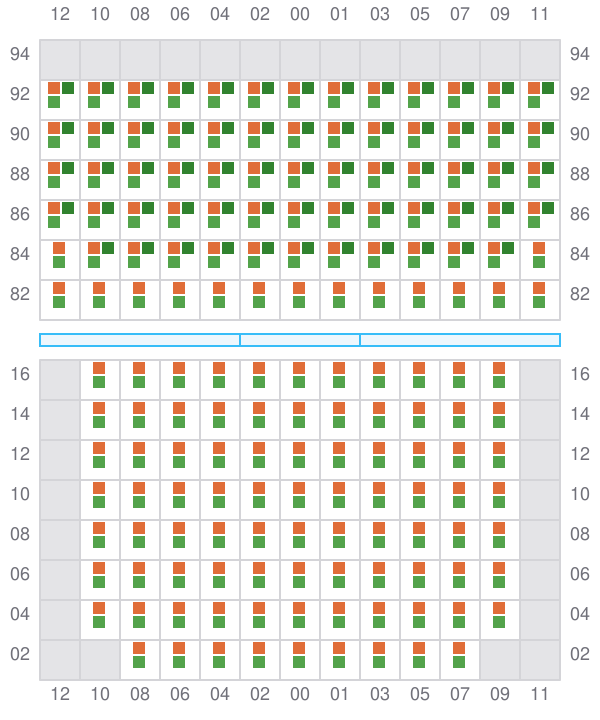

Bay 037 view and slots of MSC BARBADOS

039

←
→

Bay 039 view and slots of MSC BARBADOS

041 (042)

→

Bay 041 view and slots of MSC BARBADOS

043

←
→

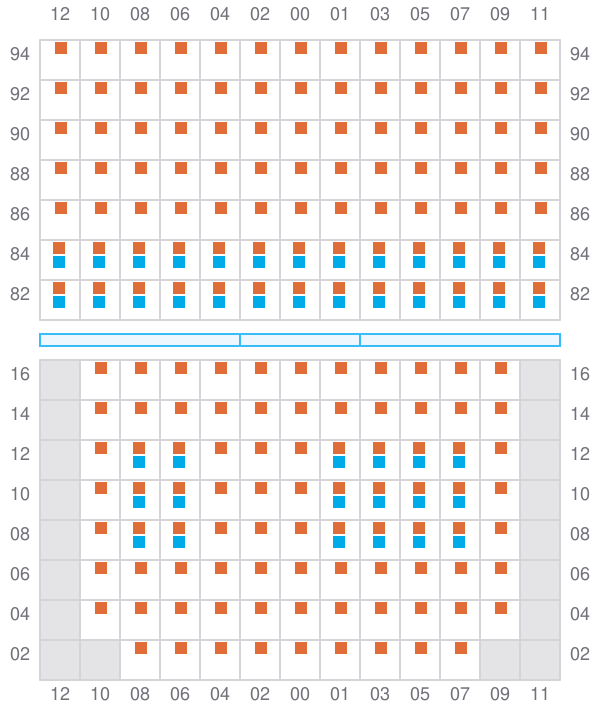

Bay 043 view and slots of MSC BARBADOS

045 (046)

→

Bay 045 view and slots of MSC BARBADOS

047

←
^→ / _?

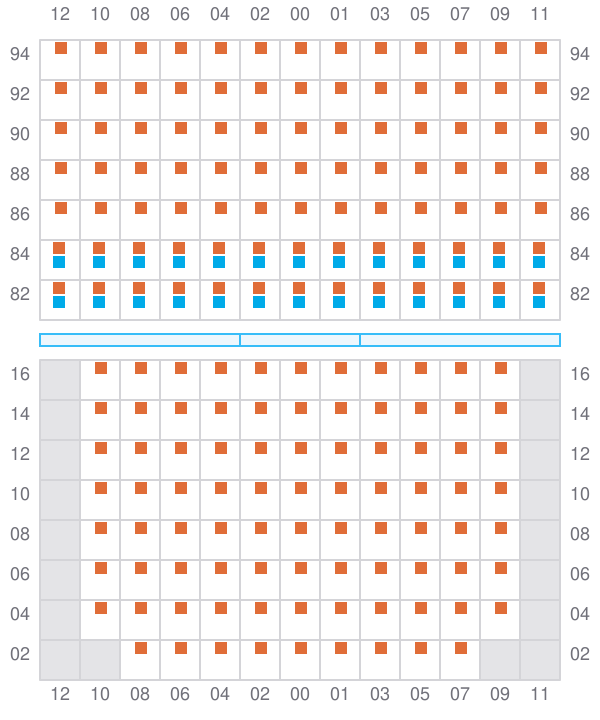

Bay 047 view and slots of MSC BARBADOS

049 (050)

→

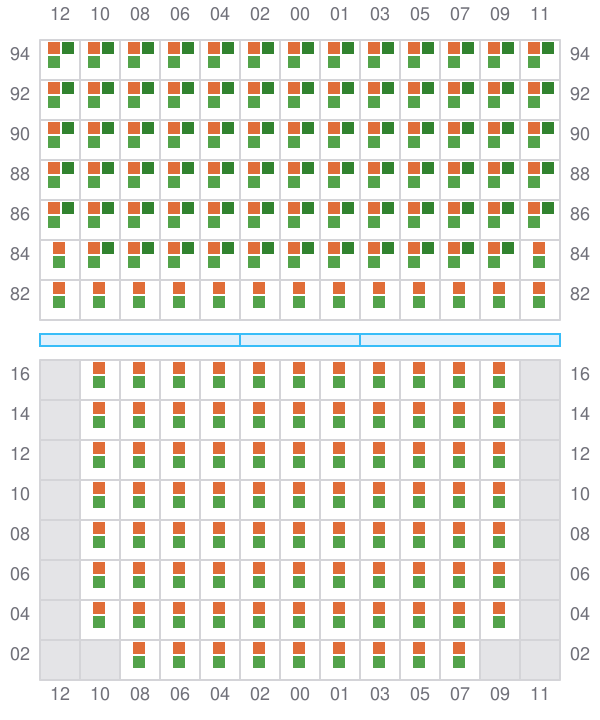

Bay 049 view and slots of MSC BARBADOS

051

←
^→ / _?

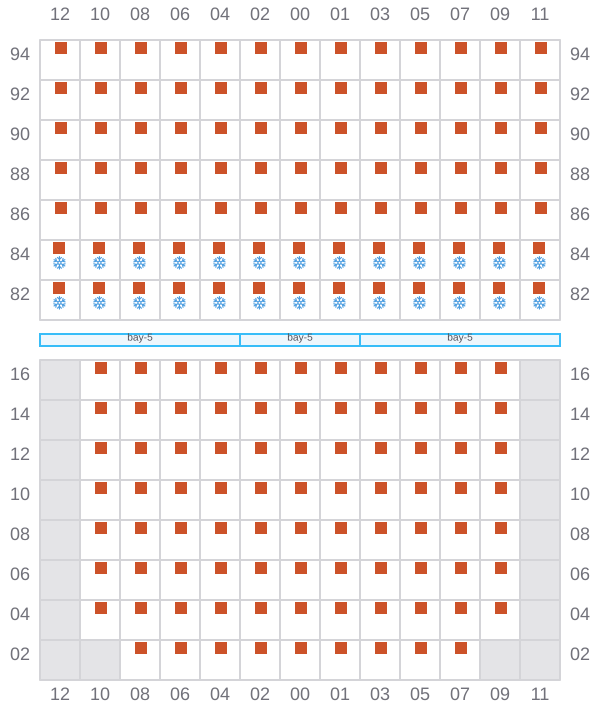

Bay 051 view and slots of MSC BARBADOS

053 (054)

→

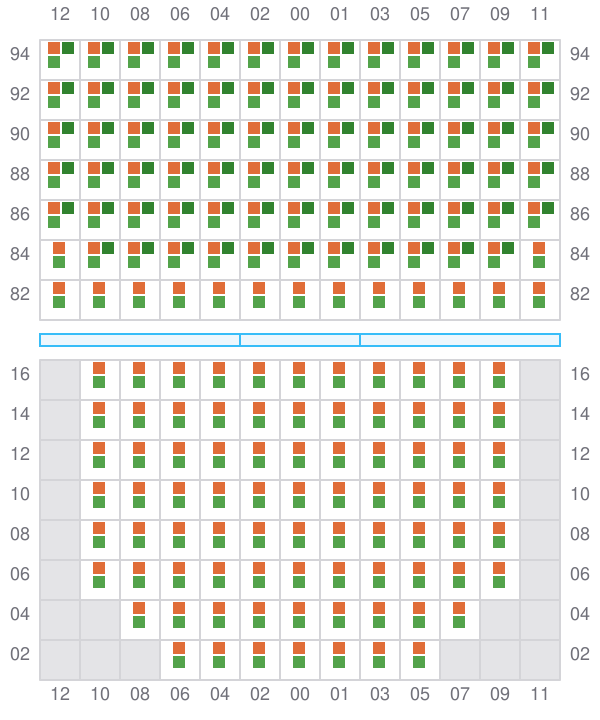

Bay 053 view and slots of MSC BARBADOS

055

←
^→ / _?

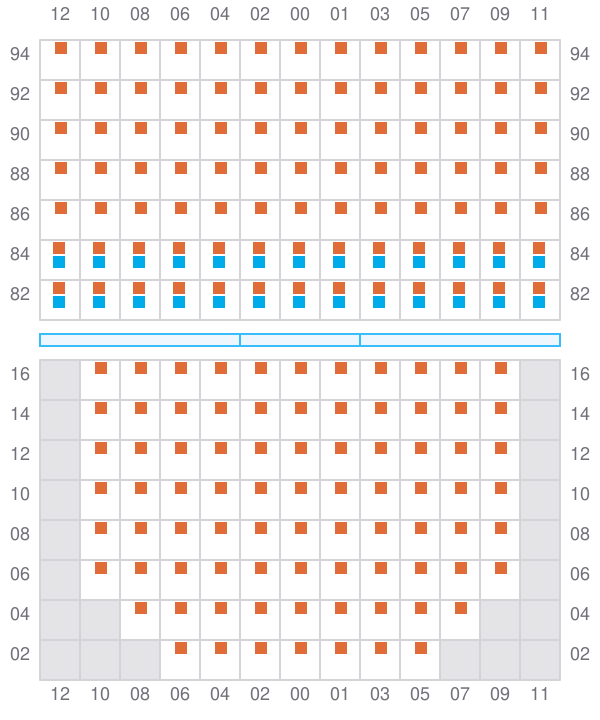

Bay 055 view and slots of MSC BARBADOS

057 (058)

→
^← / _?

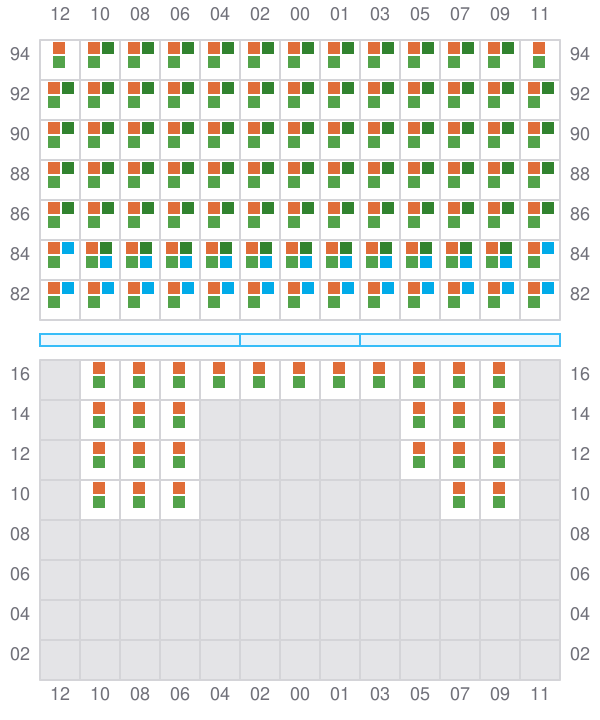

Bay 057 view and slots of MSC BARBADOS

059

←

Bay 059 view and slots of MSC BARBADOS

061 (062)

→
^← / _?

Bay 061 view and slots of MSC BARBADOS

063

←

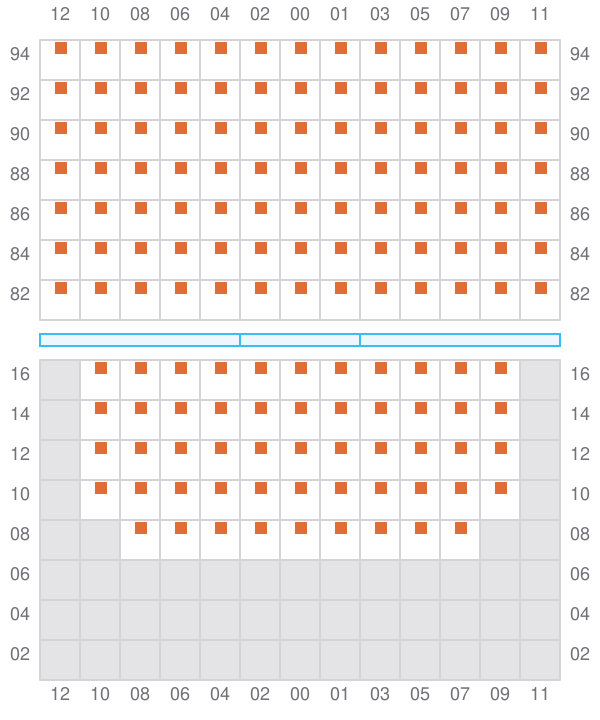

Bay 063 view and slots of MSC BARBADOS

065 (066)

→
^← / _?

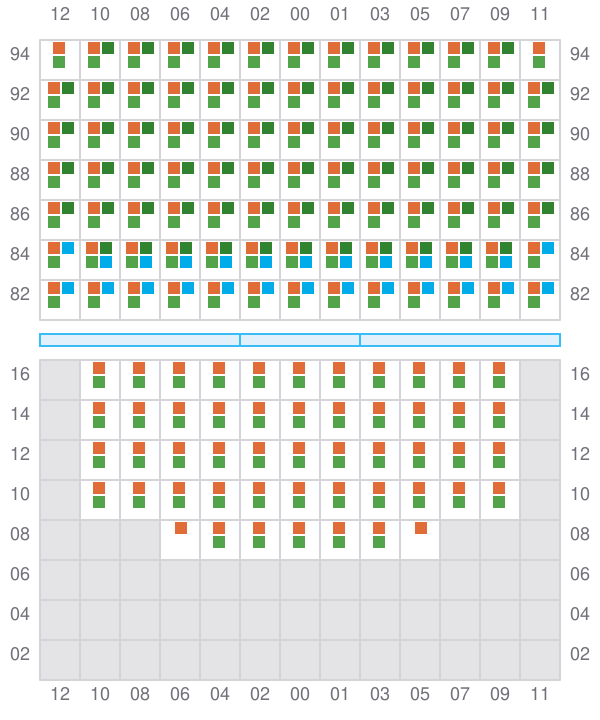

Bay 065 view and slots of MSC BARBADOS

067

←

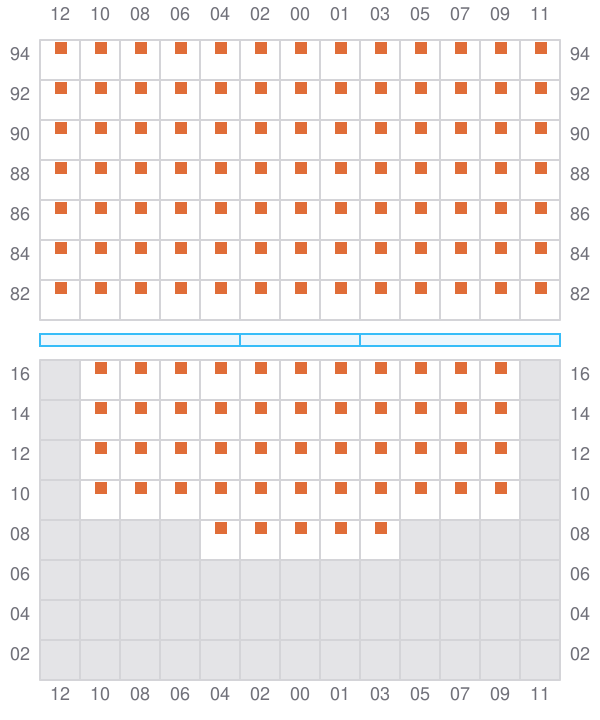

Bay 067 view and slots of MSC BARBADOS

069 (070)

^→ / _?
^← / _?

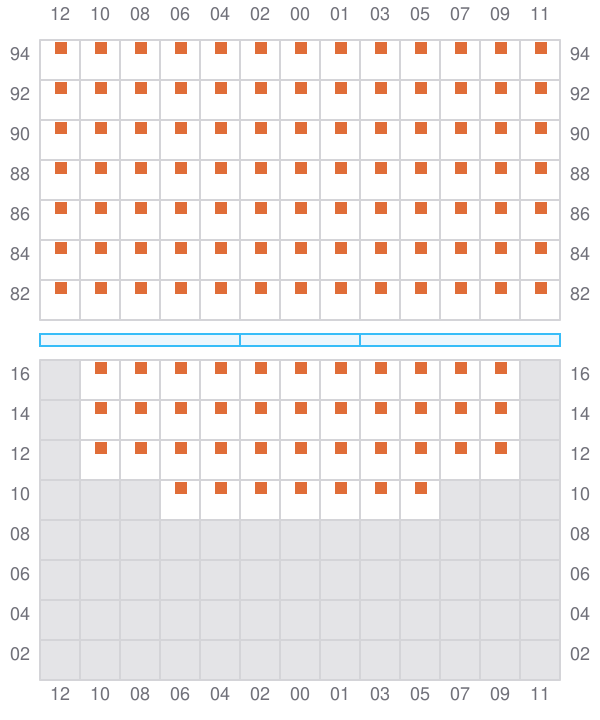

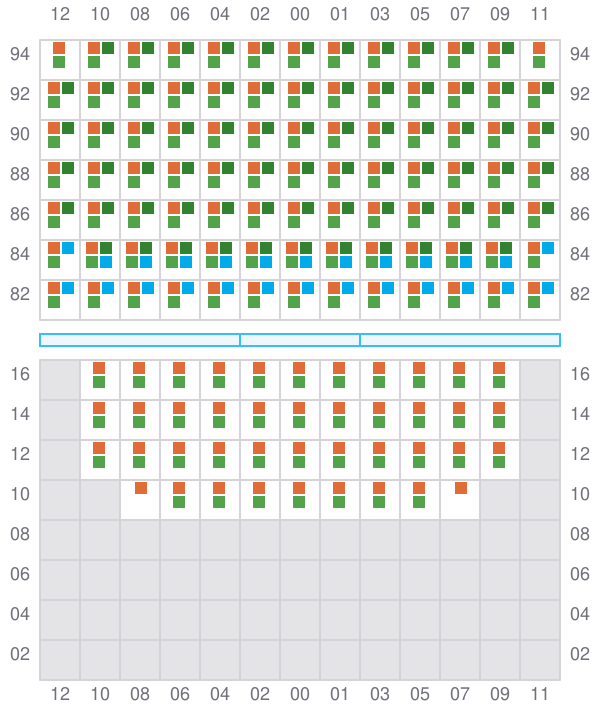

Bay 069 view and slots of MSC BARBADOS
