MSC BARBARA
9226932 | HODU | MSC by ************************** Last update: Tue Jun 13 2023
General Info
Ship Name:MSC BARBARA
IMO Code:9226932
Call Sign:HODU
Line Operator:MSC
Class Name for Sister Ships:BAR
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,738
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

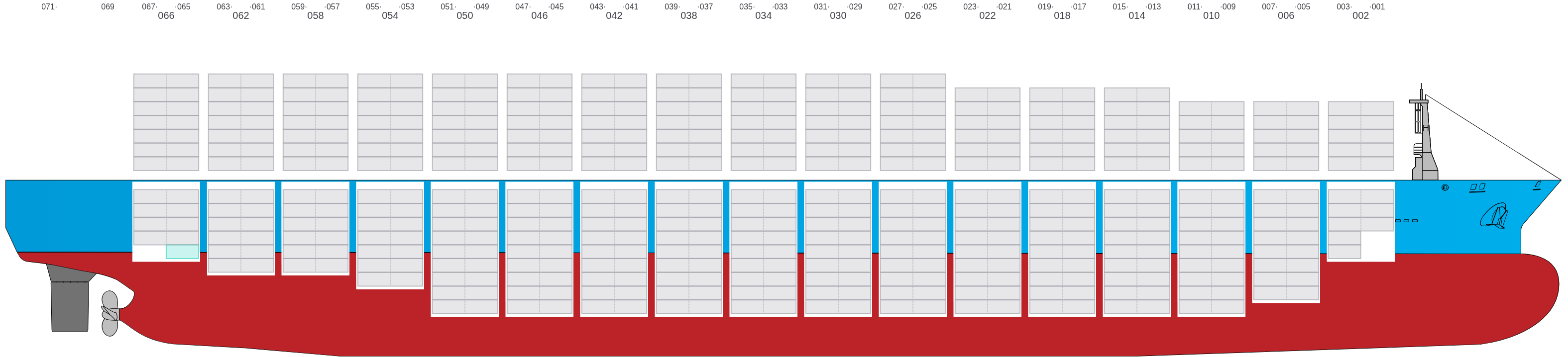

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

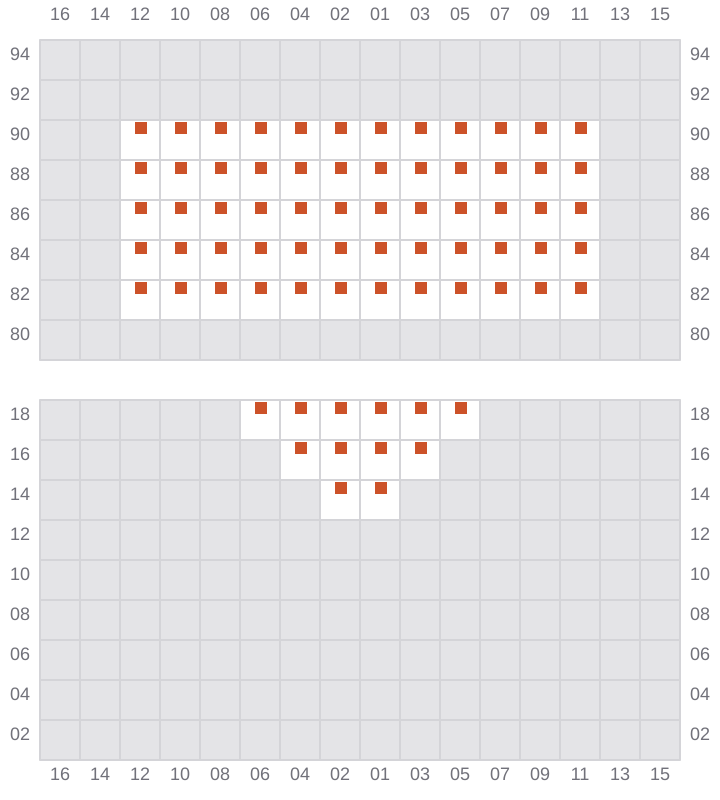

001
- →

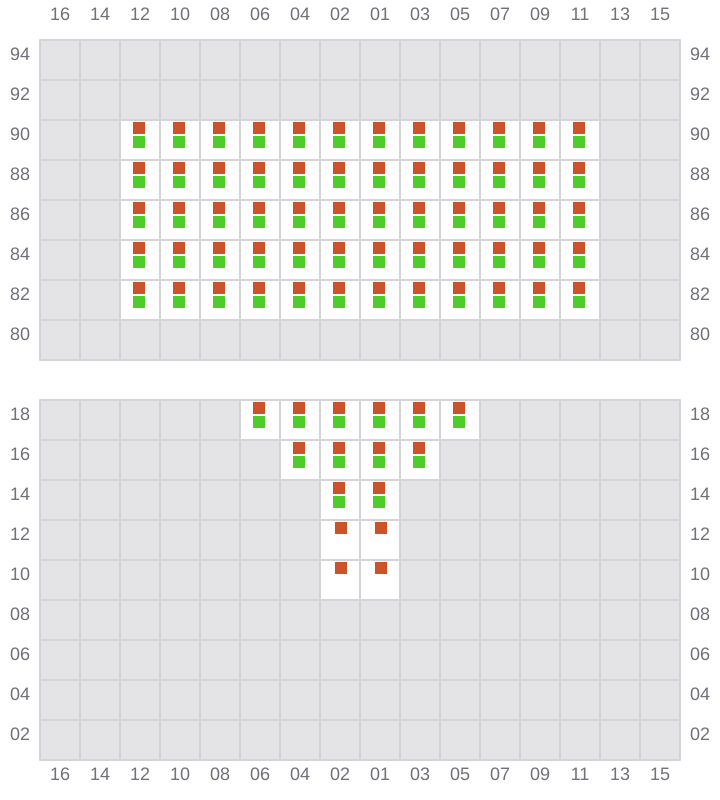

003 (002)
- ←

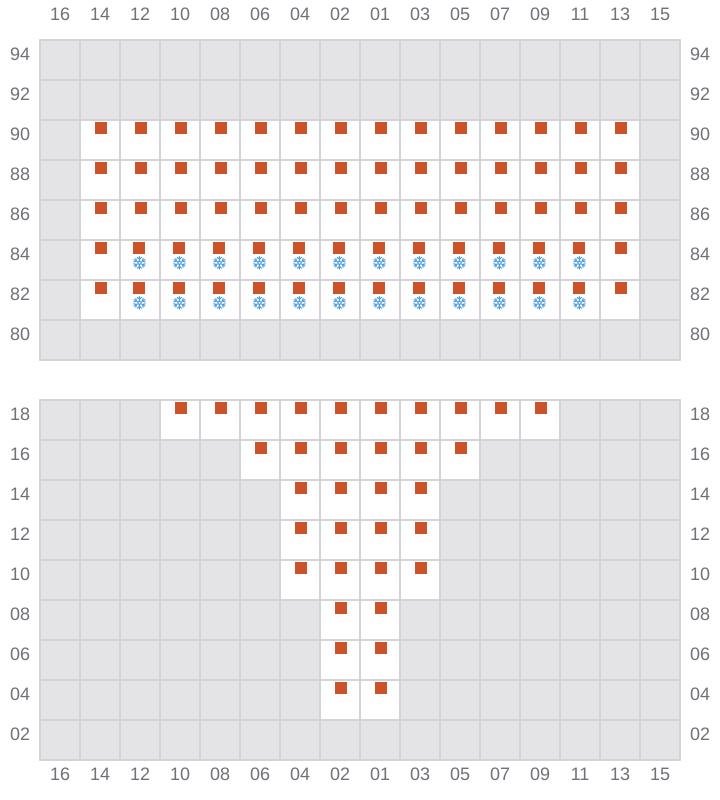

005
- →

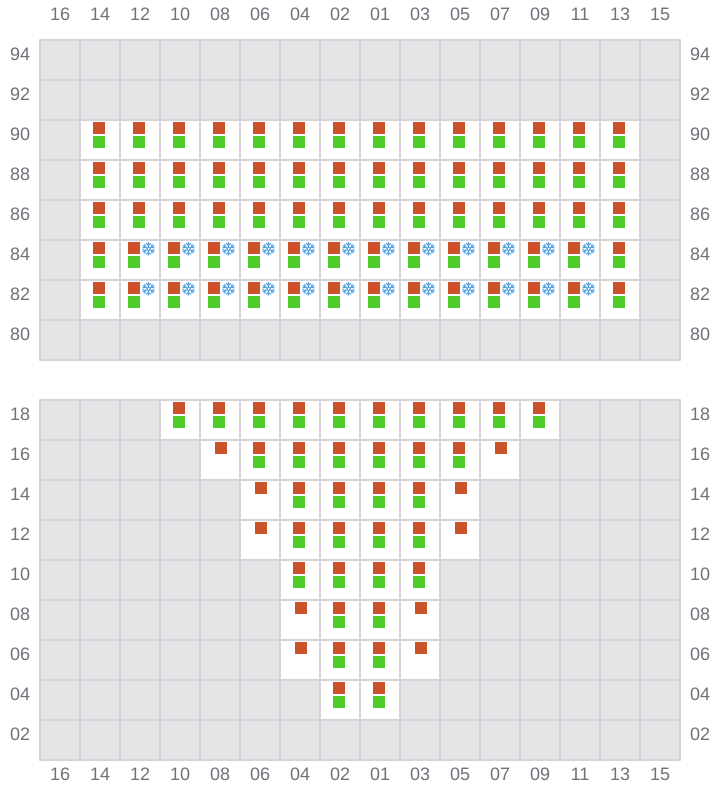

007 (006)
- ←

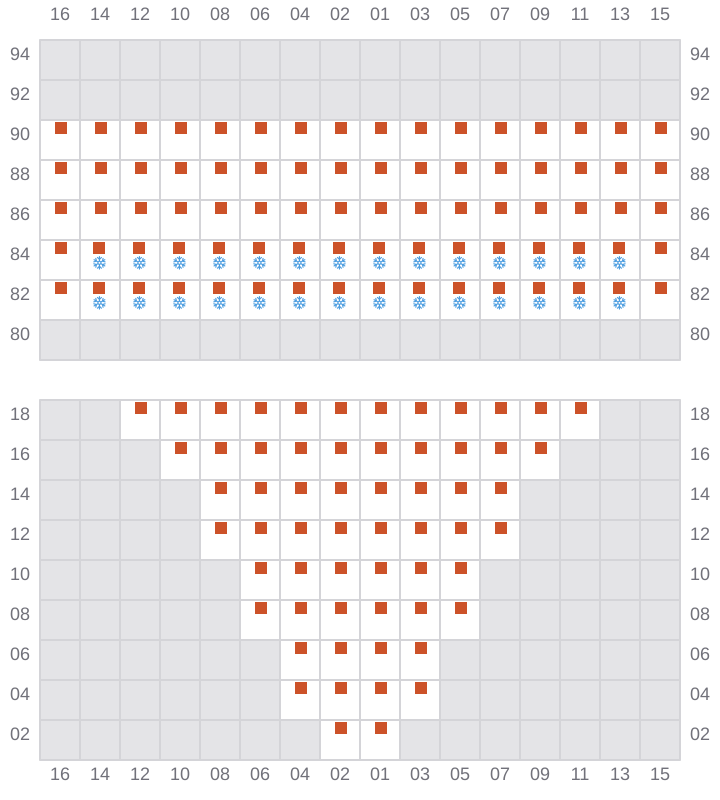

009
- →

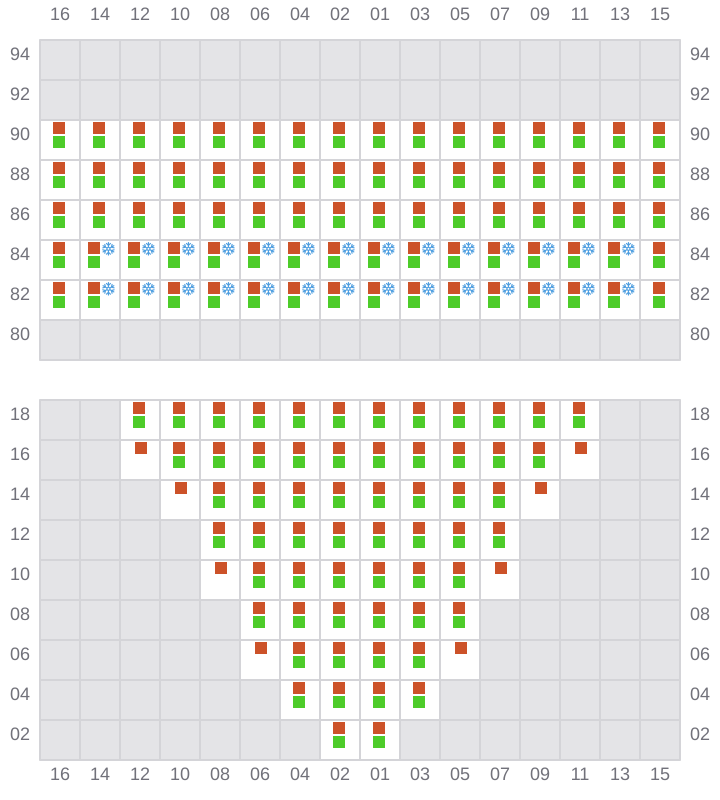

011 (010)
- ←

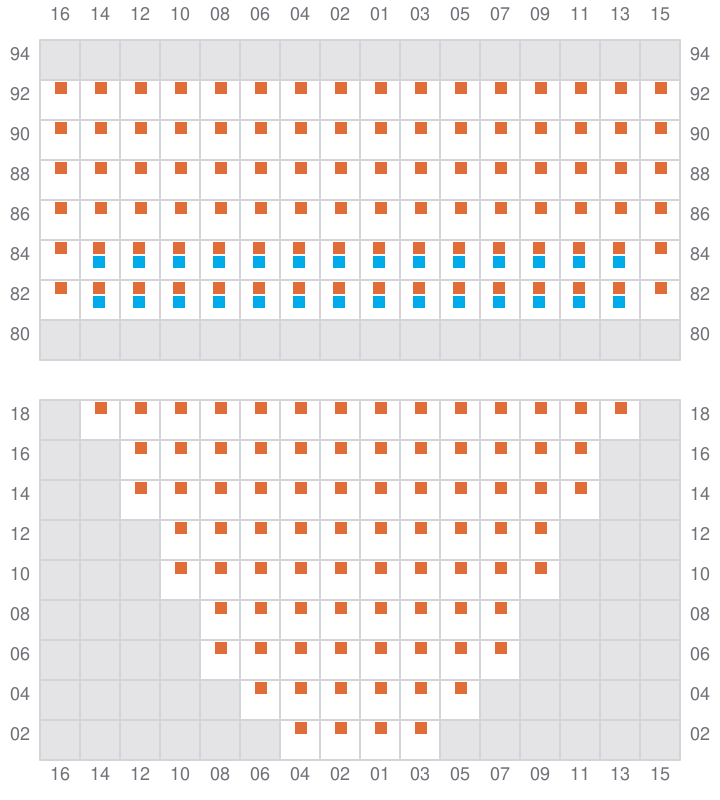

013
- →

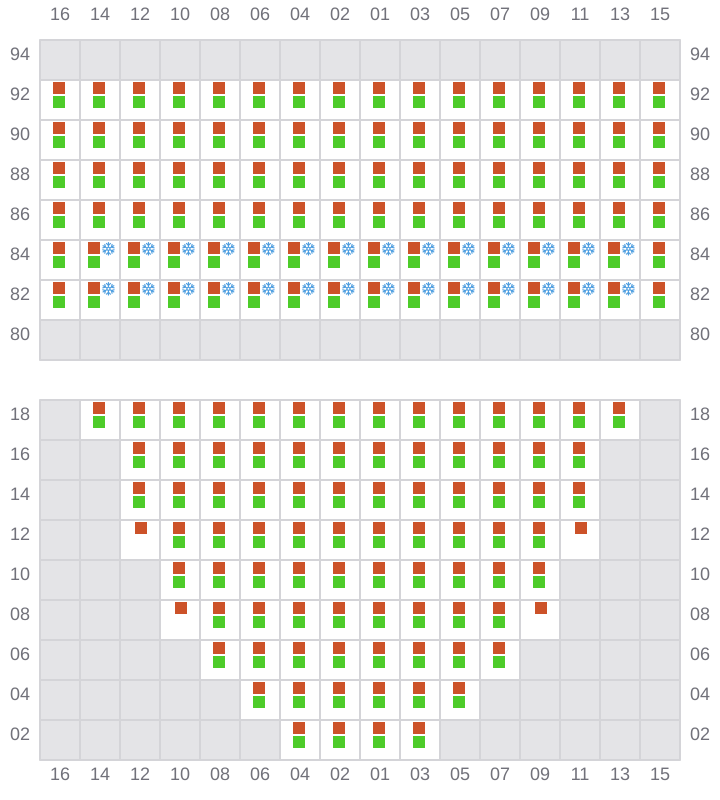

015 (014)
- ←

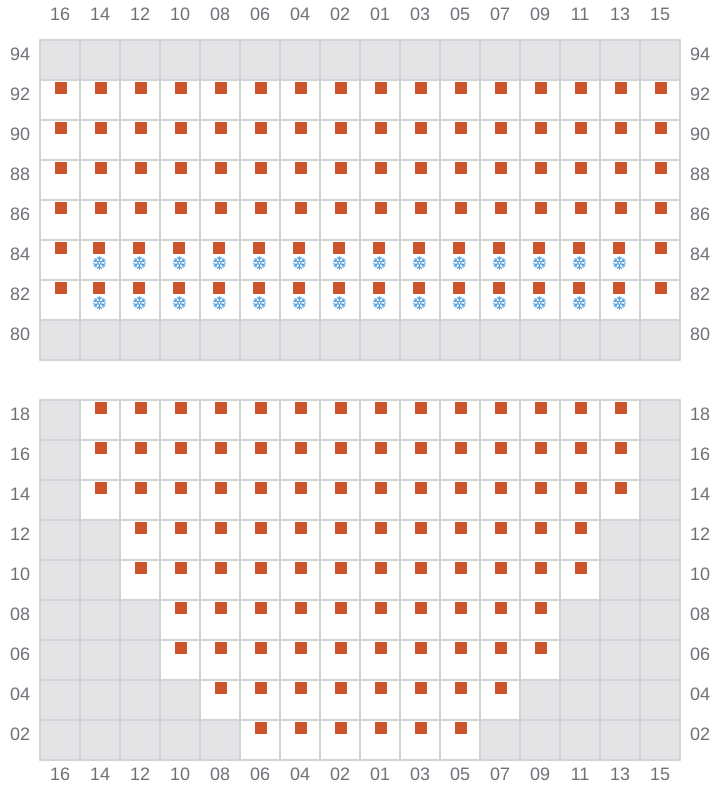

017
- →

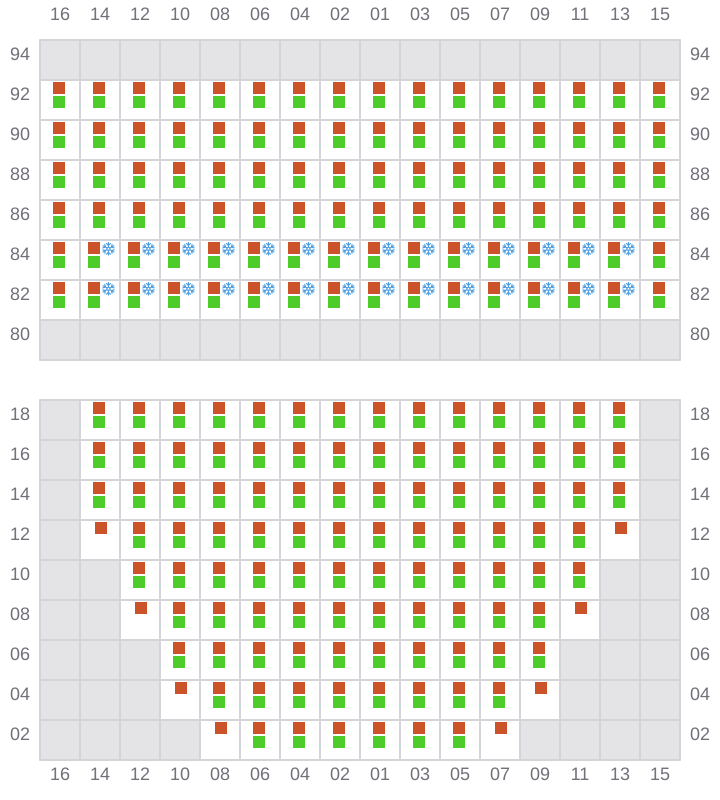

019 (018)
- ←

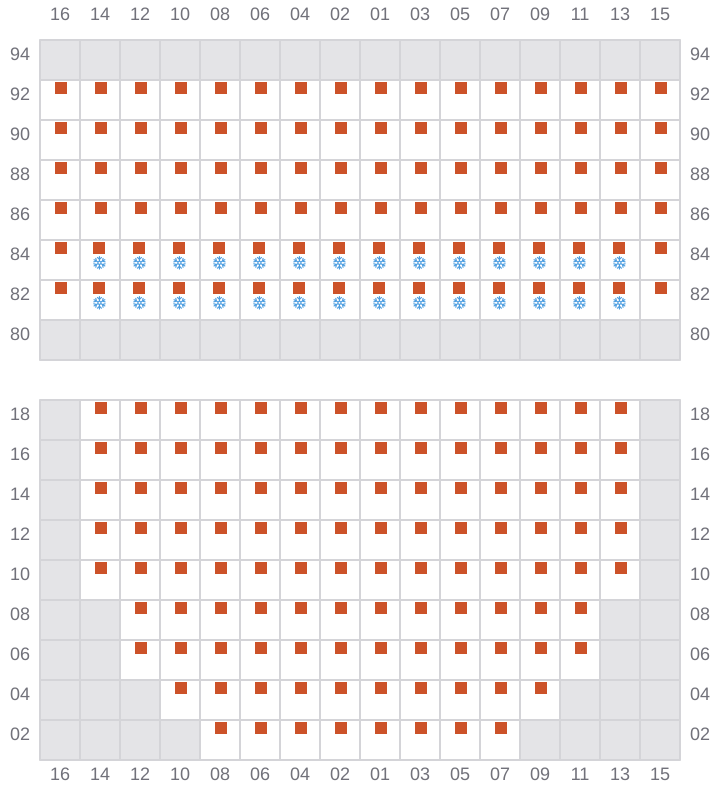

021
- →
023 (022)
- ←

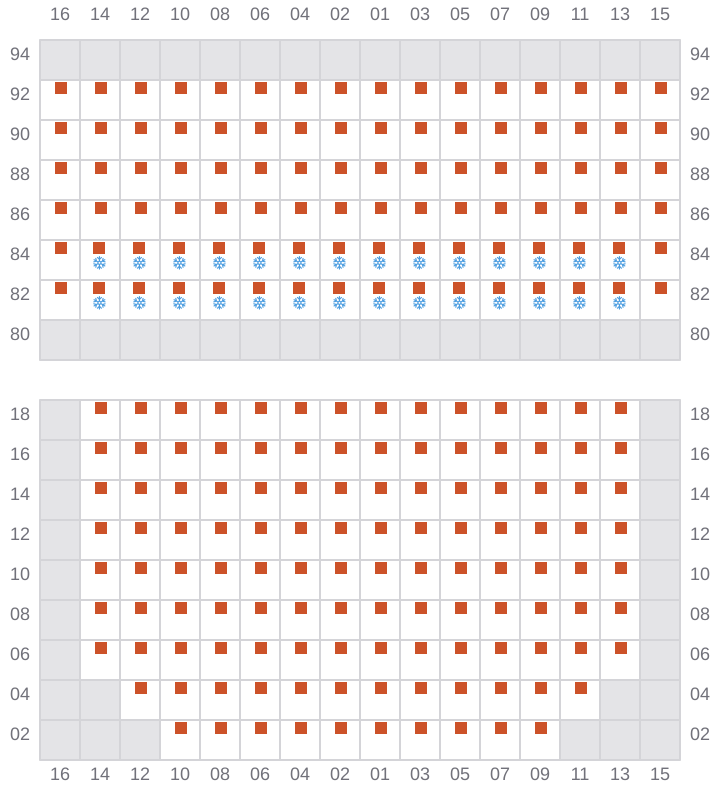

025
- →

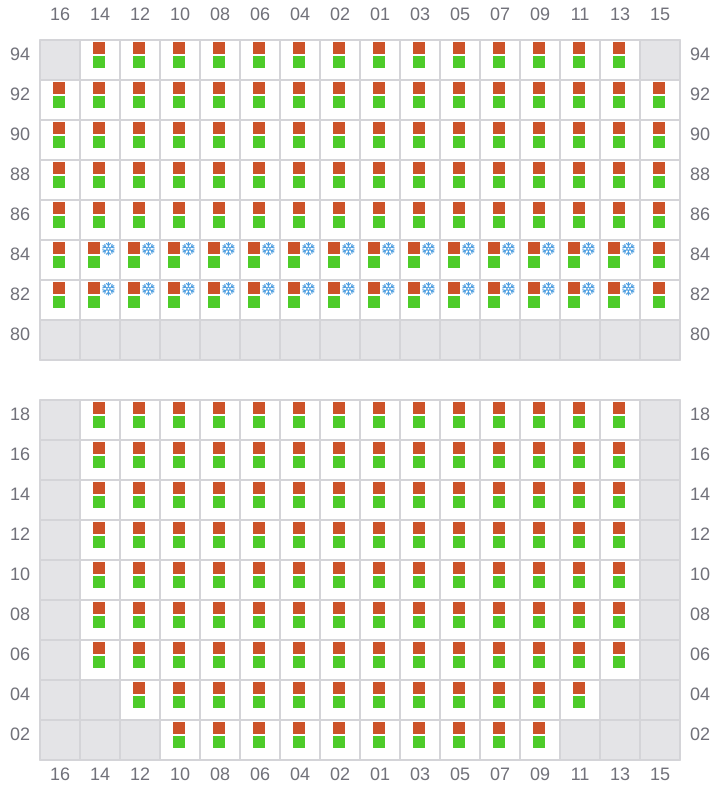

027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →

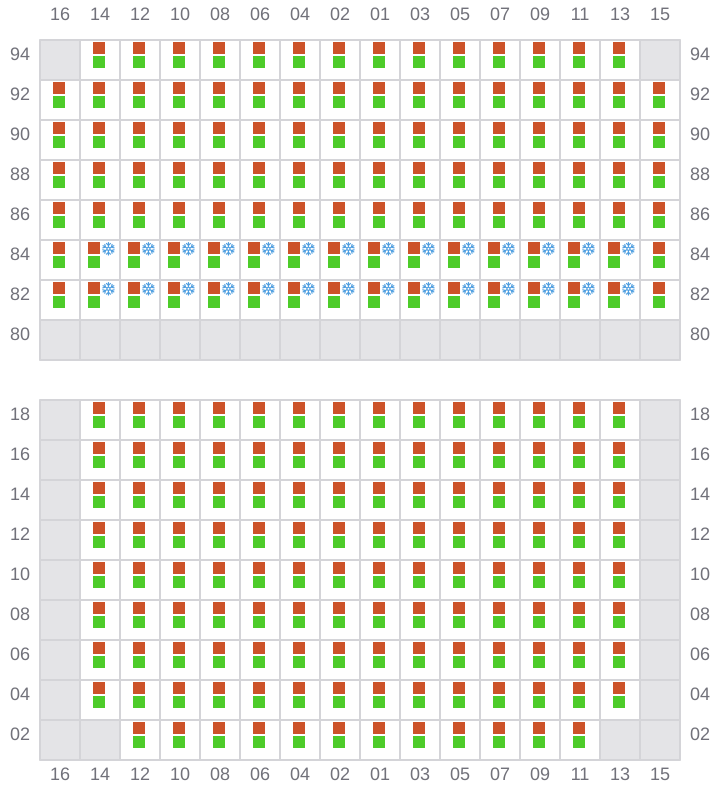

039 (038)
- ←

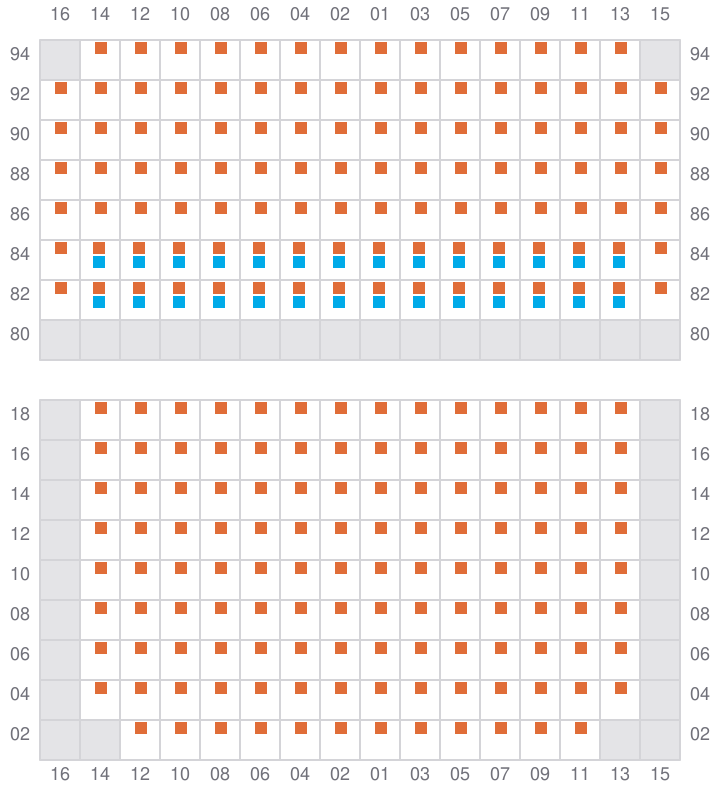

041
- →
043 (042)
- ←

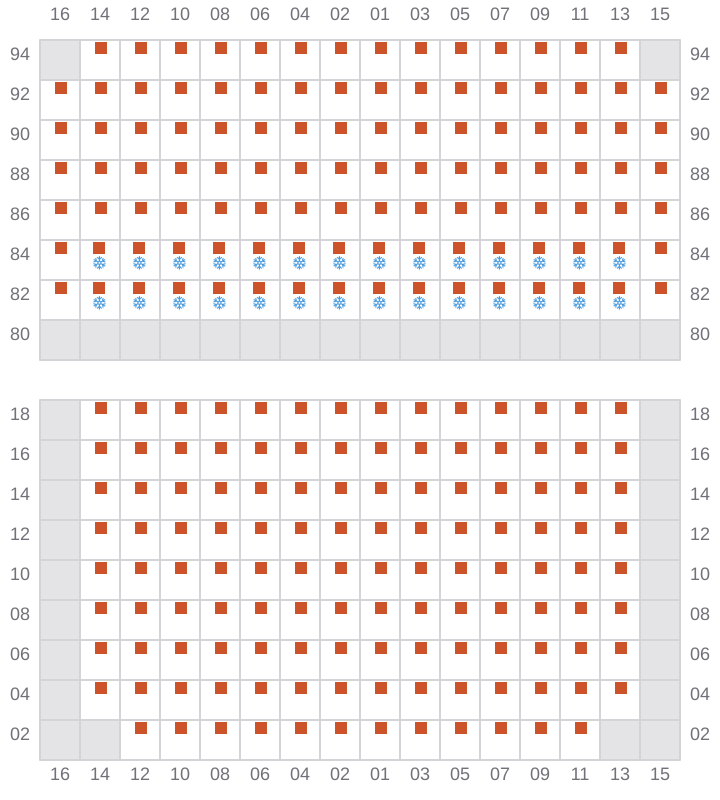

045
- →
047 (046)
- ←

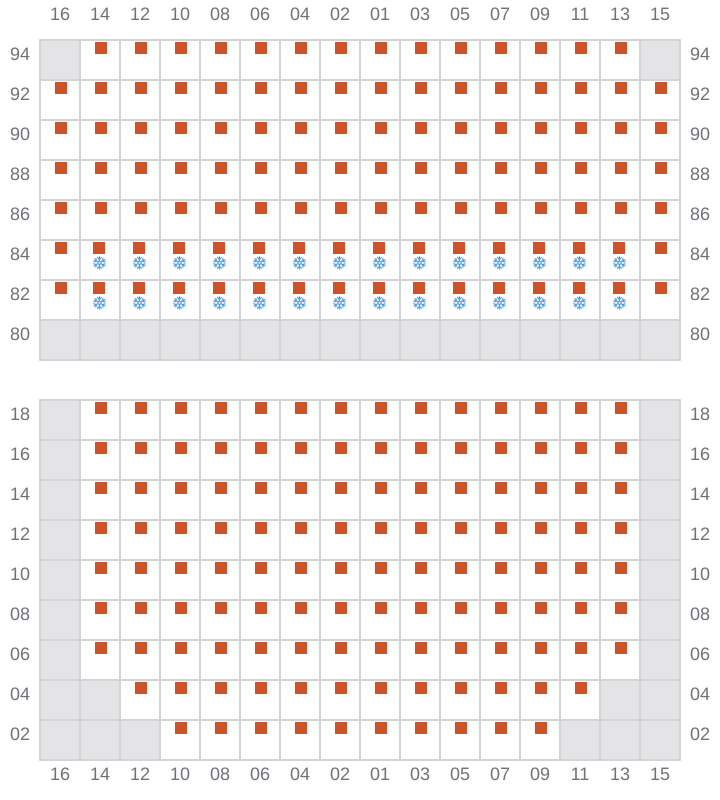

049
- →
051 (050)
- ←

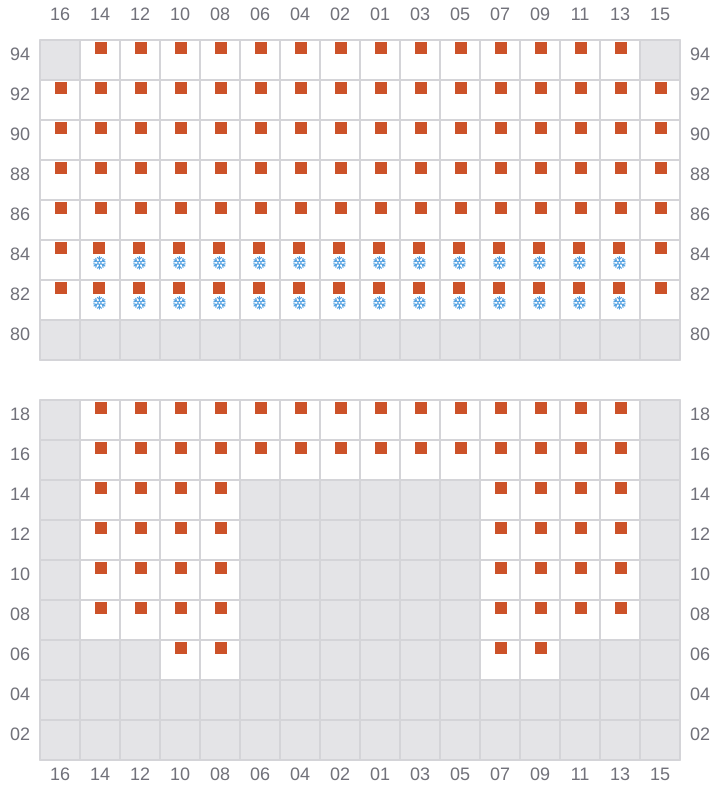

053
- →

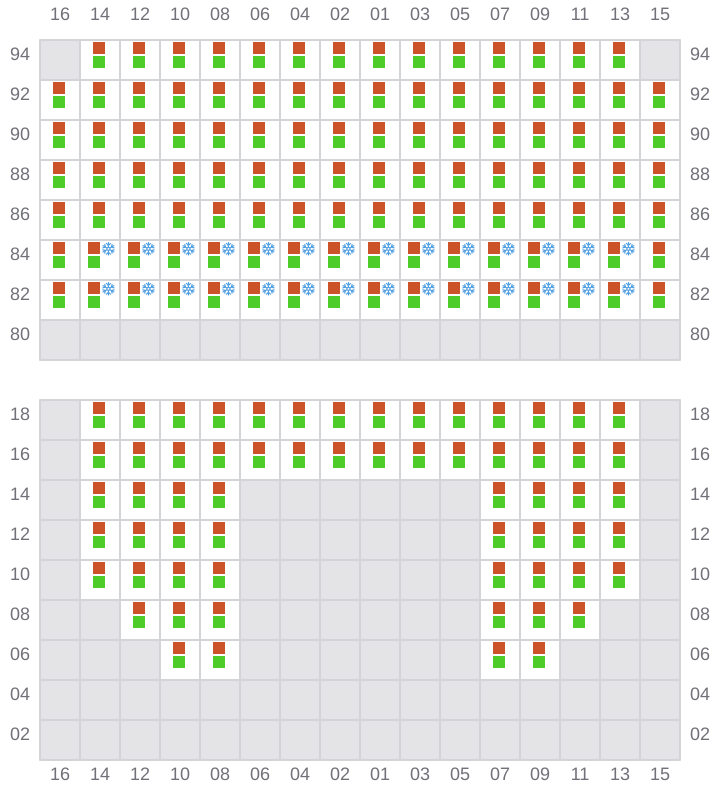

055 (054)
- ←

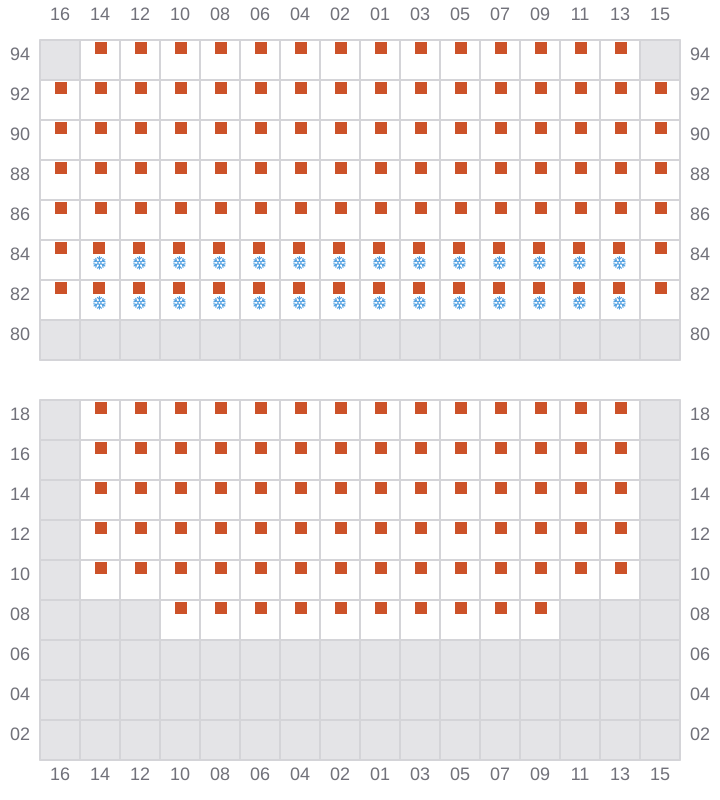

057
- →

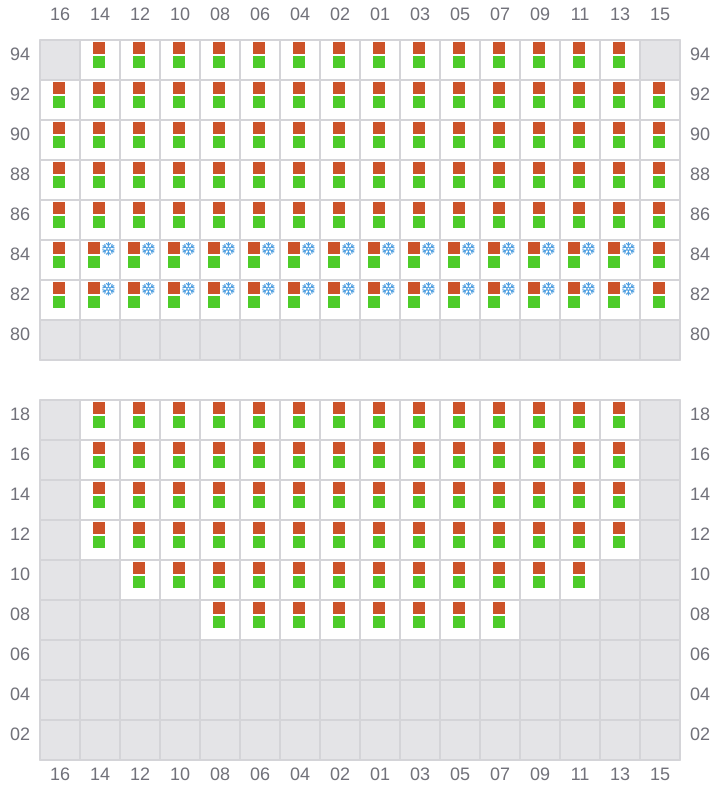

059 (058)
- ←

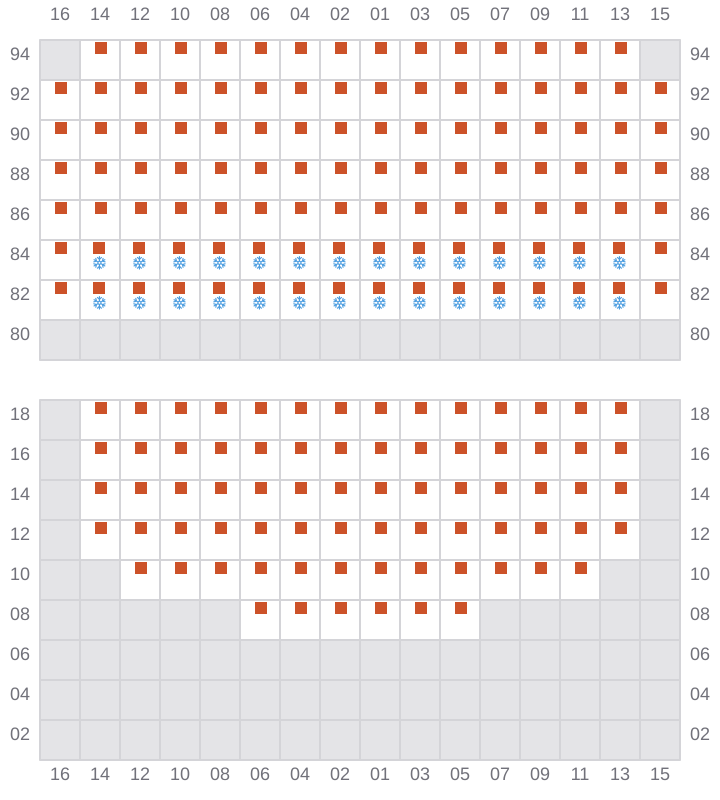

061
- →
063 (062)
- ←
065
- →

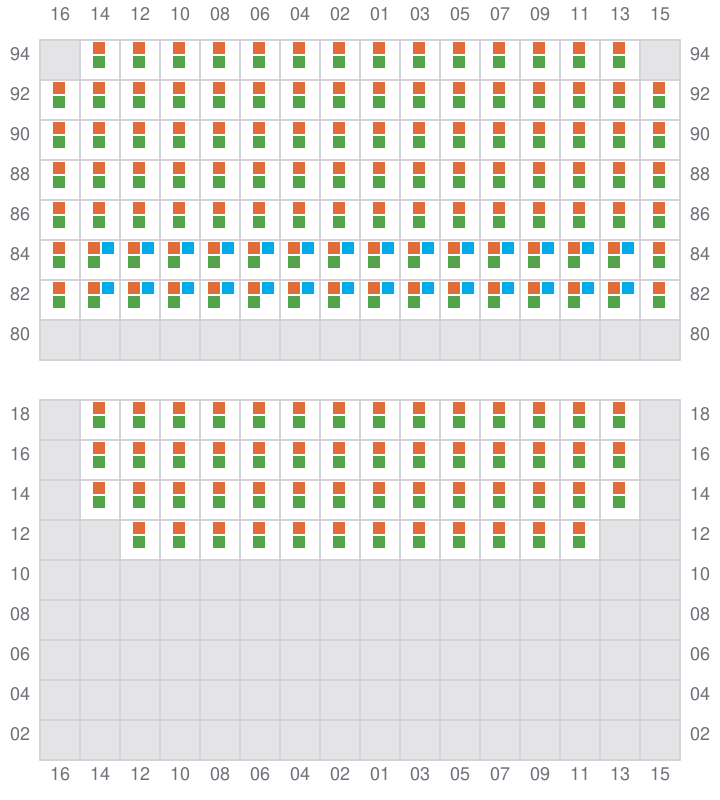

067 (066)
- ←

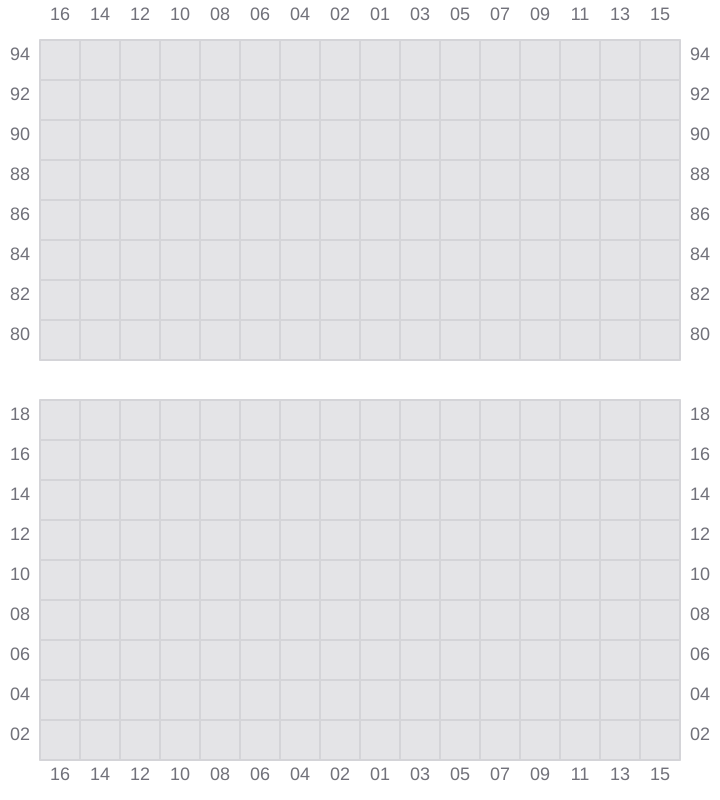

069

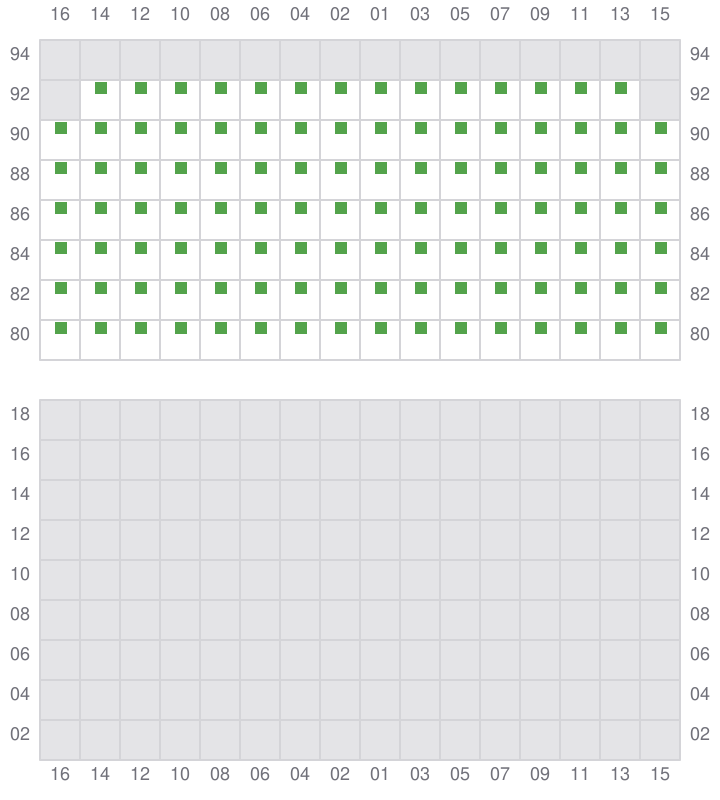

071 (070)
- ← / ?
