MSC BEIJING
9289099 | CQEG5 | MSC by ************************** Last update: Wed Jun 14 2023
General Info
Ship Name:MSC BEIJING
IMO Code:9289099
Call Sign:CQEG5
Line Operator:MSC
Class Name for Sister Ships:BEI
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,312
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

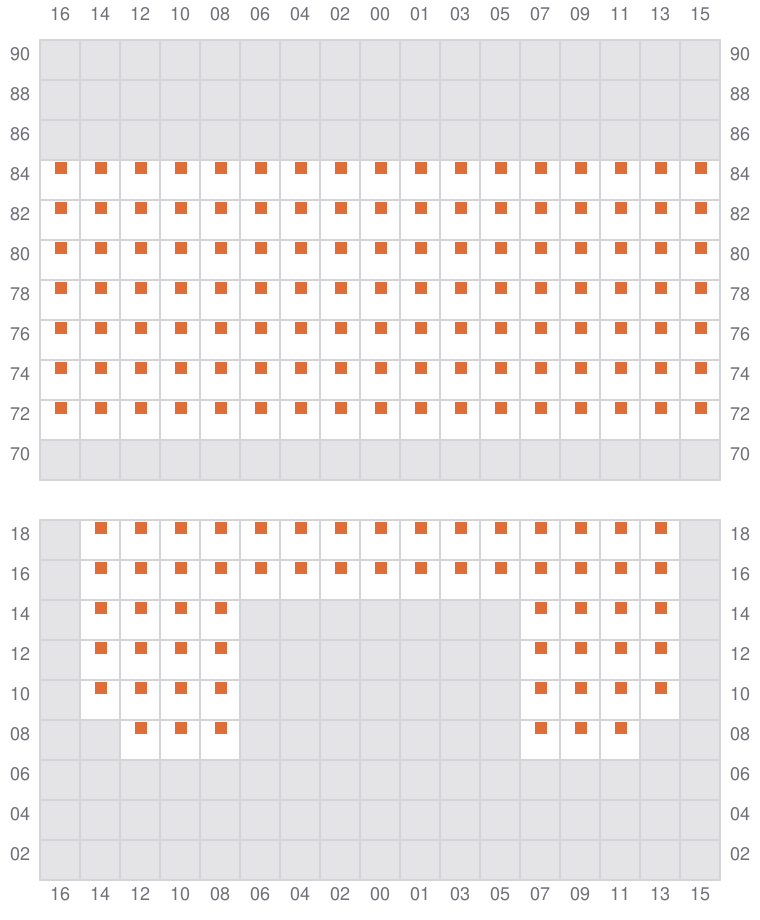

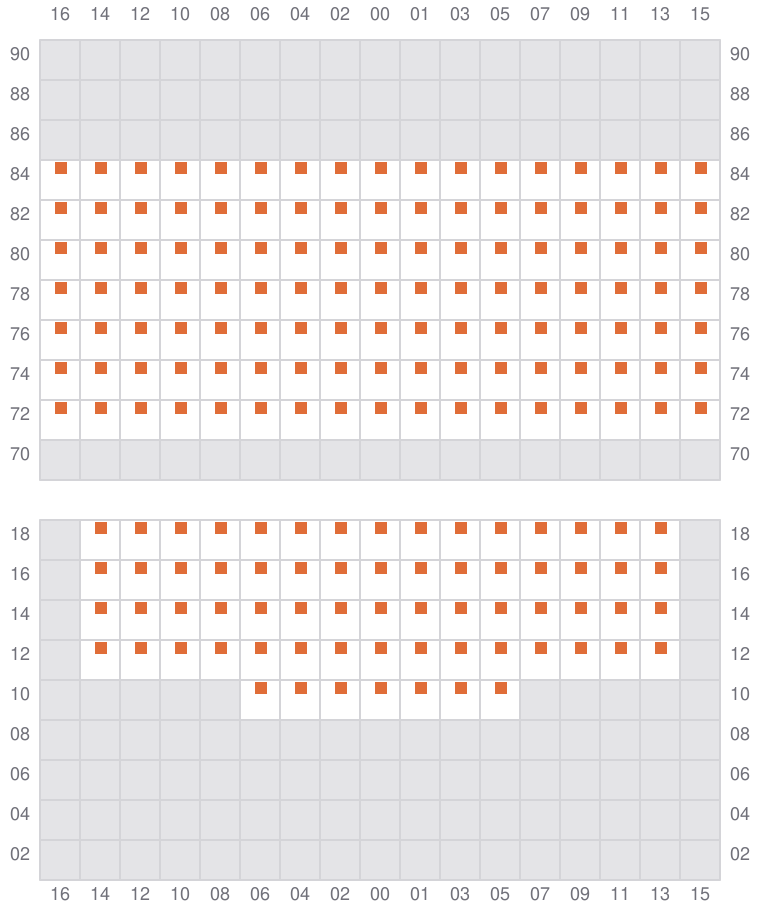

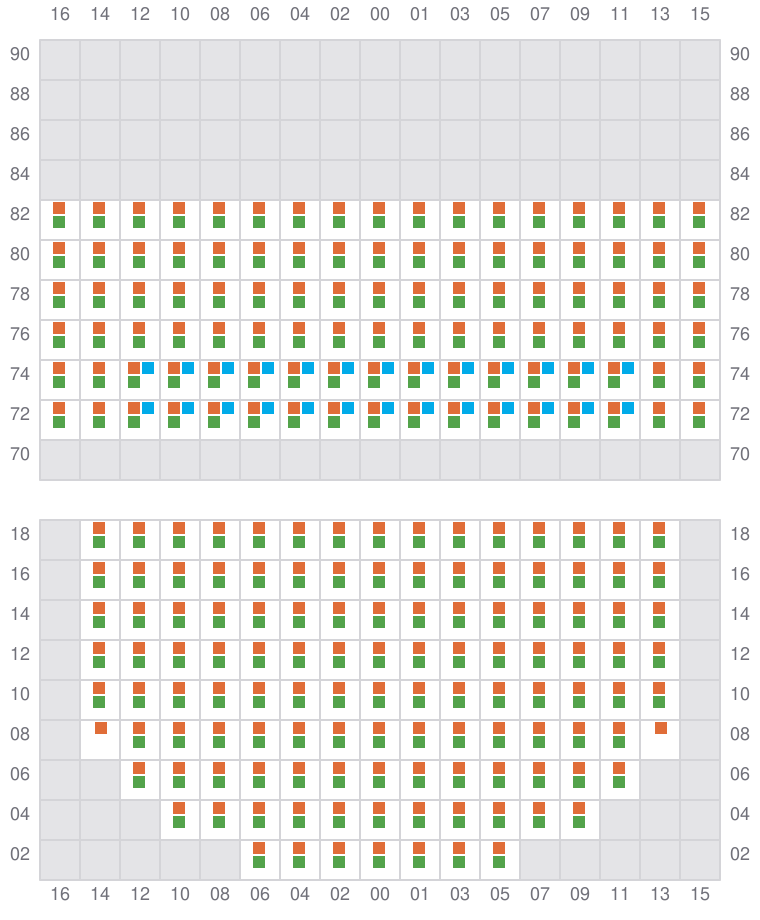

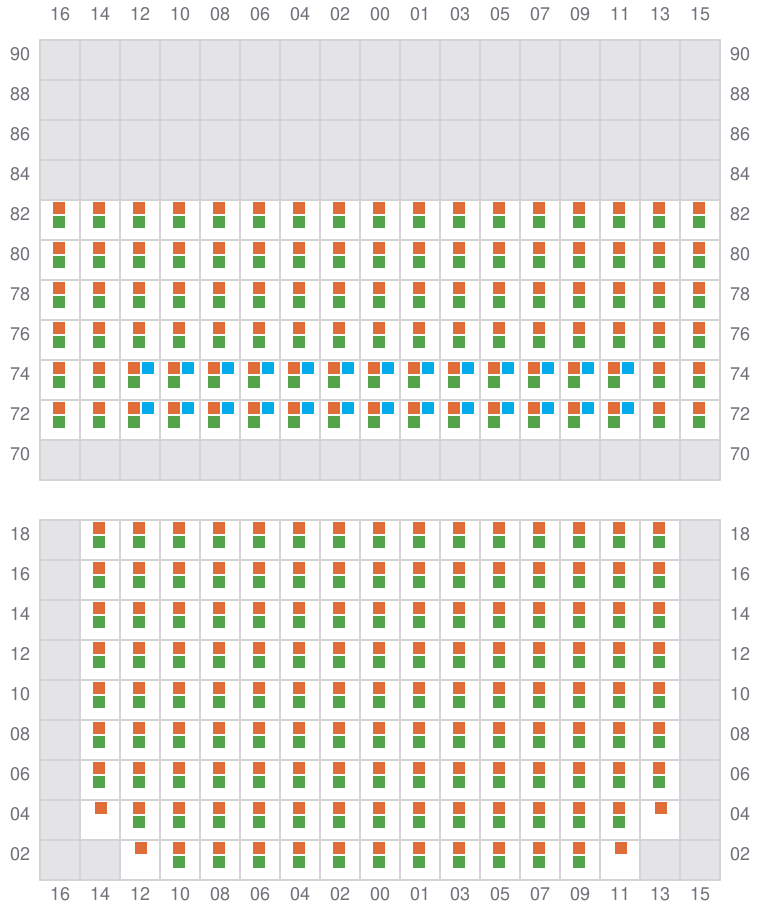

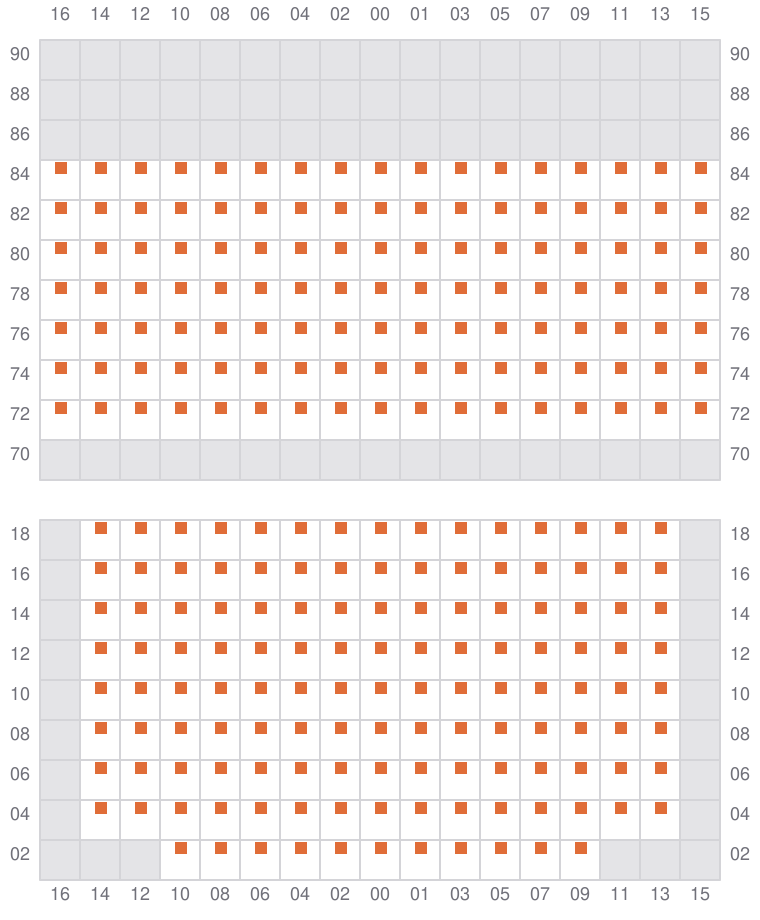

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

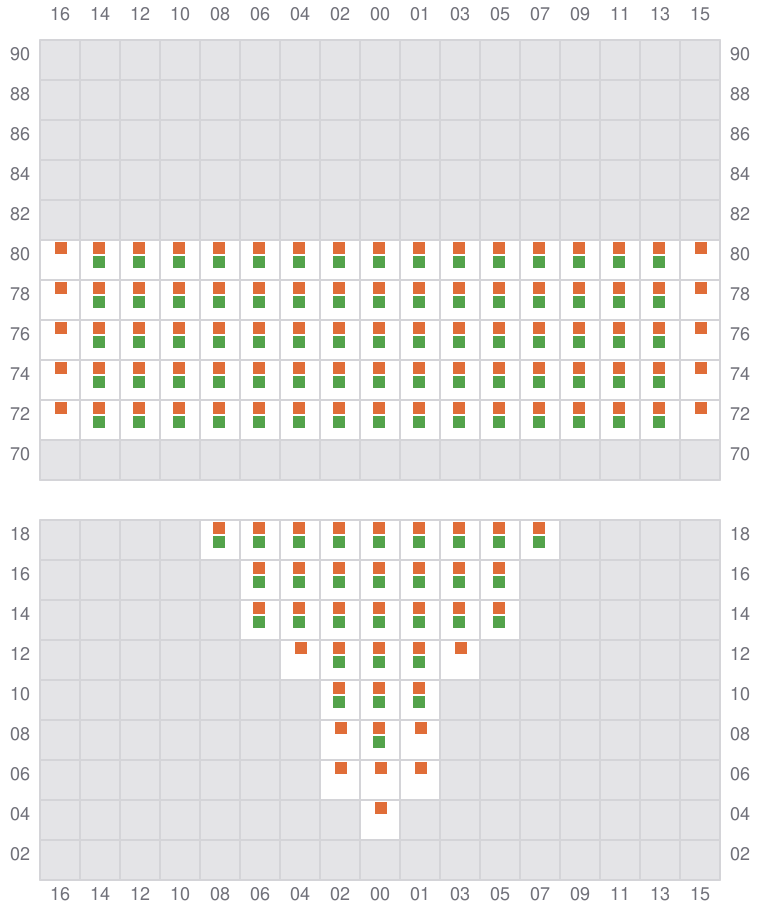

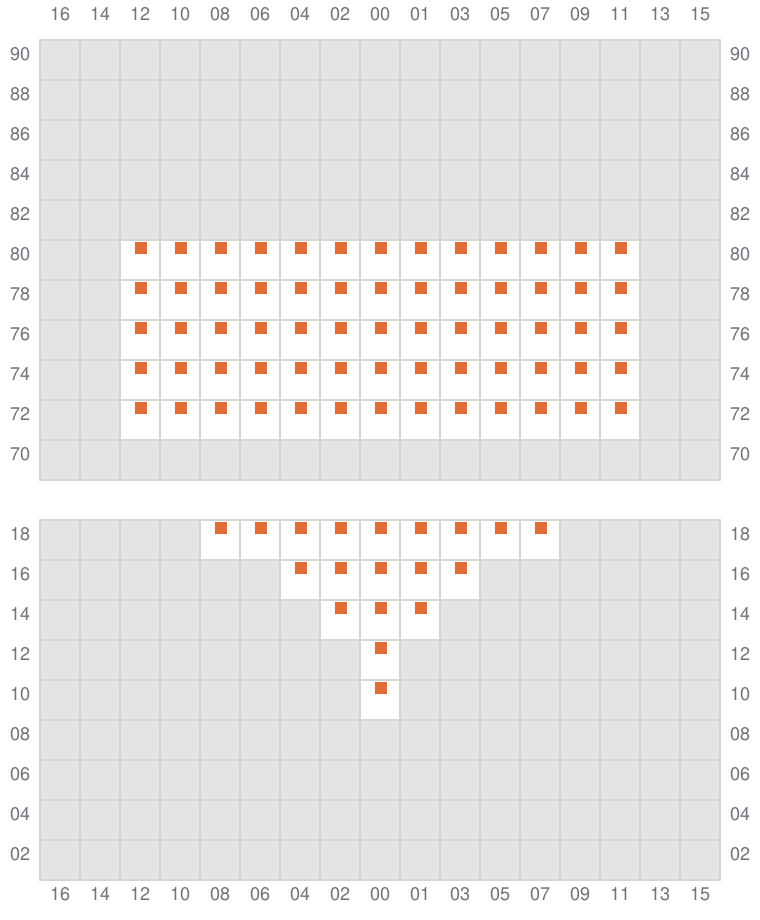

001
- → / ?

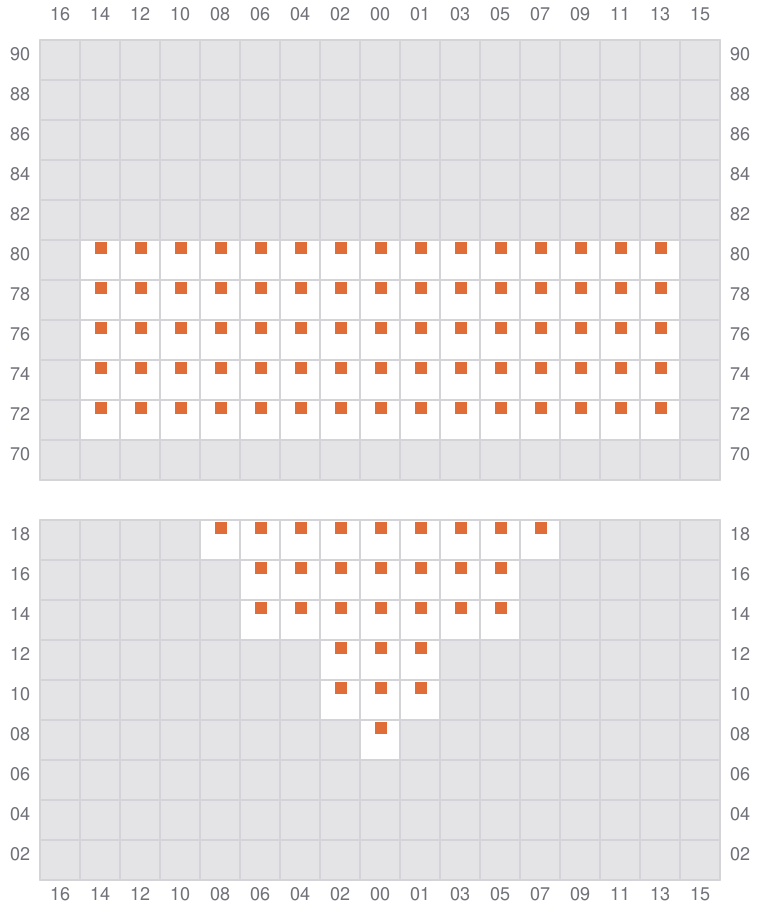

003
- →
005 (004)
- ←

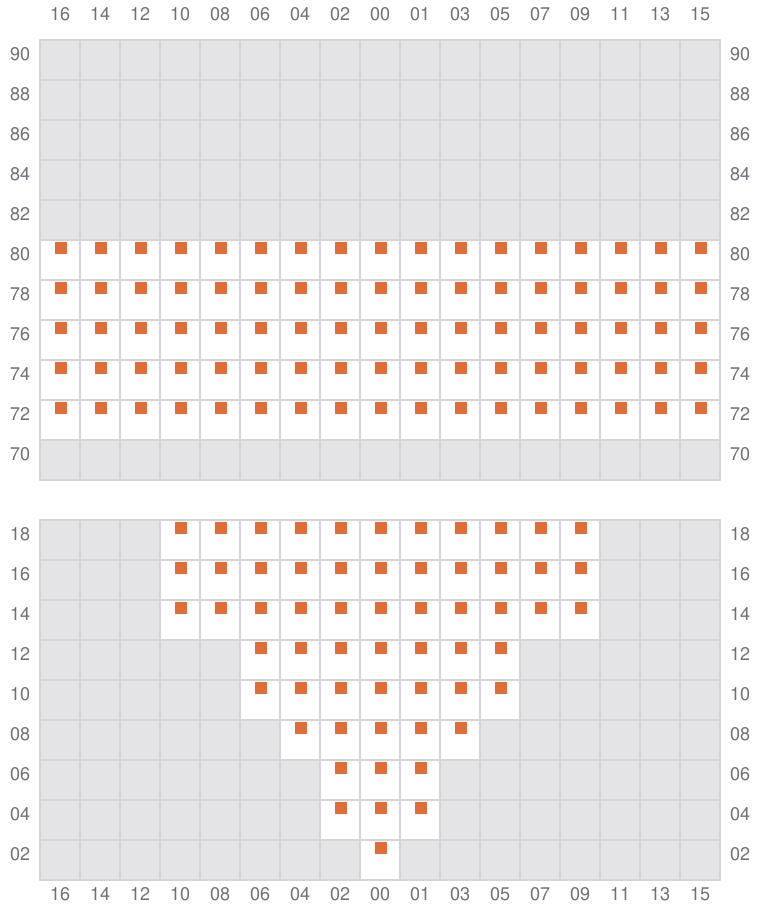

007
- →

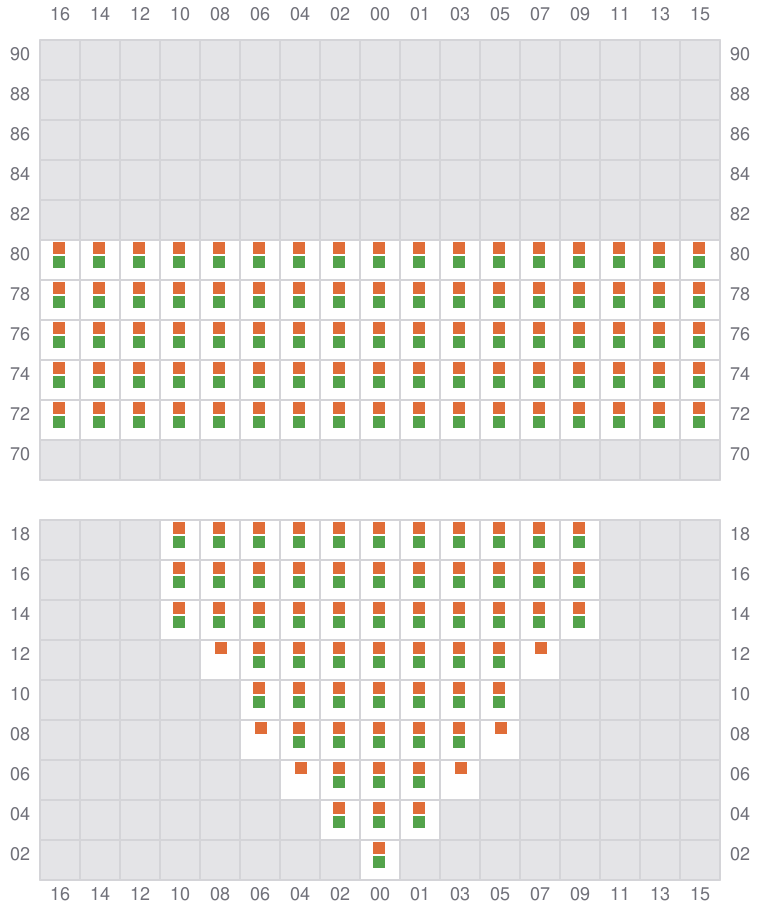

009 (008)
- ←

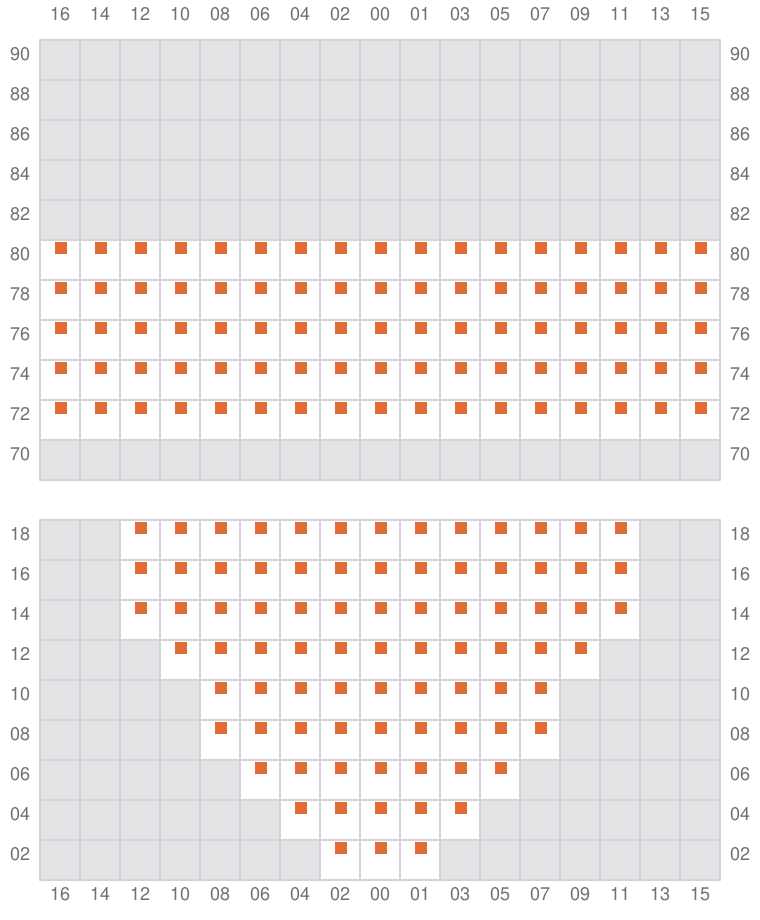

011
- →

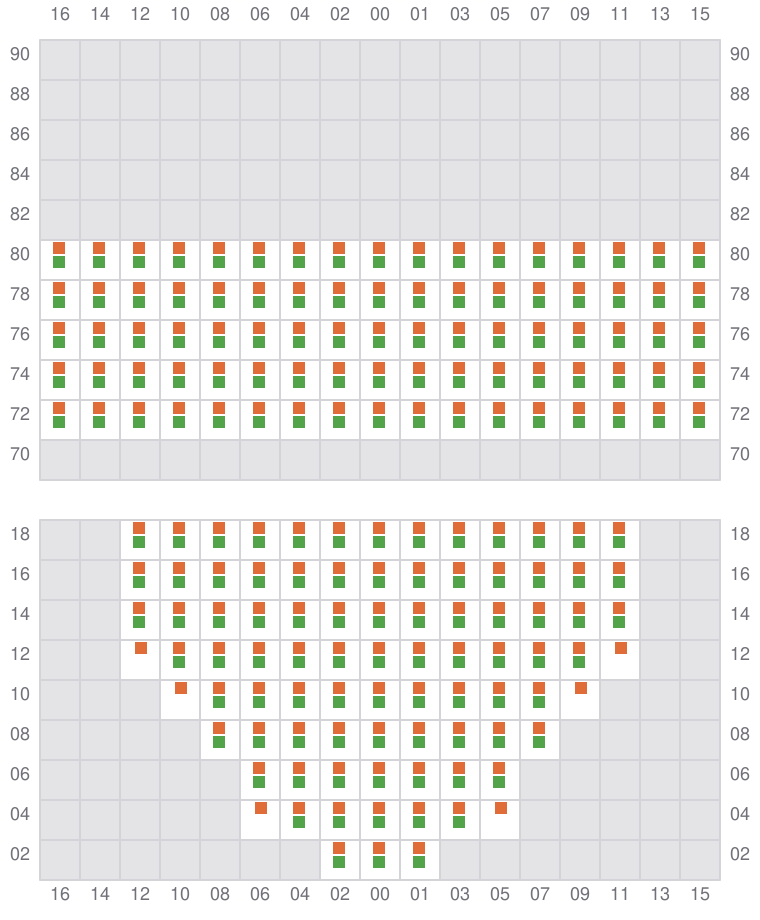

013 (012)
- ←
015
- →

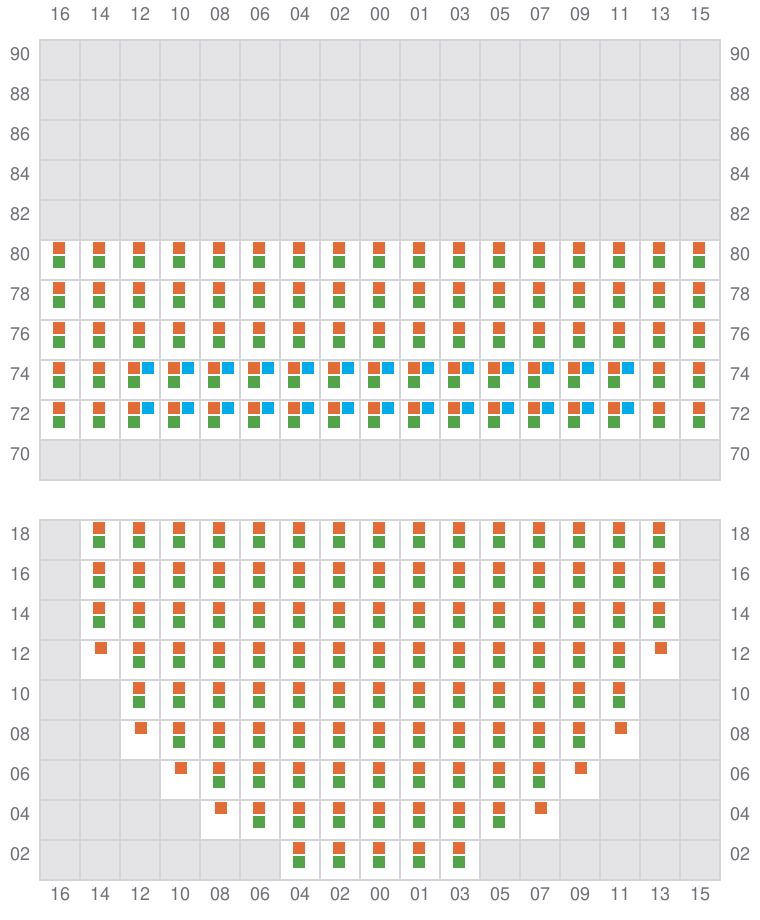

017 (016)
- ←
019
- →
021 (020)
- ←
023
- →

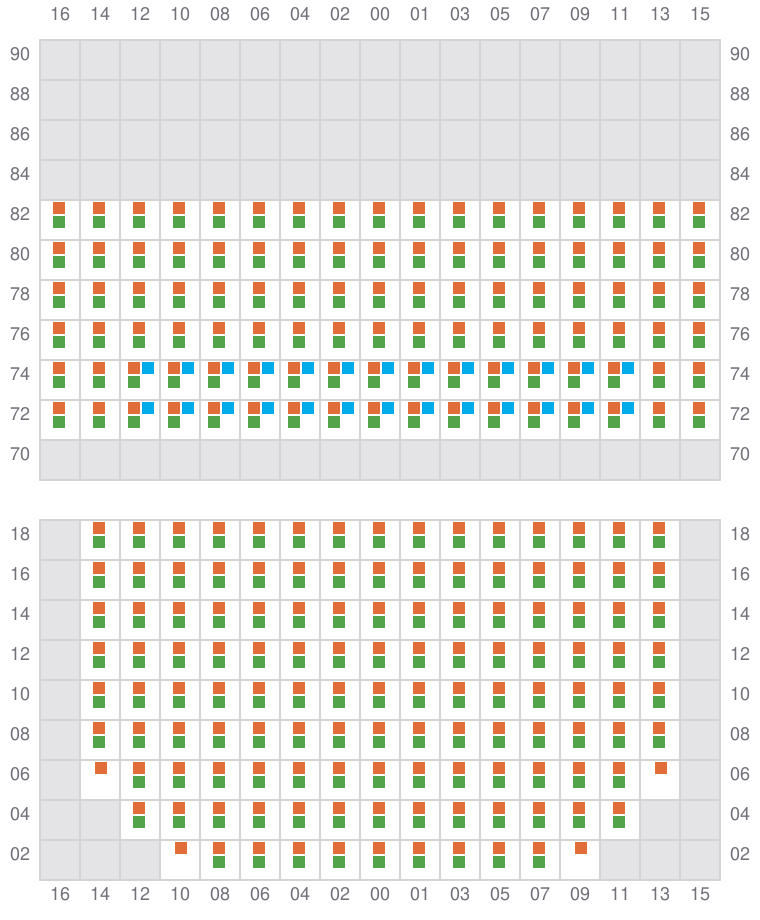

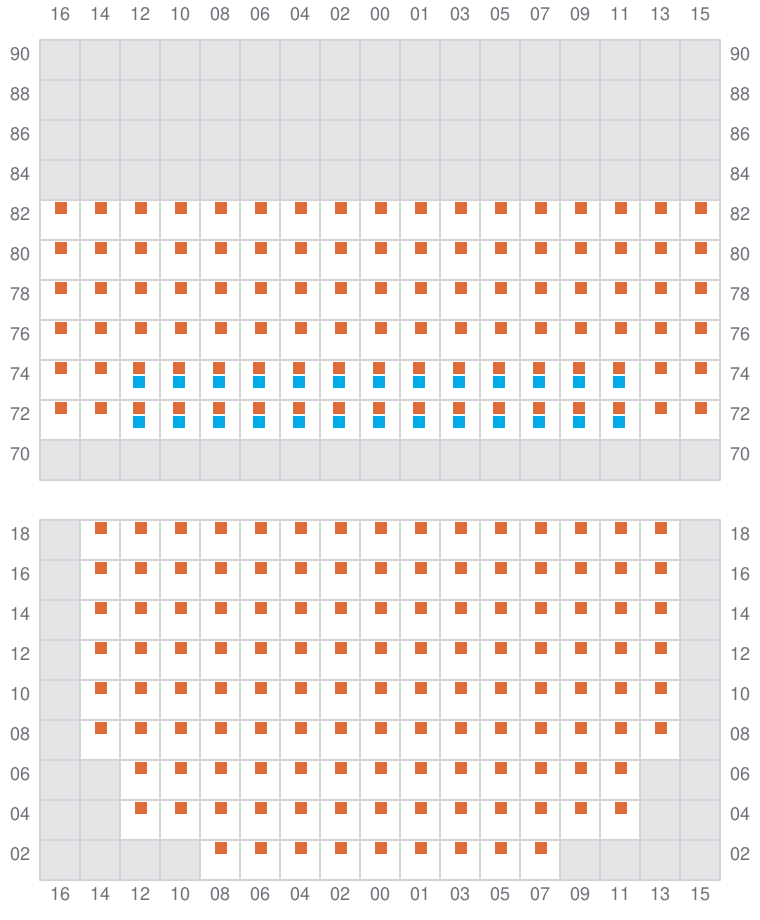

025 (024)
- ←

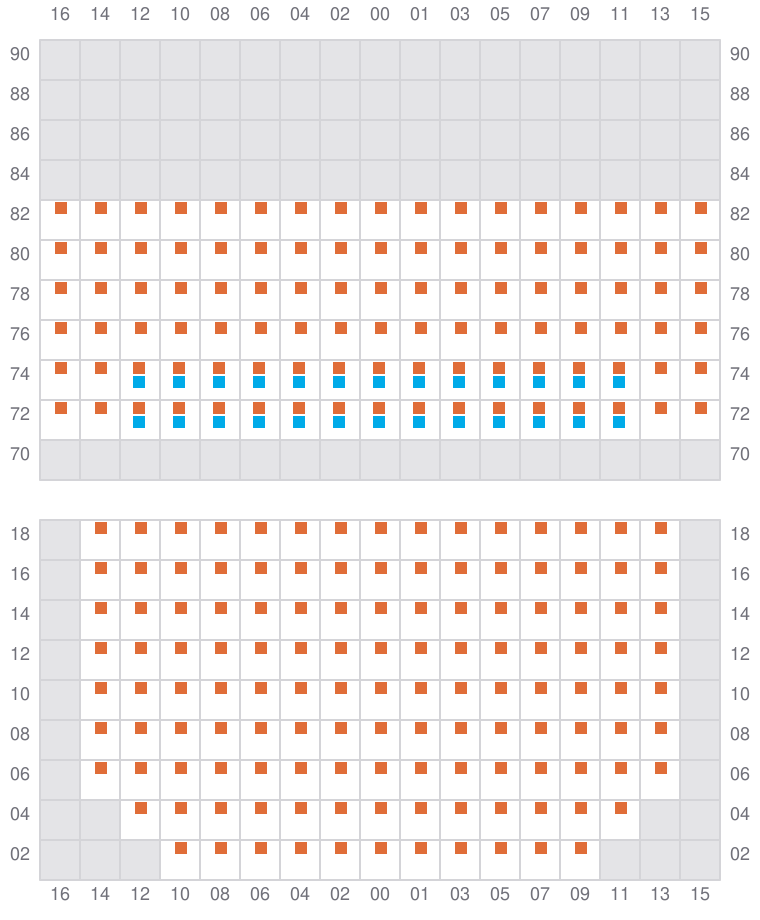

027
- →
029 (028)
- ←
031
- →
033 (032)
- ←

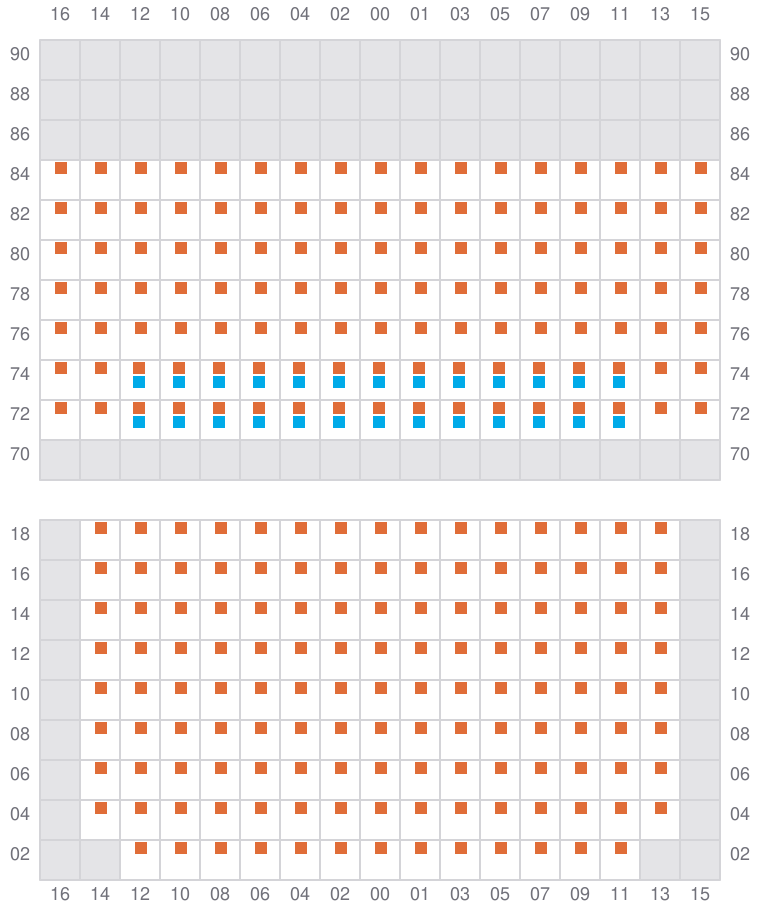

035
- → / ?
037 (036)
- ←
039
- →

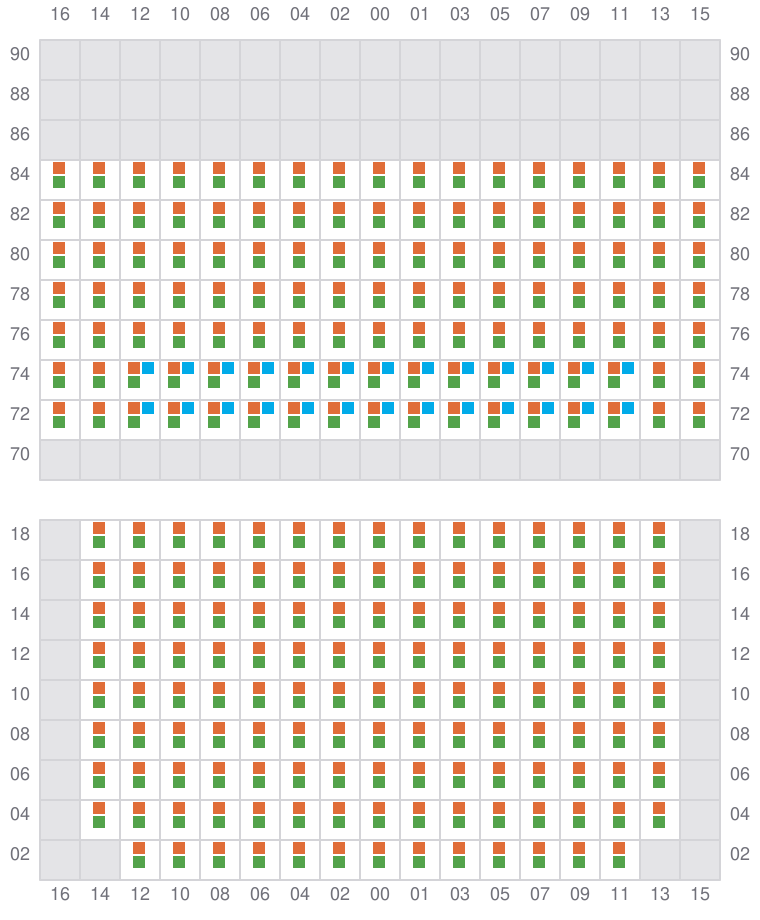

041 (040)
- ←
043
- →
045 (044)
- ←
047
- →
049 (048)
- ←
051
- →
053 (052)
- ←
055
- →
057 (056)
- ←
059
- →
061 (060)
- ←

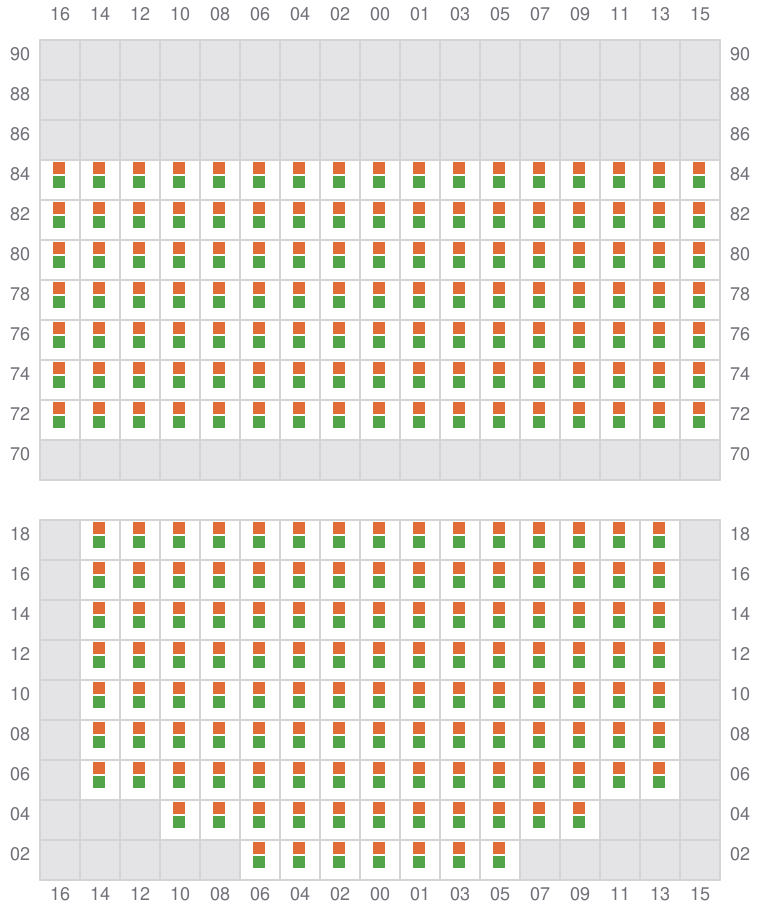

063
- →

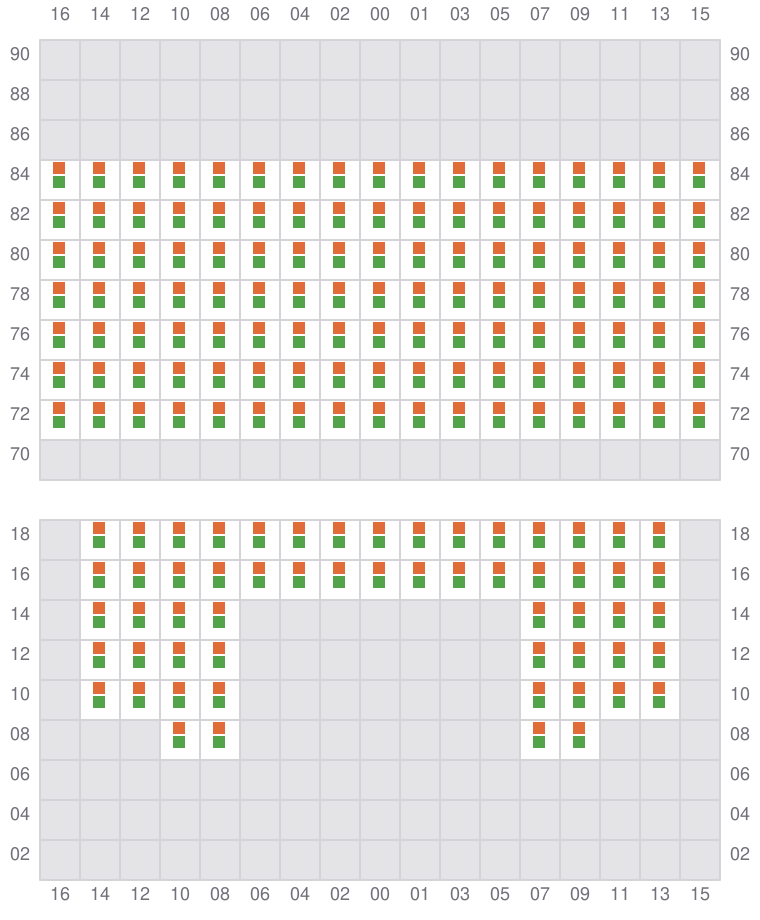

065 (064)
- ←
067
- →
069 (068)
- ←

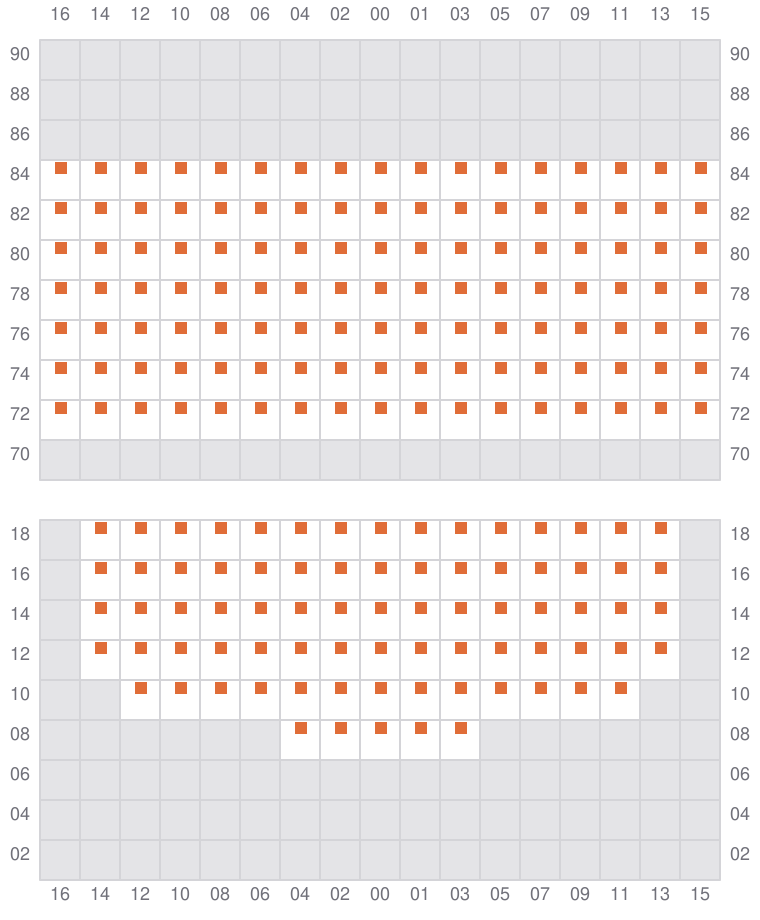

071
- →

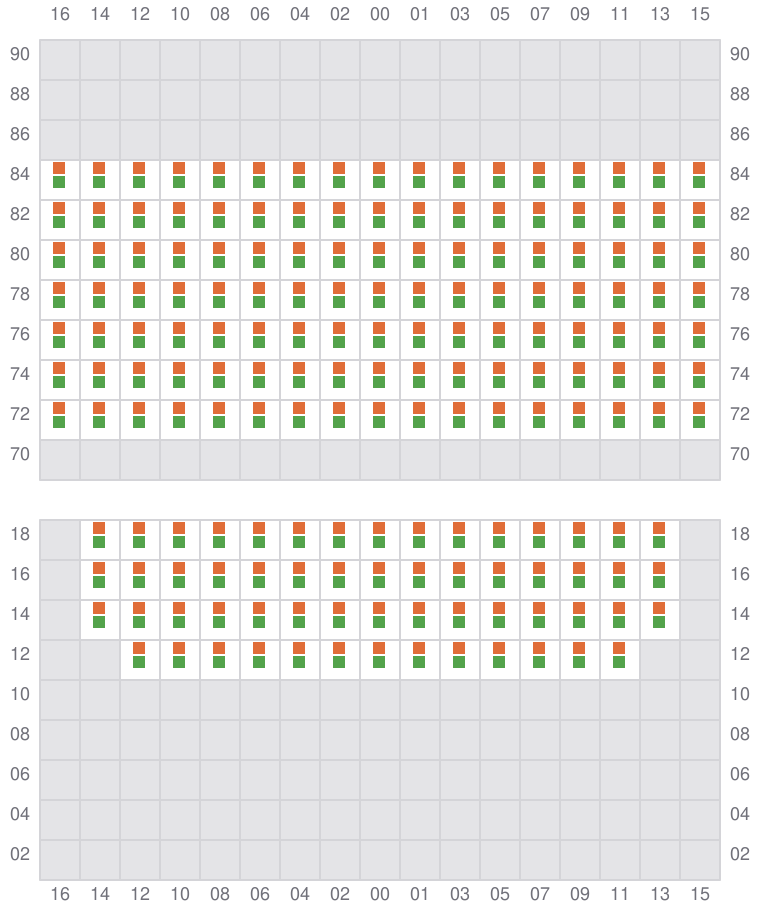

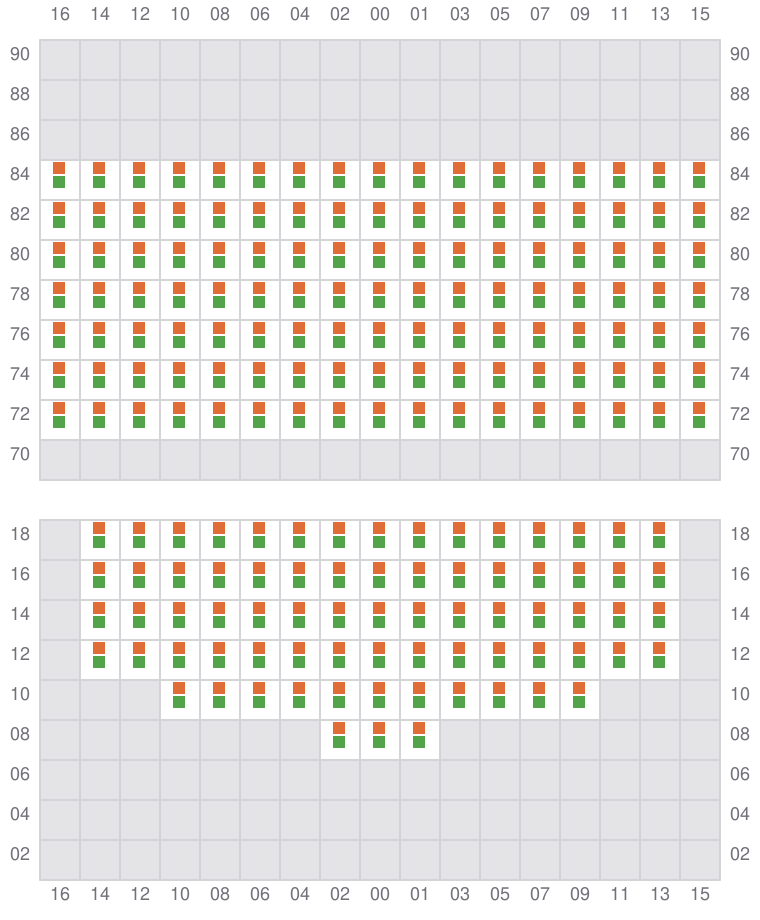

073 (072)
- ←

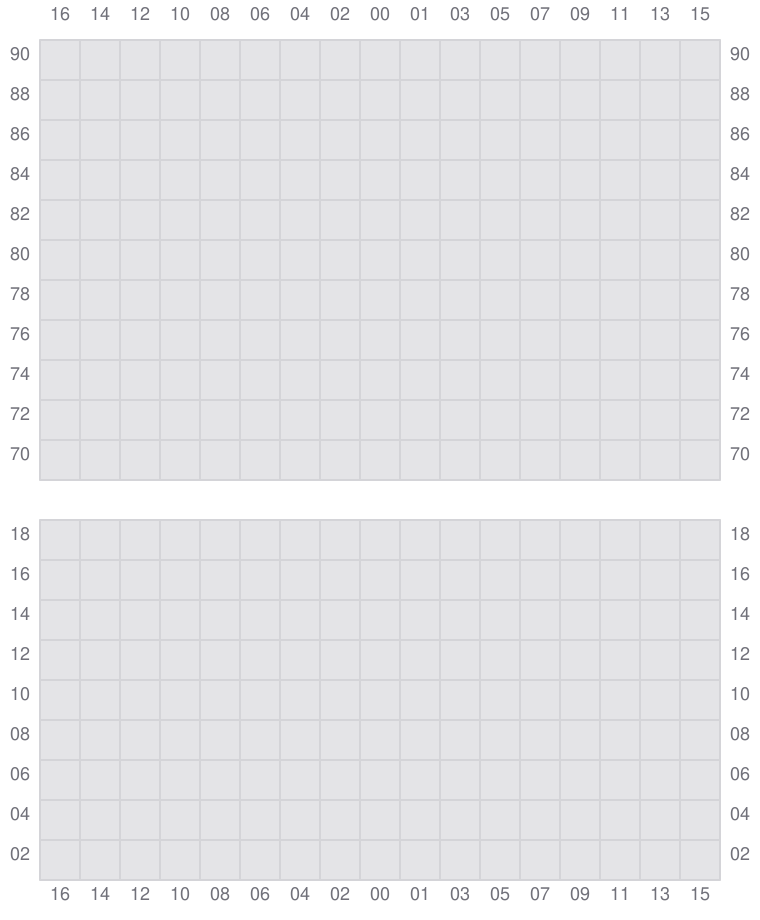

075

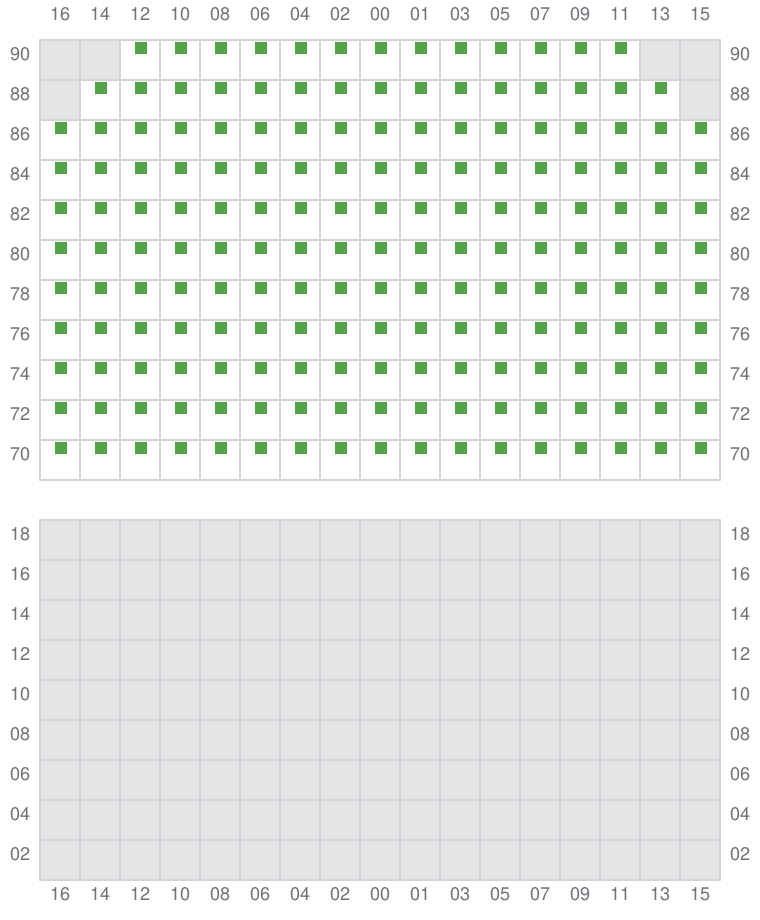

077
