MSC BELLE
9203904 | H9FF | 9203904 by ********* Last update: Thu Mar 14 2024
General Info
Ship Name:MSC BELLE
IMO Code:9203904
Call Sign:H9FF
Line Operator:9203904
Class Name for Sister Ships:32D
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,110
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

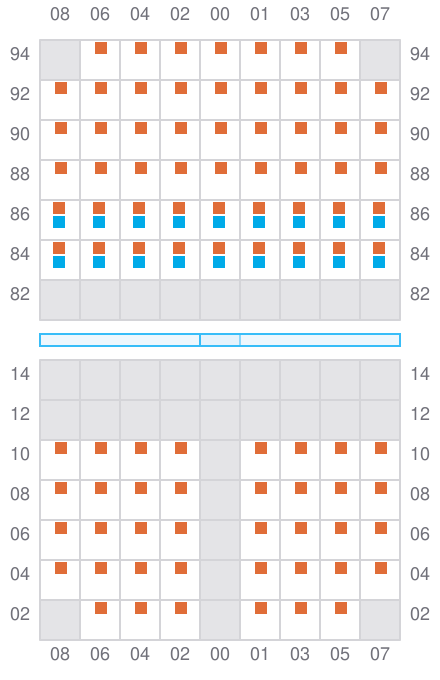

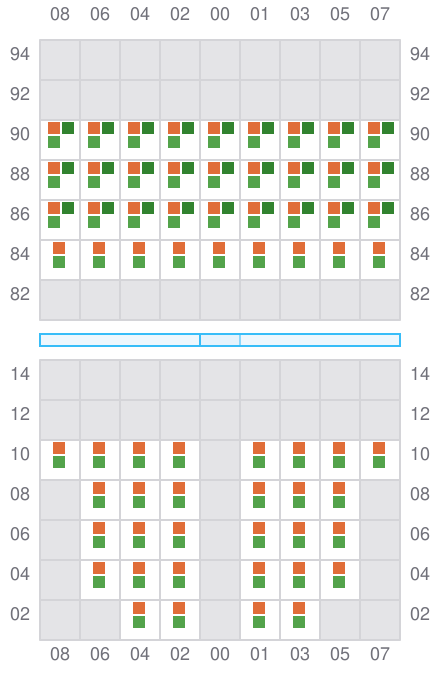

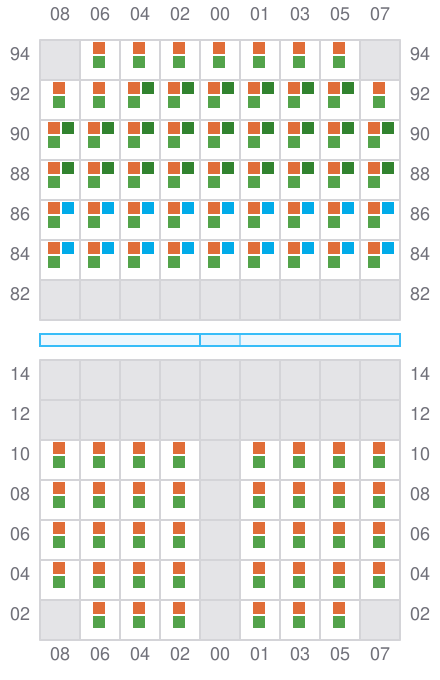

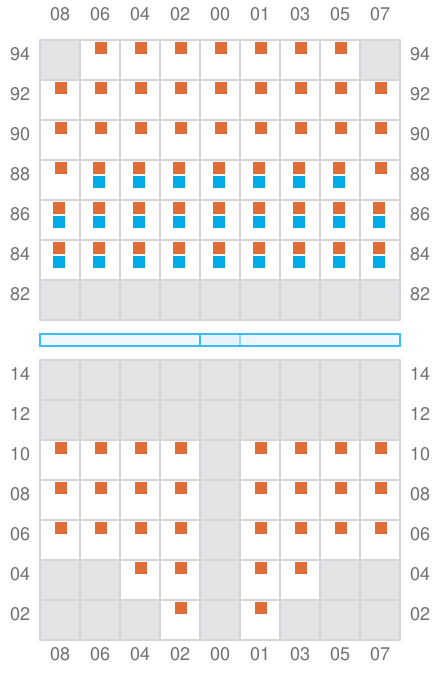

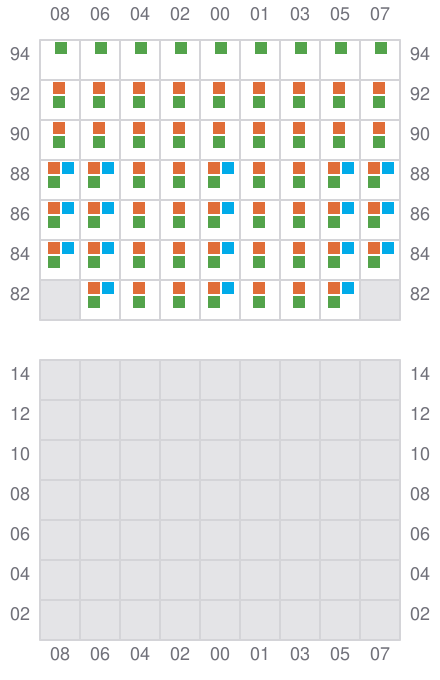

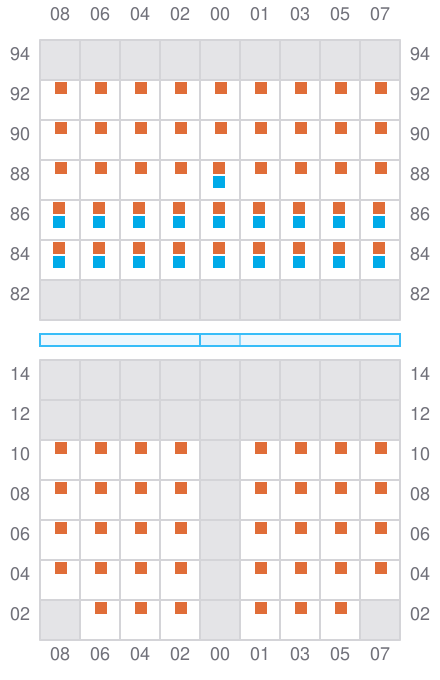

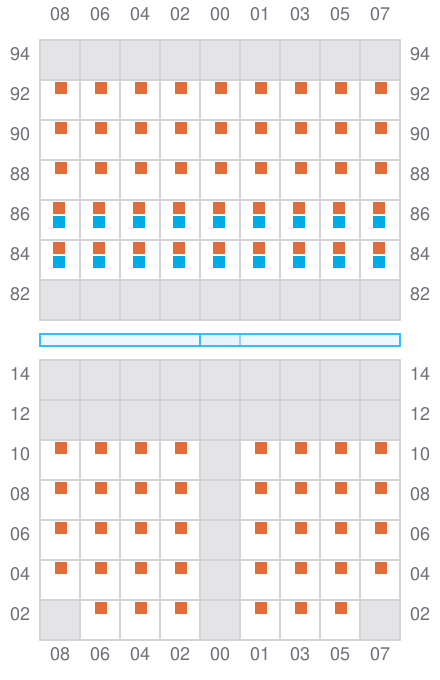

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

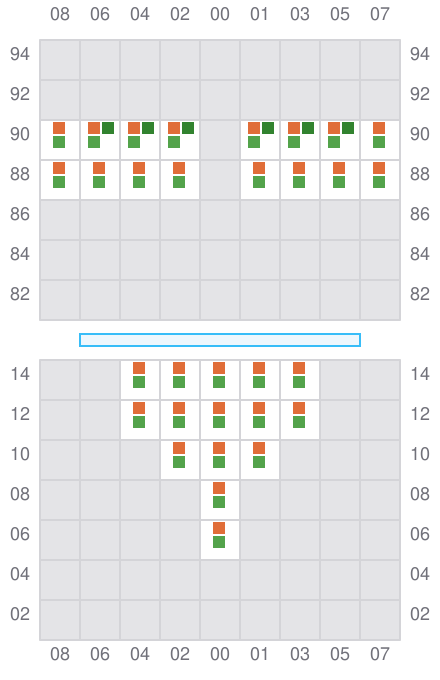

001 (002)
- →

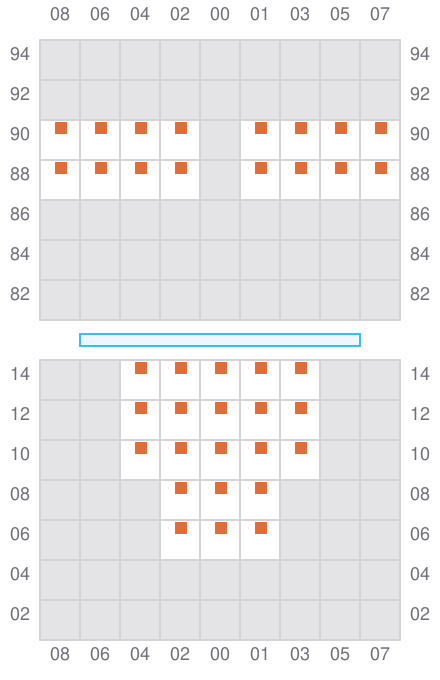

003
- ←

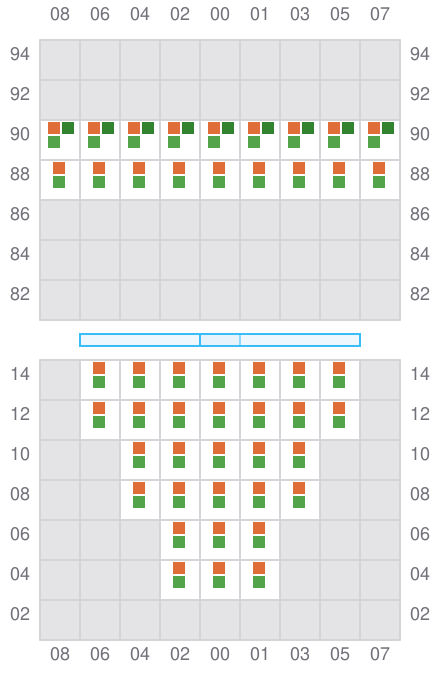

005 (006)
- →
- → / ?

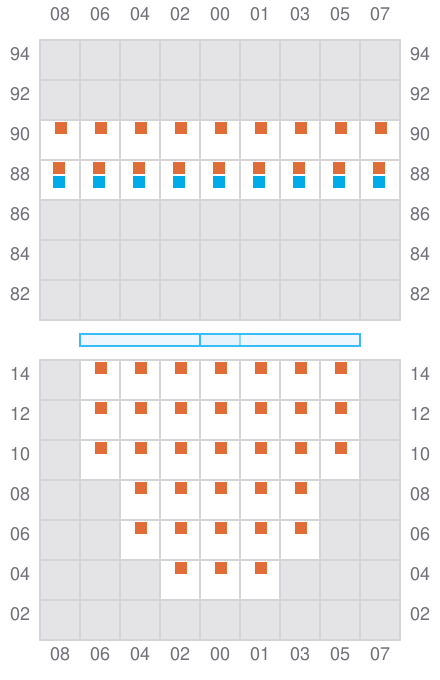

007
- ←
- → / ?
009 (010)
- →

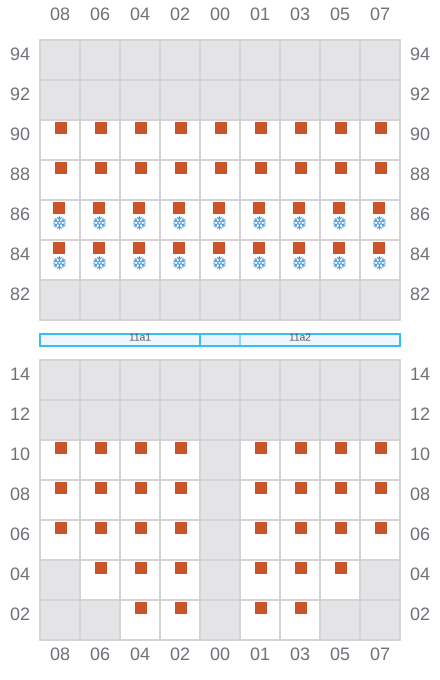

011
- ←
- → / ?
013 (014)
- →
- ← / ?
015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
- → / ?

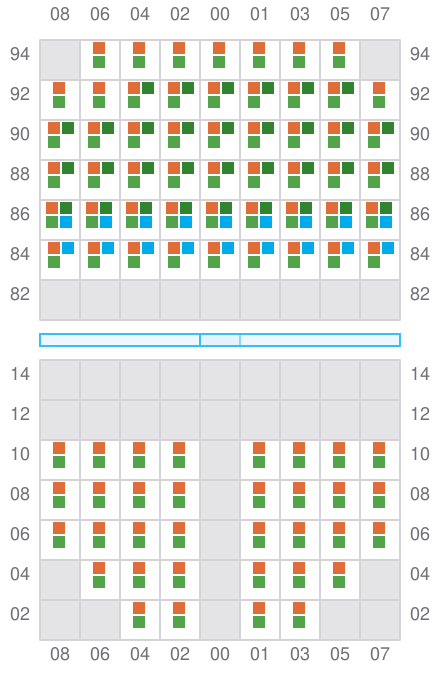

025 (026)
- →
- ← / ?
027
- ←
- → / ?
029 (030)
- → / ?

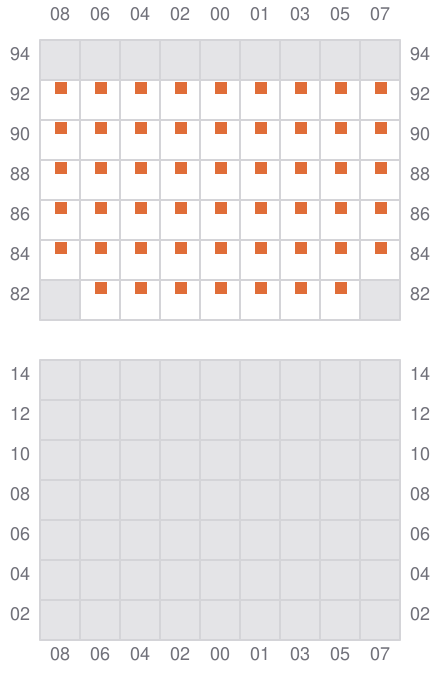

031
- ← / ?
