MSC BELMONTE III
9309289 | PU7718 | 9309289 by ********* Last update: Thu Apr 04 2024

General Info

Ship Name:MSC BELMONTE III
IMO Code:9309289
Call Sign:PU7718
Line Operator:9309289
Class Name for Sister Ships:APL
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,534

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

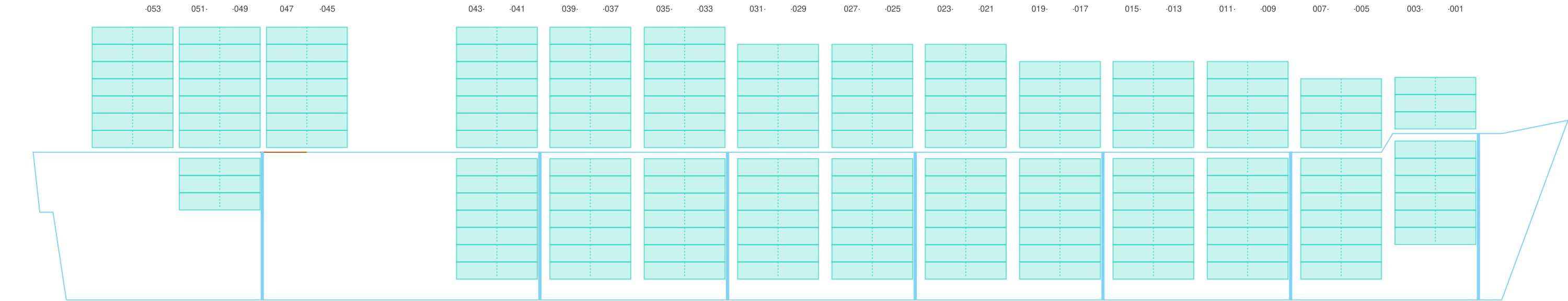

Side View

Side view of MSC BELMONTE III

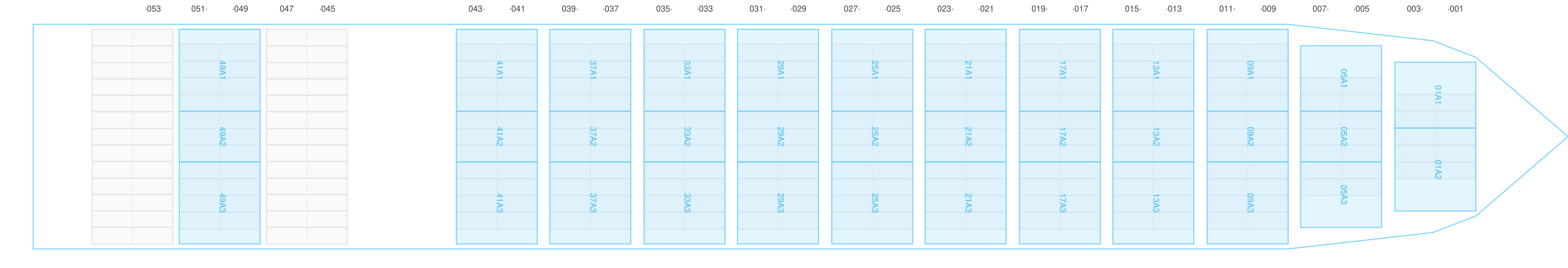

Hatch-Covers View

Deck view of MSC BELMONTE III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

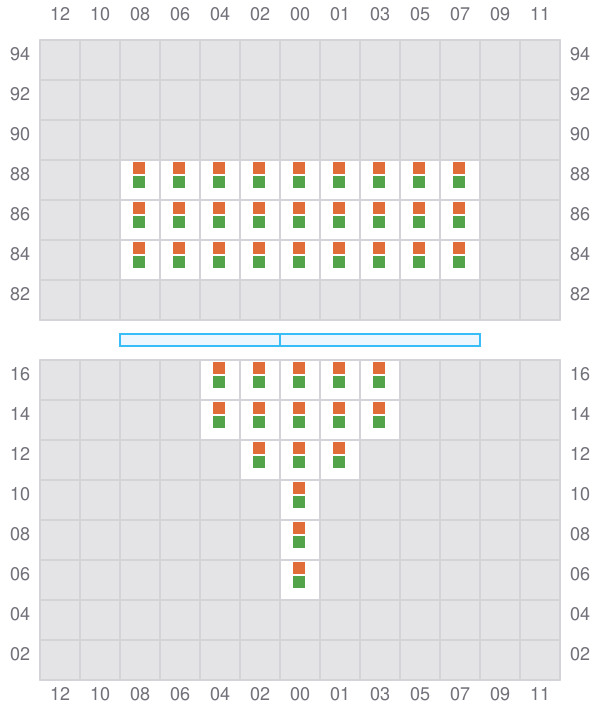

001 (002)

  • →
Bay 001 view and slots of MSC BELMONTE III

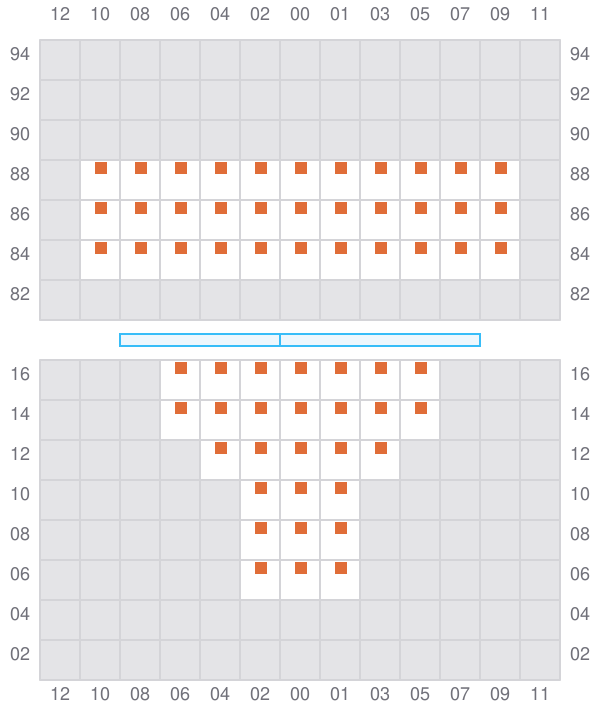

003

  • ←
Bay 003 view and slots of MSC BELMONTE III

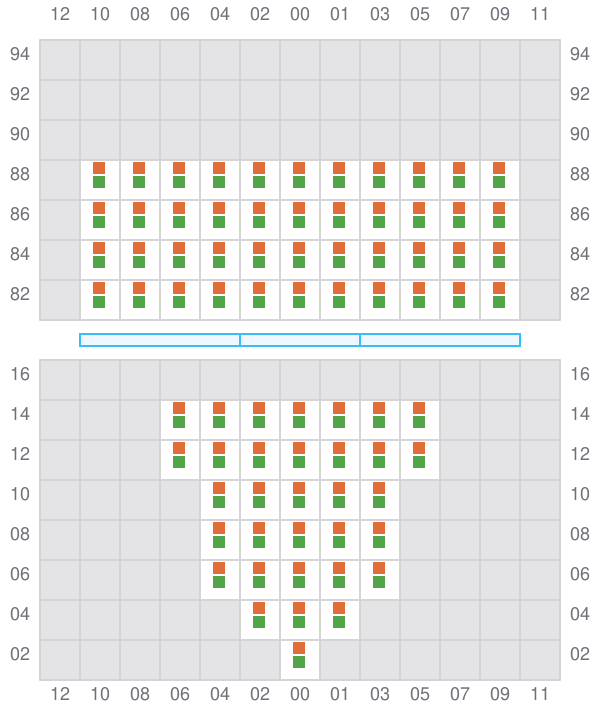

005 (006)

  • →
Bay 005 view and slots of MSC BELMONTE III

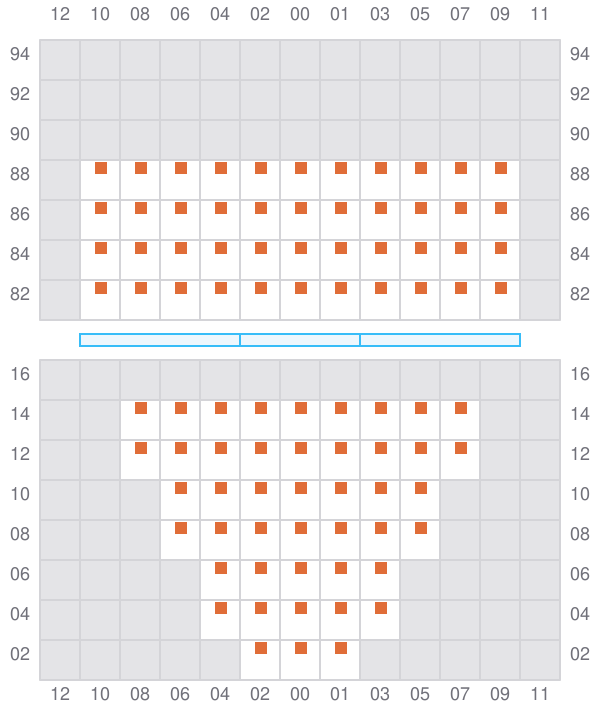

007

  • ←
Bay 007 view and slots of MSC BELMONTE III

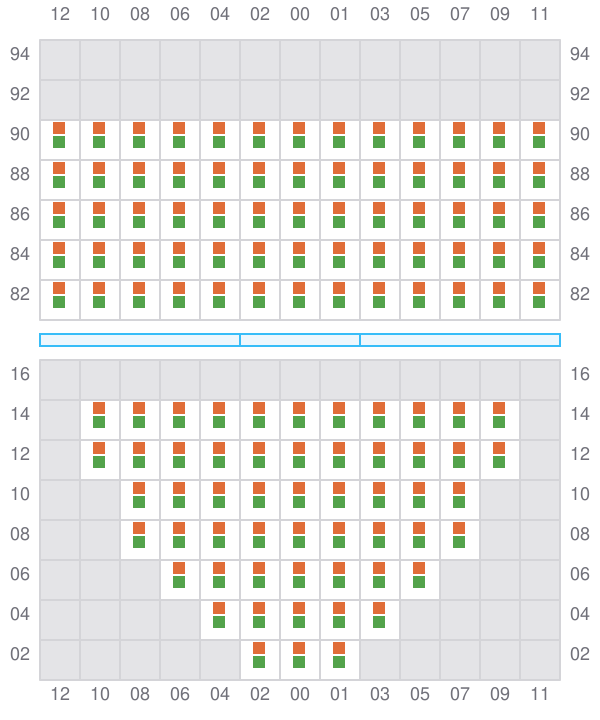

009 (010)

  • →
Bay 009 view and slots of MSC BELMONTE III

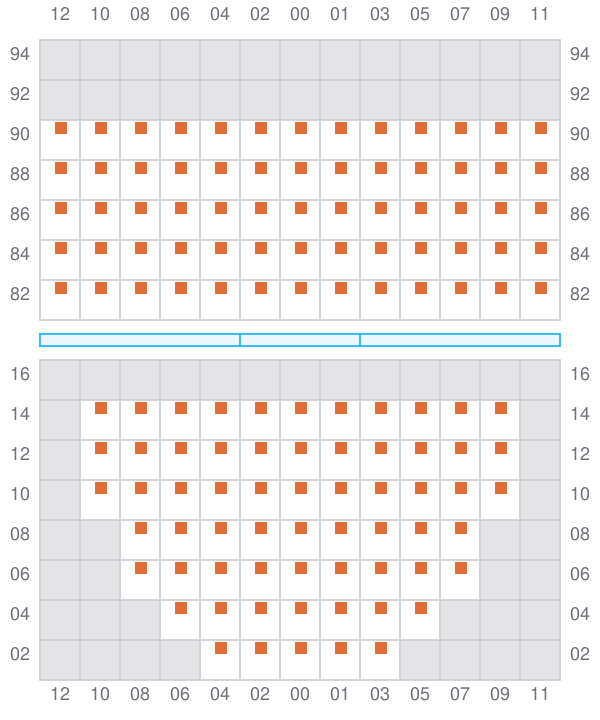

011

  • ←
  • → / ?
Bay 011 view and slots of MSC BELMONTE III

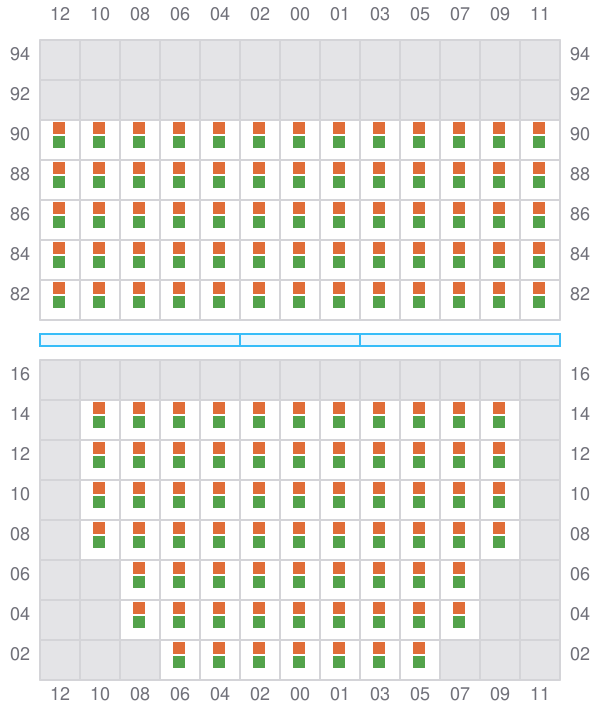

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of MSC BELMONTE III

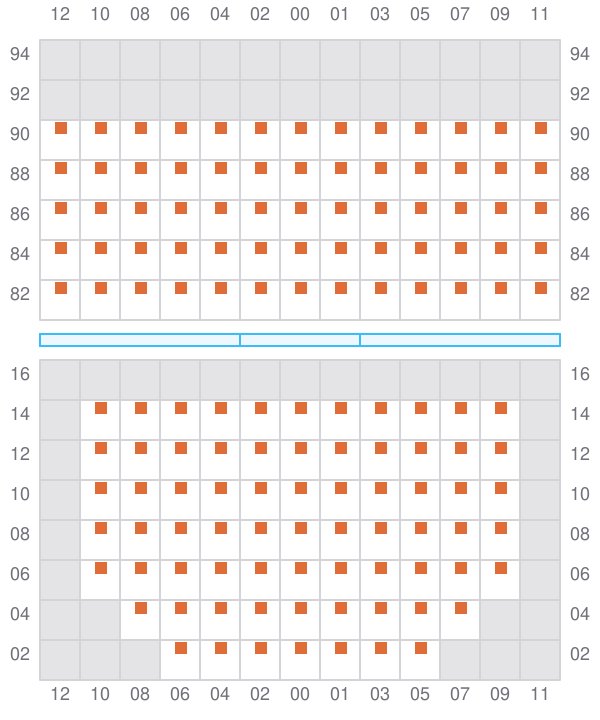

015

  • ←
Bay 015 view and slots of MSC BELMONTE III

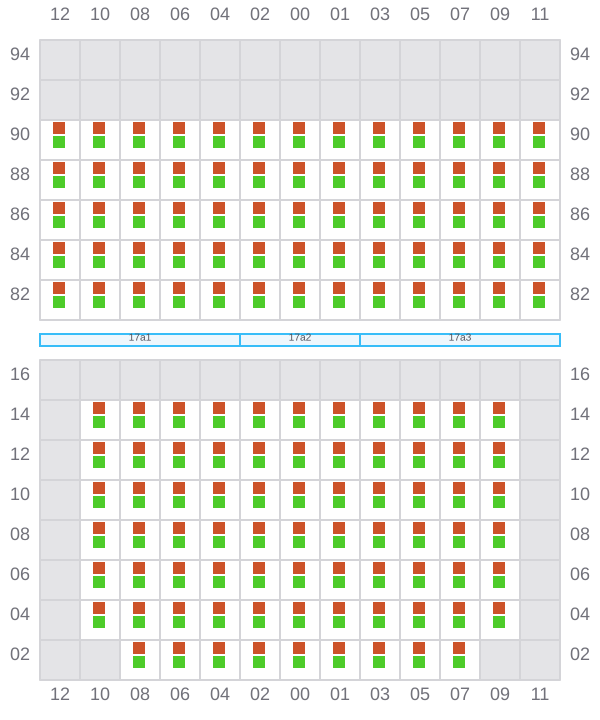

017 (018)

  • →
Bay 017 view and slots of MSC BELMONTE III

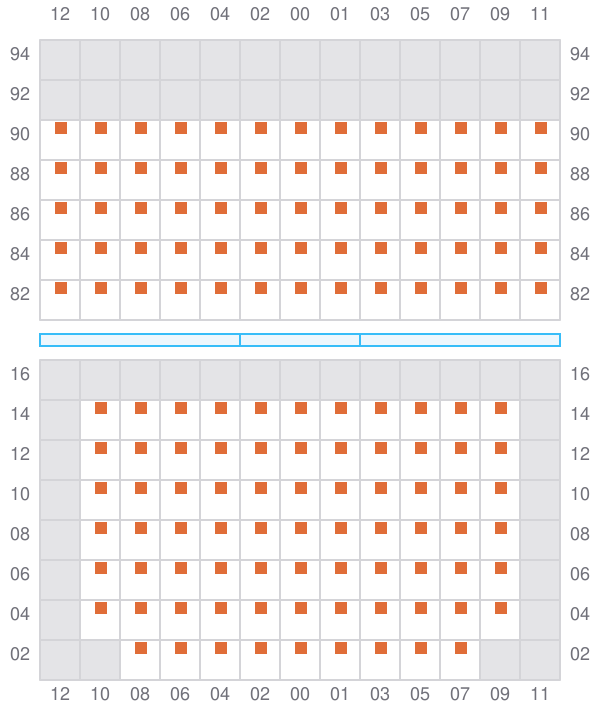

019

  • ←
  • → / ?
Bay 019 view and slots of MSC BELMONTE III

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of MSC BELMONTE III

023

  • ←
Bay 023 view and slots of MSC BELMONTE III

025 (026)

  • →
Bay 025 view and slots of MSC BELMONTE III

027

  • ←
  • → / ?
Bay 027 view and slots of MSC BELMONTE III

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of MSC BELMONTE III

031

  • ←
Bay 031 view and slots of MSC BELMONTE III

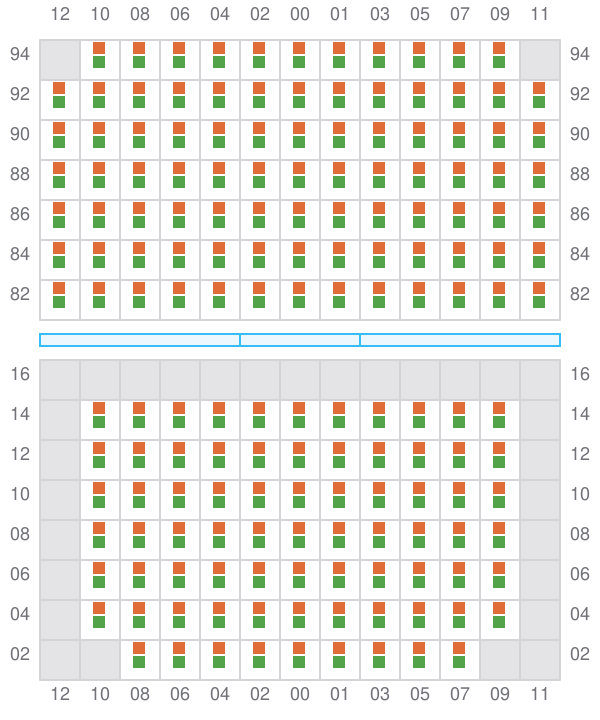

033 (034)

  • →
Bay 033 view and slots of MSC BELMONTE III

035

  • ←
  • → / ?
Bay 035 view and slots of MSC BELMONTE III

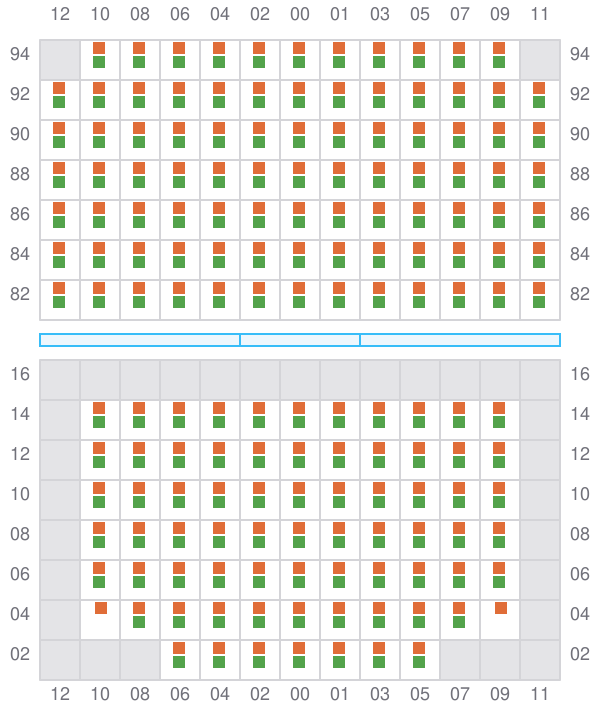

037 (038)

  • →
  • ← / ?
Bay 037 view and slots of MSC BELMONTE III

039

  • ←
Bay 039 view and slots of MSC BELMONTE III

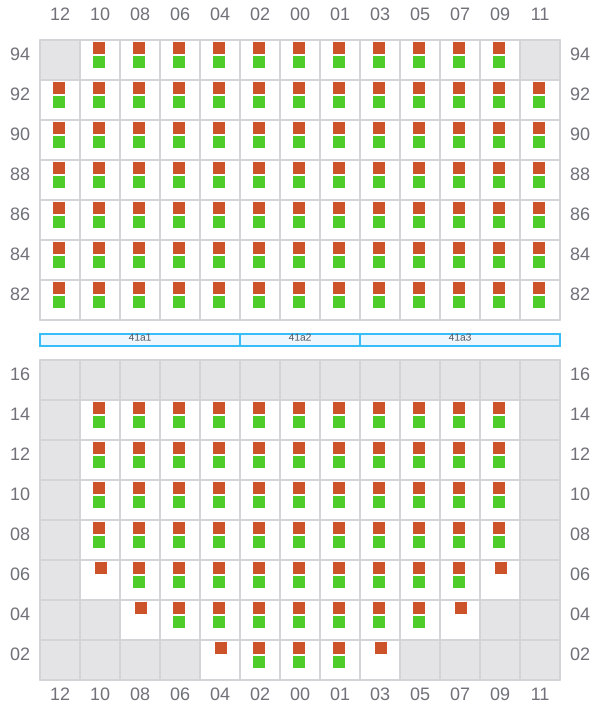

041 (042)

  • →
Bay 041 view and slots of MSC BELMONTE III

043

  • ←
  • → / ?
Bay 043 view and slots of MSC BELMONTE III

045 (046)

  • → / ?
  • ← / ?
Bay 045 view and slots of MSC BELMONTE III

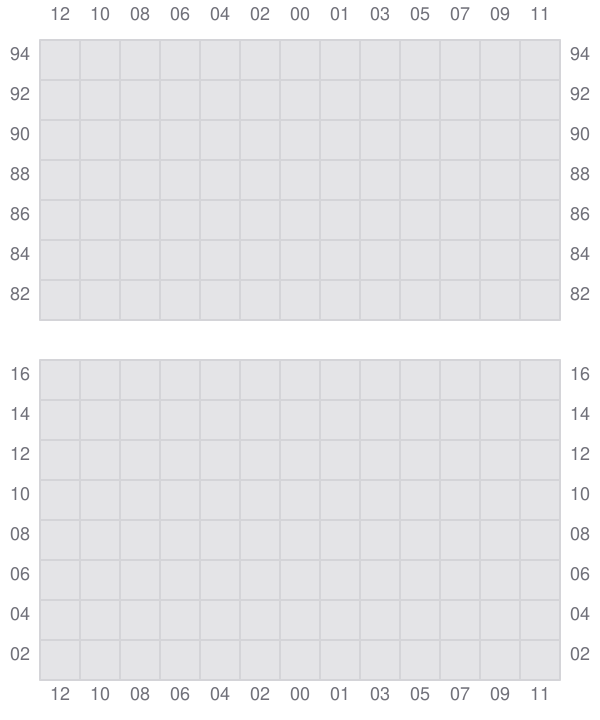

047

Bay 047 view and slots of MSC BELMONTE III

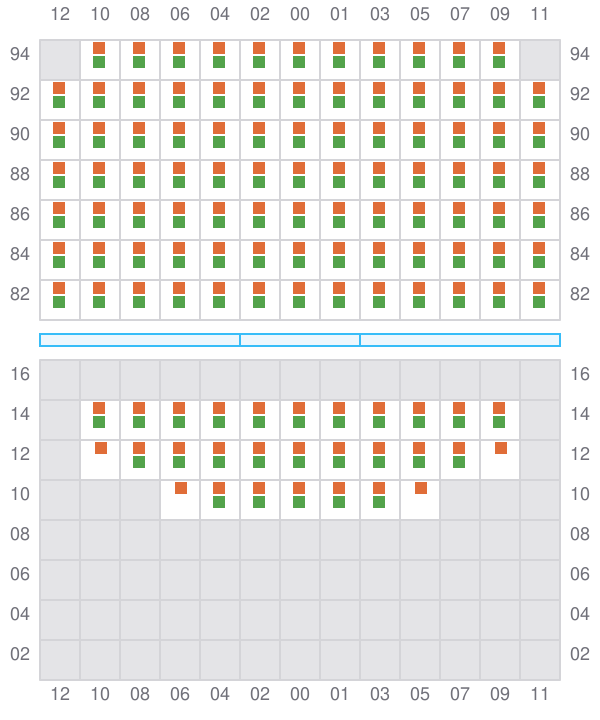

049 (050)

  • →
Bay 049 view and slots of MSC BELMONTE III

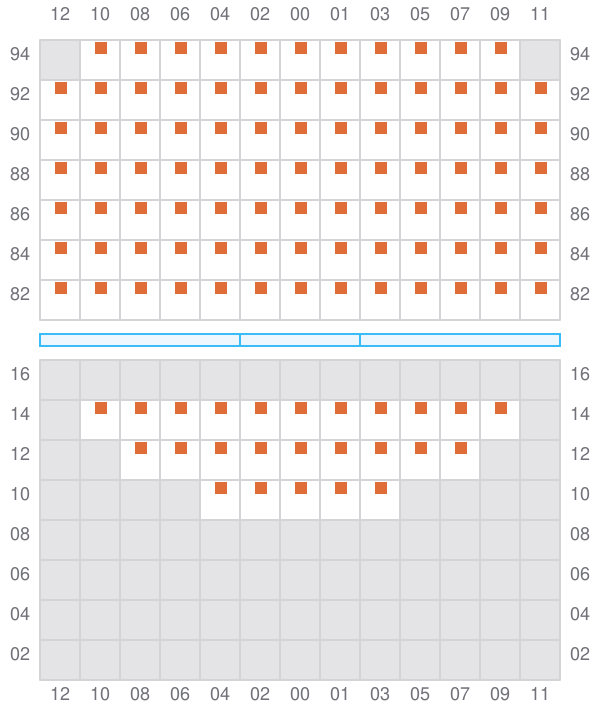

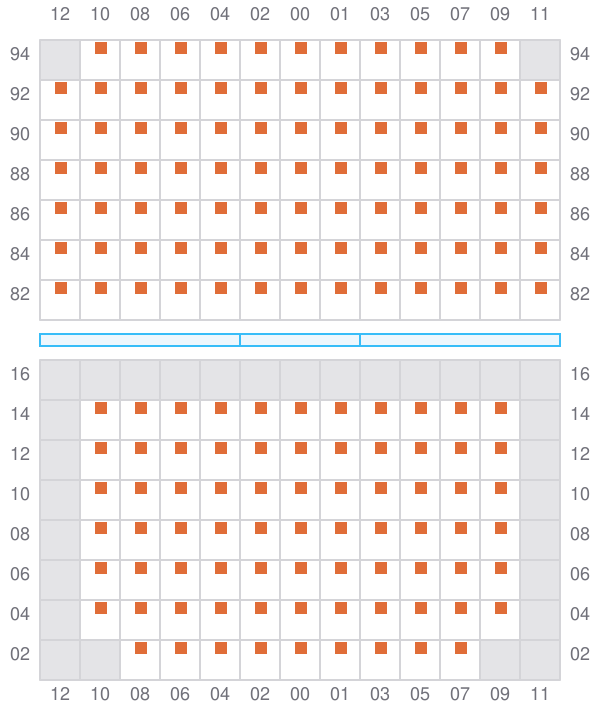

051

  • ←
Bay 051 view and slots of MSC BELMONTE III

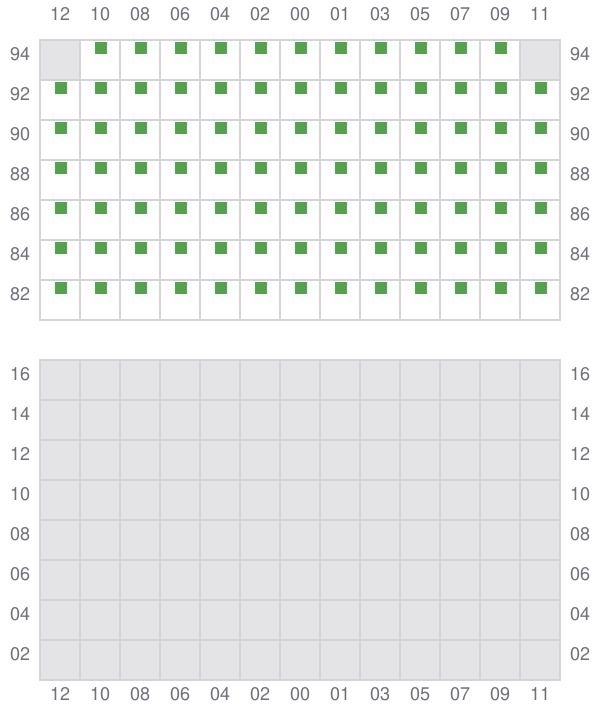

053 (054)

  • → / ?
Bay 053 view and slots of MSC BELMONTE III
