MSC BENIN
9974565 | 5LWN7 | MSC by ************** Last update: Tue Jul 01 2025
General Info
Ship Name:MSC BENIN
IMO Code:9974565
Call Sign:5LWN7
Line Operator:MSC
Class Name for Sister Ships:MSPA
Year Built:2025
Position Format:Bay, Row, Tier
Allowed Containers:40, 20, 45
LPP (LBP):255.50
LOA (Length Overall):261.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:059
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,466
Centers of Gravity
LCG Values:Known
LCG Data:94%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:94%
Side View
Hatch-Covers View

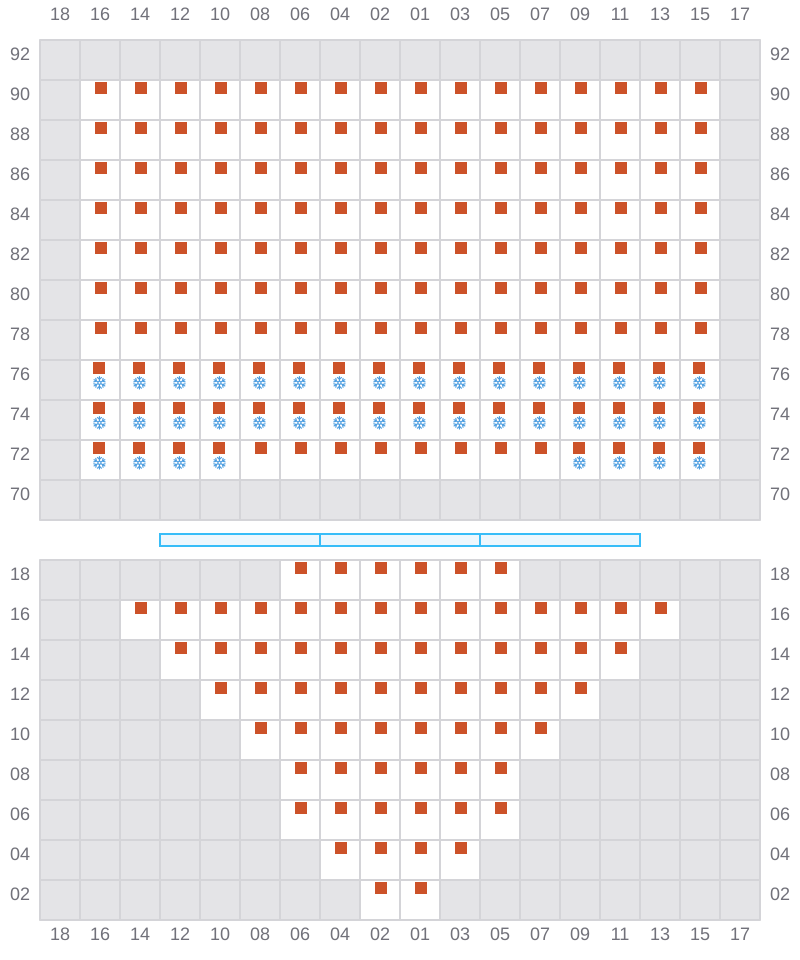

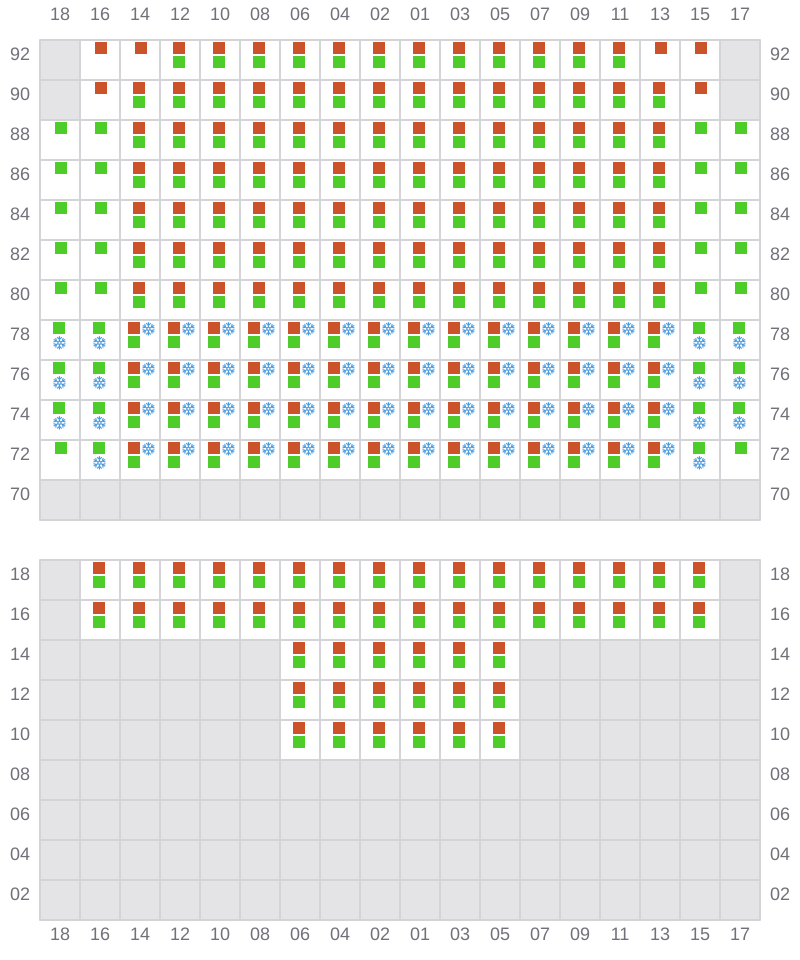

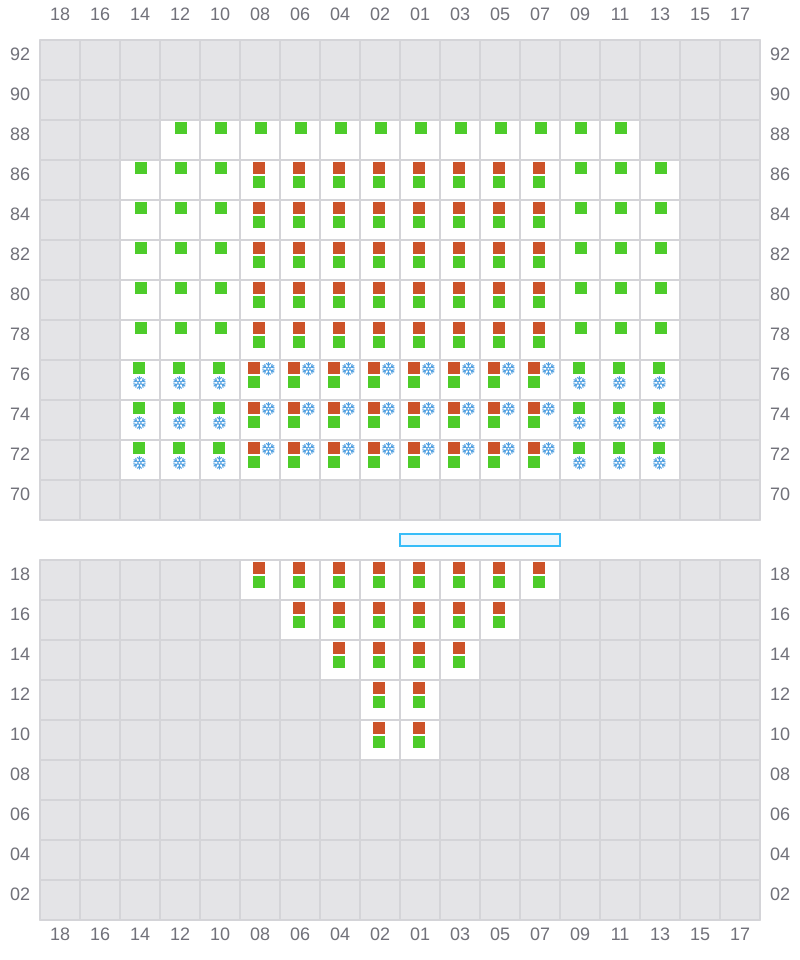

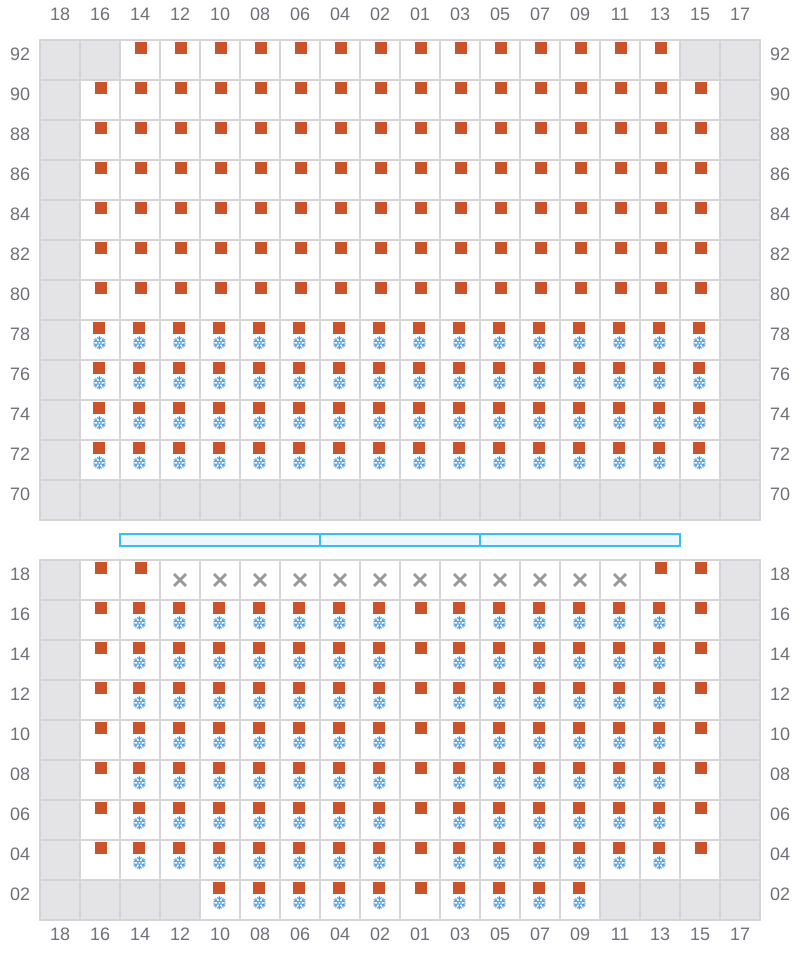

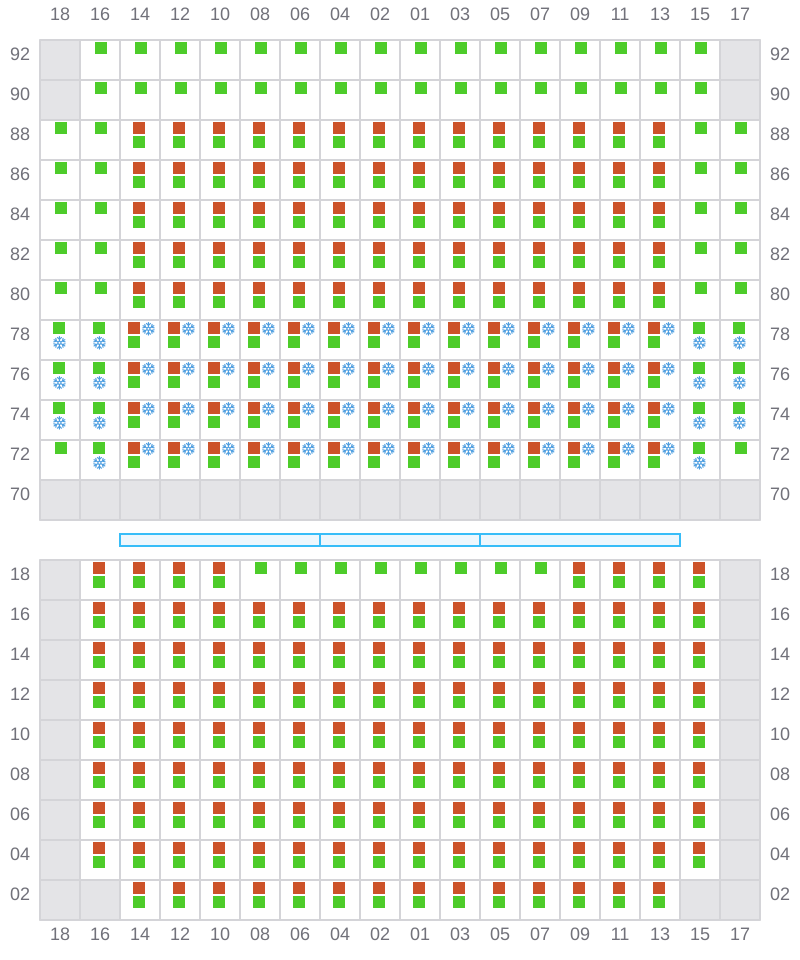

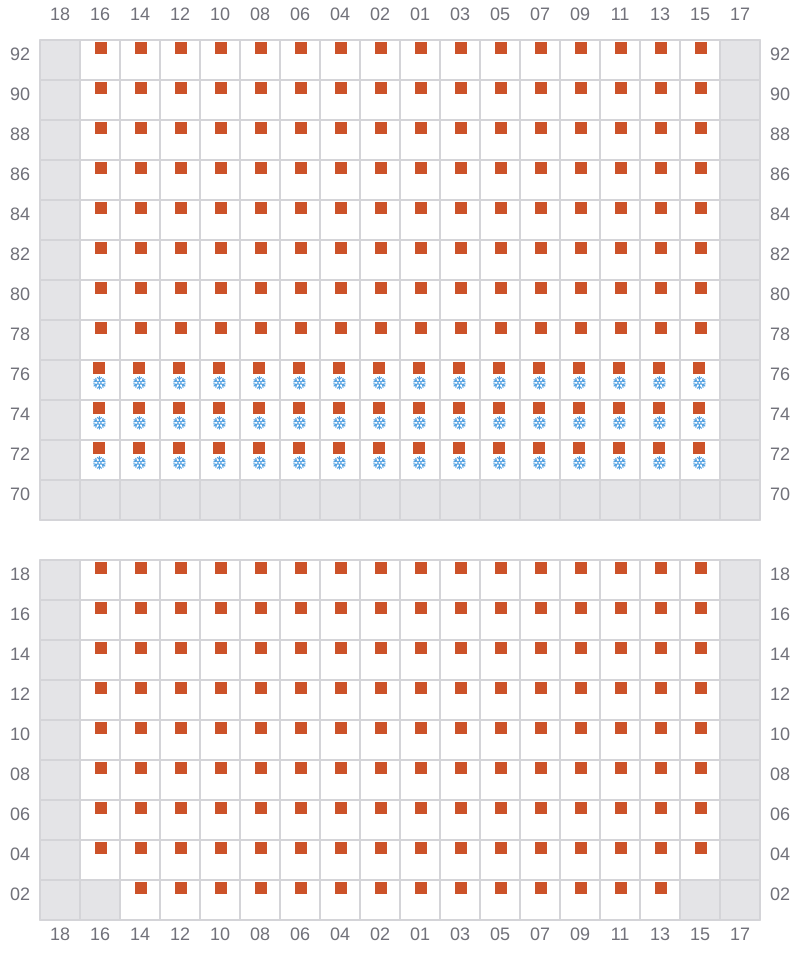

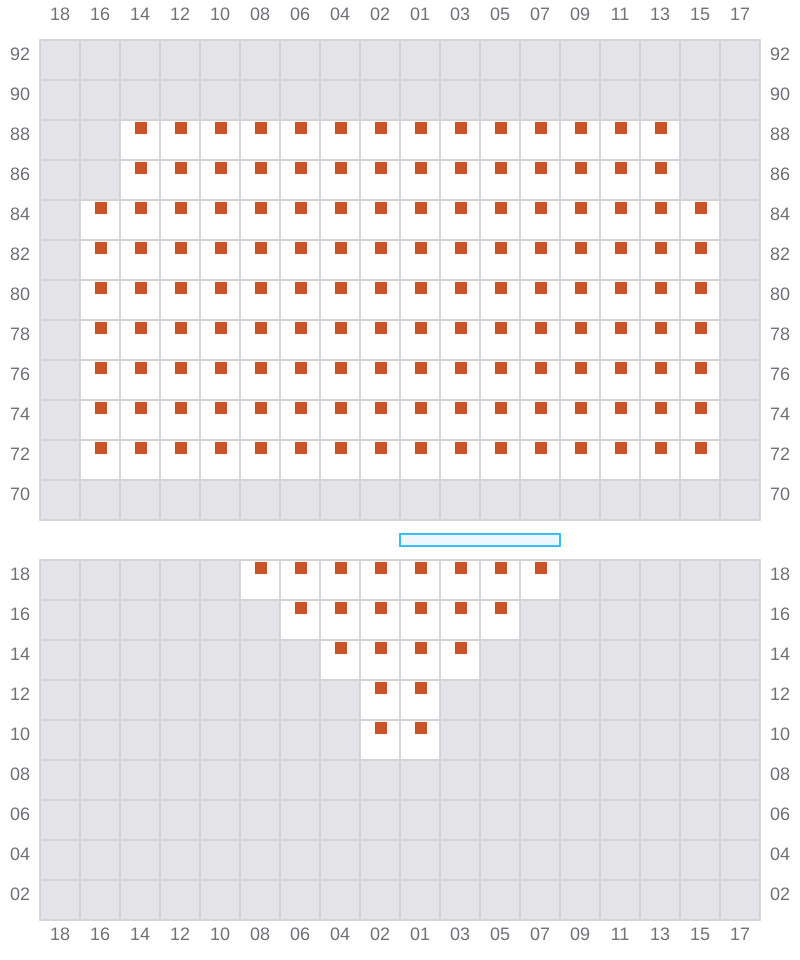

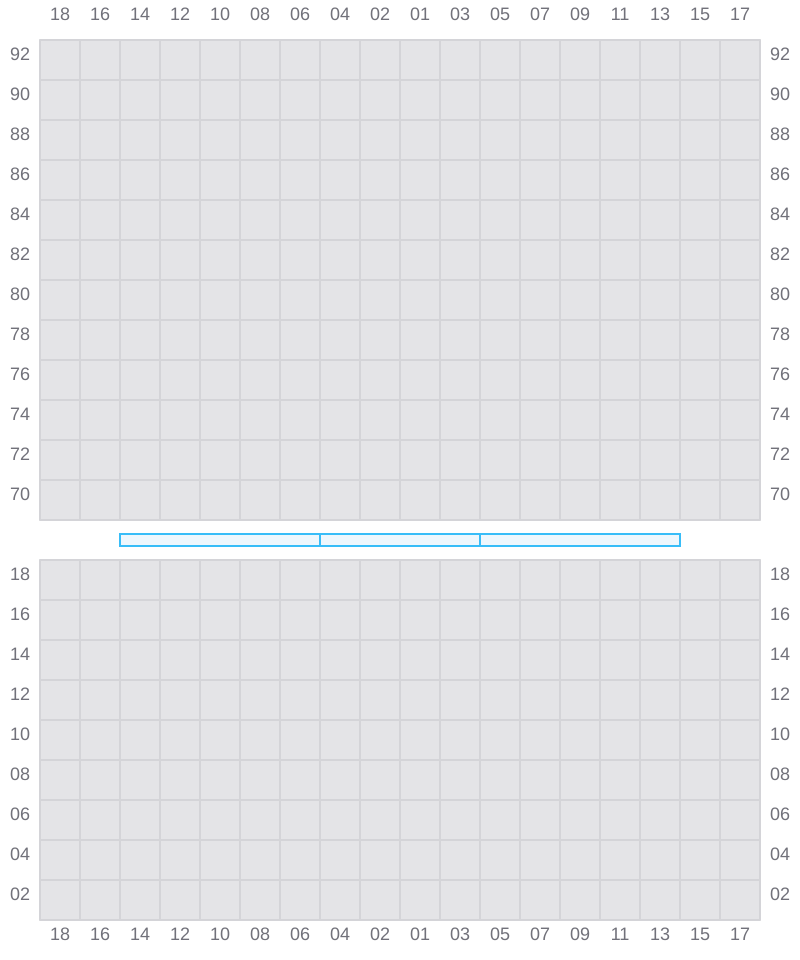

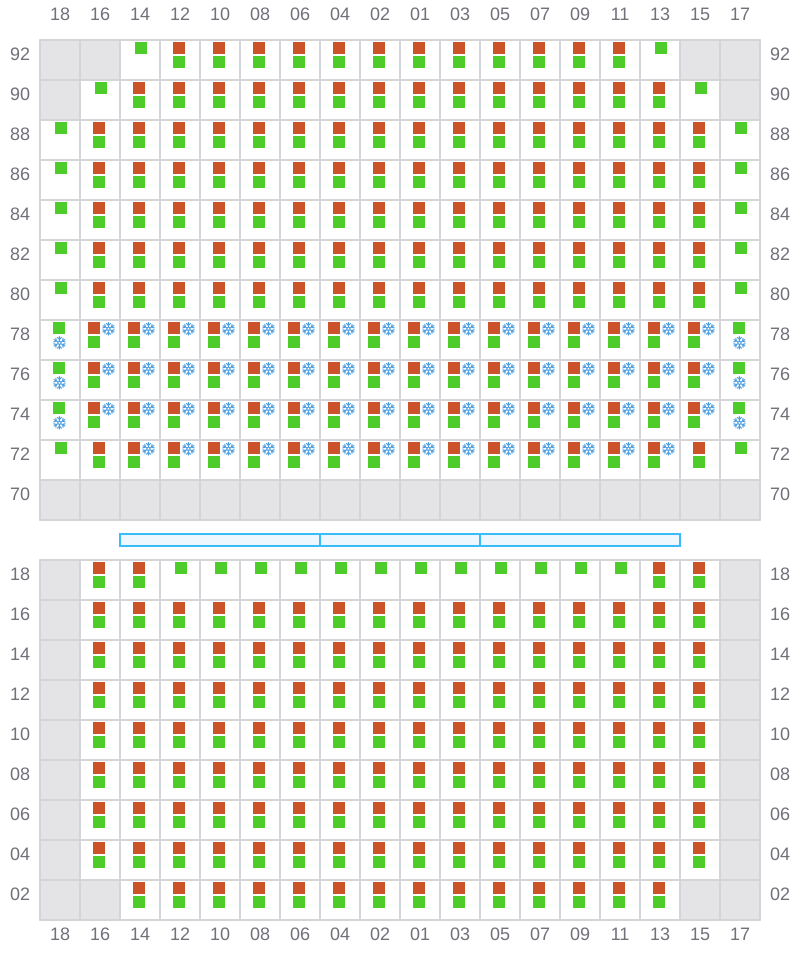

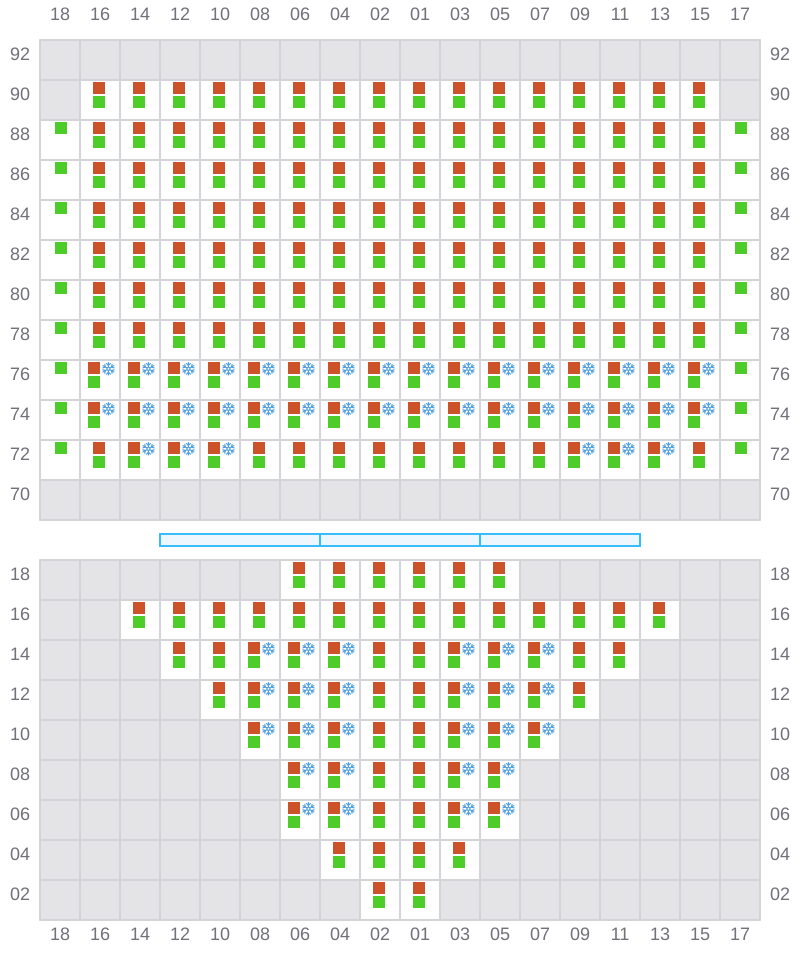

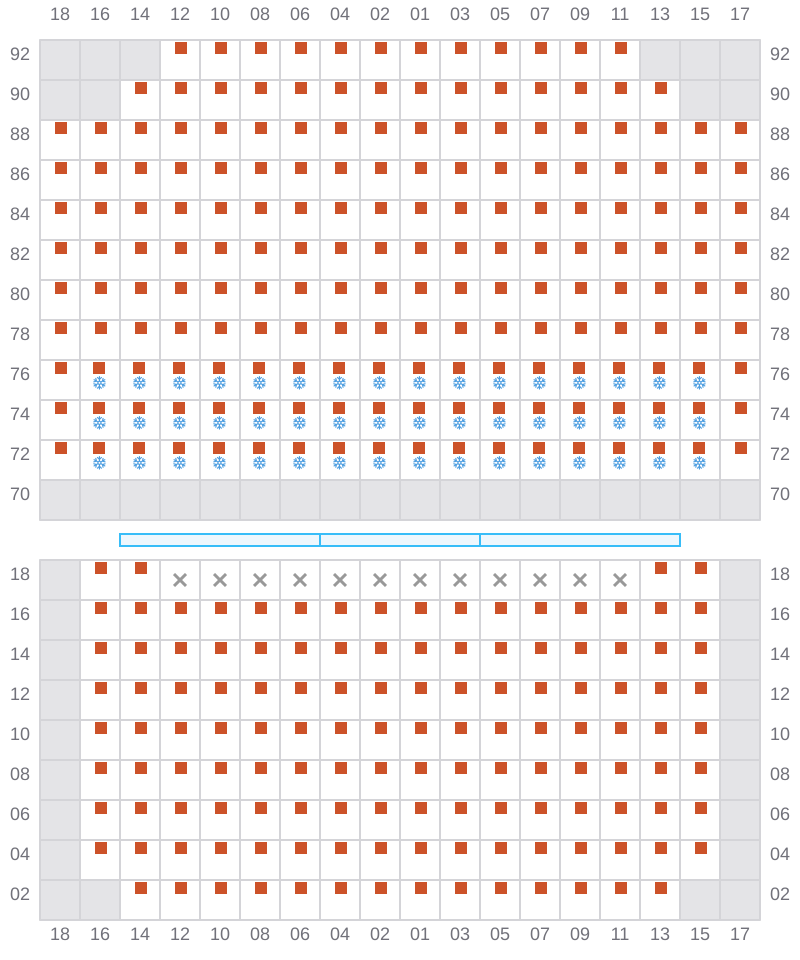

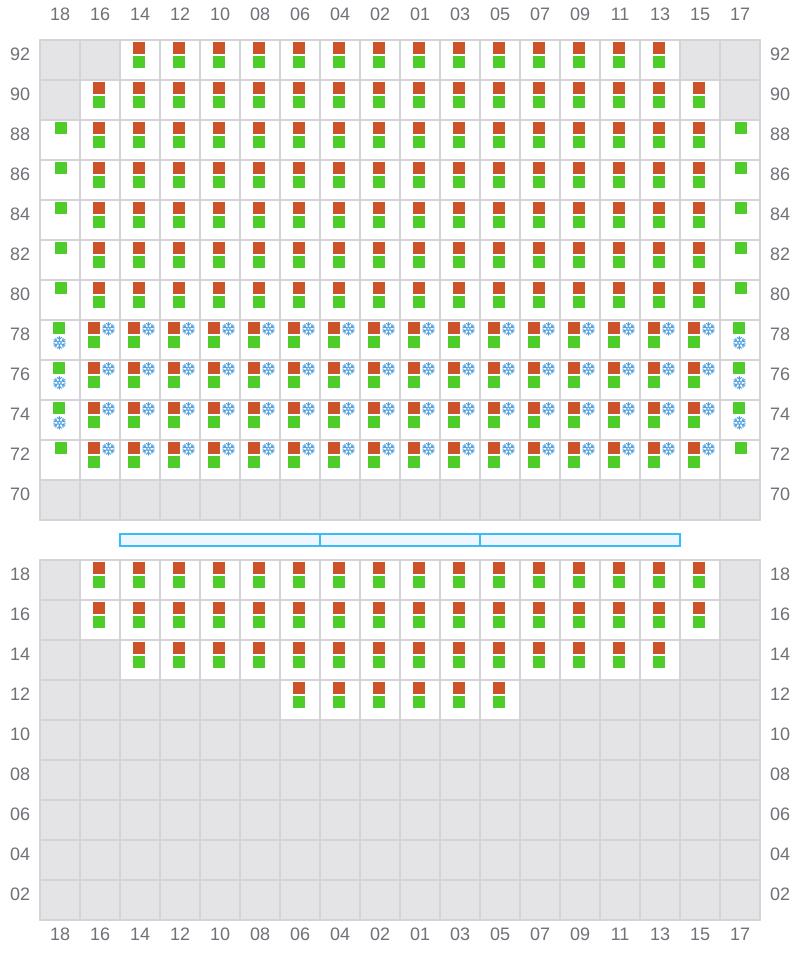

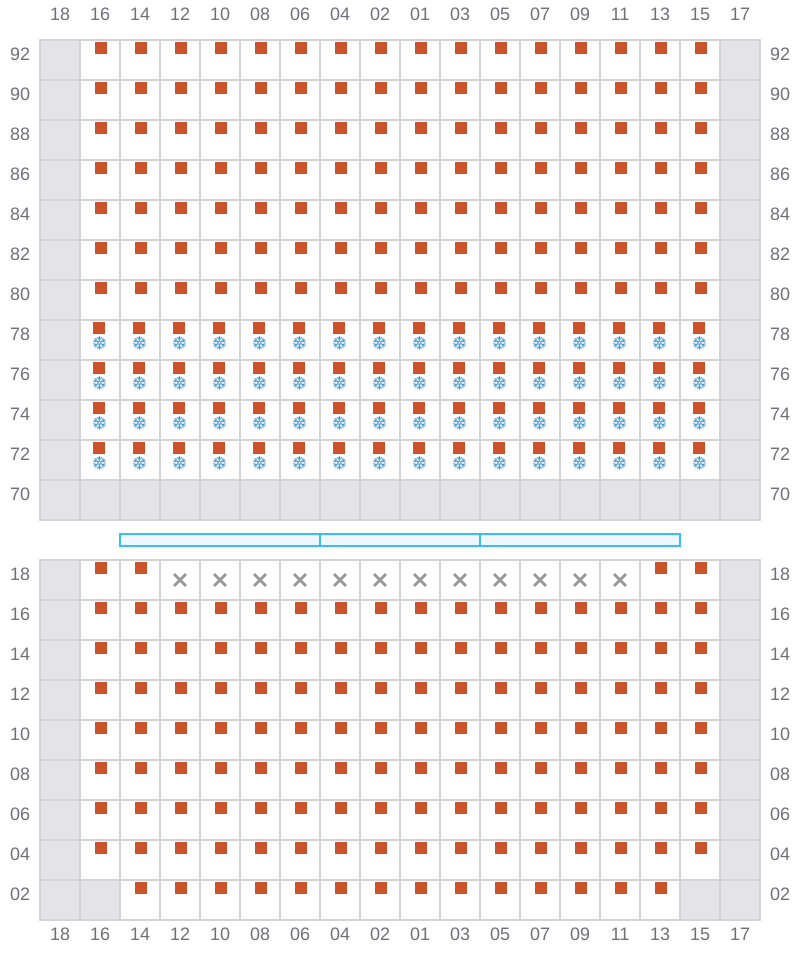

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →

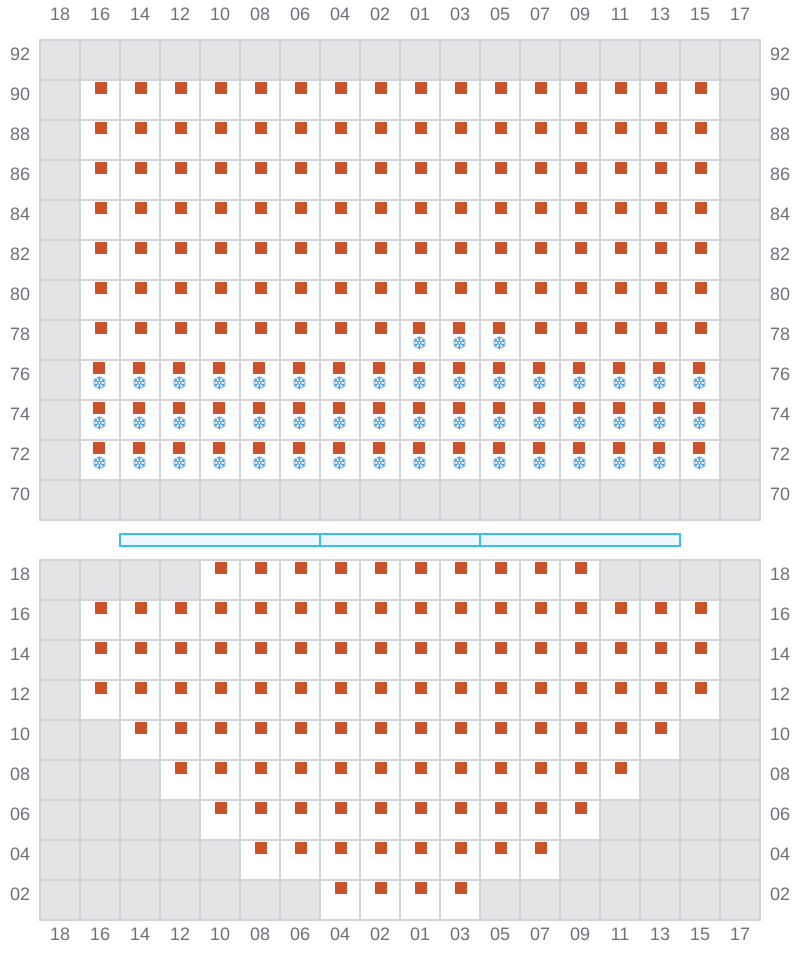

011
- ←
013 (014)
- →
015
- ←
017 (018)
- →

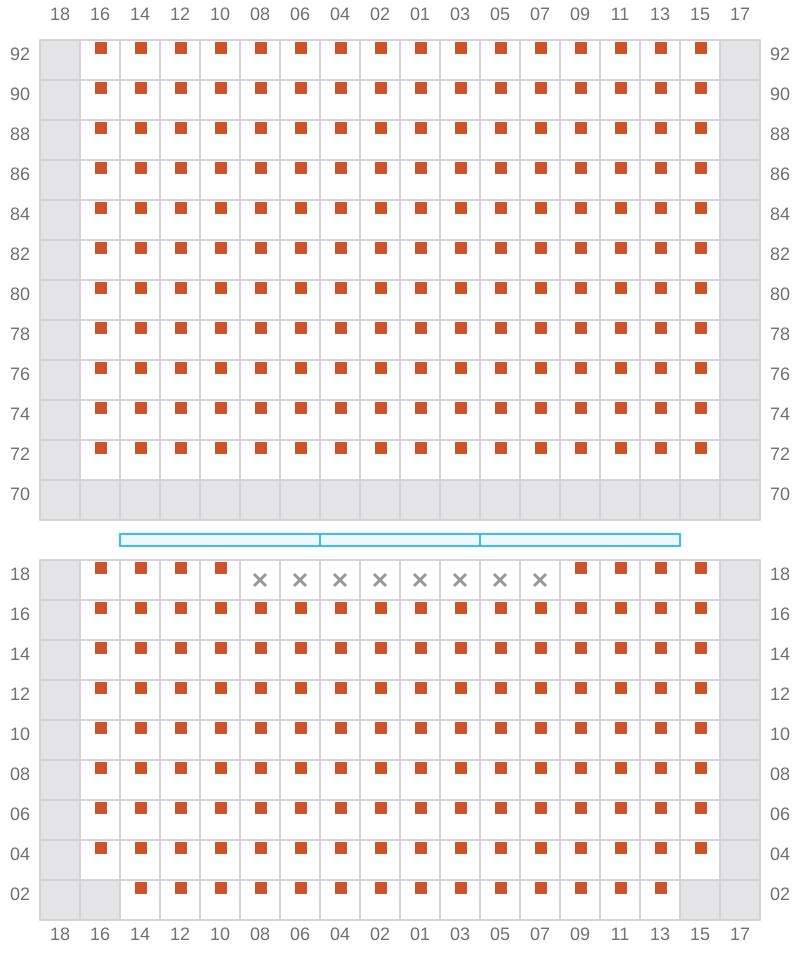

019
- ←
021 (022)
- →

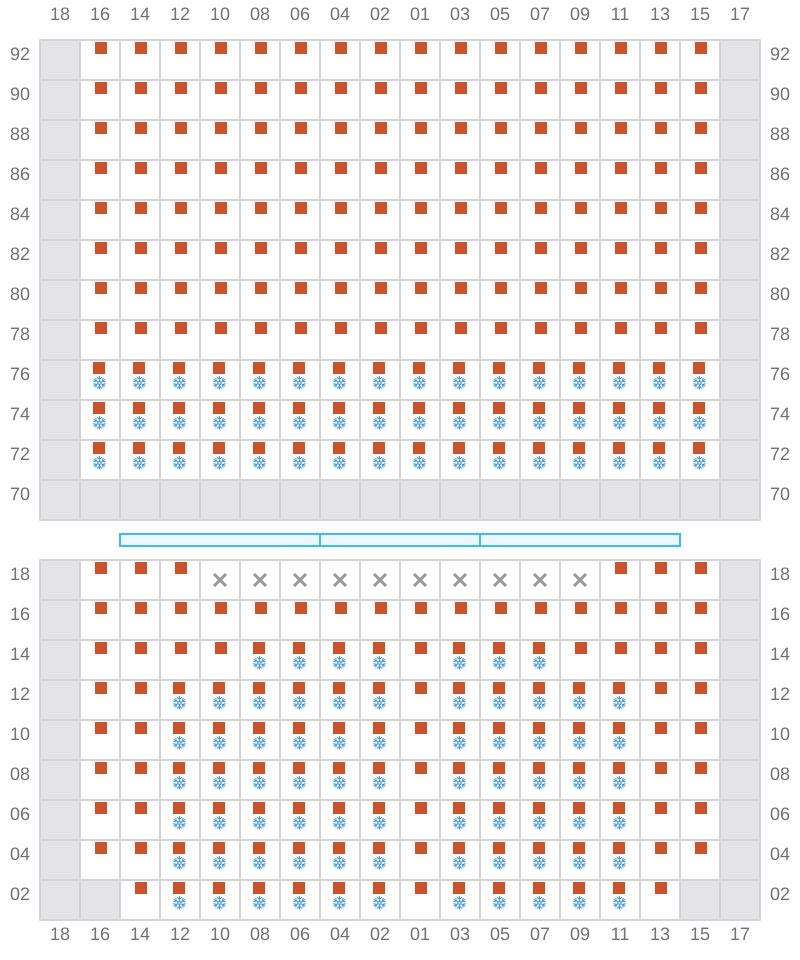

023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←

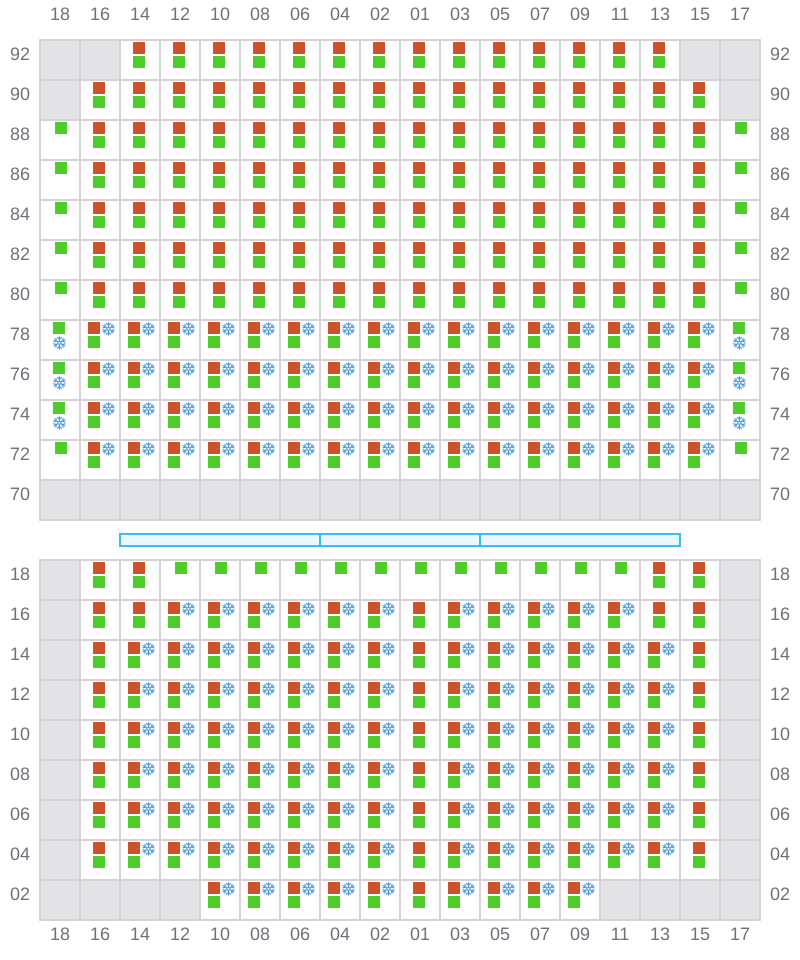

037 (038)
- →
039
- ←

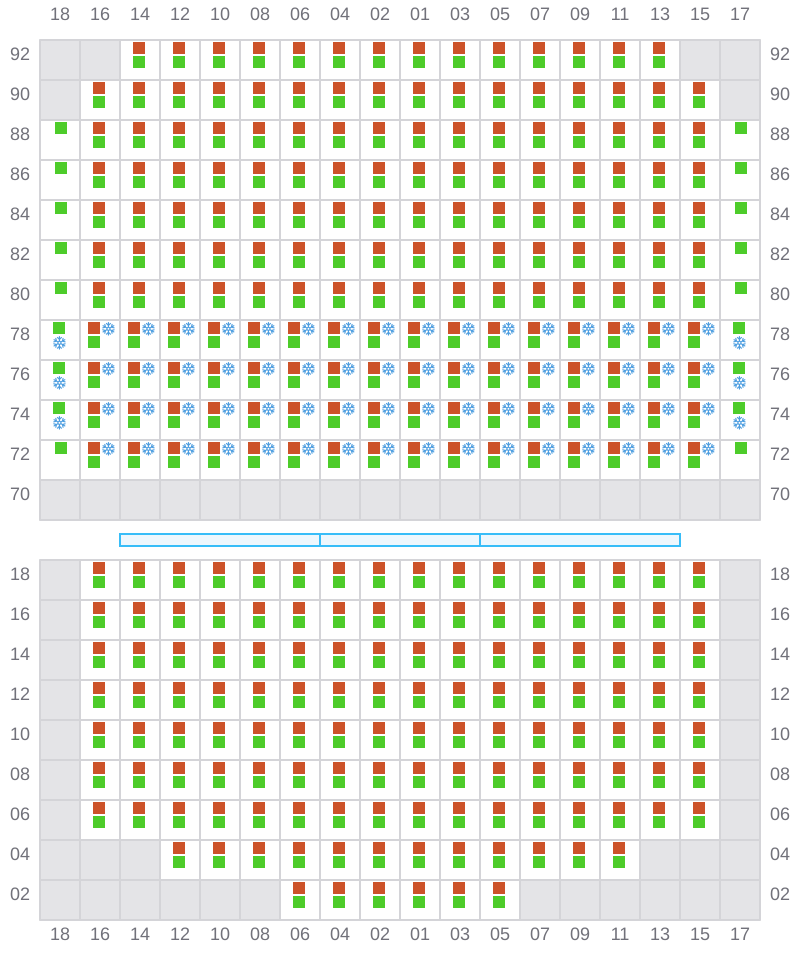

041 (042)
- →
043
- ←
045 (046)
- →
047
- ←
049 (050)
- →

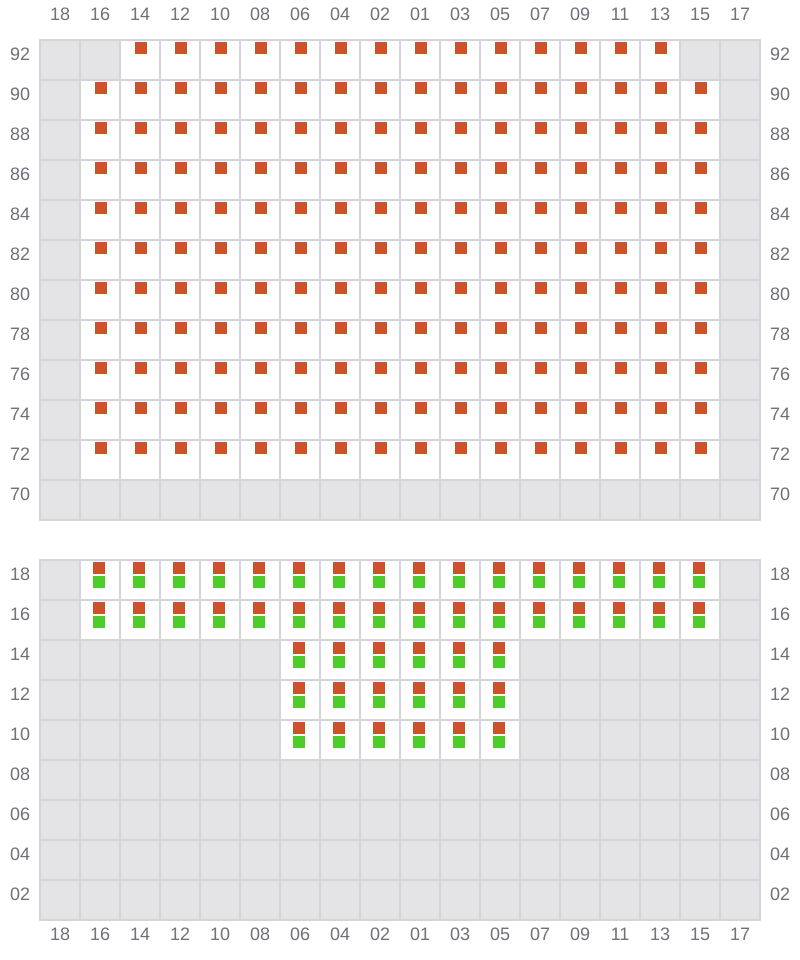

051 (050)
- ←
053 (054)
- →
055
- ←

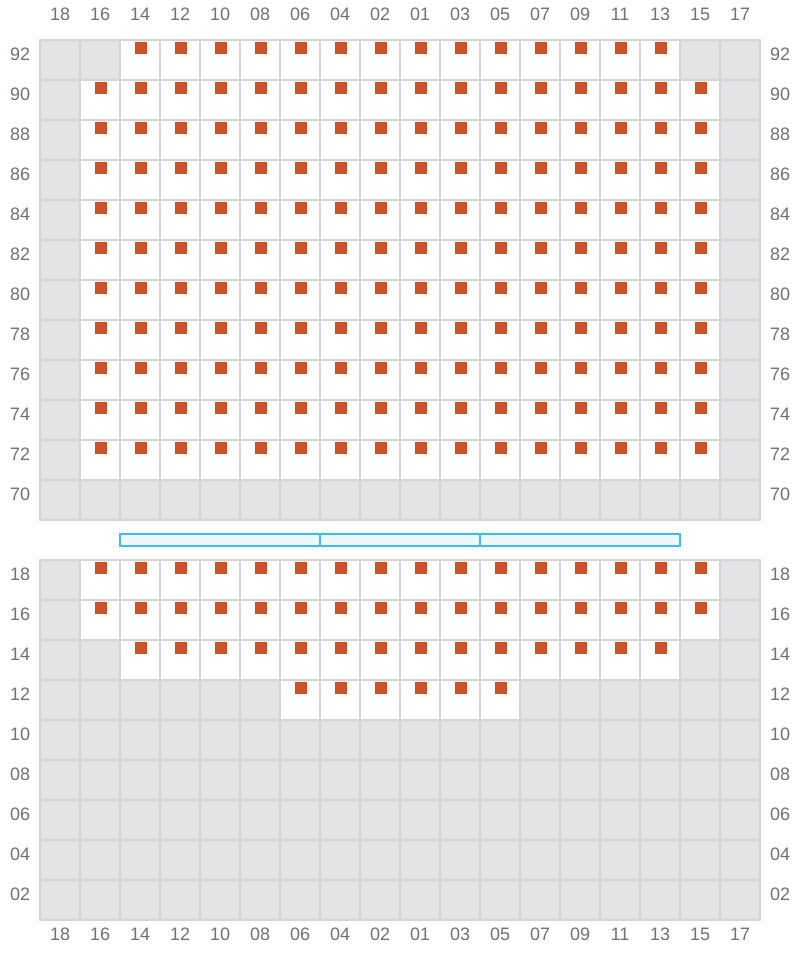

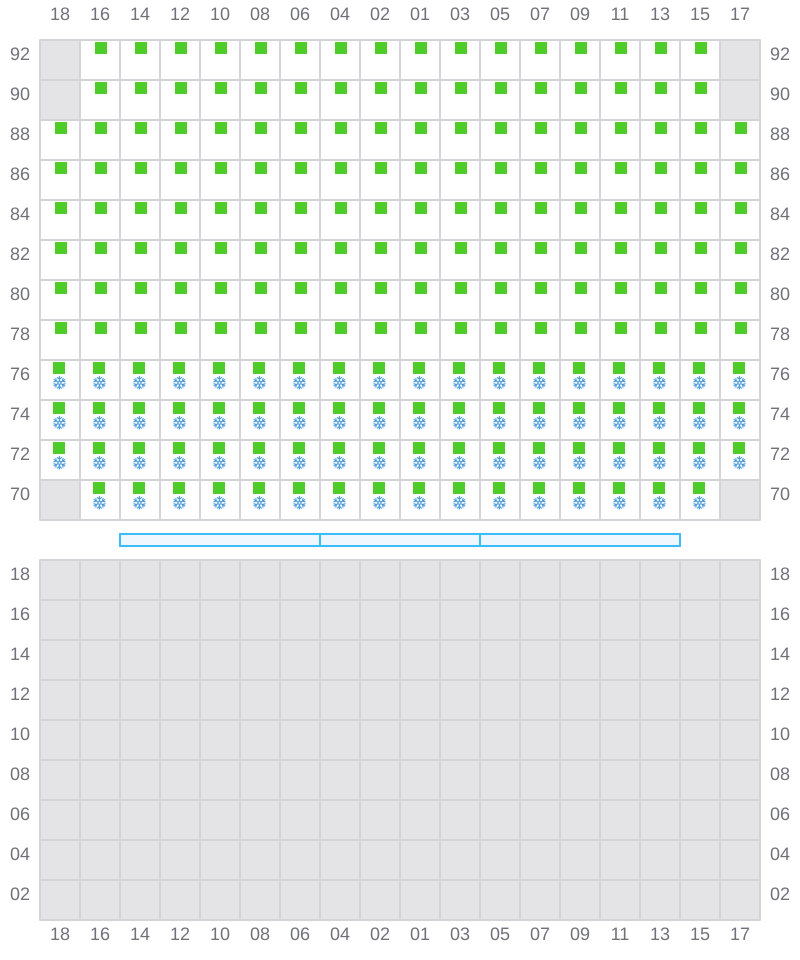

057 (058)
- →
059
- ←
