MSC BRIANNA
9103685 | 3FVZ7 | MSC by ************************** Last update: Sun May 28 2023
General Info
Ship Name:MSC BRIANNA
IMO Code:9103685
Call Sign:3FVZ7
Line Operator:MSC
Class Name for Sister Ships:MCOL
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,450
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

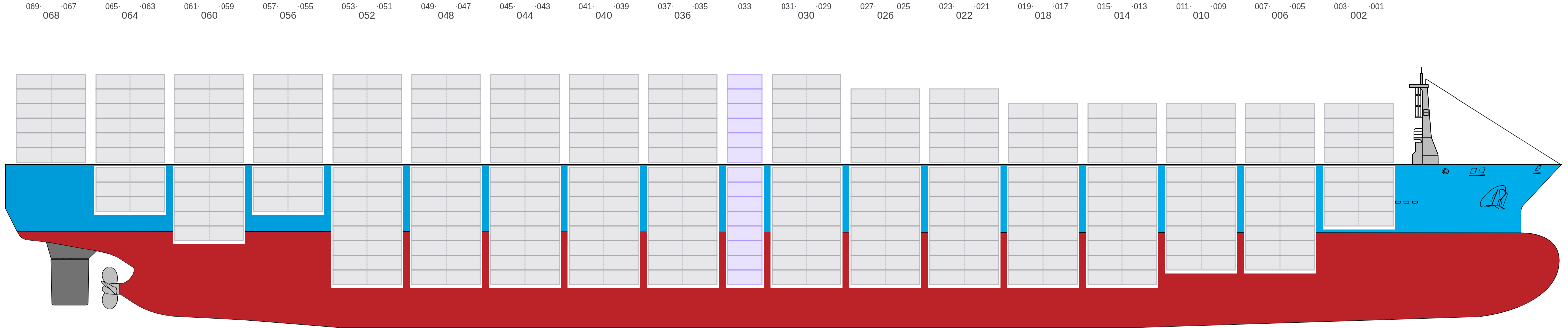

Side View
![Side view of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-sideView.png?v=1685289785600)
Hatch-Covers View
![Deck view of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-deckView.png?v=1685289785600)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

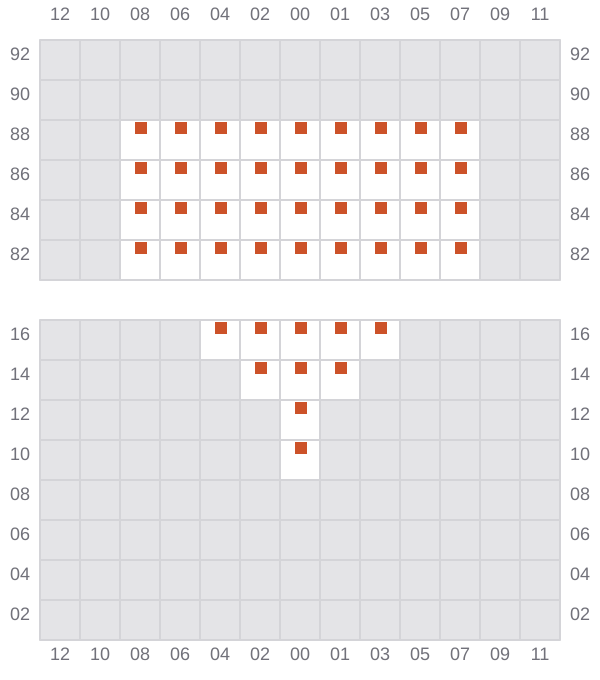

001
- →
![Bay 001 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b001.png?v=1685289785600)

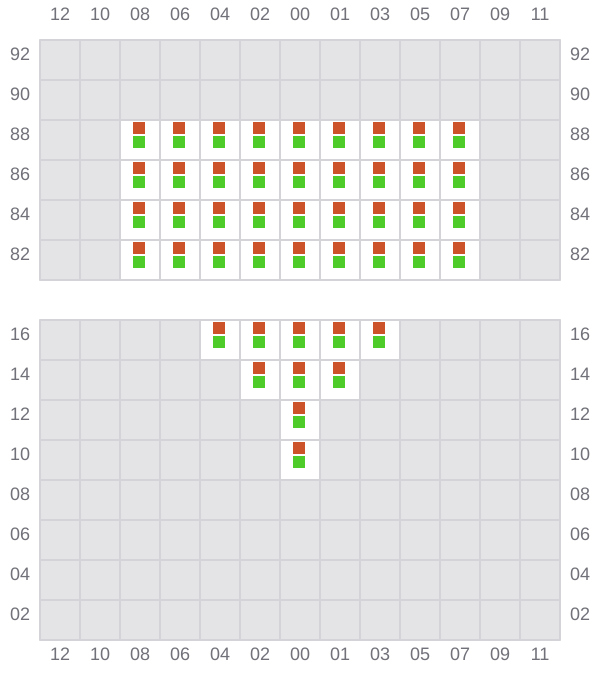

003 (002)
- ←
![Bay 003 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b003.png?v=1685289785600)

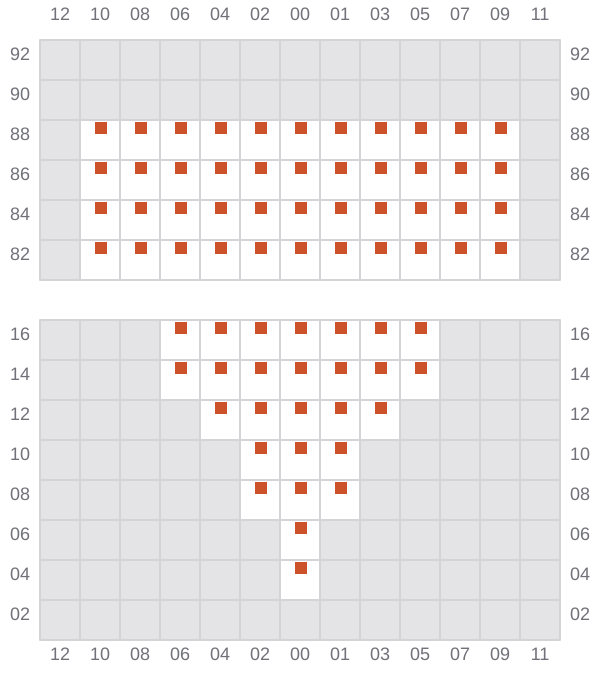

005
- →
![Bay 005 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b005.png?v=1685289785600)

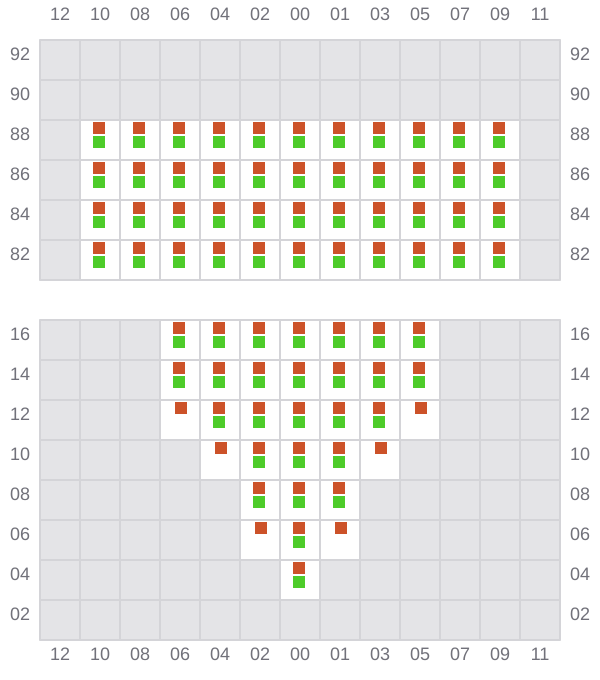

007 (006)
- ←
![Bay 007 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b007.png?v=1685289785600)

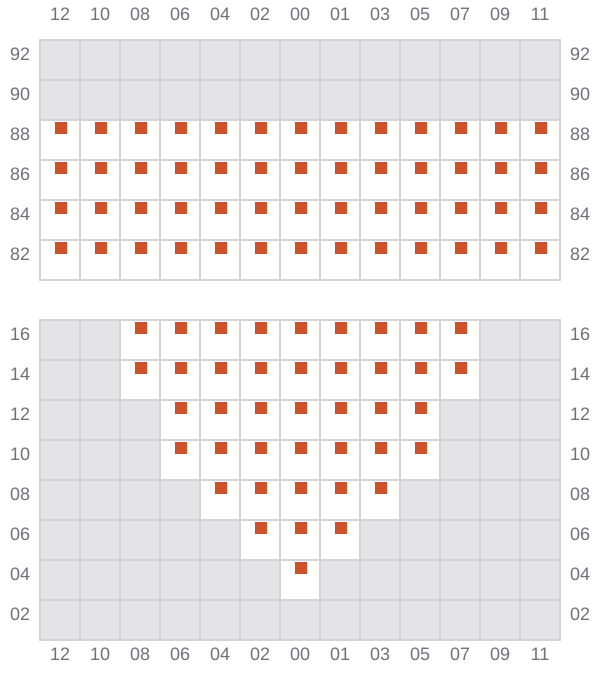

009
- →
![Bay 009 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b009.png?v=1685289785600)

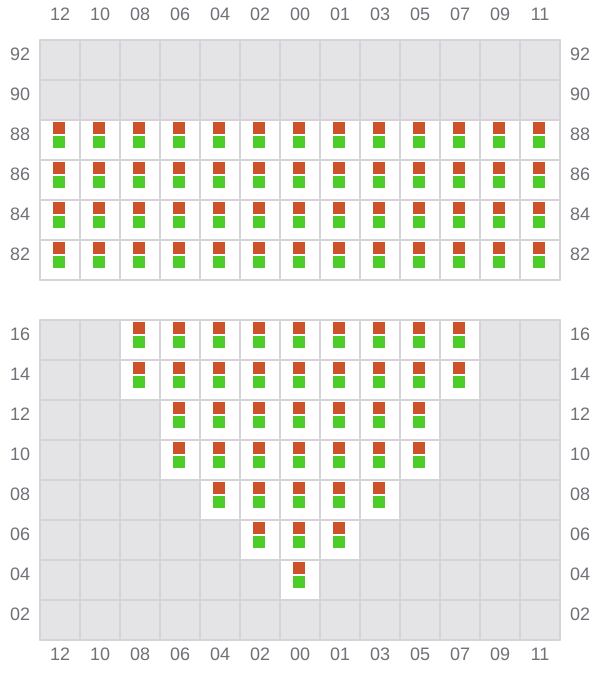

011 (010)
- ←
![Bay 011 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b011.png?v=1685289785600)

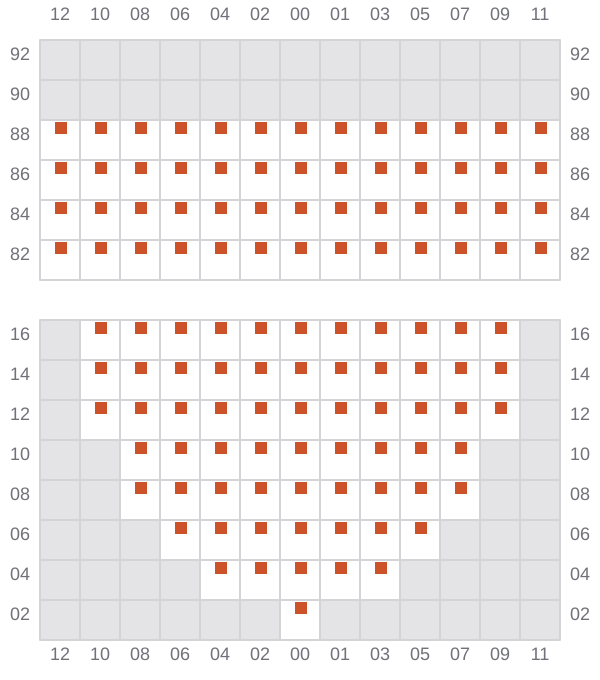

013
- →
![Bay 013 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b013.png?v=1685289785600)

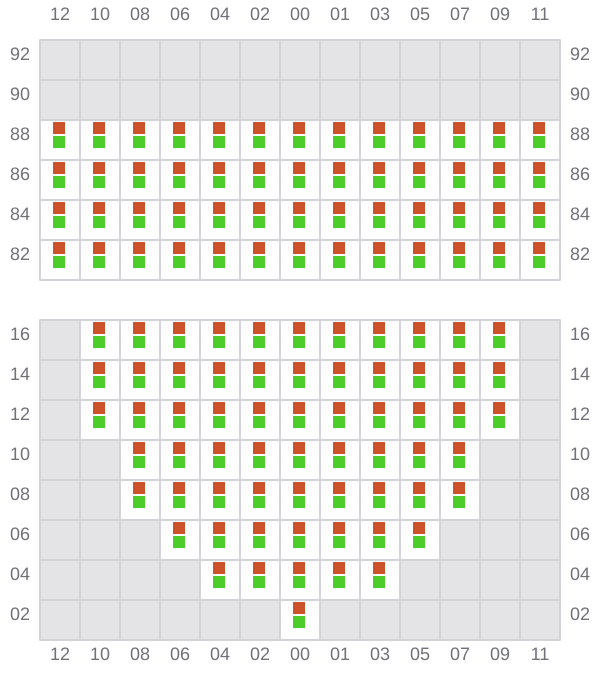

015 (014)
- ←
![Bay 015 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b015.png?v=1685289785600)

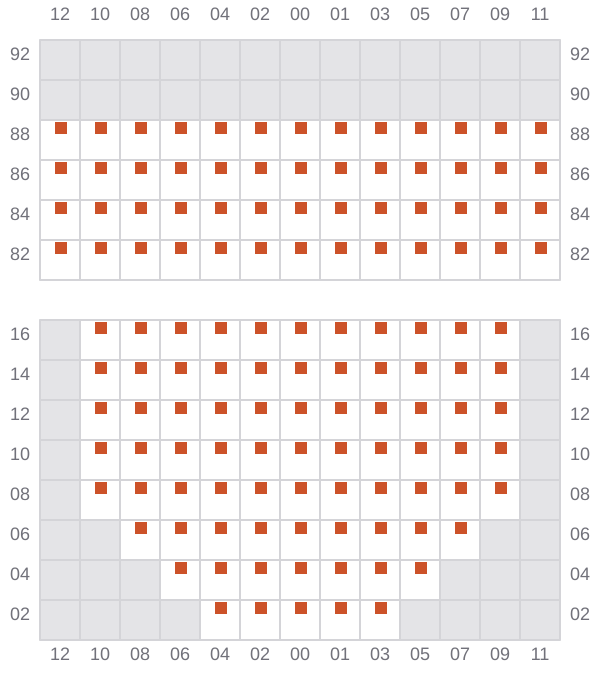

017
- →
![Bay 017 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b017.png?v=1685289785600)

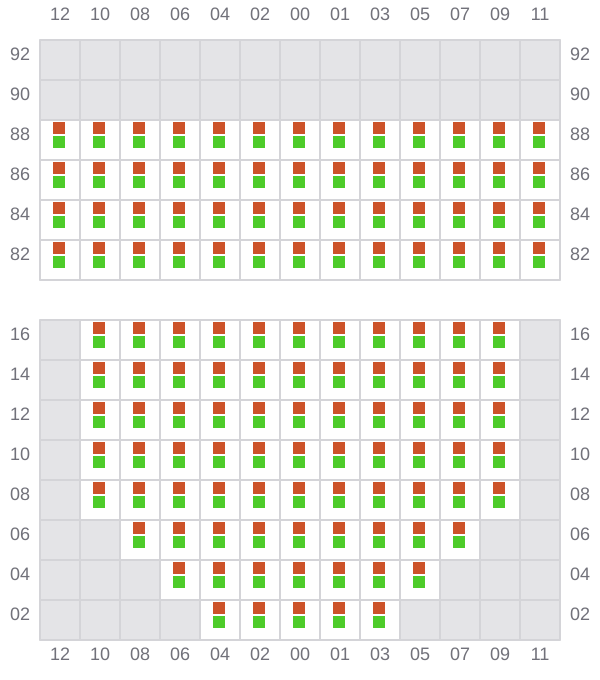

019 (018)
- ←
![Bay 019 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b019.png?v=1685289785600)
021
- →
![Bay 021 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b021.png?v=1685289785600)

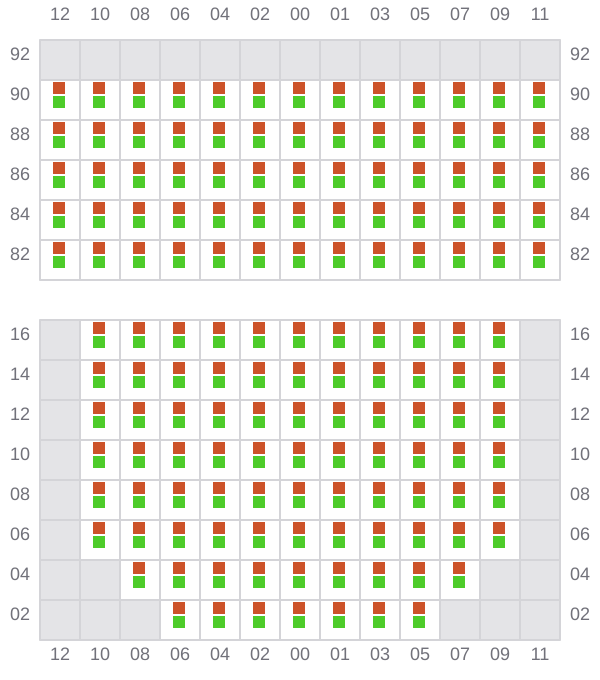

023 (022)
- ←
![Bay 023 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b023.png?v=1685289785600)

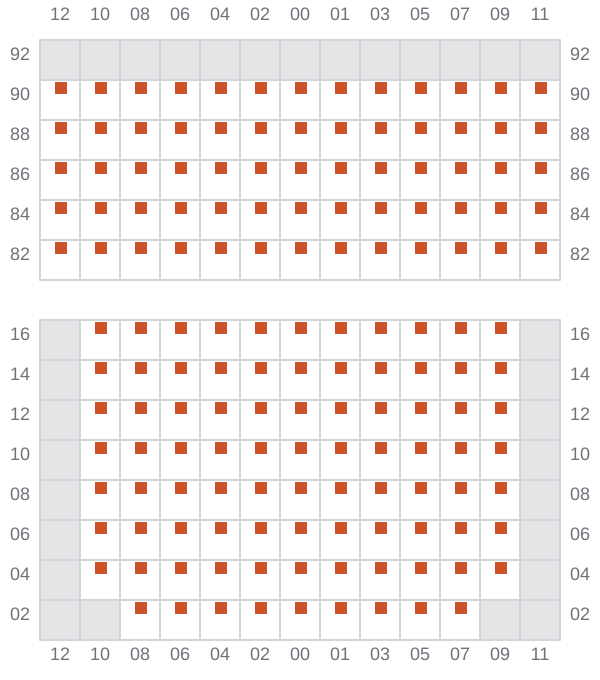

025
- →
![Bay 025 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b025.png?v=1685289785600)

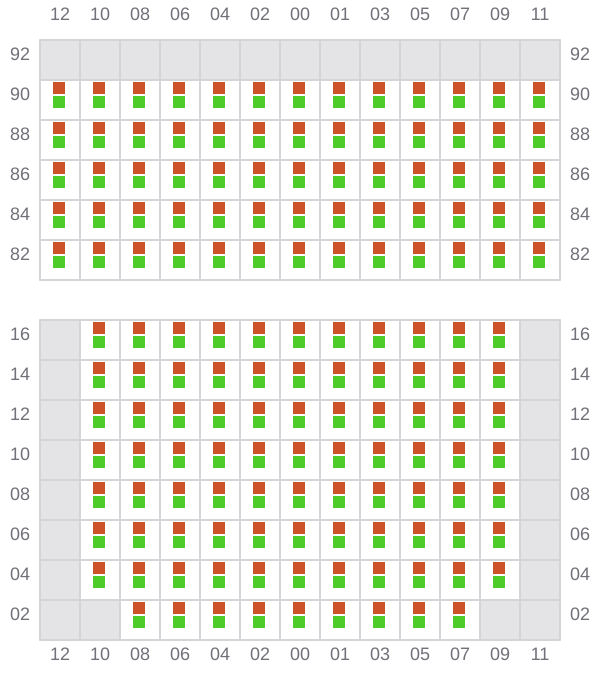

027 (026)
- ←
![Bay 027 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b027.png?v=1685289785600)

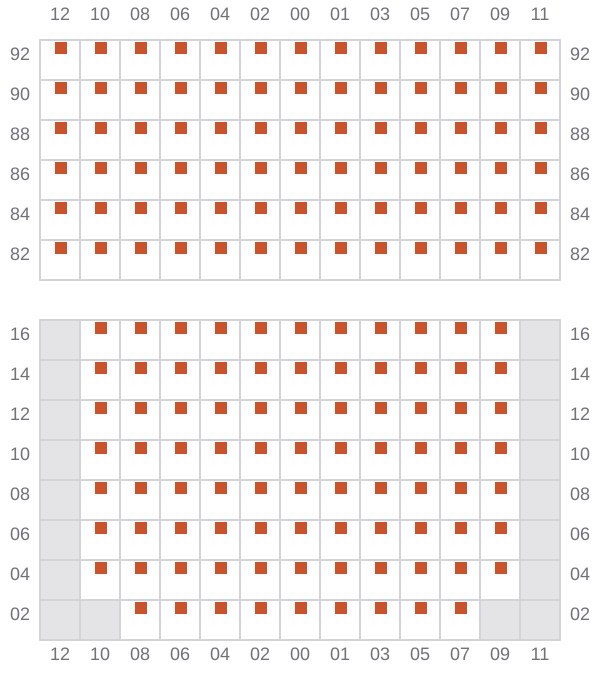

029
- →
![Bay 029 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b029.png?v=1685289785600)
031 (030)
- ←
![Bay 031 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b031.png?v=1685289785600)
033
![Bay 033 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b033.png?v=1685289785600)
035
- →
![Bay 035 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b035.png?v=1685289785600)
037 (036)
- ←
![Bay 037 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b037.png?v=1685289785600)
039
- →
![Bay 039 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b039.png?v=1685289785600)
041 (040)
- ←
![Bay 041 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b041.png?v=1685289785600)
043
- →
![Bay 043 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b043.png?v=1685289785600)
045 (044)
- ←
![Bay 045 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b045.png?v=1685289785600)
047
- →
![Bay 047 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b047.png?v=1685289785600)

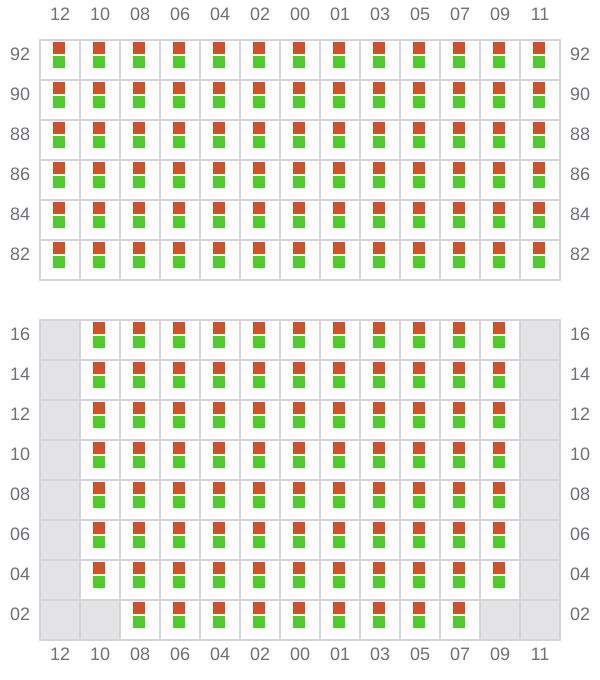

049 (048)
- ←
![Bay 049 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b049.png?v=1685289785600)

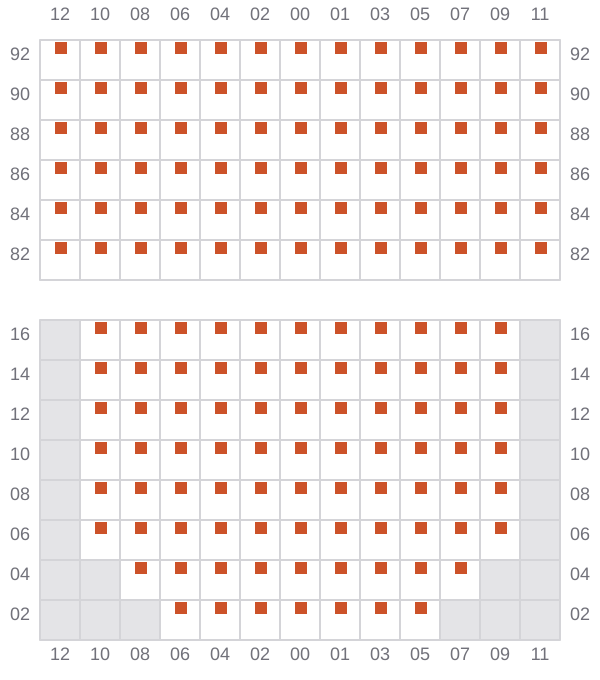

051
- →
![Bay 051 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b051.png?v=1685289785600)
053 (052)
- ←
![Bay 053 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b053.png?v=1685289785600)

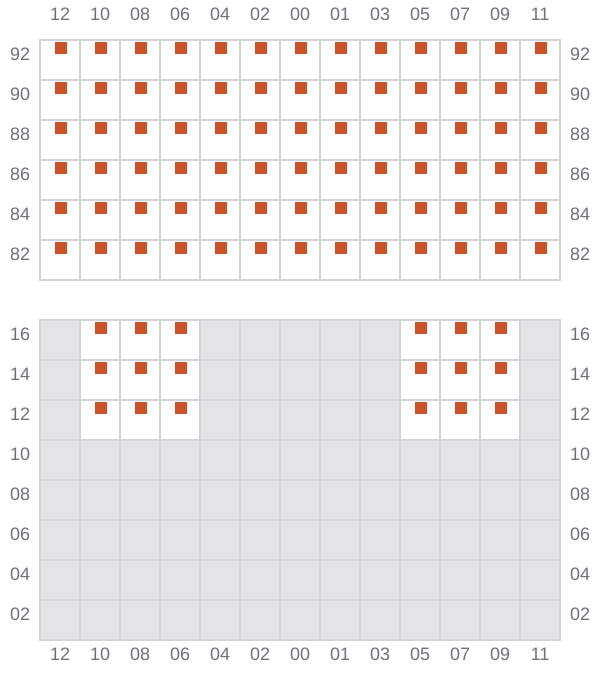

055
- →
![Bay 055 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b055.png?v=1685289785600)

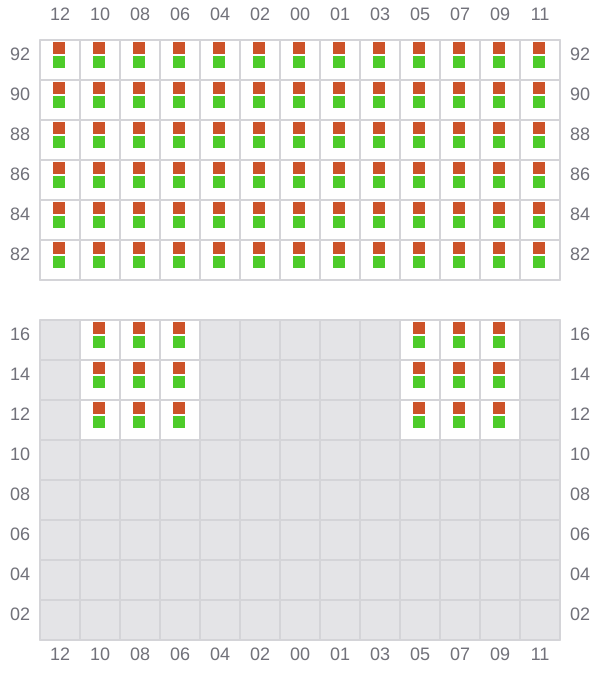

057 (056)
- ←
![Bay 057 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b057.png?v=1685289785600)

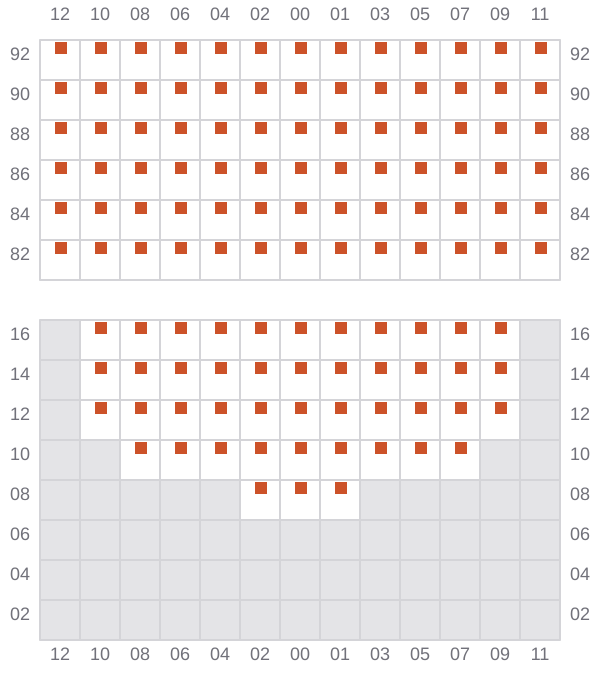

059
- →
![Bay 059 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b059.png?v=1685289785600)

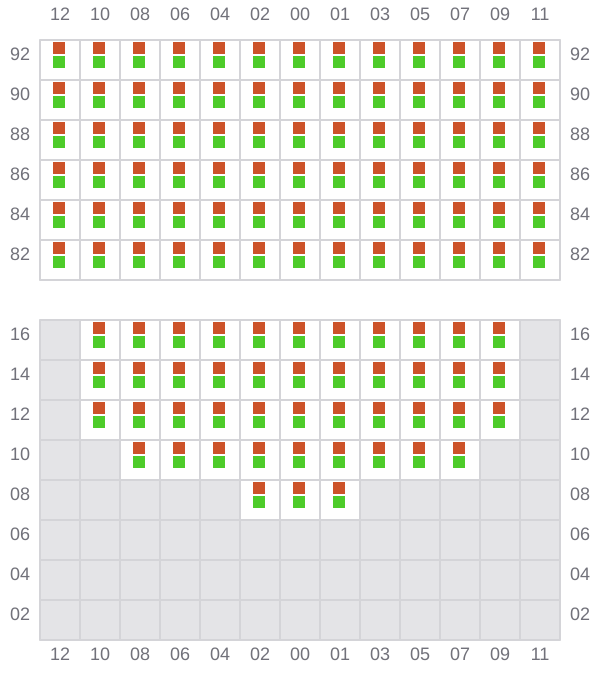

061 (060)
- ←
![Bay 061 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b061.png?v=1685289785600)
063
- →
![Bay 063 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b063.png?v=1685289785600)

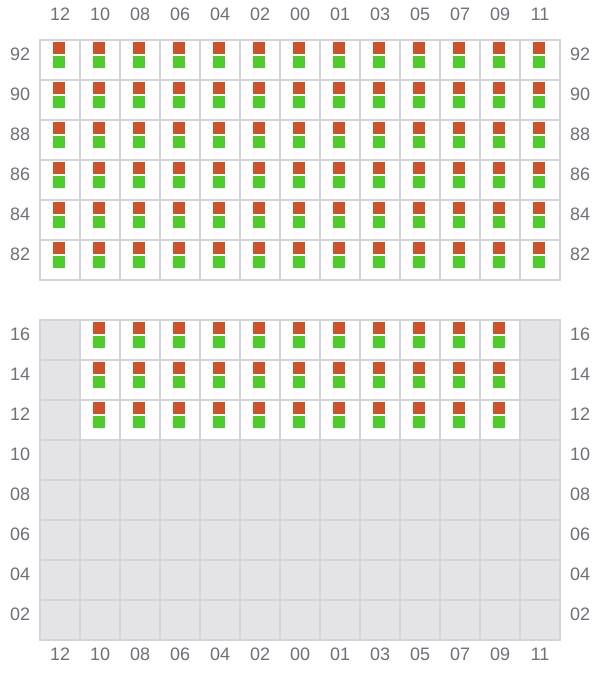

065 (064)
- ←
![Bay 065 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b065.png?v=1685289785600)

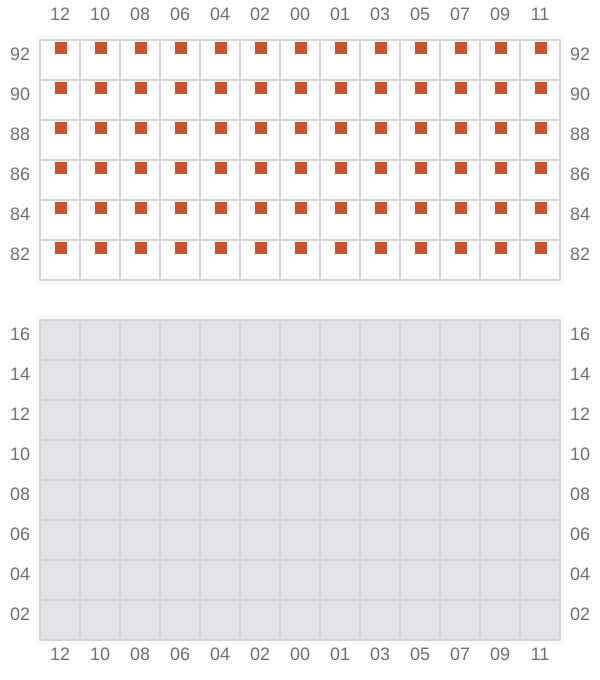

067
- → / ?
![Bay 067 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b067.png?v=1685289785600)

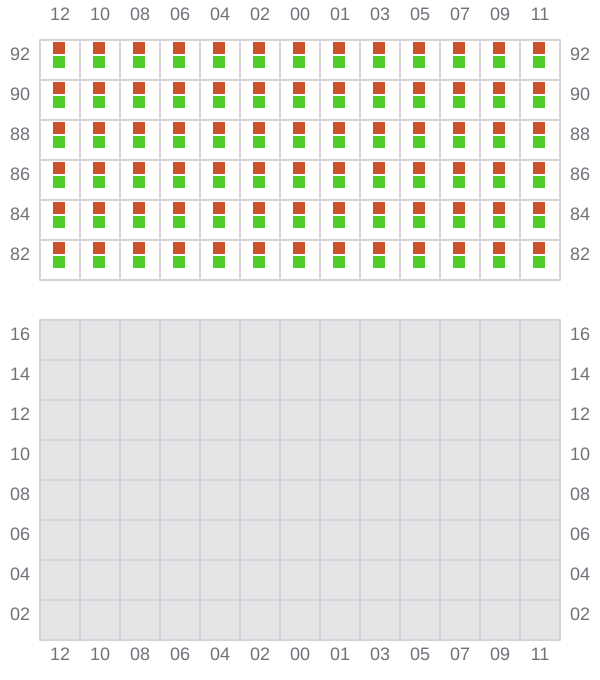

069 (068)
- ← / ?
![Bay 069 view and slots of MSC BRIANNA](/vessel-images/55c233cd-7a64-4a5a-b096-03d400d7e493-b069.png?v=1685289785600)
