MSC BRIANNA
9103685 | 3FVZ7 | 9103685 by *********** Last update: Mon Mar 04 2024

General Info

Ship Name:MSC BRIANNA

IMO Code:9103685

Call Sign:3FVZ7

Line Operator:9103685

Class Name for Sister Ships:42Z

Year Built:1996

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):278.50

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:067

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,507

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

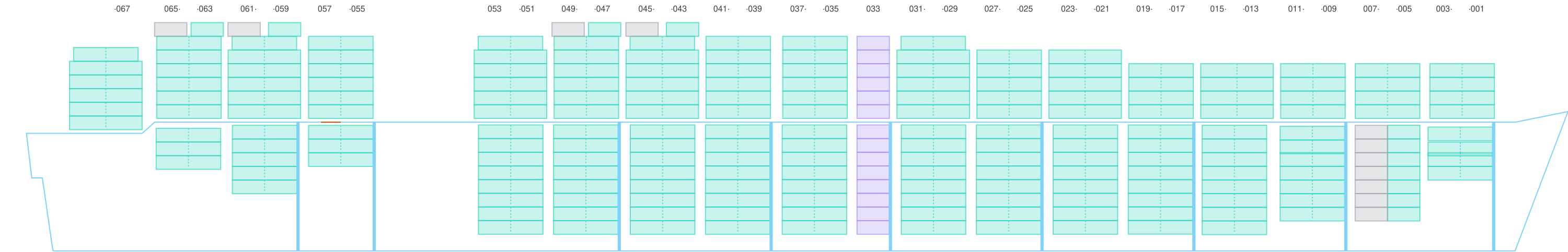

Side View

Side view of MSC BRIANNA

Hatch-Covers View

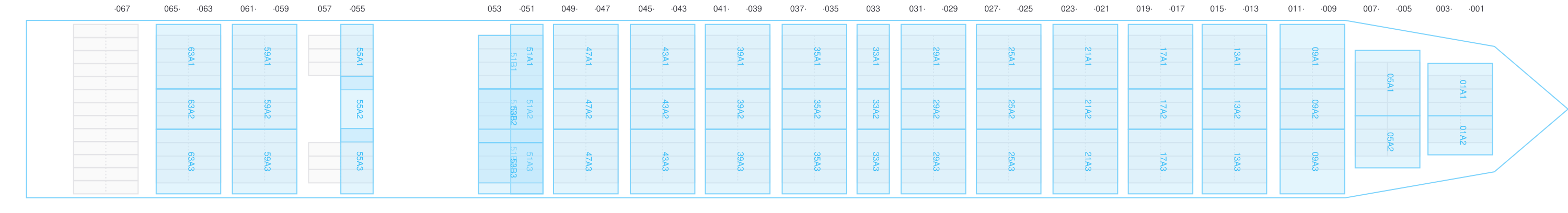

Deck view of MSC BRIANNA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

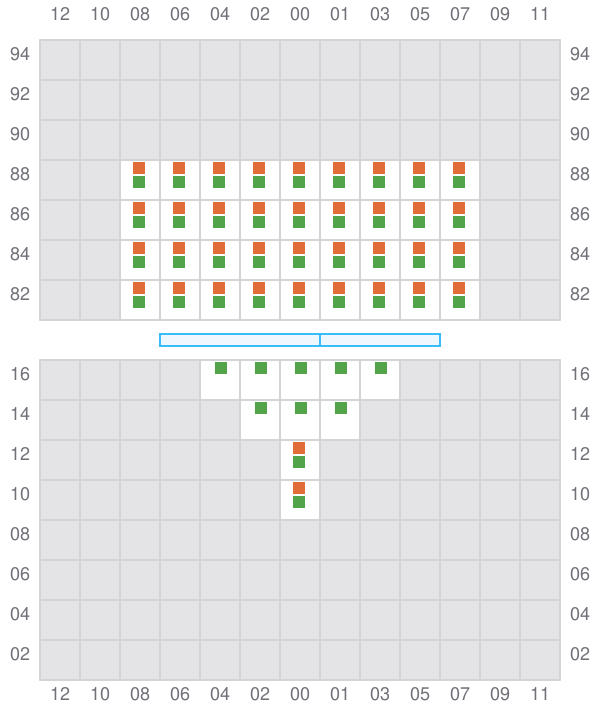

Bay 001 view and slots of MSC BRIANNA

003

←

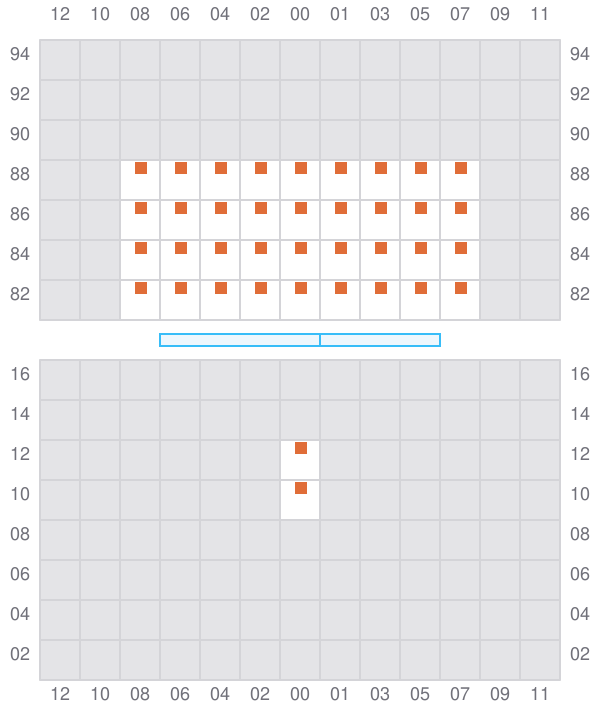

Bay 003 view and slots of MSC BRIANNA

005 (006)

→

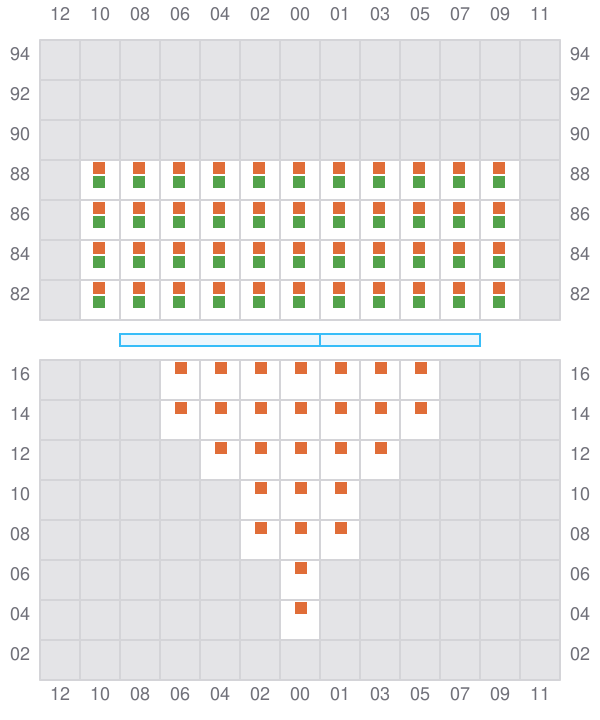

Bay 005 view and slots of MSC BRIANNA

007

←

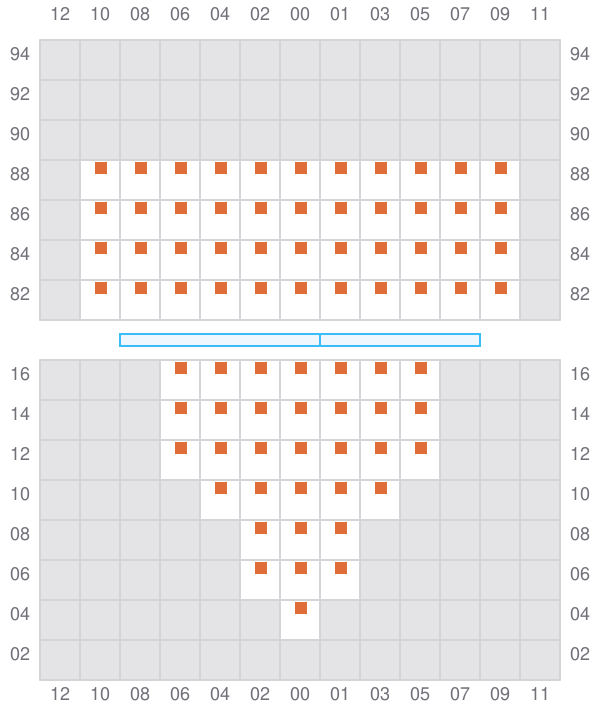

Bay 007 view and slots of MSC BRIANNA

009 (010)

→

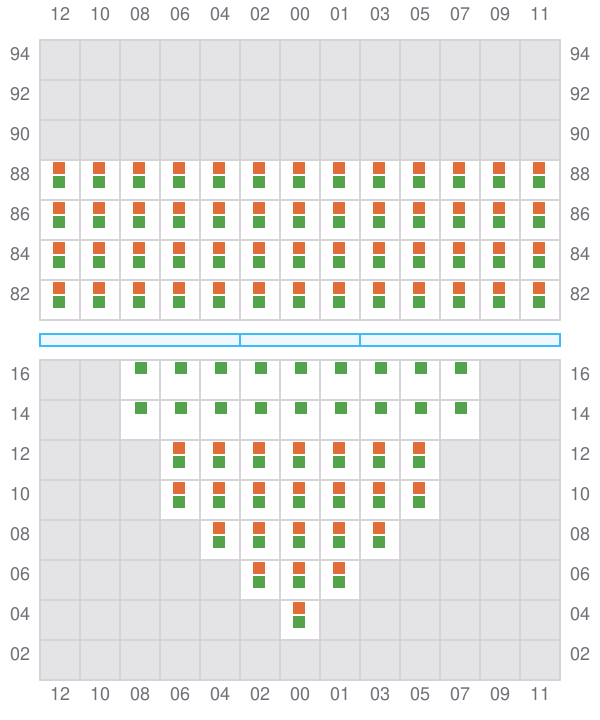

Bay 009 view and slots of MSC BRIANNA

011

←

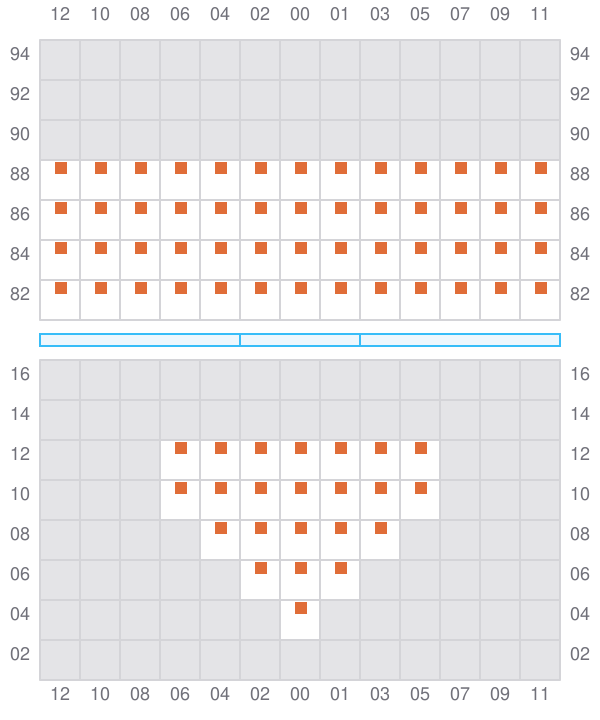

Bay 011 view and slots of MSC BRIANNA

013 (014)

→

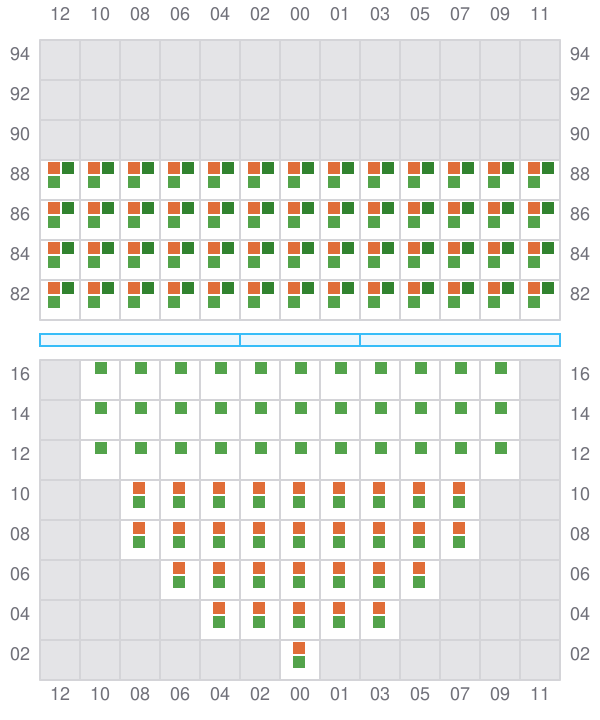

Bay 013 view and slots of MSC BRIANNA

015

←

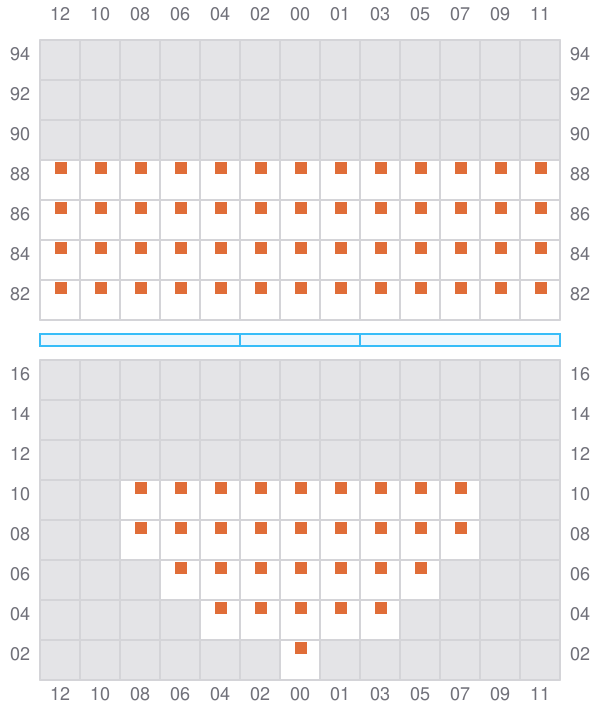

Bay 015 view and slots of MSC BRIANNA

017 (018)

→

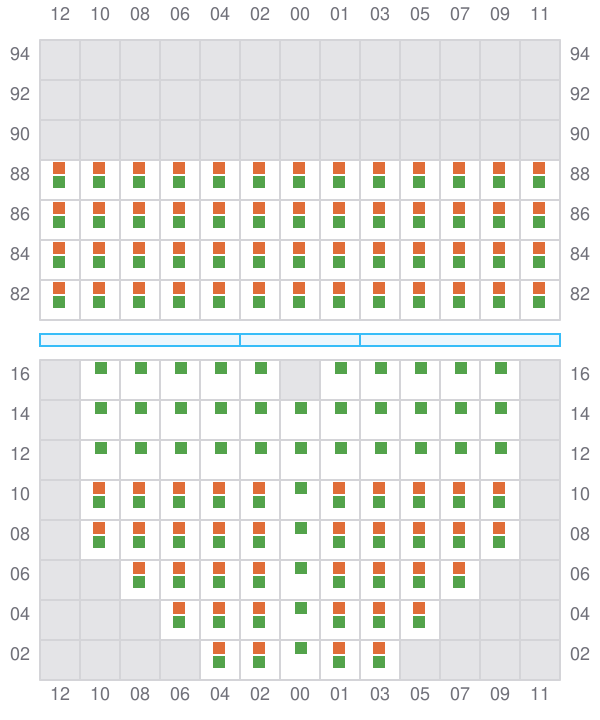

Bay 017 view and slots of MSC BRIANNA

019

←

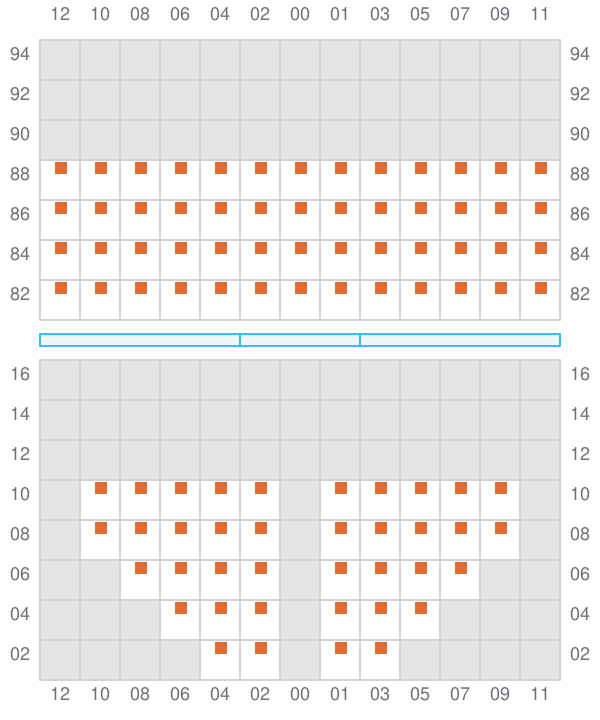

Bay 019 view and slots of MSC BRIANNA

021 (022)

→

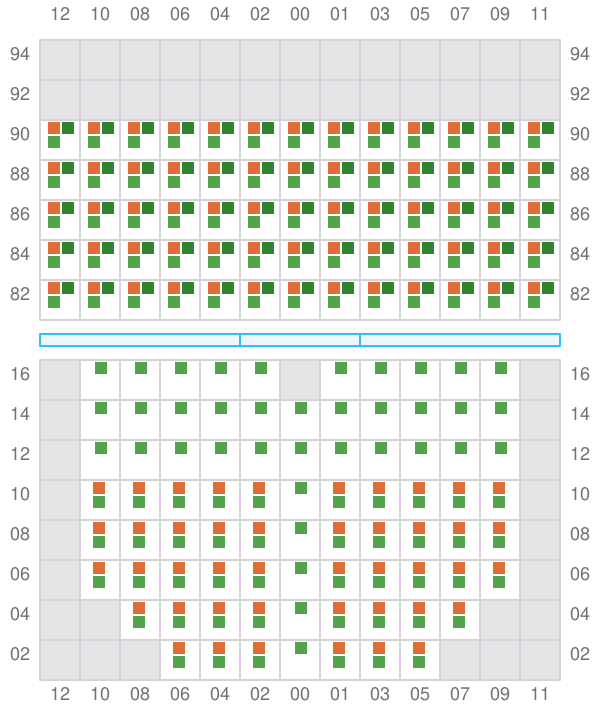

Bay 021 view and slots of MSC BRIANNA

023

←

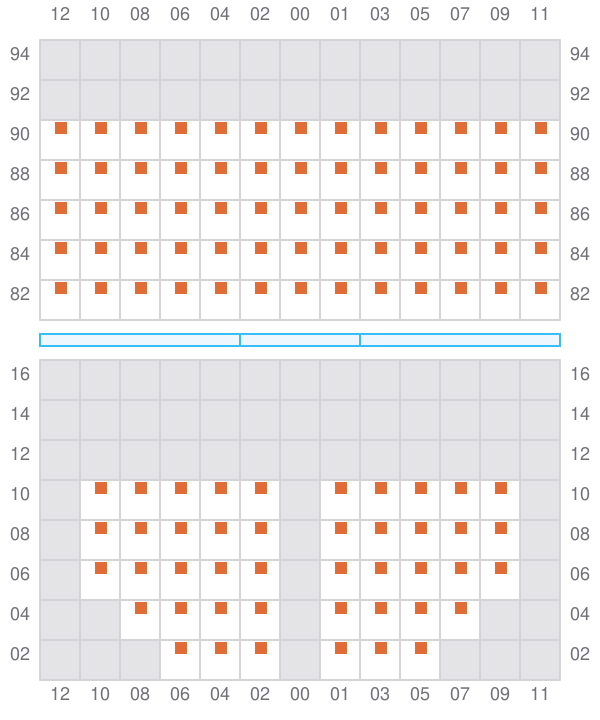

Bay 023 view and slots of MSC BRIANNA

025 (026)

→

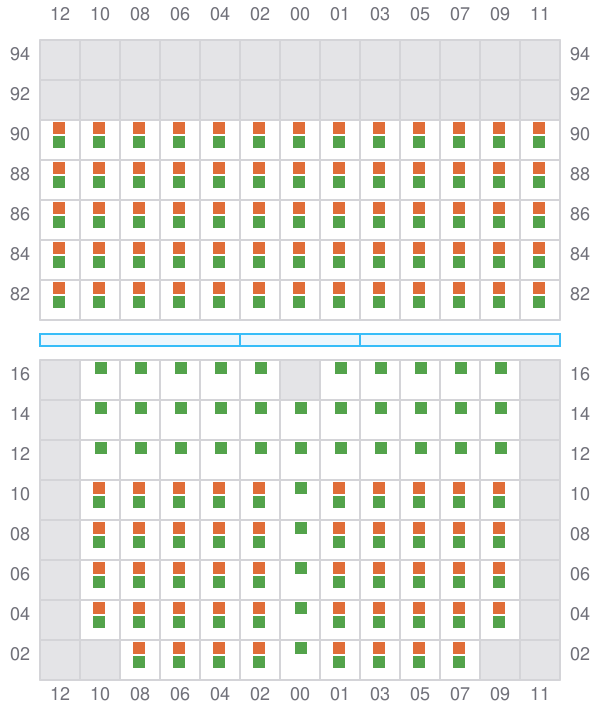

Bay 025 view and slots of MSC BRIANNA

027

←
^→ / _?

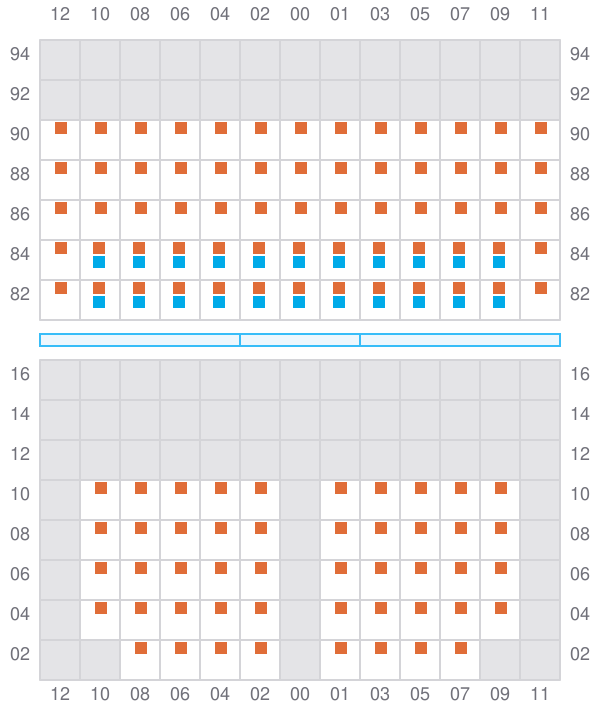

Bay 027 view and slots of MSC BRIANNA

029 (030)

→

Bay 029 view and slots of MSC BRIANNA

031

←
^→ / _?

Bay 031 view and slots of MSC BRIANNA

033

^← / _?

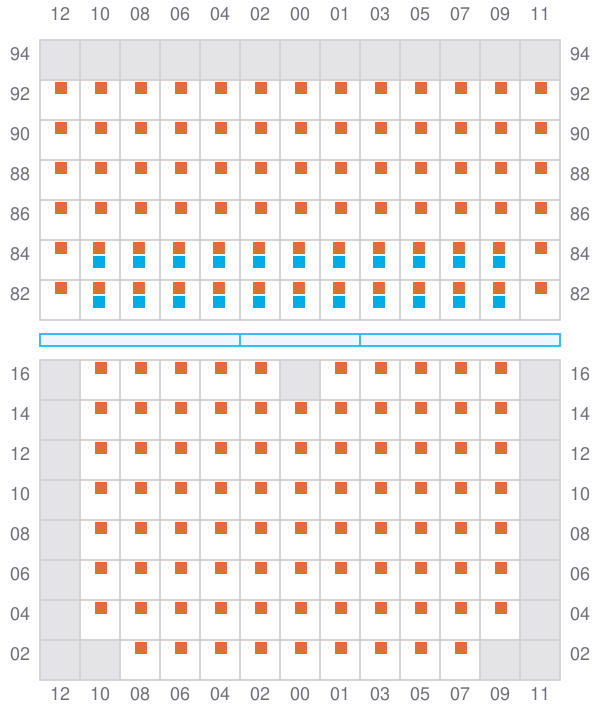

Bay 033 view and slots of MSC BRIANNA

035 (036)

→

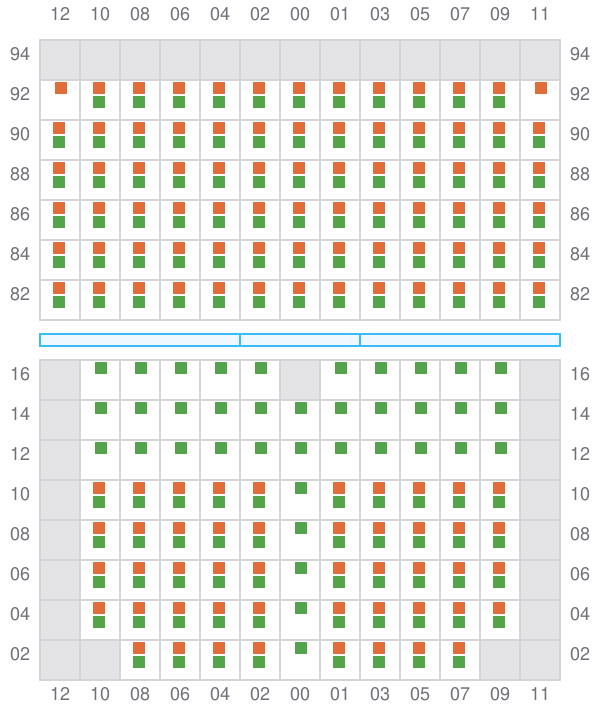

Bay 035 view and slots of MSC BRIANNA

037

←
^→ / _?

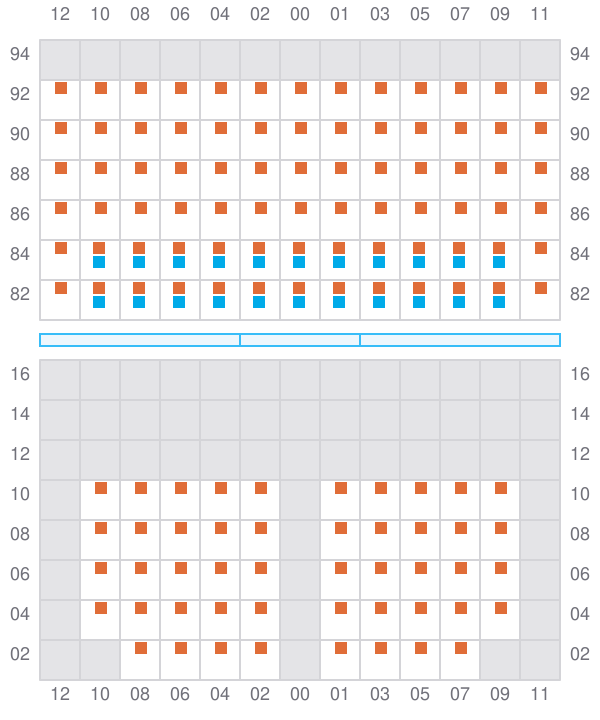

Bay 037 view and slots of MSC BRIANNA

039 (040)

→

Bay 039 view and slots of MSC BRIANNA

041

←
^→ / _?

Bay 041 view and slots of MSC BRIANNA

043 (044)

→

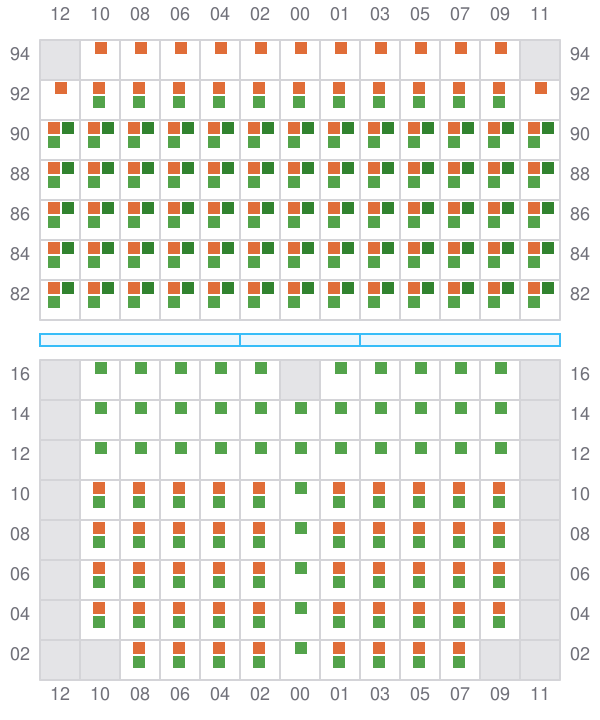

Bay 043 view and slots of MSC BRIANNA

045

←
^→ / _?

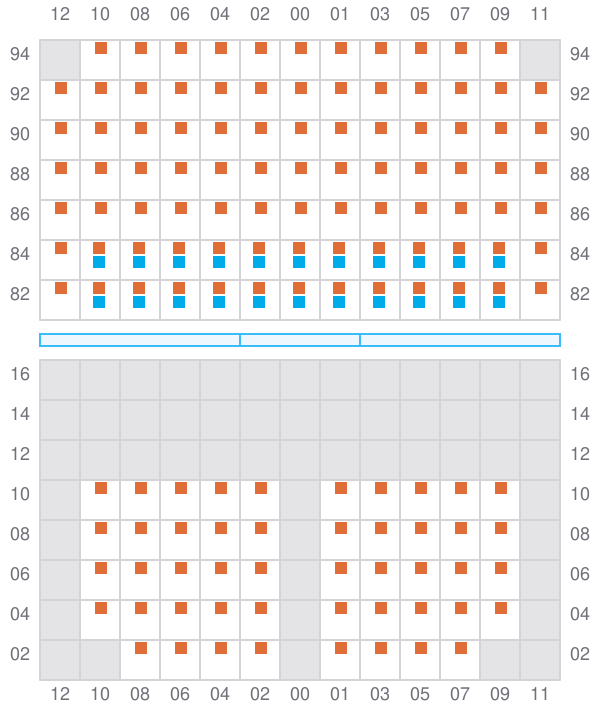

Bay 045 view and slots of MSC BRIANNA

047 (048)

→

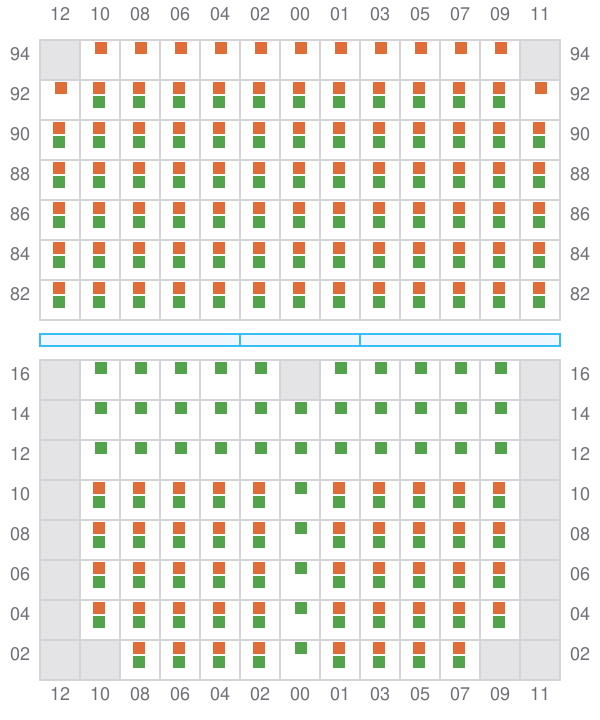

Bay 047 view and slots of MSC BRIANNA

049

←
^→ / _?

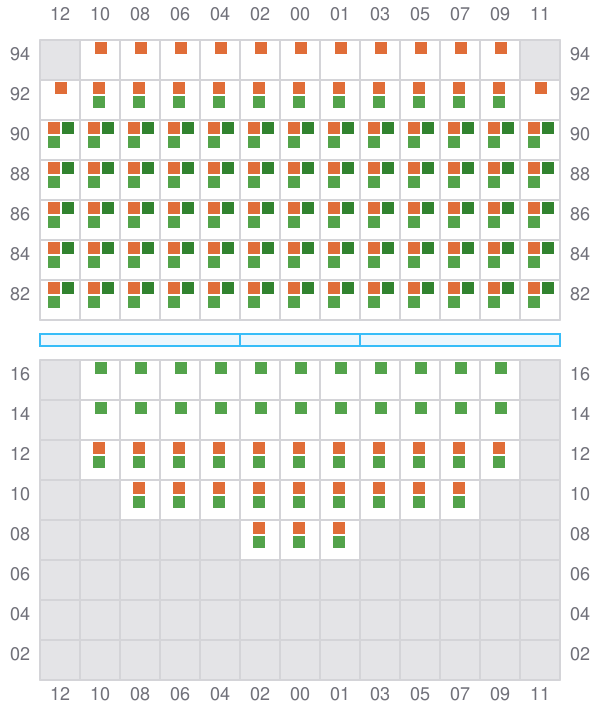

Bay 049 view and slots of MSC BRIANNA

051 (052)

→
^← / _?

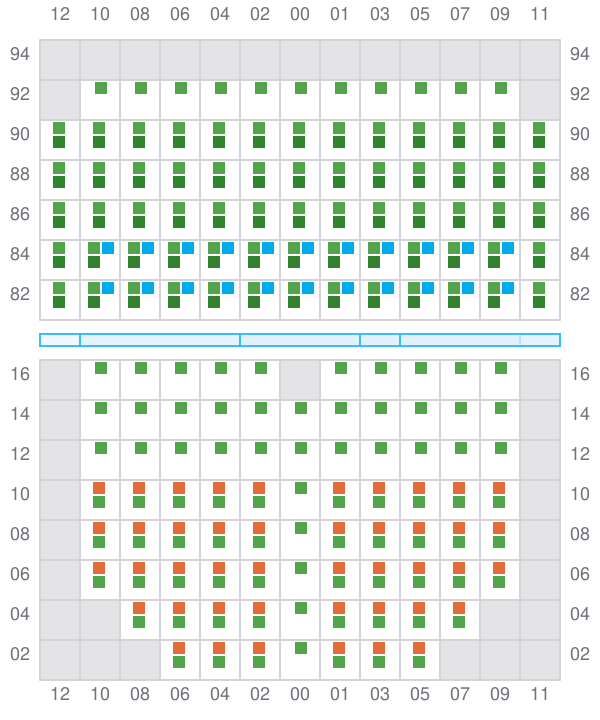

Bay 051 view and slots of MSC BRIANNA

053

^? / _←

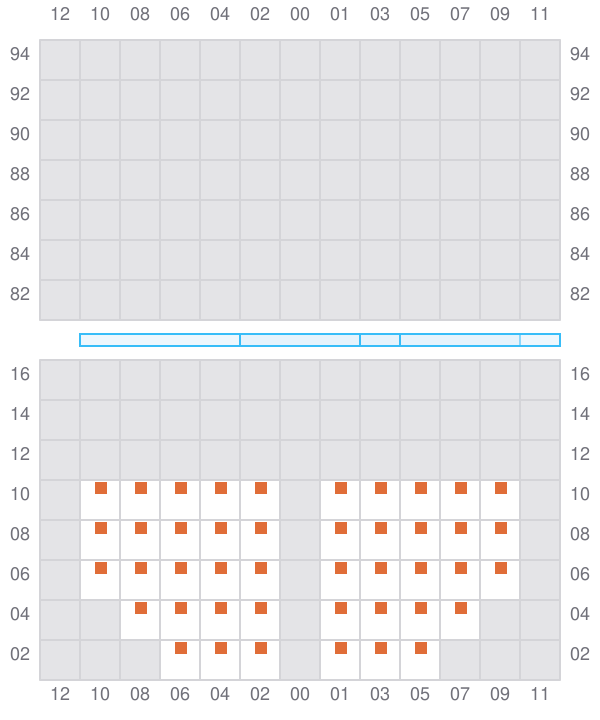

Bay 053 view and slots of MSC BRIANNA

055 (056)

→
^→ / _?

Bay 055 view and slots of MSC BRIANNA

057

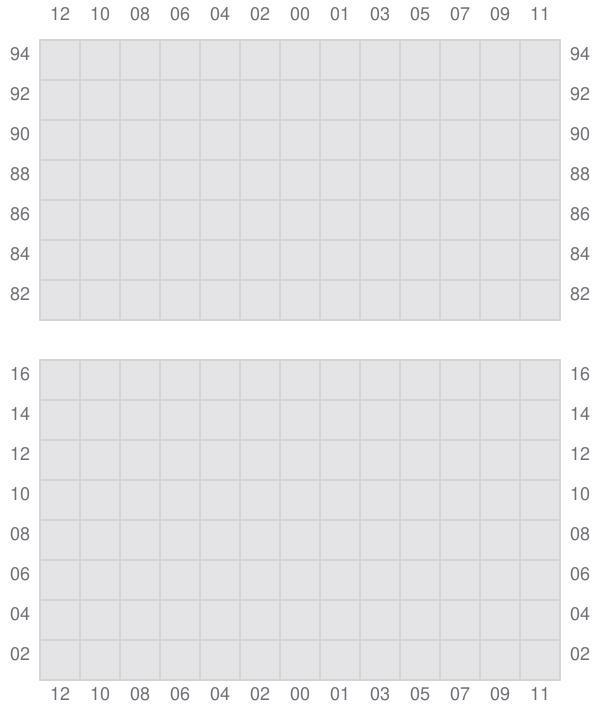

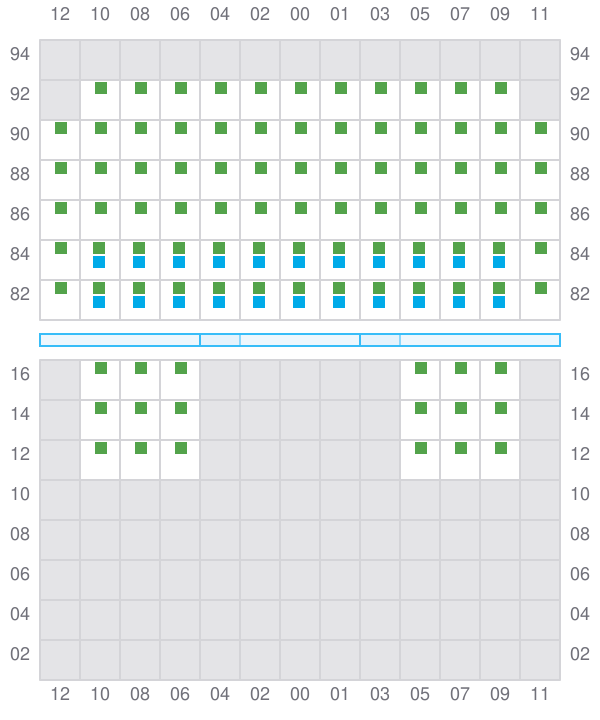

Bay 057 view and slots of MSC BRIANNA

059 (060)

→

Bay 059 view and slots of MSC BRIANNA

061

←
^→ / _?

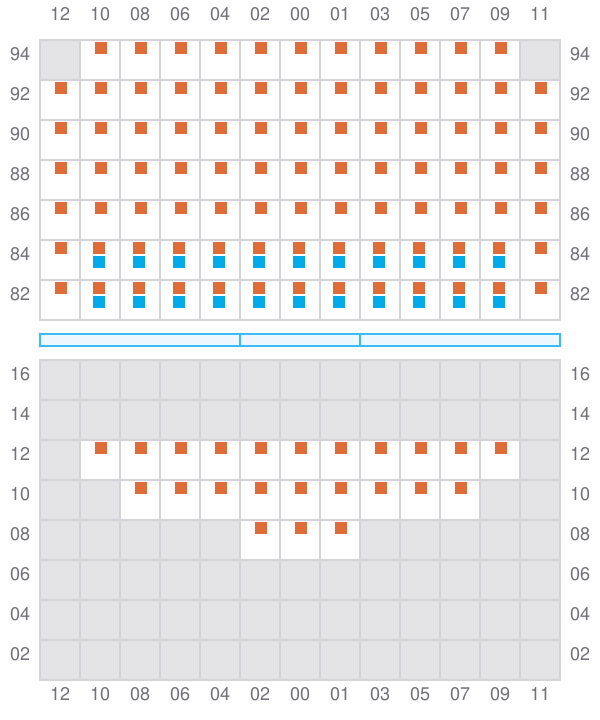

Bay 061 view and slots of MSC BRIANNA

063 (064)

→
^← / _?

Bay 063 view and slots of MSC BRIANNA

065

←

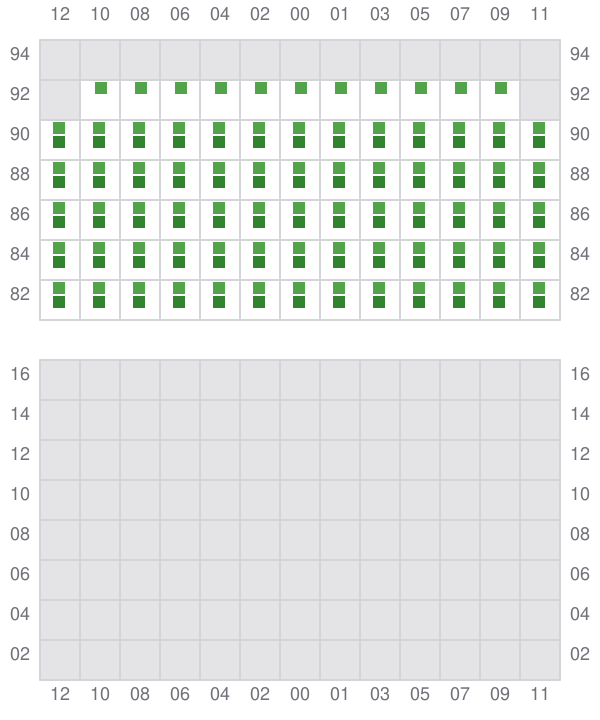

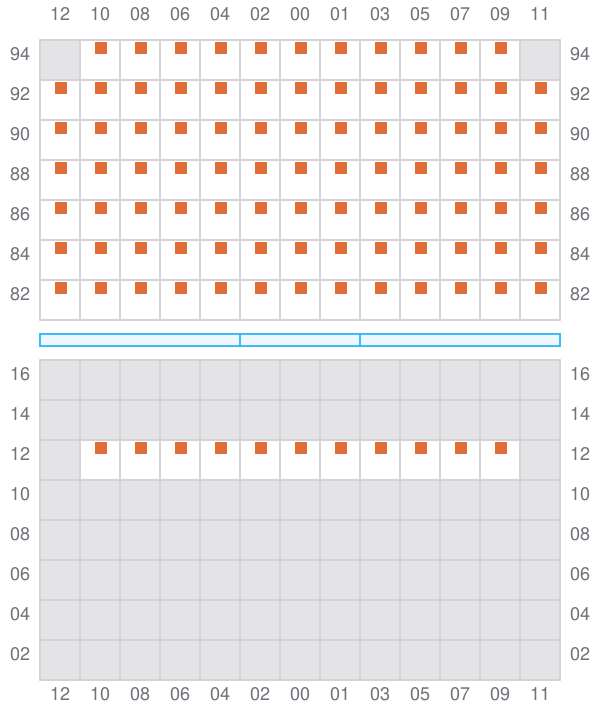

Bay 065 view and slots of MSC BRIANNA

067 (068)

^→ / _?

Bay 067 view and slots of MSC BRIANNA
