MSC BRIDGEPORT
9243409 | CQRK | MSC by ***************************** Last update: Tue May 30 2023

General Info

Ship Name:MSC BRIDGEPORT
IMO Code:9243409
Call Sign:CQRK
Line Operator:MSC
Class Name for Sister Ships:OLON
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:075
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,051

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

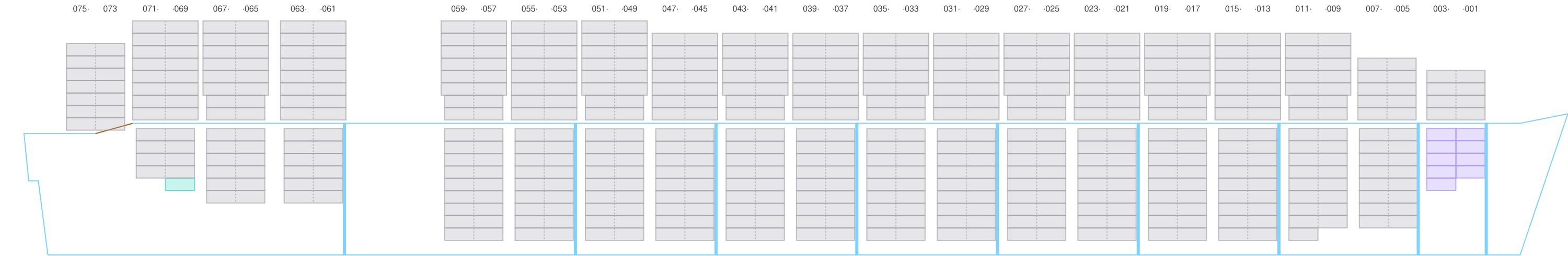

Side View

Side view of MSC BRIDGEPORT

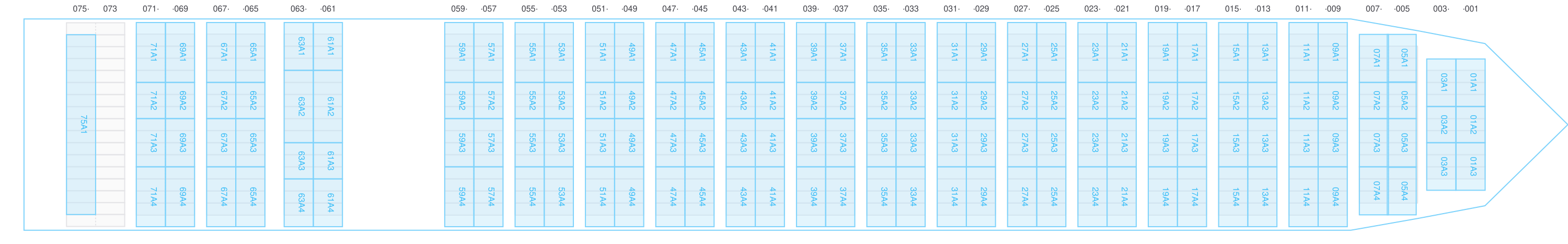

Hatch-Covers View

Deck view of MSC BRIDGEPORT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • → / ?
  • →

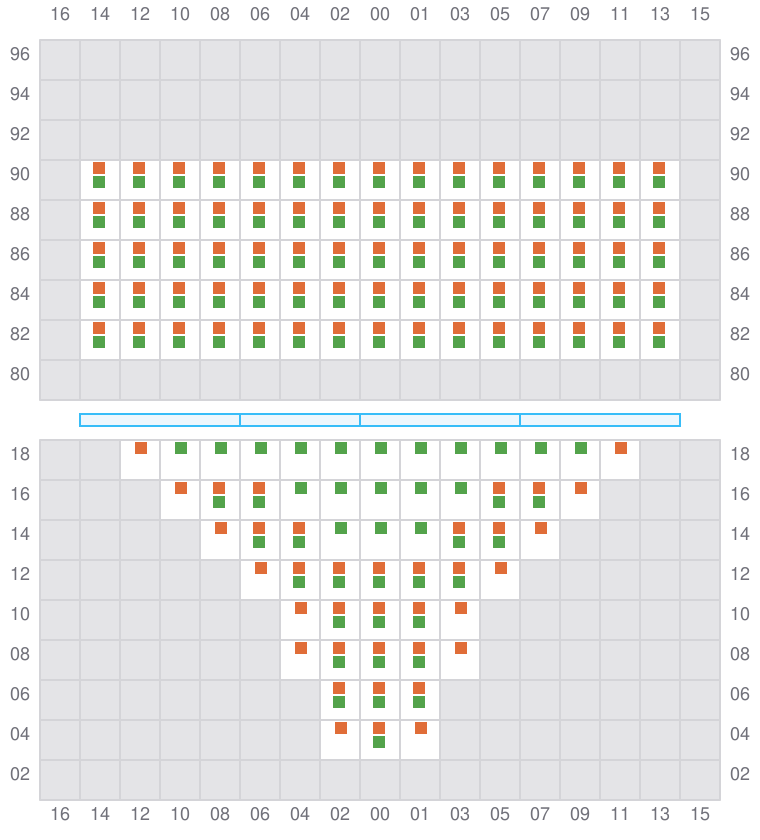

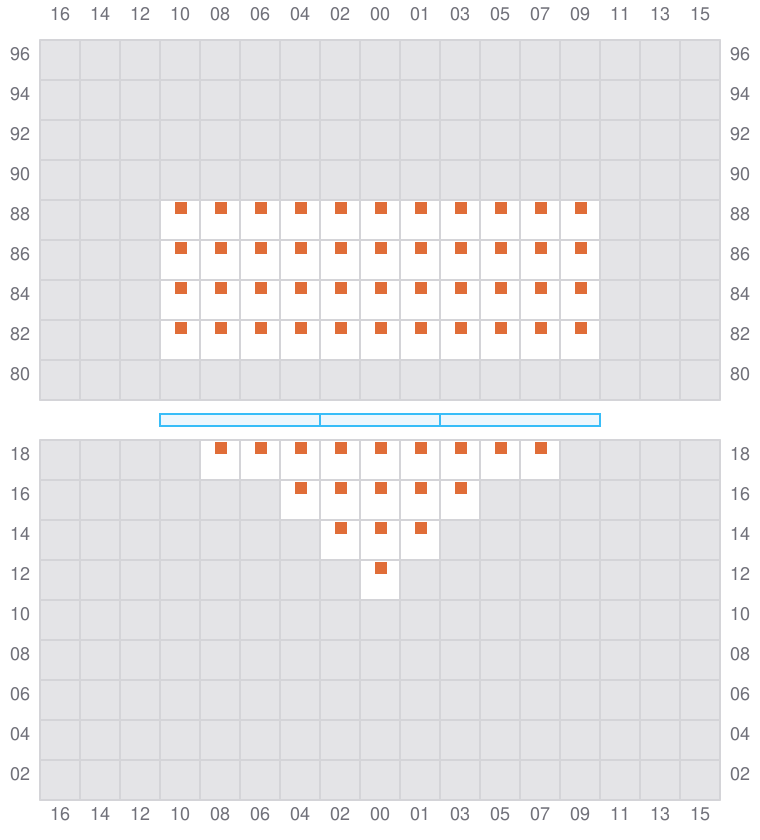

Bay 001 view and slots of MSC BRIDGEPORT

003 (002)

  • ← / ?
  • →

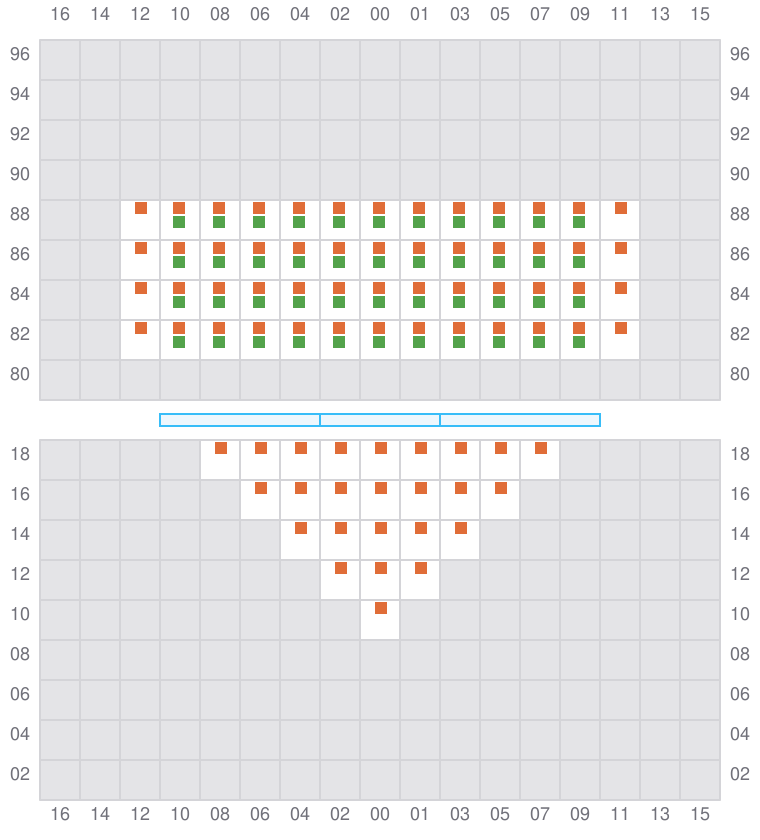

Bay 003 view and slots of MSC BRIDGEPORT

005

  • →
  • →

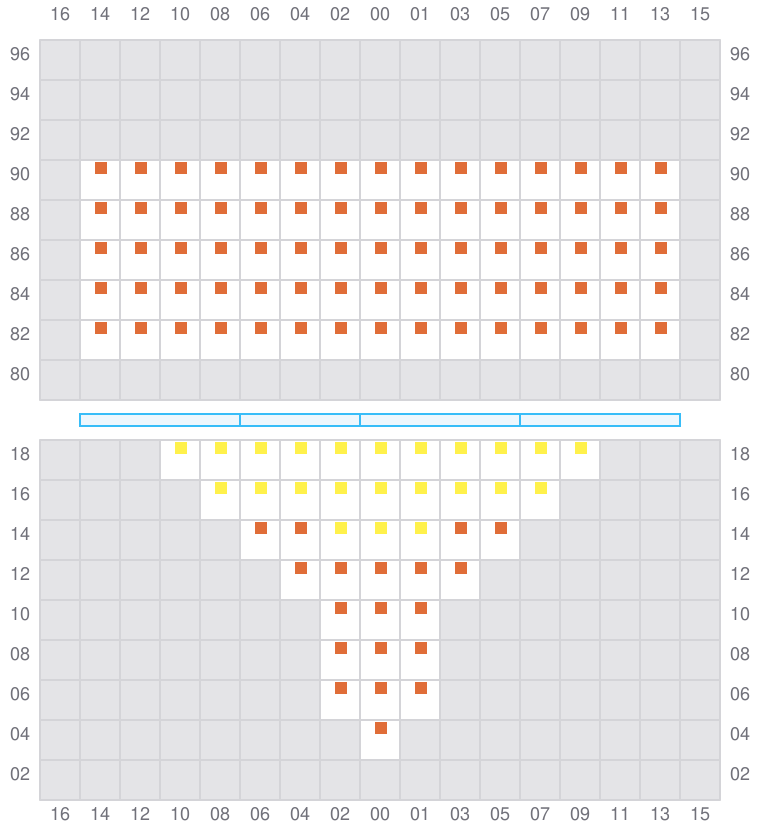

Bay 005 view and slots of MSC BRIDGEPORT

007 (006)

  • ←
  • →
Bay 007 view and slots of MSC BRIDGEPORT

009

  • →
  • →

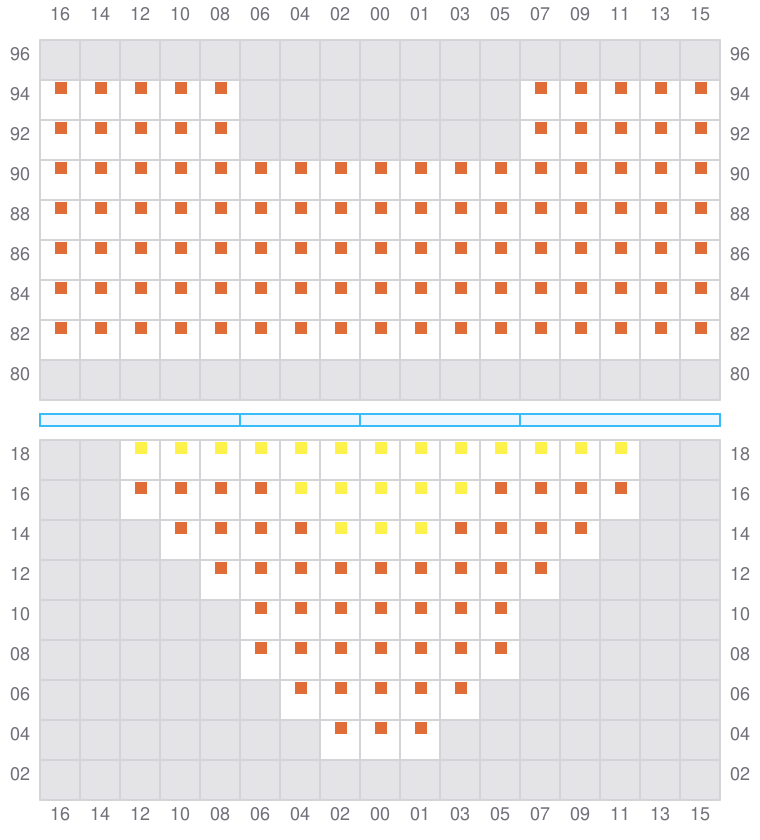

Bay 009 view and slots of MSC BRIDGEPORT

011 (010)

  • ←
  • → / ?
  • →
Bay 011 view and slots of MSC BRIDGEPORT

013

  • →
  • →

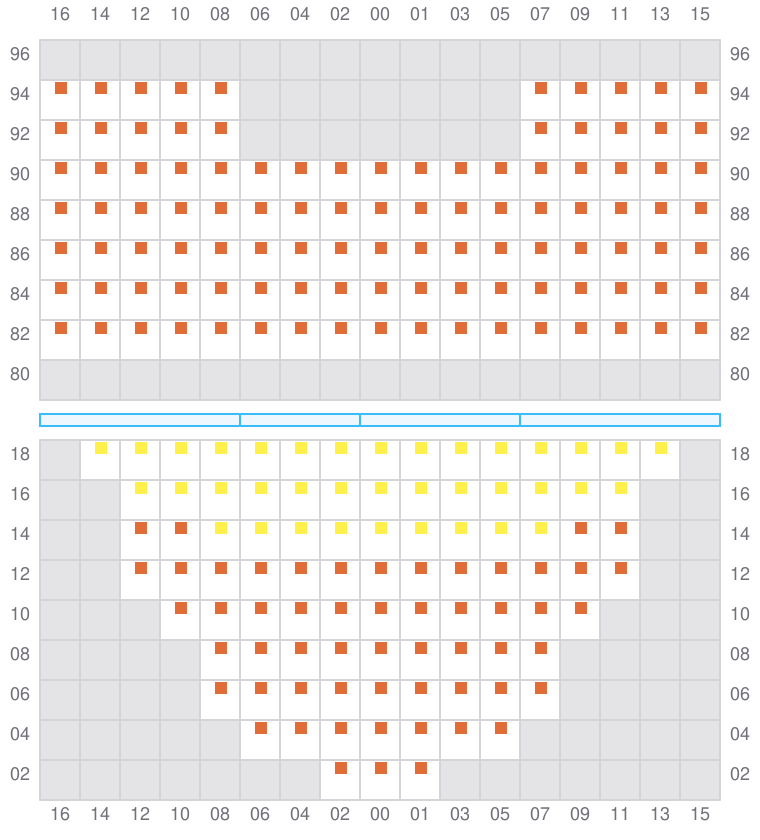

Bay 013 view and slots of MSC BRIDGEPORT

015 (014)

  • ←
  • → / ?
  • →

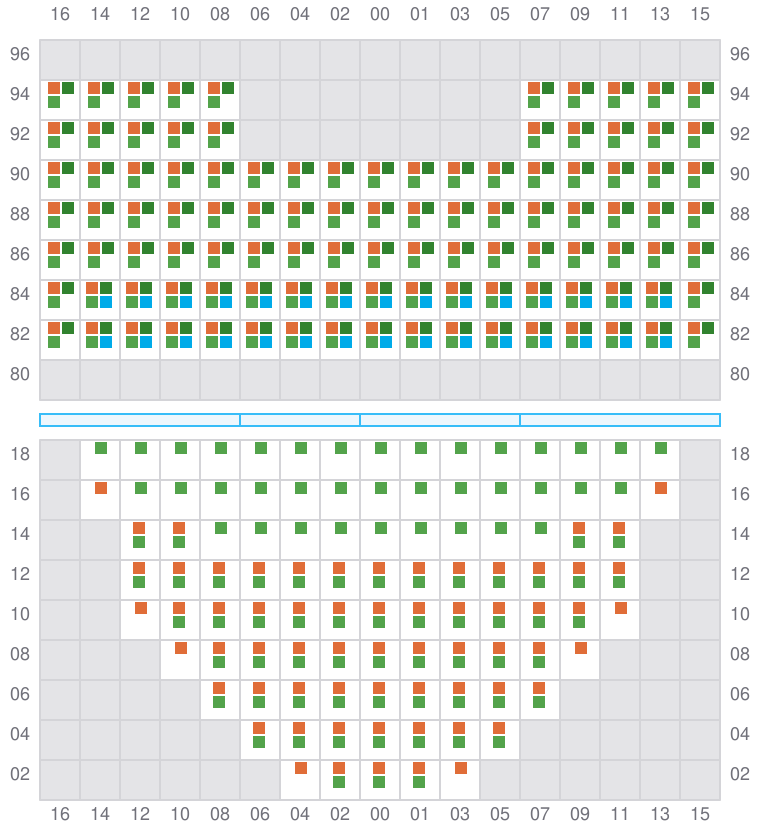

Bay 015 view and slots of MSC BRIDGEPORT

017

  • →
  • →

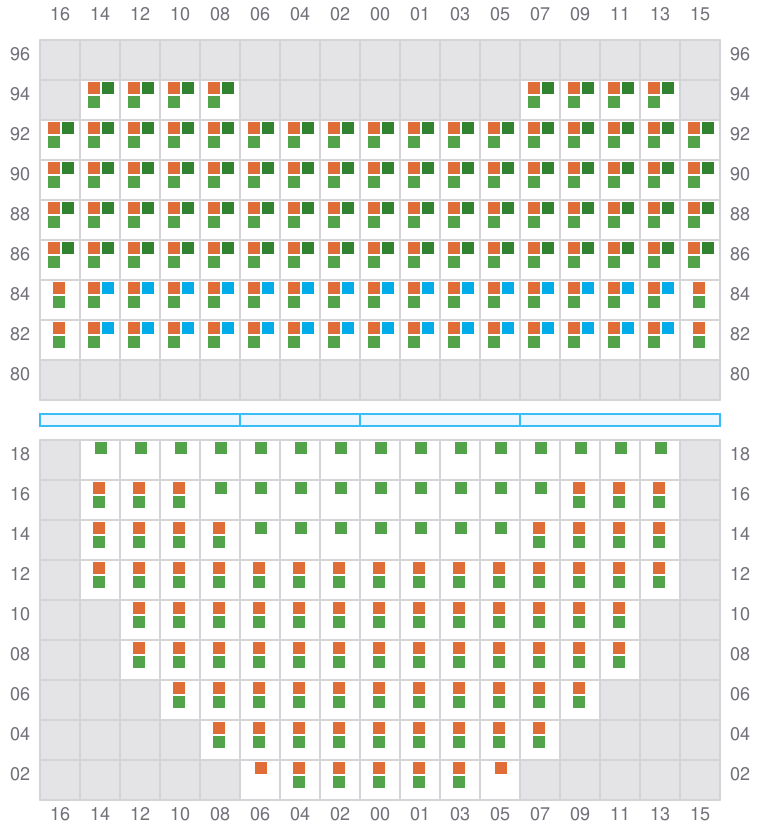

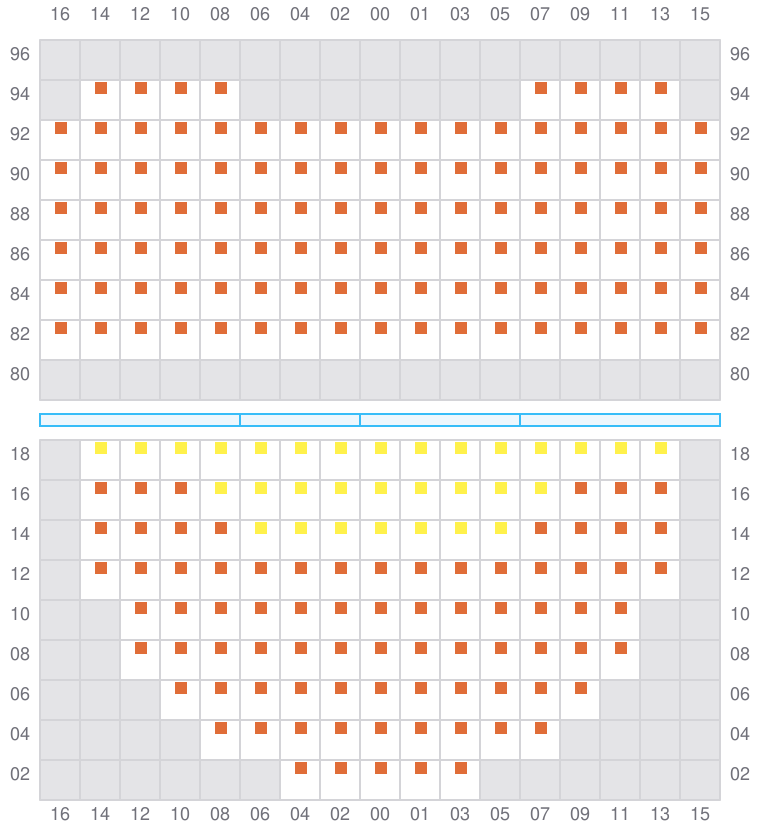

Bay 017 view and slots of MSC BRIDGEPORT

019 (018)

  • ←
  • → / ?
  • →

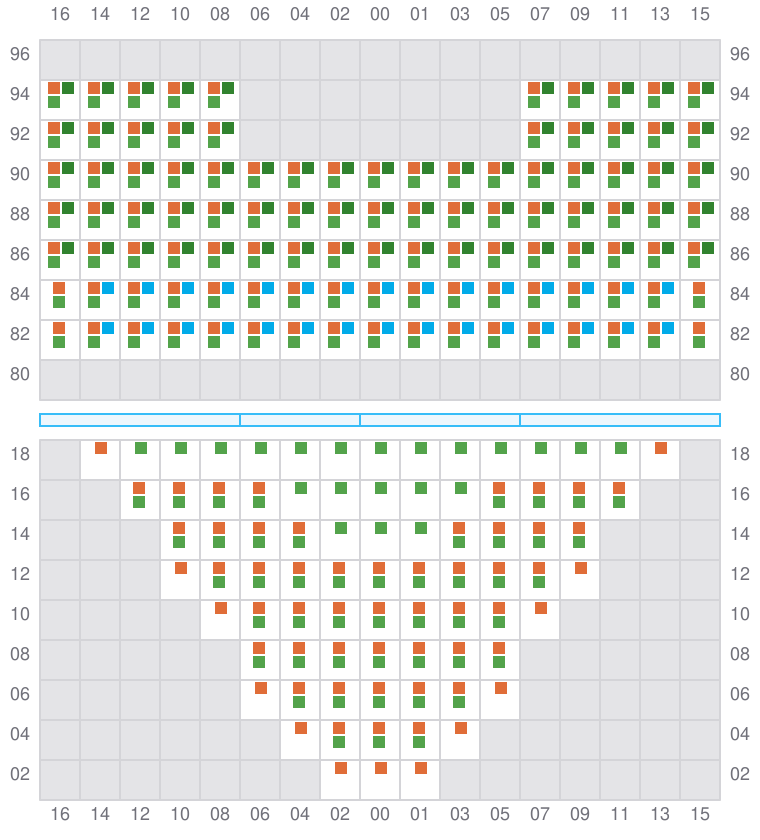

Bay 019 view and slots of MSC BRIDGEPORT

021

  • →
  • →

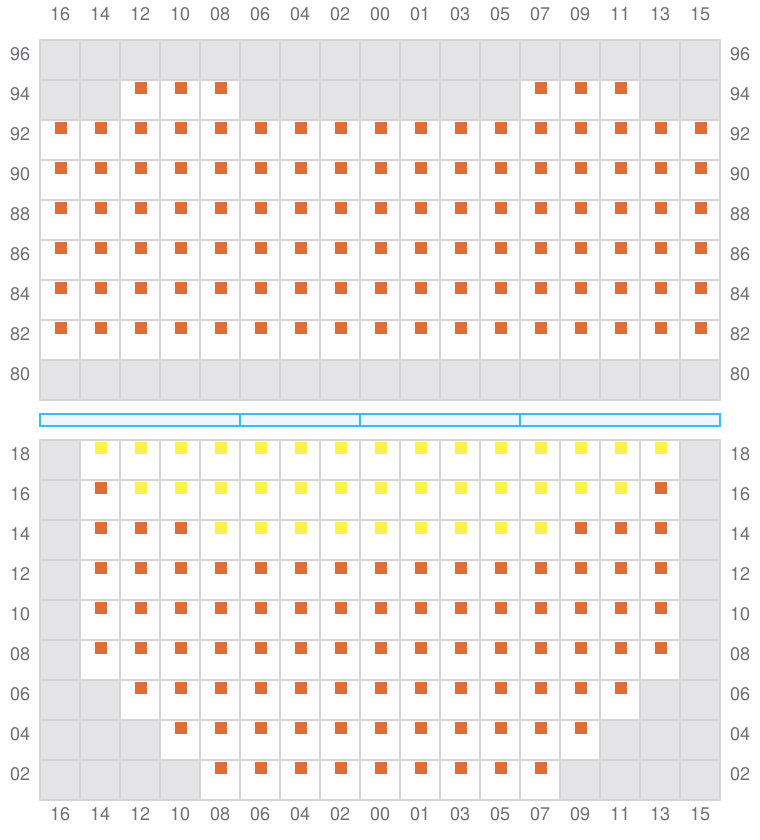

Bay 021 view and slots of MSC BRIDGEPORT

023 (022)

  • ←
  • → / ?
  • →

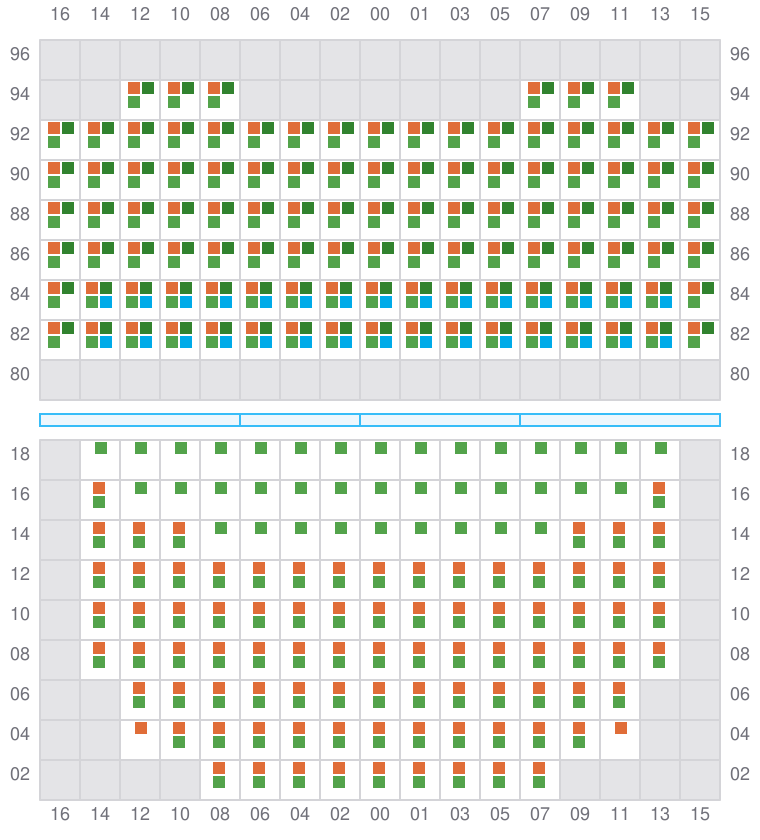

Bay 023 view and slots of MSC BRIDGEPORT

025

  • →
  • →
Bay 025 view and slots of MSC BRIDGEPORT

027 (026)

  • ←
  • → / ?
  • →

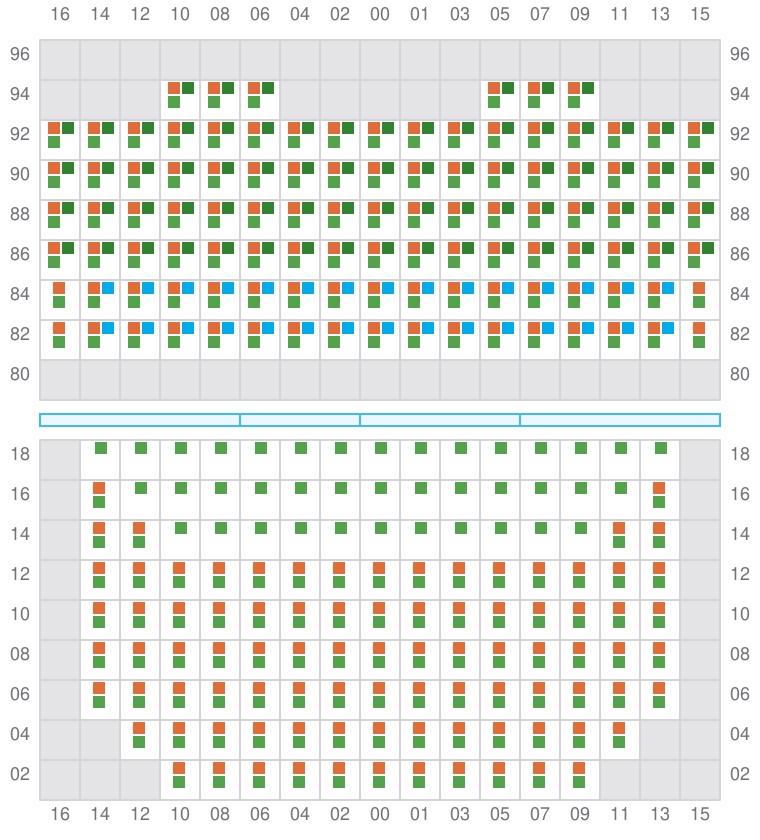

Bay 027 view and slots of MSC BRIDGEPORT

029

  • →
  • →

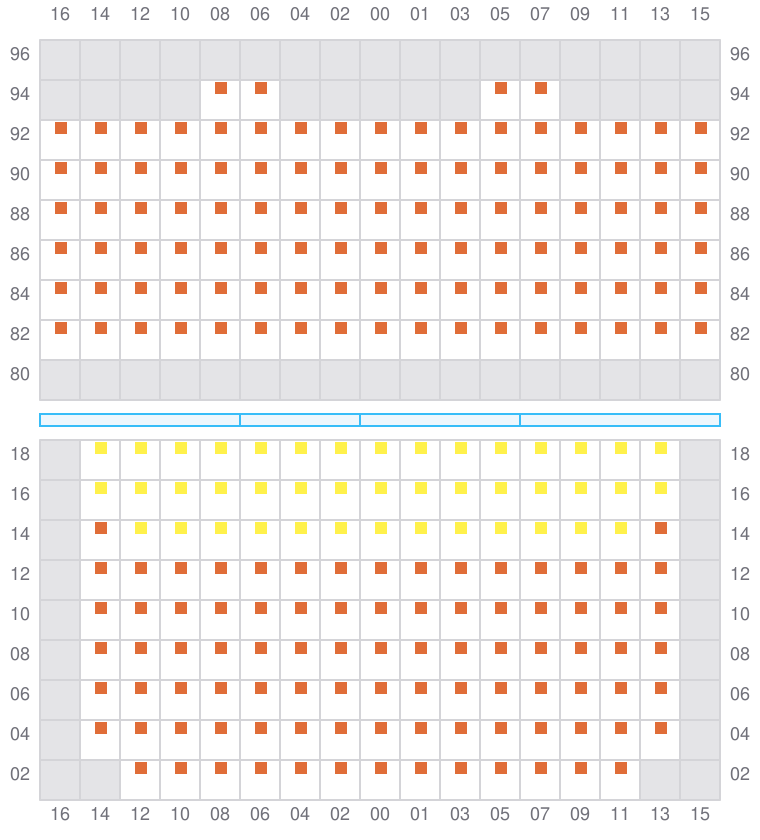

Bay 029 view and slots of MSC BRIDGEPORT

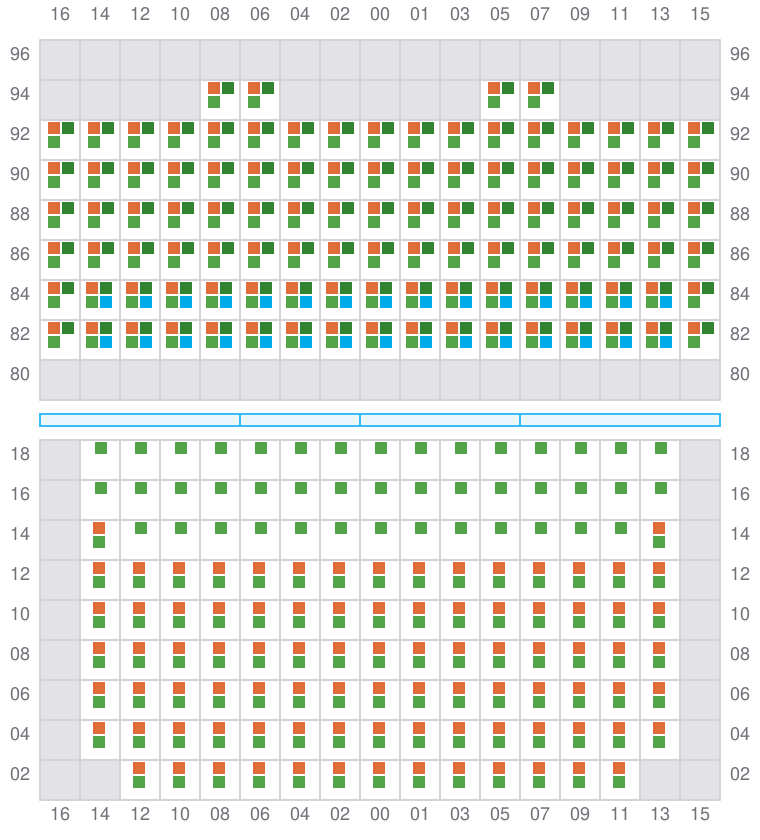

031 (030)

  • ←
  • → / ?
  • →
Bay 031 view and slots of MSC BRIDGEPORT

033

  • →
  • →
Bay 033 view and slots of MSC BRIDGEPORT

035 (034)

  • ←
  • →
  • →

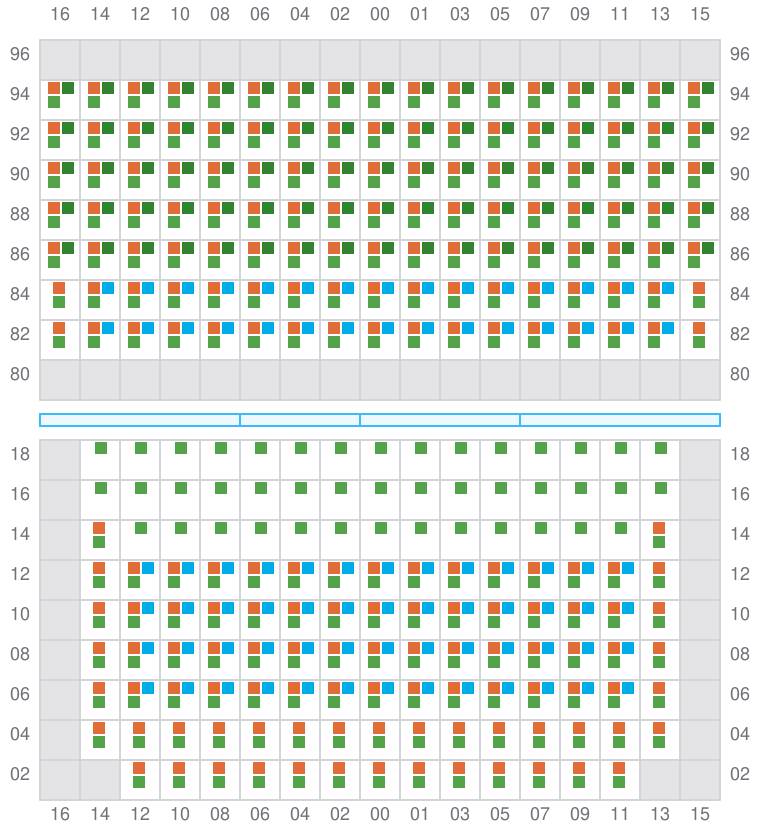

Bay 035 view and slots of MSC BRIDGEPORT

037

  • →
  • →
Bay 037 view and slots of MSC BRIDGEPORT

039 (038)

  • ←
  • → / ?
  • →

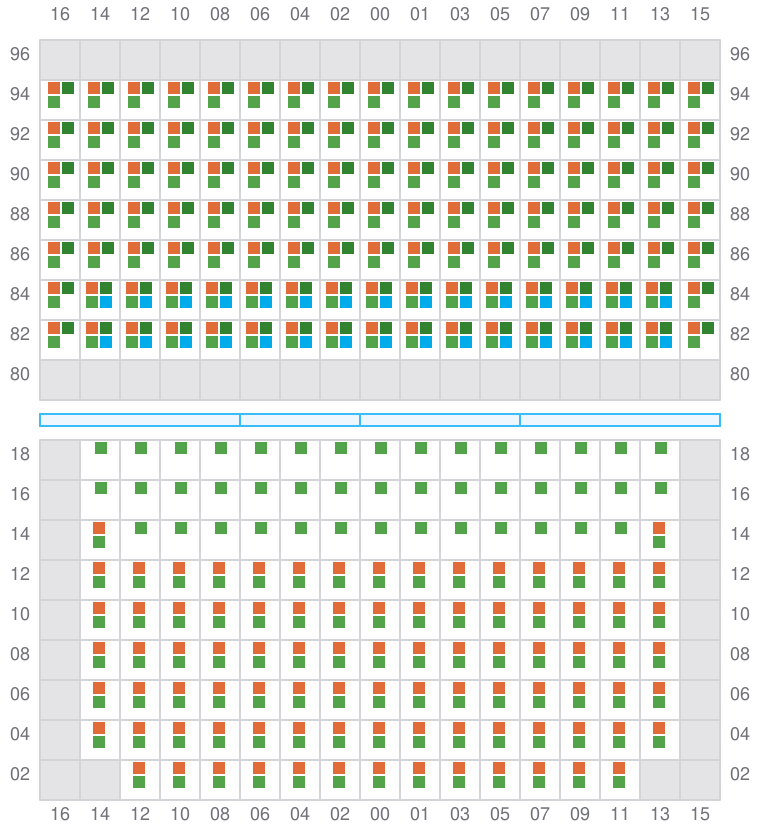

Bay 039 view and slots of MSC BRIDGEPORT

041

  • →
  • →

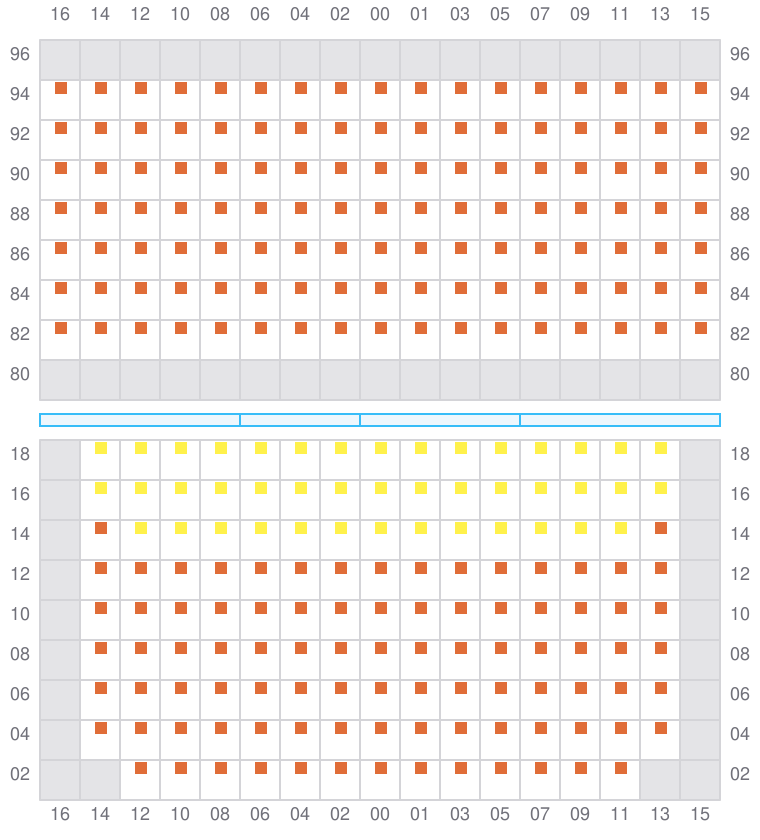

Bay 041 view and slots of MSC BRIDGEPORT

043 (042)

  • ←
  • →
  • →
Bay 043 view and slots of MSC BRIDGEPORT

045

  • →
  • →
Bay 045 view and slots of MSC BRIDGEPORT

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of MSC BRIDGEPORT

049

  • →
  • →

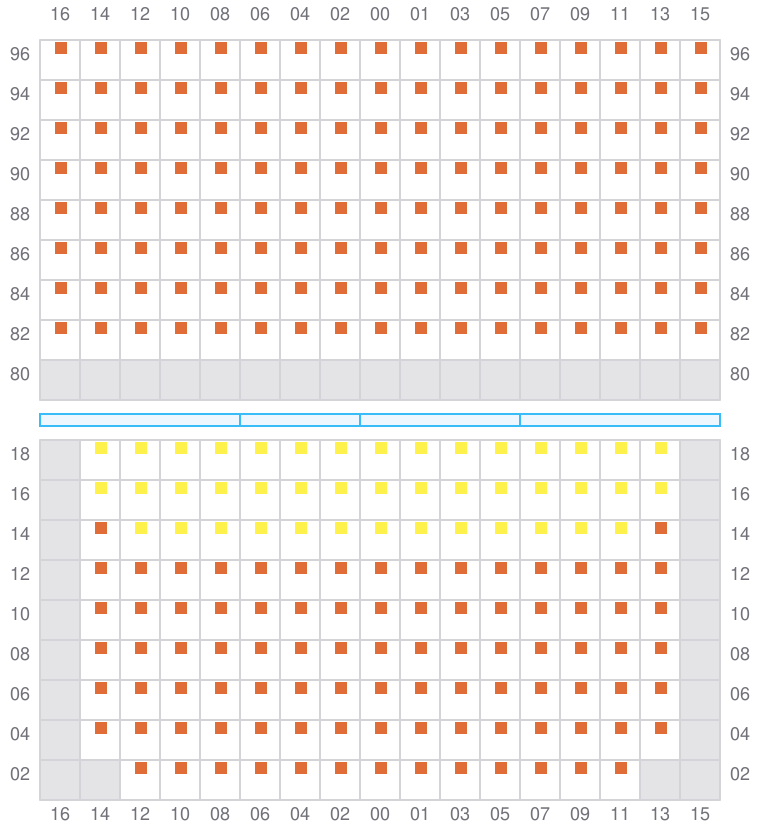

Bay 049 view and slots of MSC BRIDGEPORT

051 (050)

  • ←
  • →
  • →

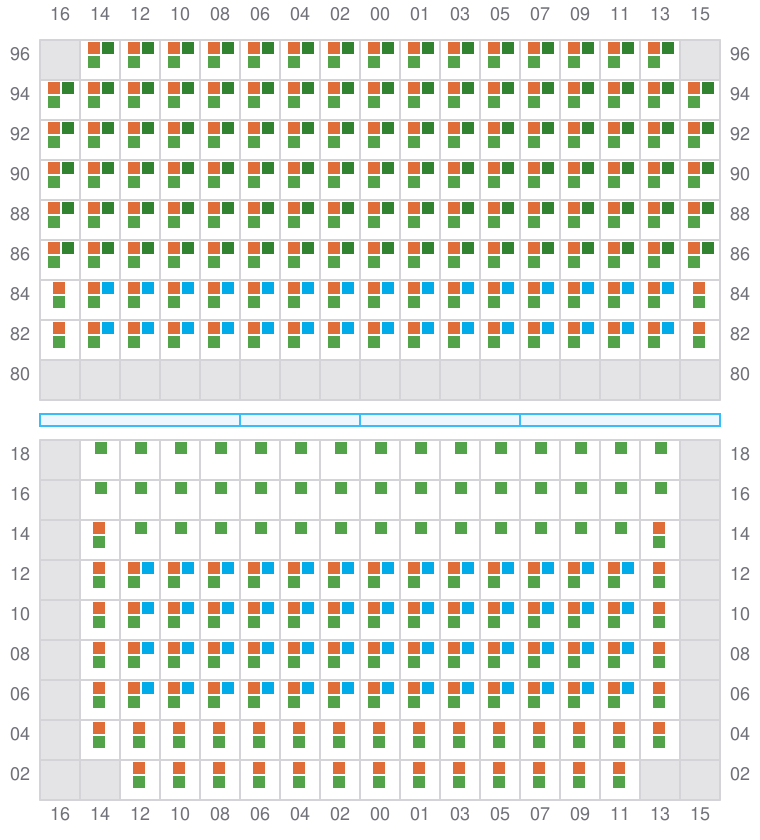

Bay 051 view and slots of MSC BRIDGEPORT

053

  • →
  • →

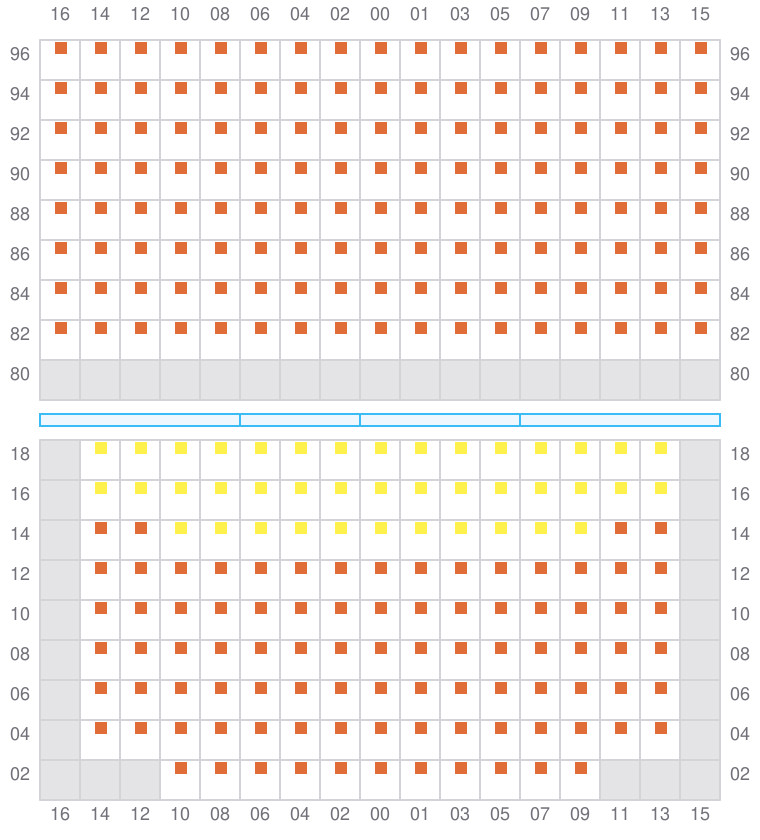

Bay 053 view and slots of MSC BRIDGEPORT

055 (054)

  • ←
  • → / ?
  • →

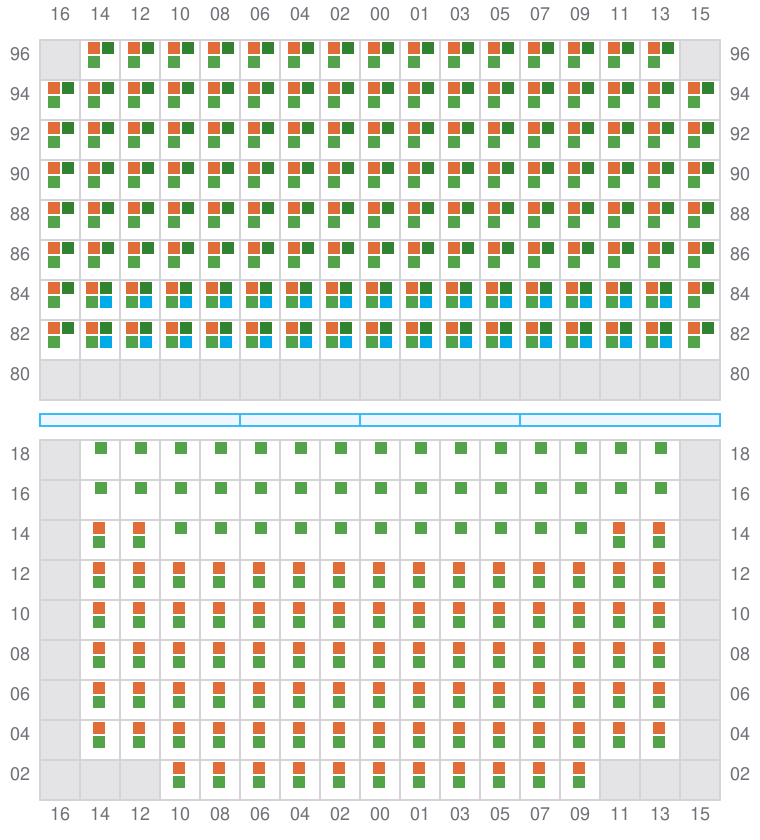

Bay 055 view and slots of MSC BRIDGEPORT

057

  • →
  • →

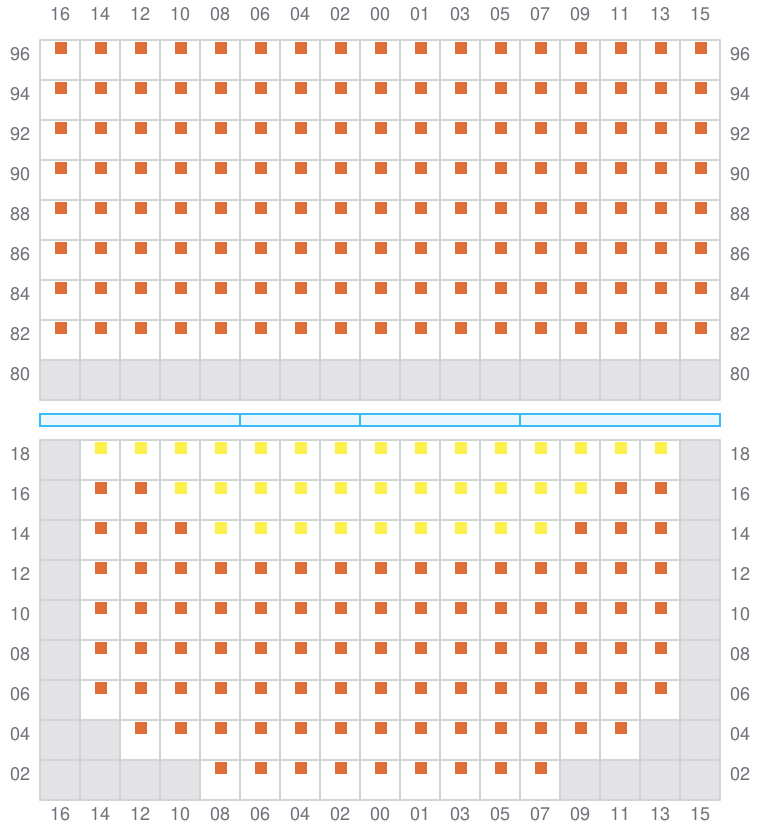

Bay 057 view and slots of MSC BRIDGEPORT

059 (058)

  • ←
  • →
  • →

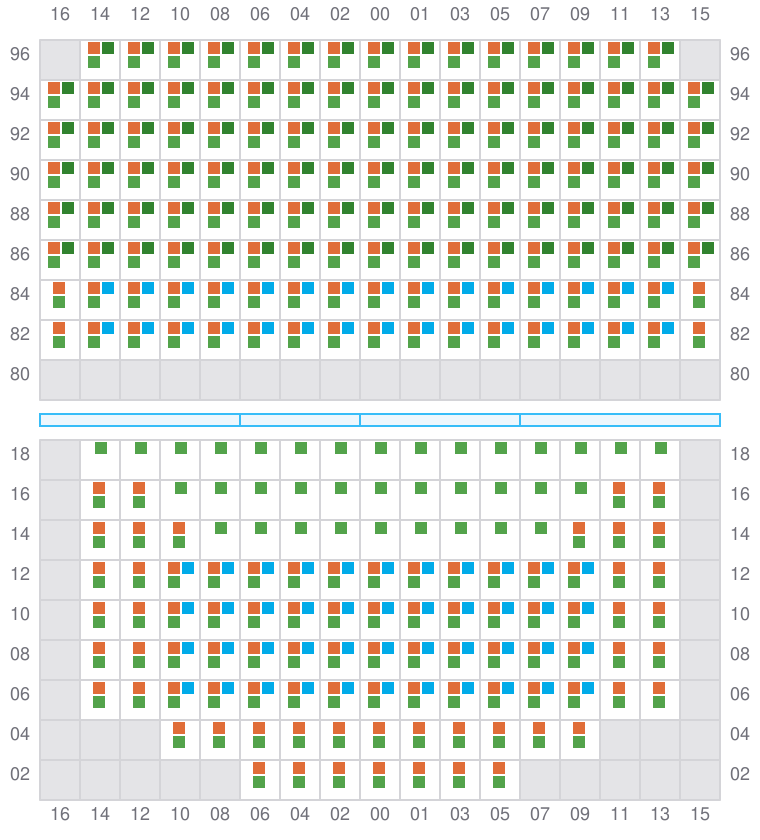

Bay 059 view and slots of MSC BRIDGEPORT

061

  • →
  • →

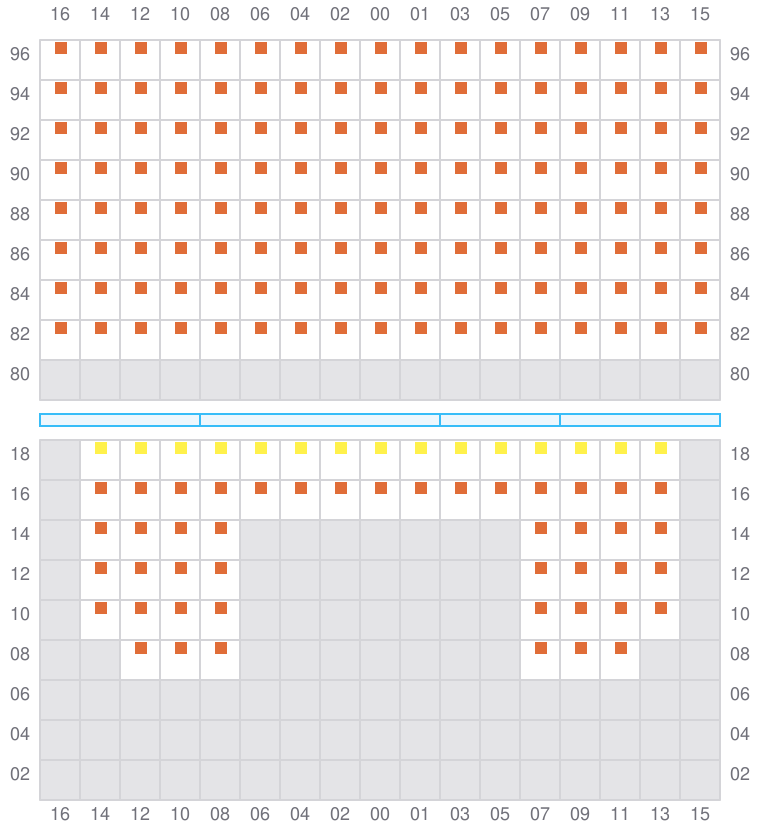

Bay 061 view and slots of MSC BRIDGEPORT

063 (062)

  • ←
  • → / ?
  • →

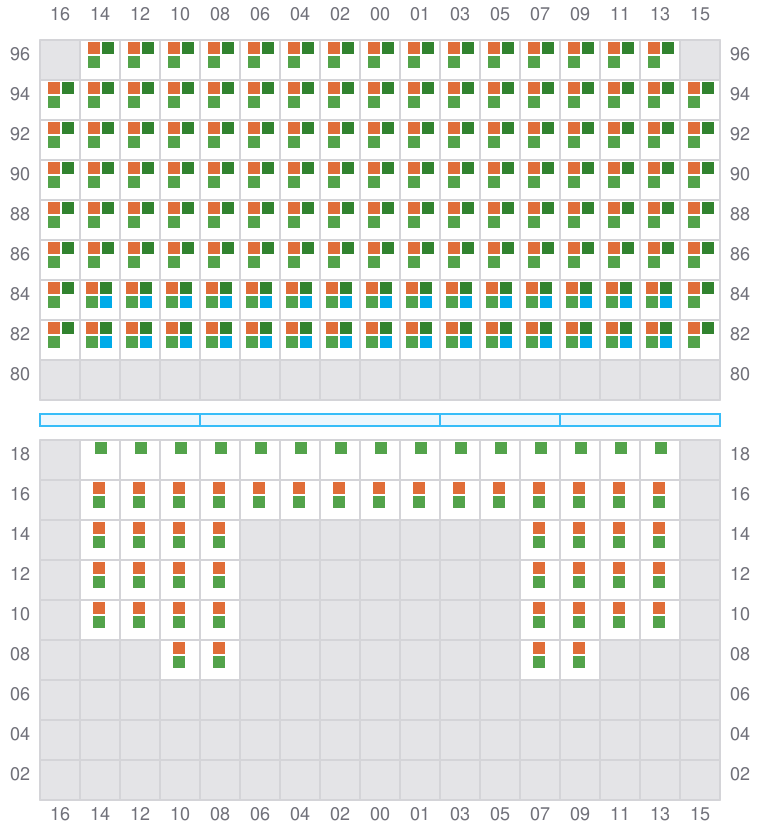

Bay 063 view and slots of MSC BRIDGEPORT

065

  • →
  • →

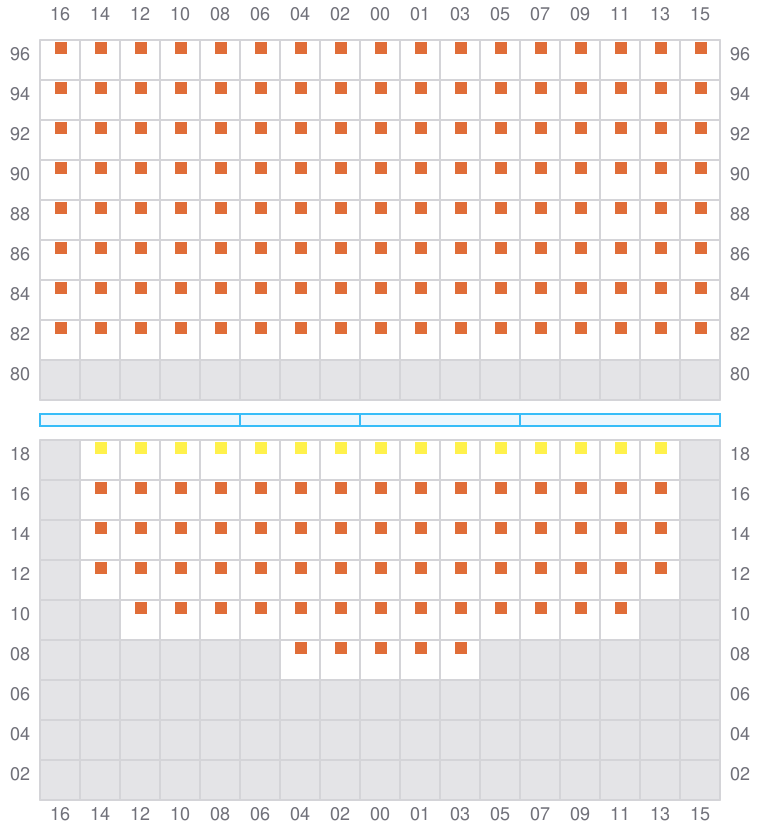

Bay 065 view and slots of MSC BRIDGEPORT

067 (066)

  • ←
  • → / ?
  • →

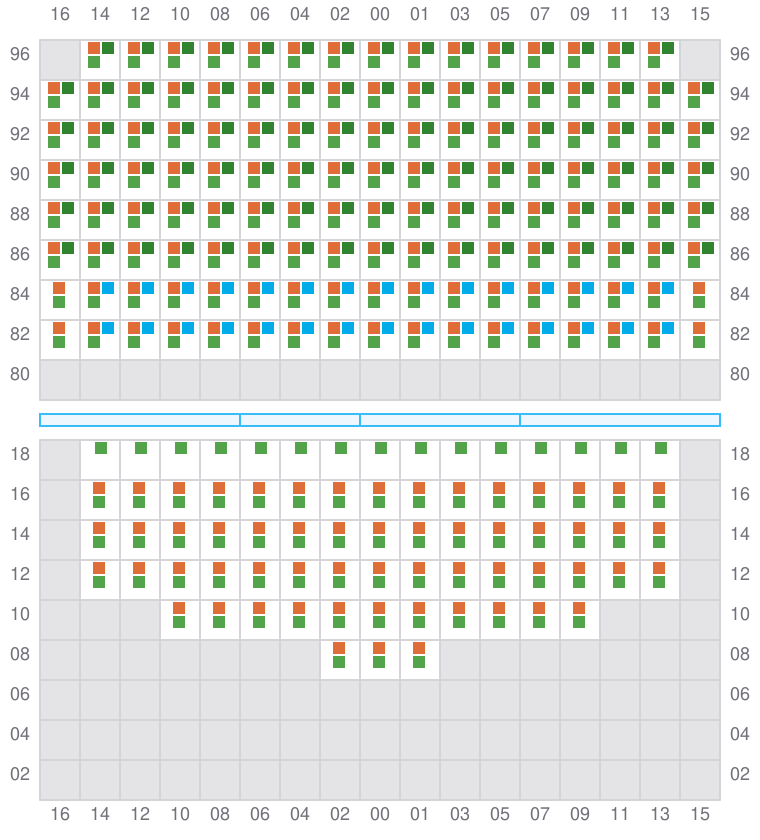

Bay 067 view and slots of MSC BRIDGEPORT

069

  • →
  • →

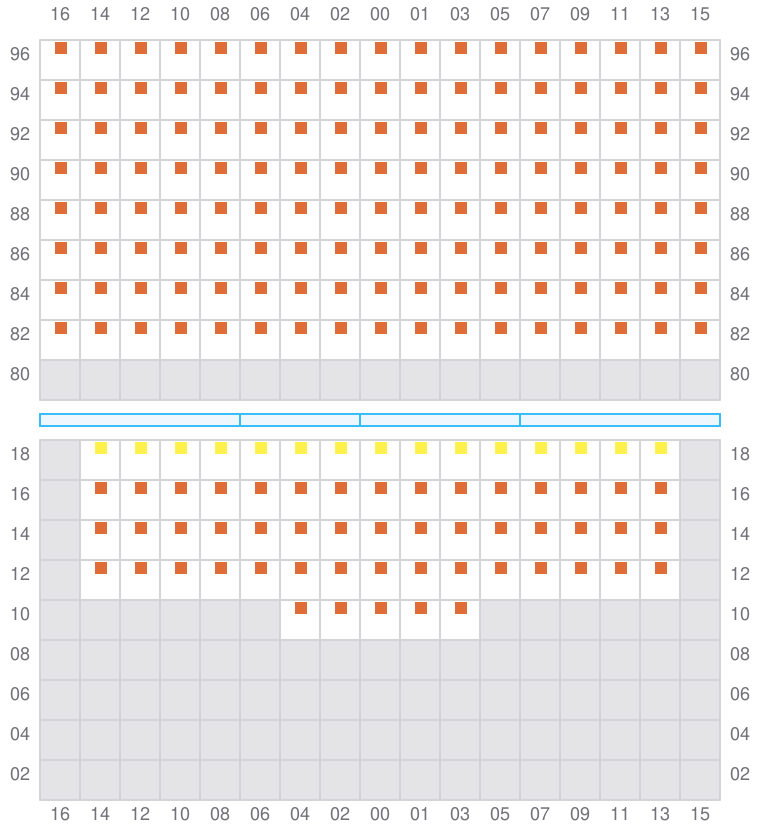

Bay 069 view and slots of MSC BRIDGEPORT

071 (070)

  • ←
  • → / ?
  • →

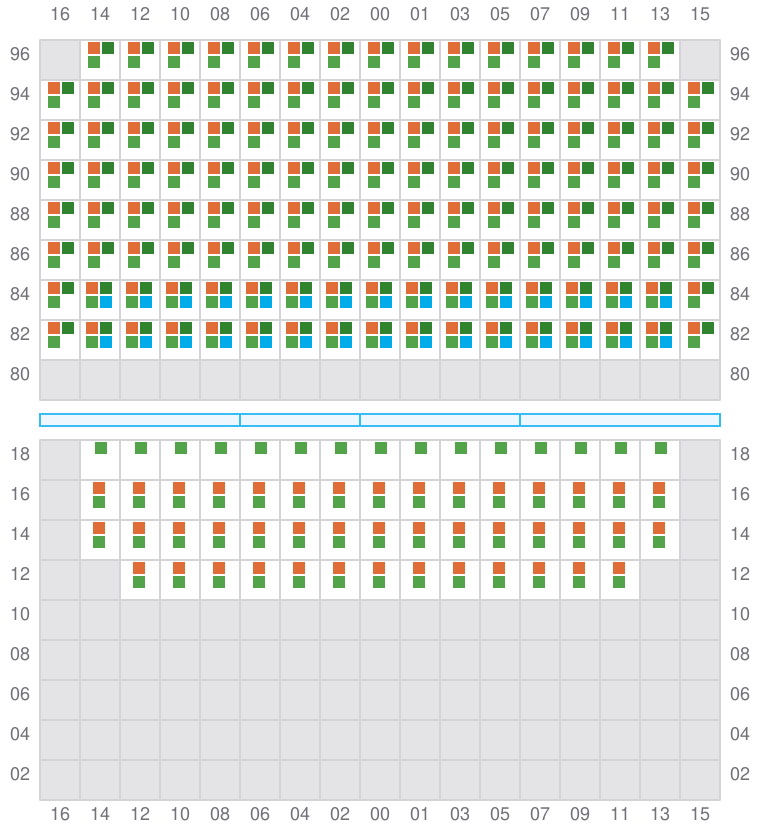

Bay 071 view and slots of MSC BRIDGEPORT

073

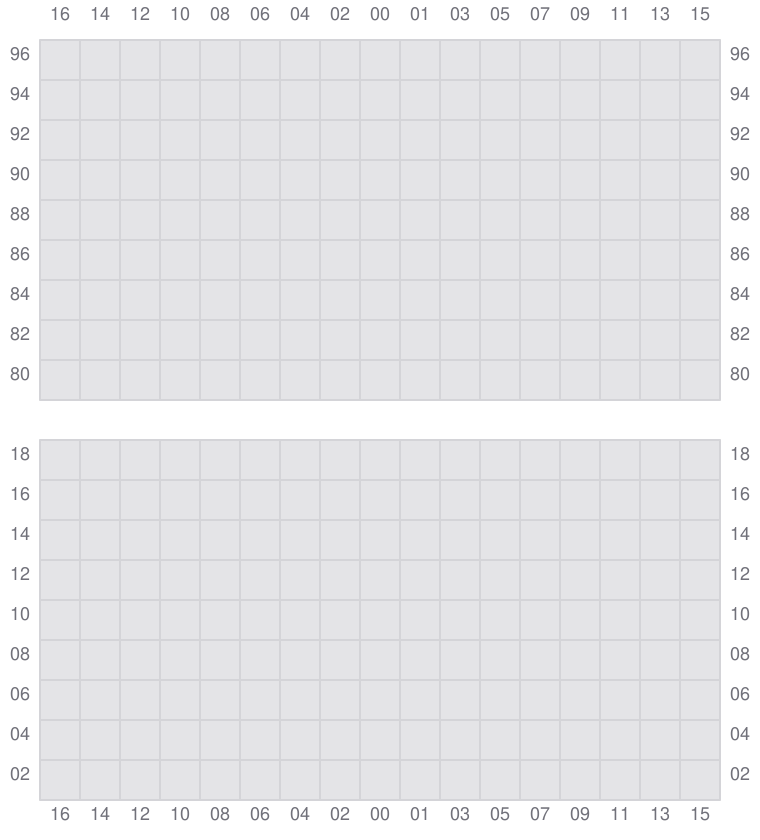

Bay 073 view and slots of MSC BRIDGEPORT

075 (074)

  • ← / ?
  • → / ?
  • → / ?

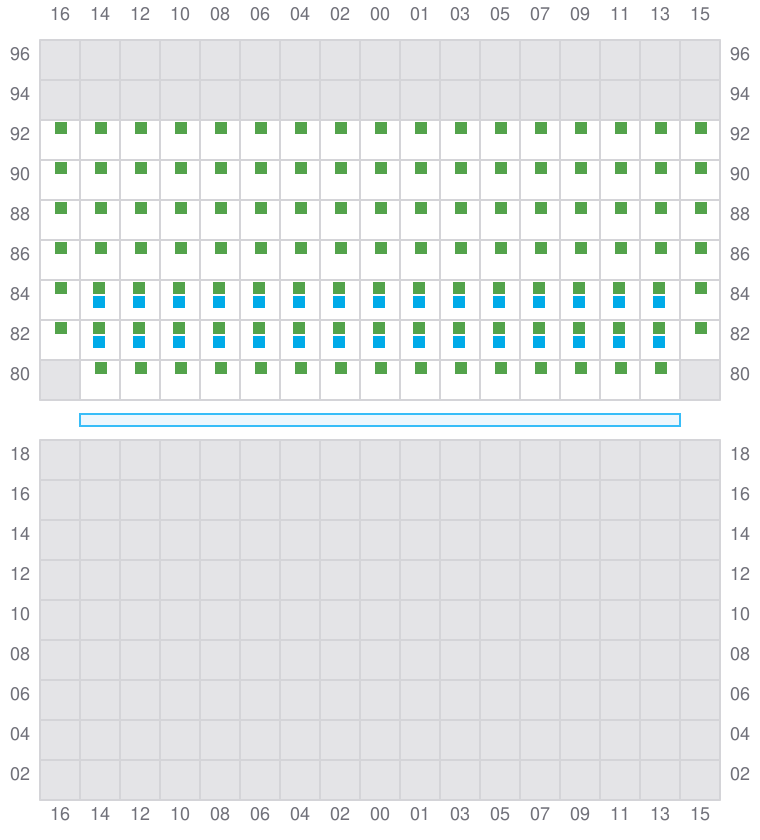

Bay 075 view and slots of MSC BRIDGEPORT
