MSC BUSAN
9289087 | CQEE7 | MSC by ************************** Last update: Fri Jun 16 2023
General Info
Ship Name:MSC BUSAN
IMO Code:9289087
Call Sign:CQEE7
Line Operator:MSC
Class Name for Sister Ships:BUS
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,188
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

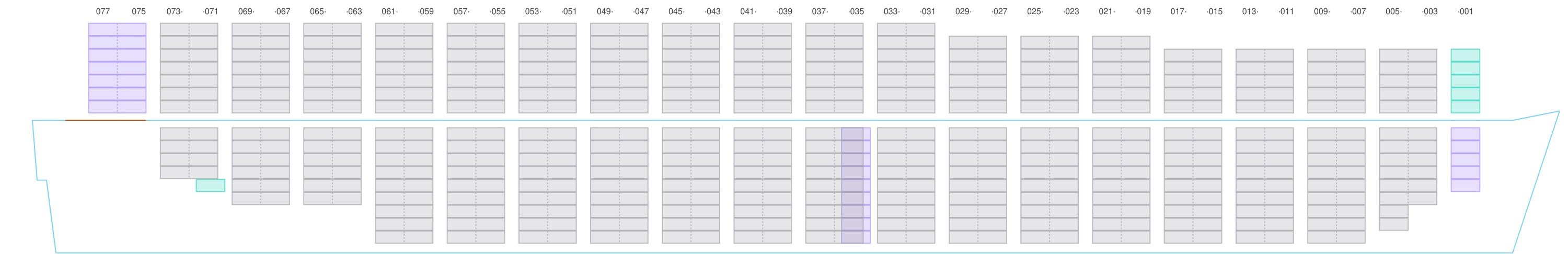

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

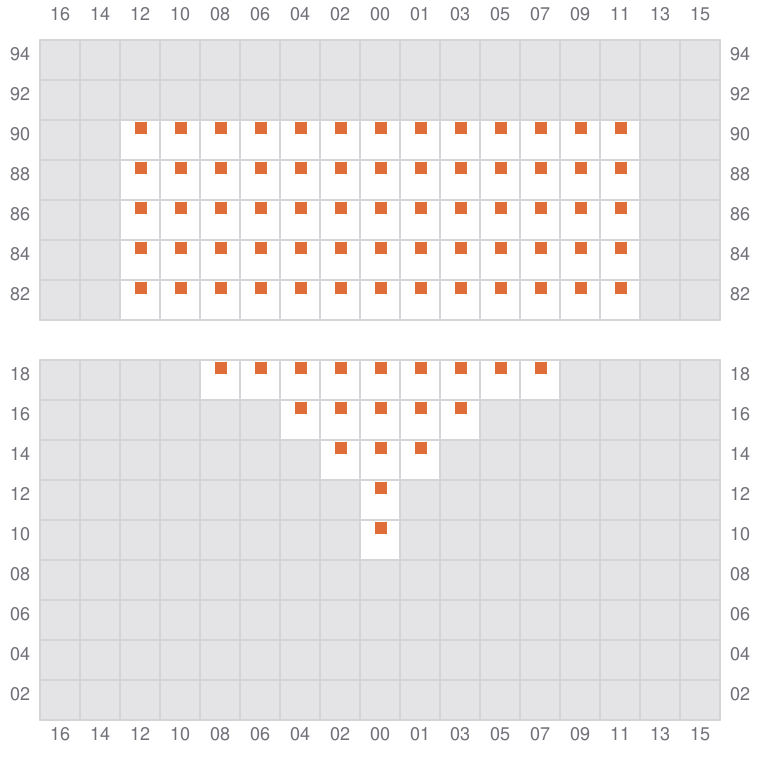

001
- → / ?

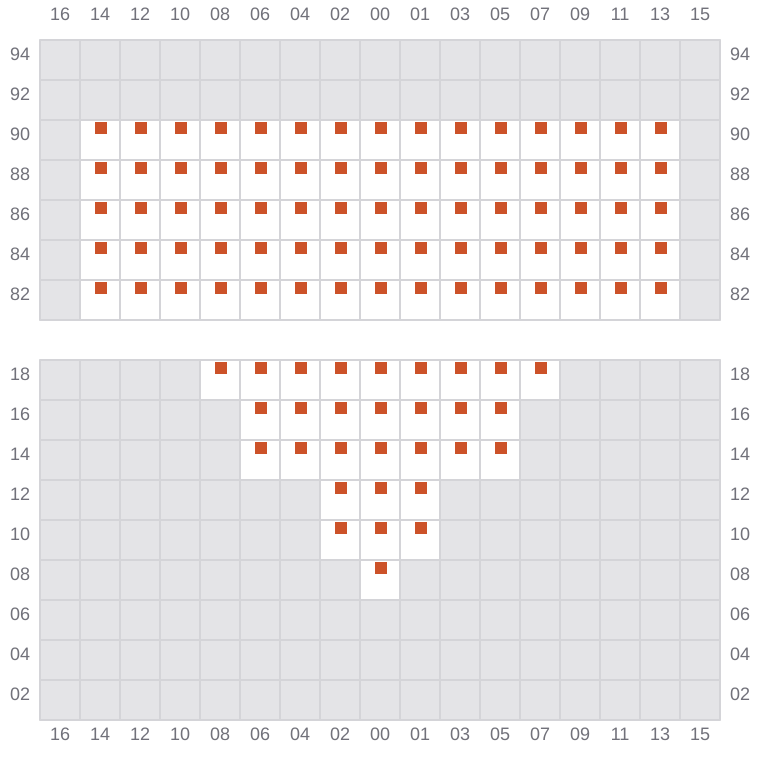

003
- →

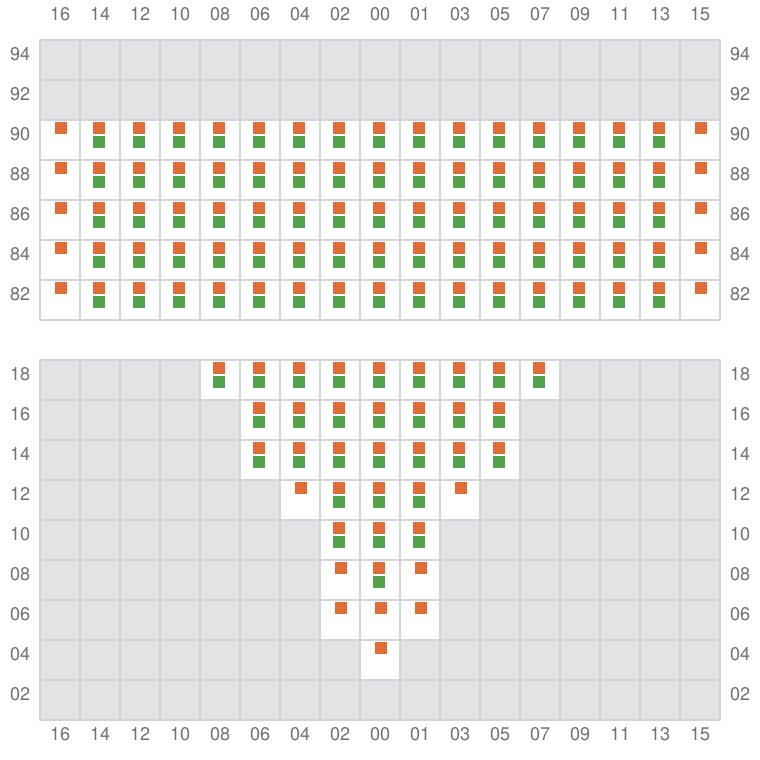

005 (004)
- ←

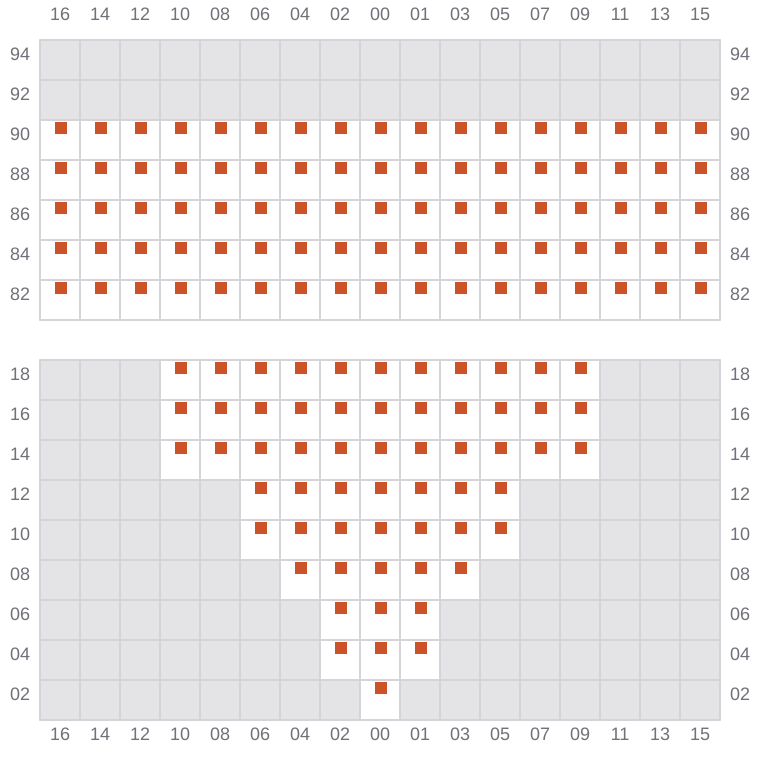

007
- →

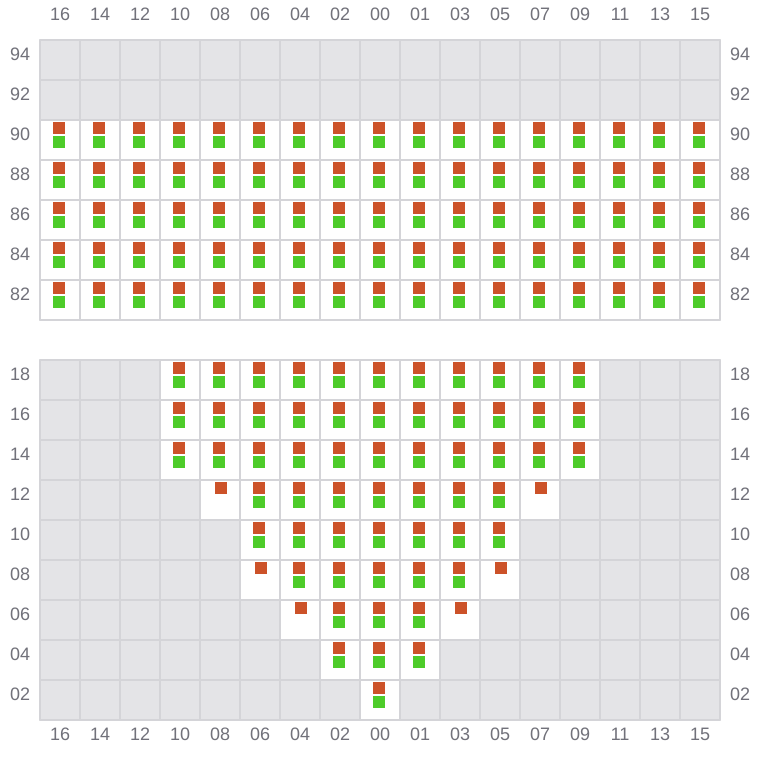

009 (008)
- ←

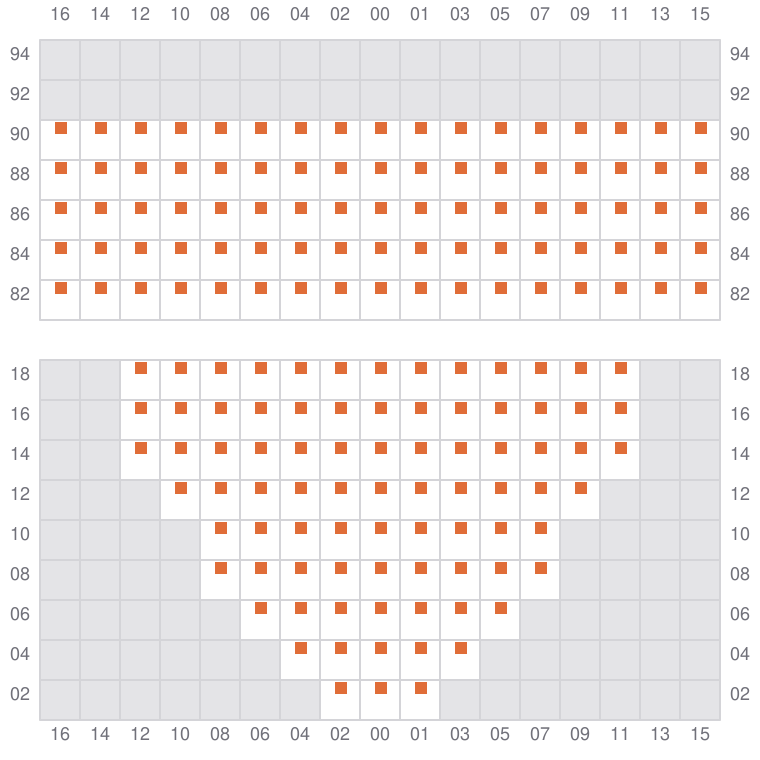

011
- →

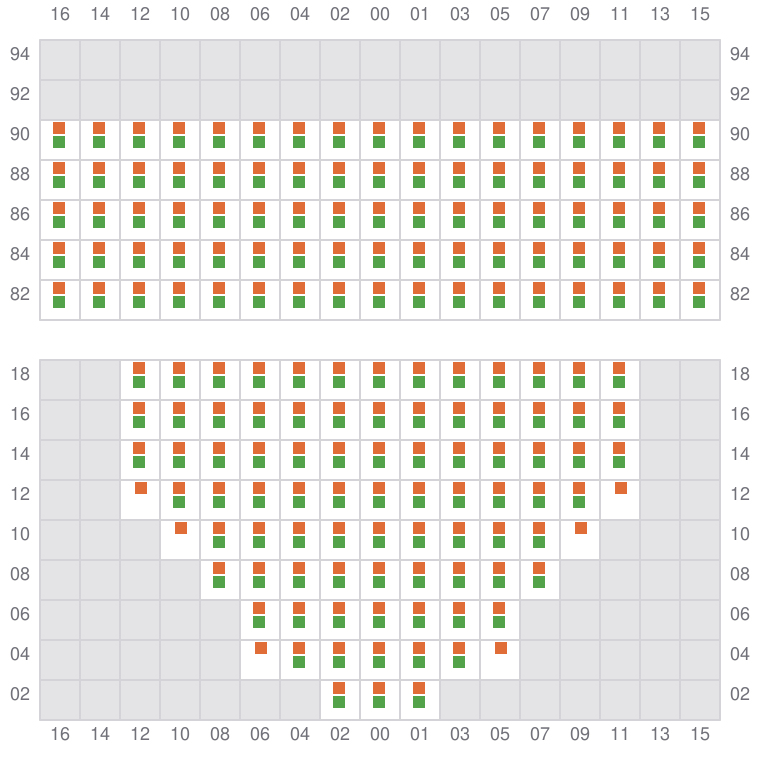

013 (012)
- ←

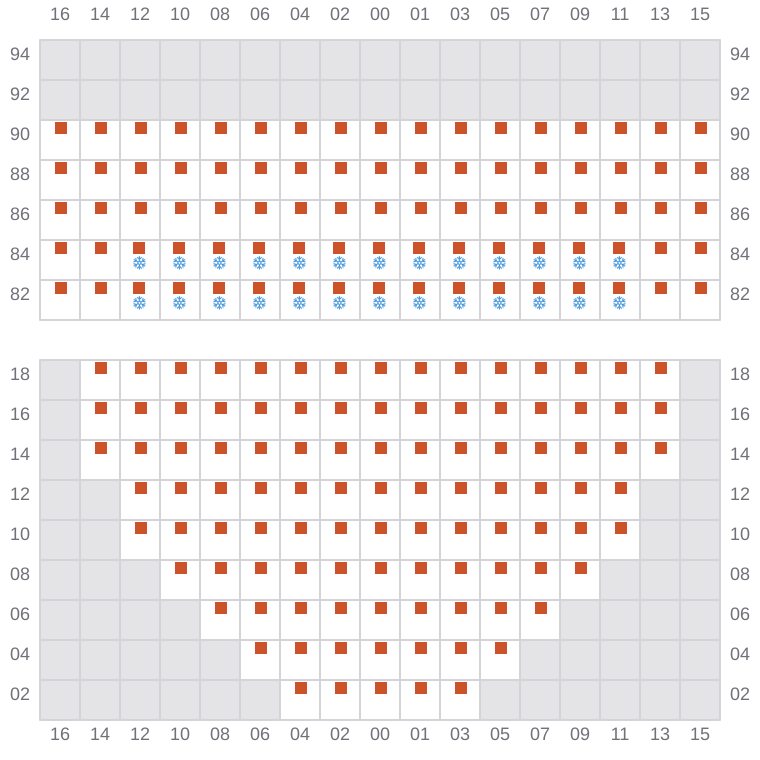

015
- →

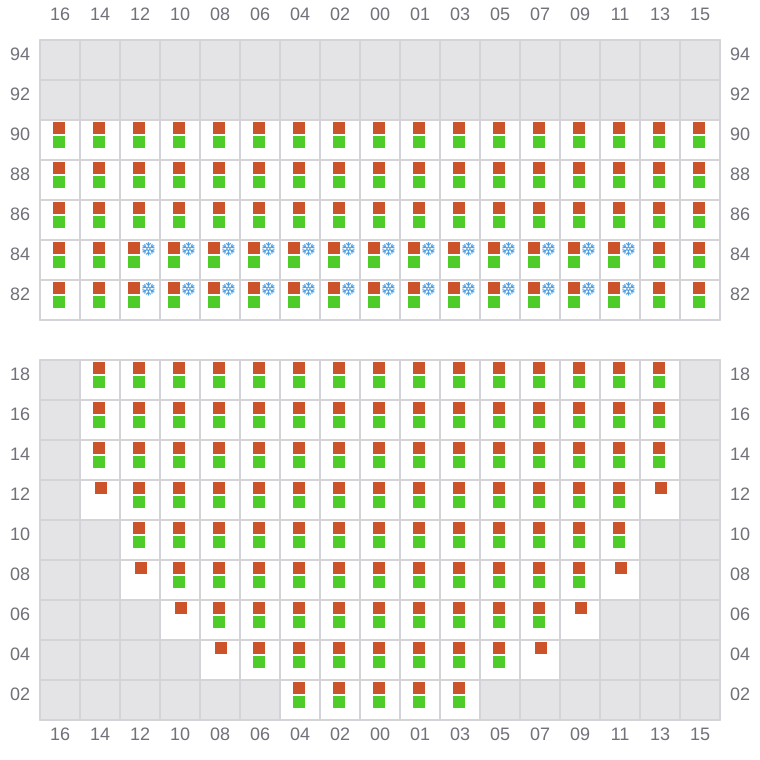

017 (016)
- ←

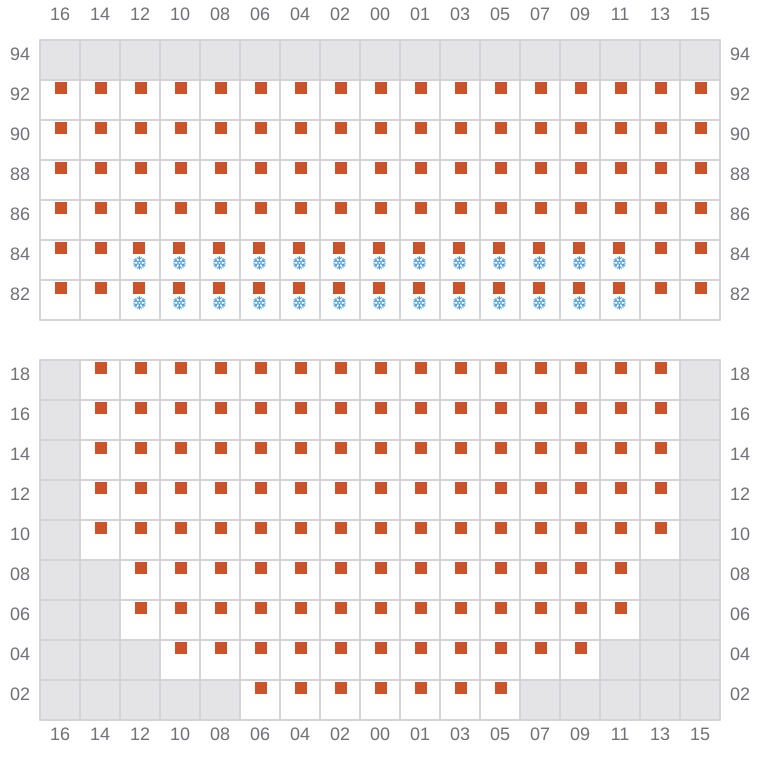

019
- →

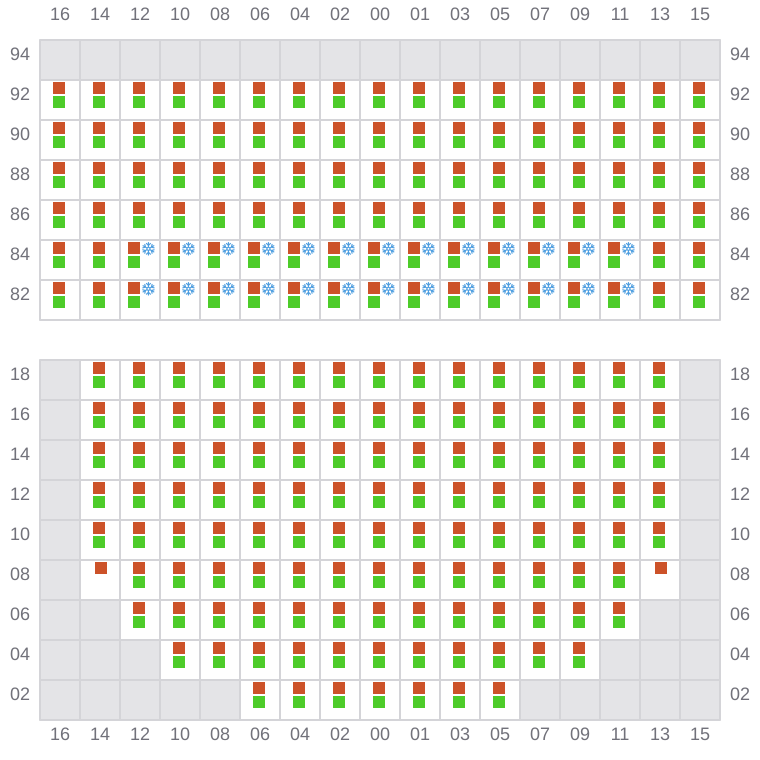

021 (020)
- ←

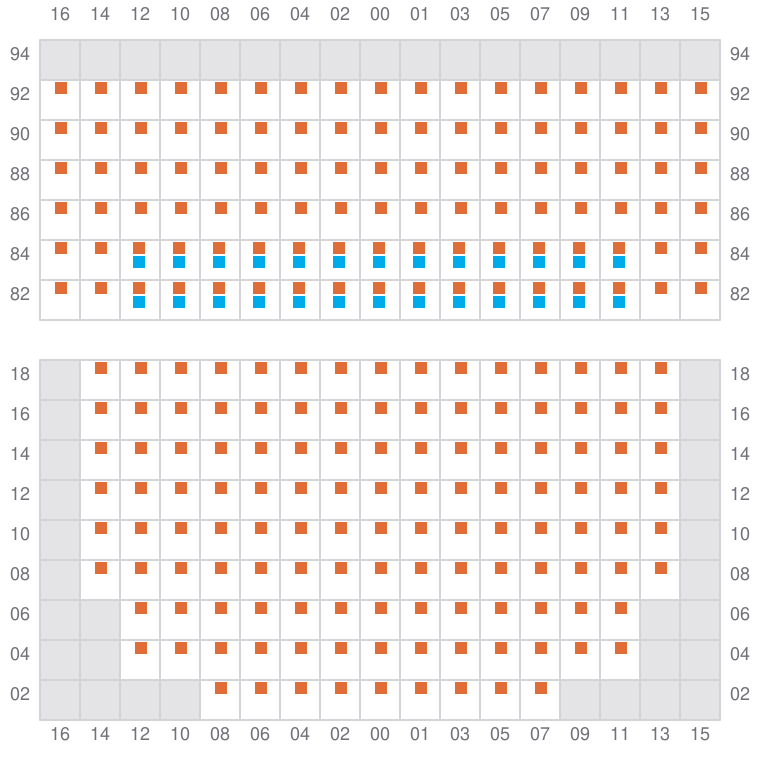

023
- →

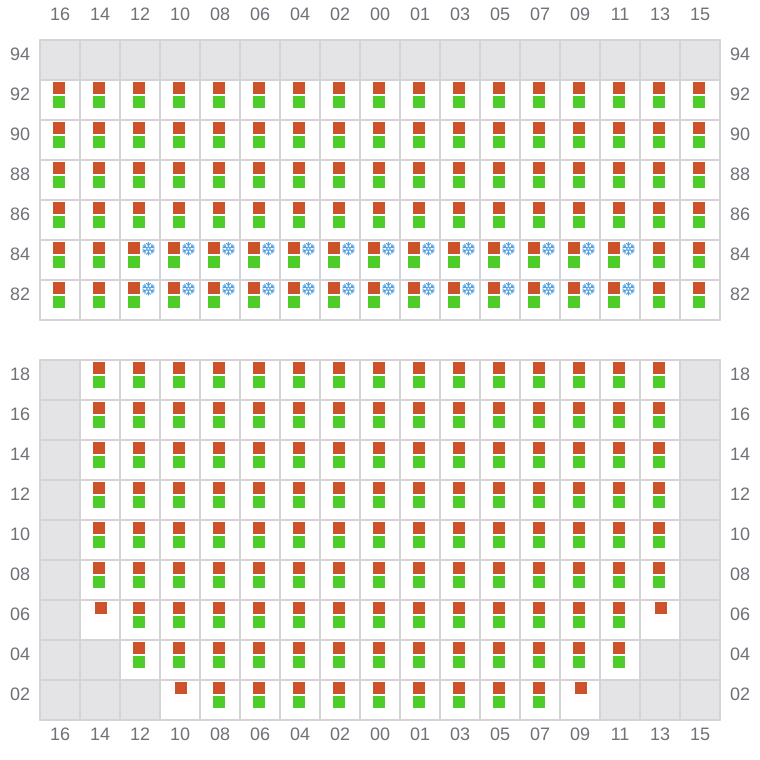

025 (024)
- ←

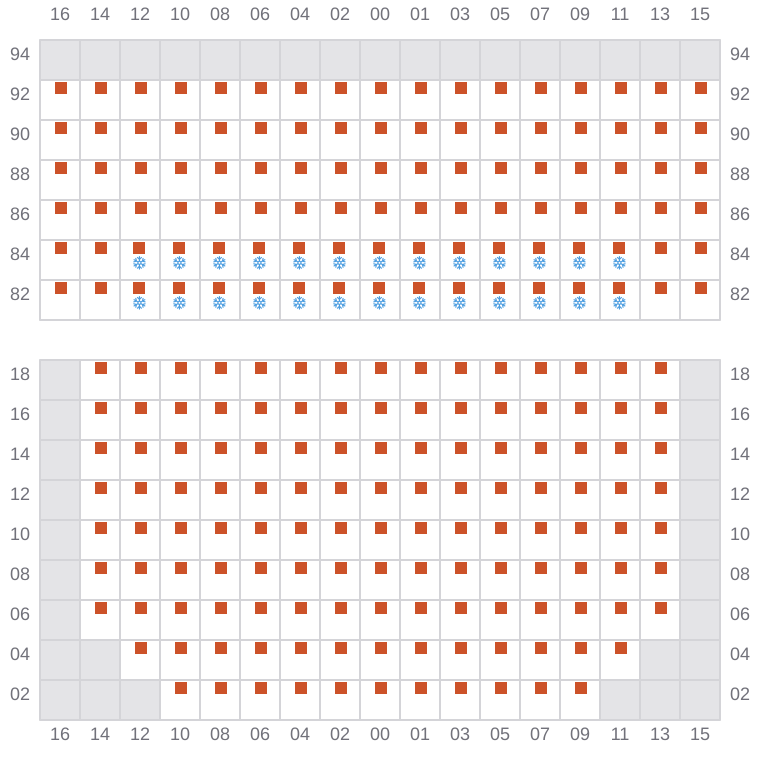

027
- →

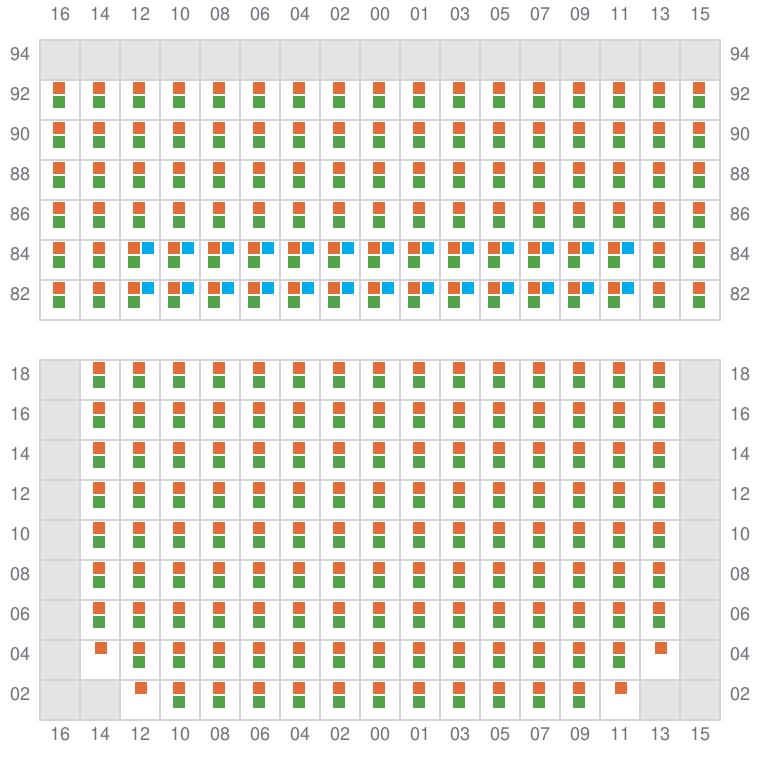

029 (028)
- ←
031
- →
033 (032)
- ←

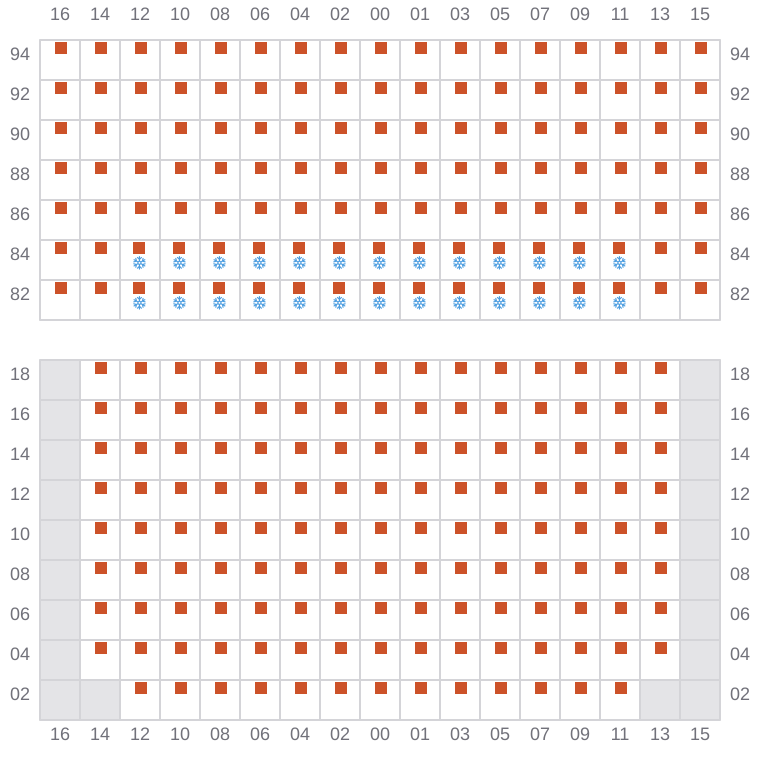

035
- → / ?
037 (036)
- ←
039
- →
041 (040)
- ←
043
- →
045 (044)
- ←

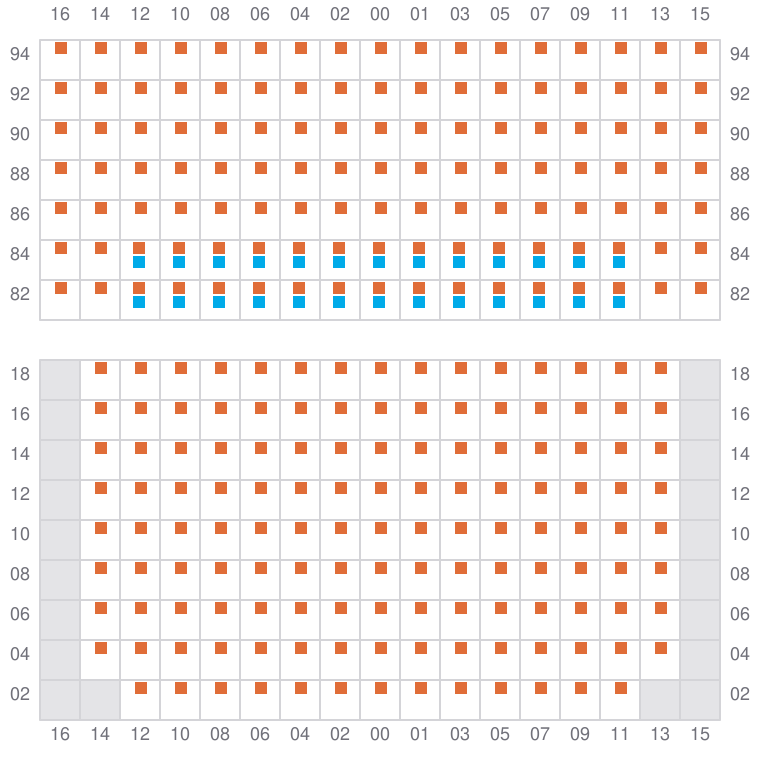

047
- →

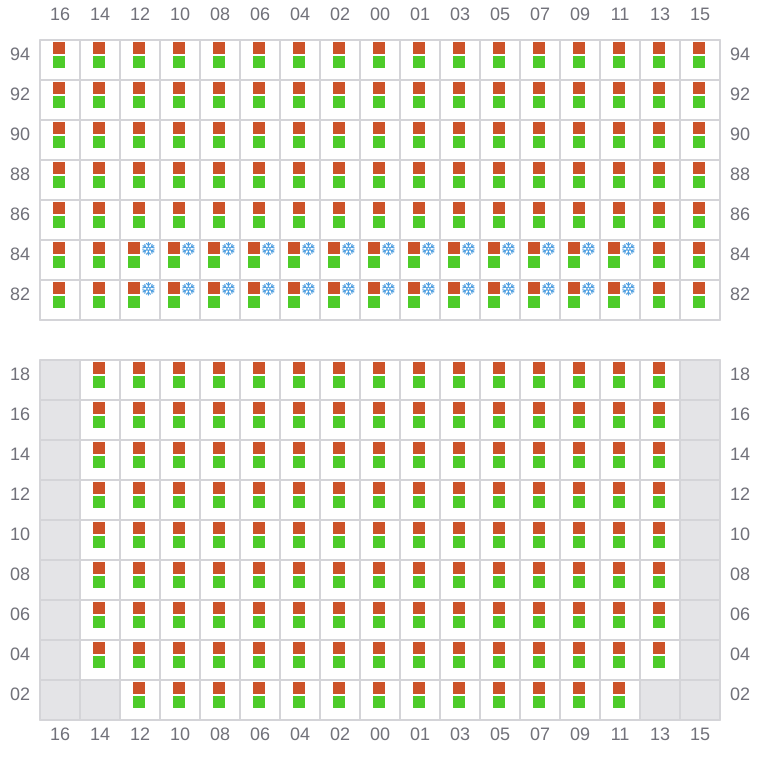

049 (048)
- ←
051
- →
053 (052)
- ←

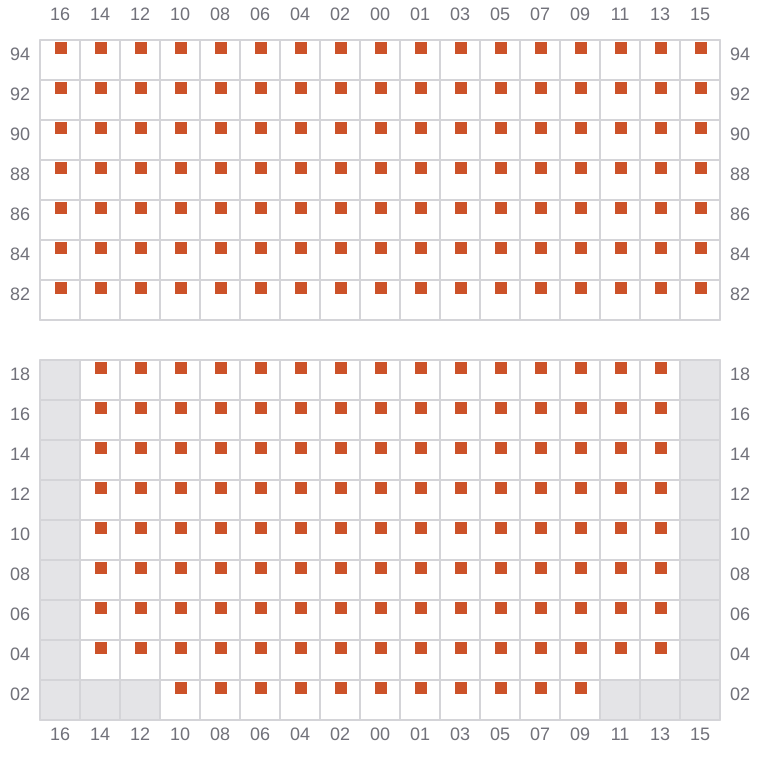

055
- →

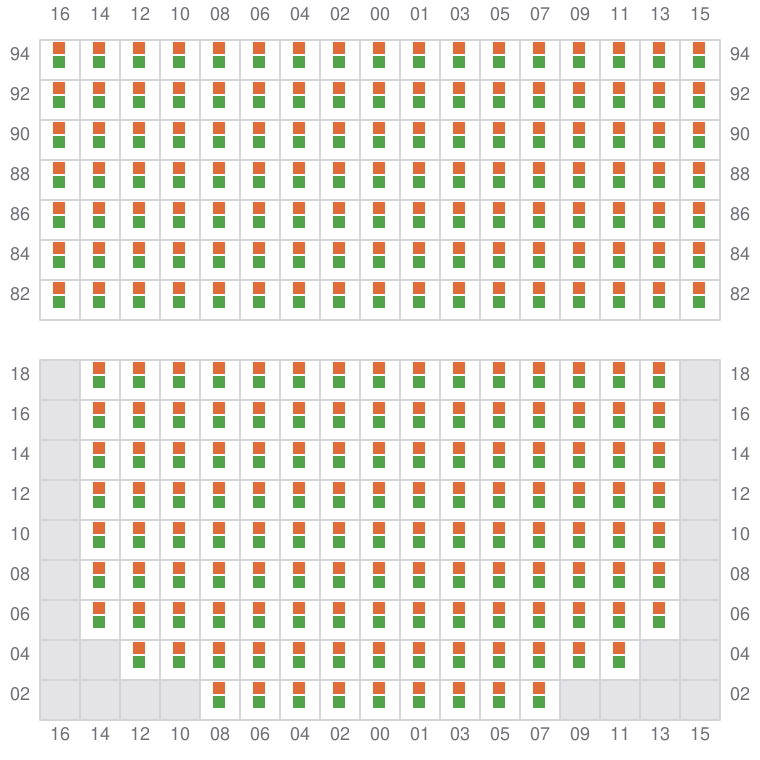

057 (056)
- ←

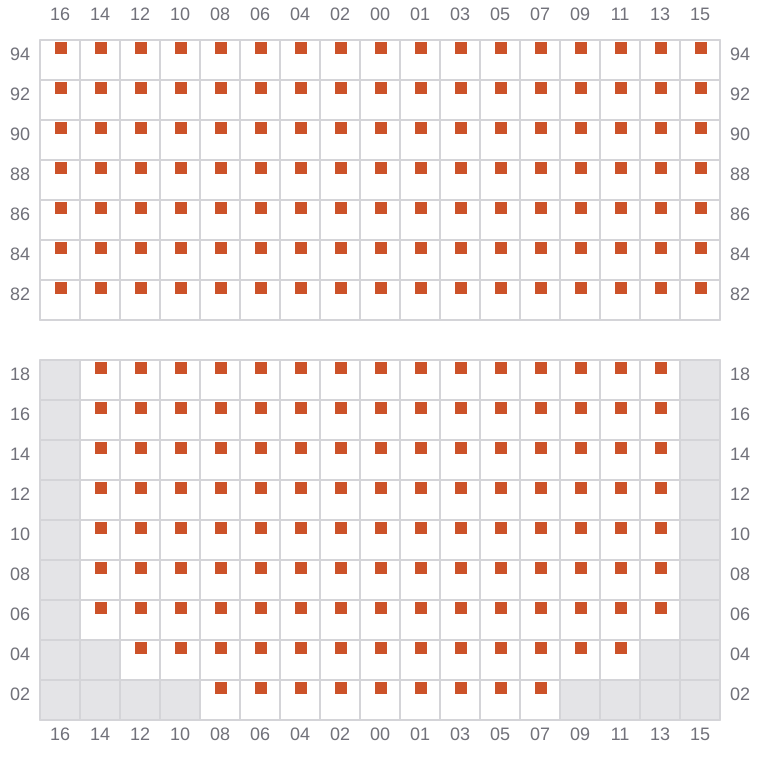

059
- →

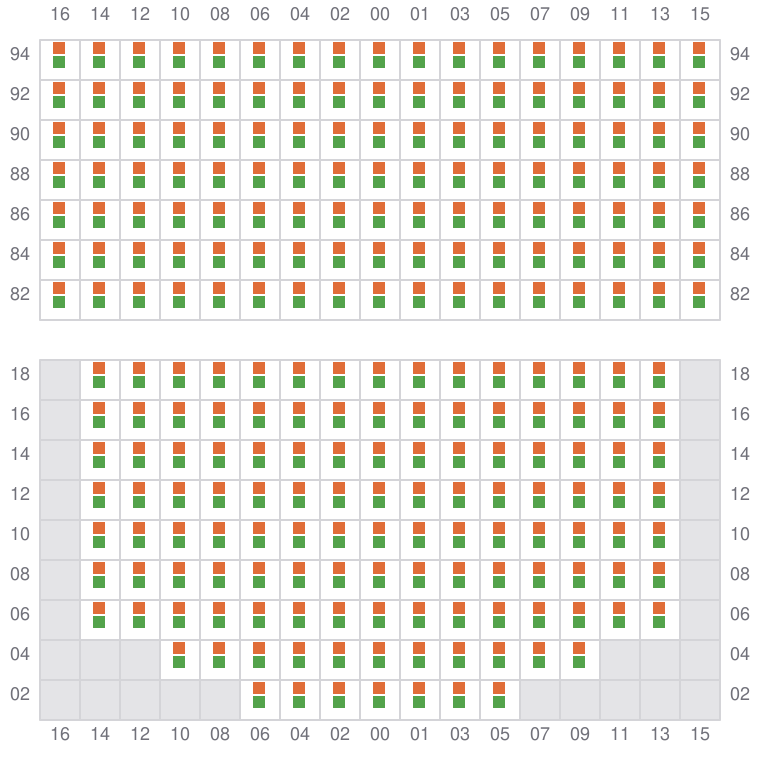

061 (060)
- ←

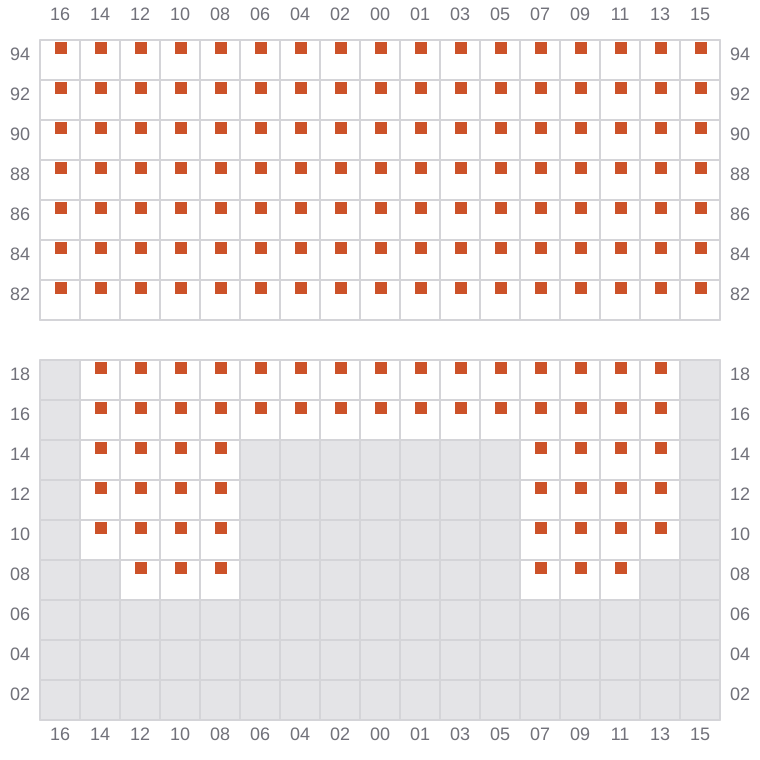

063
- →

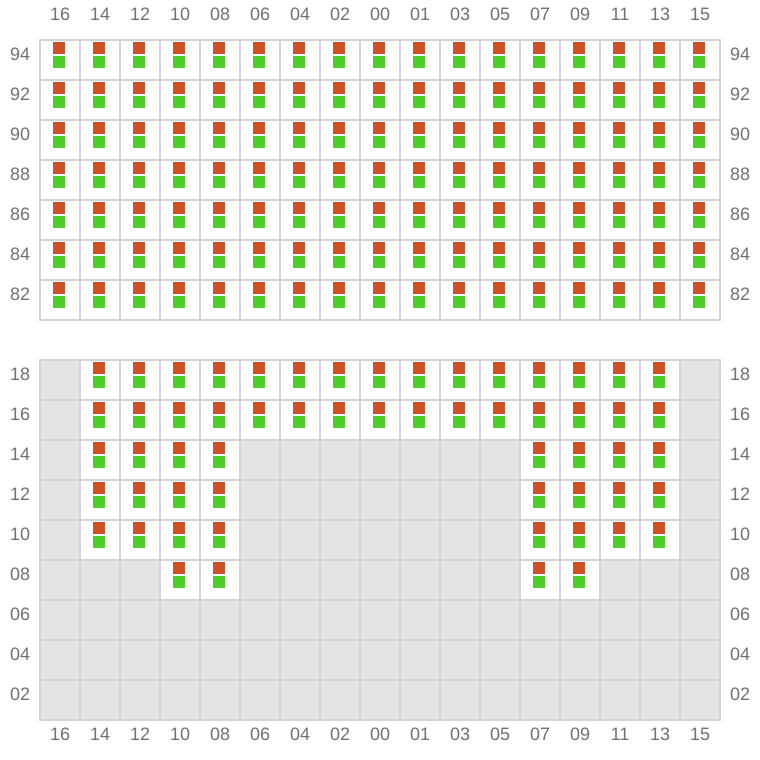

065 (064)
- ←

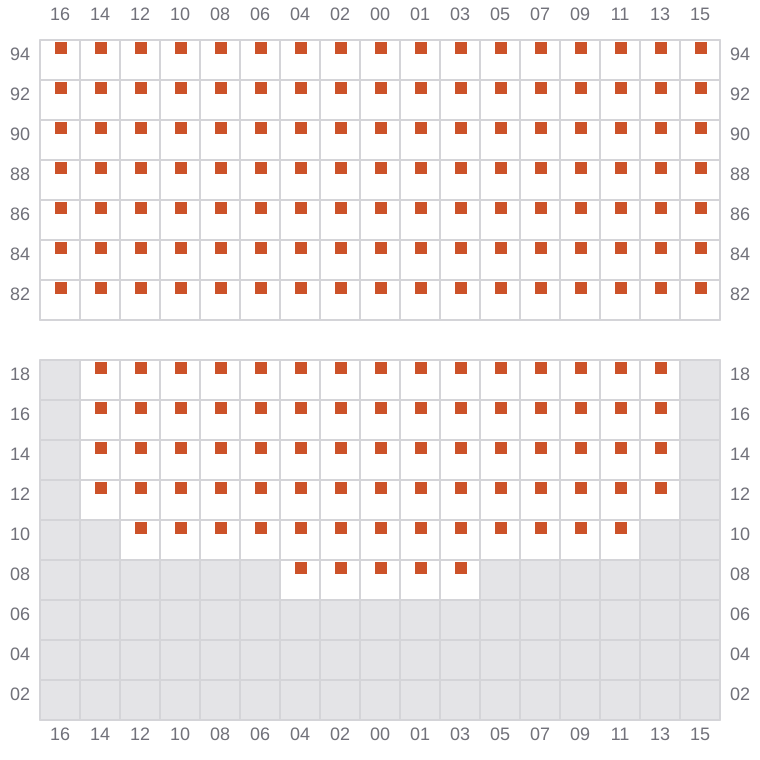

067
- →

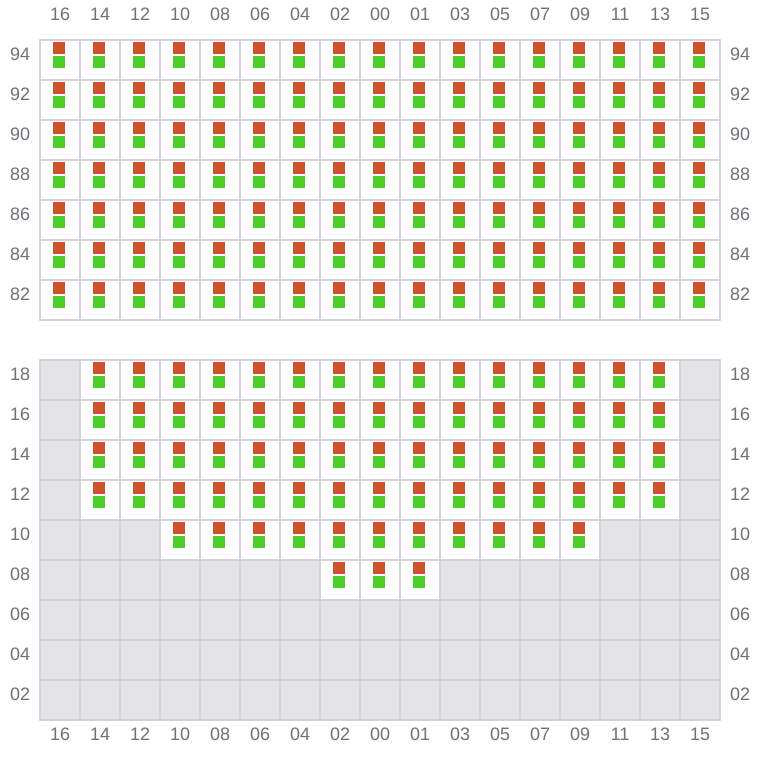

069 (068)
- ←

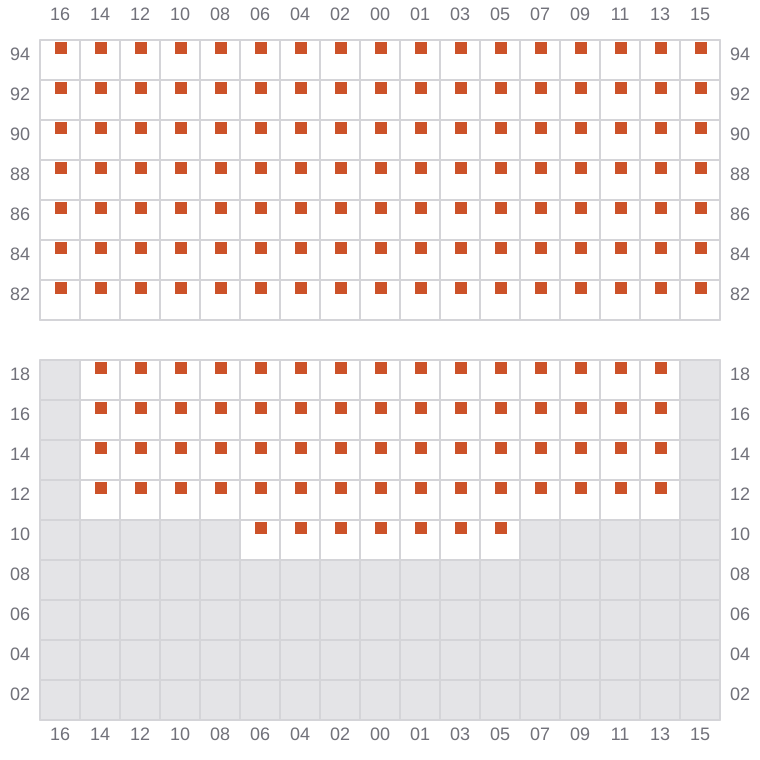

071
- →

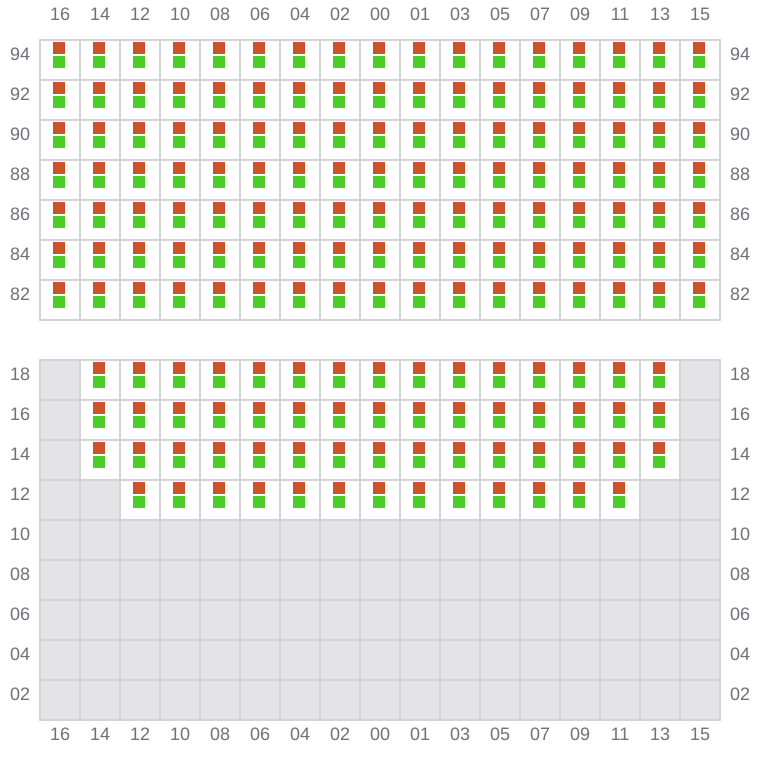

073 (072)
- ←

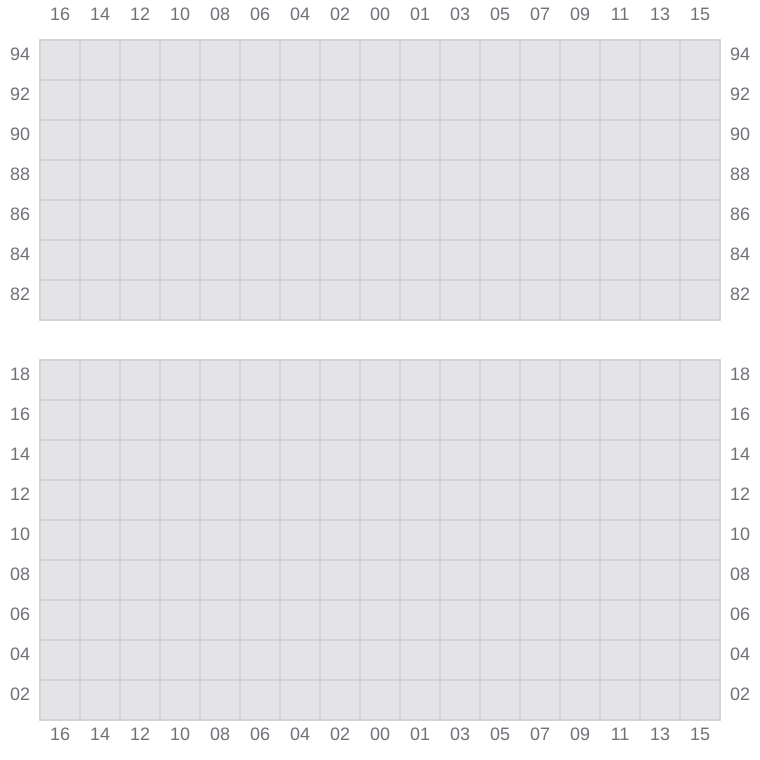

075

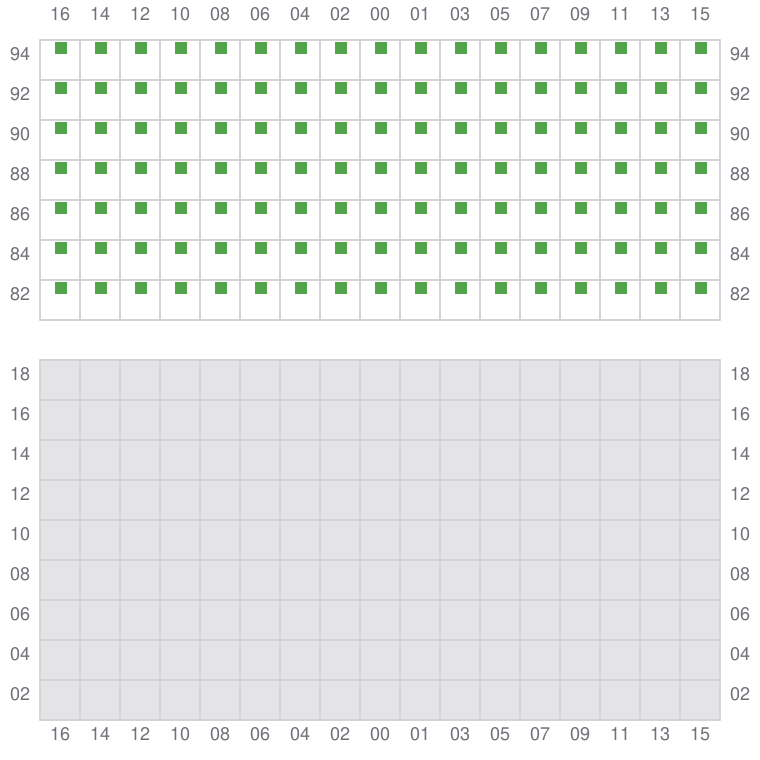

077
