MSC C.MONTAINE
9930961 | 5LFC4 by ************************** Last update: Tue Sep 24 2024

General Info

Ship Name:MSC C.MONTAINE
IMO Code:9930961
Call Sign:5LFC4
Line Operator:
Class Name for Sister Ships:MCM
Year Built:0
Position Format:Bay, Row, Tier
Allowed Containers:20, 40
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,415

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated

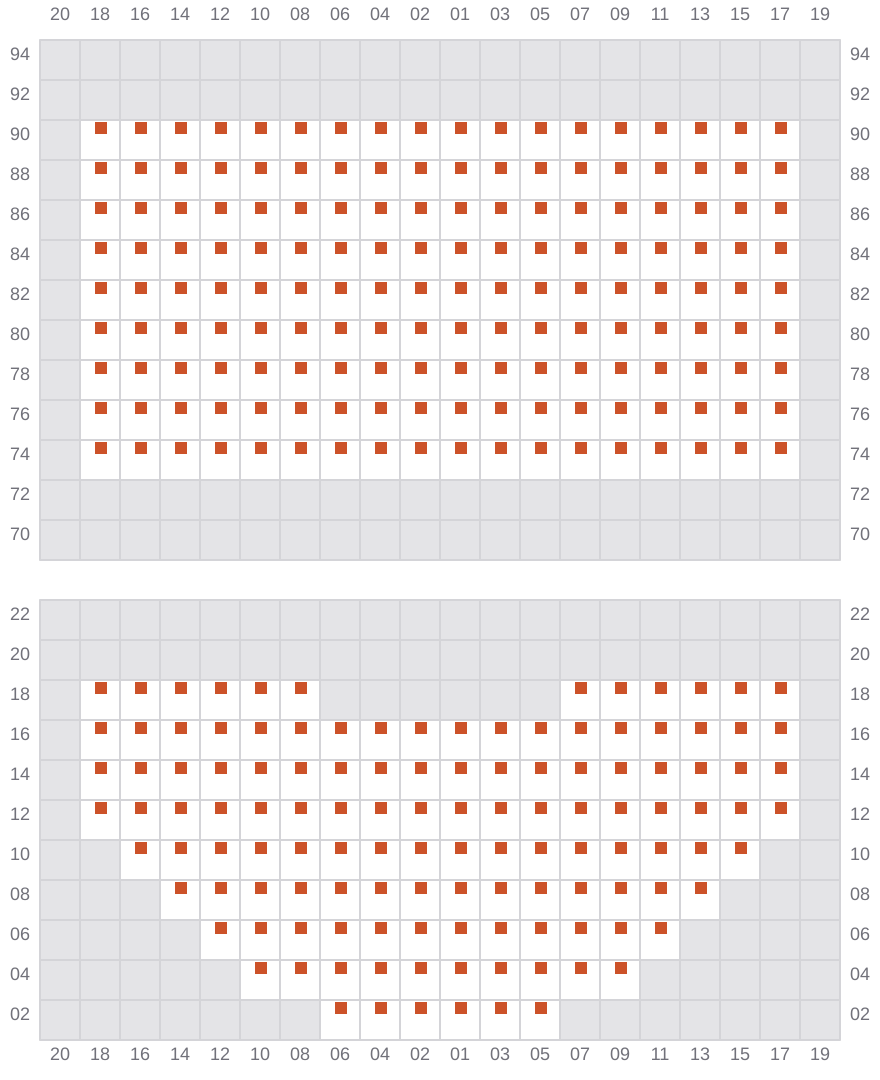

VCG Data:0%
TCG Values:Estimated
TCG Data:0%

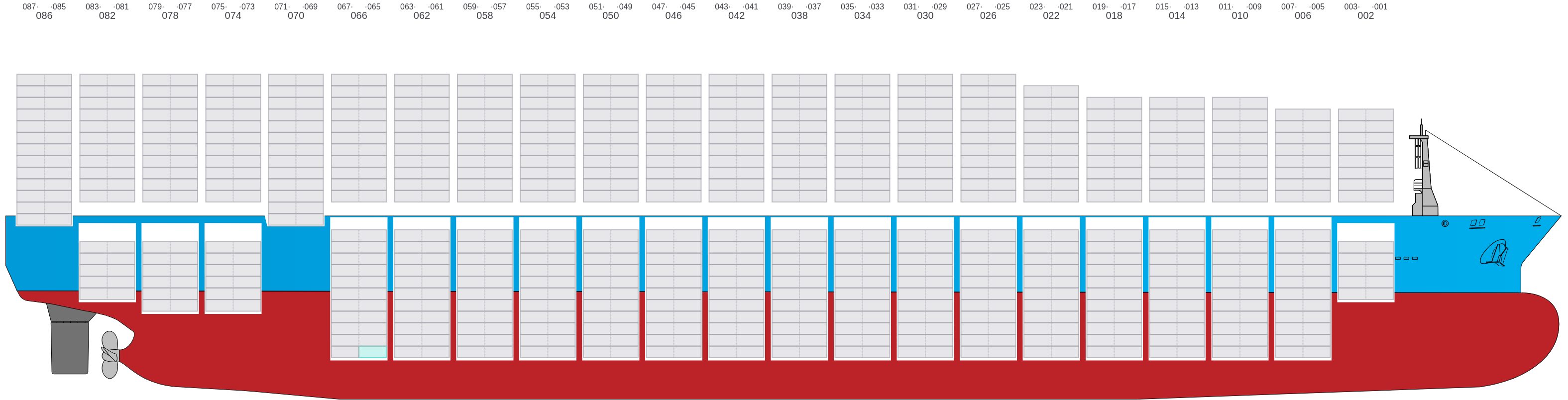

Side View

Side view of MSC C.MONTAINE

Hatch-Covers View

Deck view of MSC C.MONTAINE

ISO Bays

Legend
  • 20'
  • 40'
  • Reefer
  • Restricted slot

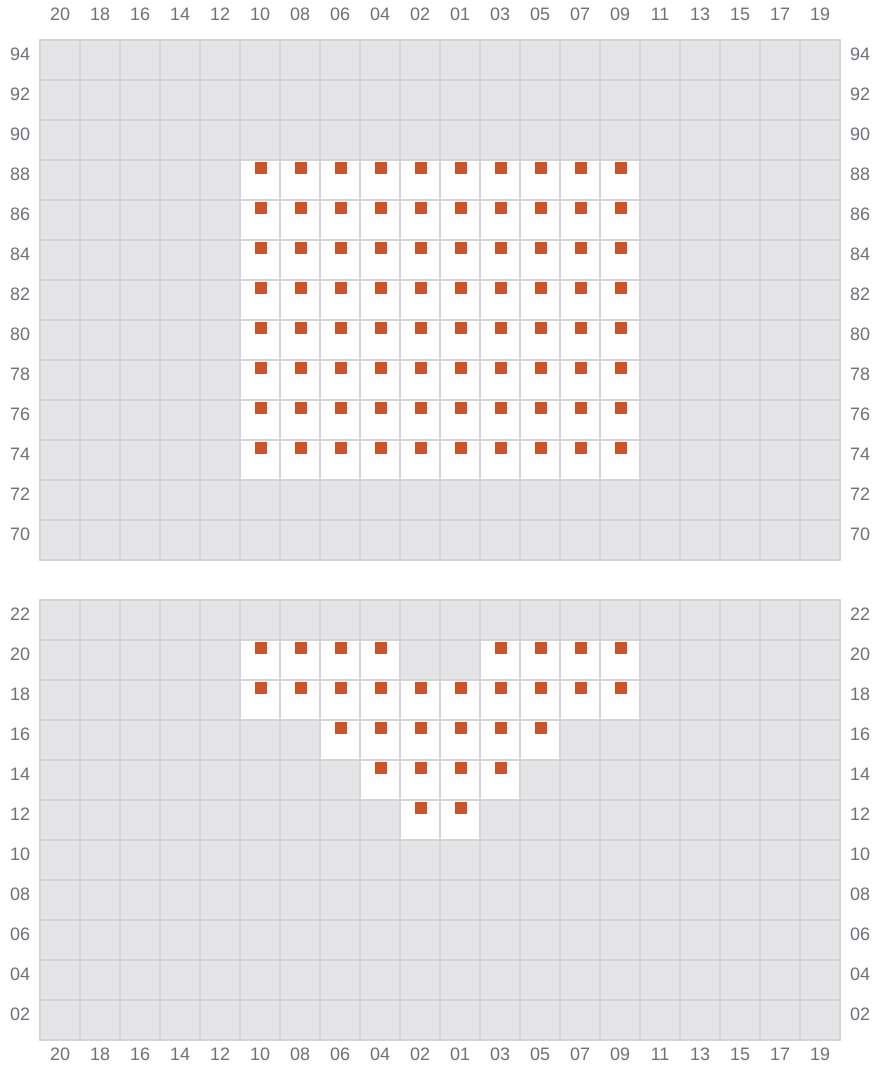

001

  • →
Bay 001 view and slots of MSC C.MONTAINE

003 (002)

  • ←

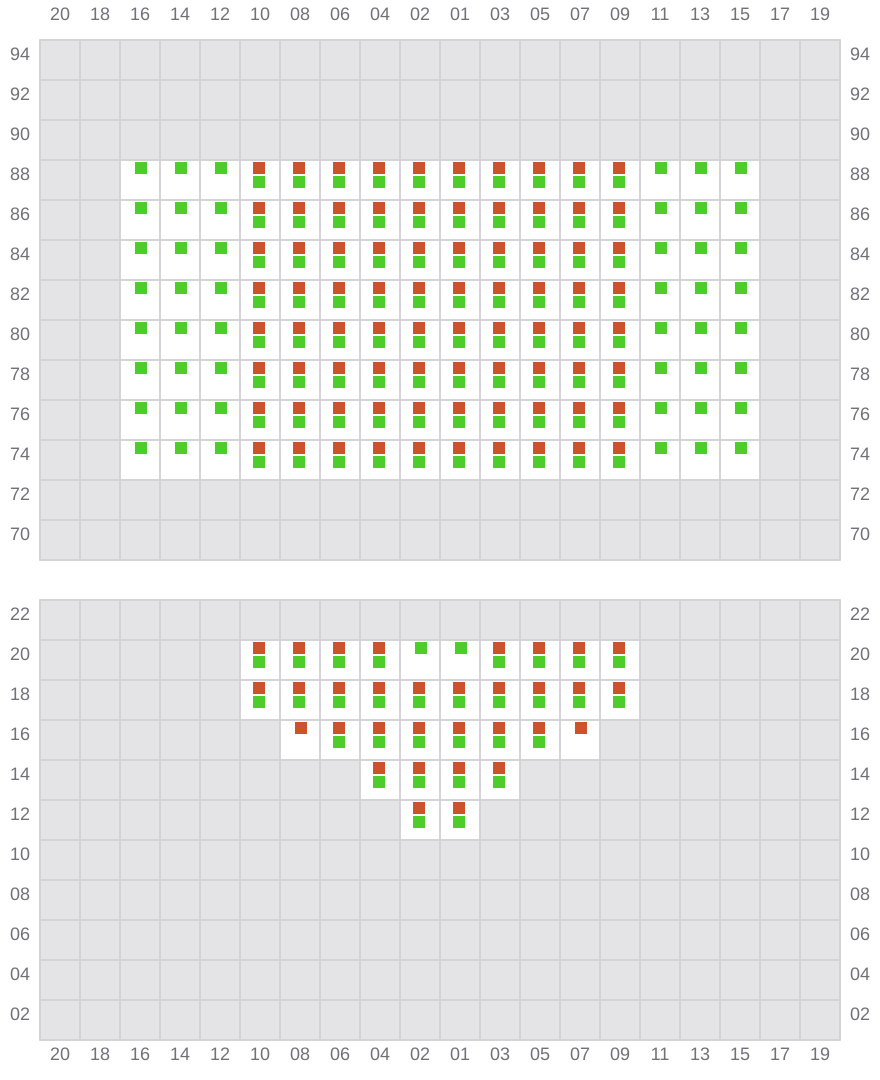

Bay 003 view and slots of MSC C.MONTAINE

005

  • →

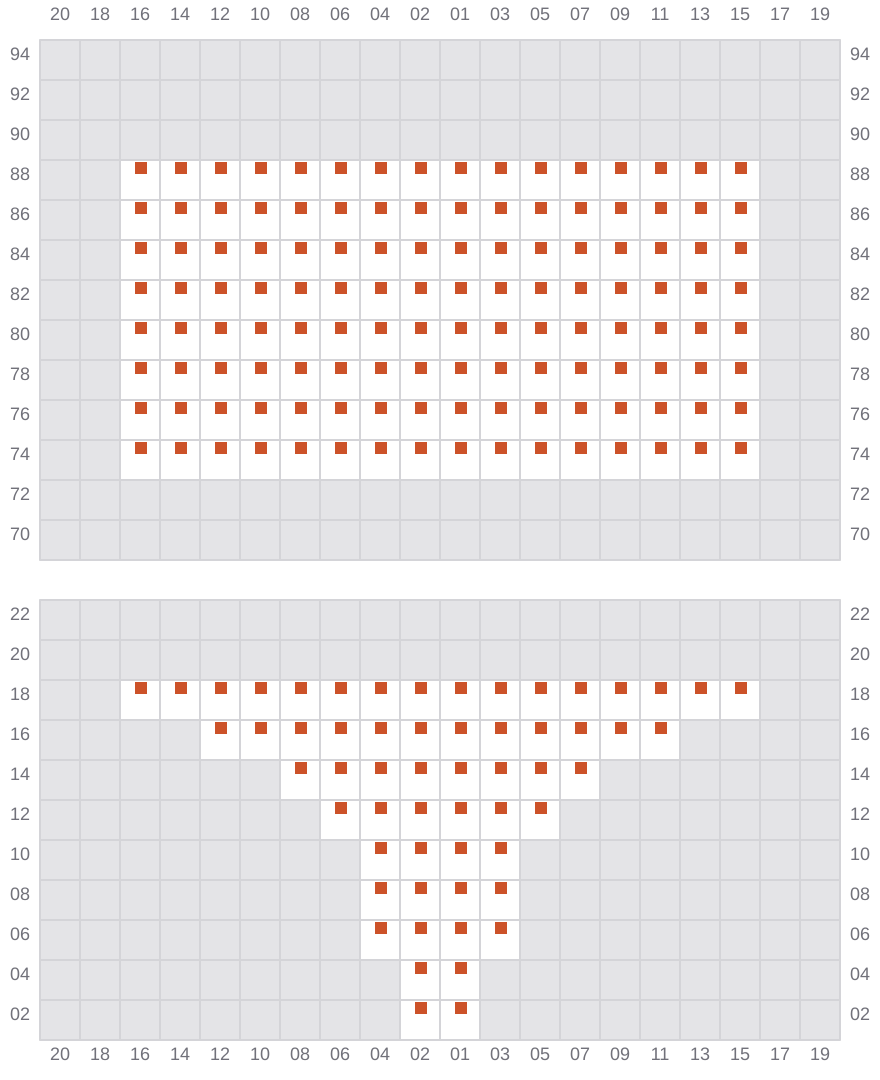

Bay 005 view and slots of MSC C.MONTAINE

007 (006)

  • ←

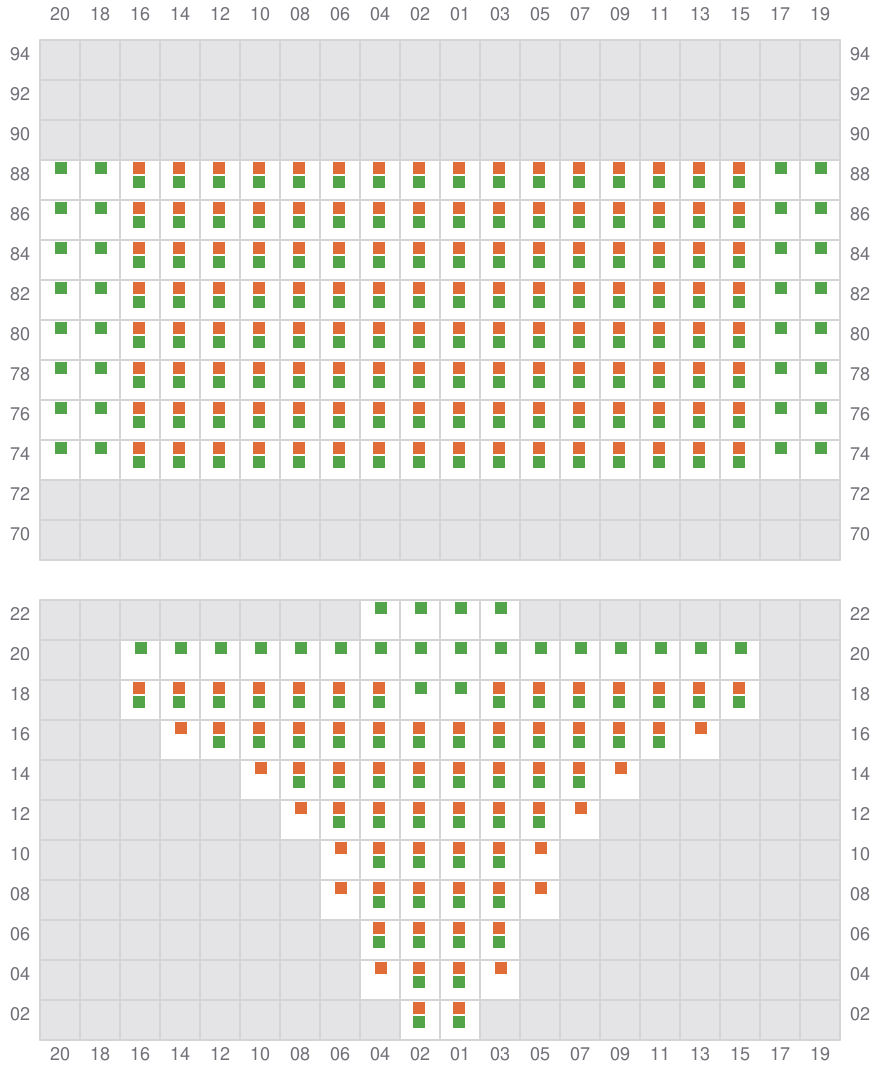

Bay 007 view and slots of MSC C.MONTAINE

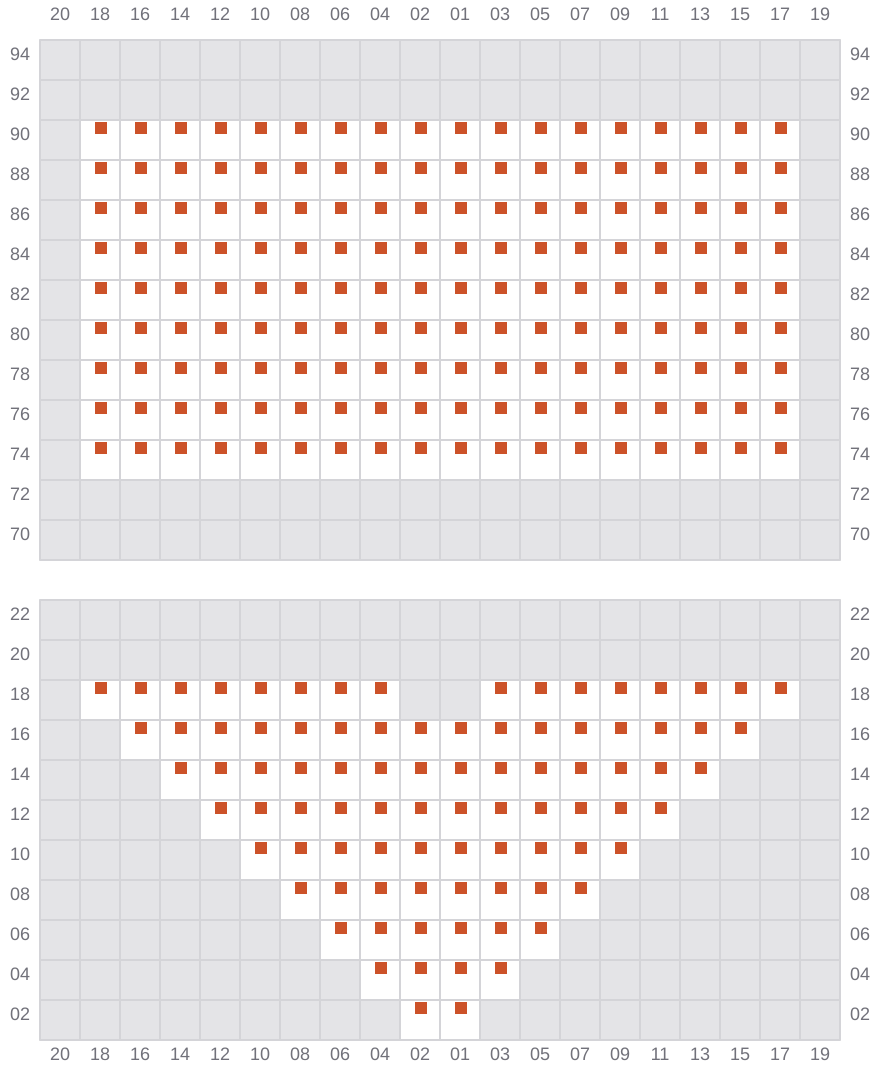

009

  • →
Bay 009 view and slots of MSC C.MONTAINE

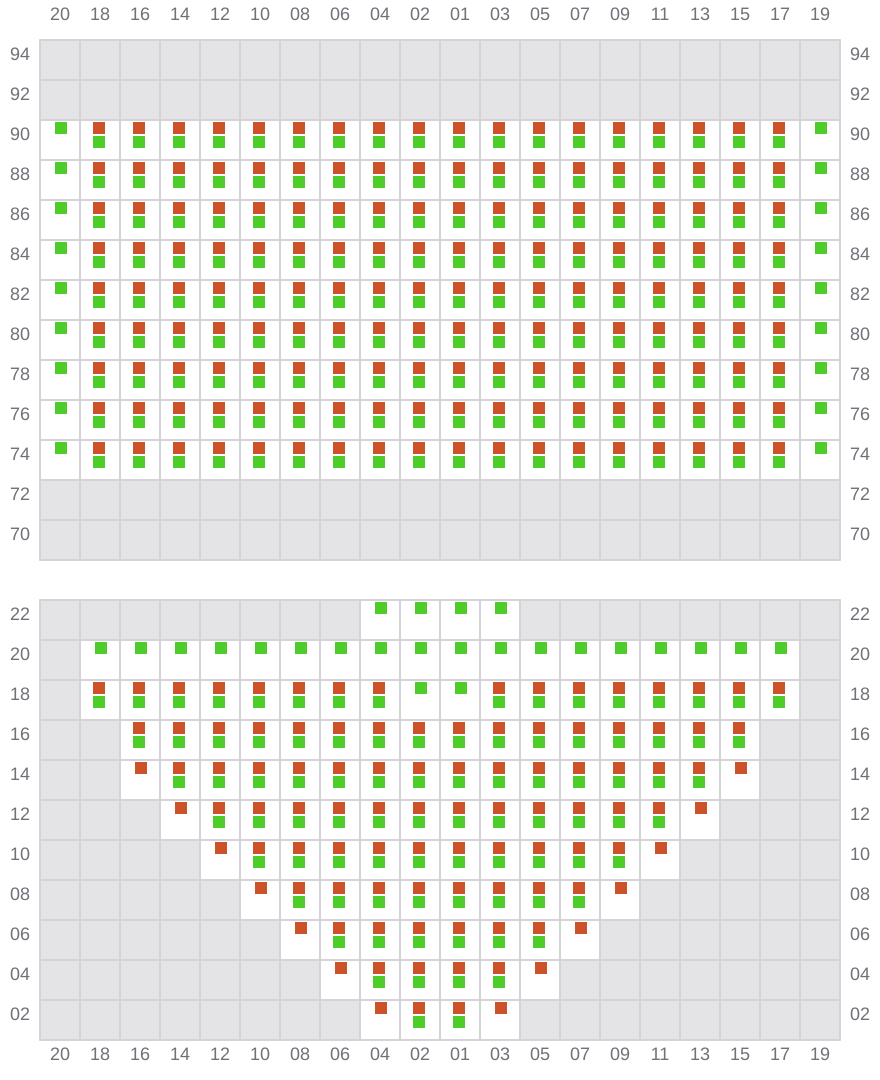

011 (010)

  • ←
Bay 011 view and slots of MSC C.MONTAINE

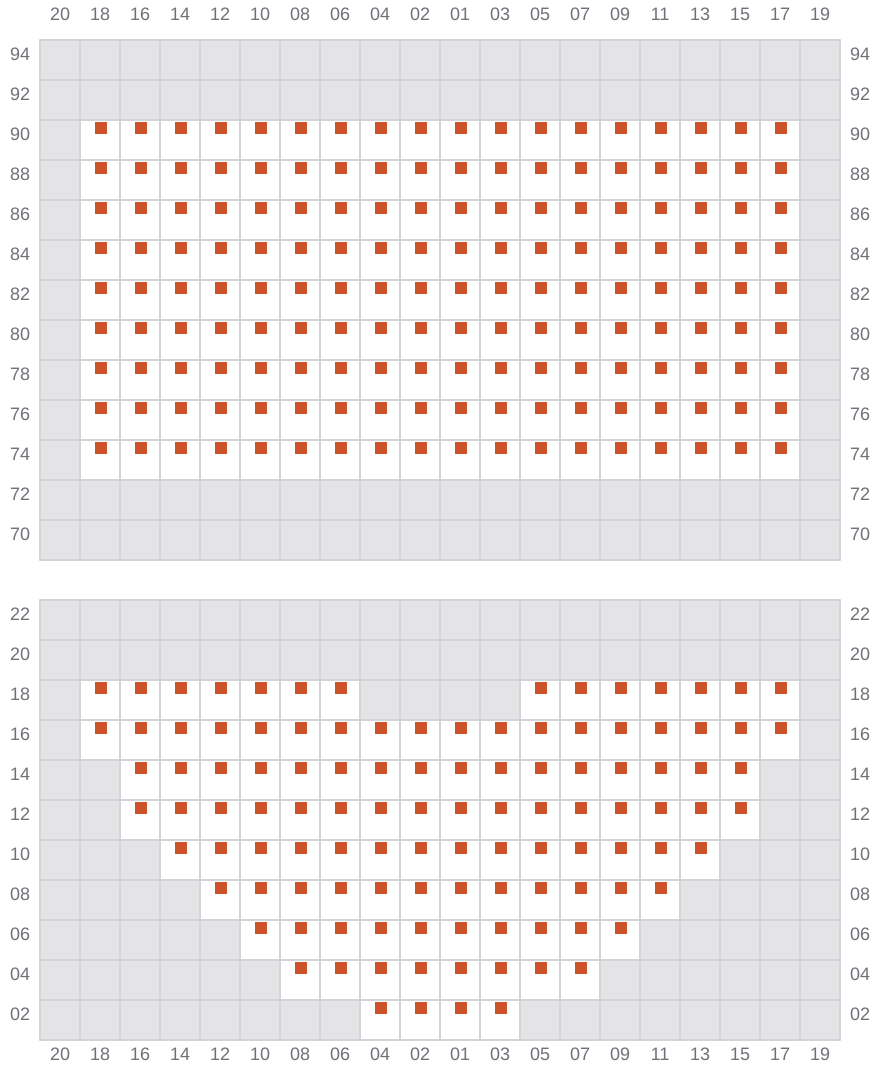

013

  • →
Bay 013 view and slots of MSC C.MONTAINE

015 (014)

  • ←

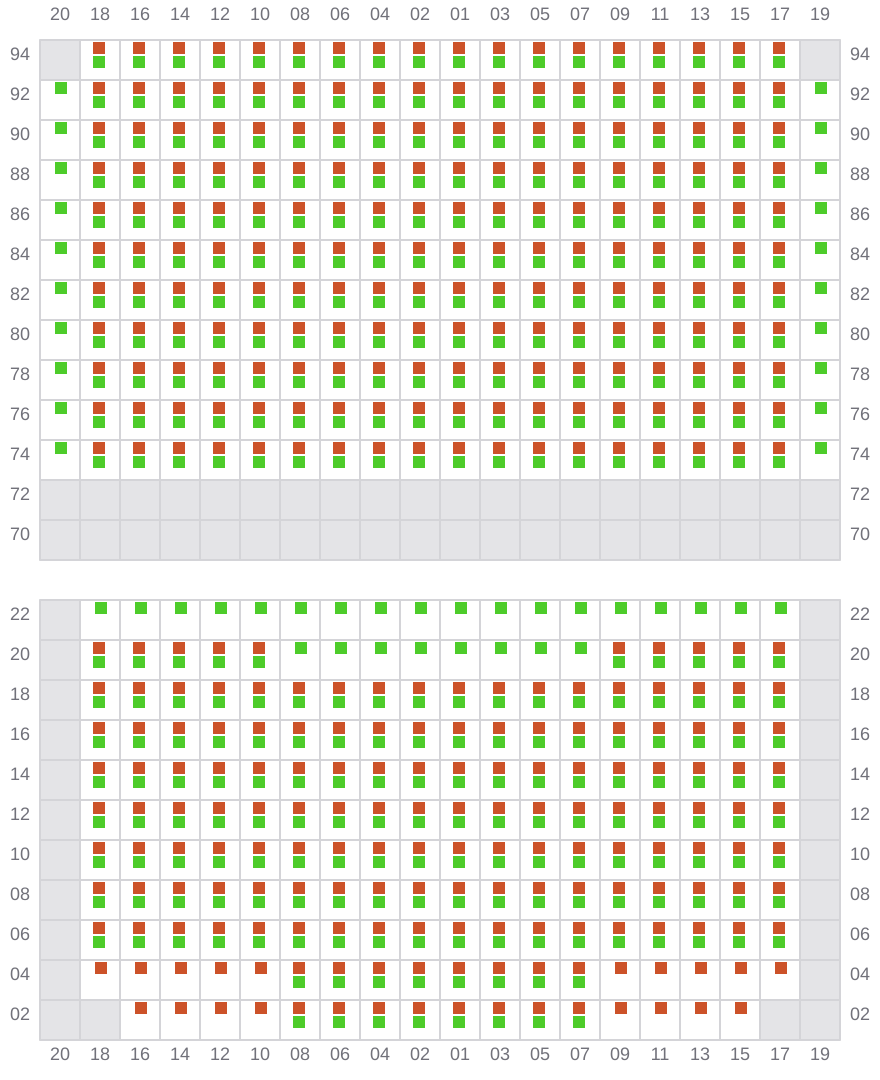

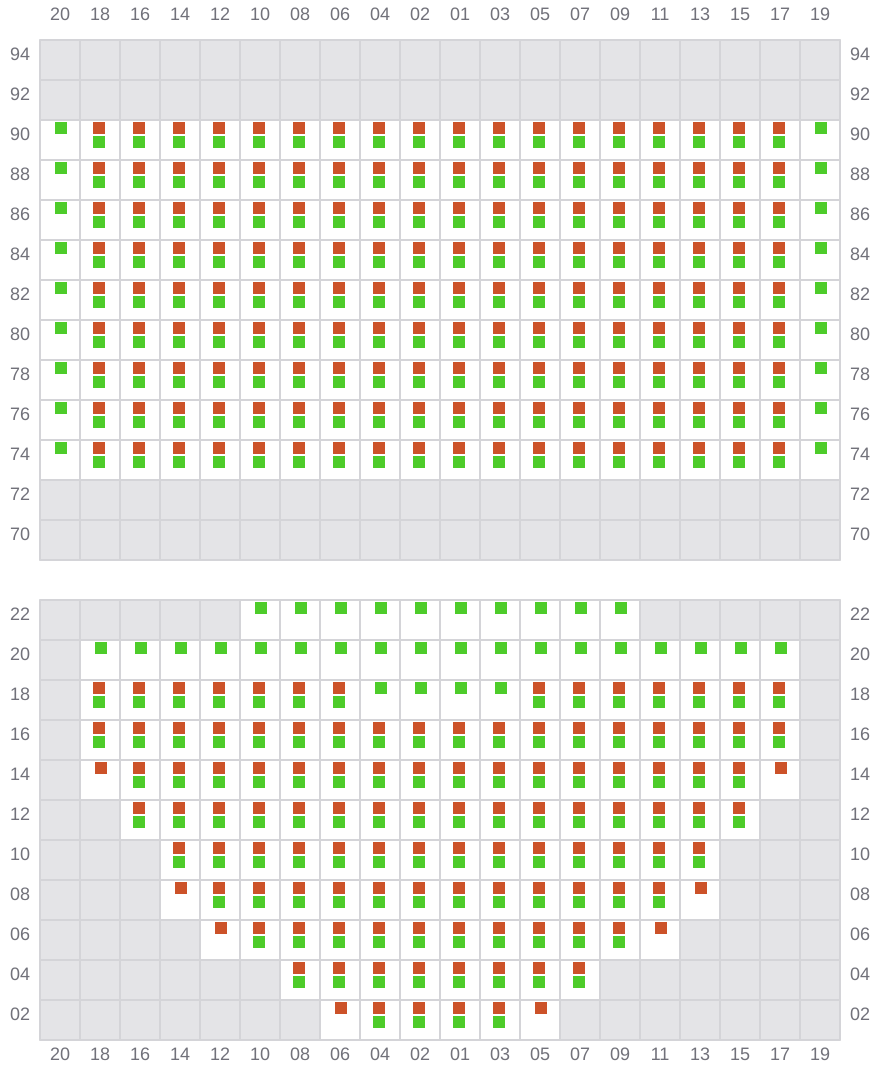

Bay 015 view and slots of MSC C.MONTAINE

017

  • →
Bay 017 view and slots of MSC C.MONTAINE

019 (018)

  • ←

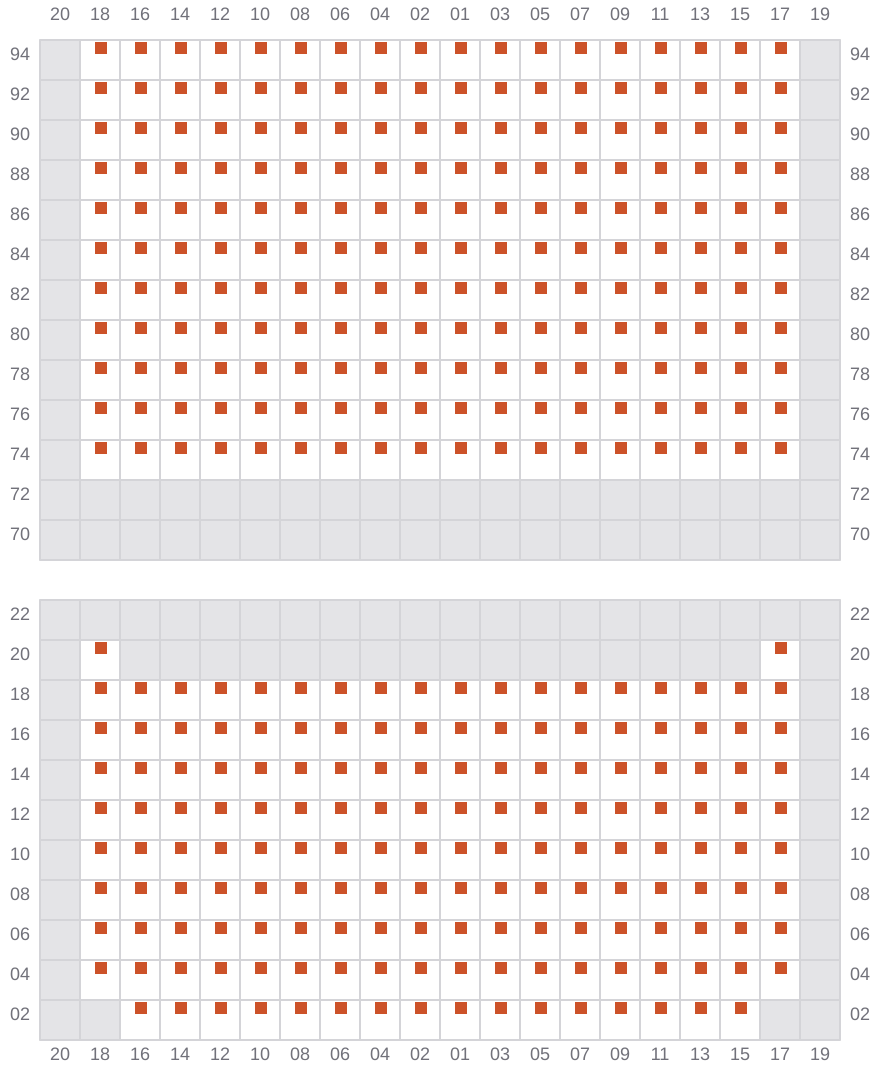

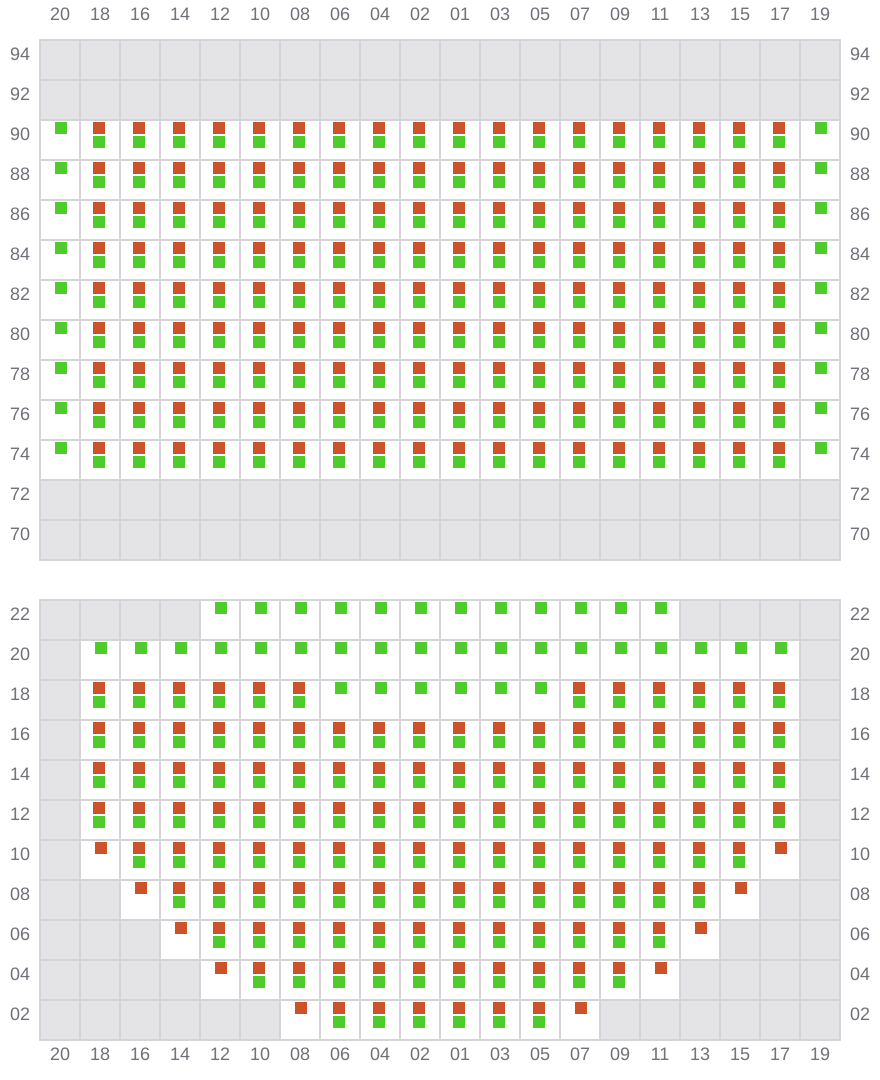

Bay 019 view and slots of MSC C.MONTAINE

021

  • →

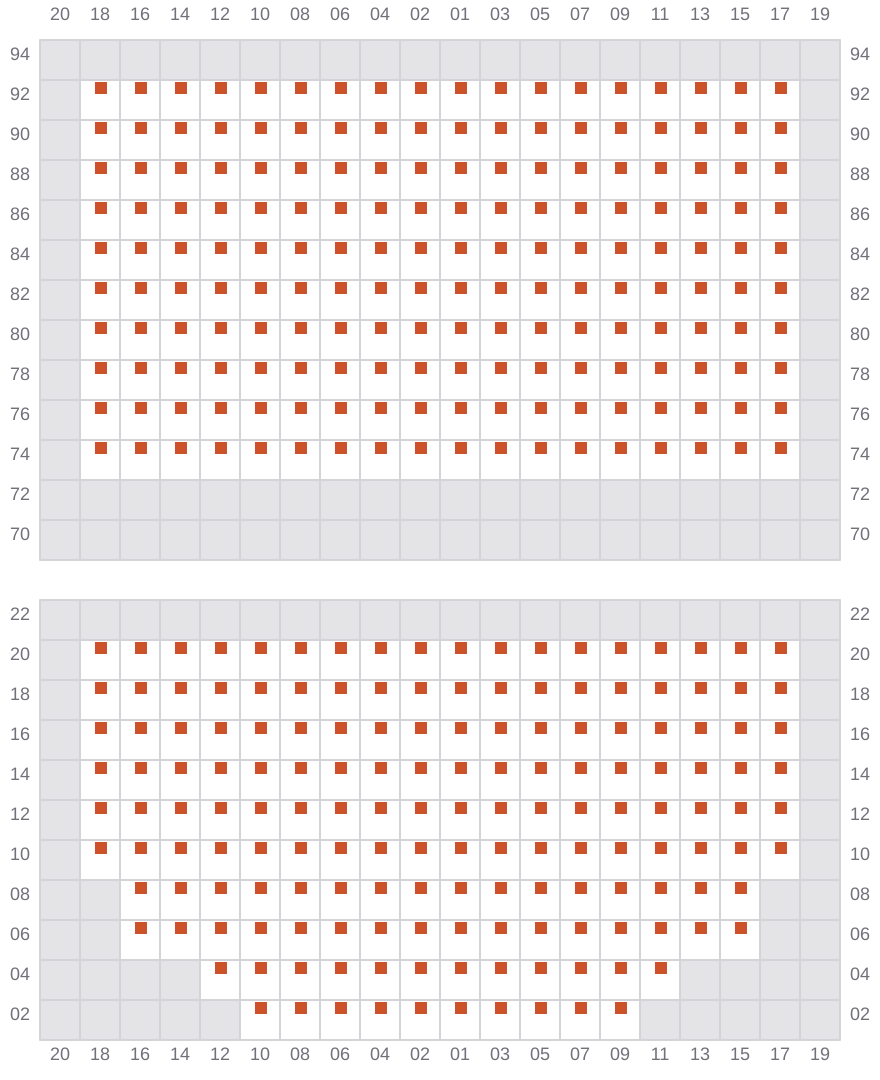

Bay 021 view and slots of MSC C.MONTAINE

023 (022)

  • ←

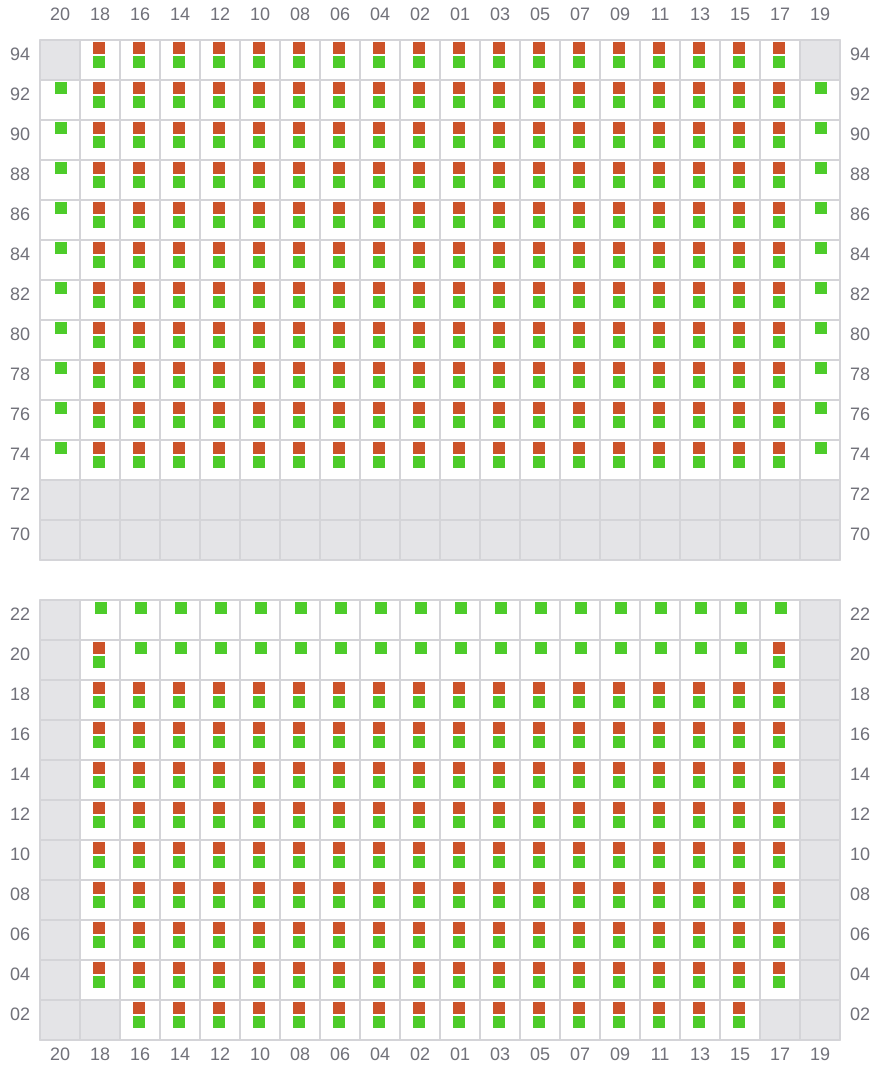

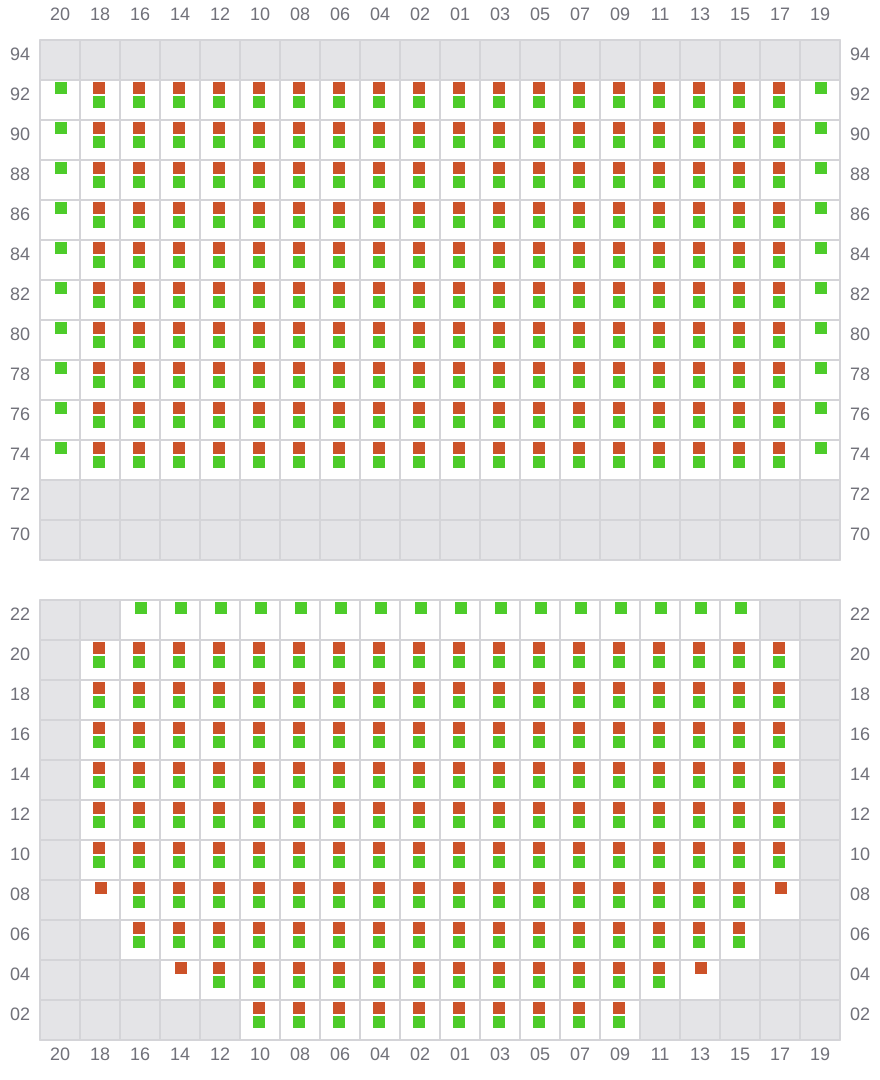

Bay 023 view and slots of MSC C.MONTAINE

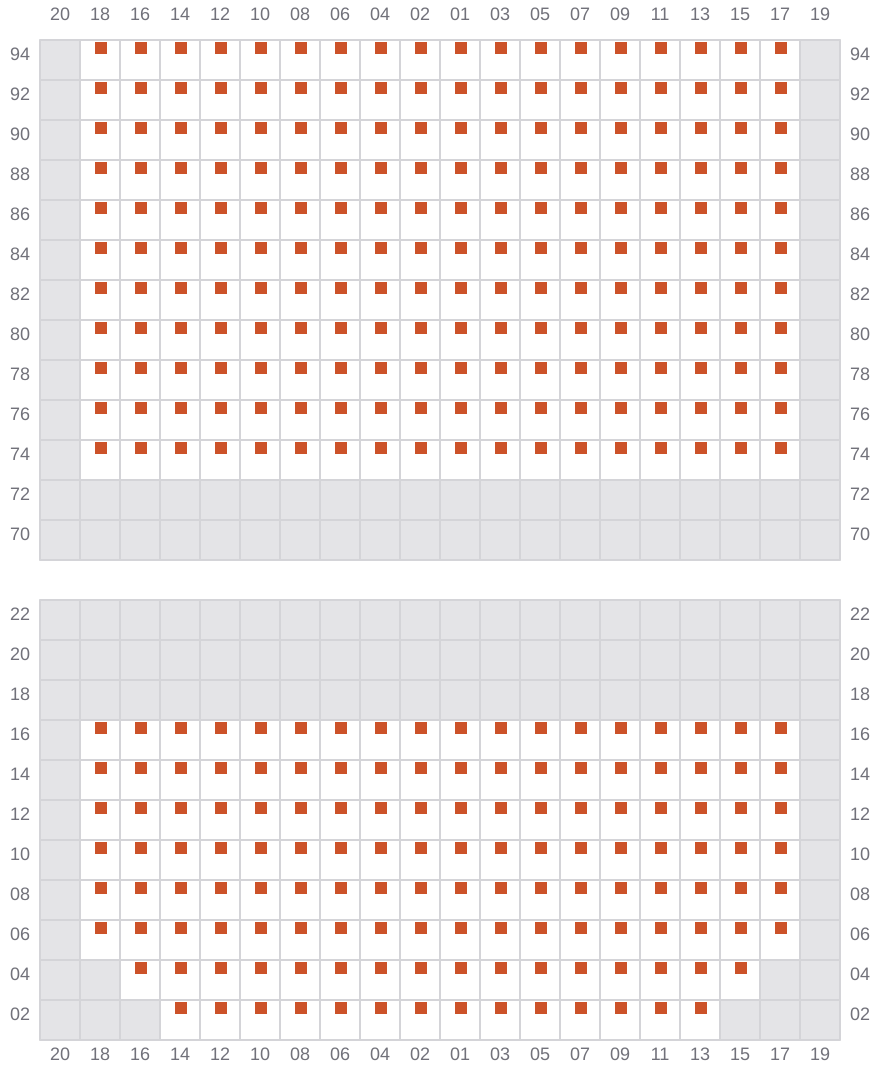

025

  • →
Bay 025 view and slots of MSC C.MONTAINE

027 (026)

  • ←

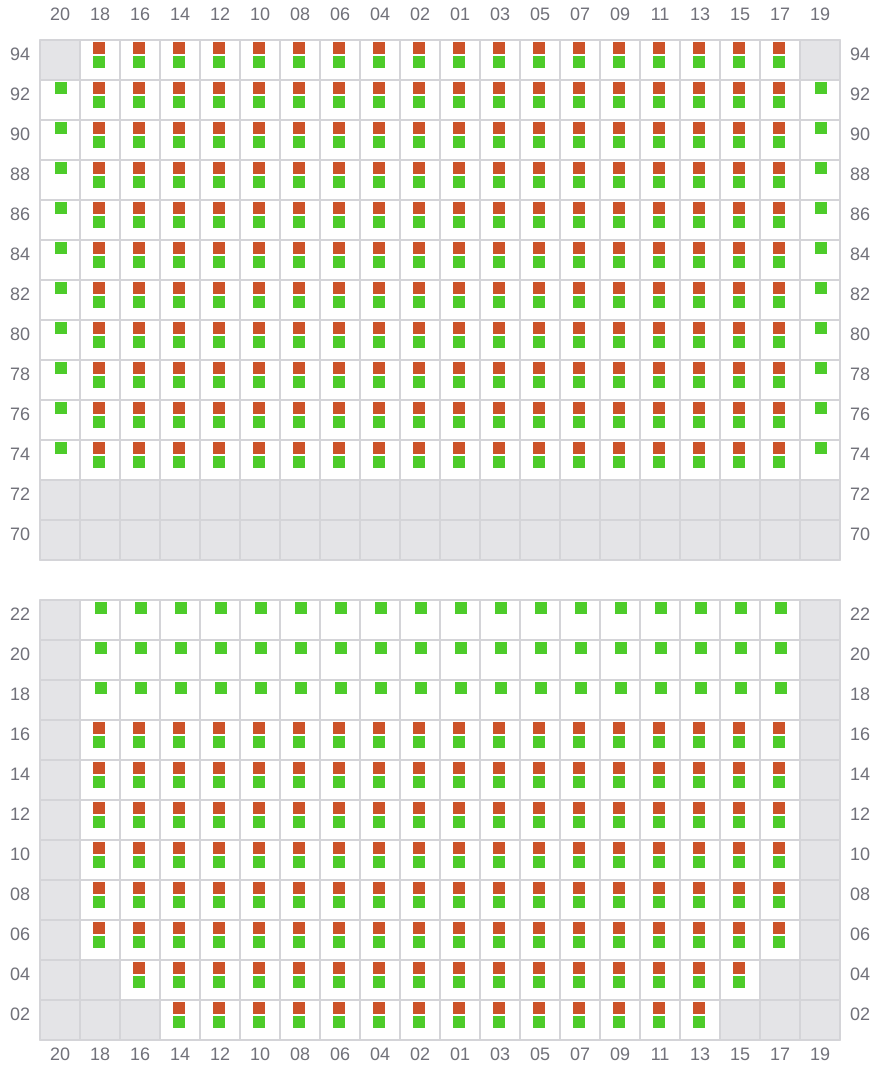

Bay 027 view and slots of MSC C.MONTAINE

029

  • →
Bay 029 view and slots of MSC C.MONTAINE

031 (030)

  • ←
Bay 031 view and slots of MSC C.MONTAINE

033

  • →
Bay 033 view and slots of MSC C.MONTAINE

035 (034)

  • ←
Bay 035 view and slots of MSC C.MONTAINE

037

  • →
Bay 037 view and slots of MSC C.MONTAINE

039 (038)

  • ←

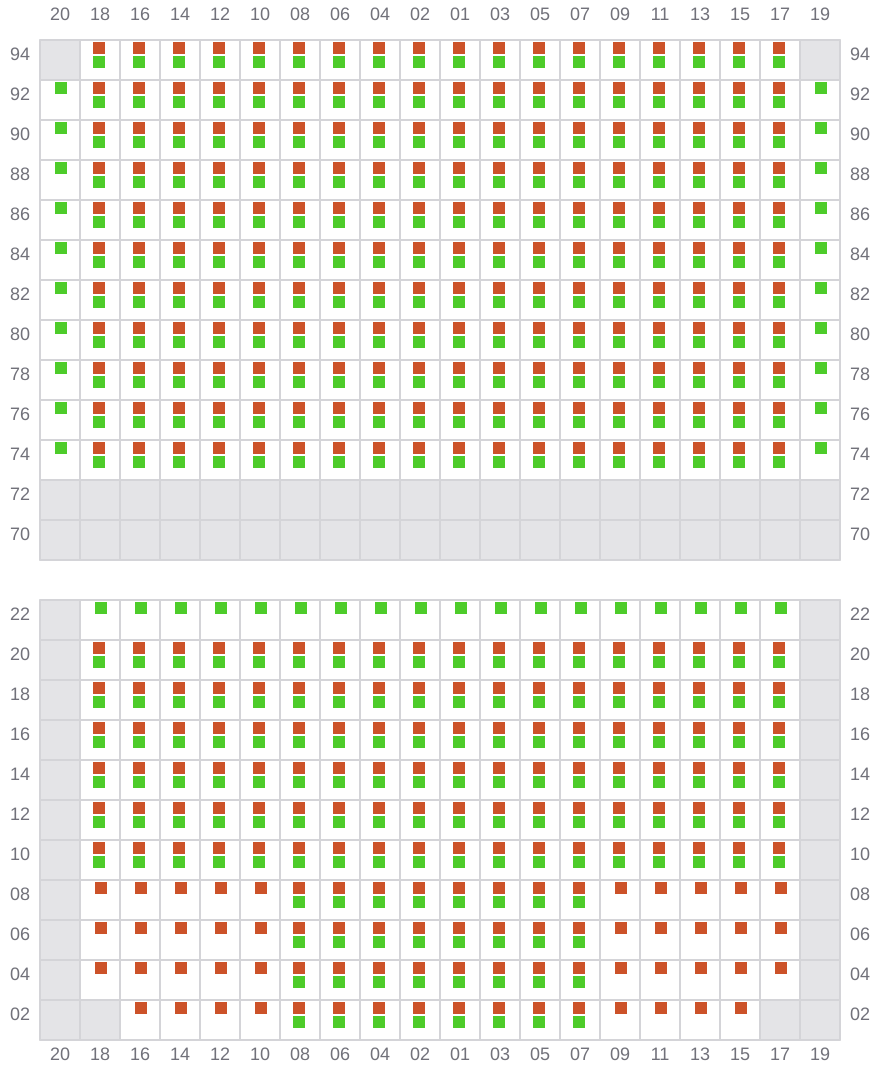

Bay 039 view and slots of MSC C.MONTAINE

041

  • →

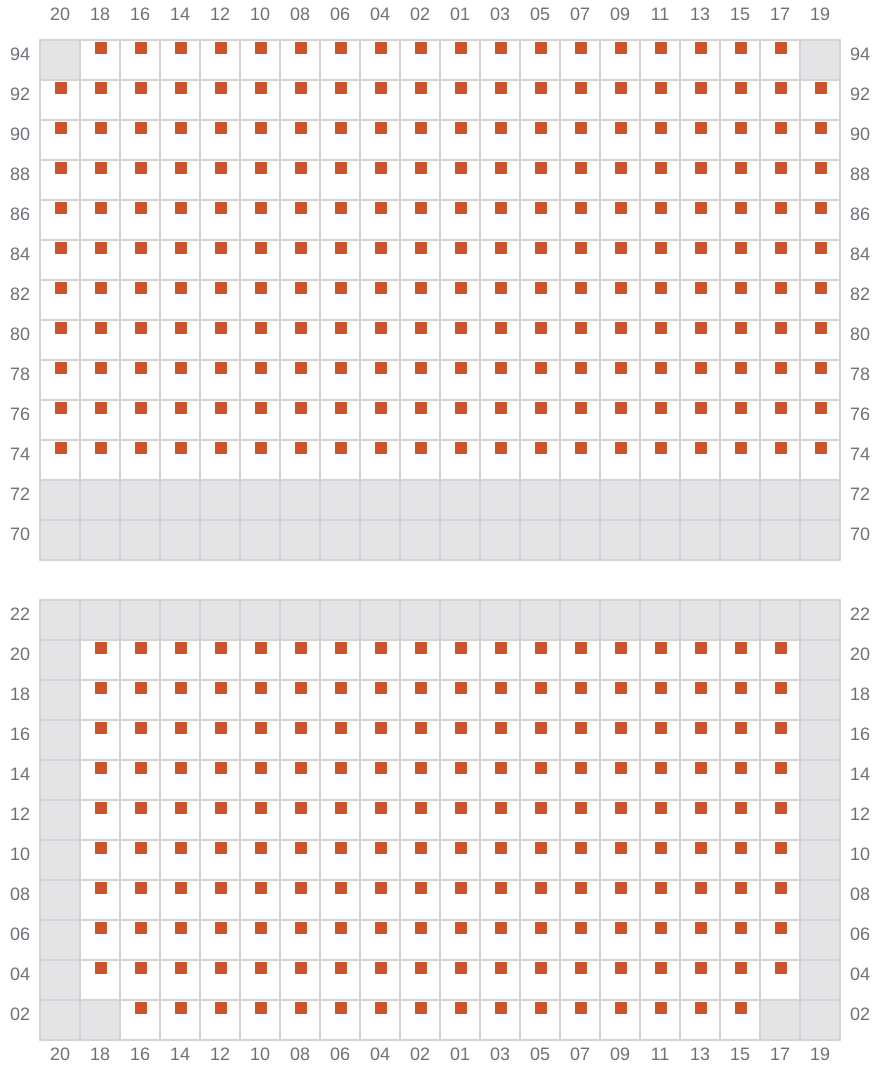

Bay 041 view and slots of MSC C.MONTAINE

043 (042)

  • ←
Bay 043 view and slots of MSC C.MONTAINE

045

  • →
Bay 045 view and slots of MSC C.MONTAINE

047 (046)

  • ←
Bay 047 view and slots of MSC C.MONTAINE

049

  • →
Bay 049 view and slots of MSC C.MONTAINE

051 (050)

  • ←
Bay 051 view and slots of MSC C.MONTAINE

053

  • →
Bay 053 view and slots of MSC C.MONTAINE

055 (054)

  • ←
Bay 055 view and slots of MSC C.MONTAINE

057

  • →

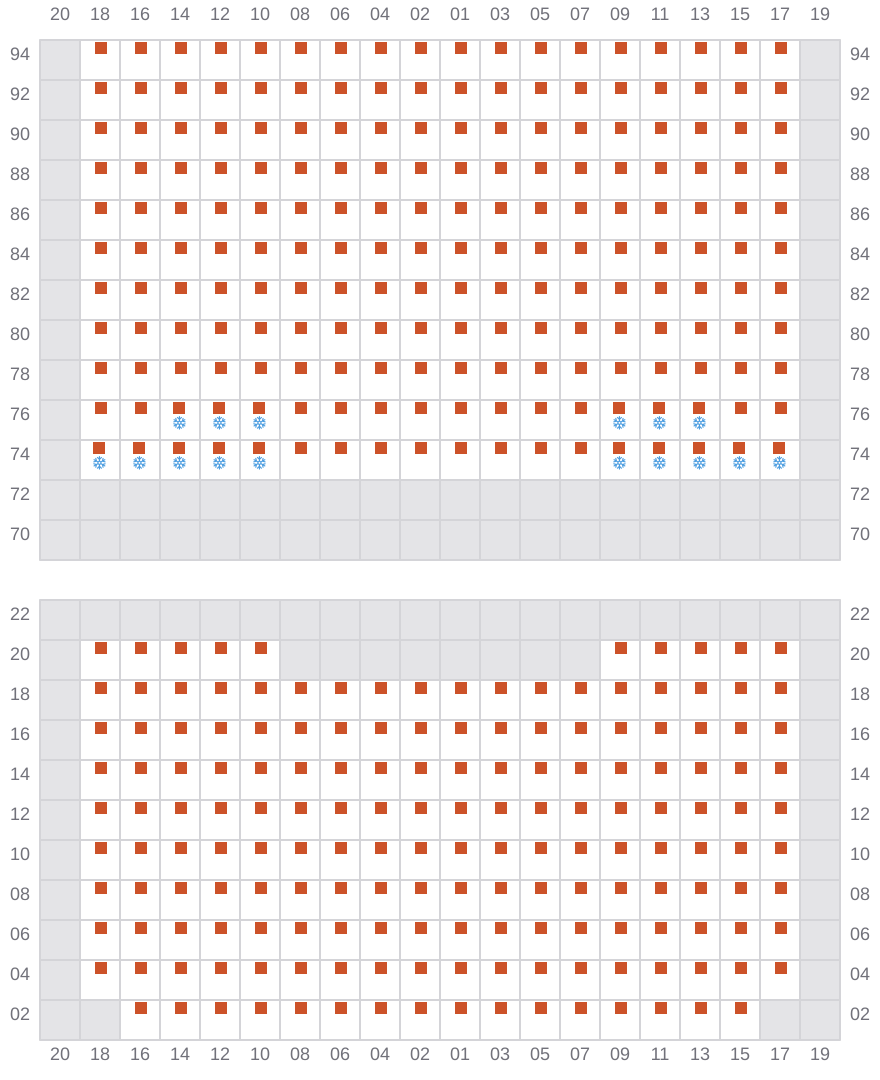

Bay 057 view and slots of MSC C.MONTAINE

059 (058)

  • ←
Bay 059 view and slots of MSC C.MONTAINE

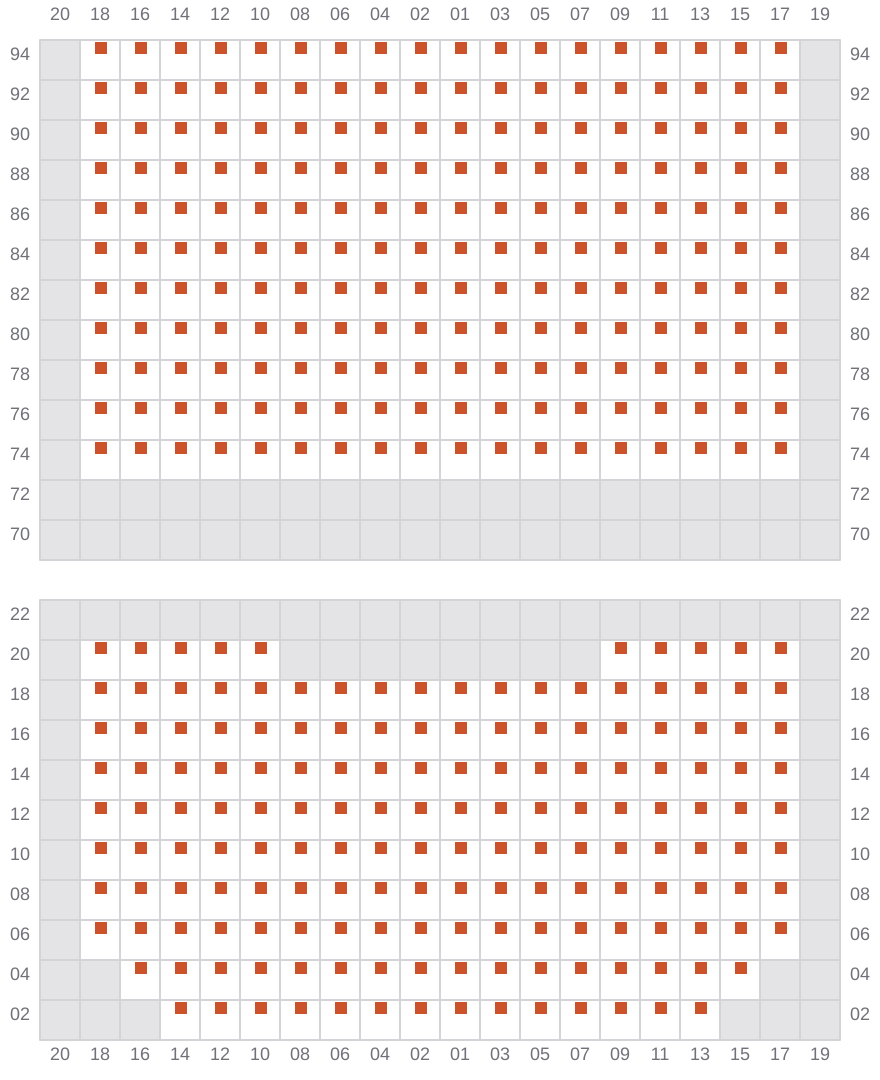

061

  • →
Bay 061 view and slots of MSC C.MONTAINE

063 (062)

  • ←

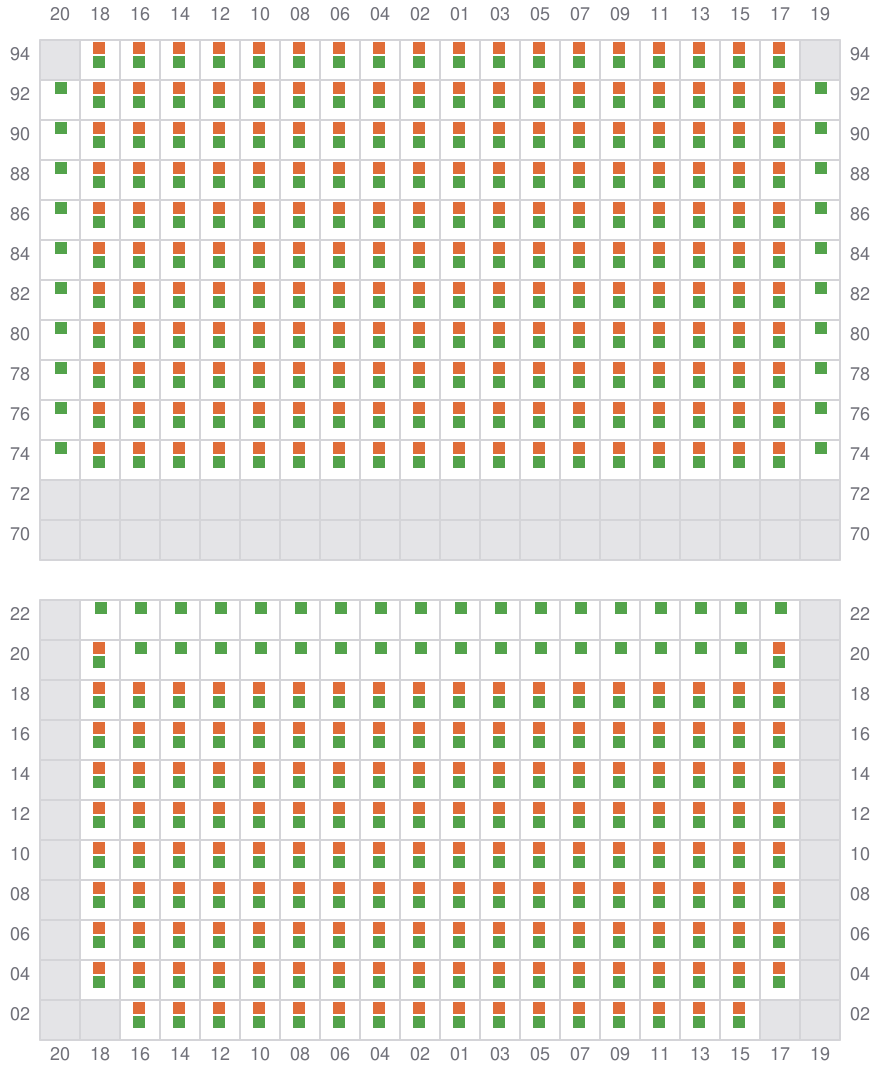

Bay 063 view and slots of MSC C.MONTAINE

065

  • →
Bay 065 view and slots of MSC C.MONTAINE

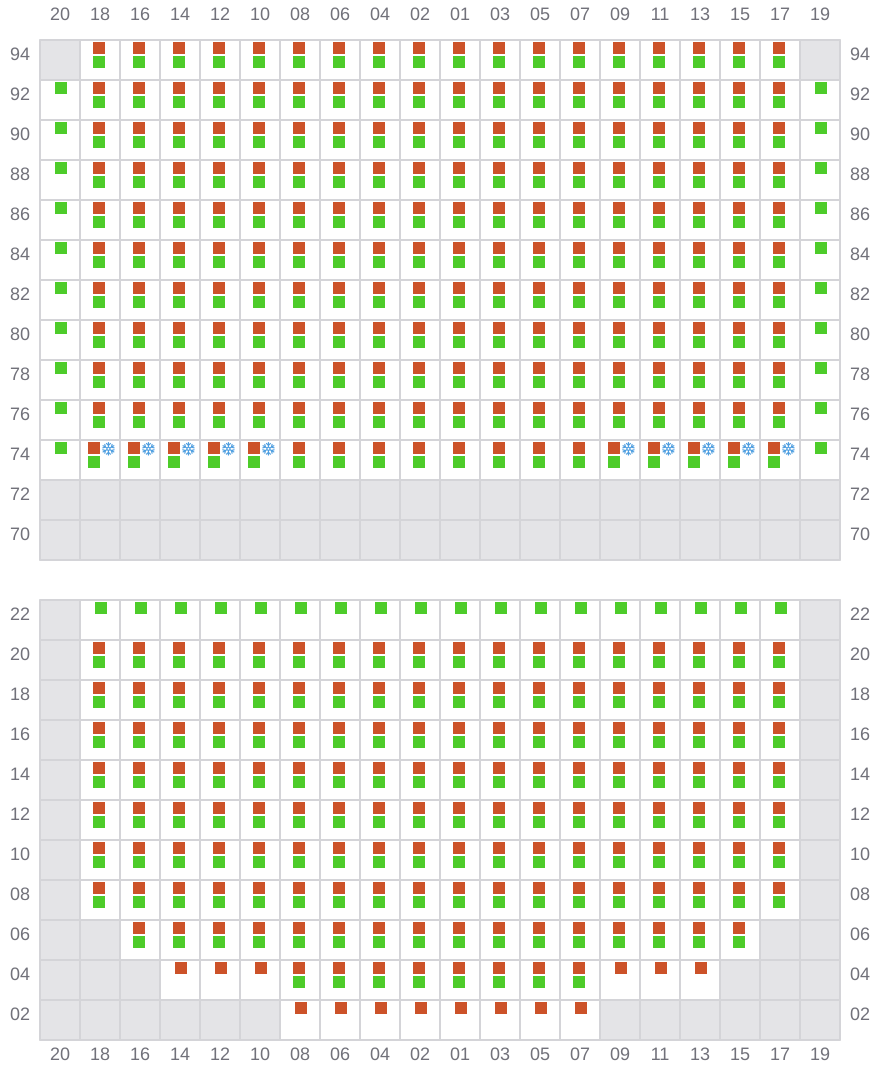

067 (066)

  • ←
Bay 067 view and slots of MSC C.MONTAINE

069

  • → /
Bay 069 view and slots of MSC C.MONTAINE

071 (070)

  • ← /

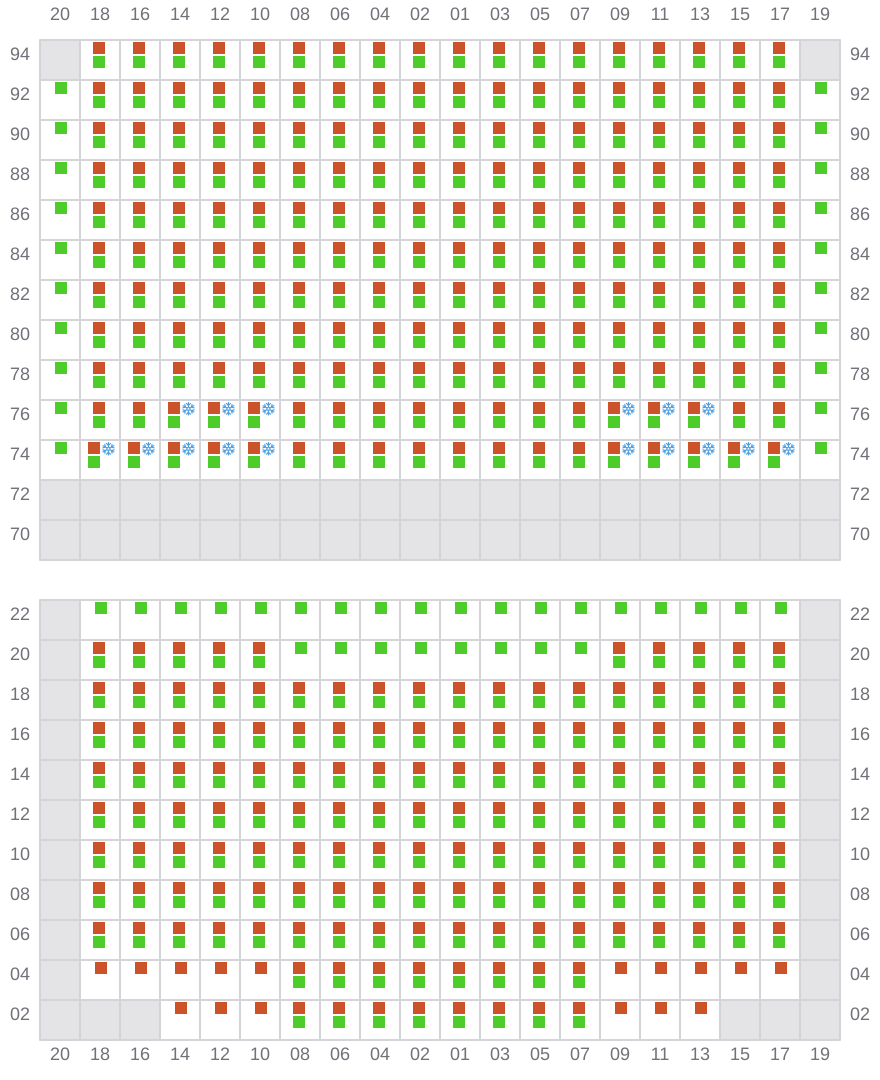

Bay 071 view and slots of MSC C.MONTAINE

073

  • →

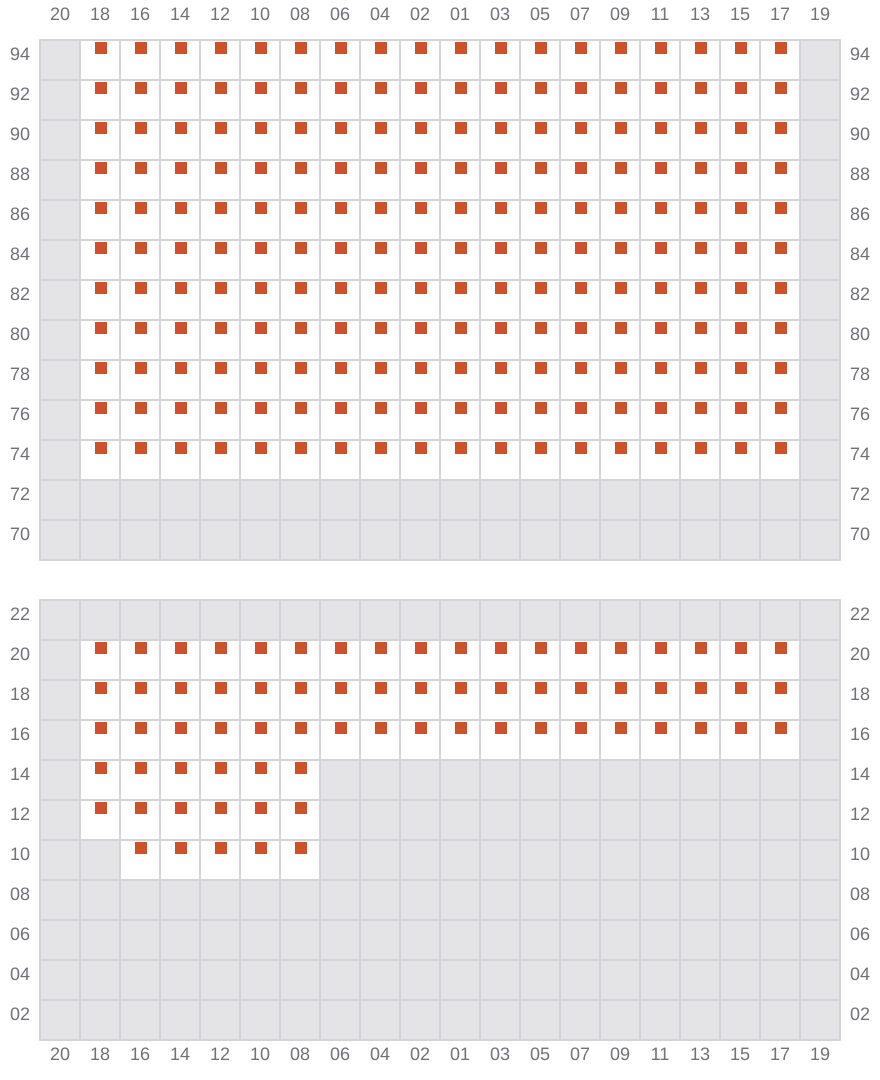

Bay 073 view and slots of MSC C.MONTAINE

075 (074)

  • ←
Bay 075 view and slots of MSC C.MONTAINE

077

  • →

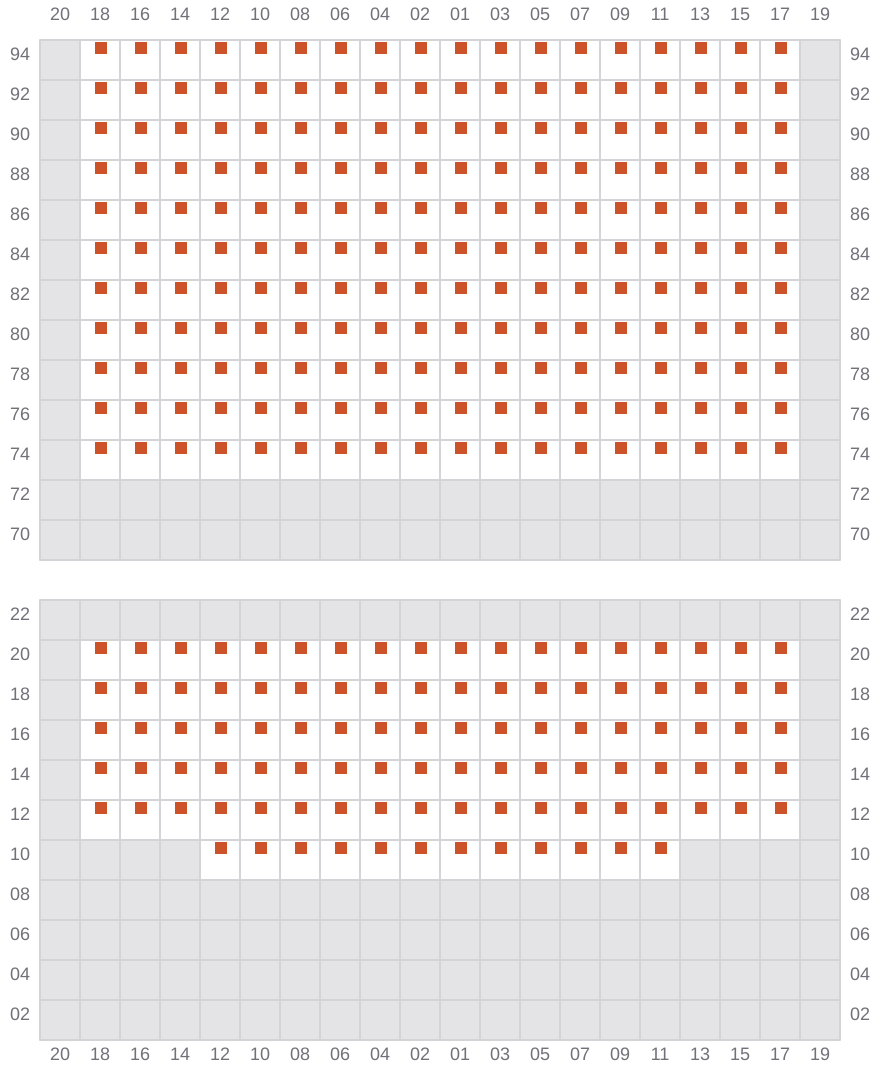

Bay 077 view and slots of MSC C.MONTAINE

079 (078)

  • ←

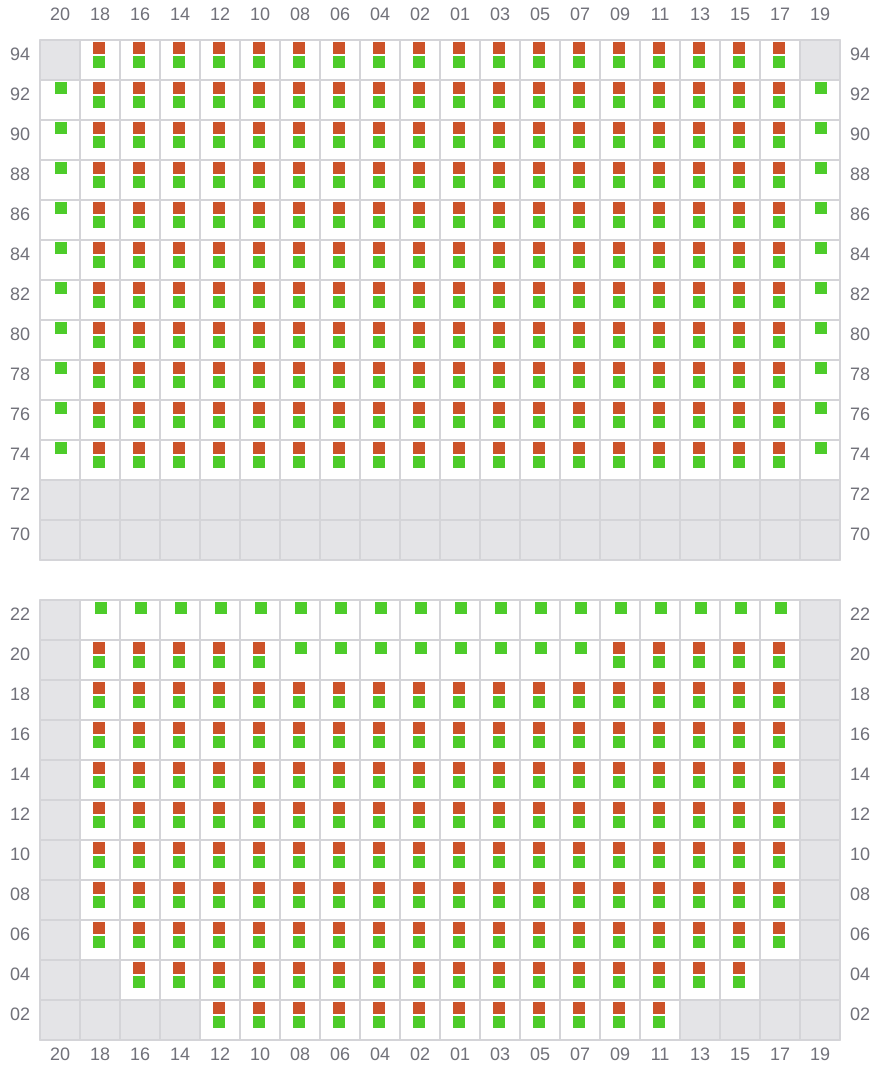

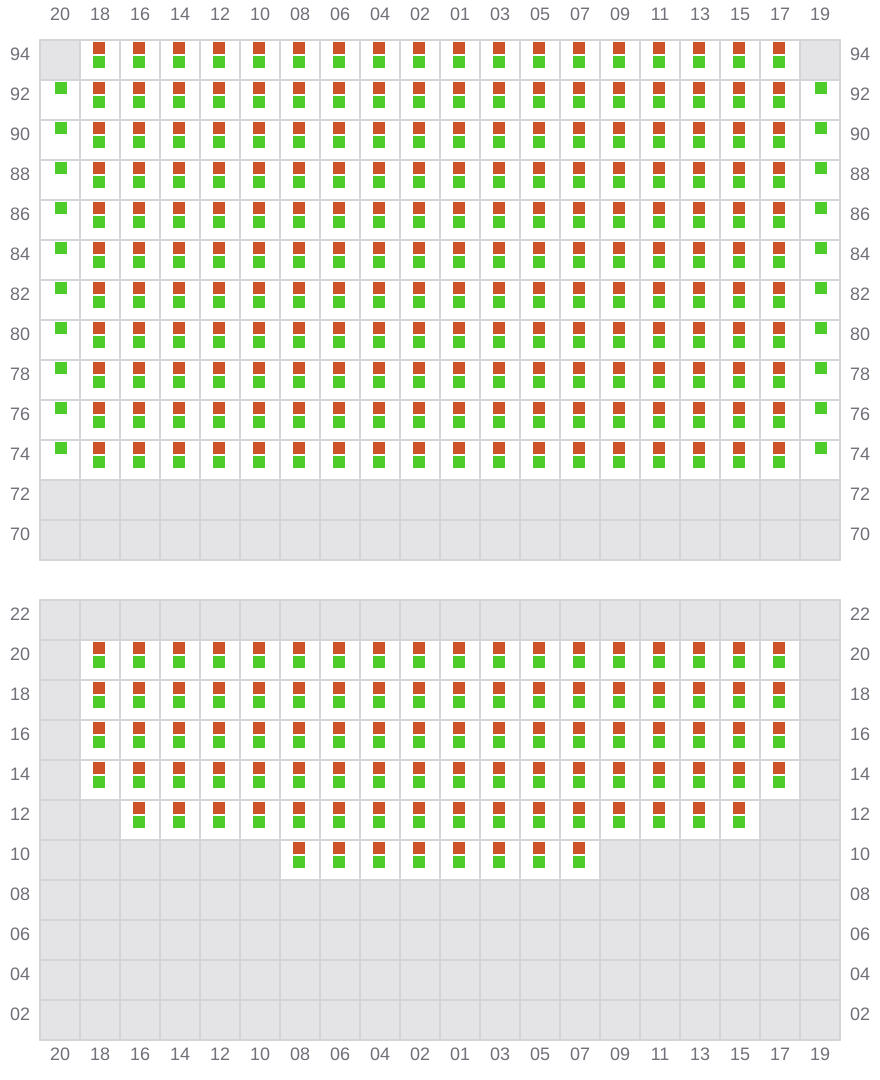

Bay 079 view and slots of MSC C.MONTAINE

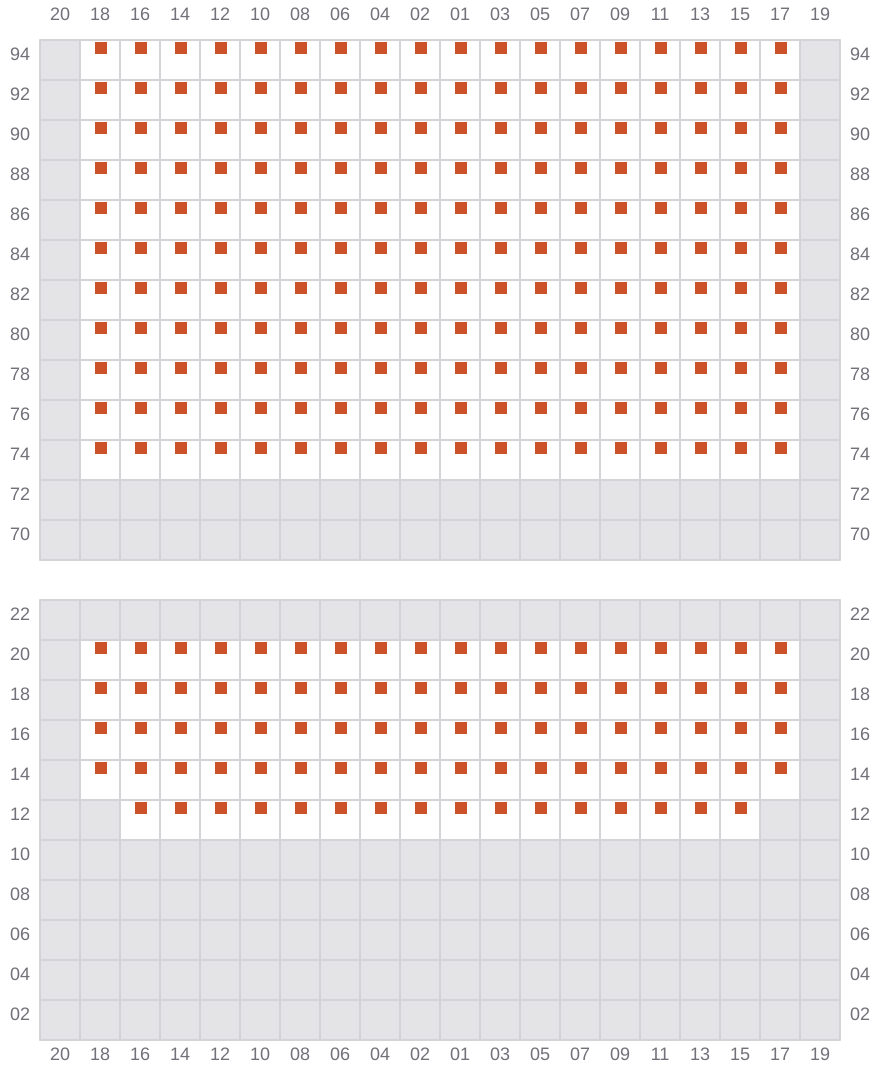

081

  • →
Bay 081 view and slots of MSC C.MONTAINE

083 (082)

  • ←

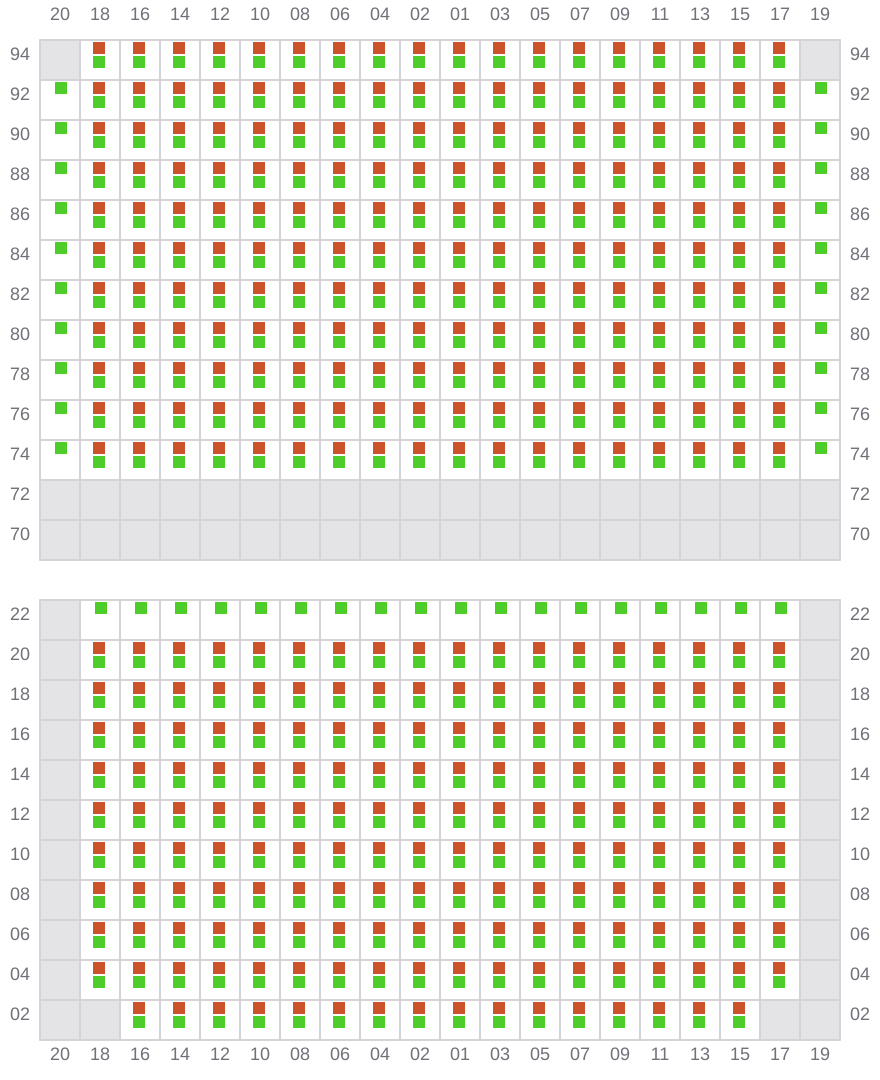

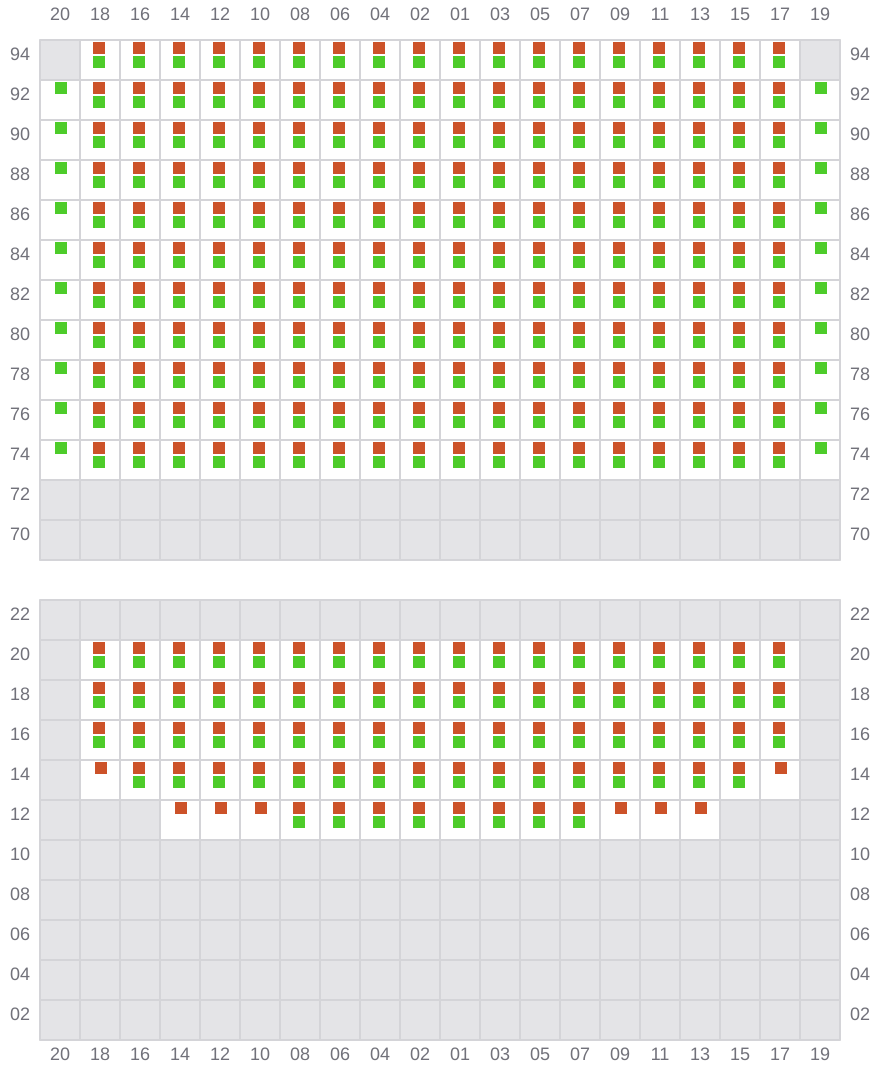

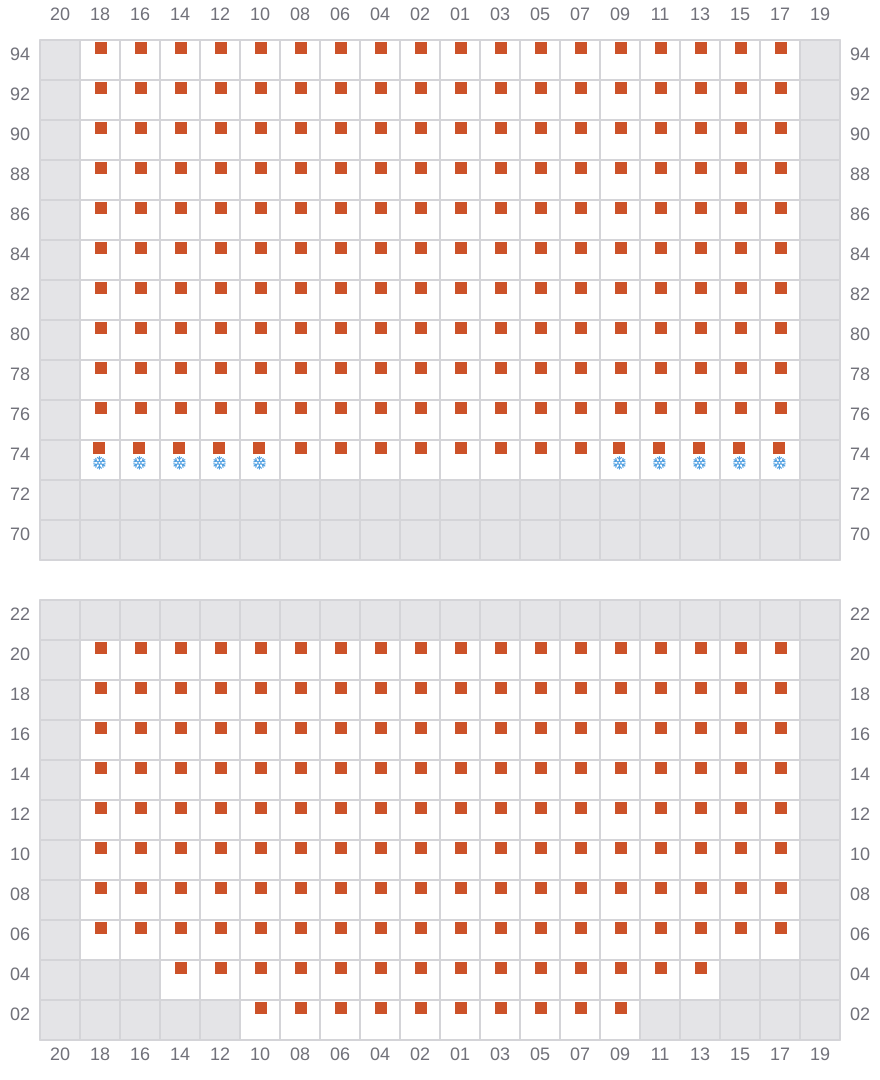

Bay 083 view and slots of MSC C.MONTAINE

085

  • → /

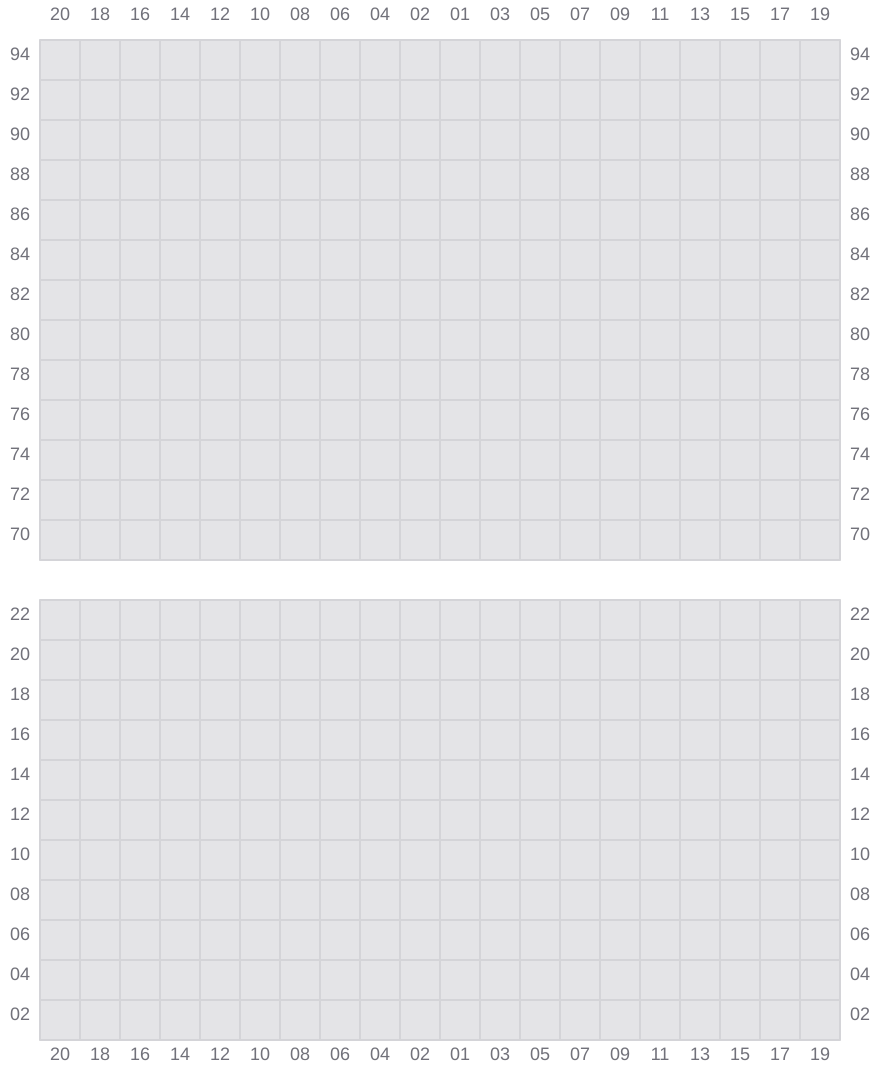

Bay 085 view and slots of MSC C.MONTAINE

087 (086)

  • ← /

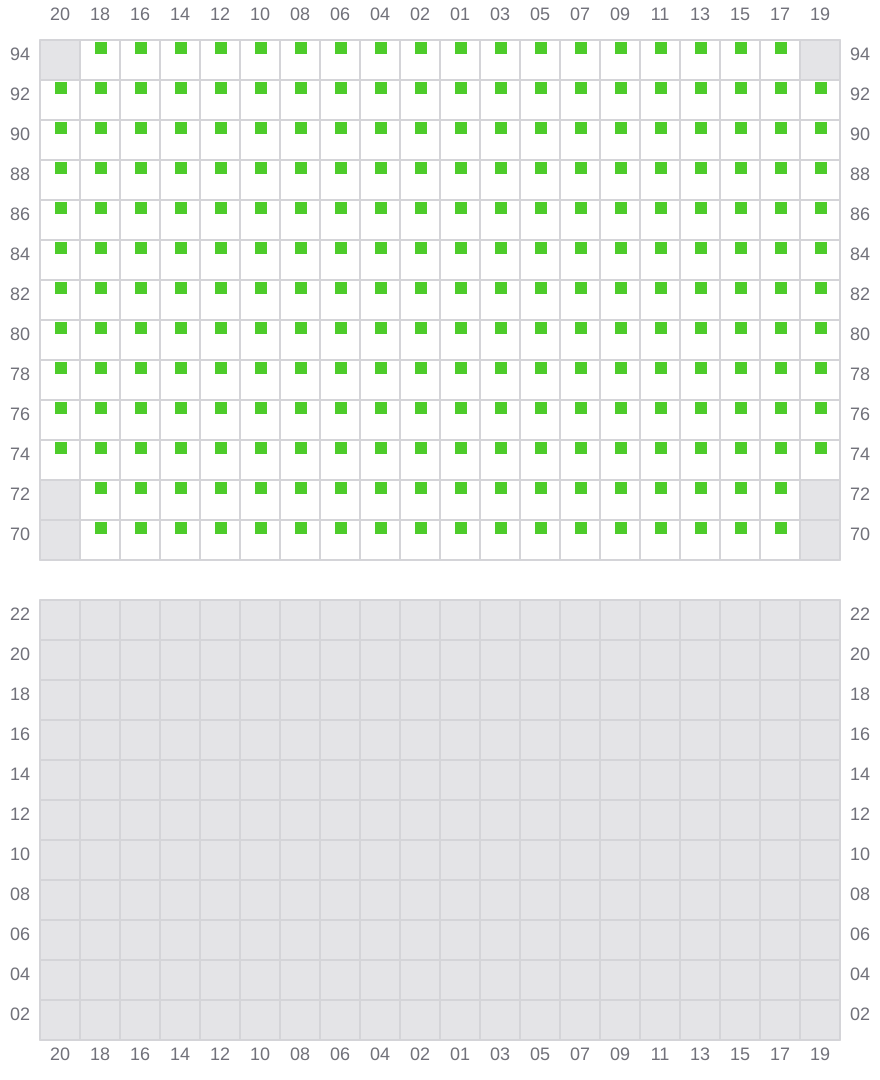

Bay 087 view and slots of MSC C.MONTAINE
