MSC CADIZ
9480203 | DITI2 | 9480203 by ************************** Last update: Fri Aug 02 2024
General Info
Ship Name:MSC CADIZ
IMO Code:9480203
Call Sign:DITI2
Line Operator:9480203
Class Name for Sister Ships:4LE
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):257.51
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,584
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

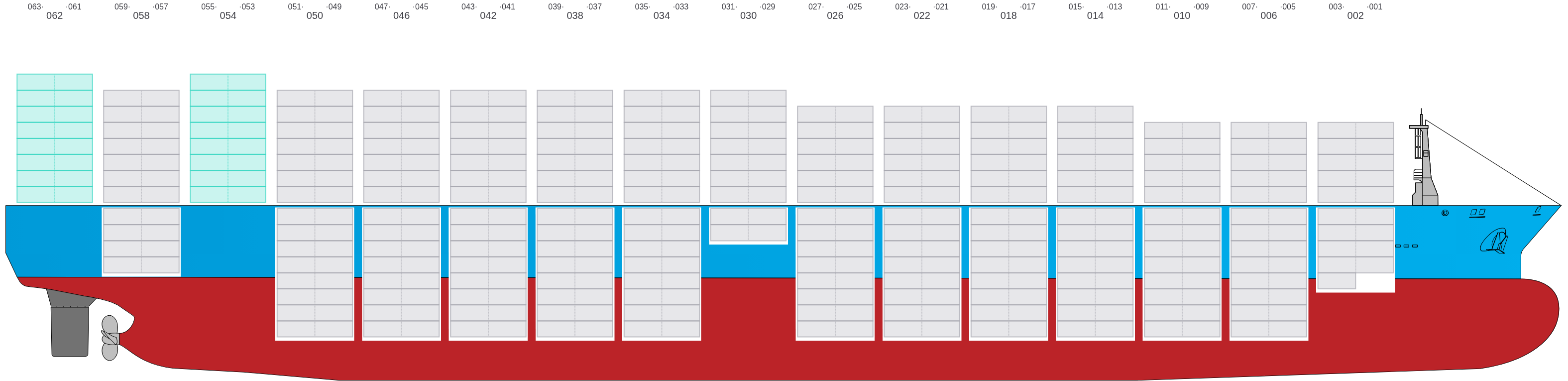

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

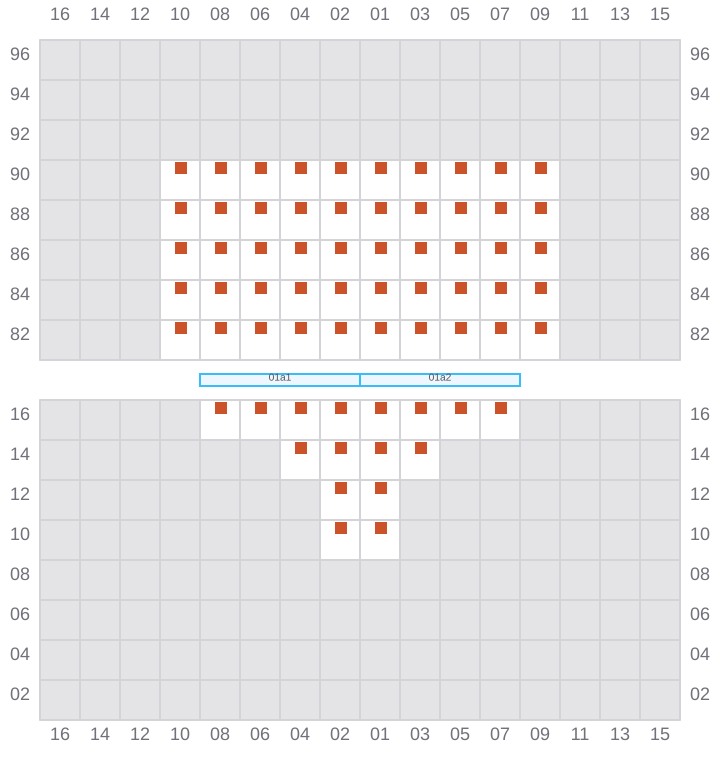

001
- →
003 (002)
- ←

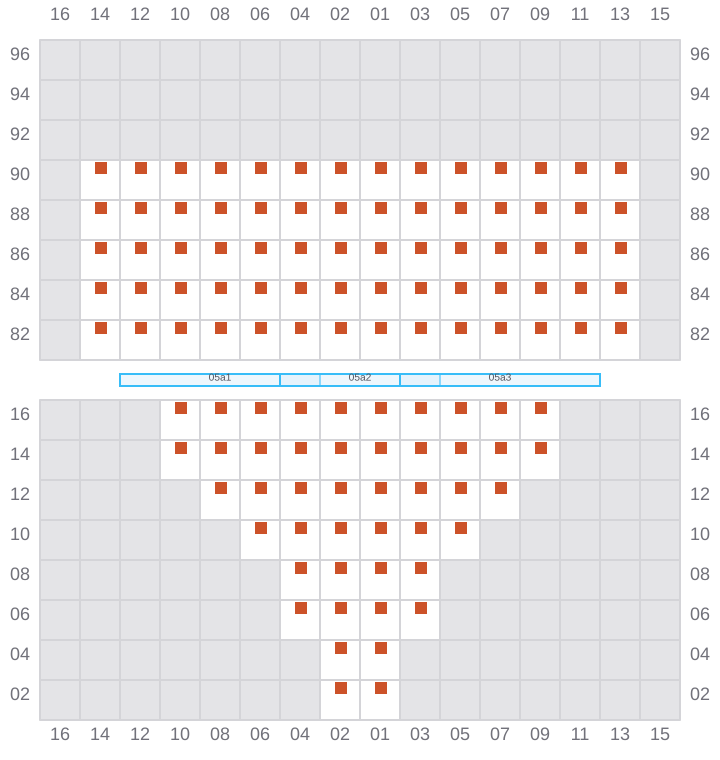

005
- →
007 (006)
- ←

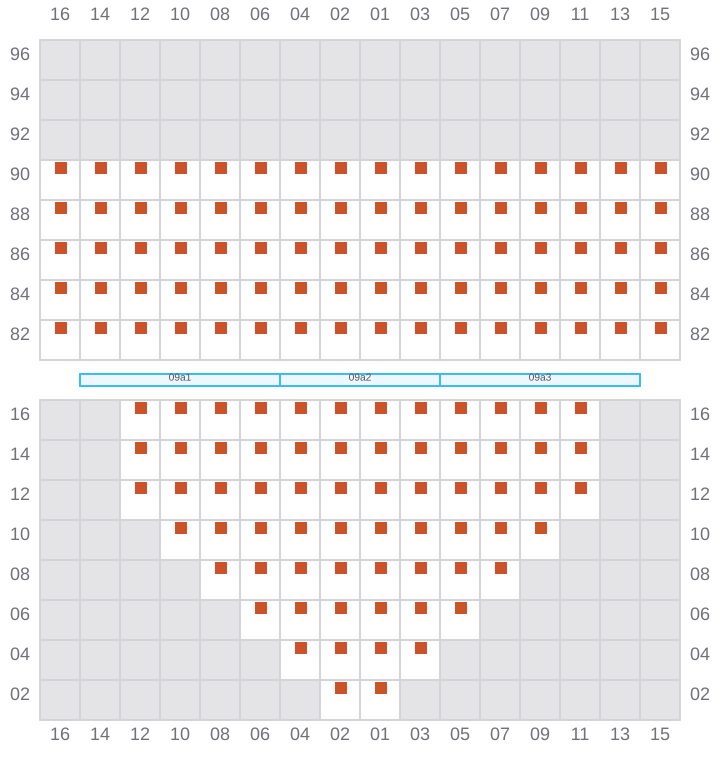

009
- →

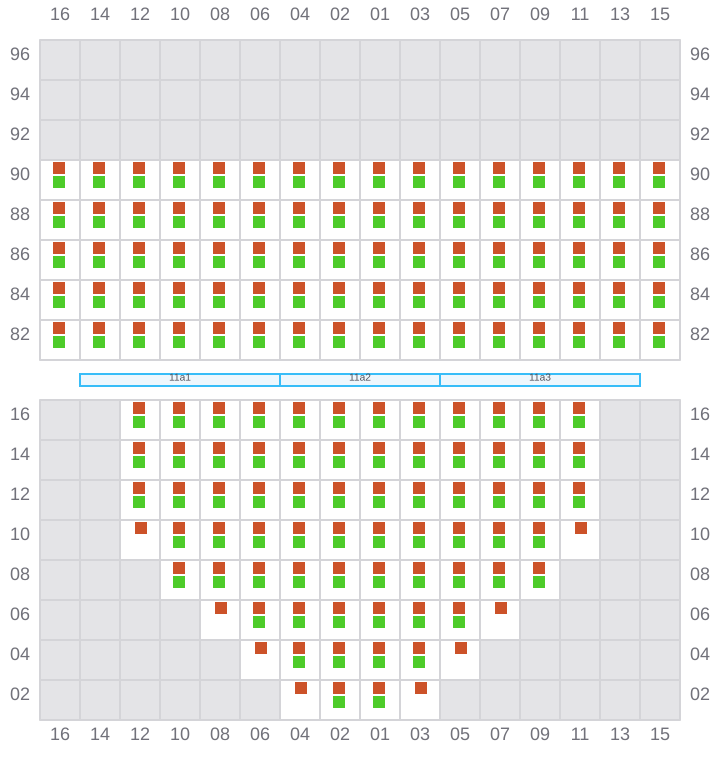

011 (010)
- ←

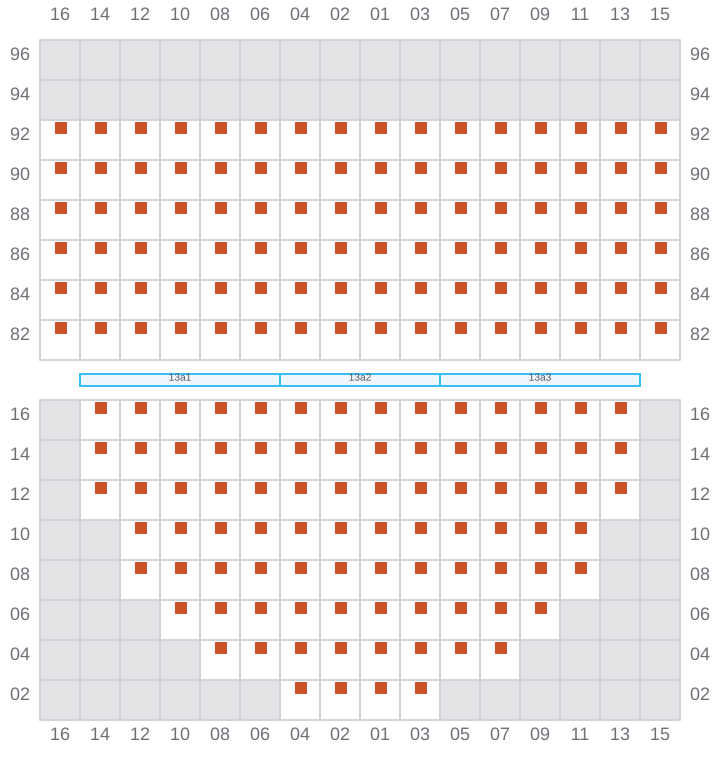

013
- →
015 (014)
- ←
017
- →

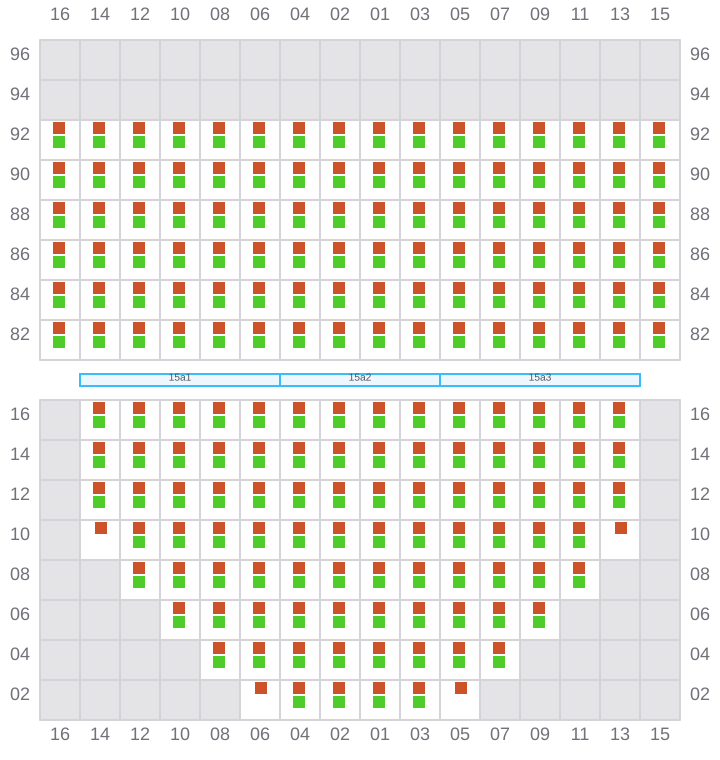

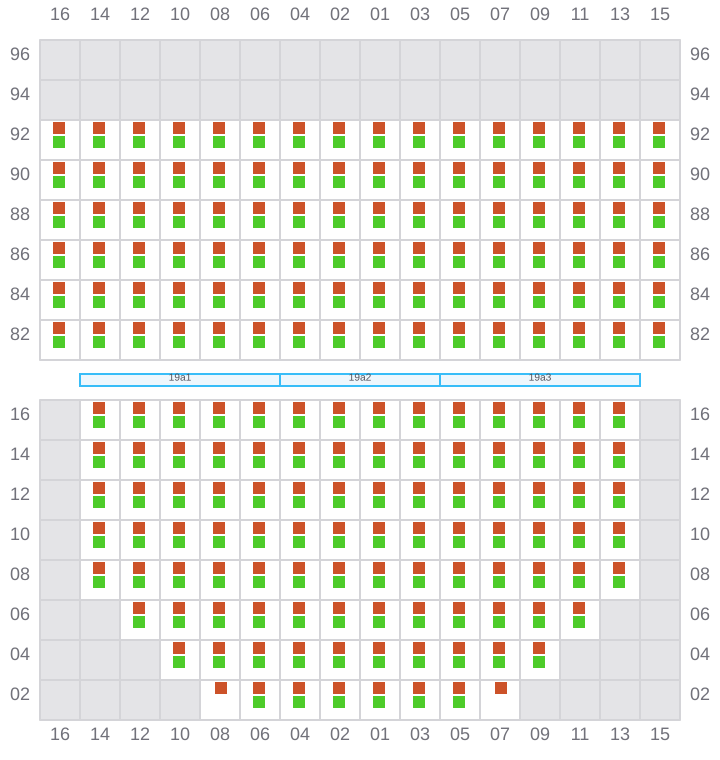

019 (018)
- ←

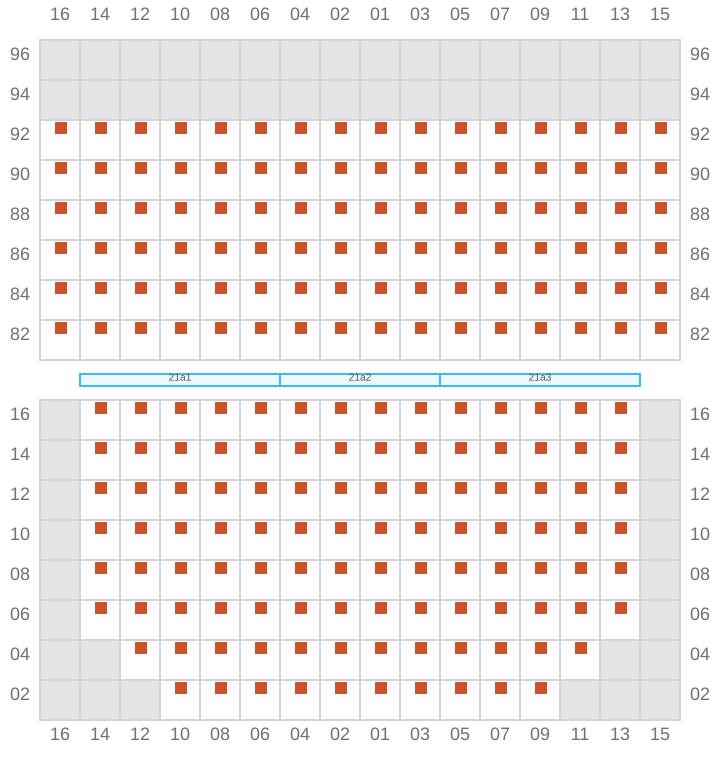

021
- →
023 (022)
- ←

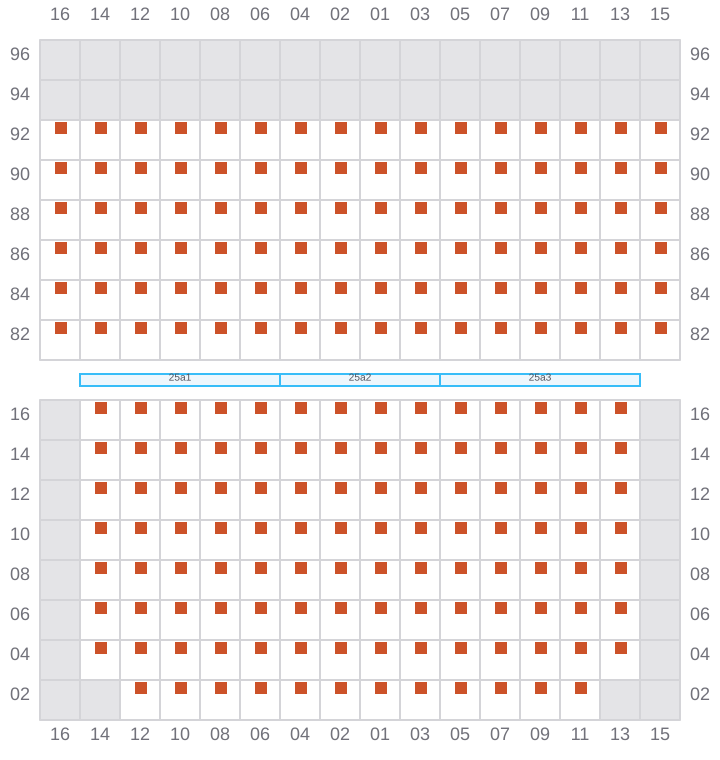

025
- →

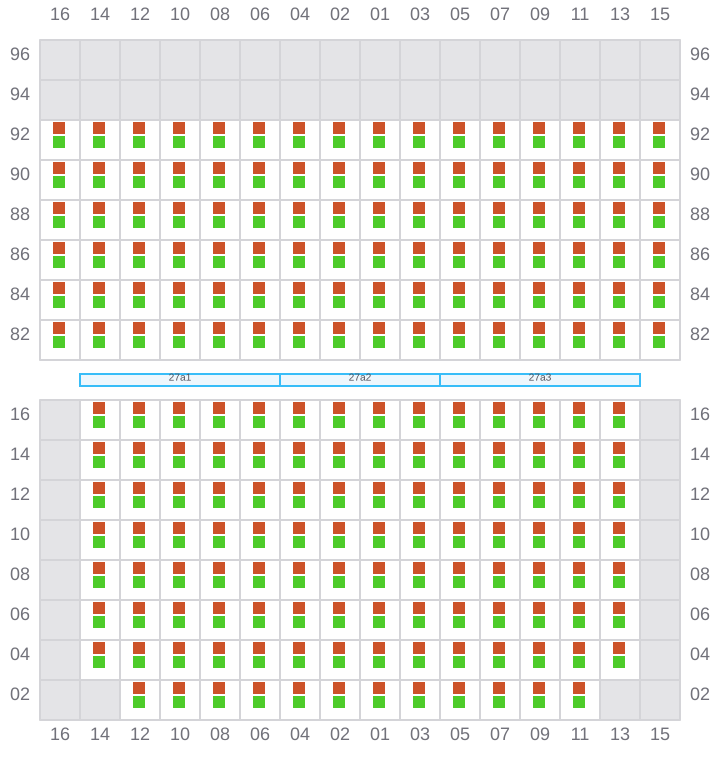

027 (026)
- ←

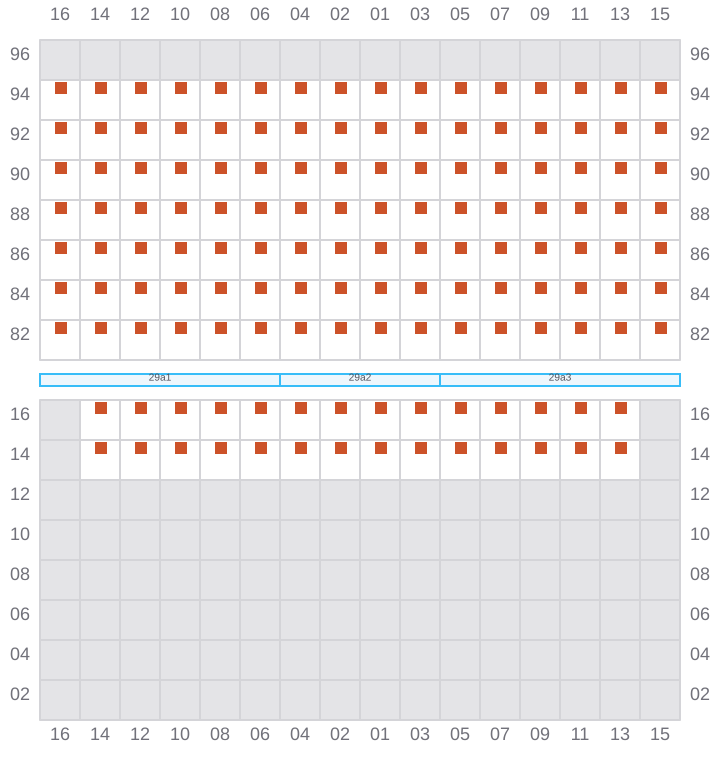

029
- →

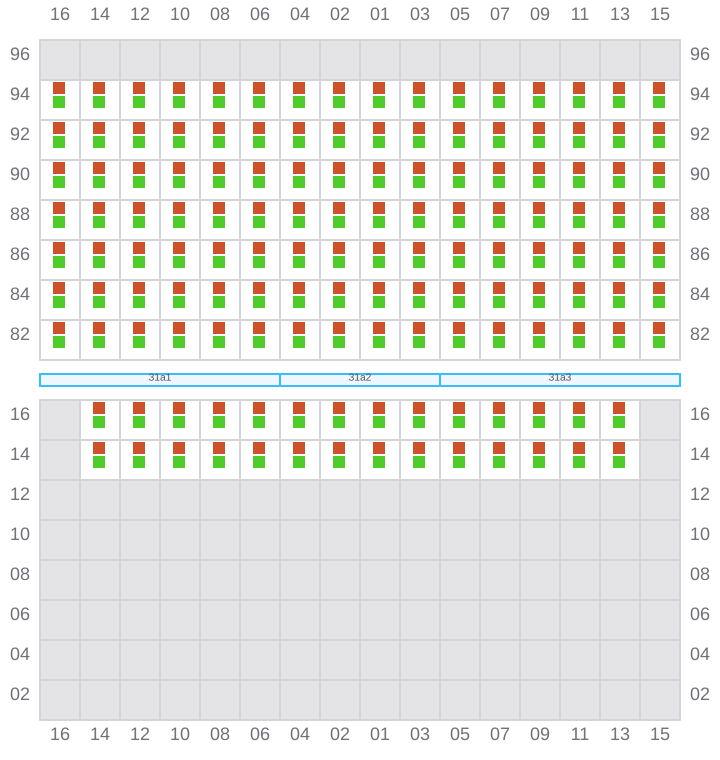

031 (030)
- ←
033
- →

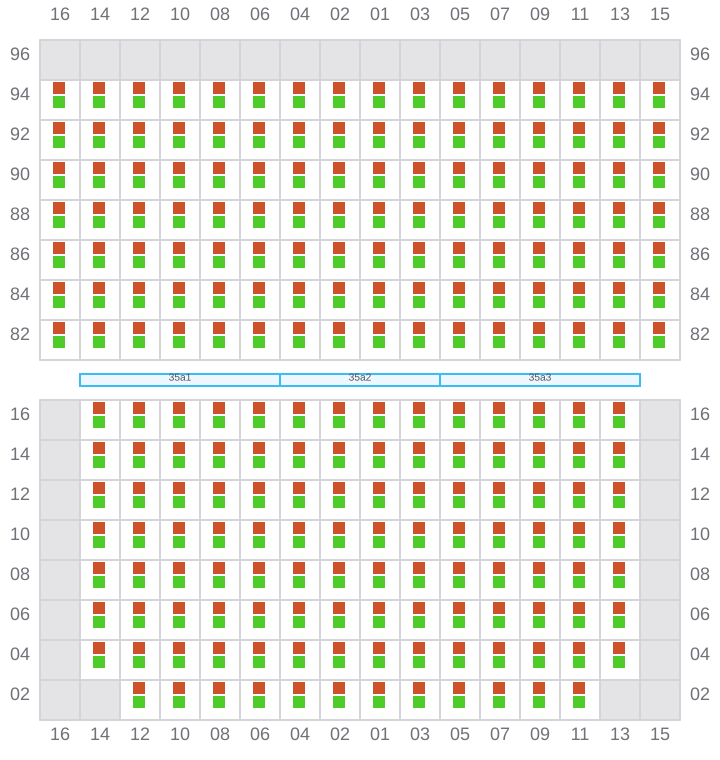

035 (034)
- ←

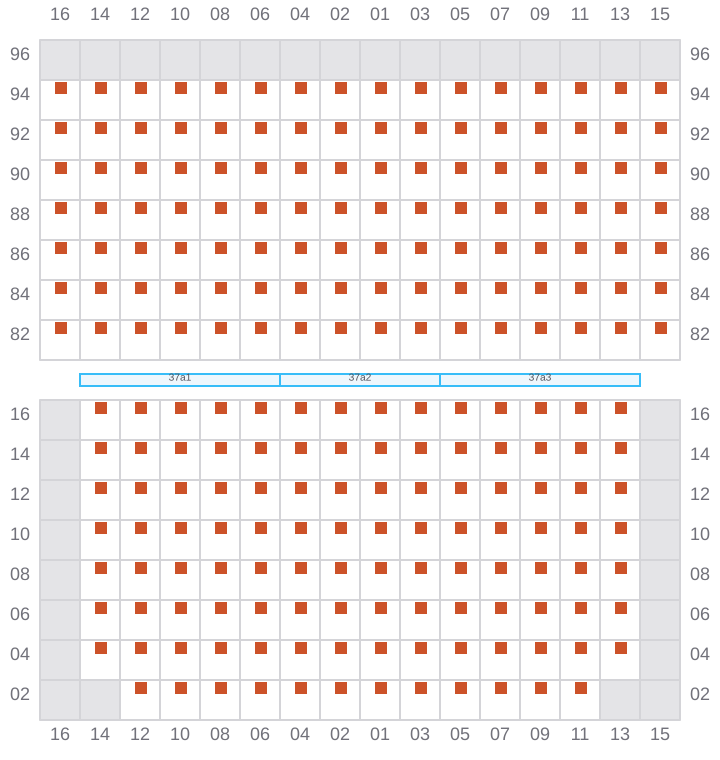

037
- →
039 (038)
- ←

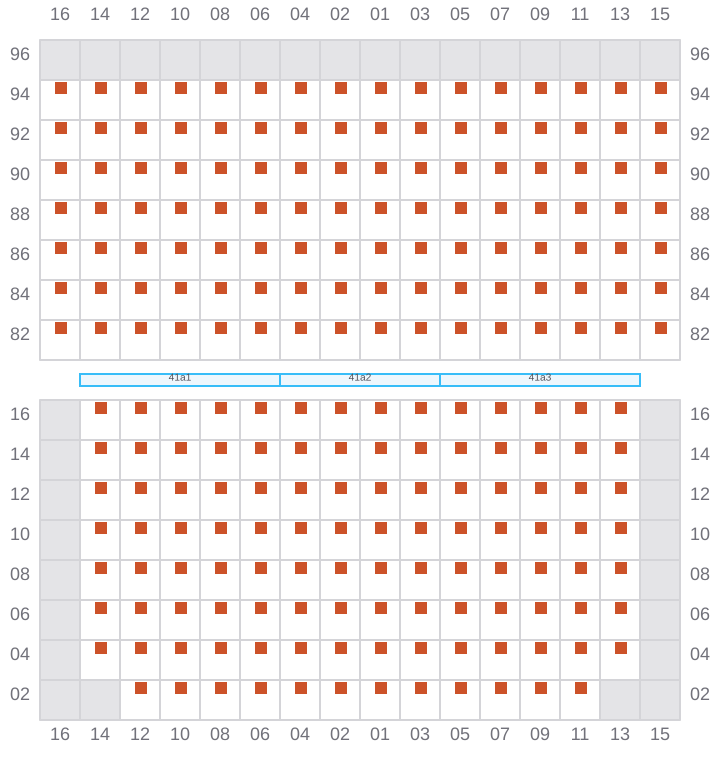

041
- →

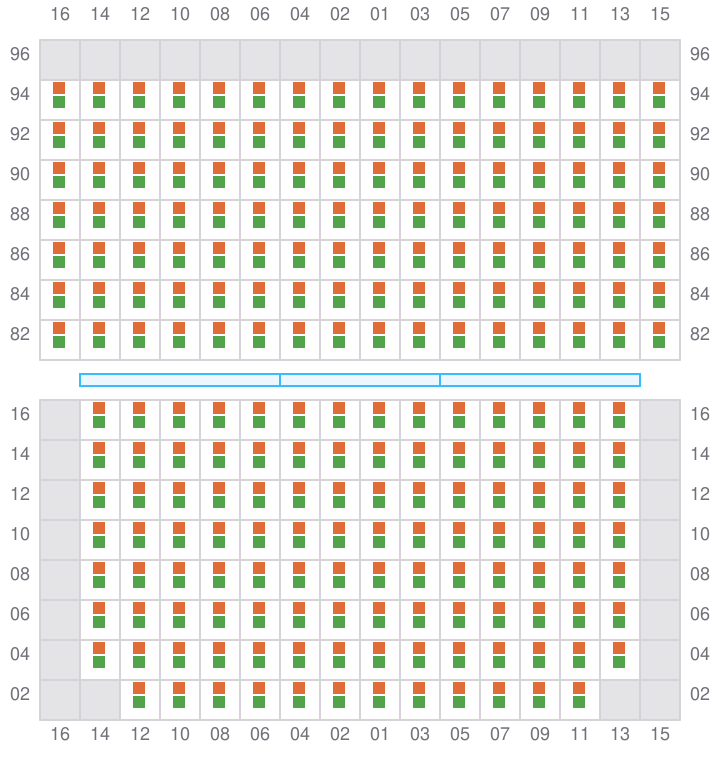

043 (042)
- ←

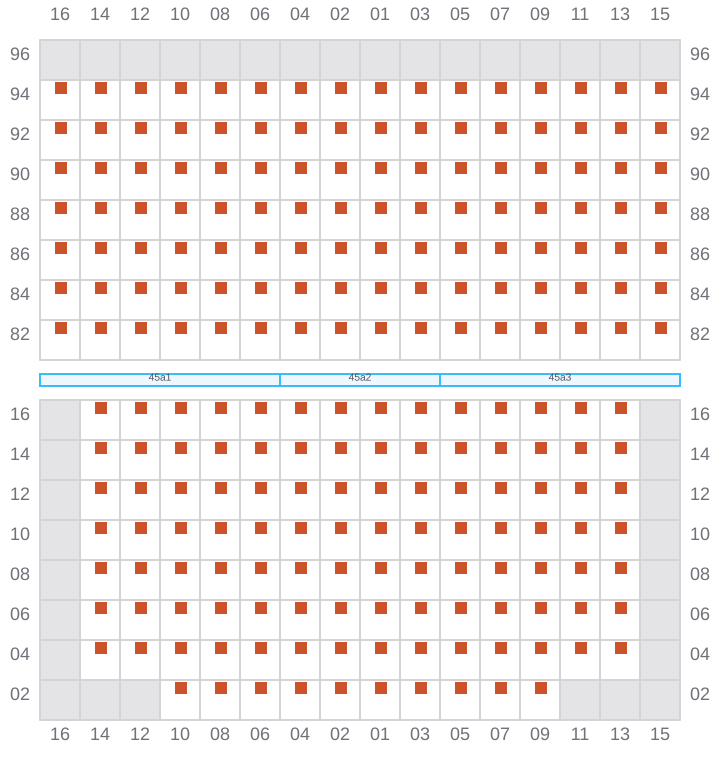

045
- →

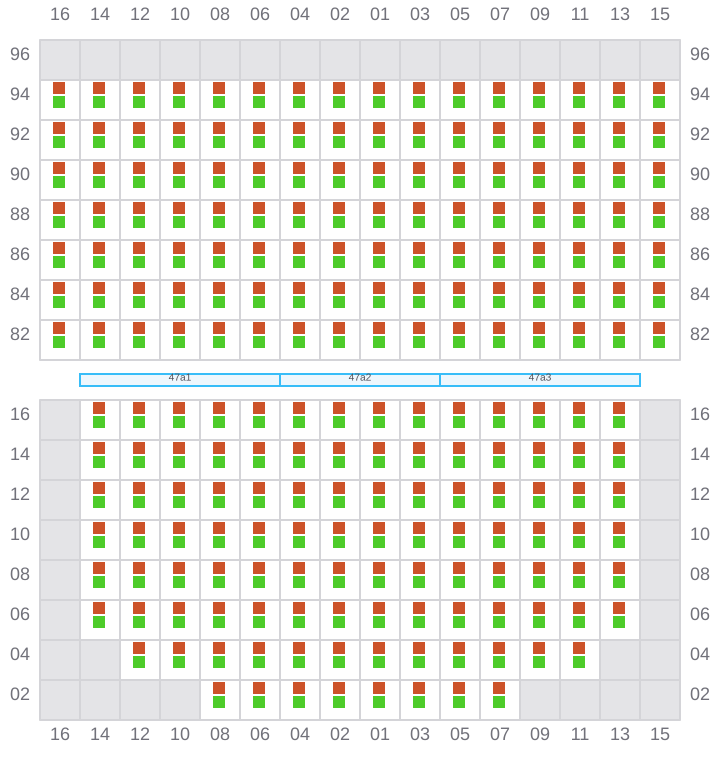

047 (046)
- ←

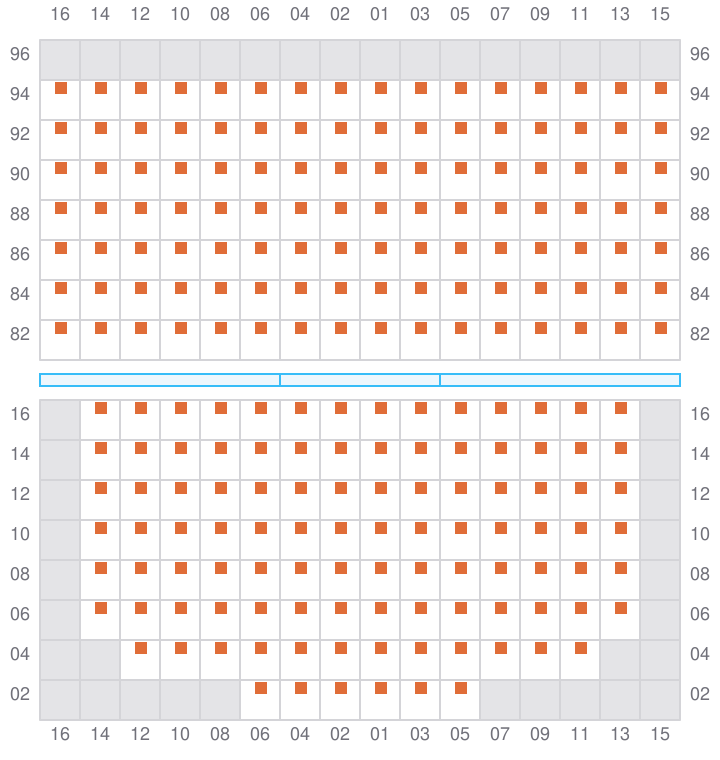

049
- →

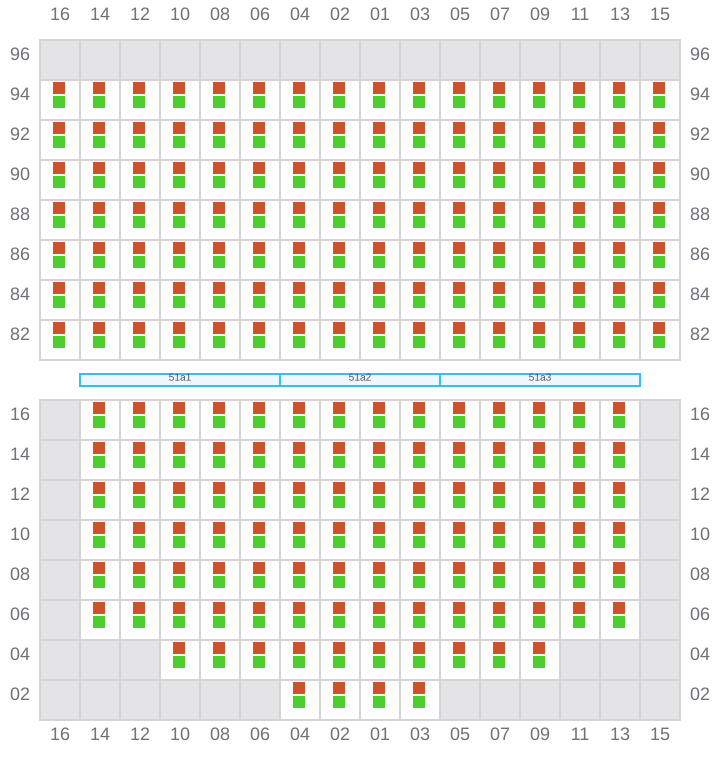

051 (050)
- ←

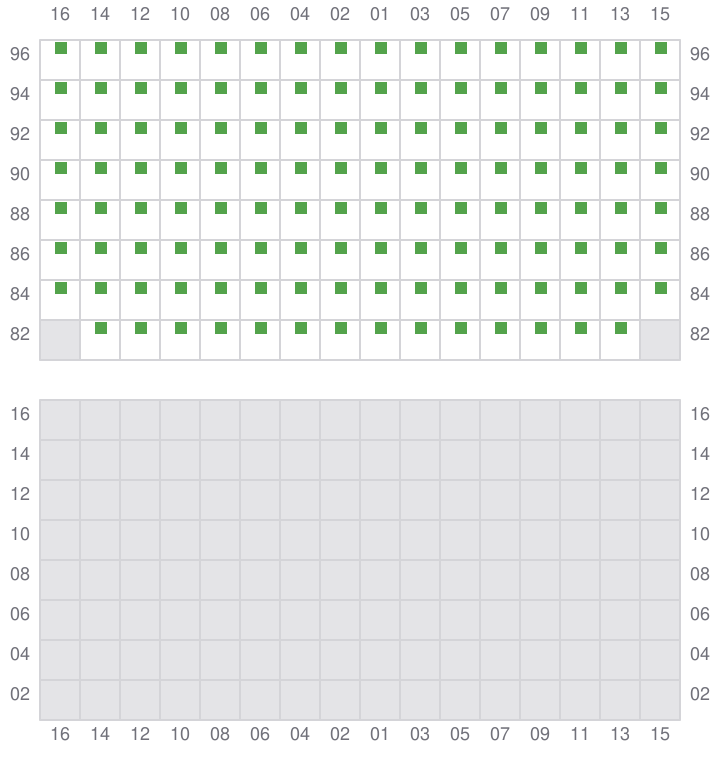

053 (054)
- → / ?
055
- ← / ?

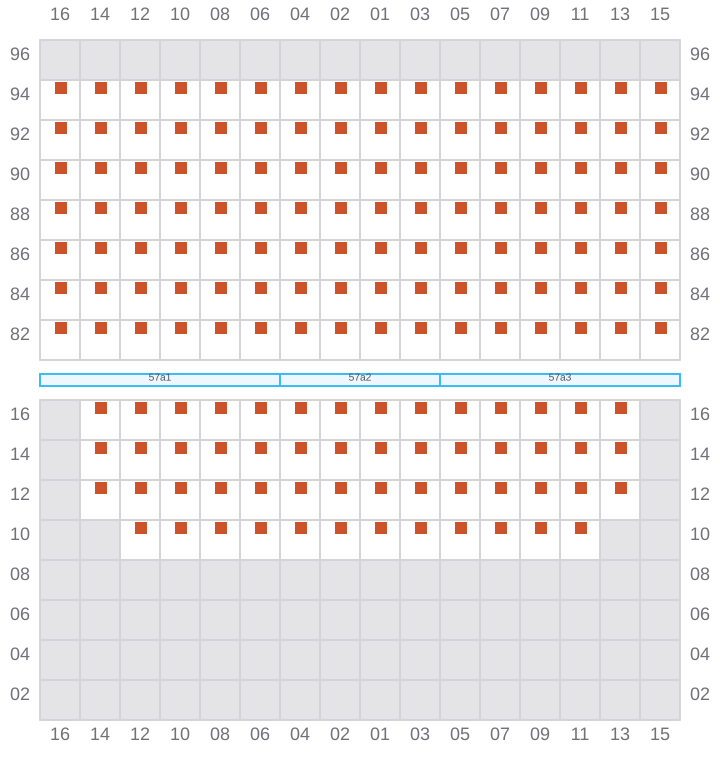

057
- →
059 (058)
- ←

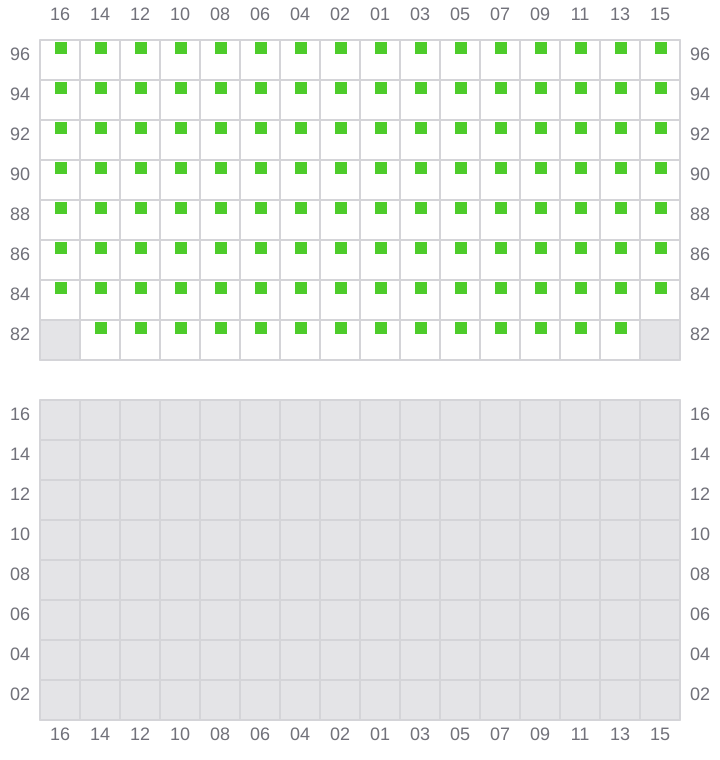

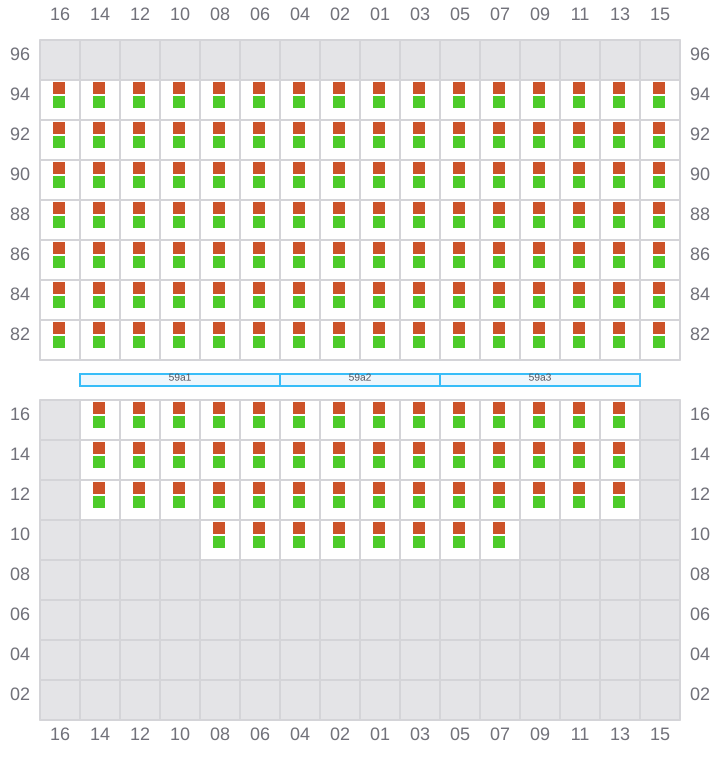

061 (062)
- → / ?

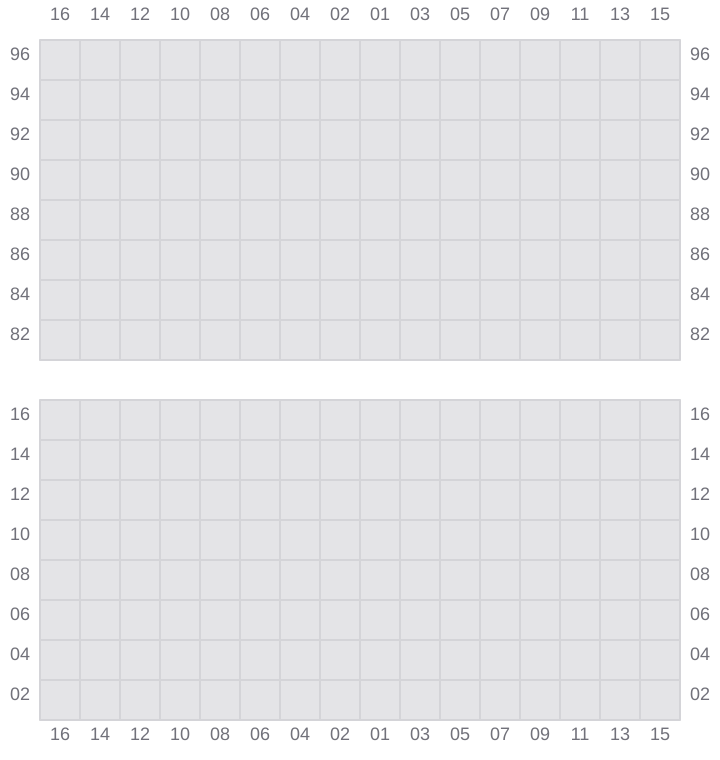

063
- ← / ?
