MSC CALYPSO
9932036 | 5LIV2 | MSC by ******************** Last update: Fri Feb 21 2025

General Info

Ship Name:MSC CALYPSO
IMO Code:9932036
Call Sign:5LIV2
Line Operator:MSC
Class Name for Sister Ships:MCYP
Year Built:2023
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):366.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,926

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC CALYPSO

Hatch-Covers View

Deck view of MSC CALYPSO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • ✓
Bay 001 view and slots of MSC CALYPSO

003 (002)

  • ←
  • ✓
Bay 003 view and slots of MSC CALYPSO

005

  • →
  • ✓
Bay 005 view and slots of MSC CALYPSO

007 (006)

  • ←
  • ✓
Bay 007 view and slots of MSC CALYPSO

009

  • →
  • ✓
Bay 009 view and slots of MSC CALYPSO

011 (010)

  • ←
  • ✓
Bay 011 view and slots of MSC CALYPSO

013

  • →
  • ✓
Bay 013 view and slots of MSC CALYPSO

015 (014)

  • ←
  • ✓
Bay 015 view and slots of MSC CALYPSO

017

  • →
  • ✓
Bay 017 view and slots of MSC CALYPSO

019 (018)

  • ←
  • ✓

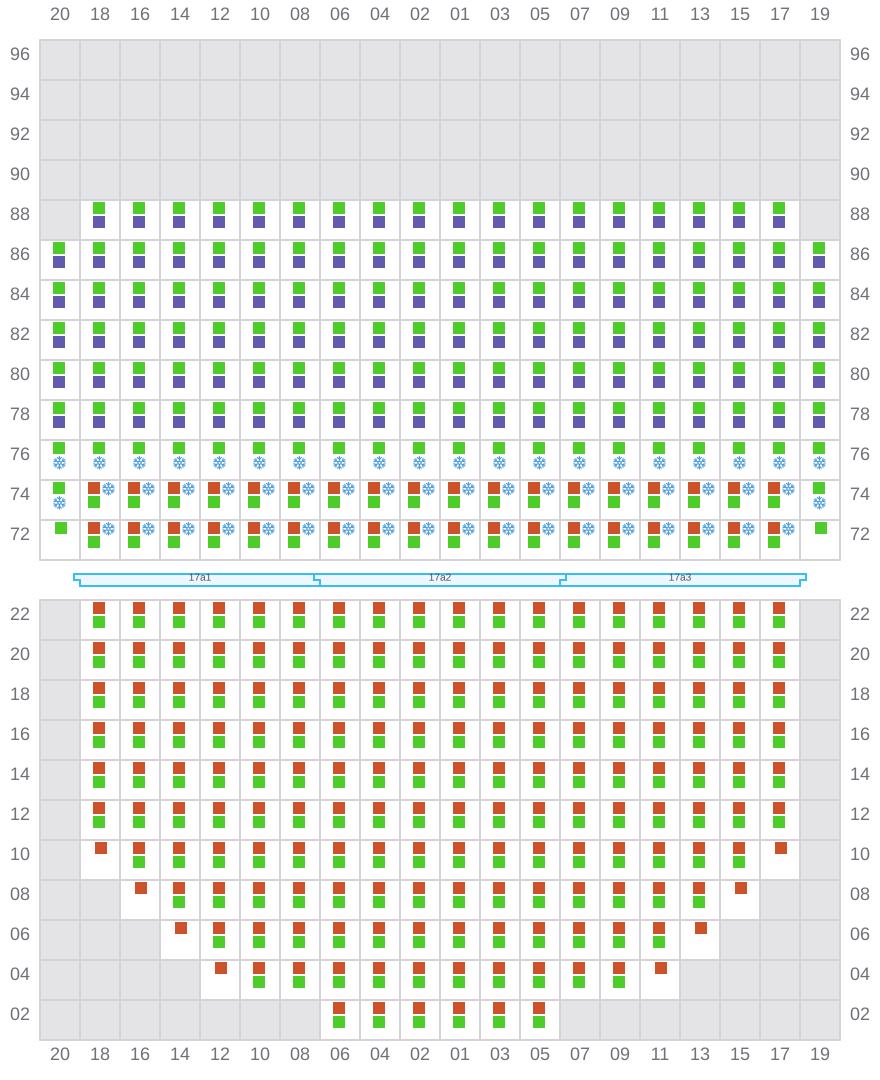

Bay 019 view and slots of MSC CALYPSO

021

  • →
  • ✓
Bay 021 view and slots of MSC CALYPSO

023 (022)

  • ←
  • ✓
Bay 023 view and slots of MSC CALYPSO

025

  • →
  • ? / ?
  • ? / ?
  • ✓

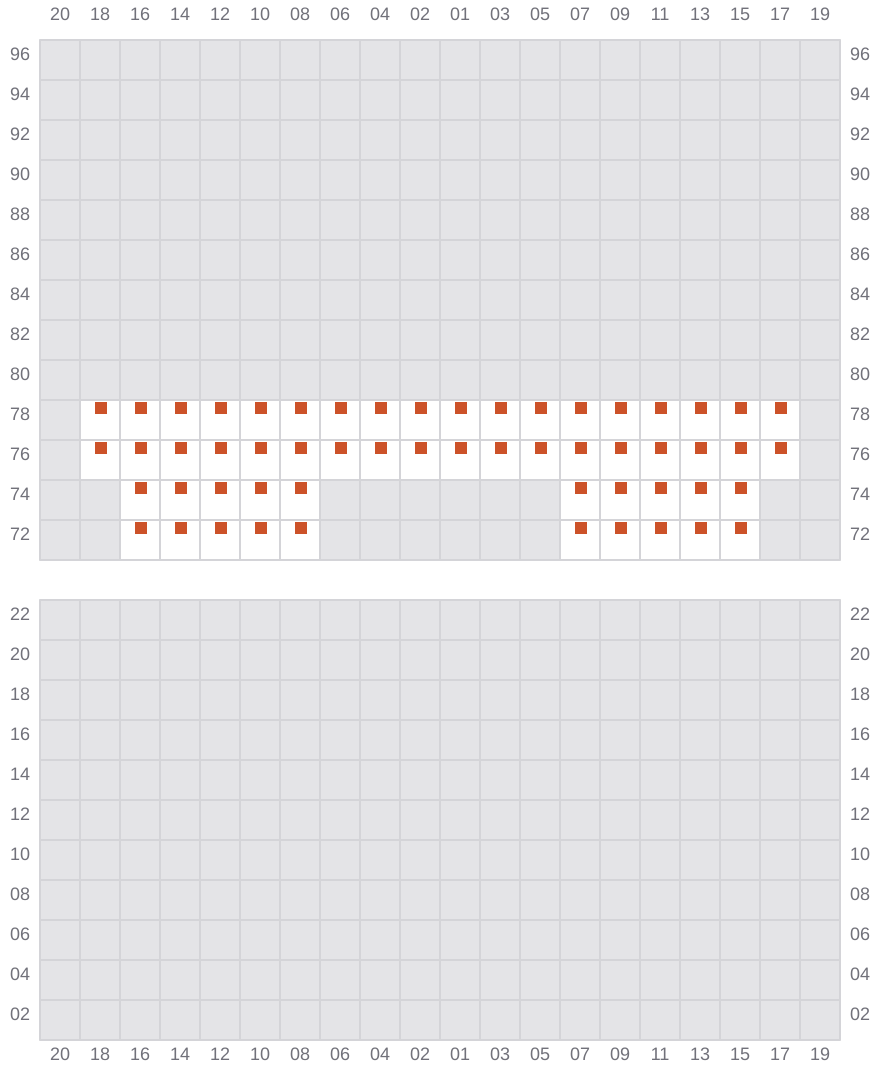

Bay 025 view and slots of MSC CALYPSO

027 (026)

  • ←
  • ? / ?
  • ? / ?
  • ✓
Bay 027 view and slots of MSC CALYPSO

029

  • →
  • ✓

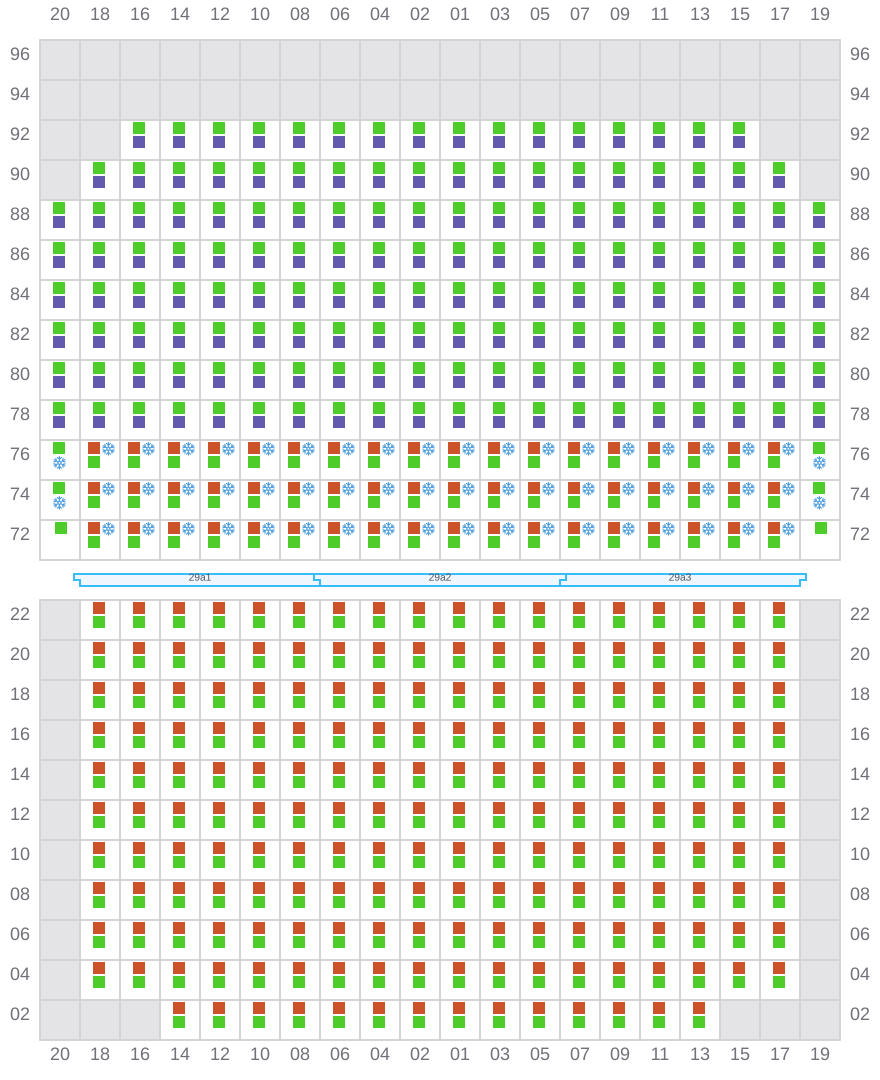

Bay 029 view and slots of MSC CALYPSO

031 (030)

  • ←
  • ✓
Bay 031 view and slots of MSC CALYPSO

033

  • →
  • ✓
Bay 033 view and slots of MSC CALYPSO

035 (034)

  • ←
  • ✓
Bay 035 view and slots of MSC CALYPSO

037

  • →
  • ✓
Bay 037 view and slots of MSC CALYPSO

039 (038)

  • ←
  • ✓
Bay 039 view and slots of MSC CALYPSO

041

  • →
  • ✓
Bay 041 view and slots of MSC CALYPSO

043 (042)

  • ←
  • ✓

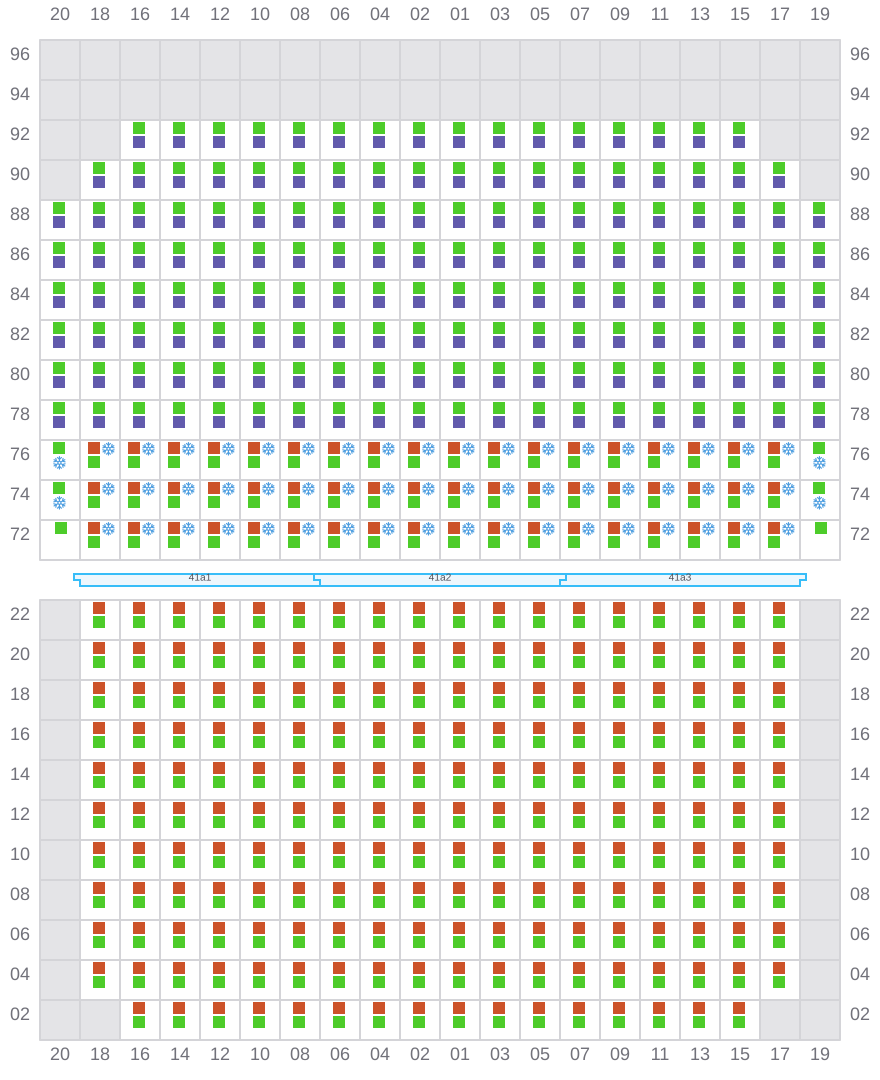

Bay 043 view and slots of MSC CALYPSO

045

  • →
  • ✓
Bay 045 view and slots of MSC CALYPSO

047 (046)

  • ←
  • ✓
Bay 047 view and slots of MSC CALYPSO

049

  • →
  • ✓
Bay 049 view and slots of MSC CALYPSO

051 (050)

  • ←
  • ✓

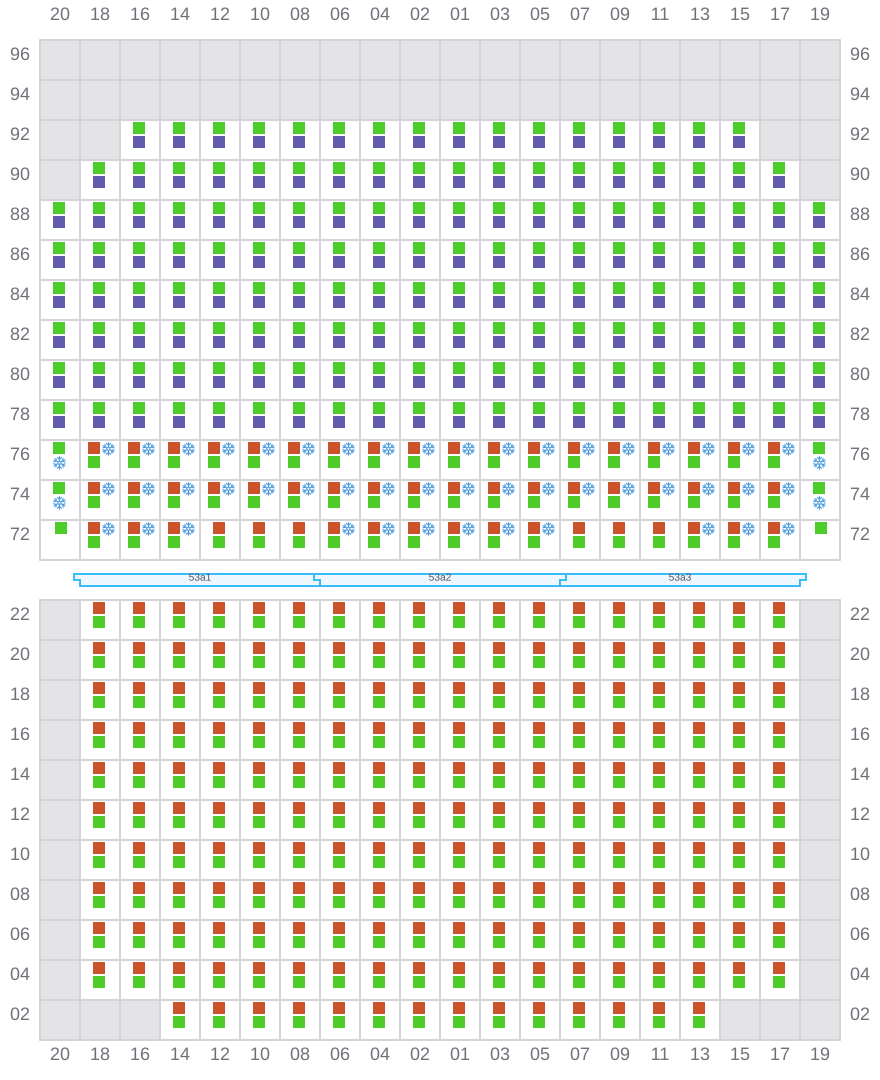

Bay 051 view and slots of MSC CALYPSO

053

  • →
  • ✓
Bay 053 view and slots of MSC CALYPSO

055 (054)

  • ←
  • ✓
Bay 055 view and slots of MSC CALYPSO

057

  • →
  • ✓
Bay 057 view and slots of MSC CALYPSO

059 (058)

  • ←
  • ✓
Bay 059 view and slots of MSC CALYPSO

061

  • →
  • ✓
Bay 061 view and slots of MSC CALYPSO

063 (062)

  • ←
  • ✓
Bay 063 view and slots of MSC CALYPSO

065

  • →
  • ✓

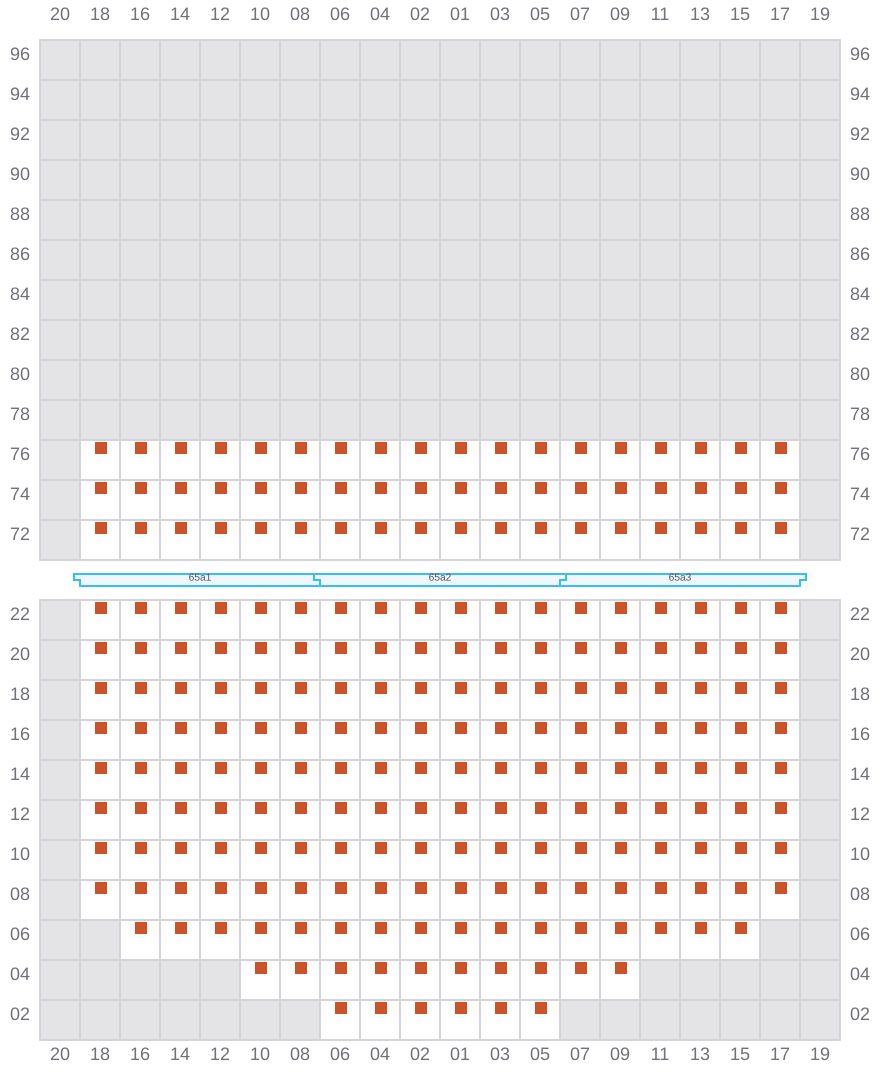

Bay 065 view and slots of MSC CALYPSO

067 (066)

  • ←
  • ✓
Bay 067 view and slots of MSC CALYPSO

069

  • →
  • ✓
Bay 069 view and slots of MSC CALYPSO

071 (070)

  • ←
  • ✓

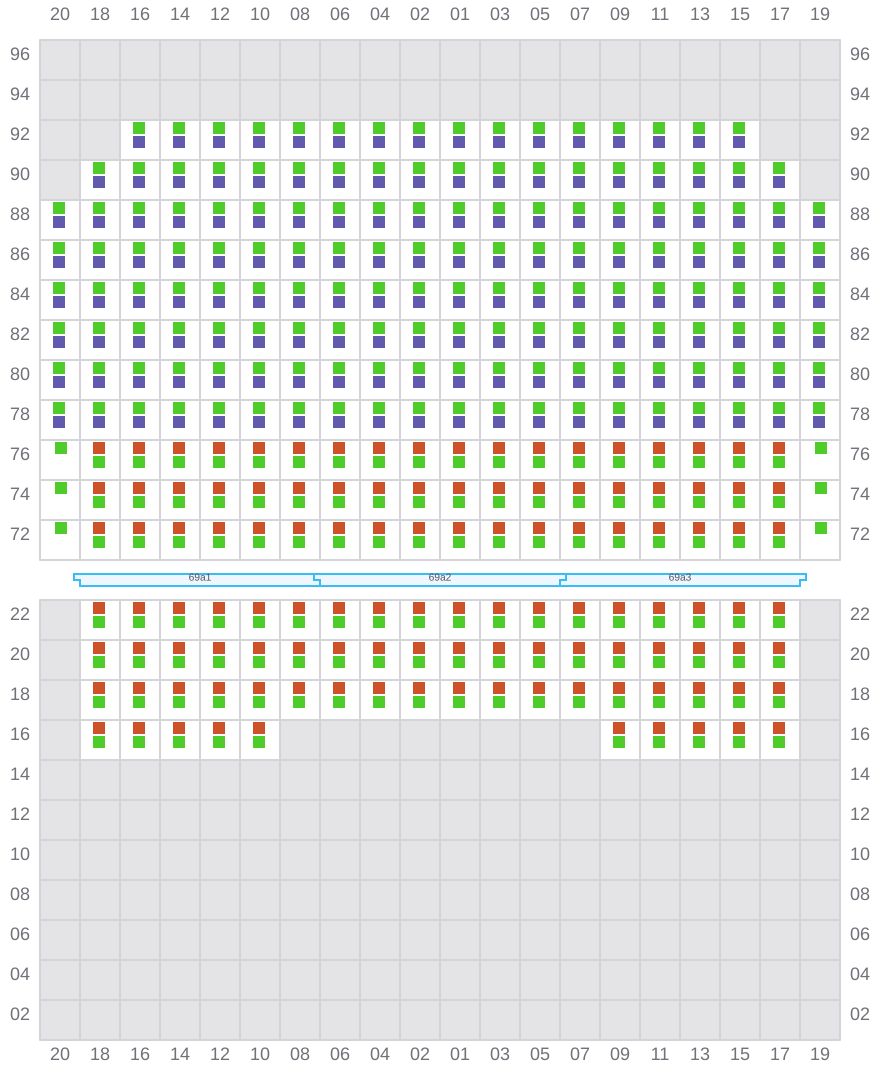

Bay 071 view and slots of MSC CALYPSO

073

  • →
  • ✓
Bay 073 view and slots of MSC CALYPSO

075 (074)

  • ←
  • ✓
Bay 075 view and slots of MSC CALYPSO

077

  • →
  • ✓
Bay 077 view and slots of MSC CALYPSO

079 (078)

  • ←
  • ✓

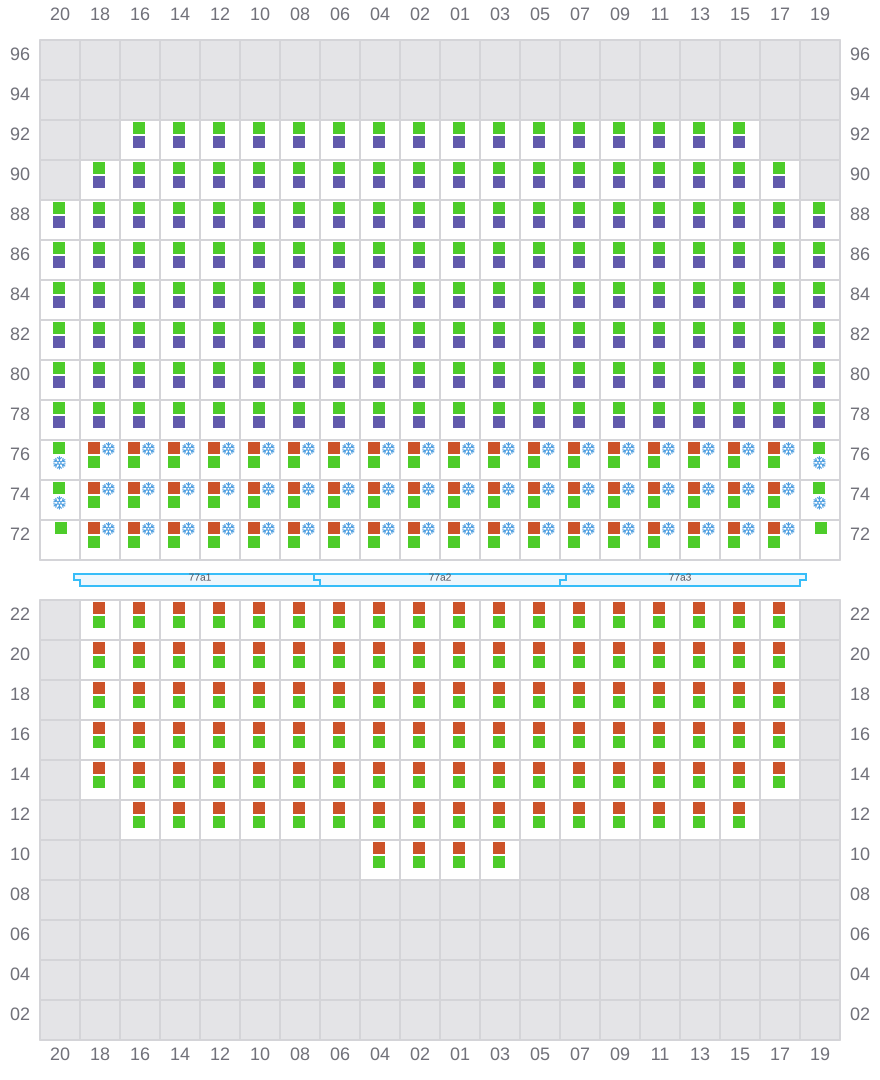

Bay 079 view and slots of MSC CALYPSO

081

  • →
  • ✓

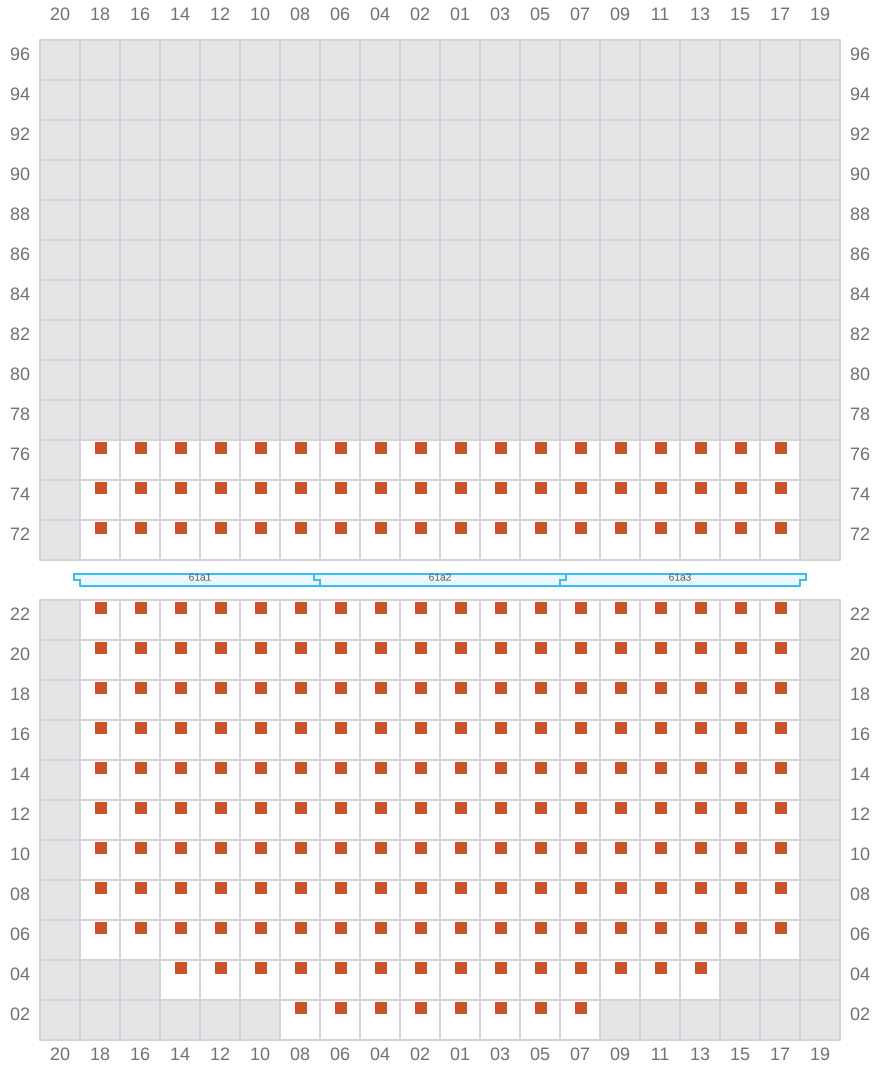

Bay 081 view and slots of MSC CALYPSO

083 (082)

  • ←
  • ✓
Bay 083 view and slots of MSC CALYPSO

085

  • →
  • ? / ?
  • ? / ?
  • ✓

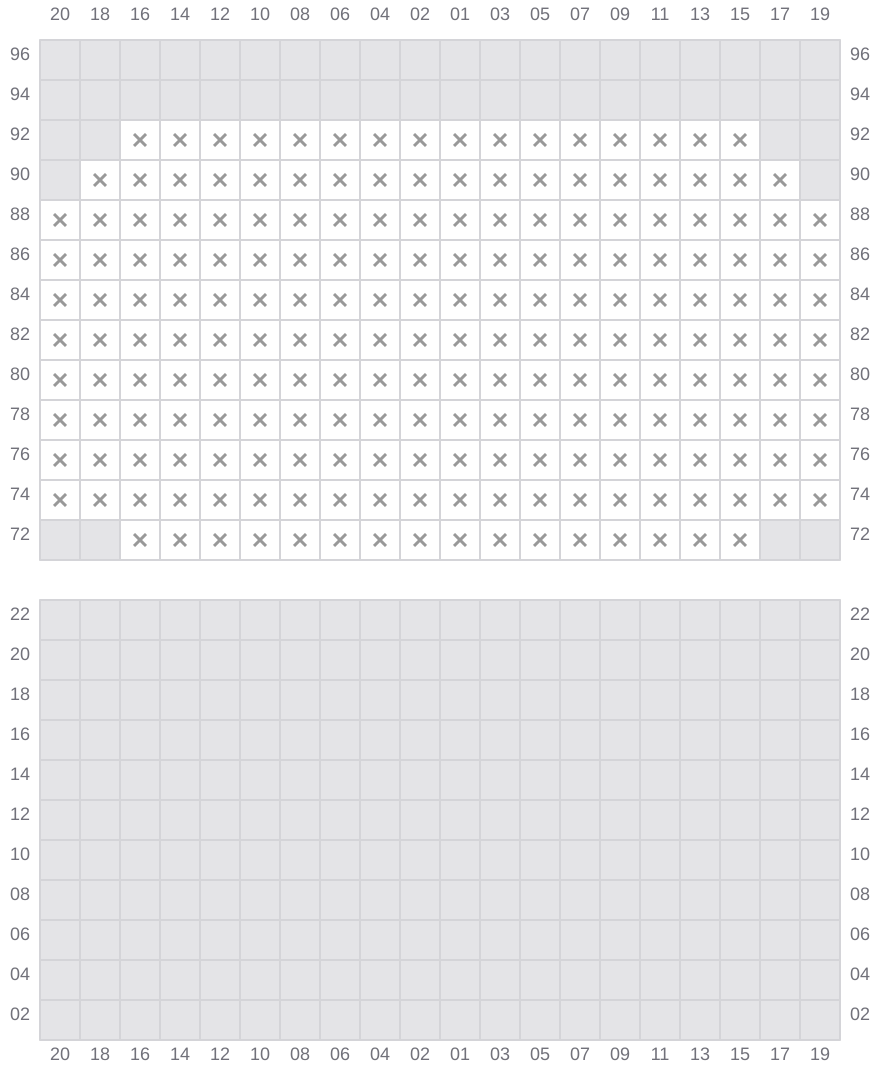

Bay 085 view and slots of MSC CALYPSO

087 (086)

  • ←
  • ✓

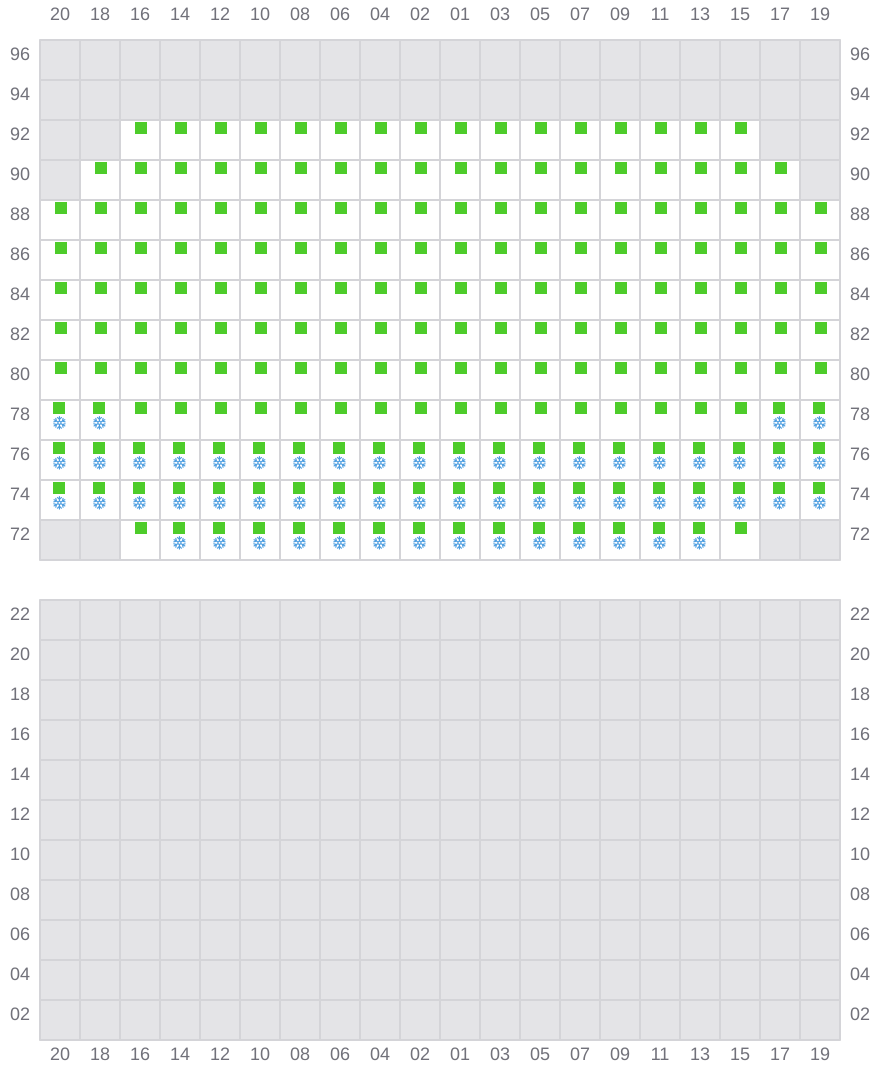

Bay 087 view and slots of MSC CALYPSO
