MSC CANCUN
9403396 | A8TR4 | 9403396 by ********* Last update: Thu May 02 2024
General Info
Ship Name:MSC CANCUN
IMO Code:9403396
Call Sign:A8TR4
Line Operator:9403396
Class Name for Sister Ships:ZIM UKRAYINA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):246.69
LOA (Length Overall):258.91
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,347
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

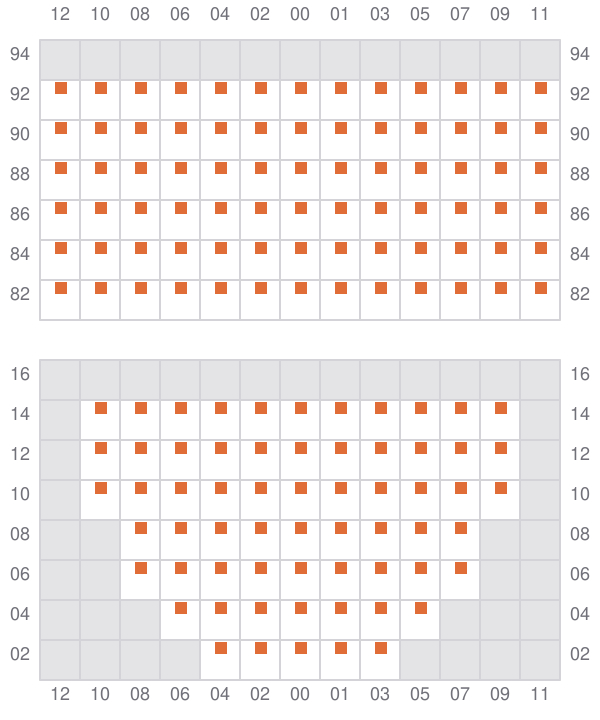

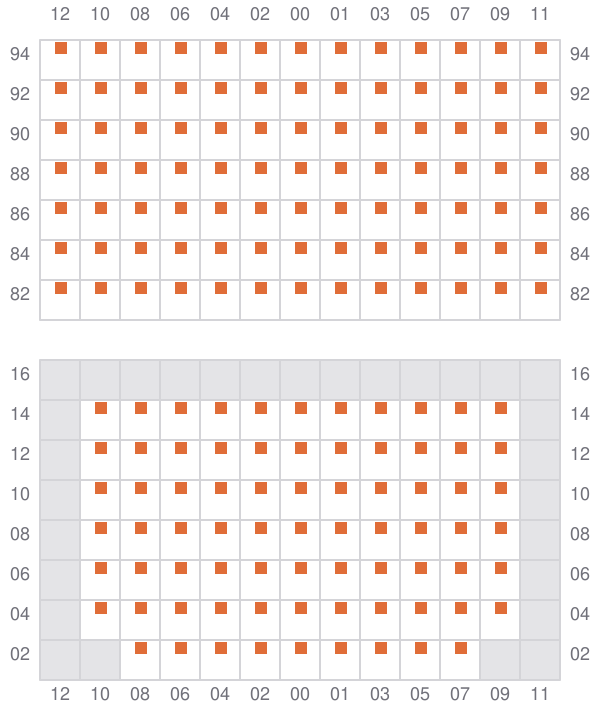

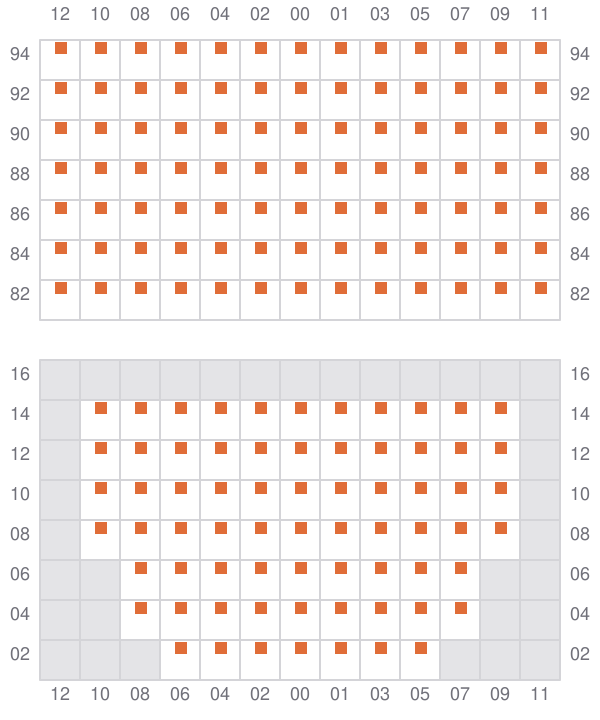

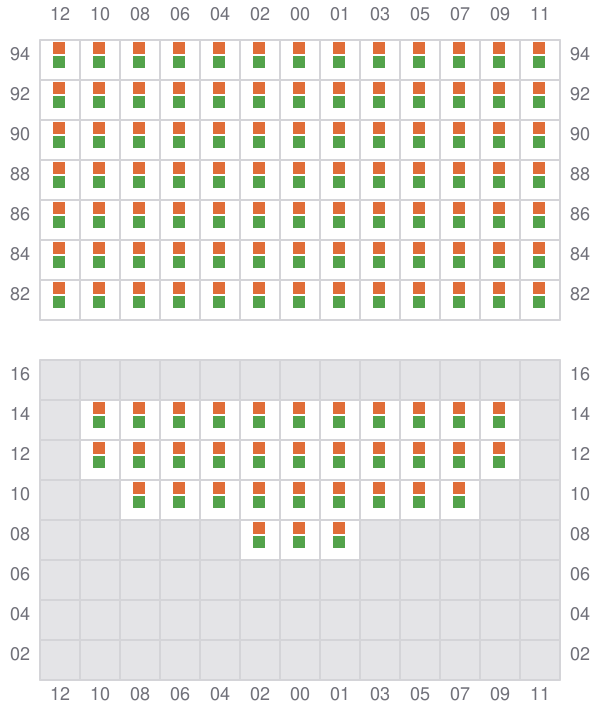

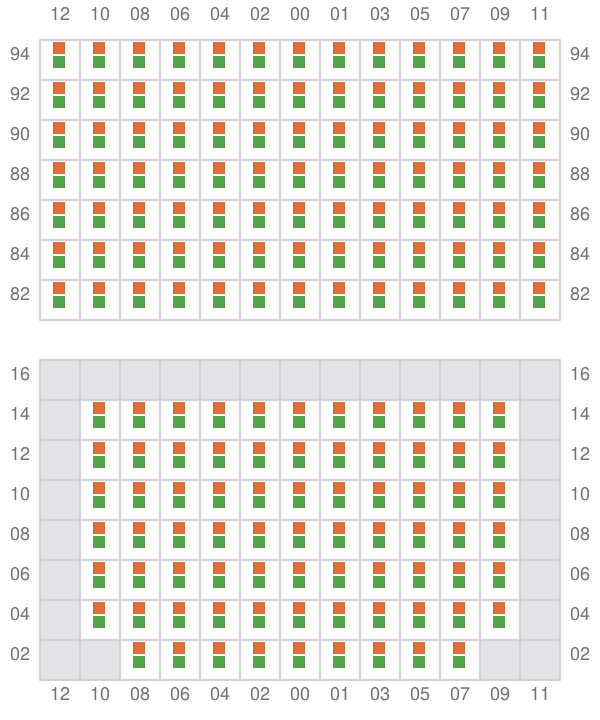

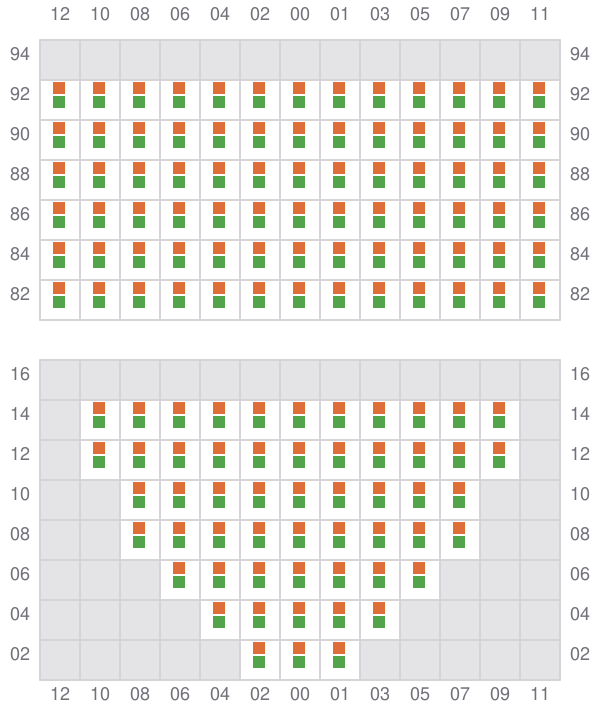

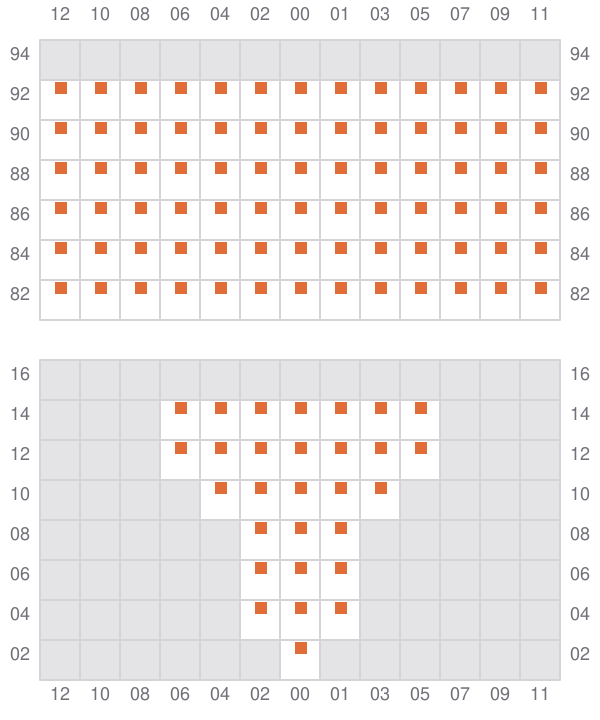

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

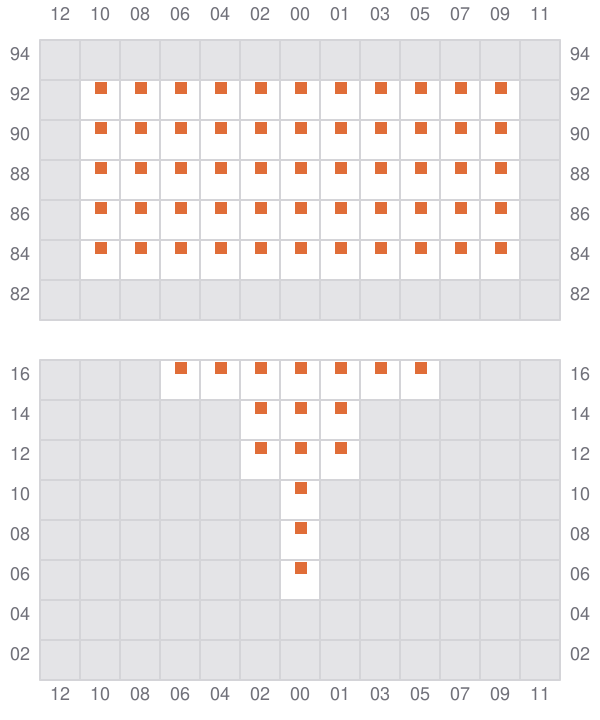

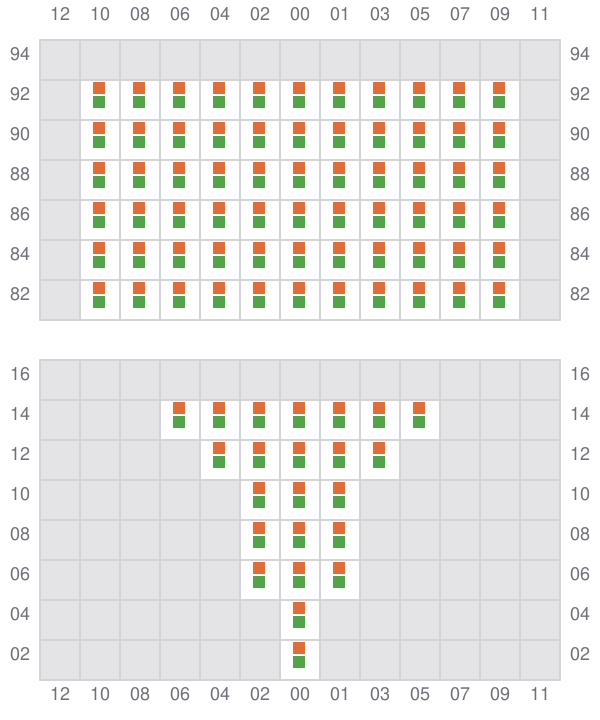

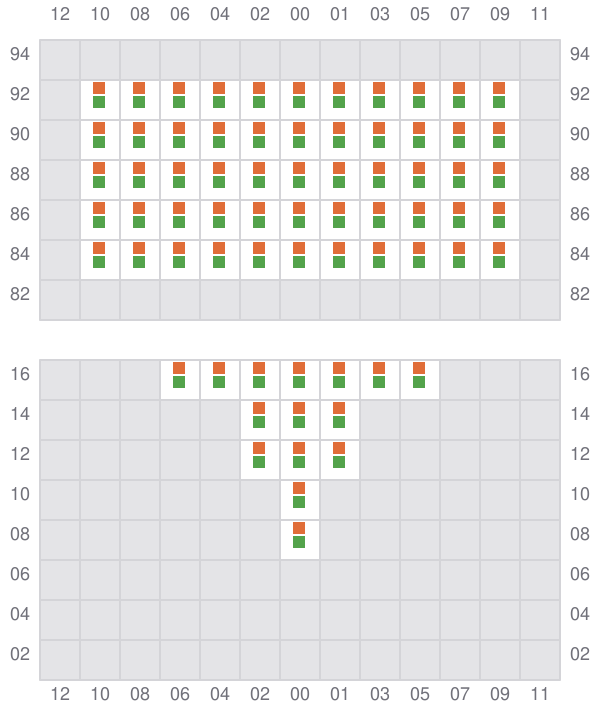

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←

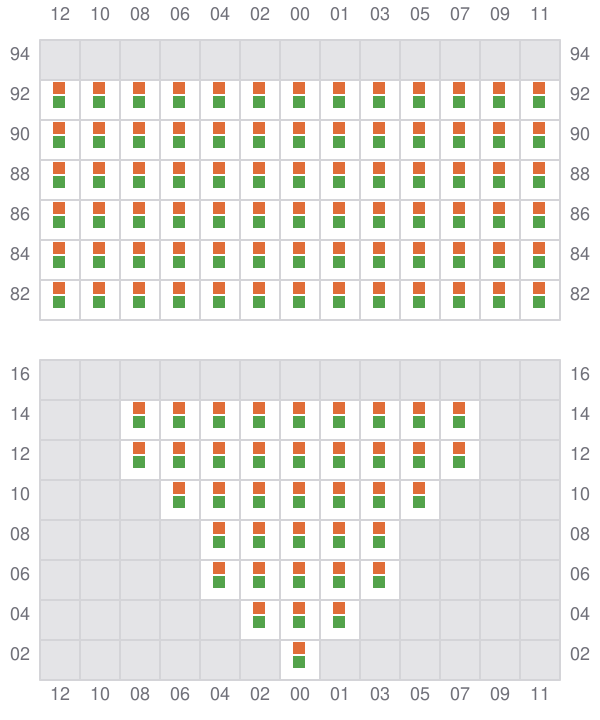

009 (010)
- →
011
- ←
013 (014)
- →
015
- ←

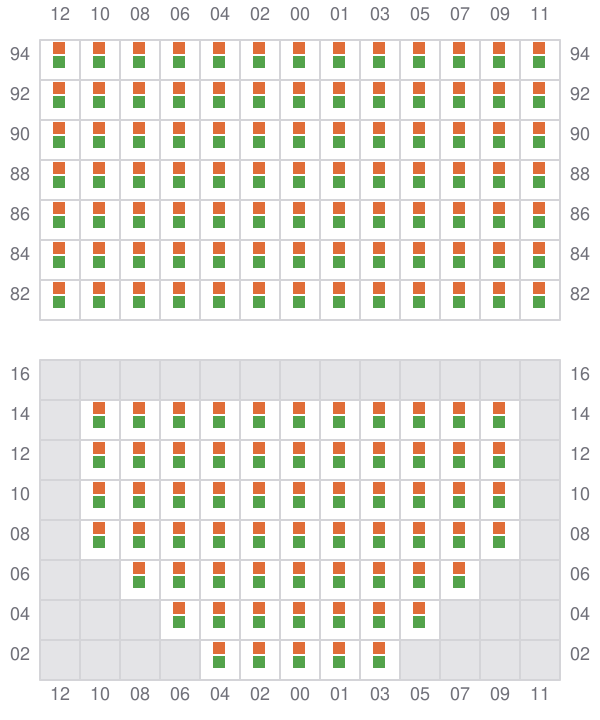

017 (018)
- →
019
- ←
021 (022)
- →

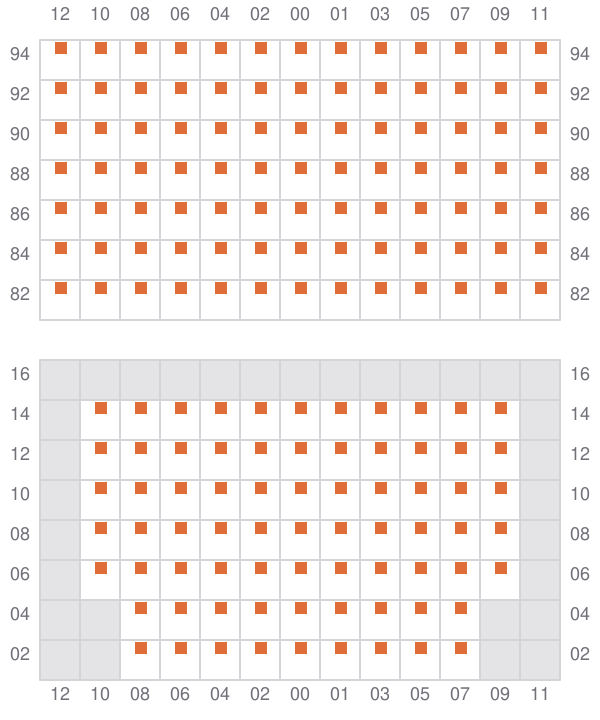

023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →
043
- ←

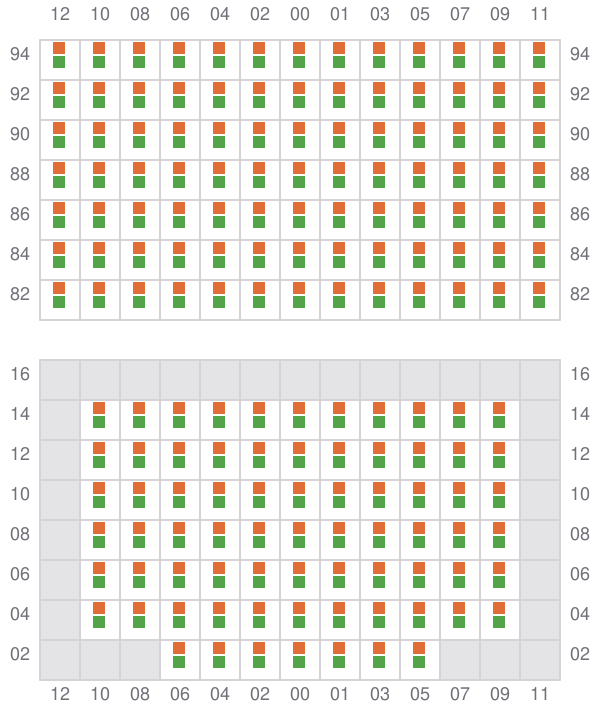

045 (046)
- →
047
- ←
049 (050)
- → / ?
051

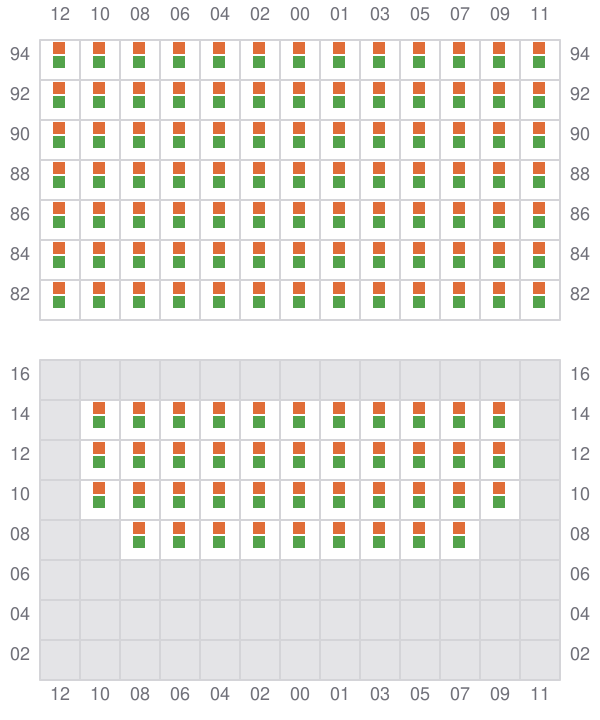

053 (054)
- →
055
- ←
057 (058)
- →

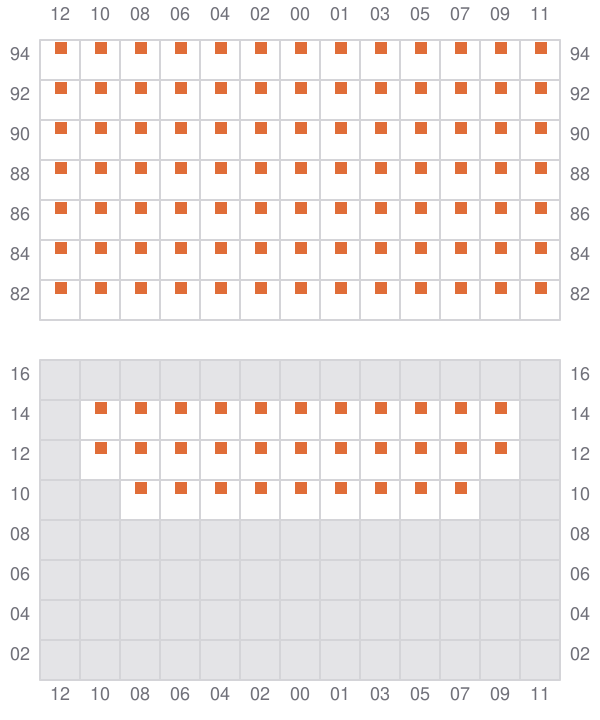

059
- ←

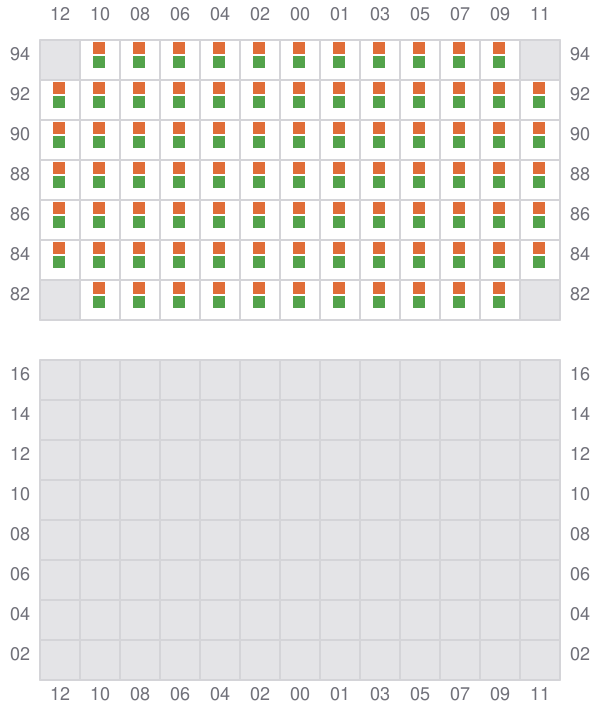

061 (062)
- → / ?
