MSC CAPETOWN III
9311737 | CRYB | 9311737 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MSC CAPETOWN III
IMO Code:9311737
Call Sign:CRYB
Line Operator:9311737
Class Name for Sister Ships:09R
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,822

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

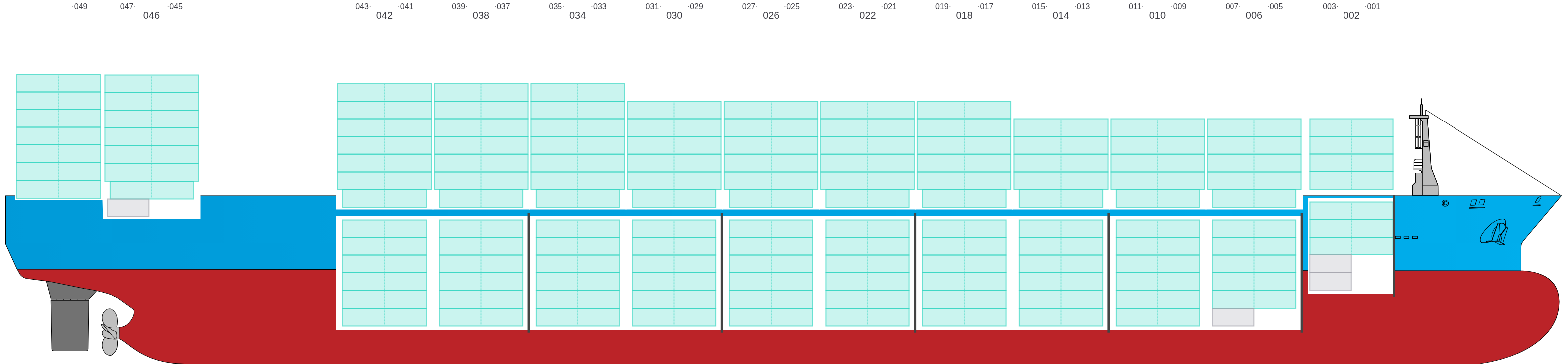

Side view of MSC CAPETOWN III

Hatch-Covers View

Deck view of MSC CAPETOWN III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • ← / ?

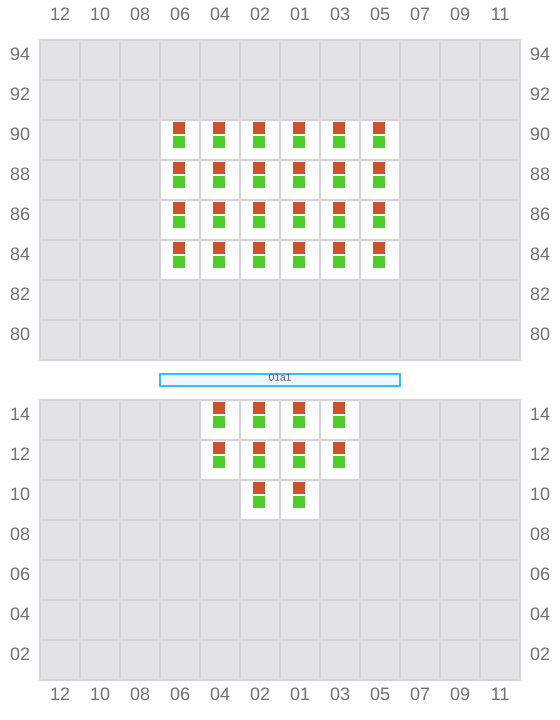

Bay 001 view and slots of MSC CAPETOWN III

003

  • ←
  • ← / ?

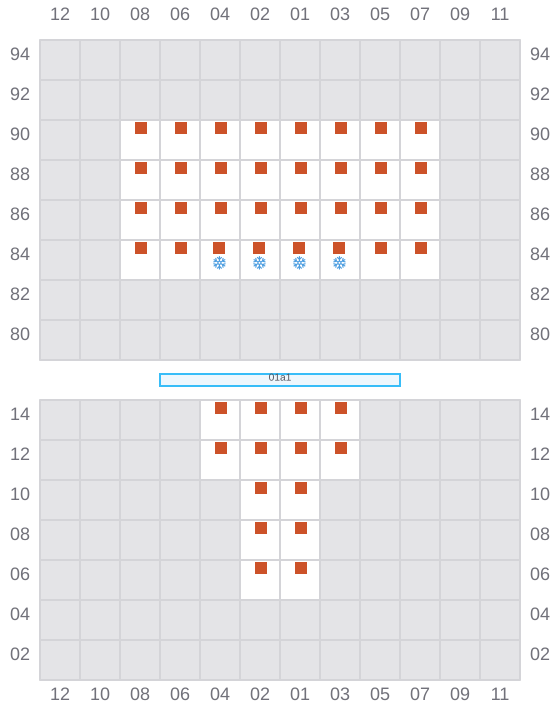

Bay 003 view and slots of MSC CAPETOWN III

005 (006)

  • →
  • ← / ?

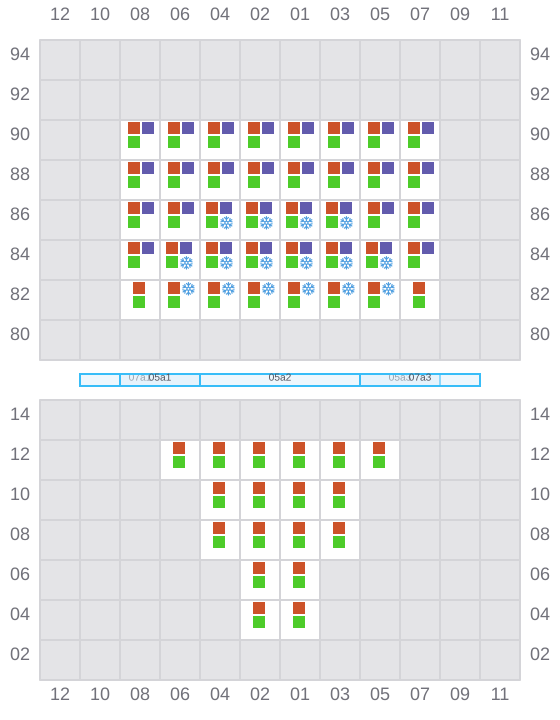

Bay 005 view and slots of MSC CAPETOWN III

007

  • ←
  • → / ?

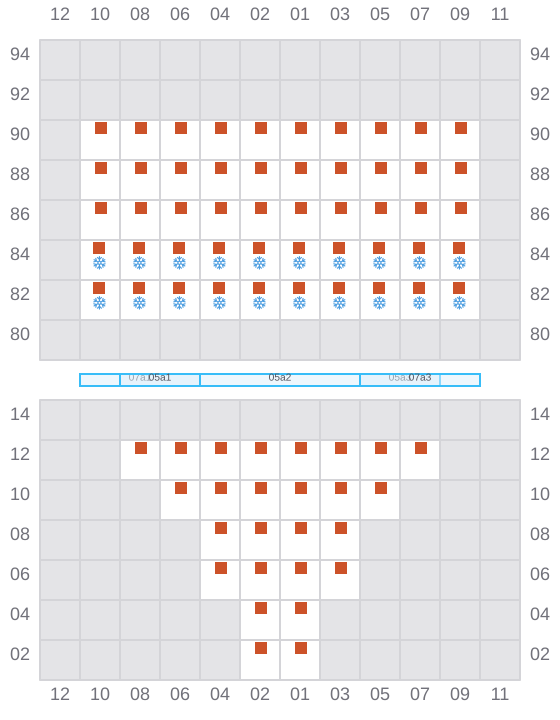

Bay 007 view and slots of MSC CAPETOWN III

009 (010)

  • →
  • ← / ?

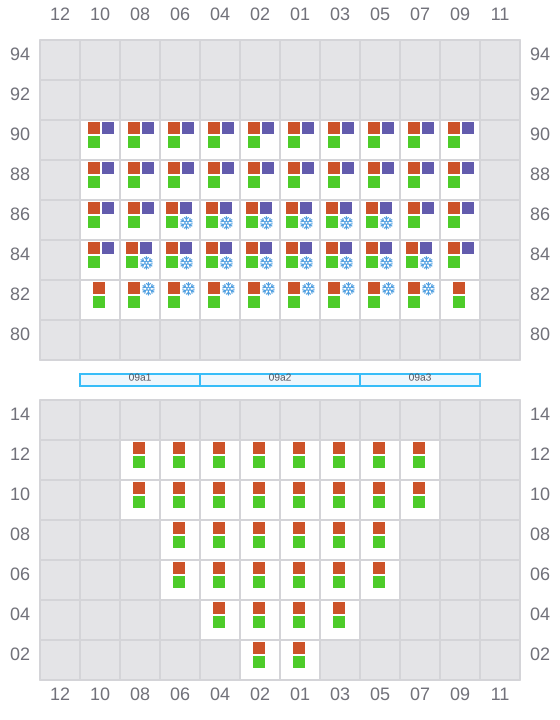

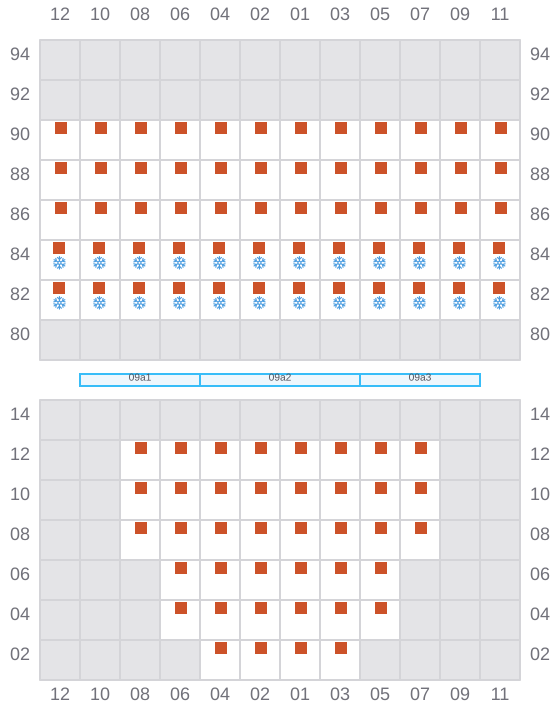

Bay 009 view and slots of MSC CAPETOWN III

011

  • ←
  • → / ?
Bay 011 view and slots of MSC CAPETOWN III

013 (014)

  • →
  • → / ?
Bay 013 view and slots of MSC CAPETOWN III

015

  • ←
  • →

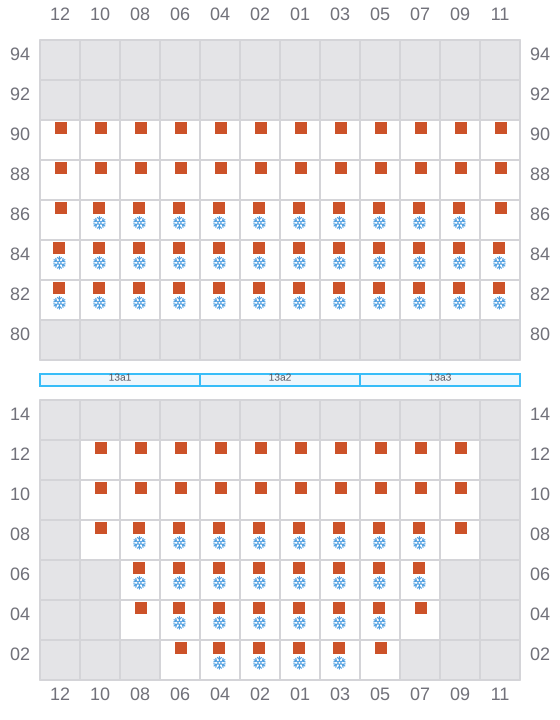

Bay 015 view and slots of MSC CAPETOWN III

017 (018)

  • →

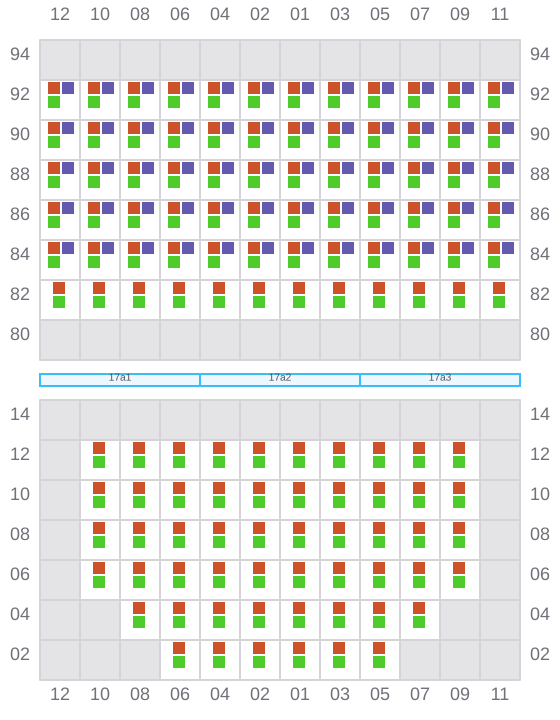

Bay 017 view and slots of MSC CAPETOWN III

019

  • ←
  • →

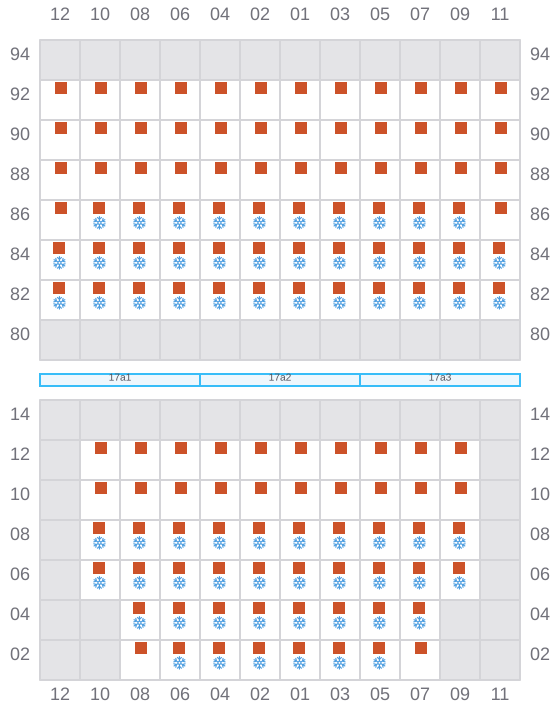

Bay 019 view and slots of MSC CAPETOWN III

021 (022)

  • →
Bay 021 view and slots of MSC CAPETOWN III

023

  • ←
  • →

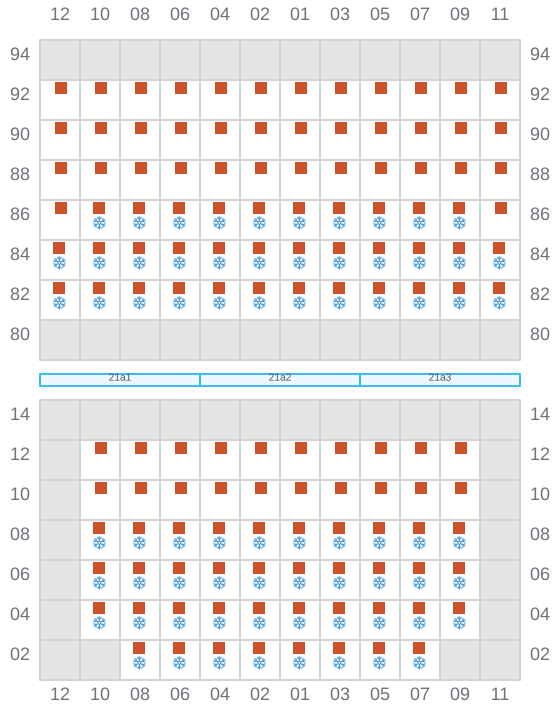

Bay 023 view and slots of MSC CAPETOWN III

025 (026)

  • →
Bay 025 view and slots of MSC CAPETOWN III

027

  • ←
  • →
Bay 027 view and slots of MSC CAPETOWN III

029 (030)

  • →

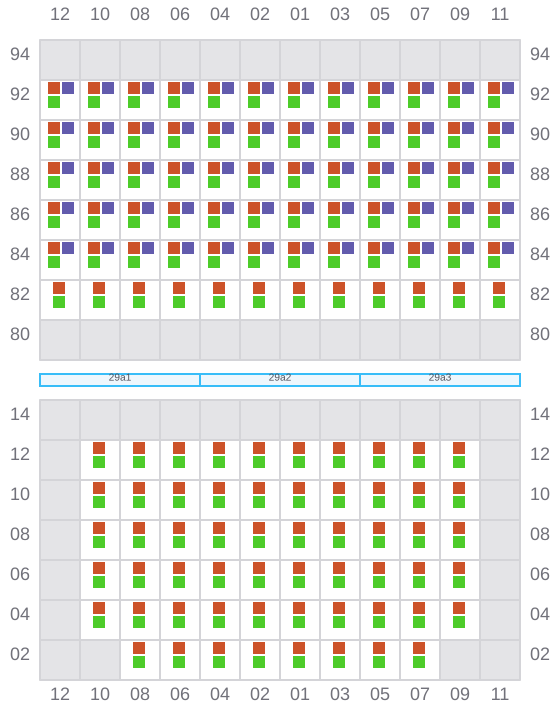

Bay 029 view and slots of MSC CAPETOWN III

031

  • ←
  • →
Bay 031 view and slots of MSC CAPETOWN III

033 (034)

  • →
Bay 033 view and slots of MSC CAPETOWN III

035

  • ←
  • → / ?

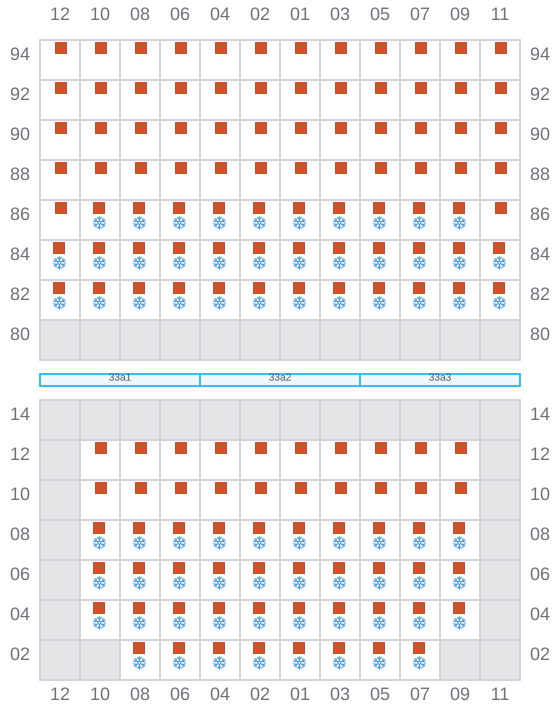

Bay 035 view and slots of MSC CAPETOWN III

037 (038)

  • →

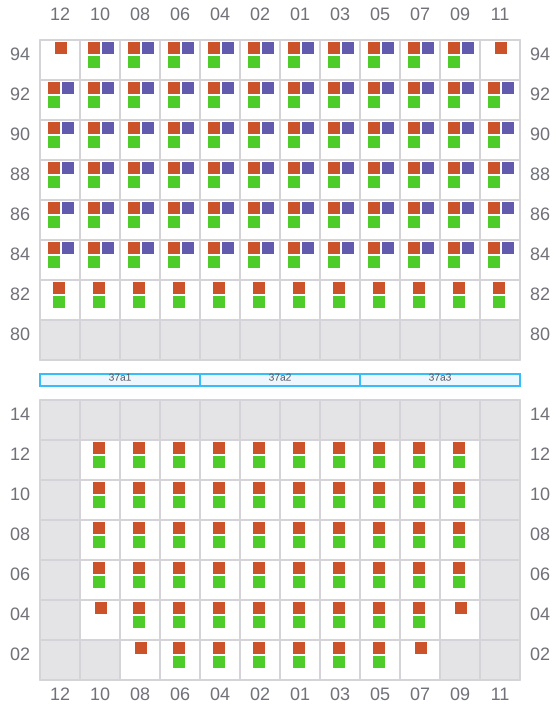

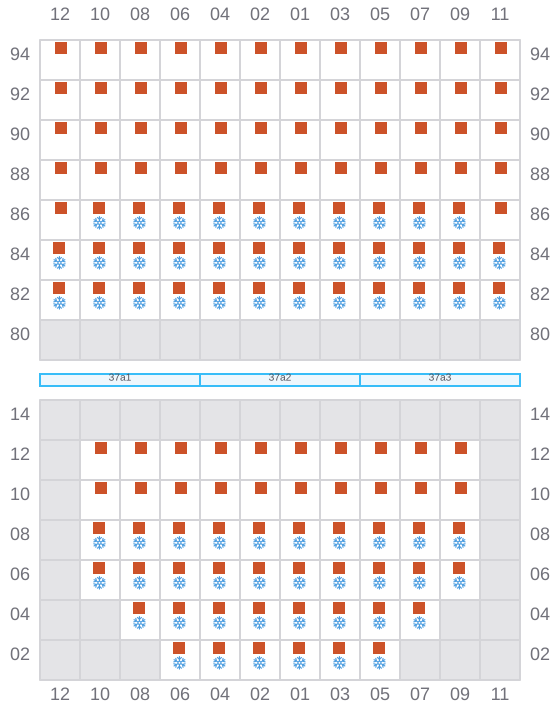

Bay 037 view and slots of MSC CAPETOWN III

039

  • ←
  • →
Bay 039 view and slots of MSC CAPETOWN III

041 (042)

  • →
  • ← / ?

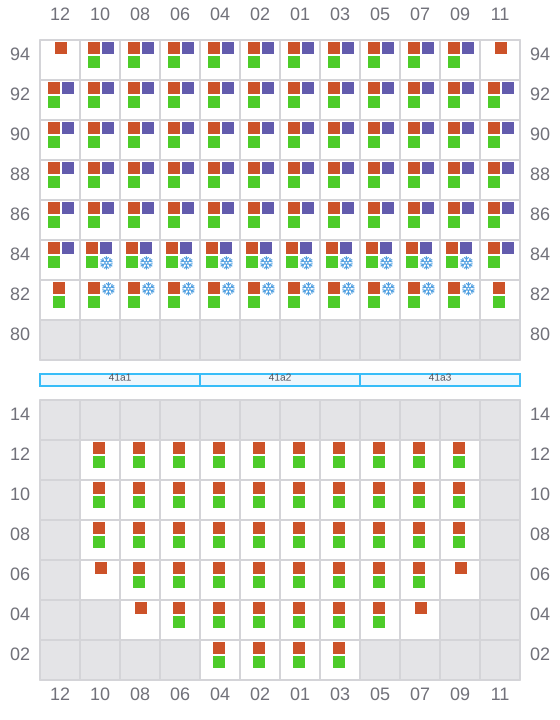

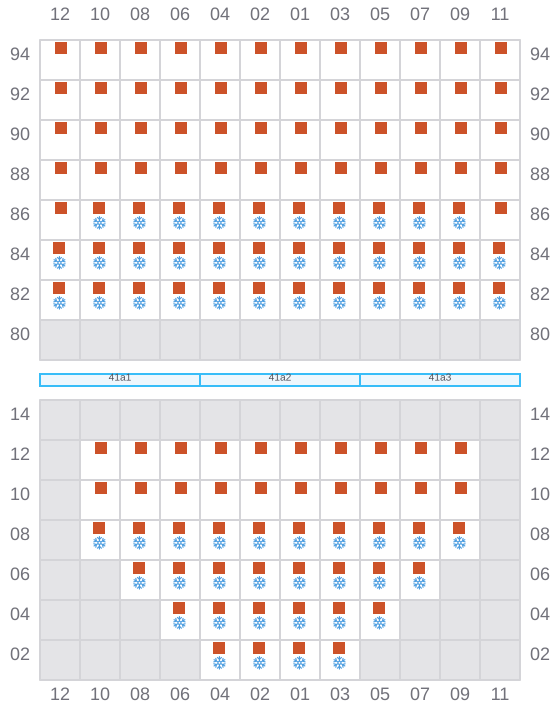

Bay 041 view and slots of MSC CAPETOWN III

043

  • ←
  • →
Bay 043 view and slots of MSC CAPETOWN III

045 (046)

  • → / ?
  • ← / ?

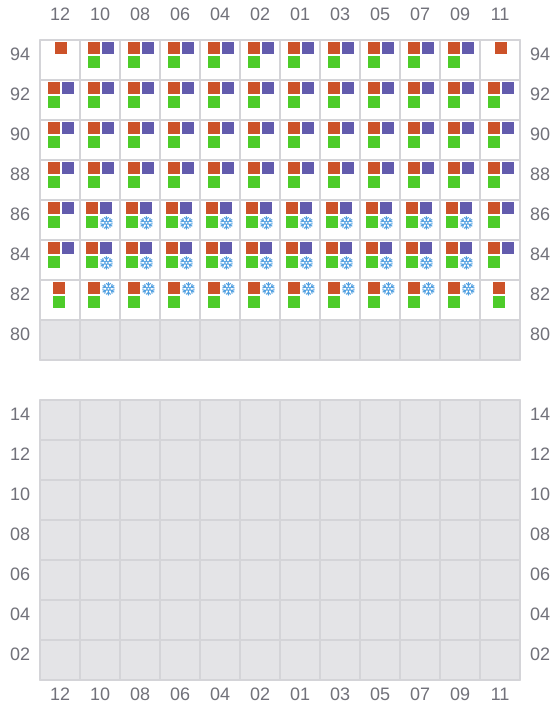

Bay 045 view and slots of MSC CAPETOWN III

047

  • ← / ?
  • → / ?

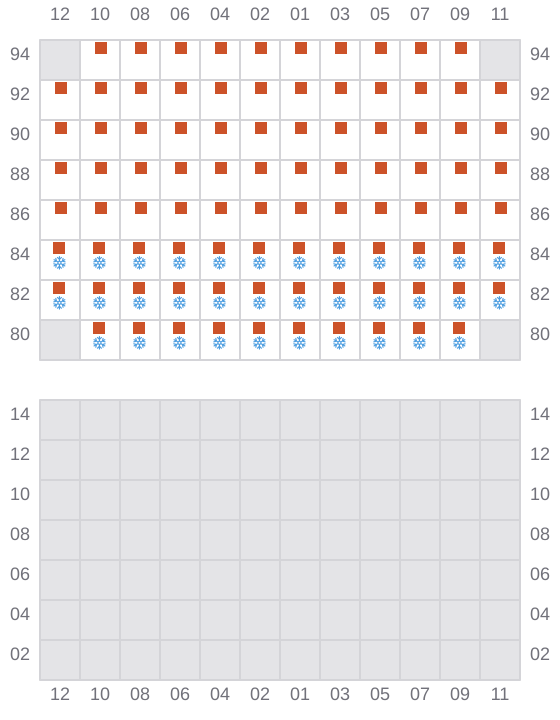

Bay 047 view and slots of MSC CAPETOWN III

049 (050)

  • → / ?
  • ← / ?

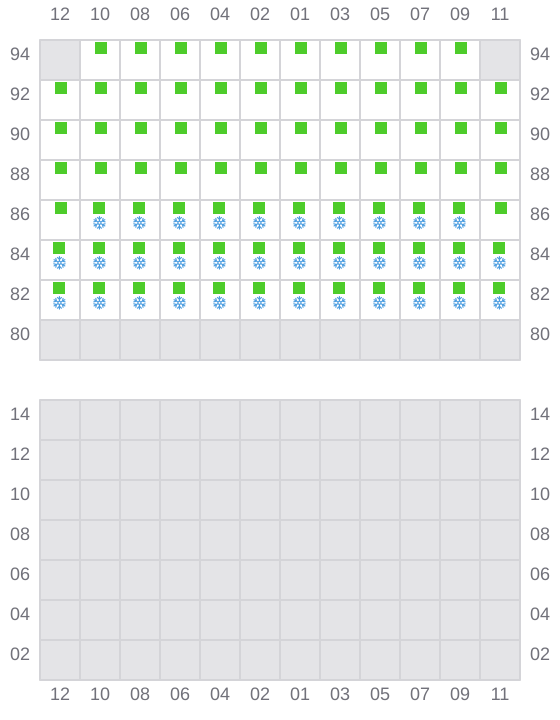

Bay 049 view and slots of MSC CAPETOWN III
