MSC CHANNE
9710438 | CQZK | MSC by ************************** Last update: Sat Jun 17 2023
General Info
Ship Name:MSC CHANNE
IMO Code:9710438
Call Sign:CQZK
Line Operator:MSC
Class Name for Sister Ships:MCCN
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,831
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

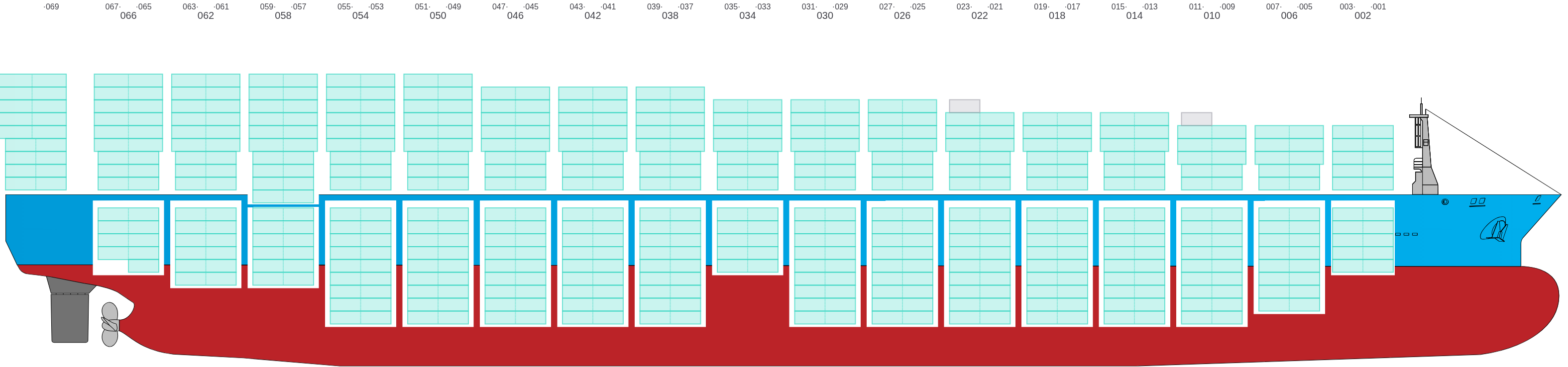

Side View
Hatch-Covers View

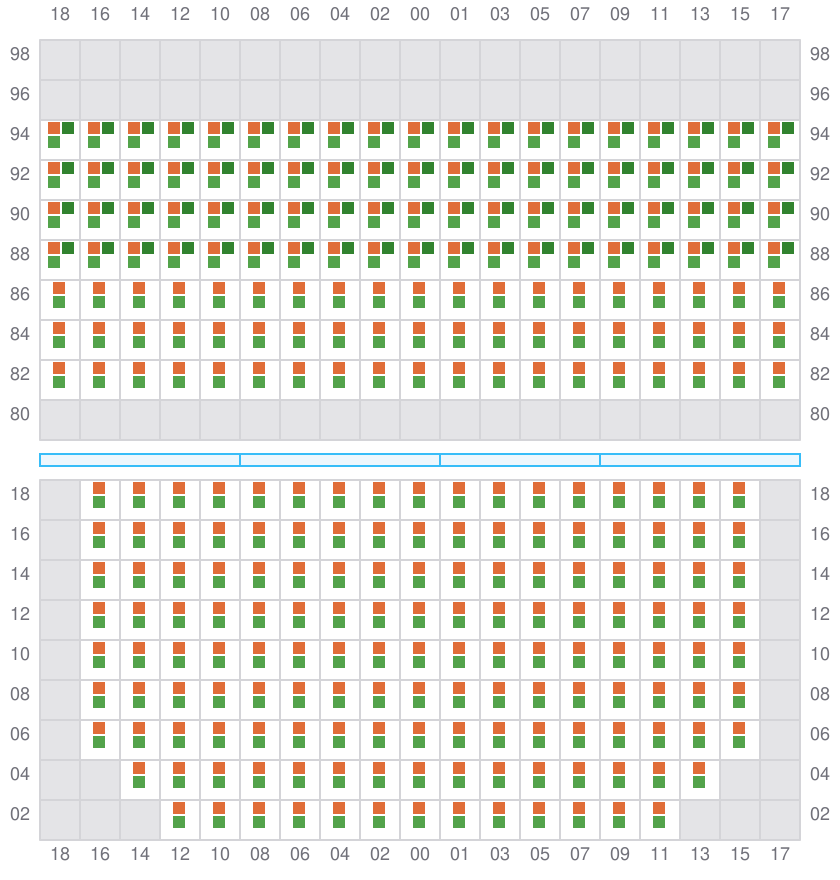

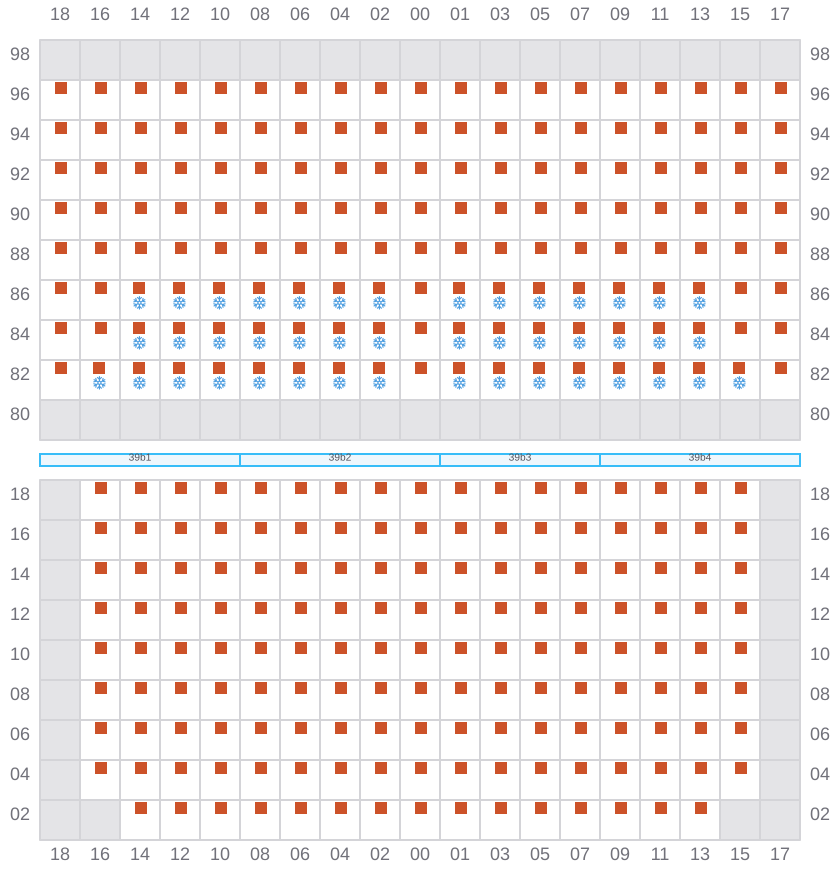

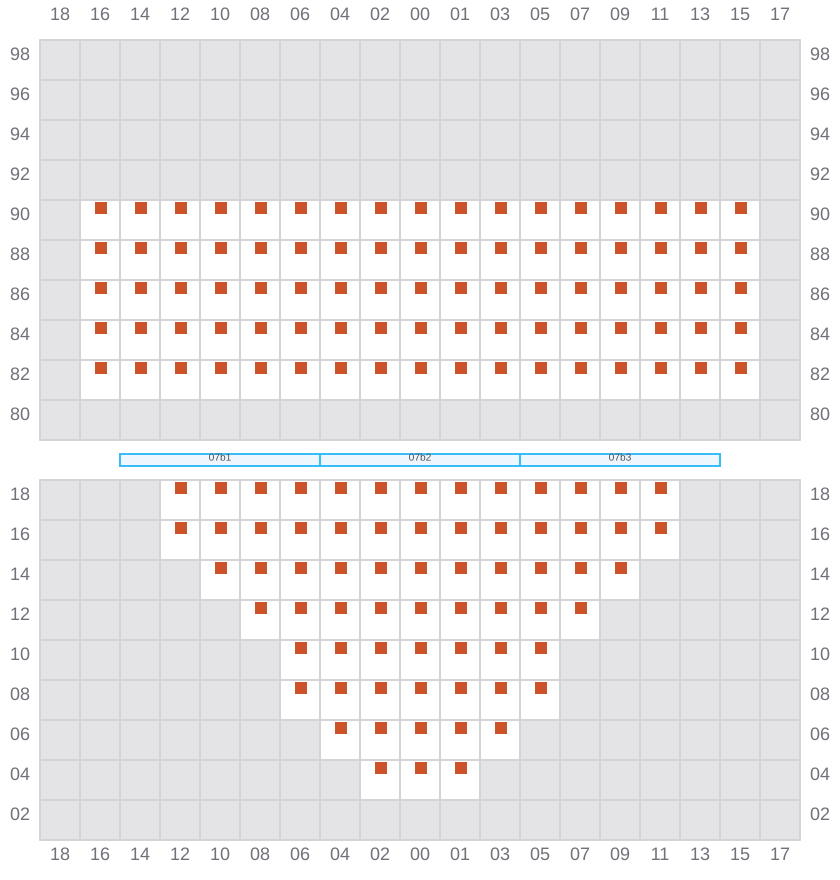

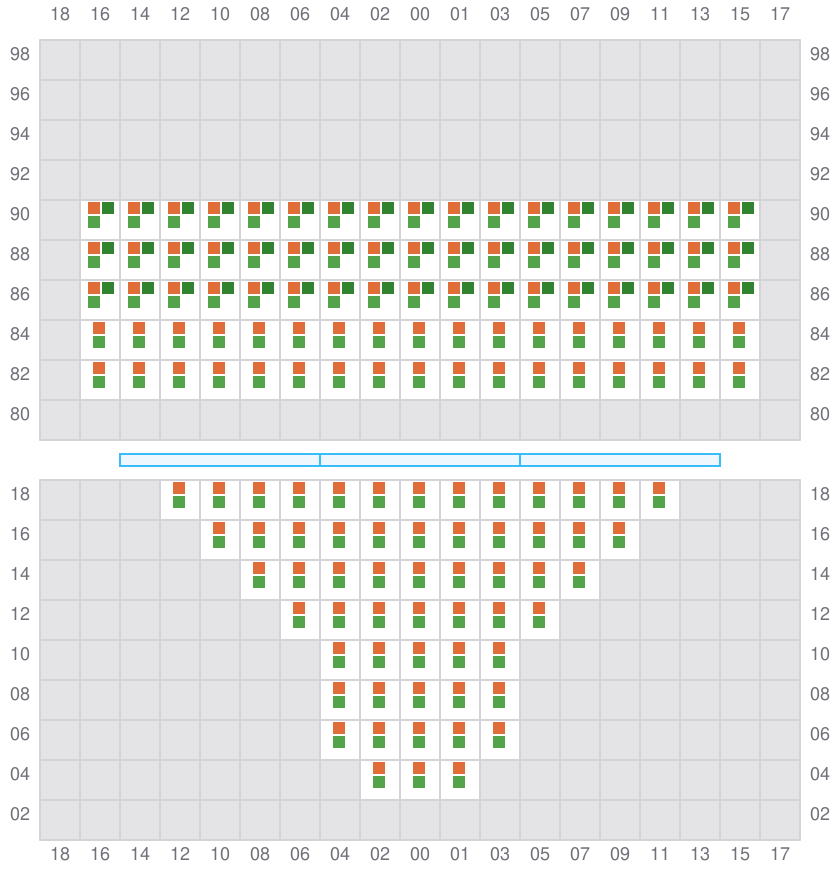

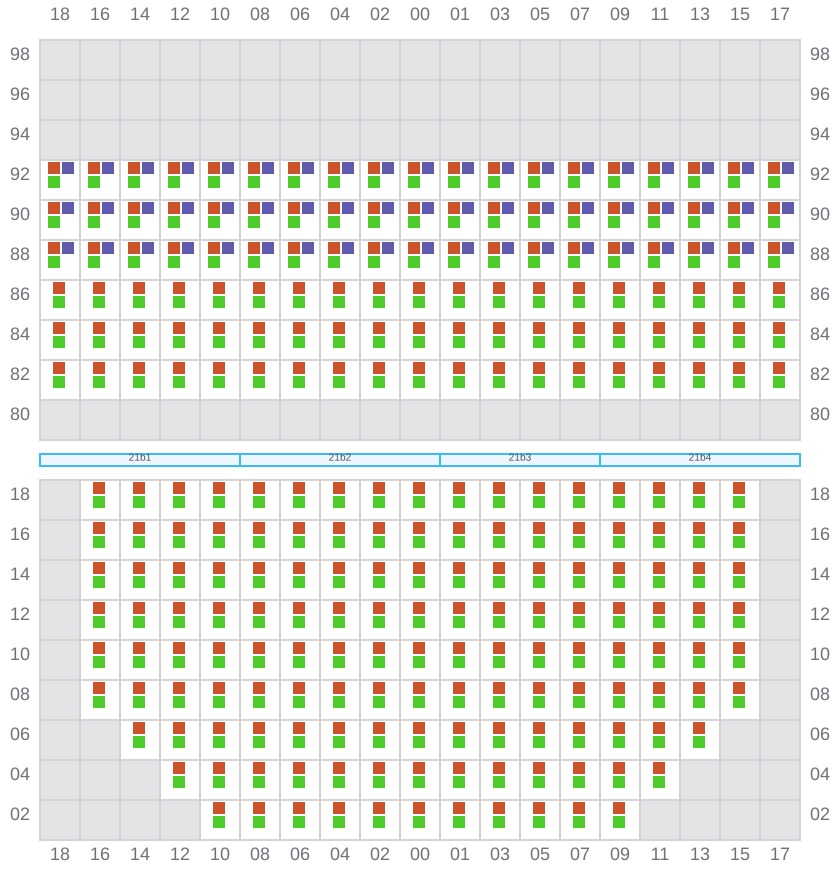

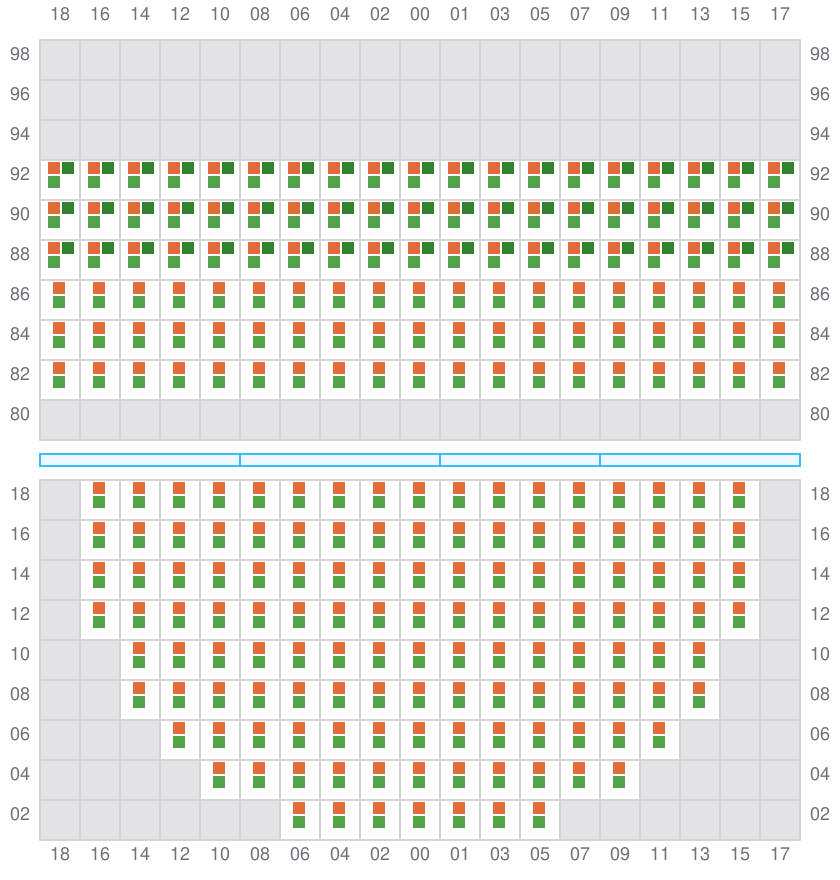

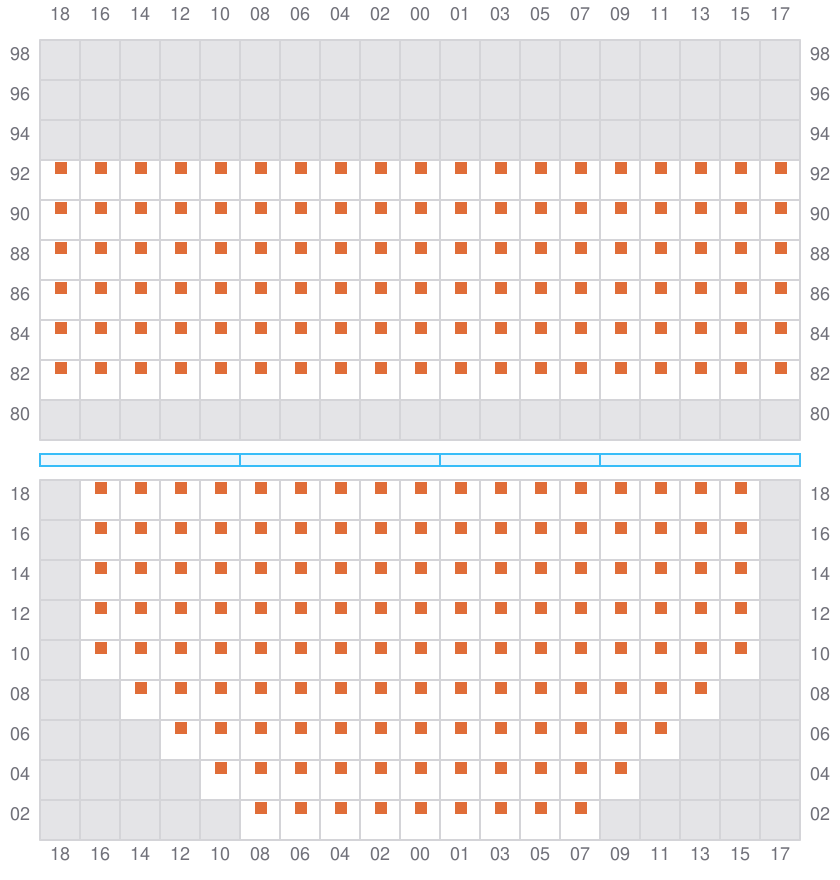

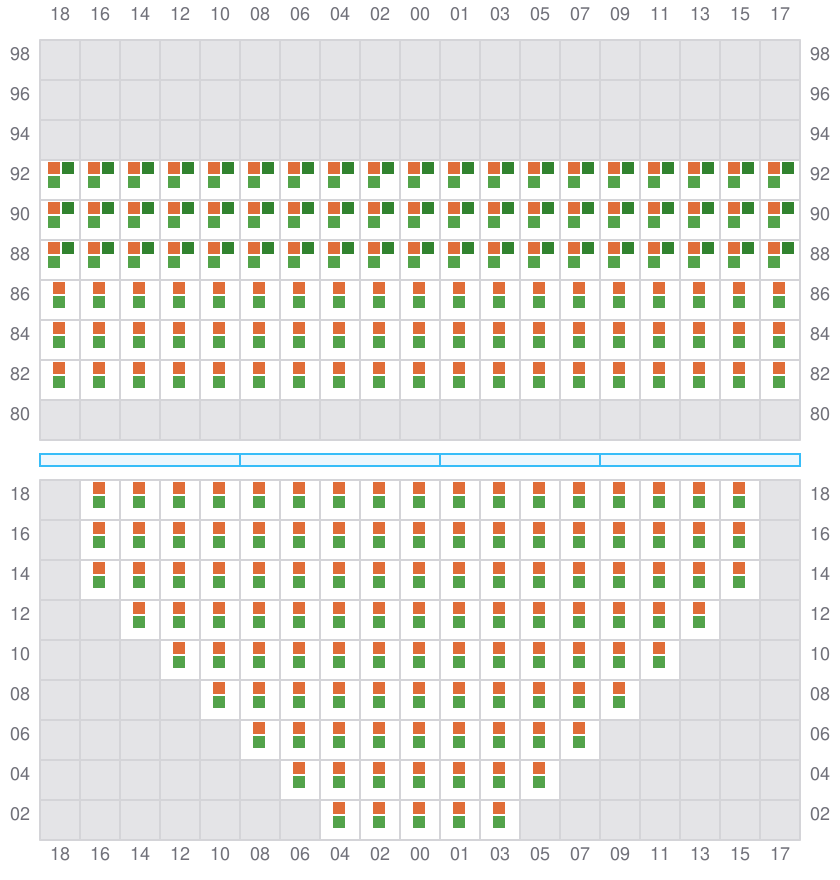

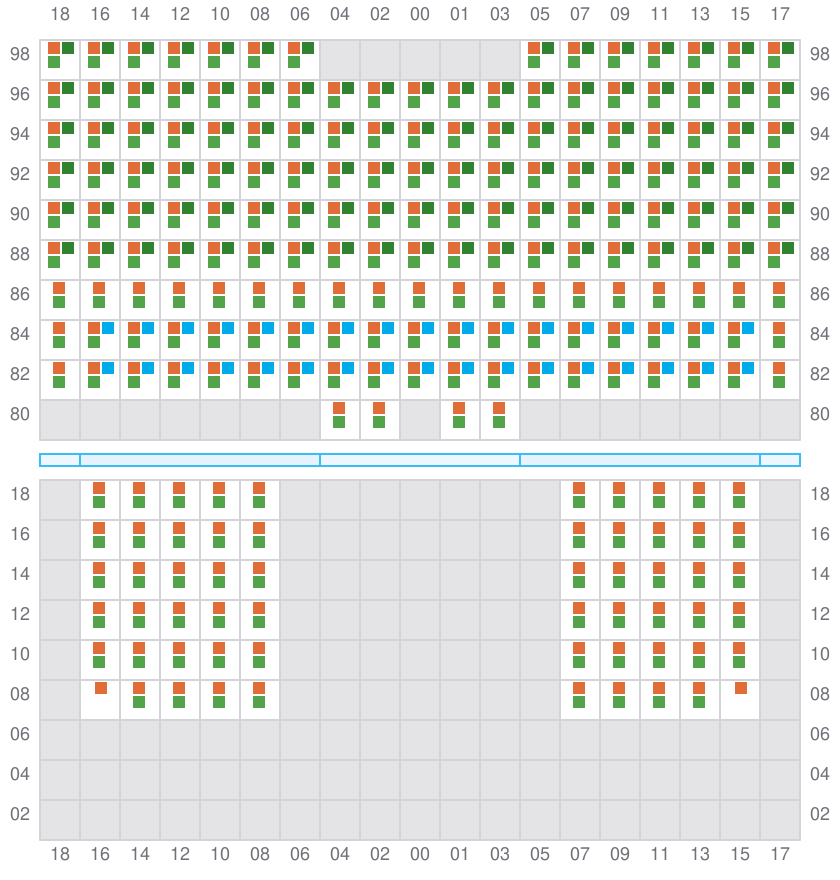

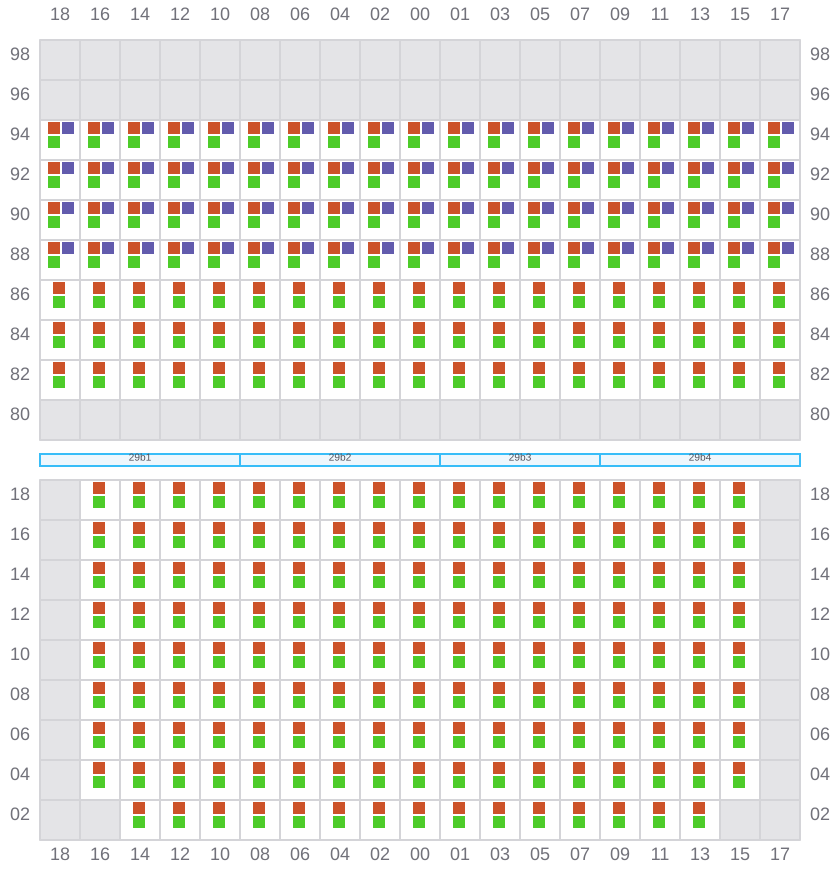

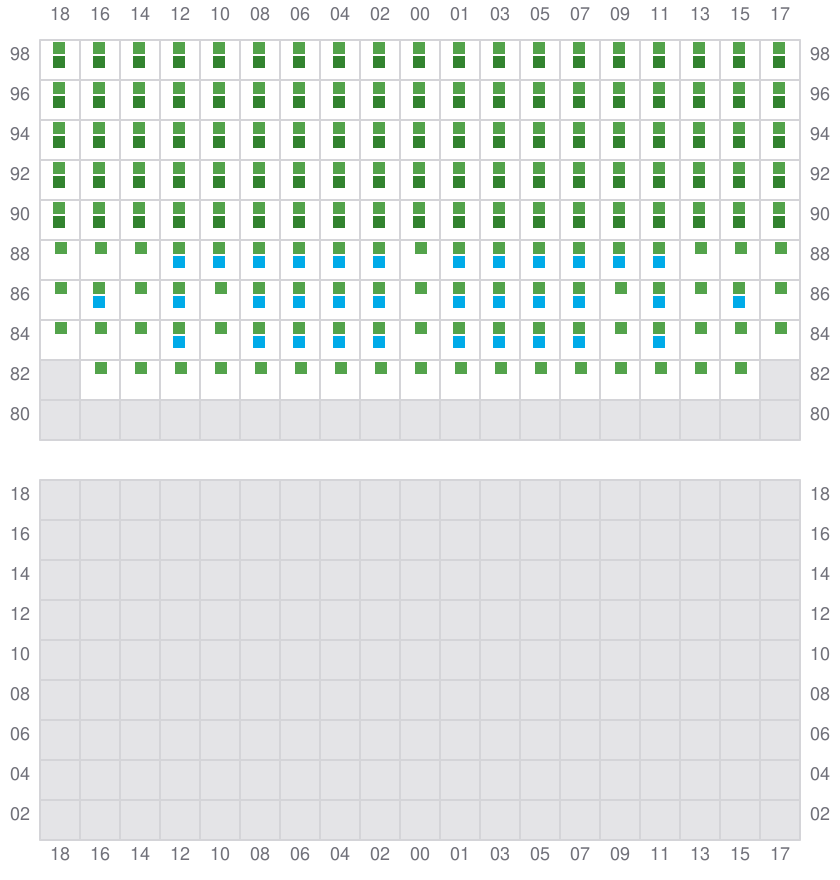

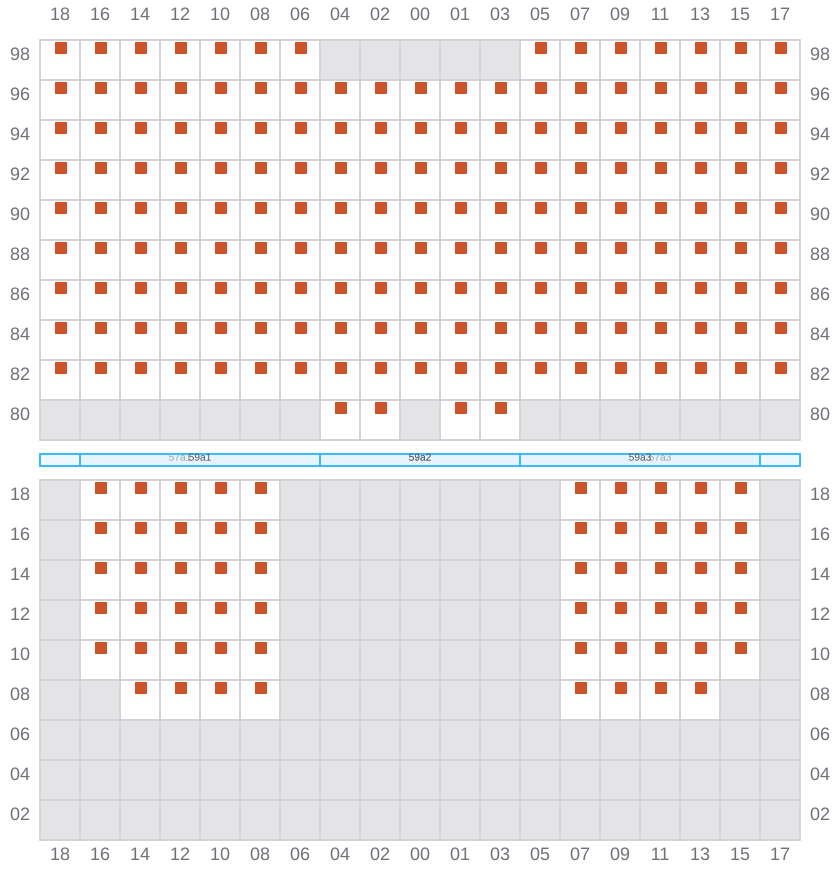

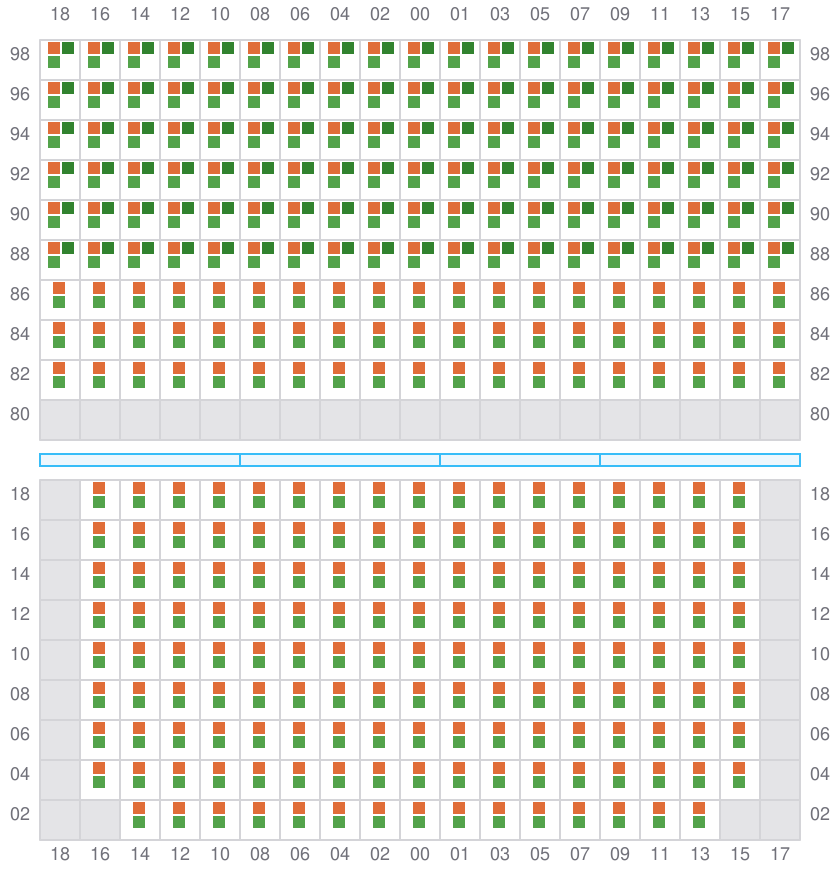

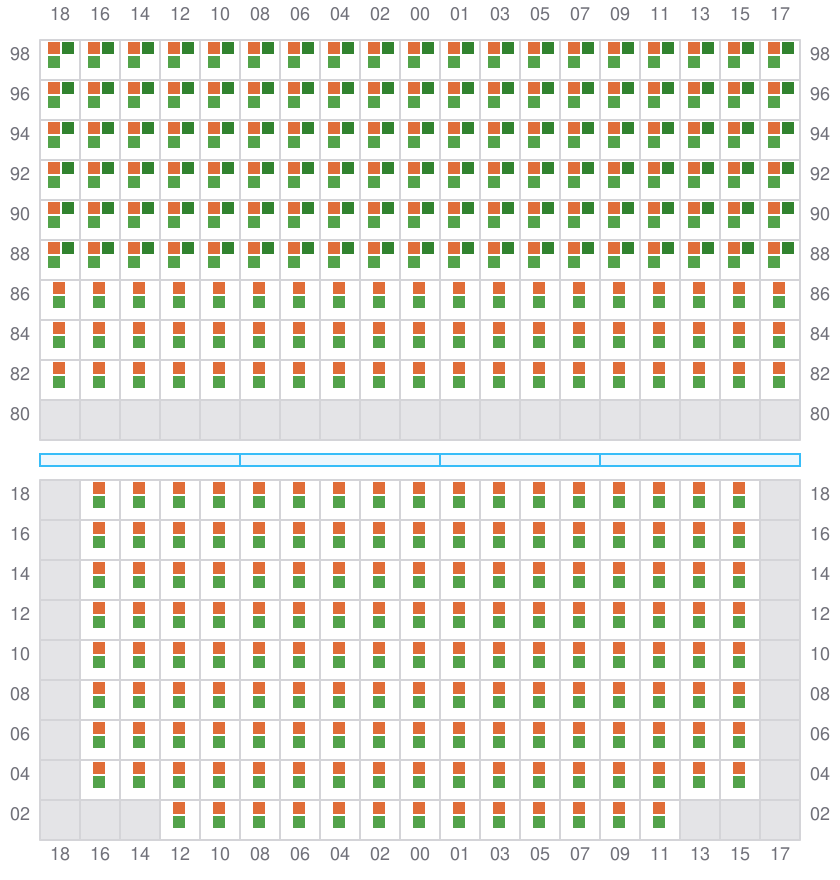

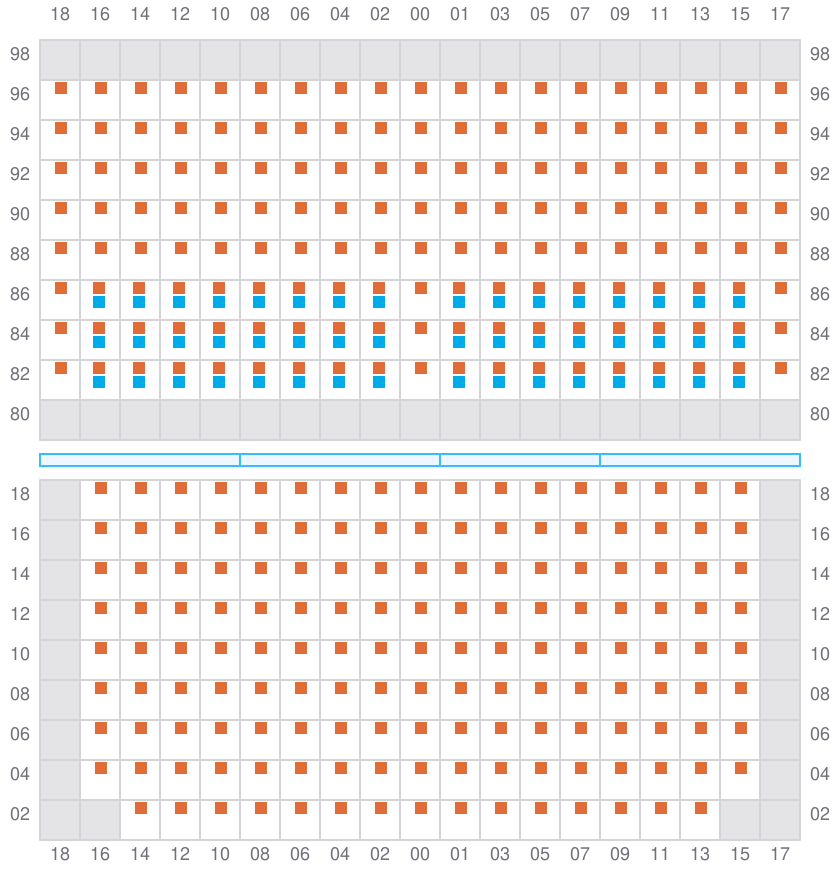

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

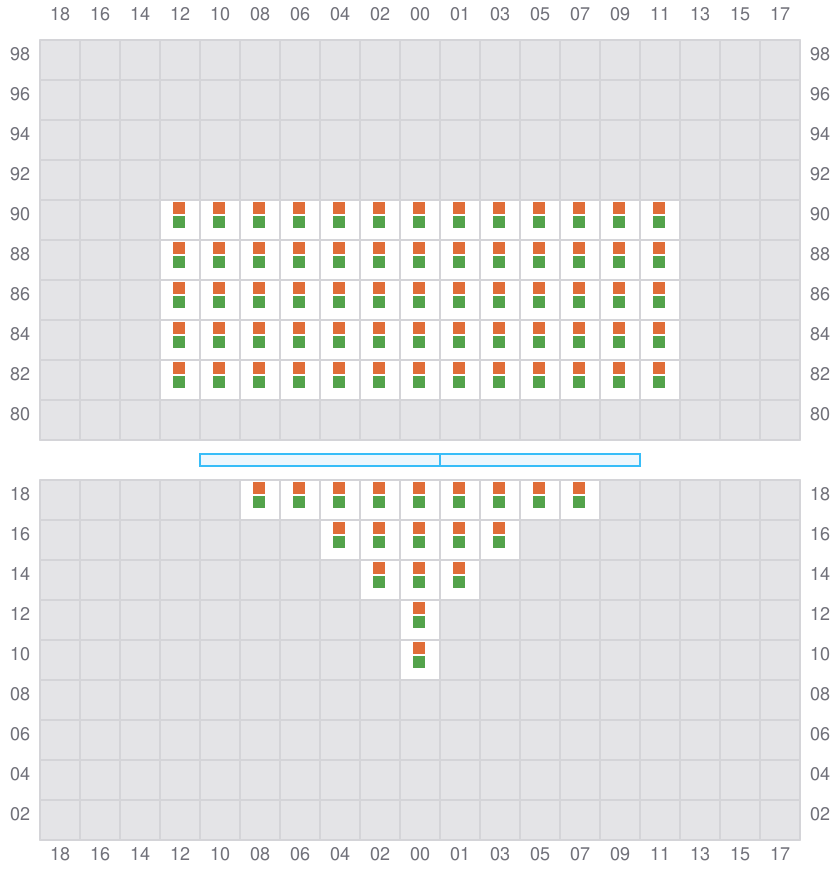

001 (002)
- →
003
- ←
- → / ?

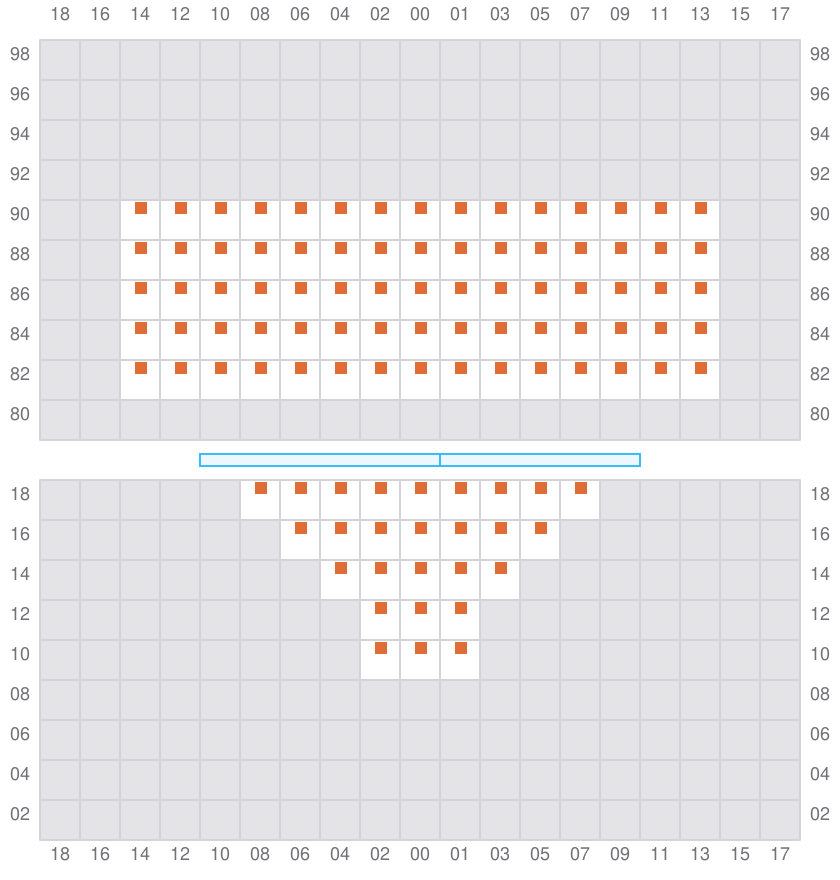

005 (006)
- →
007
- ←
- →

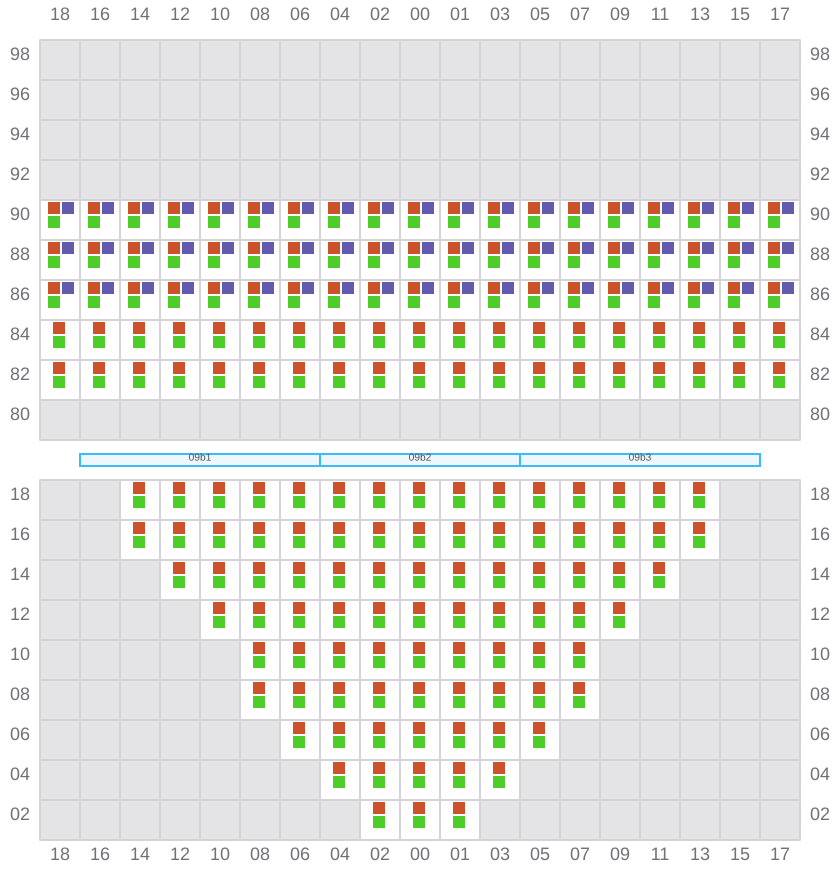

009 (010)
- →

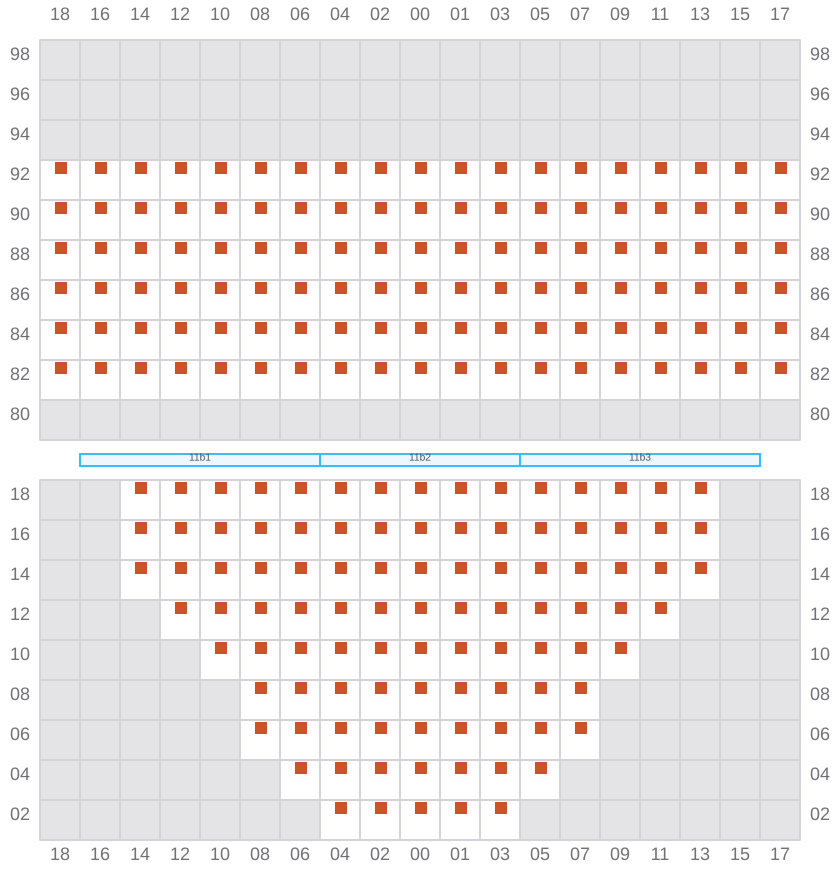

011
- ←
- →
013 (014)
- →
015
- ←
- →

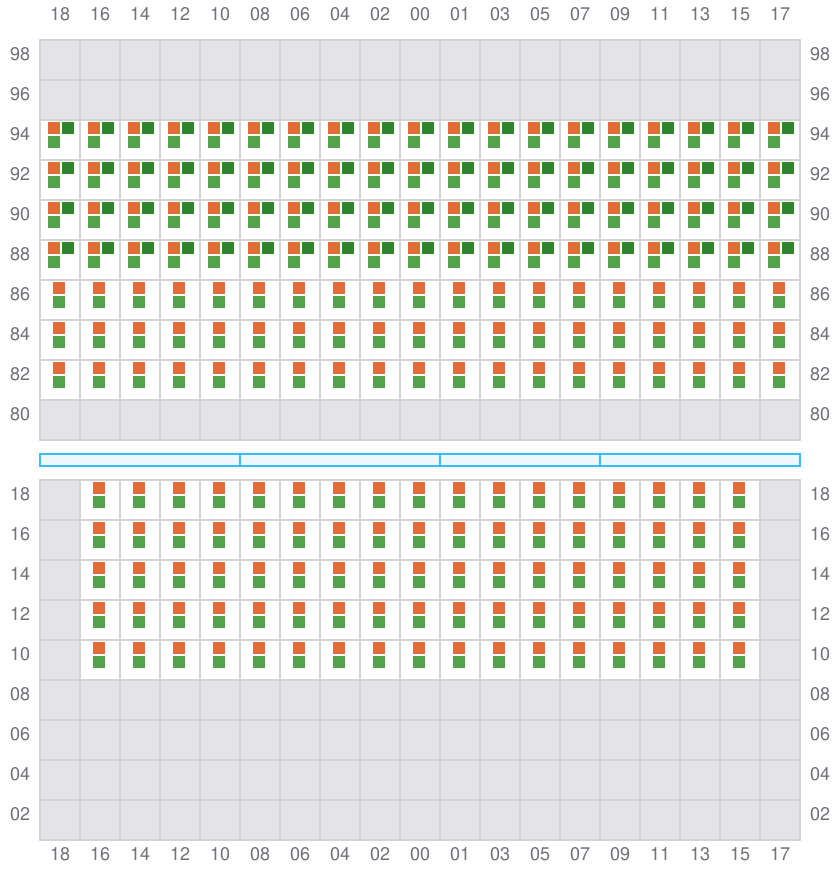

017 (018)
- →
019
- ←
- →
021 (022)
- →

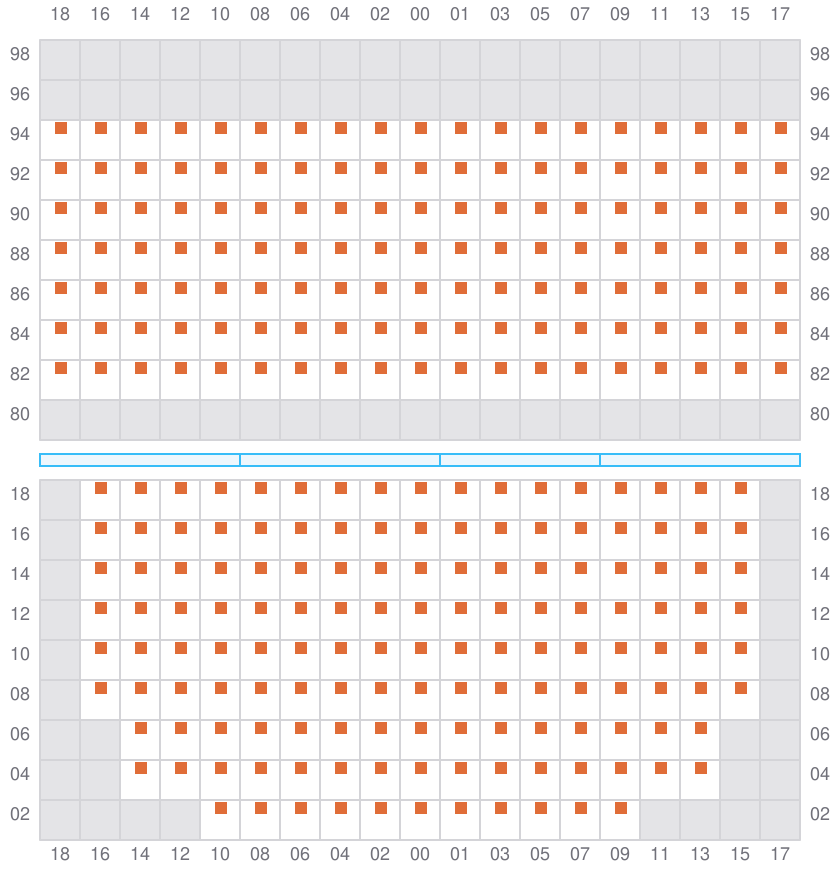

023
- ←
- →

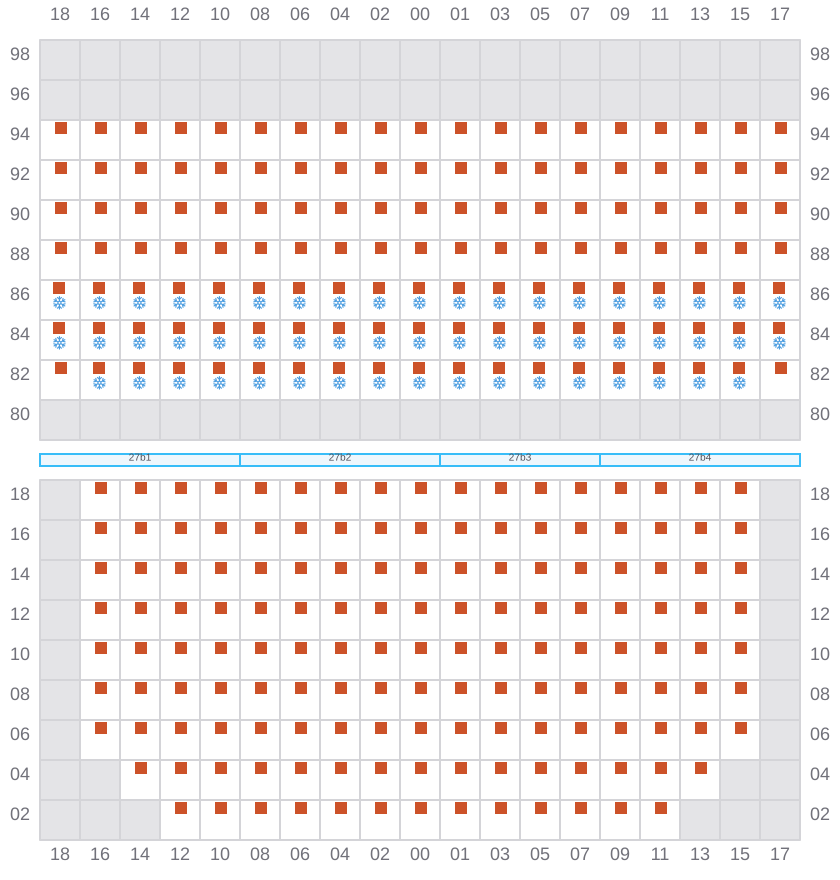

025 (026)
- →
027
- ←
- ? / →

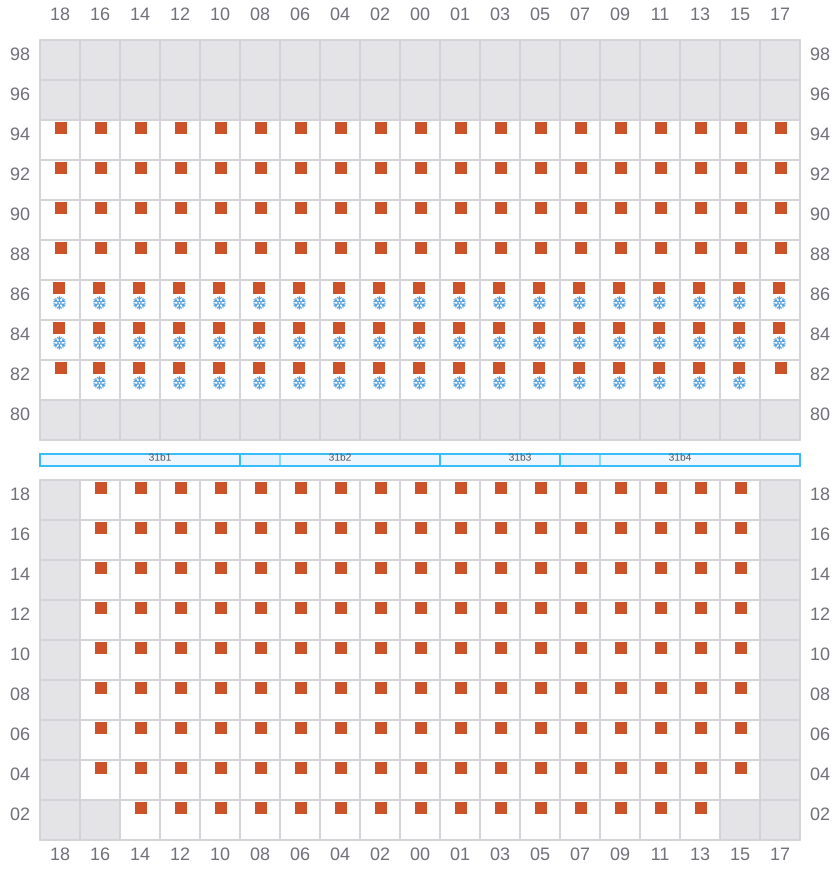

029 (030)
- →
031
- ←
- ? / →

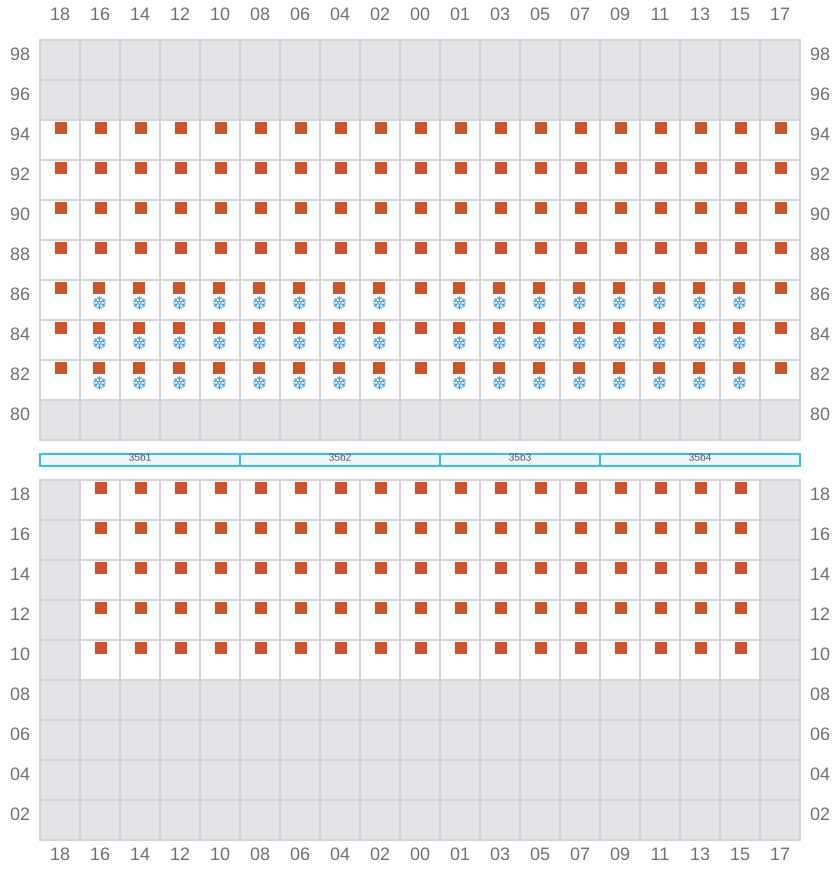

033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
039
- ←
- →
041 (042)
- →
043
- ←
- →

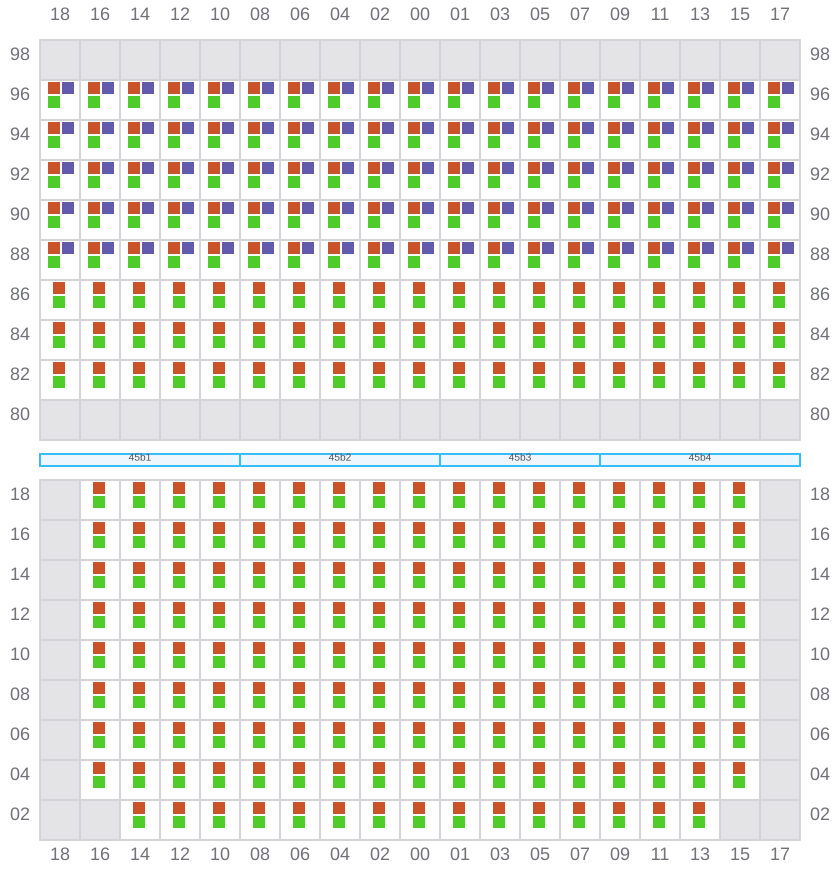

045 (046)
- →

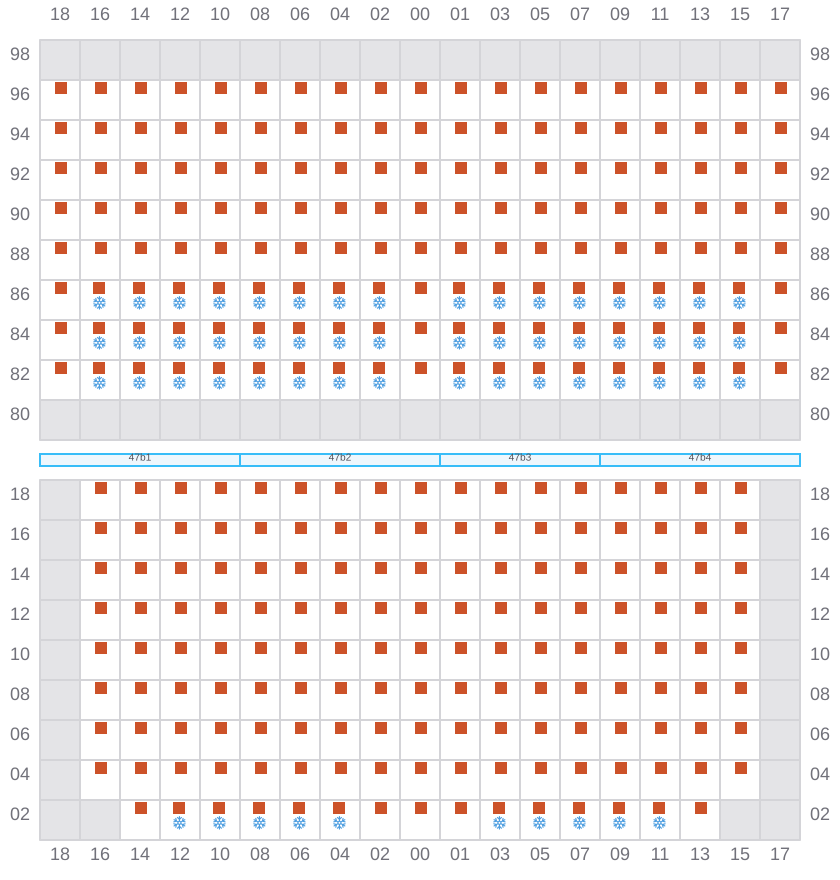

047
- ←
- →
049 (050)
- →

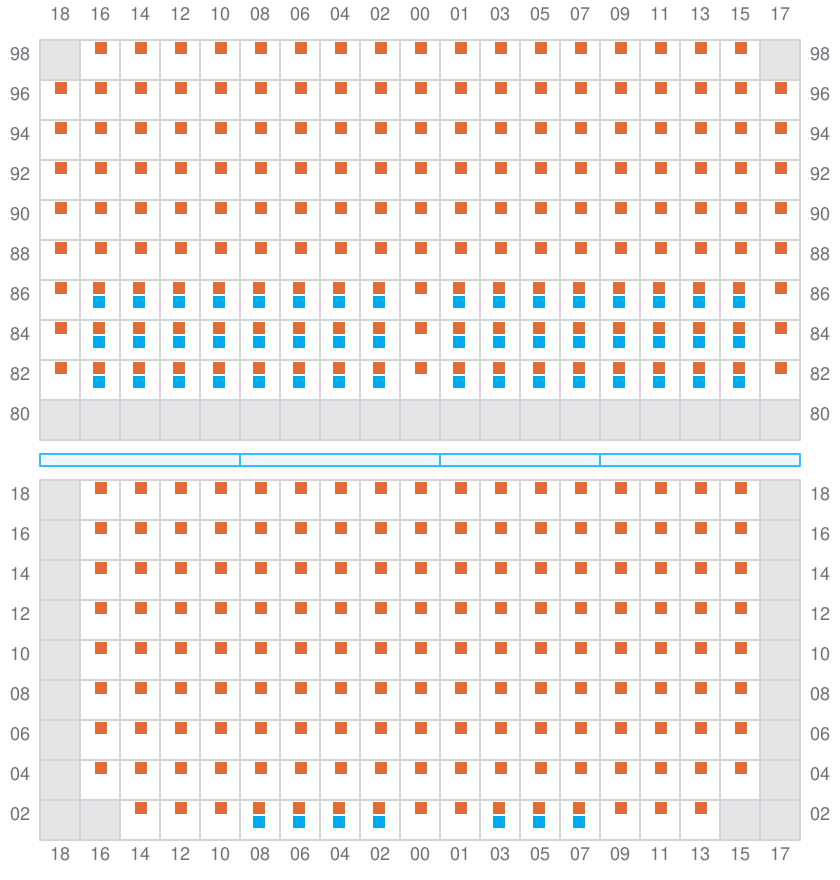

051
- ←
- →
053 (054)
- →

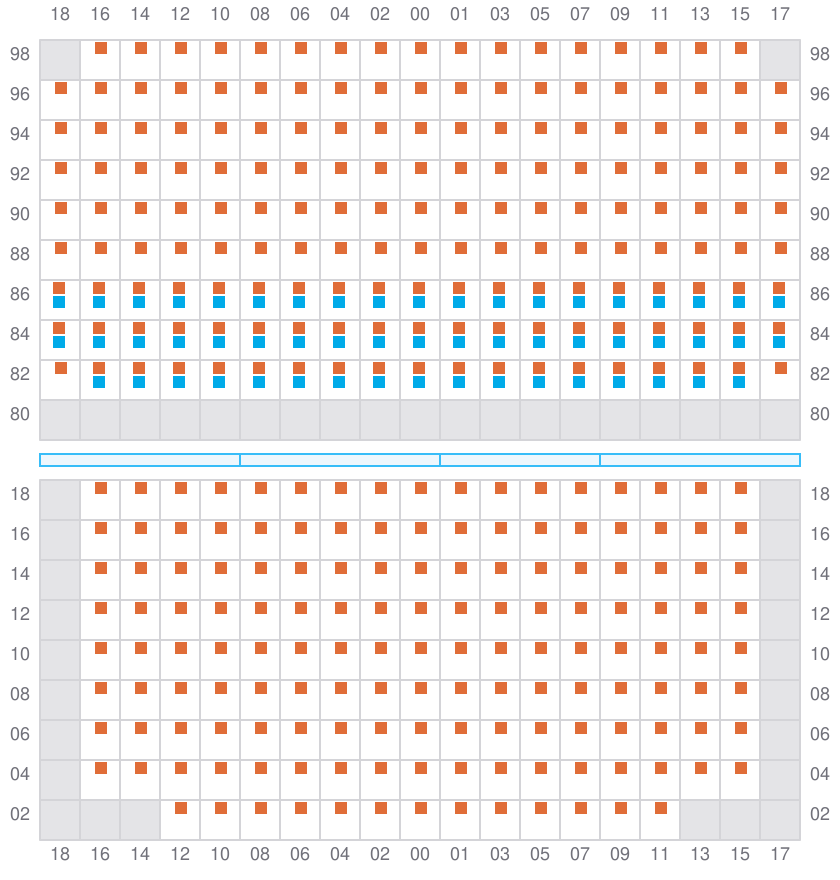

055
- ←
057 (058)
- →
- ← / →
059
- ←
061 (062)
- →
- ← / ?

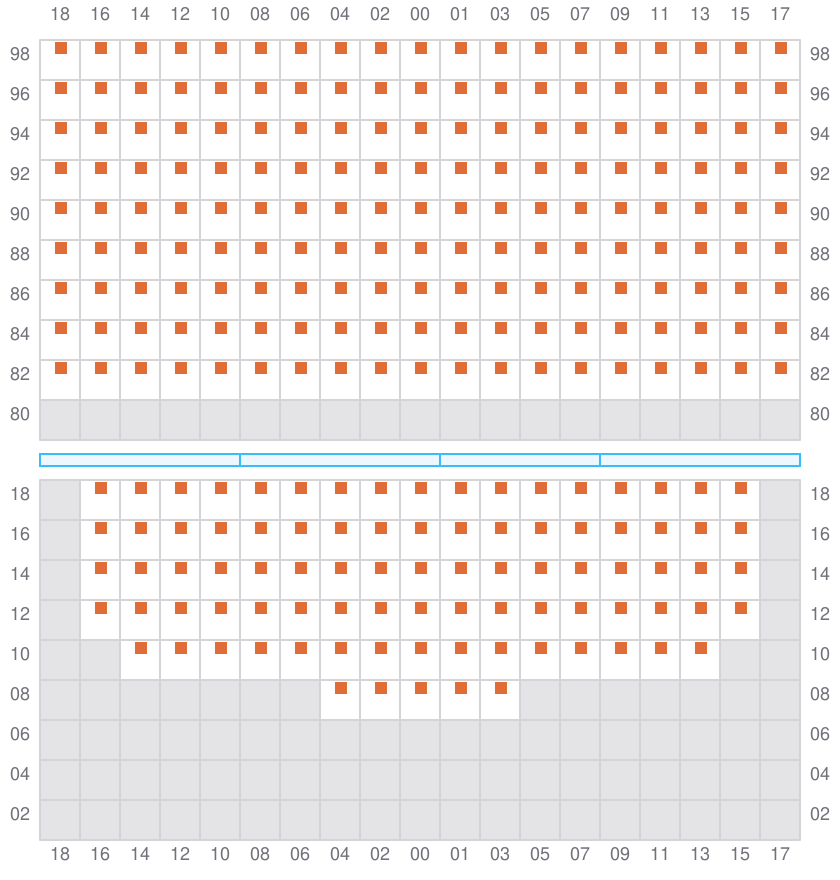

063
- ←
- ? / →

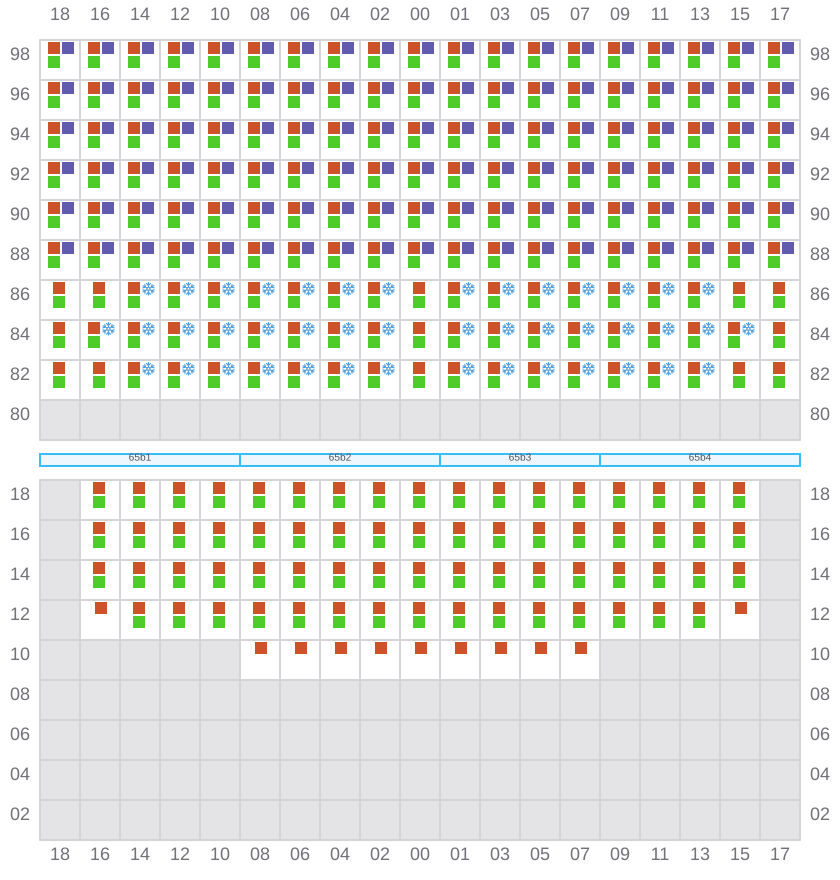

065 (066)
- →
- ←

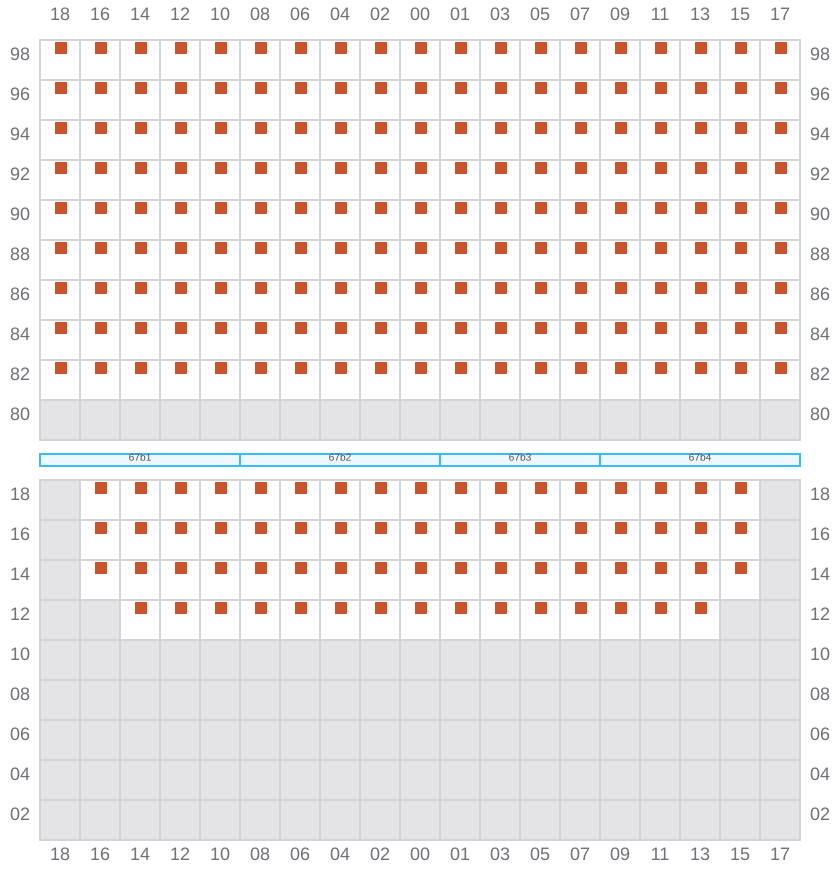

067
- ←
069 (070)
- → / ?
- ← / ?
