MSC CHERYL 3
9194866 | D5ES9 | 9194866 by ********* Last update: Mon Mar 11 2024
General Info
Ship Name:MSC CHERYL 3
IMO Code:9194866
Call Sign:D5ES9
Line Operator:9194866
Class Name for Sister Ships:74L
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,474
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

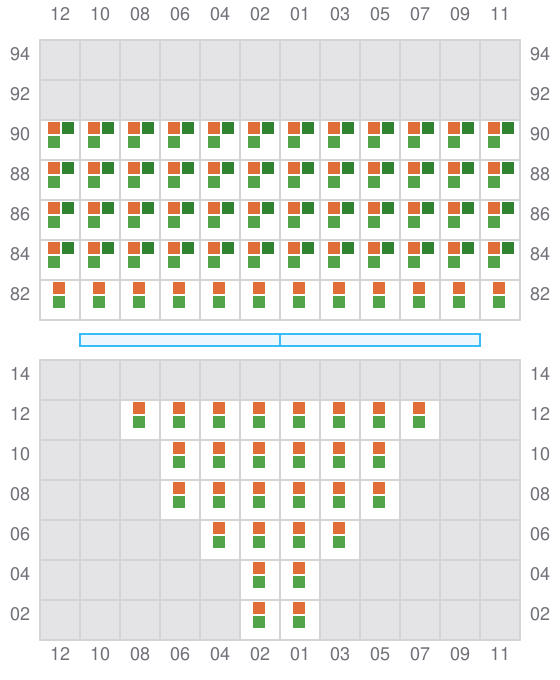

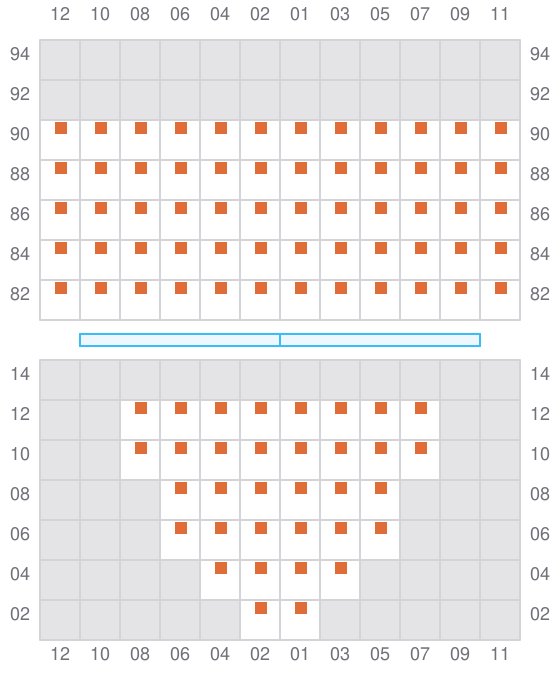

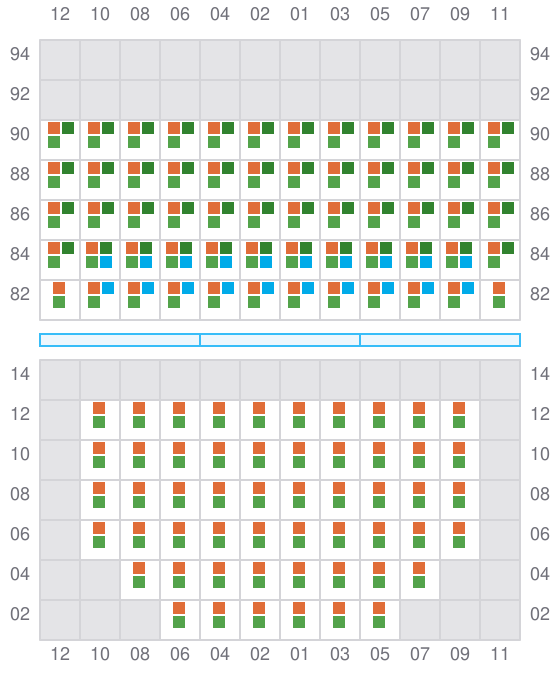

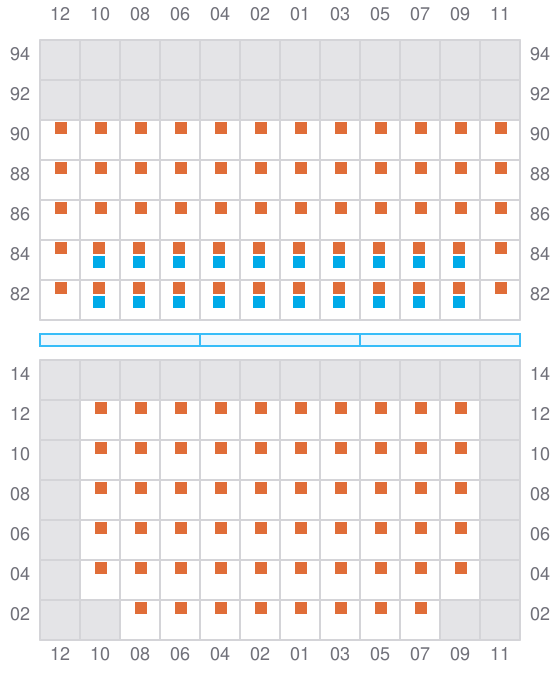

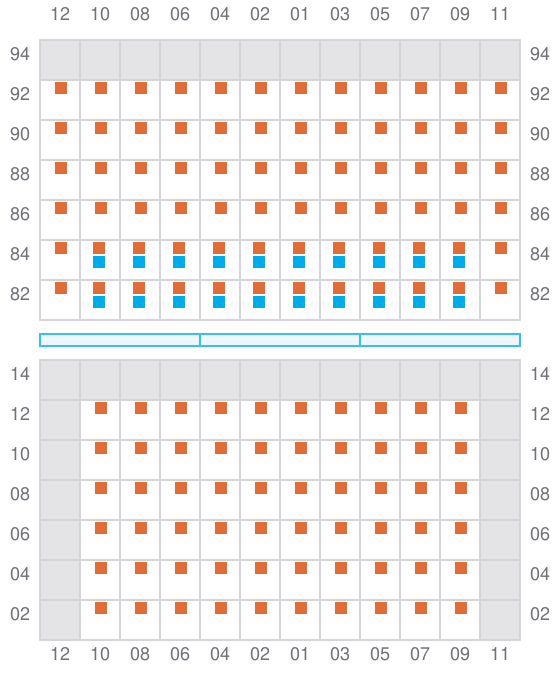

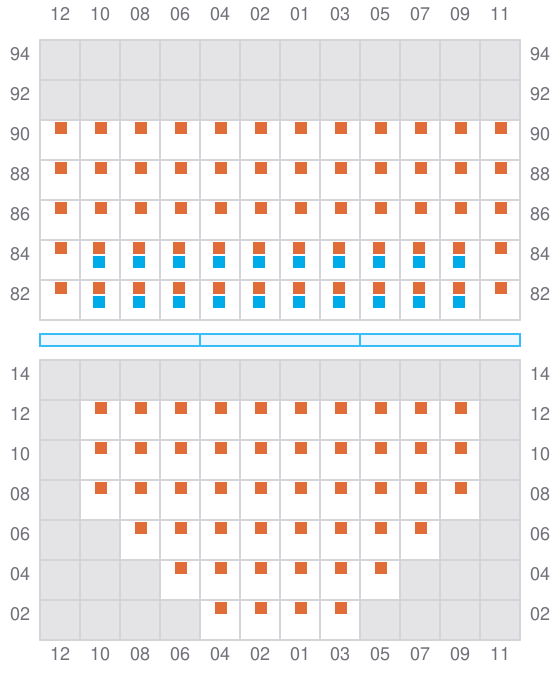

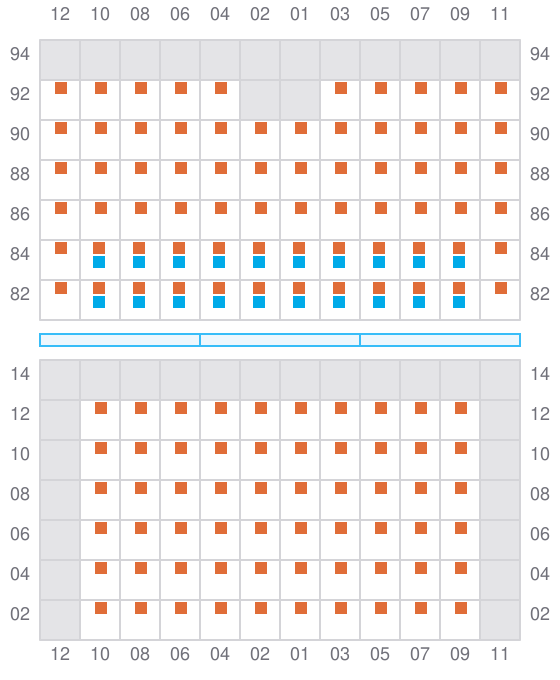

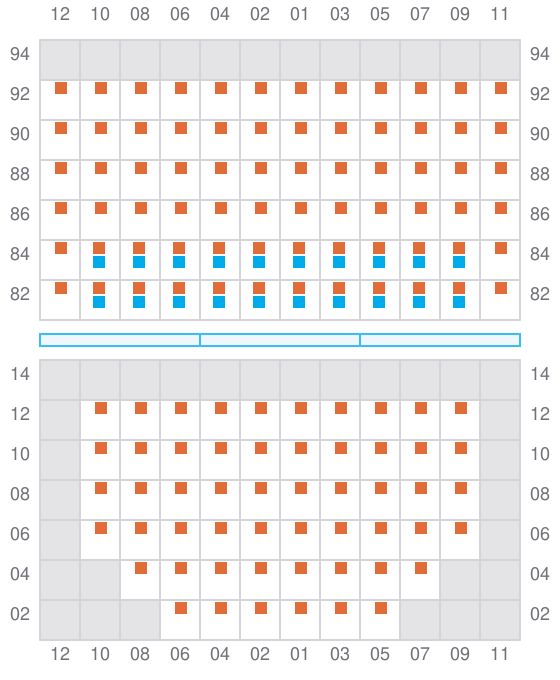

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →

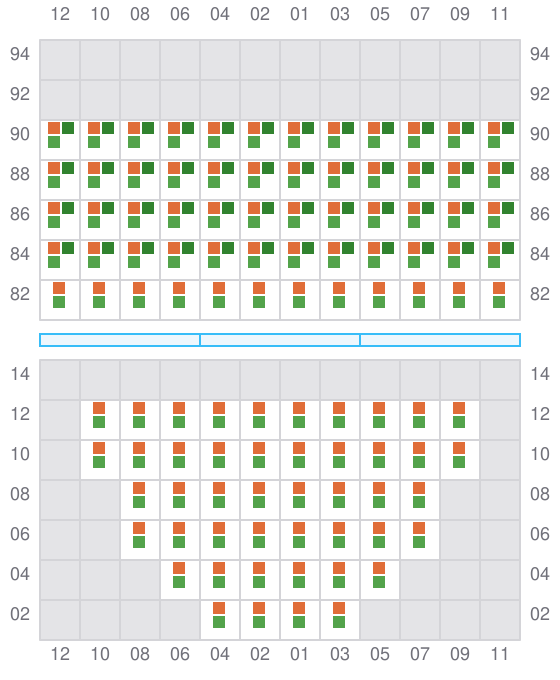

007
- ←
009 (010)
- →

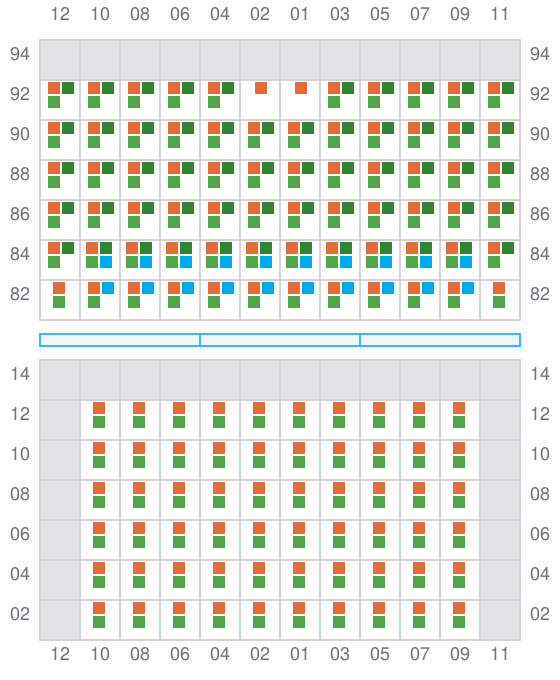

011
- ←
- → / ?
013 (014)
- →
- ← / ?
015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
- → / ?

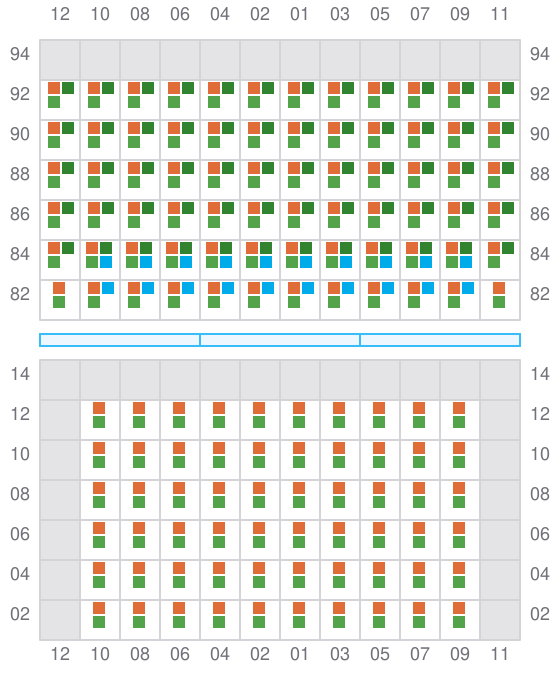

025 (026)
- →
- ← / ?
027
- ←
- → / ?
029 (030)
- →
- ← / ?

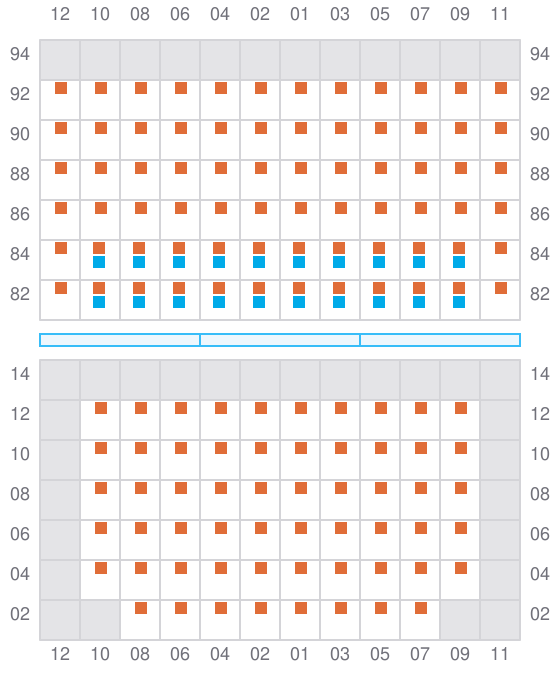

031
- ←
- → / ?
033 (034)
- →
- ← / ?
035
- ←
- → / ?
037 (038)
- →
- ← / ?

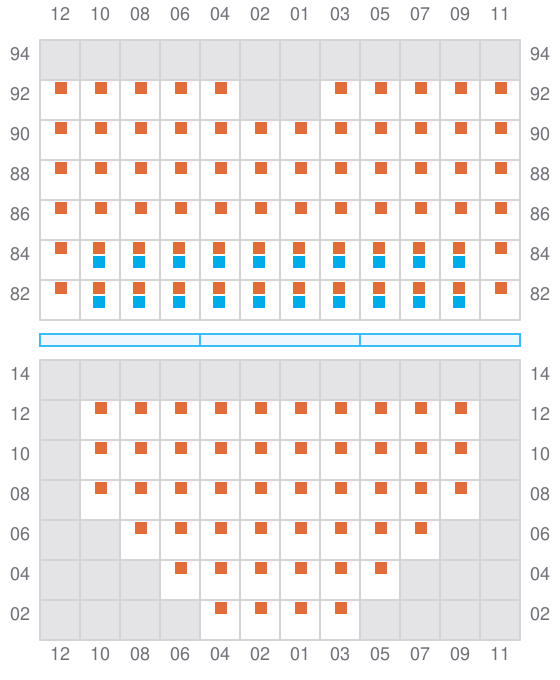

039
- ←
- → / ?

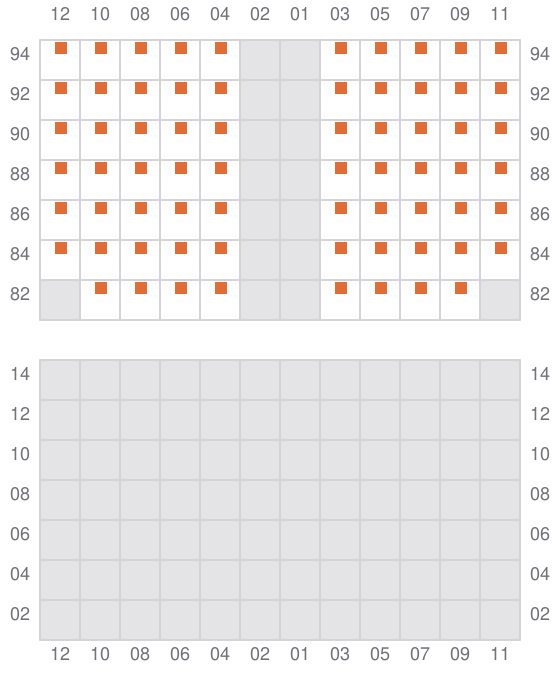

041
043 (044)
- → / ?

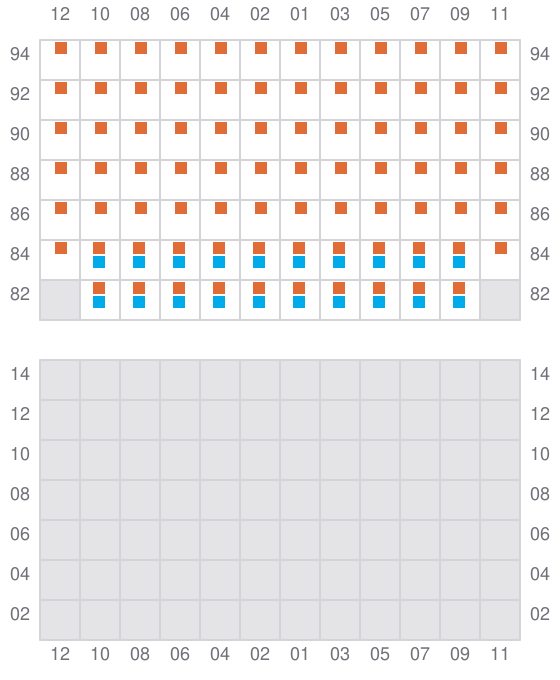

045
- ← / ?
- → / ?
