MSC CHIARA X
9198587 | OUMO2 | 9198587 by ************************** Last update: Wed Jan 14 2026

General Info

Ship Name:MSC CHIARA X
IMO Code:9198587
Call Sign:OUMO2
Line Operator:9198587
Class Name for Sister Ships:781
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:CORNELIUS MAERSK

Size Summary

ISO Bays:083
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,642

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC CHIARA X

Hatch-Covers View

Deck view of MSC CHIARA X

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →

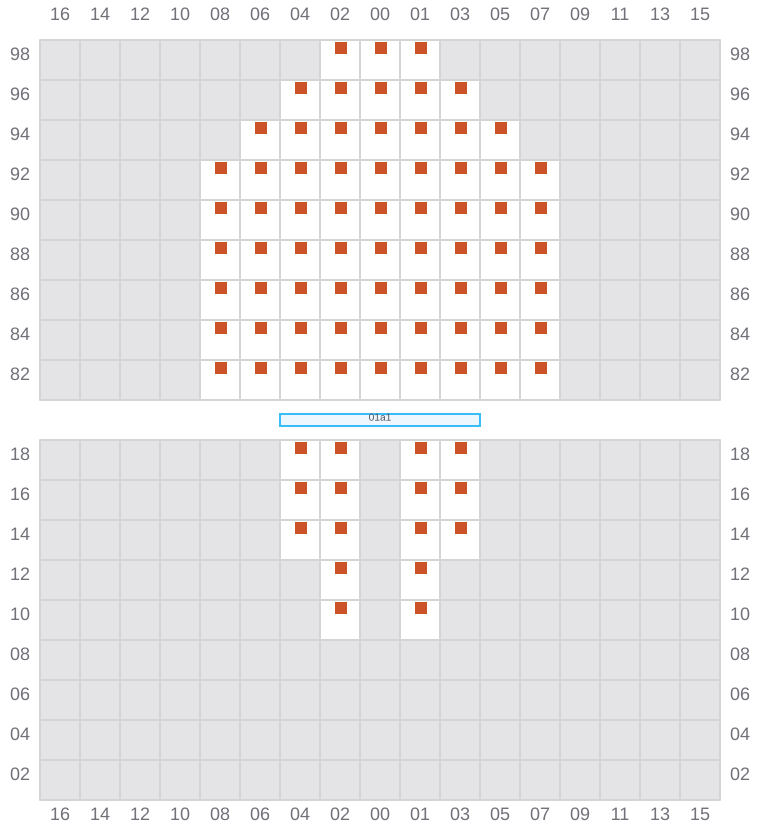

Bay 001 view and slots of MSC CHIARA X

003 (002)

  • ←

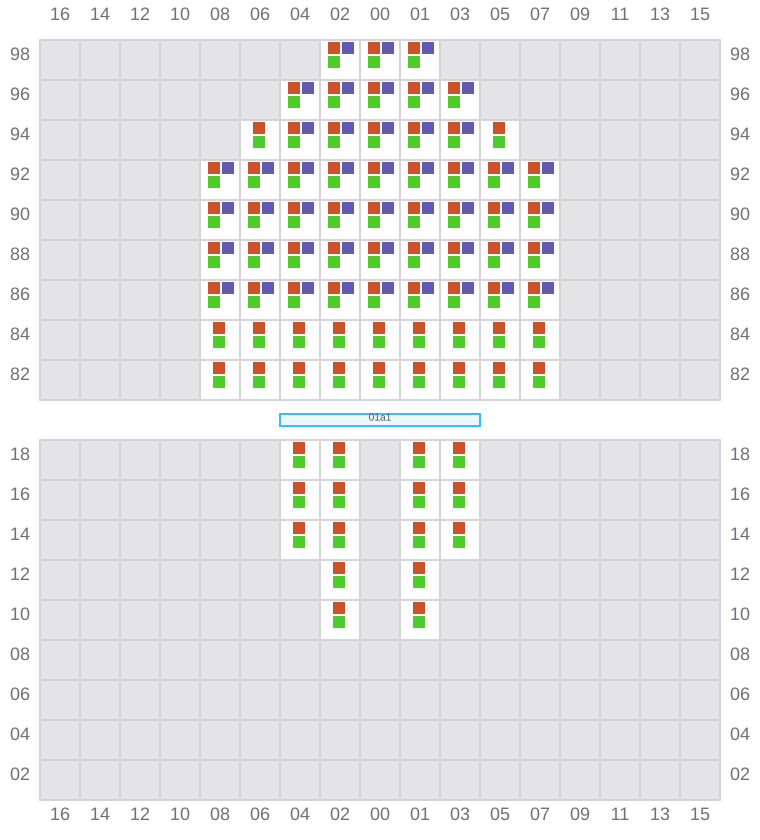

Bay 003 view and slots of MSC CHIARA X

005

  • →
Bay 005 view and slots of MSC CHIARA X

007 (006)

  • ←
Bay 007 view and slots of MSC CHIARA X

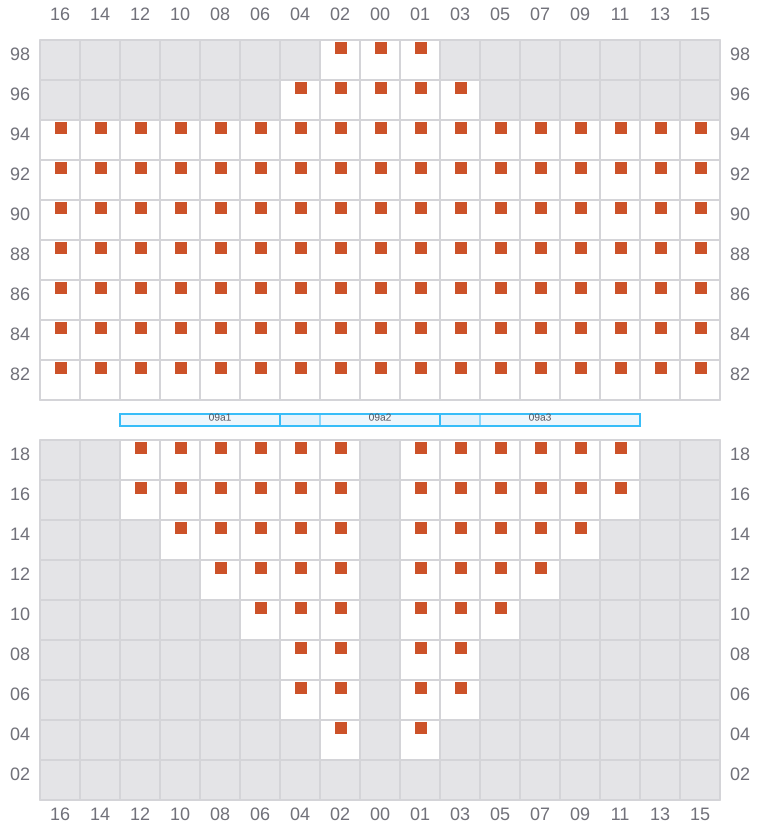

009

  • →
Bay 009 view and slots of MSC CHIARA X

011 (010)

  • ←
Bay 011 view and slots of MSC CHIARA X

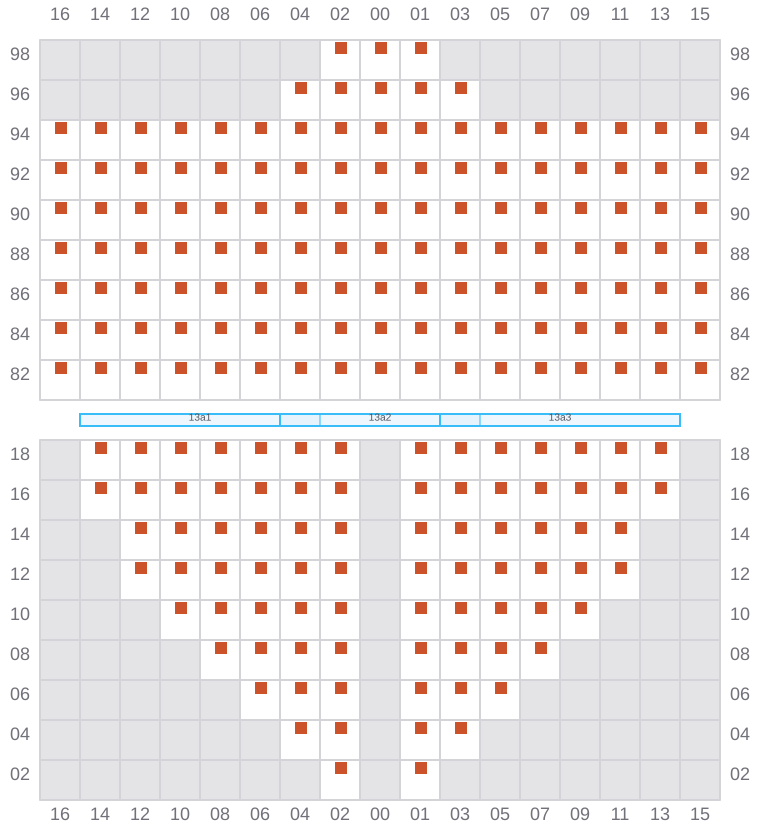

013

  • →
Bay 013 view and slots of MSC CHIARA X

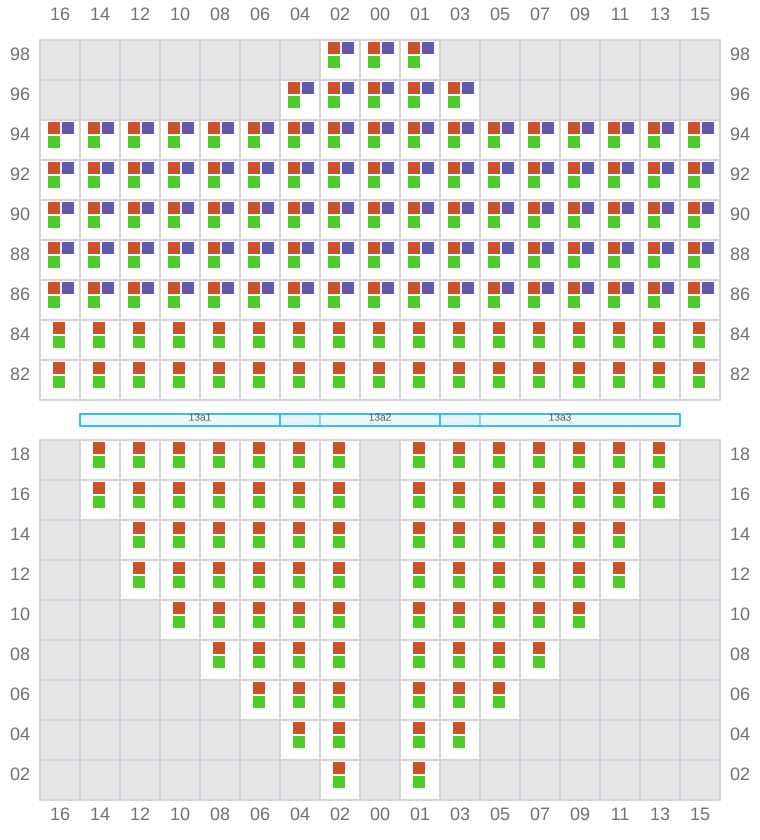

015 (014)

  • ←
Bay 015 view and slots of MSC CHIARA X

017

  • →

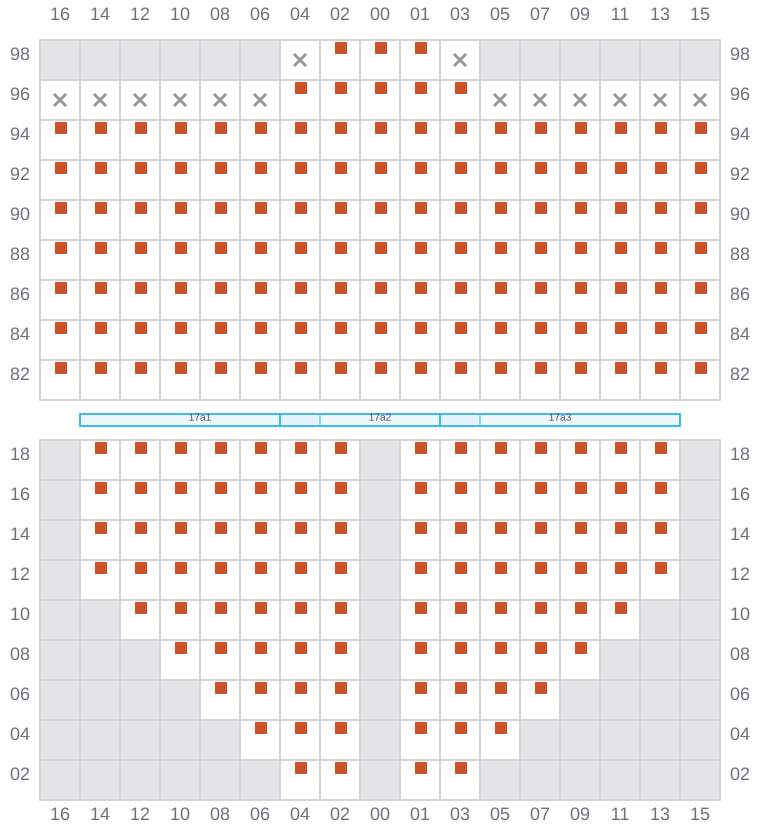

Bay 017 view and slots of MSC CHIARA X

019 (018)

  • ←
  • → / ?

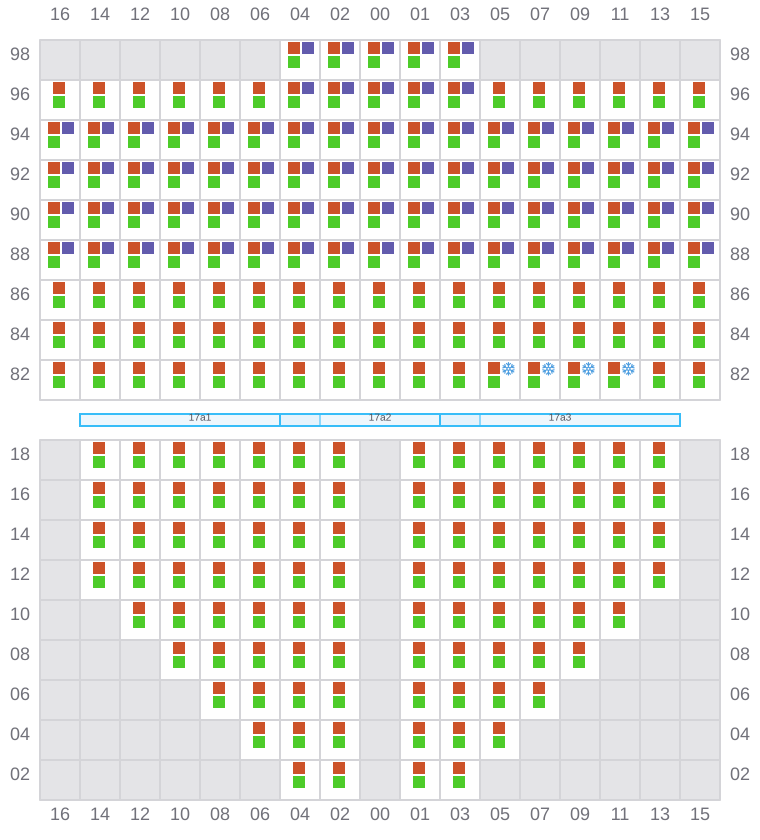

Bay 019 view and slots of MSC CHIARA X

021

  • →
Bay 021 view and slots of MSC CHIARA X

023 (022)

  • ←
  • → / ?

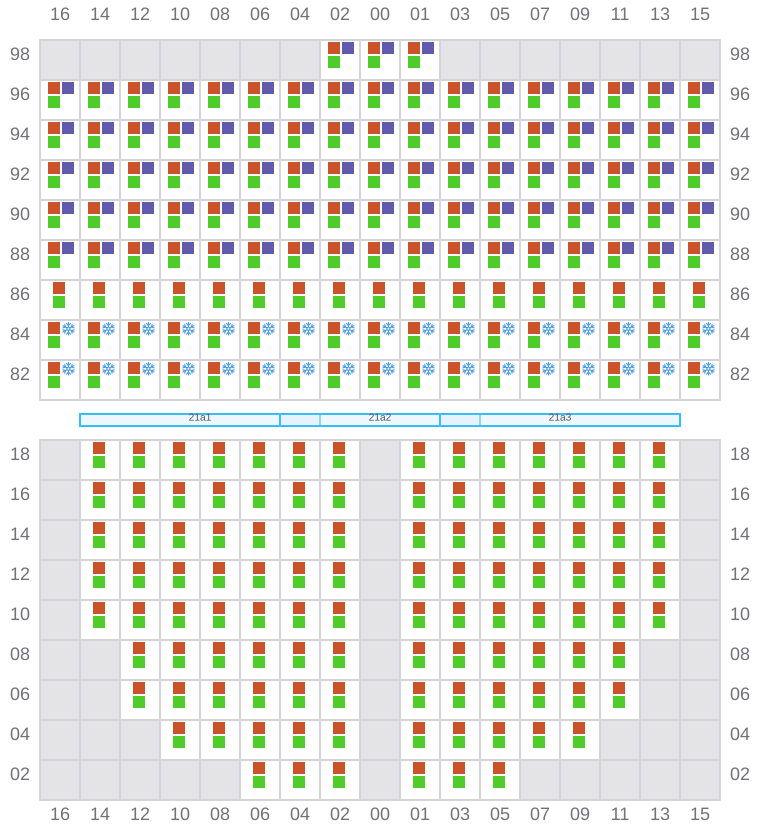

Bay 023 view and slots of MSC CHIARA X

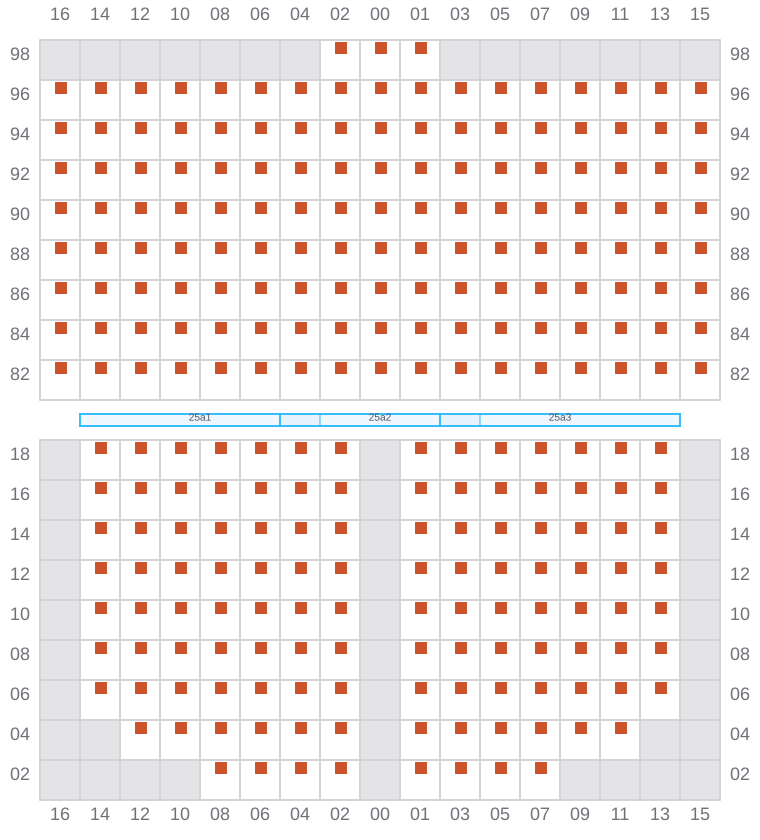

025

  • →
Bay 025 view and slots of MSC CHIARA X

027 (026)

  • ←

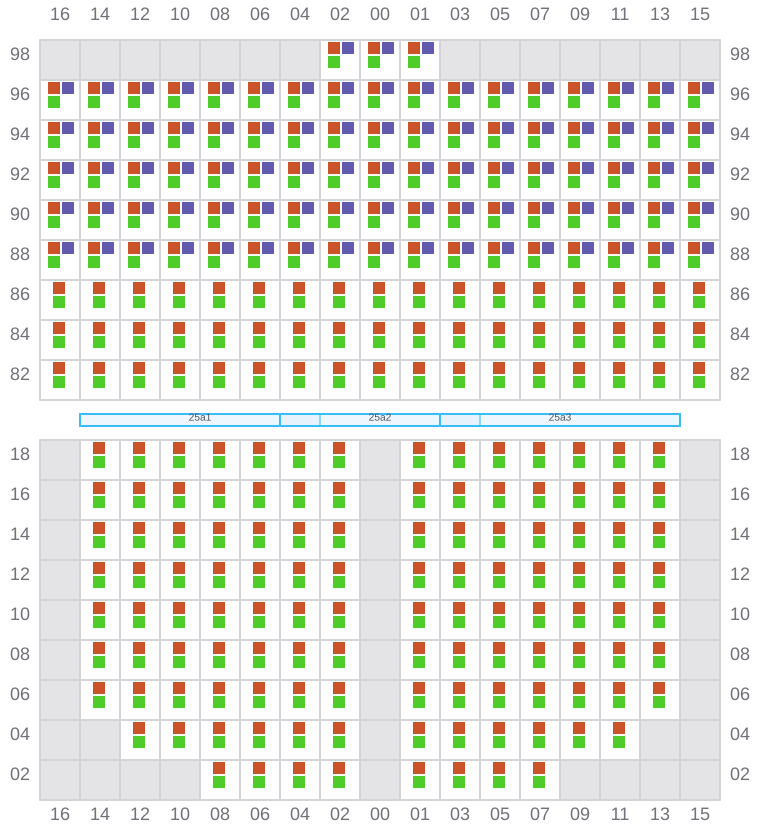

Bay 027 view and slots of MSC CHIARA X

029

  • →
  • ? / →
Bay 029 view and slots of MSC CHIARA X

031 (030)

  • ←
  • →

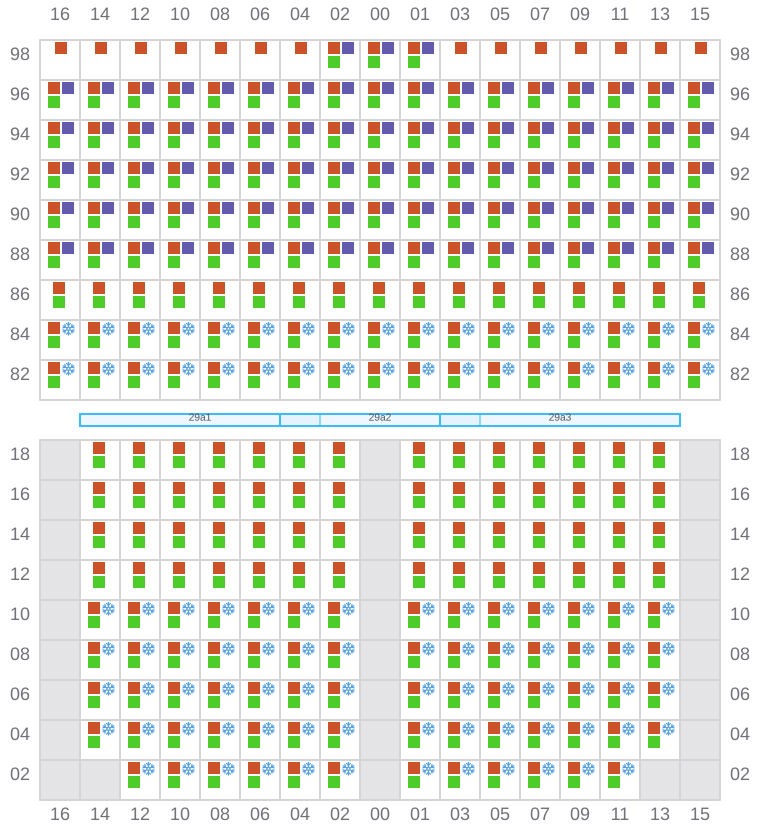

Bay 031 view and slots of MSC CHIARA X

033

  • →
Bay 033 view and slots of MSC CHIARA X

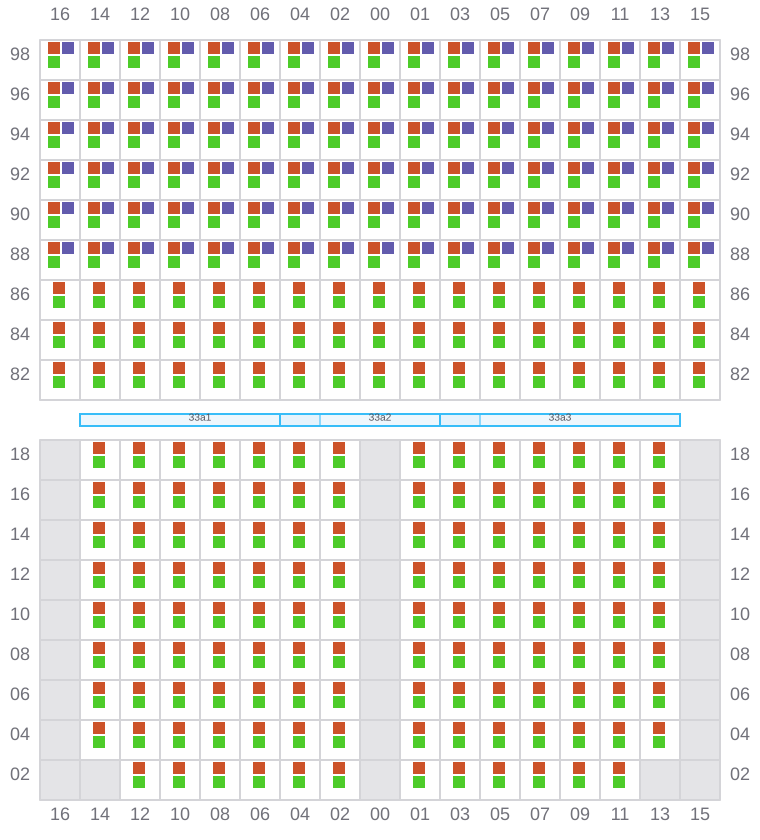

035 (034)

  • ←
Bay 035 view and slots of MSC CHIARA X

037

  • →
  • ? / →
Bay 037 view and slots of MSC CHIARA X

039 (038)

  • ←
  • →
Bay 039 view and slots of MSC CHIARA X

041

  • →
Bay 041 view and slots of MSC CHIARA X

043 (042)

  • ←
Bay 043 view and slots of MSC CHIARA X

045

  • →
  • ? / →

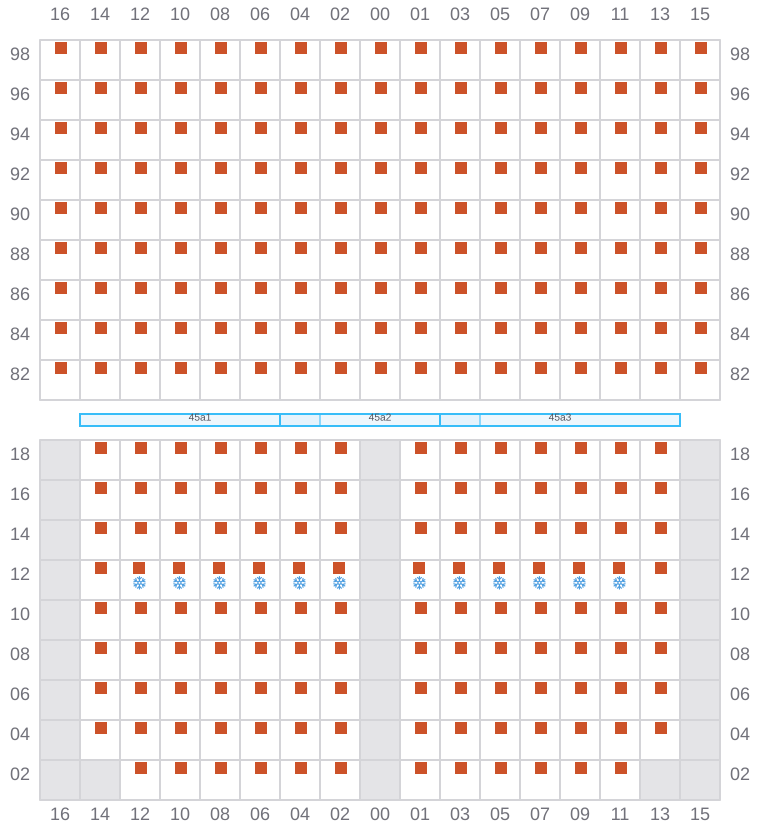

Bay 045 view and slots of MSC CHIARA X

047 (046)

  • ←
  • →

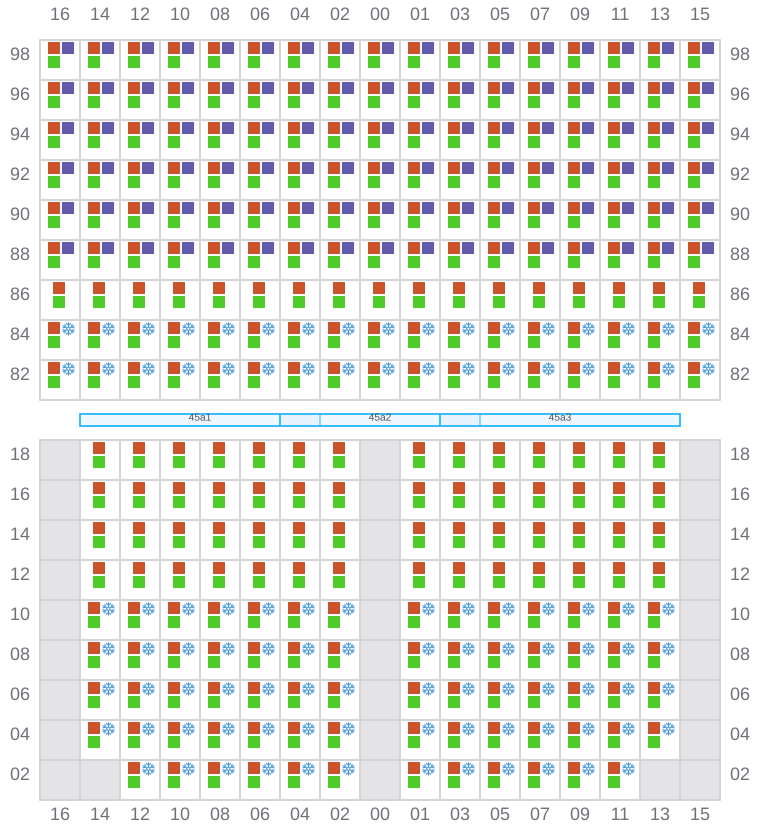

Bay 047 view and slots of MSC CHIARA X

049

  • →

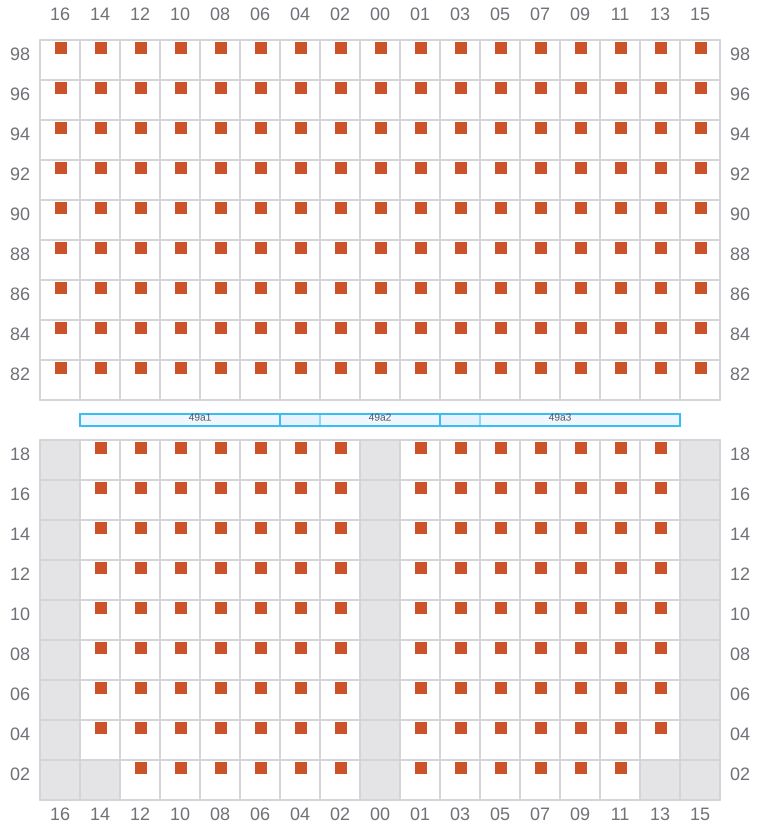

Bay 049 view and slots of MSC CHIARA X

051 (050)

  • ←
Bay 051 view and slots of MSC CHIARA X

053

  • →
  • ? / →
Bay 053 view and slots of MSC CHIARA X

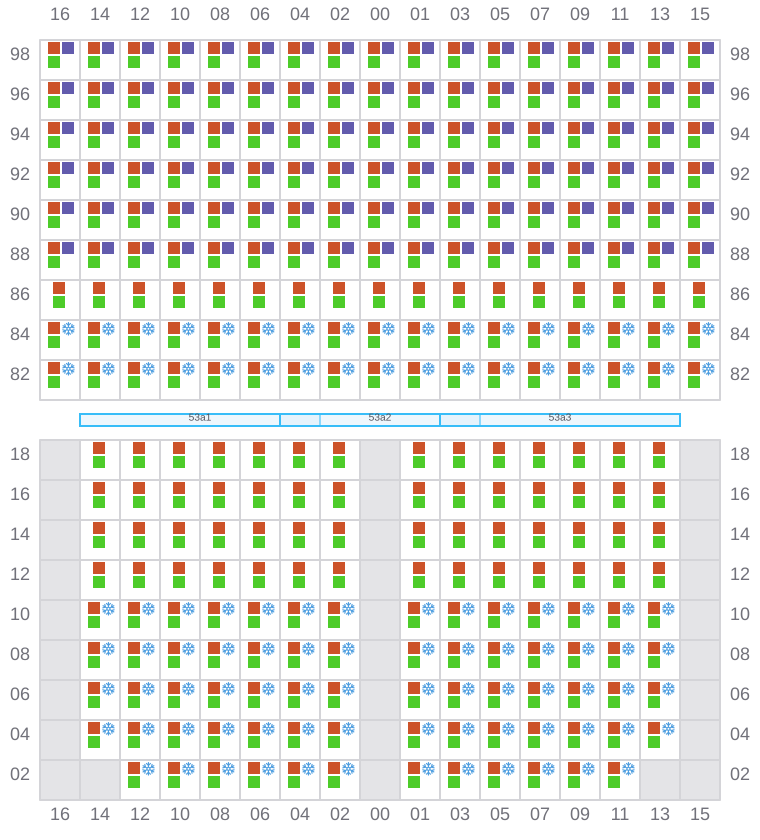

055 (054)

  • ←
  • →
Bay 055 view and slots of MSC CHIARA X

057

  • →
  • → / ?
Bay 057 view and slots of MSC CHIARA X

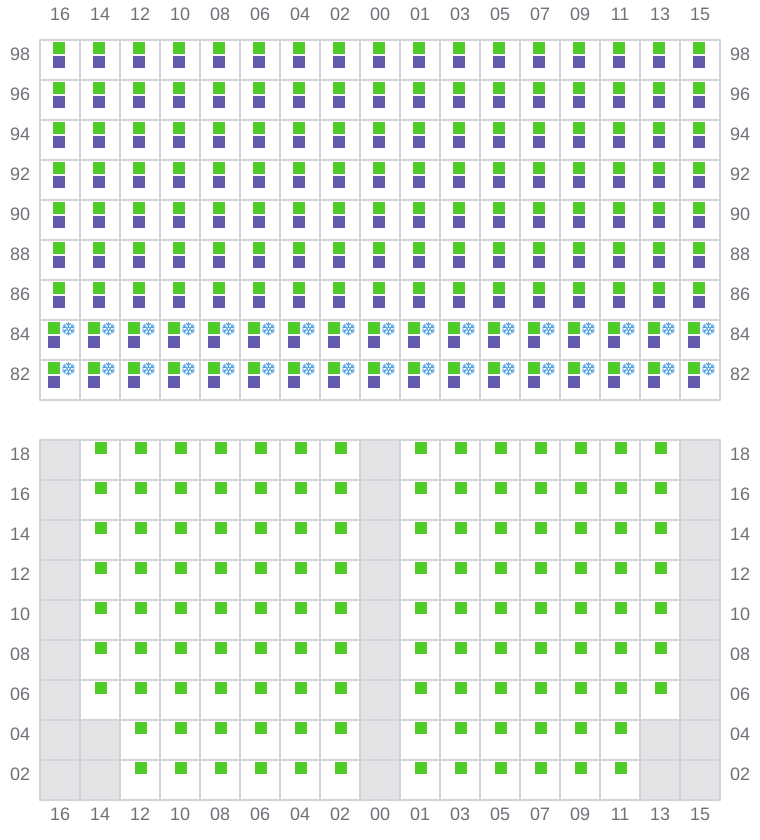

059 (058)

  • ←
Bay 059 view and slots of MSC CHIARA X

061

  • →
  • ← / ?
Bay 061 view and slots of MSC CHIARA X

063 (062)

  • ←

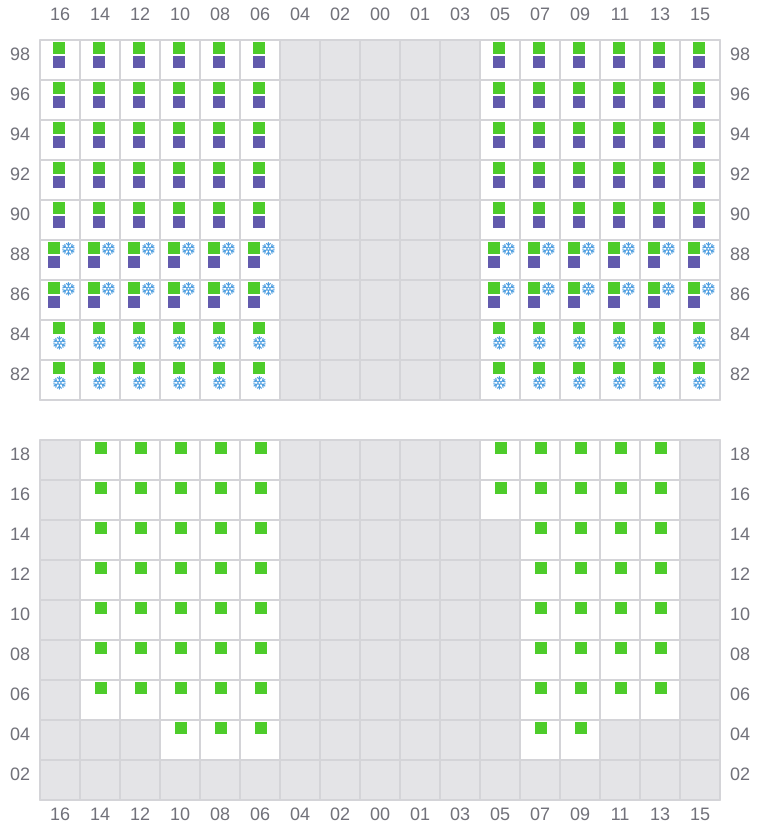

Bay 063 view and slots of MSC CHIARA X

065

  • →
  • ← / →

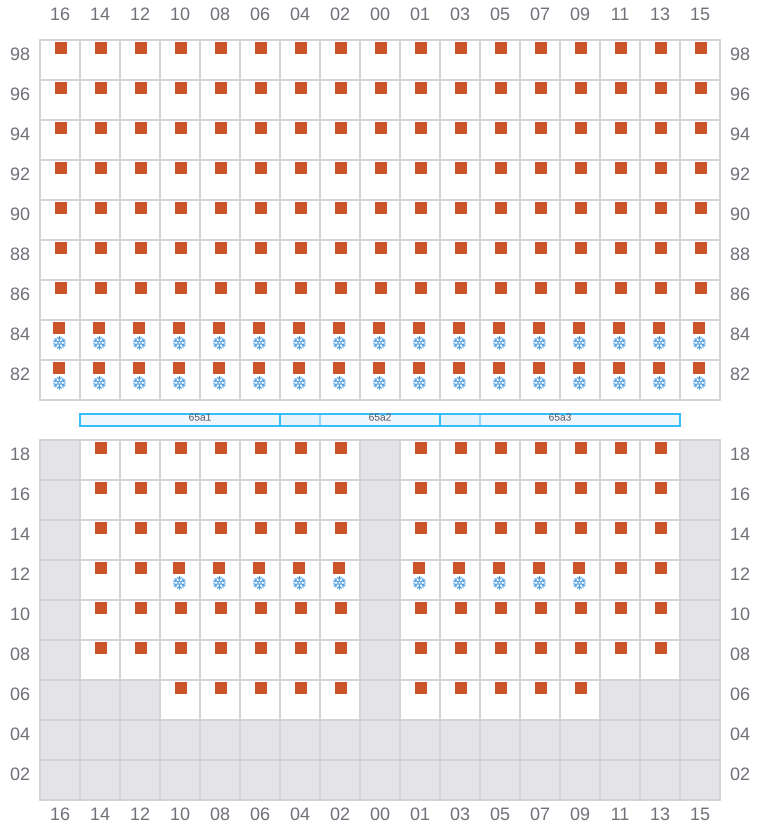

Bay 065 view and slots of MSC CHIARA X

067 (066)

  • ←
  • ? / →

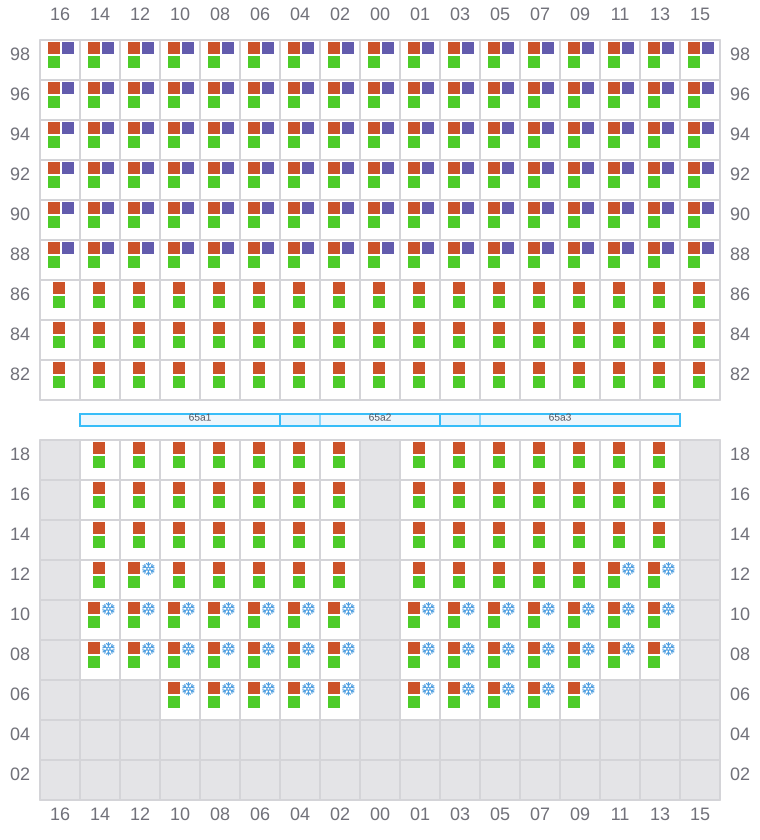

Bay 067 view and slots of MSC CHIARA X

069

  • →
  • ← / ?
Bay 069 view and slots of MSC CHIARA X

071 (070)

  • ←
Bay 071 view and slots of MSC CHIARA X

073

  • →
  • ← / ?

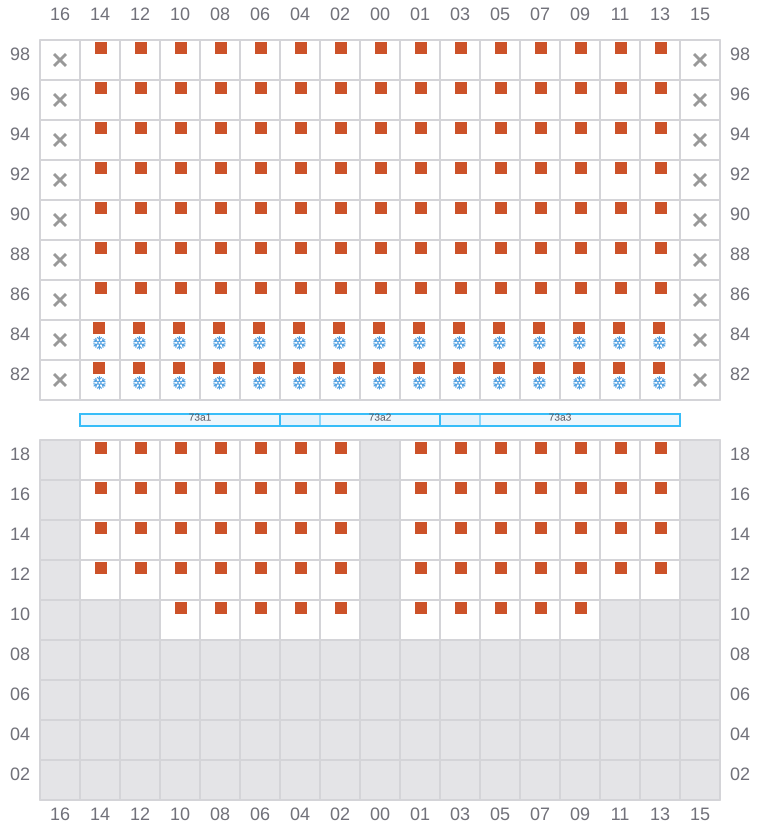

Bay 073 view and slots of MSC CHIARA X

075 (074)

  • ←

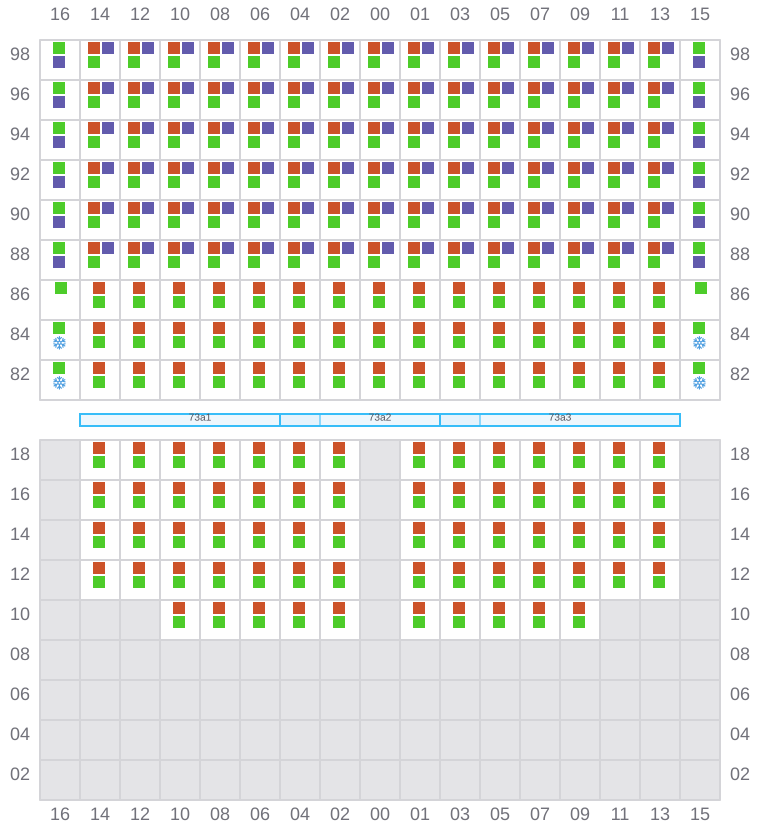

Bay 075 view and slots of MSC CHIARA X

077

  • →
  • ← / ?

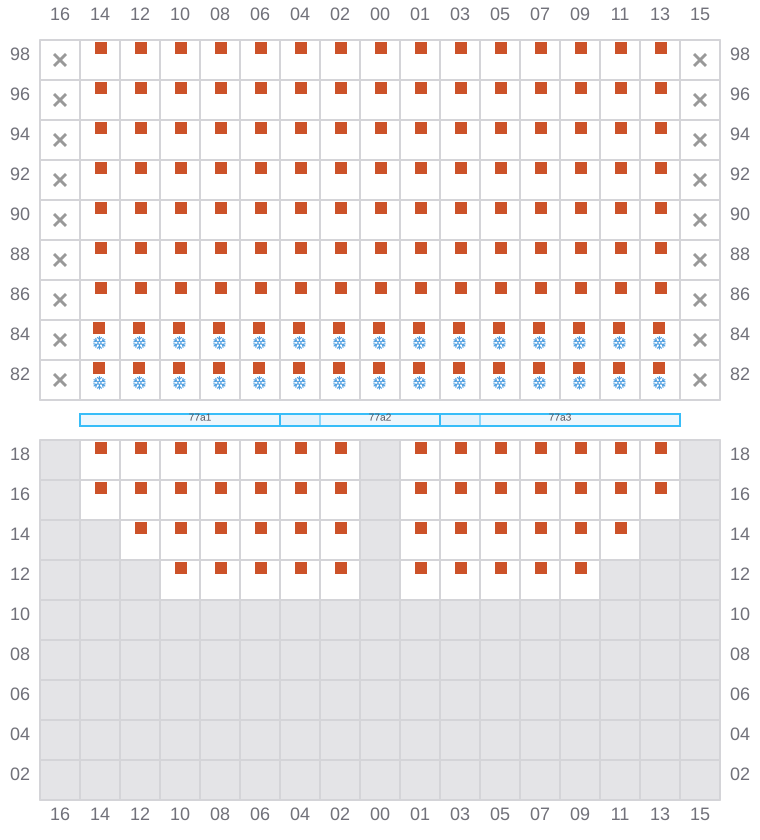

Bay 077 view and slots of MSC CHIARA X

079 (078)

  • ←
Bay 079 view and slots of MSC CHIARA X

081

  • → / ?

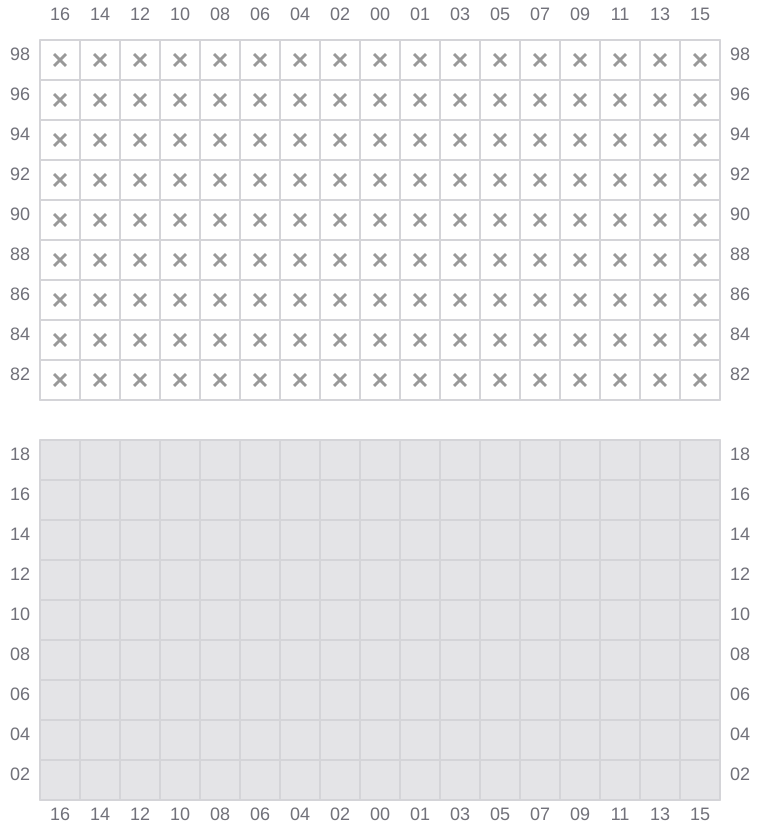

Bay 081 view and slots of MSC CHIARA X

083 (082)

  • ← / ?

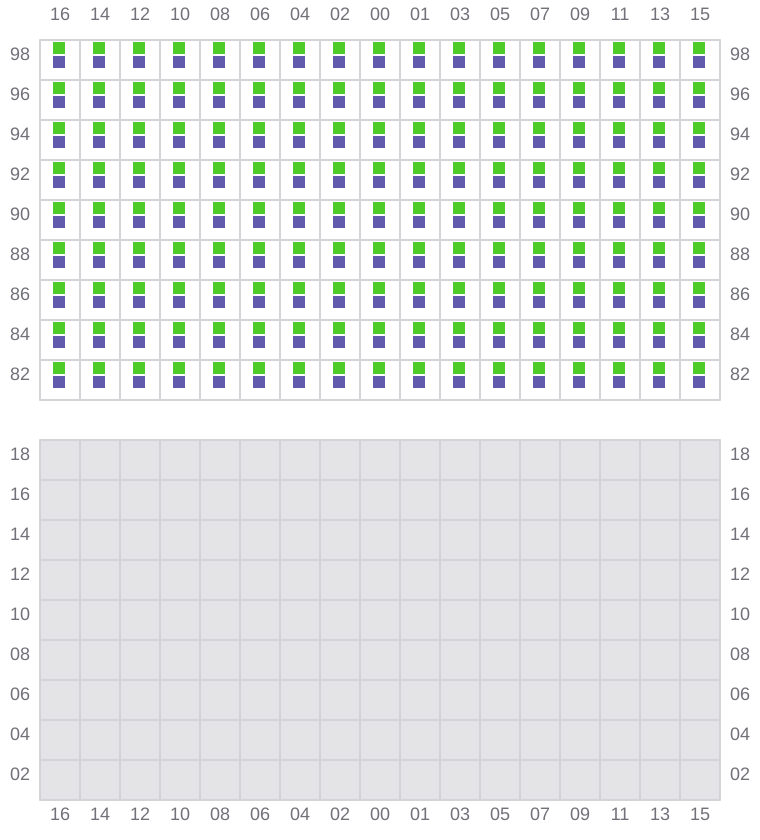

Bay 083 view and slots of MSC CHIARA X
