The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
MSC CLORINDA
9484429 | 3FDW7 | MSC by ************************** Last update: Fri Jun 16 2023
General Info
Ship Name:MSC CLORINDA
IMO Code:9484429
Call Sign:3FDW7
Line Operator:MSC
Class Name for Sister Ships:CLO
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,108
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

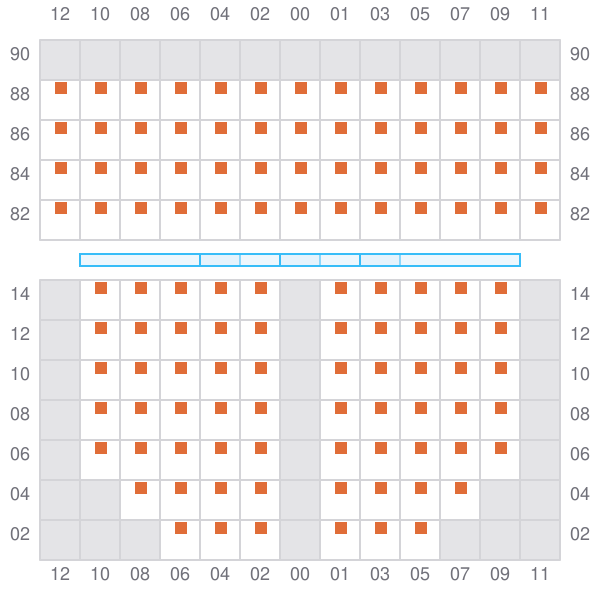

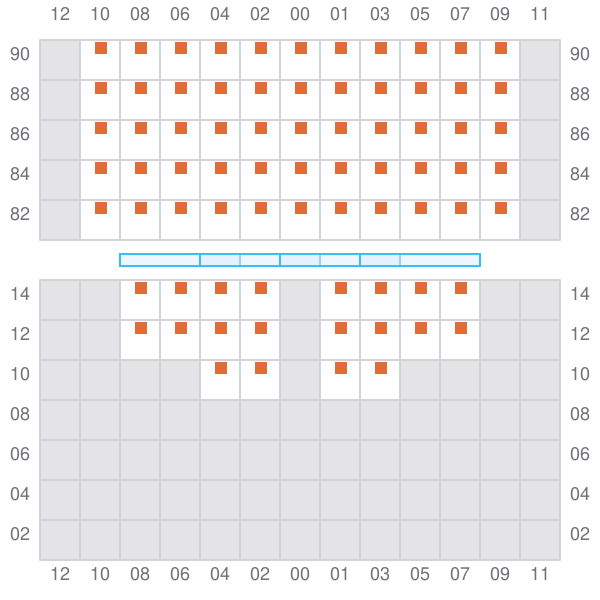

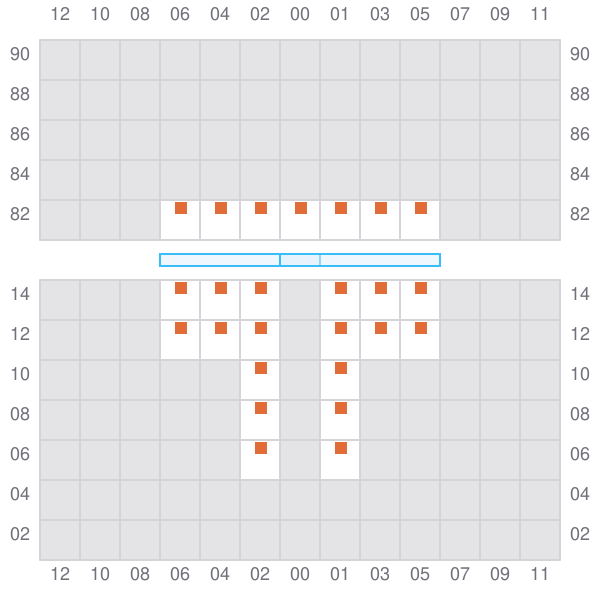

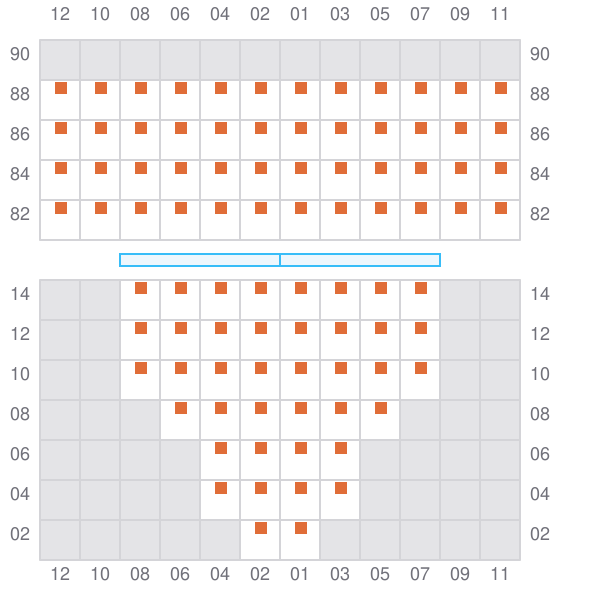

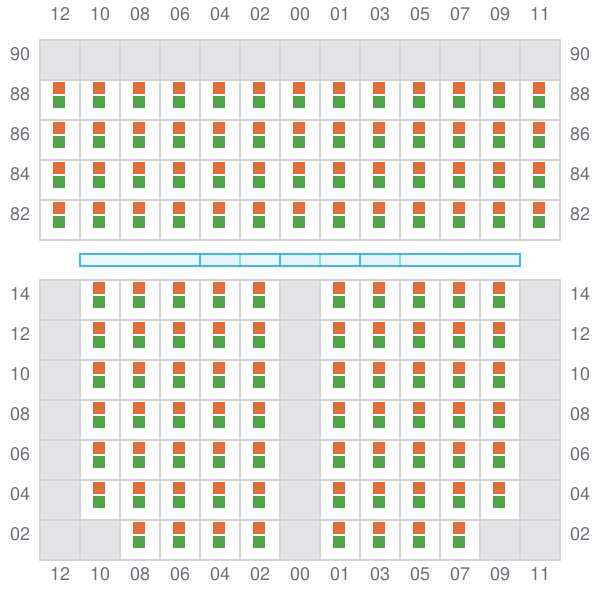

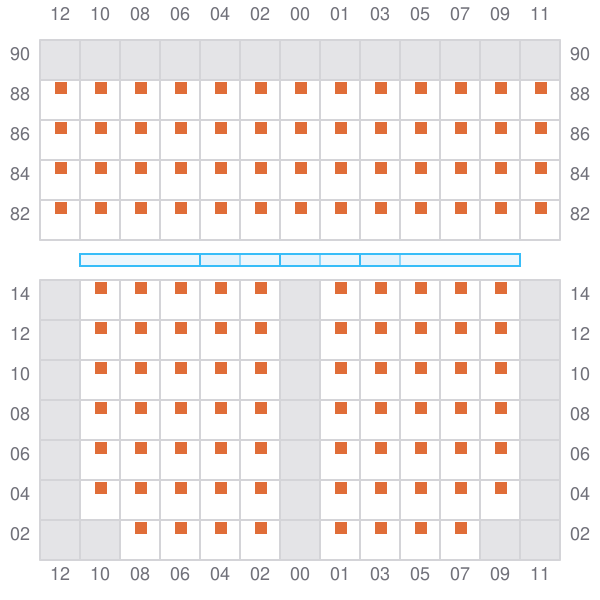

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

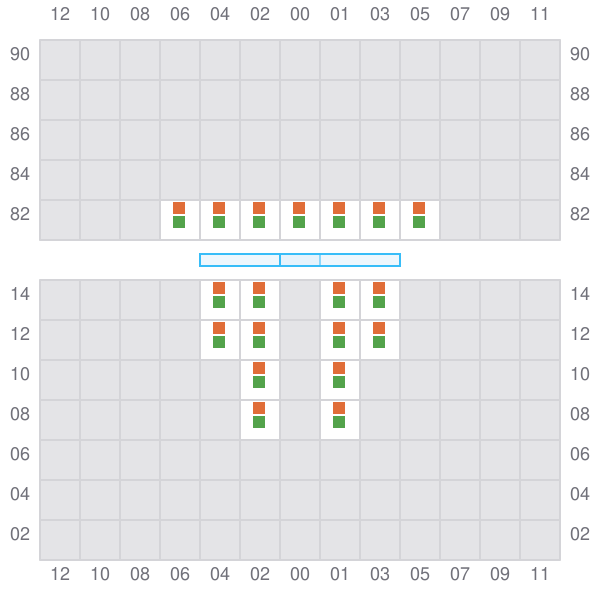

001 (002)
- →
- ? / →
003
- ←
- ? / →
005 (006)
- →
007
- ←
- → / ?

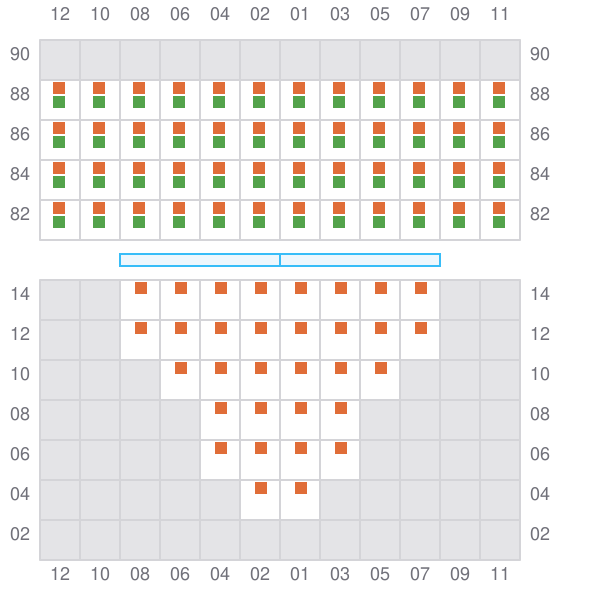

009 (010)
- → / ?
- ? / →
011
- ← / ?
- → / ?
013 (014)
- →
015
- ←
017 (018)
- →
- ? / →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- → / ?

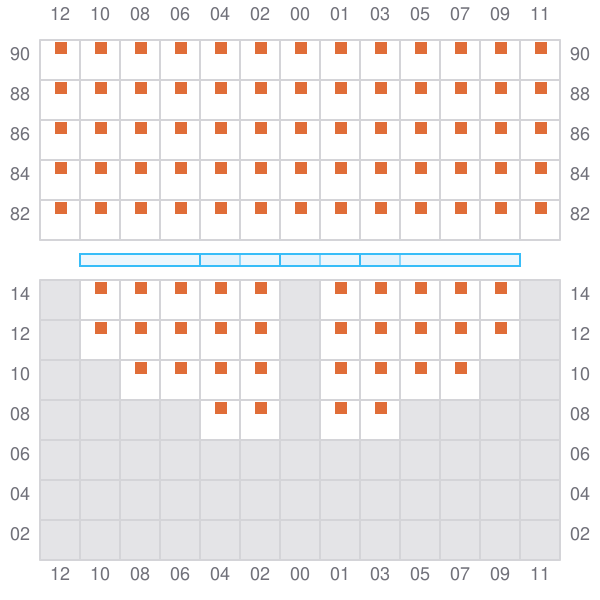

039
- ← / ?
041 (042)
- → / ?
043
- ← / ?

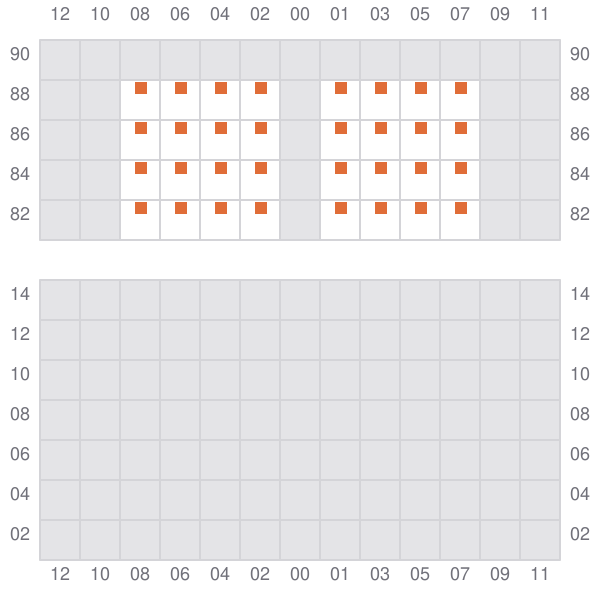

045
