MSC CORDELIA III
9253014 | A8TL8 | 9253014 by ********* Last update: Wed Jul 31 2024

General Info

Ship Name:MSC CORDELIA III
IMO Code:9253014
Call Sign:A8TL8
Line Operator:9253014
Class Name for Sister Ships:MAE
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

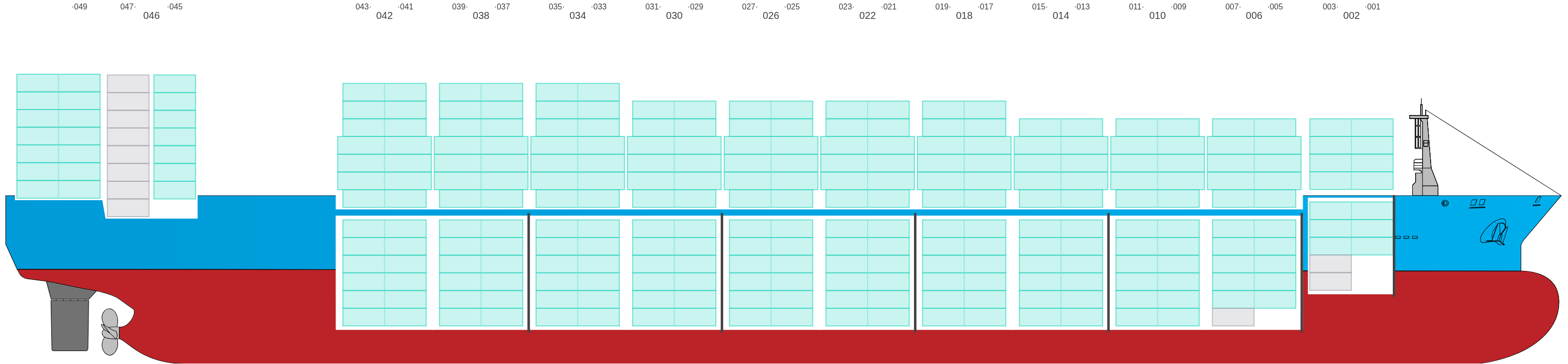

Side View

Side view of MSC CORDELIA III

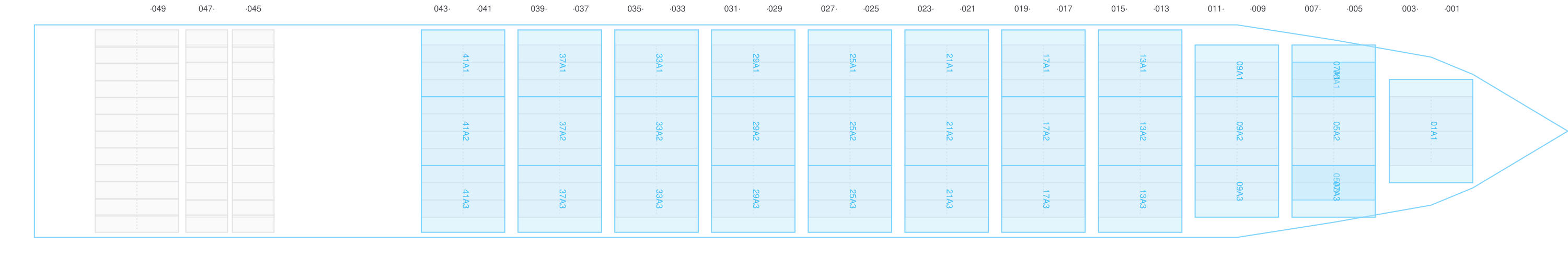

Hatch-Covers View

Deck view of MSC CORDELIA III

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

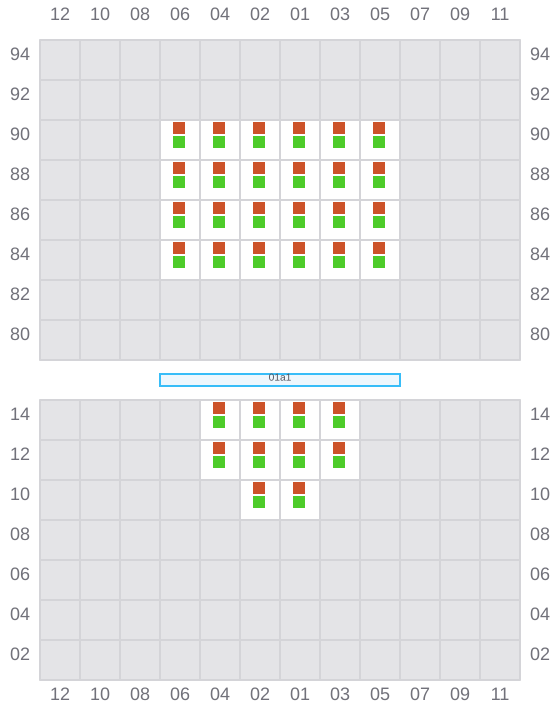

001 (002)

  • →
Bay 001 view and slots of MSC CORDELIA III

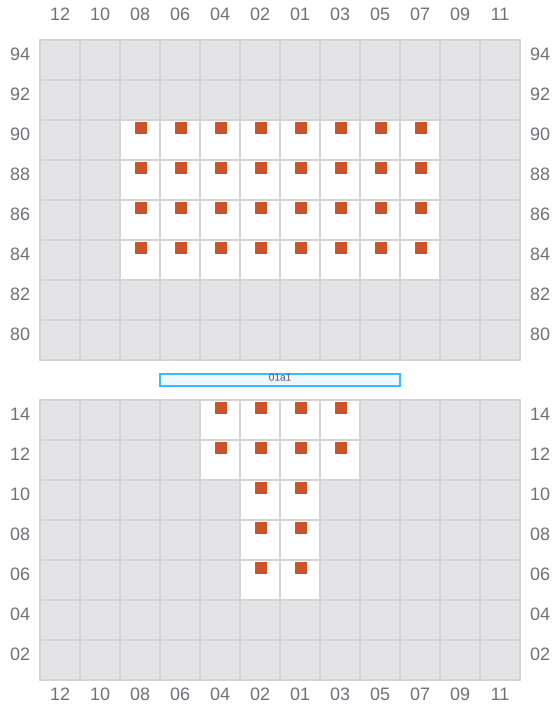

003

  • ←
Bay 003 view and slots of MSC CORDELIA III

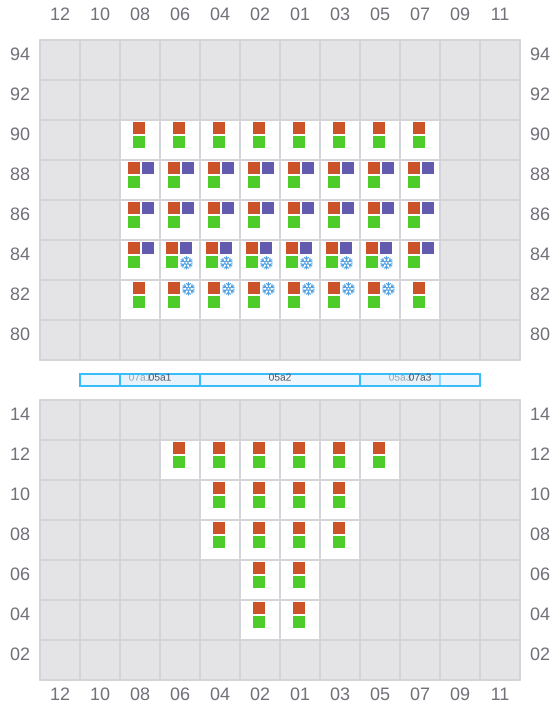

005 (006)

  • →

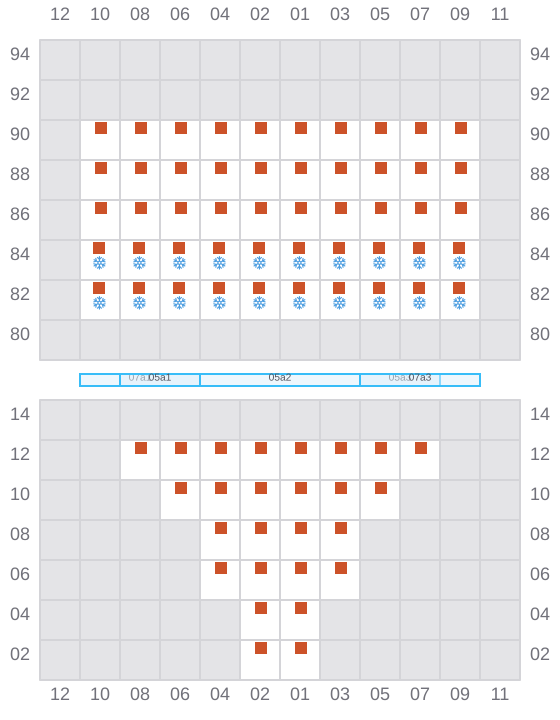

Bay 005 view and slots of MSC CORDELIA III

007

  • ←
  • → / ?
Bay 007 view and slots of MSC CORDELIA III

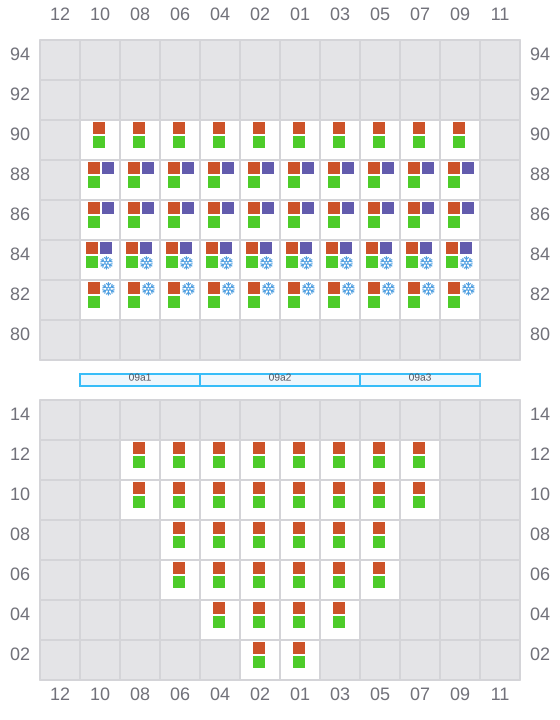

009 (010)

  • →
  • ← / ?
Bay 009 view and slots of MSC CORDELIA III

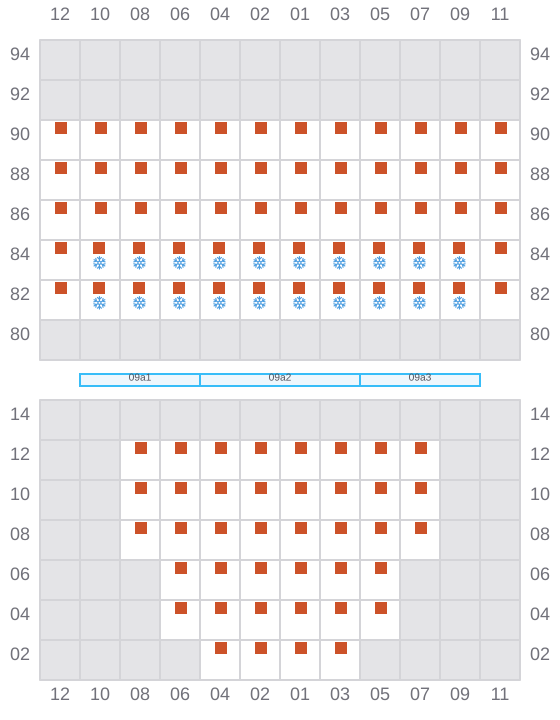

011

  • ←
  • → / ?
Bay 011 view and slots of MSC CORDELIA III

013 (014)

  • →
  • → / ?
Bay 013 view and slots of MSC CORDELIA III

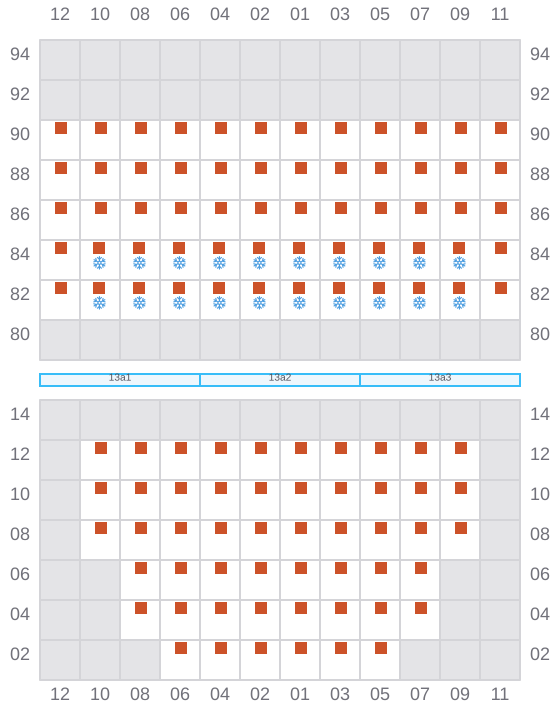

015

  • ←
  • →
Bay 015 view and slots of MSC CORDELIA III

017 (018)

  • →

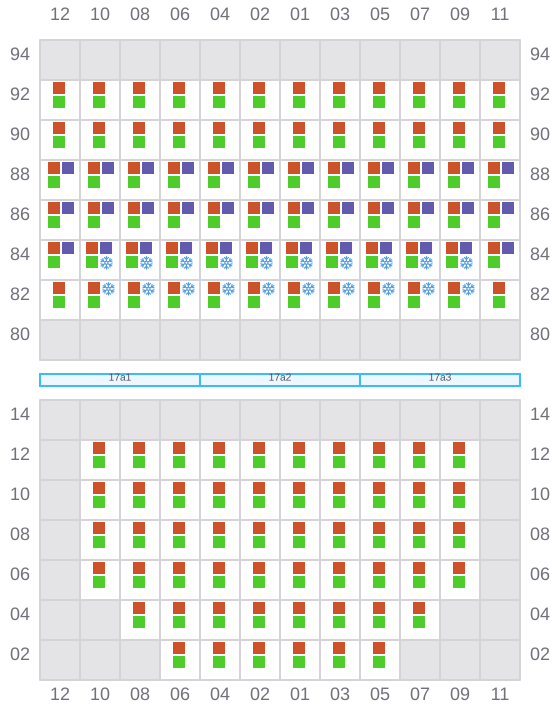

Bay 017 view and slots of MSC CORDELIA III

019

  • ←
  • →
Bay 019 view and slots of MSC CORDELIA III

021 (022)

  • →
Bay 021 view and slots of MSC CORDELIA III

023

  • ←
  • →
Bay 023 view and slots of MSC CORDELIA III

025 (026)

  • →

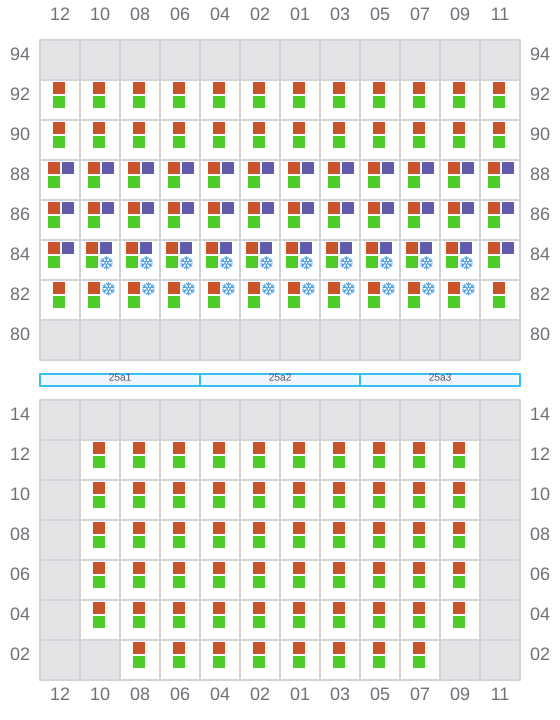

Bay 025 view and slots of MSC CORDELIA III

027

  • ←
  • →
Bay 027 view and slots of MSC CORDELIA III

029 (030)

  • →

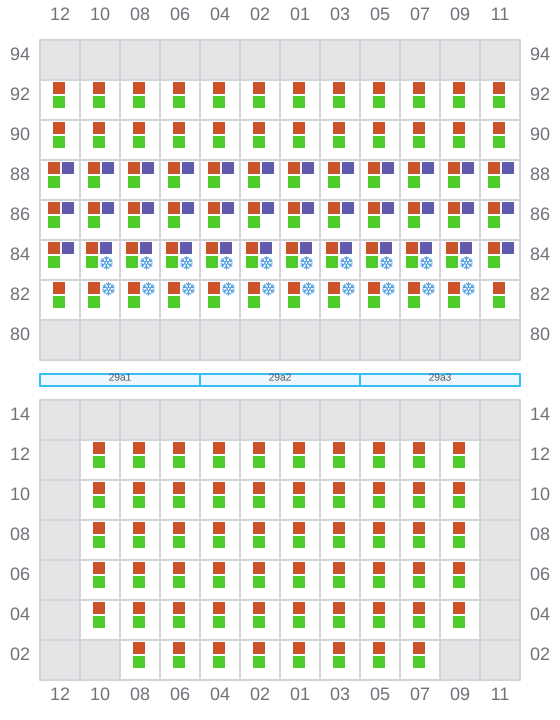

Bay 029 view and slots of MSC CORDELIA III

031

  • ←
  • →

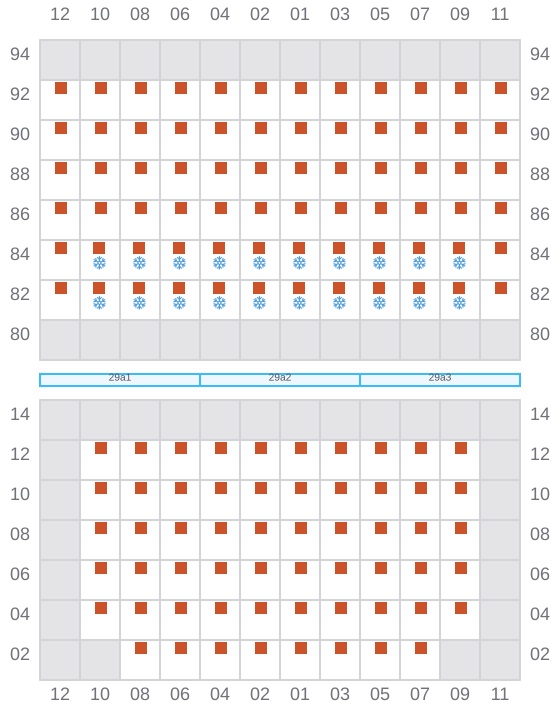

Bay 031 view and slots of MSC CORDELIA III

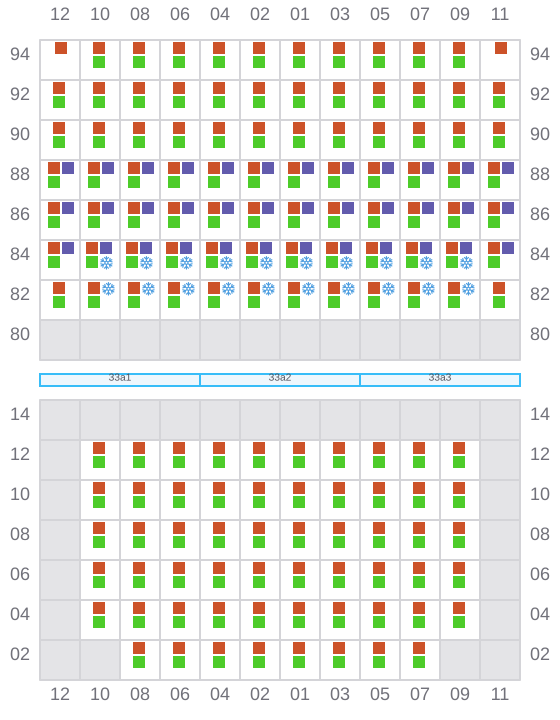

033 (034)

  • →
Bay 033 view and slots of MSC CORDELIA III

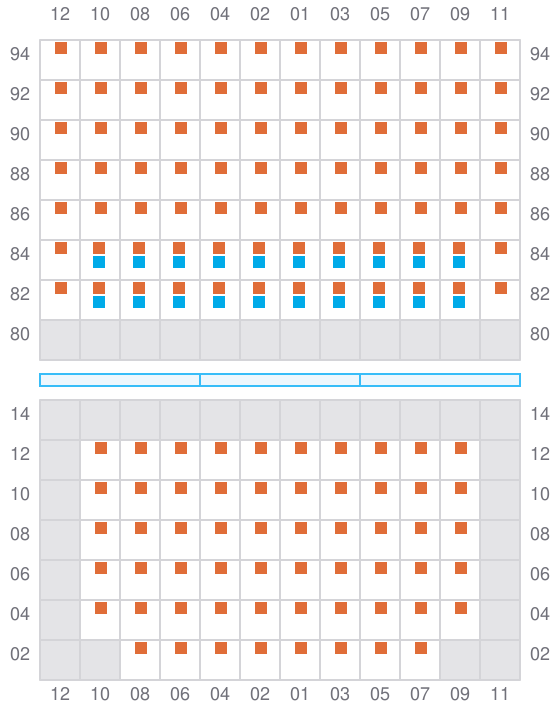

035

  • ←
  • → / ?
Bay 035 view and slots of MSC CORDELIA III

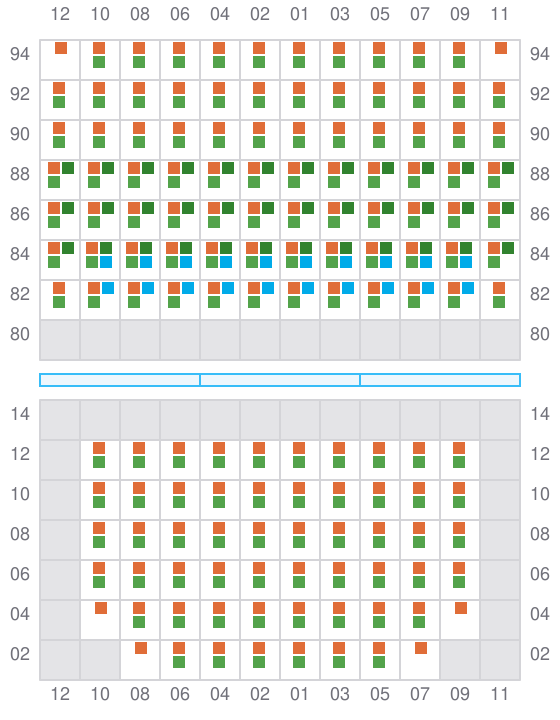

037 (038)

  • →
Bay 037 view and slots of MSC CORDELIA III

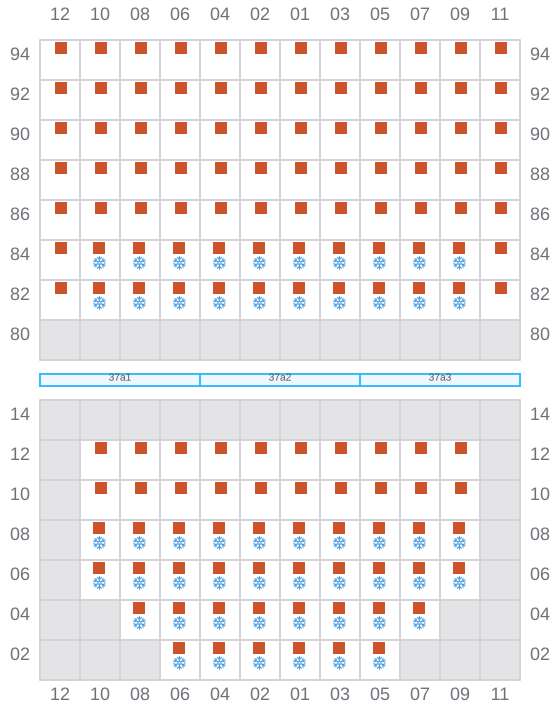

039

  • ←
  • →
Bay 039 view and slots of MSC CORDELIA III

041 (042)

  • →
  • ← / ?
Bay 041 view and slots of MSC CORDELIA III

043

  • ←
  • →

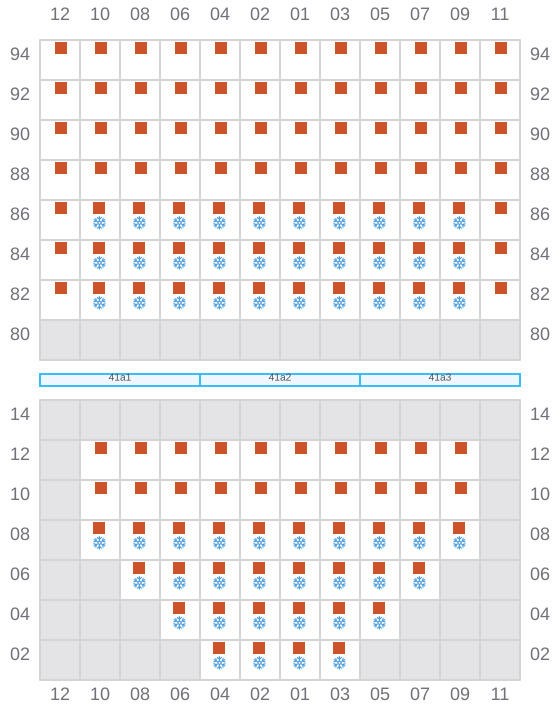

Bay 043 view and slots of MSC CORDELIA III

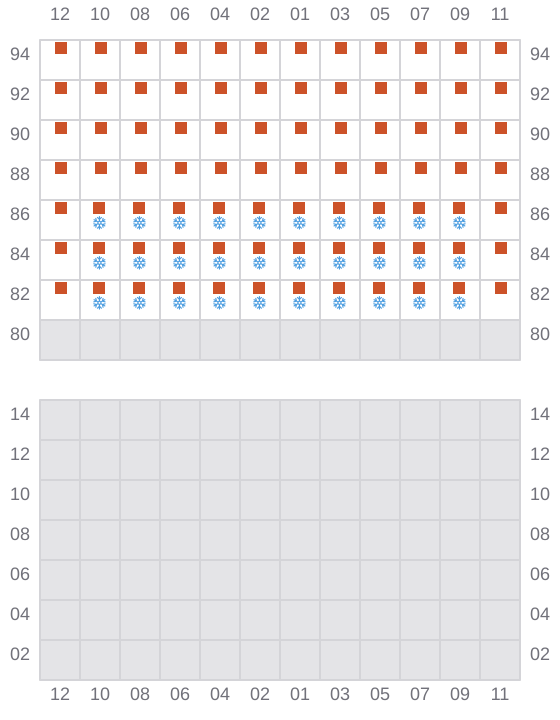

045

  • → / ?
  • ← / ?
Bay 045 view and slots of MSC CORDELIA III

047

  • ← / ?
  • → / ?

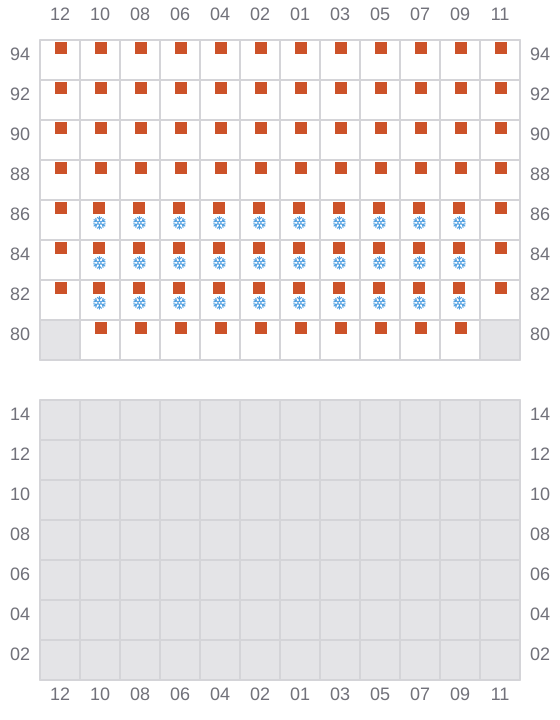

Bay 047 view and slots of MSC CORDELIA III

049 (050)

  • → / ?
  • ← / ?

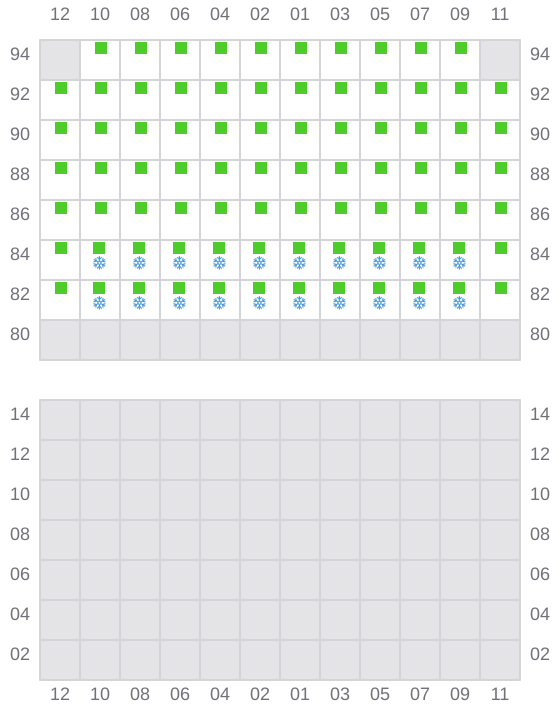

Bay 049 view and slots of MSC CORDELIA III
