MSC DAMLA
9250983 | HOCR | 9250983 by ************************** Last update: Tue Sep 30 2025
General Info
Ship Name:MSC DAMLA
IMO Code:9250983
Call Sign:HOCR
Line Operator:9250983
Class Name for Sister Ships:MOL PROGRESS
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):281.00
LOA (Length Overall):293.87
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,416
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

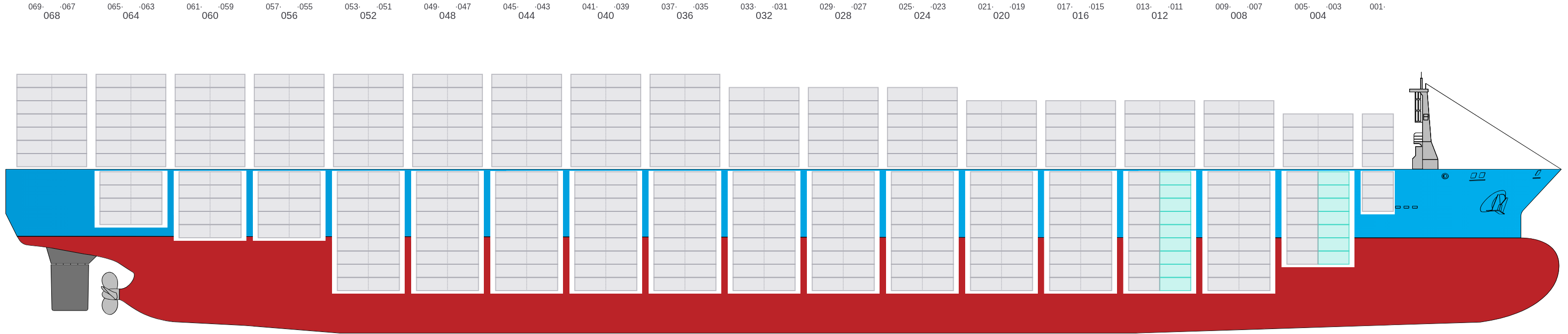

Side View

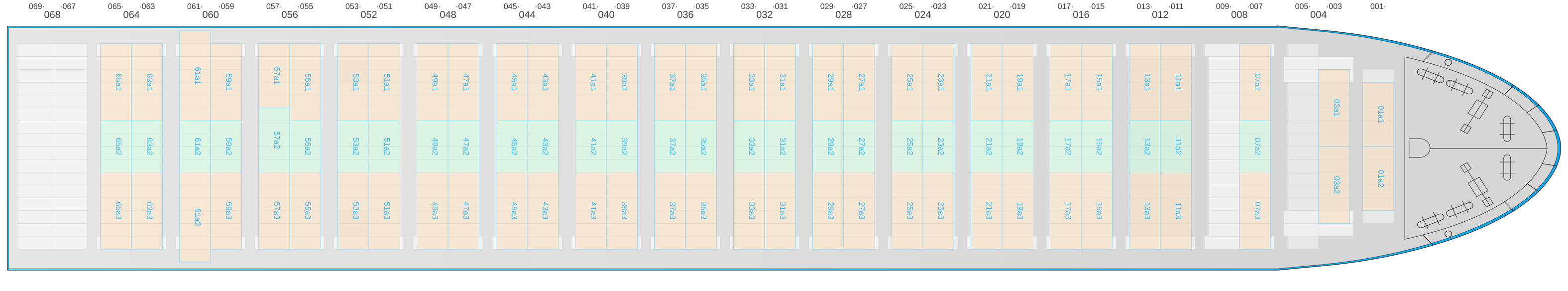

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

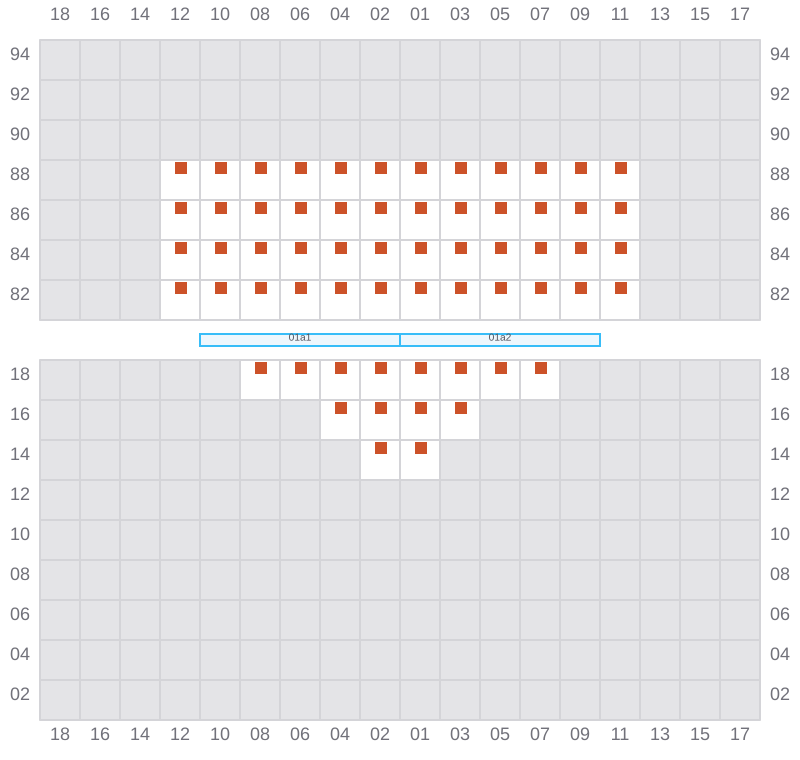

001
- ←

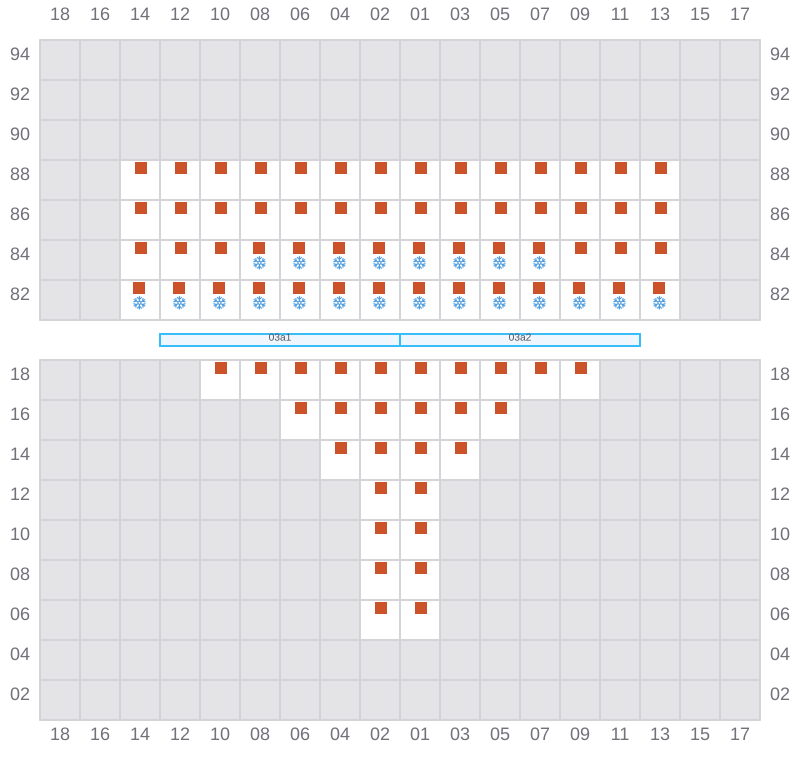

003
- →

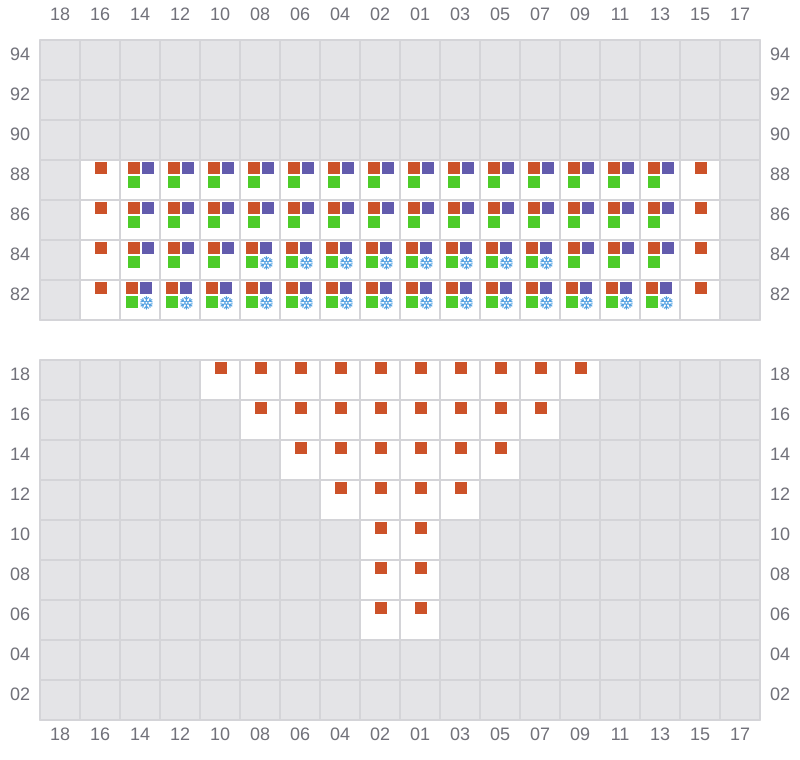

005 (004)
- ←

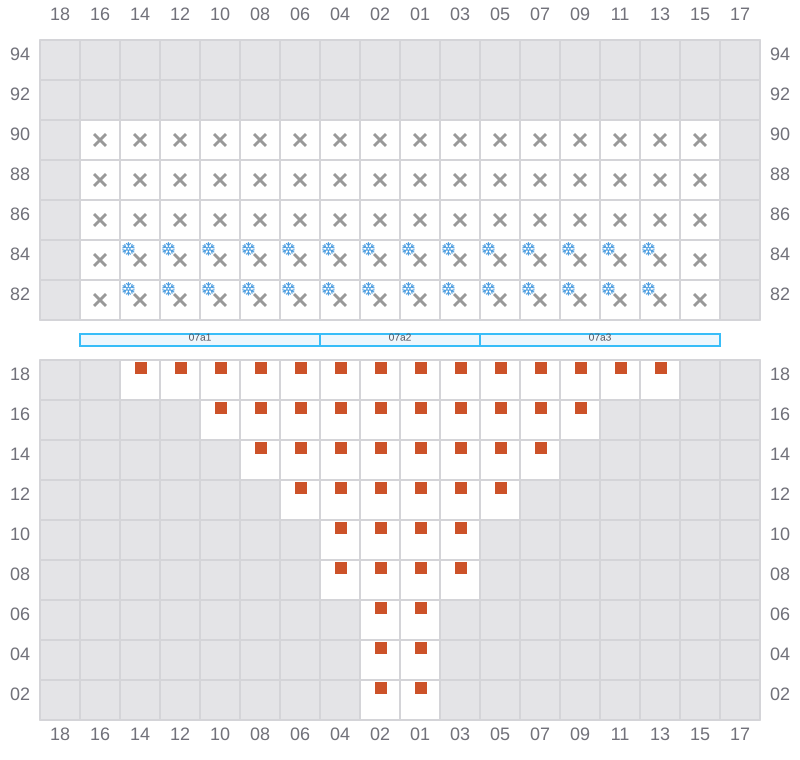

007
- →

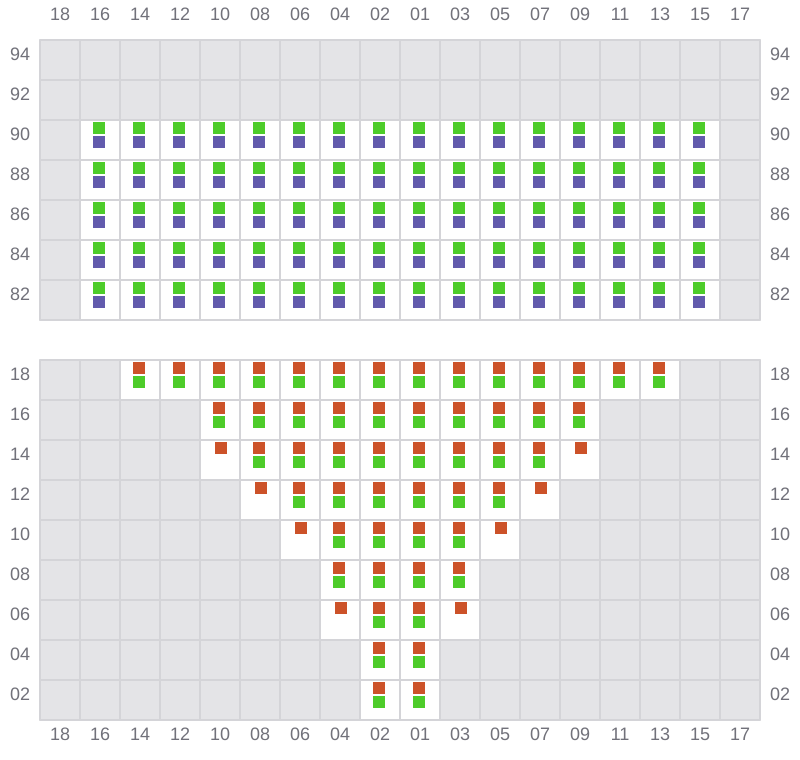

009 (008)
- ←
011
- →

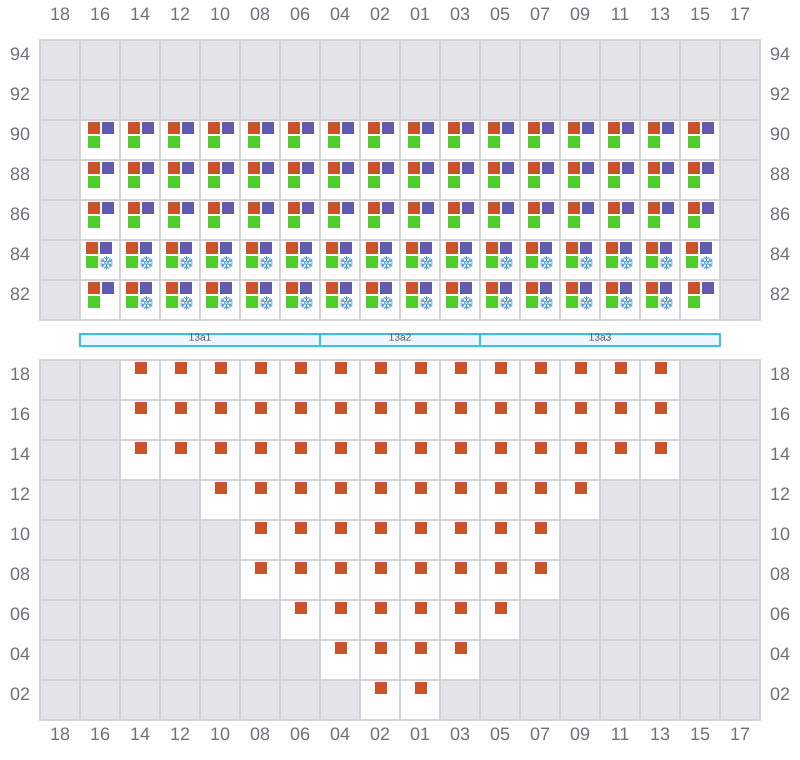

013 (012)
- ←
015
- →

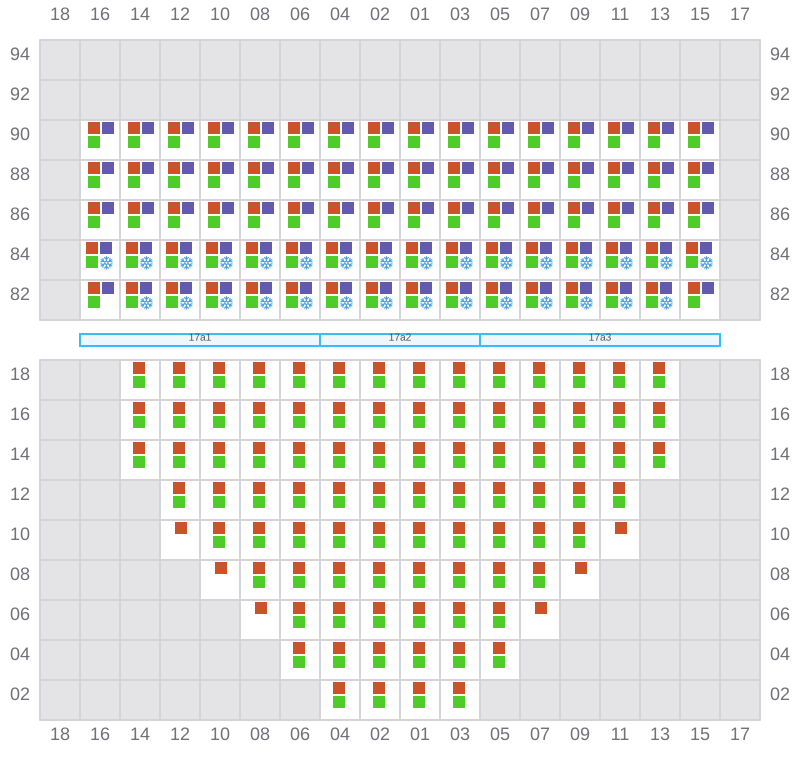

017 (016)
- ←

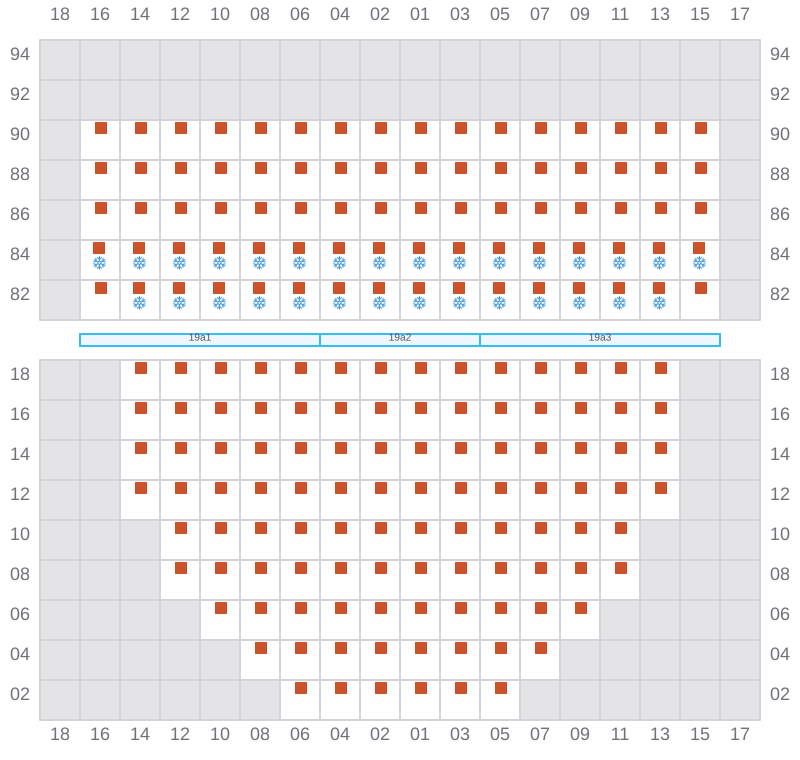

019
- →

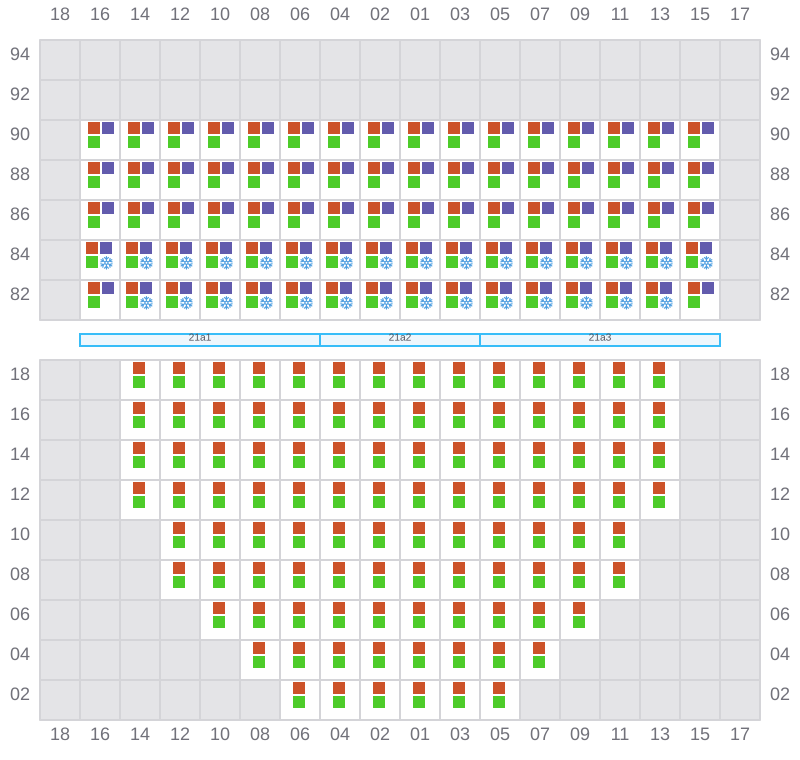

021 (020)
- ←

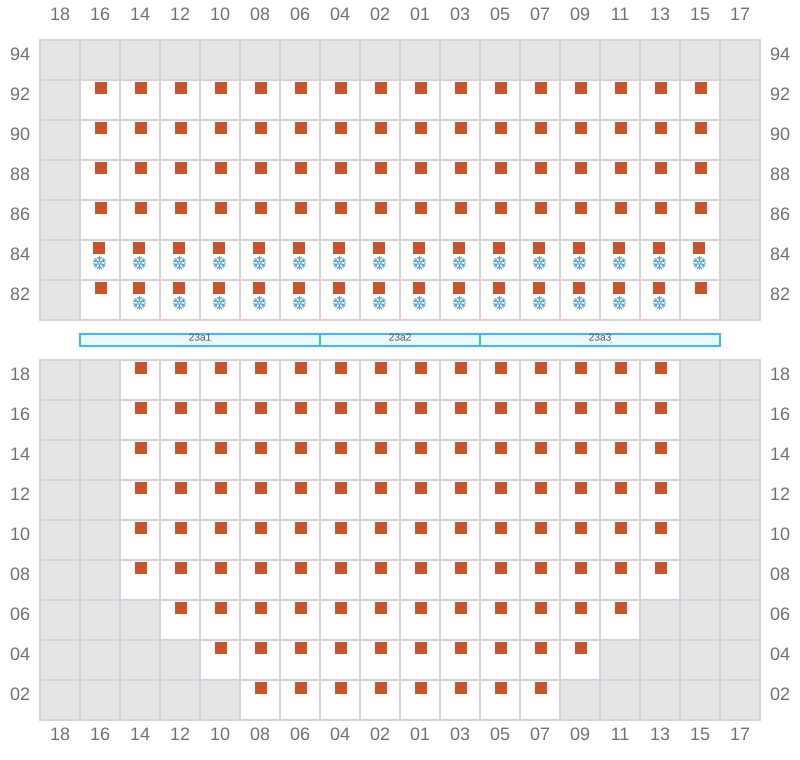

023
- →

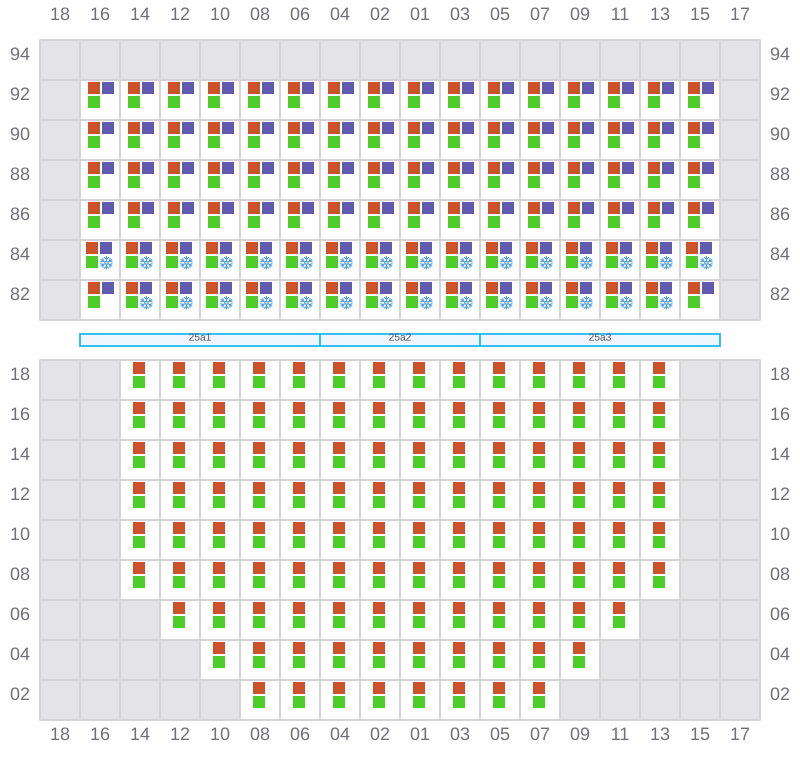

025 (024)
- ←

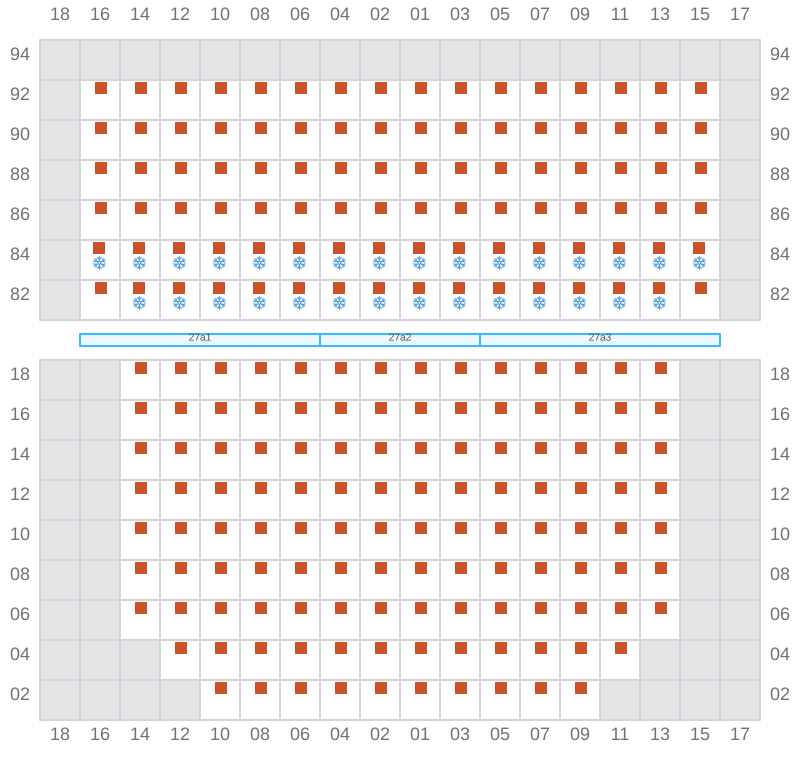

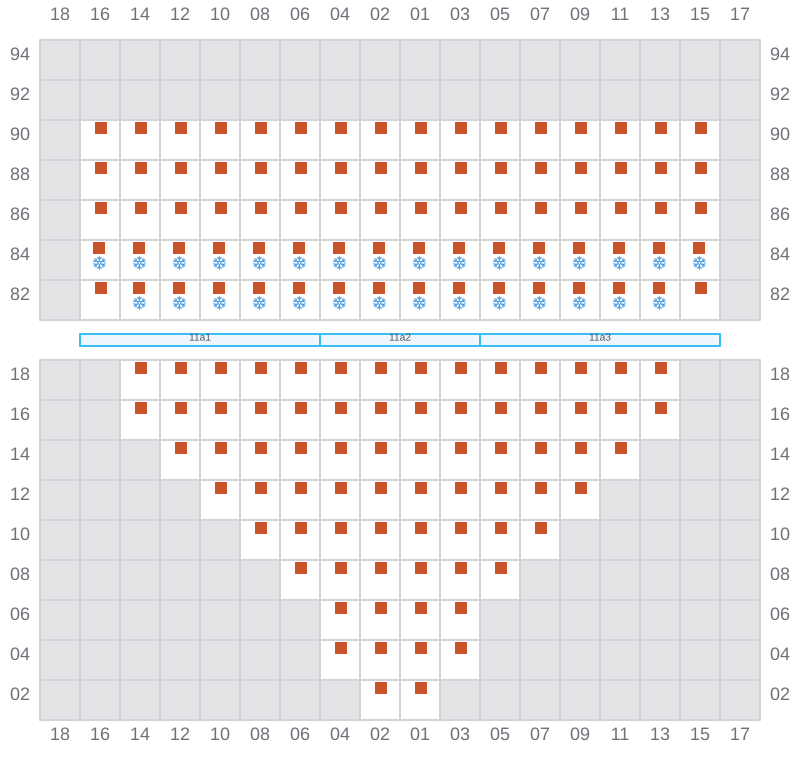

027
- →

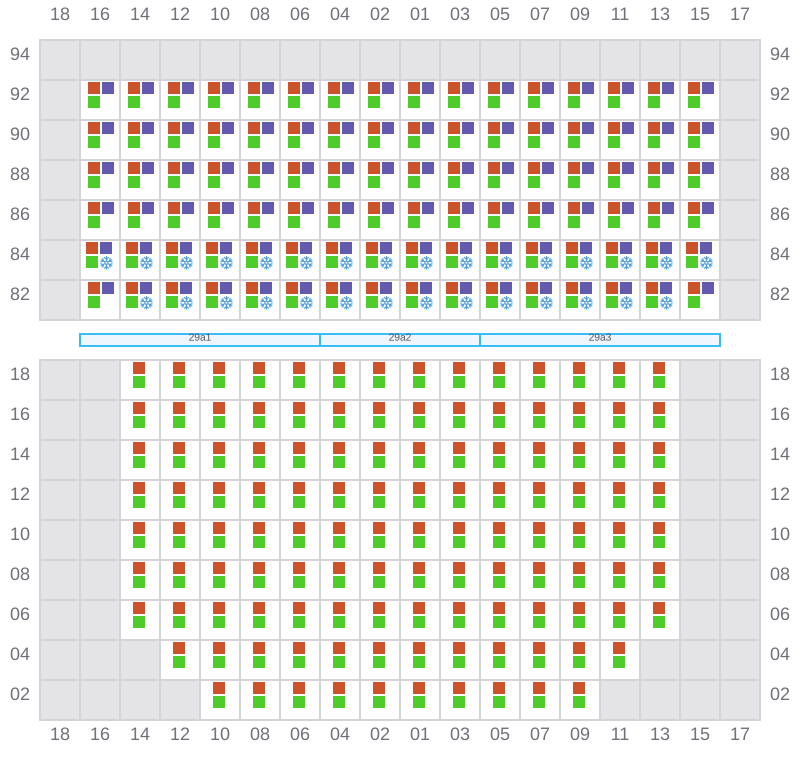

029 (028)
- ←

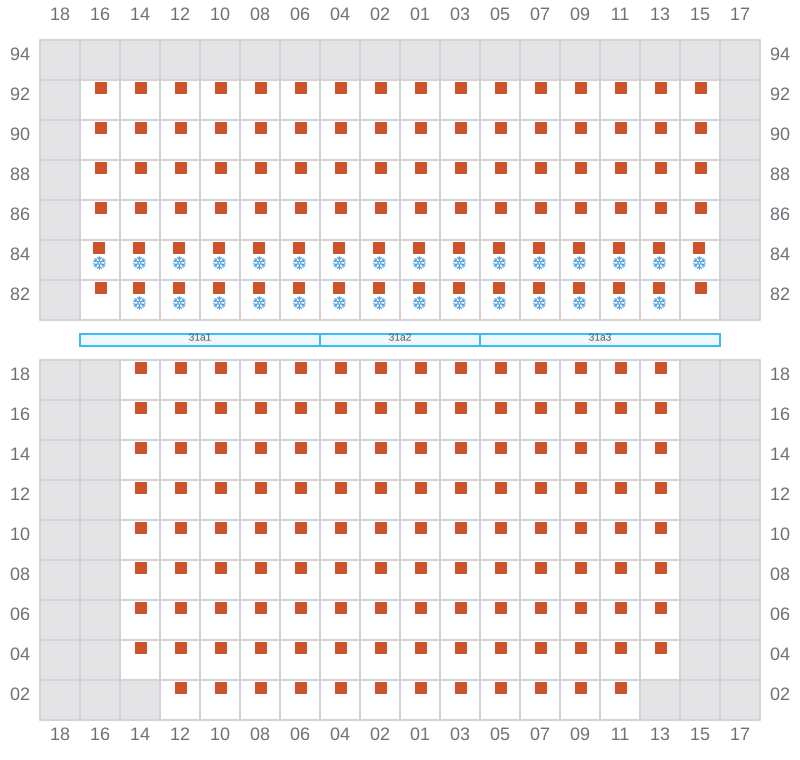

031
- →

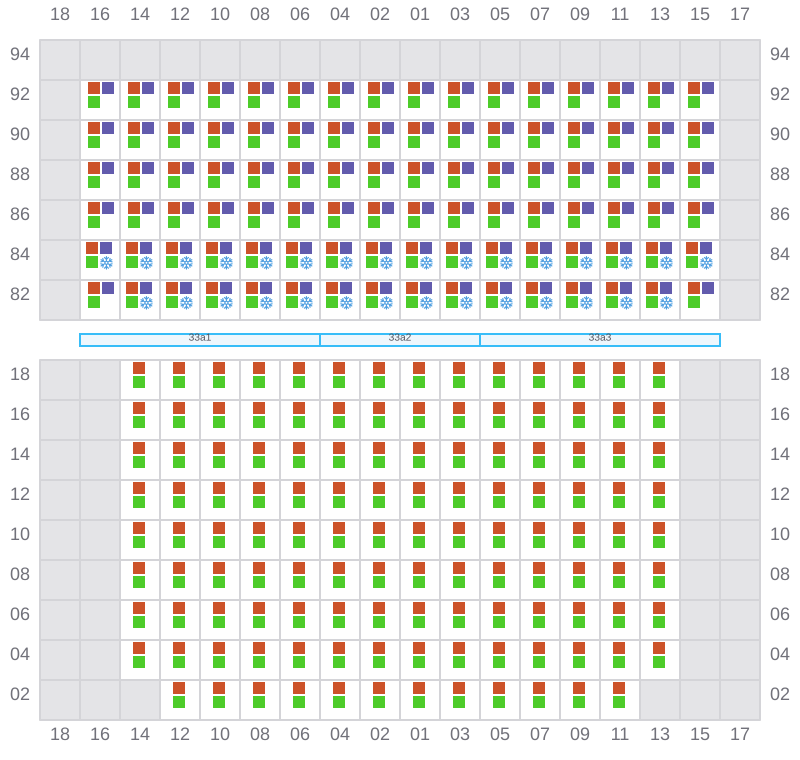

033 (032)
- ←

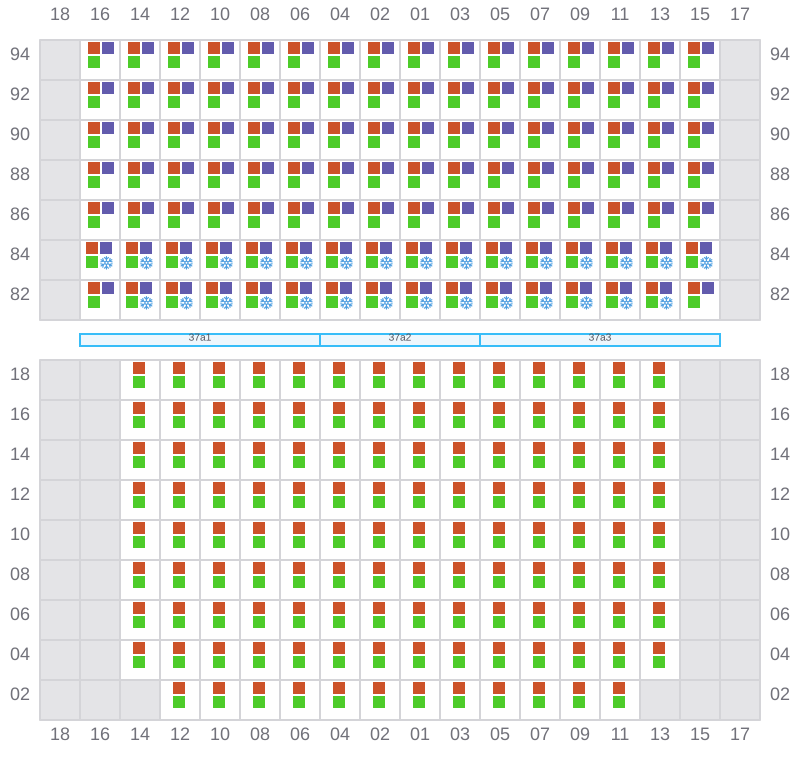

035
- →
037 (036)
- ←
039
- →
041 (040)
- ←

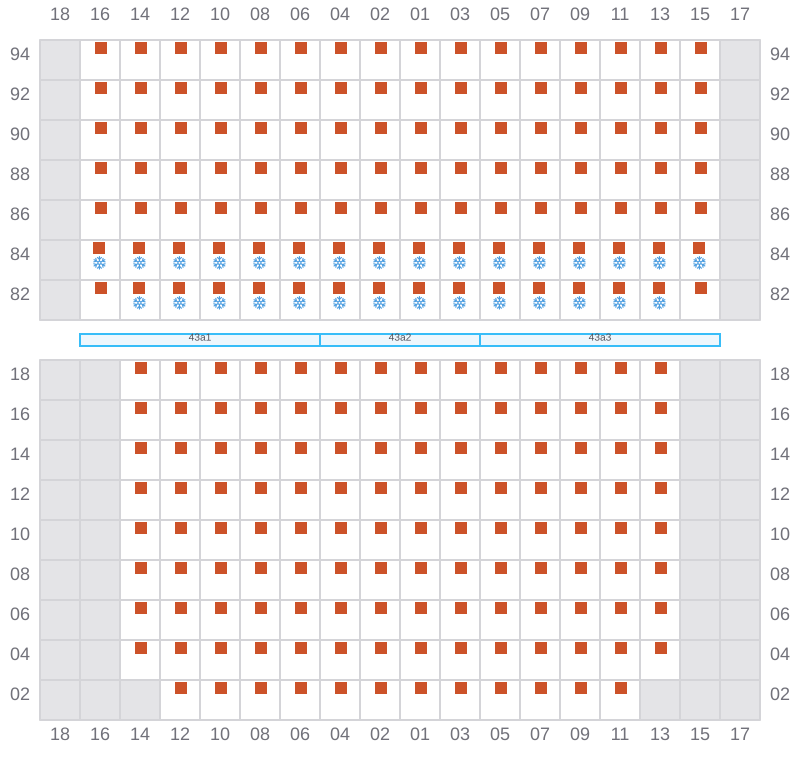

043
- →
045 (044)
- ←

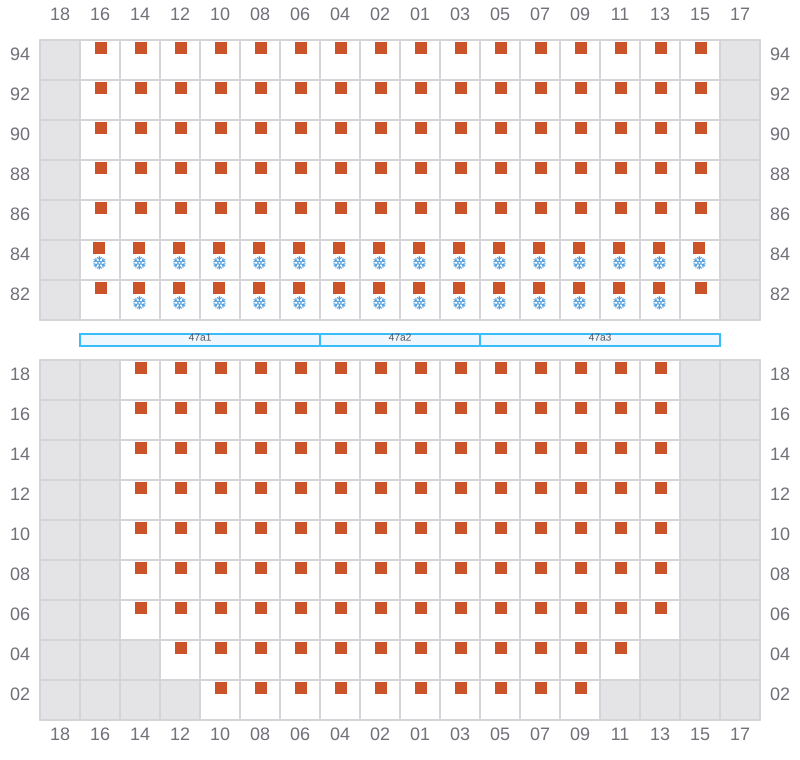

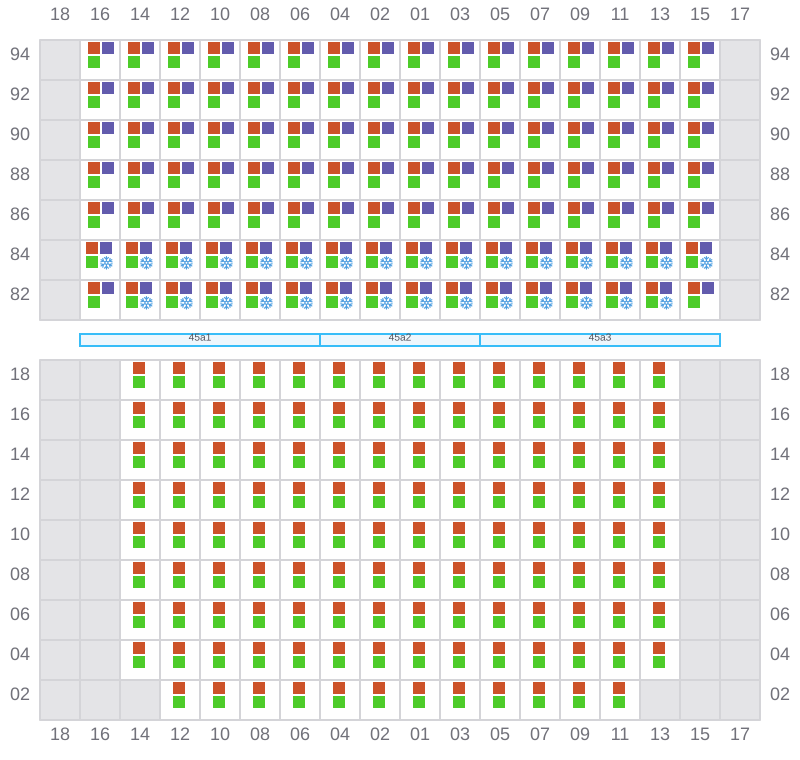

047
- →

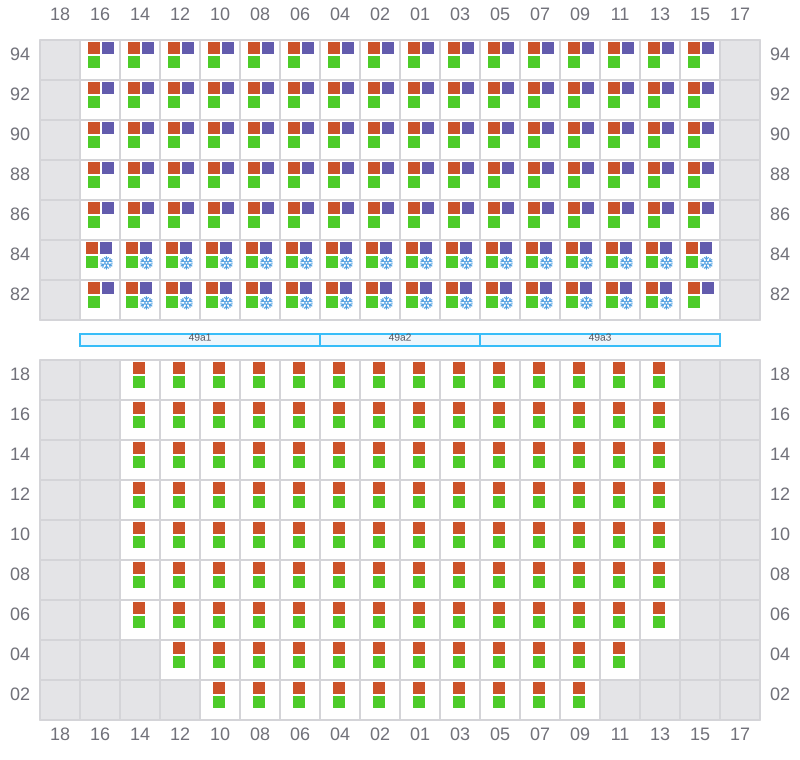

049 (048)
- ←

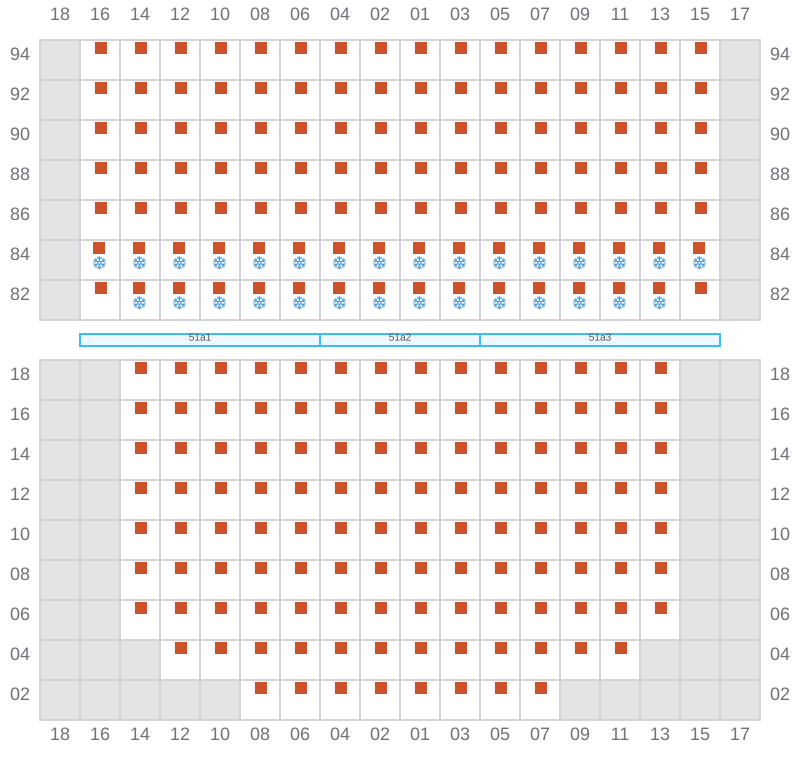

051
- →
053 (052)
- ←

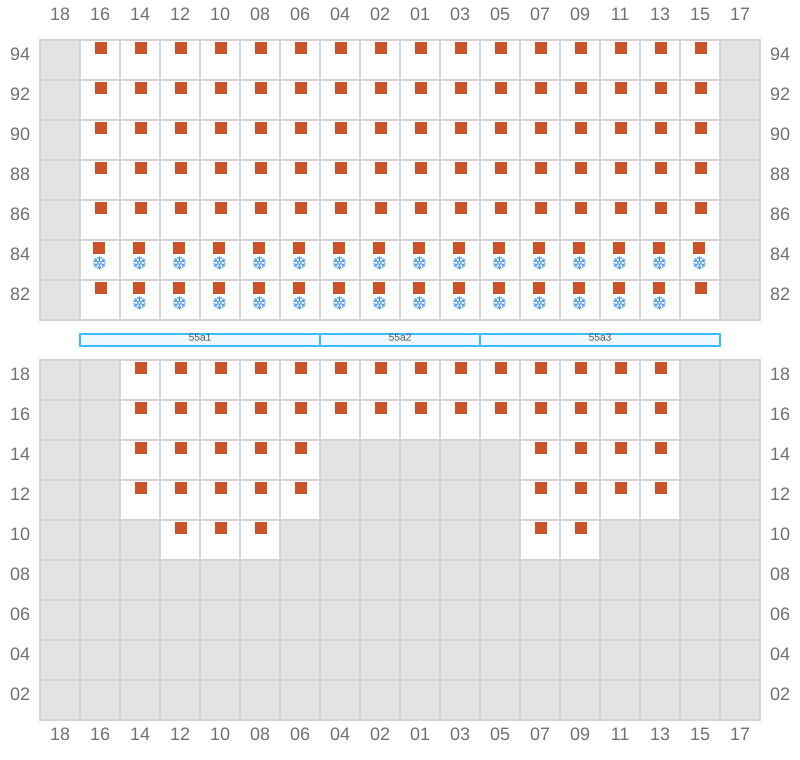

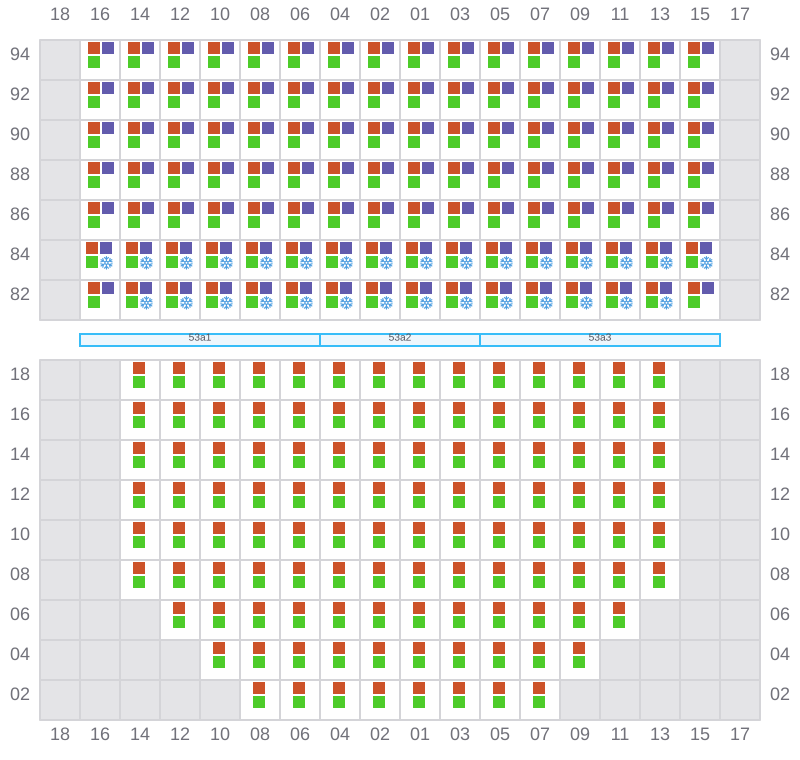

055
- →

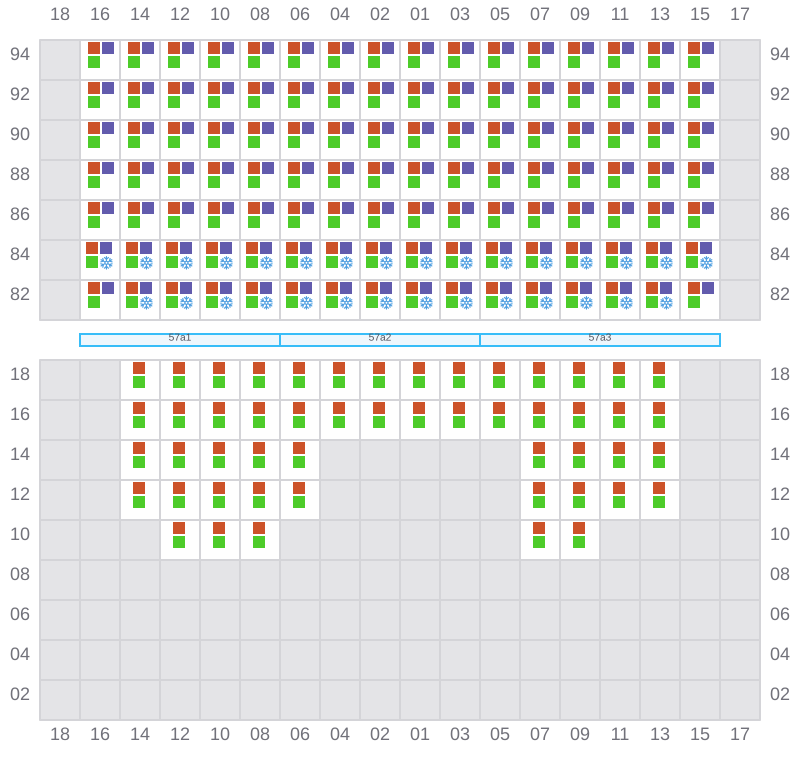

057 (056)
- ←

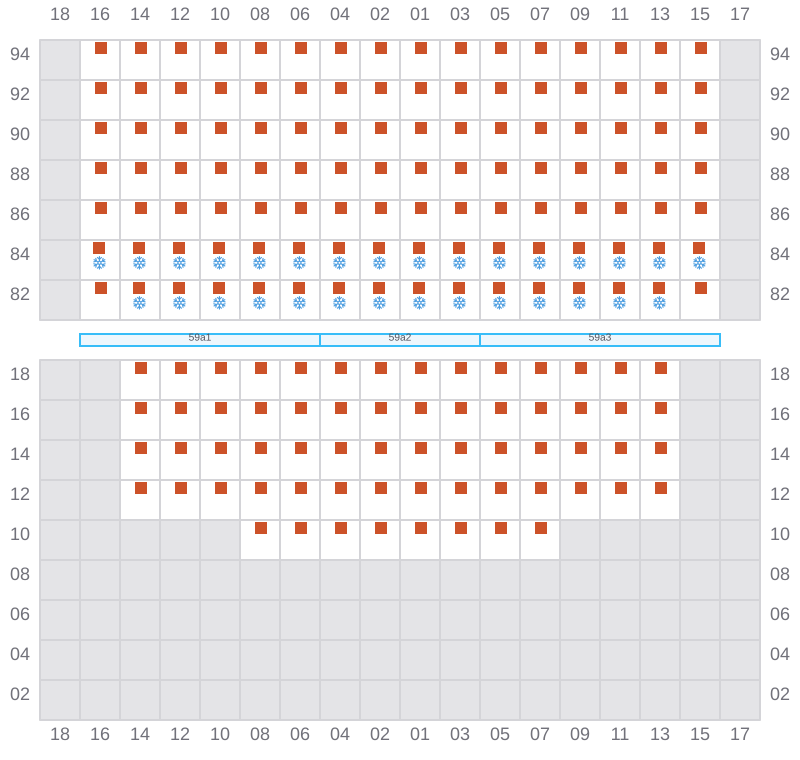

059
- →

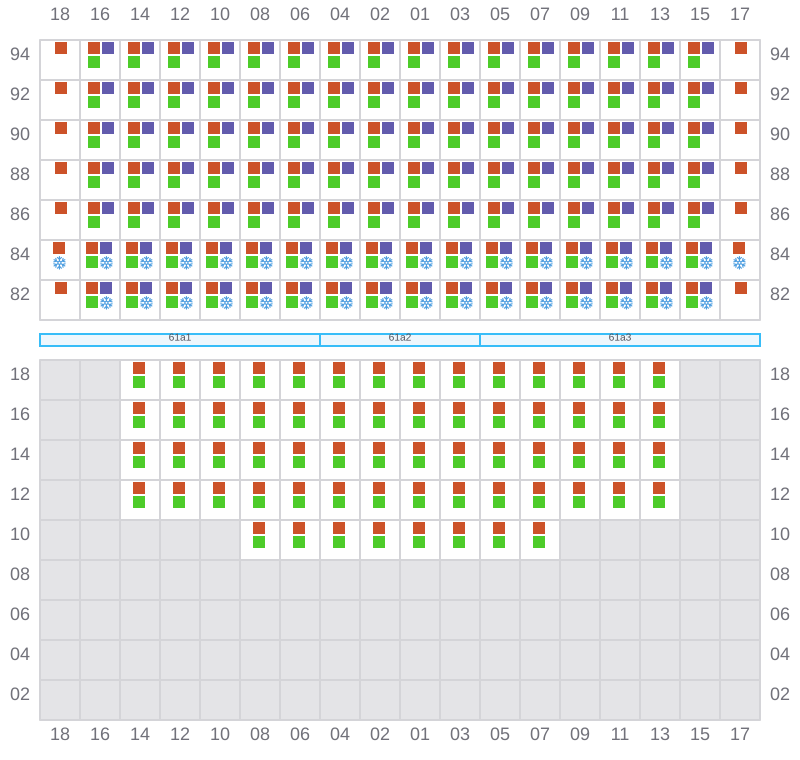

061 (060)
- ←
063
- →

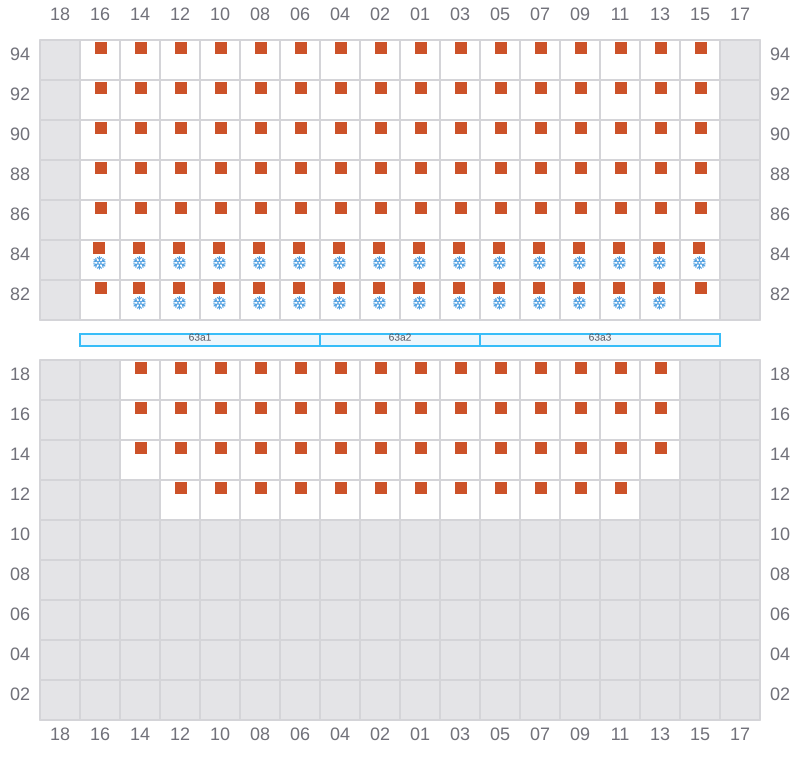

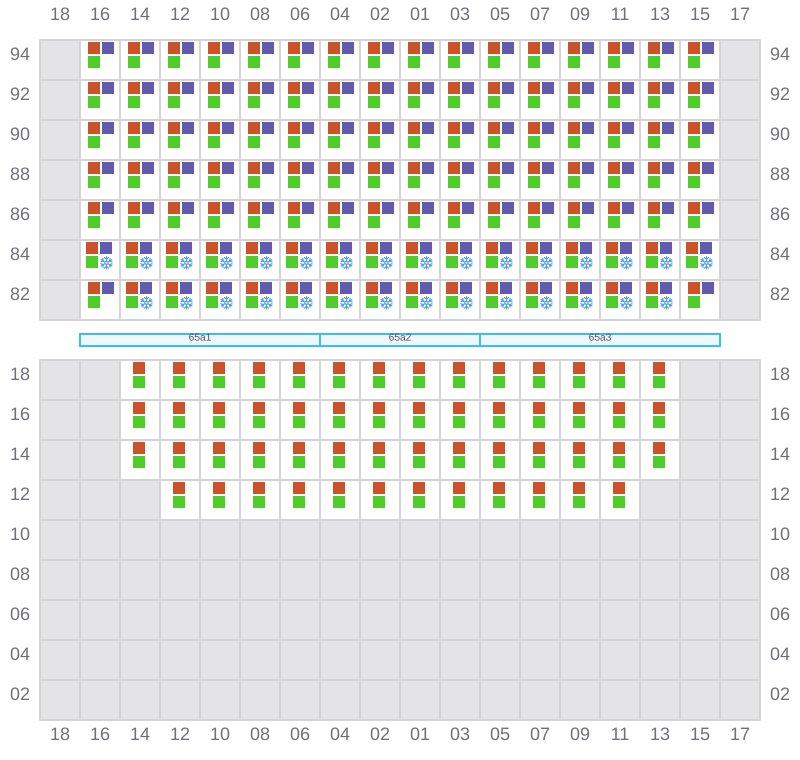

065 (064)
- ←

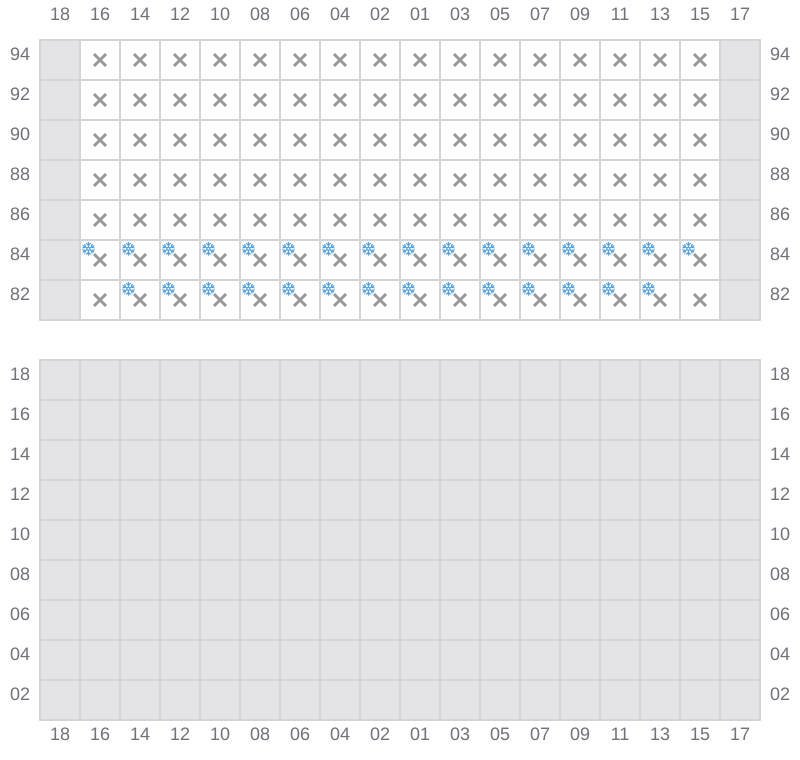

067
- →

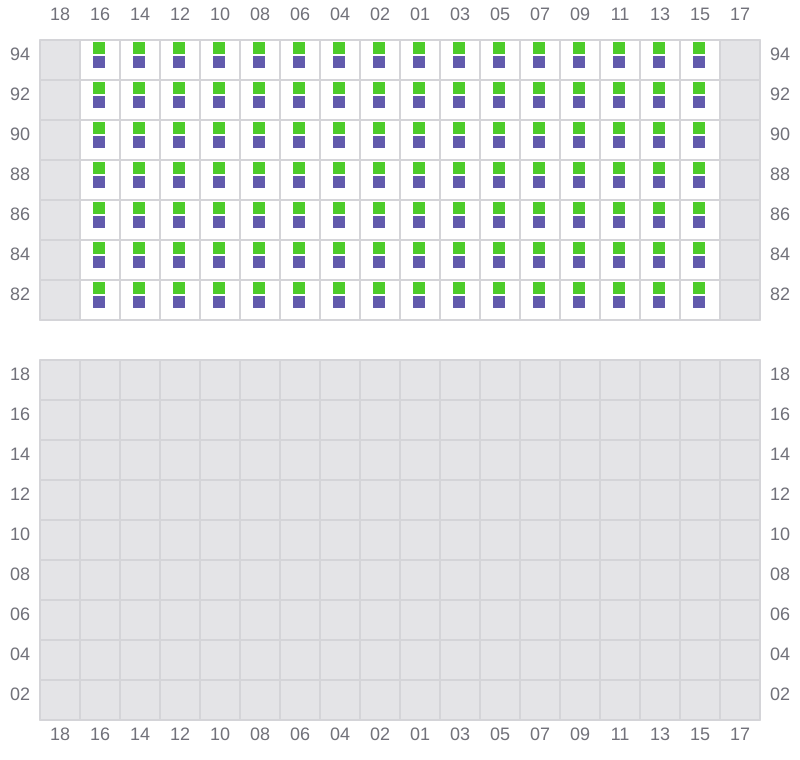

069 (068)
- ←
