MSC DARIEN
9243394 | CQRP | MSC by ***************************** Last update: Mon May 29 2023

General Info

Ship Name:MSC DARIEN
IMO Code:9243394
Call Sign:CQRP
Line Operator:MSC
Class Name for Sister Ships:OSHN
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:075
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,051

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

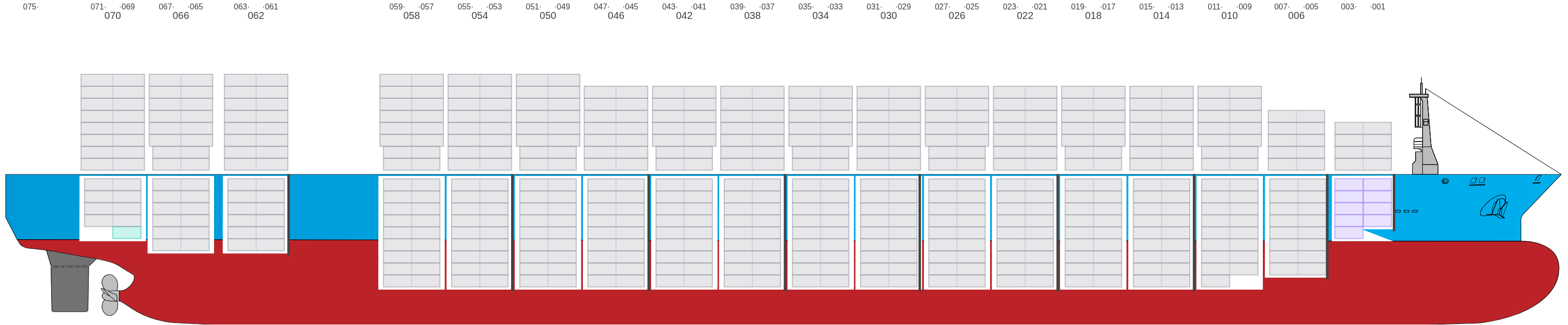

Side View

Side view of MSC DARIEN

Hatch-Covers View

Deck view of MSC DARIEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • → / ?
  • →

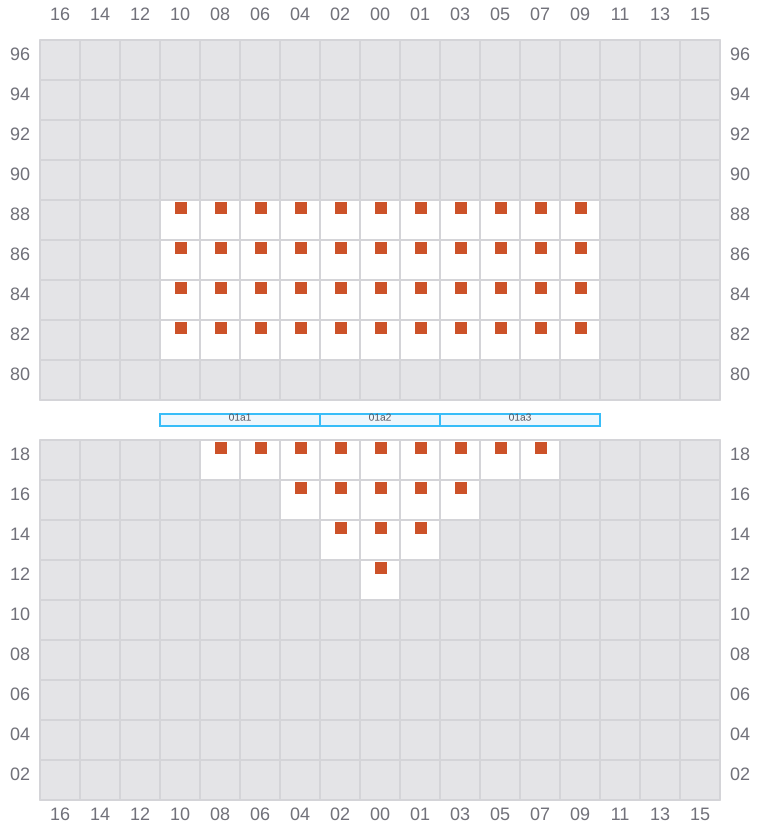

Bay 001 view and slots of MSC DARIEN

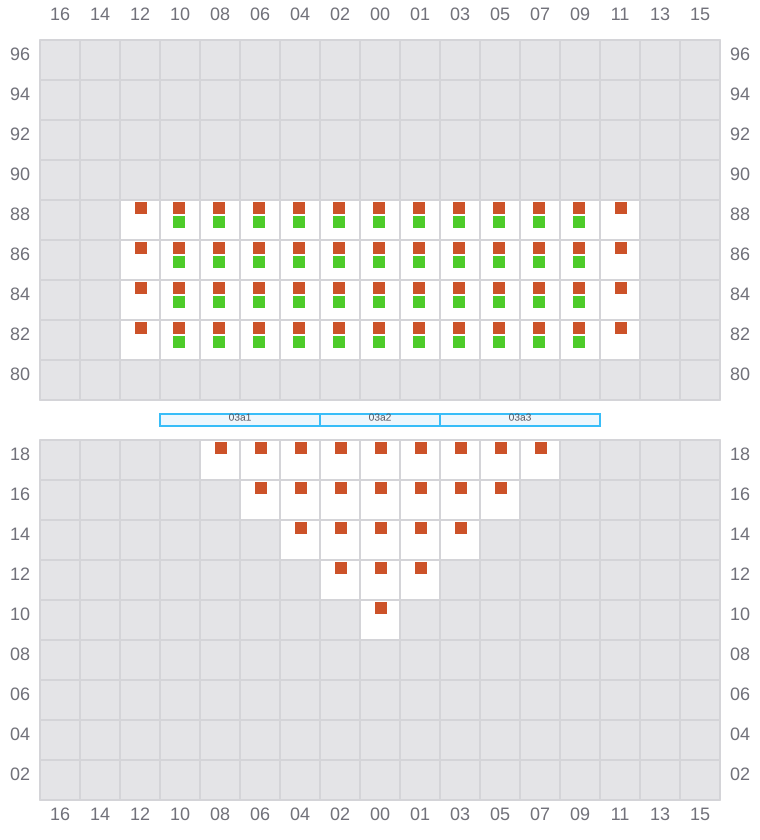

003 (002)

  • ← / ?
  • →
Bay 003 view and slots of MSC DARIEN

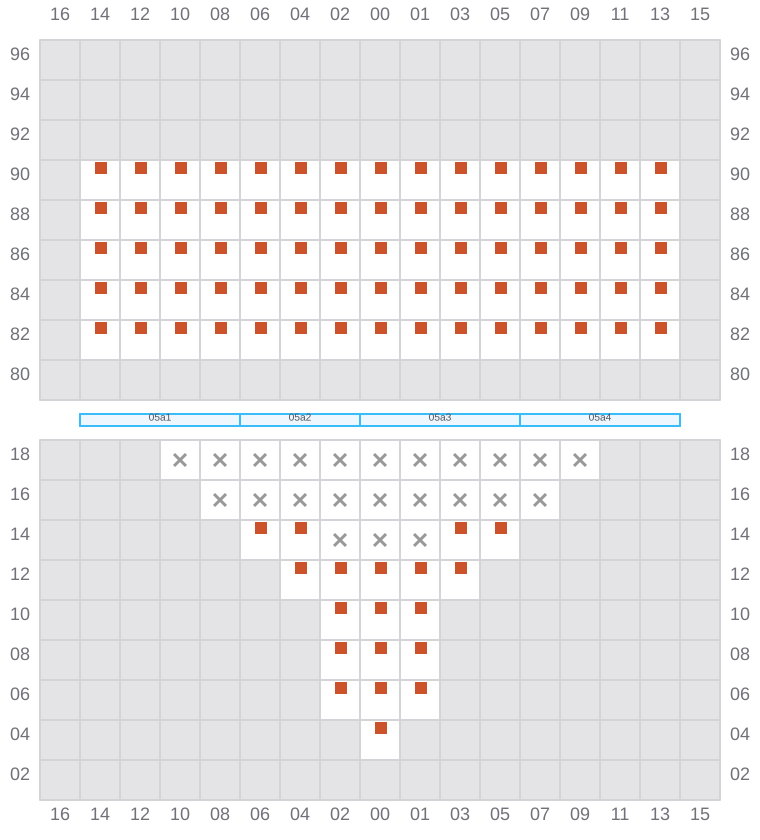

005

  • →
  • →
Bay 005 view and slots of MSC DARIEN

007 (006)

  • ←
  • →

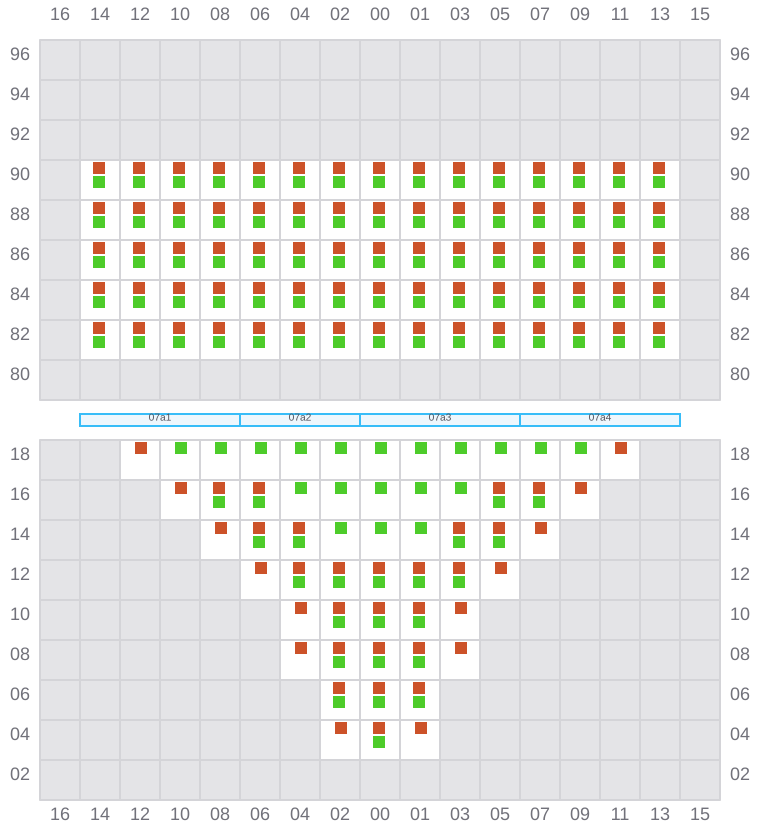

Bay 007 view and slots of MSC DARIEN

009

  • →
  • →

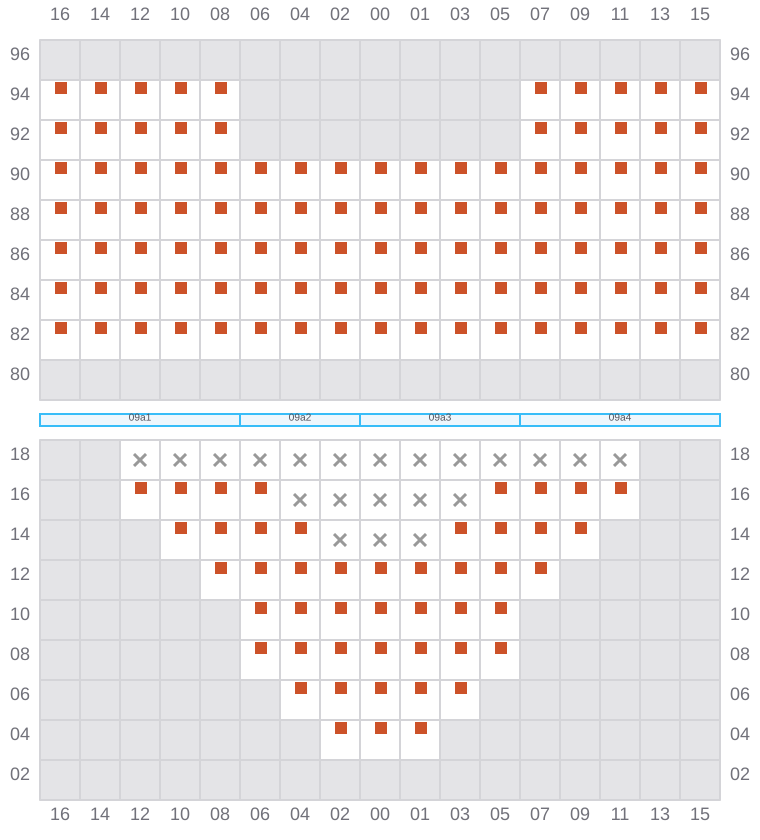

Bay 009 view and slots of MSC DARIEN

011 (010)

  • ←
  • → / ?
  • →

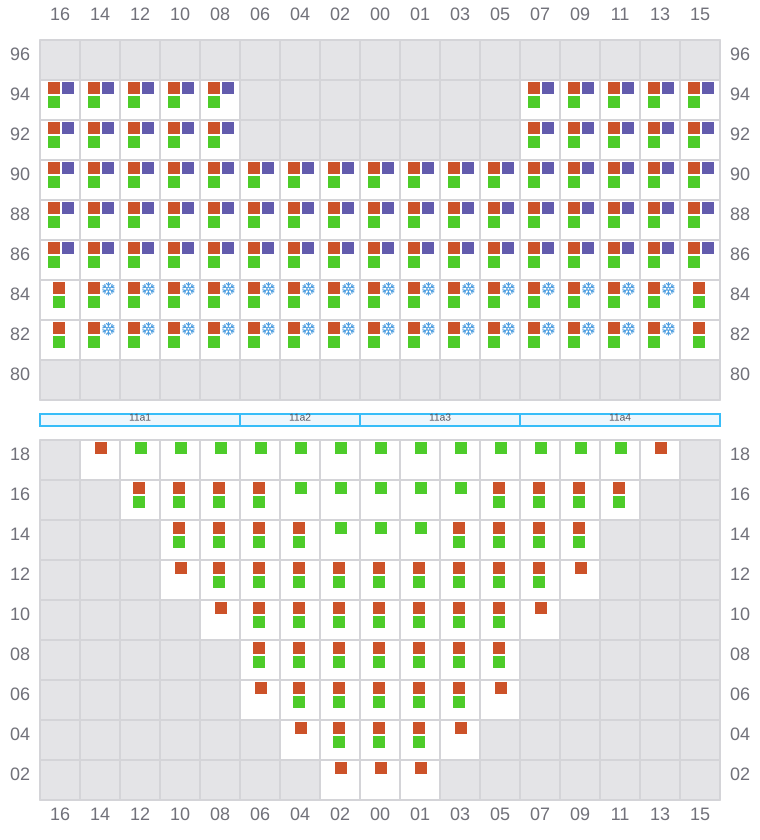

Bay 011 view and slots of MSC DARIEN

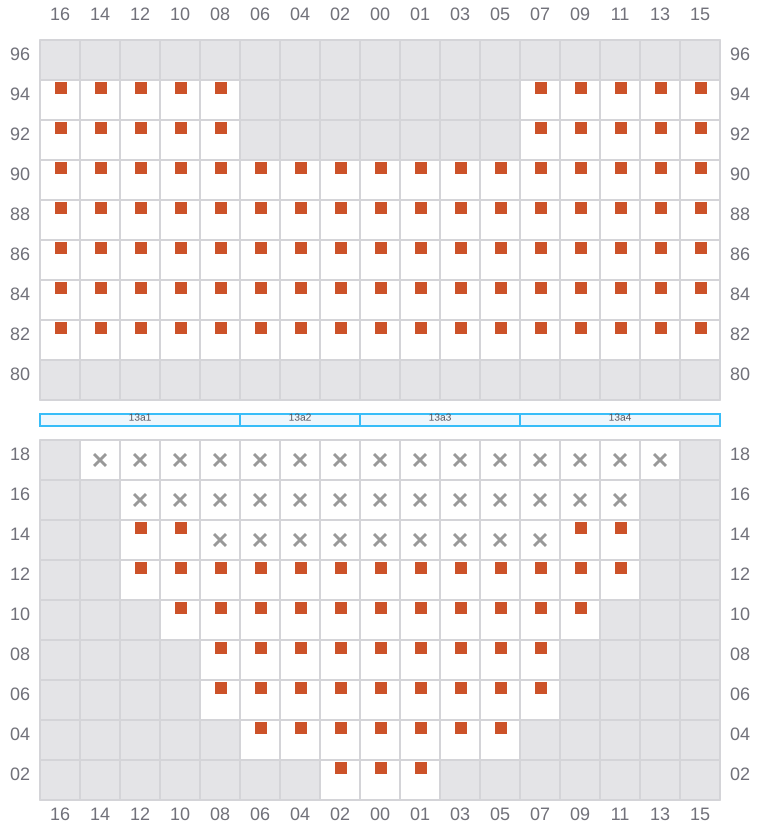

013

  • →
  • →
Bay 013 view and slots of MSC DARIEN

015 (014)

  • ←
  • → / ?
  • →

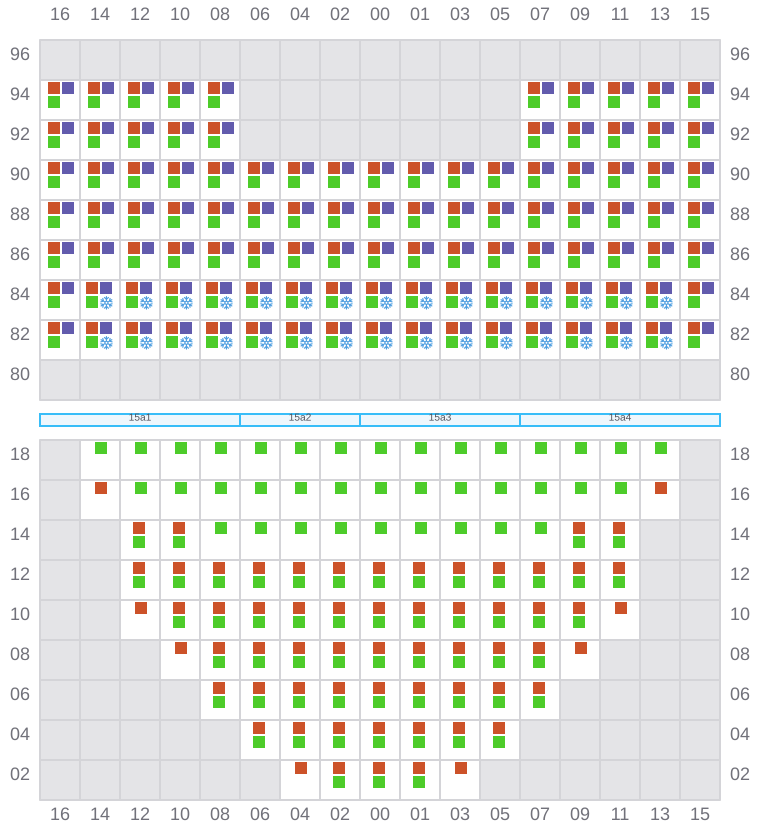

Bay 015 view and slots of MSC DARIEN

017

  • →
  • →

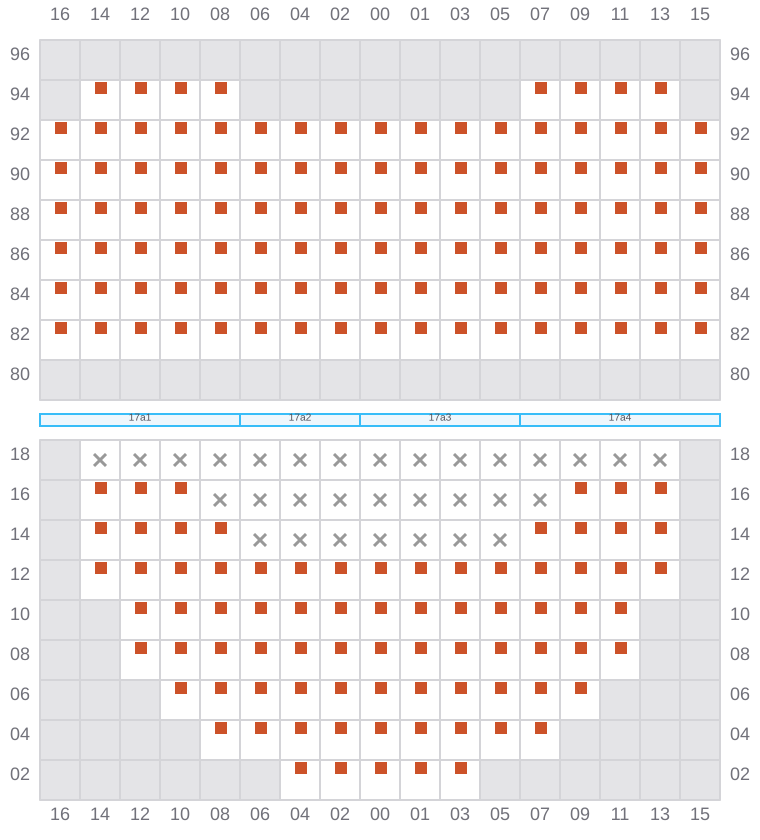

Bay 017 view and slots of MSC DARIEN

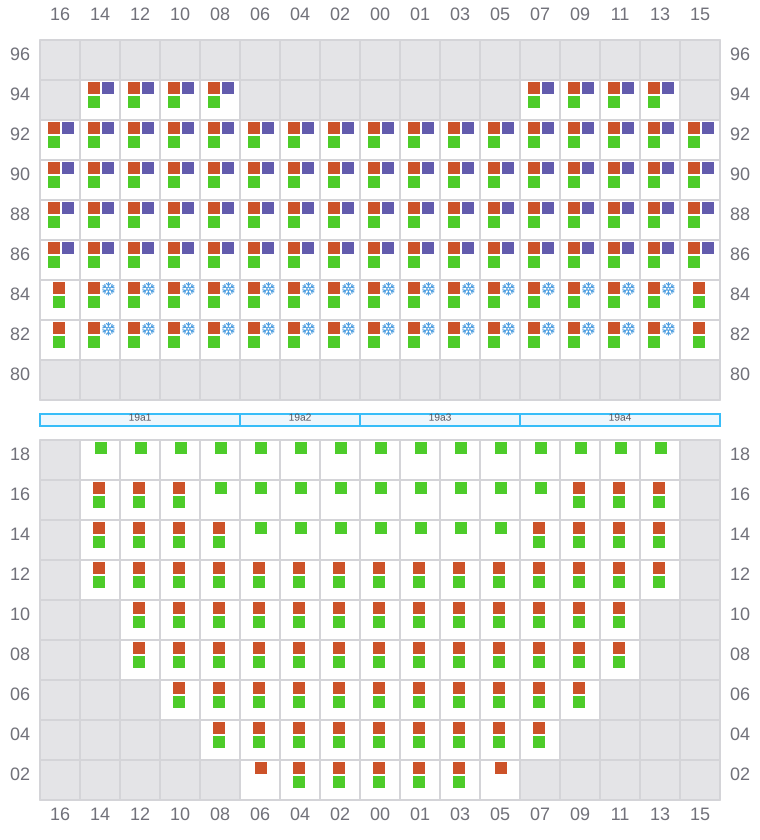

019 (018)

  • ←
  • → / ?
  • →
Bay 019 view and slots of MSC DARIEN

021

  • →
  • →

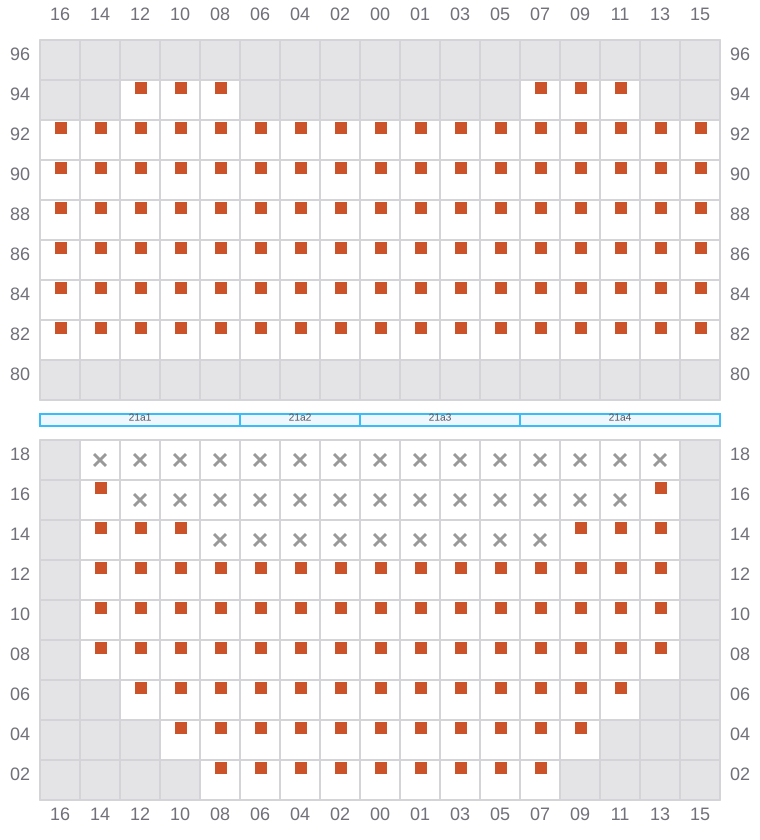

Bay 021 view and slots of MSC DARIEN

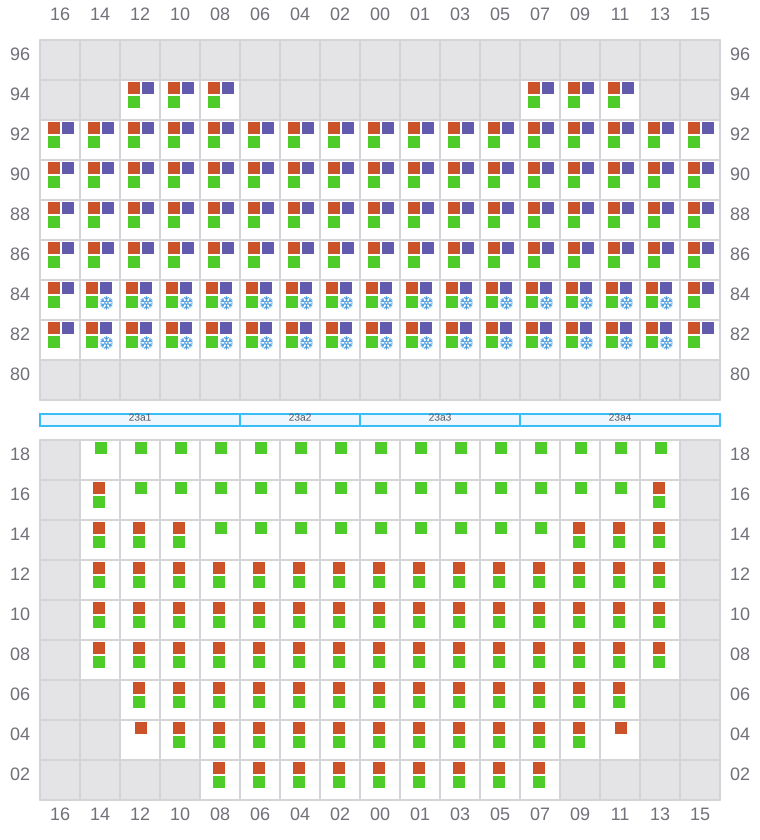

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of MSC DARIEN

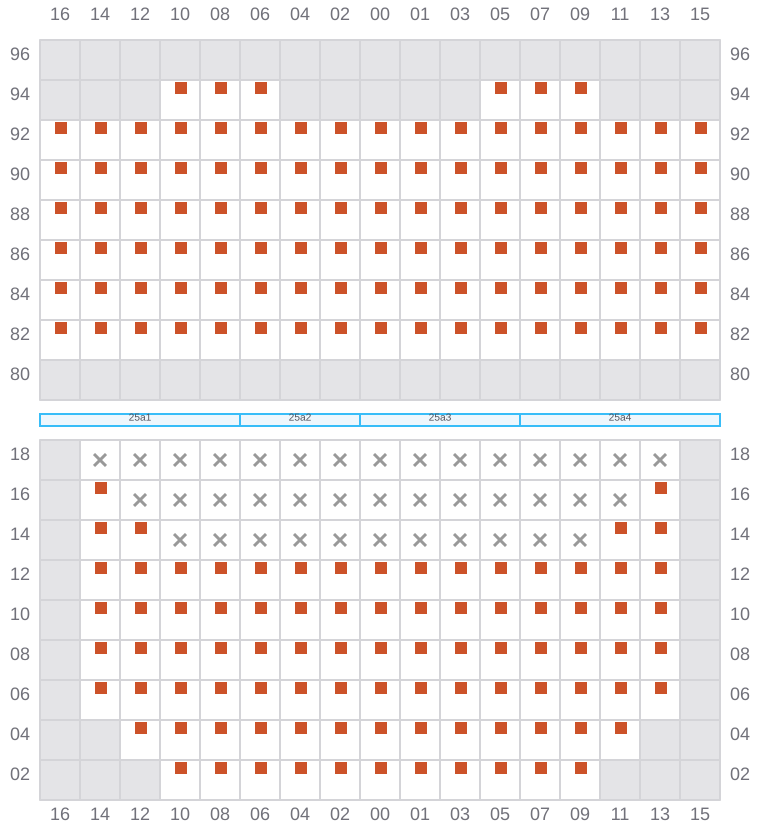

025

  • →
  • →
Bay 025 view and slots of MSC DARIEN

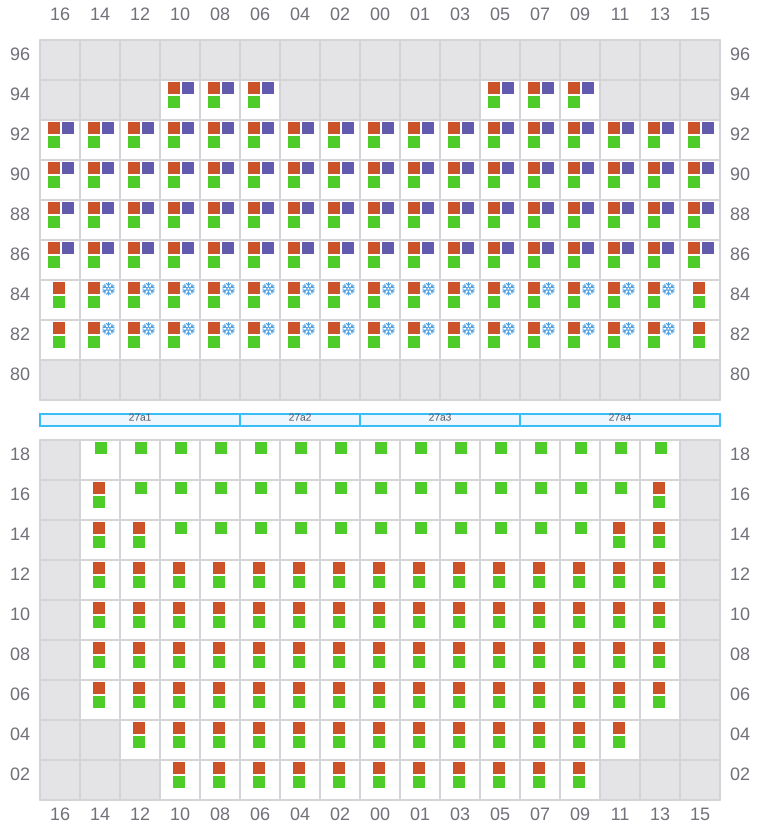

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of MSC DARIEN

029

  • →
  • →

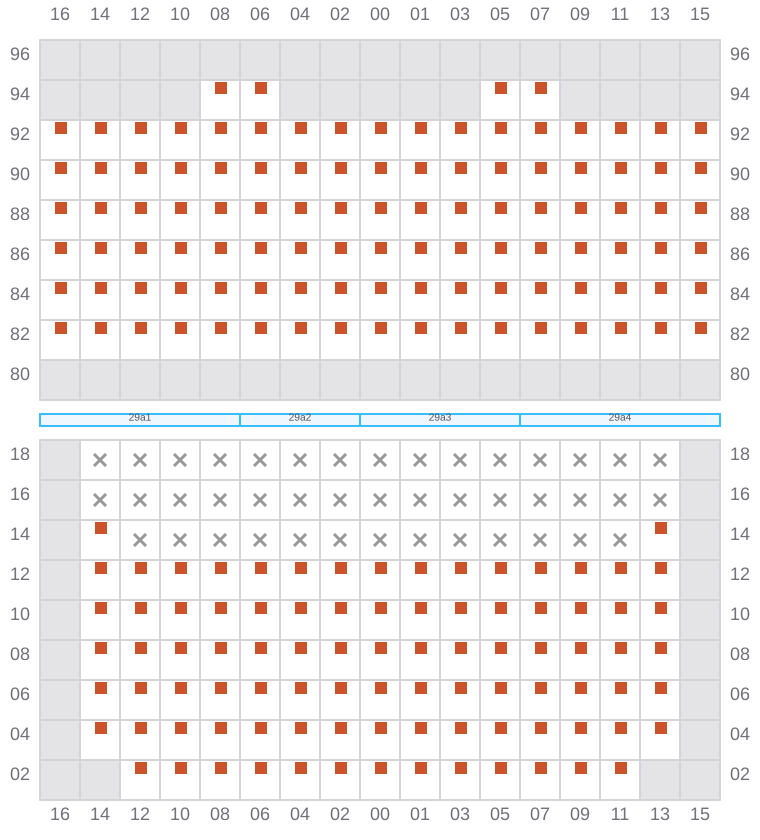

Bay 029 view and slots of MSC DARIEN

031 (030)

  • ←
  • → / ?
  • →

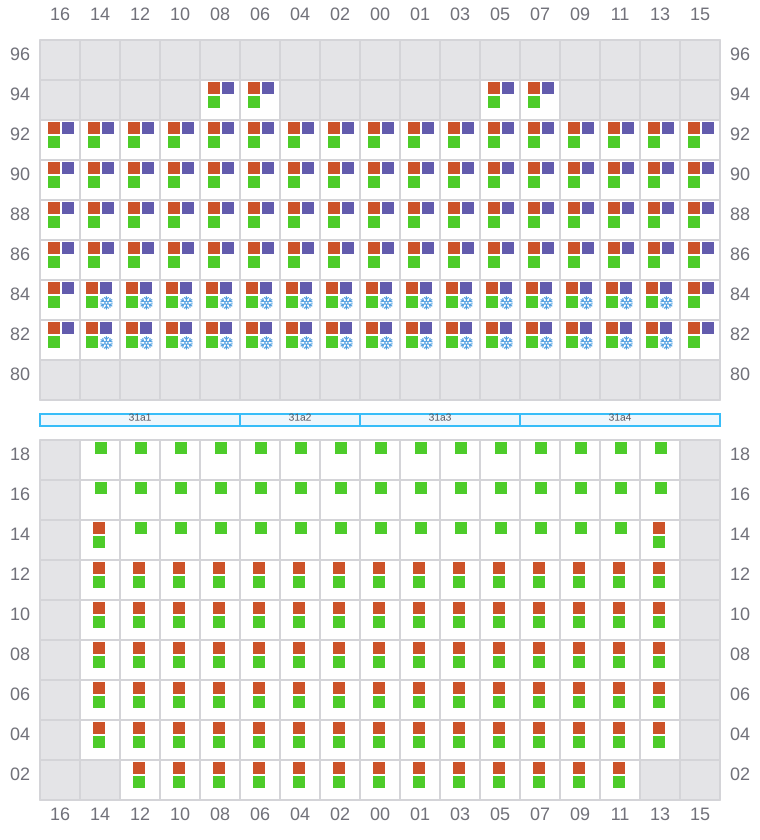

Bay 031 view and slots of MSC DARIEN

033

  • →
  • →
Bay 033 view and slots of MSC DARIEN

035 (034)

  • ←
  • →
  • →
Bay 035 view and slots of MSC DARIEN

037

  • →
  • →
Bay 037 view and slots of MSC DARIEN

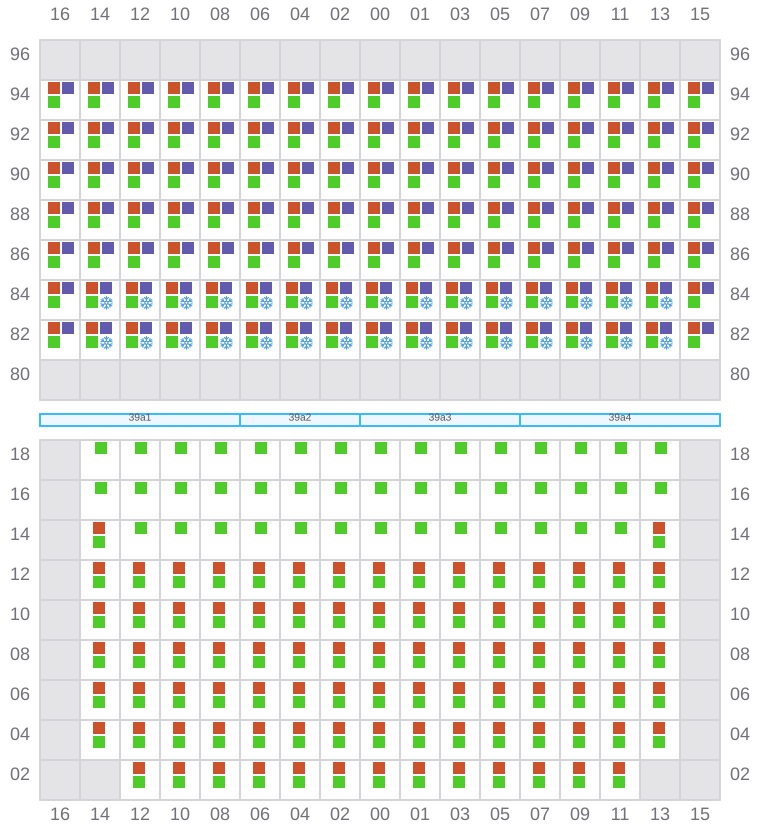

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of MSC DARIEN

041

  • →
  • →
Bay 041 view and slots of MSC DARIEN

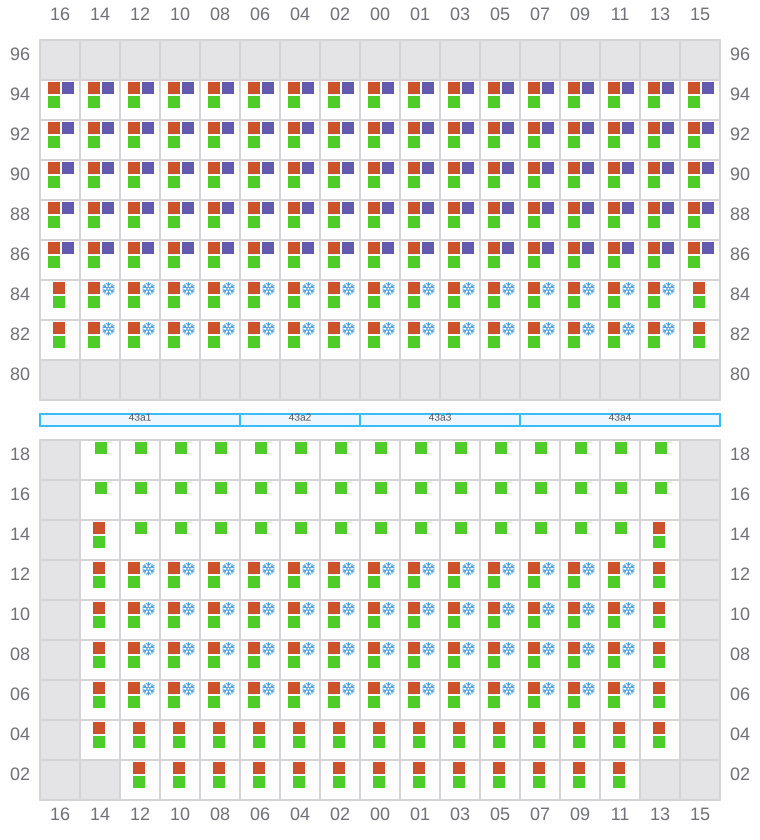

043 (042)

  • ←
  • →
  • →
Bay 043 view and slots of MSC DARIEN

045

  • →
  • →

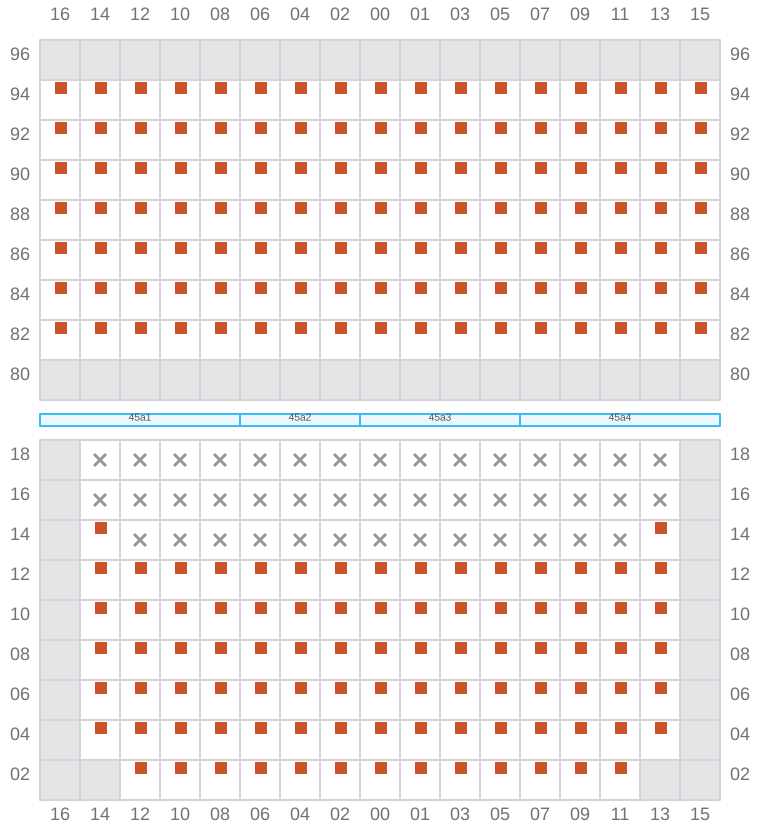

Bay 045 view and slots of MSC DARIEN

047 (046)

  • ←
  • → / ?
  • →
Bay 047 view and slots of MSC DARIEN

049

  • →
  • →

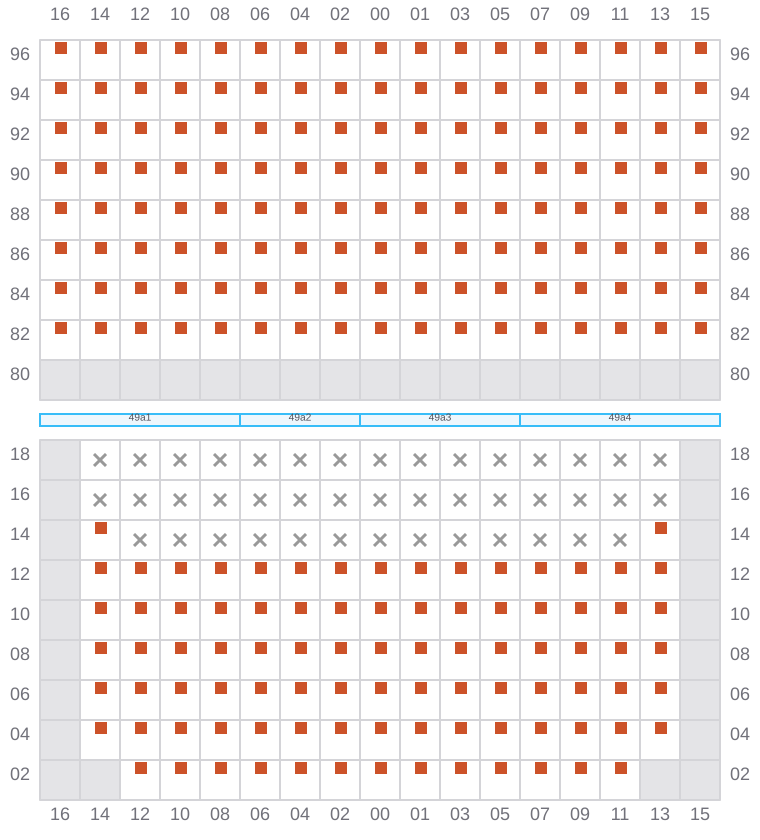

Bay 049 view and slots of MSC DARIEN

051 (050)

  • ←
  • →
  • →

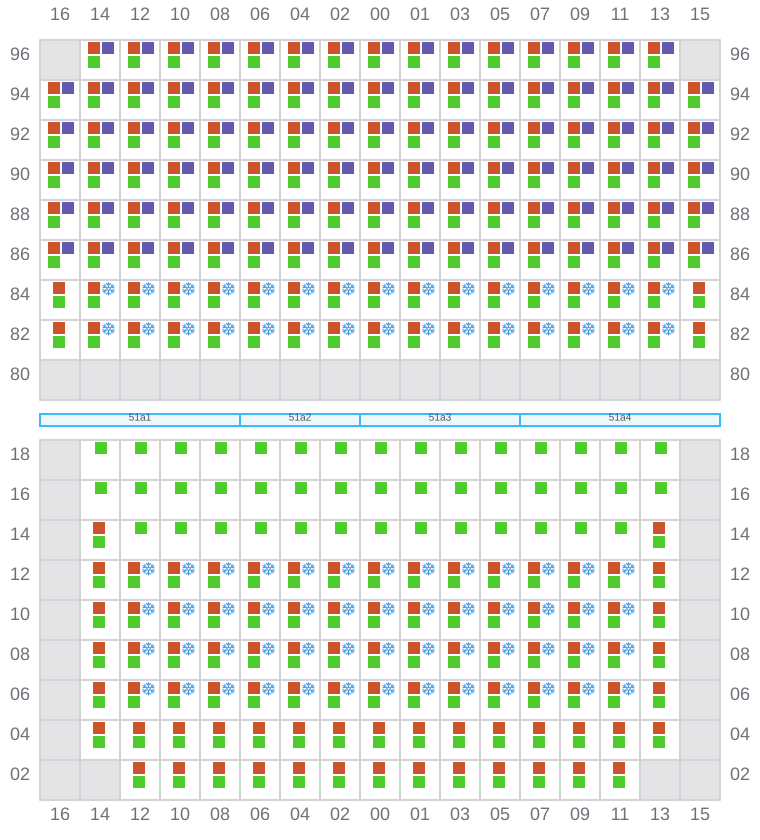

Bay 051 view and slots of MSC DARIEN

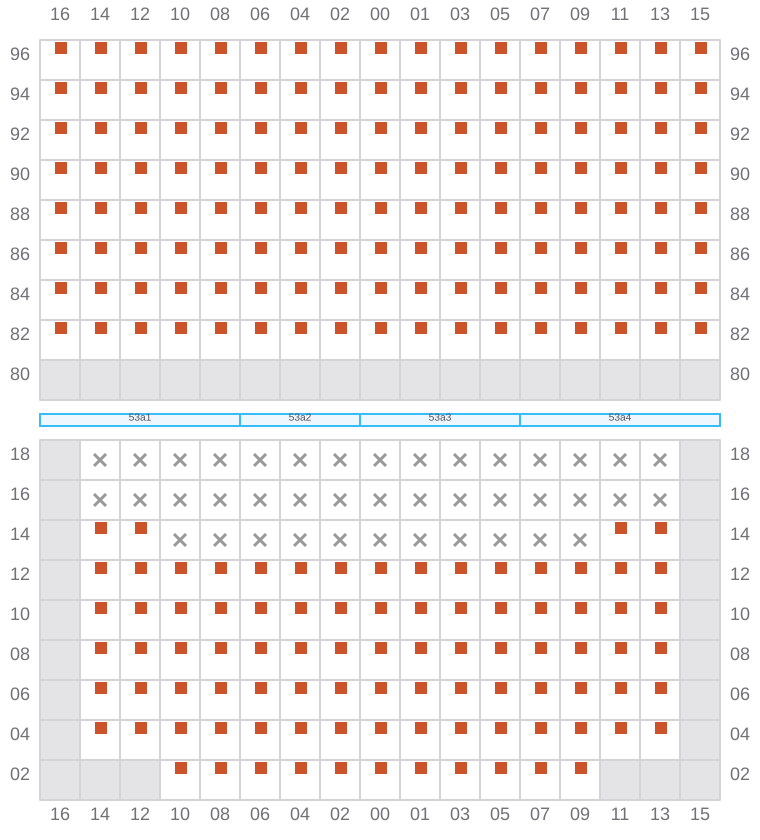

053

  • →
  • →
Bay 053 view and slots of MSC DARIEN

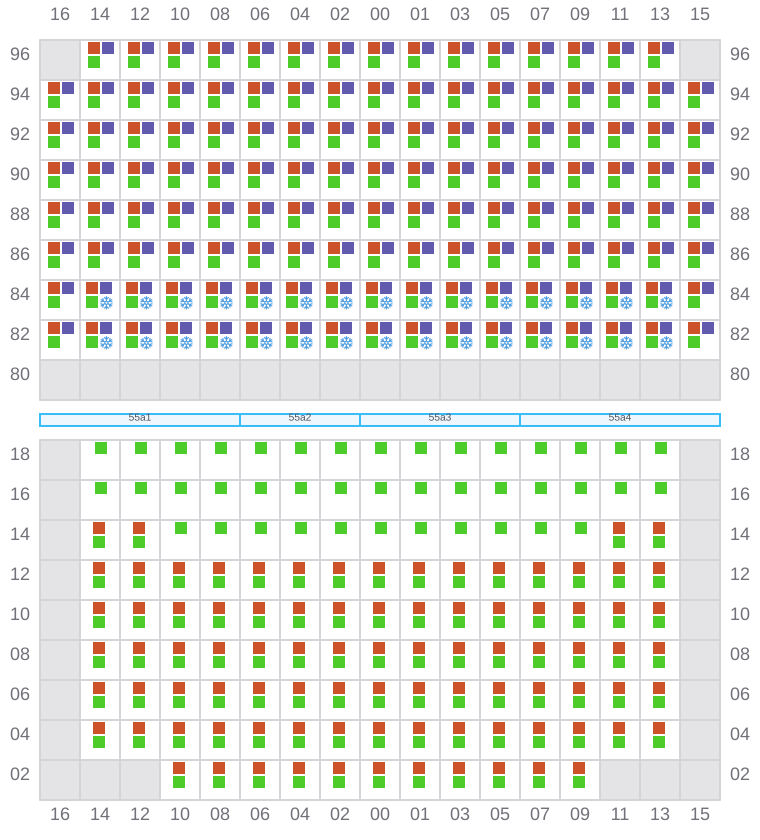

055 (054)

  • ←
  • → / ?
  • →
Bay 055 view and slots of MSC DARIEN

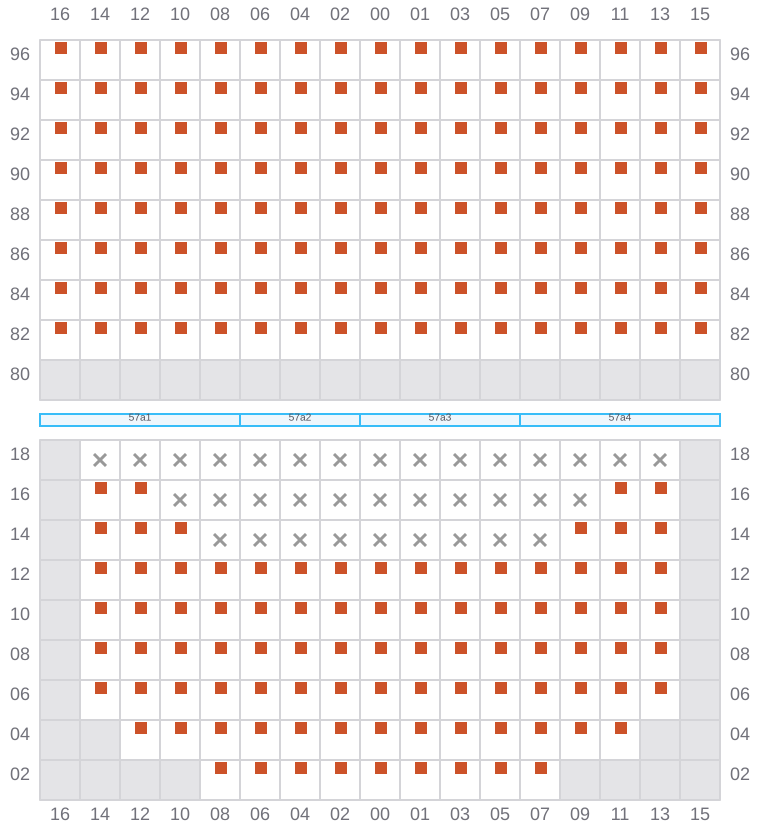

057

  • →
  • →
Bay 057 view and slots of MSC DARIEN

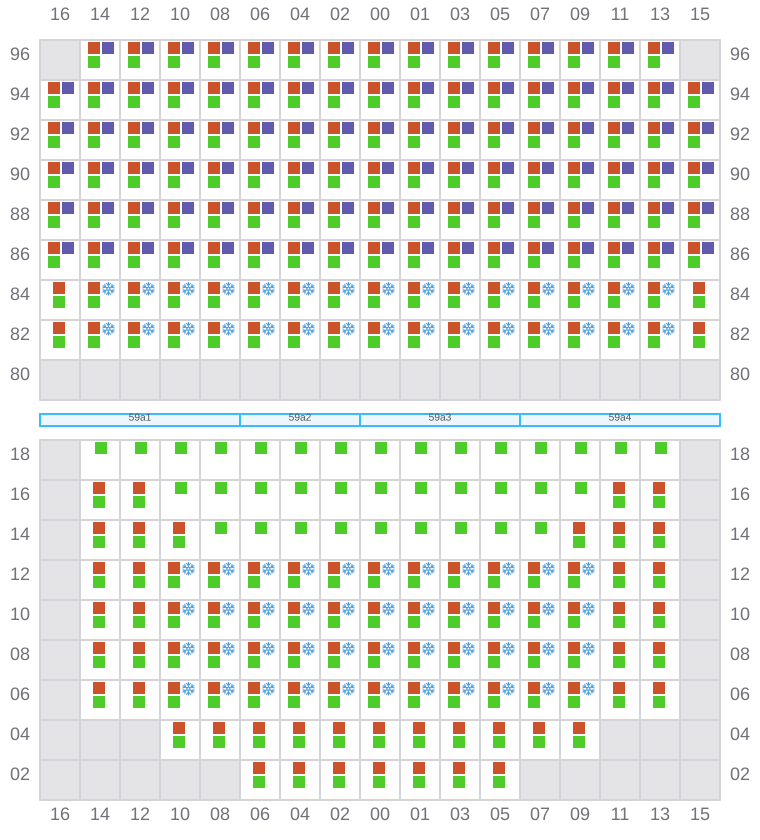

059 (058)

  • ←
  • →
  • →
Bay 059 view and slots of MSC DARIEN

061

  • →
  • →

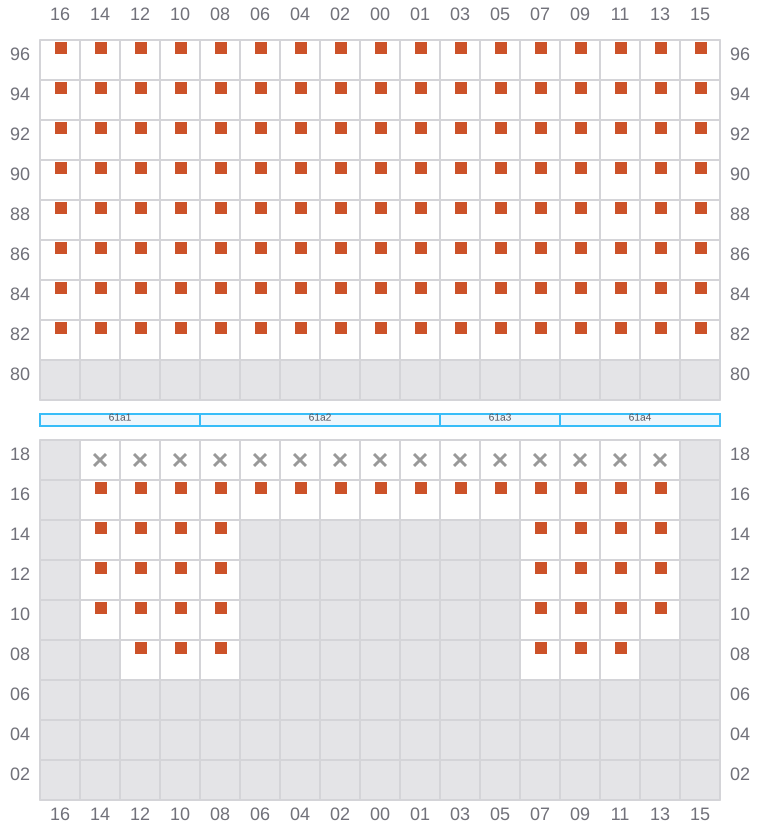

Bay 061 view and slots of MSC DARIEN

063 (062)

  • ←
  • → / ?
  • →

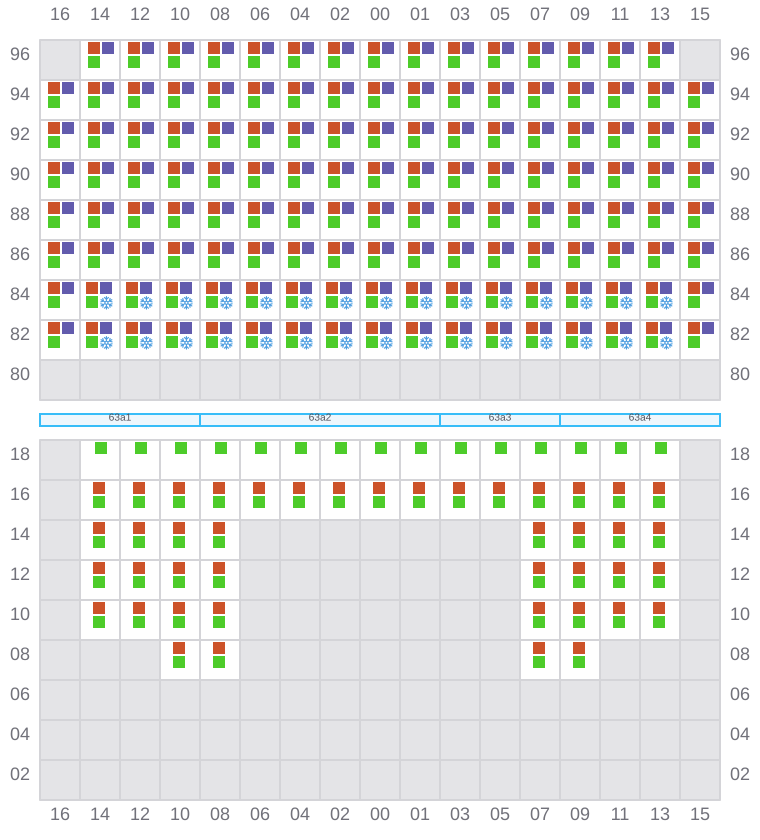

Bay 063 view and slots of MSC DARIEN

065

  • →
  • →

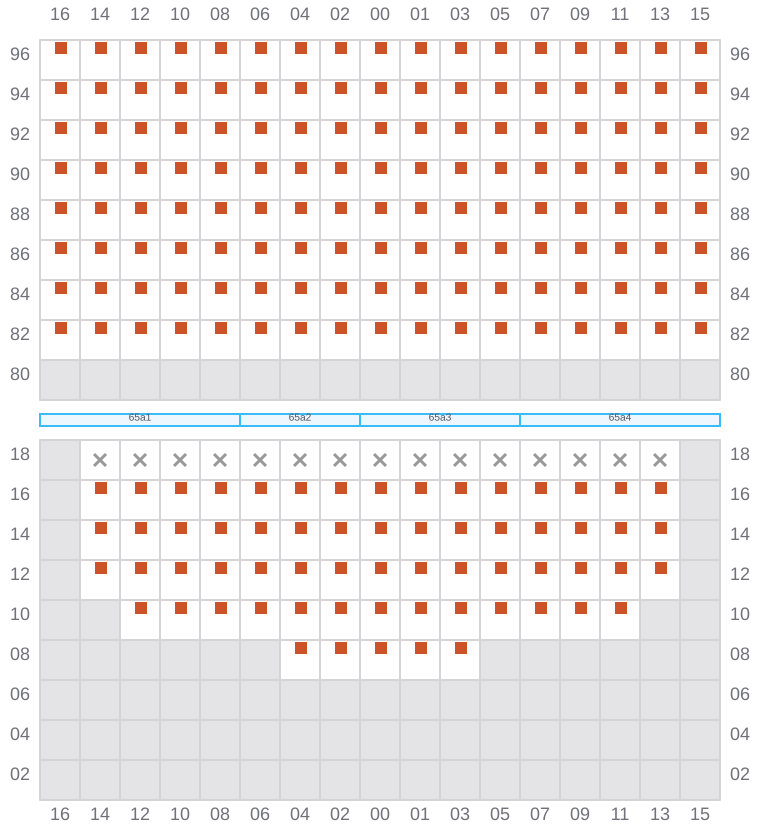

Bay 065 view and slots of MSC DARIEN

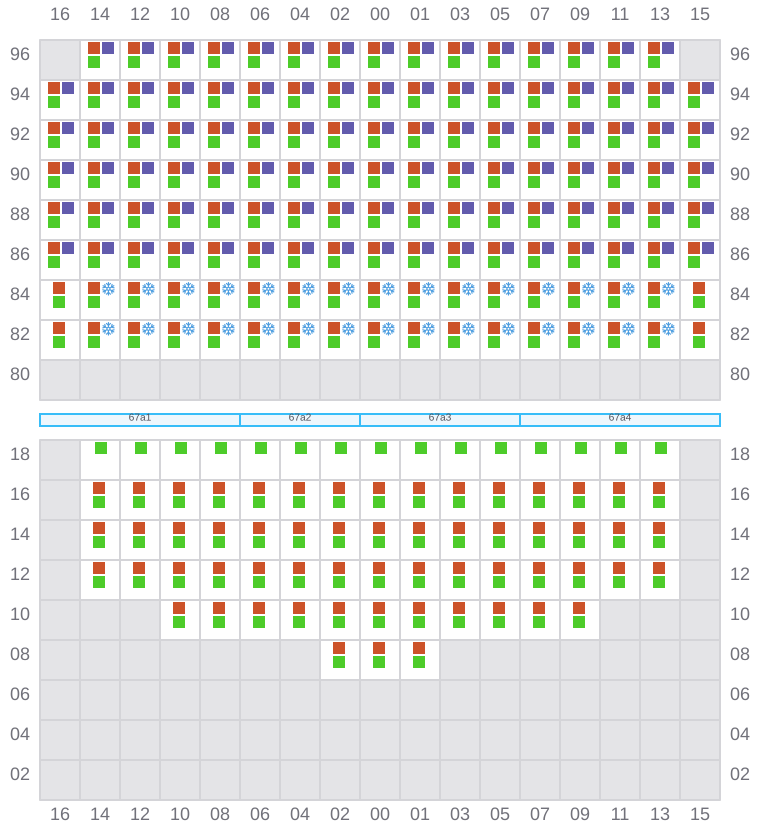

067 (066)

  • ←
  • → / ?
  • →
Bay 067 view and slots of MSC DARIEN

069

  • →
  • →

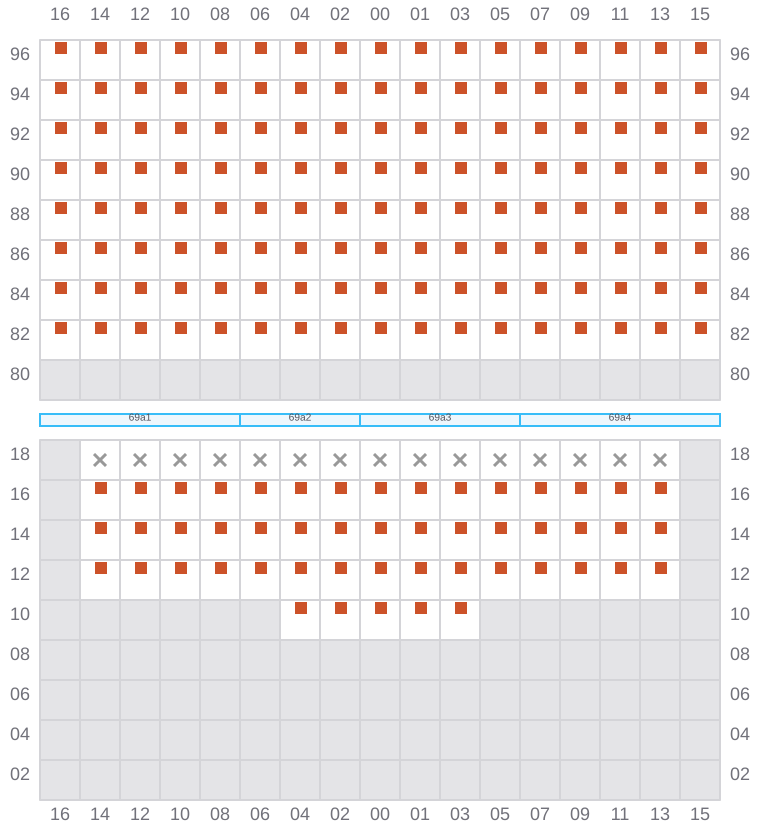

Bay 069 view and slots of MSC DARIEN

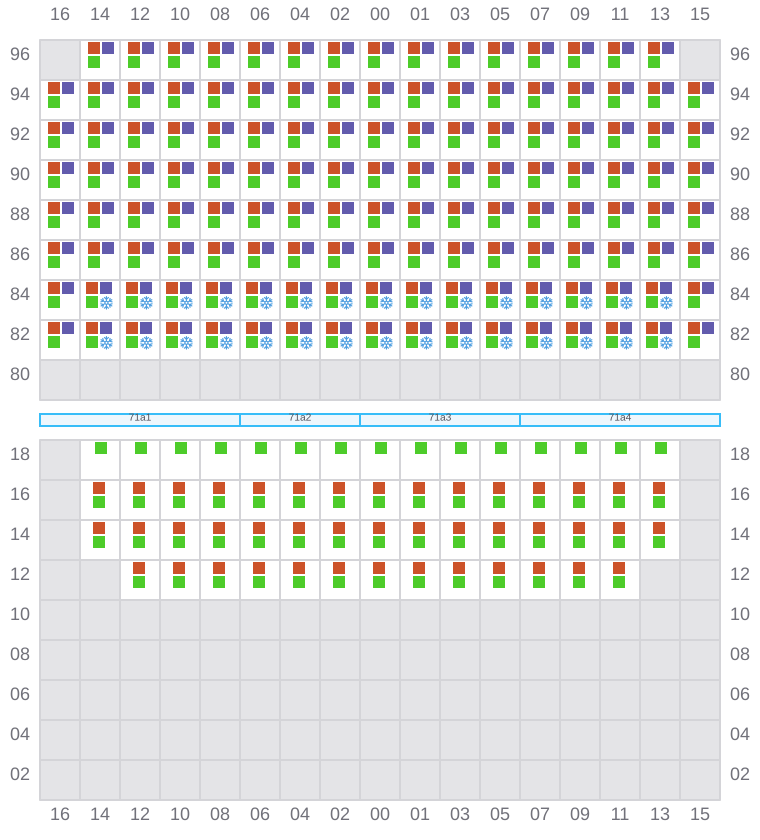

071 (070)

  • ←
  • → / ?
  • →
Bay 071 view and slots of MSC DARIEN

073

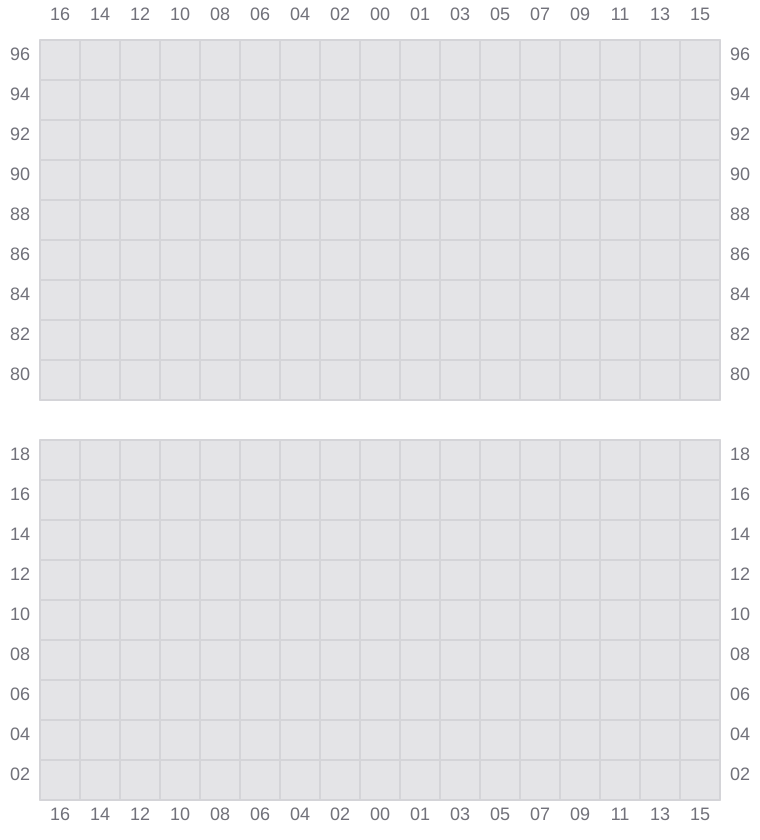

Bay 073 view and slots of MSC DARIEN

075 (074)

  • ← / ?
  • → / ?
  • → / ?

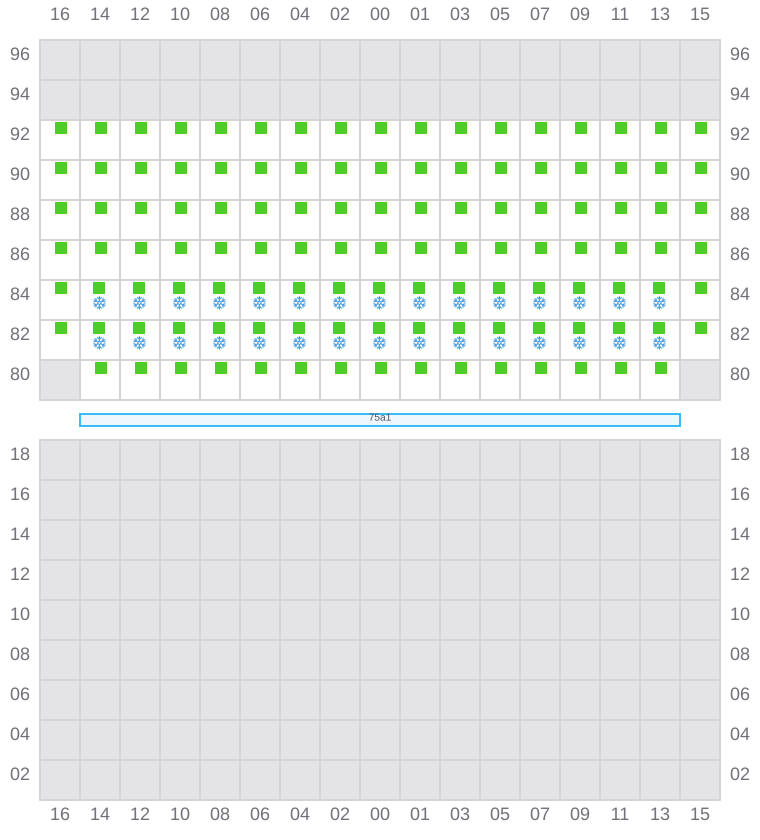

Bay 075 view and slots of MSC DARIEN
