MSC DAVAO III
9243241 | 3EBK6 | 9243241 by ********* Last update: Wed May 01 2024
General Info
Ship Name:MSC DAVAO III
IMO Code:9243241
Call Sign:3EBK6
Line Operator:9243241
Class Name for Sister Ships:CSAV RIO MAULE
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,524
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

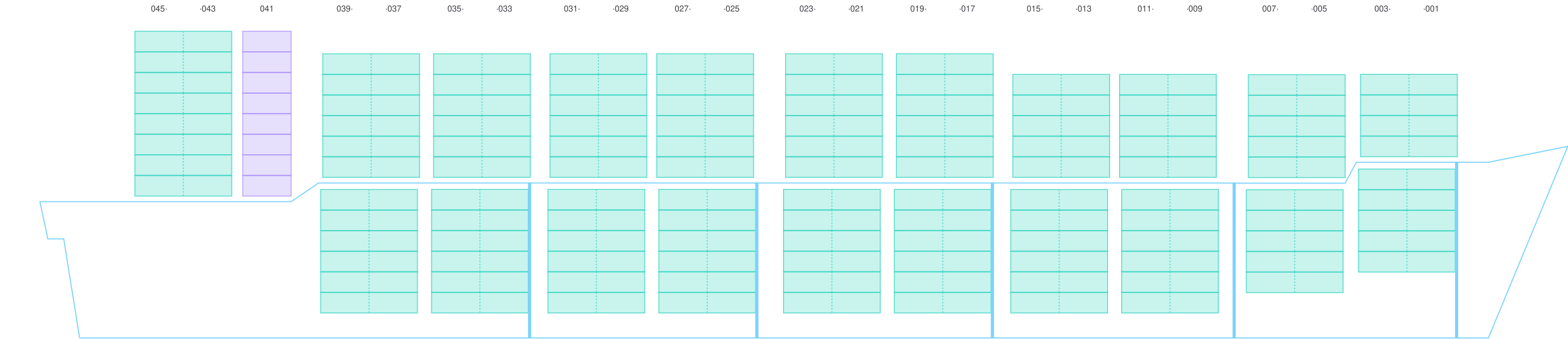

Side View
Hatch-Covers View

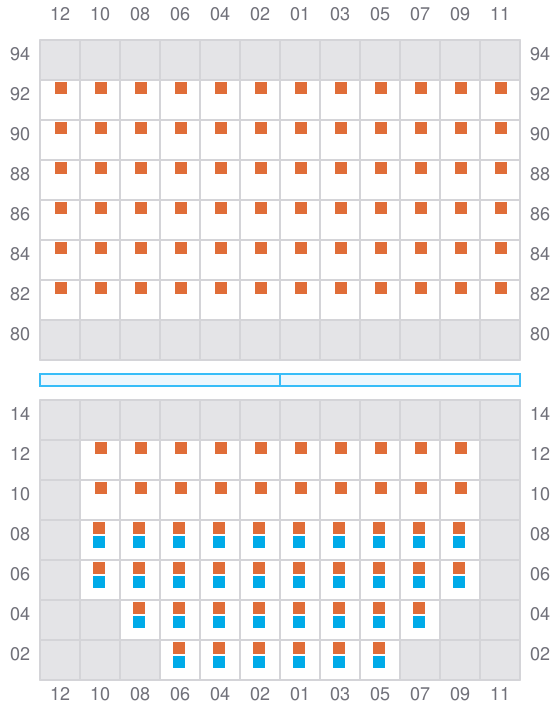

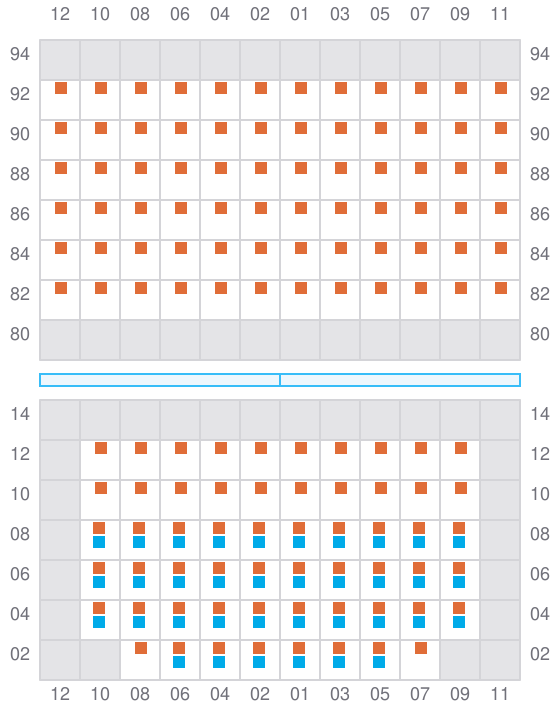

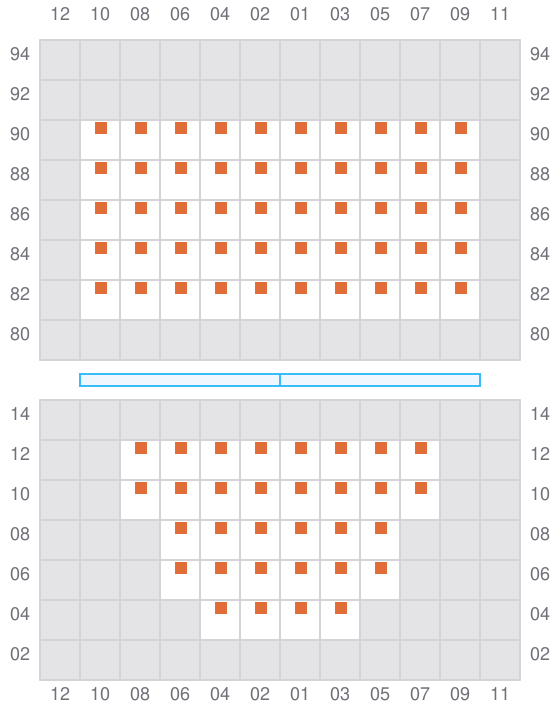

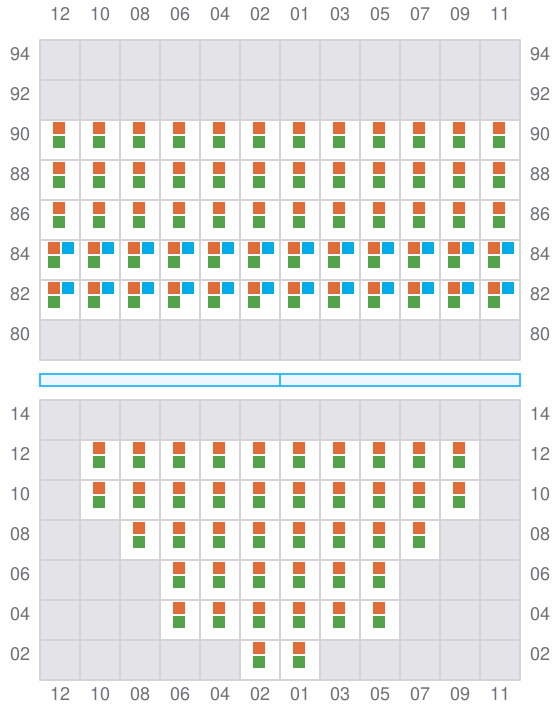

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

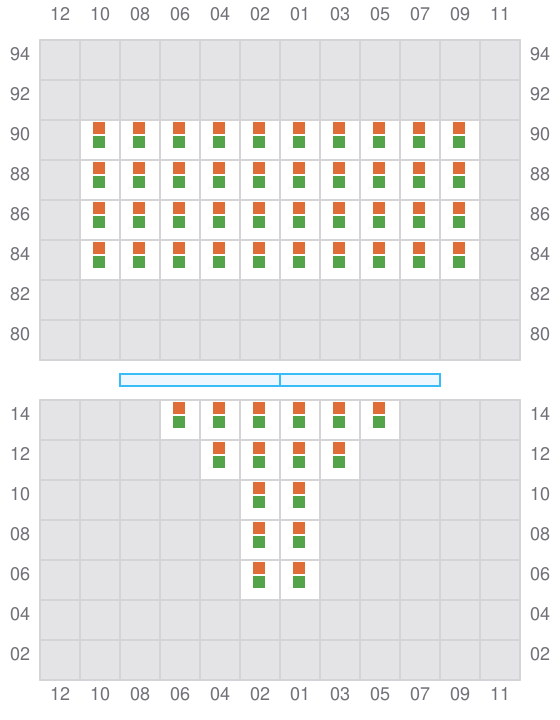

001 (002)
- →
- → / ?

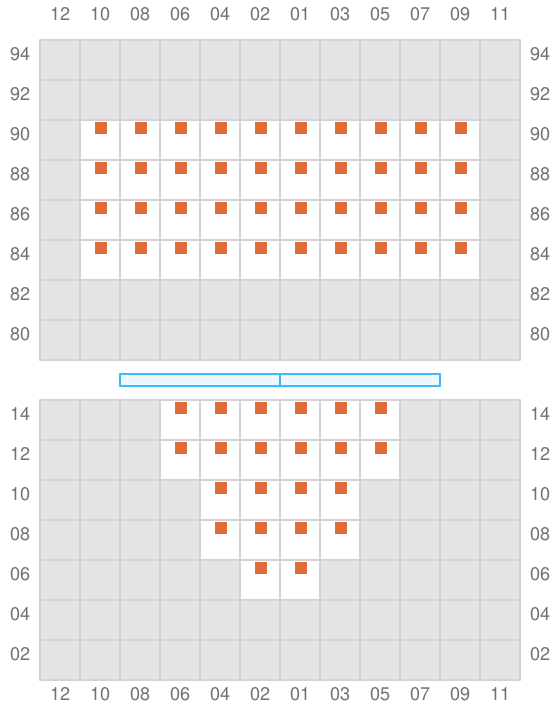

003
- ←

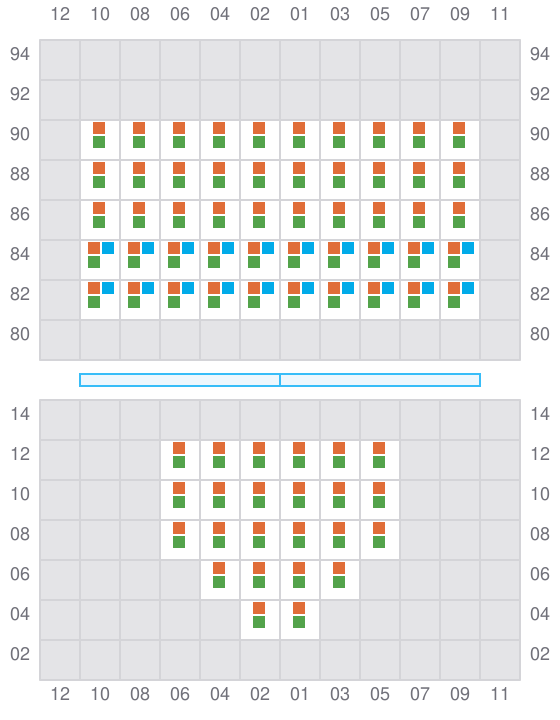

005 (006)
- →
- → / ?
007
- ←
009 (010)
- →
- → / ?

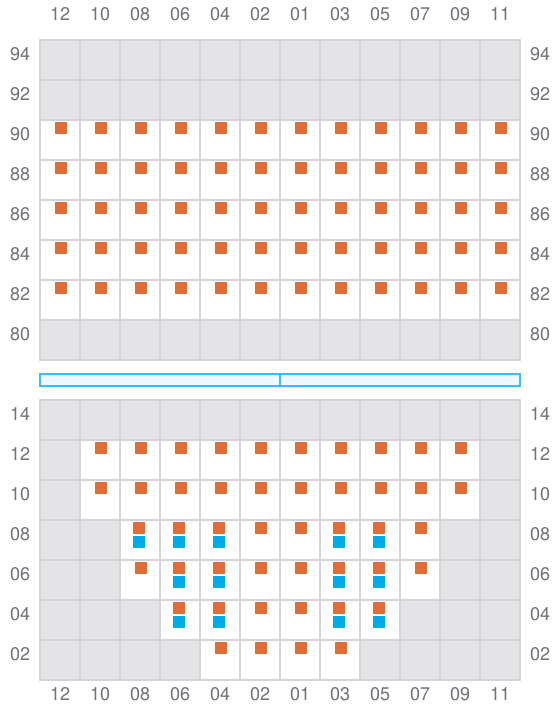

011
- ←
- ? / →

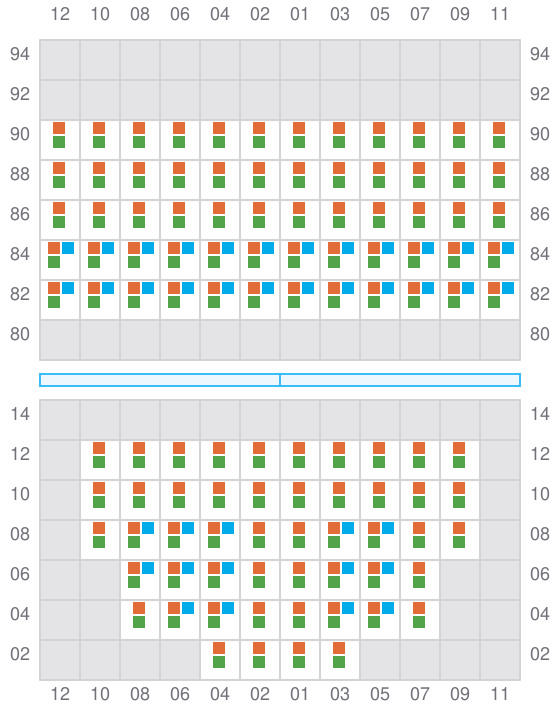

013 (014)
- →
- → / ←

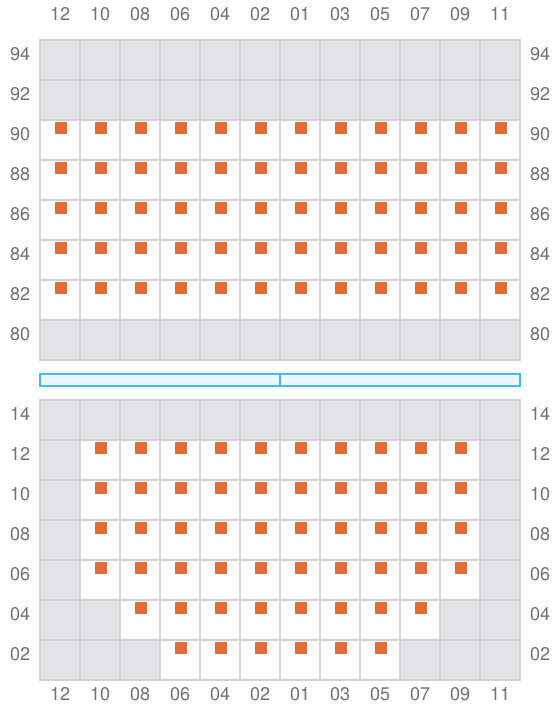

015
- ←
017 (018)
- →
- → / ?
019
- ←
- ? / →

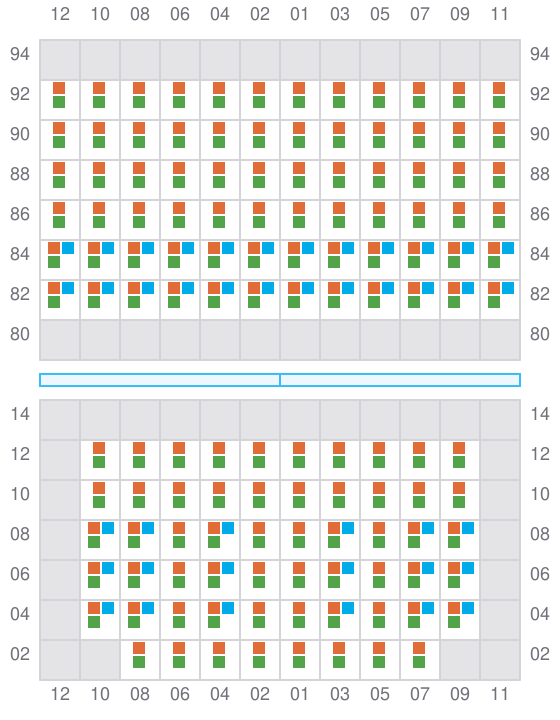

021 (022)
- →
- → / ←
023
- ←

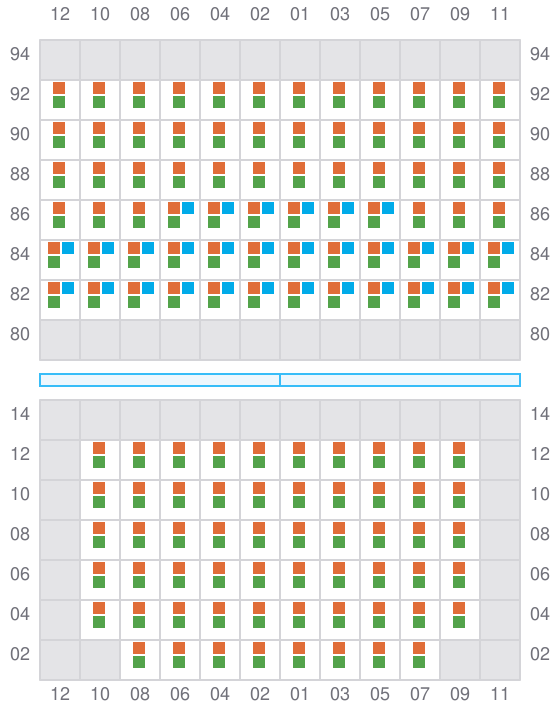

025 (026)
- →
- → / ?
027
- ←
- ? / →
029 (030)
- →
- → / ←

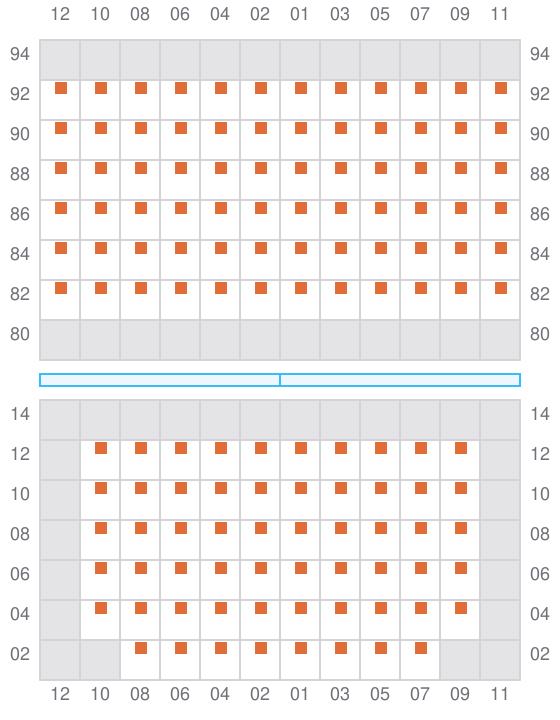

031
- ←

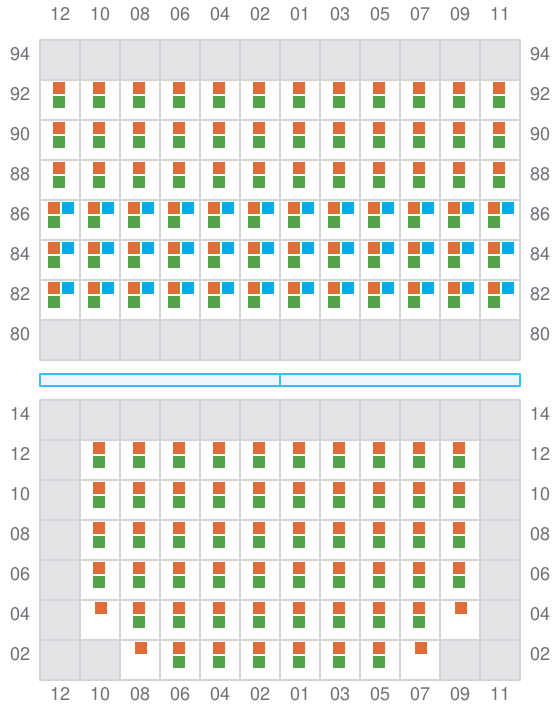

033 (034)
- →
- → / ?
035
- ←
- ? / →

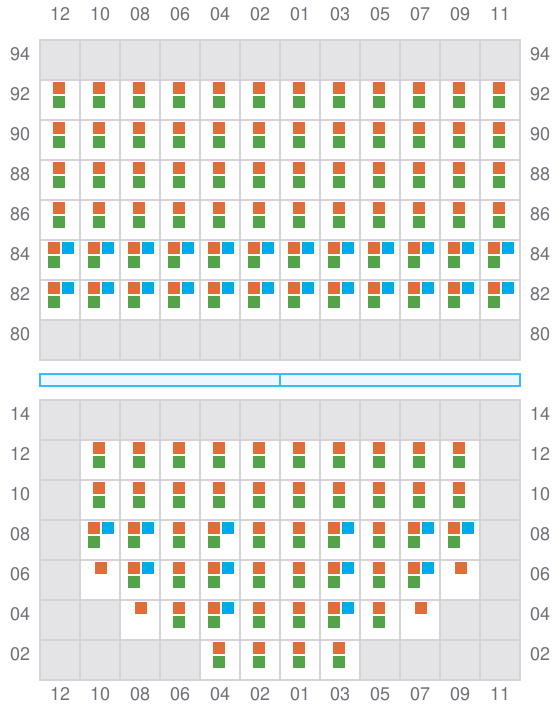

037 (038)
- →
- → / ←

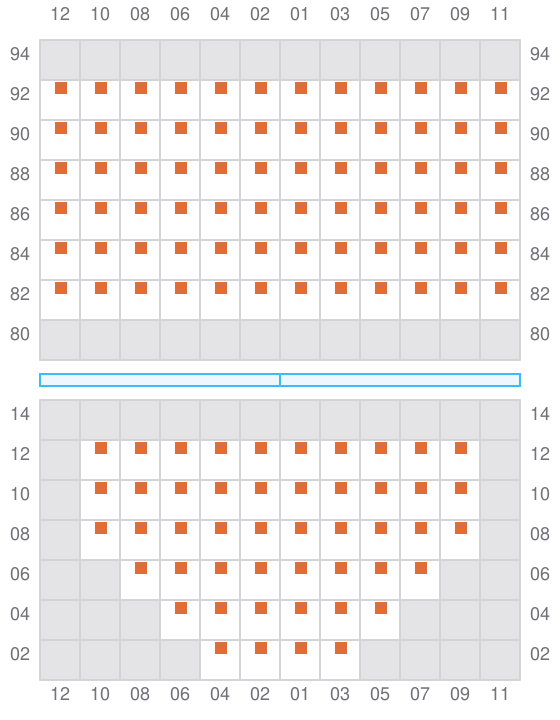

039
- ←
041
- → / ?
043 (044)
- → / ?
- → / ?

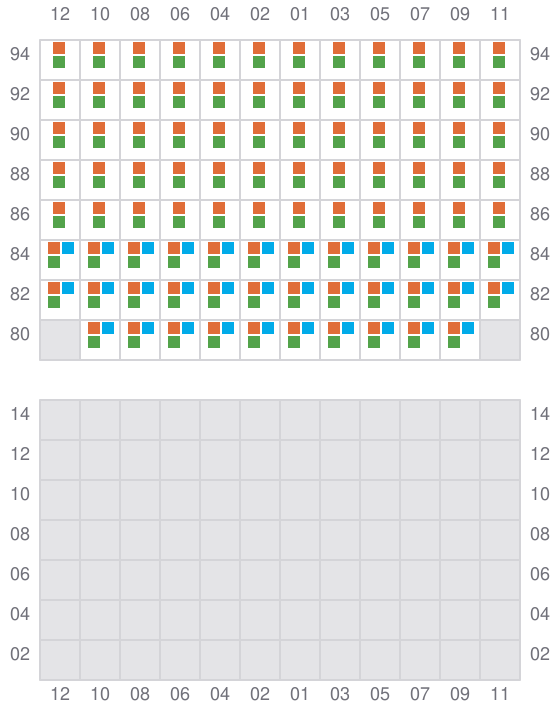

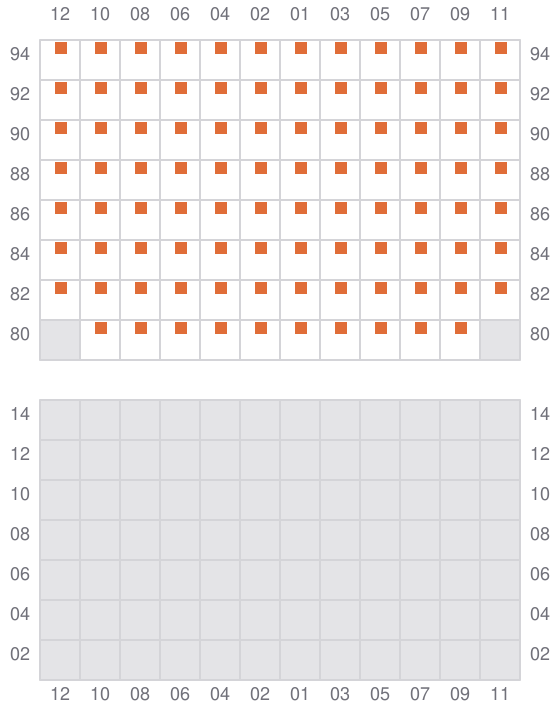

045
- ← / ?
