MSC DENISSE
8509375 | 3FUI9 | MSC by ************************** Last update: Fri Jun 16 2023
General Info
Ship Name:MSC DENISSE
IMO Code:8509375
Call Sign:3FUI9
Line Operator:MSC
Class Name for Sister Ships:DEN
Year Built:1988
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,498
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

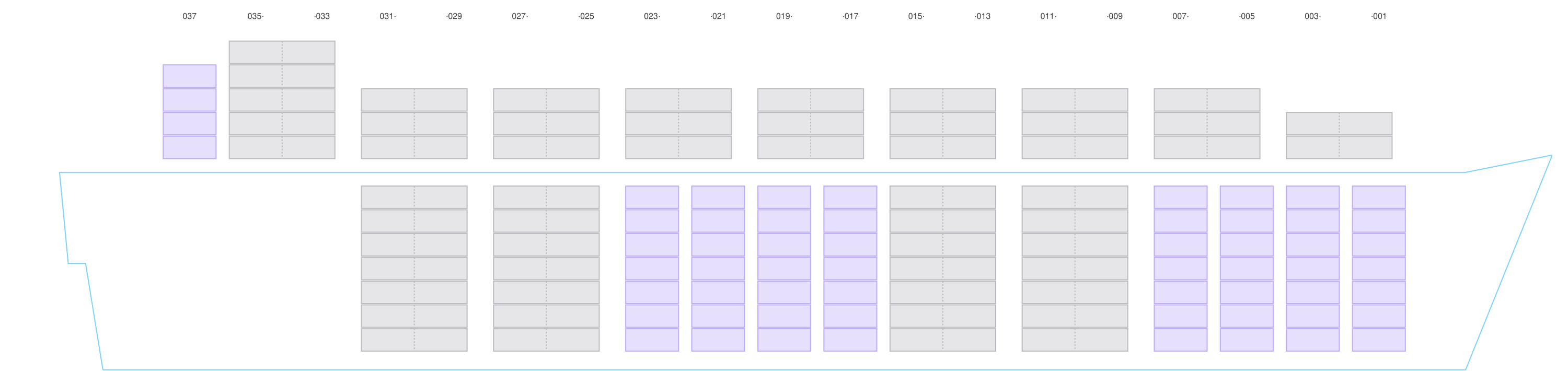

Side View

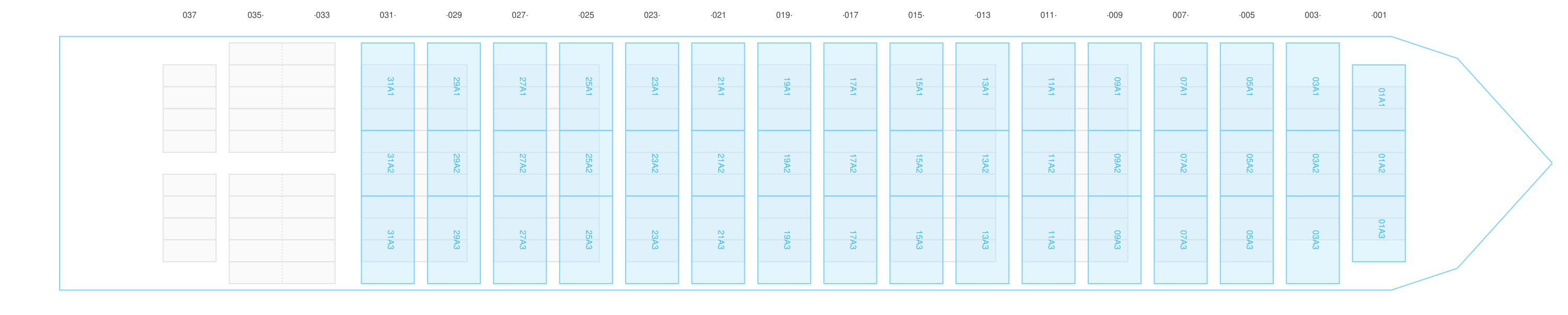

Hatch-Covers View

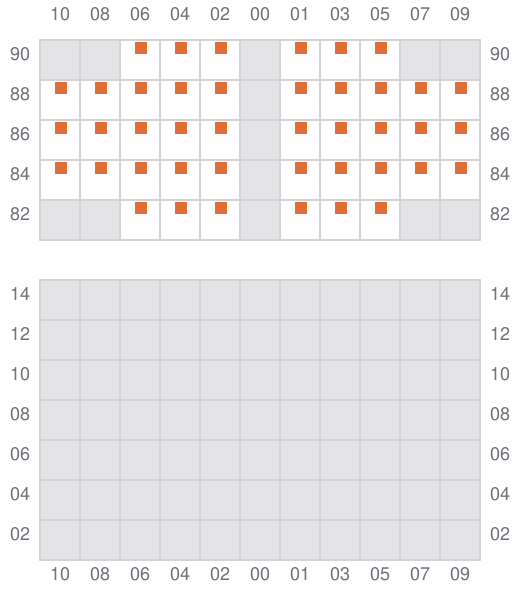

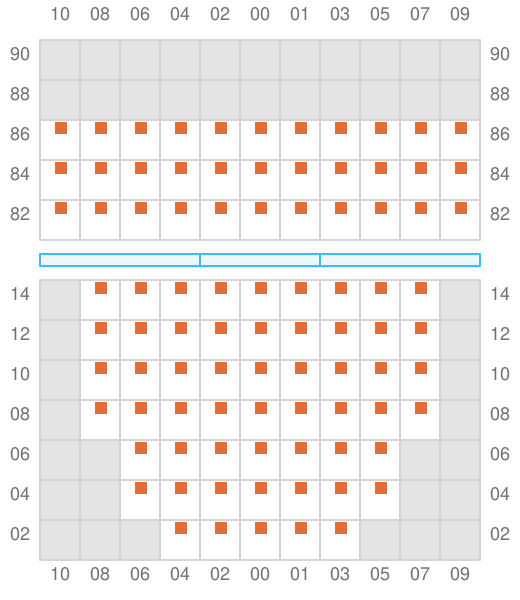

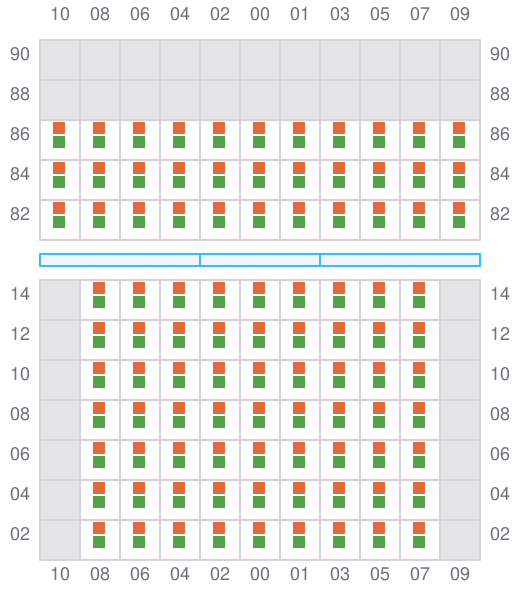

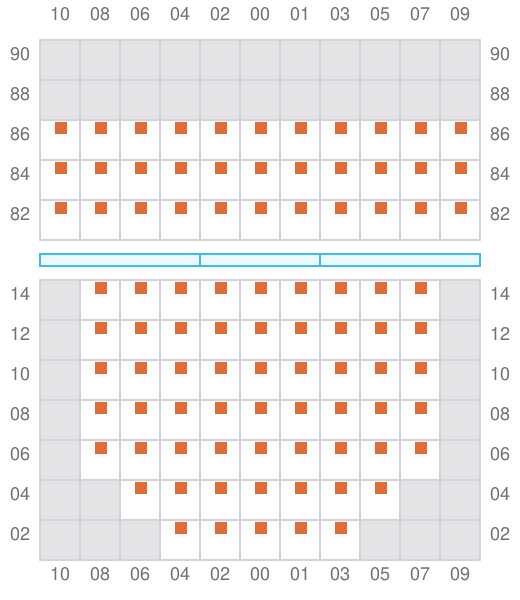

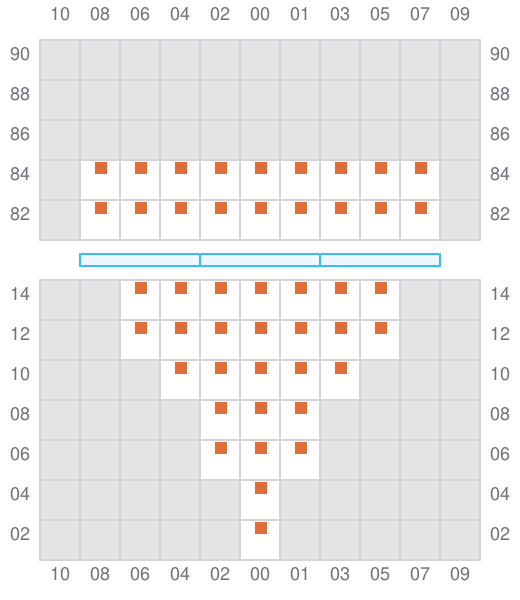

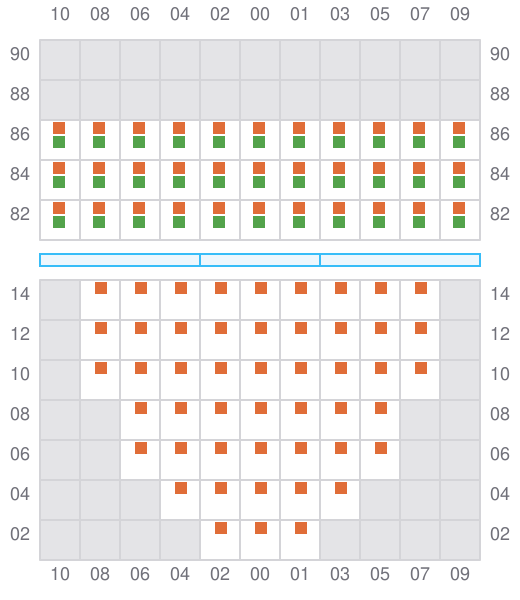

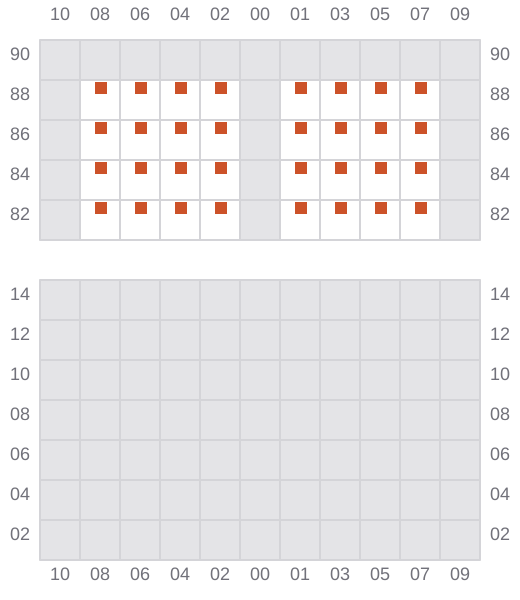

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- → / ?

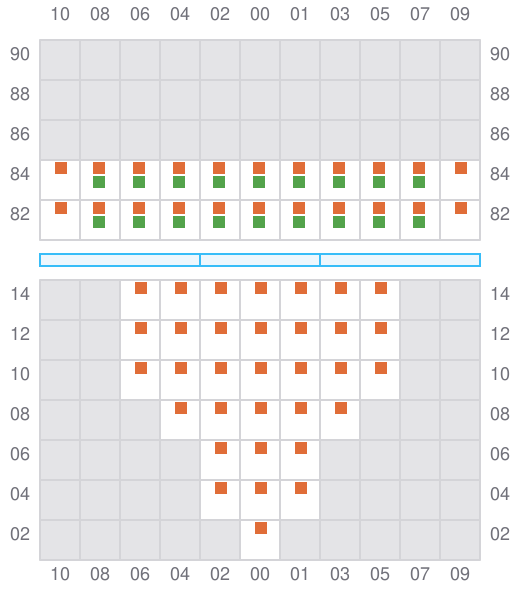

003 (002)
- ← / ?

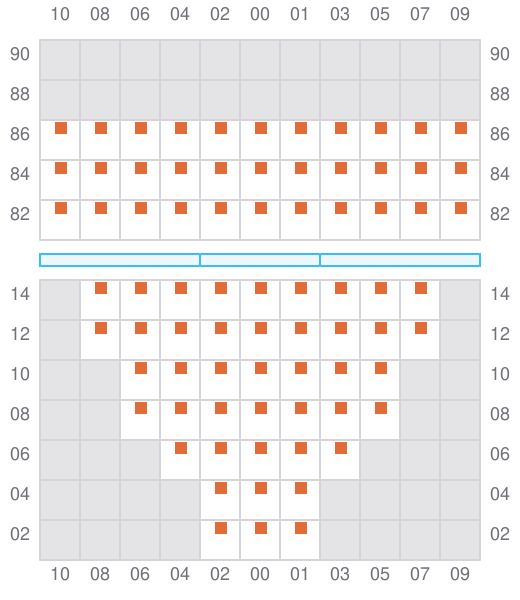

005
- → / ?
007 (006)
- ← / ?
009
- →
011 (010)
- ←

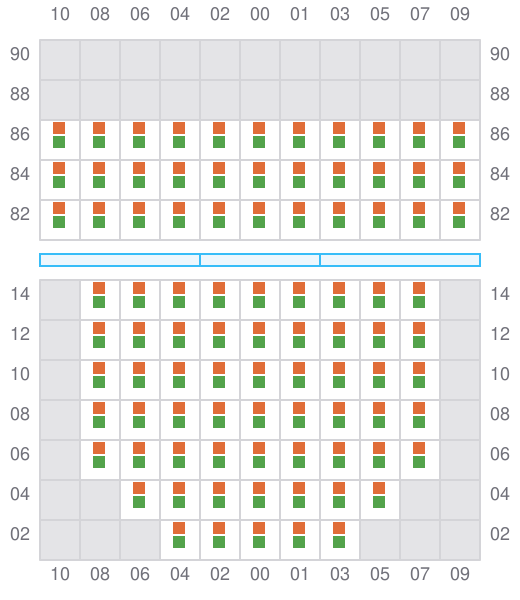

013
- →
015 (014)
- ←

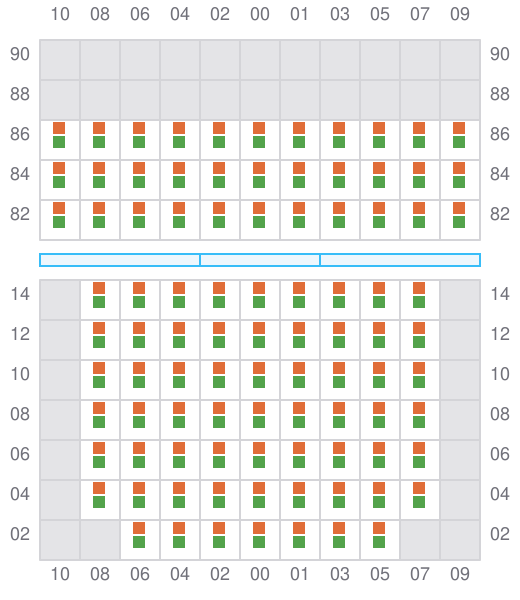

017
- → / ?
019 (018)
- ← / ?

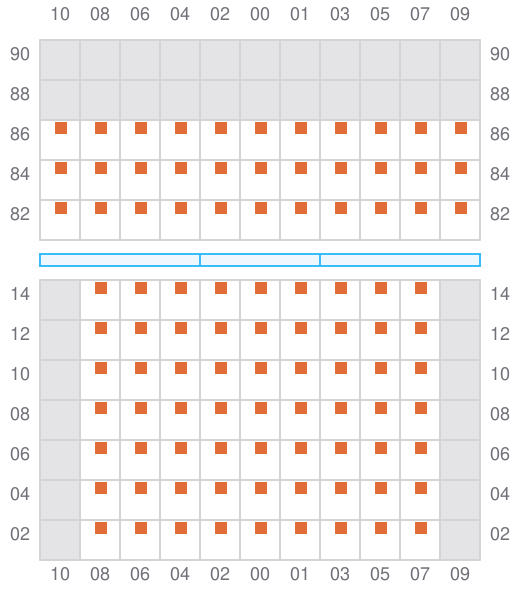

021
- → / ?

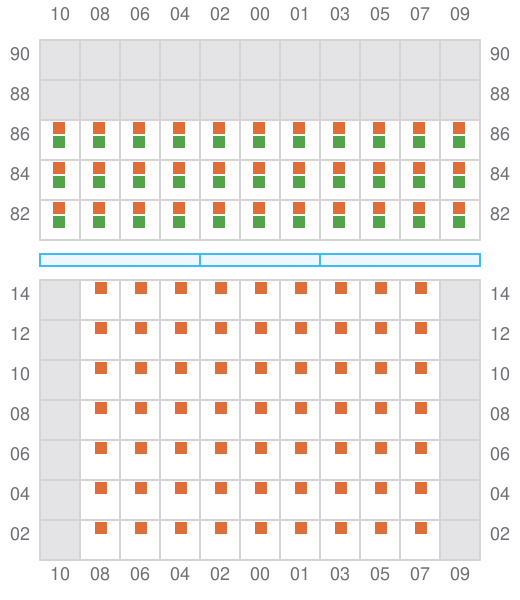

023 (022)
- ← / ?
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- → / ?

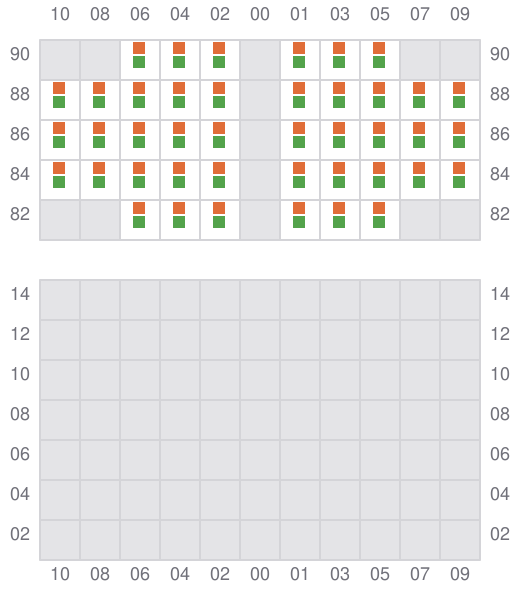

035 (034)
- ← / ?
037
