MSC DENMARK VI
9231250 | A8JX9 | 9231250 by ********* Last update: Thu Apr 04 2024

General Info

Ship Name:MSC DENMARK VI
IMO Code:9231250
Call Sign:A8JX9
Line Operator:9231250
Class Name for Sister Ships:APL
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45, 48
LPP (LBP):263.00
LOA (Length Overall):277.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,748

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC DENMARK VI

Hatch-Covers View

Deck view of MSC DENMARK VI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • 48'
  • Reefer
  • Restricted slot

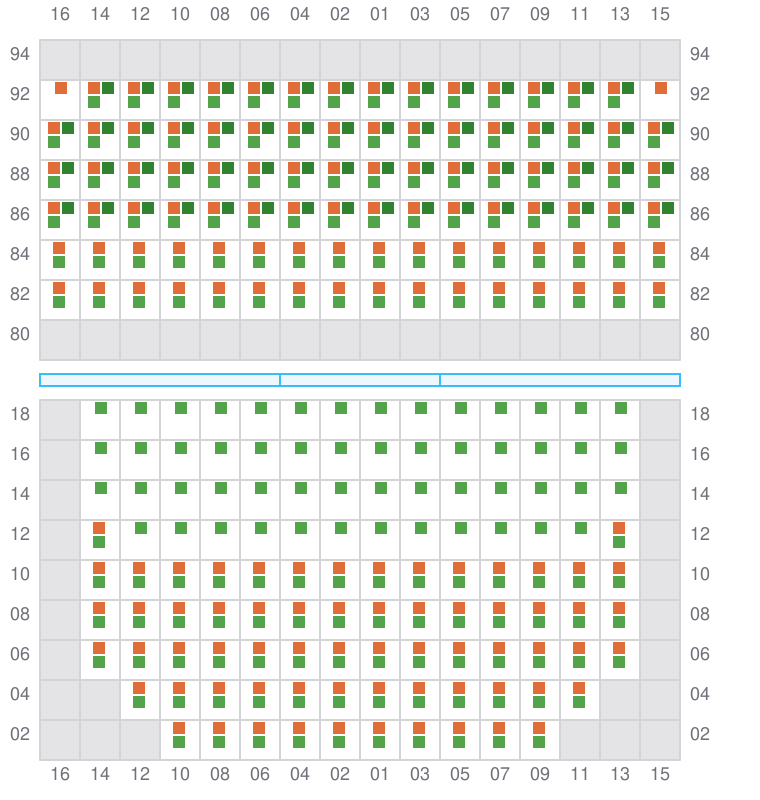

001 (002)

  • →

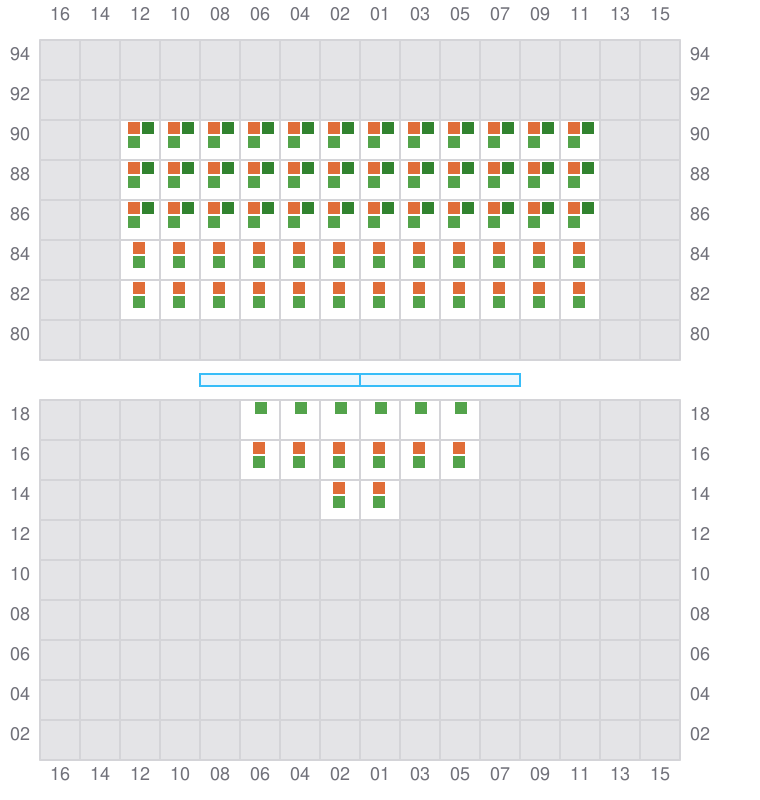

Bay 001 view and slots of MSC DENMARK VI

003

  • ←

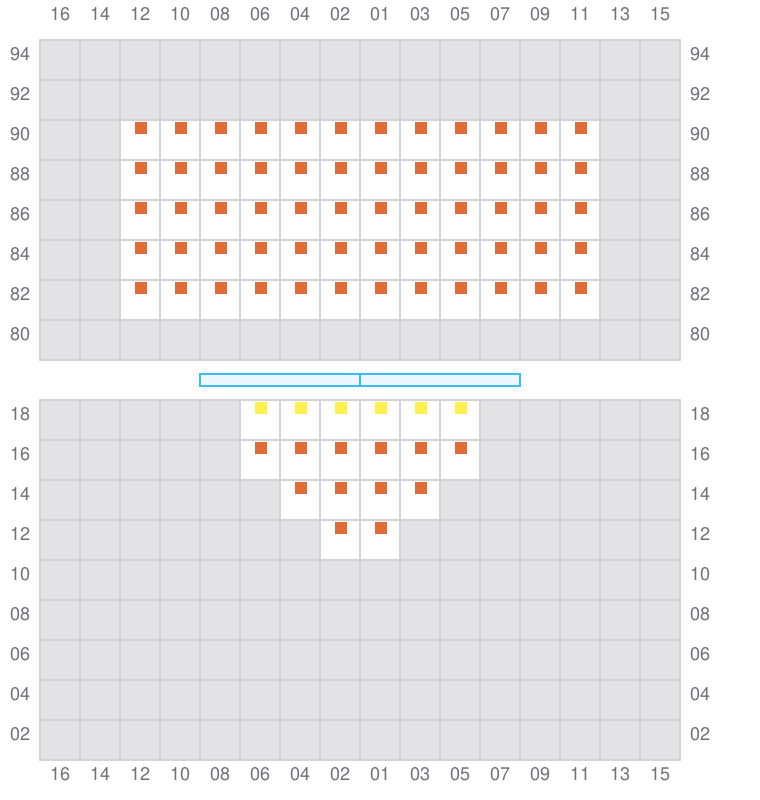

Bay 003 view and slots of MSC DENMARK VI

005 (006)

  • →

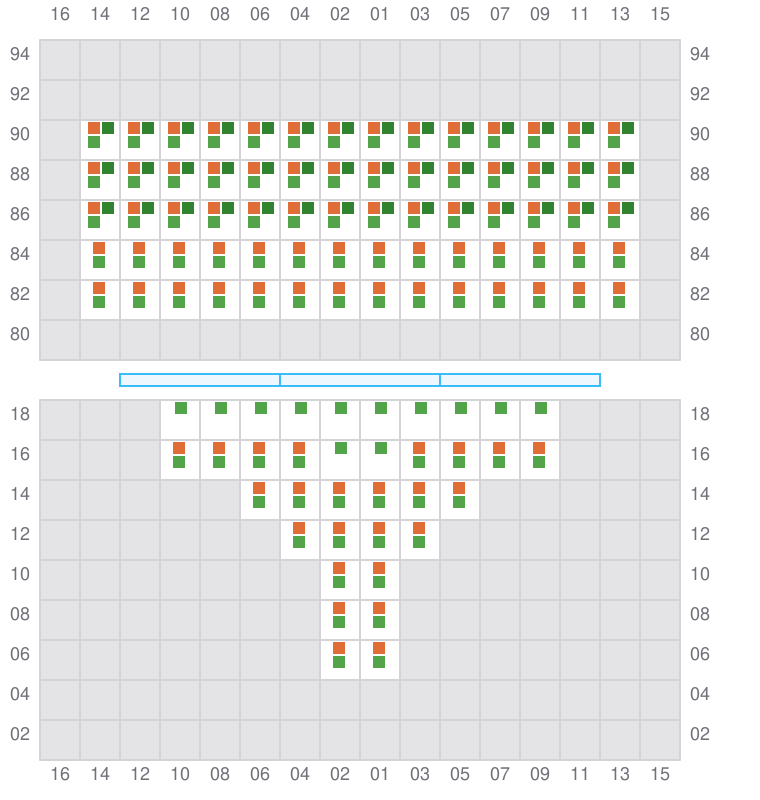

Bay 005 view and slots of MSC DENMARK VI

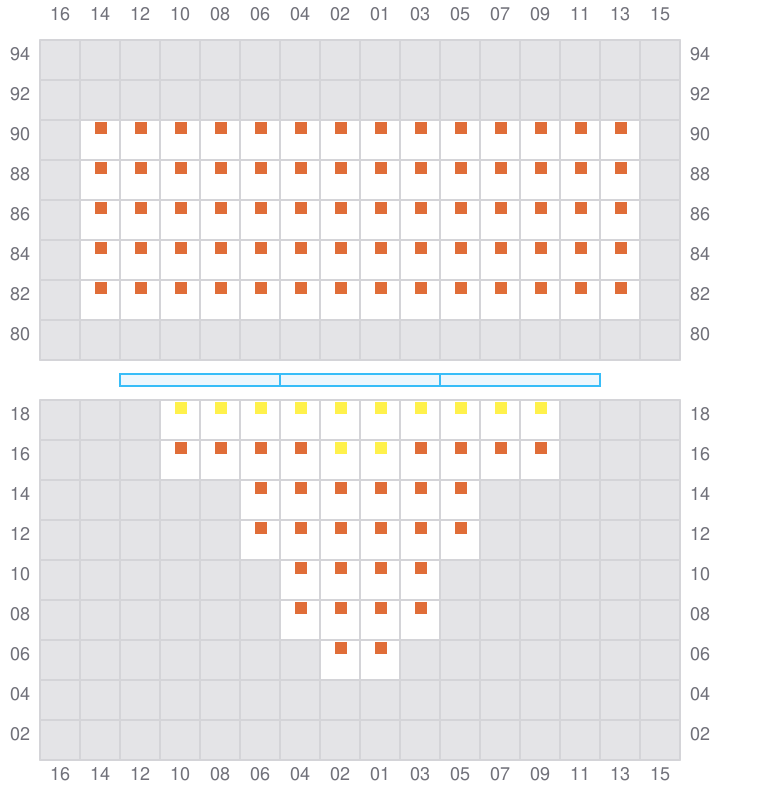

007

  • ←
  • → / ?
Bay 007 view and slots of MSC DENMARK VI

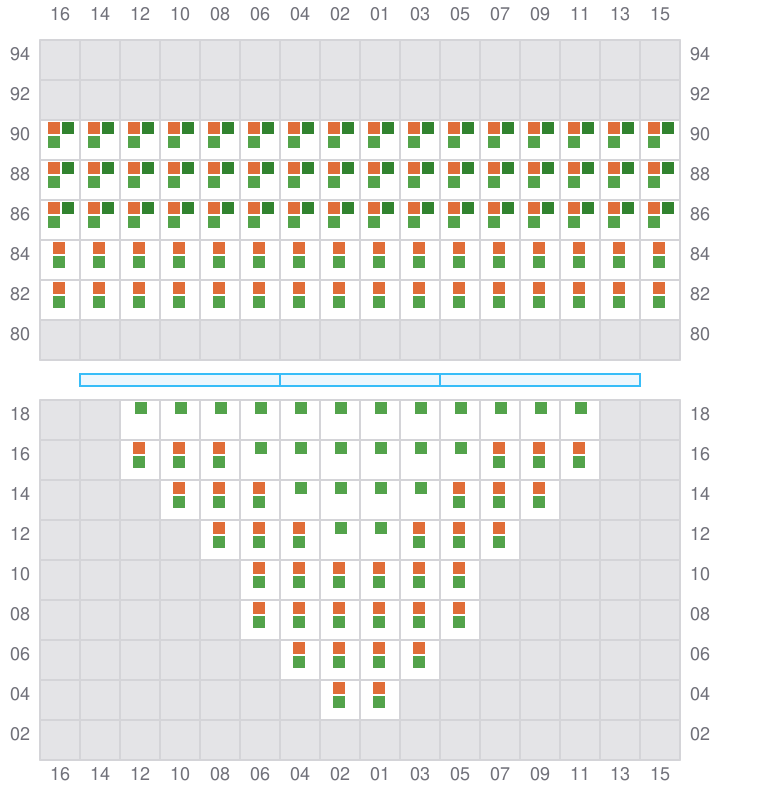

009 (010)

  • →
Bay 009 view and slots of MSC DENMARK VI

011

  • ←
  • → / ?

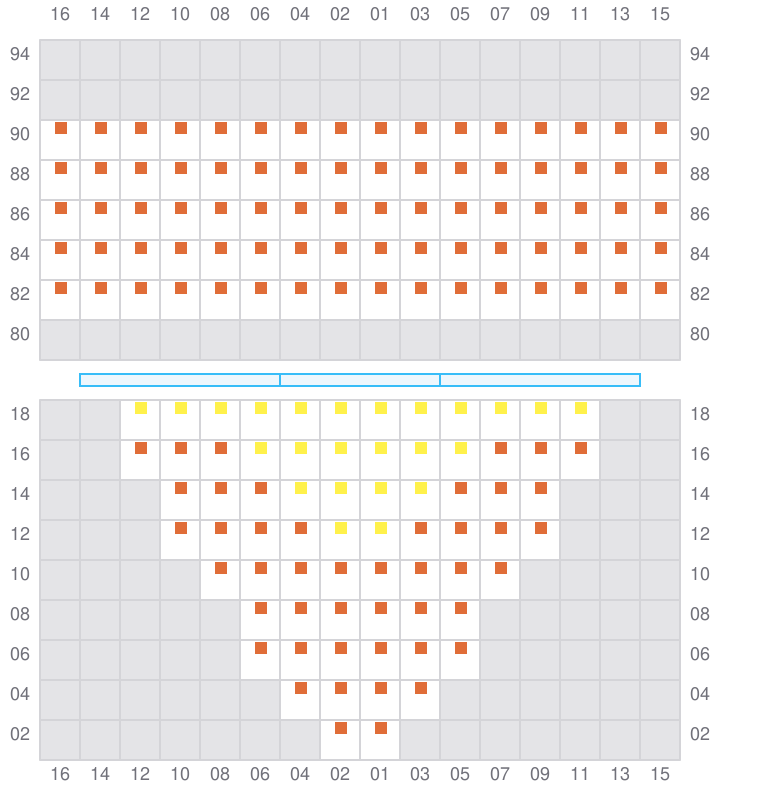

Bay 011 view and slots of MSC DENMARK VI

013 (014)

  • →

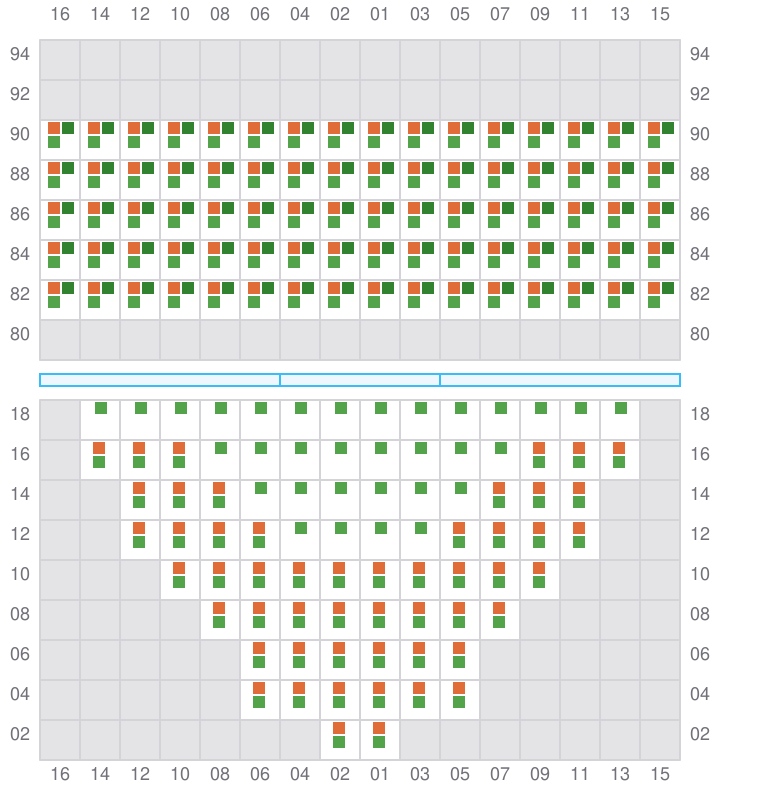

Bay 013 view and slots of MSC DENMARK VI

015

  • ←
  • → / ?

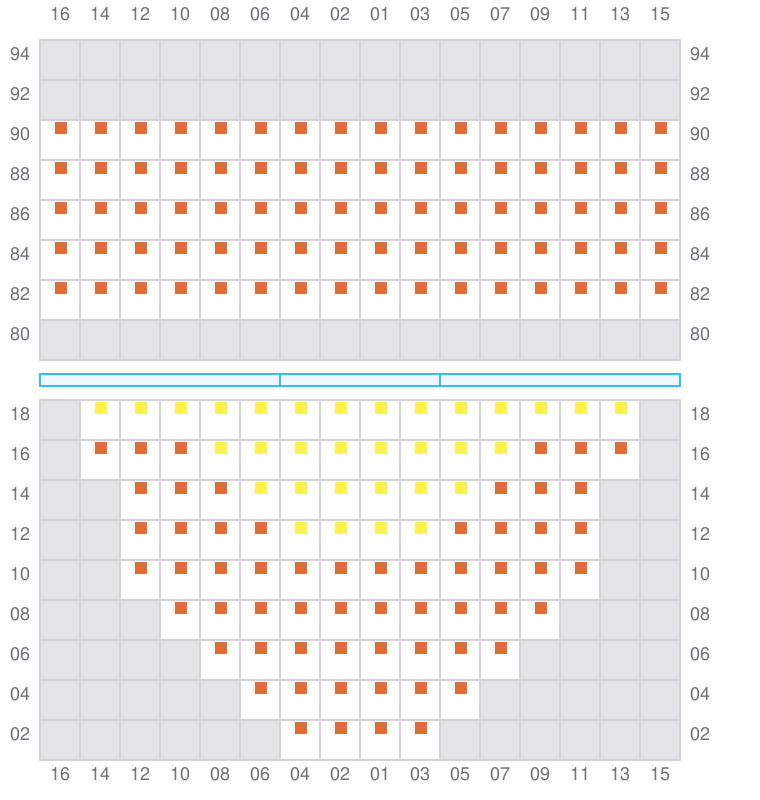

Bay 015 view and slots of MSC DENMARK VI

017 (018)

  • →

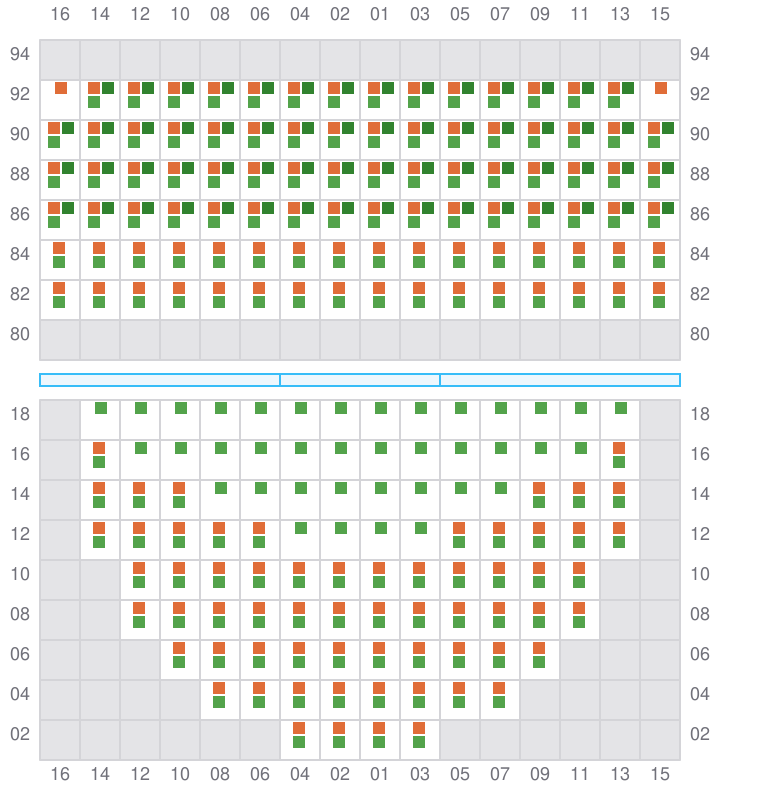

Bay 017 view and slots of MSC DENMARK VI

019

  • ←
  • → / ?

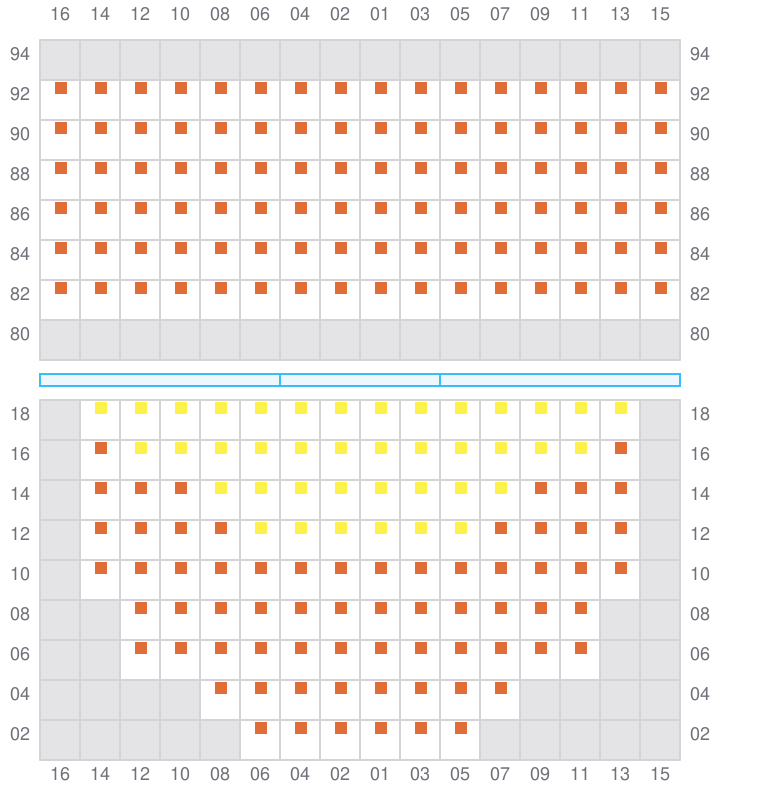

Bay 019 view and slots of MSC DENMARK VI

021 (022)

  • →

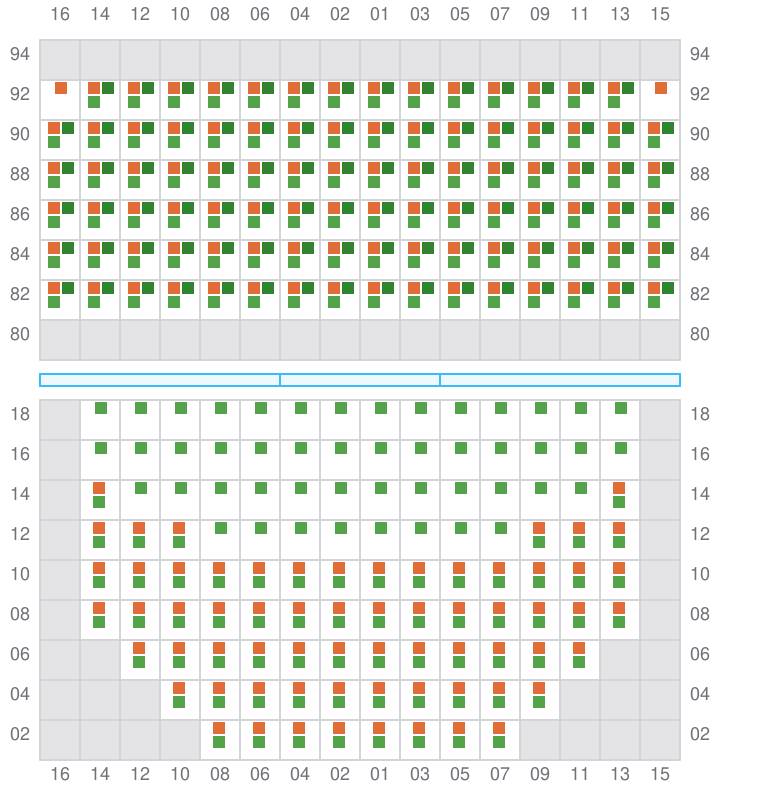

Bay 021 view and slots of MSC DENMARK VI

023

  • ←
  • → / ?
Bay 023 view and slots of MSC DENMARK VI

025 (026)

  • →
Bay 025 view and slots of MSC DENMARK VI

027

  • ←
  • → / ?
Bay 027 view and slots of MSC DENMARK VI

029 (030)

  • →
  • ? / →

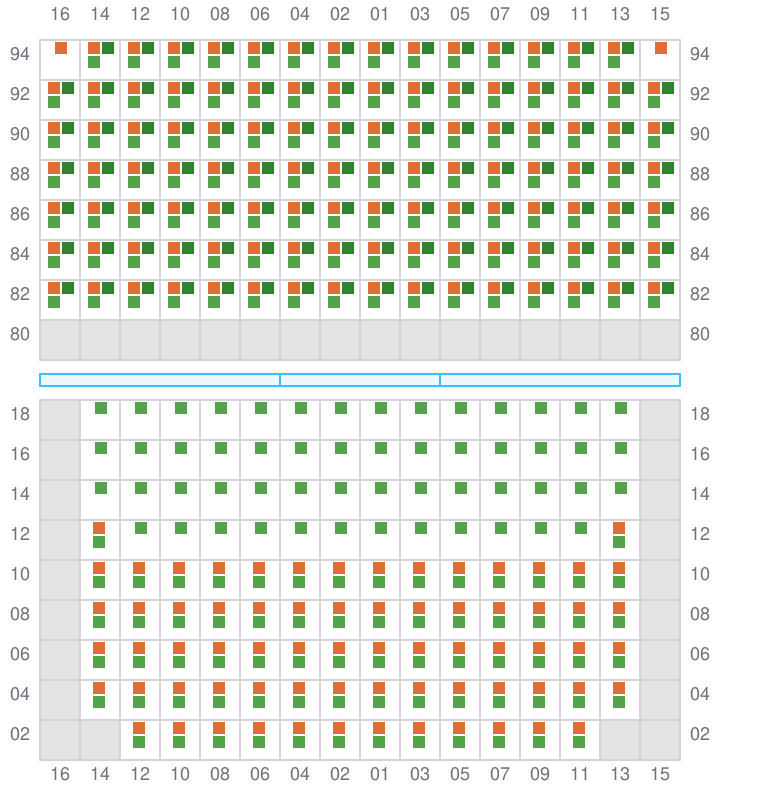

Bay 029 view and slots of MSC DENMARK VI

031

  • ←
  • →
Bay 031 view and slots of MSC DENMARK VI

033 (034)

  • →
  • ? / →
Bay 033 view and slots of MSC DENMARK VI

035

  • ←
  • →

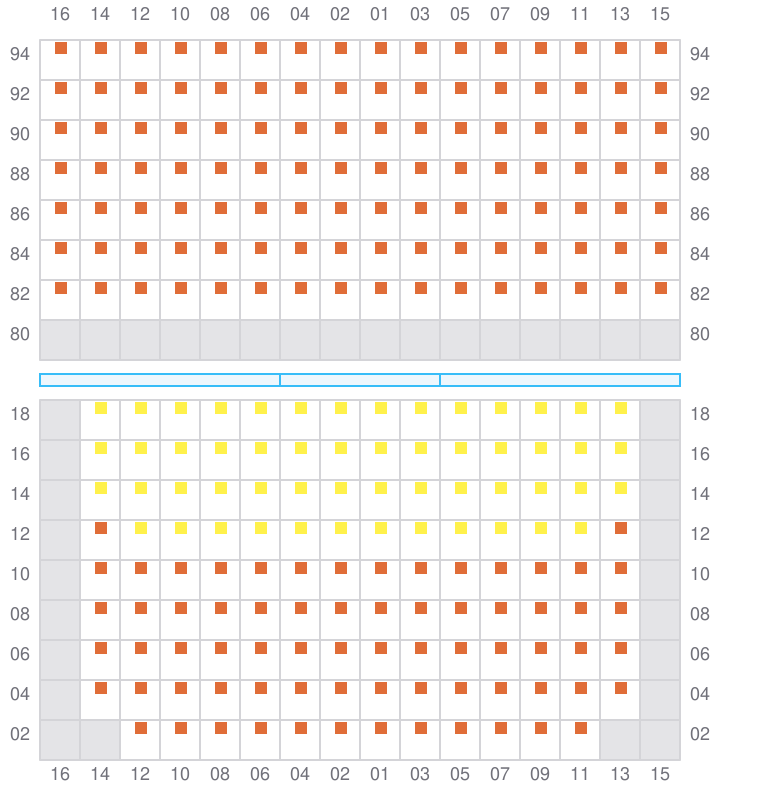

Bay 035 view and slots of MSC DENMARK VI

037 (038)

  • →
  • ? / →
Bay 037 view and slots of MSC DENMARK VI

039

  • ←
  • →
Bay 039 view and slots of MSC DENMARK VI

041 (042)

  • →
  • →
Bay 041 view and slots of MSC DENMARK VI

043

  • ←

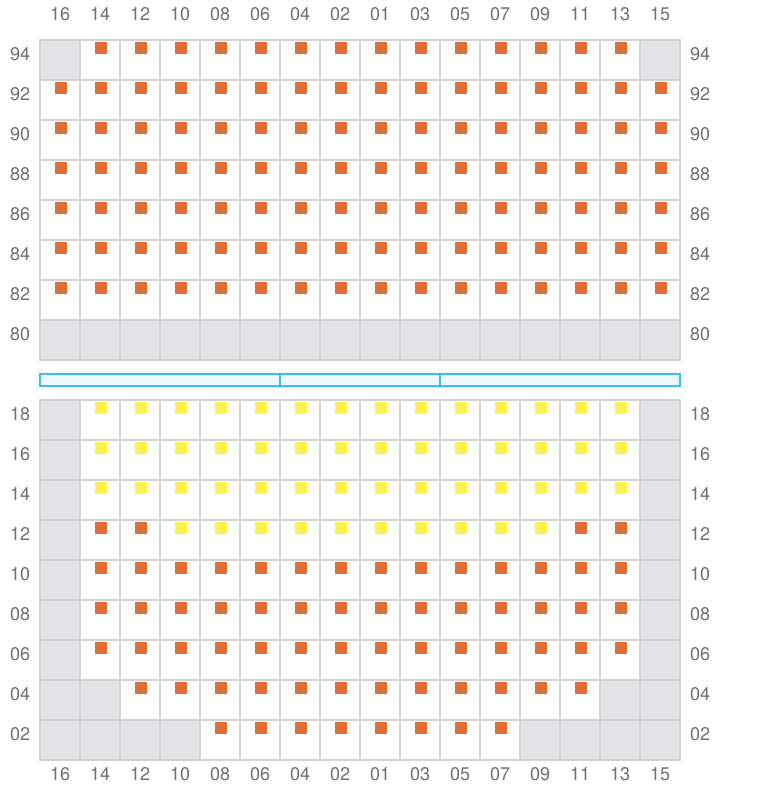

Bay 043 view and slots of MSC DENMARK VI

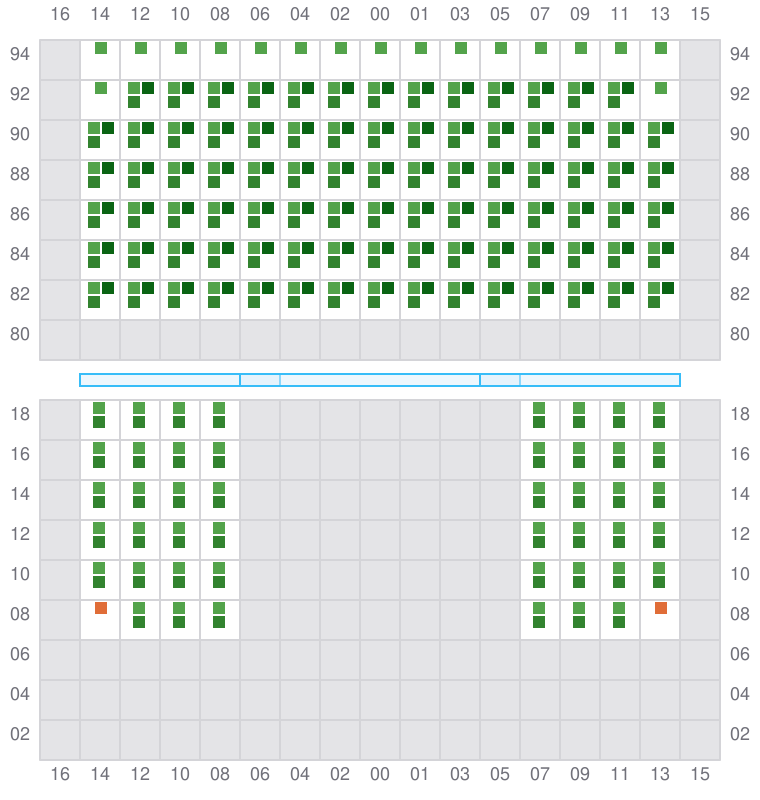

045 (046)

  • →
  • → / ?
Bay 045 view and slots of MSC DENMARK VI

047

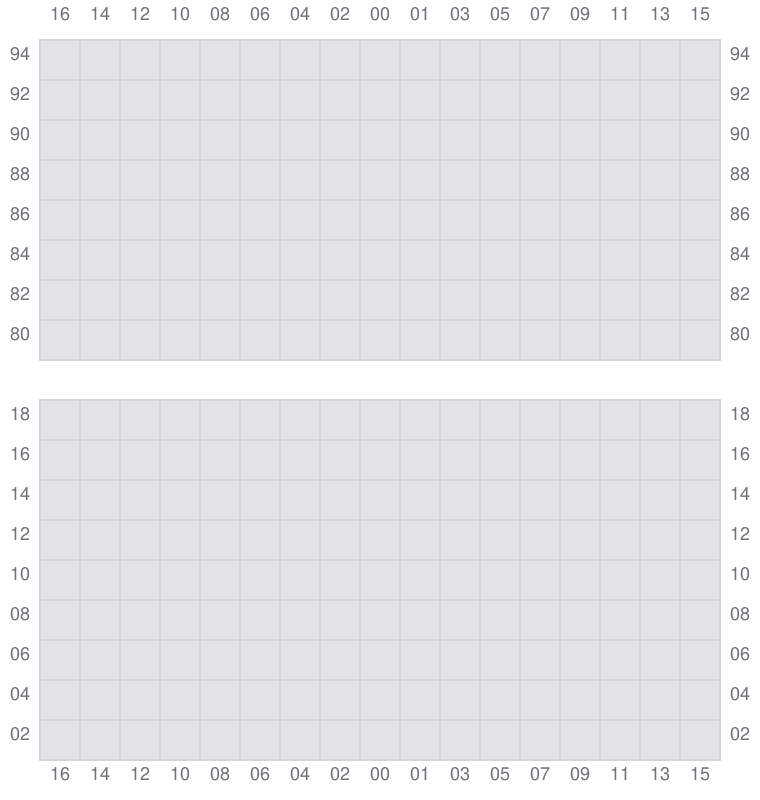

Bay 047 view and slots of MSC DENMARK VI

049 (050)

  • →
Bay 049 view and slots of MSC DENMARK VI

051

  • ←
  • → / ?

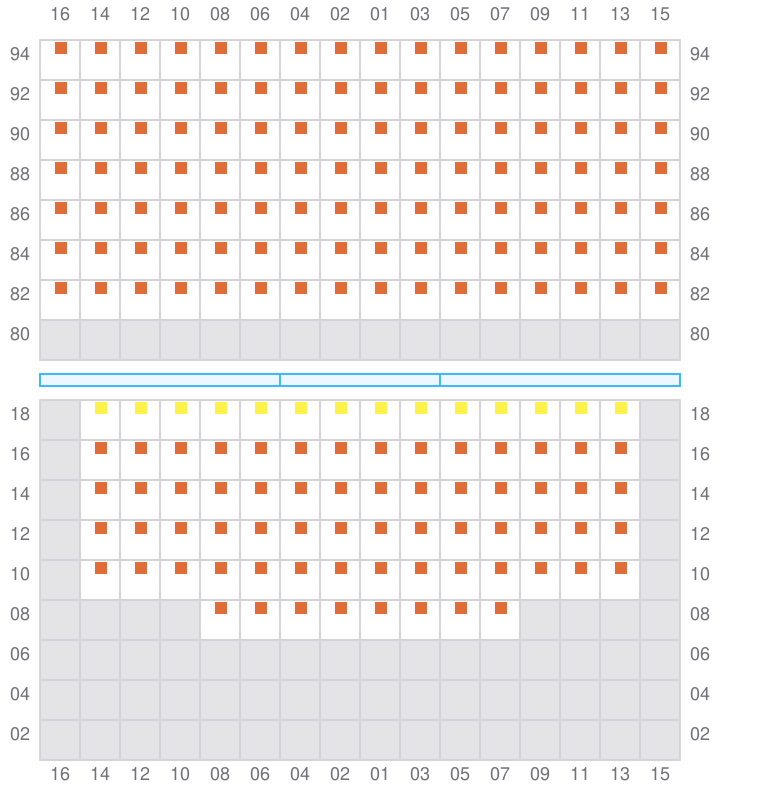

Bay 051 view and slots of MSC DENMARK VI

053 (054)

  • →
Bay 053 view and slots of MSC DENMARK VI

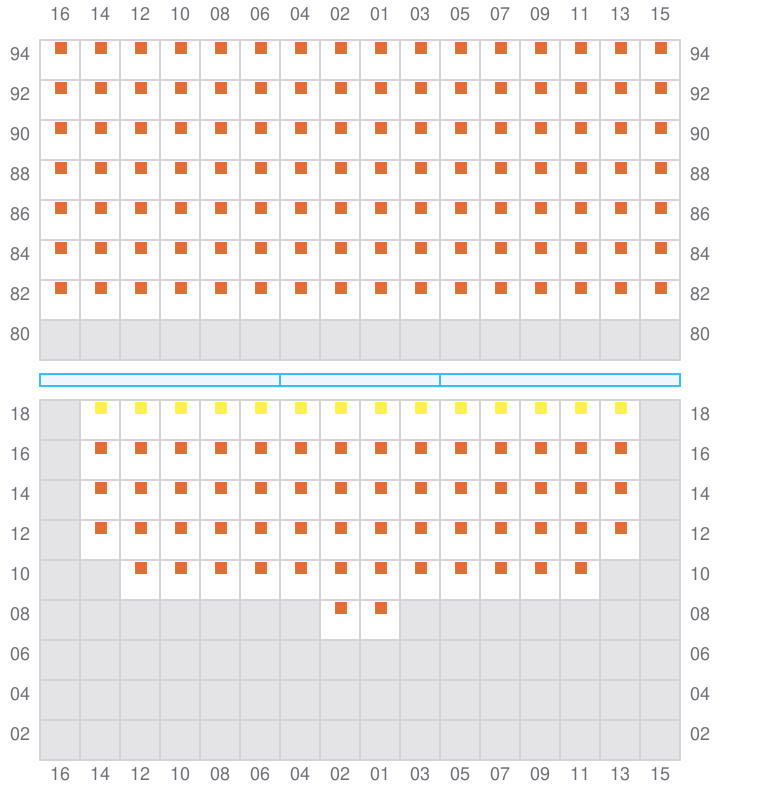

055

  • ←
  • → / ?
Bay 055 view and slots of MSC DENMARK VI

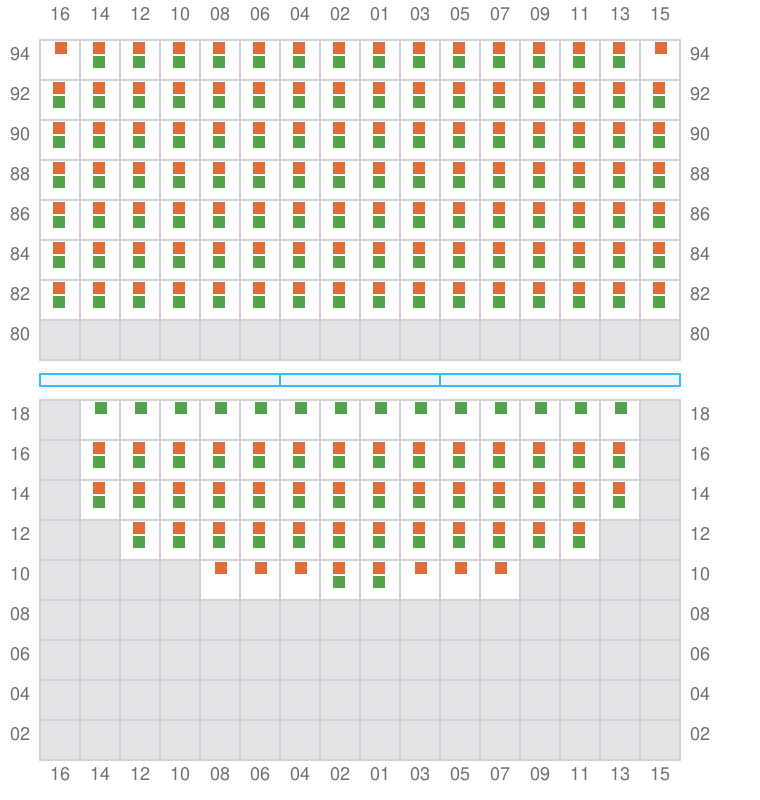

057 (058)

  • →

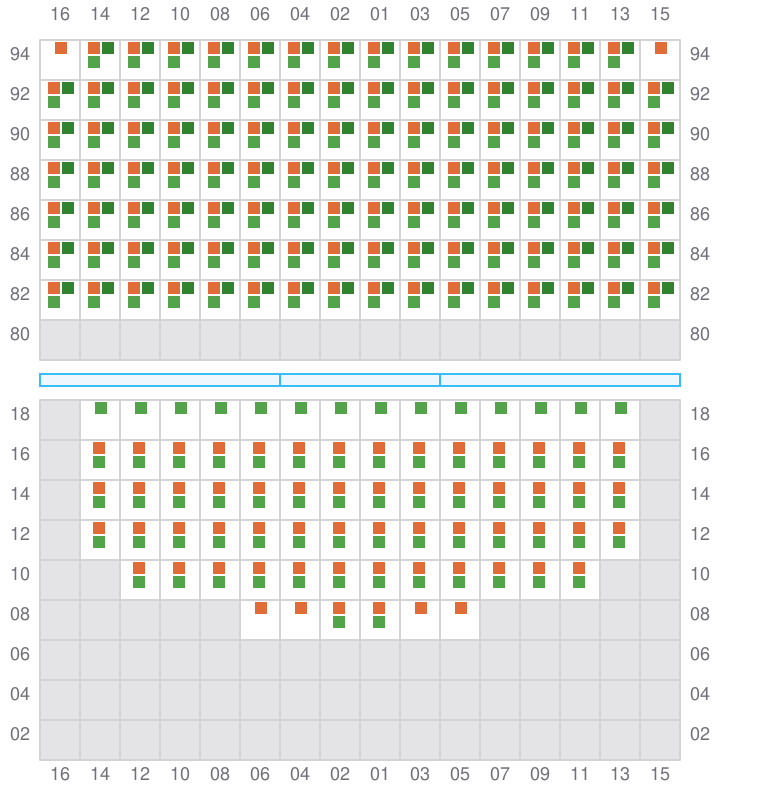

Bay 057 view and slots of MSC DENMARK VI

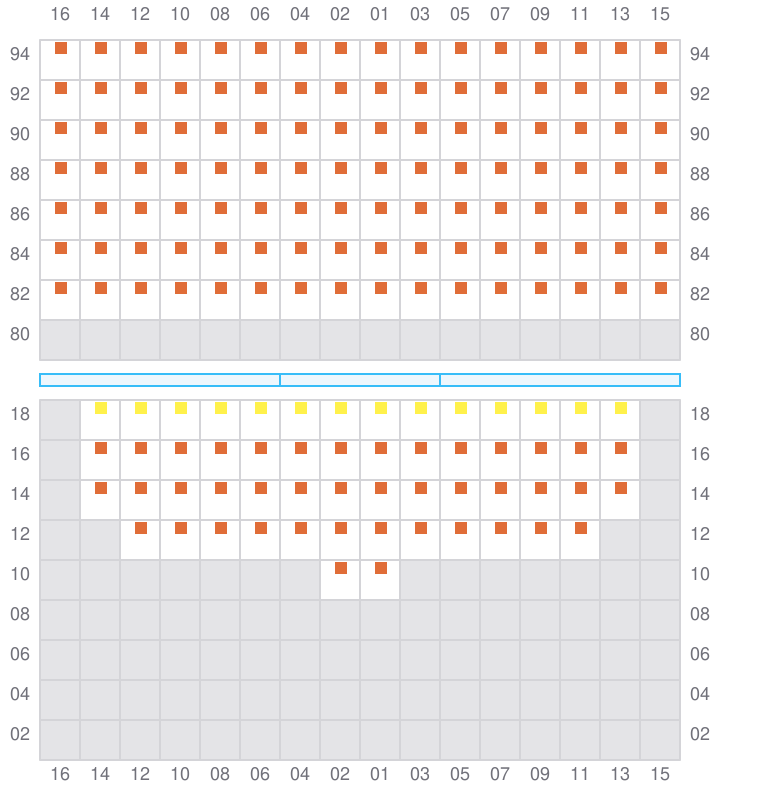

059

  • ←
  • → / ?
Bay 059 view and slots of MSC DENMARK VI

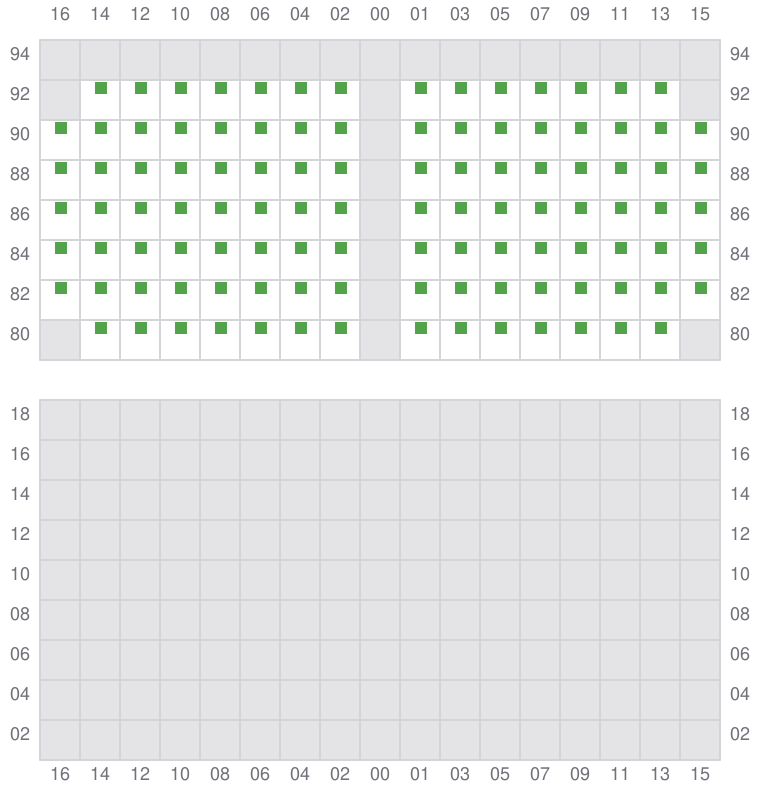

061 (062)

  • → / ?
  • → / ?
Bay 061 view and slots of MSC DENMARK VI
