MSC DHANTIA F
9160982 | 5LAV6 | 9160982 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:MSC DHANTIA F
IMO Code:9160982
Call Sign:5LAV6
Line Operator:9160982
Class Name for Sister Ships:81L
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,118
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

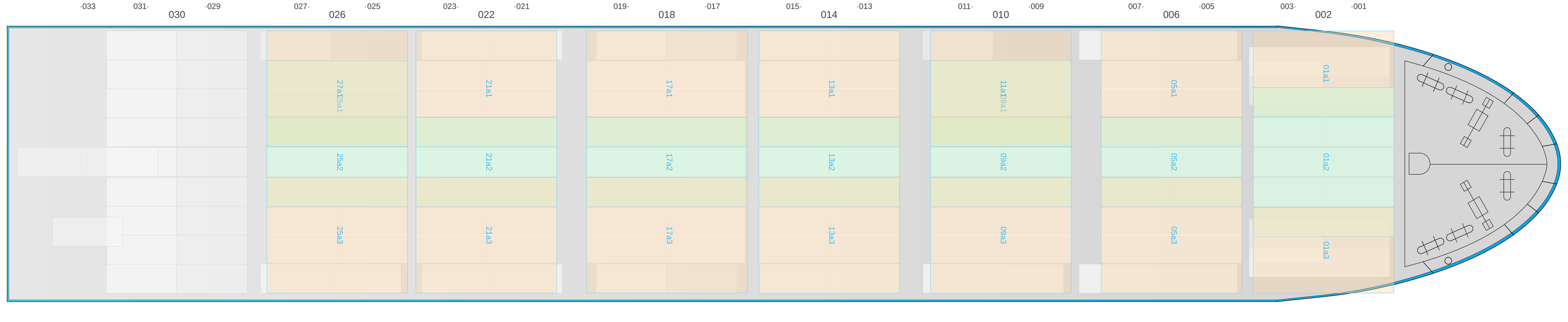

Hatch-Covers View

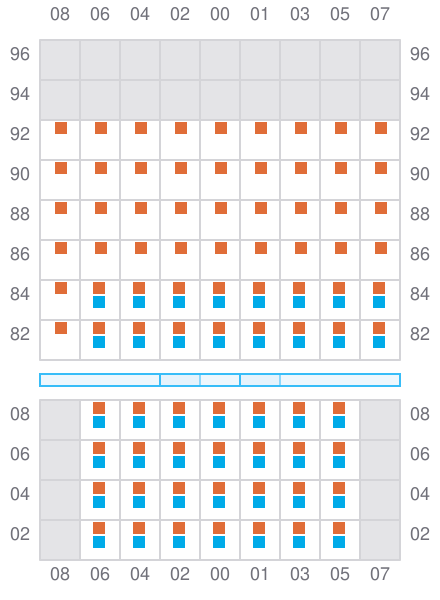

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

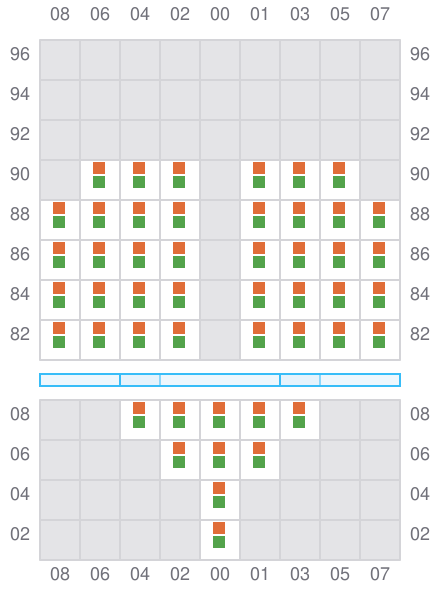

001 (002)
- →

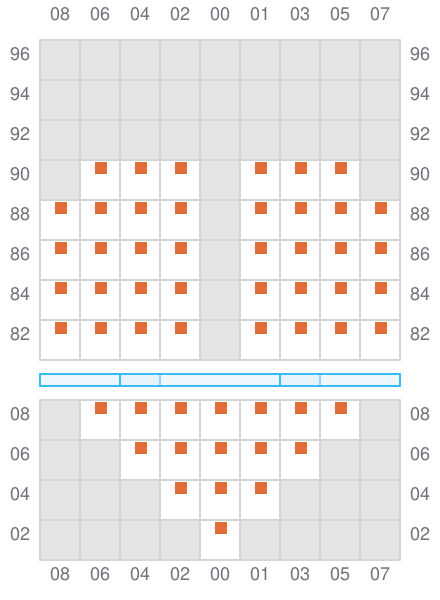

003
- ←

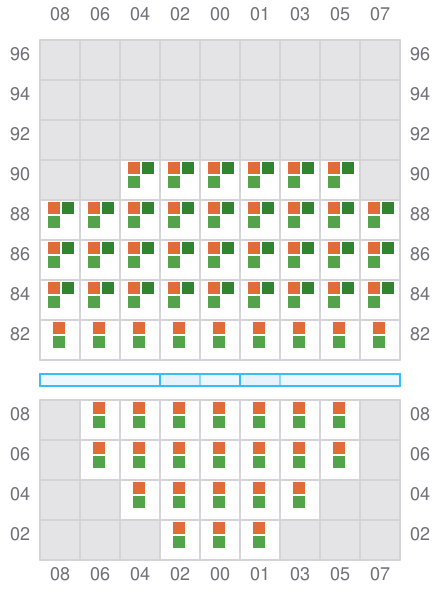

005 (006)
- →
007
- ←

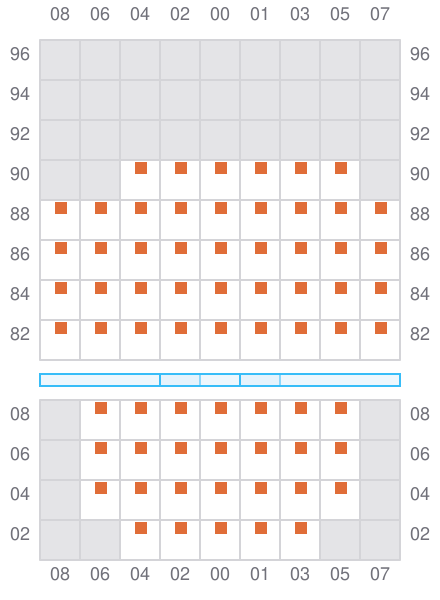

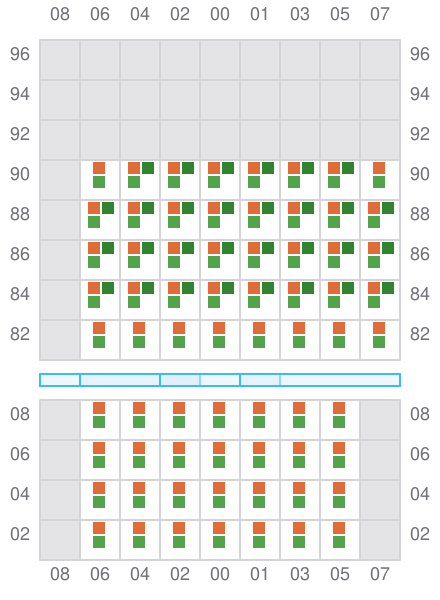

009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
- ← / ?

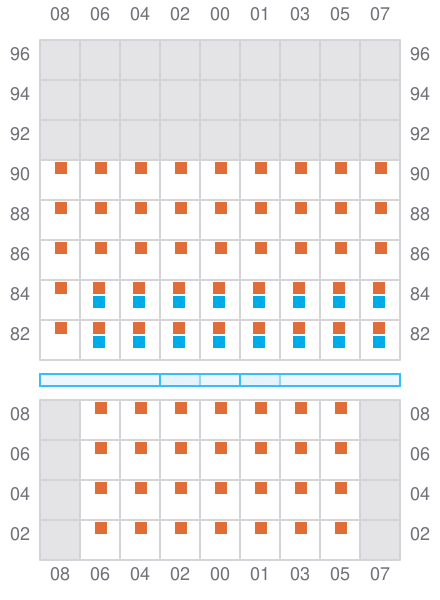

015
- ←
- → / ?

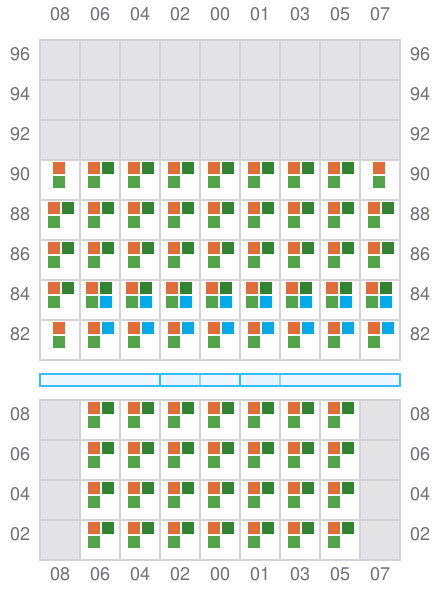

017 (018)
- →
- ← / ?
019
- ←
- →

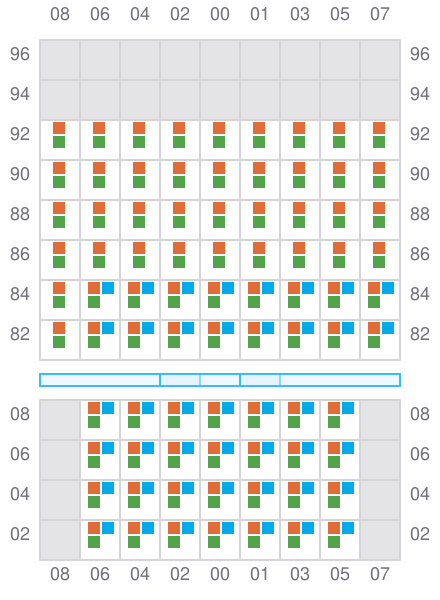

021 (022)
- →
- ←

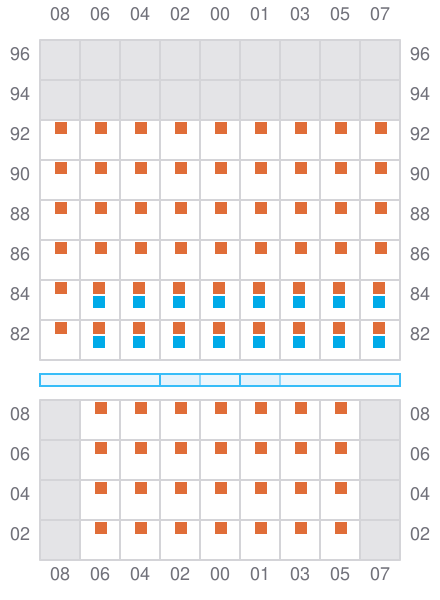

023
- ←
- → / ?

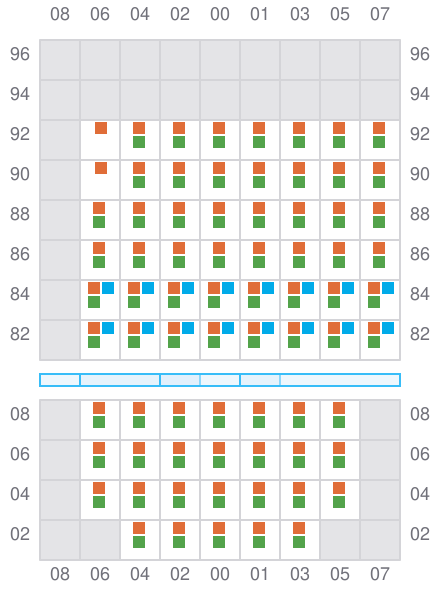

025 (026)
- →
- ← / ?

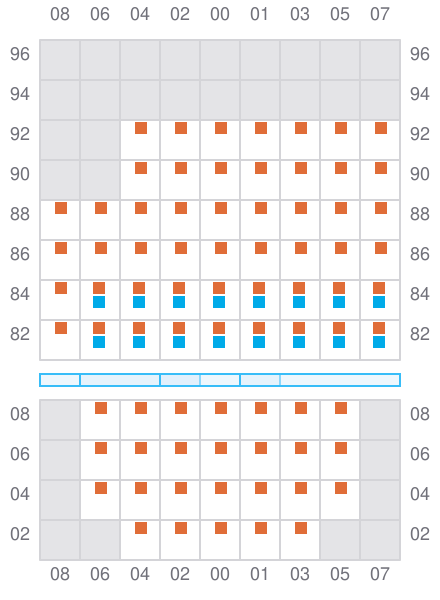

027
- ←
- → / ?

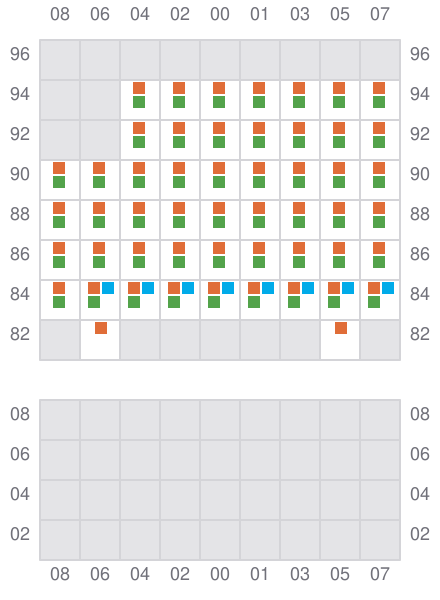

029 (030)
- → / ?
- ← / ?

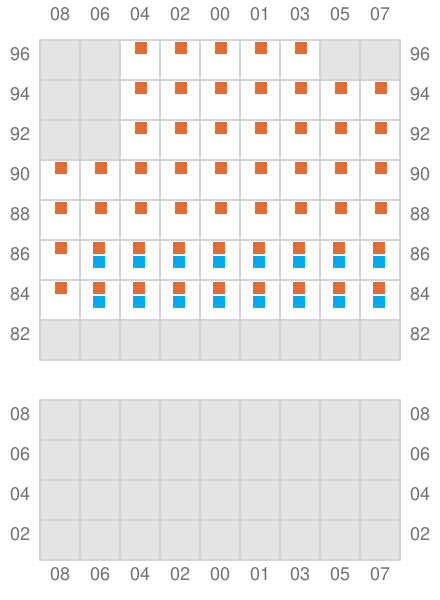

031
- ← / ?
- → / ?

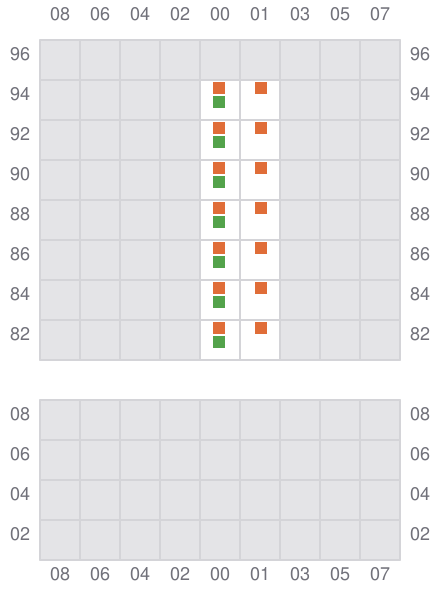

033 (034)
- → / ?
