MSC DONATA
9237151 | 3EOS8 | MSC by ************************** Last update: Fri Jun 16 2023
General Info
Ship Name:MSC DONATA
IMO Code:9237151
Call Sign:3EOS8
Line Operator:MSC
Class Name for Sister Ships:DON
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,119
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

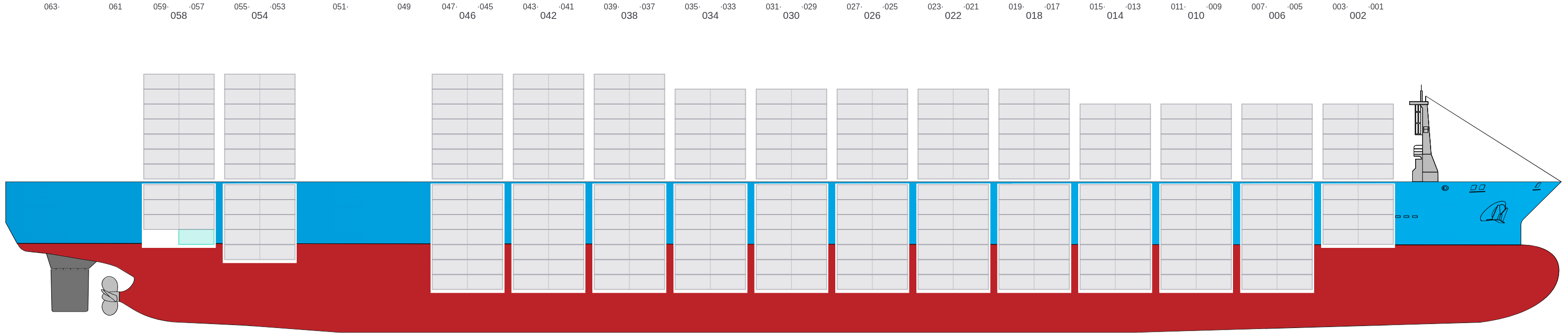

Side View
![Side view of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-sideView.png?v=1686946744618)
Hatch-Covers View
![Deck view of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-deckView.png?v=1686946744618)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

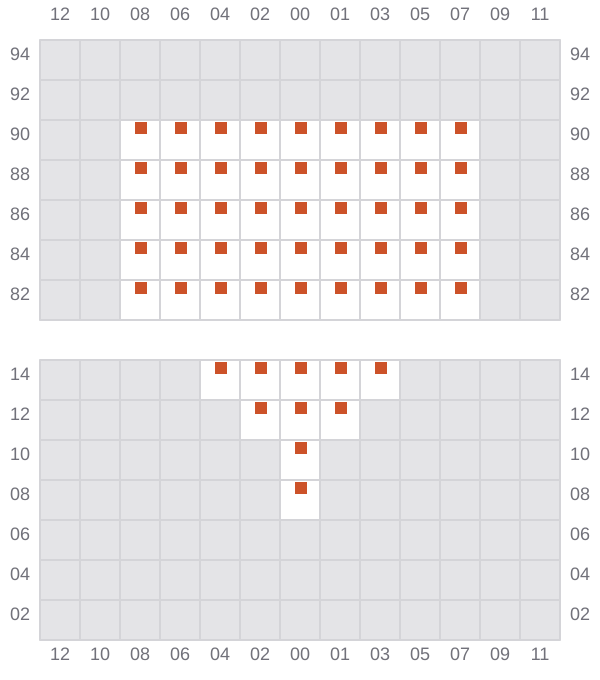

001
- →
![Bay 001 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b001.png?v=1686946744618)

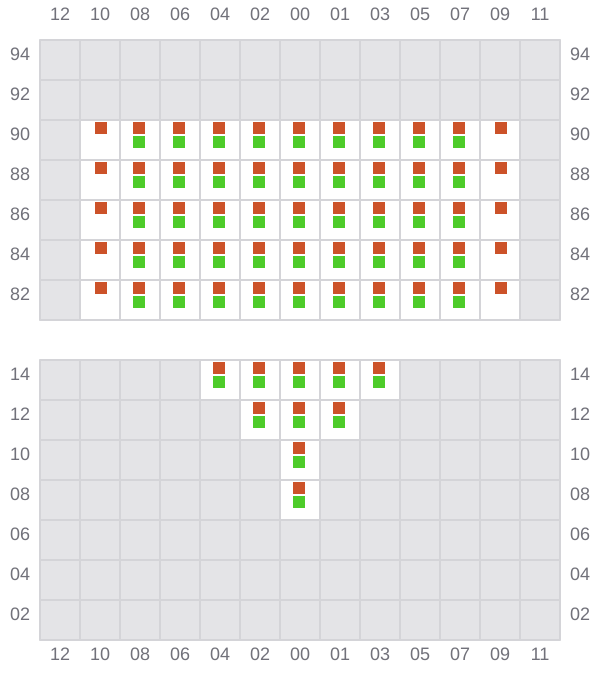

003 (002)
- ←
![Bay 003 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b003.png?v=1686946744618)

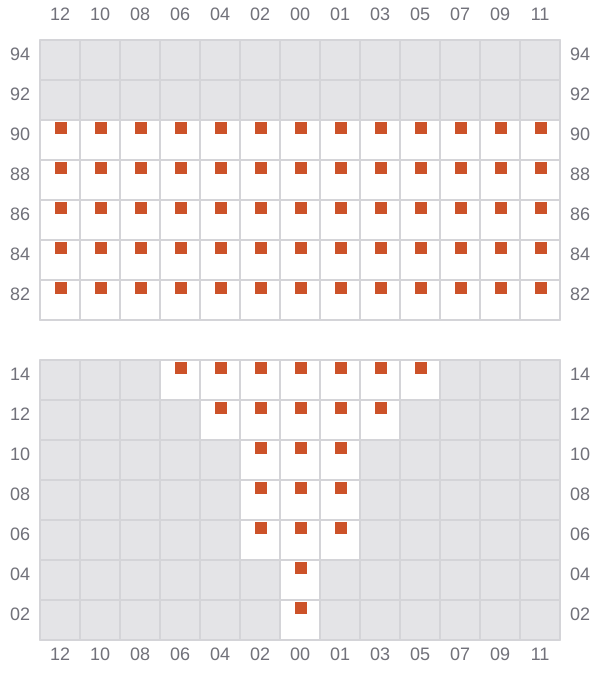

005
- →
![Bay 005 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b005.png?v=1686946744618)

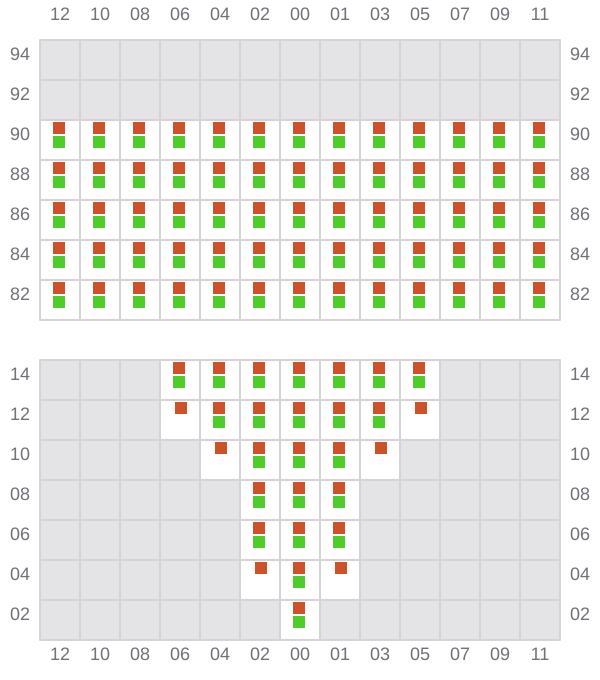

007 (006)
- ←
![Bay 007 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b007.png?v=1686946744618)

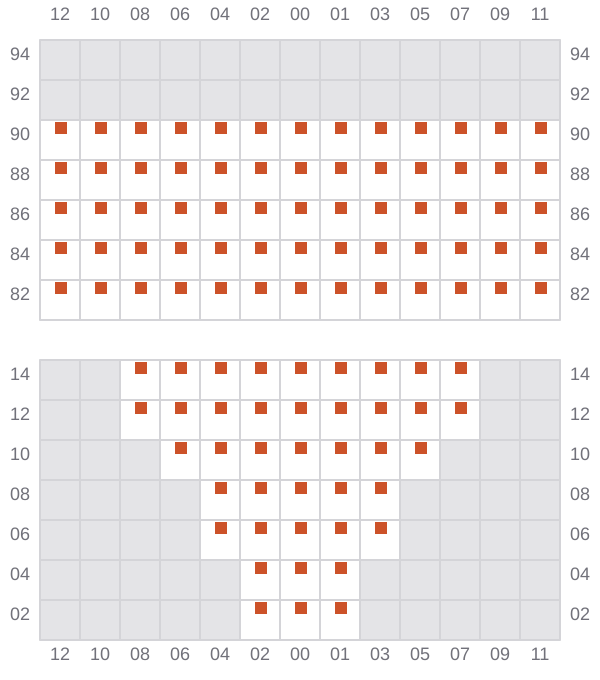

009
- →
![Bay 009 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b009.png?v=1686946744618)

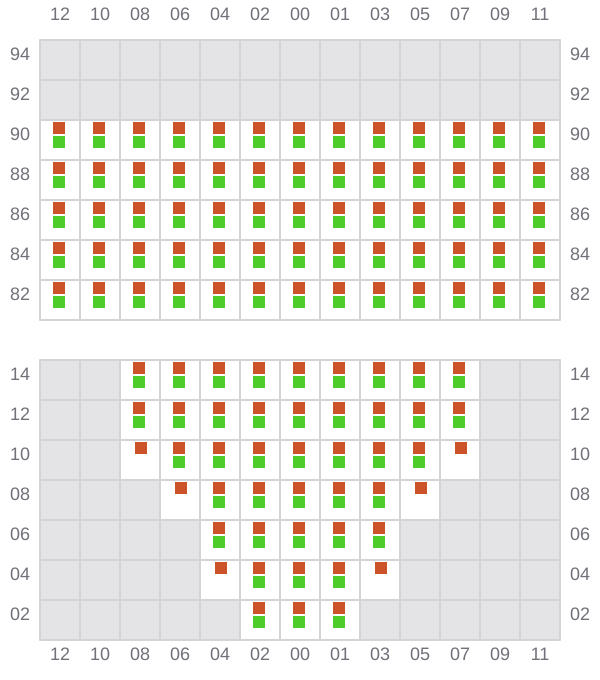

011 (010)
- ←
![Bay 011 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b011.png?v=1686946744618)

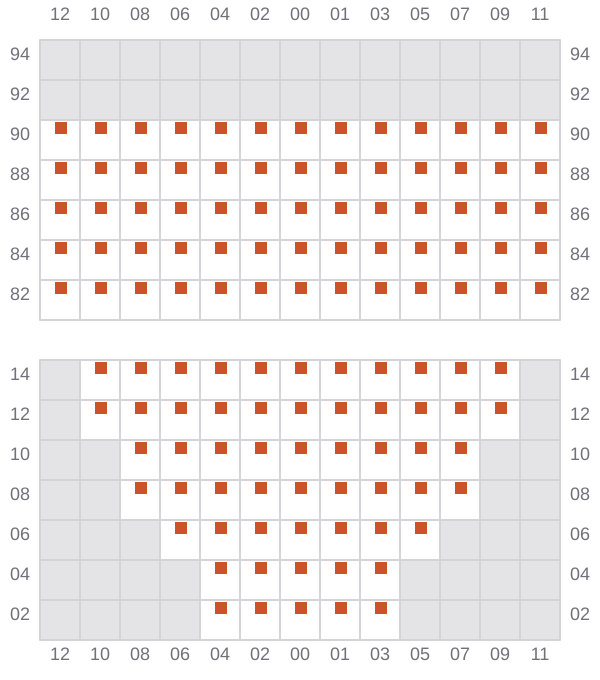

013
- →
![Bay 013 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b013.png?v=1686946744618)

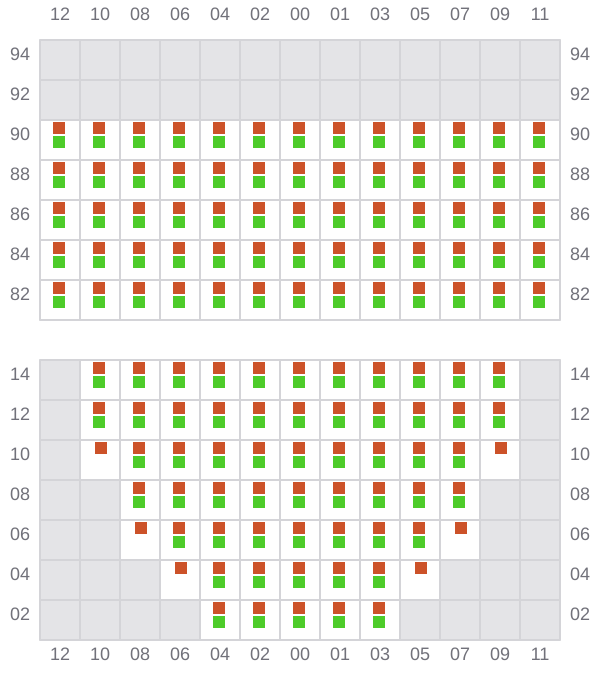

015 (014)
- ←
![Bay 015 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b015.png?v=1686946744618)

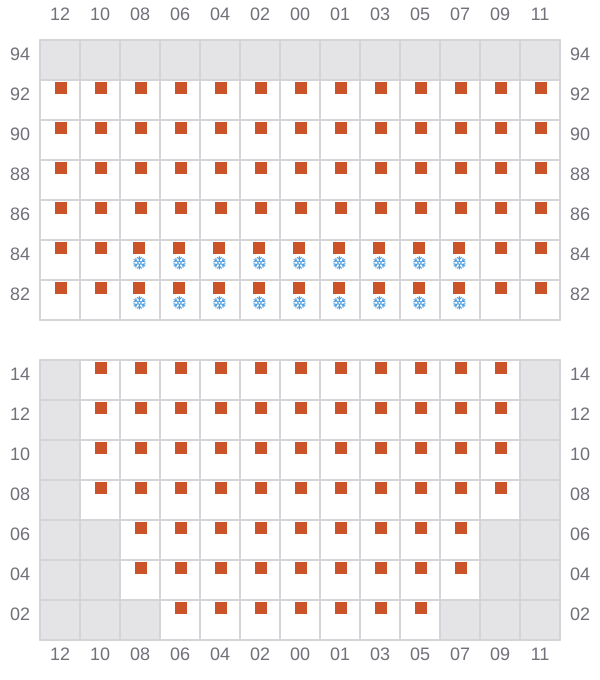

017
- →
![Bay 017 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b017.png?v=1686946744618)

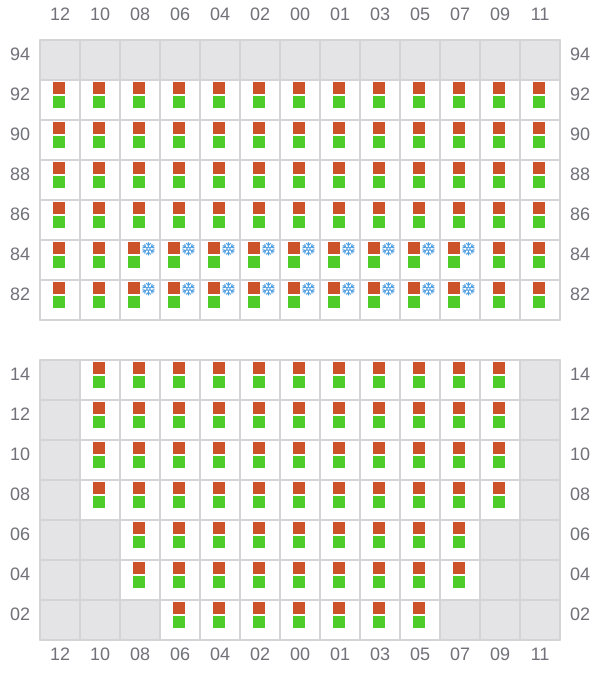

019 (018)
- ←
![Bay 019 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b019.png?v=1686946744618)

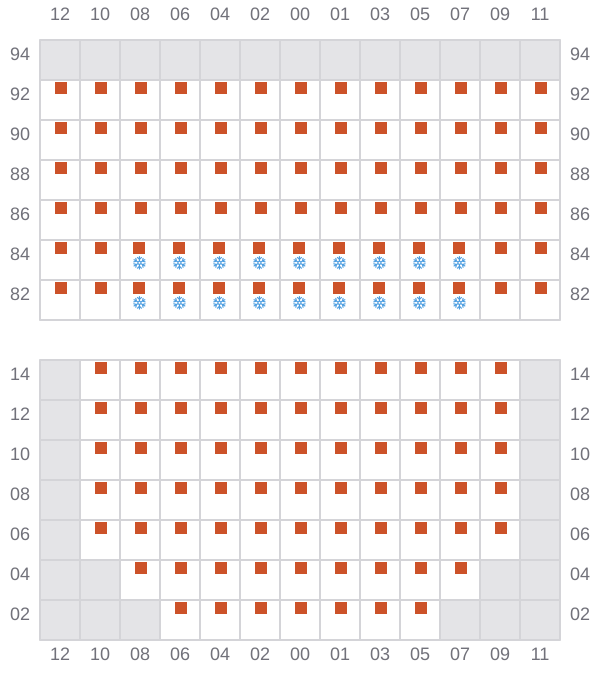

021
- →
![Bay 021 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b021.png?v=1686946744618)

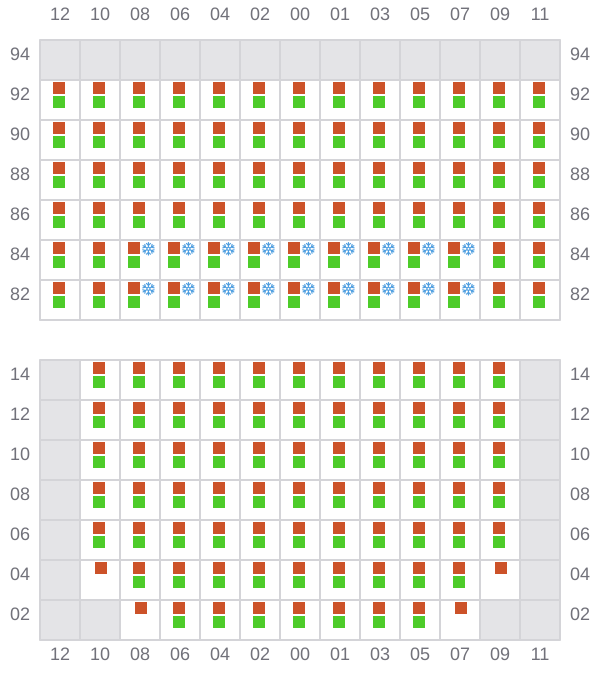

023 (022)
- ←
![Bay 023 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b023.png?v=1686946744618)
025
- →
![Bay 025 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b025.png?v=1686946744618)

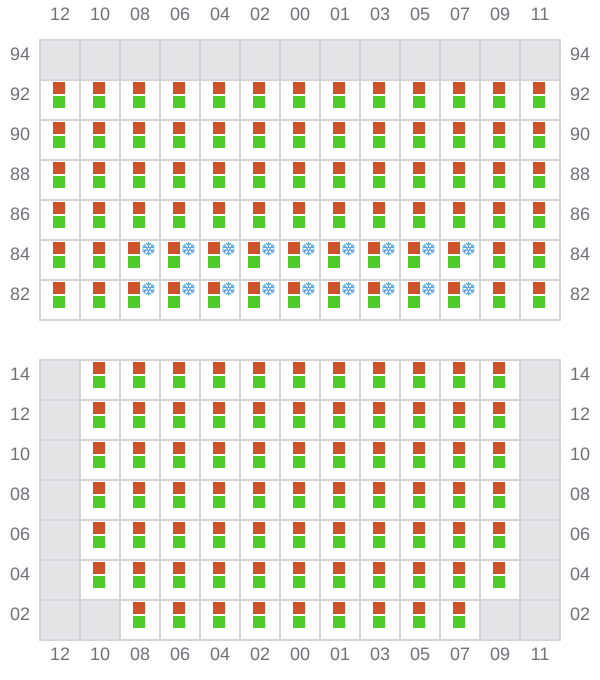

027 (026)
- ←
![Bay 027 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b027.png?v=1686946744618)
029
- →
![Bay 029 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b029.png?v=1686946744618)
031 (030)
- ←
![Bay 031 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b031.png?v=1686946744618)
033
- →
![Bay 033 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b033.png?v=1686946744618)

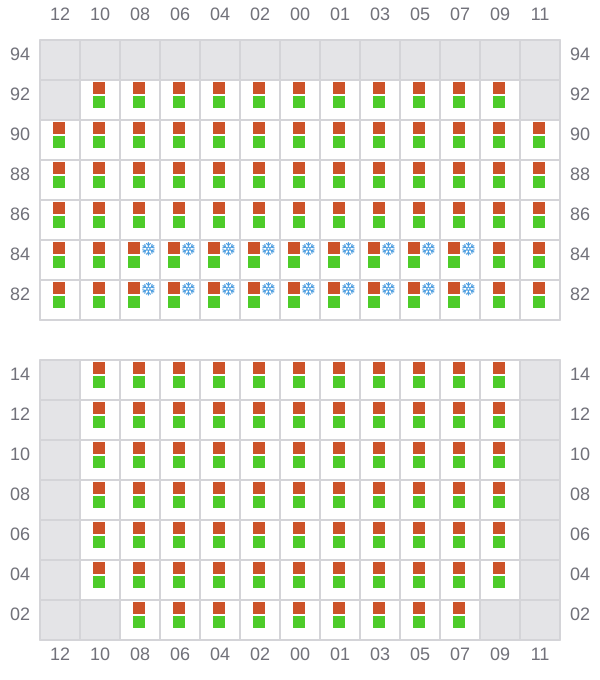

035 (034)
- ←
![Bay 035 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b035.png?v=1686946744618)
037
- →
![Bay 037 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b037.png?v=1686946744618)
039 (038)
- ←
![Bay 039 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b039.png?v=1686946744618)

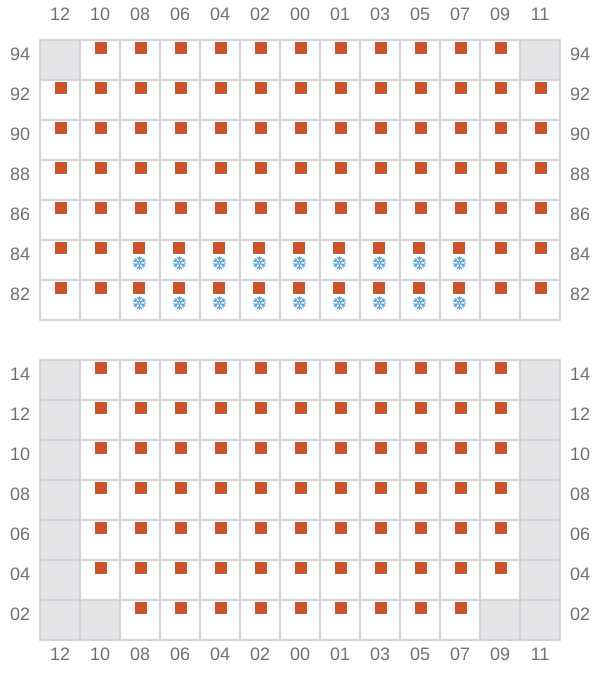

041
- →
![Bay 041 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b041.png?v=1686946744618)

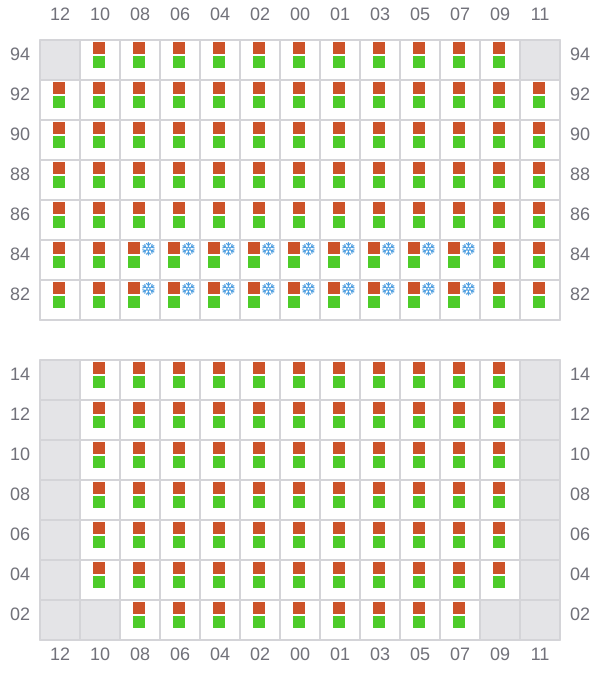

043 (042)
- ←
![Bay 043 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b043.png?v=1686946744618)
045
- →
![Bay 045 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b045.png?v=1686946744618)

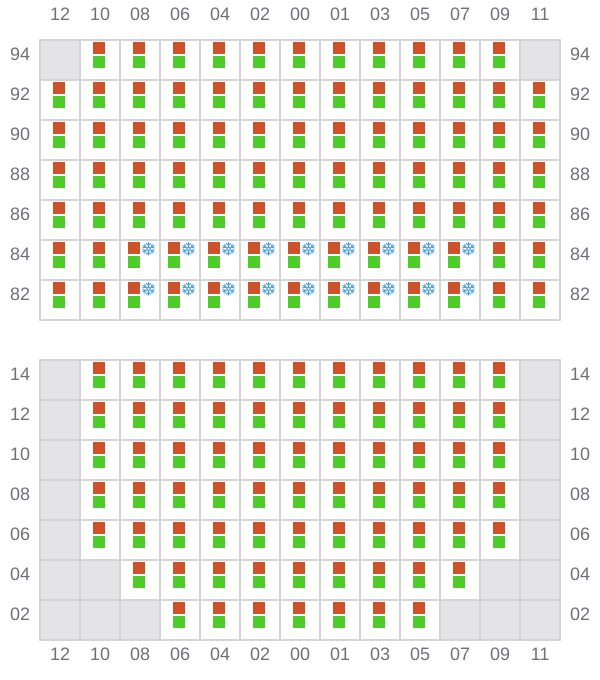

047 (046)
- ←
![Bay 047 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b047.png?v=1686946744618)

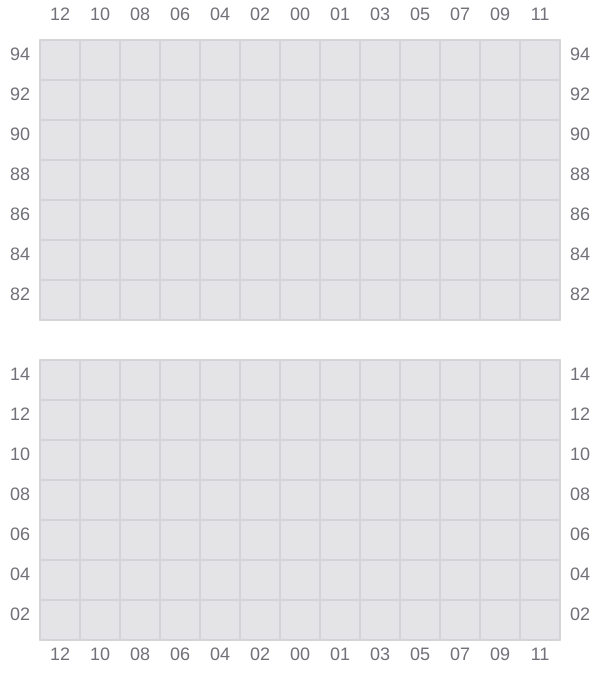

049
![Bay 049 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b049.png?v=1686946744618)

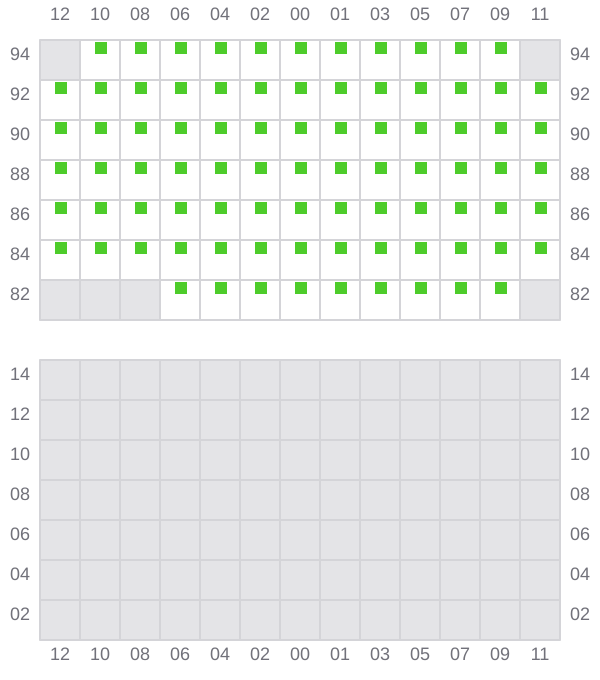

051 (050)
- ← / ?
![Bay 051 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b051.png?v=1686946744618)

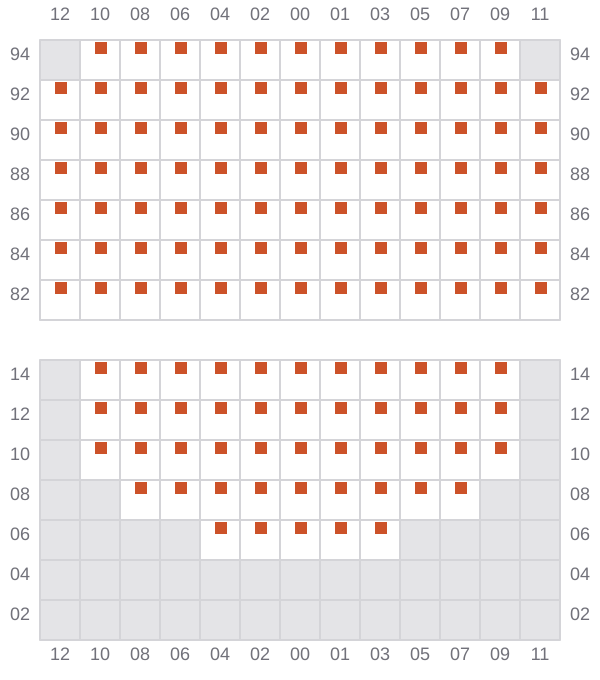

053
- →
![Bay 053 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b053.png?v=1686946744618)
055 (054)
- ←
![Bay 055 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b055.png?v=1686946744618)

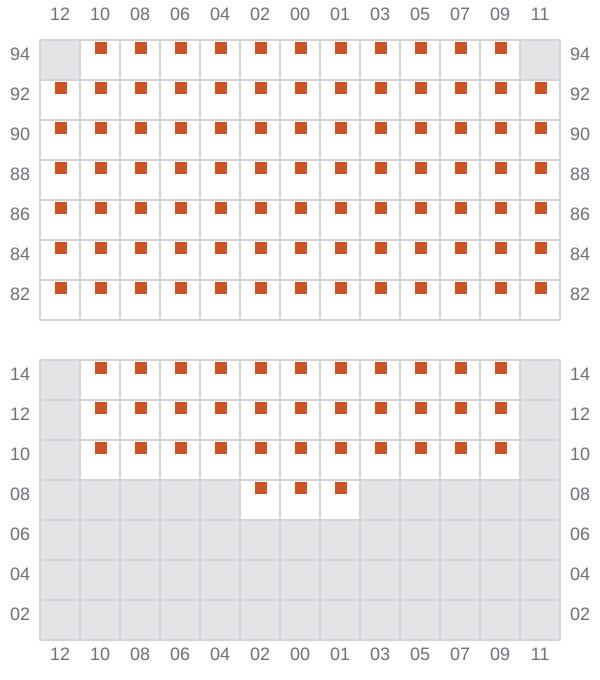

057
- →
![Bay 057 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b057.png?v=1686946744618)

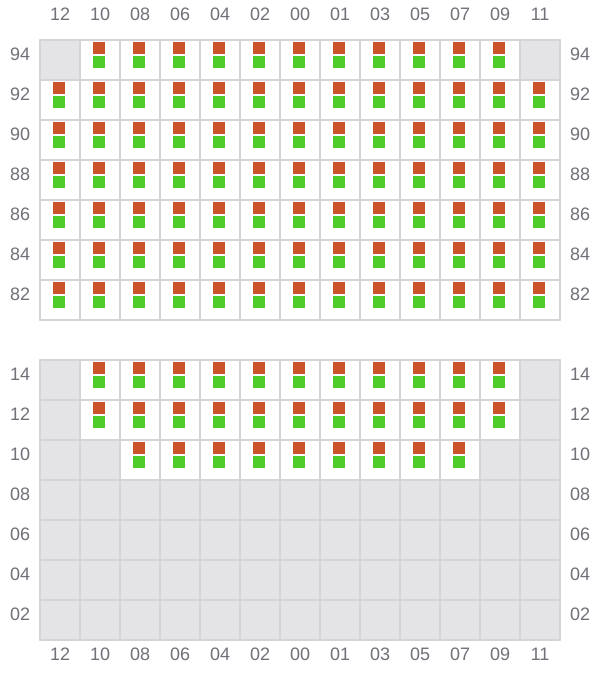

059 (058)
- ←
![Bay 059 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b059.png?v=1686946744618)
061
![Bay 061 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b061.png?v=1686946744618)

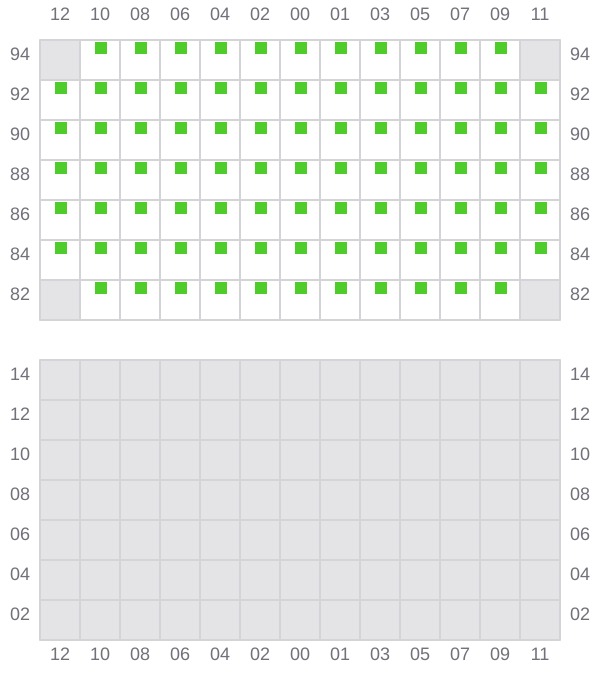

063 (062)
- ← / ?
![Bay 063 view and slots of MSC DONATA](/vessel-images/cf83e078-d147-4059-ad0f-13e2b8703ae8-b063.png?v=1686946744618)
