MSC DORINE
9301328 | 5LBG5 | 9301328 by ********* Last update: Mon Mar 18 2024

General Info

Ship Name:MSC DORINE
IMO Code:9301328
Call Sign:5LBG5
Line Operator:9301328
Class Name for Sister Ships:20I
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):294.00
LOA (Length Overall):294.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,089

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MSC DORINE

Hatch-Covers View

Deck view of MSC DORINE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

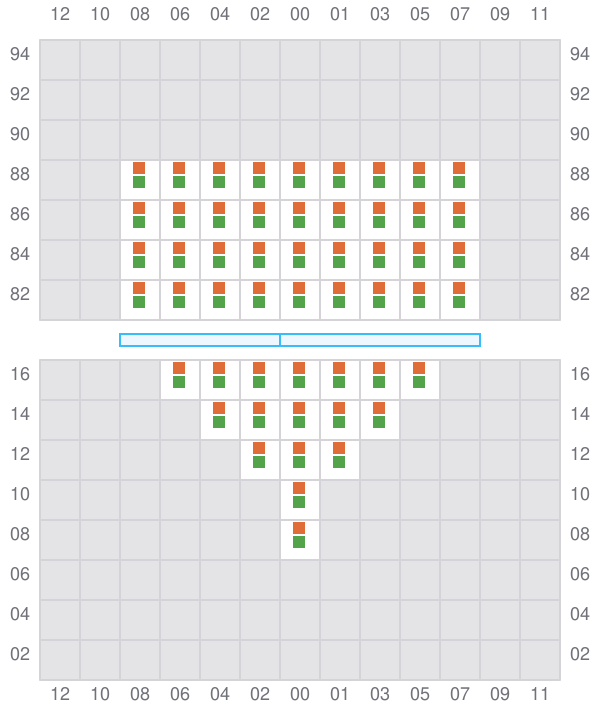

Bay 001 view and slots of MSC DORINE

003

  • ←
  • → / ?

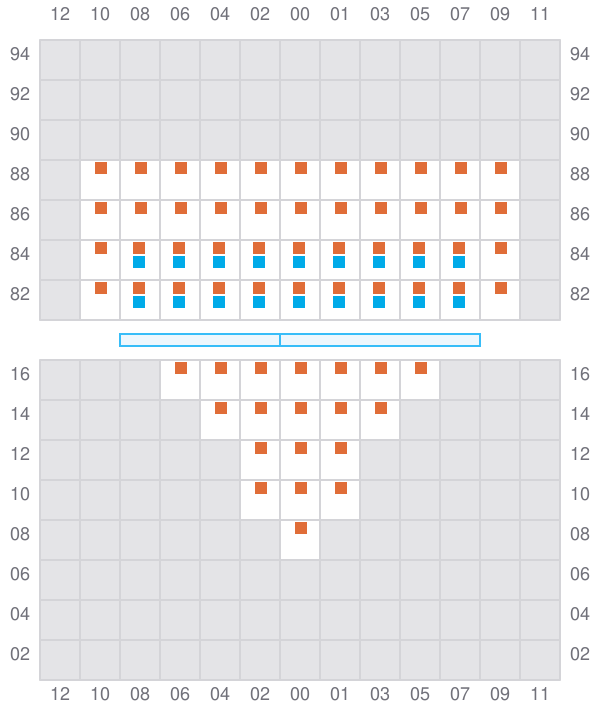

Bay 003 view and slots of MSC DORINE

005 (006)

  • →

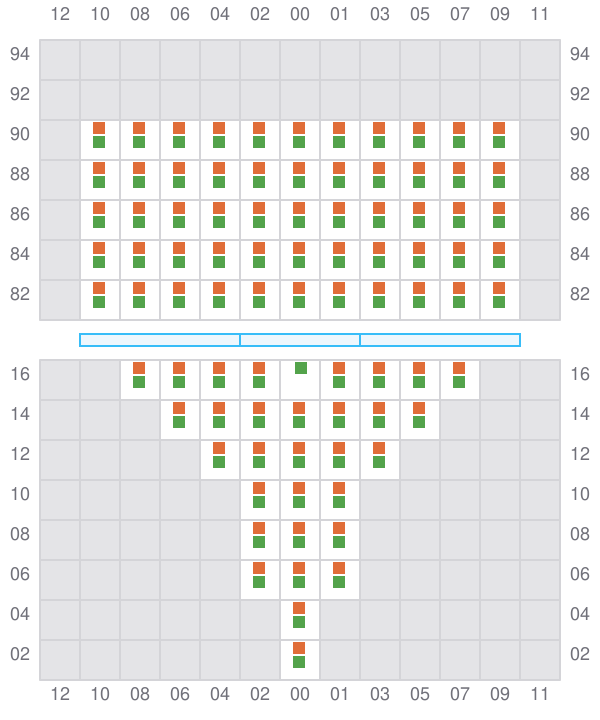

Bay 005 view and slots of MSC DORINE

007

  • ←
  • → / ?

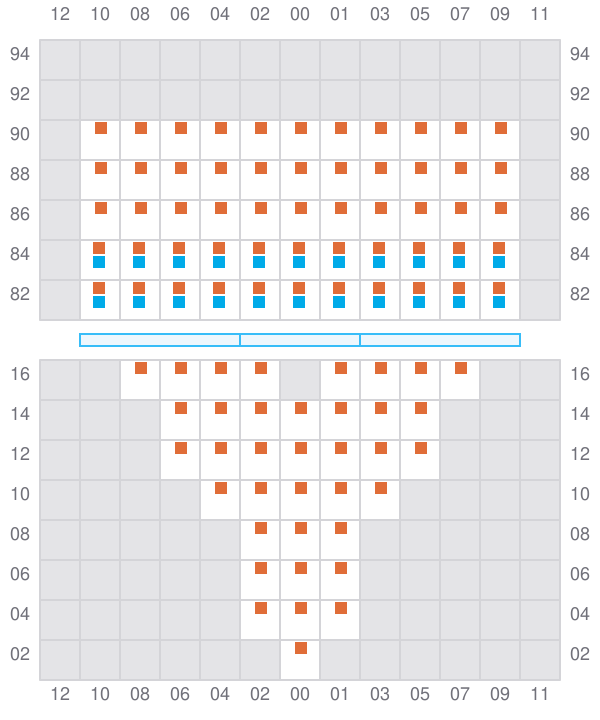

Bay 007 view and slots of MSC DORINE

009 (010)

  • →

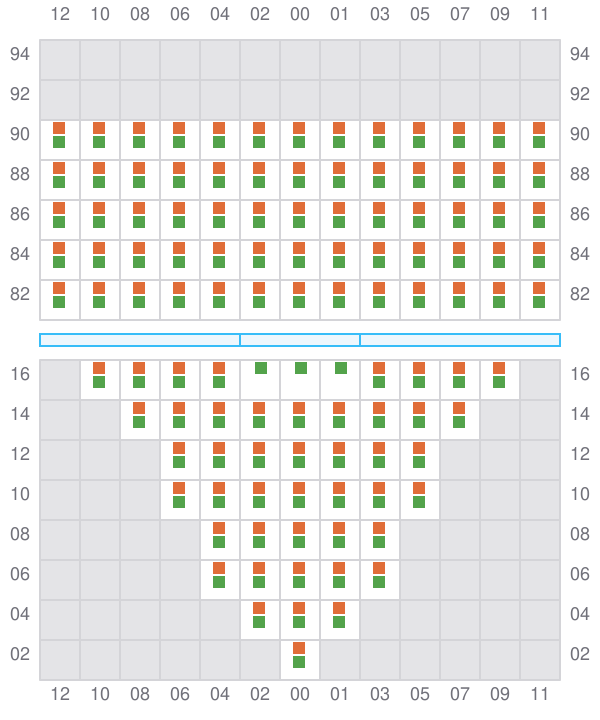

Bay 009 view and slots of MSC DORINE

011

  • ←
  • → / ?

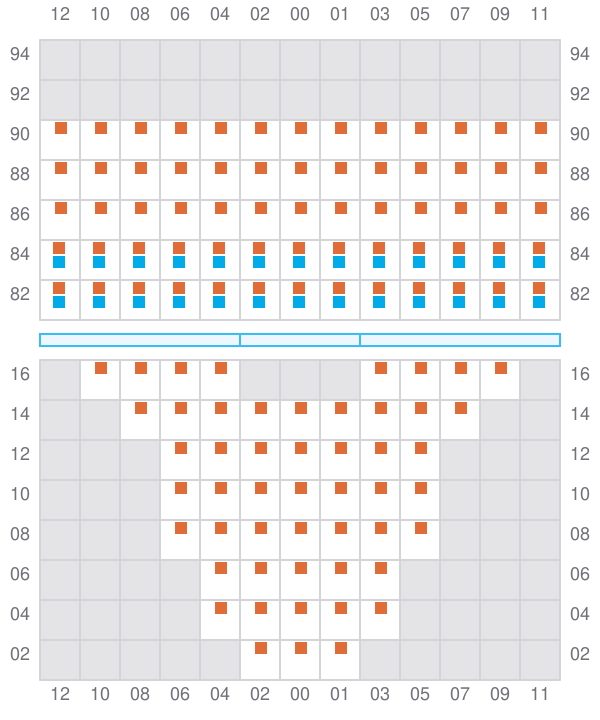

Bay 011 view and slots of MSC DORINE

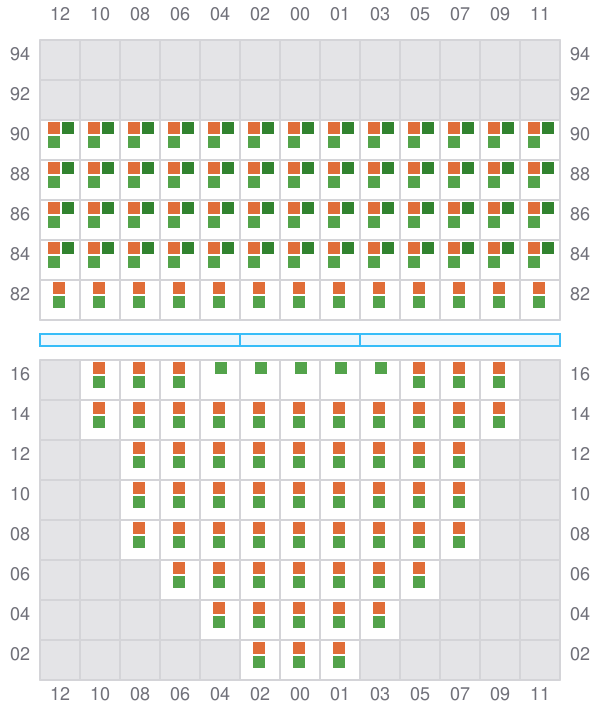

013 (014)

  • →
Bay 013 view and slots of MSC DORINE

015

  • ←
  • → / ?

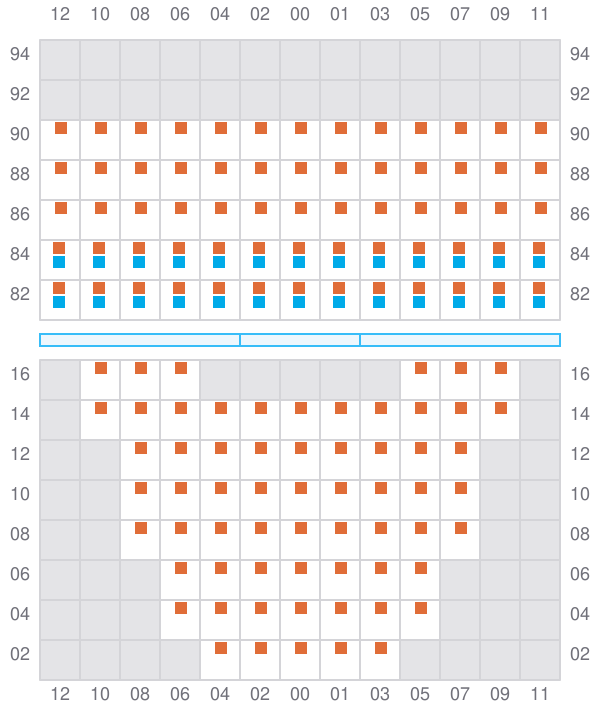

Bay 015 view and slots of MSC DORINE

017 (018)

  • →

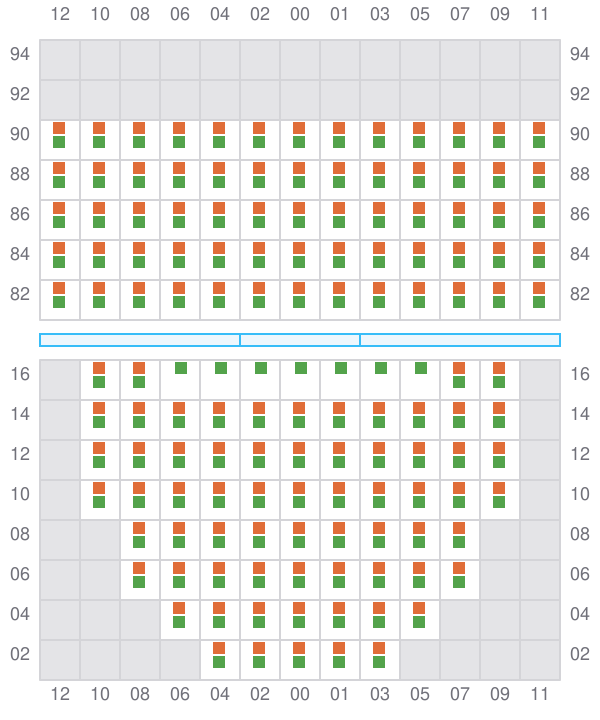

Bay 017 view and slots of MSC DORINE

019

  • ←
  • → / ?
Bay 019 view and slots of MSC DORINE

021 (022)

  • →

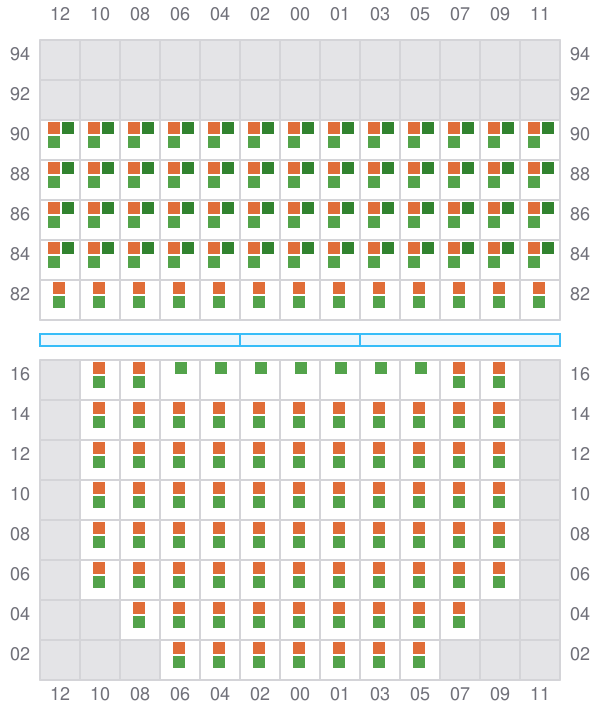

Bay 021 view and slots of MSC DORINE

023

  • ←
  • → / ?

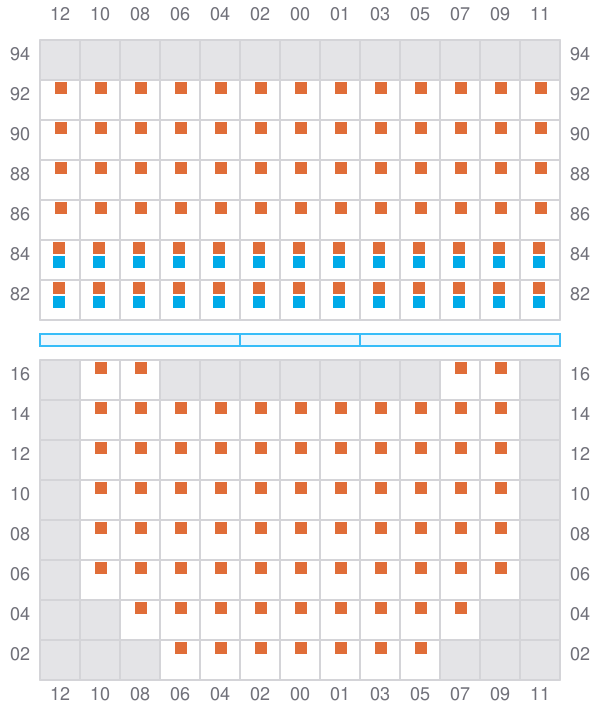

Bay 023 view and slots of MSC DORINE

025 (026)

  • →

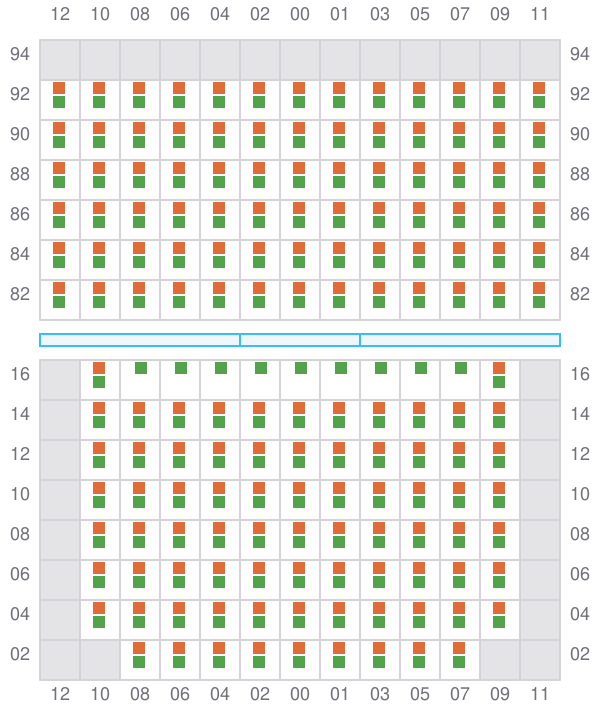

Bay 025 view and slots of MSC DORINE

027

  • ←
  • → / ?
Bay 027 view and slots of MSC DORINE

029 (030)

  • →
Bay 029 view and slots of MSC DORINE

031

  • ←
  • → / ?

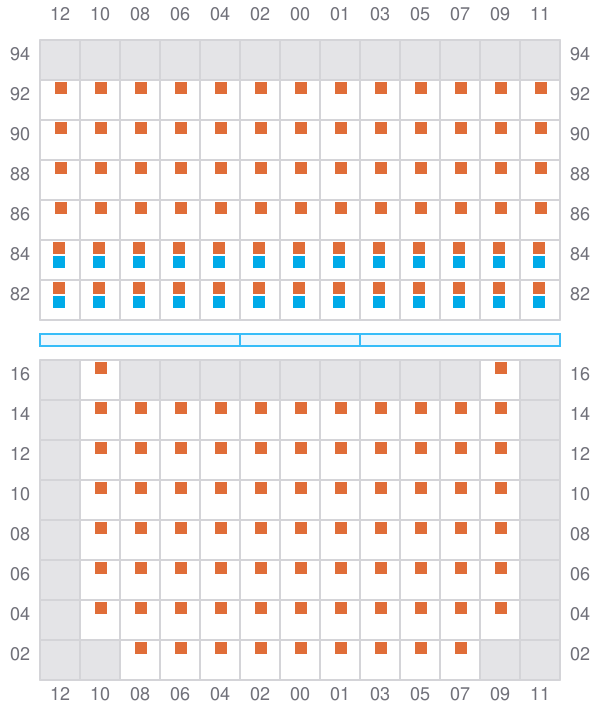

Bay 031 view and slots of MSC DORINE

033 (034)

  • →
Bay 033 view and slots of MSC DORINE

035

  • ←
  • → / ?
Bay 035 view and slots of MSC DORINE

037 (038)

  • →
Bay 037 view and slots of MSC DORINE

039

  • ←
  • → / ?
Bay 039 view and slots of MSC DORINE

041 (042)

  • →

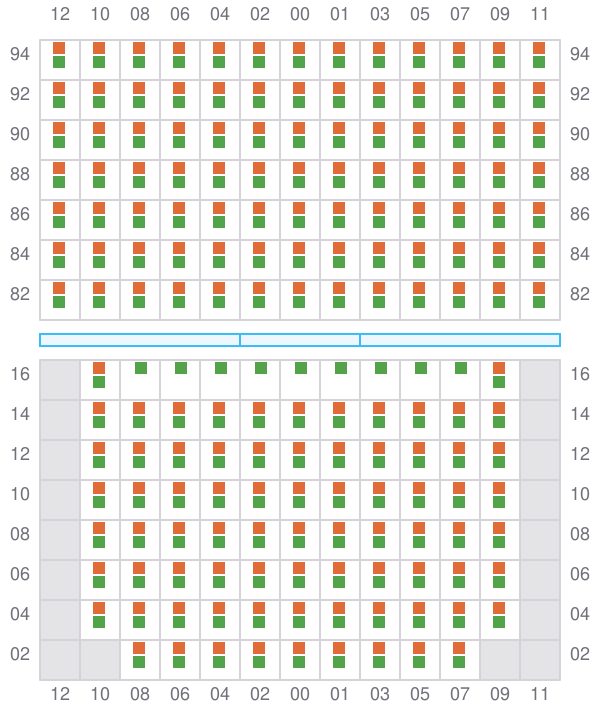

Bay 041 view and slots of MSC DORINE

043

  • ←
  • → / ?

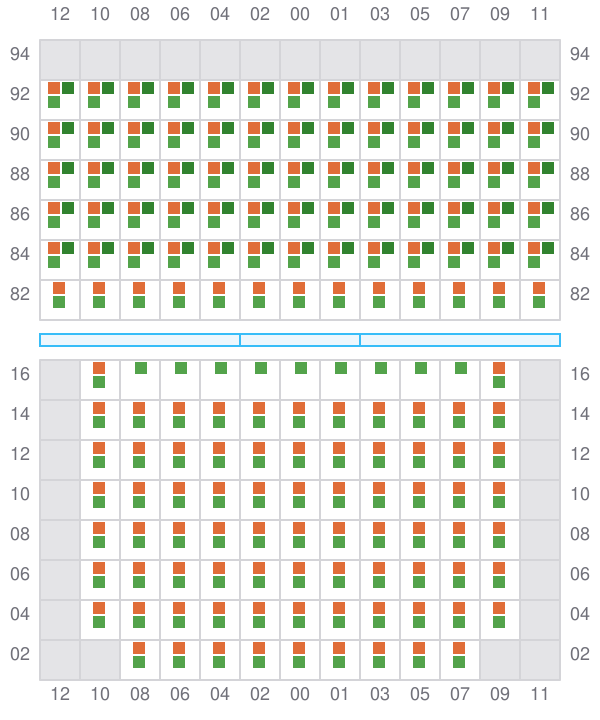

Bay 043 view and slots of MSC DORINE

045 (046)

  • →

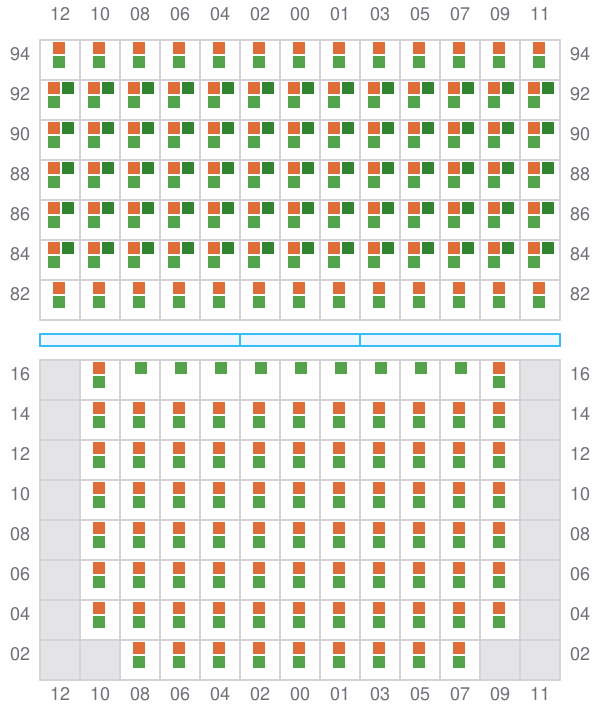

Bay 045 view and slots of MSC DORINE

047

  • ←
  • → / ?

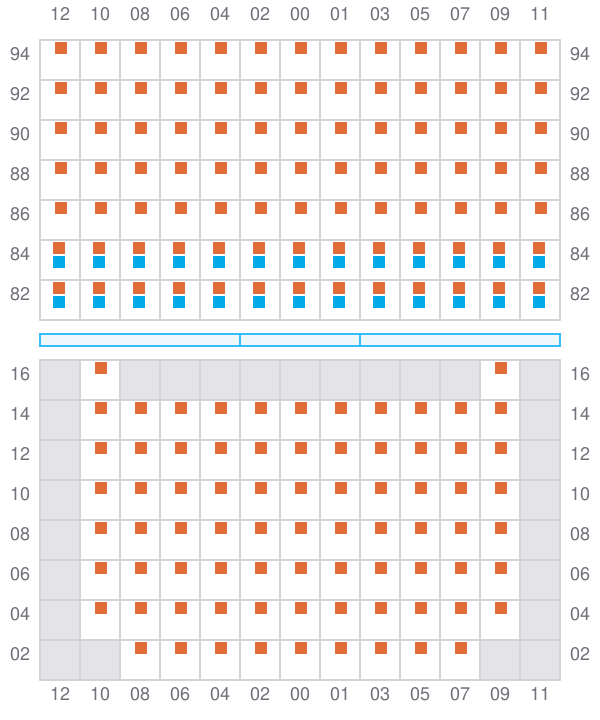

Bay 047 view and slots of MSC DORINE

049 (050)

  • →
Bay 049 view and slots of MSC DORINE

051

  • ←
  • → / ?
Bay 051 view and slots of MSC DORINE

053 (054)

  • →

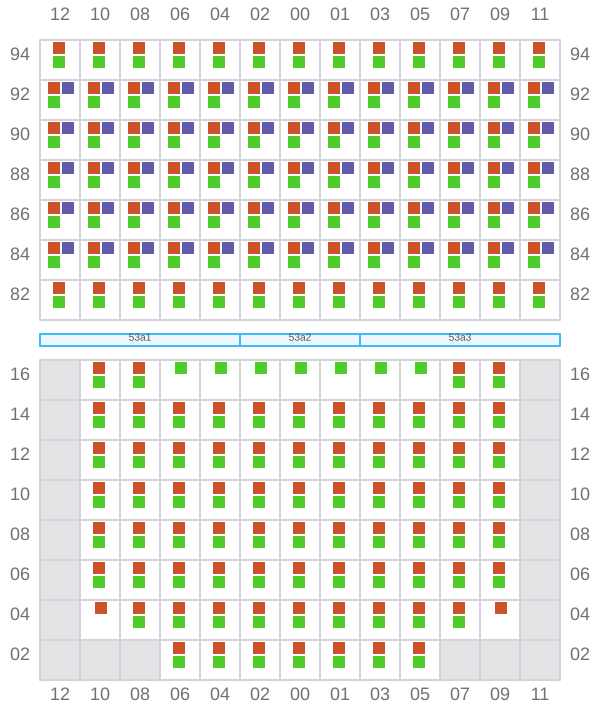

Bay 053 view and slots of MSC DORINE

055

  • ←
  • → / ?

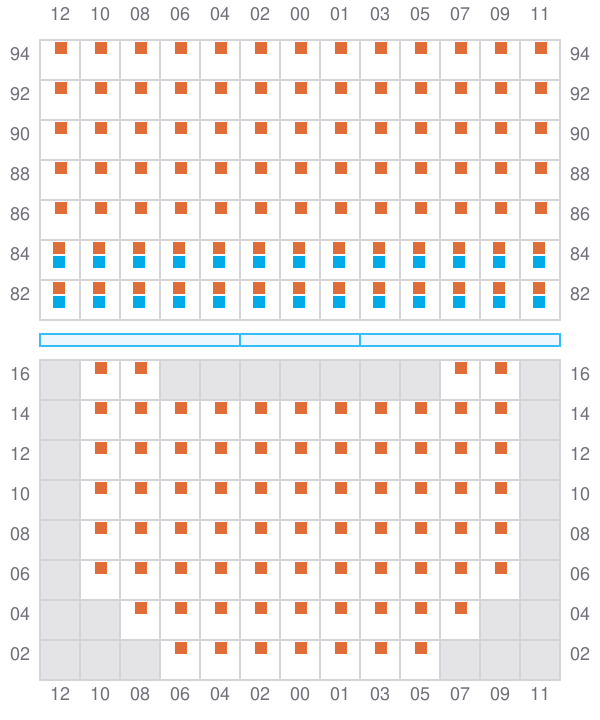

Bay 055 view and slots of MSC DORINE

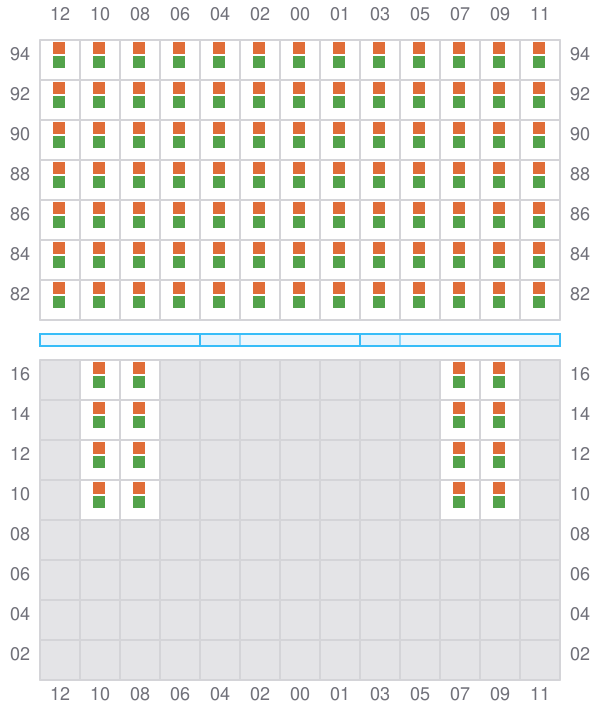

057 (058)

  • →
Bay 057 view and slots of MSC DORINE

059

  • ←
  • → / ?
Bay 059 view and slots of MSC DORINE

061 (062)

  • →

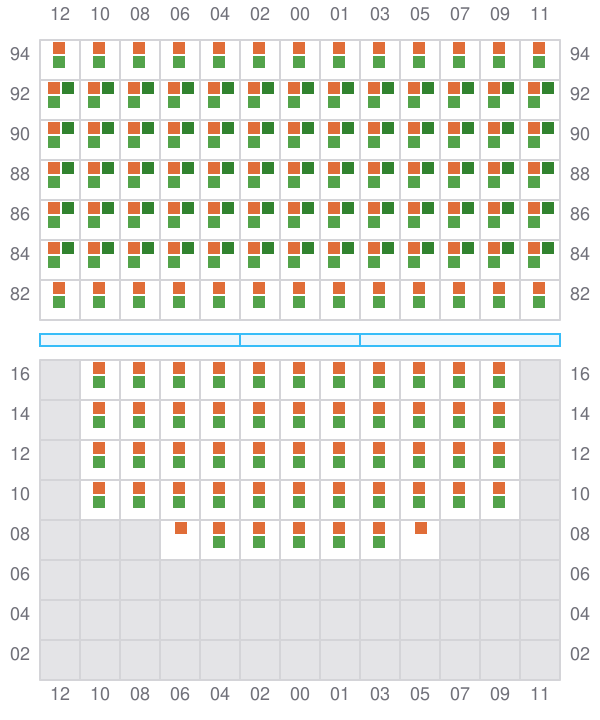

Bay 061 view and slots of MSC DORINE

063

  • ←
  • → / ?

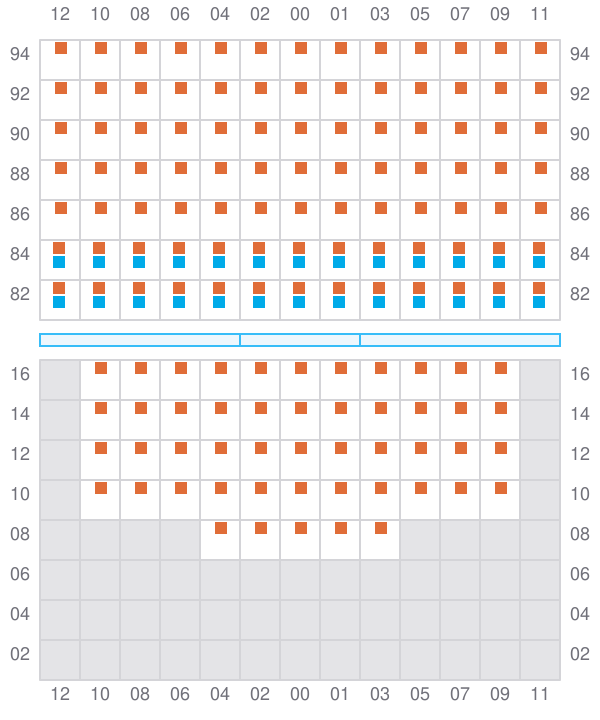

Bay 063 view and slots of MSC DORINE

065 (066)

  • →
Bay 065 view and slots of MSC DORINE

067

  • ←
  • → / ?

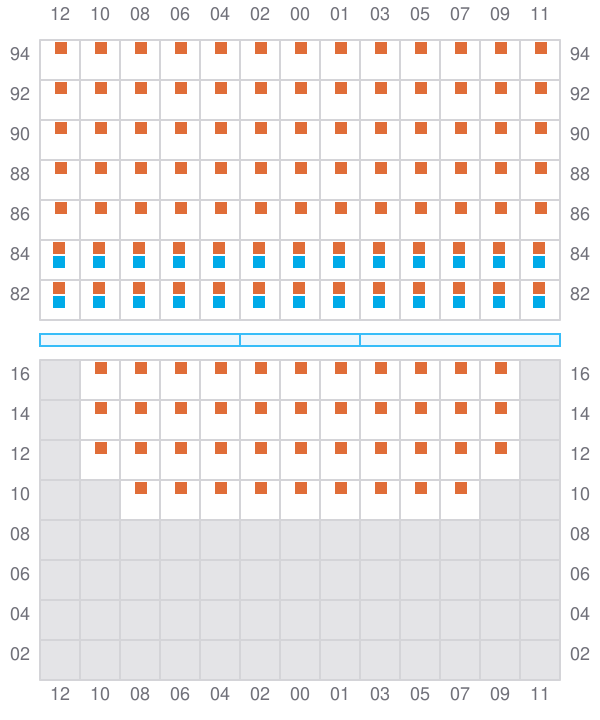

Bay 067 view and slots of MSC DORINE

069 (070)

  • → / ?
  • → / ?

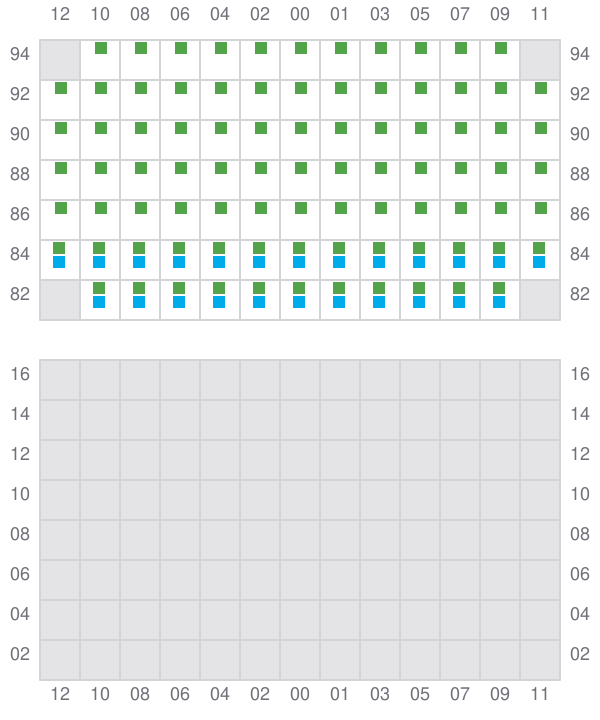

Bay 069 view and slots of MSC DORINE
