MSC DUBAI VII
9444285 | CRXG5 | 9444285 by ********* Last update: Tue Apr 02 2024

General Info

Ship Name:MSC DUBAI VII
IMO Code:9444285
Call Sign:CRXG5
Line Operator:9444285
Class Name for Sister Ships:APL
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45, 48
LPP (LBP):276.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,340

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

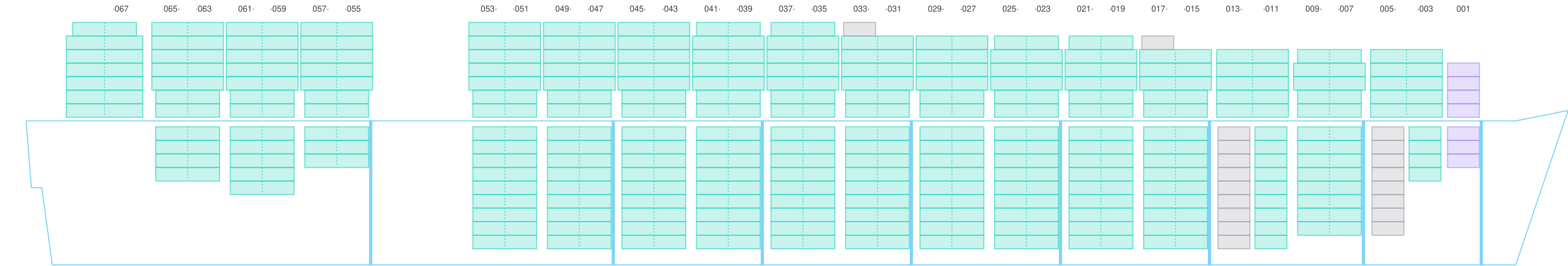

Side view of MSC DUBAI VII

Hatch-Covers View

Deck view of MSC DUBAI VII

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • 48'
  • Reefer
  • Restricted slot

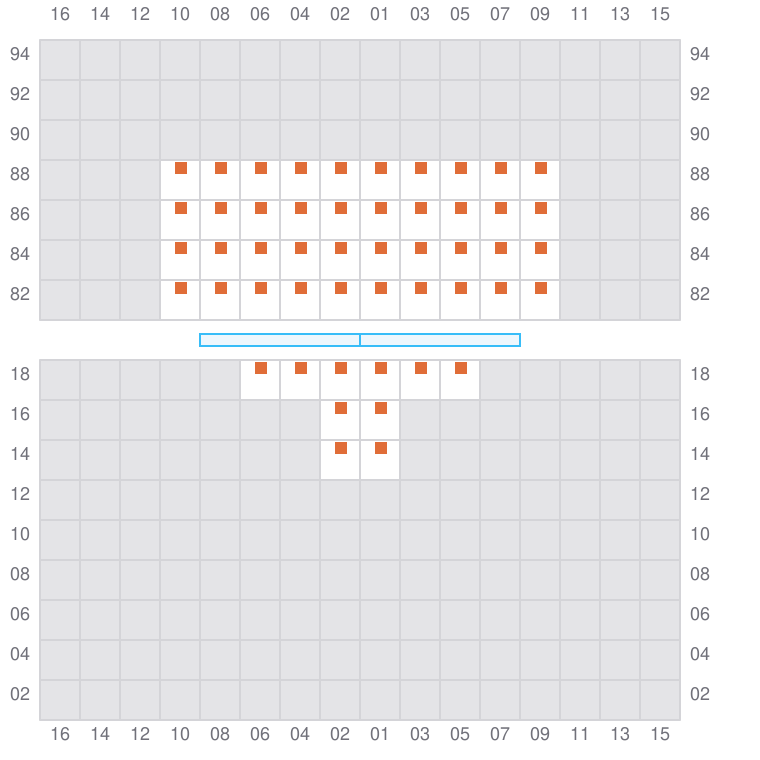

001

Bay 001 view and slots of MSC DUBAI VII

003 (004)

  • →

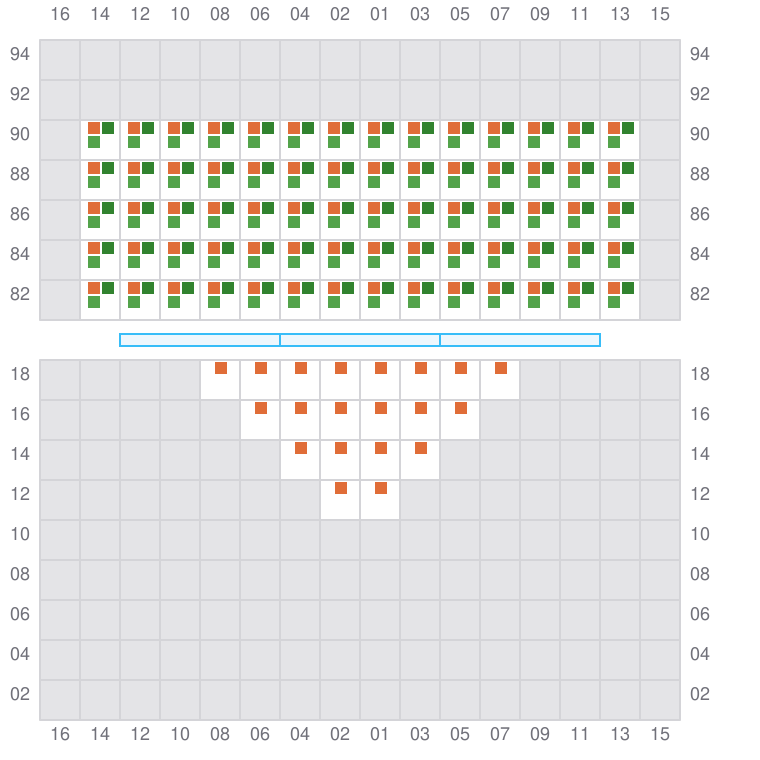

Bay 003 view and slots of MSC DUBAI VII

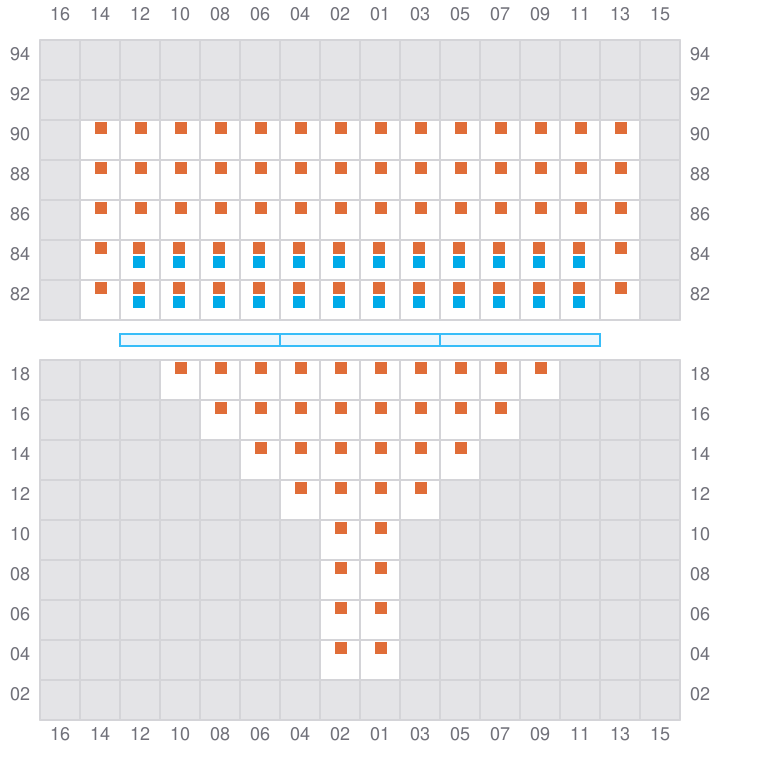

005

  • ←
  • → / ?
Bay 005 view and slots of MSC DUBAI VII

007 (008)

  • →

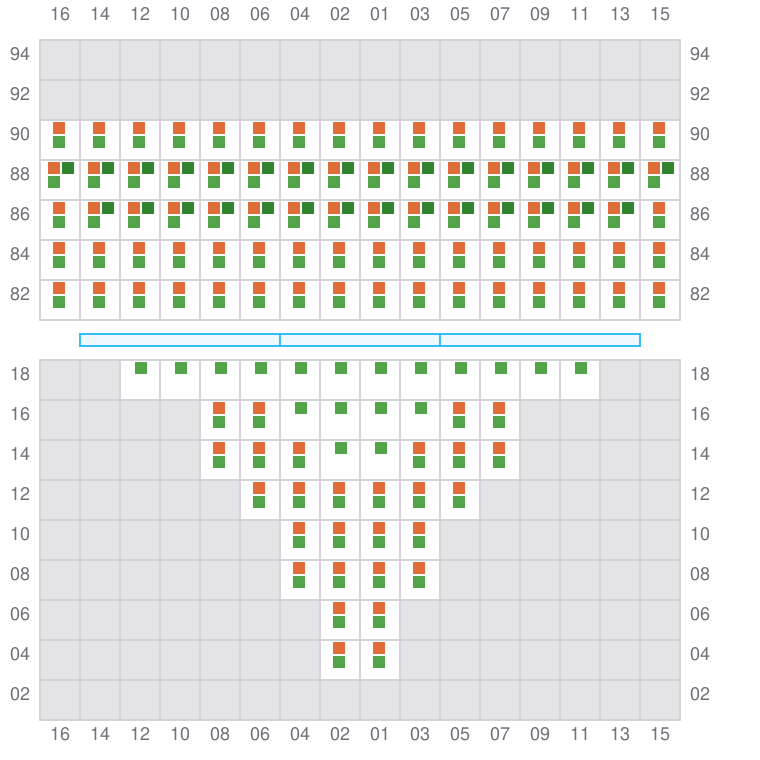

Bay 007 view and slots of MSC DUBAI VII

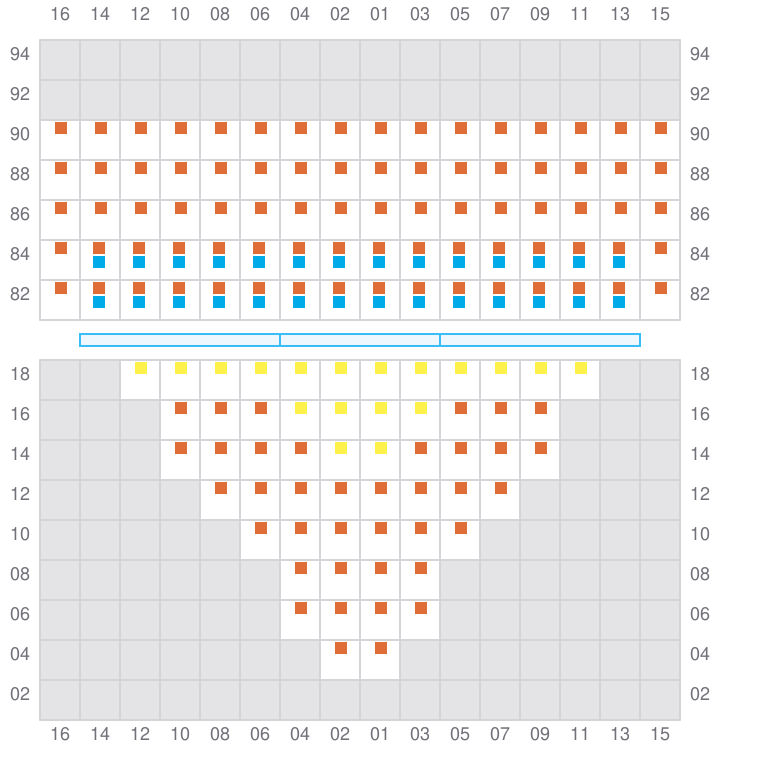

009

  • ←
  • → / ?
Bay 009 view and slots of MSC DUBAI VII

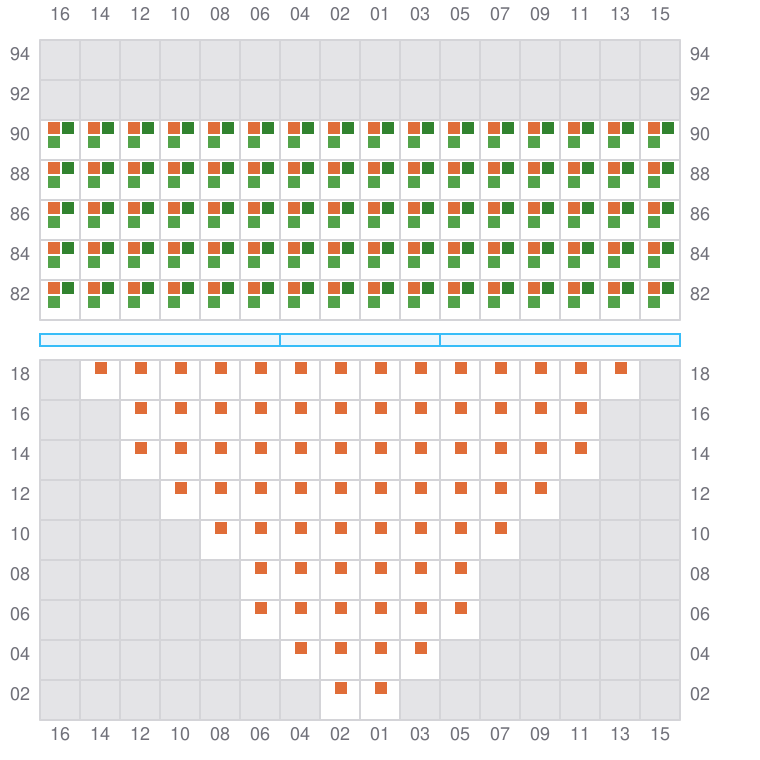

011 (012)

  • →
Bay 011 view and slots of MSC DUBAI VII

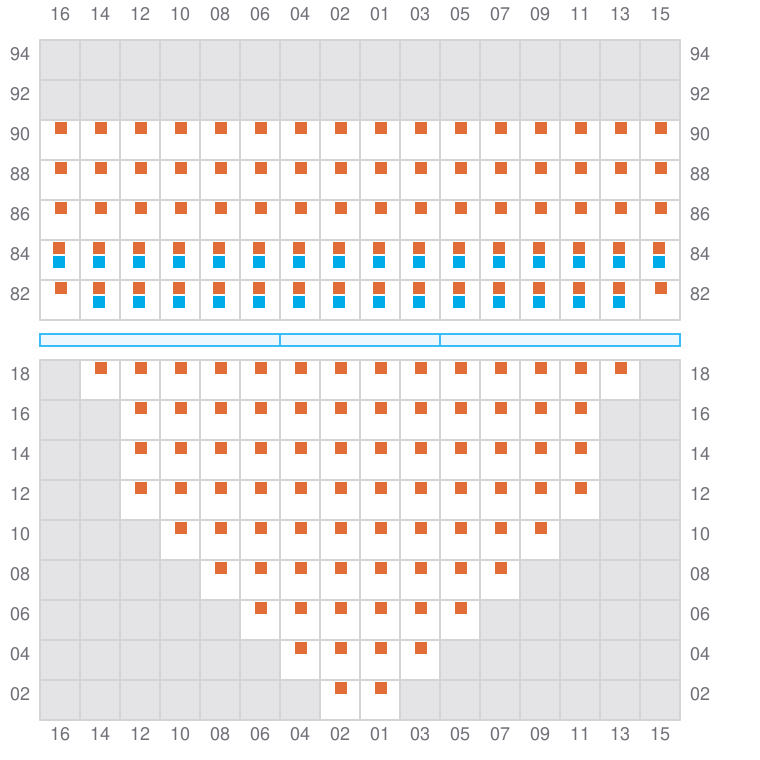

013

  • ←
  • → / ?
Bay 013 view and slots of MSC DUBAI VII

015 (016)

  • →
Bay 015 view and slots of MSC DUBAI VII

017

  • ←
  • → / ?
Bay 017 view and slots of MSC DUBAI VII

019 (020)

  • →
Bay 019 view and slots of MSC DUBAI VII

021

  • ←
  • → / ?
Bay 021 view and slots of MSC DUBAI VII

023 (024)

  • →
Bay 023 view and slots of MSC DUBAI VII

025

  • ←
  • → / ?
Bay 025 view and slots of MSC DUBAI VII

027 (028)

  • →

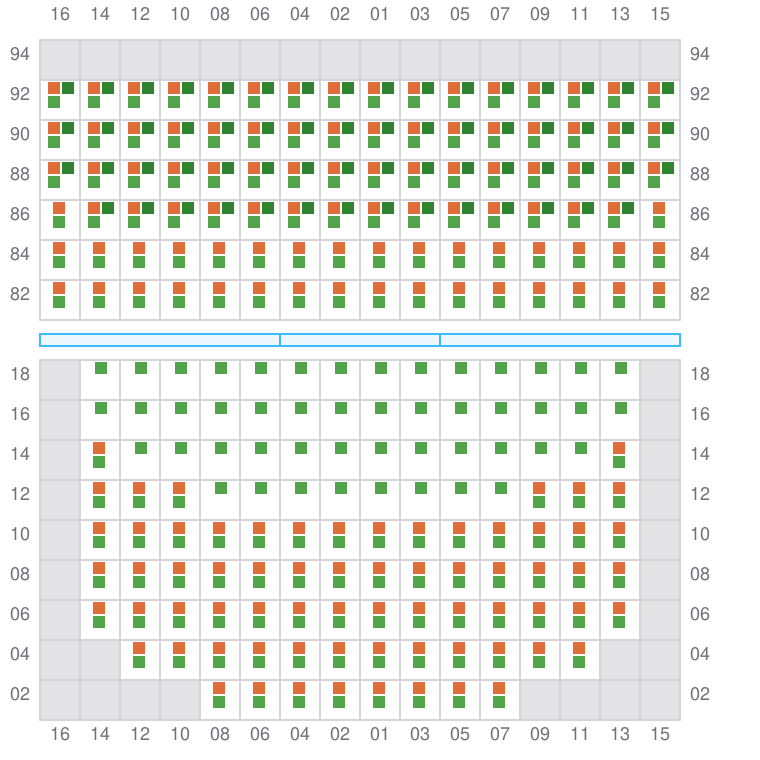

Bay 027 view and slots of MSC DUBAI VII

029

  • ←
  • → / ?

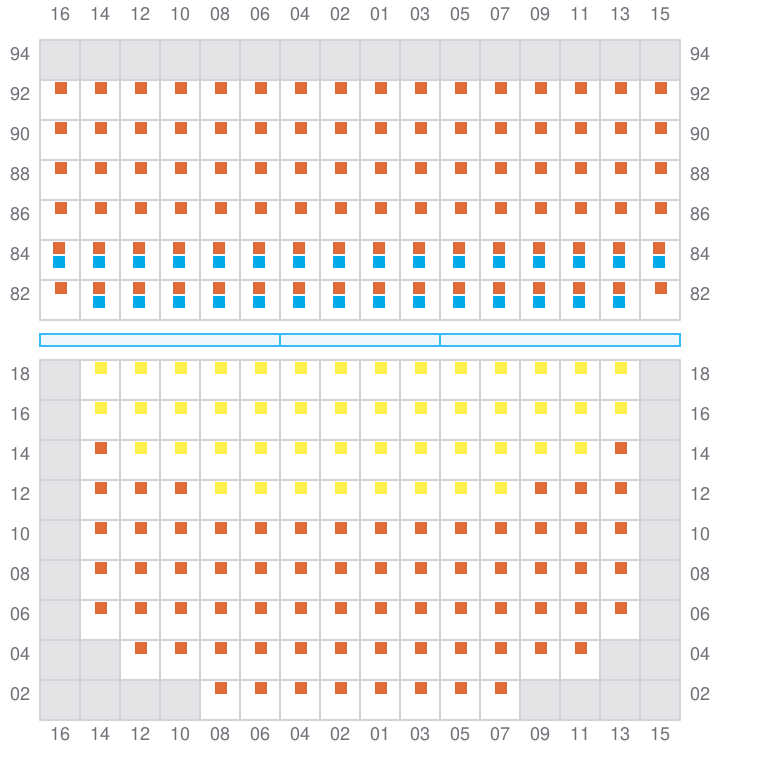

Bay 029 view and slots of MSC DUBAI VII

031 (032)

  • →
Bay 031 view and slots of MSC DUBAI VII

033

  • ←
  • → / ?
Bay 033 view and slots of MSC DUBAI VII

035 (036)

  • →
Bay 035 view and slots of MSC DUBAI VII

037

  • ←
  • → / ?
Bay 037 view and slots of MSC DUBAI VII

039 (040)

  • →
Bay 039 view and slots of MSC DUBAI VII

041

  • ←
  • → / ?
Bay 041 view and slots of MSC DUBAI VII

043 (044)

  • →
Bay 043 view and slots of MSC DUBAI VII

045

  • ←
  • → / ?
Bay 045 view and slots of MSC DUBAI VII

047 (048)

  • →
Bay 047 view and slots of MSC DUBAI VII

049

  • ←
  • → / ?
Bay 049 view and slots of MSC DUBAI VII

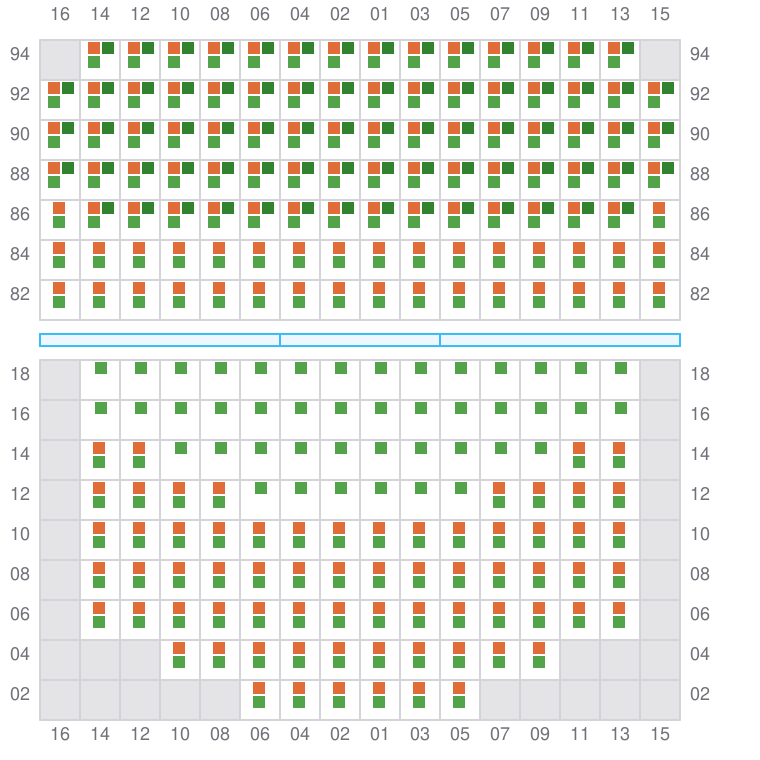

051 (052)

  • →
Bay 051 view and slots of MSC DUBAI VII

053

  • ←
  • → / ?
Bay 053 view and slots of MSC DUBAI VII

055 (056)

  • →
Bay 055 view and slots of MSC DUBAI VII

057

  • ←
  • → / ?
Bay 057 view and slots of MSC DUBAI VII

059 (060)

  • →

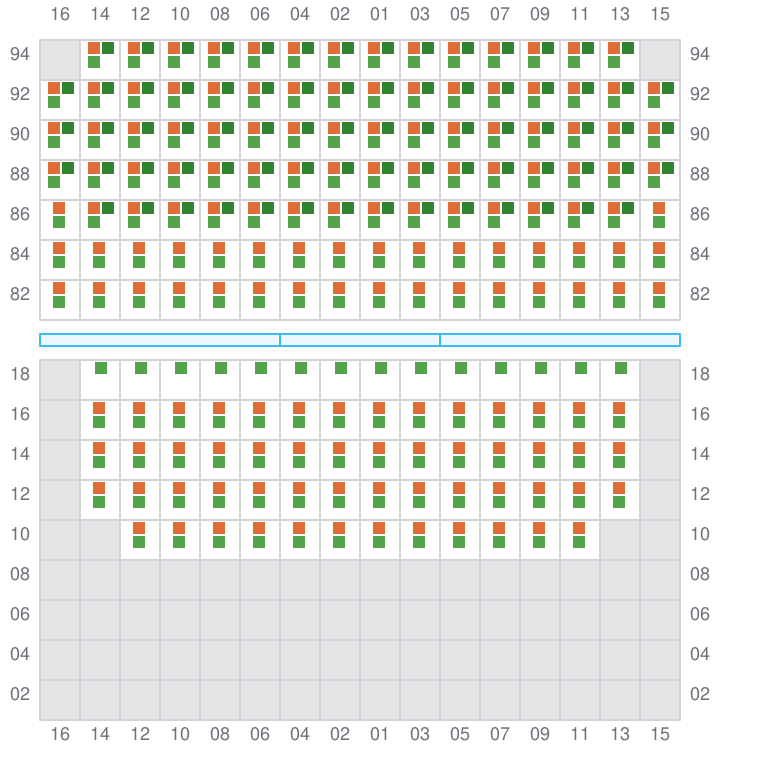

Bay 059 view and slots of MSC DUBAI VII

061

  • ←
  • → / ?

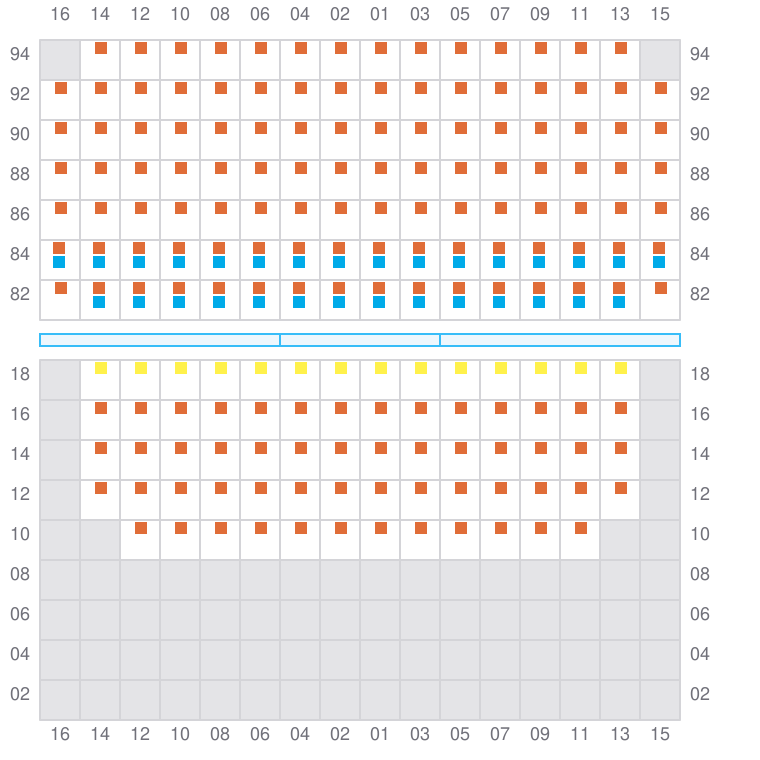

Bay 061 view and slots of MSC DUBAI VII

063 (064)

  • →
Bay 063 view and slots of MSC DUBAI VII

065

  • ←
  • → / ?
Bay 065 view and slots of MSC DUBAI VII

067 (068)

  • → / ?
  • ← / ?

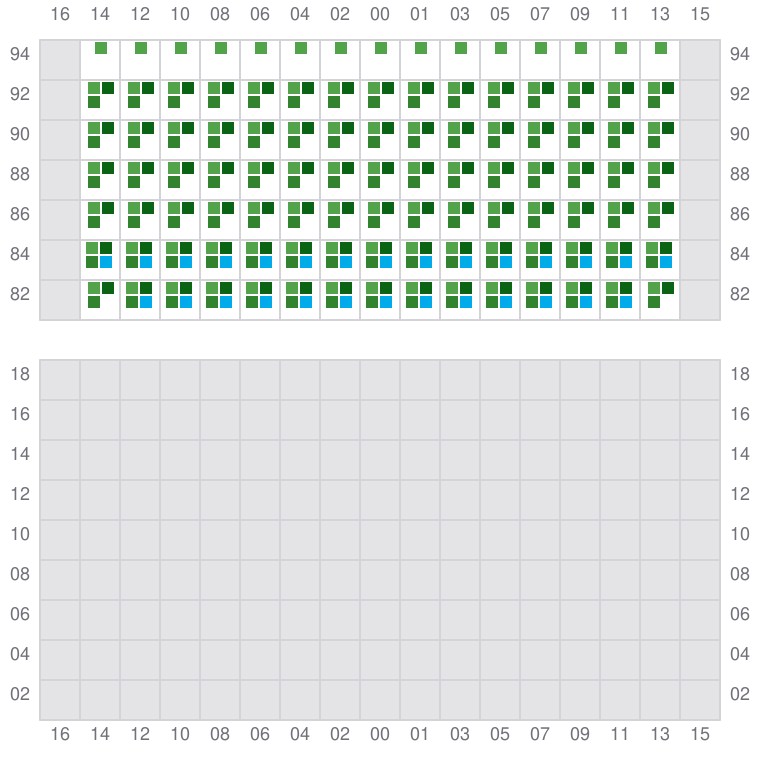

Bay 067 view and slots of MSC DUBAI VII
