MSC ELAINE
9393321 | 3EVH7 | 939332 by ********* Last update: Wed Jun 19 2024
General Info
Ship Name:MSC ELAINE
IMO Code:9393321
Call Sign:3EVH7
Line Operator:939332
Class Name for Sister Ships:SIS
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,566
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

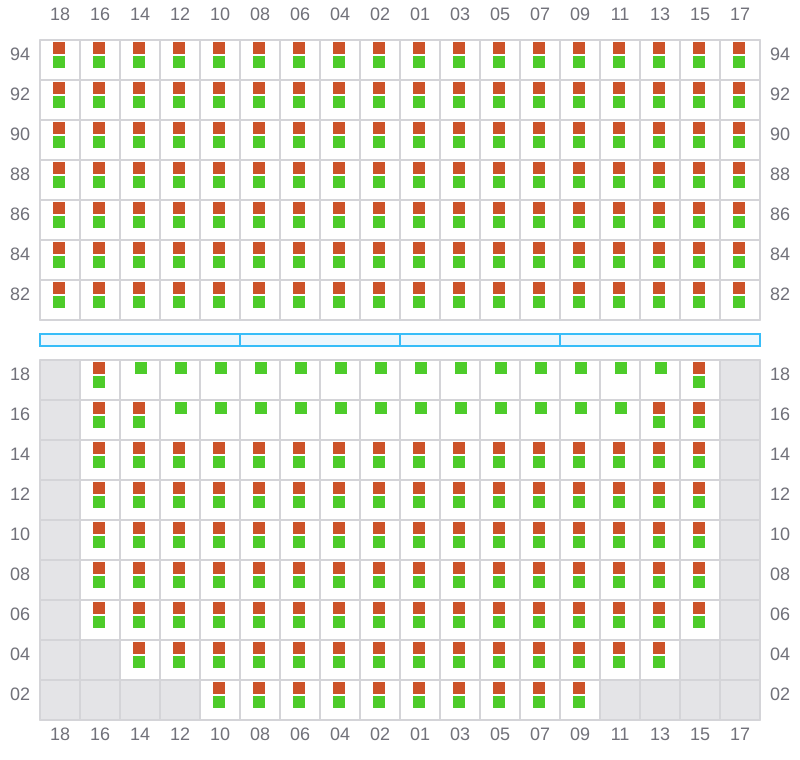

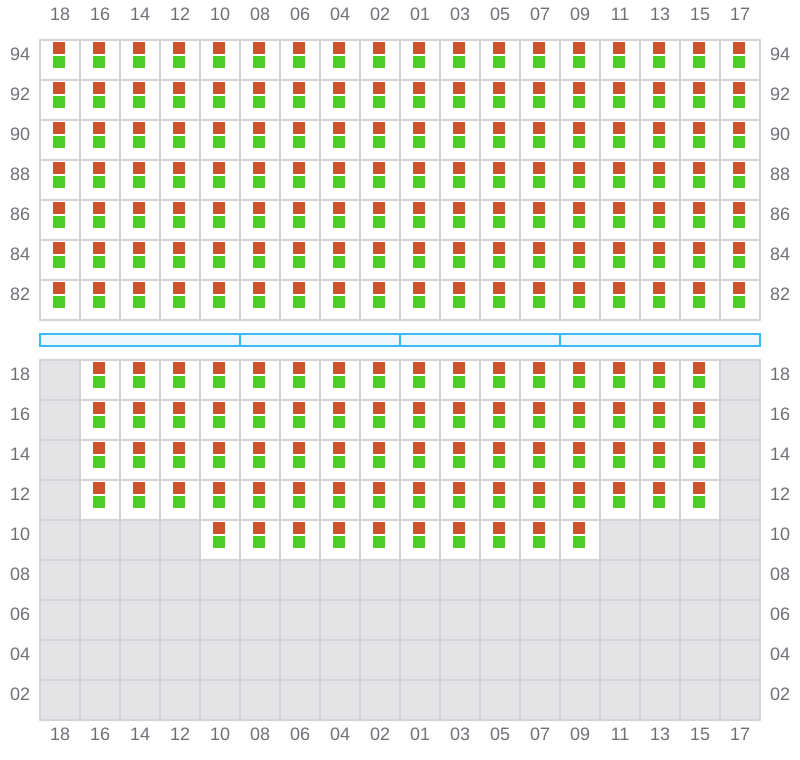

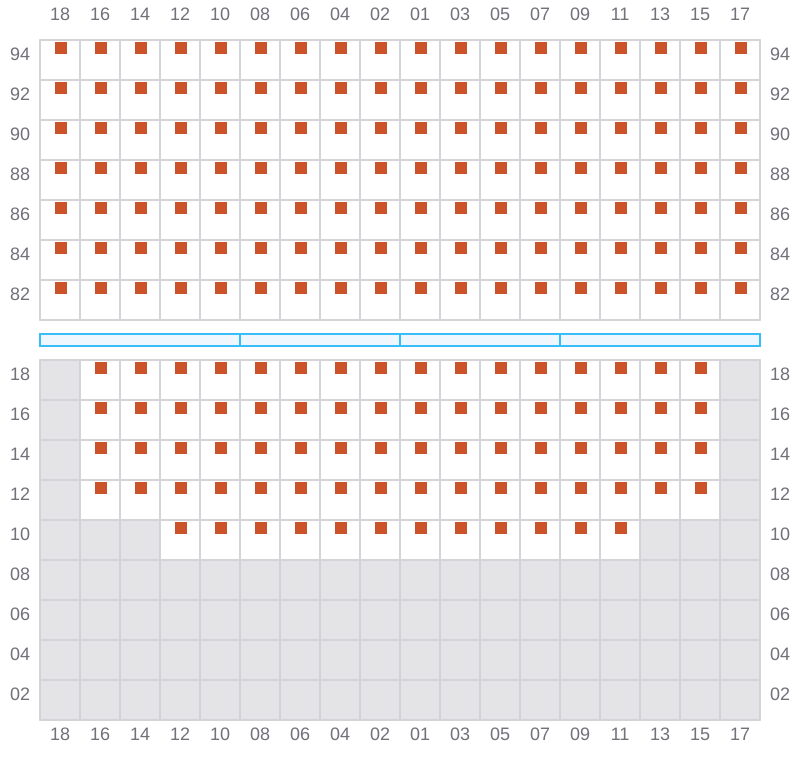

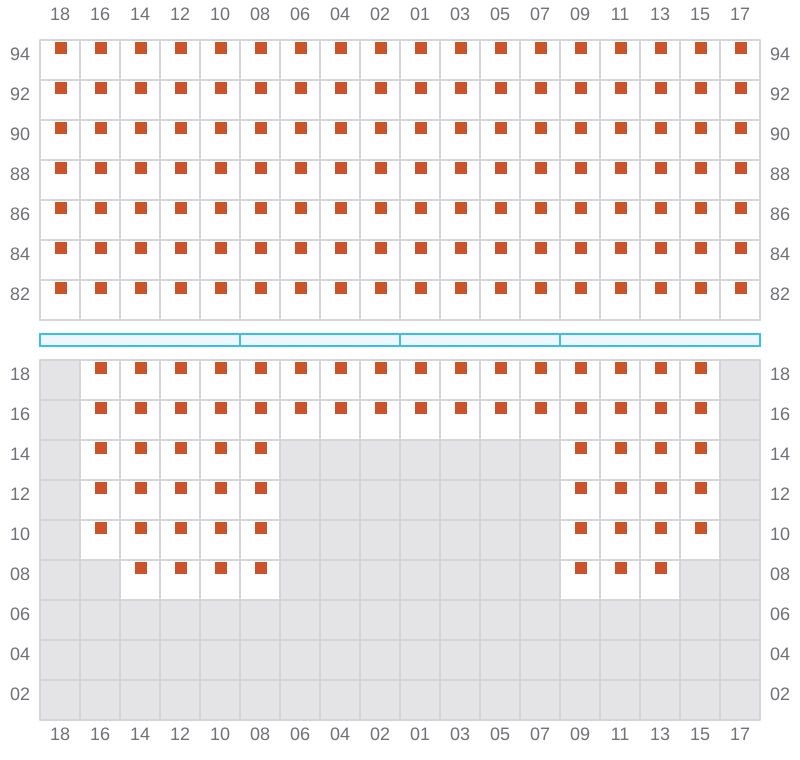

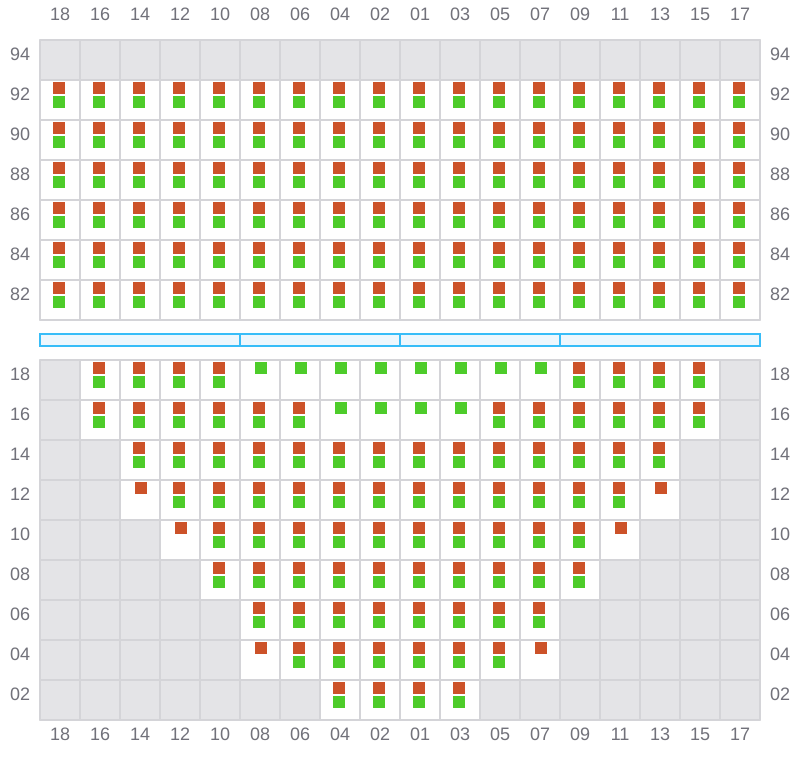

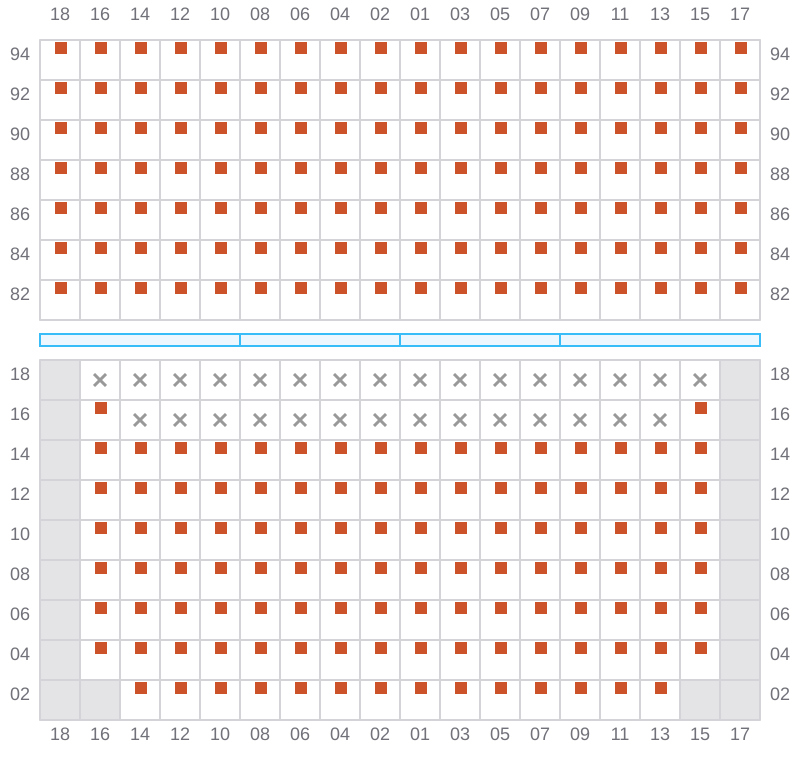

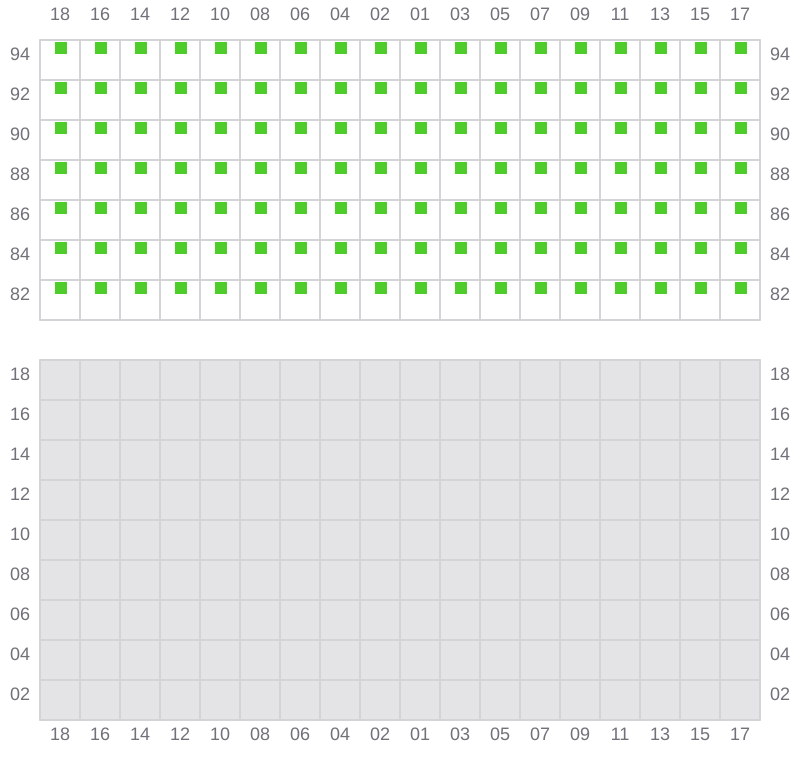

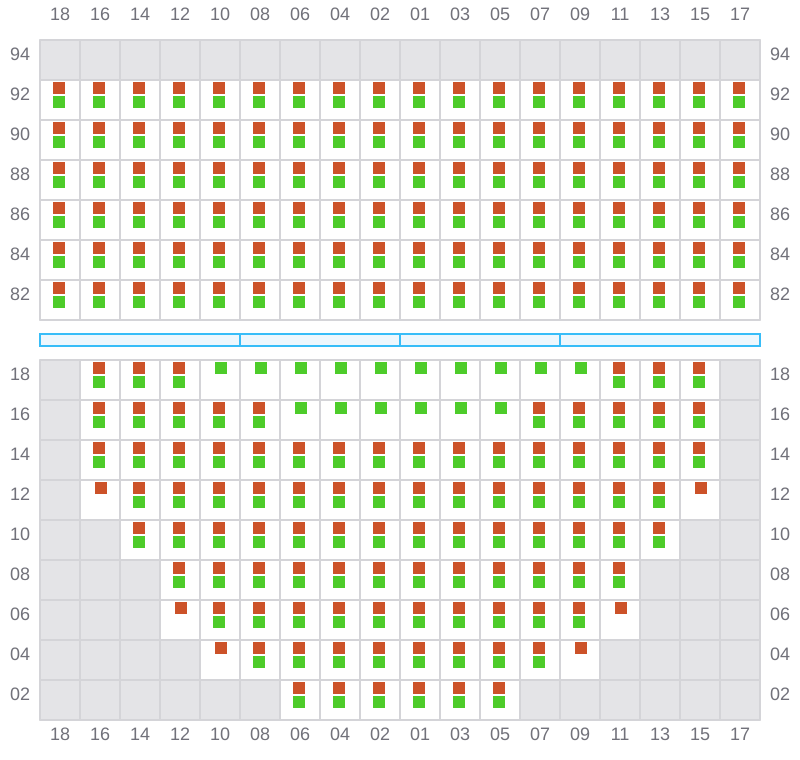

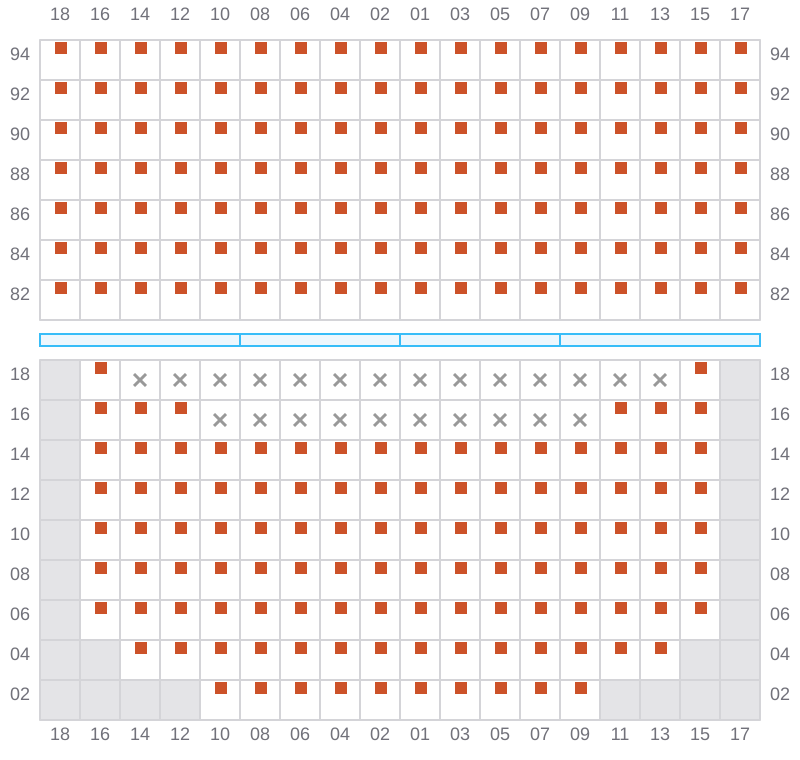

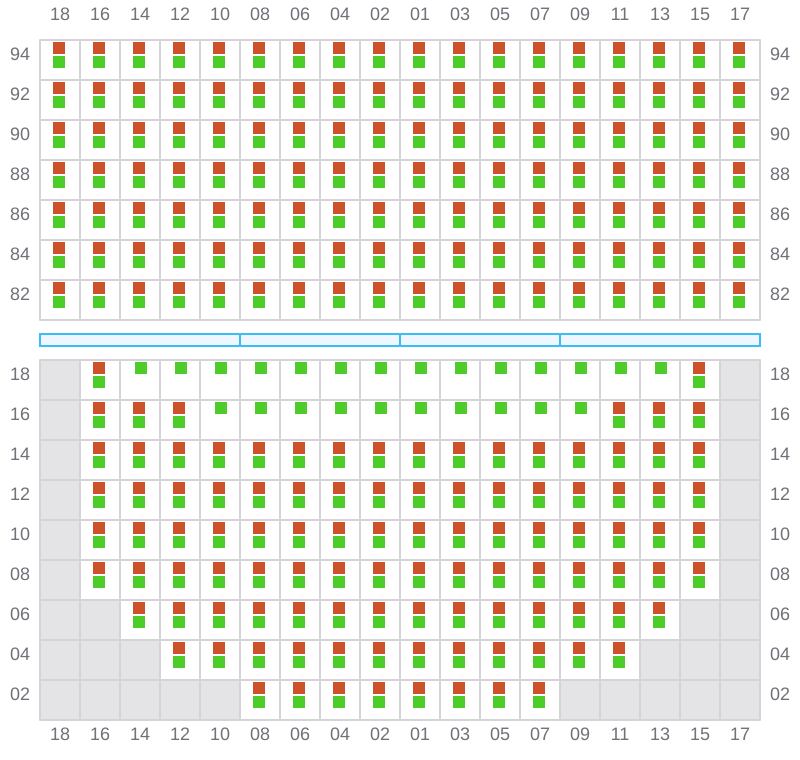

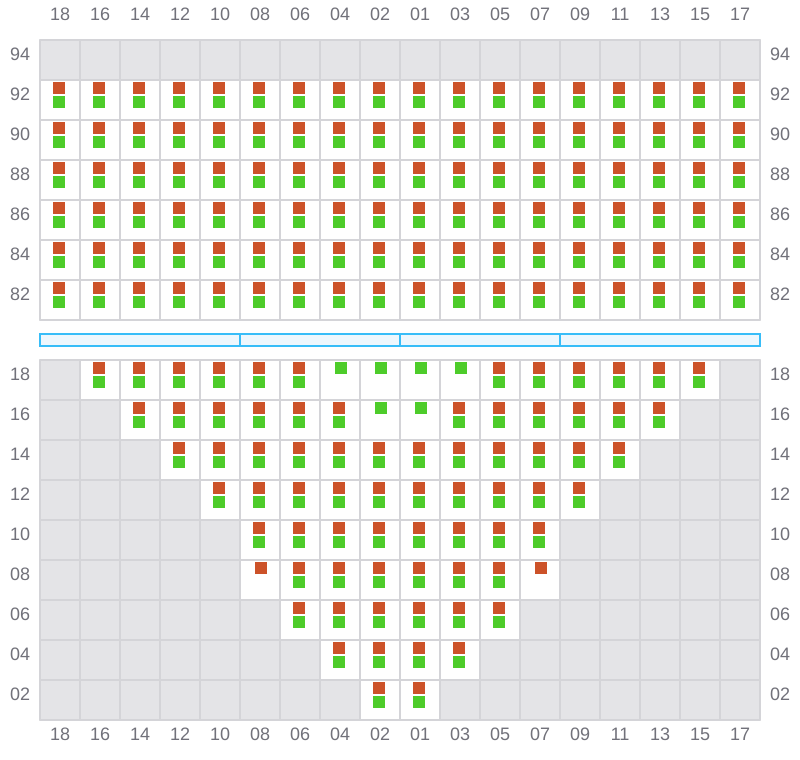

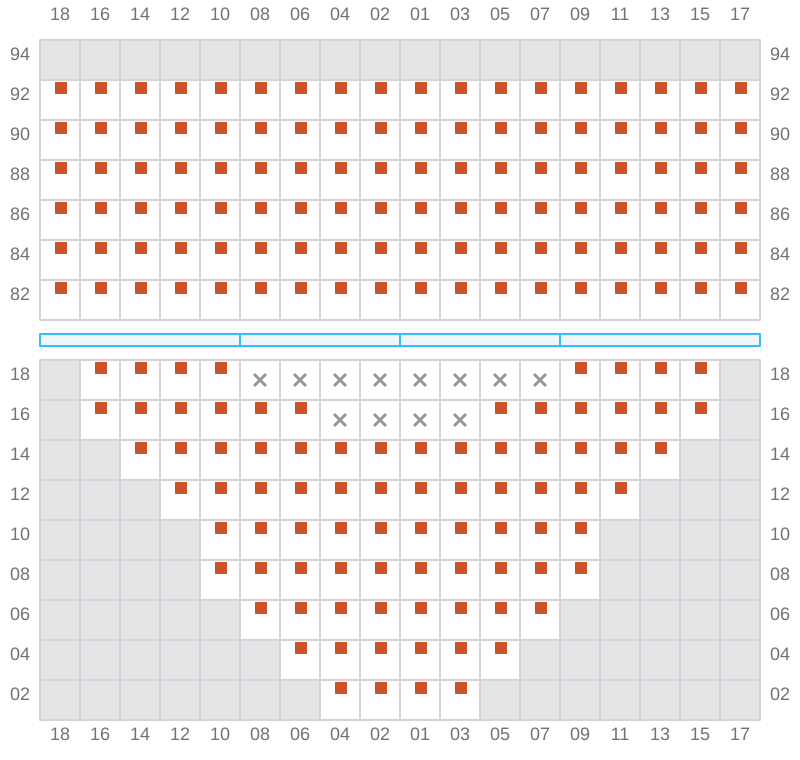

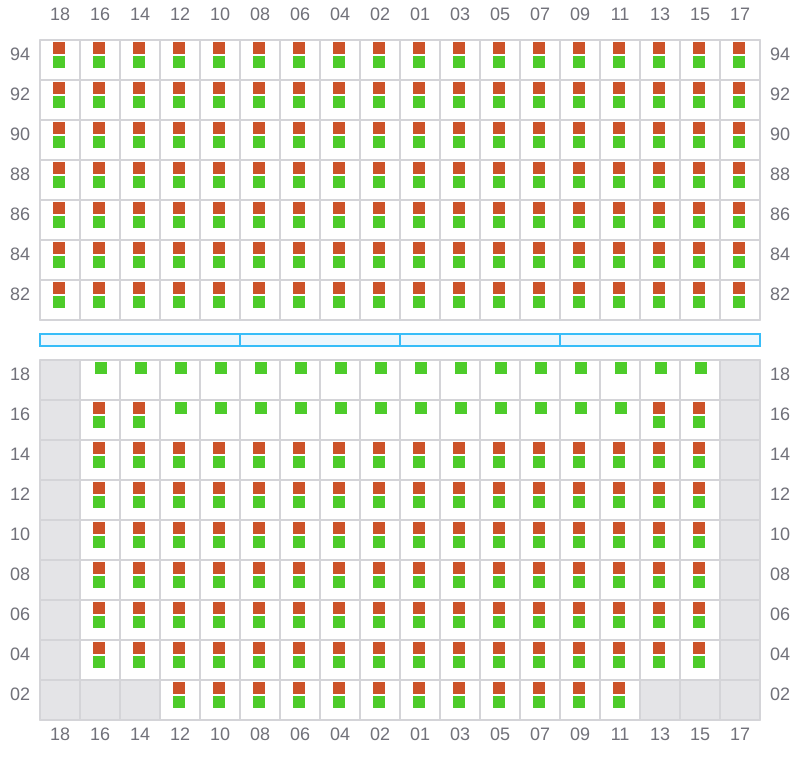

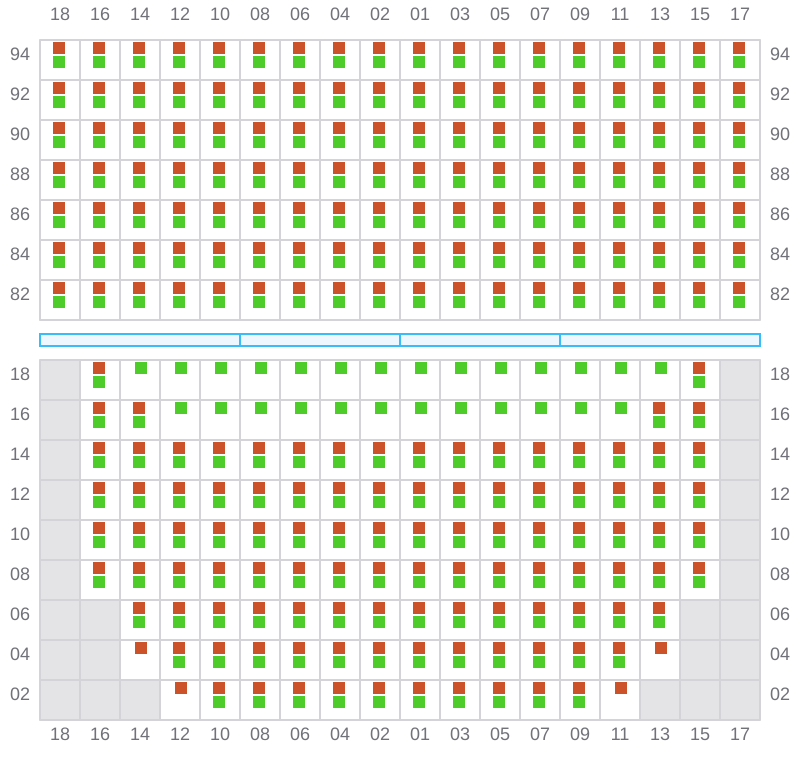

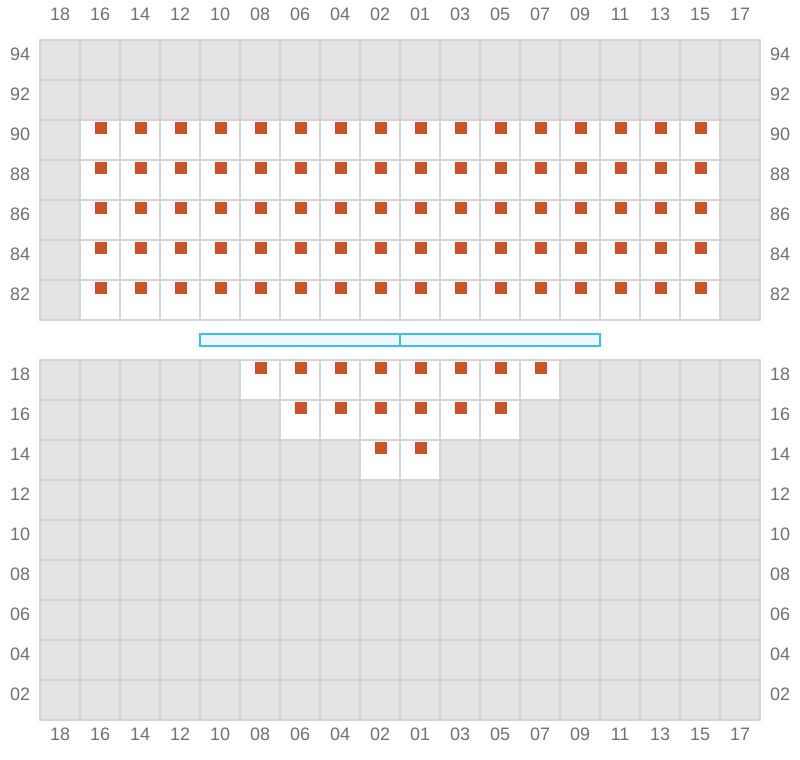

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
- →

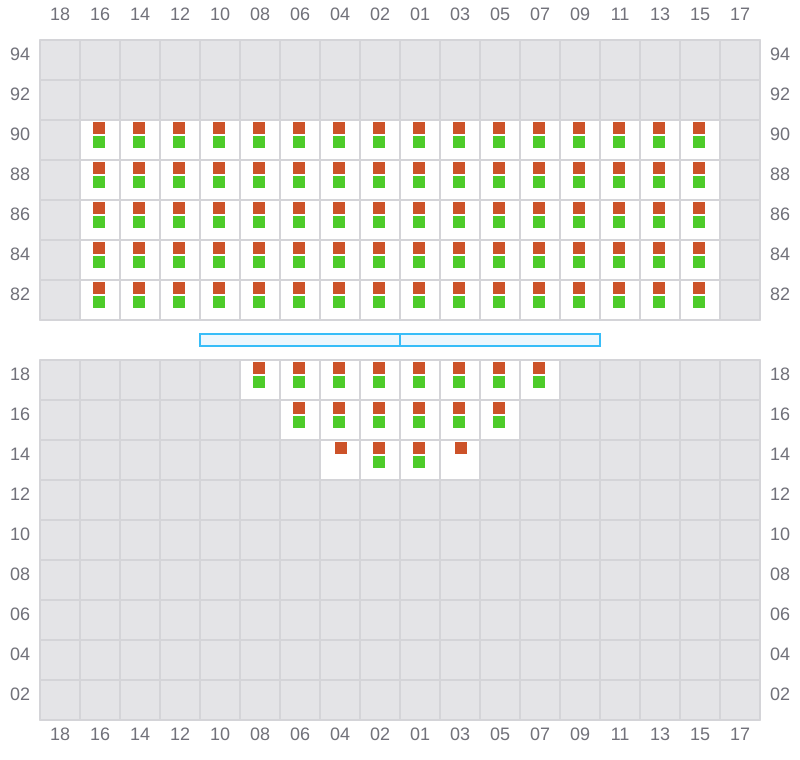

003 (002)
- ←

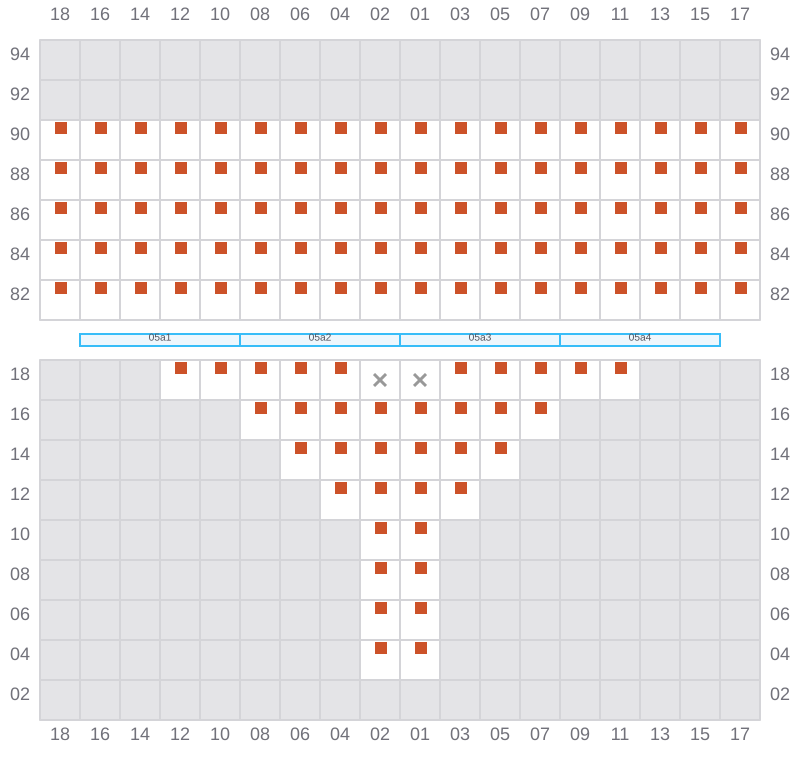

005
- →

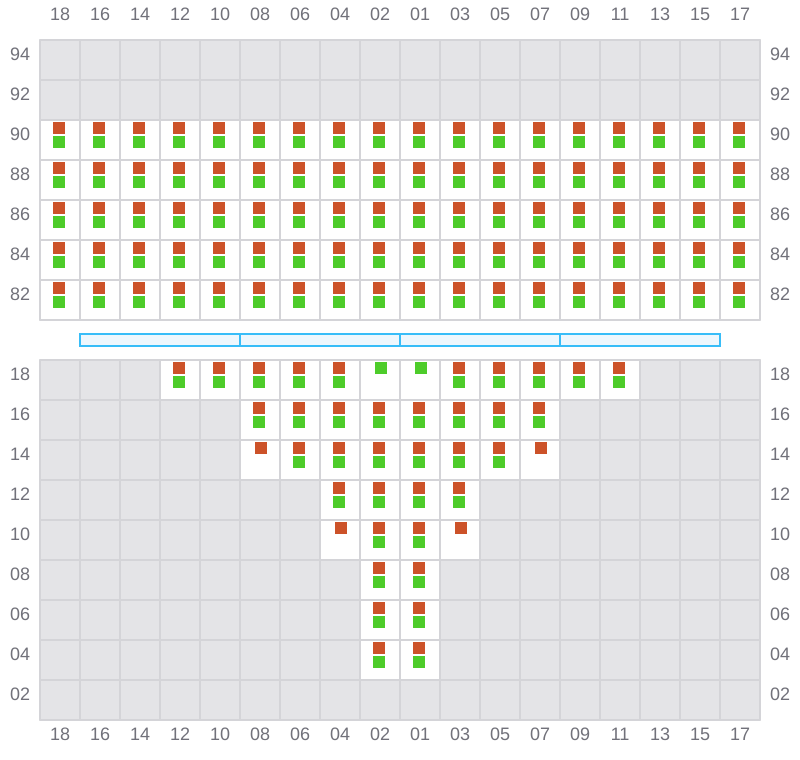

007 (006)
- ←

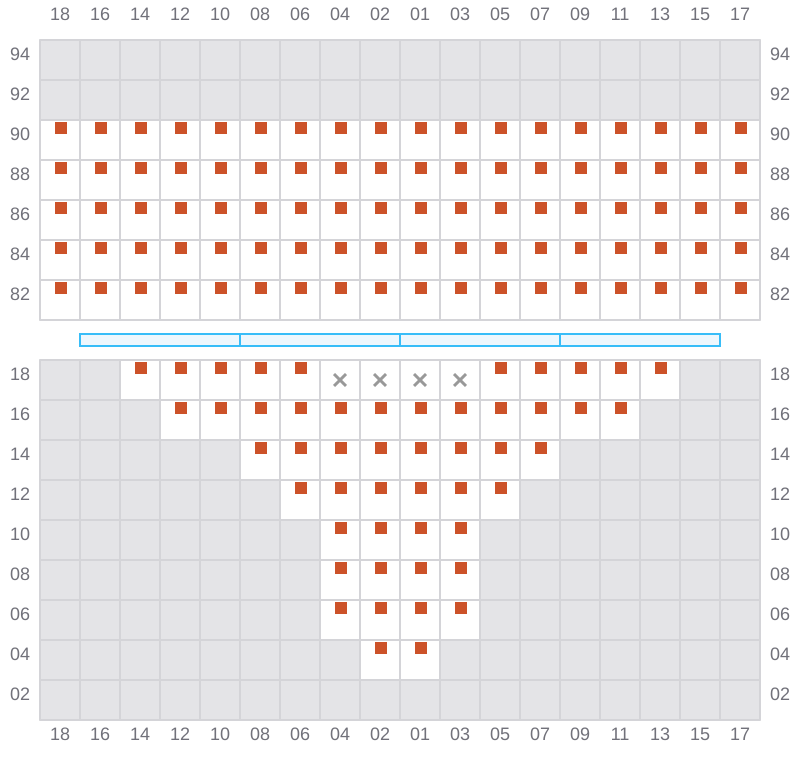

009
- →
011 (010)
- ←

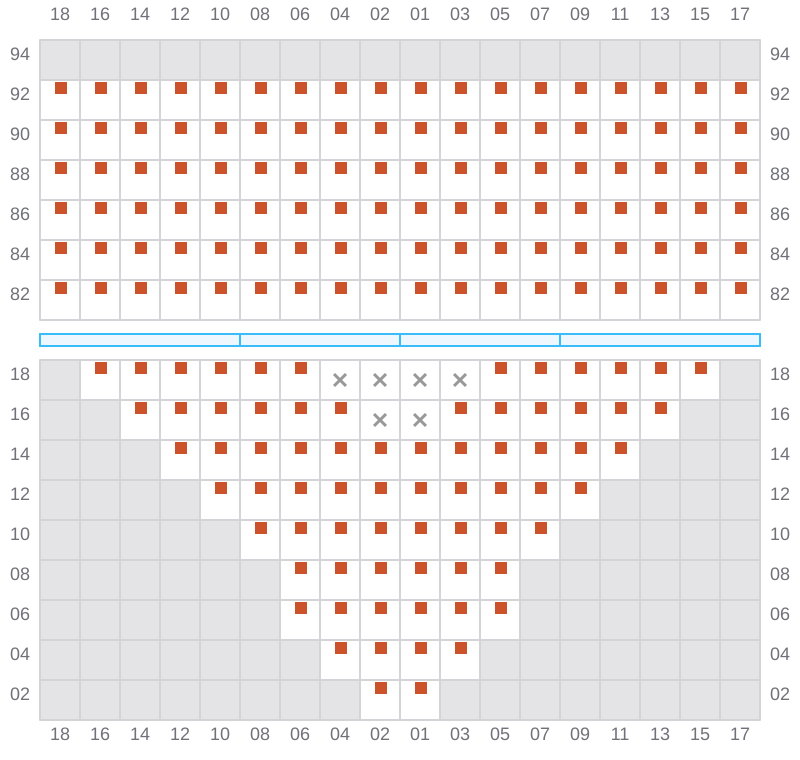

013
- →
015 (014)
- ←
017
- →
019 (018)
- ←

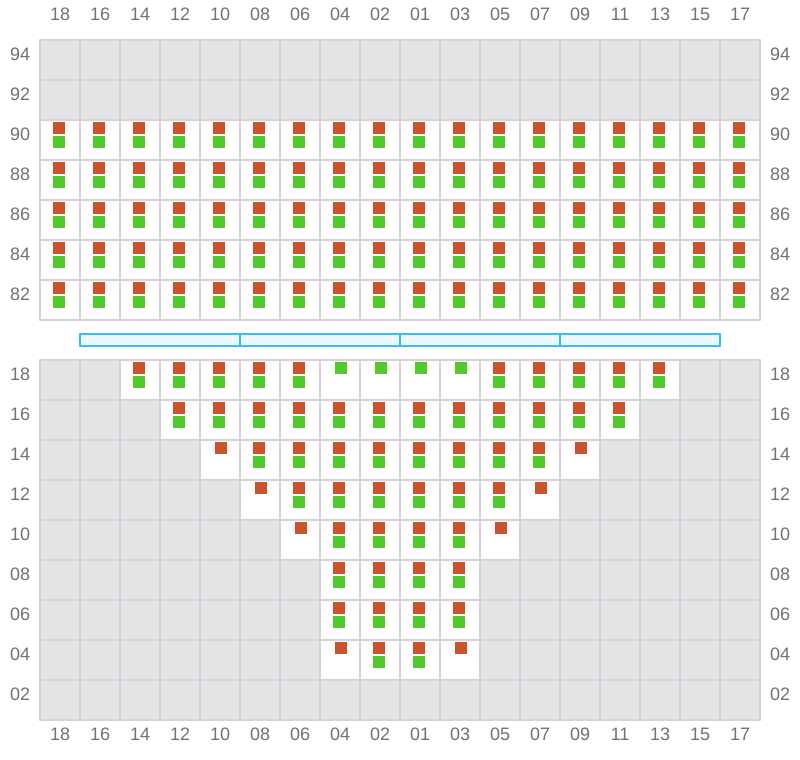

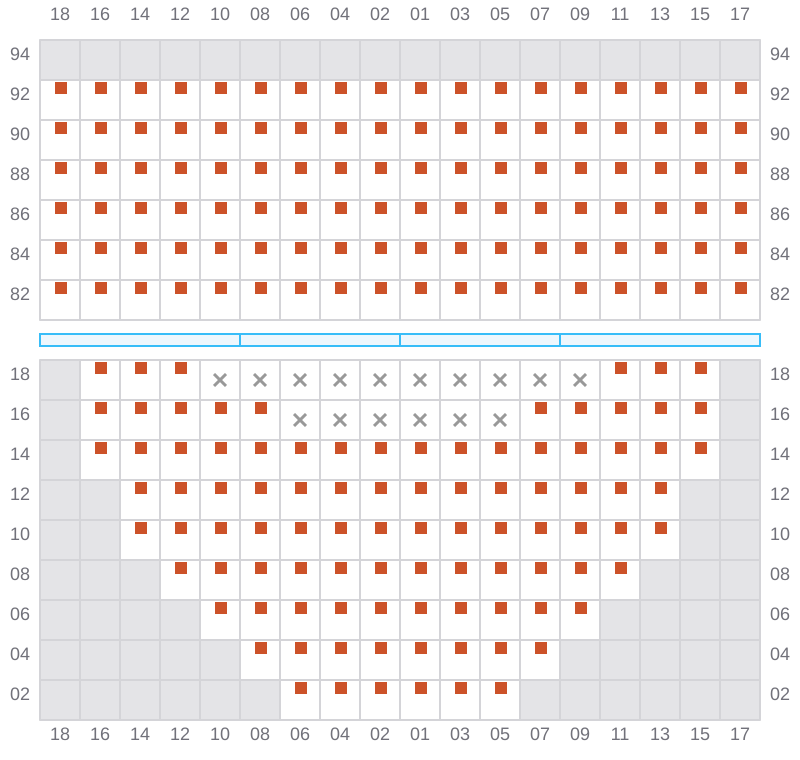

021
- →
023 (022)
- ←

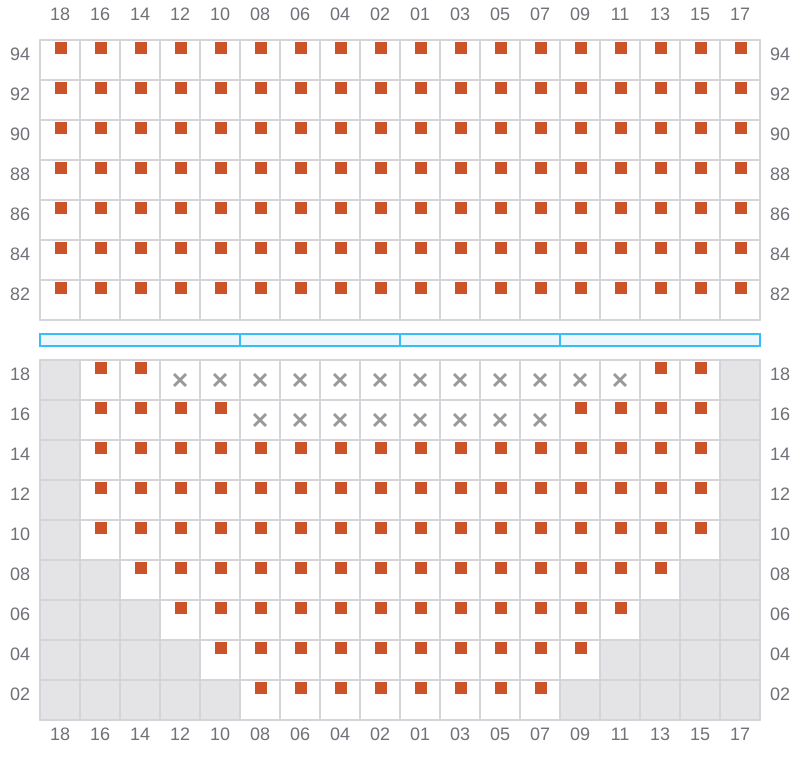

025
- →

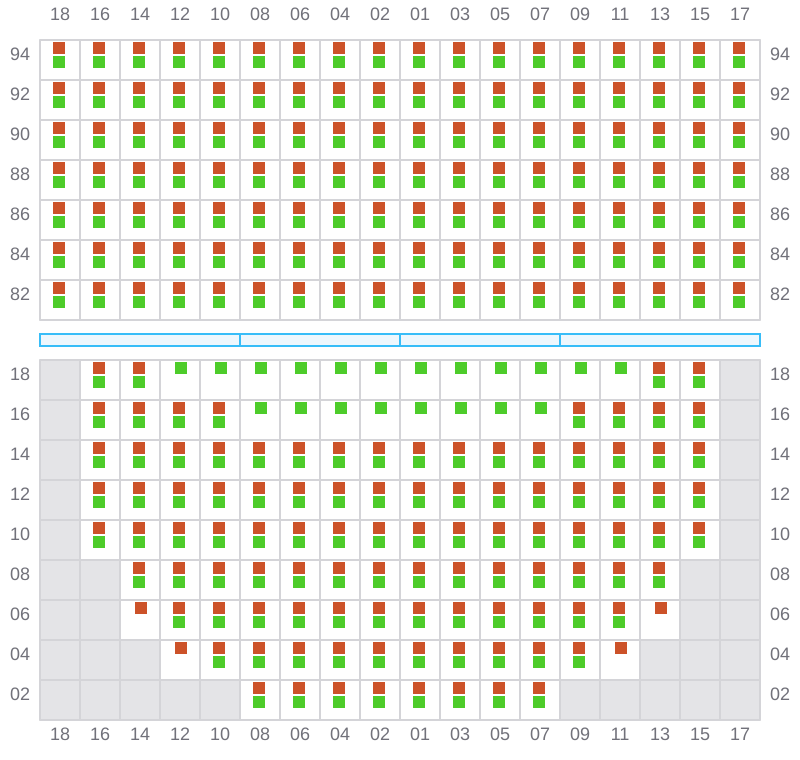

027 (026)
- ←
029
- →
031 (030)
- ←

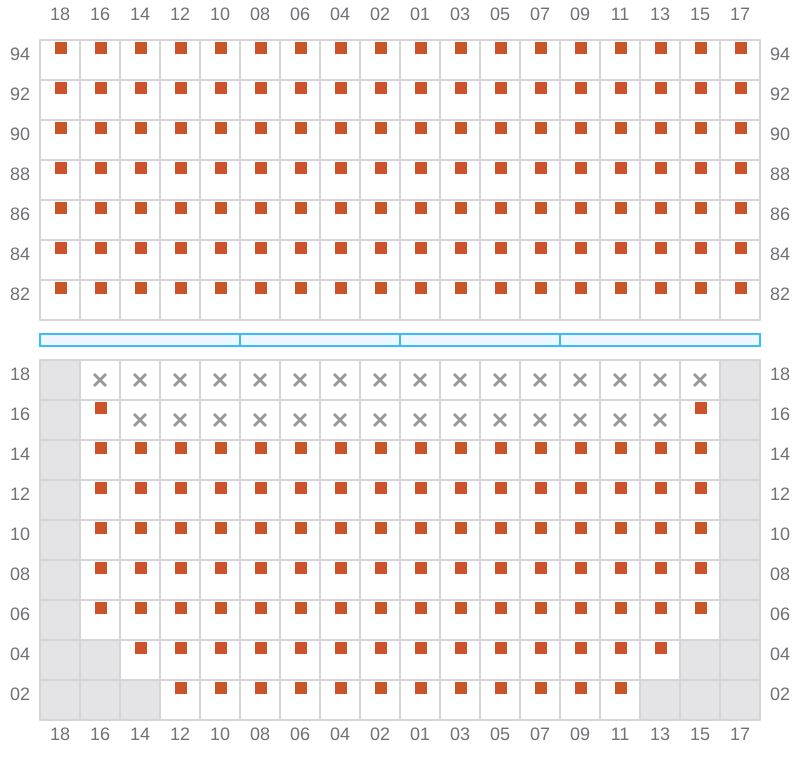

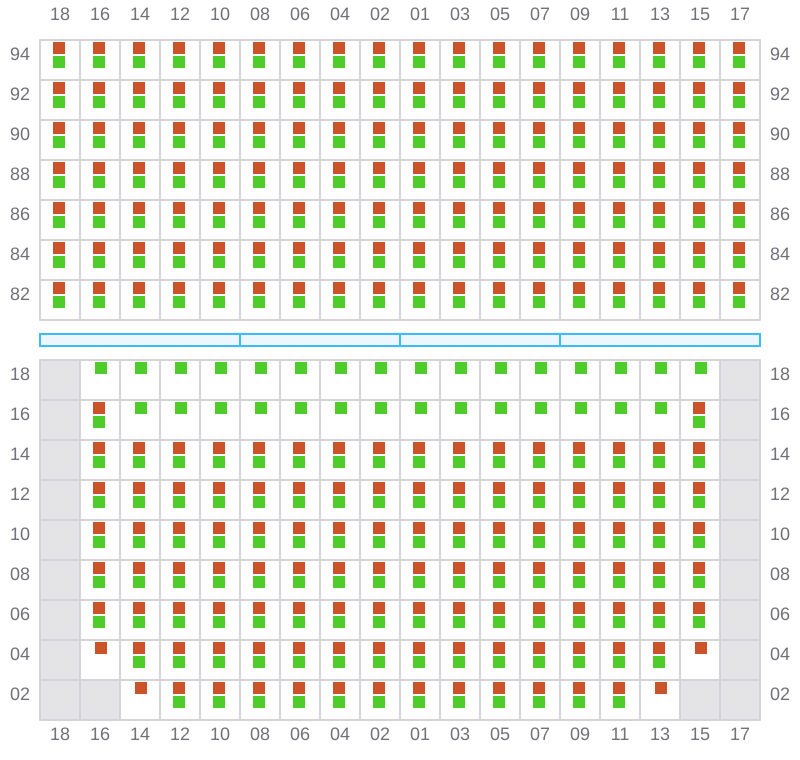

033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←

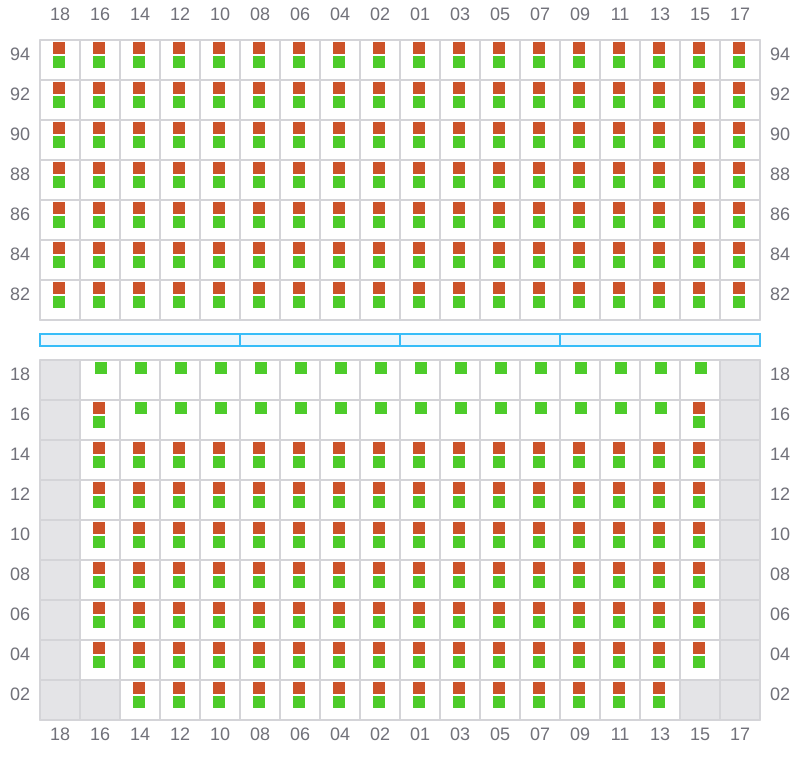

045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←
057
- →
059 (058)
- ←

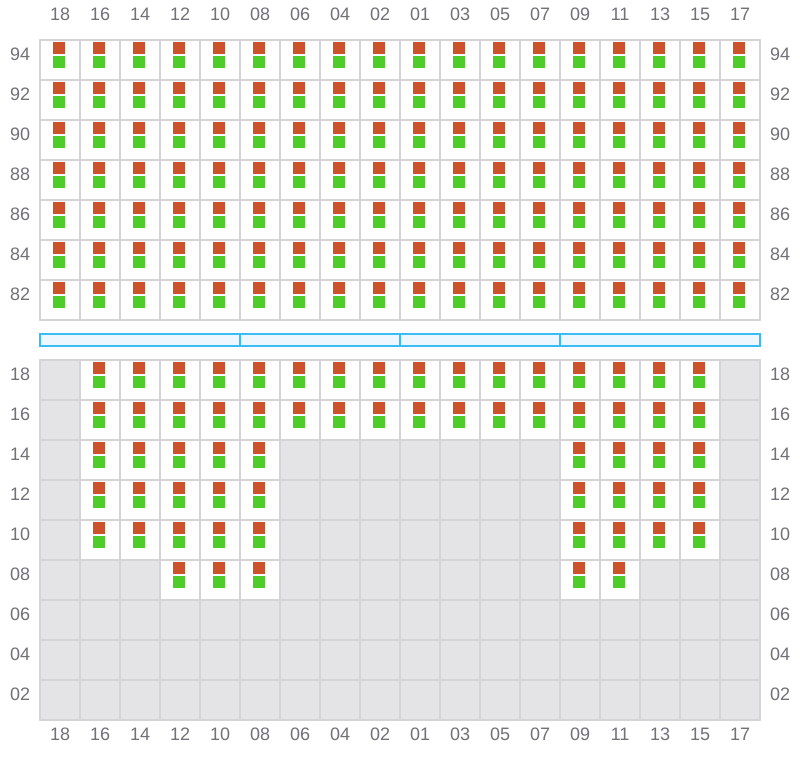

061
- →

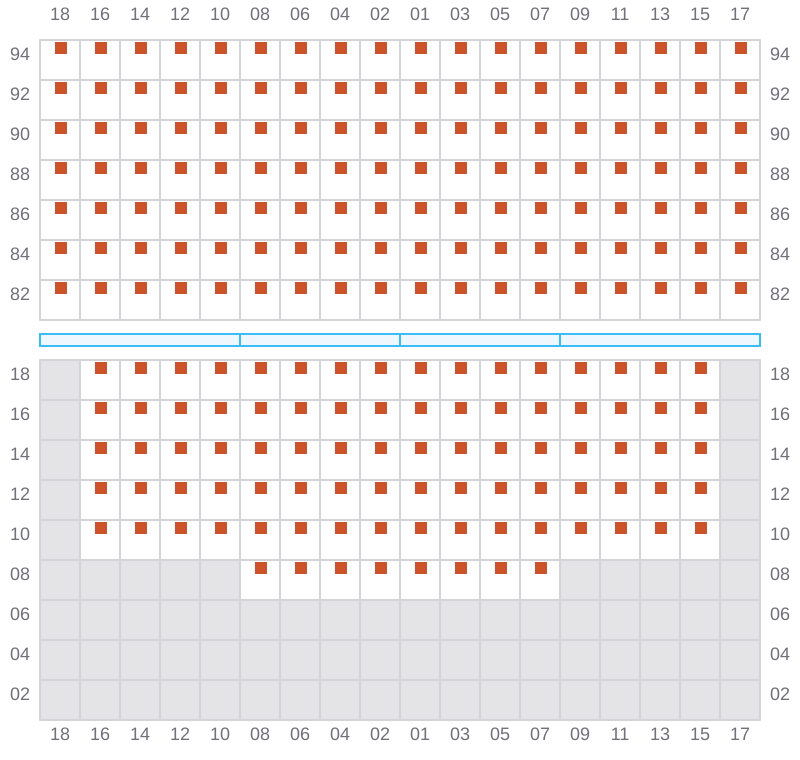

063 (062)
- ←
065
- →

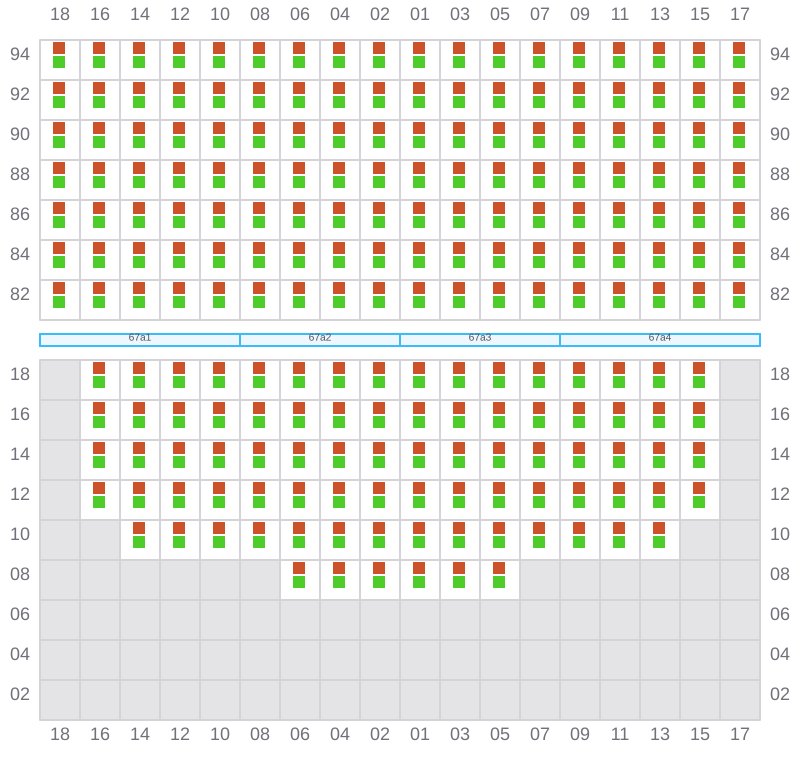

067 (066)
- ←
069
- →
071 (070)
- ←
073
- →

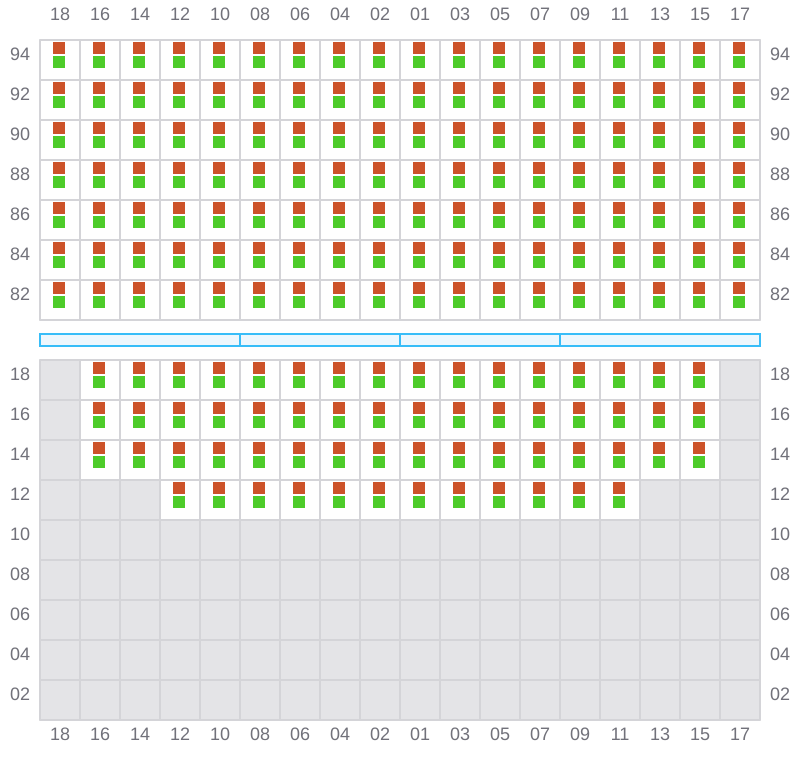

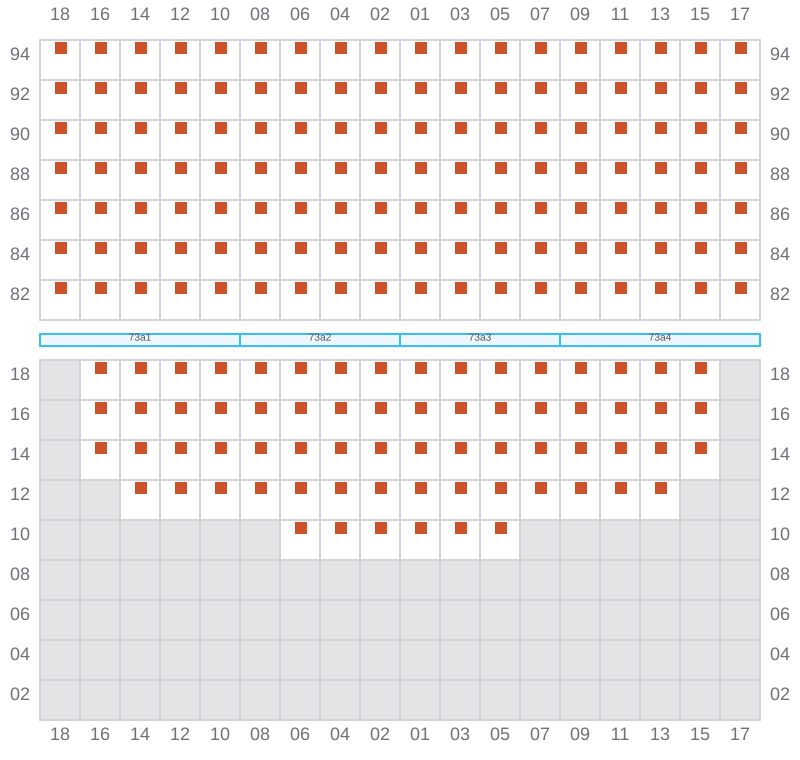

075 (074)
- ←

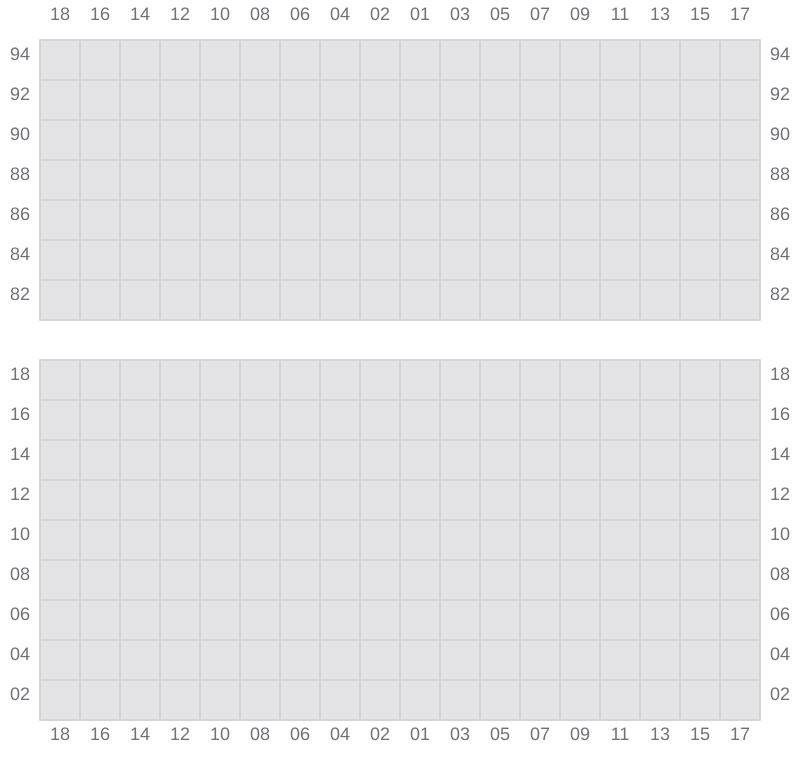

077
079 (078)
- ← / ?
