MSC ELEONORA
9064750 | HPVY | COS by ************************** Last update: Sat Jul 01 2023
General Info
Ship Name:MSC ELEONORA
IMO Code:9064750
Call Sign:HPVY
Line Operator:COS
Class Name for Sister Ships:TRA
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,512
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-sideView.png?v=1688234926829)
Hatch-Covers View
![Deck view of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-deckView.png?v=1688234926829)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

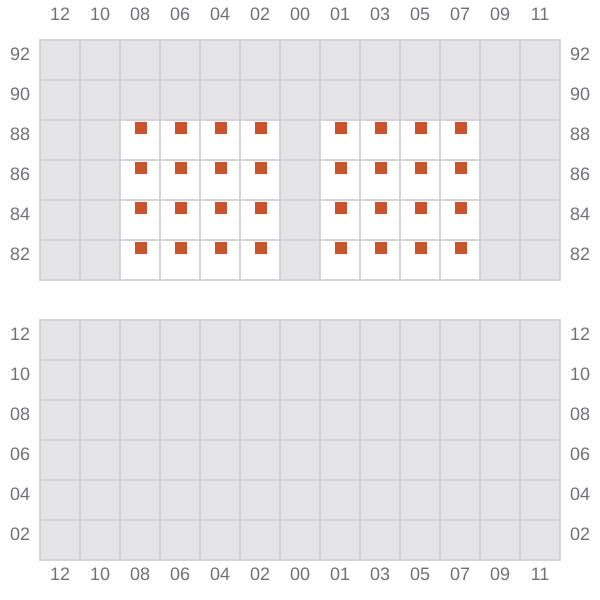

001
![Bay 001 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b001.png?v=1688234926829)

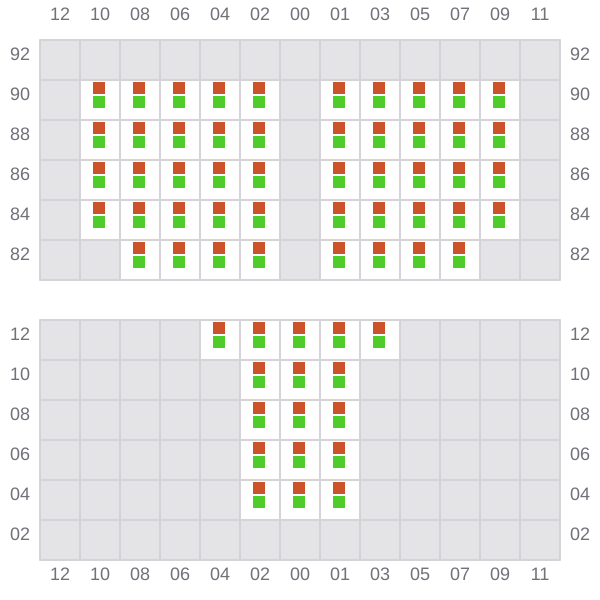

003 (004)
- →
![Bay 003 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b003.png?v=1688234926829)

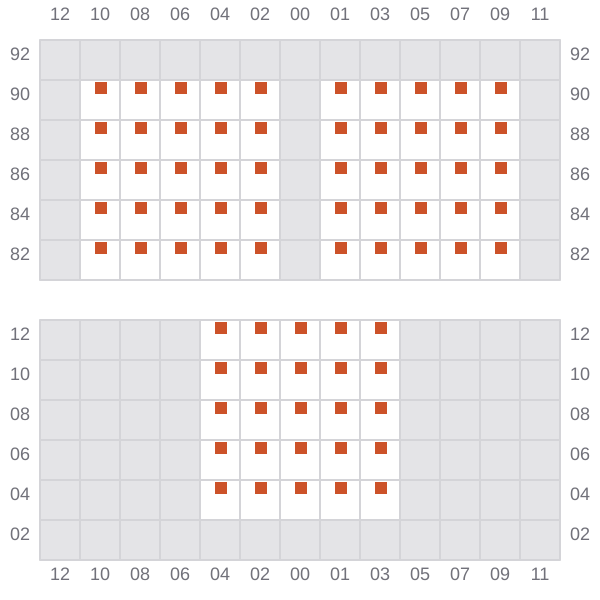

005
- ←
![Bay 005 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b005.png?v=1688234926829)

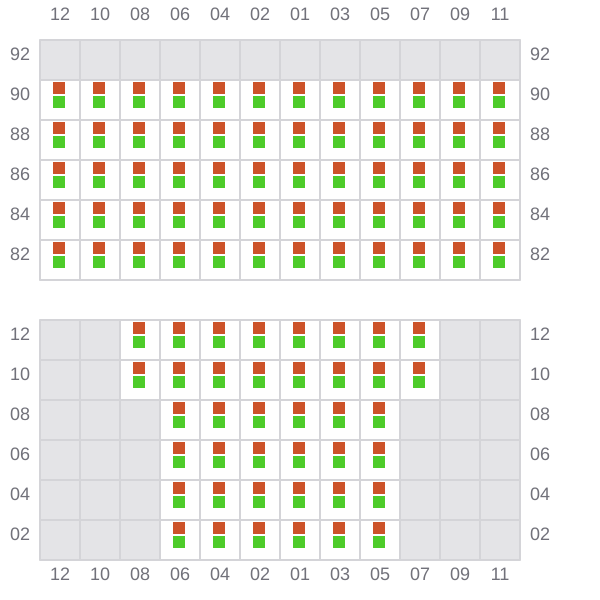

007 (008)
- →
![Bay 007 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b007.png?v=1688234926829)

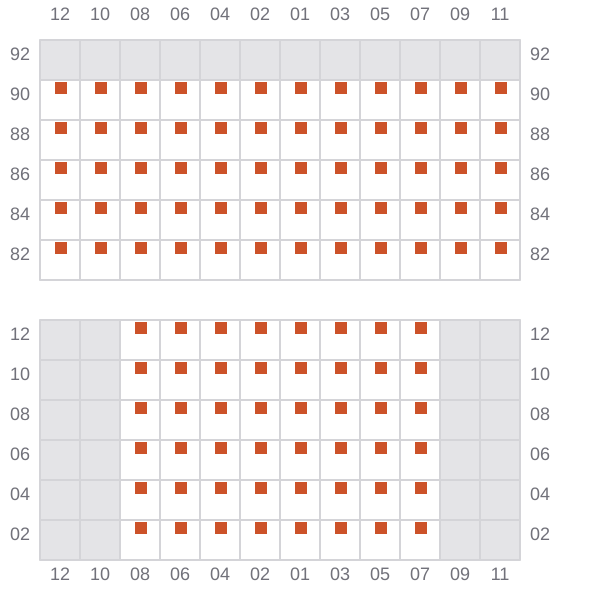

009
- ←
![Bay 009 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b009.png?v=1688234926829)

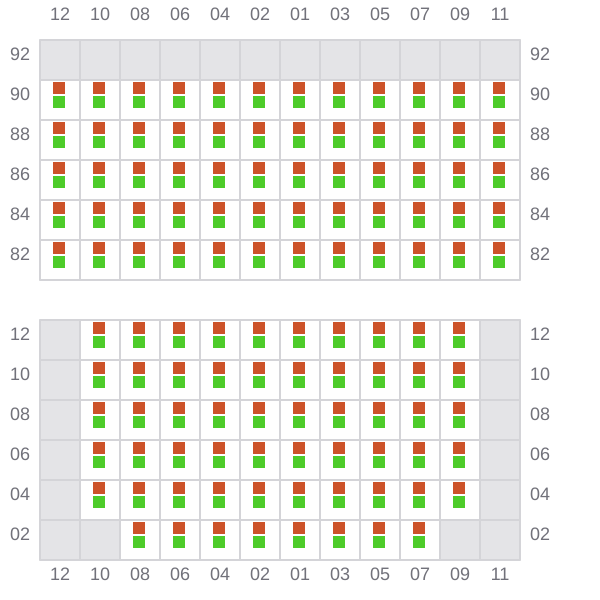

011 (012)
- →
![Bay 011 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b011.png?v=1688234926829)

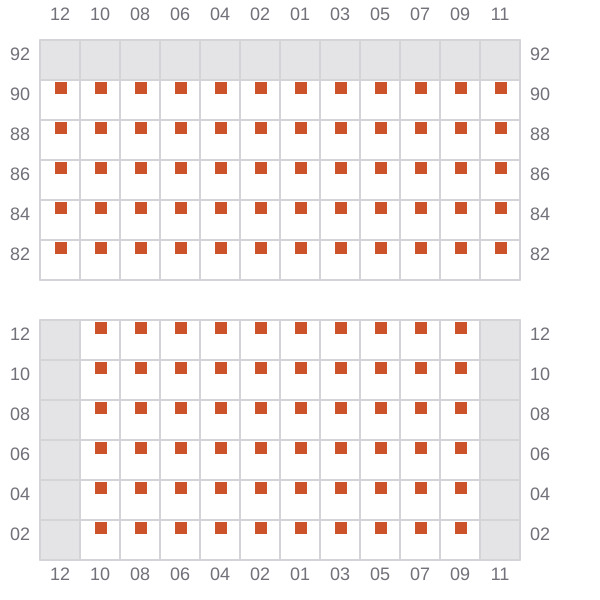

013
- ←
![Bay 013 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b013.png?v=1688234926829)
015 (016)
- →
![Bay 015 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b015.png?v=1688234926829)
017
- ←
![Bay 017 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b017.png?v=1688234926829)
019 (020)
- →
![Bay 019 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b019.png?v=1688234926829)
021
- ←
![Bay 021 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b021.png?v=1688234926829)

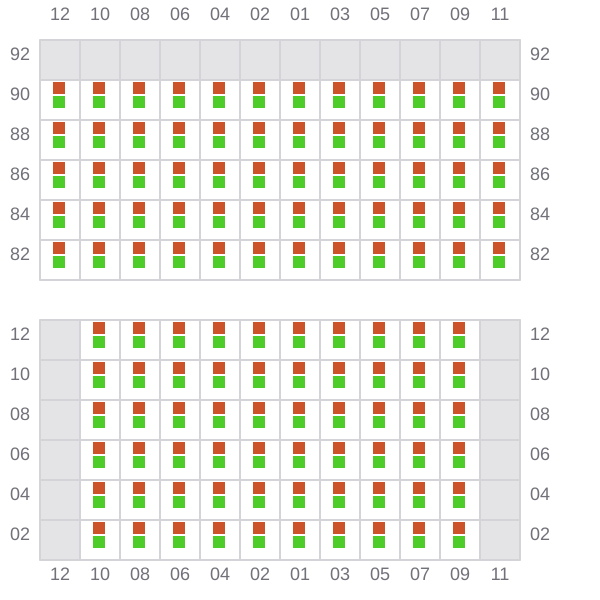

023 (024)
- →
![Bay 023 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b023.png?v=1688234926829)
025
- ←
![Bay 025 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b025.png?v=1688234926829)
027 (028)
- →
![Bay 027 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b027.png?v=1688234926829)

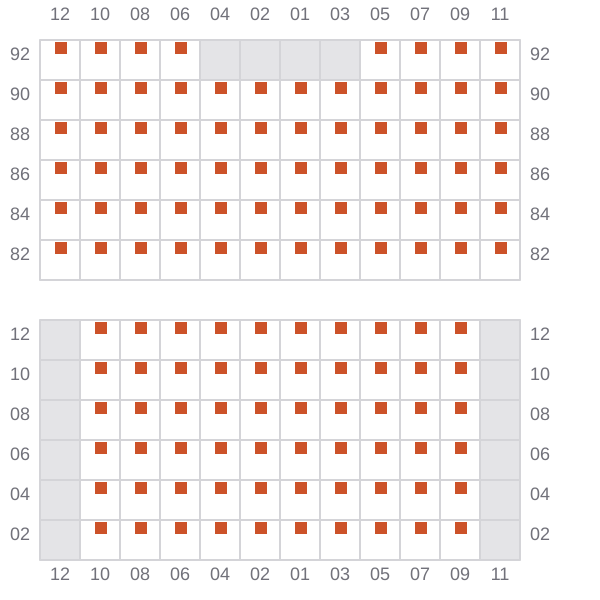

029
- ←
![Bay 029 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b029.png?v=1688234926829)

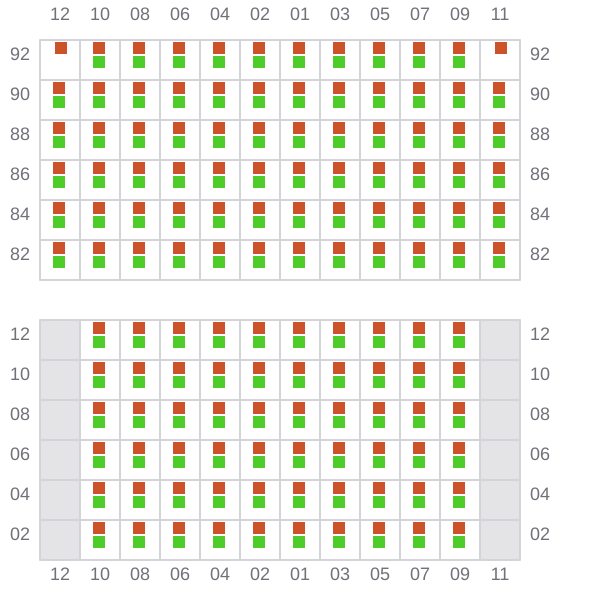

031 (032)
- →
![Bay 031 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b031.png?v=1688234926829)

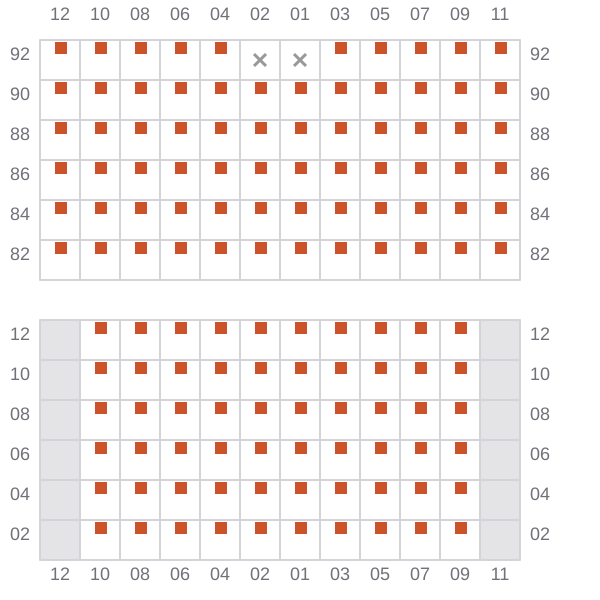

033
- ←
![Bay 033 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b033.png?v=1688234926829)

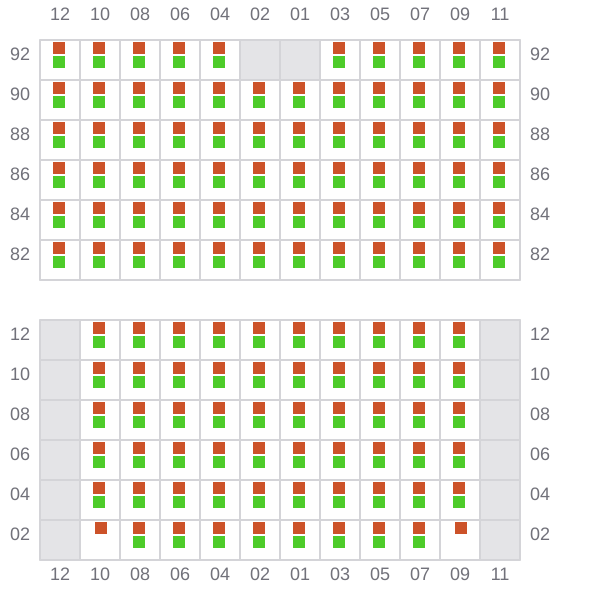

035 (036)
- →
![Bay 035 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b035.png?v=1688234926829)

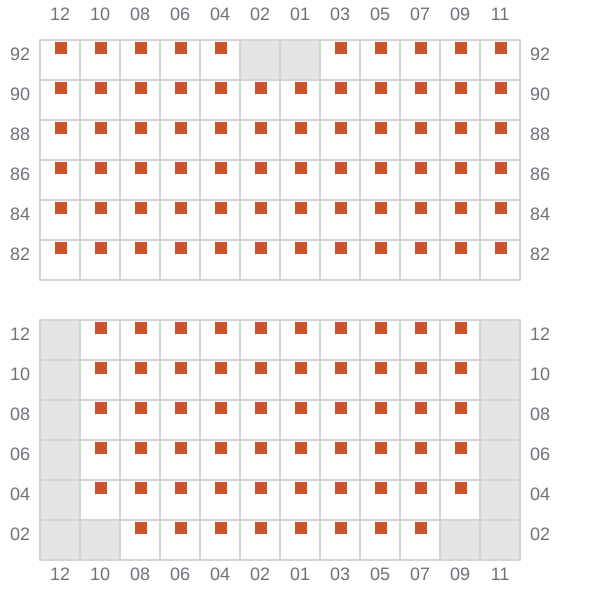

037
- ←
![Bay 037 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b037.png?v=1688234926829)
039 (040)
- →
![Bay 039 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b039.png?v=1688234926829)

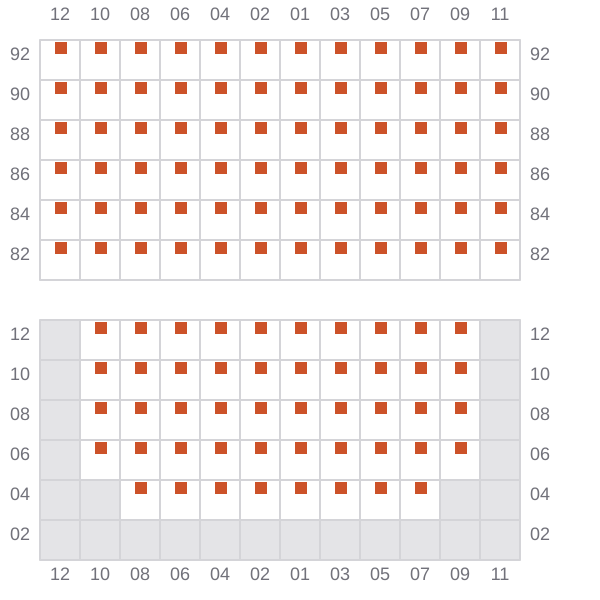

041
- ←
![Bay 041 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b041.png?v=1688234926829)

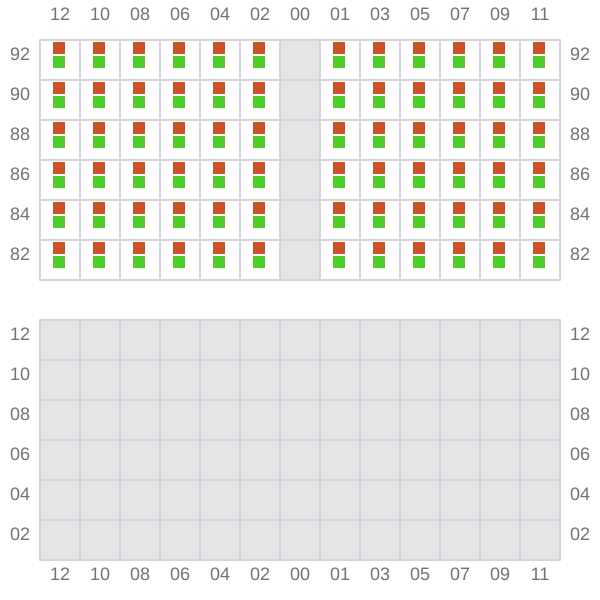

043 (044)
- → / ?
![Bay 043 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b043.png?v=1688234926829)

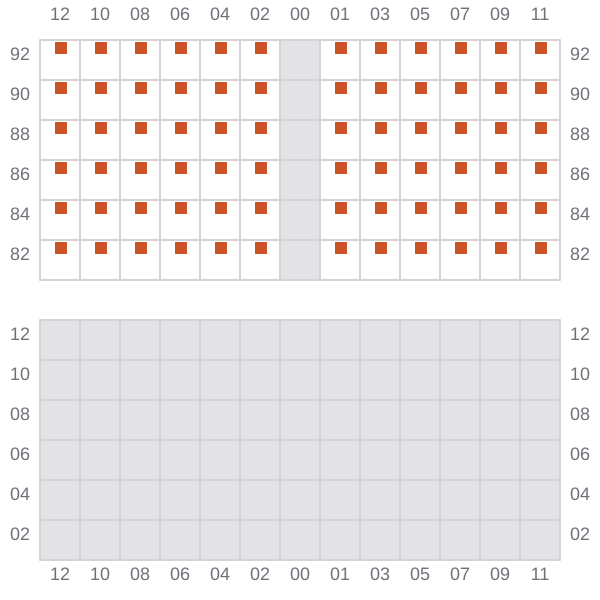

045
- ← / ?
![Bay 045 view and slots of MSC ELEONORA](/vessel-images/2db5e8ac-391d-4430-a060-0e940243dadb-b045.png?v=1688234926829)
