MSC ELIANA
1013171 | 5LXV2 | MSC MEDITERRANEAN SHIPPING CO by ******************** Last update: Mon Mar 09 2026

General Info

Ship Name:MSC ELIANA
IMO Code:1013171
Call Sign:5LXV2
Line Operator:MSC MEDITERRANEAN SHIPPING CO
Class Name for Sister Ships:MELI
Year Built:2025
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):329.70
LOA (Length Overall):335.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:11,500

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

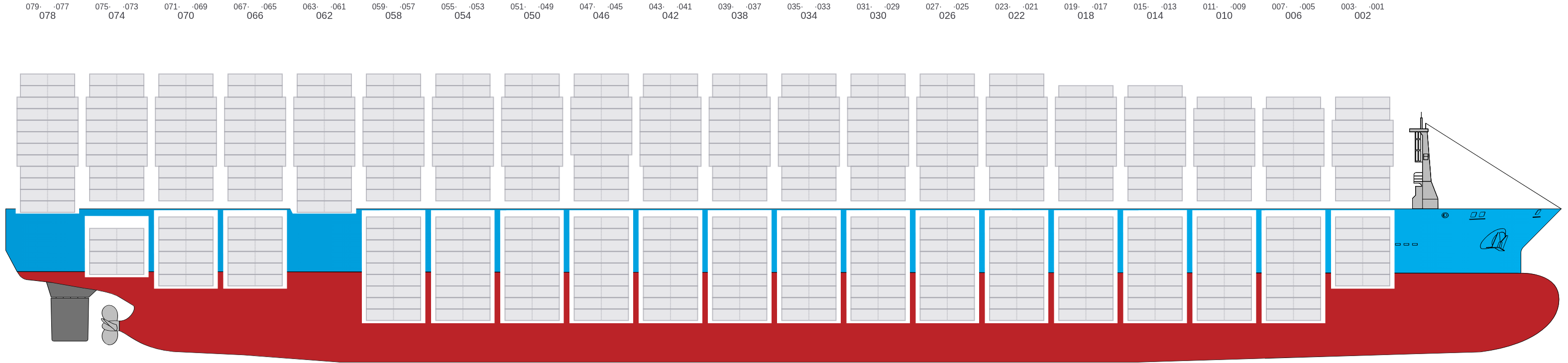

Side view of MSC ELIANA

Hatch-Covers View

Deck view of MSC ELIANA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

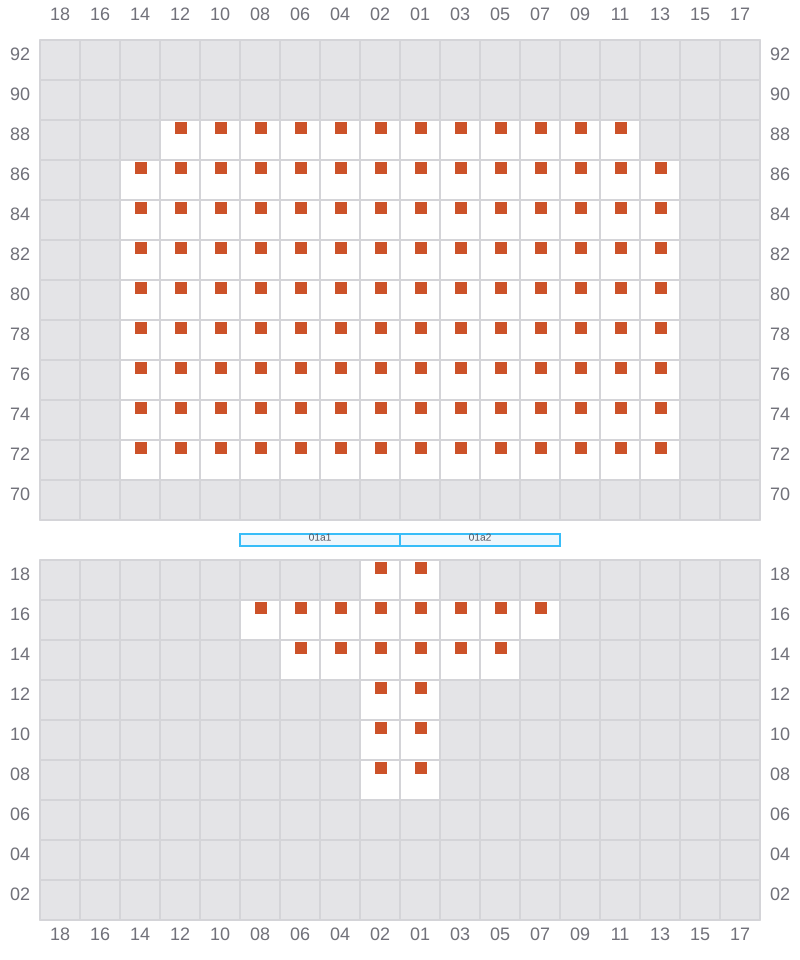

Bay 001 view and slots of MSC ELIANA

003 (002)

  • ←
  • ✓

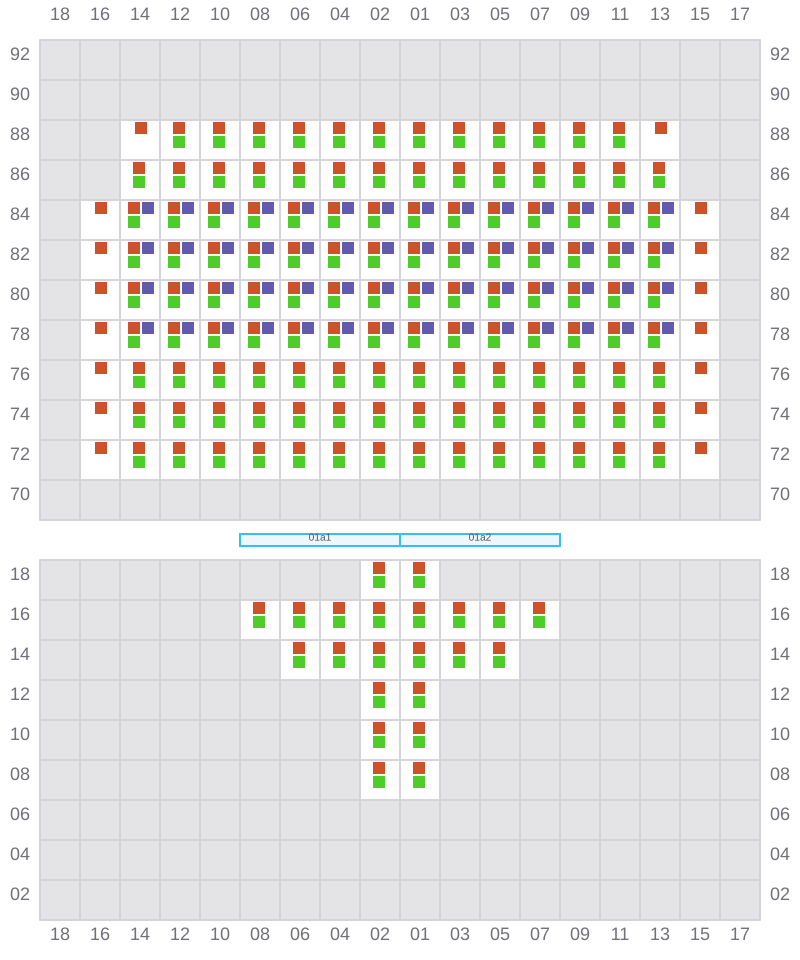

Bay 003 view and slots of MSC ELIANA

005

  • →
  • ✓

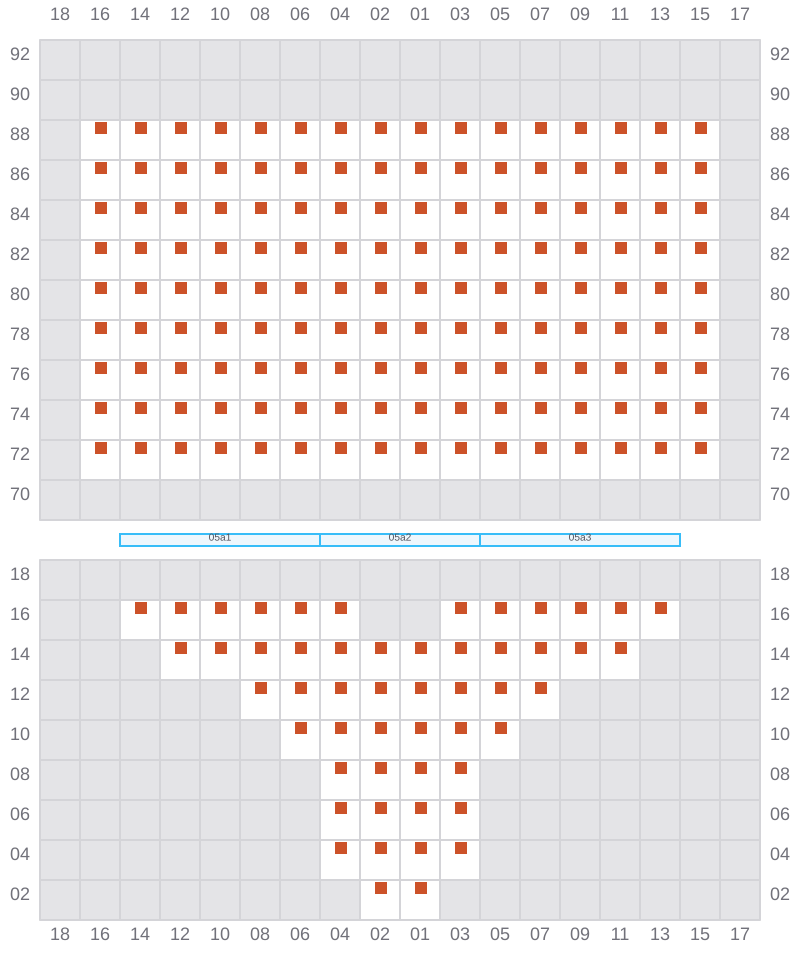

Bay 005 view and slots of MSC ELIANA

007 (006)

  • ←
  • ✓

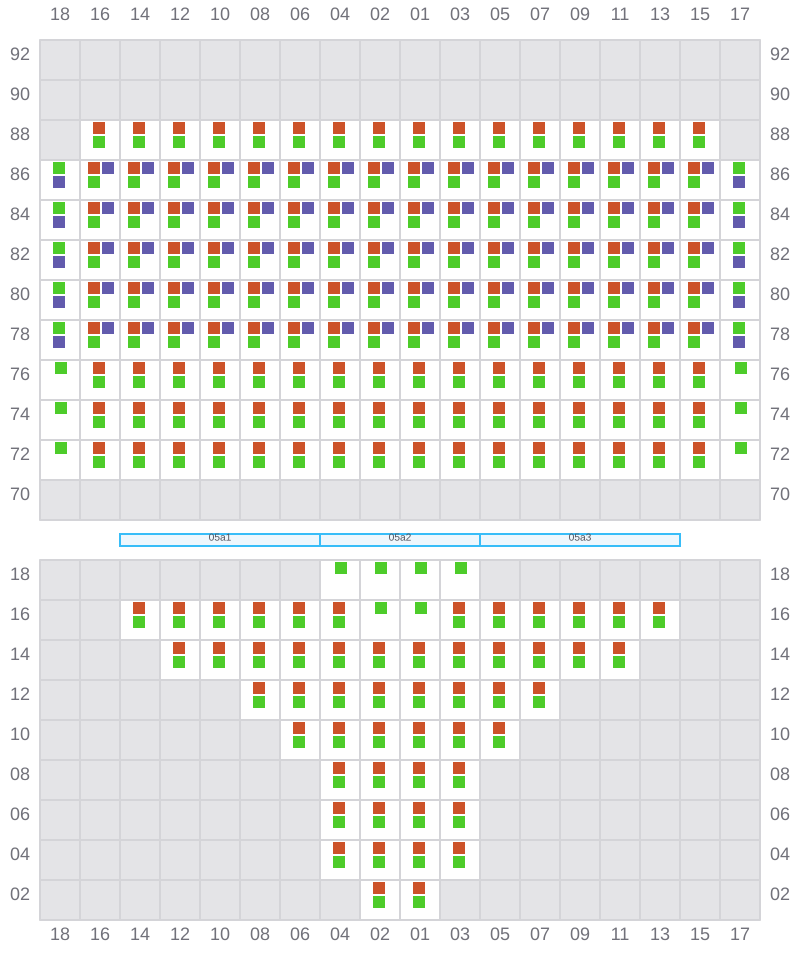

Bay 007 view and slots of MSC ELIANA

009

  • →
  • ✓

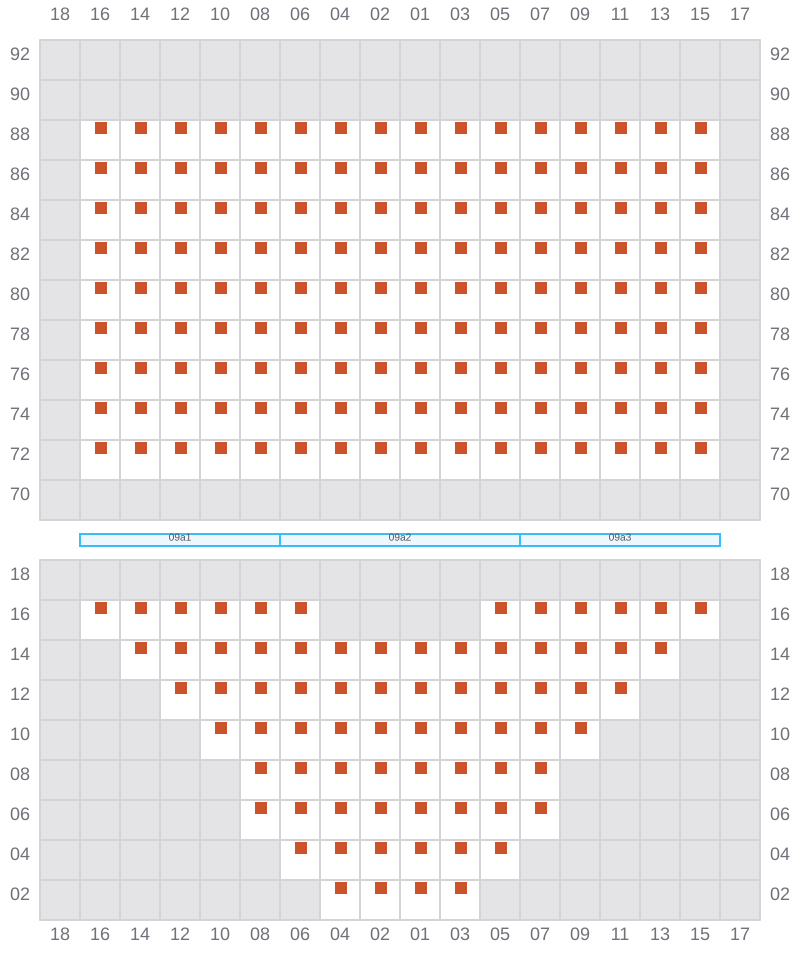

Bay 009 view and slots of MSC ELIANA

011 (010)

  • ←
  • ✓
Bay 011 view and slots of MSC ELIANA

013

  • →
  • ✓

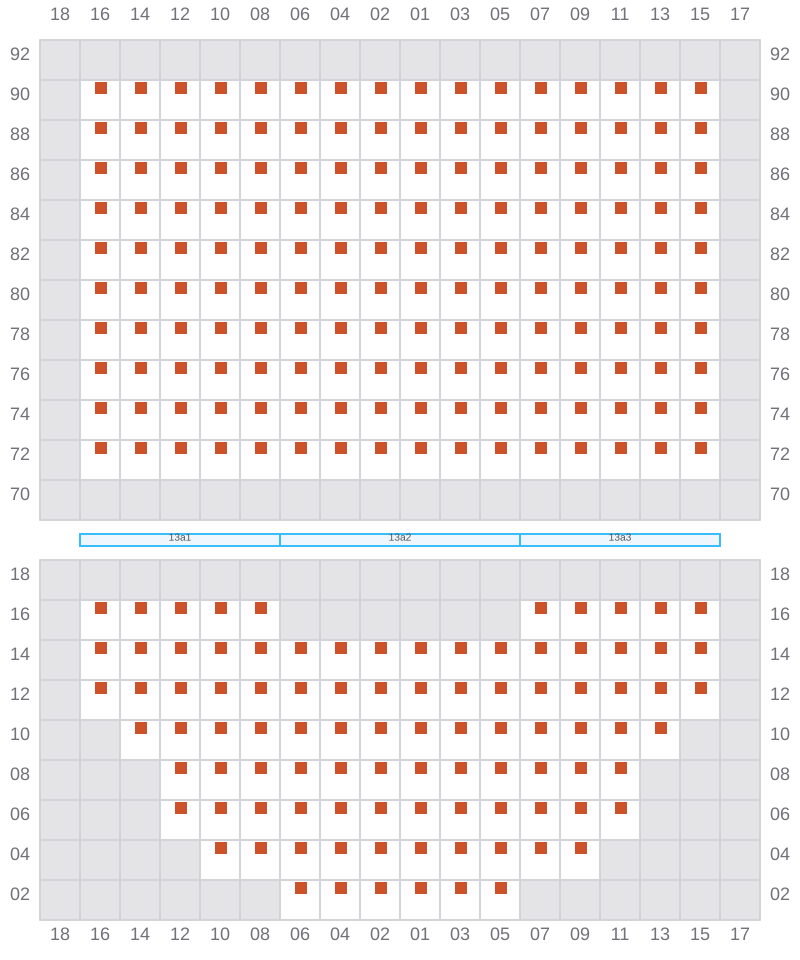

Bay 013 view and slots of MSC ELIANA

015 (014)

  • ←
  • ✓

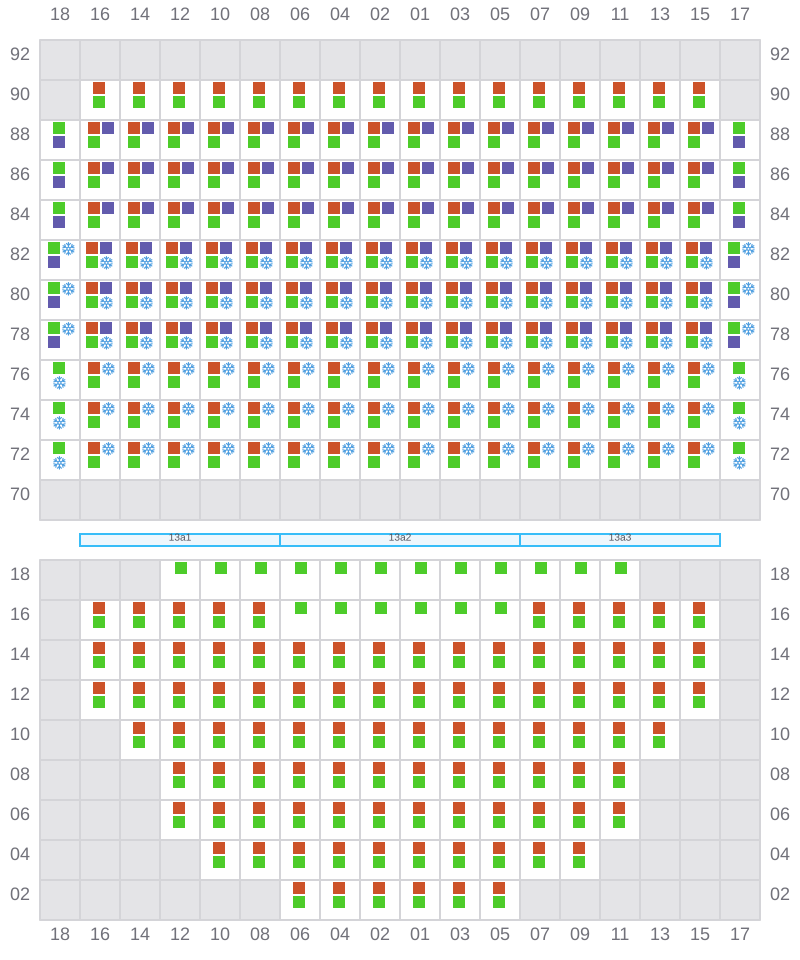

Bay 015 view and slots of MSC ELIANA

017

  • →
  • ✓
Bay 017 view and slots of MSC ELIANA

019 (018)

  • ←
  • ✓

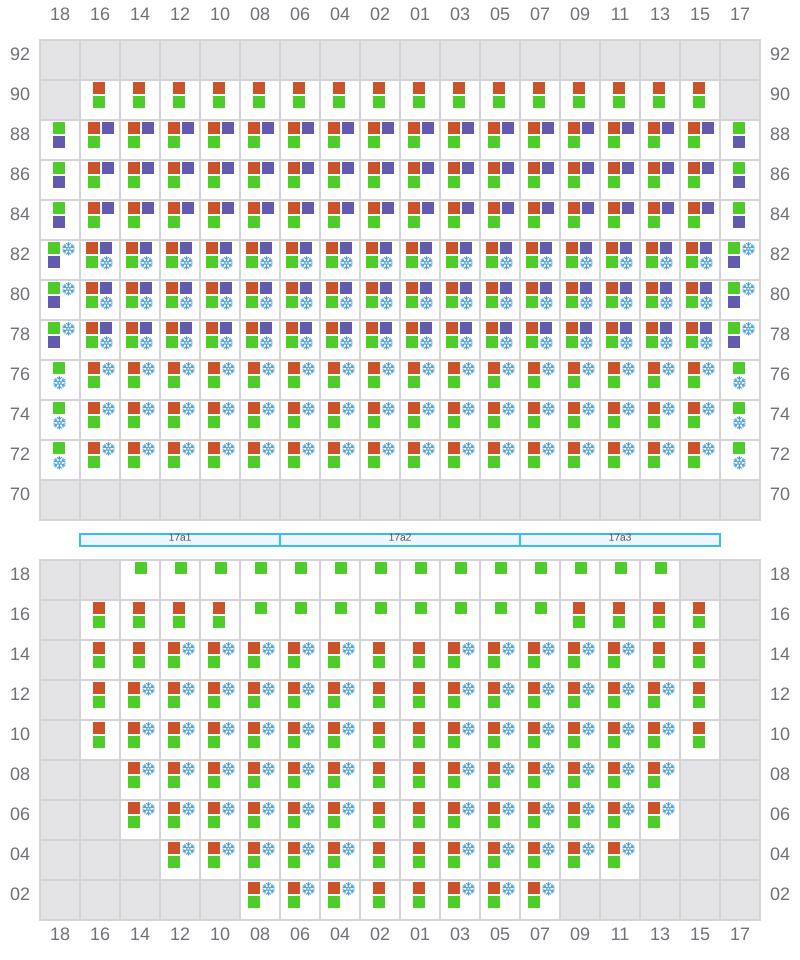

Bay 019 view and slots of MSC ELIANA

021

  • →
  • ✓

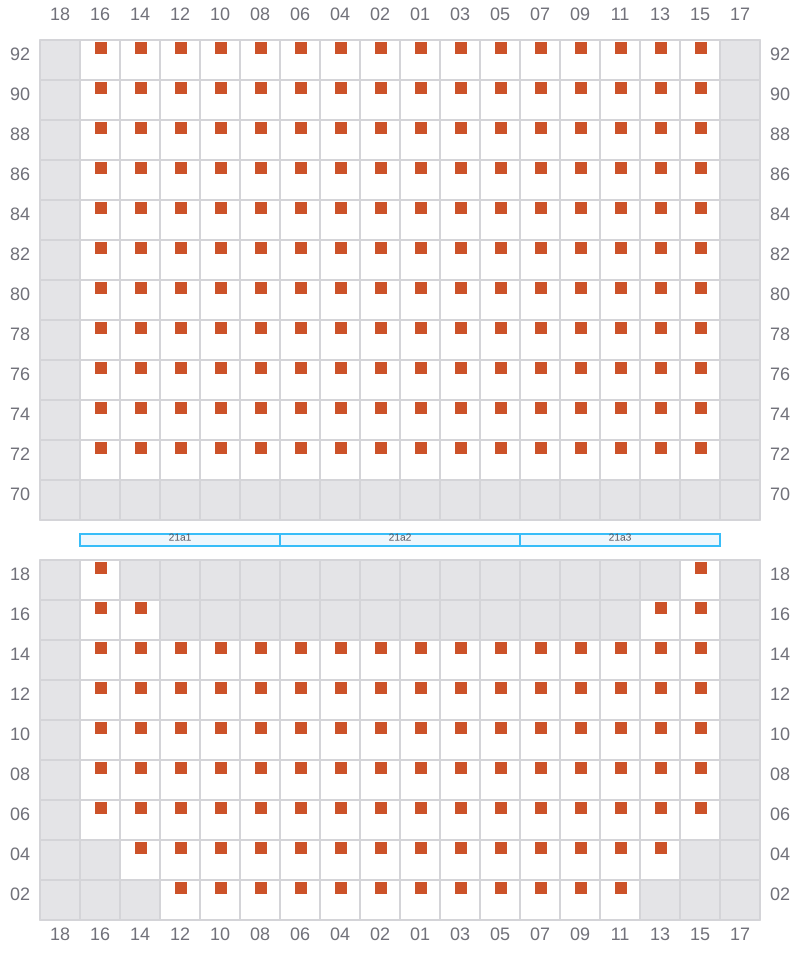

Bay 021 view and slots of MSC ELIANA

023 (022)

  • ←
  • ✓

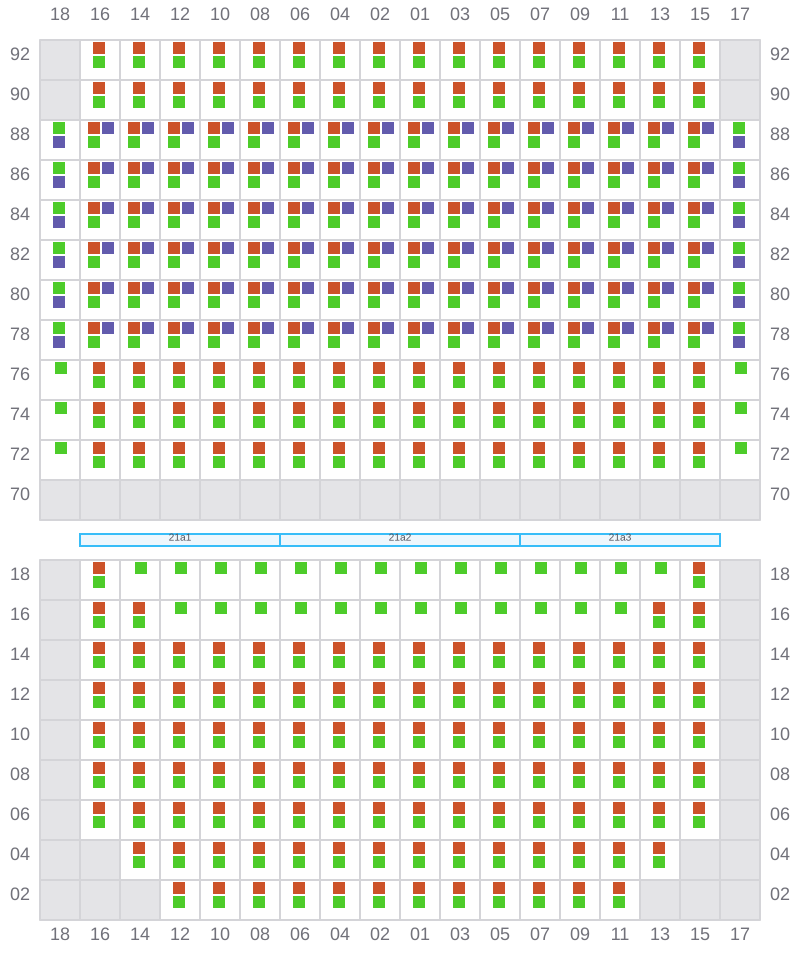

Bay 023 view and slots of MSC ELIANA

025

  • →
  • ✓

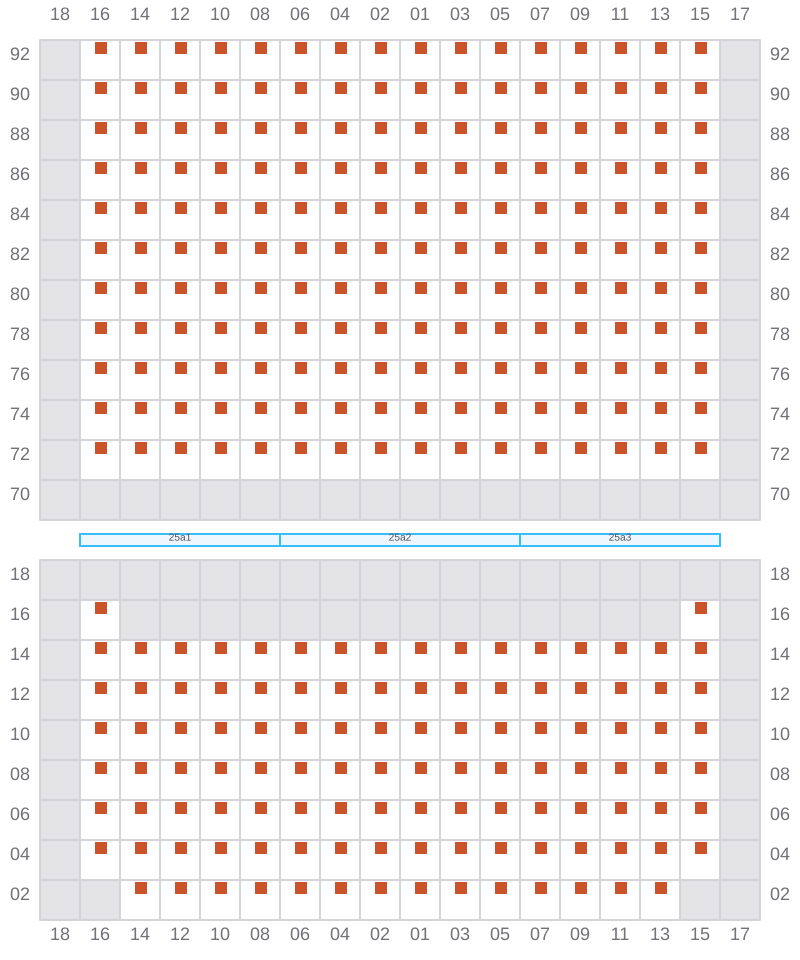

Bay 025 view and slots of MSC ELIANA

027 (026)

  • ←
  • ✓
Bay 027 view and slots of MSC ELIANA

029

  • →
  • ✓

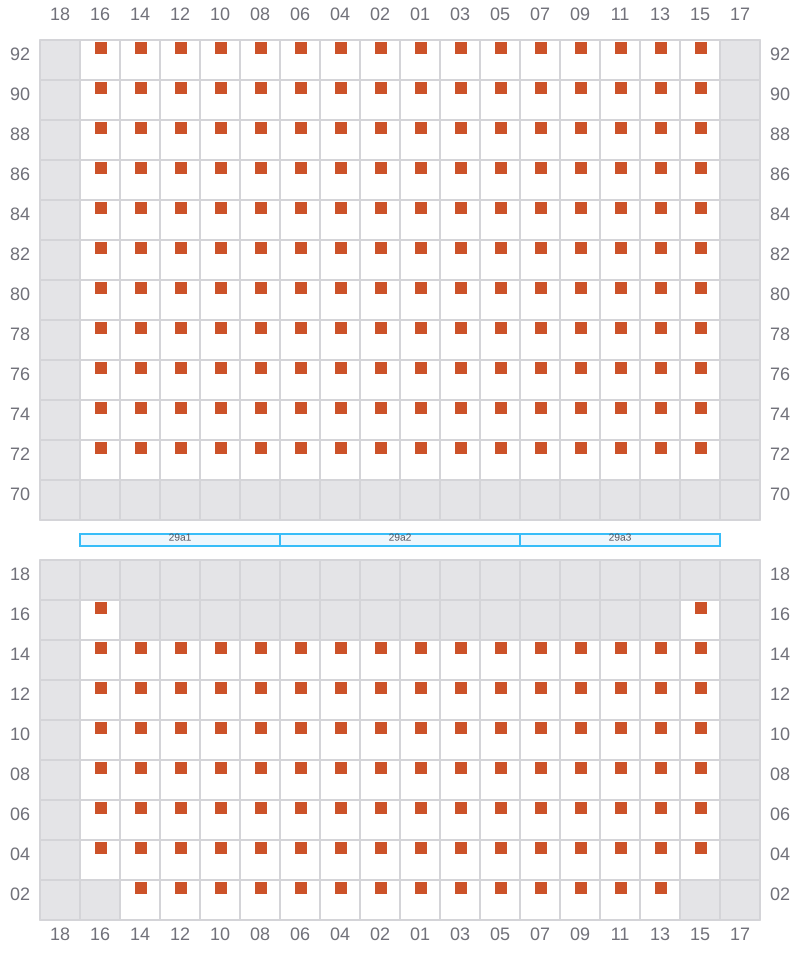

Bay 029 view and slots of MSC ELIANA

031 (030)

  • ←
  • ✓

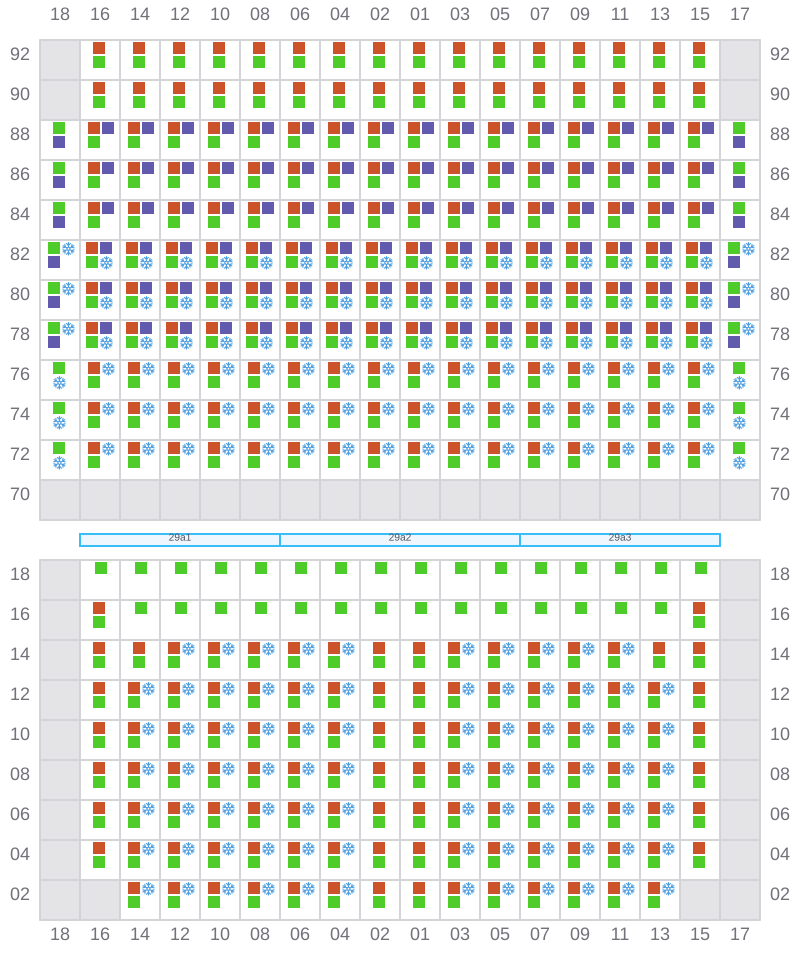

Bay 031 view and slots of MSC ELIANA

033

  • →
  • ✓
Bay 033 view and slots of MSC ELIANA

035 (034)

  • ←
  • ✓
Bay 035 view and slots of MSC ELIANA

037

  • →
  • ✓
Bay 037 view and slots of MSC ELIANA

039 (038)

  • ←
  • ✓
Bay 039 view and slots of MSC ELIANA

041

  • →
  • ✓

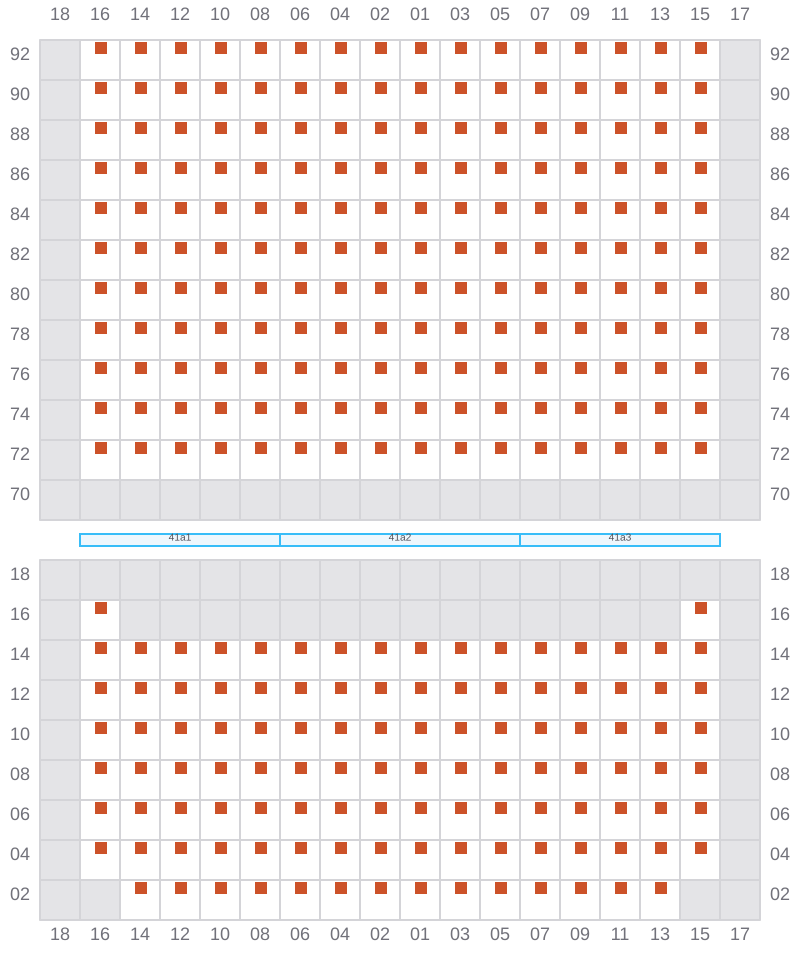

Bay 041 view and slots of MSC ELIANA

043 (042)

  • ←
  • ✓
Bay 043 view and slots of MSC ELIANA

045

  • →
  • ✓

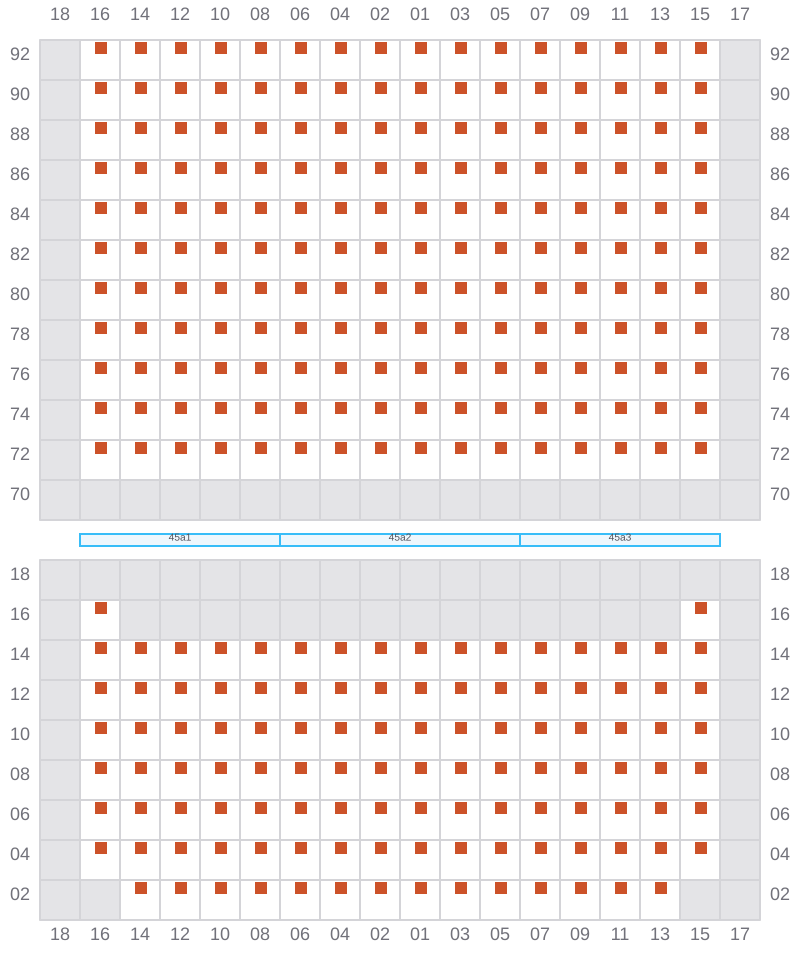

Bay 045 view and slots of MSC ELIANA

047 (046)

  • ←
  • ✓

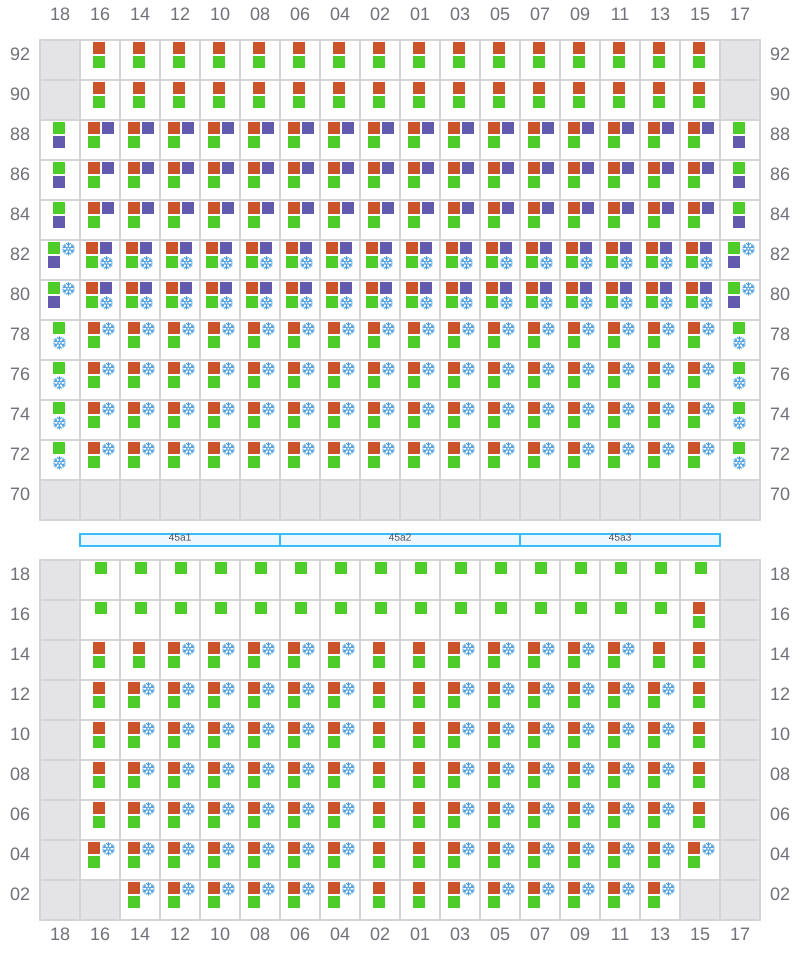

Bay 047 view and slots of MSC ELIANA

049

  • →
  • ✓

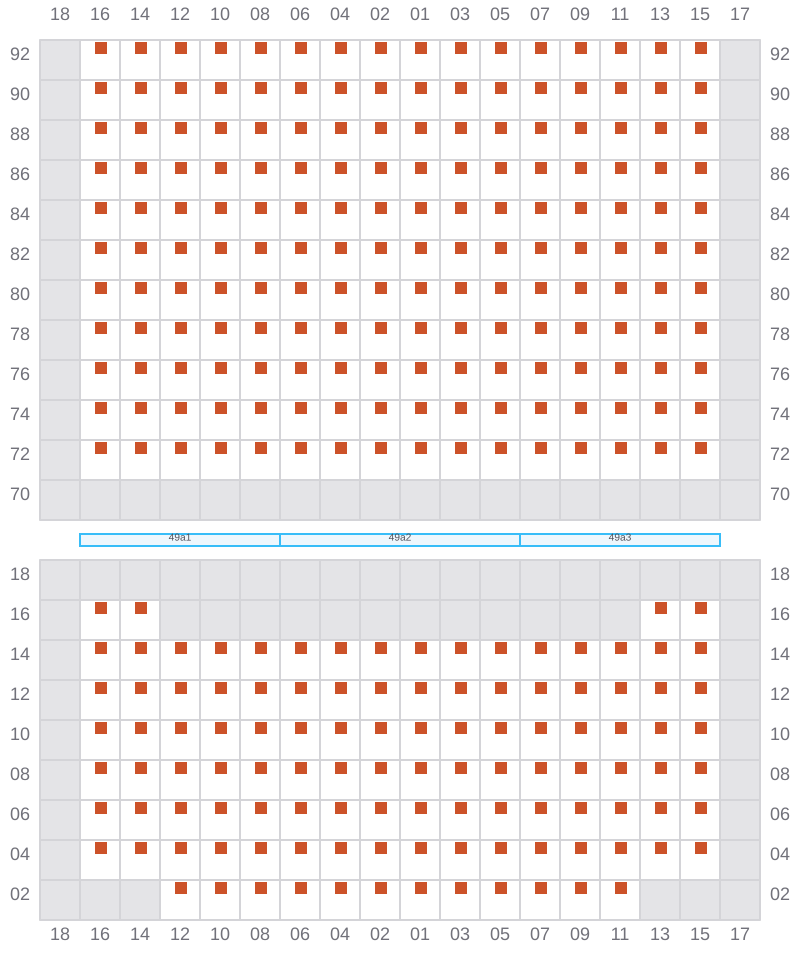

Bay 049 view and slots of MSC ELIANA

051 (050)

  • ←
  • ✓

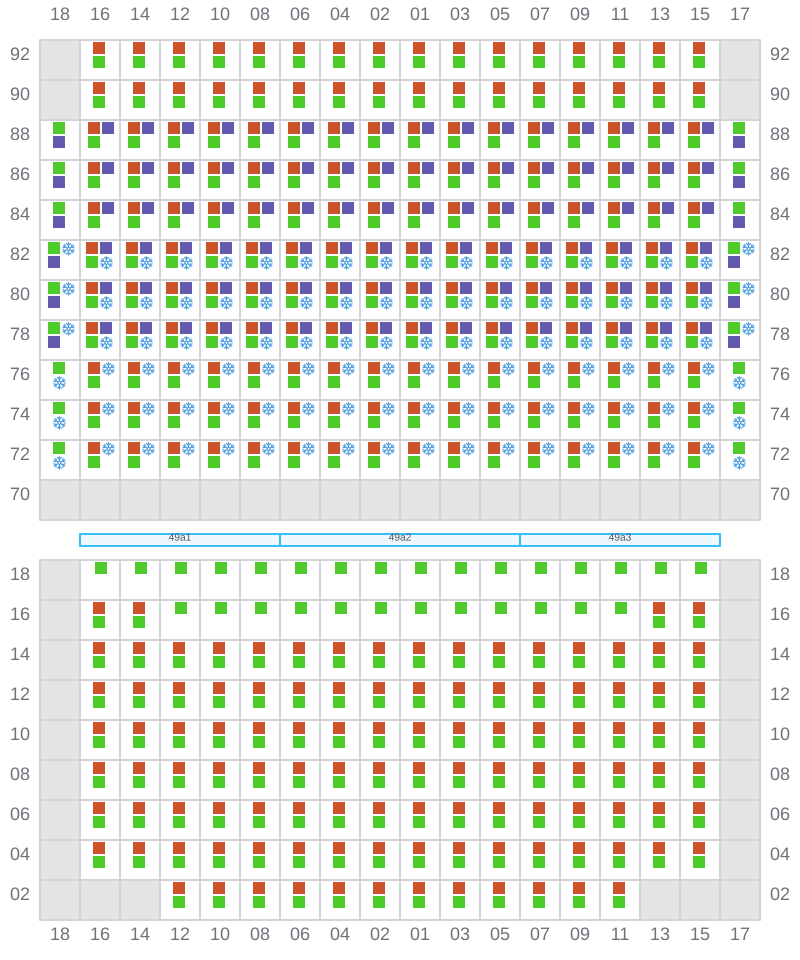

Bay 051 view and slots of MSC ELIANA

053

  • →
  • ✓

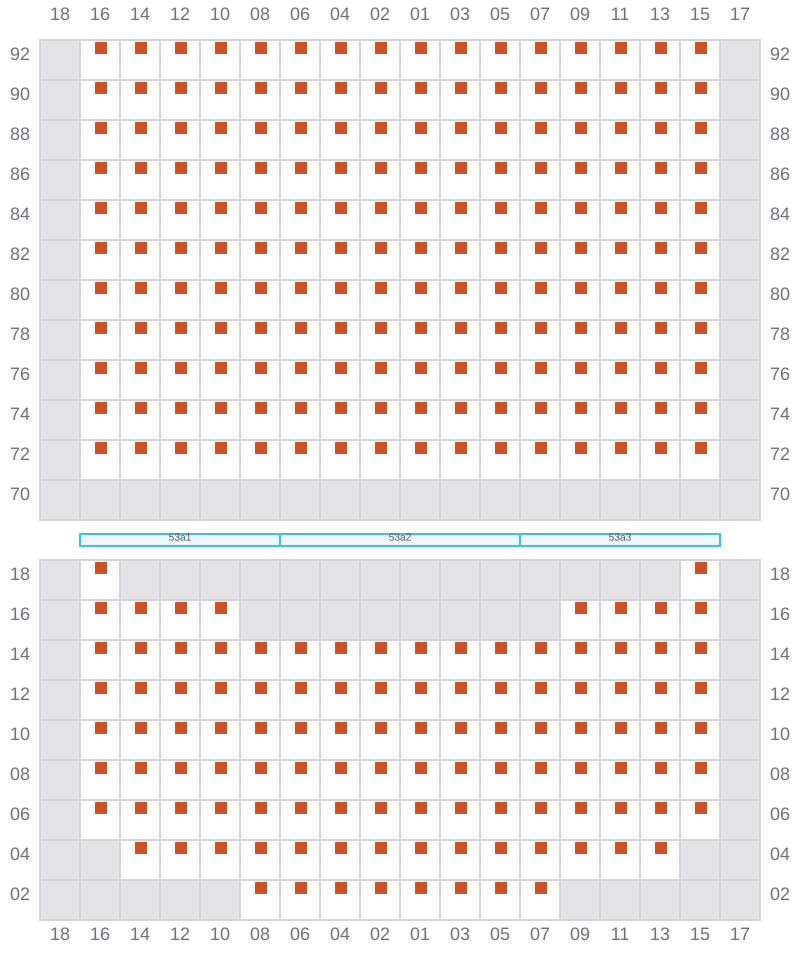

Bay 053 view and slots of MSC ELIANA

055 (054)

  • ←
  • ✓
Bay 055 view and slots of MSC ELIANA

057

  • →
  • ✓

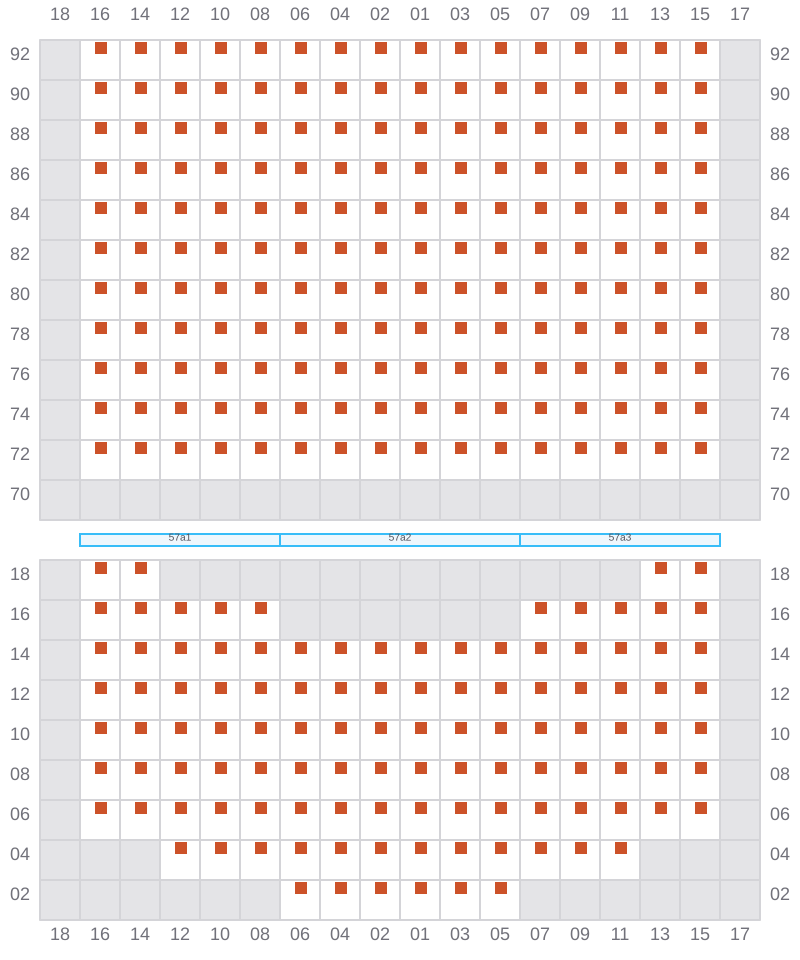

Bay 057 view and slots of MSC ELIANA

059 (058)

  • ←
  • ✓

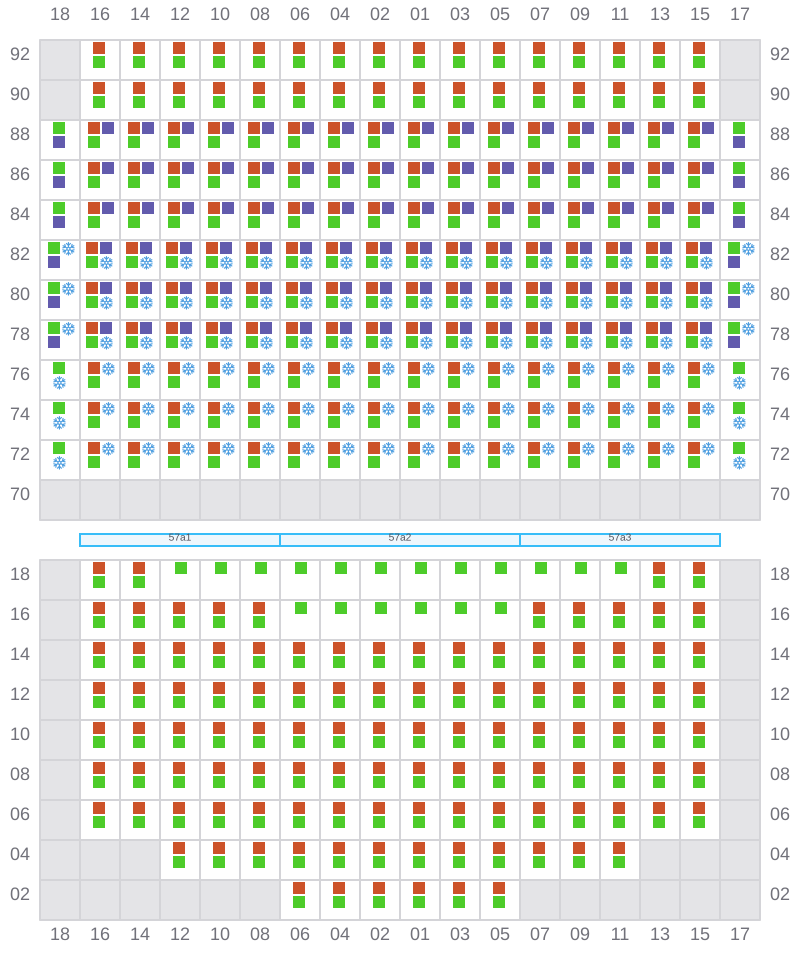

Bay 059 view and slots of MSC ELIANA

061

  • →
  • ✓
Bay 061 view and slots of MSC ELIANA

063 (062)

  • ←
  • ? / ?
  • ? / ?
  • ✓

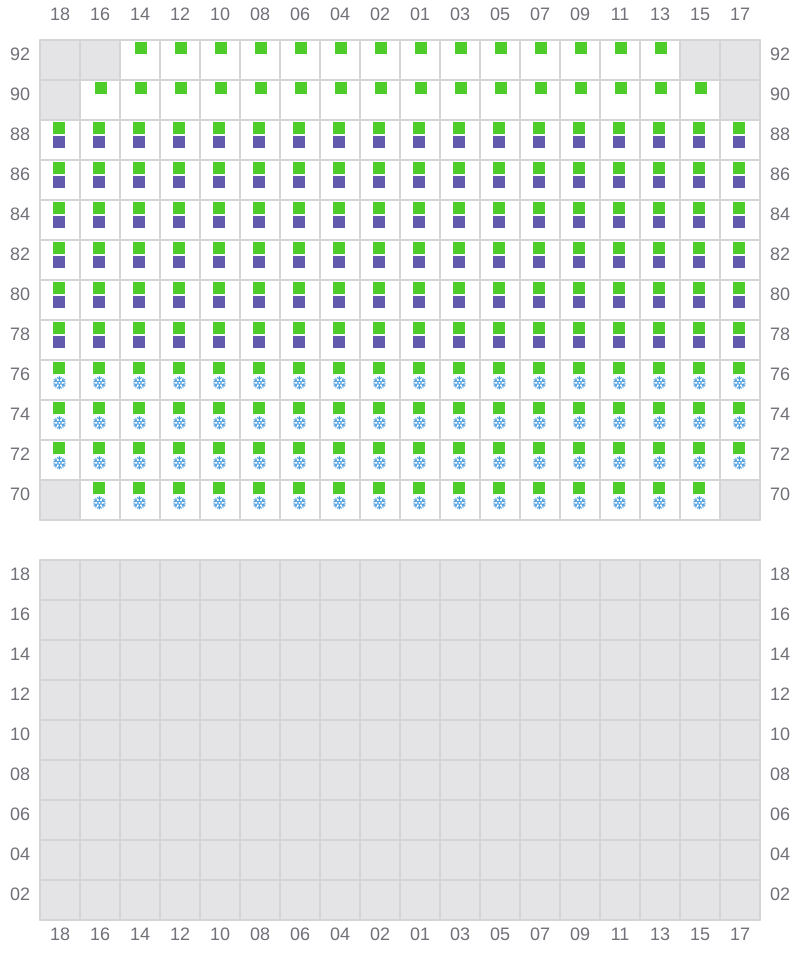

Bay 063 view and slots of MSC ELIANA

065

  • →
  • ✓

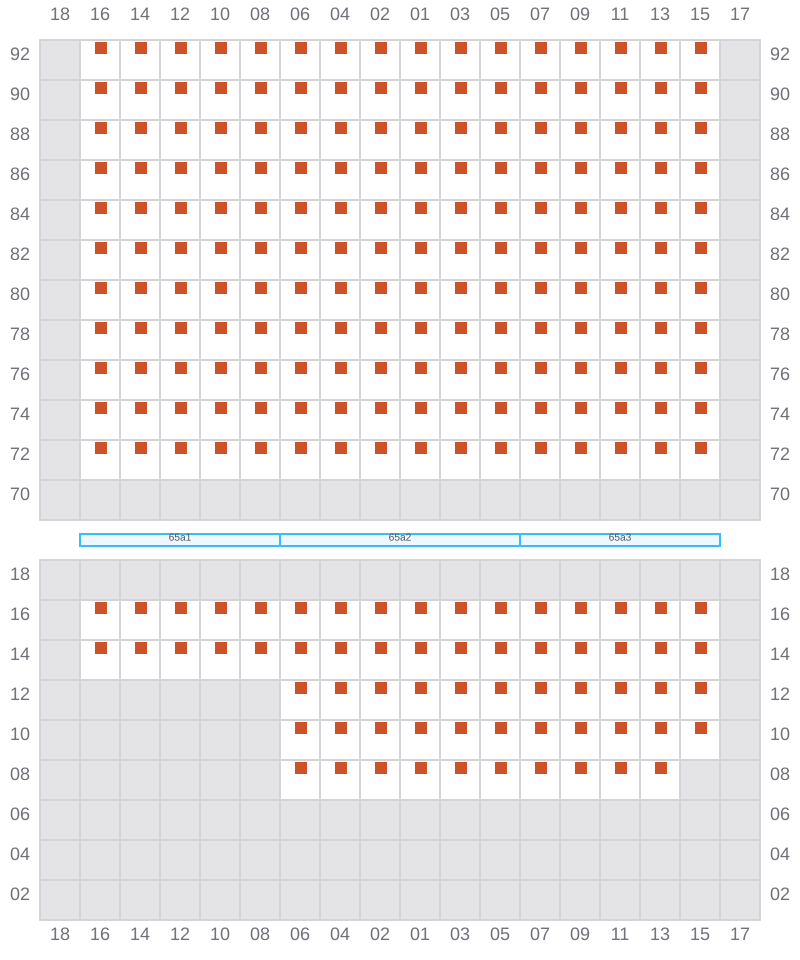

Bay 065 view and slots of MSC ELIANA

067 (066)

  • ←
  • ✓
Bay 067 view and slots of MSC ELIANA

069

  • →
  • ✓

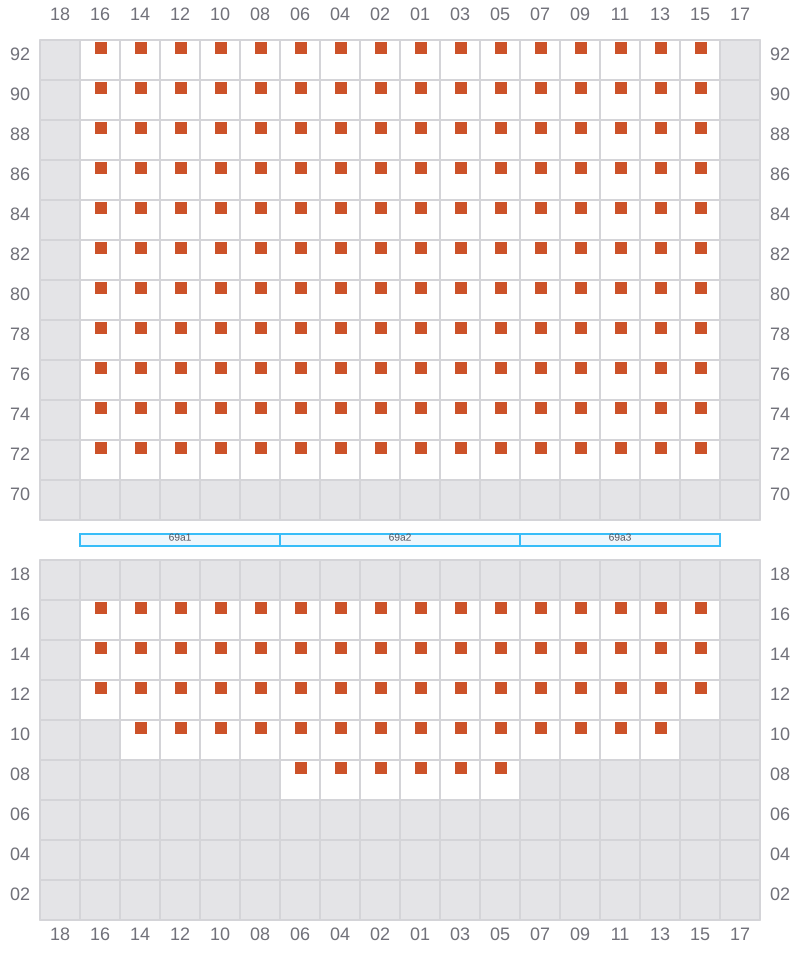

Bay 069 view and slots of MSC ELIANA

071 (070)

  • ←
  • ✓

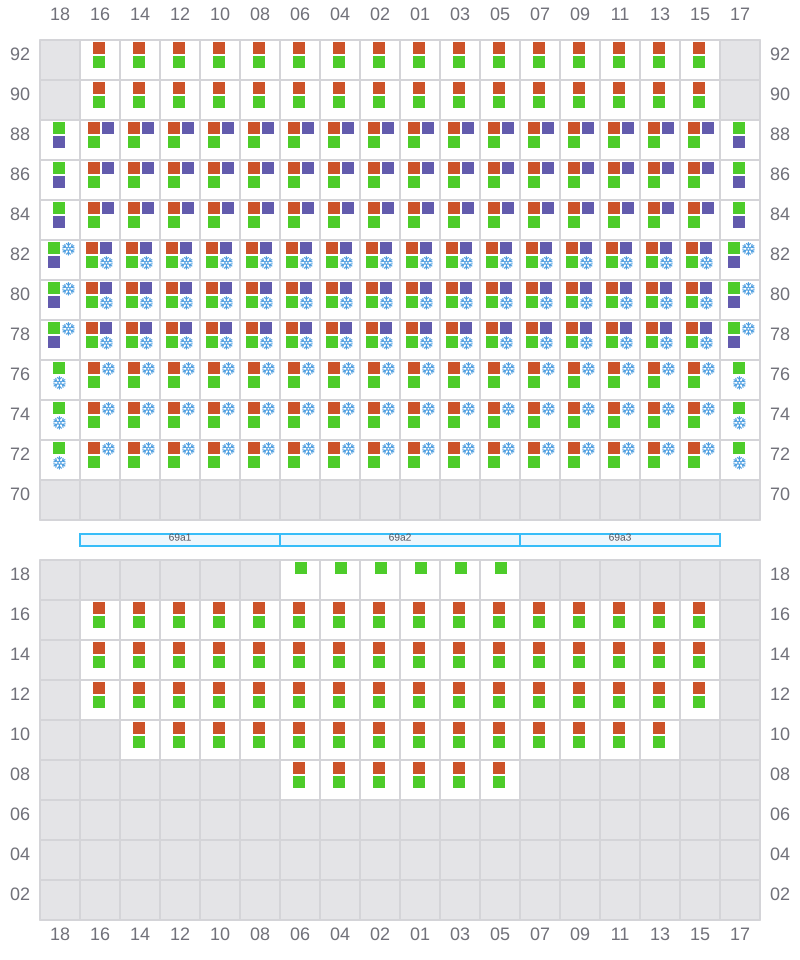

Bay 071 view and slots of MSC ELIANA

073

  • →
  • ✓

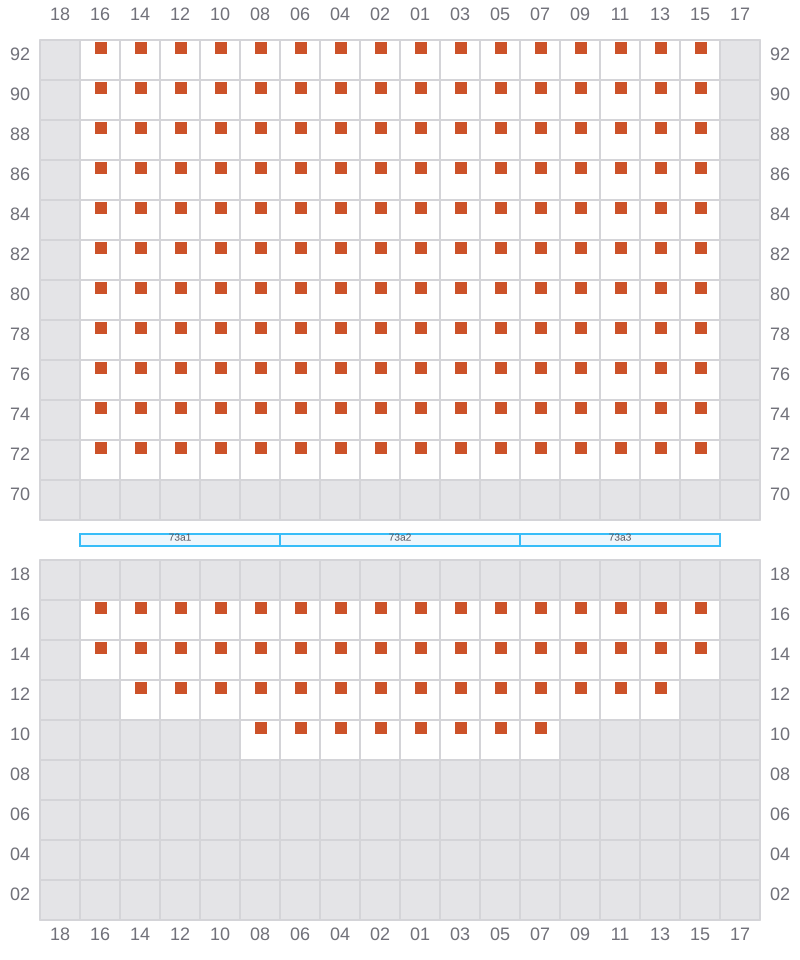

Bay 073 view and slots of MSC ELIANA

075 (074)

  • ←
  • ✓
Bay 075 view and slots of MSC ELIANA

077

  • →
  • ? / ?
  • ? / ?
  • ✓

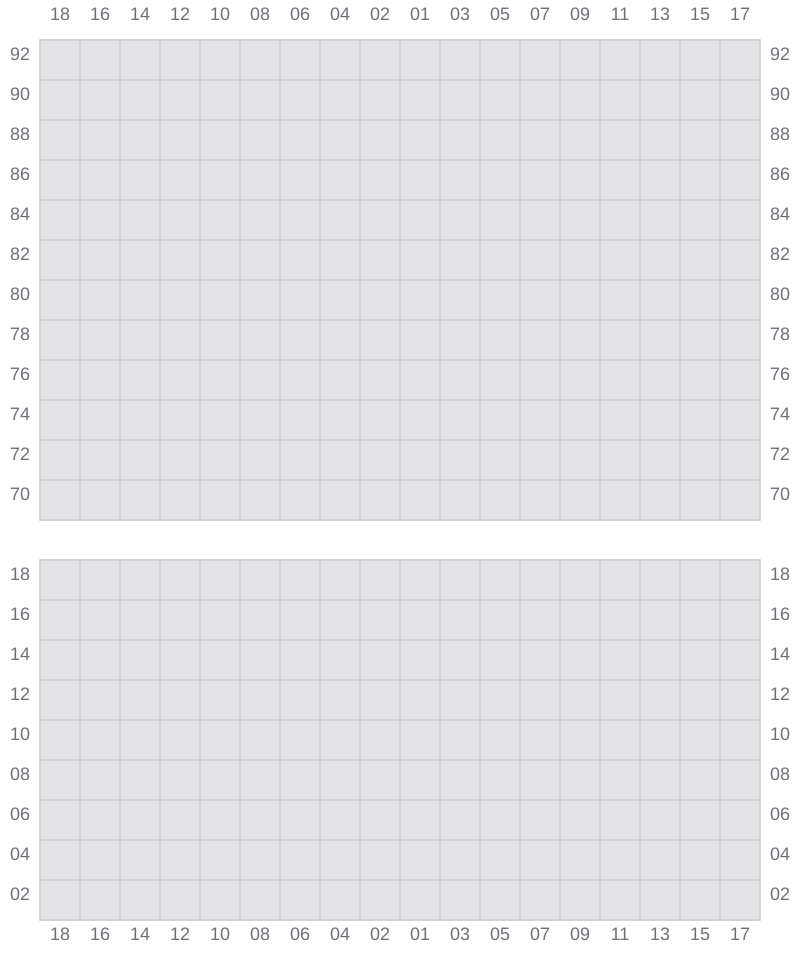

Bay 077 view and slots of MSC ELIANA

079 (078)

  • ←
  • ? / ?
  • ? / ?
  • ✓

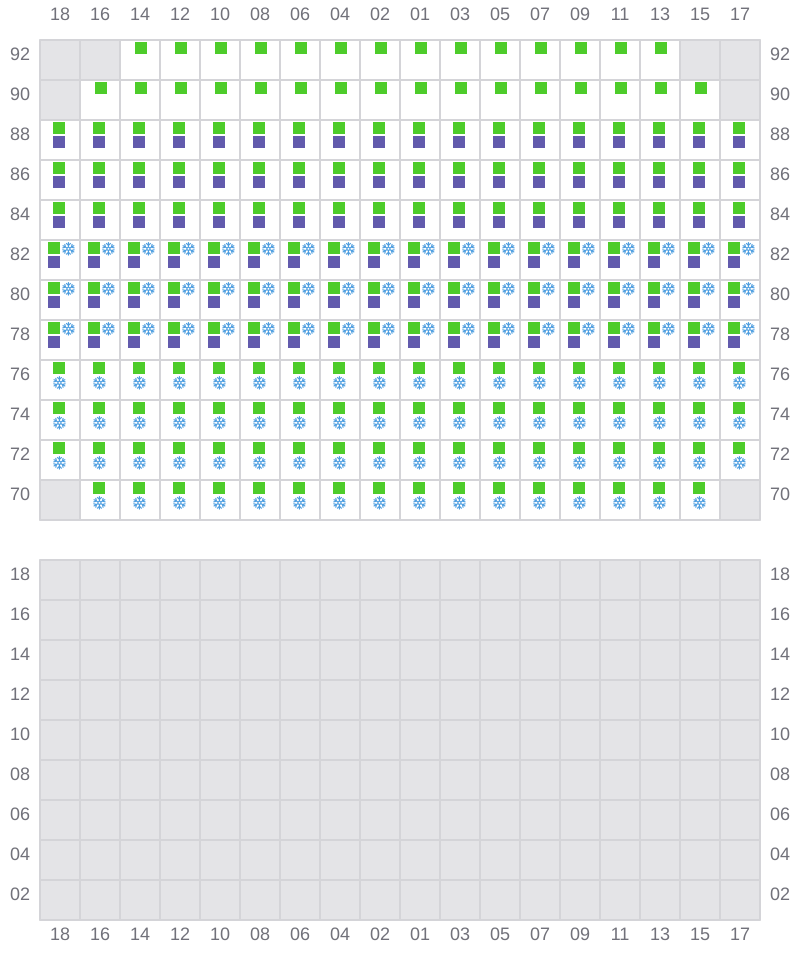

Bay 079 view and slots of MSC ELIANA
