MSC ELISA XIII
9463059 | D5QH7 | MAERSK by ********* Last update: Wed Mar 27 2024

General Info

Ship Name:MSC ELISA XIII
IMO Code:9463059
Call Sign:D5QH7
Line Operator:MAERSK
Class Name for Sister Ships:EDINBURGH
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,102

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MSC ELISA XIII

Hatch-Covers View

Deck view of MSC ELISA XIII

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

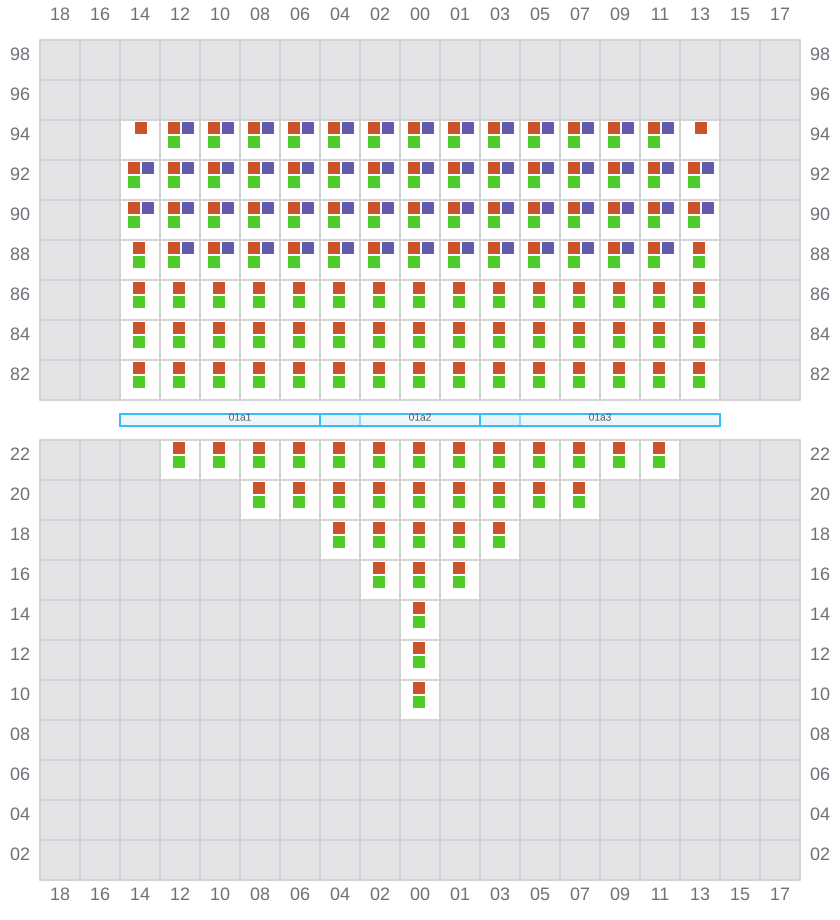

Bay 001 view and slots of MSC ELISA XIII

003

  • ←

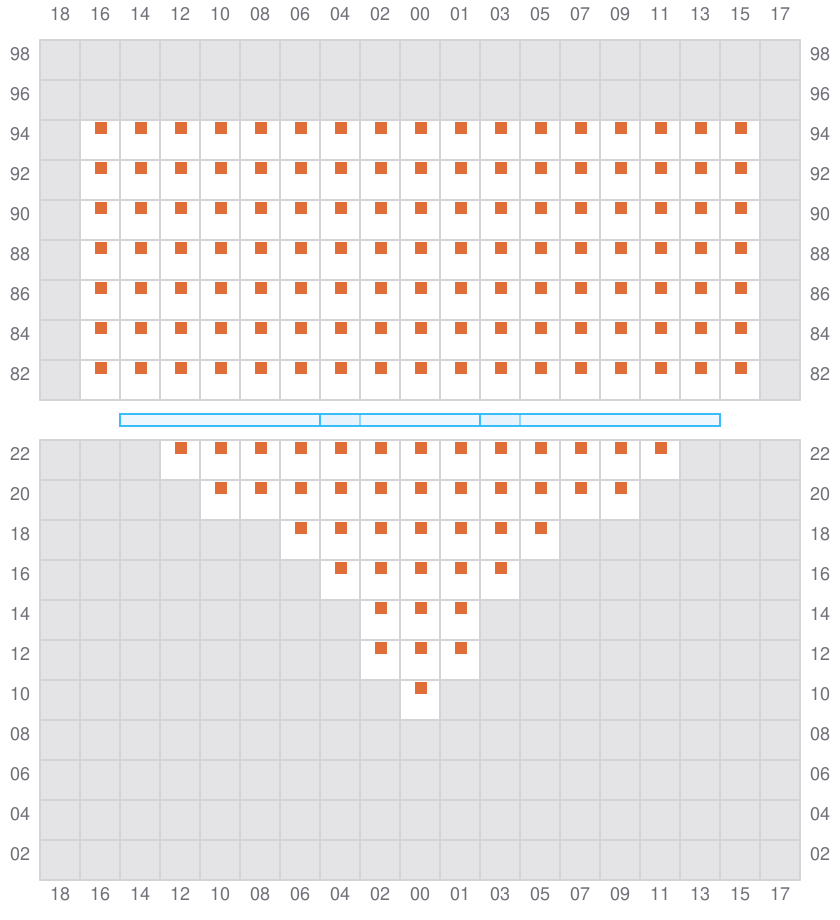

Bay 003 view and slots of MSC ELISA XIII

005 (006)

  • →

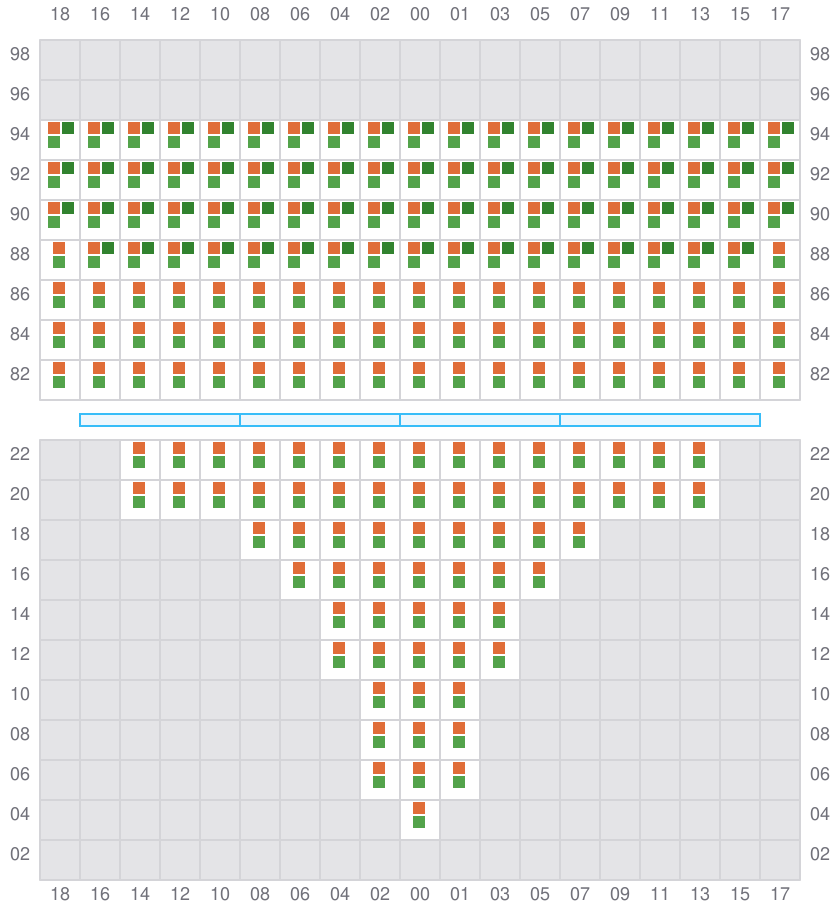

Bay 005 view and slots of MSC ELISA XIII

007

  • ←
  • → / ?

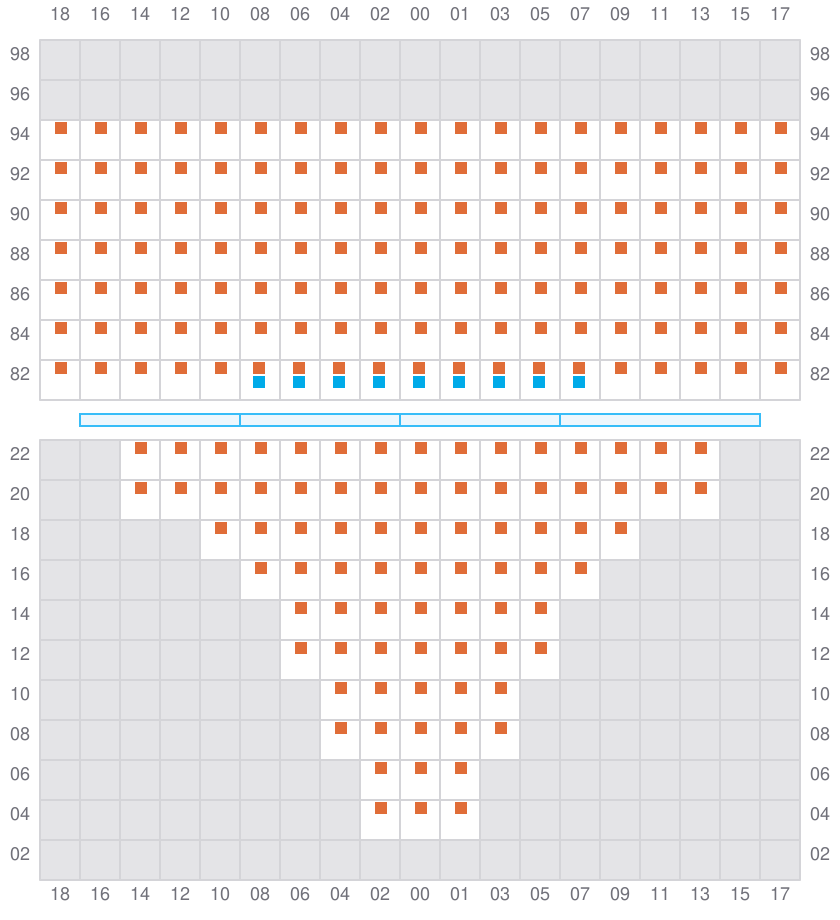

Bay 007 view and slots of MSC ELISA XIII

009 (010)

  • →

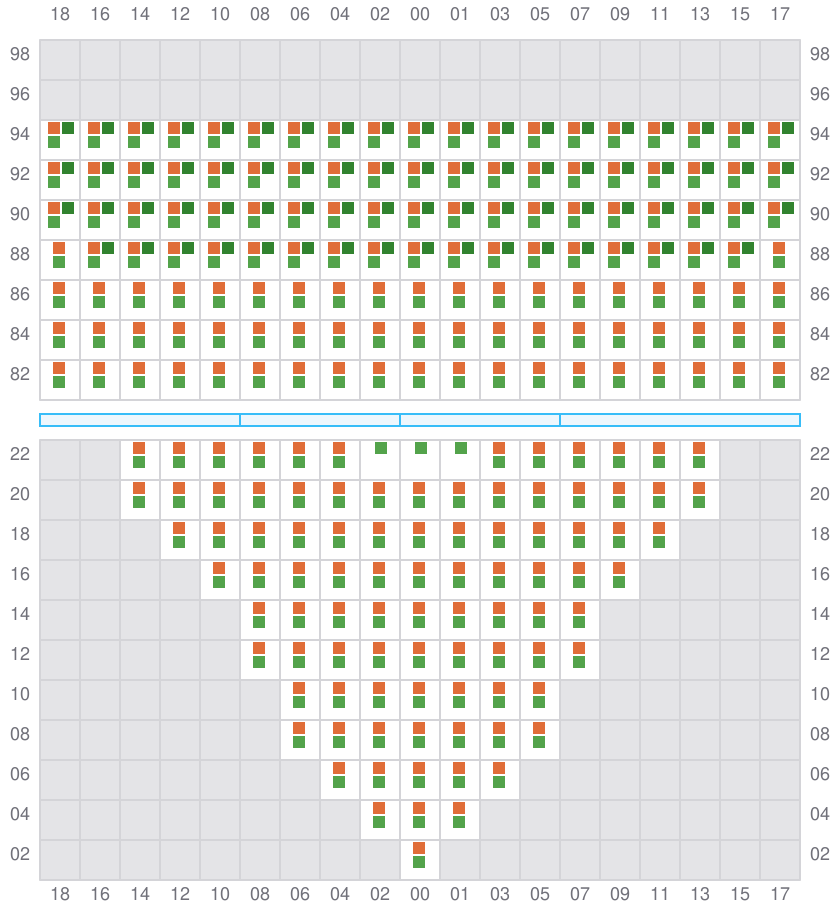

Bay 009 view and slots of MSC ELISA XIII

011

  • ←
  • → / ?

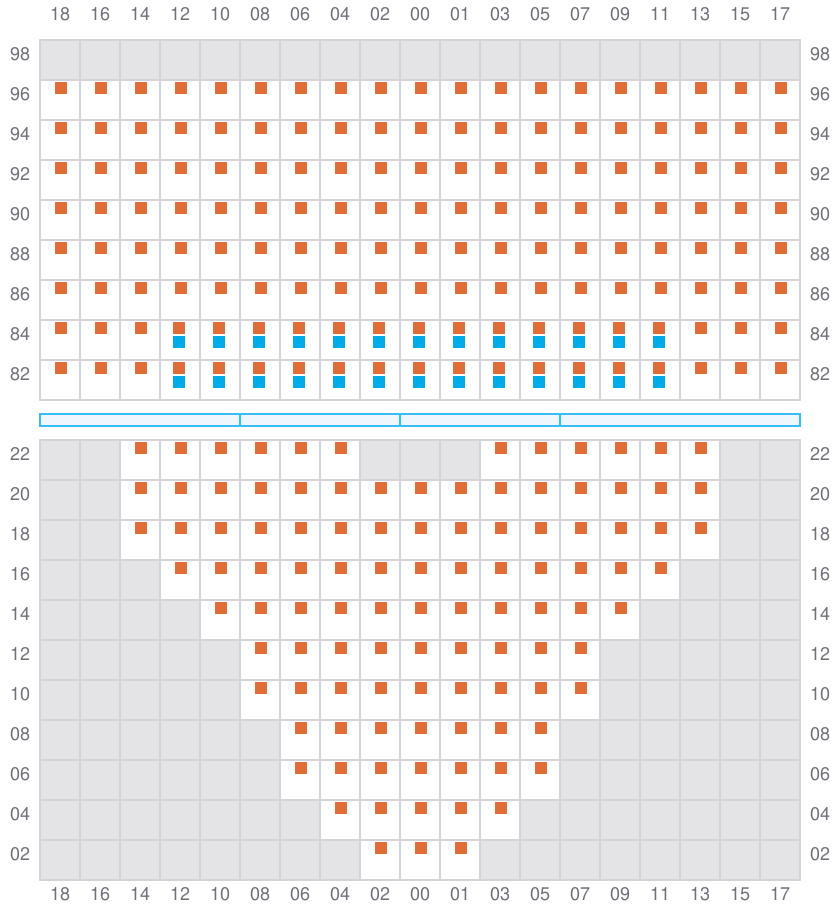

Bay 011 view and slots of MSC ELISA XIII

013 (014)

  • →

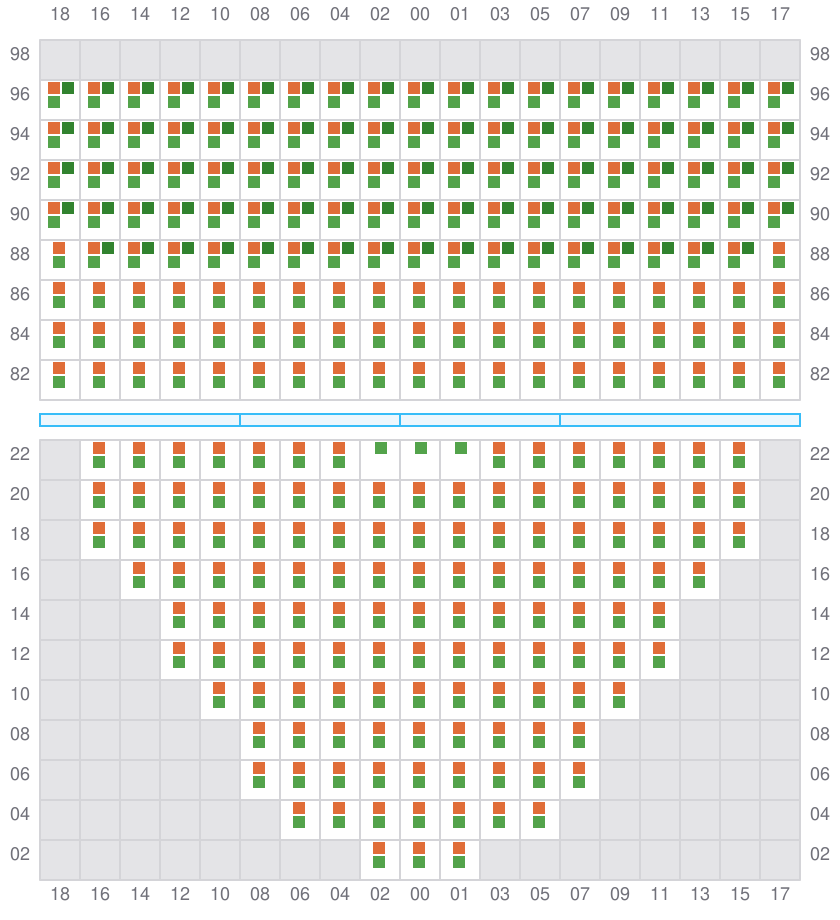

Bay 013 view and slots of MSC ELISA XIII

015

  • ←
  • → / ?

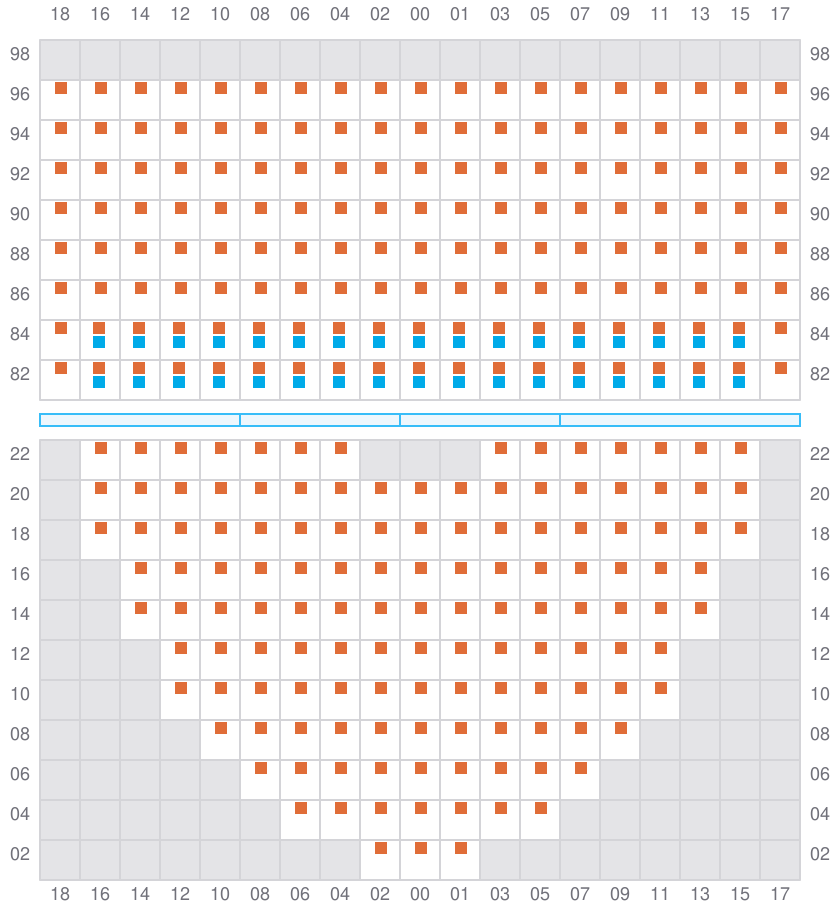

Bay 015 view and slots of MSC ELISA XIII

017 (018)

  • →

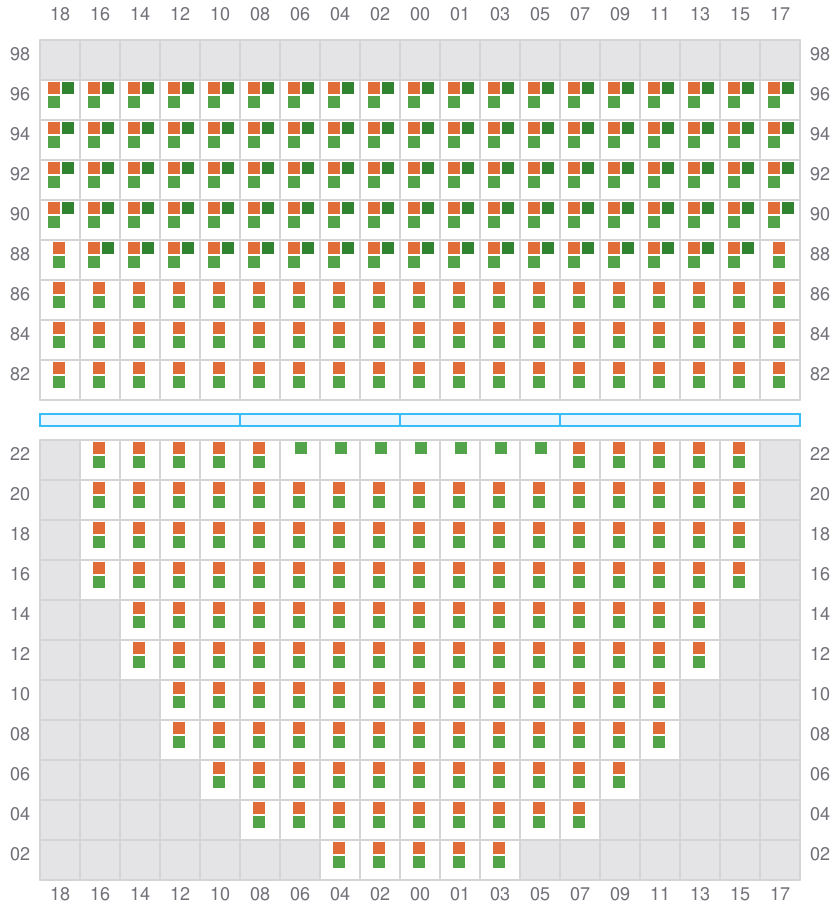

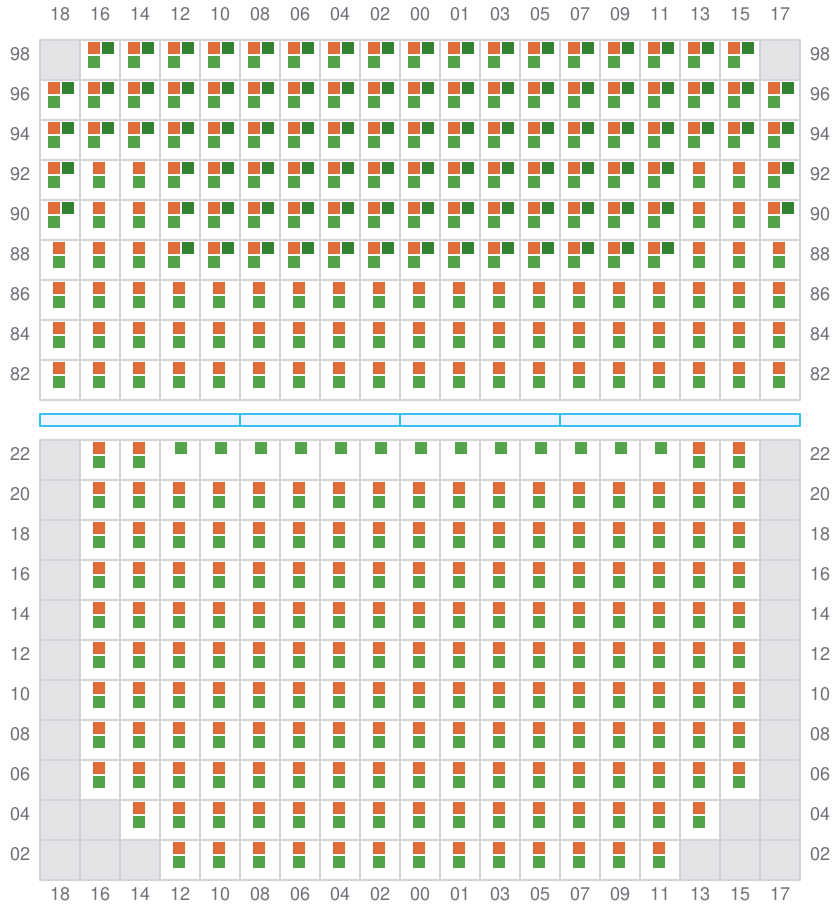

Bay 017 view and slots of MSC ELISA XIII

019

  • ←
  • → / ?

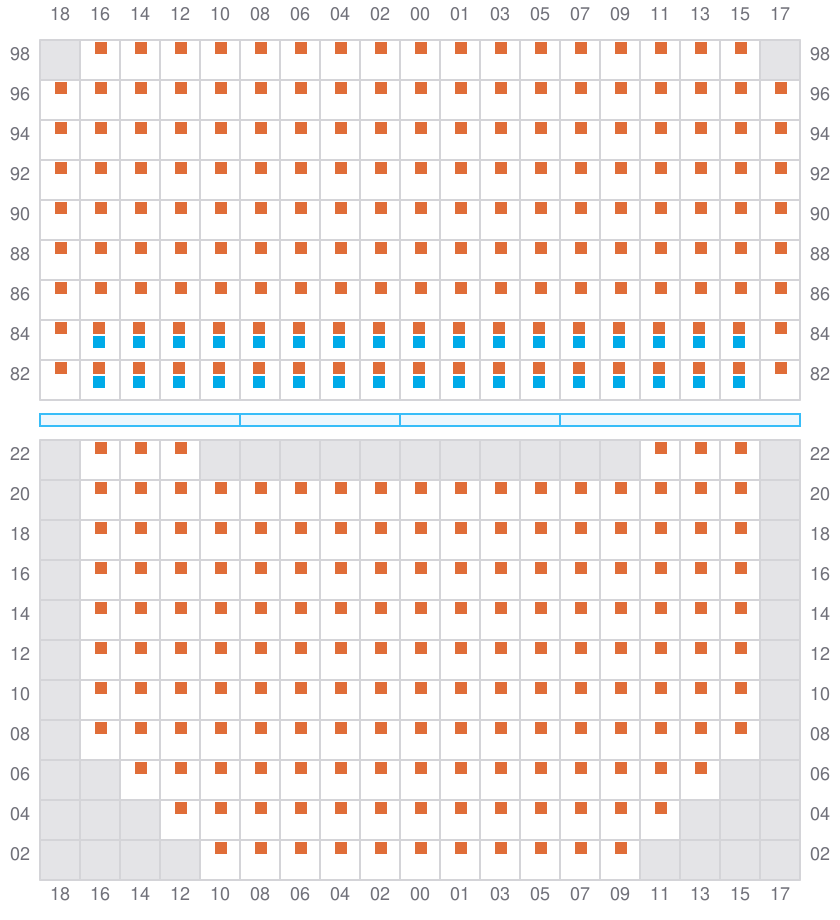

Bay 019 view and slots of MSC ELISA XIII

021 (022)

  • →

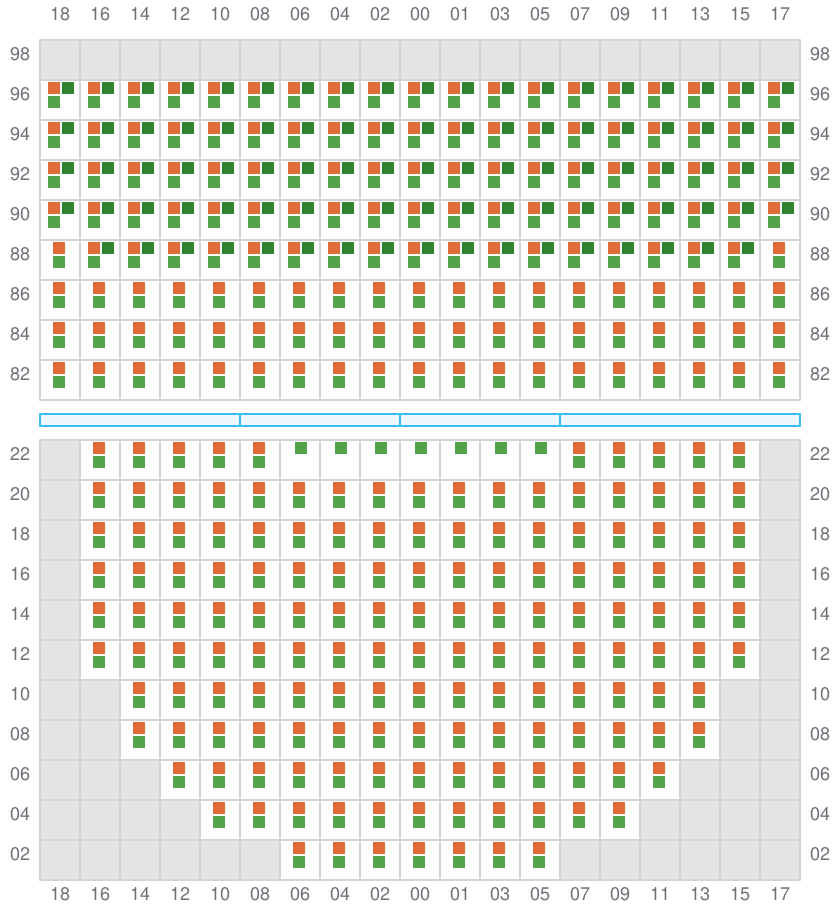

Bay 021 view and slots of MSC ELISA XIII

023

  • ←
  • → / ?

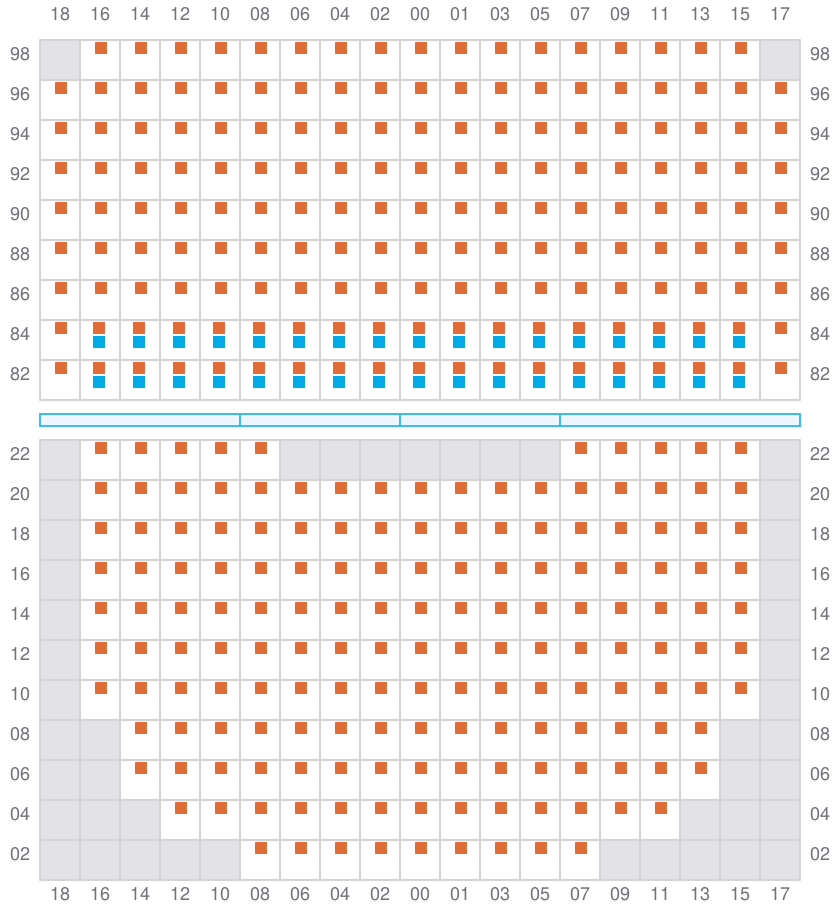

Bay 023 view and slots of MSC ELISA XIII

025 (026)

  • →

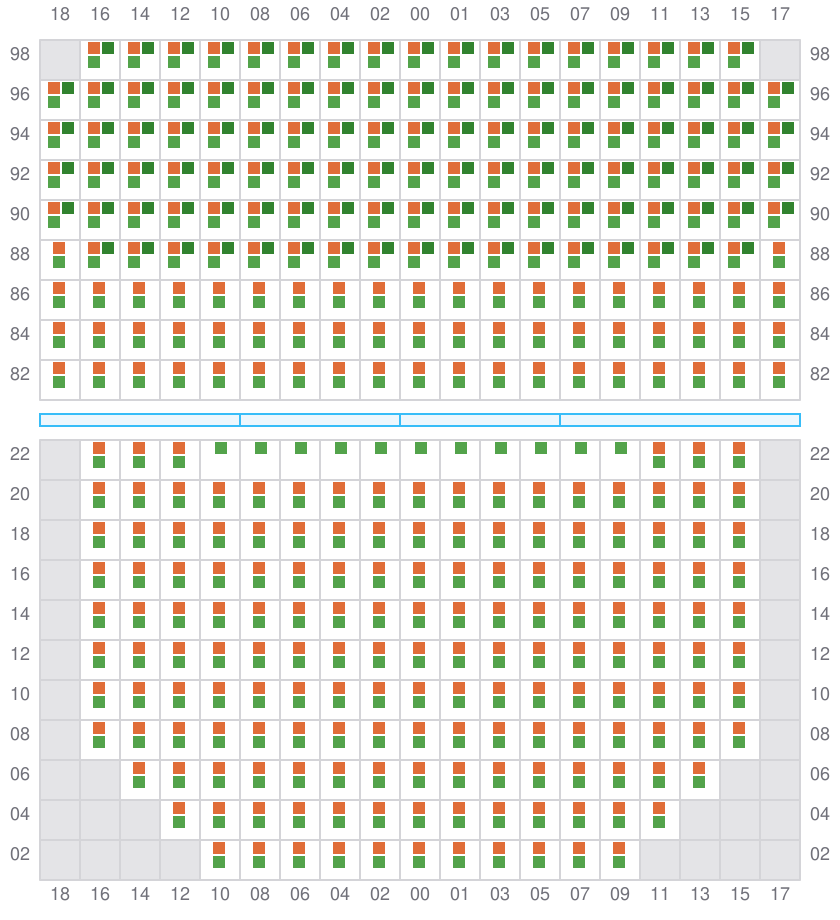

Bay 025 view and slots of MSC ELISA XIII

027

  • ←
  • → / ?
Bay 027 view and slots of MSC ELISA XIII

029 (030)

  • →
Bay 029 view and slots of MSC ELISA XIII

031

  • ←
  • → / ?
Bay 031 view and slots of MSC ELISA XIII

033 (034)

  • →
Bay 033 view and slots of MSC ELISA XIII

035

  • ←
  • → / ?

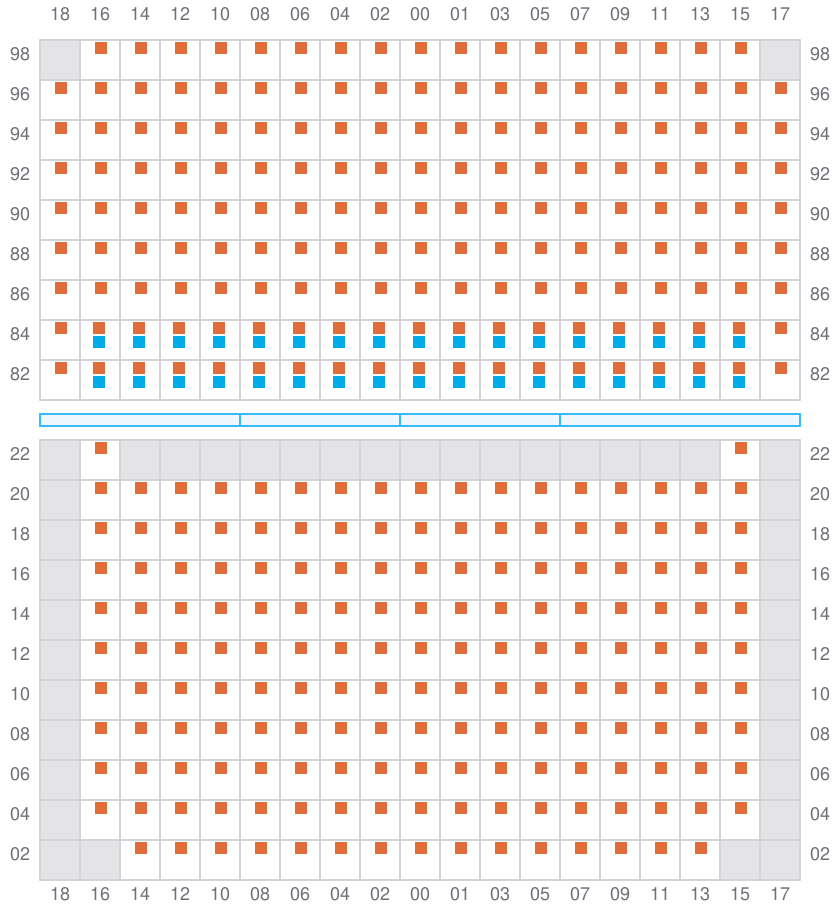

Bay 035 view and slots of MSC ELISA XIII

037 (038)

  • →
Bay 037 view and slots of MSC ELISA XIII

039

  • ←
  • → / ?
Bay 039 view and slots of MSC ELISA XIII

041 (042)

  • →
Bay 041 view and slots of MSC ELISA XIII

043

  • ←
  • → / ?
Bay 043 view and slots of MSC ELISA XIII

045 (046)

  • →

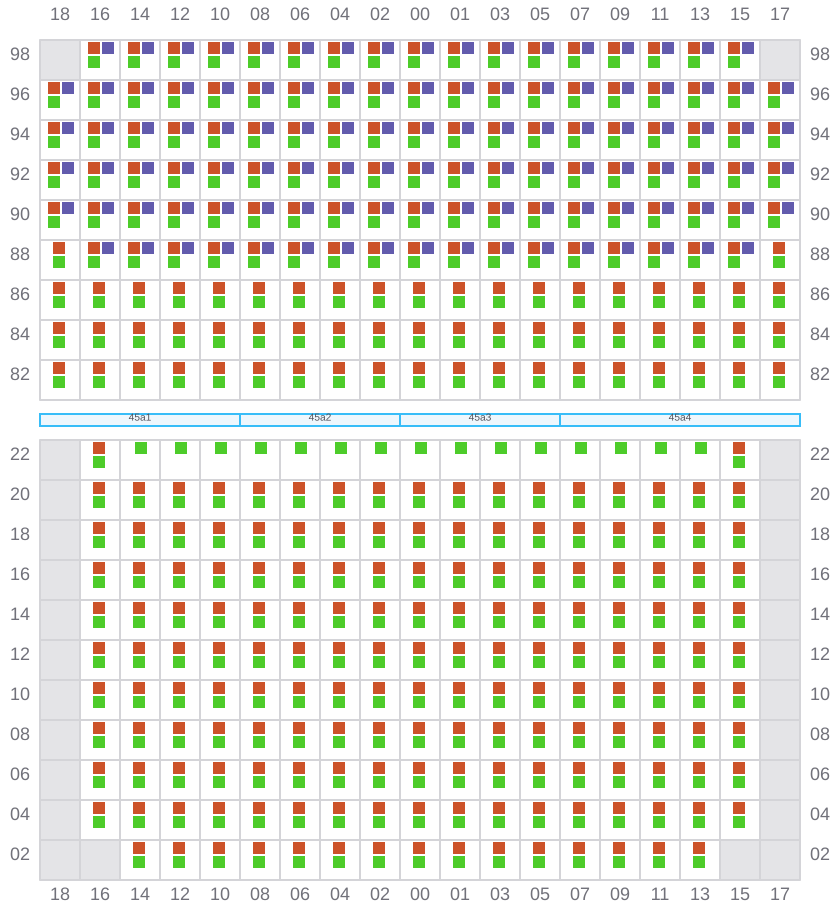

Bay 045 view and slots of MSC ELISA XIII

047

  • ←
  • → / ?
Bay 047 view and slots of MSC ELISA XIII

049 (050)

  • →
Bay 049 view and slots of MSC ELISA XIII

051

  • ←
  • → / ?

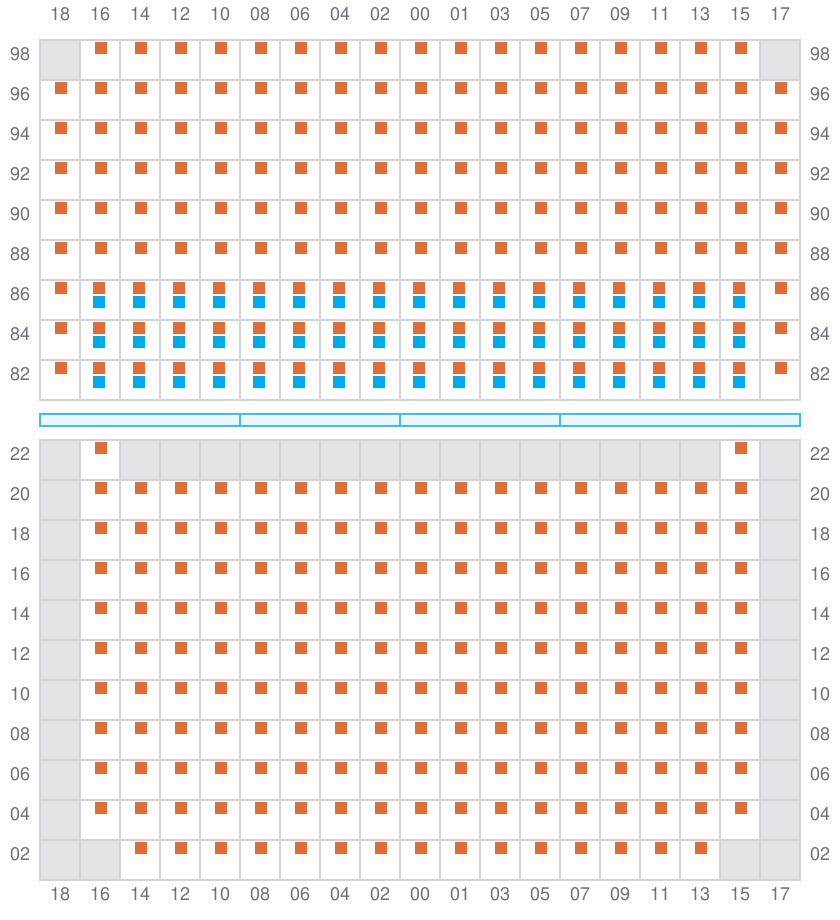

Bay 051 view and slots of MSC ELISA XIII

053 (054)

  • →

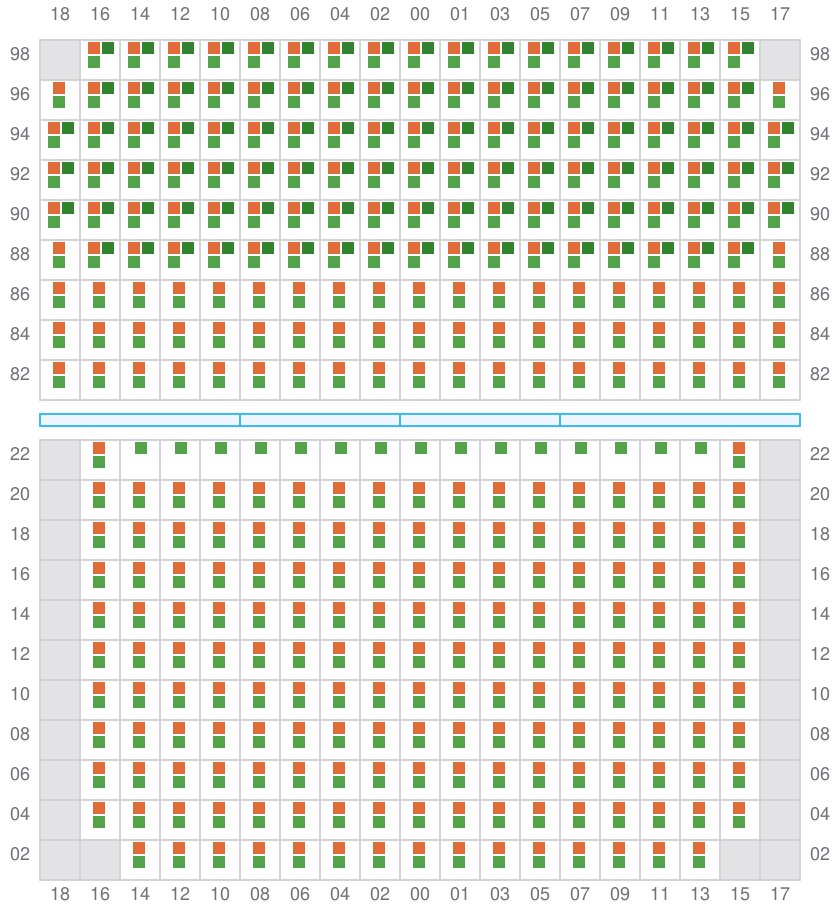

Bay 053 view and slots of MSC ELISA XIII

055

  • ←
  • → / ?
Bay 055 view and slots of MSC ELISA XIII

057 (058)

  • →
Bay 057 view and slots of MSC ELISA XIII

059

  • ←
  • → / ?
Bay 059 view and slots of MSC ELISA XIII

061 (062)

  • →
Bay 061 view and slots of MSC ELISA XIII

063

  • ←
  • → / ?

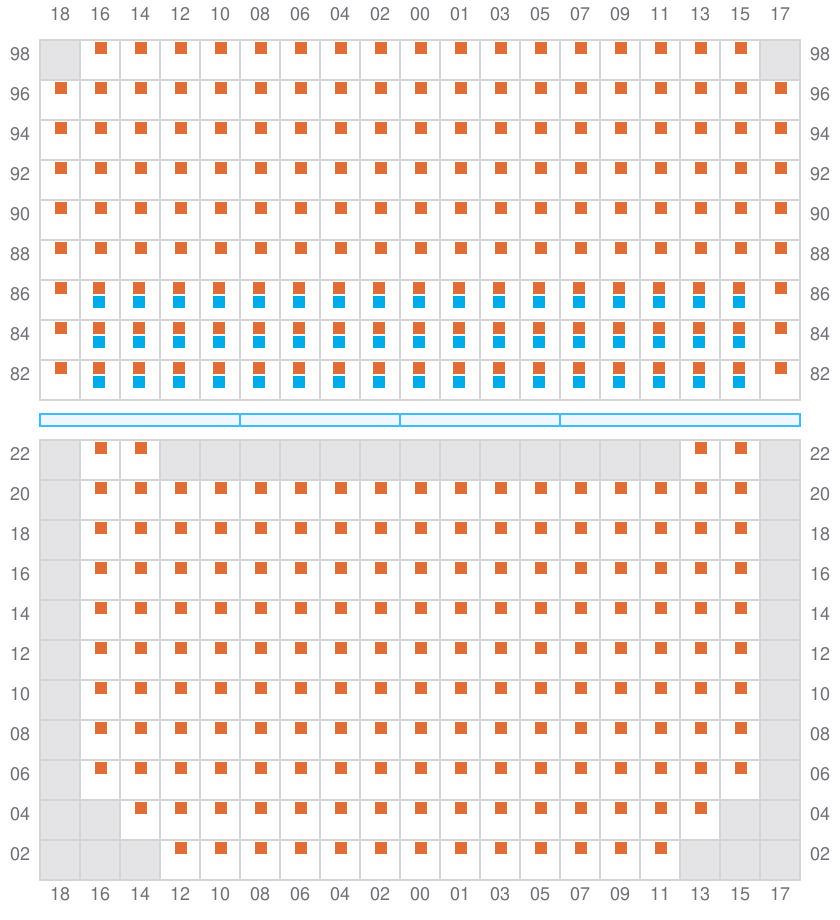

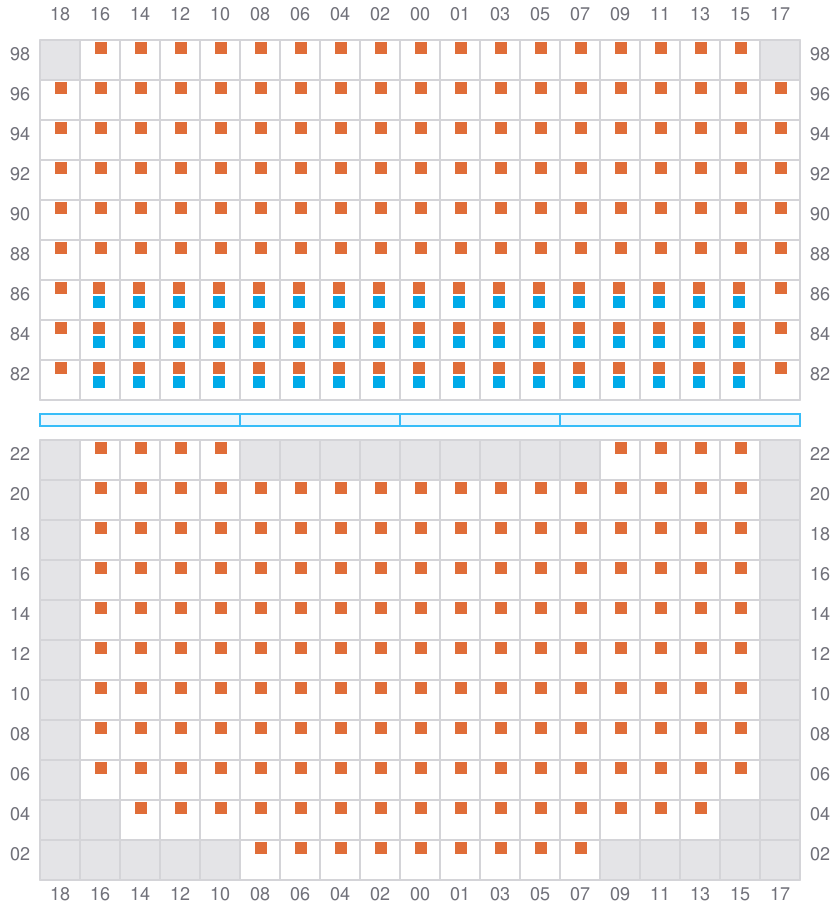

Bay 063 view and slots of MSC ELISA XIII

065 (066)

  • →

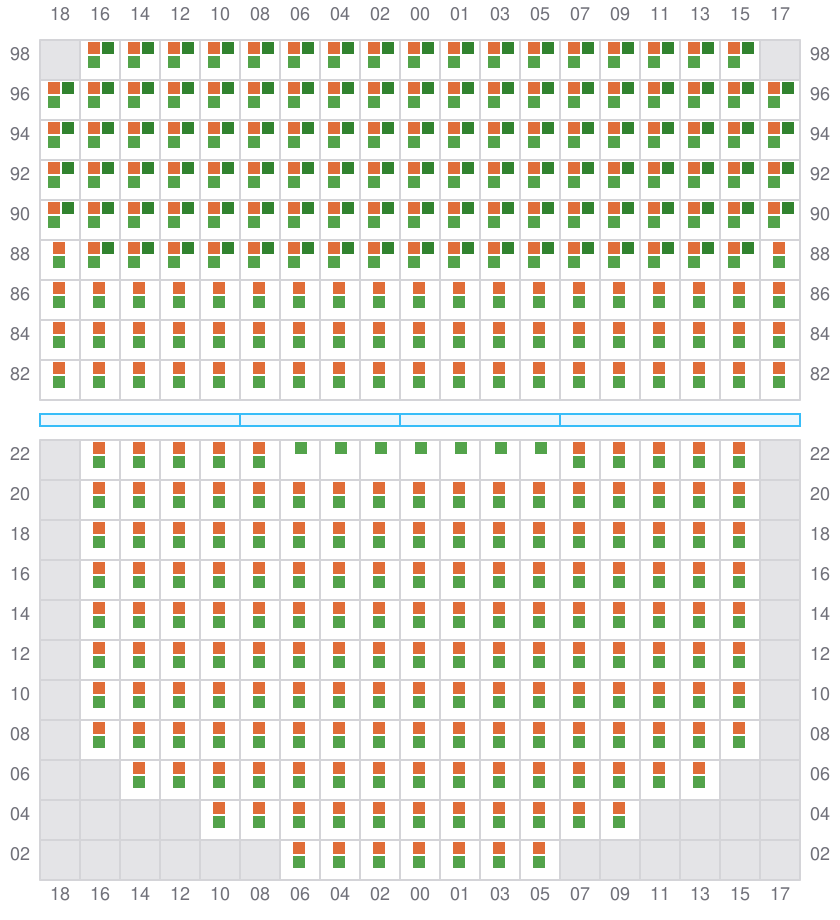

Bay 065 view and slots of MSC ELISA XIII

067

  • ←
  • → / ?

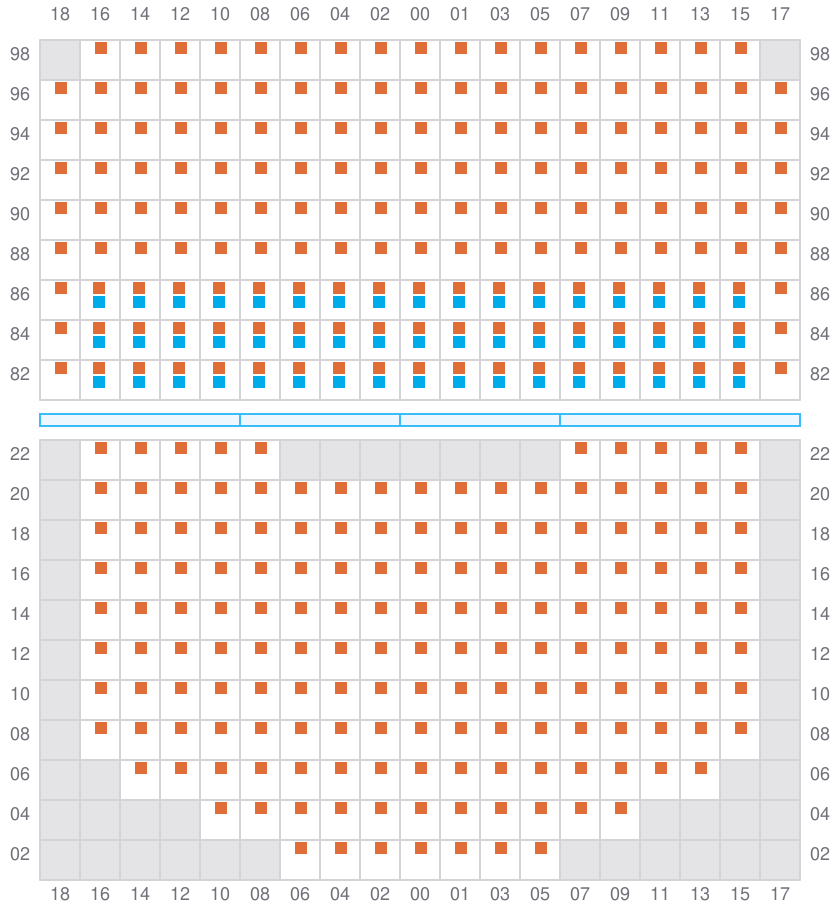

Bay 067 view and slots of MSC ELISA XIII

069 (070)

  • →
Bay 069 view and slots of MSC ELISA XIII

071

  • ←
  • → / ?

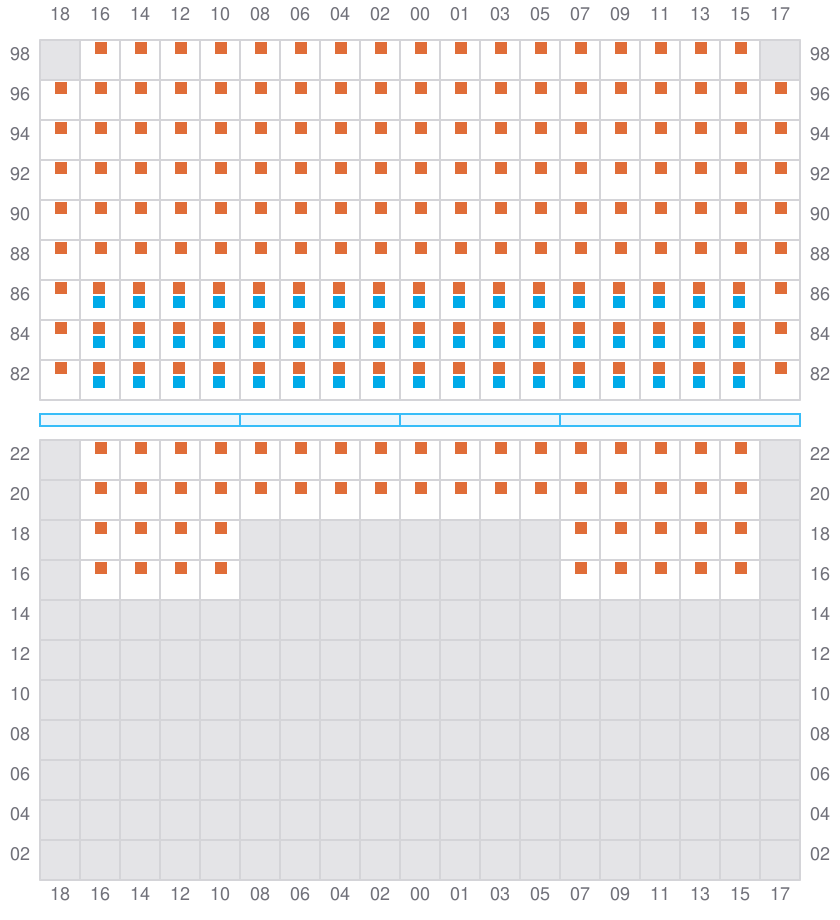

Bay 071 view and slots of MSC ELISA XIII

073 (074)

  • →

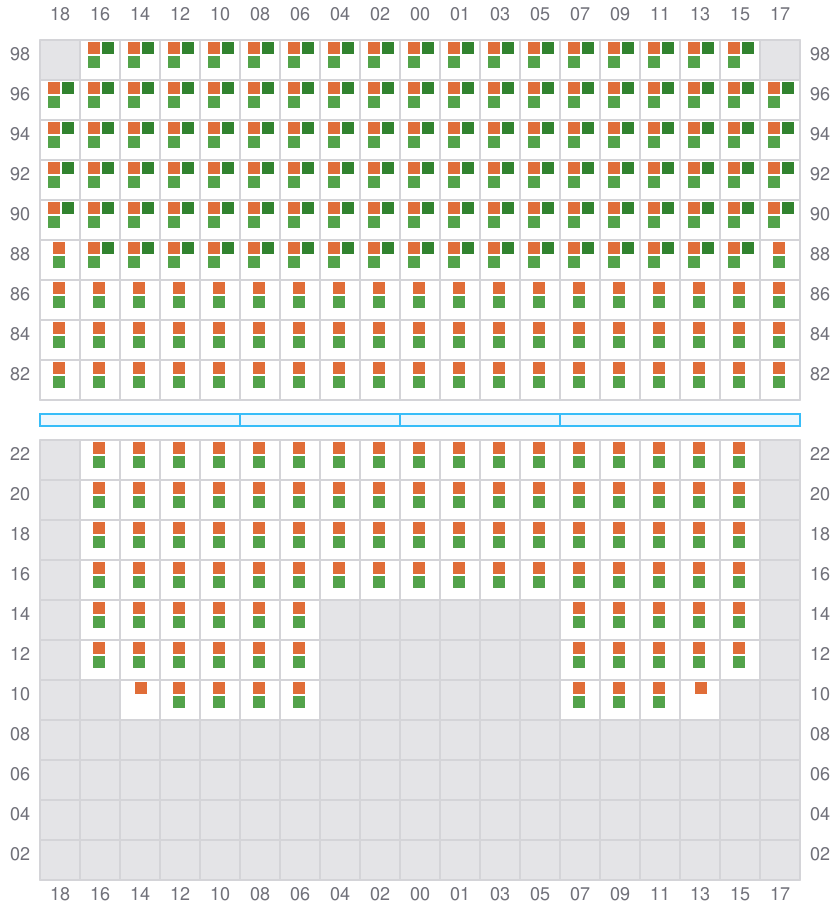

Bay 073 view and slots of MSC ELISA XIII

075

  • ←
  • → / ?

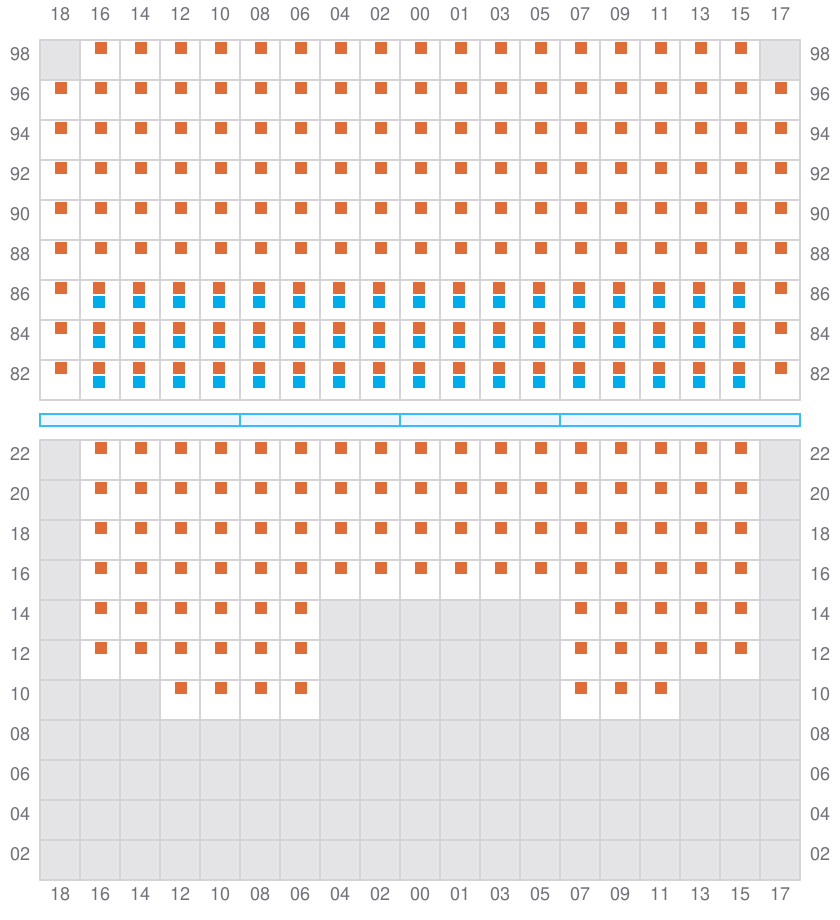

Bay 075 view and slots of MSC ELISA XIII

077 (078)

  • →

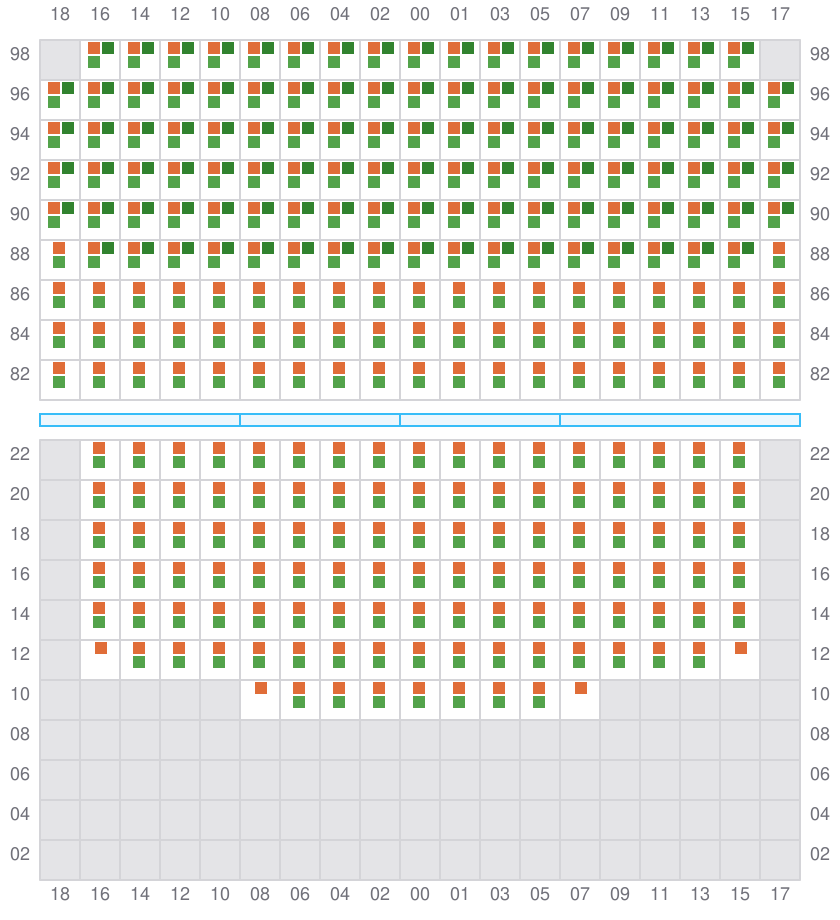

Bay 077 view and slots of MSC ELISA XIII

079

  • ←
  • → / ?

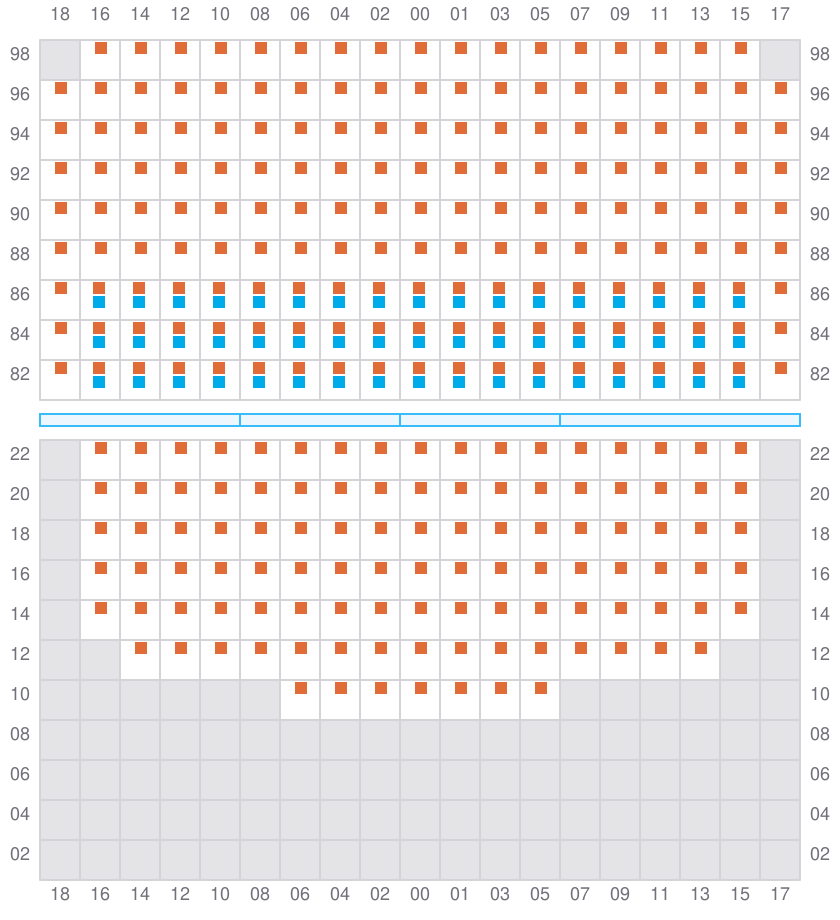

Bay 079 view and slots of MSC ELISA XIII

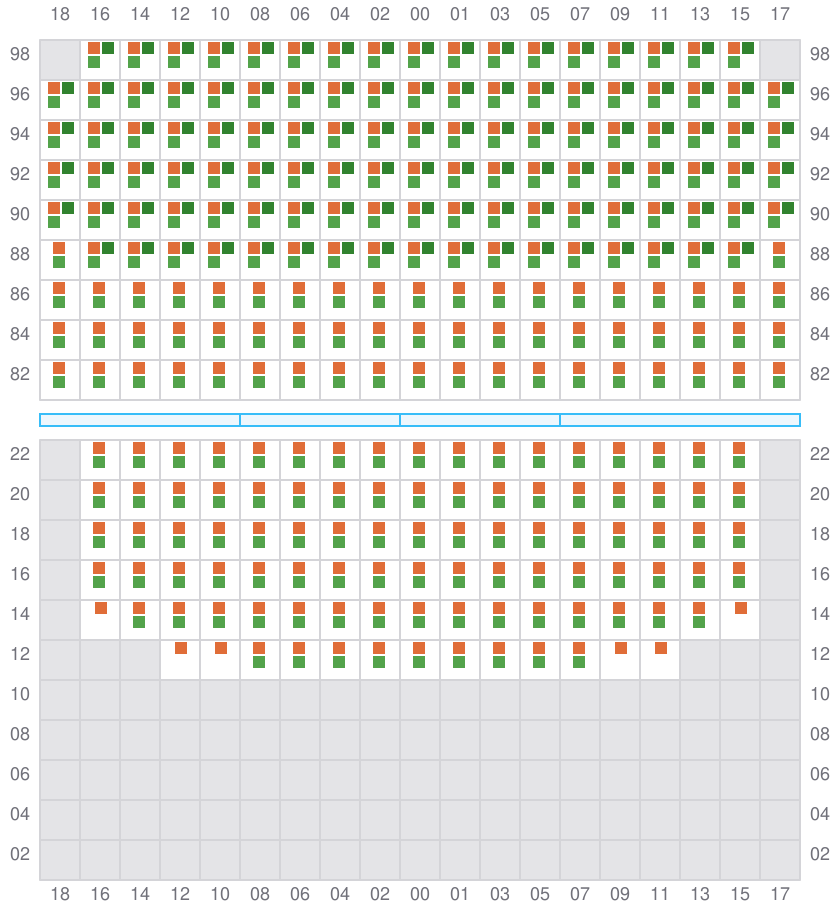

081 (082)

  • →
Bay 081 view and slots of MSC ELISA XIII

083

  • ←
  • → / ?

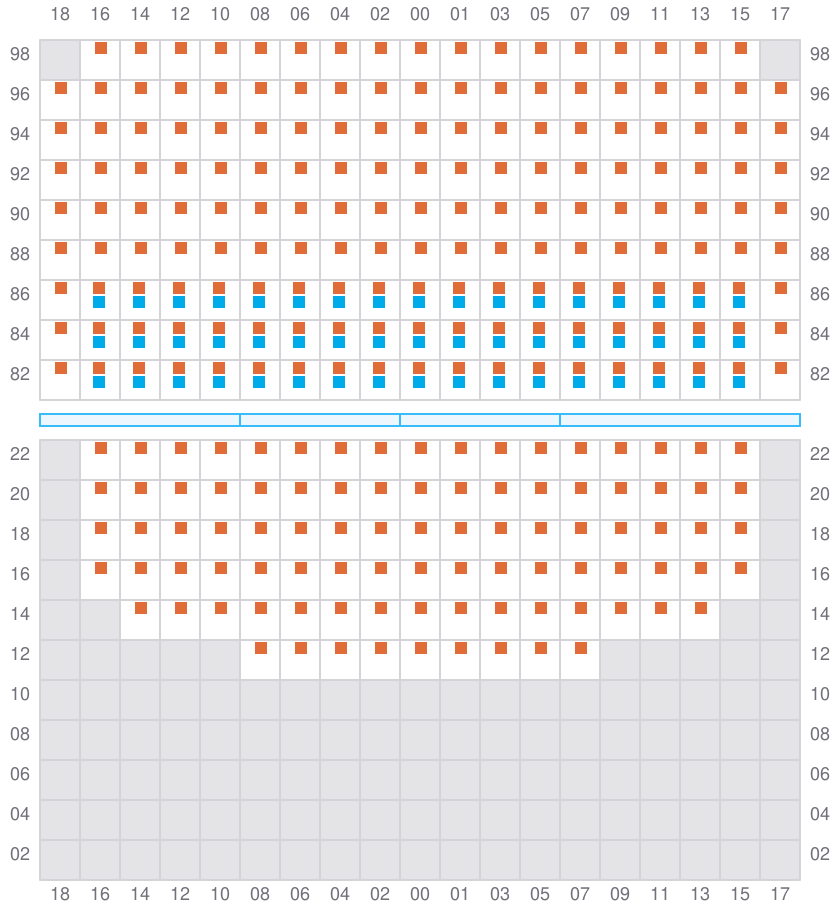

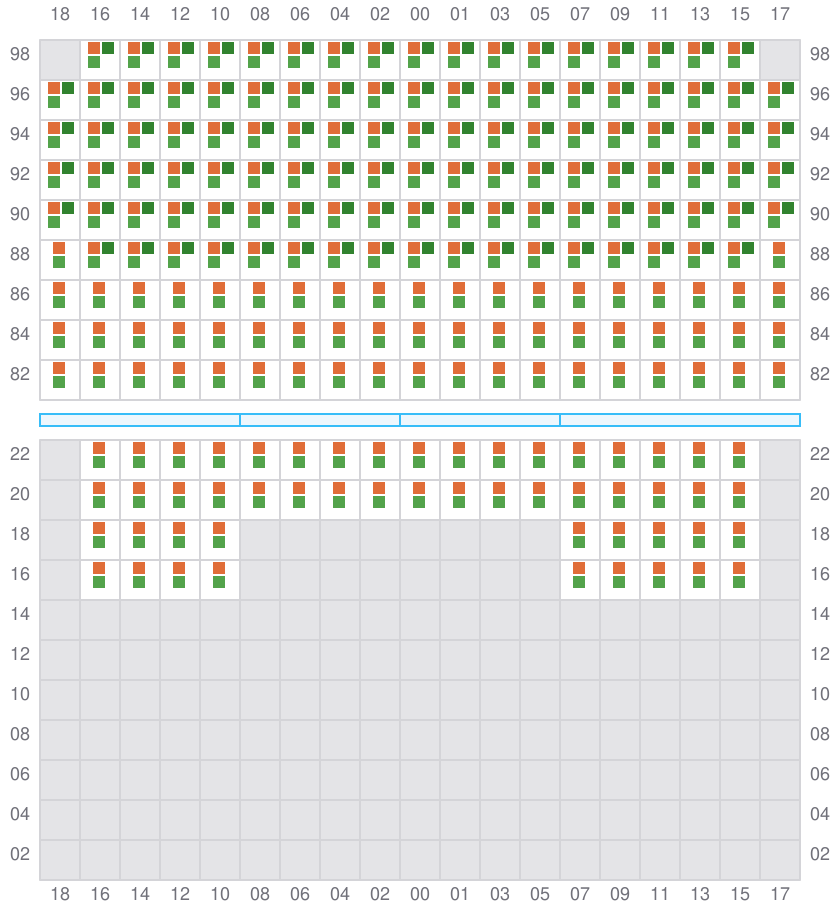

Bay 083 view and slots of MSC ELISA XIII

085 (086)

  • → / ?

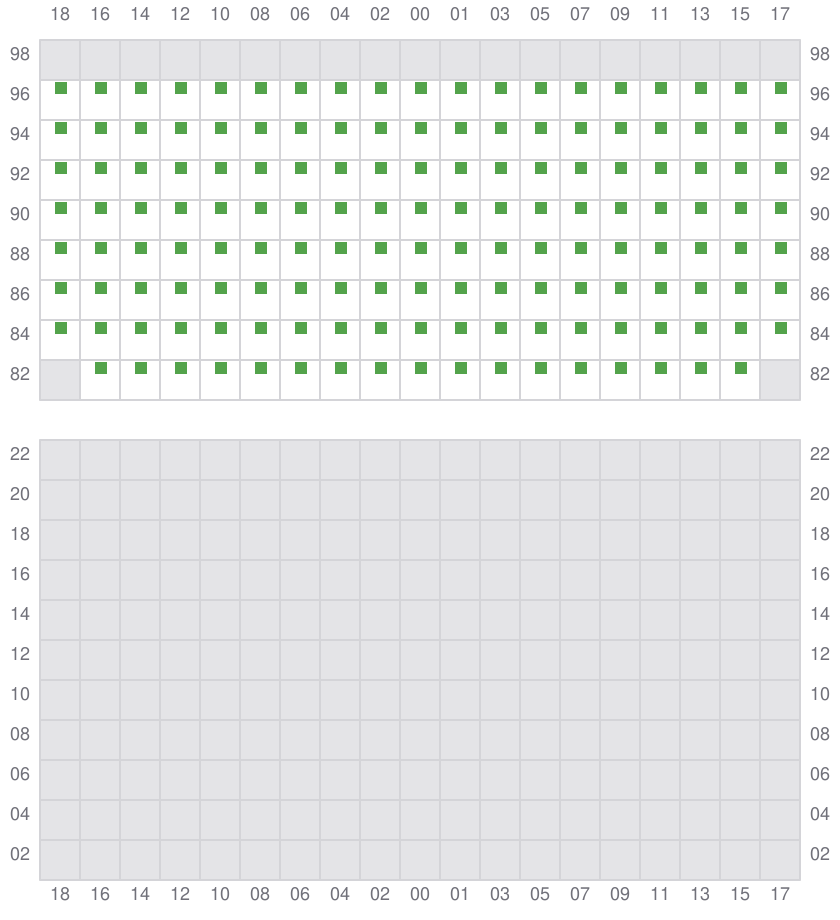

Bay 085 view and slots of MSC ELISA XIII
